Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

Revision 0.4

Dec’ 2015

BM71 Regulatory Compliance Information

Advance Information

Revision 0.4 12/2015

60001372

age

This document covers the Regulatory Compliance information which is part of the

BM71 Module datasheet and related documents shared with customers.

Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

1.0 ANTENNA

1.1 Antenna Characteristics

1.1.1 CERAMIC CHIP ANTENNA

The BM71 module contains an integral ceramic chip antenna.

The Figure 1-1 illustrates the antenna performance of the module.

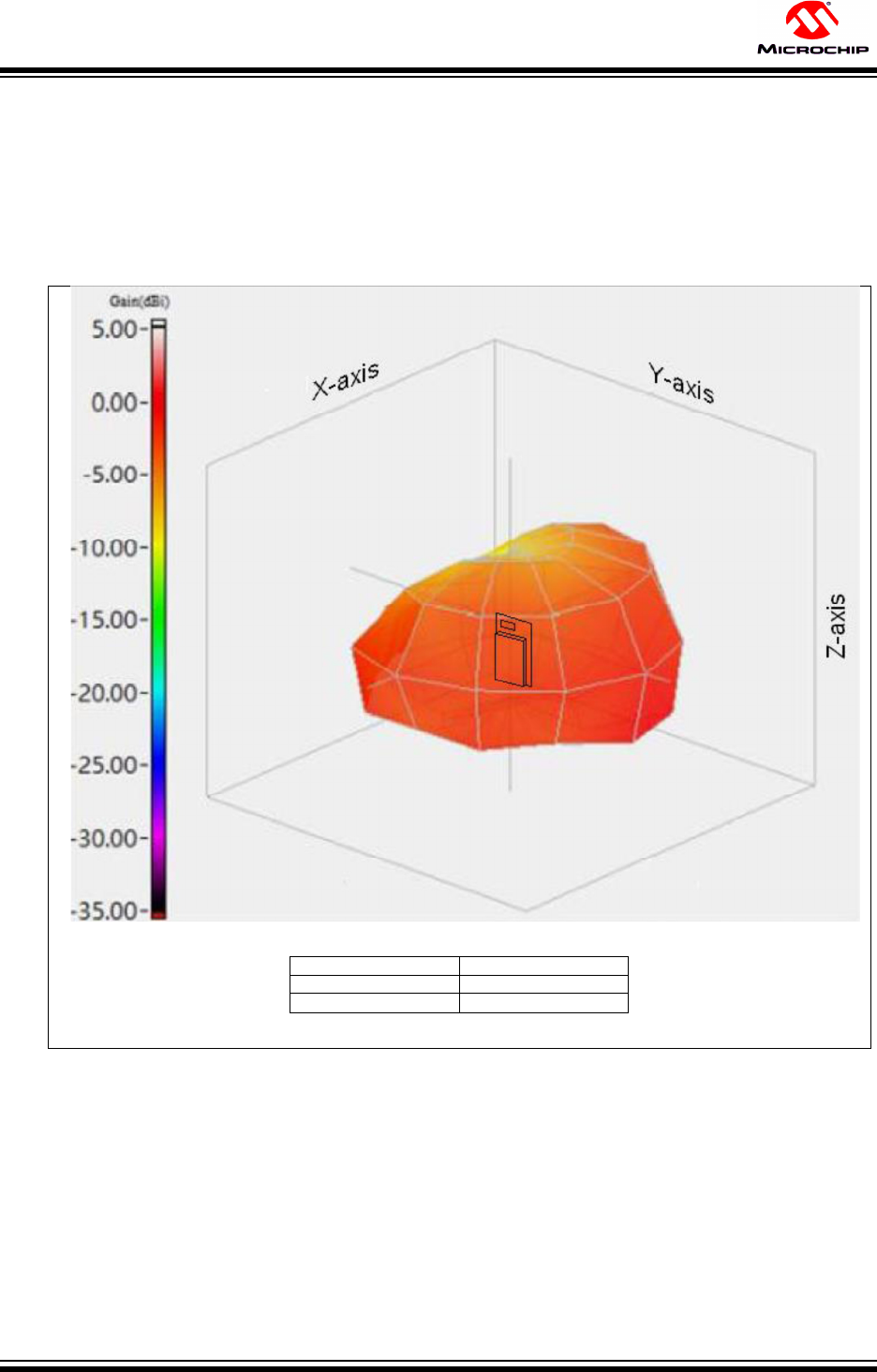

FIGURE 1-1: BM71 ANTENNA RADIATION PATTERN

Frequency 2442 MHz

Max Gain 0.1 dBi

Efficiency 42.7%

BM71 Regulatory Compliance Information

Advance Information

Revision 0.4 12/2015

60001372

age

APPENDIX A: CERTIFICATION

NOTICES

BM71 module regulatory approval status:

• BT SIG/QDID:74246

• United States/FCC ID: A8TBM71S2

• Canada/IC ID: 12246A-BM71S2

HVIN: BM71BLES1FC2

• Europe/CE: In Progress

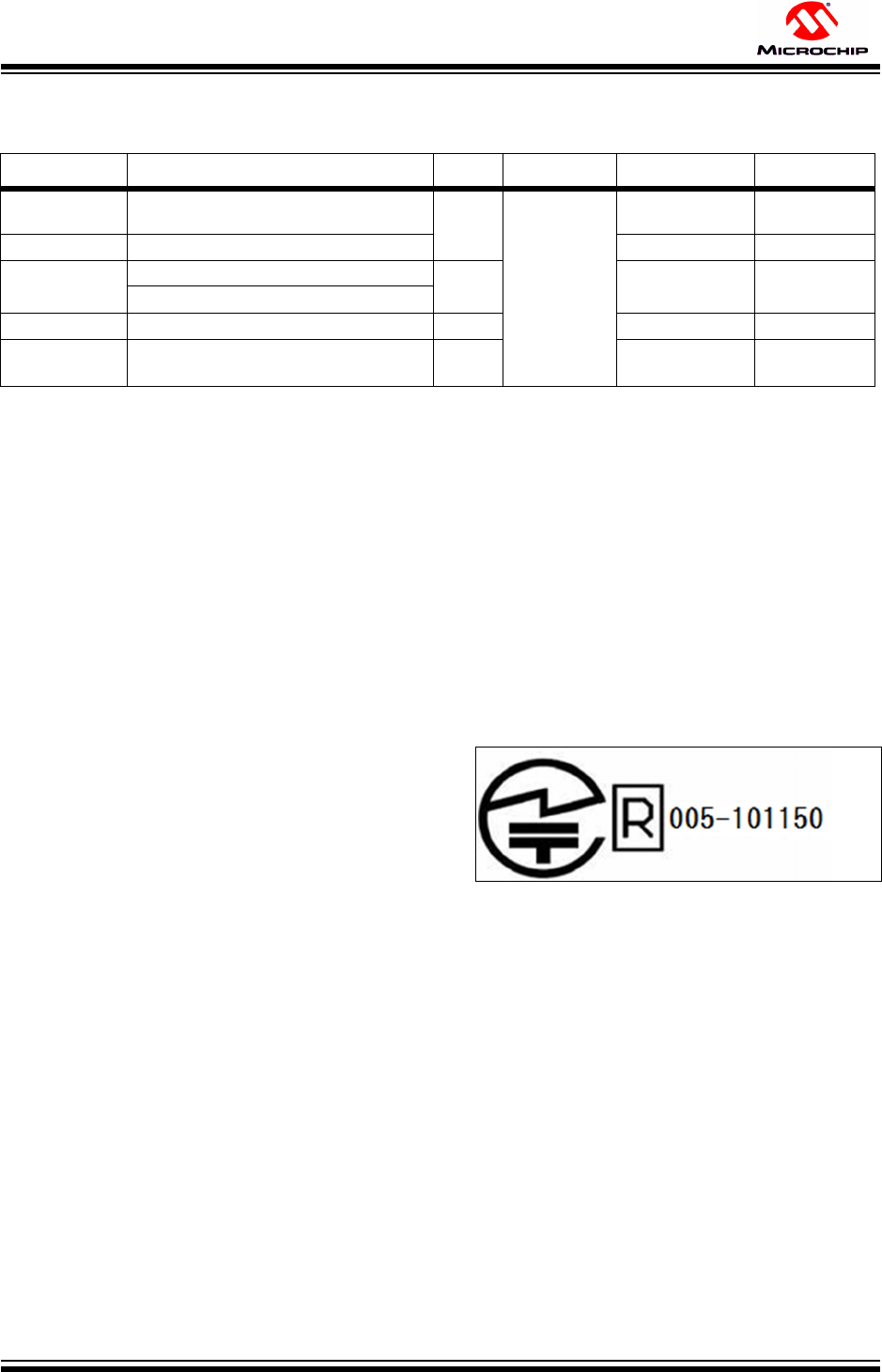

• Japan/MIC: 005-101150

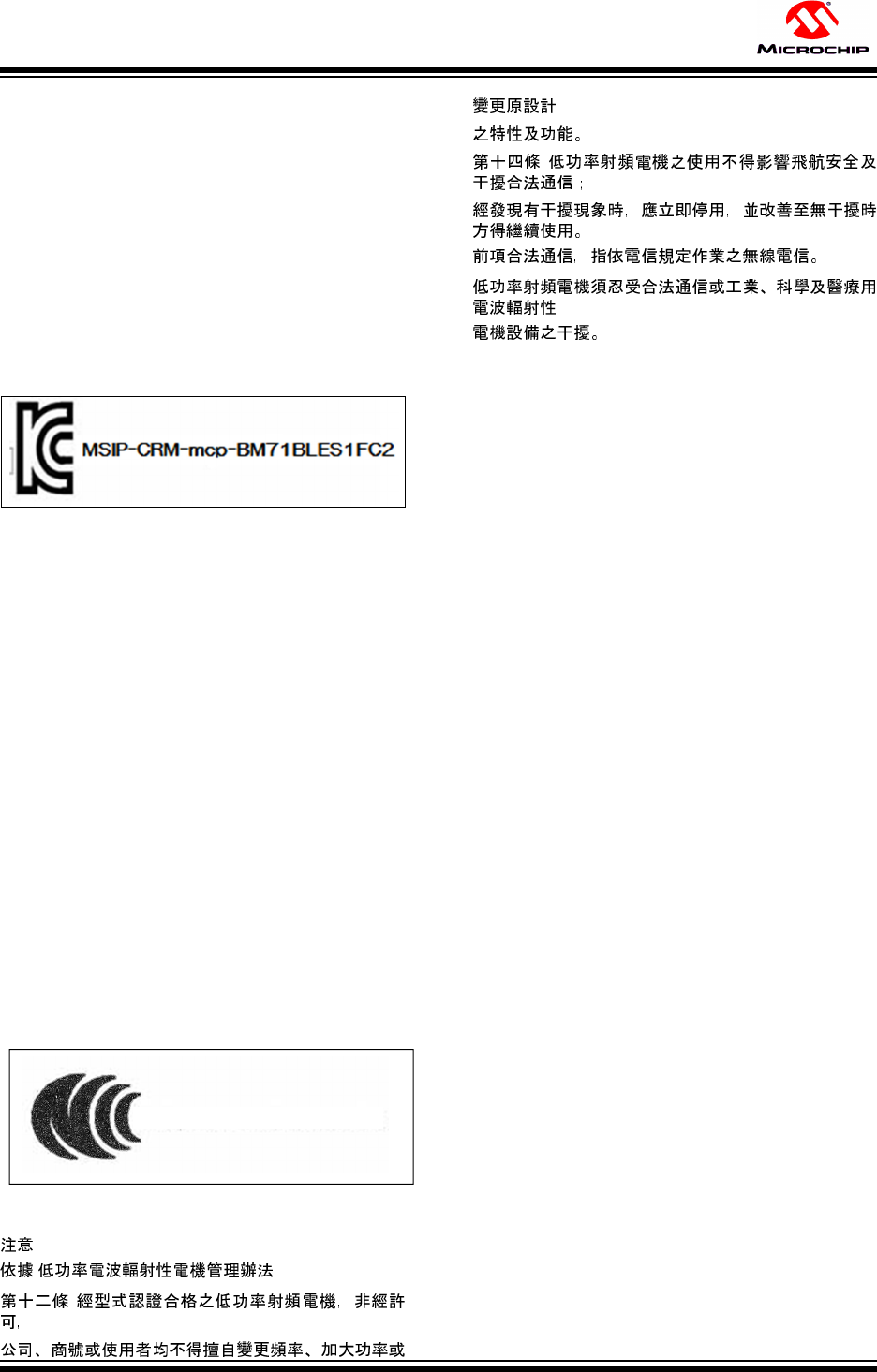

• Korea/KCC: MSIP-CRM-mcp-BM71BLES1FC2

• Taiwan/NCC No: In Progress

A.1

REGULATORY APPROVAL

This section outlines the regulatory information for the

BM71 module for the following countries:

• United States

• Canada

• Europe

• Japan

• Korea

• Taiwan

A.1.1

UNITED STATES

The BM71 module is in progress to receive Federal

Communications Commission (FCC) CFR47 Telecom-

munications, Part 15 Subpart C "Intentional Radiators"

modular approval in accordance with Part 15.212 Mod-

ular Transmitter approval. Modular approval allows the

end user to integrate the BM71 module into a finished

product without obtaining subsequent and separate

FCC approvals for intentional radiation, provided no

changes or modifications are made to the module cir-

cuitry. Changes or modifications could void the user's

authority to operate the equipment. The end user must

comply with all of the instructions provided by the

Grantee, which indicate installation and/or operating

conditions necessary for compliance.

The finished product is required to comply with all appli-

cable FCC equipment authorizations regulations,

requirements and equipment functions not associated

with the transmitter module portion. For example, com-

pliance must be demonstrated to regulations for other

transmitter components within the host product; to

requirements for unintentional radiators (Part 15 Sub-

part B "Unintentional Radiators"), such as digital

devices, computer peripherals, radio receivers, etc.;

and to additional authorization requirements for the

non-transmitter functions on the transmitter module

(i.e., Verification, or Declaration of Conformity) (e.g.,

transmitter modules may also contain digital logic func-

tions) as appropriate.

A.1.2

LABELING AND USER

INFORMATION REQUIREMENTS

The BM71 module has to be labeled with its own FCC

ID number, and if the FCC ID is not visible when the

module is installed inside another device, then the out-

side of the finished product into which the module is

installed must also display a label referring to the

enclosed module. This exterior label can use wording

as follows:

Contains Transmitter Module FCC ID:

A8TBM71S2

Contains FCC ID: A8TBM71S2

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation

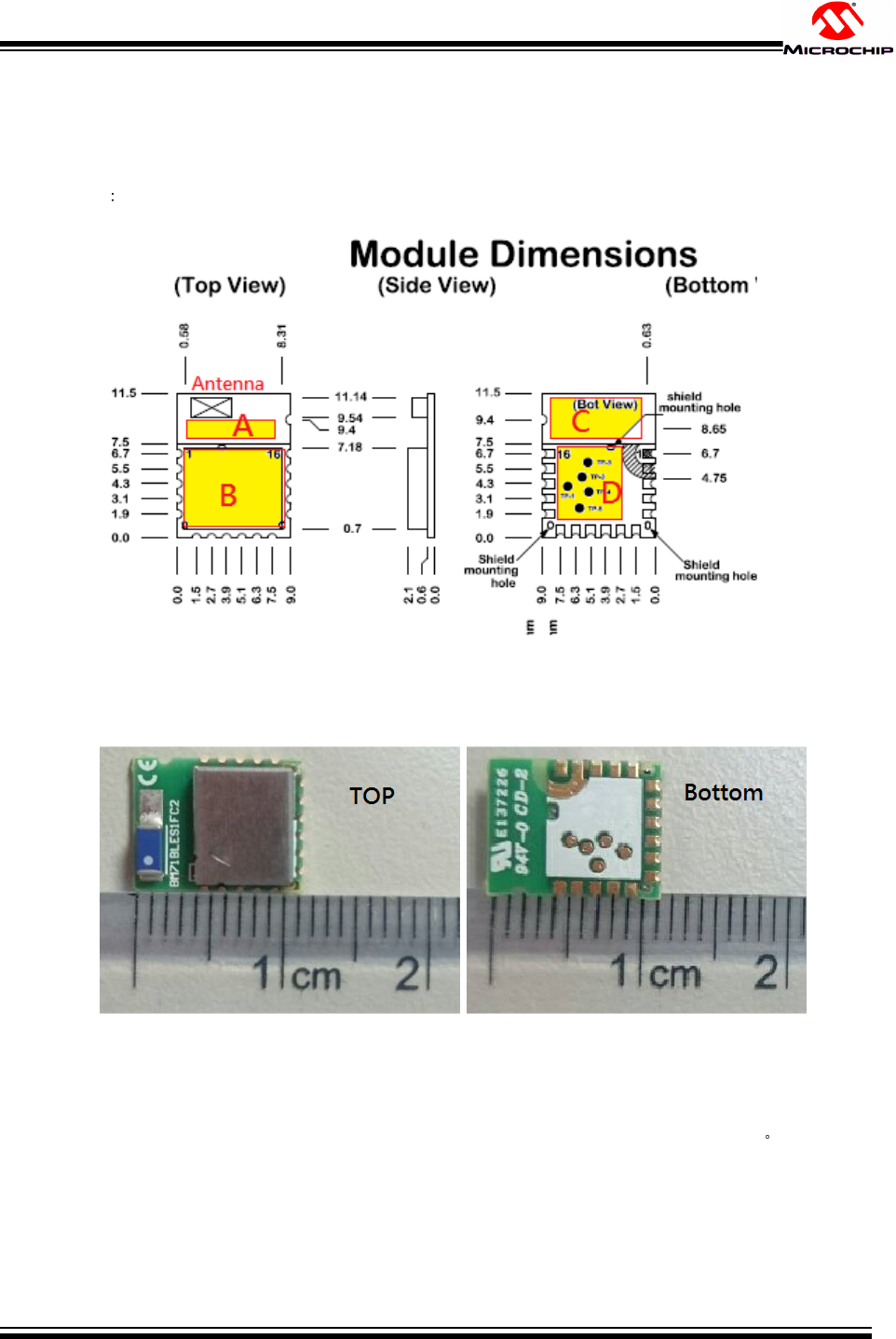

Due to the limited module size (9.0 x 11.5mm) the

FCC Identifier is displayed in the Datasheet only and

cannot be displayed on the module label.

Note: This device has no been au orized as

required by the rules of the ederal Com-

munications Commission This device is

no and may not be, offered or sale or

leas or sold or leased, until au orization

is obtained

Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

A user's manual for the finished product should

include the following statement:

Additional information on labeling and user information

requirements for Part 15 devices can be found in KDB

Publication 784748 available at the FCC Office of

Engineering and Technology (OET) Laboratory Division

Knowledge Database (KDB)

http://apps.fcc.gov/oetcf/kdb/index.cfm.

A.1.3

RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. KDB 447498 General RF

Exposure Guidance provides guidance in determining

whether proposed or existing transmitting facilities,

operations or devices comply with limits for human

exposure to Radio Frequency (RF) fields adopted by

the Federal Communications Commission (FCC).

From the FCC Grant: Output power listed is conducted.

This grant is valid only when the module is sold to OEM

integrators and must be installed by the OEM or OEM

integrators. This transmitter is restricted for use with

the specific antenna(s) tested in this application for

Certification and must not be co-located or operating in

conjunction with any other antenna or transmitters

within a host device, except in accordance with FCC

multi-transmitter product procedures.

A.1.4

HELPFUL WEB SITES

Federal Communications Commission (FCC):

http://www.fcc.gov

FCC Office of Engineering and Technology (OET) Lab-

oratory Division Knowledge Database (KDB):

http://apps.fcc.gov/oetcf/kdb/index.cfm

is equipment has been tested and found o comply

wi he limi for a Class B digi l device pursuan o

pa 15 of the FCC Rule These limi s are designed

provide reasonable protection agains ha ul

in erence in a residential ins allation. his equip-

ment generate uses and can radiate radio fre-

quency energy and if no ins alled and used in

accordance wi h he in ru ions may cause harmful

in erence to radio communic ions However

ere is no guaran ee hat in nce will not occur

in a par icular in lla ion his equipmen does

cause harmful in nce to radio or television

recep io which can be determined by urning the

equipment of and on, the user is encouraged to ry to

corre the in erence by one or more o the follow-

ing measures

• Reorien or reloca e he receiving an enn

• ncrease the separation between he equipment

and receiver

• Connec he equipmen in an outlet on a circui

di eren from hat which the receiver is con-

ne ed.

• Consult he dealer or an experienced radio

chnician for help.

BM71 Regulatory Compliance Information

Advance Information

Revision 0.4 12/2015

60001372

age

A.2

Canada

The BM71 module certification is in progress for use in

Canada under Industry Canada (IC) Radio Standards

Specification (RSS) RSS-247 and RSS-Gen. Modular

approval permits the installation of a module in a host

device without the need to recertify the device.

Certification details:

IC Certification Number: 12246A-BM71S2

HVIN: BM71BLES1FC2

A.2.1

LABELING AND USER

INFORMATION REQUIREMENTS

Labeling Requirements for the Host Device (from Sec-

tion 3.1, RSS-Gen, Issue 4, November 2014): The host

device shall be properly labeled to identify the module

within the host device.

The Industry Canada certification label of a module

shall be clearly visible at all times when installed in the

host device, otherwise the host device must be labeled

to display the Industry Canada certification number of

the module, preceded by the words "Contains transmit-

ter module", or the word "Contains", or similar wording

expressing the same meaning, as follows:

Due to the limited module size (9.0 x 11.5mm) the IC

identifier is displayed in the Datasheet only and

cannot be displayed on the module label.

User Manual Notice for License-Exempt Radio Appara-

tus (from Section 8.4, RSS-Gen, Issue 4, November

2014): User manuals for license-exempt radio appara-

tus shall contain the following or equivalent notice in a

conspicuous location in the user manual or alterna-

tively on the device or both:

Transmitter Antenna (from Section 8.3, RSS-Gen,

Issue 4, November 2014): User manuals for transmit-

ters shall display the following notice in a conspicuous

location:

Under Industry Canada regulations, this radio trans-

mitter may only operate using an antenna of a type

and maximum (or lesser) gain approved for the trans-

mitter by Industry Canada. To reduce potential radio

interference to other users, the antenna type and its

gain should be so chosen that the equivalent isotrop-

ically radiated power (e.i.r.p.) is not more than that

necessary for successful communication.

Conformément à la réglementation d'Industrie Can-

ada, le présent émetteur radio peut fonctionner avec

une antenne d'un type et d'un gain maximal (ou

inférieur) approuvé pour l'émetteur par Industrie Can-

ada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il

faut choisir le type d'antenne et son gain de sorte que

la puissance isotrope rayonnée équivalente (p.i.r.e.)

ne dépasse pas l'intensité nécessaire à l'établisse-

ment d'une communication satisfaisante.

The above notice may be affixed to the device instead

of displayed in the user manual.

Co ains transmitter module

is device complies wi ndu Canada

license-exem R andard(s) pera ion is sub-

je to the ollowing two condi ions (1) this device

may not cause interferenc and (2) this device mu

accept any interference including in nce h

ay cause undesired operation o the device

Le présen appareil es con orme aux CNR d dus-

trie Canada applicables aux appareils radio exemp s

de licence L'exploi ation es autorisée aux deux con-

ditions suivant (1) l appareil ne doit pas produire

de brouillage, (2) l'utilisateur de l appareil doit

accepter out brouillage radioélec rique subi même

si le brouillage es susceptible d'en comprome re le

nctionneme

Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

A.2.2

RF EXPOSURE

All transmitters regulated by IC must comply with RF

exposure requirements listed in RSS-102 - Radio Fre-

quency (RF) Exposure Compliance of Radio communi-

cation Apparatus (All Frequency Bands).

A.2.3

HELPFUL WEB SITES

Industry Canada: http://www.ic.gc.ca/

A.3

Europe

The BM71 module is in progress to be an R&TTE

Directive assessed radio module that is CE marked

and has been manufactured and tested with the inten-

tion of being integrated into a final product.

The BM71 module has been tested to R&TTE Directive

1999/5/EC Essential Requirements for Health and

Safety (Article (3.1(a)), Electromagnetic Compatibility

(EMC) (Article 3.1(b)), and Radio (Article 3.2) and are

summarized in Table A-1. A Notified Body Opinion can

be arranged on request.

The R&TTE Compliance Association provides guid-

ance on modular devices in “Technical Guidance Note

01” document available for download from the following

location: http://www.rtteca.com/html/down-

load_area.htm.

A.3.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM71

module must follow CE marking requirements. The

R&TTE Compliance Association Technical Guidance

Note 01 provides guidance on final product CE mark-

ing.

A.3.2

ANTENNA REQUIREMENTS

From R&TTE Compliance Association document Tech-

nical Guidance Note 01.

Provided the integrator installing an assessed

radio module with an integral or specific antenna

and installed in conformance with the radio mod-

ule manufacturer's installation instructions

requires no further evaluation.Under Article 3.2

of the R&TTE Directive and does not require fur-

ther involvement of an R&TTE Directive Notified

Body for the final product. [Section 2.2.4]

The European Compliance Testing listed in Table A-1

was performed using the integral ceramic chip

antenna.

Note: o main ain conformance to the testing

li ed in Table A-1 European Compliance

es ing the module shall be ins alled in

accordance wi the in allation in

ons in this data sheet and shall no be

modified

When integra ing a radio module into a

comple ed produc he in grator

becomes the manuf urer of the final

produ and is therefore responsible for

demons ng compliance of the final

produ wi h the essen ial requirements of

the R&TTE Direc ive

BM71 Regulatory Compliance Information

Advance Information

Revision 0.4 12/2015

60001372

age

TABLE A-1: EUROPEAN COMPLIANCE TESTING

Certification

Standards

Article

Laboratory

Report Number

Date

Safety

EN60950-1:2006/A11:2010/A1:2010/

A12:2011/A2:2013

3(1)(a)

TUV

Rheinland

10053210 001

Health

EN62479:2010

10053433 001

EMC

EN301489

V1.9.2

3(1)(b)

10052964 001

EN301489

V2.2.1

Radio

EN300328

V1.9.1

3(2)

10053433 001

Notified

Body

A.3.3

HELPFUL WEB SITES

A document that can be used as a starting point in

understanding the use of Short Range Devices (SRD)

in Europe is the European Radio Communications

Committee (ERC) Recommendation 70-03 E, which

can be downloaded from the European Radio Commu-

nications Office (ERO) at: http://www.ero.dk/. Addi-

tional helpful web sites are:

• Radio and Telecommunications Terminal Equip-

ment (R&TTE):

http://ec.europa.eu/enterprise/rtte/index_en.htm

• European Conference of Postal and Telecommu-

nications Administrations (CEPT):

http://www.cept.org

• European Telecommunications Standards Insti-

tute (ETSI):

http://www.etsi.org

• European Radio Communications Office (ERO):

http://www.ero.dk

• The Radio and Telecommunications Terminal

Equipment Compliance Association (R&TTE CA):

http://www.rtteca.com

A.4

Japan

The BM71 module has received type certification and

is labeled with its own technical conformity mark and

certification number as required to conform to the tech-

nical standards regulated by the Ministry of Internal

Affairs and Communications (MIC) of Japan pursuant

to the Radio Act of Japan.

Integration of this module into a final product does not

require additional radio certification provided installa-

tion instructions are followed and no modifications of

the module are allowed. Additional testing may be

required:

• If the host product is subject to electrical appli-

ance safety (for example, powered from an AC

mains), the host product may require Product

Safety Electrical Appliance and Material (PSE)

testing. The integrator should contact their confor-

mance laboratory to determine if this testing is

required.

• There is an voluntary Electromagnetic Compatibil-

ity (EMC) test for the host product administered

by VCCI: http://www.vcci.jp/vcci_e/index.html

A.4.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM71

module must follow Japan marking requirements. The

integrator of the module should refer to the labeling

requirements for Japan available at the Ministry of

Internal Affairs and Communications (MIC) website.

The BM71 module is labeled with its own technical con-

formity mark and certification number. The final product

in which this module is being used must have a label

attach on the top side of module and another one

referring to the type certified module inside:

A.4.2

HELPFUL WEB SITES

Ministry of Internal Affairs and Communications (MIC):

http://www.tele.soumu.go.jp/e/index.htm

Association of Radio Industries and Businesses

(ARIB): http://www.arib.or.jp/english/

A.5

Korea

The BM71 module has received certification of confor-

mity in accordance with the Radio Waves Act. Integra-

tion of this module into a final product does not require

additional radio certification provided installation

instructions are followed and no modifications of the

module are allowed.

Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

A.5.1

LABELING AND USER

INFORMATION REQUIREMENTS

The label on the final product which contains the BM71

module must follow KC marking requirements. The

integrator of the module should refer to the labeling

requirements for Korea available on the Korea Com-

munications Commission (KCC) website.

The BM71 module due to the limited size(9.0 x

11.5mm) the KC mark and identifier is displayed in the

Datasheet only and cannot be displayed on the

module label. .

The final product requires the KC mark and certificate

number of the module:

A.5.2

HELPFUL WEB SITES

Korea Communications Commission (KCC):

http://www.kcc.go.kr

National Radio Research Agency (RRA):

http://rra.go.kr

A.6

Taiwan

The BM71 module has pending compliance approval in

accordance with the Telecommunications Act. Custom-

ers seeking to use the compliance approval in their

product should contact Microchip Technology sales or

distribution partners to obtain a Letter of Authority.

Integration of this module into a final product does not

require additional radio certification provided installa-

tion instructions are followed and no modifications of

the module are allowed.

A.6.1

LABELING AND USER

INFORMATION REQUIREMENTS

The BM71 module due to the limited size(9.0 x

11.5mm) the NCC mark and identifier is displayed in

the Datasheet only and cannot be displayed on the

module label :

The user's manual should contain below warning (for

RF device) in traditional Chinese:

A.6.2

HELPFUL WEB SITES

National Communications Commission (NCC):

http://www.ncc.gov.tw

A.7 Other Regulatory Jurisdictions

Should other regulatory jurisdiction certification be

required by the customer, or the customer need to

recertify the module for other reasons, contact Micro-

chip for the required utilities and documentation.

LABEL

BM71 Regulatory Compliance Information

Advance Information

Revision 0.4 12/2015

60001372

age

Appendix B: Labelling Considerations

BM71 module, due to the module dimension limitation, could not add the certificate ID on module directly, we

would like to apply for your permission to add the certificate ID on the Datasheet and alternatively on the

shipping package instead of on module.

Description

1. BM71 Module dimension

Area A: 1.5X8.5mm

Area B: 7.7X6.1mm

, this is a shielding case with a label for BT address and date code

Area C: 3.5X8.5mm

Area D: 2.1X6.35mm

and 1.4X3.6mm

, the area is not complete and continuous.

Form factor

2. According the description above, due to the dimension limitation, we could not find out an area good to print a

clear certificate ID or logo.

3. We would apply for your kindly permission to allow Microchip to ship the module by the new approach, in

appendix I, to add the certificate ID on the anti-static bag, the out pack of the module tray

4. Appendix B-1 is one of the proposal.

Advance Information

Revision 0.4 12/2015

60001372

age

BM71 Regulatory Compliance Information

Appendix B-1

There is an anti-static bag outside the module tray, we suggest adding the certificate ID on the bag, it is very clear for the

custom and government to check the ID, and we will also add the certificate ID information in the module user manual to

avoid any possible confusion by the user.

Microchip Technology BM71S2 Bluetooth Module User Manual Manual

Microchip Technology Inc. Bluetooth Module Manual

Manual

Navigation menu

Namespaces

Views

Navigation
