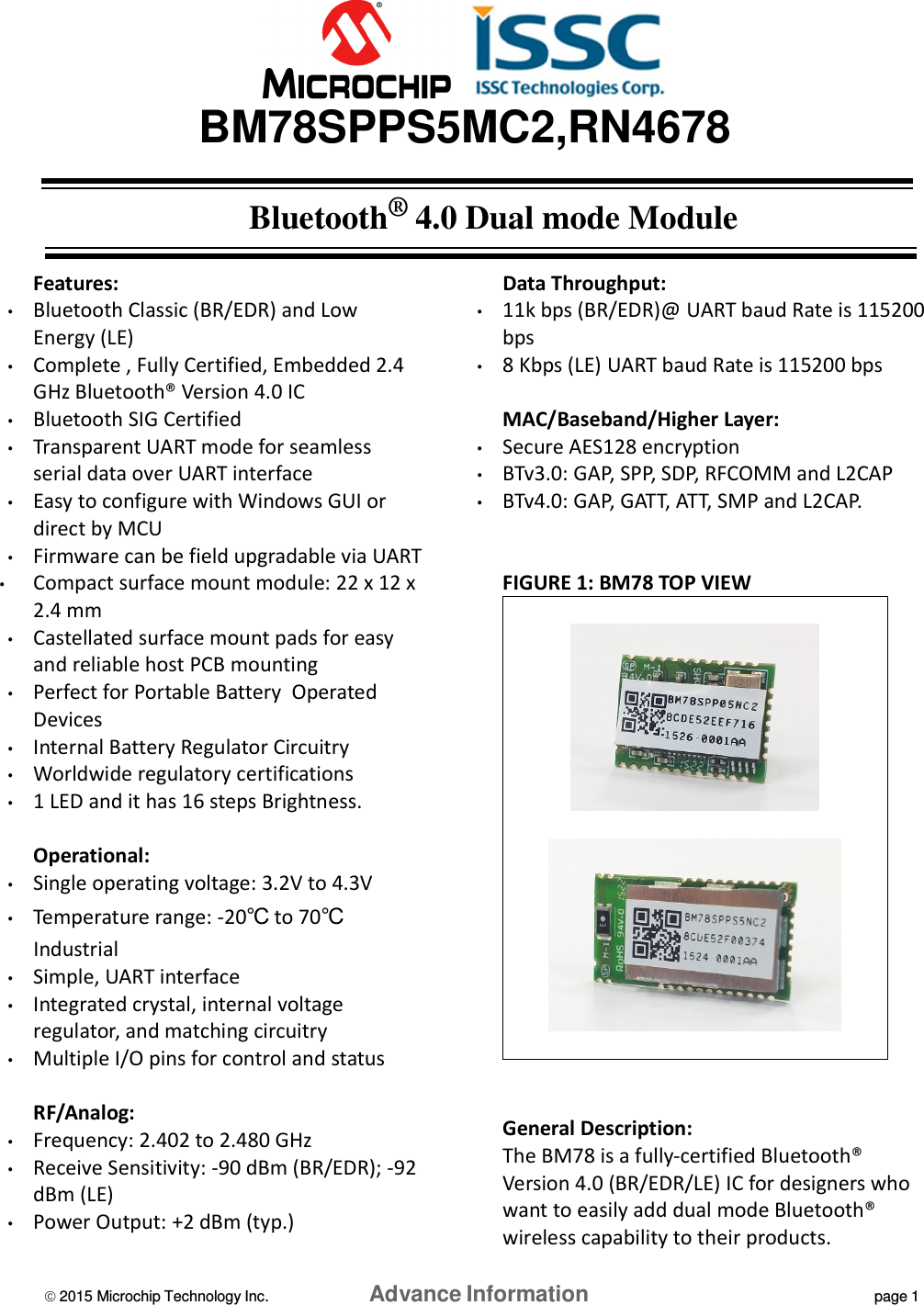

Advance Information  2015 Microchip Technology Inc. page 1 BM78SPPS5MC2,RN4678 Bluetooth® 4.0 Dual mode Module Features: • Bluetooth Classic (BR/EDR) and Low Energy (LE) • Complete , Fully Certified, Embedded 2.4 GHz Bluetooth® Version 4.0 IC • Bluetooth SIG Certified • Transparent UART mode for seamless serial data over UART interface • Easy to configure with Windows GUI or direct by MCU • Firmware can be field upgradable via UART • Compact surface mount module: 22 x 12 x 2.4 mm • Castellated surface mount pads for easy and reliable host PCB mounting • Perfect for Portable Battery Operated Devices • Internal Battery Regulator Circuitry • Worldwide regulatory certifications • 1 LED and it has 16 steps Brightness. Operational: • Single operating voltage: 3.2V to 4.3V • Temperature range: -20℃ to 70℃ Industrial • Simple, UART interface • Integrated crystal, internal voltage regulator, and matching circuitry • Multiple I/O pins for control and status RF/Analog: • Frequency: 2.402 to 2.480 GHz • Receive Sensitivity: -90 dBm (BR/EDR); -92 dBm (LE) • Power Output: +2 dBm (typ.) Data Throughput: • 11k bps (BR/EDR)@ UART baud Rate is 115200 bps • 8 Kbps (LE) UART baud Rate is 115200 bps MAC/Baseband/Higher Layer: • Secure AES128 encryption • BTv3.0: GAP, SPP, SDP, RFCOMM and L2CAP • BTv4.0: GAP, GATT, ATT, SMP and L2CAP. FIGURE 1: BM78 TOP VIEW General Description: The BM78 is a fully-certified Bluetooth® Version 4.0 (BR/EDR/LE) IC for designers who want to easily add dual mode Bluetooth® wireless capability to their products.
Advance Information  2015 Microchip Technology Inc. page 2 Delivering local connectivity for the Internet of Things (IoT), the IC bridges your product to Smart Phones and Tablets for convenient data transfer, control and access to cloud applications. It supports GAP, SDP, SPP, and GATT profiles. Data is transferred over the Bluetooth link by sending/receiving data via transparent UART mode, making it easy to integrate with any processor or Microcontroller with a UART interface. Configuration is made easy using a Windows® based GUI or directly via UART by a MCU Applications: • Mobile Point of Sales (mPOS) • LED lighting (16 step) • Wearables • Digital Sports • Fitness Devices • Health Care/ Medical • Automotive Accessories • Home Automation • Remote Control Toys

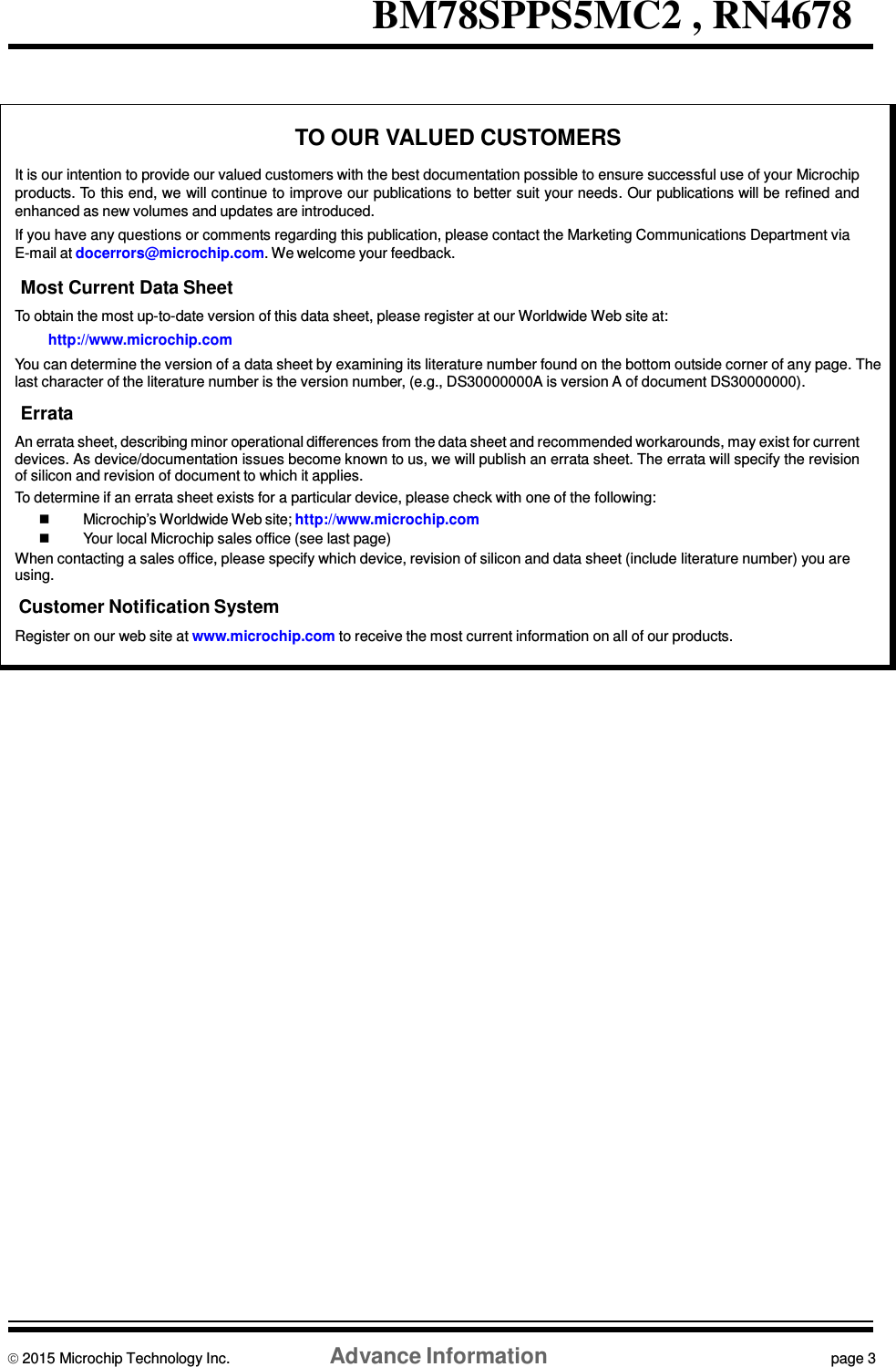

Advance Information  2015 Microchip Technology Inc. page 3BM78SPPS5MC2 , RN4678 TO OUR VALUED CUSTOMERS It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced. If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@microchip.com. We welcome your feedback. Most Current Data Sheet To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at: http://www.microchip.com You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000). Errata An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies. To determine if an errata sheet exists for a particular device, please check with one of the following:  Microchip’s Worldwide Web site; http://www.microchip.com  Your local Microchip sales office (see last page) When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using. Customer Notification System Register on our web site at www.microchip.com to receive the most current information on all of our products.

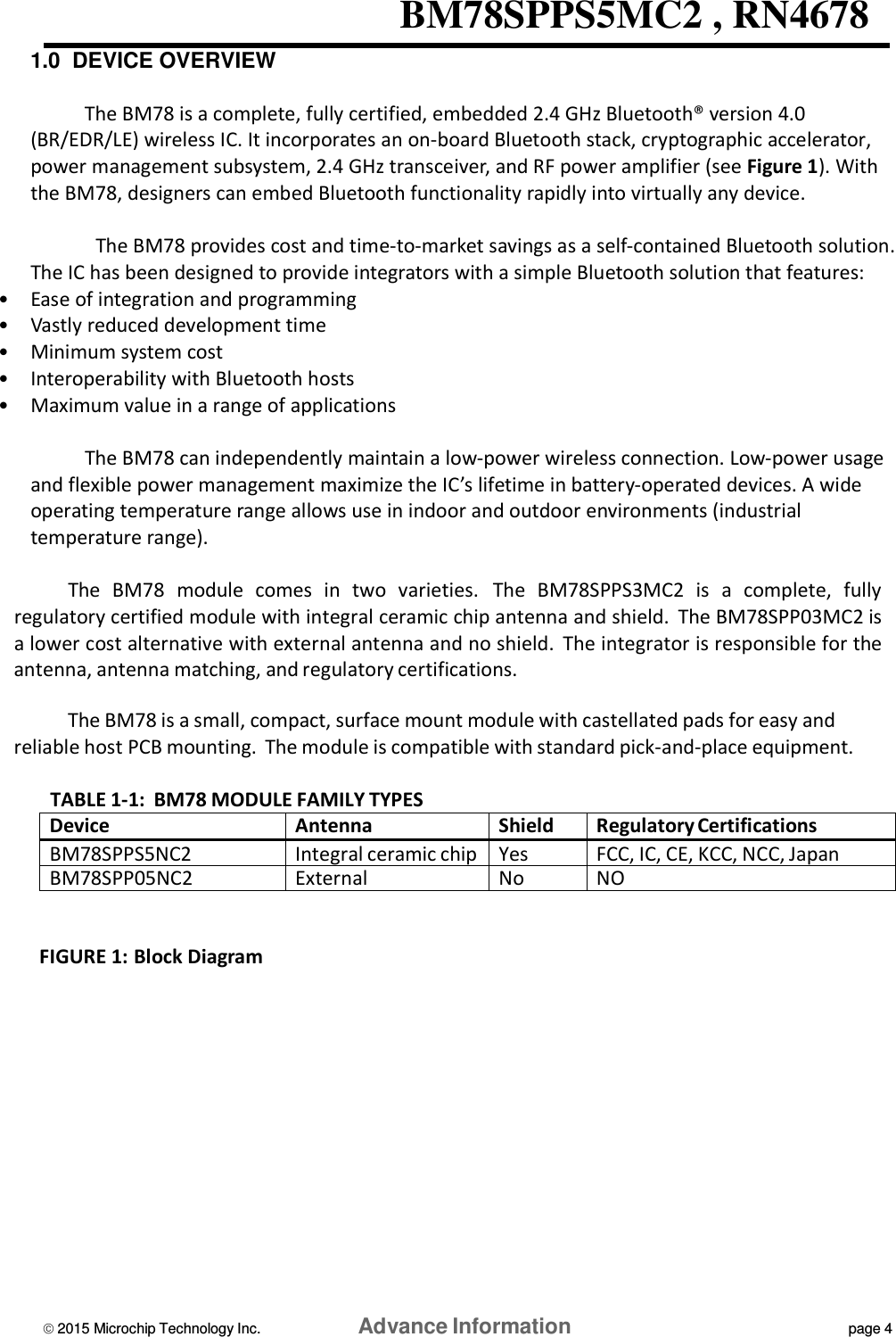

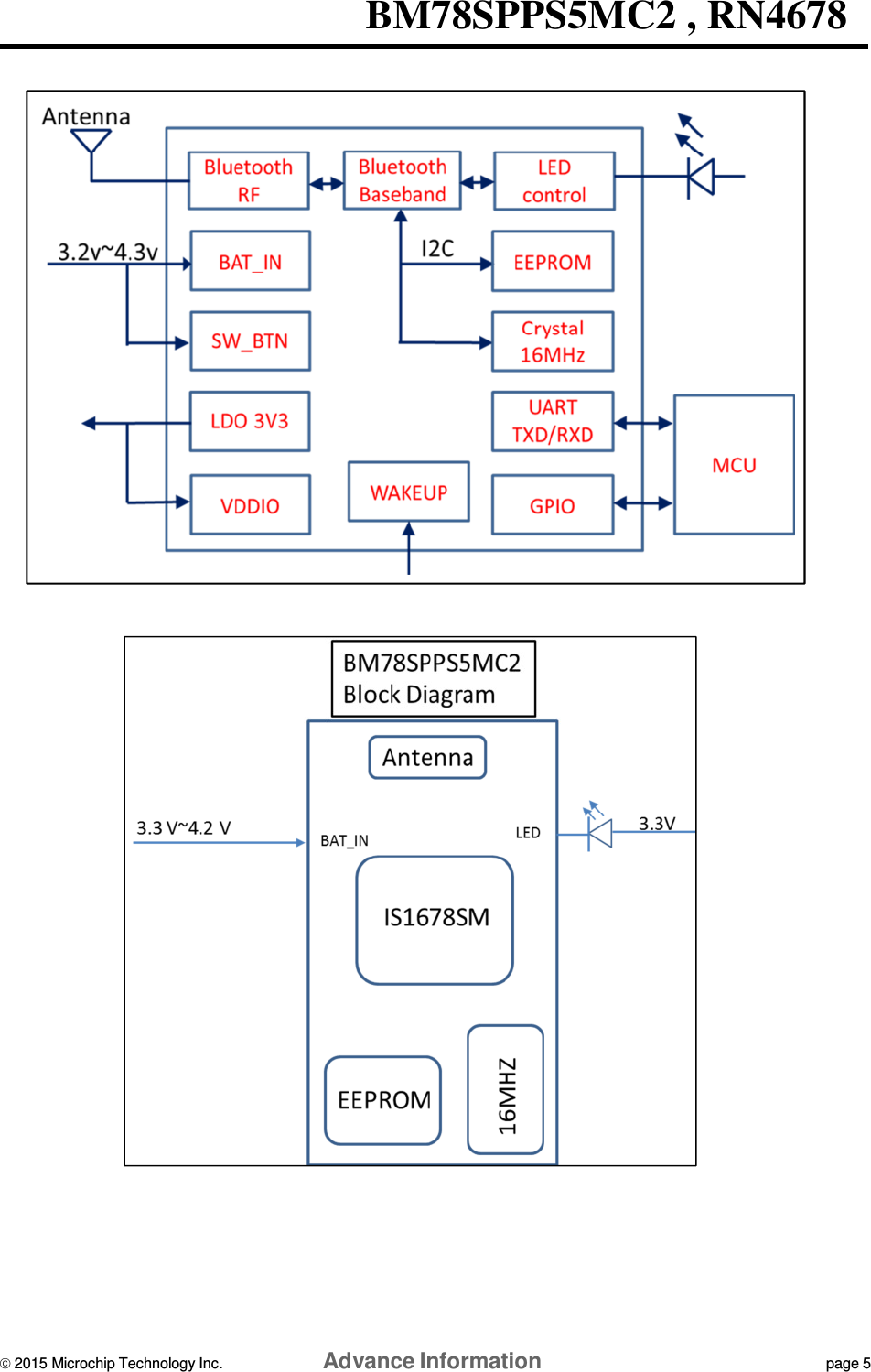

Advance Information  2015 Microchip Technology Inc. page 4BM78SPPS5MC2 , RN4678 1.0 DEVICE OVERVIEW The BM78 is a complete, fully certified, embedded 2.4 GHz Bluetooth® version 4.0 (BR/EDR/LE) wireless IC. It incorporates an on-board Bluetooth stack, cryptographic accelerator, power management subsystem, 2.4 GHz transceiver, and RF power amplifier (see Figure 1). With the BM78, designers can embed Bluetooth functionality rapidly into virtually any device. The BM78 provides cost and time-to-market savings as a self-contained Bluetooth solution. The IC has been designed to provide integrators with a simple Bluetooth solution that features: • Ease of integration and programming • Vastly reduced development time • Minimum system cost • Interoperability with Bluetooth hosts • Maximum value in a range of applications The BM78 can independently maintain a low-power wireless connection. Low-power usage and flexible power management maximize the IC’s lifetime in battery-operated devices. A wide operating temperature range allows use in indoor and outdoor environments (industrial temperature range). The BM78 module comes in two varieties. The BM78SPPS3MC2 is a complete, fully regulatory certified module with integral ceramic chip antenna and shield. The BM78SPP03MC2 is a lower cost alternative with external antenna and no shield. The integrator is responsible for the antenna, antenna matching, and regulatory certifications. The BM78 is a small, compact, surface mount module with castellated pads for easy and reliable host PCB mounting. The module is compatible with standard pick-and-place equipment. TABLE 1‐1: BM78 MODULE FAMILY TYPES Device Antenna Shield Regulatory Certifications BM78SPPS5NC2 Integral ceramic chip Yes FCC, IC, CE, KCC, NCC, Japan BM78SPP05NC2 External No NO FIGURE 1: Block Diagram
Advance Information  2015 Microchip Technology Inc. page 5BM78SPPS5MC2 , RN4678

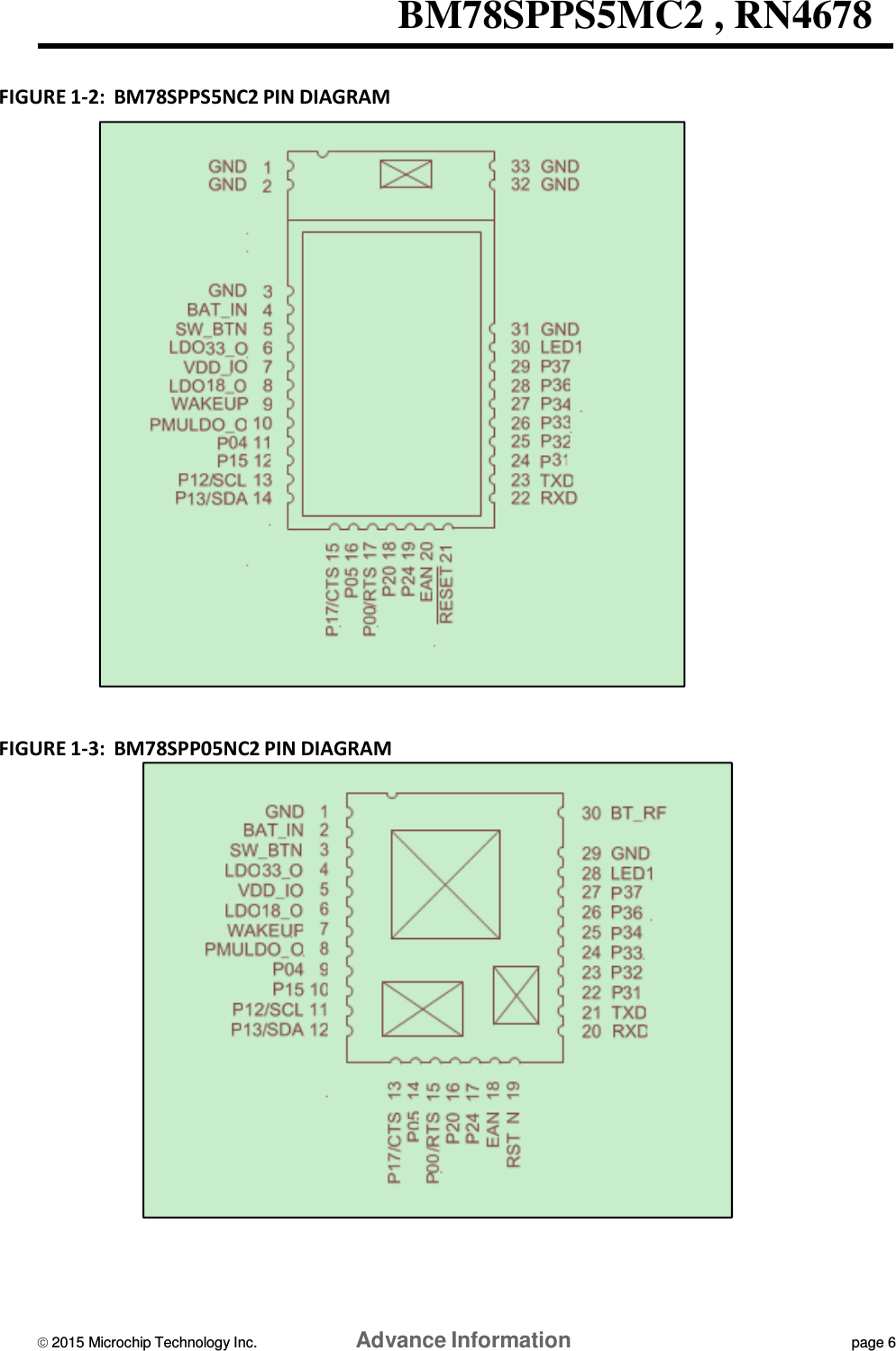

Advance Information  2015 Microchip Technology Inc. page 6BM78SPPS5MC2 , RN4678 FIGURE 1‐2: BM78SPPS5NC2 PIN DIAGRAM FIGURE 1‐3: BM78SPP05NC2 PIN DIAGRAM

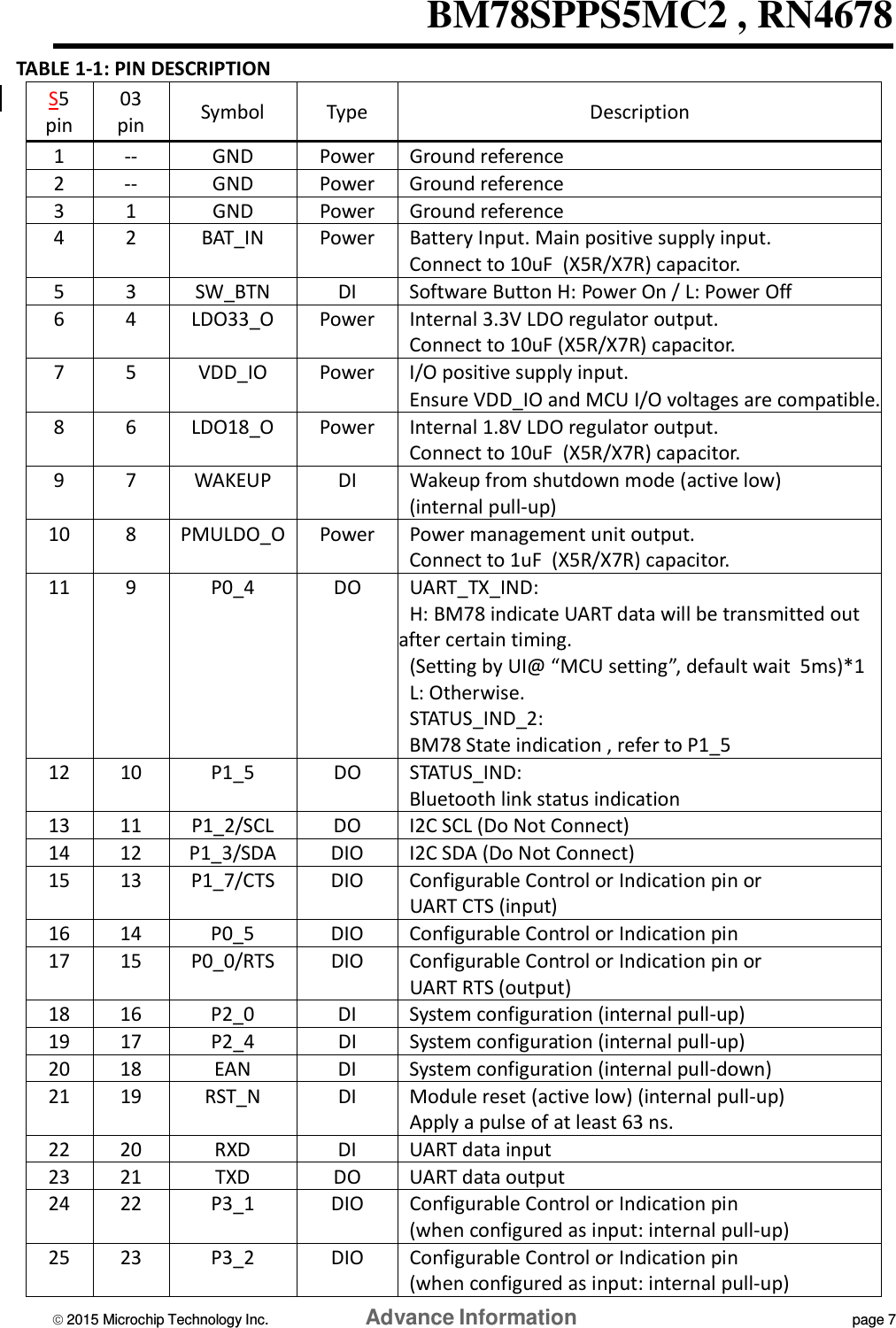

Advance Information  2015 Microchip Technology Inc. page 7BM78SPPS5MC2 , RN4678 TABLE 1‐1: PIN DESCRIPTION S5 pin 03 pin Symbol Type Description 1 -- GND Power Ground reference 2 -- GND Power Ground reference 3 1 GND Power Ground reference 4 2 BAT_IN Power Battery Input. Main positive supply input. Connect to 10uF (X5R/X7R) capacitor. 5 3 SW_BTN DI Software Button H: Power On / L: Power Off 6 4 LDO33_O Power Internal 3.3V LDO regulator output. Connect to 10uF (X5R/X7R) capacitor. 7 5 VDD_IO Power I/O positive supply input. Ensure VDD_IO and MCU I/O voltages are compatible. 8 6 LDO18_O Power Internal 1.8V LDO regulator output. Connect to 10uF (X5R/X7R) capacitor. 9 7 WAKEUP DI Wakeup from shutdown mode (active low) (internal pull-up) 10 8 PMULDO_O Power Power management unit output. Connect to 1uF (X5R/X7R) capacitor. 11 9 P0_4 DO UART_TX_IND: H: BM78 indicate UART data will be transmitted out after certain timing. (Setting by UI@ “MCU setting”, default wait 5ms)*1 L: Otherwise. STATUS_IND_2: BM78 State indication , refer to P1_5 12 10 P1_5 DO STATUS_IND: Bluetooth link status indication 13 11 P1_2/SCL DO I2C SCL (Do Not Connect) 14 12 P1_3/SDA DIO I2C SDA (Do Not Connect) 15 13 P1_7/CTS DIO Configurable Control or Indication pin or UART CTS (input) 16 14 P0_5 DIO Configurable Control or Indication pin 17 15 P0_0/RTS DIO Configurable Control or Indication pin or UART RTS (output) 18 16 P2_0 DI System configuration (internal pull-up) 19 17 P2_4 DI System configuration (internal pull-up) 20 18 EAN DI System configuration (internal pull-down) 21 19 RST_N DI Module reset (active low) (internal pull-up) Apply a pulse of at least 63 ns. 22 20 RXD DI UART data input 23 21 TXD DO UART data output 24 22 P3_1 DIO Configurable Control or Indication pin (when configured as input: internal pull-up) 25 23 P3_2 DIO Configurable Control or Indication pin (when configured as input: internal pull-up)

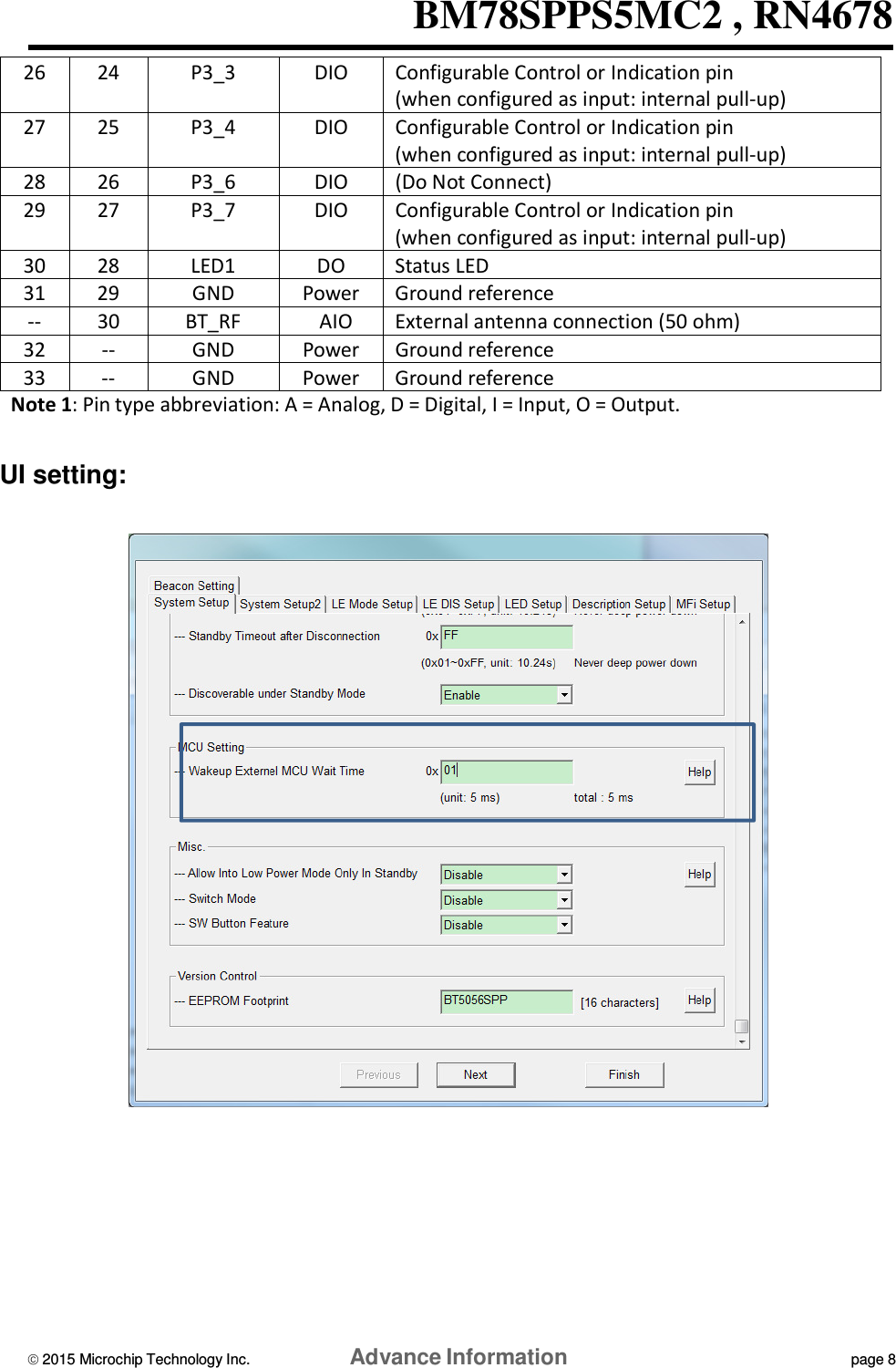

Advance Information  2015 Microchip Technology Inc. page 8BM78SPPS5MC2 , RN4678 26 24 P3_3 DIO Configurable Control or Indication pin (when configured as input: internal pull-up) 27 25 P3_4 DIO Configurable Control or Indication pin (when configured as input: internal pull-up) 28 26 P3_6 DIO (Do Not Connect) 29 27 P3_7 DIO Configurable Control or Indication pin (when configured as input: internal pull-up) 30 28 LED1 DO Status LED 31 29 GND Power Ground reference -- 30 BT_RF AIO External antenna connection (50 ohm) 32 -- GND Power Ground reference 33 -- GND Power Ground reference Note 1: Pin type abbreviation: A = Analog, D = Digital, I = Input, O = Output. UI setting:

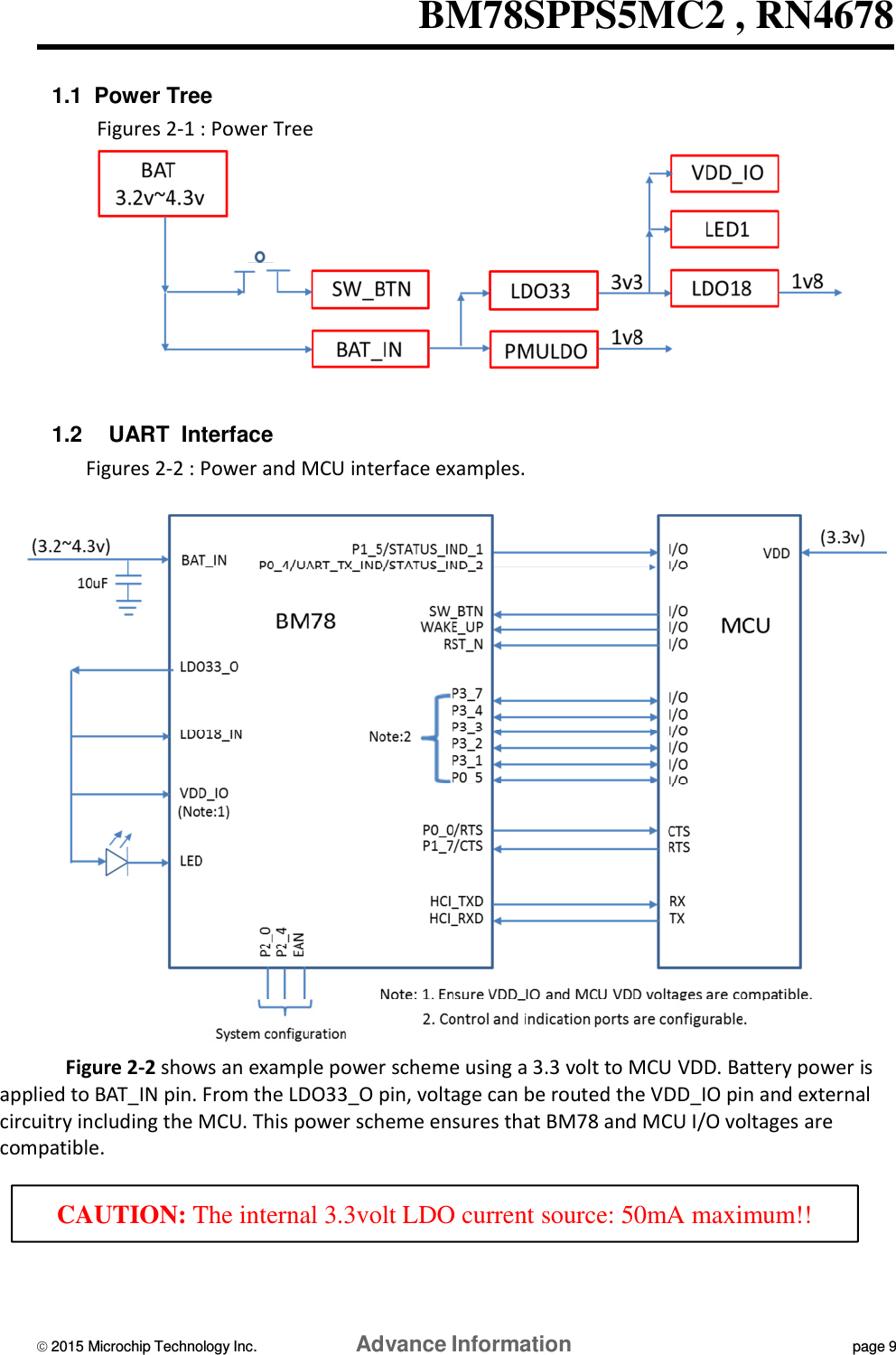

Advance Information  2015 Microchip Technology Inc. page 9BM78SPPS5MC2 , RN4678 1.1 Power Tree Figures 2-1 : Power Tree 1.2 UART Interface Figures 2-2 : Power and MCU interface examples. Figure 2‐2 shows an example power scheme using a 3.3 volt to MCU VDD. Battery power is applied to BAT_IN pin. From the LDO33_O pin, voltage can be routed the VDD_IO pin and external circuitry including the MCU. This power scheme ensures that BM78 and MCU I/O voltages are compatible. CAUTION: The internal 3.3volt LDO current source: 50mA maximum!!

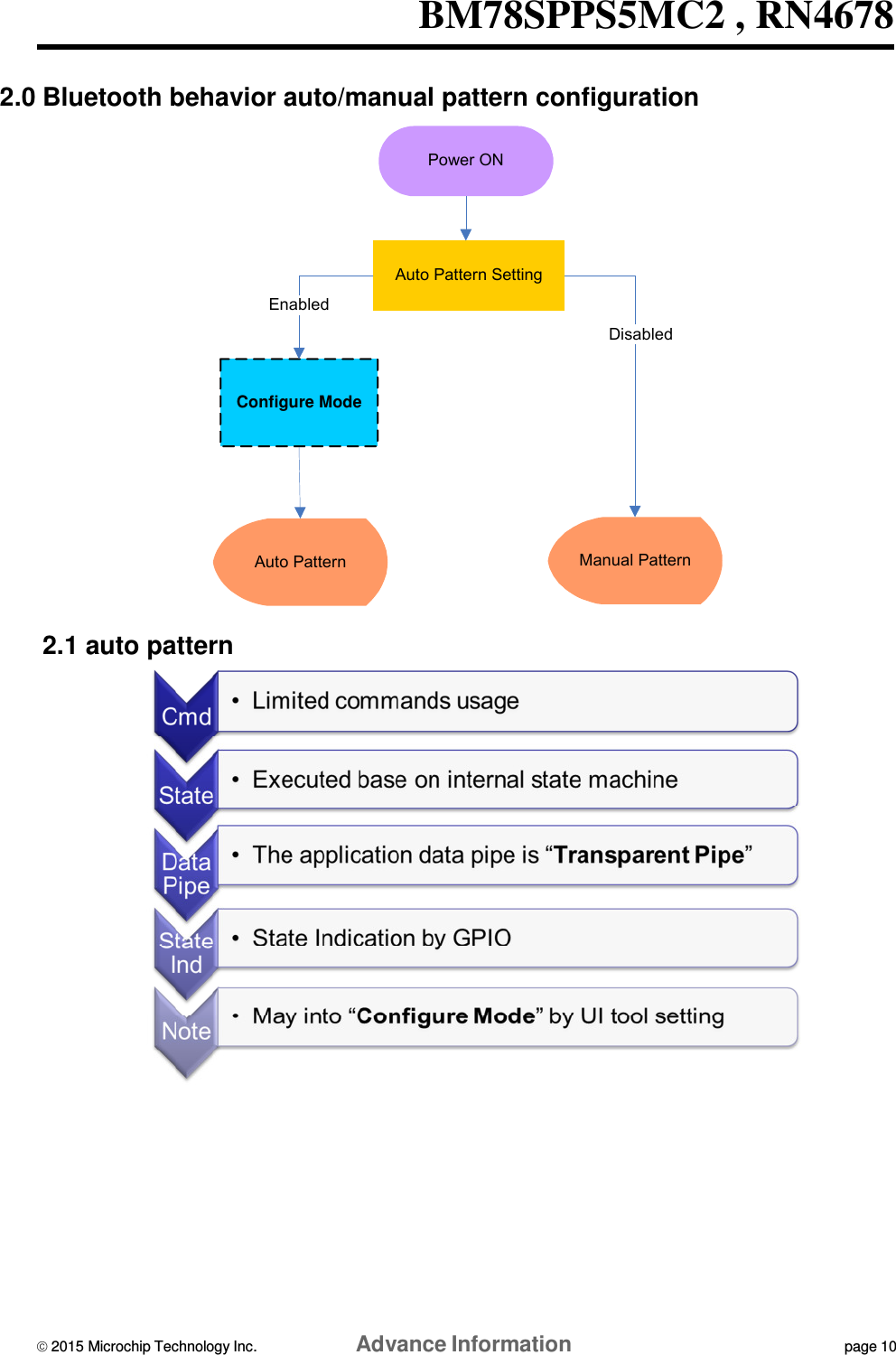

Advance Information  2015 Microchip Technology Inc. page 10BM78SPPS5MC2 , RN4678 2.0 Bluetooth behavior auto/manual pattern configuration 2.1 auto pattern Power ONAuto Pattern SettingAuto Pattern Manual PatternConfigure ModeEnabledDisabled

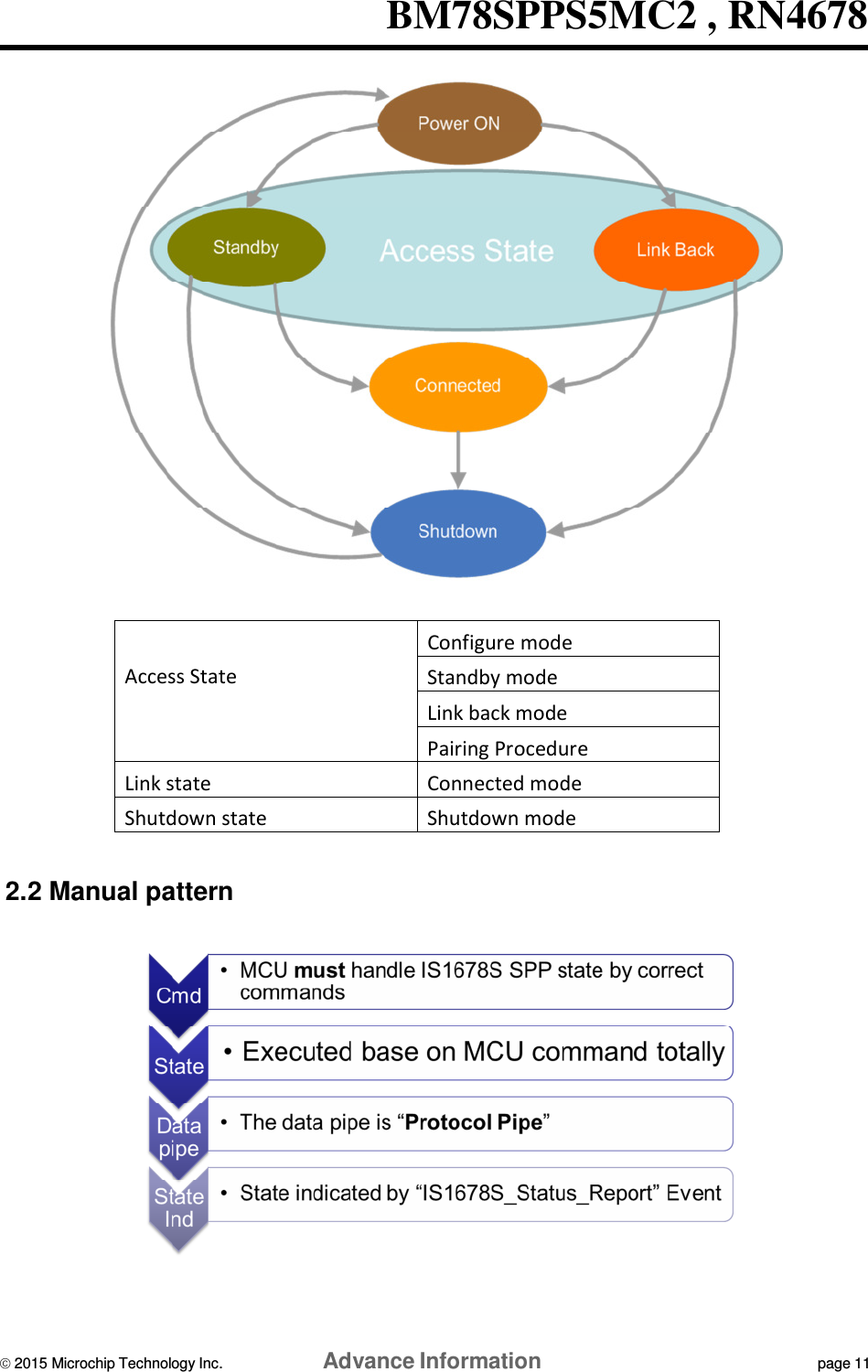

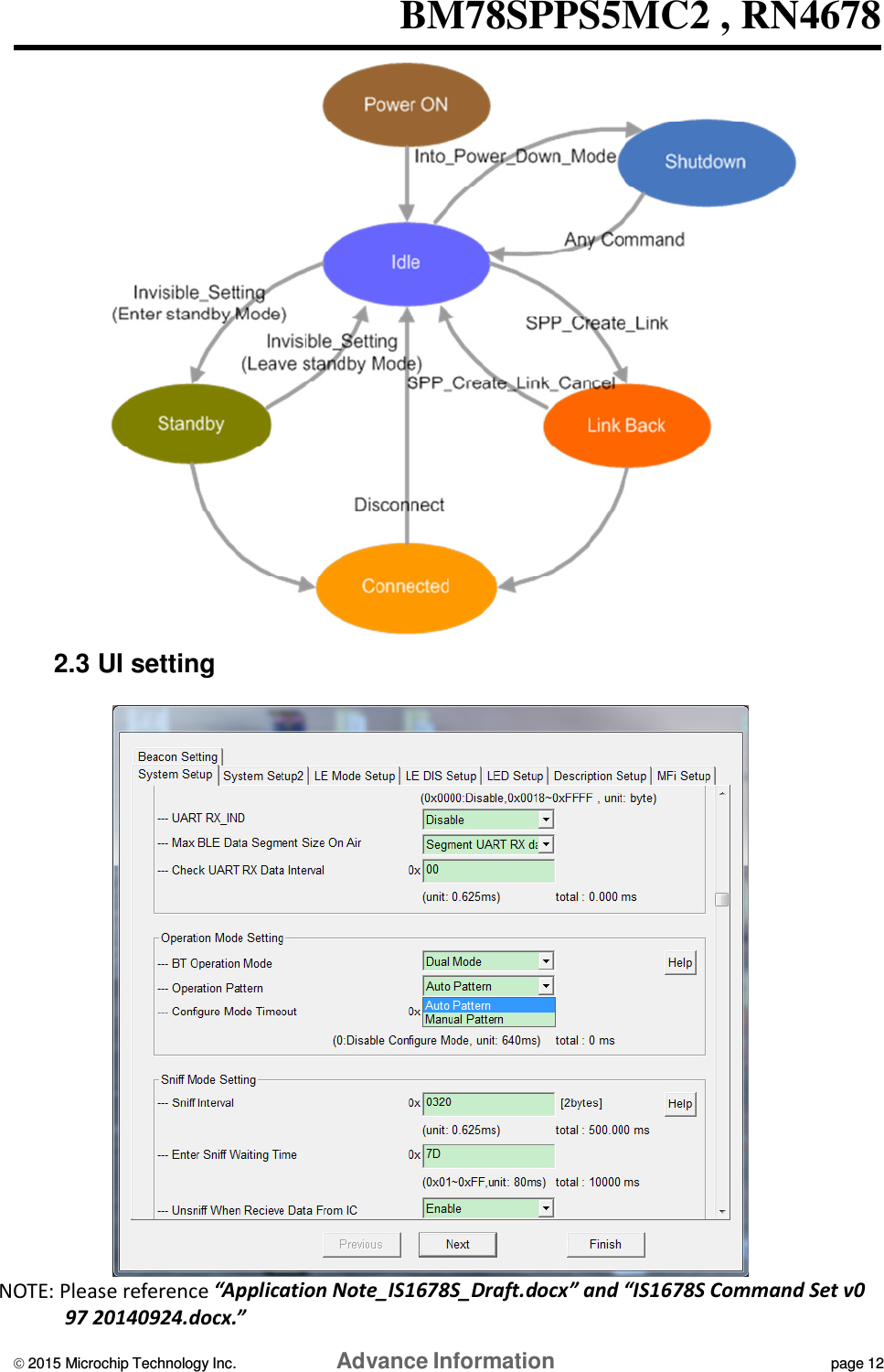

Advance Information  2015 Microchip Technology Inc. page 11BM78SPPS5MC2 , RN4678 Access State Configure mode Standby mode Link back mode Pairing Procedure Link state Connected mode Shutdown state Shutdown mode 2.2 Manual pattern
Advance Information  2015 Microchip Technology Inc. page 12BM78SPPS5MC2 , RN4678 2.3 UI setting NOTE: Please reference “Application Note_IS1678S_Draft.docx” and “IS1678S Command Set v0 97 20140924.docx.”

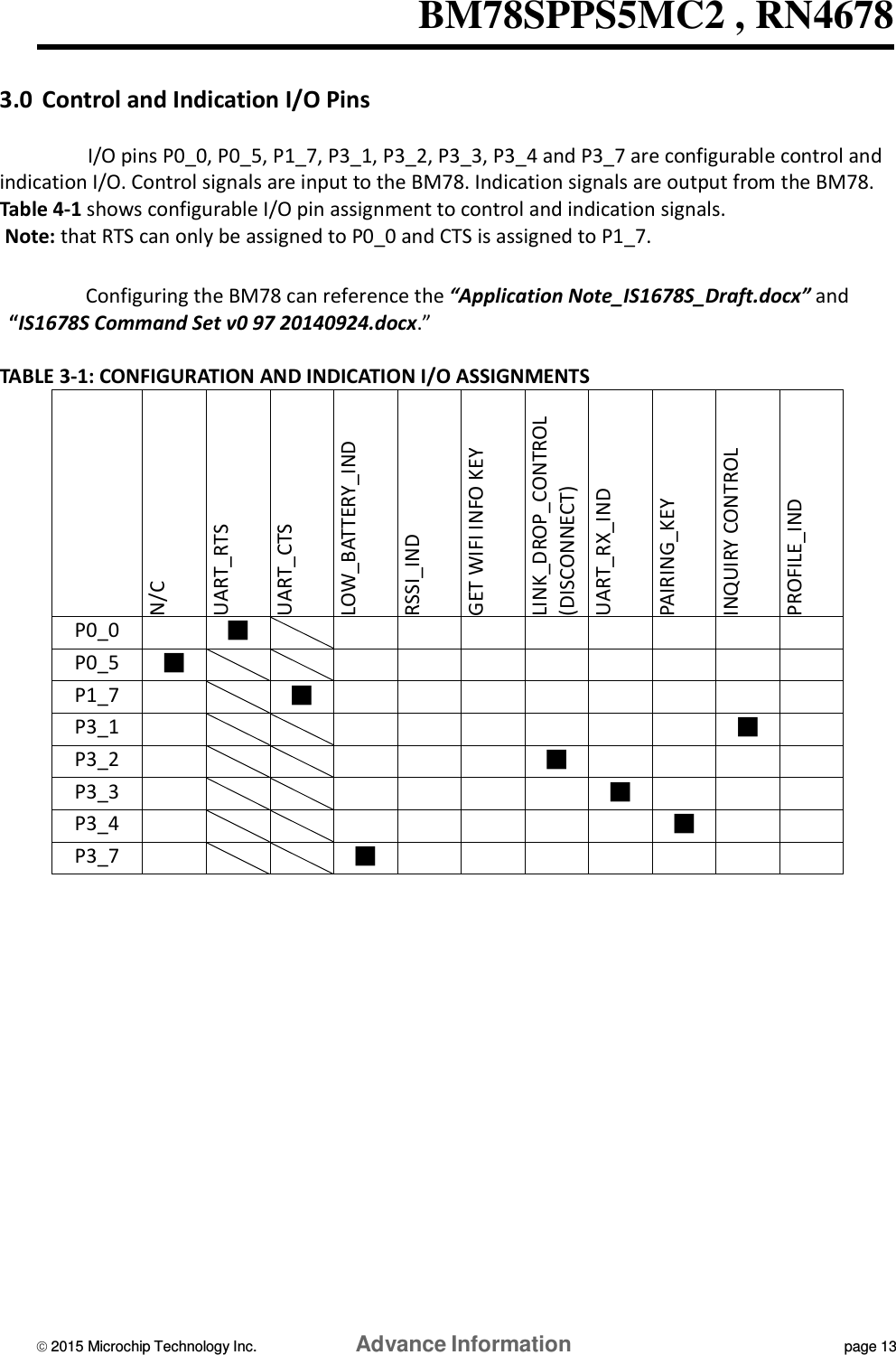

Advance Information  2015 Microchip Technology Inc. page 13BM78SPPS5MC2 , RN4678 3.0 Control and Indication I/O Pins I/O pins P0_0, P0_5, P1_7, P3_1, P3_2, P3_3, P3_4 and P3_7 are configurable control and indication I/O. Control signals are input to the BM78. Indication signals are output from the BM78. Table 4‐1 shows configurable I/O pin assignment to control and indication signals. Note: that RTS can only be assigned to P0_0 and CTS is assigned to P1_7. Configuring the BM78 can reference the “Application Note_IS1678S_Draft.docx” and “IS1678S Command Set v0 97 20140924.docx.” TABLE 3‐1: CONFIGURATION AND INDICATION I/O ASSIGNMENTS N/C UART_RTS UART_CTS LOW_BATTERY_IND RSSI_IND GET WIFI INFO KEY LINK_DROP_CONTROL (DISCONNECT) UART_RX_IND PAIRING_KEY INQUIRY CONTROL PROFILE_IND P0_0 ■ P0_5 ■ P1_7 ■ P3_1 ■ P3_2 ■ P3_3 ■ P3_4 ■ P3_7 ■

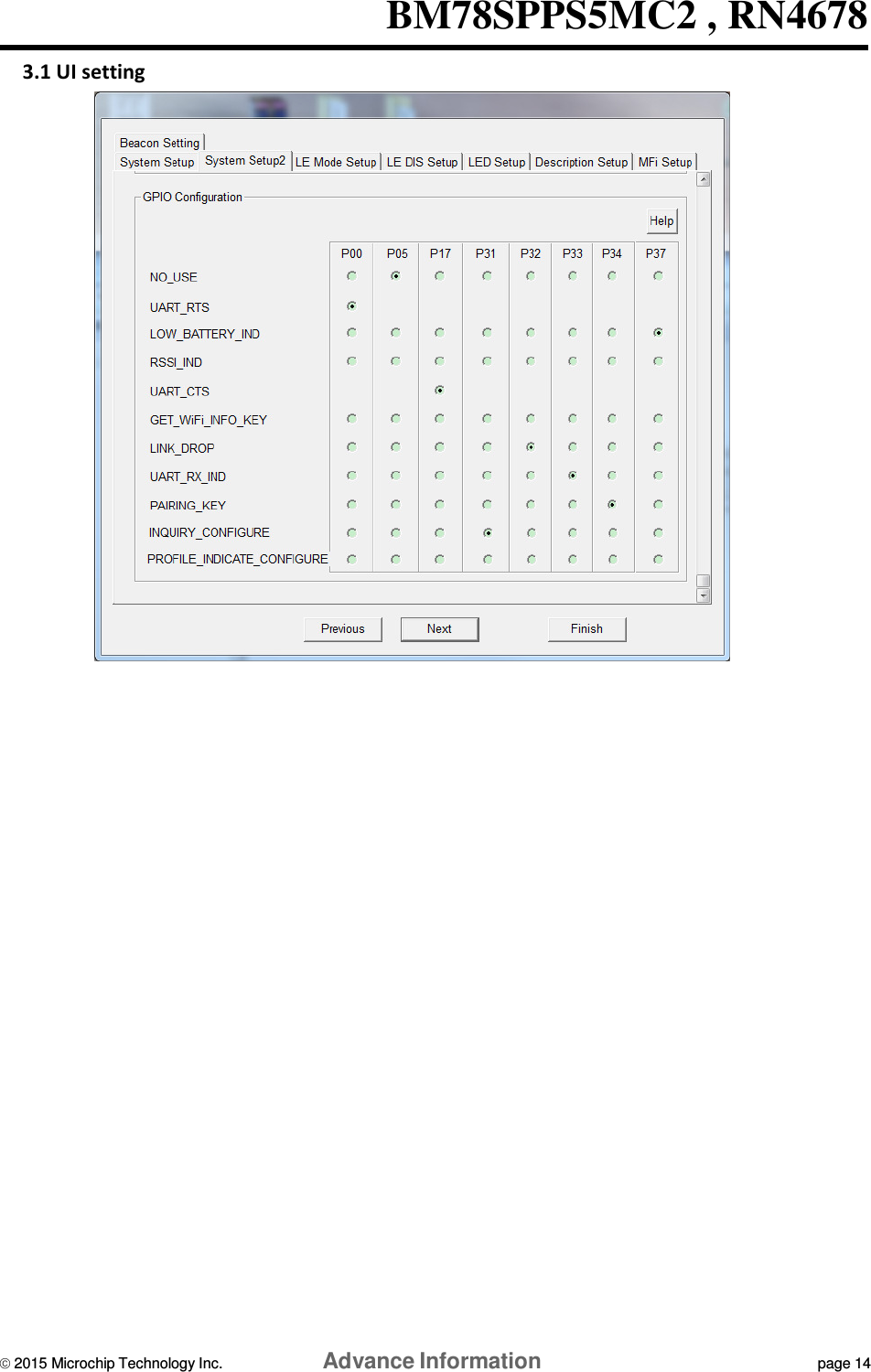

Advance Information  2015 Microchip Technology Inc. page 14BM78SPPS5MC2 , RN4678 3.1 UI setting

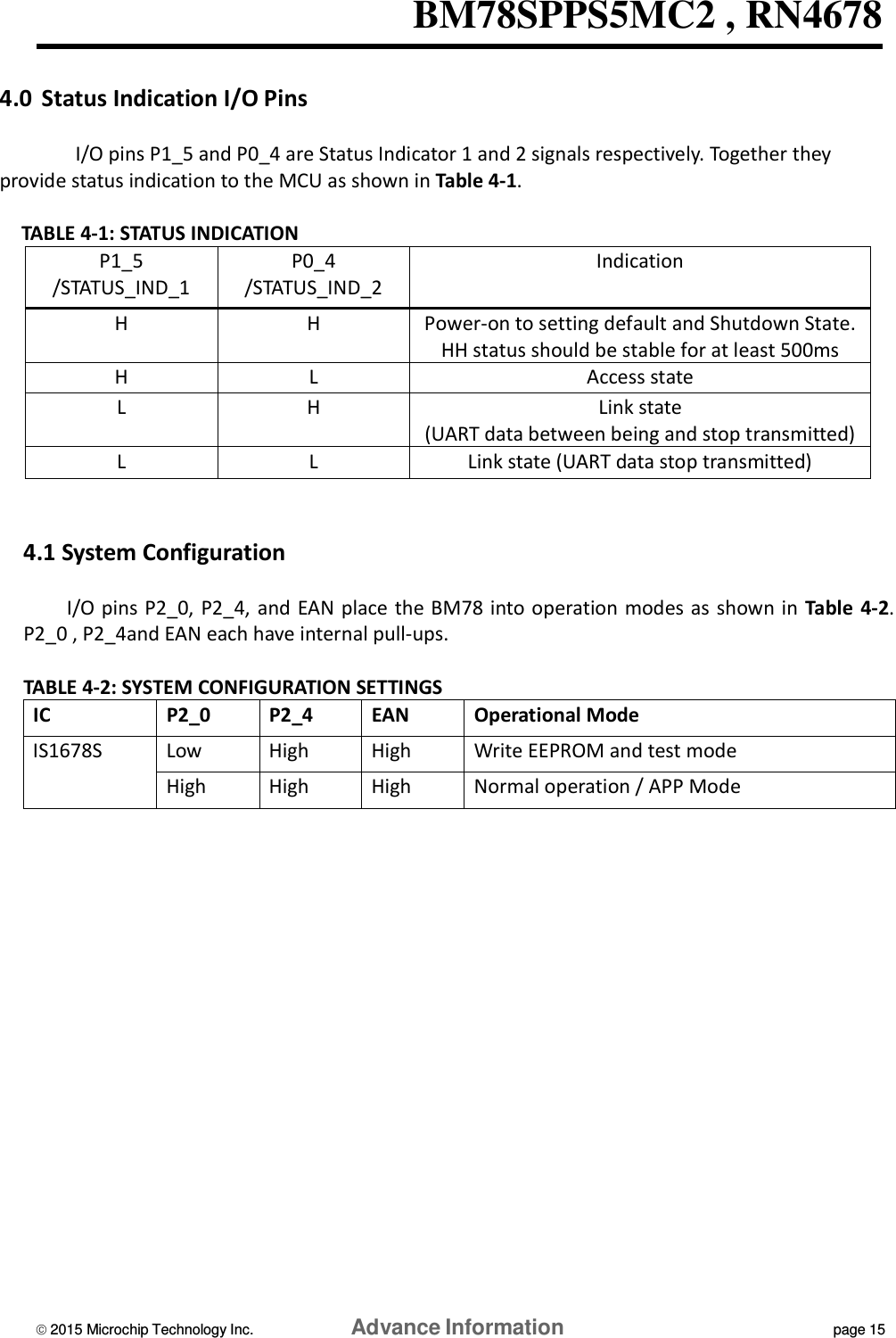

Advance Information  2015 Microchip Technology Inc. page 15BM78SPPS5MC2 , RN4678 4.0 Status Indication I/O Pins I/O pins P1_5 and P0_4 are Status Indicator 1 and 2 signals respectively. Together they provide status indication to the MCU as shown in Table 4‐1. TABLE 4‐1: STATUS INDICATION P1_5 /STATUS_IND_1 P0_4 /STATUS_IND_2 Indication H H Power-on to setting default and Shutdown State. HH status should be stable for at least 500ms H L Access state L H Link state (UART data between being and stop transmitted) L L Link state (UART data stop transmitted) 4.1 System Configuration I/O pins P2_0, P2_4, and EAN place the BM78 into operation modes as shown in Table 4‐2. P2_0 , P2_4and EAN each have internal pull-ups. TABLE 4‐2: SYSTEM CONFIGURATION SETTINGS IC P2_0 P2_4 EAN Operational Mode IS1678S Low High High Write EEPROM and test mode High High High Normal operation / APP Mode

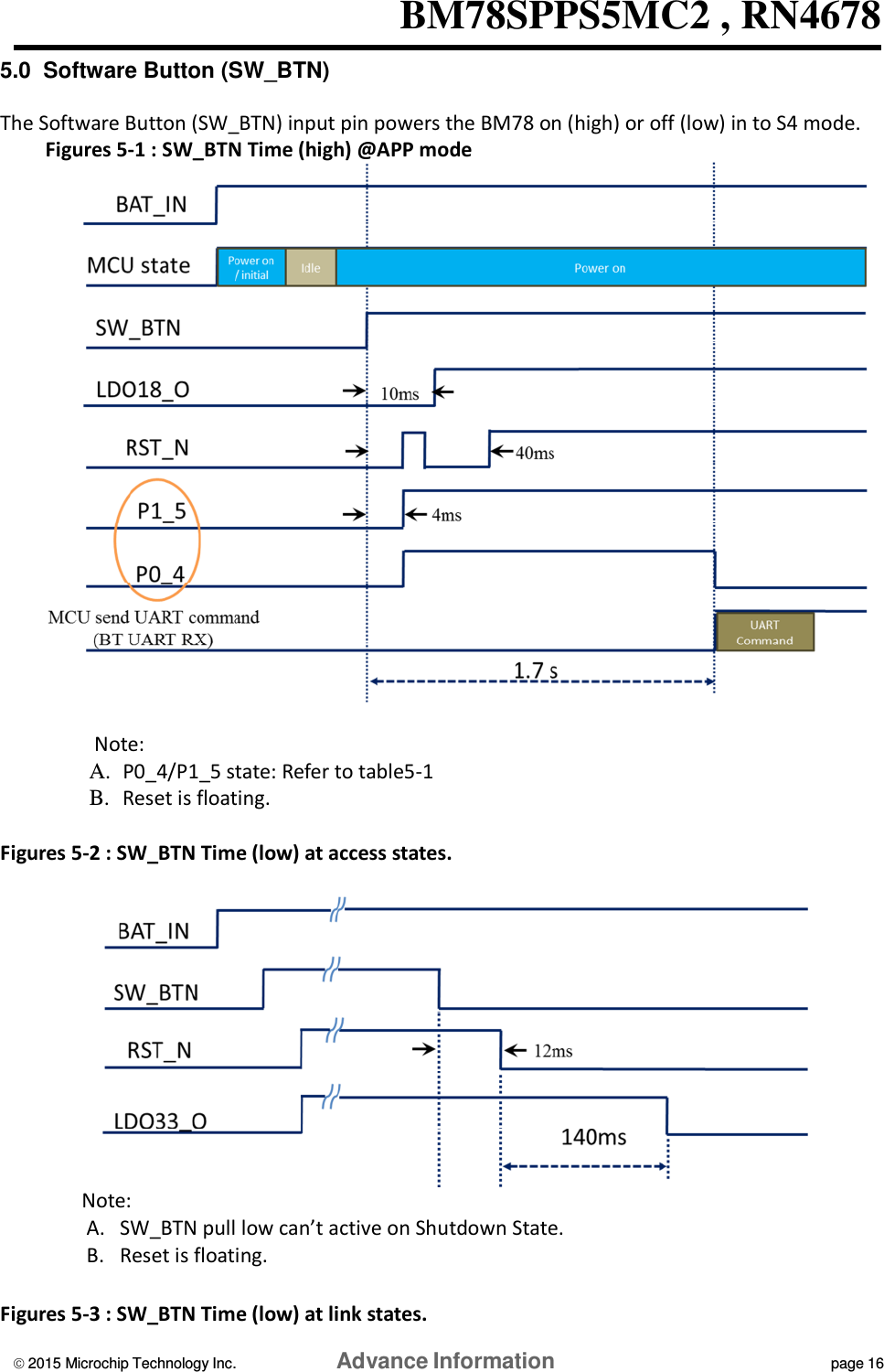

Advance Information  2015 Microchip Technology Inc. page 16BM78SPPS5MC2 , RN4678 5.0 Software Button (SW_BTN) The Software Button (SW_BTN) input pin powers the BM78 on (high) or off (low) in to S4 mode. Figures 5‐1 : SW_BTN Time (high) @APP mode Note: A. P0_4/P1_5 state: Refer to table5-1 B. Reset is floating. Figures 5‐2 : SW_BTN Time (low) at access states. Note: A. SW_BTN pull low can’t active on Shutdown State. B. Reset is floating. Figures 5‐3 : SW_BTN Time (low) at link states.

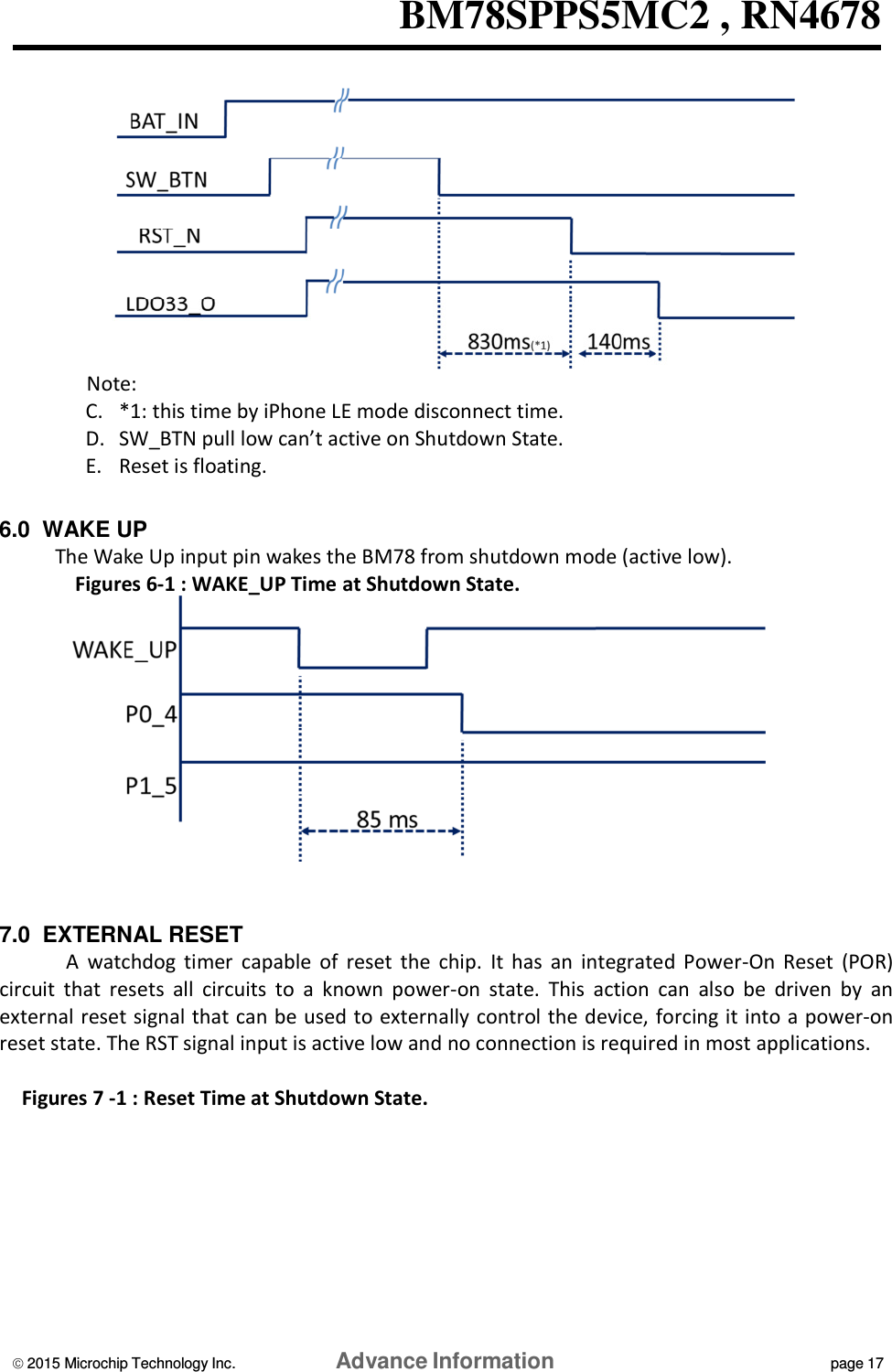

Advance Information  2015 Microchip Technology Inc. page 17BM78SPPS5MC2 , RN4678 Note: C. *1: this time by iPhone LE mode disconnect time. D. SW_BTN pull low can’t active on Shutdown State. E. Reset is floating. 6.0 WAKE UP The Wake Up input pin wakes the BM78 from shutdown mode (active low). Figures 6‐1 : WAKE_UP Time at Shutdown State. 7.0 EXTERNAL RESET A watchdog timer capable of reset the chip. It has an integrated Power-On Reset (POR) circuit that resets all circuits to a known power-on state. This action can also be driven by an external reset signal that can be used to externally control the device, forcing it into a power-on reset state. The RST signal input is active low and no connection is required in most applications. Figures 7 ‐1 : Reset Time at Shutdown State.

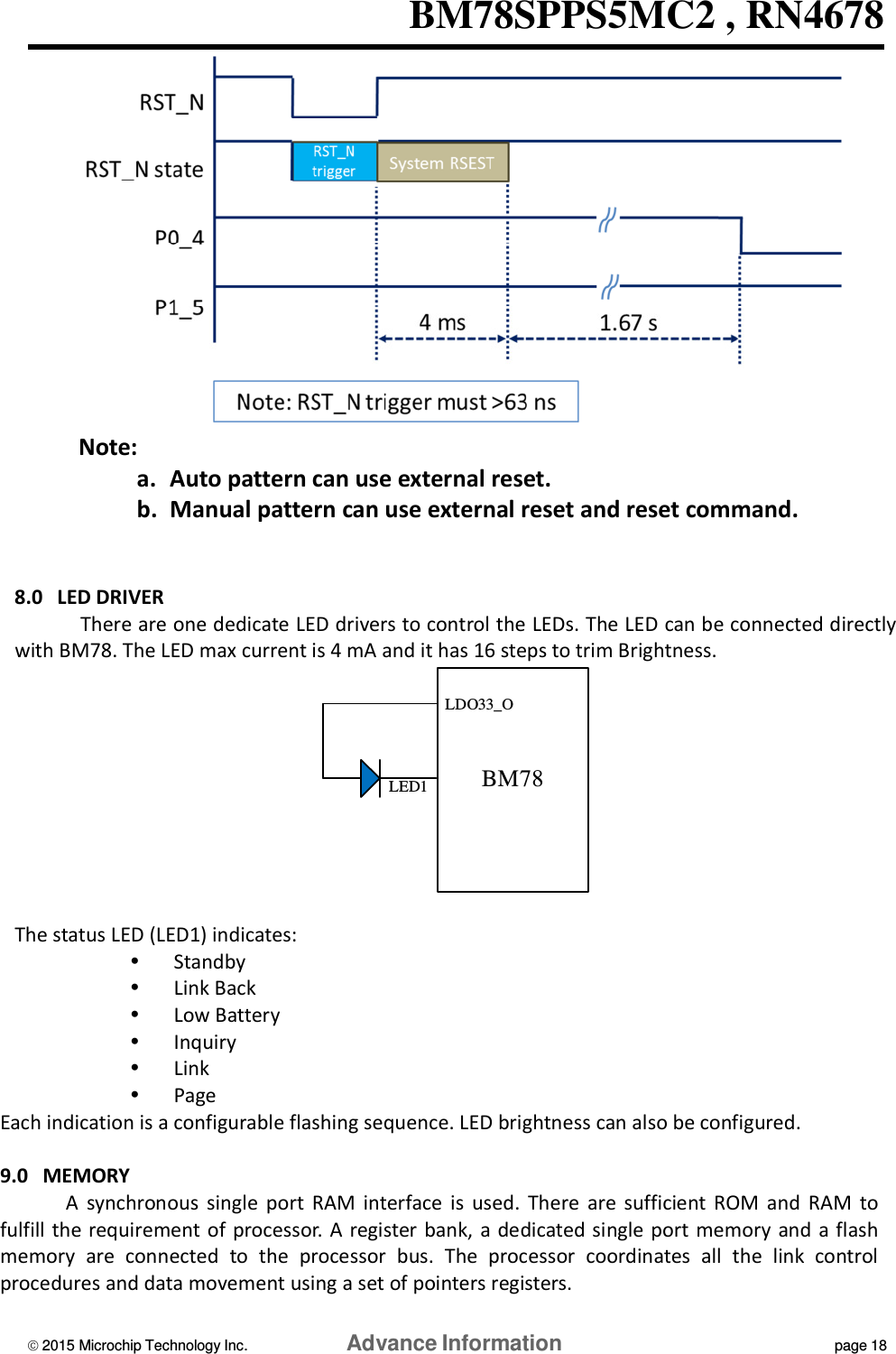

Advance Information  2015 Microchip Technology Inc. page 18BM78SPPS5MC2 , RN4678 Note: a. Auto pattern can use external reset. b. Manual pattern can use external reset and reset command. 8.0 LED DRIVER There are one dedicate LED drivers to control the LEDs. The LED can be connected directly with BM78. The LED max current is 4 mA and it has 16 steps to trim Brightness. BM78LED1LDO33_O The status LED (LED1) indicates:  Standby  Link Back  Low Battery  Inquiry  Link  Page Each indication is a configurable flashing sequence. LED brightness can also be configured. 9.0 MEMORY A synchronous single port RAM interface is used. There are sufficient ROM and RAM to fulfill the requirement of processor. A register bank, a dedicated single port memory and a flash memory are connected to the processor bus. The processor coordinates all the link control procedures and data movement using a set of pointers registers.
Advance Information  2015 Microchip Technology Inc. page 19BM78SPPS5MC2 , RN4678

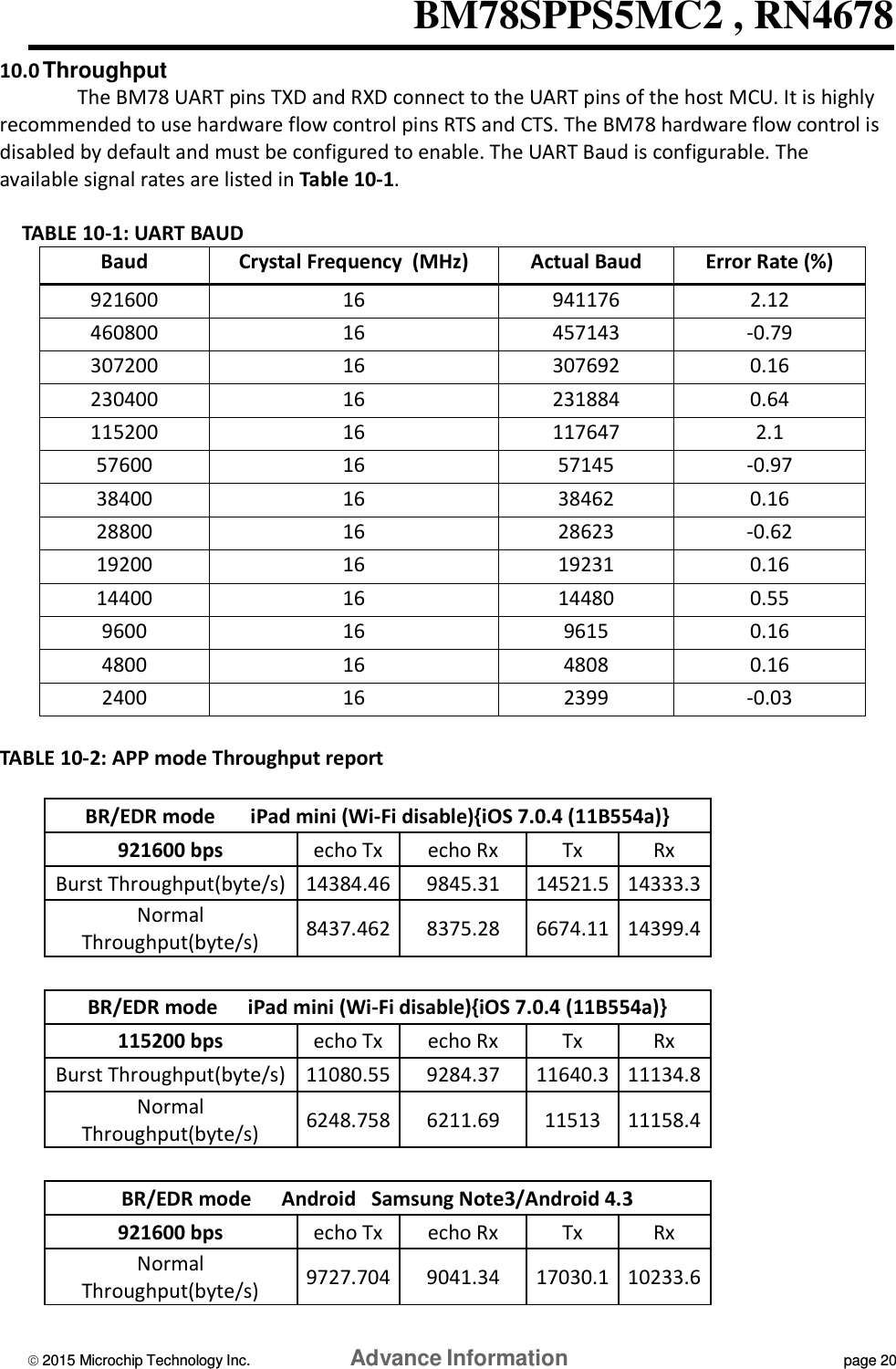

Advance Information  2015 Microchip Technology Inc. page 20BM78SPPS5MC2 , RN4678 10.0 Throughput The BM78 UART pins TXD and RXD connect to the UART pins of the host MCU. It is highly recommended to use hardware flow control pins RTS and CTS. The BM78 hardware flow control is disabled by default and must be configured to enable. The UART Baud is configurable. The available signal rates are listed in Table 10‐1. TABLE 10‐1: UART BAUD Baud Crystal Frequency (MHz) Actual Baud Error Rate (%) 921600 16 941176 2.12 460800 16 457143 -0.79 307200 16 307692 0.16 230400 16 231884 0.64 115200 16 117647 2.1 57600 16 57145 -0.97 38400 16 38462 0.16 28800 16 28623 -0.62 19200 16 19231 0.16 14400 16 14480 0.55 9600 16 9615 0.16 4800 16 4808 0.16 2400 16 2399 -0.03 TABLE 10‐2: APP mode Throughput report BR/EDR mode iPad mini (Wi‐Fi disable){iOS 7.0.4 (11B554a)} 921600 bps echo Tx echo Rx Tx Rx Burst Throughput(byte/s) 14384.46 9845.31 14521.5 14333.3 Normal Throughput(byte/s) 8437.462 8375.28 6674.11 14399.4 BR/EDR mode iPad mini (Wi‐Fi disable){iOS 7.0.4 (11B554a)} 115200 bps echo Tx echo Rx Tx Rx Burst Throughput(byte/s) 11080.55 9284.37 11640.3 11134.8 Normal Throughput(byte/s) 6248.758 6211.69 11513 11158.4 BR/EDR mode Android Samsung Note3/Android 4.3 921600 bps echo Tx echo Rx Tx Rx Normal Throughput(byte/s) 9727.704 9041.34 17030.1 10233.6

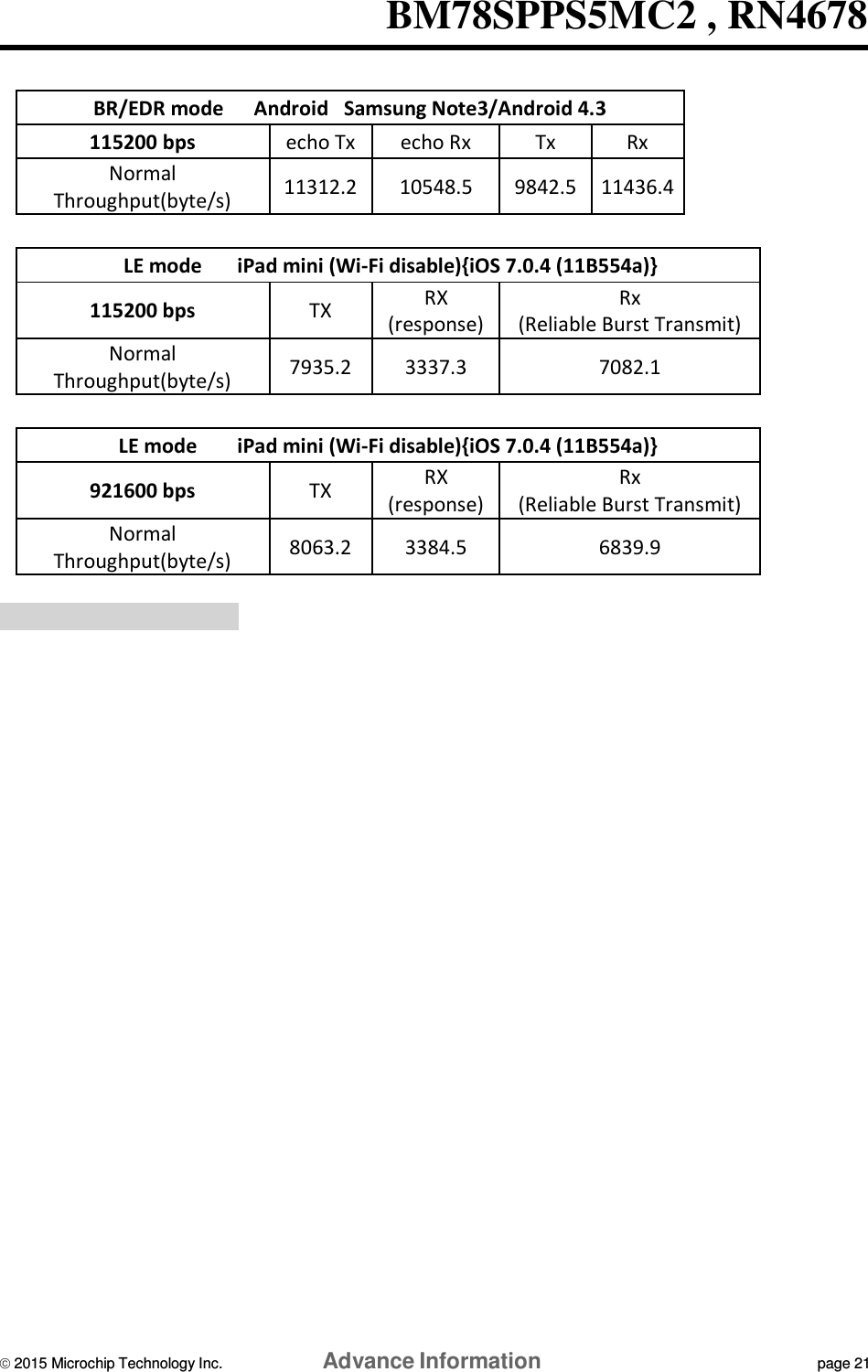

Advance Information  2015 Microchip Technology Inc. page 21BM78SPPS5MC2 , RN4678 BR/EDR mode Android Samsung Note3/Android 4.3 115200 bps echo Tx echo Rx Tx Rx Normal Throughput(byte/s) 11312.2 10548.5 9842.5 11436.4 LE mode iPad mini (Wi‐Fi disable){iOS 7.0.4 (11B554a)} 115200 bps TX RX (response) Rx (Reliable Burst Transmit) Normal Throughput(byte/s) 7935.2 3337.3 7082.1 LE mode iPad mini (Wi‐Fi disable){iOS 7.0.4 (11B554a)} 921600 bps TX RX (response) Rx (Reliable Burst Transmit) Normal Throughput(byte/s) 8063.2 3384.5 6839.9
Advance Information  2015 Microchip Technology Inc. page 22BM78SPPS5MC2 , RN4678 11.0 Mounting Details The BM78 SPPS5NC2 physical dimensions are shown in Figure 11-1, recommended host PCB footprint in Figure 11-2, and mounting suggestion in Figure 11-3. There should not be top copper layer near the test pin area shown in Figure 11-2. When laying out the host PCB, the areas under the antenna should not contain any top, inner layer, or bottom copper as shown in Figure 11-3. A low-impedance ground plane will ensure best radio performance (best range, lowest noise). Figure 11-3 shows a minimum ground plane area to the left and right of the module for best antenna performance. The ground plane can be extended beyond the minimum recommended as need for host PCB EMC noise reduction. For best range performance, keep all external metal away from the ceramic chip antenna at least 31 mm. The BM78SPP03MC2 physical dimensions are shown in Figure 11-4, recommended host PCB footprint in Figure 11-5, and mounting suggestion in Figure 11-6. It is highly recommended to layout the host PCB as suggested in Figure 11-6. A low-impedance ground plane will ensure best radio performance (best range, lowest noise). Pin 30 (BT_RF) is a 50 ohm connection to an external antenna connector, PCB trace antenna, or component (ceramic chip) antenna through a host PCB 50 ohm micro-strip trace. This trace can be extended to include passive parts for antenna attenuation padding, impedance matching, or to provide test posts. It is recommended that the micro-strip trace be as short as possible for minimum loss and best impedance matching. If the micro-strip trace is longer, it should be a 50 ohm impedance. Figure 11-6 shows an example connection to U.FL connector. Soldering Recommendations The BM78 wireless module was assembled using standard lead-free reflow profile IPC/JEDEC J-STD-020. The module can be soldered to the host PCB using standard leaded and lead-free solder reflow profiles. To avoid damaging the module, the following recommendations are given: • Microchip Technology Application Note AN233 Solder Reflow Recommendation (DS00233) provides solder reflow recommendations • Do not exceed peak temperature (TP) of 250 deg C • Refer to the solder paste data sheet for specific reflow profile recommendations • Use no-clean flux solder paste • Do not wash as moisture can be trapped under the shield • Use only one flow. If the PCB requires multiple flows, apply the module on the final flow.

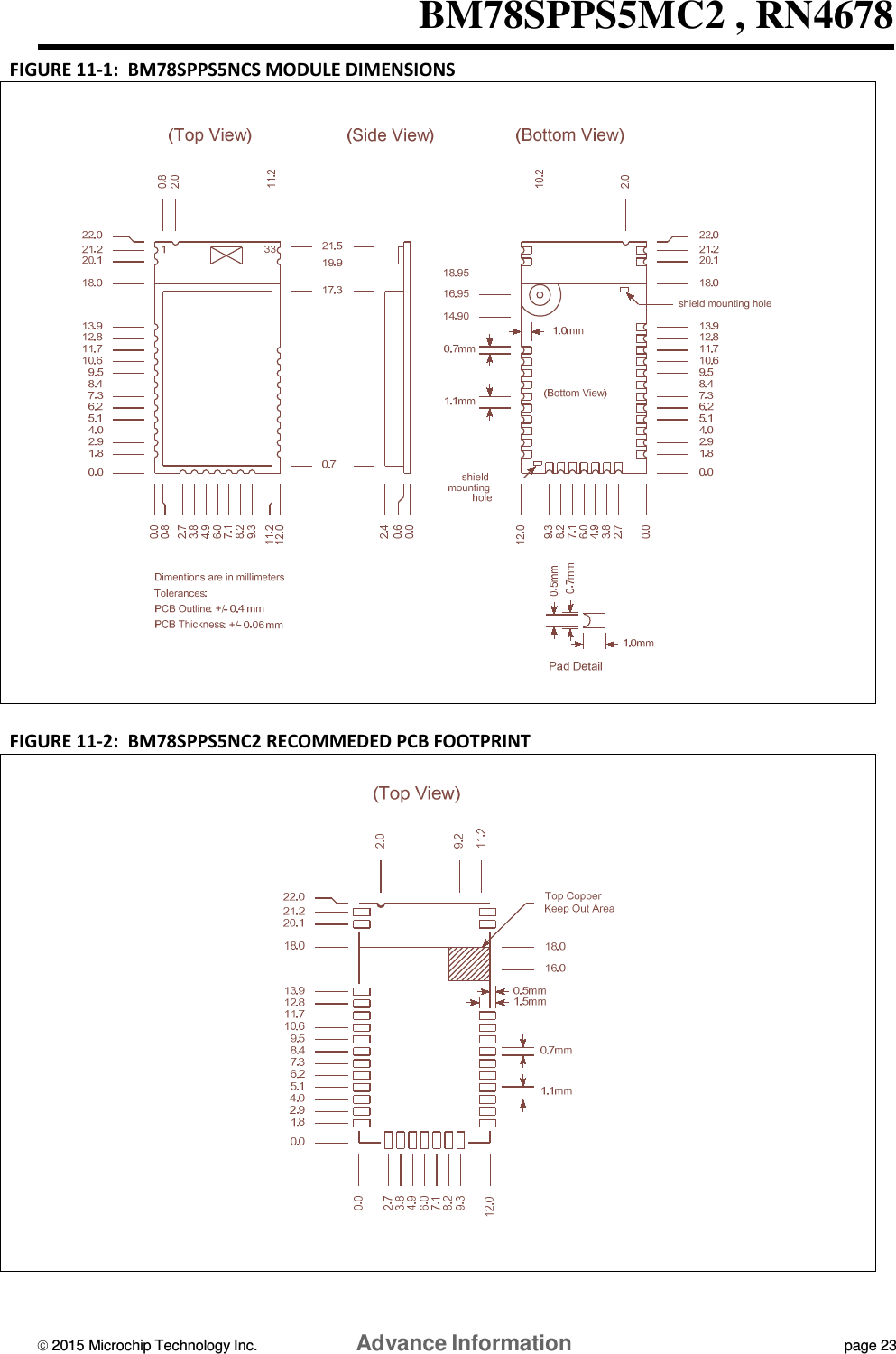

Advance Information  2015 Microchip Technology Inc. page 23BM78SPPS5MC2 , RN4678 FIGURE 11‐1: BM78SPPS5NCS MODULE DIMENSIONS FIGURE 11‐2: BM78SPPS5NC2 RECOMMEDED PCB FOOTPRINT

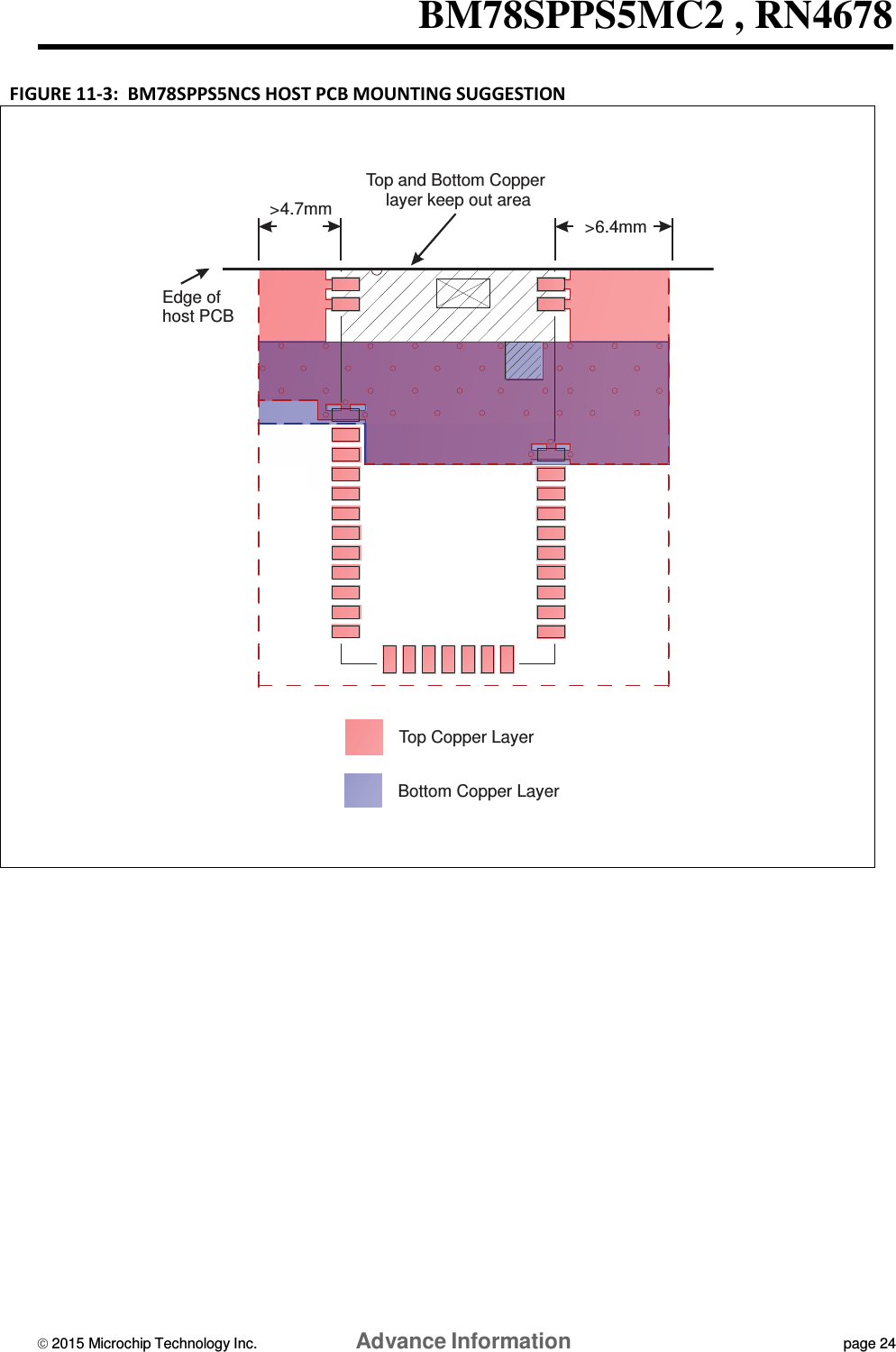

Advance Information  2015 Microchip Technology Inc. page 24BM78SPPS5MC2 , RN4678 FIGURE 11‐3: BM78SPPS5NCS HOST PCB MOUNTING SUGGESTION Top and Bottom Copper layer keep out areaTop Copper LayerBottom Copper Layer>6.4mm>4.7mmEdge ofhost PCB

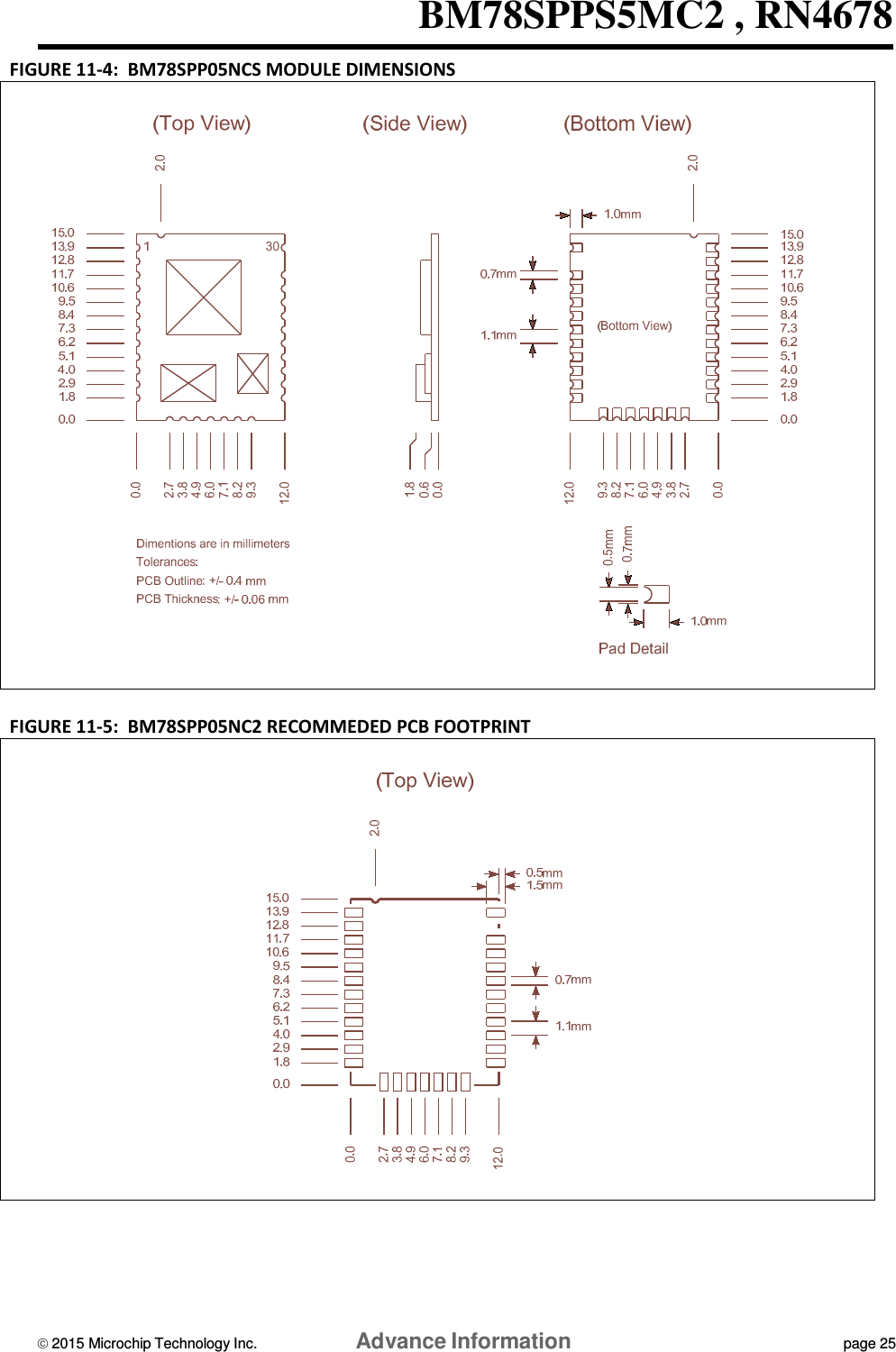

Advance Information  2015 Microchip Technology Inc. page 25BM78SPPS5MC2 , RN4678 FIGURE 11‐4: BM78SPP05NCS MODULE DIMENSIONS FIGURE 11‐5: BM78SPP05NC2 RECOMMEDED PCB FOOTPRINT

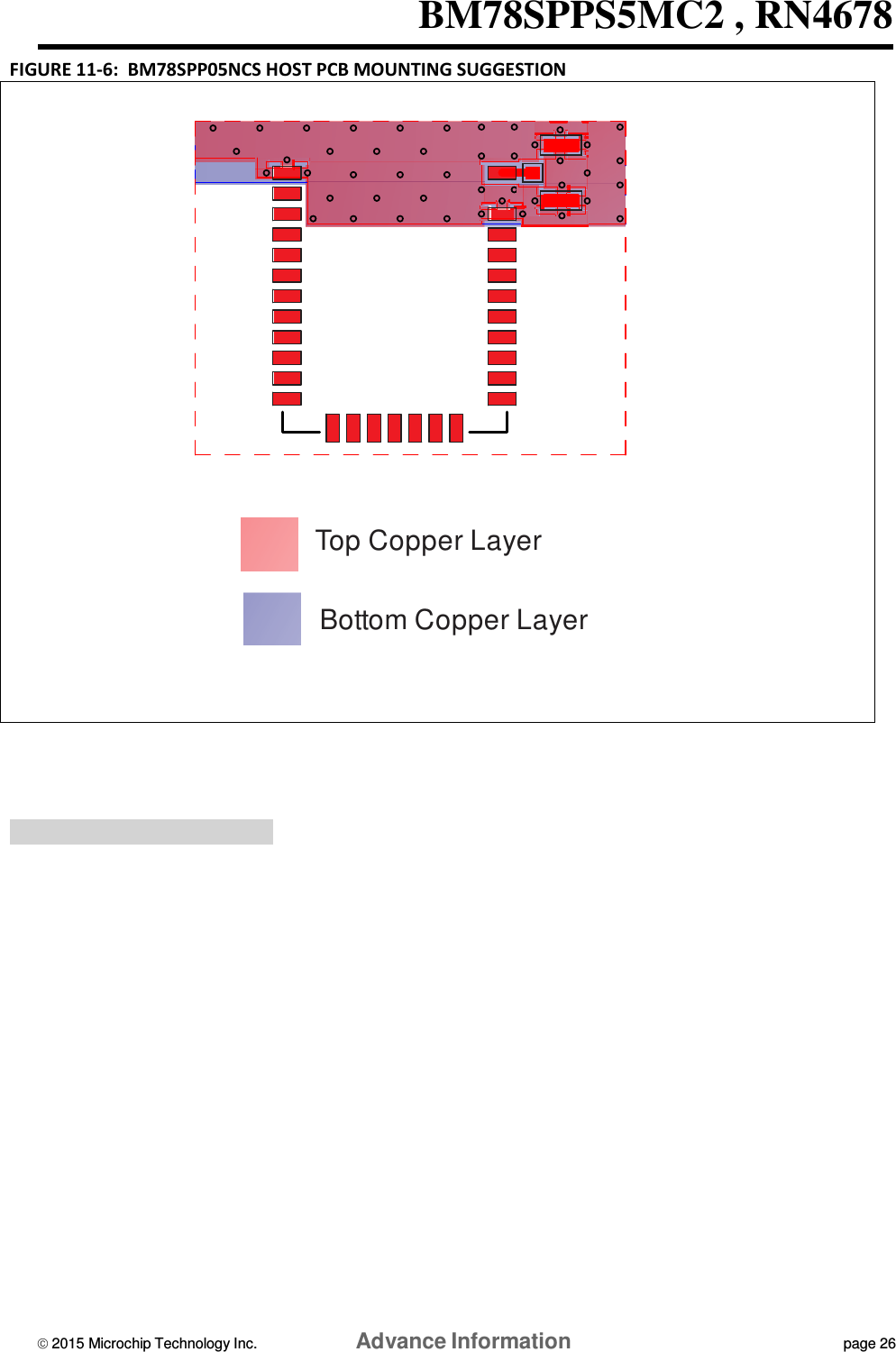

Advance Information  2015 Microchip Technology Inc. page 26BM78SPPS5MC2 , RN4678 FIGURE 11‐6: BM78SPP05NCS HOST PCB MOUNTING SUGGESTION Top Copper LayerBottom Copper Layer

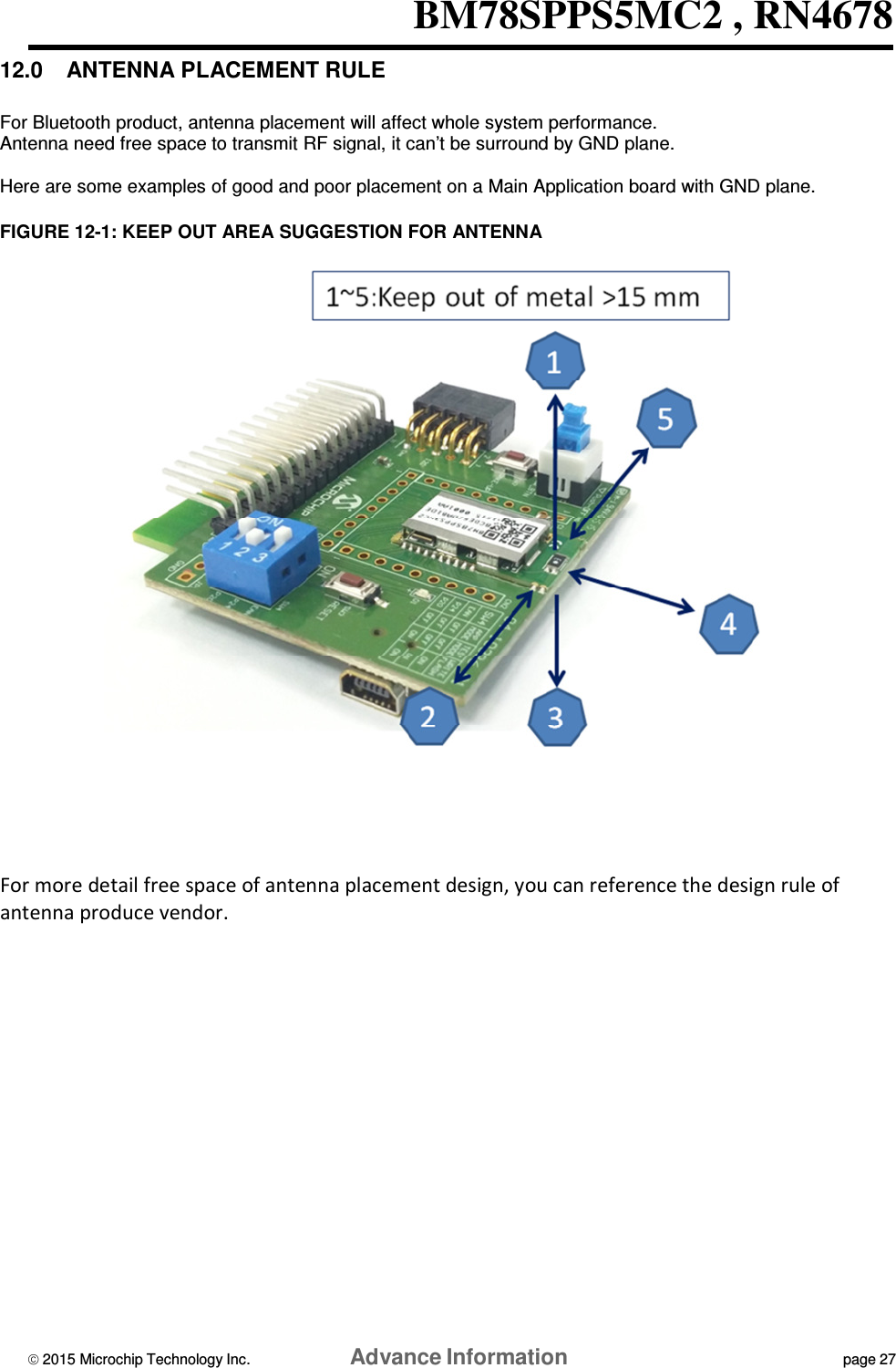

Advance Information  2015 Microchip Technology Inc. page 27BM78SPPS5MC2 , RN4678 12.0 ANTENNA PLACEMENT RULE For Bluetooth product, antenna placement will affect whole system performance. Antenna need free space to transmit RF signal, it can’t be surround by GND plane. Here are some examples of good and poor placement on a Main Application board with GND plane. FIGURE 12-1: KEEP OUT AREA SUGGESTION FOR ANTENNA For more detail free space of antenna placement design, you can reference the design rule of antenna produce vendor.

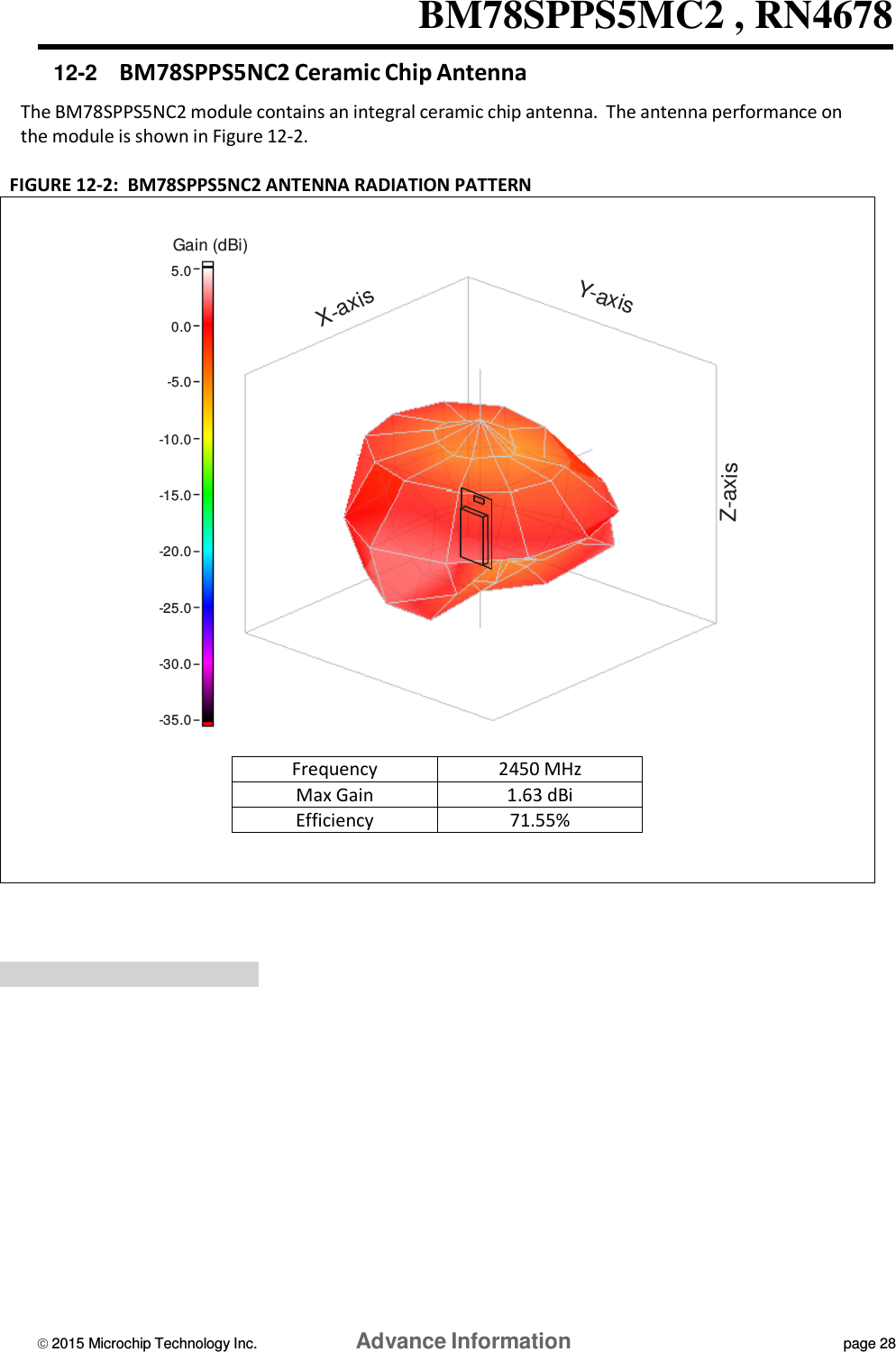

Advance Information  2015 Microchip Technology Inc. page 28BM78SPPS5MC2 , RN4678 12-2 BM78SPPS5NC2 Ceramic Chip Antenna The BM78SPPS5NC2 module contains an integral ceramic chip antenna. The antenna performance on the module is shown in Figure 12-2. FIGURE 12‐2: BM78SPPS5NC2 ANTENNA RADIATION PATTERN Gain (dBi)0.05.0-5.0-10.0-15.0-20.0-25.0-30.0-35.0X-axisY-axisZ-axis Frequency 2450 MHz Max Gain 1.63 dBi Efficiency 71.55%

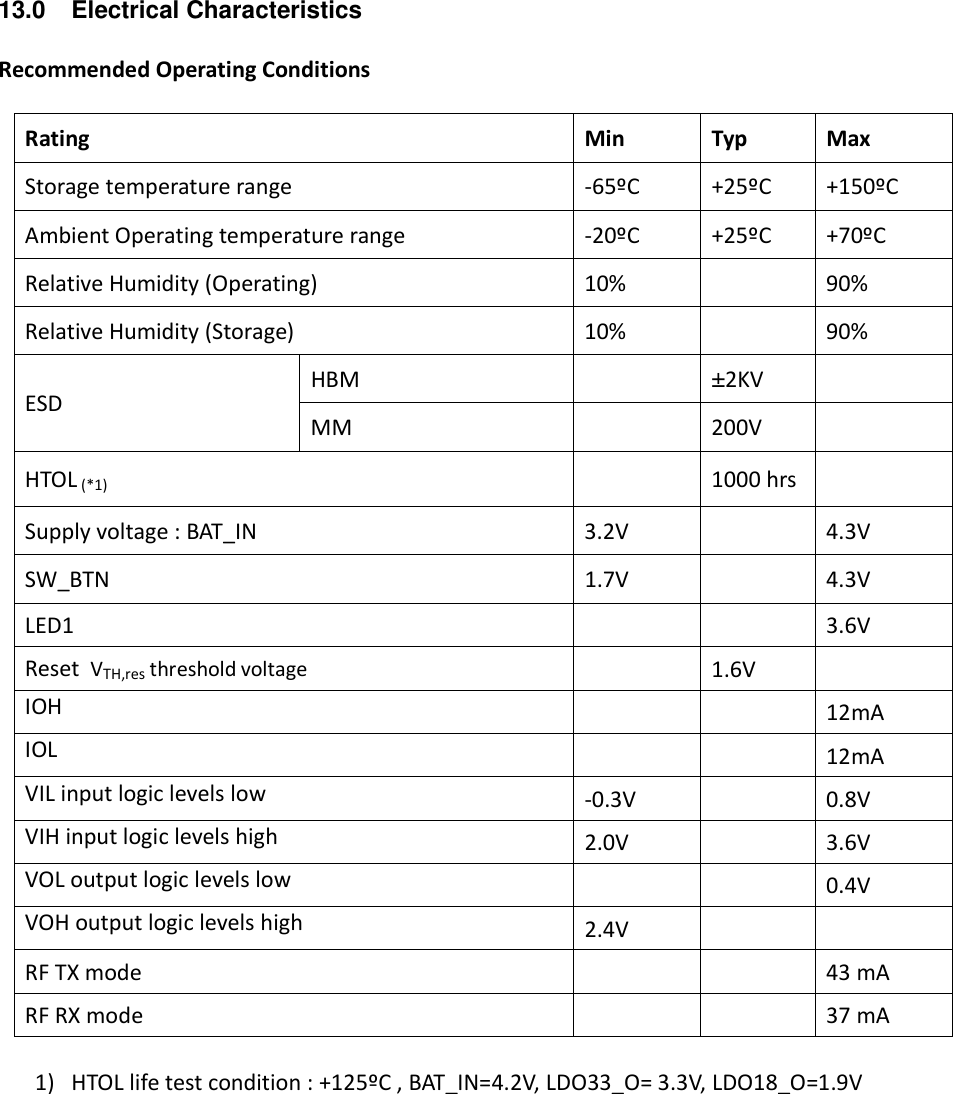

13.0 Electrical Characteristics Recommended Operating Conditions Rating Min Typ Max Storage temperature range -65ºC +25ºC +150ºC Ambient Operating temperature range -20ºC +25ºC +70ºC Relative Humidity (Operating) 10% 90% Relative Humidity (Storage) 10% 90% ESD HBM ±2KV MM 200V HTOL (*1) 1000 hrs Supply voltage : BAT_IN 3.2V 4.3V SW_BTN 1.7V 4.3V LED1 3.6V Reset VTH,res threshold voltage 1.6V IOH 12mA IOL 12mA VIL input logic levels low -0.3V 0.8V VIH input logic levels high 2.0V 3.6V VOL output logic levels low 0.4V VOH output logic levels high 2.4V RF TX mode 43 mA RF RX mode 37 mA 1) HTOL life test condition : +125ºC , BAT_IN=4.2V, LDO33_O= 3.3V, LDO18_O=1.9V

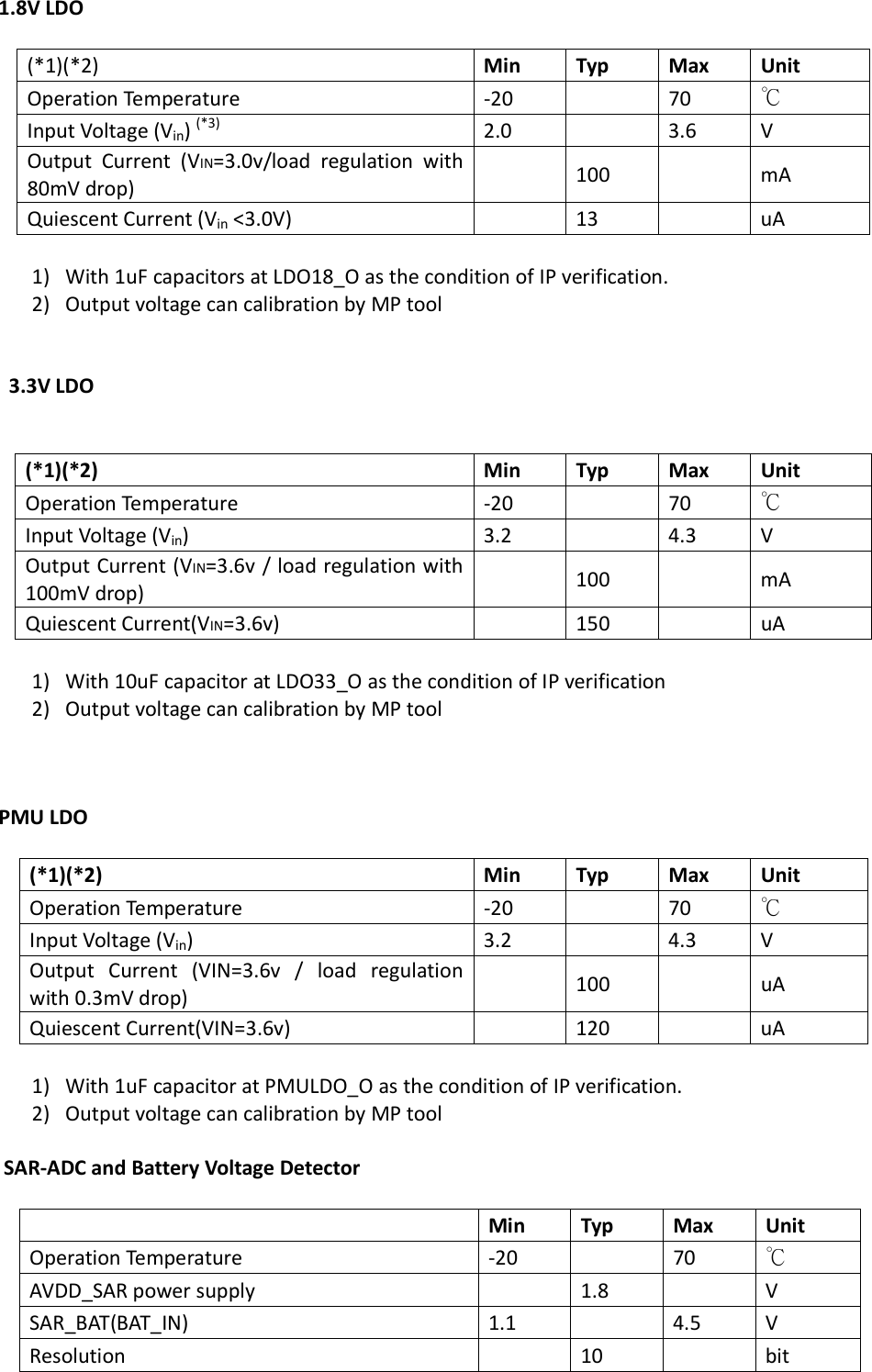

1.8V LDO (*1)(*2) Min Typ Max Unit Operation Temperature -20 70 ℃ Input Voltage (Vin) (*3) 2.0 3.6 V Output Current (VIN=3.0v/load regulation with 80mV drop) 100 mA Quiescent Current (Vin <3.0V) 13 uA 1) With 1uF capacitors at LDO18_O as the condition of IP verification. 2) Output voltage can calibration by MP tool 3.3V LDO (*1)(*2) Min Typ Max Unit Operation Temperature -20 70 ℃ Input Voltage (Vin) 3.2 4.3 V Output Current (VIN=3.6v / load regulation with 100mV drop) 100 mA Quiescent Current(VIN=3.6v) 150 uA 1) With 10uF capacitor at LDO33_O as the condition of IP verification 2) Output voltage can calibration by MP tool PMU LDO (*1)(*2) Min Typ Max Unit Operation Temperature -20 70 ℃ Input Voltage (Vin) 3.2 4.3 V Output Current (VIN=3.6v / load regulation with 0.3mV drop) 100 uA Quiescent Current(VIN=3.6v) 120 uA 1) With 1uF capacitor at PMULDO_O as the condition of IP verification. 2) Output voltage can calibration by MP tool SAR‐ADC and Battery Voltage Detector Min Typ Max Unit Operation Temperature -20 70 ℃ AVDD_SAR power supply 1.8 V SAR_BAT(BAT_IN) 1.1 4.5 V Resolution 10 bit
1) SAR_BAT is shorted to BAT_IN internally for battery voltage detection. Intensity controllable LED driver Min Typ Max Unit Operation Temperature -20 70 ℃ Open-drain Voltage 3.6 V Current Step 0.3 mA Programmable Current Range 0 5 mA Intensity control 16 step Power down open-drain current 1 uA Shutdown Current 1 uA Operating Current (including bandgap) 1 mA Shutdown Current 1 uA

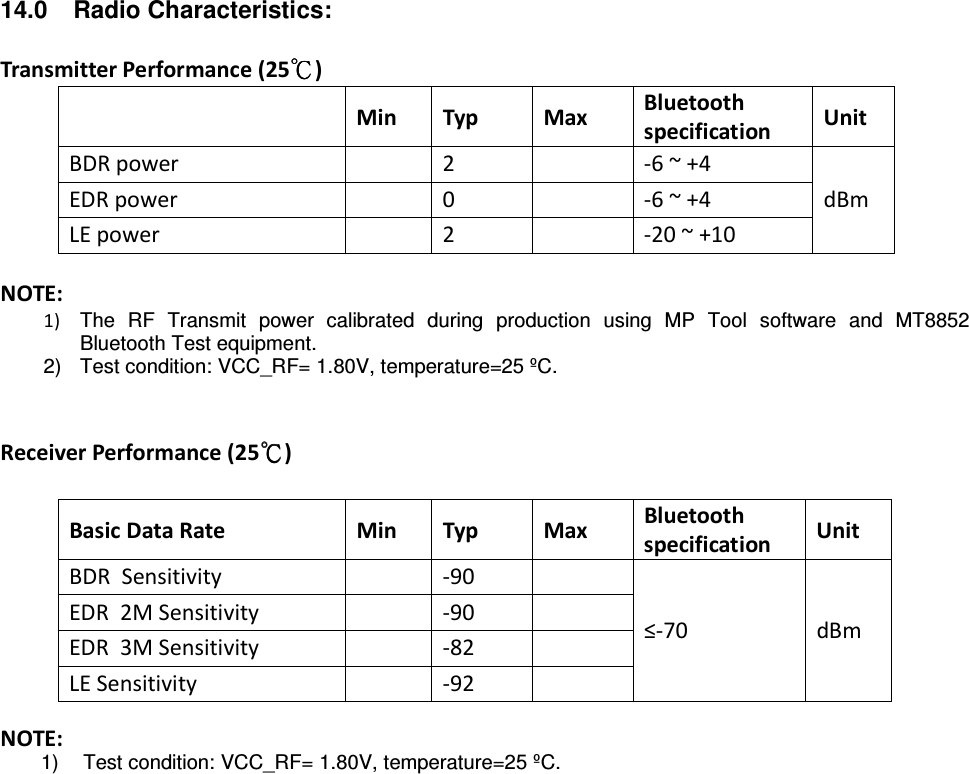

14.0 Radio Characteristics: Transmitter Performance (25℃℃℃℃) Min Typ Max Bluetooth specification Unit BDR power 2 -6 ~ +4 dBm EDR power 0 -6 ~ +4 LE power 2 -20 ~ +10 NOTE: 1) The RF Transmit power calibrated during production using MP Tool software and MT8852 Bluetooth Test equipment. 2) Test condition: VCC_RF= 1.80V, temperature=25 ºC. Receiver Performance (25℃℃℃℃) Basic Data Rate Min Typ Max Bluetooth specification Unit BDR Sensitivity -90 ≤-70 dBm EDR 2M Sensitivity -90 EDR 3M Sensitivity -82 LE Sensitivity -92 NOTE: 1) Test condition: VCC_RF= 1.80V, temperature=25 ºC.
15.0 System Current Consumption SUPPLY CONSUMPTION – CLASSIC (1) Parameter Current (avg.) Units : mA Current Notes Standby mode 2.543 shutdown mode 0.187 Connected + Sniff, Master (no data) 0.541 No data was transmitted Sniff interval = 500ms Connected + Sniff, Slave (no data) 0.551 No data was transmitted Sniff interval = 500ms Data, Master 10.67 (Data transmitted at 115200 bps; block size=500) Data, Slave 14.87 (Data transmitted at 115200 bps; block size=500) Note 1: Classic BR/EDR, RX_IND Function Enabled 2. The DATA from IS1678S-151 SUPPLY CONSUMPTION –LOW ENERGY (1) Parameter Current (avg.) Units : mA Notes Shutdown mode 0.13 LE fast advertising 1.21 LE fast advertising interval =100 ms 0.88 LE fast advertising interval = 160 ms 0.48 LE fast advertising interval = 500 ms 1.72 LE fast advertising interval = 100 ms + Beacon 100 ms 0.62 LE fast advertising interval = 500 ms + Beacon 500 ms Reduced Power advertising 0.39 LE Reduced Power advertising interval = 961 ms 1.00 LE Reduced Power advertising interval = 961 ms+ Beacon 100 ms 0.51 LE Reduced Power advertising interval = 961 ms + Beacon 500 ms Connected (No data) 0.39 Connection interval = 1500 ms 0.43 Connection interval = 600 ms Connected (iPhone6IC) 0.45 Connection interval = 500 ms 0.60 Connection interval = 200 ms Connected (ICiPhone6) 6.6 Connection interval = 500 ms 7.0 Connection interval = 200 ms Note 1. Only Low Energy, RX_IND Function Enabled 2. The DATA from IS1678S-151

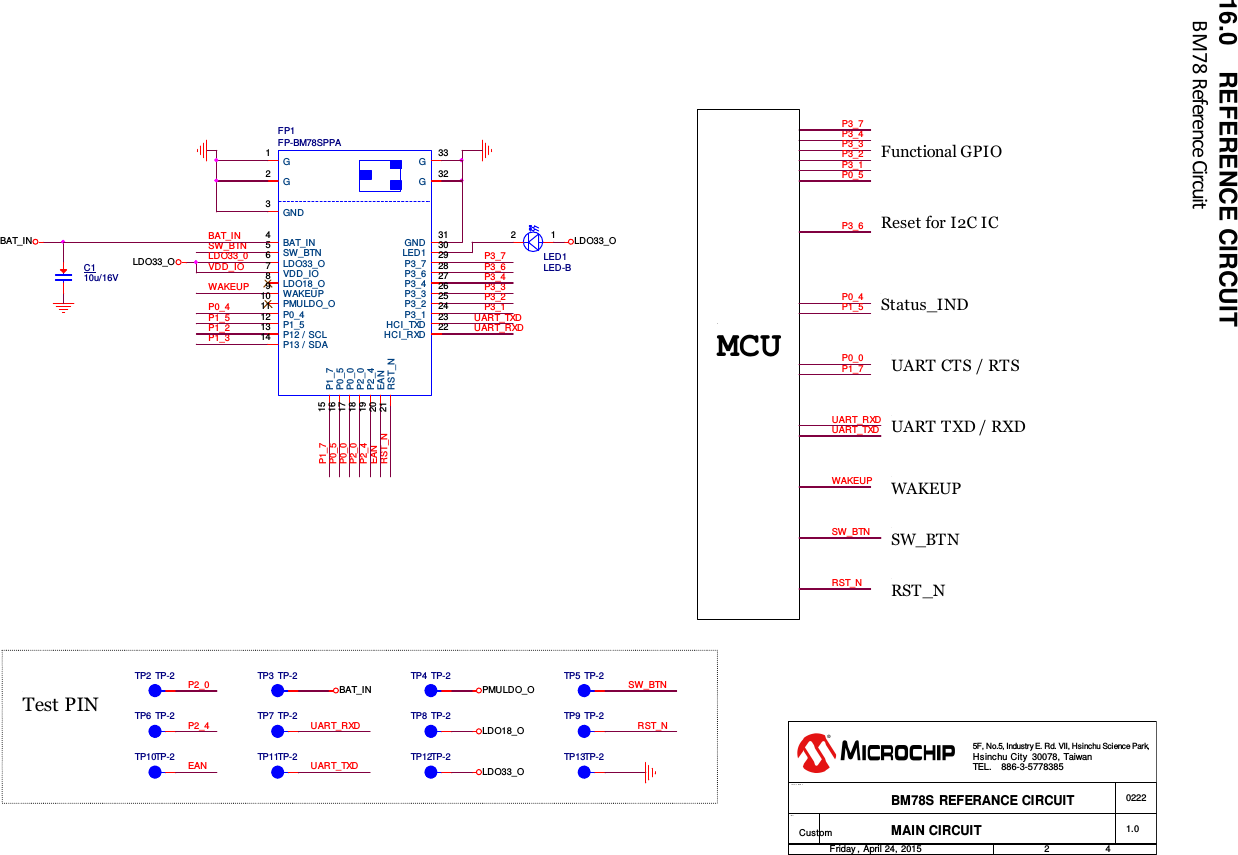

16.0 REFERENCE CIRCUIT BM78 Reference Circuit P3_7P3_3P3_1P3_2P3_4P3_6UART_RXDUART_TXDRST_NP1_7P0_5P0_0P2_0EANP2_4SW_BTNVDD_IOWAKEUPP1_3P1_2P1_5P0_4LED1LED-B12LDO33_OBAT_INLDO33_O LDO33_0FP1FP-BM78SPPAG1G2GND3BAT_IN4SW_BTN5LDO33_O6VDD_IO7LDO18_O8WAKEUP9PMULDO_O10P0_411P1_512P12 / SCL13P13 / SDA14P1_715P0_516P0_017P2_018P2_419EAN20RST_N21GND 31LED1 30P3_7 29P3_6 28P3_4 27P3_3 26P3_2 25P3_1 24HCI_TXD 23HCI_RXD 22G33G32C110u/16VBAT_I NBo a r d N a m eSiz eTit le RevDa t e : S h e e t ofP/ NMAIN CIRCUIT1.0BM78S REFERANCE CIRCUITCustom2 4Friday , April 24, 201502225F, No.5, Industry E. Rd. VII, Hsinchu Science Park,Hsinchu City 30078, TaiwanTEL. 886-3-5778385P3_4P3_71MCUP3_1P3_3P3_2UART_TXDUART_RXDP0_4P1_5P3_6P0_51Reset for I2C IC1Functional GPIORST_NSW_BTNWAKEUP1RST_N1WAKEUP1UART TXD / RXD1Status_INDP1_71UART CTS / RTS1SW_BTNP0_0TP2 TP-2TP10TP-2TP6 TP-2TP3 TP-2TP7 TP-2TP5 TP-2TP11TP-2TP9 TP-2TP13TP-2SW_BTNUART_RXDEANP2_0RST_N1Test PINBAT_INP2_4UART_TXDTP8 TP-2TP4 TP-2PMULDO_OTP12TP-2LDO18_OLDO33_O

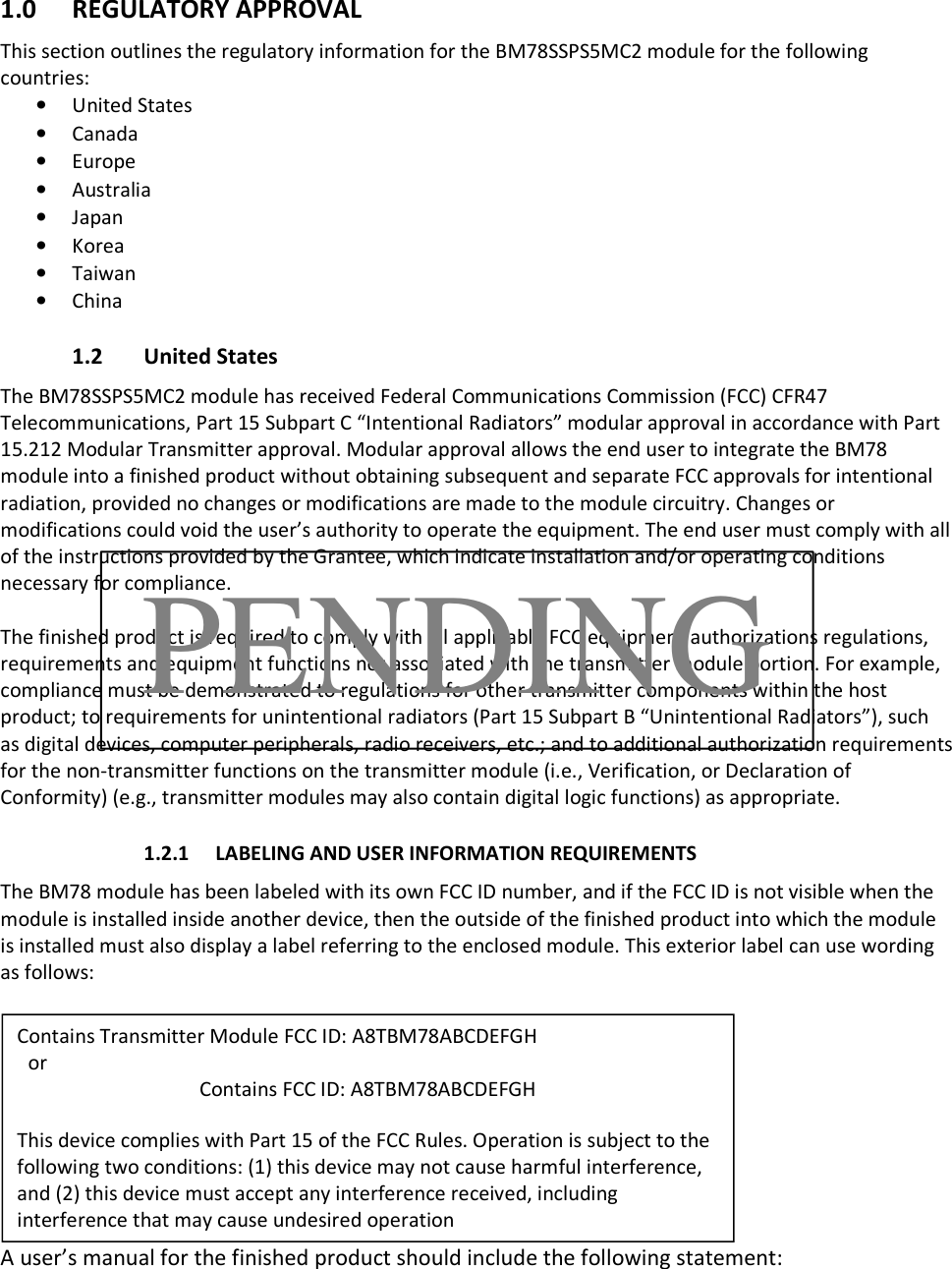

1.0 REGULATORY APPROVAL This section outlines the regulatory information for the BM78SSPS5MC2 module for the following countries: • United States • Canada • Europe • Australia • Japan • Korea • Taiwan • China 1.2 United States The BM78SSPS5MC2 module has received Federal Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C “Intentional Radiators” modular approval in accordance with Part 15.212 Modular Transmitter approval. Modular approval allows the end user to integrate the BM78 module into a finished product without obtaining subsequent and separate FCC approvals for intentional radiation, provided no changes or modifications are made to the module circuitry. Changes or modifications could void the user’s authority to operate the equipment. The end user must comply with all of the instructions provided by the Grantee, which indicate installation and/or operating conditions necessary for compliance. The finished product is required to comply with all applicable FCC equipment authorizations regulations, requirements and equipment functions not associated with the transmitter module portion. For example, compliance must be demonstrated to regulations for other transmitter components within the host product; to requirements for unintentional radiators (Part 15 Subpart B “Unintentional Radiators”), such as digital devices, computer peripherals, radio receivers, etc.; and to additional authorization requirements for the non-transmitter functions on the transmitter module (i.e., Verification, or Declaration of Conformity) (e.g., transmitter modules may also contain digital logic functions) as appropriate. 1.2.1 LABELING AND USER INFORMATION REQUIREMENTS The BM78 module has been labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as follows: A user’s manual for the finished product should include the following statement: Contains Transmitter Module FCC ID: A8TBM78ABCDEFGH or Contains FCC ID: A8TBM78ABCDEFGH This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation PENDING

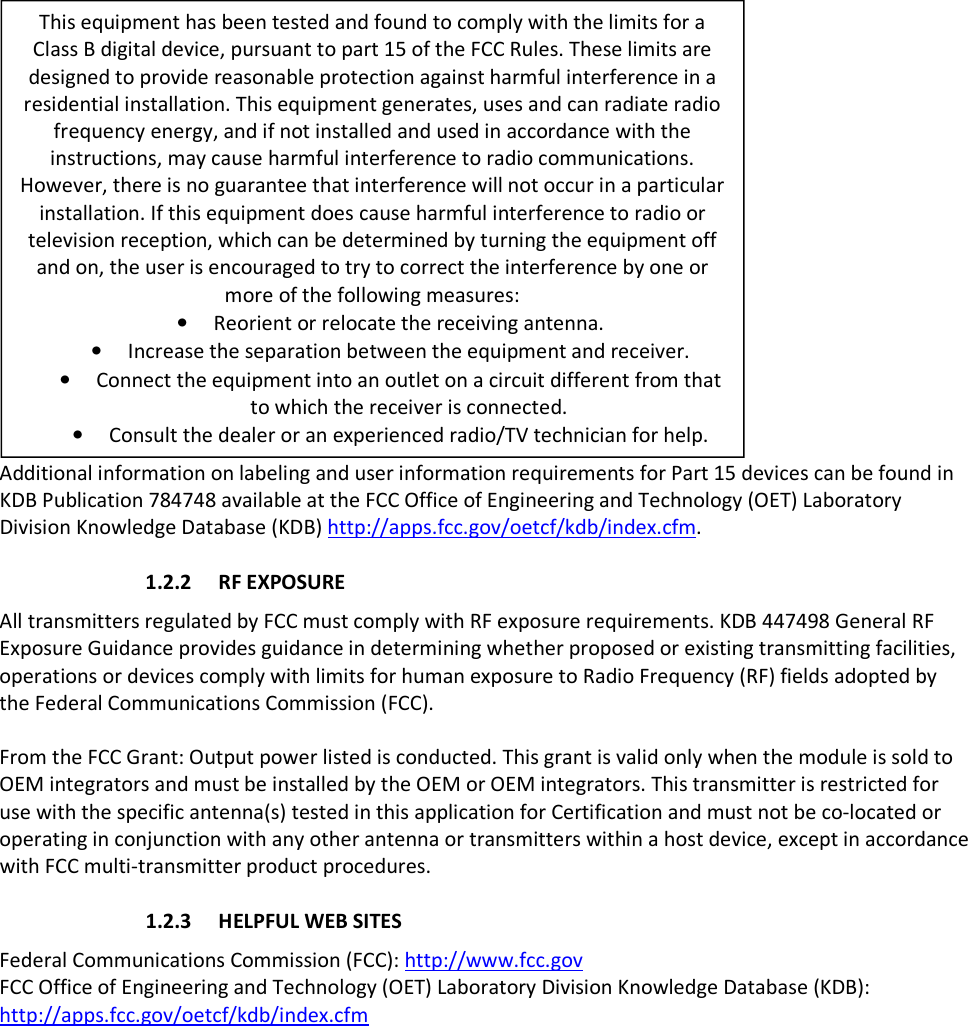

Additional information on labeling and user information requirements for Part 15 devices can be found in KDB Publication 784748 available at the FCC Office of Engineering and Technology (OET) Laboratory Division Knowledge Database (KDB) http://apps.fcc.gov/oetcf/kdb/index.cfm. 1.2.2 RF EXPOSURE All transmitters regulated by FCC must comply with RF exposure requirements. KDB 447498 General RF Exposure Guidance provides guidance in determining whether proposed or existing transmitting facilities, operations or devices comply with limits for human exposure to Radio Frequency (RF) fields adopted by the Federal Communications Commission (FCC). From the FCC Grant: Output power listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures. 1.2.3 HELPFUL WEB SITES Federal Communications Commission (FCC): http://www.fcc.gov FCC Office of Engineering and Technology (OET) Laboratory Division Knowledge Database (KDB): http://apps.fcc.gov/oetcf/kdb/index.cfm This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

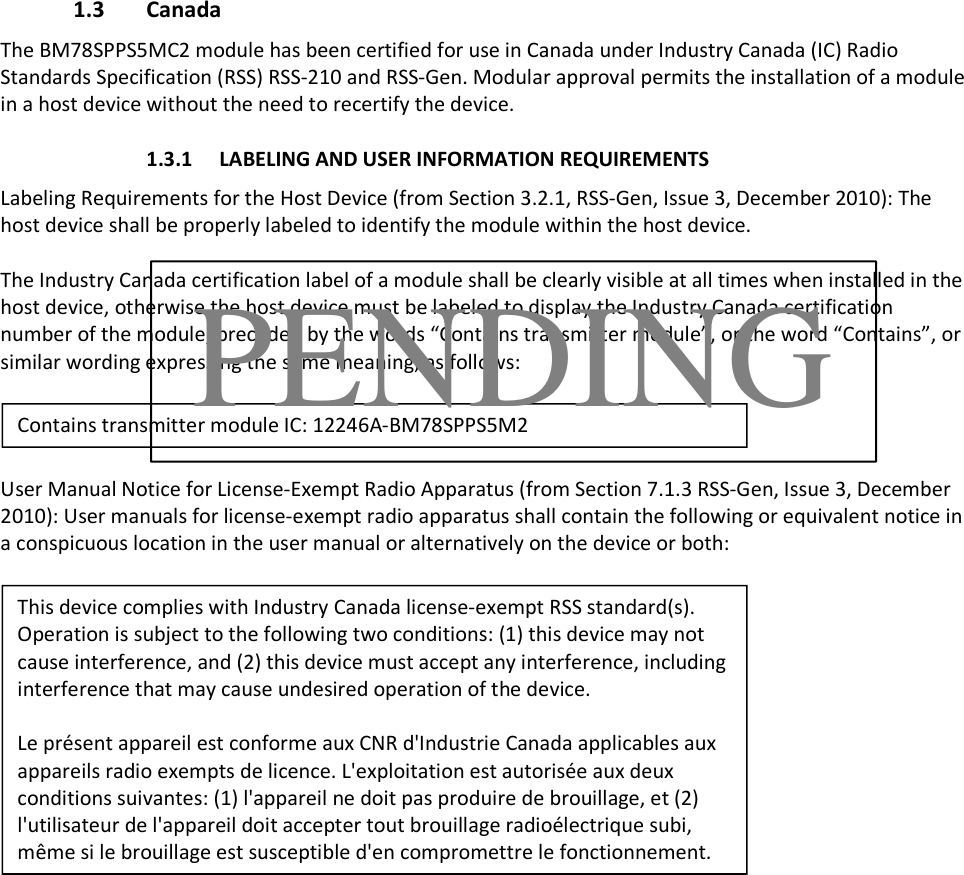

1.3 Canada The BM78SPPS5MC2 module has been certified for use in Canada under Industry Canada (IC) Radio Standards Specification (RSS) RSS-210 and RSS-Gen. Modular approval permits the installation of a module in a host device without the need to recertify the device. 1.3.1 LABELING AND USER INFORMATION REQUIREMENTS Labeling Requirements for the Host Device (from Section 3.2.1, RSS-Gen, Issue 3, December 2010): The host device shall be properly labeled to identify the module within the host device. The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labeled to display the Industry Canada certification number of the module, preceded by the words “Contains transmitter module”, or the word “Contains”, or similar wording expressing the same meaning, as follows: User Manual Notice for License-Exempt Radio Apparatus (from Section 7.1.3 RSS-Gen, Issue 3, December 2010): User manuals for license-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both: Contains transmitter module IC: 12246A-BM78SPPS5M2 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. PENDING

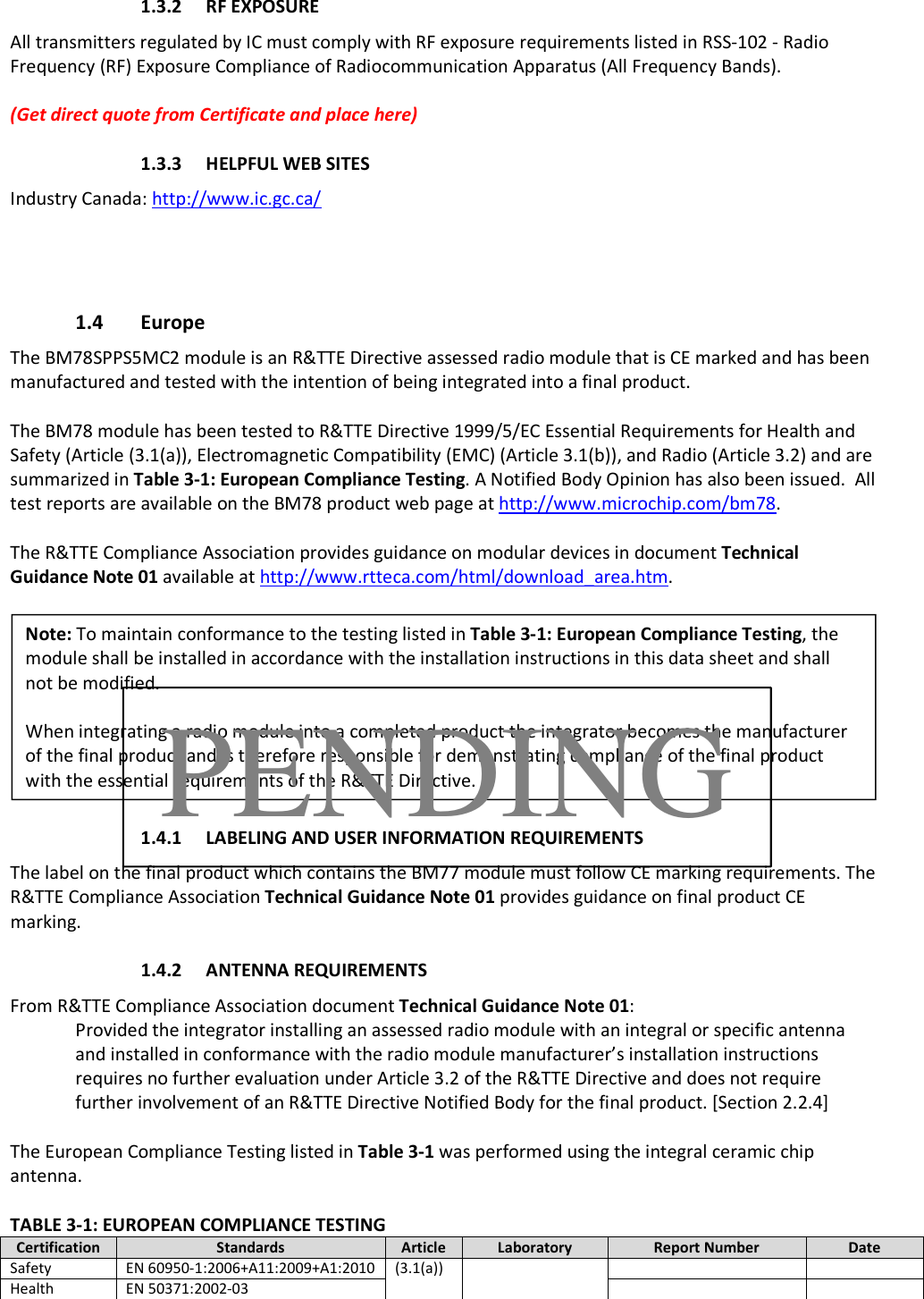

1.3.2 RF EXPOSURE All transmitters regulated by IC must comply with RF exposure requirements listed in RSS-102 - Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). (Get direct quote from Certificate and place here) 1.3.3 HELPFUL WEB SITES Industry Canada: http://www.ic.gc.ca/ 1.4 Europe The BM78SPPS5MC2 module is an R&TTE Directive assessed radio module that is CE marked and has been manufactured and tested with the intention of being integrated into a final product. The BM78 module has been tested to R&TTE Directive 1999/5/EC Essential Requirements for Health and Safety (Article (3.1(a)), Electromagnetic Compatibility (EMC) (Article 3.1(b)), and Radio (Article 3.2) and are summarized in Table 3‐1: European Compliance Testing. A Notified Body Opinion has also been issued. All test reports are available on the BM78 product web page at http://www.microchip.com/bm78. The R&TTE Compliance Association provides guidance on modular devices in document Technical Guidance Note 01 available at http://www.rtteca.com/html/download_area.htm. 1.4.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM77 module must follow CE marking requirements. The R&TTE Compliance Association Technical Guidance Note 01 provides guidance on final product CE marking. 1.4.2 ANTENNA REQUIREMENTS From R&TTE Compliance Association document Technical Guidance Note 01: Provided the integrator installing an assessed radio module with an integral or specific antenna and installed in conformance with the radio module manufacturer’s installation instructions requires no further evaluation under Article 3.2 of the R&TTE Directive and does not require further involvement of an R&TTE Directive Notified Body for the final product. [Section 2.2.4] The European Compliance Testing listed in Table 3‐1 was performed using the integral ceramic chip antenna. TABLE 3‐1: EUROPEAN COMPLIANCE TESTING Certification Standards Article Laboratory Report Number Date Safety EN 60950-1:2006+A11:2009+A1:2010 (3.1(a)) Health EN 50371:2002-03 Note: To maintain conformance to the testing listed in Table 3‐1: European Compliance Testing, the module shall be installed in accordance with the installation instructions in this data sheet and shall not be modified. When integrating a radio module into a completed product the integrator becomes the manufacturer of the final product and is therefore responsible for demonstrating compliance of the final product with the essential requirements of the R&TTE Directive. PENDING

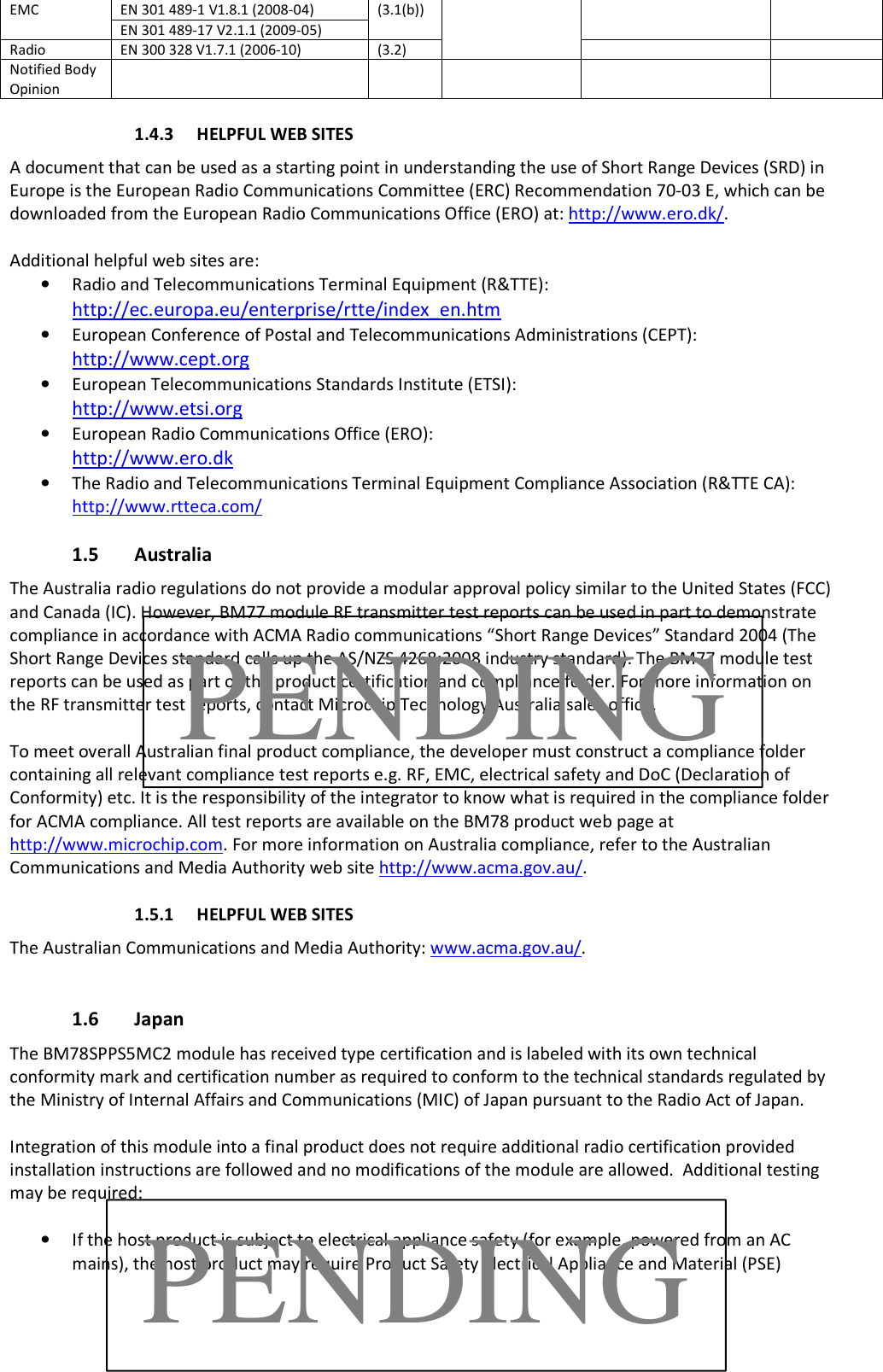

EMC EN 301 489-1 V1.8.1 (2008-04) (3.1(b)) EN 301 489-17 V2.1.1 (2009-05) Radio EN 300 328 V1.7.1 (2006-10) (3.2) Notified Body Opinion 1.4.3 HELPFUL WEB SITES A document that can be used as a starting point in understanding the use of Short Range Devices (SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70-03 E, which can be downloaded from the European Radio Communications Office (ERO) at: http://www.ero.dk/. Additional helpful web sites are: • Radio and Telecommunications Terminal Equipment (R&TTE): http://ec.europa.eu/enterprise/rtte/index_en.htm • European Conference of Postal and Telecommunications Administrations (CEPT): http://www.cept.org • European Telecommunications Standards Institute (ETSI): http://www.etsi.org • European Radio Communications Office (ERO): http://www.ero.dk • The Radio and Telecommunications Terminal Equipment Compliance Association (R&TTE CA): http://www.rtteca.com/ 1.5 Australia The Australia radio regulations do not provide a modular approval policy similar to the United States (FCC) and Canada (IC). However, BM77 module RF transmitter test reports can be used in part to demonstrate compliance in accordance with ACMA Radio communications “Short Range Devices” Standard 2004 (The Short Range Devices standard calls up the AS/NZS 4268:2008 industry standard). The BM77 module test reports can be used as part of the product certification and compliance folder. For more information on the RF transmitter test reports, contact Microchip Technology Australia sales office. To meet overall Australian final product compliance, the developer must construct a compliance folder containing all relevant compliance test reports e.g. RF, EMC, electrical safety and DoC (Declaration of Conformity) etc. It is the responsibility of the integrator to know what is required in the compliance folder for ACMA compliance. All test reports are available on the BM78 product web page at http://www.microchip.com. For more information on Australia compliance, refer to the Australian Communications and Media Authority web site http://www.acma.gov.au/. 1.5.1 HELPFUL WEB SITES The Australian Communications and Media Authority: www.acma.gov.au/. 1.6 Japan The BM78SPPS5MC2 module has received type certification and is labeled with its own technical conformity mark and certification number as required to conform to the technical standards regulated by the Ministry of Internal Affairs and Communications (MIC) of Japan pursuant to the Radio Act of Japan. Integration of this module into a final product does not require additional radio certification provided installation instructions are followed and no modifications of the module are allowed. Additional testing may be required: • If the host product is subject to electrical appliance safety (for example, powered from an AC mains), the host product may require Product Safety Electrical Appliance and Material (PSE) PENDING PENDING

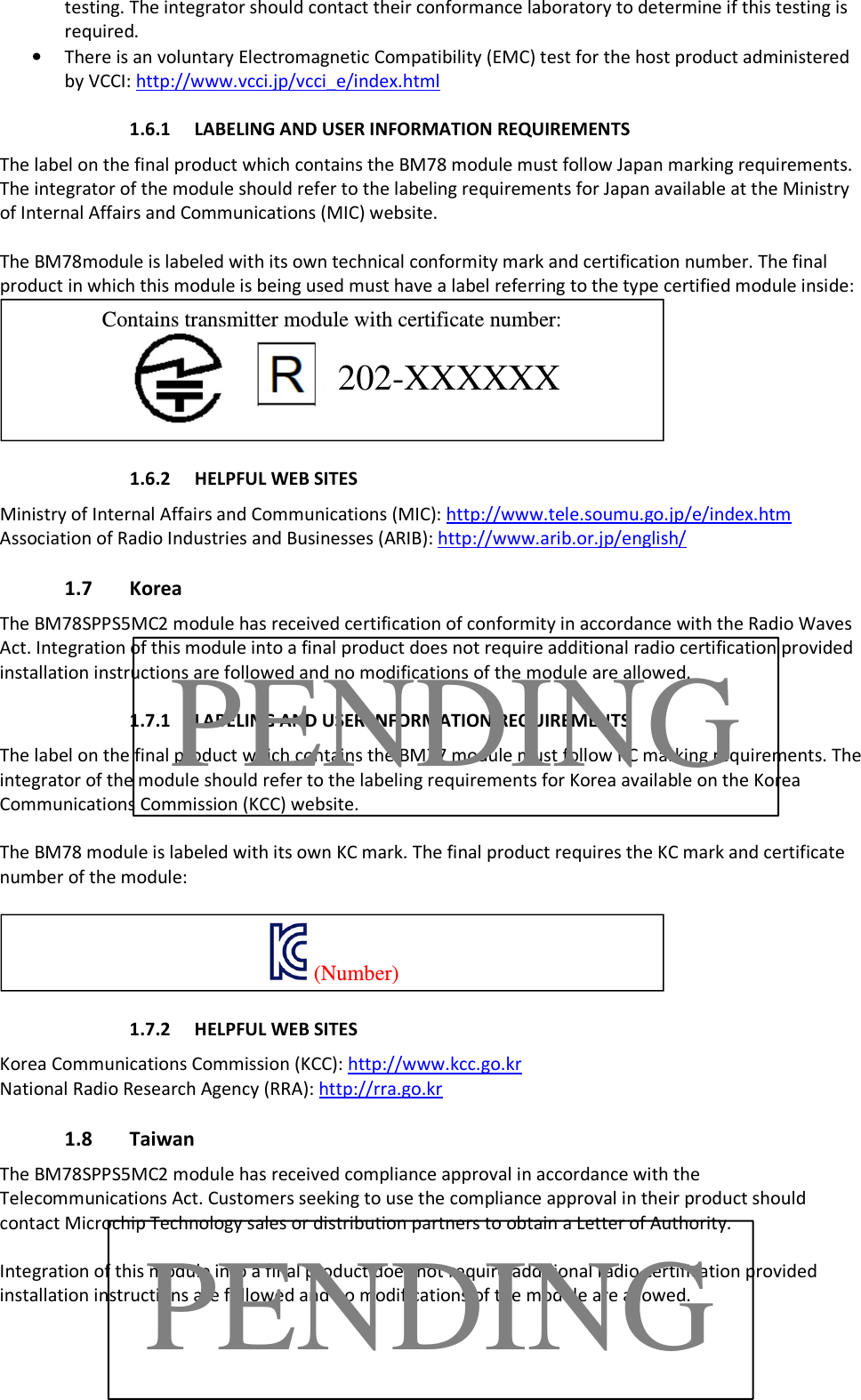

testing. The integrator should contact their conformance laboratory to determine if this testing is required. • There is an voluntary Electromagnetic Compatibility (EMC) test for the host product administered by VCCI: http://www.vcci.jp/vcci_e/index.html 1.6.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM78 module must follow Japan marking requirements. The integrator of the module should refer to the labeling requirements for Japan available at the Ministry of Internal Affairs and Communications (MIC) website. The BM78module is labeled with its own technical conformity mark and certification number. The final product in which this module is being used must have a label referring to the type certified module inside: 1.6.2 HELPFUL WEB SITES Ministry of Internal Affairs and Communications (MIC): http://www.tele.soumu.go.jp/e/index.htm Association of Radio Industries and Businesses (ARIB): http://www.arib.or.jp/english/ 1.7 Korea The BM78SPPS5MC2 module has received certification of conformity in accordance with the Radio Waves Act. Integration of this module into a final product does not require additional radio certification provided installation instructions are followed and no modifications of the module are allowed. 1.7.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM77 module must follow KC marking requirements. The integrator of the module should refer to the labeling requirements for Korea available on the Korea Communications Commission (KCC) website. The BM78 module is labeled with its own KC mark. The final product requires the KC mark and certificate number of the module: 1.7.2 HELPFUL WEB SITES Korea Communications Commission (KCC): http://www.kcc.go.kr National Radio Research Agency (RRA): http://rra.go.kr 1.8 Taiwan The BM78SPPS5MC2 module has received compliance approval in accordance with the Telecommunications Act. Customers seeking to use the compliance approval in their product should contact Microchip Technology sales or distribution partners to obtain a Letter of Authority. Integration of this module into a final product does not require additional radio certification provided installation instructions are followed and no modifications of the module are allowed. Contains transmitter module with certificate number: (Number) 202-XXXXXX PENDING PENDING

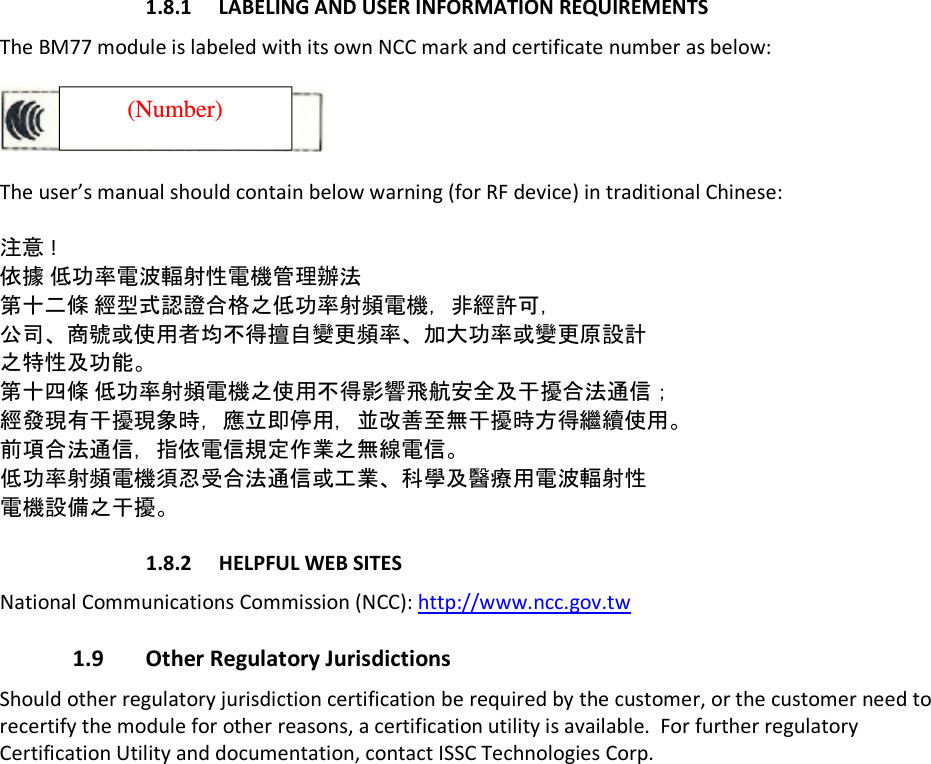

1.8.1 LABELING AND USER INFORMATION REQUIREMENTS The BM77 module is labeled with its own NCC mark and certificate number as below: The user’s manual should contain below warning (for RF device) in traditional Chinese: 注意 ! 依據 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可， 公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計 之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信； 經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性 電機設備之干擾。 1.8.2 HELPFUL WEB SITES National Communications Commission (NCC): http://www.ncc.gov.tw 1.9 Other Regulatory Jurisdictions Should other regulatory jurisdiction certification be required by the customer, or the customer need to recertify the module for other reasons, a certification utility is available. For further regulatory Certification Utility and documentation, contact ISSC Technologies Corp. (Number)

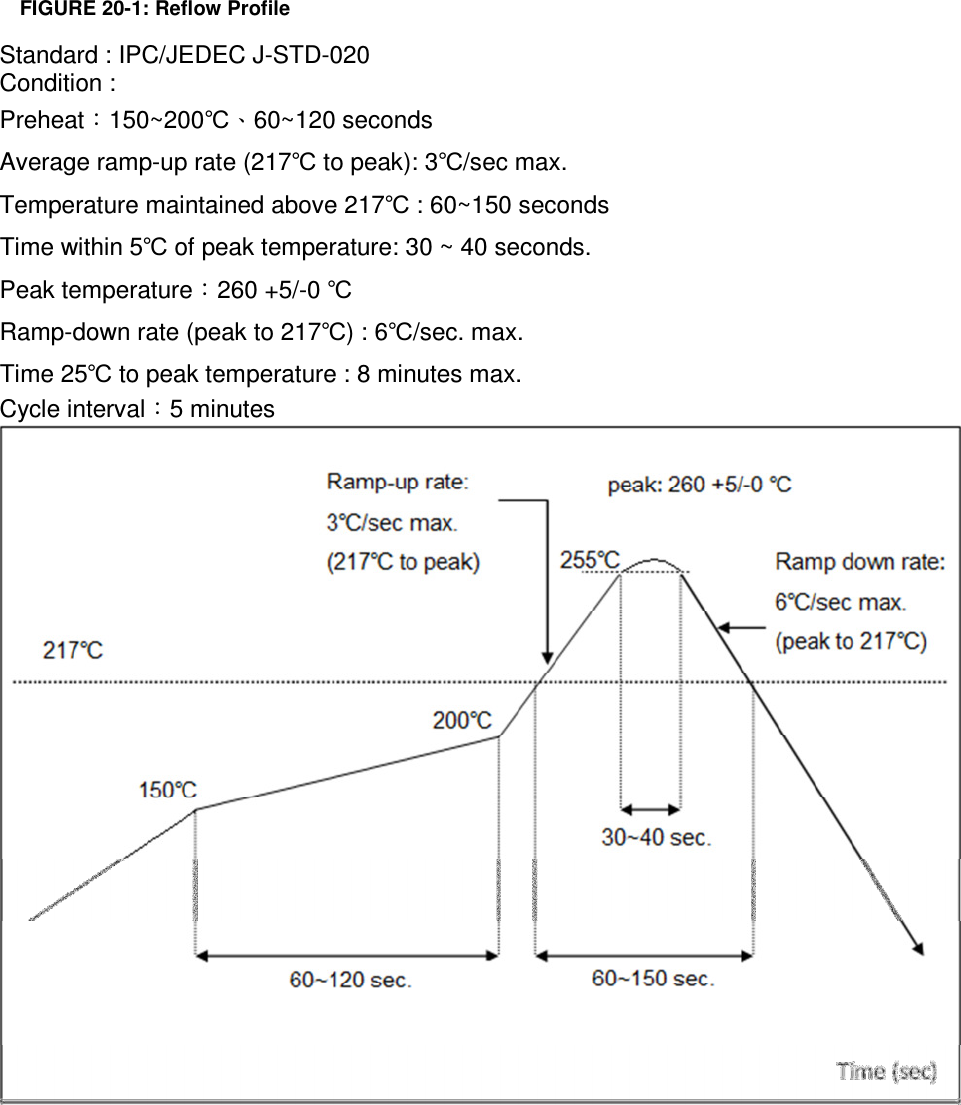

FIGURE 20-1: Reflow Profile Standard : IPC/JEDEC J-STD-020 Condition : Preheat：150~200℃、60~120 seconds Average ramp-up rate (217℃ to peak): 3℃/sec max. Temperature maintained above 217℃ : 60~150 seconds Time within 5℃ of peak temperature: 30 ~ 40 seconds. Peak temperature：260 +5/-0 ℃ Ramp-down rate (peak to 217℃) : 6℃/sec. max. Time 25℃ to peak temperature : 8 minutes max. Cycle interval：5 minutes

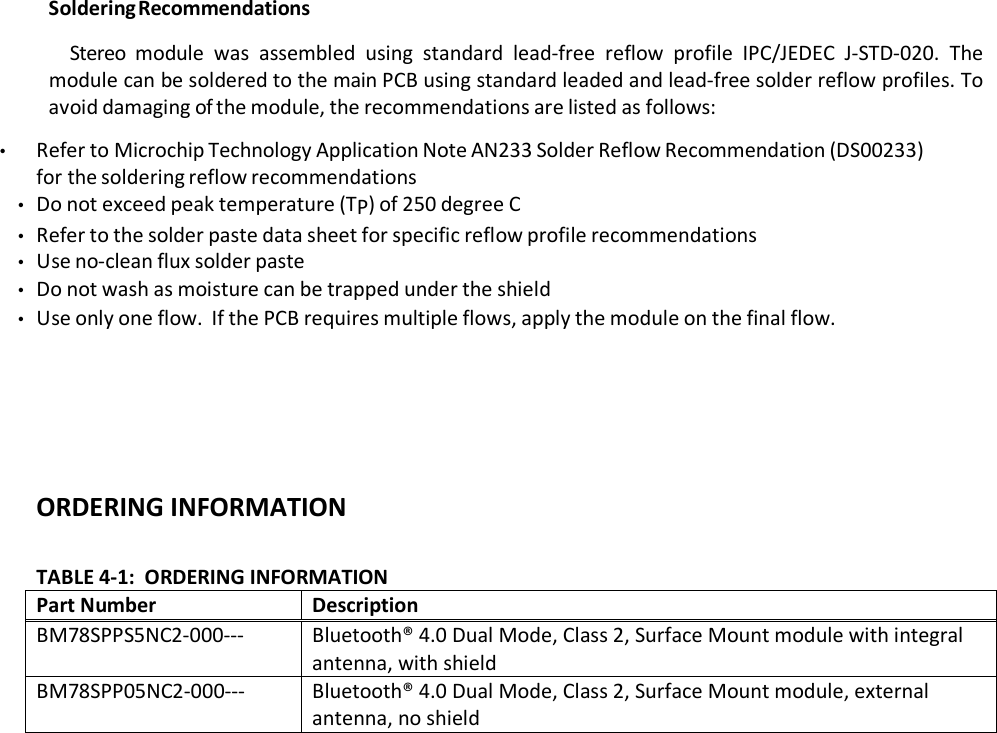

Soldering Recommendations Stereo module was assembled using standard lead-free reflow profile IPC/JEDEC J-STD-020. The module can be soldered to the main PCB using standard leaded and lead-free solder reflow profiles. To avoid damaging of the module, the recommendations are listed as follows: • Refer to Microchip Technology Application Note AN233 Solder Reflow Recommendation (DS00233) for the soldering reflow recommendations • Do not exceed peak temperature (TP) of 250 degree C • Refer to the solder paste data sheet for specific reflow profile recommendations • Use no-clean flux solder paste • Do not wash as moisture can be trapped under the shield • Use only one flow. If the PCB requires multiple flows, apply the module on the final flow. ORDERING INFORMATION TABLE 4‐1: ORDERING INFORMATION Part Number Description BM78SPPS5NC2-000--- Bluetooth® 4.0 Dual Mode, Class 2, Surface Mount module with integral antenna, with shield BM78SPP05NC2-000--- Bluetooth® 4.0 Dual Mode, Class 2, Surface Mount module, external antenna, no shield

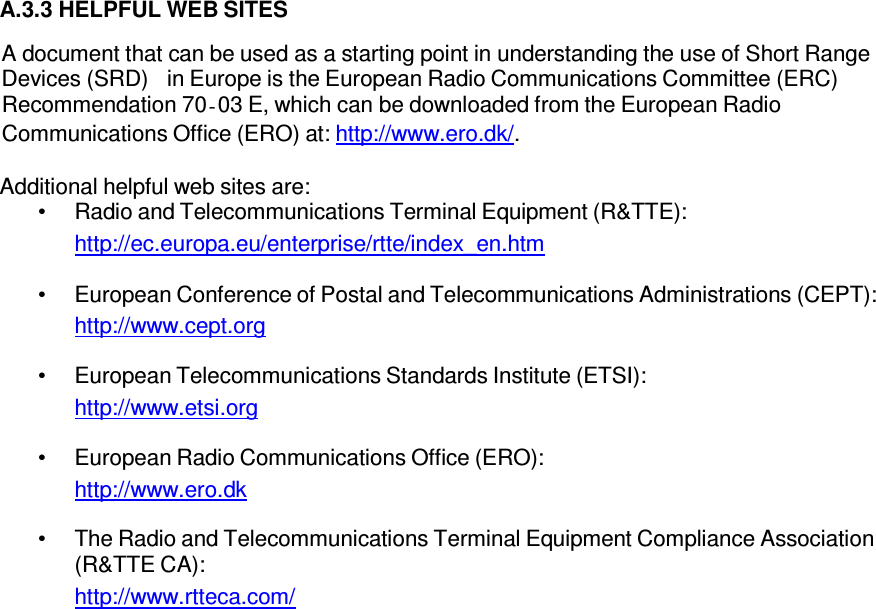

A.3.3 HELPFUL WEB SITES A document that can be used as a starting point in understanding the use of Short Range Devices (SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70‐03 E, which can be downloaded from the European Radio Communications Office (ERO) at: http://www.ero.dk/. Additional helpful web sites are: • Radio and Telecommunications Terminal Equipment (R&TTE): http://ec.europa.eu/enterprise/rtte/index_en.htm • European Conference of Postal and Telecommunications Administrations (CEPT): http://www.cept.org • European Telecommunications Standards Institute (ETSI): http://www.etsi.org • European Radio Communications Office (ERO): http://www.ero.dk • The Radio and Telecommunications Terminal Equipment Compliance Association (R&TTE CA): http://www.rtteca.com/
