MRF24J40MA

Features:

• IEEE Std. 802.15.4™ Compliant RF Transceiver

• Supports ZigBee®, MiWi™, MiWi™ P2P and Pro-

prietary Wireless Networking Protocols

• Small size: 0.7” x 1.1” (17.8 mm x 27.9 mm)

Surface Mountable

• Integrated crystal, internal voltage regulator,

matching circuitry and PCB antenna

• Easy integration into final product - minimize

product development, quicker time to market

• Radio regulation certified for United States (FCC),

Canada (IC) and Europe (ETSI)

• Compatible with Microchip Microcontroller

families (PIC18F, PIC24F/H, dsPIC33 and PIC32)

Operational:

• 20/10/5/2.5 MHz Clock Output:

- Available to drive microcontroller clock

• Operating Voltage: 2.4 - 3.6V (3.3V typical)

• Temperature Range: -40°C to +85°C Industrial

• Simple Four-Wire SPI Interface

• Low-Current Consumption:

- RX mode: 18 mA (typical)

- TX mode: 22 mA (typical)

-Sleep: 2 μA (typical)

• Supports Power-Save mode

RF/Analog Features:

• ISM Band 2.405 - 2.48 GHz Operation

• Data Rate: 250 Kbps

• -95 dBm Typical Sensitivity and 0 dBm Maximum

Input Level

• +0 dBm Typical Output Power and

40 dB TX Power Control Range

• Integrated, Low Phase Noise VCO, Frequency

Synthesizer and PLL Loop Filter

• Digital VCO and Filter Calibration

• Integrated RSSI ADC and I/Q DACs

• Integrated LDO

• High Receiver and RSSI Dynamic Range

MAC/Baseband Features:

• Hardware CSMA-CA Mechanism, Automatic ACK

Response and FCS Check

• Independent Beacon, Transmit and GTS FIFO

• Hardware Security Engine (AES-128) with CTR,

CCM and CBC-MAC modes

• Supports all CCA modes and RSS/LQI

• Automatic Packet Retransmit Capable

• Supports In-Line or Stand-Alone modes for both

Encryption and Decryption

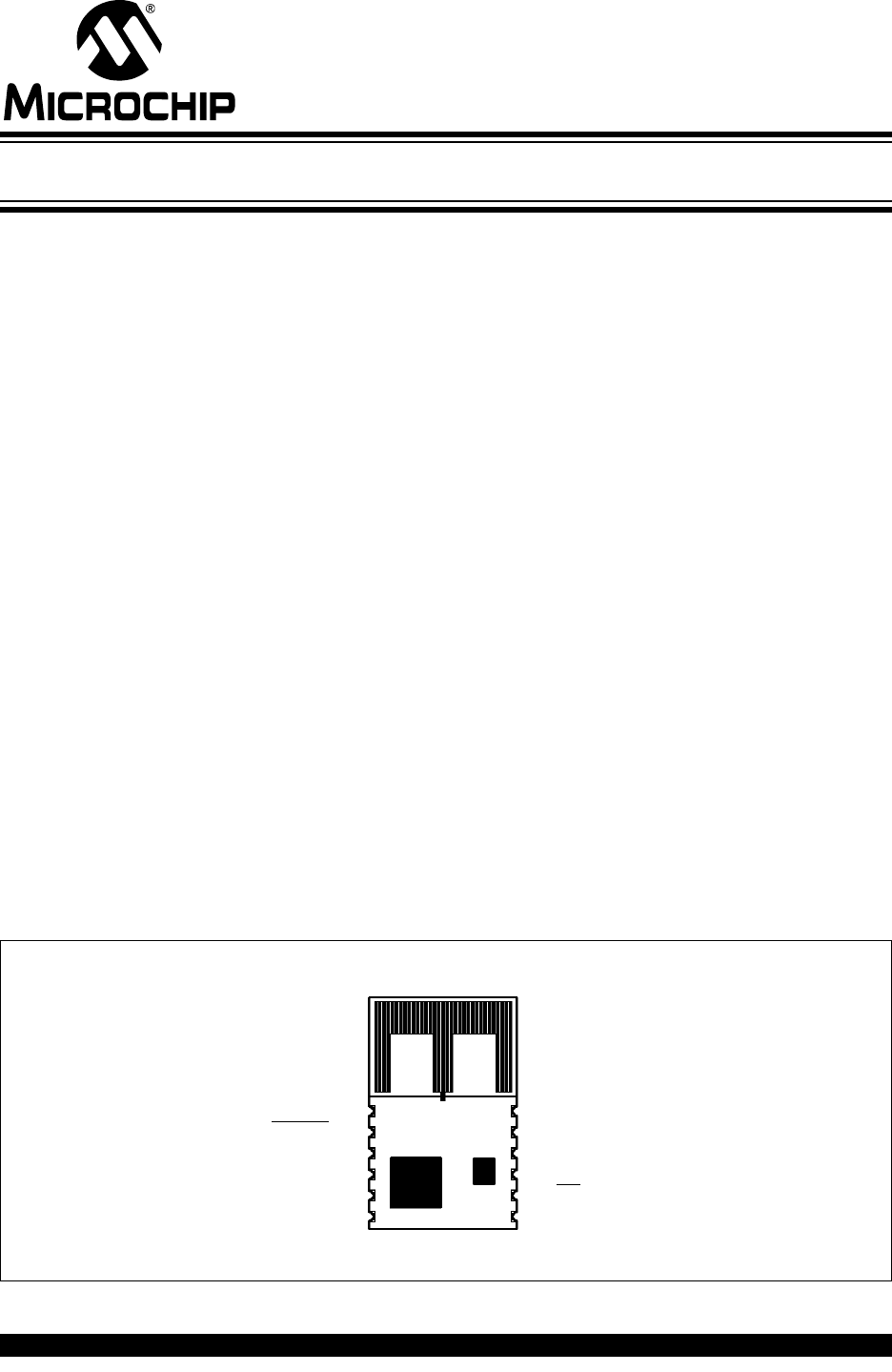

FIGURE 1: PIN DIAGRAM

VIN

GND

RESET

WAKE

SDO

SDI

SCK

CLKOUT

GND

INT

11 GND

2.4 GHz IEEE Std. 802.15.4

™

RF Transceiver Module

MRF24J40MA

Table of Contents

1.0 Device Overview .......................................................................................................................................................................... 5

2.0 Microcontroller Interface............................................................................................................................................................... 9

3.0 Circuit Description ...................................................................................................................................................................... 11

4.0 Regulatory Approval................................................................................................................................................................... 13

5.0 Electrical Characteristics ........................................................................................................................................................... 17

6.0 Packaging Information................................................................................................................................................................ 19

Appendix A: Revision History............................................................................................................................................................... 21

The Microchip Web Site ....................................................................................................................................................................... 23

Customer Change Notification Service ................................................................................................................................................ 23

Customer Support ................................................................................................................................................................................ 23

Reader Response ................................................................................................................................................................................ 24

MRF24J40MA Product Identification System....................................................................................................................................... 25

MRF24J40MA

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip

products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and

enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via

E-mail at docerrors@microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We

welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.

The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current

devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision

of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

MRF24J40MA

NOTES:

MRF24J40MA

1.0 DEVICE OVERVIEW

The MRF24J40MA is a 2.4 GHz IEEE Std. 802.15.4™

compliant, surface mount module with integrated crystal,

internal voltage regulator, matching circuitry and PCB

antenna. The MRF24J40MA module operates in the

non-licensed 2.4 GHz frequency band and is FCC, IC,

and ETSI compliant. The integrated module design frees

the end user from extensive RF, antenna design, and

regulatory compliance testing and allows quicker time to

market.

Figure 1-1 shows a simplified block diagram of the

MRF24J40MA module. The module is based on the

Microchip Technology MRF24J40 IEEE 802.15.4™ 2.4

GHz RF Transceiver chip. The module interfaces to

many popular Microchip PIC® microcontrollers via a 4-

wire serial SPI interface, interrupt, wake, reset, power

and ground. The module has an integrated PCB

antenna and matching circuitry all in a compact size.

The MRF24J40MA module is compatible with

Microchip's ZigBee®, MiWi, and MiWi P2P software

stacks. Each software stack is available as a free

download, including source code, from the Microchip

web site http://www.microchip.com/wireless.

The MRF24J40MA module has received regulatory

approvals for modular devices in the United States

(FCC), Canada (IC) and Europe (ETSI). Modular

approval removes the need for expensive RF and

antenna design and allows the end user to place the

MRF24J40MA module inside a finished product and not

require testing for an intentional radiator (RF

transmitter). See Section 4.0 “Regulatory Approval”

for specific requirements to be followed by the end user.

This user's guide describes the installation, pin out, and

voltage requirements for optimum operation of the

module. Data communications with the MRF24J40MA

module is documented in the MRF24J40 IEEE

802.15.4™ 2.4 GHz RF Transceiver Data Sheet

(DS39776). Refer to the MRF24J40 data sheet for

specific serial interface protocol and register definitions.

FIGURE 1-1: MRF24J40MA BLOCK DIAGRAM

PCB

Antenna Matching

Circuitry

Physical MAC

Discrete

Interface

Power

Management

SPI

20 MHz

Crystal

Digital

I/O

Power

MRF24J40MA IEEE Std. 802.15.4 Module

MRF24J40

MRF24J40MA

TABLE 1-1: PIN DESCRIPTION

FIGURE 1-2: MOUNTING DETAILS

Pin Symbol Type Description

1 GND Power Ground

2 RESET DI Global hardware reset pin

3 WAKE DI External wake-up trigger

4 INT DO Interrupt pin to microcontroller

5 SDI DI Serial interface data input

6 SCK DI Serial interface clock

7 SDO DO Serial interface data output from MRF24J40

8CS DI Serial interface enable

9 CLKOUT DO 20/10/5/2.5 MHz clock output

10 VIN Power Power supply

11 GND Ground Ground

12 GND Ground Ground

Legend: Pin type abbreviation: A = Analog, D = Digital, I = Input, O = Output

0.470”

Edge of PCB

Keep area around antenna

(approximately 1.2 inches)

clear of metalic structures

for best performance

PCB Ground Plane (Counterpoise)

Extend as far as possible to

the sides and below the module

(at least 0.4 inches on each side)

for best performance

0.4”

0.4” 0.4”

1.2”

MRF24J40MA

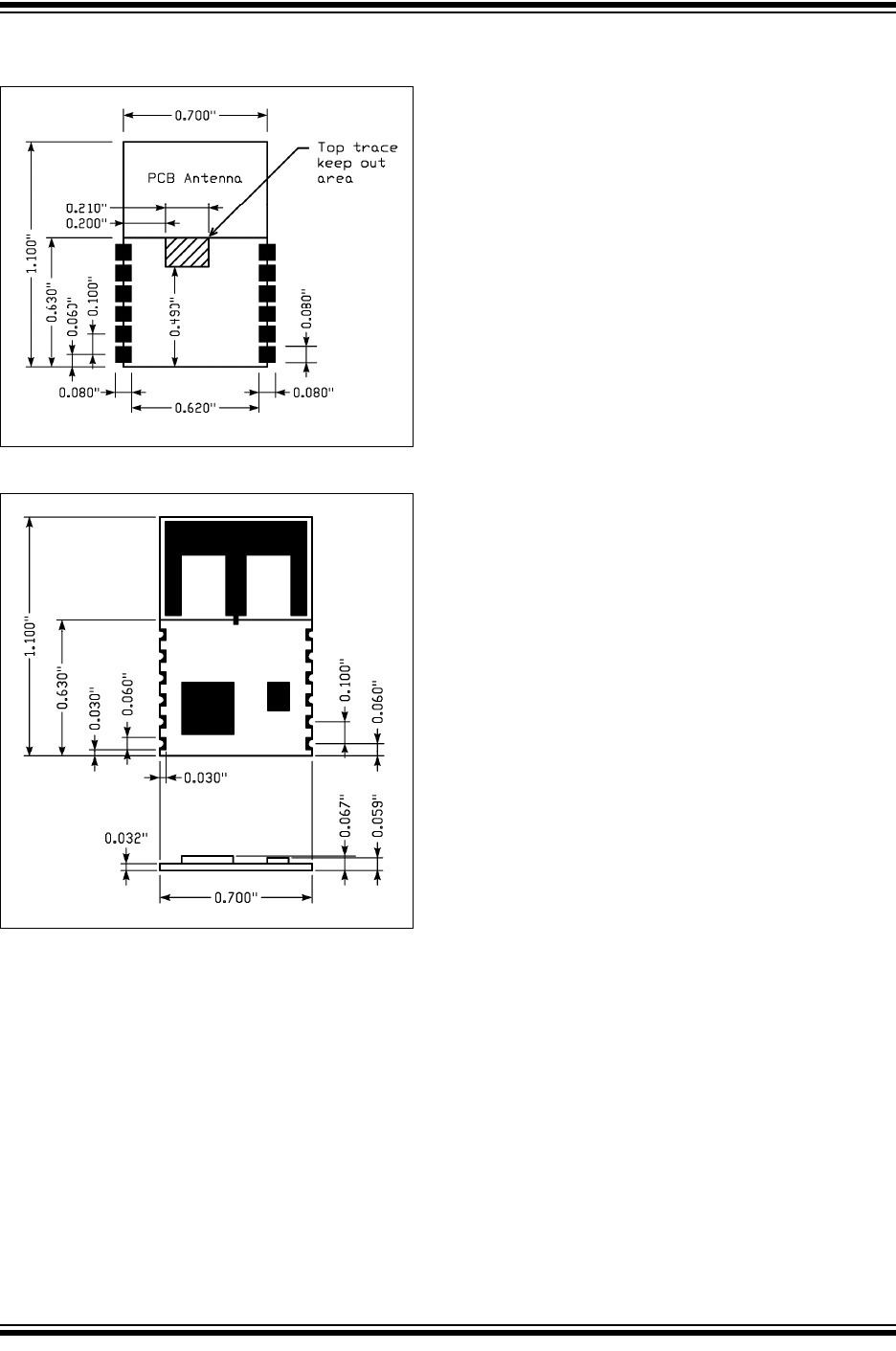

FIGURE 1-3: RECOMMENDED PCB

FOOTPRINT

FIGURE 1-4: MODULE DETAILS

MRF24J40MA

NOTES:

MRF24J40MA

2.0 MICROCONTROLLER

INTERFACE

FIGURE 1: MICROCONTROLLER TO MRF24J40MA INTERFACE

SDO

I/O

SDI

SCK

INTx

MRF24J40MA

SDI

SDO

SCK

INT

I/O WAKE

VIN

GND

PIC® MCU

I/O RESET

MRF24J40MA

NOTES:

MRF24J40MA

3.0 CIRCUIT INTERFACE

MRF24J40MA

FIGURE 3-1:

VDD

RFP

RFN

VDD

GND

GPIO0

GPIO1

GPIO5

GPIO4

RXQP 30

RXIP 29

LPOSC1 28

LPOSC2 27

CLKOUT 26

GND 25

GND 24

NC 23

GND 22

VDD 21

IC1

GPIO2

GPIO3

RESET

GND

WAKE

INT

SDO

SDI

SCK

LCAP

VDD

GND

VDD

OSC1

OCSC2

VDD

MRF24J40-1/ML

C10

47 pF

VIN

C11

0.1 μF

VIN

3.3 nH

8.2 nH

VIN

1.0 pF

5.6 nH

C14

0.5 pF

C13

47 pF

C12

0.1 pF

C15

0.5 pF

C16

C17

2.7 pF

PCB

Antenna L4

6.8 nH

VIN

P2 RESET

P4 INT

P3 WAKE

P5 SDI

P6 SCK

P8 CS

P9 CLKOUT

VIN

GND

VCC

IC2

NC7SZ125P5X

P7 SDO

0.01 μF

VIN

P12 GND

P1 GND

P11 GND

P10 VIN

VIN

1 μF

47 pF

VIN

47 pF

VIN C5

47 pF

VIN

C18

20 pF

C19

20 pF

X1 20.00 MHz

100 pF

0.01 pF

VIN

1 μF

VIN

Note: NP = Not Placed.

MRF24J40MA

4.0 REGULATORY APPROVAL

The MRF24J40MA module has received regulatory

approvals for modular devices in the United States,

Canada and European countries. Modular approval

allows the end user to place the MRF24J40MA module

inside a finished product and not require testing for an

intentional radiator (RF transmitter) provided no

changes or modifications are made to the module

circuitry. Changes or modifications could void the

user's authority to operate the equipment. The end

user must comply with all of the instructions provided

by the Grantee which indicate installation and/or

operating conditions necessary for compliance.

The end user may still be responsible for testing the

end product for any additional compliance

requirements required with this module installed (for

example: digital device emission, PC peripheral

requirements, etc.) in the specific country that the end

device will be marketed.

Annex F of the IEEE Std. 802.15.4 document has a good

summary of regulatory requirements in various countries

concerning IEEE Std. 802.15.4 devices. The standard

can be downloaded from the IEEE Standards web page:

http://standards.ieee.org/getieee802/802.15.html.

Refer to the specific countries radio regulations for

details on regulatory compliance.

4.1 United States

The MRF24J40MA has received Federal Communica-

tions Commission (FCC) CFR47 Telecommunications,

Part 15 Subpart C “Intentional Radiators” 15.247 and

modular approval in accordance with FCC Public

Notice DA 00-1407 Released: June 26, 2000, Part 15

Unlicensed Modular Transmitter Approval. The

MRF24J40MA module can be integrated into a finished

product with obtaining subsequent FCC approvals.

The MRF24J40MA module has been labeled with its

own FCC ID number and if the FCC ID is not visible

when the module is installed inside another device,

then the outside of the finished product into which the

module is installed must also display a label referring to

the enclosed module. This exterior label can use

wording such as the following:

The user's manual should include the following

statement:

4.1.1 RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. OET Bulletin 65 “Evaluating

Compliance with FCC Guidelines for Human Exposure

to Radio Frequency Electromagnetic Fields” provides

assistance in determining whether proposed or existing

transmitting facilities, operations or devices comply

with limits for human exposure to Radio Frequency

(RF) fields adopted by the Federal Communications

Commission (FCC). The bulletin offers guidelines and

suggestions for evaluating compliance.

If appropriate, compliance with exposure guidelines for

mobile and unlicensed devices can be accomplished

by the use of warning labels and by providing users

with information concerning minimum separation

distances from transmitting structures and proper

installation of antennas.

Contains Transmitter Module FCC ID:

OA3MRF24J40MA

-or-

Contains FCC ID: OA3MRF24J40MA

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

MRF24J40MA

The following statement must be included as a

CAUTION statement in manuals and OEM products to

alert users of FCC RF Exposure compliance:

If the MRF24J40MA module is used in a portable

application (antenna is less than 20 cm from persons

during operation), the end user is responsible for

performing Specific Absorption Rate (SAR) testing in

accordance with FCC rules 2.1091.

4.1.2 HELPFUL WEB SITES

Federal Communications Commission (FCC)

http://www.fcc.gov.

4.2 Canada

The MRF24J40MA module has been certified for use in

Canada under Industry Canada (IC) Radio Standards

Specification (RSS) RSS-210 and RSS-Gen.

From section 7.1.1 RSS-Gen, Issue 2, June 2007,

Modular Transmitter Approval:

Host devices which contain separately certified

modules do not need to be recertified, provided that

they meet the following conditions:

a) The host device, as a stand-alone unit

without any separately certified modules,

complies with all applicable Radio Standards

Specifications.

b) The host device and all the separately

certified modules it contains jointly meet the

RF exposure compliance requirements of

RSS-102, if applicable.

c) The host device complies with the

certification labeling requirements of each of

the modules it contains.

From section 5.2, RSS-Gen, Issue 2, June 2007,

Equipment Labels:

All Category I radio equipment intended for use in

Canada shall permanently display on each transmitter,

receiver, or inseparable combination thereof, the

applicant's name (i.e., manufacturer's name, trade name

or brand name), model number and certification number.

This information shall be affixed in such a manner as not

to be removable except by destruction or defacement.

The size of the lettering shall be legible without the aid of

magnification, but is not required to be larger than

8-point font size. If the device is too small to meet this

condition, the information can be included in the user

manual upon agreement with Industry Canada.

Label:

From section 7.1.6, RSS-Gen, Issue 2, June 2007,

Digital Circuits:

If the device contains digital circuitry that is not directly

associated with the radio transmitter, the device shall

also have to comply with ICES-003, Class A or B as

appropriate, except for ICES-003 labeling

requirements. The test data obtained (for the ICES-003

tests) shall be kept by the manufacturer or importer

whose name appears on the equipment label, and

made available to Industry Canada on request, for as

long as the model is being marketed in Canada.

4.2.1 HELPFUL WEB SITES:

Industry Canada http://www.ic.gc.ca/

Note: Compliance of a module in its final

configuration is the responsibility of the

applicant. A host device will not be

considered certified if the instructions

regarding antenna configuration provided

in the original description, of one or more

separately certified modules it contains,

were not followed

To satisfy FCC RF Exposure requirements for mobile

and base station transmission devices, a separation

distance of 20 cm or more should be maintained

between the antenna of this device and persons

during operation. To ensure compliance, operation at

closer than this distance is not recommended.

The antenna(s) used for this transmitter must not be

co-located or operating in conjunction with any other

antenna or transmitter.

Contains IC: 7693A-24J40MA

MRF24J40MA

4.3 Europe

The MRF24J40MA module has been certified for use in

European countries. The following testing has been

completed:

Test standard ETSI EN 300 328 V1.7.1 (2006-10)

• Maximum Transmit Power

• Maximum EIRP Spectral Density

• Frequency Range

• Radiated Emissions

Test standards ETSI EN 301 489-1:2008 and ETSI EN

301 489-17:2008

• Radiated Emissions

• Electro-Static Discharge

• Radiated RF Susceptibility

A helpful document that can be used as a starting point

in understanding the use of short range devices (SRD)

in Europe is the European Radio Communications

Committee (ERC) Recommendation 70-03 E, down-

loadable from the European Radio Communications

Office (ERO) http://www.ero.dk.

The end user is responsible for ensuring compliance

with harmonized frequencies and labeling

requirements for each country the end device is

marketed and sold.

4.3.1 HELPFUL WEB SITES:

Radio And Telecommunications Terminal Equipment

(R&TTE)

http://ec.europa.eu/enterprise/rtte/index_en.htm

European Conference of Postal and Telecommunications

Administrations (CEPT) http://www.cept.org/

European Telecommunications Standards Institute

(ETSI) http://www.etsi.org/

European Radio Communications Office (ERO)

http://www.ero.dk/

MRF24J40MA

NOTES:

MRF24J40MA

5.0 ELECTRICAL CHARACTERISTICS

TABLE 1: RECOMMENDED OPERATING CONDITIONS

TABLE 2: CURRENT CONSUMPTION

(TA = 25°C, VDD = 3.3V)

TABLE 3: RECEIVER AC CHARACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO frequency = 2.445 GHz

Parameters Min Typ Max Units

Ambient Operating Temperature -40 — +85 °C

Supply Voltage for RF, Analog and

Digital Circuits

2.4 — 3.6 V

Supply Voltage for Digital I/O 2.4 3.3 3.6 V

Input High Voltage (VIH) 0.5 x VDD —VDD + 0.3 V

Input Low Voltage (VIL) -0.3 — 0.2 x VDD V

Chip Mode Condition Min Typ Max Units

Sleep — 2 — μA

TX At maximum output power — 22 — mA

RX — 18 — mA

Parameters Condition Min Typ Max Units

RF Input Frequency Compatible to IEEE Std. 802.15.4-

2003

2.405 — 2.480 GHz

RF Sensitivity At antenna input with O-QPSK signal

and 3.5 dB front-end loss is assumed

—-95—dBm

Maximum RF Input +5 — — dBm

LO Leakage Measured at balun matching network

input at frequency 2.405-2.48 GHz

—-60—dBm

Input Return Loss External matched to 50 source by a

balun matching network

-8 -12 — dB

Noise Figure

(including matching)

—8—dB

Adjacent Channel

Rejection

@ +/-5 MHz 30 — — dB

Alternate Channel

Rejection

@ +/-10 MHz 40 — — dB

RSSI Range — 50 — dB

RSSI Error -5 — 5 dB

MRF24J40MA

TABLE 4: TRANSMITTER AC CHARACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO Frequency = 2.445 GHz

Parameters Condition Min Typ Max Units

RF Carrier Frequency 2.405 — 2.480 GHz

Maximum RF Output

Power

—0+3dBm

RF Output Power

Control Range

—40—dB

TX Gain Control

Resolution

Programmed by register — 1.25 — dB

Carrier Suppression — -30 — dBc

TX Spectrum Mask for

O-QPSK Signal

Offset frequency > 3.5 MHz,

at 0 dBm output power

-33 — — dBm

MRF24J40MA

6.0 PACKAGING INFORMATION

For packaging information, see the XXX.

MRF24J40MA

NOTES:

MRF24J40MA

APPENDIX A: REVISION HISTORY

Revision A (August 2007)

Original data sheet for the MRF24J40MA device.

MRF24J40MA

NOTES:

MRF24J40MA

THE MICROCHIP WEB SITE

Microchip provides online support via our WWW site at

www.microchip.com. This web site is used as a means

to make files and information easily available to

customers. Accessible by using your favorite Internet

browser, the web site contains the following

information:

•Product Support – Data sheets and errata,

application notes and sample programs, design

resources, user’s guides and hardware support

documents, latest software releases and archived

software

•General Technical Support – Frequently Asked

Questions (FAQ), technical support requests,

online discussion groups, Microchip consultant

program member listing

•Business of Microchip – Product selector and

ordering guides, latest Microchip press releases,

listing of seminars and events, listings of

Microchip sales offices, distributors and factory

representatives

CUSTOMER CHANGE NOTIFICATION

SERVICE

Microchip’s customer notification service helps keep

customers current on Microchip products. Subscribers

will receive e-mail notification whenever there are

changes, updates, revisions or errata related to a

specified product family or development tool of interest.

To register, access the Microchip web site at

www.microchip.com, click on Customer Change

Notification and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance

through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor,

representative or field application engineer (FAE) for

support. Local sales offices are also available to help

customers. A listing of sales offices and locations is

included in the back of this document.

Technical support is available through the web site

at: http://support.microchip.com

MRF24J40MA

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip prod-

uct. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation

can better serve you, please FAX your comments to the Technical Publications Manager at (480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this document.

To: Technical Publications Manager

RE: Reader Response

Total Pages Sent ________

From: Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

Application (optional):

Would you like a reply? Y N

Device: Literature Number:

Questions:

FAX: (______) _________ - _________

DS00000AMRF24J40MA Family

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

MRF24J40MA

MRF24J40MA PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PART NO. X/XX XXX

PatternPackageTemperature

Range

Device

Device(1) (2) PinLow, PinHigh,

VDD range 4.2V to 5.5V

MRF24J40MA,(

VDD range 2.0V to 5.5V

Temperature

Range

I= -40°C to +85°C (Industrial)

E= -40°C to +125°C (Extended)

Package PT = TQFP (Thin Quad Flatpack)

Pattern QTP, SQTP, Code or Special Requirements

(blank otherwise)

Examples:

a) MRF24J40MA-I/PT 301 = Industrial temp.,

TQFP package, Extended VDD

limits, QTP pattern #301.

b) MRF24J40MA-E/PT = Extended temp.,

TQFP package, standard VDD limits.

Note 1: F = Standard Voltage Range

LF = Wide Voltage Range

2: T = in tape and reel TQFP

packages only.

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: 480-792-7200

Fax: 480-792-7277

Technical Support:

http://support.microchip.com

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: 678-957-9614

Fax: 678-957-1455

Boston

Westborough, MA

Tel: 774-760-0087

Fax: 774-760-0088

Chicago

Itasca, IL

Tel: 630-285-0071

Fax: 630-285-0075

Dallas

Addison, TX

Tel: 972-818-7423

Fax: 972-818-2924

Detroit

Farmington Hills, MI

Tel: 248-538-2250

Fax: 248-538-2260

Kokomo

Kokomo, IN

Tel: 765-864-8360

Fax: 765-864-8387

Los Angeles

Mission Viejo, CA

Tel: 949-462-9523

Fax: 949-462-9608

Santa Clara

Santa Clara, CA

Tel: 408-961-6444

Fax: 408-961-6445

Toronto

Mississauga, Ontario,

Canada

Tel: 905-673-0699

Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: 852-2401-1200

Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733

Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100

Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511

Fax: 86-28-8665-7889

China - Hong Kong SAR

Tel: 852-2401-1200

Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460

Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355

Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533

Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829

Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660

Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300

Fax: 86-27-5980-5118

China - Xiamen

Tel: 86-592-2388138

Fax: 86-592-2388130

China - Xian

Tel: 86-29-8833-7252

Fax: 86-29-8833-7256

China - Zhuhai

Tel: 86-756-3210040

Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-4182-8400

Fax: 91-80-4182-8422

India - New Delhi

Tel: 91-11-4160-8631

Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512

Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166

Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301

Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200

Fax: 82-2-558-5932 or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857

Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870

Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065

Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870

Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-572-9526

Fax: 886-3-572-6459

Taiwan - Kaohsiung

Tel: 886-7-536-4818

Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610

Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351

Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39

Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828

Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20

Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0

Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611

Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399

Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90

Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869

Fax: 44-118-921-5820

WORLDWIDE SALES AND SERVICE

01/02/08

Microchip Technology MRF24J40MA Zigbee Module User Manual MRF24J40MA

Microchip Technology Inc Zigbee Module MRF24J40MA

User Manual

Navigation menu

Namespaces

Views

Navigation
