Microchip Technology RN1022-M Bluetooth Scanner User Manual
Microchip Technology Inc. Bluetooth Scanner Users Manual
Users Manual
LED and Beep Signals
Green LED Beeper
Discoverable Blinks two None
Mode* times every
two seconds
Connected* Blinks once None
every two
seconds
Sleeping Does not blink None
Good Scan Blinks once Beeps once
Bar Code Blinks three Beeps three
Memory Full times times
Uploading Blinks twice per None
second while
the data is
uploading
Upload Blinks once Three beeps
Complete that descend
in pitch
*Cordless Scanner only
Setting Up Your Scanner
1. Obtain software from the seller.
2. Install the software. For instructions, see the
Software User's Guide.
3. Install the batteries in the scanner. Follow
the steps outlined in "Installing and Replacing
Batteries."
4. For a cordless scanner install the Bluetooth
adapter in the host device. The host device is
the PC or PDA that will receive the bar codes
from the scanner. For installation instructions,
see the documentation provided with the
adapter.
5. Configure the software to connect to the
scanner.
Note for Cordless Scanner:
Place the scanner in discoverable mode by
pressing the button.
The default Bluetooth Passkey is 0000.
6. Verify that the scanner is working
correctly, see the Software User's Guide.

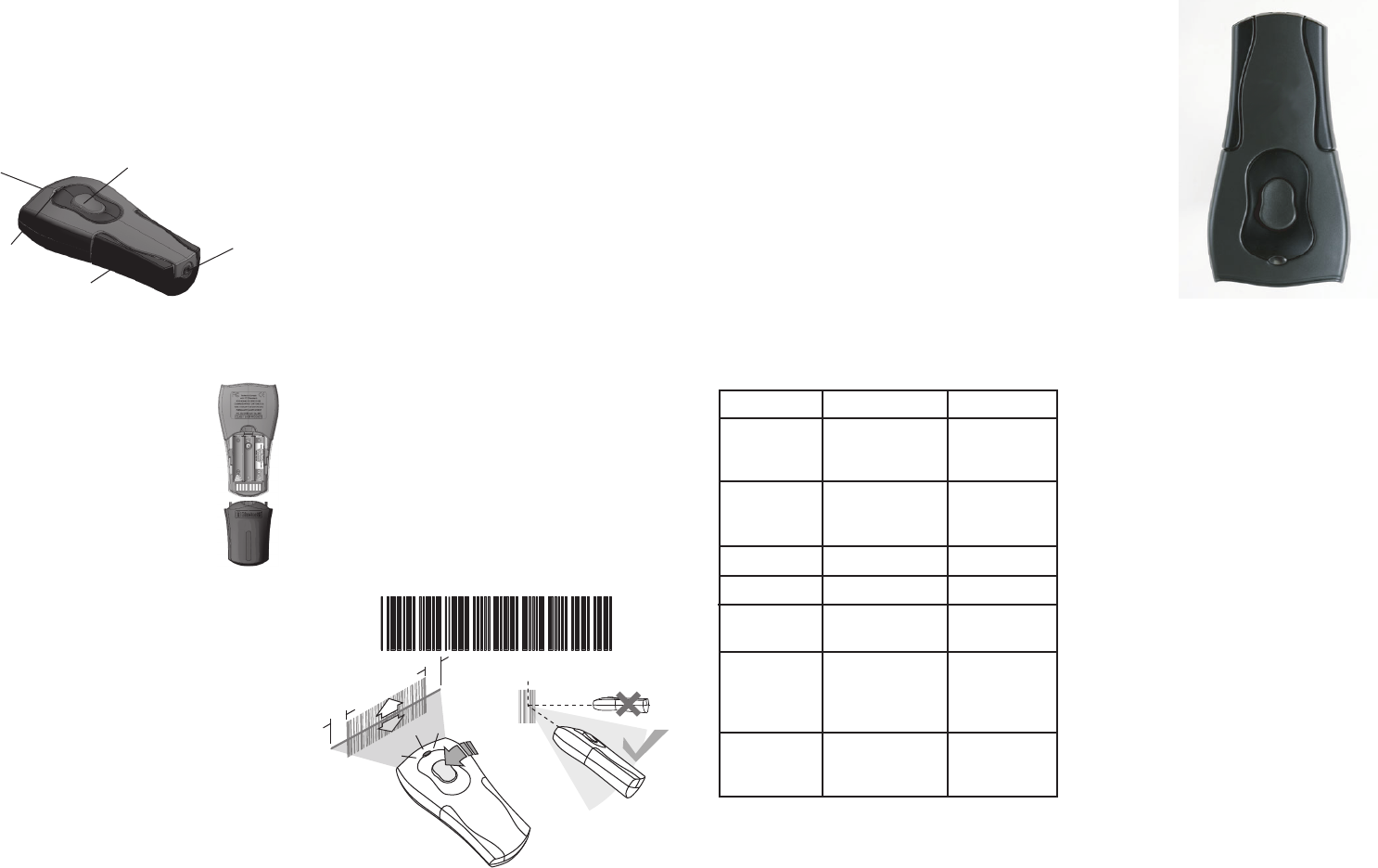

How to Scan
1. Aim Scanner - Hold the scanner at a slight
angle to the bar code you wish to scan. (Fig. 1)
2. Press & Hold the Button on top of the scanner
to make the red laser line appear. The laser line
should cover the entire bar code symbol.
3. Release the Button after the Beep and the
the green light blinks. This indicates that the
scanner has successfully scanned the bar code
symbol. Try the sample bar code now.
Sample Bar Code
Scanner Modes
The scanner runs in two modes: real-time and
store-and-forward.
Real-time is when the scanner is connected to a cable
or a Bluetooth host device. The scanner uploads the
bar codes as you scan them.
Batch mode is when the scanner is disconnected or
out of range. It stores the bar codes in memory.
When you plug in the scanner or move it back into
range, the scanner automatically connects to the host
device and uploads the stored bar codes.
Three beeps indicates the scanner's memory is full. If
this occurs, either connect the cable or move the
scanner back into range of the Bluetooth host device
and wake up the scanner by pushing the button.
When connected, the scanner automatically uploads
the saved bar codes and clears its memory.
Installing and Replacing Batteries
Use only AAA Alkaline batteries in your
Scanner. Please remove the batteries when
you are storing the scanner for more than
30 days.
1. Turn the scanner over so that the back
faces up.
2. Remove the battery cover by pressing
the button at the top of the cover, and
moving the cover down.
3. If there are batteries in the scanner, remove
them.
4. Insert the new batteries so that the positive end
(+) is up on the outside batteries, and down on
the middle battery.
5. Replace the battery cover by inserting the tabs at
the top of the cover into the slots in the back of
the scanner. Slide the cover up.
Battery Life:
Scanner - 100,000+ continuous scans or 24,000+
scans over 12 months at 100 scans/day
Cordless - 76,000+ continuous scans or 16,000+
scans over 8 months at 100 scans/day
Operator's Guide
Laser Bar Code Scanner
The Scanner is a breakthrough in affordable laser
scanning. The scanner has the scanning
performance of more expensive laser scanners, the
convenience of hand-held portability, and the
advantage of optional Bluetooth® wireless
technology. In store-and-forward mode you can
capture approximately 500 (optional 4000) UPC bar
code symbols, and then automatically upload them
when you connect the scanner or move back into
range. The Cordless Scanner has a 10 to 15 meter
real-time operating range, and an unlimited
store-and-forward range with automatic
reconnection.
Limited Warranty
Manufacturer warrants that the scanner product will be free of
defects in material and workmanship for one (1) year from the date
of shipment. Manufacturer will, at its option, either repair, replace or
refund the purchase price paid by buyer for the defective products.
Such repair, replacement or refund shall be buyer's sole remedy in
the event of Manufacturer's breach of this limited warranty. Repaired
or replaced parts or product may include new, reconditioned or
re-manufactured parts and equipment at Manufacturer's option. All
costs associated with shipment to Manufacturer for warranty service,
including but not limited to freight, duties, insurance and customs
fees are buyer's responsibility. Manufacturer will pay the freight
costs (duties, insurance, customs and any other fees are buyer's
responsibility) associated with the return shipment to buyer. The
method of shipment will be at Manufacturer's discretion. Repair or
replacement of any parts or equipment does not extend the period of
warranty provided for herein. THIS LIMITED WARRANTY IS
MANUFACTURER'S ONLY WARRANTY. MANUFACTURER DOES NOT
GIVE WARRANTIES OF MERCHANTABILITY OR WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE. To take advantage of this
warranty, buyer should contact the seller not the Manufacturer.
The warranty set forth herein does not cover and Manufacturer will have
no obligations hereunder if any non-conformance is caused in whole or
in part by; accident, transportation, neglect, misuse, alteration,
modification, or enhancement of the products or incorporation,
interfacing, attachment of any feature, program, or device to the
Products by a person or entity other than Manufacturer, failure to
provide a suitable installation environment, use of the products for other
than the specific purpose for which the products are designed or any
use of the product not in accordance with the Operator's Guide or other
misuse or abuse of the product.
Legal Notice
The Bluetooth word, mark, and logo are owned by the Bluetooth SIG, Inc. and any
use of such marks by Manufacturer is under license.
This product is covered by one or more pending or issued patents.
DOCUMENT NUMBER: DA0116777-001 Rev. A
scan window
LED
indicator
scan button
battery door
with optional Bluetooth radio
serial port
Scanner
Cordless Scanner
Fig. 1
Fig. 2

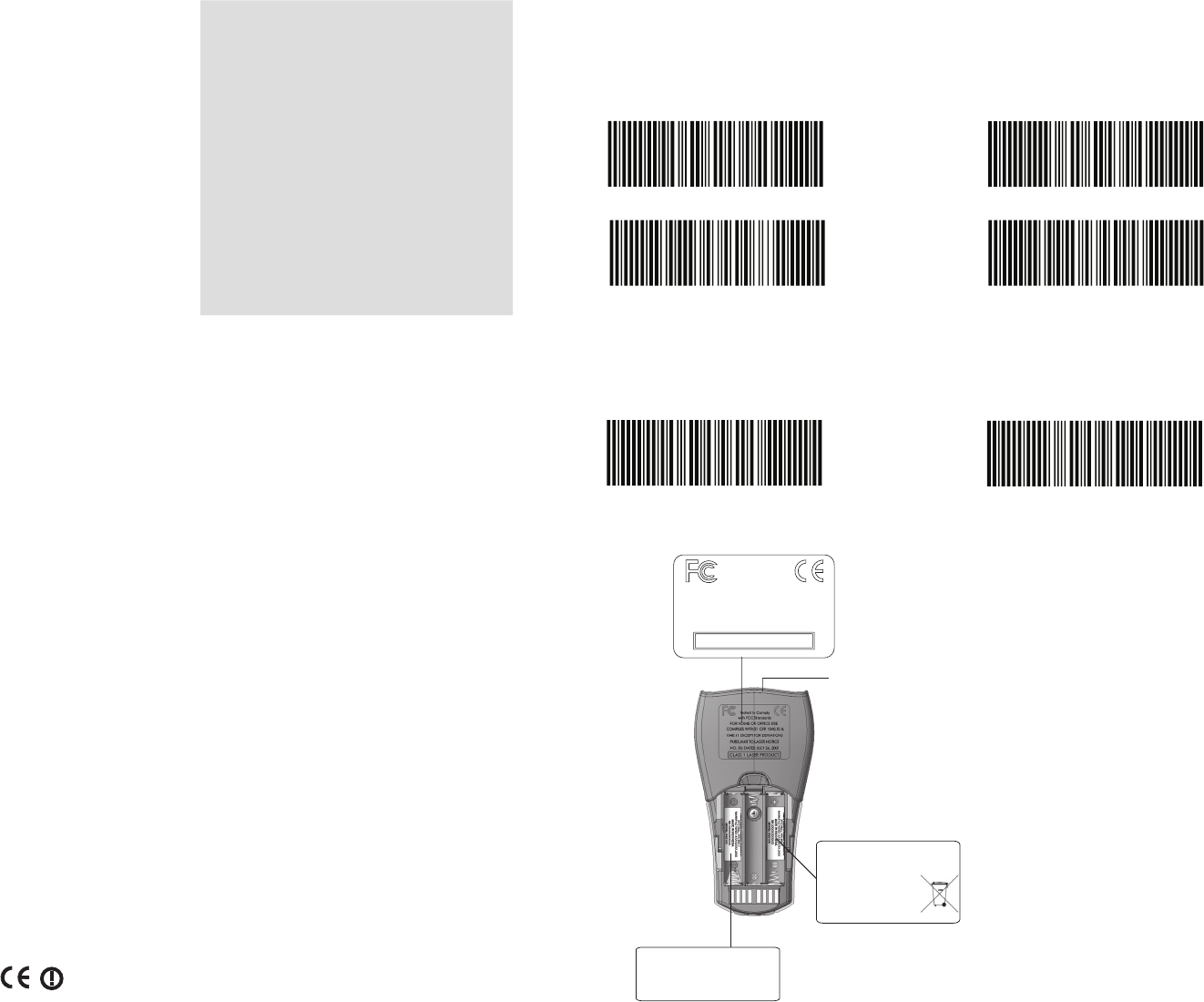

Programming Your Laser Bar Code Scanner
Basic Functions
The Scanner can be customized to suit your needs. You can use the bar codes below to turn on or off the audible
beep, clear the memory, or return the scanner to its factory default settings.
Enable All Beeps Disable All Beeps
* Factory default settings
Advanced Functions
The Scanner can be used in many legacy systems by programming it to be compatible with the settings for those
systems. The following advanced settings allow you to change the default data format. For more information on
these and other features of the scanner contact the seller.
Enable AIM Code Disable AIM Code*
Laser Safety
This device employs a laser. Do not remove the
cover or attempt to service this device due to the
possibility of eye damage.
Laser-Sicherhelt
In das Gerät ist ein Laser eingebaut. Nehmen Sie
die Abdeckung nicht ab und versuchen Sie nicht,
das Gerät zu reparieren. Es besteht die Gefahr
einer Augenverletzung.
Caution
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous laser radiation exposure.
Warnung
Die Vornahme von Regelungen oder Einstellungen
oder die Durchführung von Verfahren, die nicht in
diesem Dokument angegeben sind, kann eine
gefährliche Einwirkung von Laserstrahlung zur
Forge haben.
CLASS 1 LASER PRODUCT
PRODOTTO AL LASER DI CLASSE 1
KLASSE 1 LASERPRODUKT
LASERPRODUKT KLASSE 1
LUOKKA 1 LASERTUOTE
PRODUTO LASER DA CLASSE 1
PRODUIT LASER DE CLASSE 1
PRODUCTO LASER DE LA CLASE 1
LASERPRODUKT DER KLASSE 1
LASERPRODUKT KLASS 1
Technical Specifications
Bar Codes Supported UPC/EAN/JAN, Code 128,
Code 39, ITF, and optional -
RSS-14 and RSS-Limited
Minimum X Dimension 7.5 mil
Depth of Field 2.5 in to 5.5 in for 10 mil
2.5 in to 6 in for 13 mil
3 in to 7 in for 17 mil
Memory Capacity Approximately 500 UPC bar
codes (optional 4000)
Radio Specifications* Bluetooth class 2, v2.0
compliant
Range* 10 m., 33 ft., line-of-sight
Cable RS-232 compatible, DB9 to
Stereo plug
Indicators Visual and Audible
Operating Temperature 5º to 35º C
Storage Temperature -40º to 70º C
Power 3 AAA Alkaline Batteries
Safety EN60950-1:2002,
EN60825-1:1994 +A1:2002
+A2:2001
EMC EN300328-1:1997*,
EN301489-1:2000*,
EN301489-17:2000*,
EN55022:1998,
EN55024:1998, EN61000-4-2:
1995, EN61000-4-3:1997, FCC
47 CFR, Part 15 Class B
*Cordless Scanner only
Accessories
Model
Accessory Number
Cordless Bluetooth USB
Base Station BT-2141-02
Universal Holster HS 2120-02
Cordless Protective Boot HS 2141-01
USB Cable Adapter HS 2120-04
Serial Cable HS 2120-05
Laser light
is emitted
from this
aperture
Tested to Comply
with FCC Standards
FOR HOME OR OFFICE USE
COMPLIES WITH 21 CFR 1040.10 & 1040.11
EXCEPT FOR DEVIATIONS PURSUANT TO
LASER NOTICE NO.50. DATED JULY 26, 2001
CLASS 1 LASER PRODUCT
MICROVISION, INC.
19910 NORTH CREEK PARKWAY
BOTHELL, WA 98011
MADE IN INDONESIA
PATENTS PENDING
MODEL HS21XX
Clear Bar Codes Return to Factory Defaults
[BAR CODE]
SN XXXX XXXX XXXX
MANUFACTURED YYYY/MM/DD
Regulatory & Safety Information
UL Listed to U.S. and Candadian Safety Standards
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference (2) this device
must accept any interference received including interference
that may cause undesired operations. This applies to all
product options.
FCC Radio Frequency Interference Statement
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
» Reorient or relocate the receiving antenna.
» Increase the separation between the equipment and
receiver
» Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
» Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Changes or modifications to this equipment not
expressly approved by Manufacturer could void the user's
authority to operate this equipment.
Notice for Canada
Radio Interference Notice for Canada
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme á la
norme NMB-003 du Canada.
Complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 50, dated July 26,
2001.
Laser
Type: Semiconductor laser AlGaInP
Maximum output power: 5mW
Divergence: X axis: 6-15 degrees
Y axis: 22-38 degrees
Wavelength: 650-660nm
Laser
Typ: Halbleiterlaser AlGaInP
Ausgabeleistung: 5 mW
Strahlabweichung: X Achse: 6-15 Grad
Y Achse: 22-38 Grad
Wellenlänge: 650-660nm
Compliance Information
Product Name: Laser Bar Code Scanner
Product Number: HS 2122, HS 2123 Options: All
The product herewith complies with the requirements of Low
Voltage Directive 73/23/EEC, EMC Directive 89/336/EEC,
WEEE Directive 2002/96/EC, and carries the "CE" mark
accordingly.
Product Name: Cordless Laser Bar Code Scanner
Product Number: HS 2142, HS 2144 Options: All
The product herewith complies with the requirements of
R&TTE Directive 99/5/EC, WEEE Directive 2002/96/EC, and
carries the "CE" mark accordingly. The equipment also carries
the Class 2 equipment identifier:
To comply with FCC RF exposure compliance requirements, a
separation distance of at least 20 cm must be maintained
between the antenna of this device and all persons. This
transmitter must not be collocated or operating in
conjunction with any other antenna or transmitter.
Disposal
Do not dispose of this product in unsorted municipal waste.
To dispose of this product, contact seller.
To comply with FCC RF exposure compliance requirements, this
transmitter must not be colocated or operating in conjunction with
any other antenna or transmitter.
