IPn4G

IPn4G LTE Ethernet Bridge/Serial Gateway

Document: IPn4G User Guide.v1.0.pdf

User Guide

December 2012

150 Country Hills Landing NW

Calgary, Alberta

Canada T3K 5P3

Phone: (403) 248-0028

Fax: (403) 248-2762

www.microhardcorp.com

Revision History

Revision Description Initials Date

1.0 Initial Release PEH Dec 2012

FCC/ICRegulatoryNotice

Modificationstatement:

MicrohardSystemsInchasnotapprovedanychangesormodificationstothisdevicebytheuser.Any

changesormodificationscouldvoidtheuser’sauthoritytooperatetheequipment.

Interferencestatement:

ThisdevicecomplieswithPart15oftheFCCRulesandIndustryCanadalicence‐exemptRSSstandard(s).Operationissubjectto

thefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,

includinginterferencethatmaycauseundesiredoperationofthedevice.

RadiationExposureStatement:

IPn4GcomplieswithFCC/ICradiationexposurelimitssetforthforanuncontrolledenvironmentandmeetstheFCCradio

frequency(RF)ExposureGuidelinesinSupplementCtoOET65andRSS‐102oftheICradiofrequency(RF)Exposurerules.

Nevertheless,theproductshouldbeusedinsuchamannerthatthepotentialforhumancontactduringnormaloperationis

minimized.Thisequipmentshouldbeinstalledandoperatedwithminimumdistanceof20cmbetweentheradiatorandany

personandmustnotbecollocatedwithothertransmittersexceptotherwiseauthorised.

Thisdeviceisapprovedtobeusedwithadipoleantennawithamaximumgainof2dBi.

Thisproductintegratesandisauthorizedtobeco‐locatedwithaNovatelWireless'Expedite®E371PCIExpressMiniCard(FCC

ID:PKRNVWE371,IC:3229A‐E371).TheNovatelWireless'Expedite®E371PCIExpressMiniCardisgrantedwithamodular

approvalformobileapplications.Integrationhasbeendonemeetingthefollowingconditions:

1.Atleast20cmseparationdistancebetweentheantennaandanypersonbodyismaintainedatalltimes.

2.TocomplywithFCC/ICregulationslimitingbothmaximumRFoutputpowerandhumanexposuretoRFradiation,the

maximumantennagainincludingcablelossinamobileonlyexposureconditiondoesnotexceed3.5dBifor850MHzfrequency

band,5.0dBifor700MHzfrequencyband,5.0dBifor1700MHzfrequencybandand3.0dBifor1900MHzfrequencyband.

3.TheNovatelWireless'Expedite®E371PCIExpressMiniCardantennaisnotco‐locatedwithanyotherantennasexcept

withtheantennaoftheIPn4Gproduct.

FCCClassBdigitaldevicenotice

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCC

Rules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewill

notoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which

canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

‐ Reorientorrelocatethereceivingantenna.

‐ Increasetheseparationbetweentheequipmentandreceiver.

‐ Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCC/ICAvisréglementaire

Instructiondemodification:

MicrohardSystemsIncn'apasapprouvélesmodificationsapportéesàcetappareilparl'utilisateur.Leschangementsou

modificationspourraientannulerl'autoritédel'utilisateuràutilisercetéquipement.

Déclarationsurlesinterférences:

CetappareilestconformeàlaPartie15delaréglementationFCCetIndustrieCanadaexemptsdelicenceRSSnorme(s).Son

fonctionnementestsoumisauxdeuxconditionssuivantes:(1)cetappareilnedoitpasprovoquerd'interférences,et(2)cet

appareildoitacceptertouteinterférence,ycomprislesinterférencespouvantprovoquerunfonctionnementindésirablede

l'appareil.

Déclarationd'expositionauxradiations:

IPN4Gestconformeàl'expositionauxradiationsFCC/ICdéfiniespourunenvironnementnoncontrôléetrépondauxdirectives

d'expositiondelafréquencedelaFCCradiofréquence(RF)dansleSupplémentCàOET65etRSS‐102delafréquenceradio(RF)

ICrèglesd'exposition.Néanmoins,leproduitdoitêtreutiliséd'unemanièretellequelepotentielpourlecontacthumain

pendantl'utilisationnormalesoitminimisé.Cetéquipementdoitêtreinstalléetutiliséàunedistanceminimumde20cmentre

leradiateurettoutepersonneetnedoitpasêtreco‐implantéavecd'autresémetteurs,saufautorisationcontraire.

Cedispositifestapprouvépourêtreutiliséavecuneantennedipôleavecungainmaximumde2dBi.

Ceproduitintègreetestautoriséàêtreco‐localisésavecuneNovatelWirelessExpedite®E371PCIExpressMiniCard(FCCID:

PKRNVWE371,IC:3229A‐E371).LeNovatelWirelessExpedite®E371PCIExpressMiniCardestaccordéeàunagrément

modulairepourlesapplicationsmobiles.L'intégrationaétéfaitauxconditionssuivantes:

1.Aumoins20cmdedistancedeséparationentrel'antenneettoutepersonnecorpsestmaintenueentouttemps.

2.PourseconformeràlaFCC/ICrèglementsquilimitentàlafoislapuissancemaximaledesortieRFetl'expositionhumaine

auxrayonnementsRF,legainmaximaldel'antenne,ycomprislapertedecâbledansuneconditiond'expositionseulement

mobilenedépassepas3,5dBipour850MHzbandedefréquence,5,0dBipourdesfréquences700MHzbande,5,0dBipour

1700MHzet3,0dBibandede1900MHzbandedefréquence.

3.LeNovatelWirelessExpedite®E371PCIExpressMiniCardantennen'estpasco‐localiséavecd'autresantennes,saufavec

l'antenneduproduitIPn4G.

FCCClasseBpréavisappareilnumérique

CetéquipementaététestéetdéclaréconformeauxlimitesimposéesauxappareilsnumériquesdeclasseB,conformémentàla

partie15delaréglementationFCC.Ceslimitessontconçuespourfourniruneprotectionraisonnablecontrelesinterférences

nuisiblesdansuneinstallationrésidentielle.Cetéquipementgénère,utiliseetpeutémettreuneénergiedefréquenceradioet,

s'iln'estpasinstalléetutiliséconformémentauxinstructions,ilpeutcauserdesinterférencesnuisiblesauxcommunications

radio.Cependant,iln'existeaucunegarantiequedesinterférencesneseproduirontpasdansuneinstallationparticulière.Si

cetéquipementprovoquedesinterférencesnuisiblesàlaréceptionradiooutélévision,cequipeutêtredéterminéenmettant

l'équipementhorsetsoustension,l'utilisateurestencouragéàessayerdecorrigerl'interférenceparuneouplusieursdes

mesuressuivantes:

‐Réorienteroudéplacerl'antennederéception.

‐Augmenterladistanceentrel'équipementetlerécepteur.

‐Brancherl'équipementdansuneprisesuruncircuitdifférentdeceluisurlequellerécepteurestbranché.

‐Consulterlerevendeurouuntechnicienradio/télévisionqualifiépourobtenirdel'aide.

2.0 Quick Start

This QUICK START guide will walk you through the setup and process required to

access the WebUI configuration window and to establish a basic wireless connection

to your carrier.

Note that the units arrive from the factory with the Local Network setting configured

as ‘Static’ (IP Address 192.168.168.1, Subnet Mask 255.255.255.0, and Gateway

192.168.168.1), in DHCP server mode. (This is for the LAN Ethernet Adapter on the

back of the IPn4G unit.

2.1 Installing the SIM Card

 Before the IPn4G can be used on a cellular network a valid SIM Card for your

Wireless Carrier must be installed. Insert the SIM Card into the slot as shown

below.

2.2 Getting Started with Cellular

 Connect the power connector to the power adapter and apply power to the unit,

the RF & SGNL LED’s will flash during boot-up, once they stop, proceed to the

next step.

SIM Card Slot

To reset to factory

defaults, press and

hold the CFG button

for 8 seconds with the

IPn4G powered up.

The LED’s will flash

quickly and the IP4G

will reboot with factory

defaults.

Use the MHS-supplied

power adapter or an

equivalent power

source.

The unit can also be

powered via PoE using a

MHS PoE injector.

9-30VDC

2.0 Quick Start

 Connect A PC configured for DHCP directly to the ETHERNET port of the IPn4G,

using an Ethernet Cable. If the PC is configured for DHCP it will automatically

acquire a IP Address from the IPn4G.

 Open a Browser Window and enter the IP address 192.168.168.1 into the ad-

dress bar.

 The IPn4G will then ask for a Username and Password. Enter the factory defaults

listed below.

192.168.168.1

The factory default

network settings:

IP: 192.168.168.1

Subnet: 255.255.255.0

Gateway: 192.168.168.1

The Factory default login:

User name: admin

Password: admin

The factory default login:

User name: admin

Subnet: admin

It is always a good idea to

change the default admin

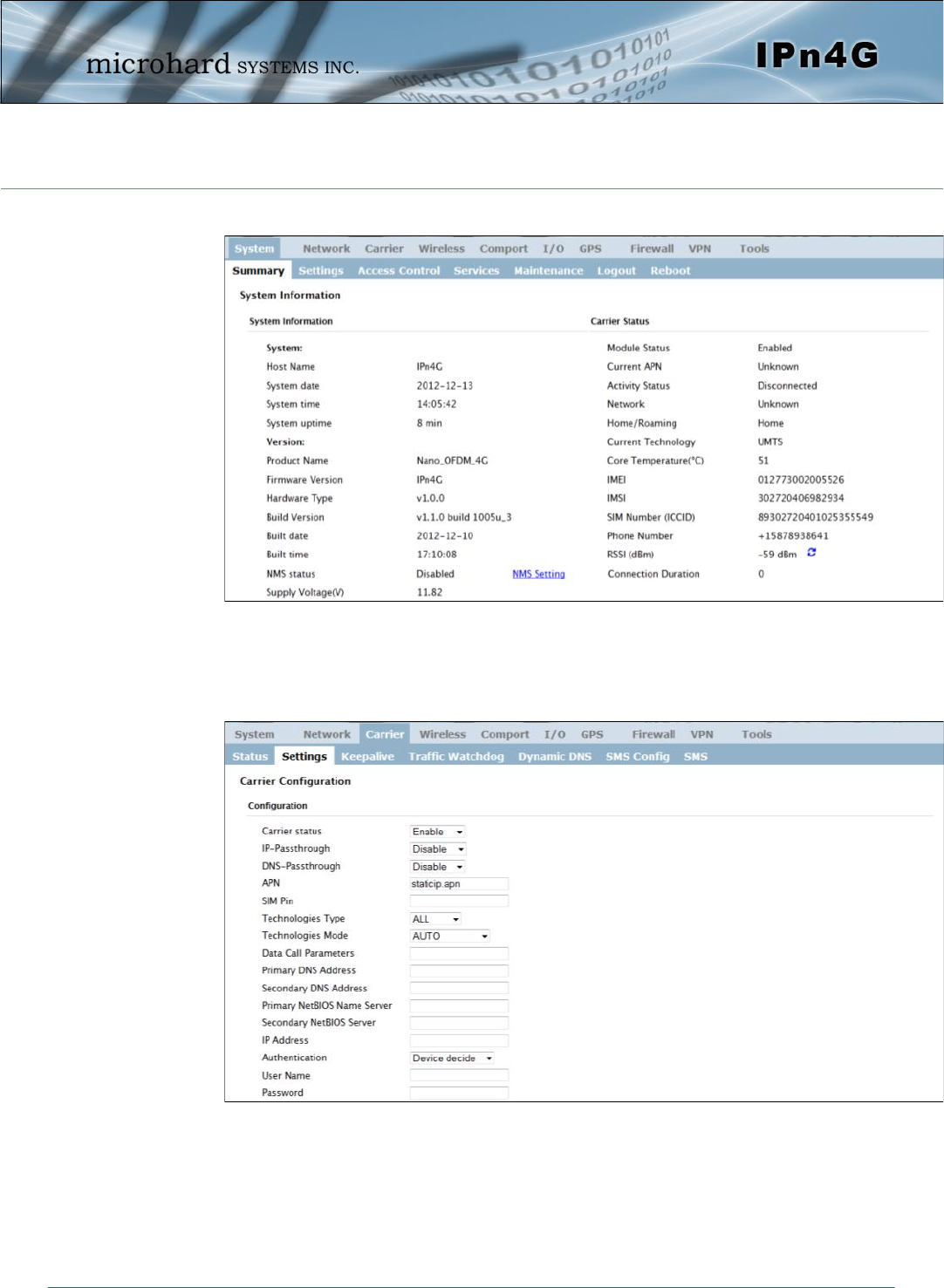

 Once successfully logged in, the System Summary page will be displayed.

 As seen above under Carrier Status, the SIM card is installed, but an APN has

not been specified. Click on the Carrier > Settings tab and enter the APN sup-

plied by your carrier in the APN field. Some carriers may also require a User-

name and Password.

 Once the APN and any other required information is entered to connect to your

carrier, click on “Submit”. Return to the System > Summary tab.

2.0 Quick Start

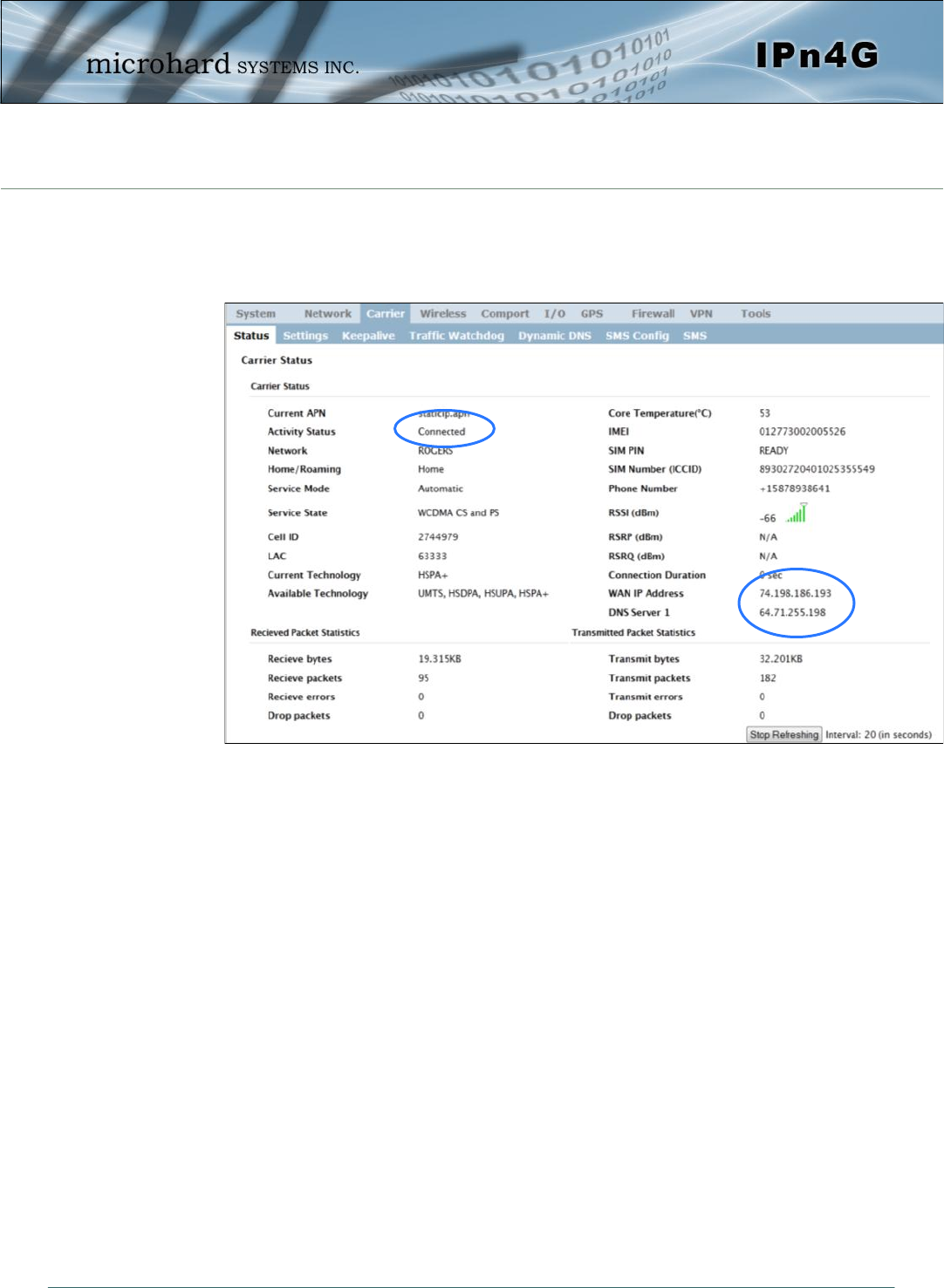

 On the Carrier > Status Tab, verify that a WAN IP Address has been assigned by

your carrier. It may take a few minutes, so try refreshing the page if the WAN

IP Address doesn’t show up right away. The Activity Status should also show

“Connected”.

 To access devices connected to IPn4G remotely, one or more of the following

must be configured: IP-Passthrough, Port Forwarding, DMZ. Another option

would be to set up a VPN.

2.0 Quick Start
