Microlab Electronics MD213 PORTABLE BLUETOOTH SPEAKER User Manual 80 MD213 97 0001 03
Microlab Electronics Co.,Ltd. PORTABLE BLUETOOTH SPEAKER 80 MD213 97 0001 03
User Manual
MD213
Paired
and
connecting
F
MD213
Paired
not
connected
ED
MD213
Pair with
the
speaker
Bluetooth mode (initial use)
1. Turn on the speaker. The Bluetooth function is
the default mode.
2. The front LED will illuminate in Red and Blue
colours steadily for several seconds before
blinking in Blue for Bluetooth pairing.
3. Activate the Bluetooth mode on your mobile
phone or notebook.
4. In the Bluetooth setup screen, search for the discoverable device name of
“MD213”.
5. Once located, select and pair with it. Thereafter, select and connect to it. A
“beep” is sound and the front LED will illuminate steadily when the
connection is successful.
Scan for
devices
Smartphone:
Turn on
Bluetooth®
mode
AB
Disclaimer: All symbols and logos belong to the respective brand holder
or registered holder. All specifications and information are subject to
changes without further notice. Slight variations and differences might
appear between the printed photos and actual product due to product
enhancement.
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Microlab Electronic
Co., Ltd is under license. other trademarks and trade names are those of
their respective owners.
www.microlab-global.com
Microlab Electronics Co., Ltd
Made in China
MD213
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to
rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.
Explanation of Graphical Symbols:
The lightning flash within an equilateral triangle is intended to alert you to the presence of
uninsulated dangerous voltage within the product's enclosure that may be of sufficient
magnitude to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence
of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
WARNINGS:
1. Read Instructions - All the safety and operating instructions must be read before the product is
operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for
future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be
adhered to.
4. Follow instructions - All operating and users’ instructions should be followed.
5. Installation - Install in accordance with the manufacturers’ instructions.
6. Power sources - This product should be operated only from the type of power source indicated
by the marking adjacent to the power cord entry. If you are not sure of the type of power supply
to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully
inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some
versions of the product are equipped with a power cord fitted with a polarized alternating line
plug (a plug having one blade wide than the other). This plug will fit onto the power outlet only
one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension
power-supply cord or a power-supply cord other than that supplied with the product, it should
be fitted with the appropriate molded plugs and carry safety approval appropriate to the country
of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be
walked on, kinked or pinched by items placed on or against them, paying particular attention to
cords from plugs, receptacles and the point where they exit from the appliance.
9. Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can
result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa,
or other similar surface. Do not cover the product with any items such as tablecloths,
newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products including amplifiers that produce heat. No naked flame sources, such as
lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to
train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this
product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, or etc.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as
they may touch dangerous voltage points or short-circuit parts that could result in a fire or
electric shock.
14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the
subwoofer may be cleaned by dusting with a dry cloth. If you wish to use an aerosol cleaning
spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the
drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturers, as
they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold
with the product. Any mounting of the product should follow the manufacturers’ instructions
and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops,
excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Un-use periods - The power cord of the device should be unplugged from the outlet during
lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
20. Please remove the power plug form the main power source or wall power source when not in
use. When plugged in to a power source, the system is in standby mode, so the power is not
entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and
rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio
signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing
the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the
product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40°C.
Introduction
Charging
Connections
Enhance and power your tablet’s music and sound. Compact design and small
soundbar system with two quality speaker drivers. Broaden your tablet sound
range and listen to distinct sound effects. Uniquely designed air port at the
bottom for enhanced mid sound production. Speakerphone function for picking
calls from your mobile phone during music playback.
Stream music wirelessly from your smartphone, tablet, or even your notebook.
Listen to enhanced amplified sound from your favourite gadgets. Connects to any
products with Bluetooth® wireless technology using A2DP profile and listen to
digital music.
Easy connection with alternative 3.5mm stereo plug for wide range playback
device support.
Comes with built-in rechargeable battery for portability and prolong use.
Travel with your tablet, or smartphone, and enjoy to enhanced sound
everywhere you go.
Prior to initial use, please charge the battery for 4 to 6 hours.
1. Use only the included USB cable to charge,
connect the USB type A end to the notebook or
USB hub.
2. Connect the opposite end to micro USB jack at
the speaker back panel.
3. Power on the notebook or USB hub to
commence charging. For normal usage, please
use the same steps to charge the battery.
4. Charging should complete under 4 hours.
5. The red LED will illuminate during charge, and turn
off after fully charged.
Features
Wireless music streaming with Bluetooth® wireless technology
Quality stereo speaker system with built-in amplifier
Ideal for digital music, gaming, and smartphone audio applications
Clear and powered sound with enhanced midrange sound
Soundbar type design in compact size
Connects to any 3.5mm stereo jack easily e.g., smartphone, tablet, PC,
notebook, Mp3/Mp4, CD/DVD player, etc.
Rechargeable battery for longer use and portability
Speakerphone function for call pickup during music entertainment
Portable system, ideal for traveling and music on-the-go
Dual modes: Bluetooth® Wireless Technology, and 3.5 mm stereo input
Packing List
MD213 speaker 1 pc
3.5 mm stereo audio cable 1 pc
USB charging cable 1 pc
User manual 1 pc
CHARGE AUDIO IN
Turned ON the power
the Bluetooth mode
will be activated
QDID: 44018
CHARGE AUDIO IN
Plug the USB
cable to the
Charging jack
at the rear
Charging LED will lit in
Red colour
# Do not charge during playback,
this will halt the system. Please
restart the speaker.
Power On/Off Charging LED USB charging port AUX Input Headphones
Rear View
CHARGE AUDIO IN
Microphone
MD213
C
Pairing
process
Mode LED:
1. Bluetooth® - Blue
2. AUDIO IN - Red
& Blue
Front View Top View
Play/Pause/
Speakerphone/
Mute (Audio In)
Previous track
Next track
FCC WARNING
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful inter ference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/T V technician for help.
80-MD213-97-0001-03 (2014-010-9) 加FCC ID
80-MD213-97-0001-02 (2014-07-31) 改电池容量

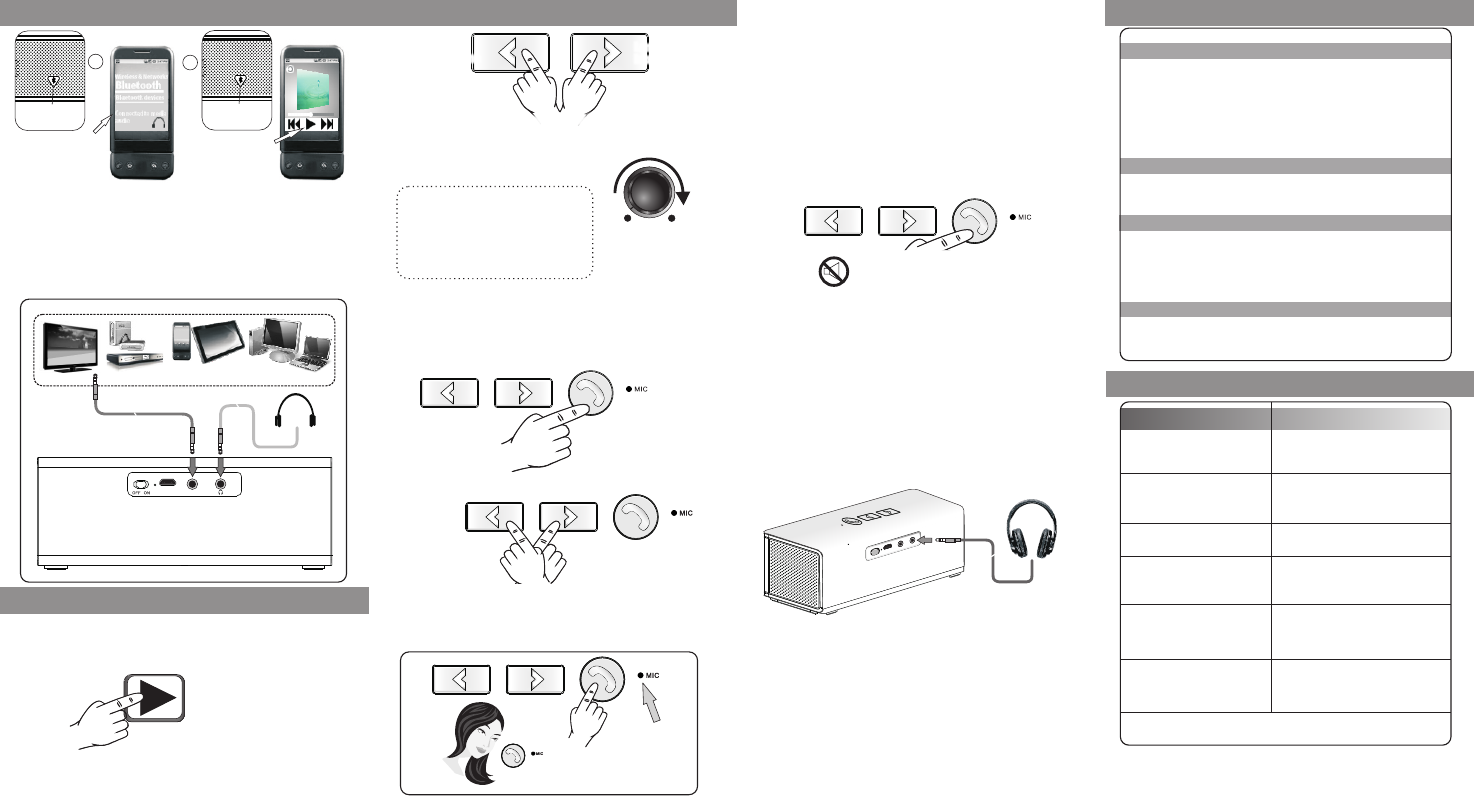

Connections (continue)
Operations
Operations (continue) Technical Specifications
Frequently Asked Questions (FAQs)
MD213
Connected
to speaker
LED illuminate in
blue steadily
LED will blink
slowly in blue
Commence
music playback
GH
AUDIO IN (3.5 mm stereo input)
1. Insert the 3.5 mm plug into the AUDIO IN jack at the rear of the speaker
2. Insert the other end into your media player such as Smartphone, Tablet, Mp3/
Mp4 player, CD/DVD player, and PC/ Notebook.
3. Once the 3.5 mm stereo jack is connected with the 3.5 mm stereo plug, the
Bluetooth mode will automatically switched to this line input mode.
4. And the playback on the Bluetooth device will be stopped.
5. The front LED will illuminate steadily in Red and Blue colours.
1. Start the playback on the media player such as Smartphone, Tablet, Mp3/
Mp4, CD/DVD player, and PC/ Notebook.
2. Adjust the volume on the speaker to your preferred listening level.
3. Alternatively, you can adjust the master volume level from your media player.
Start playback on media
player such as
Smartphone, tablet,
iPad, notebook or
Mp3/Mp4 player
Long depress:
Increase volume
Long depress:
Decrease volume
Adjust master volume on
the media player:
-+
Media player
Note:
This product is specially designed for
Smartphone.
Strong signal from sources, such as
notebook, tablet, or Mp3/Mp4 player can
cause distortion. Please reduce the volume
level to avoid the distortion.
Adjust master volume: Depress for several seconds to increase or
decrease the volume level. Once the maximum is reached,
there is an repeating audio tone to alert the user.
During playback, depress
once to Pause the music,
second depress to re-
activate the playback.
Smartphone / Tablet /
Mp3 / Mp4 Media player
LCD TV PC or Note book
Media
player
CD / VCD / DVD
Blu-Ray player
CHARGE AUDIO IN
During Bluetooth® playback mode: (continue)
6. To end the conversation, depress the button again to hang up the call.
7. The interrupted music playback will resume again.
8. Note: For some legacy devices, you might be prompted to enter a password
to continue the pairing process. Please type the password “0000” to proceed.
AUDIO IN
1. Switch on the speaker power.
2. If the 3.5 mm jack is plugged, the front LED will illuminate in Red and Blue
colours.
3. Start the music playback on your media player.
4. Adjust the master volume from either the media player, or the speaker. Please
adjust the volume to your preferred listening level.
5. To interrupt your music playback, you can depress the Speakerphone button
to mute the speaker. Note: during the mute function, the media player is still
in playback mode, but no sound will be reproduced.
6. Note: “media player” refers to any media player with 3.5 mm stereo jack for
audio output, such as Smartphone, Tablet, CD/DVD player, Mp3/Mp4 player,
PC/Notebook, or LCD TV.
7. Depress the Speakerphone button again to reactivate the sound
reproduction, and continue listening to the playback.
Headphones
1. For personal entertainment, you can plug a pair of headphones, or earphones
to the speaker.
2. Connect the headphones’ 3.5 mm plug into the rear headphones jack.
3. The main speakers will be muted, and the sound is channeled to the 3.5 mm
headphones stereo jack.
4. This channeling of sound works for both Bluetooth®, and 3.5 mm Audio IN
modes, as long the headphones jack is plugged in.
Connection diagram
AUDIO IN mode: during playback, depressing the
Speakerphone button will mute the speaker
Depress to change
playback to the
Previous track
Depress to change
playback to the
Next track
Amplifier
Speakers
Interfaces
Power
Output power, RMS 4 Watt RMS
Power distribution, Watt 2 Watt x 2 RMS
Harmonic distortion < 0.5% 1 W 1 kHz
Frequency response 120 Hz - 18 kHz
Signal/Noise ratio, dB > 70 dB
Separation, dB > 55 dB
Full range driver type 1.5”
Full range impedance 4 Ohm
Output 3.5 mm stereo
headphones jack
Input 3.5 mm stereo AUDIO IN
Bluetooth® 2.1 + EDR, HSP,
HFP, A2DP, AVRCP profiles
Lithium battery 3.7V 1500 mA
Charging USB cable, Micro-USB
Questions Solutions
Power LED won't light up
No Sound
During playback, can the
battery be charged?
Cannot pair correctly with
the Bluetooth device
What are the products
supported?
Sound is distorted
If the problem still exists, please contact the distributor or seek
professional advice.
Check if the speaker battery is charged.
Ensure the front LED is lit to indicate
power is sufficient.
Check if the media player is correctly
connected. Check if the Bluetooth
connection is correctly paired and
connected.
Do not charge the battery during
playback.
Please remove previously paired devices
from your mobile, and then “search for
devices” again. Reconnect and try again.
Any playback devices such as
smartphone, tablet, PC, notebook,
CD/DVD player, media players with
3.5mm stereo plug, and Bluetooth®.
Check if the source file is not corrupted,
play a different song and
test. Ensure music file is of 192 kbps
bitrate or higher.
- the end -
© 2014 Microlab Electronics Co., Ltd All rights reserved.
Bluetooth® playback mode:
1. To pause the playback, simply depress the Speakerphone button once to
pause. The front LED will lit steadily.
2. To commence playback, depress again to reactivate the playback. The front
LED will blink slowly again to indicate playback mode.
3. Note that the above mentioned functions are also able to execute from the
media player’s own controls.
4. To change tracks during playback, depress either NEXT or PREVIOUS button.
5. When connected to a Smartphone in Bluetooth® mode, you can depress the
Speakerphone button for incoming calls. When there is an incoming call, the
speaker will emit a tone to alert the listener. You can pick your calls from the
speaker and converse through the built-in microphone. If the pickup is
during a music playback, the player will pause.
MIC
HEADPHONES
80-MD213-97-0001-03 (2014-010-9) 加FCC ID
80-MD213-97-0001-02 (2014-07-31) 改电池容量
