2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 1
2
Professional Blood Pressure Monitor
Instruction Manual
Table of contents
1. Safety Information
1.1. Explanation of symbols
1.2. Know Your Unit
2. Useful Information
2.1. Items supplied and packaging
2.2. What is blood pressure?
2.3. How is blood pressure measured?
2.4. Why should you take your blood pressure at home?
2.5. Blood pressure classification
2.6. Fluctuations in blood pressure
2.7.Influencing and evaluating readings
3. Getting started
3.1. Inserting /removing batteries
3.2. Using a mains adaptor
3.3. Setting time and date
3.4. Setting the alarm
3.5. Setting up the user memory
3.6. Selecting the 3MAM measuring method
3.7. Switching beeps on/off
4. Operation
4.1. Fitting the cuff
4.2. Correct position for taking readings
4.3. Taking blood pressure readings
4.4. Troubleshooting
4.5. Switching off the unit
4.6. IOS & Android BT APPs instruction
5. Memory
5.1. Recording the results
5.2. Displaying stored results
5.3. Deleting a measurement
5.4. Deleting memory
6. Miscellaneous
6.1. Care and maintenance
6.2. Disposal
6.3. Guidelines / Standards
6.4. Technical specifications
6.5. Federal Communications Commission (FCC) Statement
7. Warranty
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 2
3
1. Safety Information
IMPORTANT INFORMATION!
RETAIN FOR FUTURE USE!
Read the instruction manual carefully before using this device, especially the safety
instructions, and keep the instruction manual for future use.
Should you give this device to another person, it is vital that you also pass on these
instructions for use.
1.1. Explanation of symbols
This instruction manual belongs to this device.
It contains important information about starting up and operation. Read the
instruction manual thoroughly.
Non-observance of these instructions can result in serious injury or damage
to the device.
WARNING
These warning notes must be observed to prevent any injury to the user.
NOTE
These notes give you useful additional information on the installation or
operation.
Type BF applied part
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 3
4
1.2. Know Your Unit
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 4
5
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 5
6

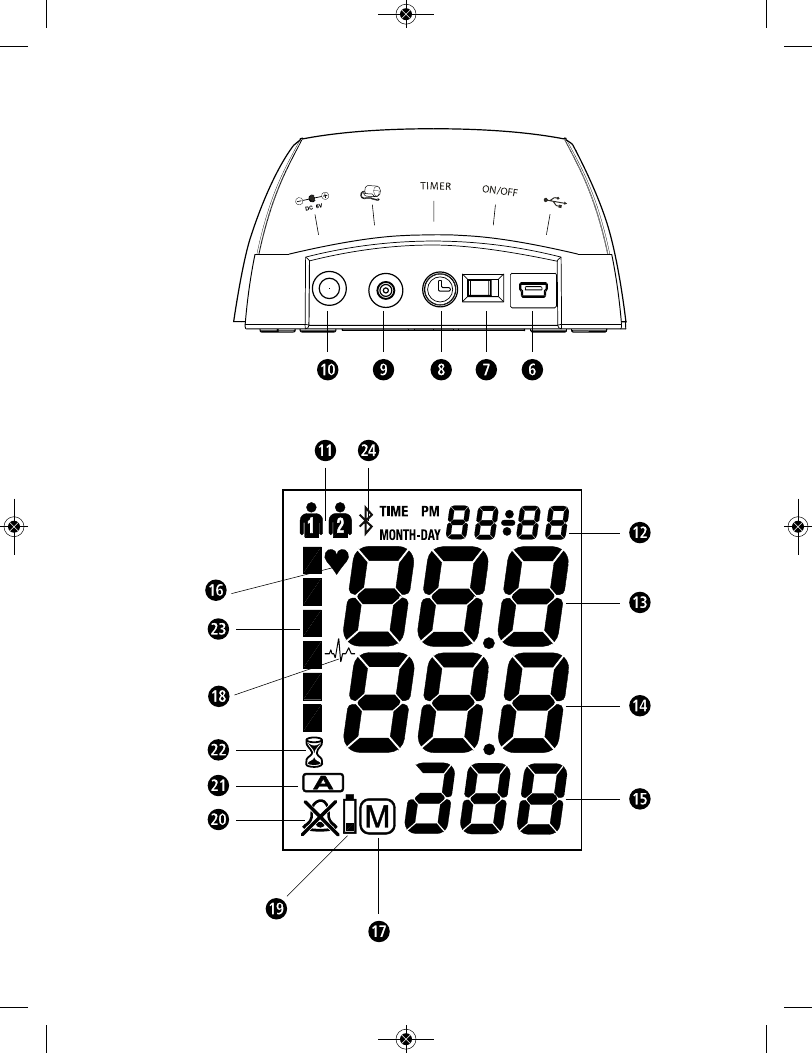

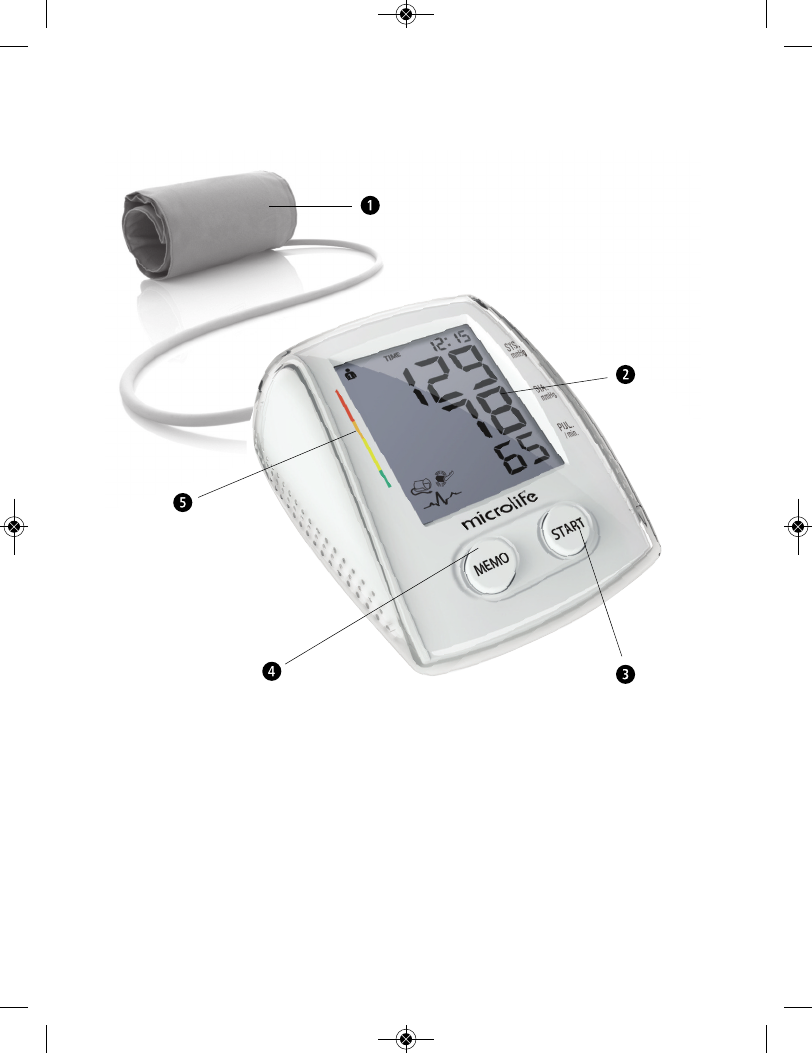

[Product Description]
uUpper arm cuff with hose
vDisplay
wSTART button
xMEMO button
yBlood pressure indicator
UUSB Interface
VON/OFF switch
WTIMER button
XConnector for the hose
atSocket for mains adaptor
akUser memory 1 / 2
alTime / Date
amDisplay of systolic pressure
anDisplay of diastolic pressure
aoDisplay of pulse rate
apPulse symbol
aqMemory symbol
arUnit has detected an arrhythmia.
asBatteries low (Please replace batteries).
btAlarm symbol
bkSymbol for 3MAM mode
blCountdown symbol
bmBlood pressure bar display
bnBluetooth icon
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 6
7
WARNING
Do not take any therapeutic measures based on your own measurements! Never
change the quantity of medication prescribed by your doctor!
• Irregularity of pulse or arrhythmia can lead to difficulties in recording a correct
reading when measurements are taken using oscillometric blood pressure devices.
This device is elec tronically equipped to detect over 20 of the most commonly
occurring types of arrhythmia and movement artifacts and indicates this with a
symbol ar in the display.
• If you should suffer from conditions such as arterial occlusive disease, please
consult your doctor before using the unit.
• The unit may not be used to check the heart rate of patients with a pacemaker.
• Pregnant patients should take their own personal state of health into consideration
and take all necessary precautions before using the unit. If in doubt, consult your
doctor.
• Should you experience discomfort or other complaints during measurement, for
example pain in the upper arm, please take the following action: Press the START
button wto deflate the cuff immediately. Loosen the cuff and remove it from your
arm. Please contact either your dealer or Microlife directly.
• Patients with a weak pulse wave should raise their arm and open and close their
hand around 10 times before taking a reading. This exercise optimizes the pulse
wave and the measuring process.
• The unit is only to be used for the specific purpose described in this instruction
manual.
• Any misuse will void the warranty.
• On the rare occasion of a fault causing the cuff to remain fully inflated during
measurement, open the cuff immediately.
• Do not use the unit near to equipment emitting a strong electric or magnetic field,
such as radios. This may impair the correct functioning of the unit.
• This device is not designed to be used by persons (including children) with limited
physical, sensory or mental abilities, or by persons with insufficient experience
and/or knowledge, unless under observation by a person responsible for their safety,
or unless they have been instructed in the use of the device.
• Children must be supervised to ensure that they do not play with the device.
• If a fault occurs, do not try to repair the unit yourself. Attempts to do so will void the
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 7
8
warranty. Refer all servicing to authorized service personnel.
• Protect the unit from moisture. Should moisture enter the unit, remove the batteries
and stop using it immediately. In this case, please contact either your dealer or
Microlife directly. You can find details of how to contact us on the address page.
2. Useful Information
This blood pressure monitor is a fully automatic, digital blood pressure measuring
device for use by adults on the upper arm.
This monitor enables very fast and reliable measurement of your systolic and diastolic
blood pressure as well as pulse by way of the oscillometric method of measuring. This
device offers clinically proven accuracy and has been designed to be user friendly.
Before using it, please read through this instruction manual carefully and keep it in a
safe place. For further questions on the subject of blood pressure and its measurement,
please contact your doctor.
To ensure the best results and long-term satisfaction with your Microlife 3NF1-2B
blood pressure monitor, we recommend that you read the following operating and
maintenance instructions carefully.
2.1. Items suppliedand packaging
Please check first of all that the device is complete and is not damaged in any way. In
case of doubt, do not use it and contact your dealer or your service centre.
The following parts are included:
• 1 Microlife Blood pressure monitor 3NF1-2B
• 1 Preformed sleeve with air pipe
• 4 Batteries (AA type, LR 6) 1,5V
• 1 AC power adapter
• 1 Storage bag
• 1 USB cable
• 1 Blood pressure certificate
• 1 Instruction manual
The packaging can be reused or recycled. Please dispose properly of any packaging
material no longer required. If you notice any transport damage during unpacking,
please contact your dealer without delay.
WARNING
Please ensure that the polythene packing is kept away from the reach of children! Risk
of suffocation!
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 8
9
2.2. What is blood pressure?
Blood pressure is the pressure created in the blood vessels by each heart beat. When
the heart contracts (= systole) and pumps blood into the arteries, it brings about a rise
in pressure. The highest value is known as the systolic pressure and is the first value
to be measured. When the cardiac muscle relaxes to take in fresh blood, the pressure
in the arteries also falls. Once the arteries are relaxed, a second reading is taken – the
diastolic pressure.
2.3. How is blood pressure measured?
The 3NF1-2B is a blood pressure unit which is used to measure blood pressure at the
upper arm. The measurement is carried out by a microprocessor, which, via a pressure
sensor, measures the vibrations resulting from the inflation and deflation of the cuff
over the artery.
2.4. Why should you take your blood pressure at home?
Microlife has had many years of experience in the field of blood pressure measure-
ment. The high precision of Microlife devices has been confirmed by extensive clinical
tests, carried out according to strict international standards. One strong argument in
favour of taking blood pressure at home is the fact that the readings are taken in
familiar surroundings under relaxed conditions. The most important reading is the
socalled „baseline value“, the one taken before breakfast, directly after getting up in
the morning. As far as it is possible, you should always try to take your blood pressure
at the same time and under the same conditions each day.
This ensures comparable results and helps in detecting the first signs of high blood
pressure. If high blood pressure remains undetected, it increases the risk of further
cardiovascular diseases.
THEREFORE WE RECOMMEND:
Take a blood pressure reading daily and on a regular basis, even if you are experienc-
ing no apparent complaints.
2.5. Blood pressure classification
The following standards for assessing high blood pressure (in adults) have been
established by the National Institutes of Health JNC7, 2003.
Category Systolic Diastolic
(mmHg) (mmHg)
Normal <120 and <80
Pre-Hypertension 120-139 or 80-89
Hypertension
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension ≥160 or ≥100
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 9
10
+Further information
• If your values are mostly normal under resting conditions but exceptionally high
under conditions of physical or psychological stress, it is possible that you are
suffering from so-called "labile hypertension." Consult your doctor.
• Correctly measured diastolic blood pressure values above 120 mmHg require
immediate medical treatment.
Hypertension risk indicator
The bars on the left-hand edge of the display show you the range within which the
indicated blood pressure value lies. Depending on the height of the bar, the readout
value is either within the normal (green), borderline (yellow) or danger (orange, red)
range.
The classification is based on standards established by the National Institutes of
Health JNC7, 2003.

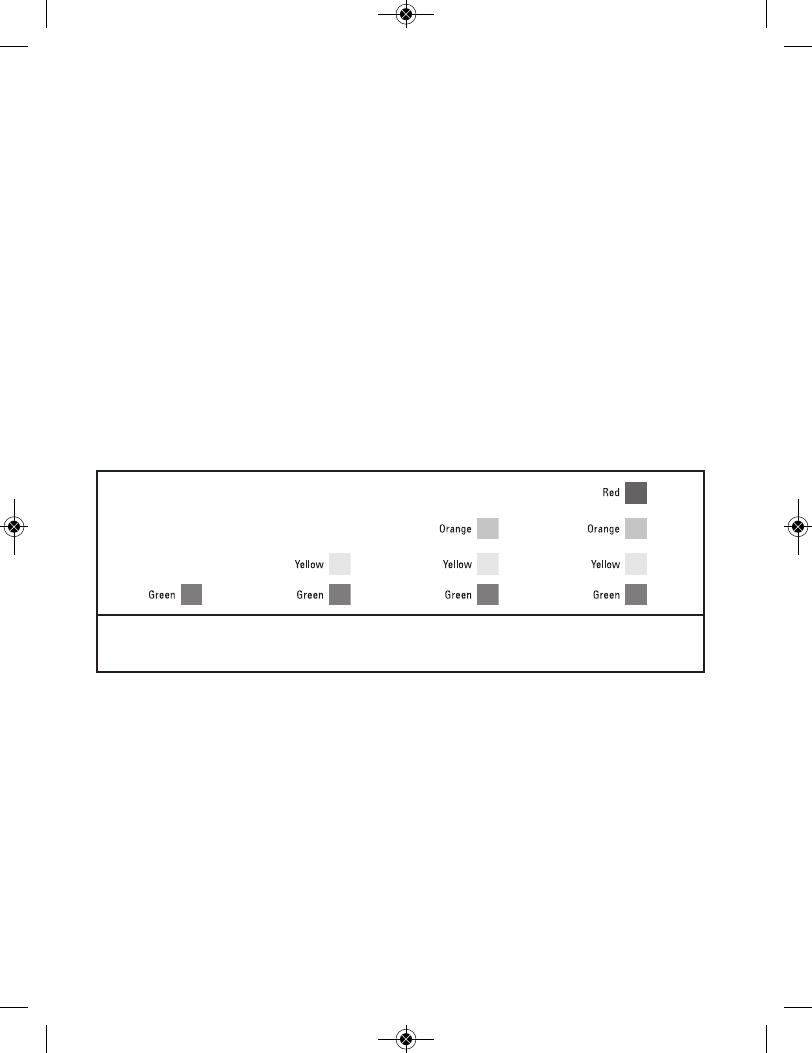

The traffic light bar illuminates according to your measurement.
• If your measurement has only the green bar,
your measurement is "Normal," according
to NIH standards.
• If your measurement shows the yellow bar, your measurement is "Pre-Hypertension."
• If your measurement shows the orange bar, it is "Stage 1 Hypertension."
• If your measurement shows the red bar, it is "Stage 2 Hypertension."
Indication of a
"Normal" Blood
Pressure
Indication of a "Pre-
Hypertension" Blood
Pressure
Indication of a "Stage 1
Hypertension" Blood
Pressure
Indication of a "Stage 2
Hypertension" Blood
Pressure
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 10
11
WARNING
Blood pressure that is too low represents just as great a health risk as blood pressure
that is too high! Fits of dizziness may lead to dangerous situations arising (e.g. on
stairs or in traffic)!
2.6. Fluctuations in blood pressure
There are many factors that can influence blood pressure. Readings can be affected
seriously by stress, fear, heavy physical exertion or the time of day at which the
measurements are taken. Your personal blood pressure values are subject to consider-
able fluctuation during the course of the day and the year. These fluctuations are
particularly pronounced in the case of patients suffering from hypertension. Blood
pressure is usually at its highest during physical exertion and at its lowest at night
when you are asleep.
2.7. Influencing and evaluating readings
• Measure your blood pressure several times, then record and compare the results. Do
not draw any conclusions from a single reading.
• Your blood pressure readings should always be evaluated by a doctor who is also
familiar with your personal medical history. When using the unit regularly and
recording the values for your doctor, you should visit the doctor from time to time to
keep him updated.
• When taking readings, remember that the daily values are influenced by several
factors. Smoking, consumption of alcohol, drugs and physical exertion influence the
measured values in various ways.
• Measure your blood pressure before meals.
• Before taking readings, allow yourself at least five minutes rest.
• If the systolic and diastolic readings seem unusual (too high or too low) on several
occasions, despite correct use of the unit, please inform your doctor. This also
applies to the rare occasions when an irregular or very weak pulse prevents you
from taking readings.
3. Getting Started
3.1. Inserting / removing batteries
Insertion: Open the battery compartment on the underside of the unit by exerting
gentle pressure in the direction indicated by the arrow, and insert the four batteries
included with the unit (alkaline batteries, AA type, LR 6). Remember to insert the
batteries as indicated in the diagram in the battery compartment. Once the batteries
are inserted correctly (or once the power unit is plugged in), you should hear 2 beeps.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 11
12
When the ON/OFF switch is activatedV, you will hear 2 beeps and all the symbols
appear on the display for one second. Then the following appears: “ - : - - “. Replace
the lid, pressing it until it snaps into place.
Removal:
If the voltage in the batteries drops below 5 - 4.5 V, the display shows the battery
symbol as. Switch the device off using the ON/OFF switch V and insert new batter-
ies. Should the used batteries be jammed in the compartment, use a pointed instru-
ment, such as a ballpoint pen, to carefully prise them out.
As soon as the voltage in the batteries drops below 4.25 - 0.25 V, the display shows
the battery symbolas . The device automatically switches off immediately after this
symbol appears. The device will not function until new batteries are inserted.
Note that you have to reset the date and time each time you replace the batteries,
unless this is set automatically via the radio clock when the device is switched on
using the ON/OFF switch V. The previous measuring results are saved.
WARNING
BATTERY SAFETY INFORMATION
• Do not disassemble batteries!
• Clean the battery and device contacts if necessary before putting in the batteries!
• Remove discharged batteries from the device immediately!
• Increased risk of leakage, avoid contact with skin, eyes and mucous membranes! If
battery acid comes in contact with any of this parts, rinse the affected area with
copious amounts of fresh water and seek medical attention immediately!
• If a battery has been swallowed seek medical attention immediately!
• Replace all of the batteries simultaneously!
• Only replace with batteries of the same type, never use different types of batteries
together or used batteries with new ones!
• Insert the batteries correctly, observing the polarity!
• Keep the battery compartment well sealed!
• Remove the batteries from the device if it is not going to be used for an extended
period!
• Keep batteries out of children's reach!
• Do not attempt to recharge these batteries! There is a danger of explosion!
• Do not short circuit! There is a danger of explosion!
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 12
13
• Do not throw into a fire! There is a danger of explosion!
• Keep unused batteries in their packaging away from metal objects in order to
prevent short circuiting!
• Do not throw used batteries into the household refuse; put them in a hazardous
waste container or take them to a battery collection point, at the shop where they
were purchased!
3.2. Using a mains adaptor
Alternatively, you can also run the device using a special power supply unit. Connect it
to at on the back ofthe device. In this case the batteries remain in the unit.
Inserting the connector into the back of the blood pressure monitor switches the batter-
ies off mechanically. It is necessary, therefore, to plug the mains adaptor into the mains
socket first of all and then to connect it to the blood pressure monitor. If the blood
pressure monitor is no longer being used, first remove the connector from the blood
pressure monitor and then pull the mains adaptor out of the mains socket. Doing this
means that the date and time will not have to be reset each time.
3.3. Setting time and date
Switch the device to standby mode. If you do not press any buttons for 1 minute during
the time setting, the time setting mode switches off and “ - : - - “ appears in the clock
display.
1. You can set the date and time by pressing down the TIMER button W for several
seconds until appears on the display.
2. Press the TIMER button Wagain. After you release the button, appears on
the display and appears below this.
3. Press the TIMER button Wagain. and appear in the display. You can switch
the radio clock on or off by pressing the MEMO button x. If the radio clock is
switched off, you can press the TIMER button Wto set the time manually.
4. The selected user memory appears on the display together with the flashing year.
- Press the TIMER button Wagain to display the date; the month starts to flash.
- Press the TIMER button W again and the day starts to flash.
- Press the TIMER button W again to display the time. The hour starts to flash.
- Press the TIMER button W again and the minutes start to flash.
- You can set the current date and time (year, month, day, hours and minutes) by
pressing the MEMO button and confirm the date and time with the TIMER button
W. Then the date and time you set are shown twice each in succession before the
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 13
14
device returns to standby mode. In standby mode, the time is displayed permanently.
NOTE
If, during manual time setting, you press the START button w, you exit the time
setting mode.
The date and time values you have entered so far are kept. “ - : - - “ is displayed if you
did not set the time previously.
3.4. Setting the alarm
Your Microlife 3NF1-2B blood pressure meter is equipped with an alarm function,
with which the two users can set three alarm times each, in order to take medication
are regular intervals, for example.
Make sure that the device is in standby mode and your own user memory ak has been
selected.
1. Press the TIMER button W followed by the MEMO button x. Hold down both
buttons until the alarm symbol bt appears on the display.
2. Release both buttons. “ 1“ flashes at the bottom right of the display for Alarm 1.
You can use the MEMO button x to select Alarm 1, Alarm 2 or Alarm 3.
3. Press the TIMER button W. The display for entering the alarm time flashes. Use the
MEMO button xto enter the alarm time: first the hours and then the minutes.
4. Press the TIMER button W and the alarm symbol flashes. Use the MEMO button
xto switch between alarm on ( ) and alarm off ( ).
To confirm your entries, press the TIMER button W or the START button w. Once
the alarm has been set, an acoustic signal sounds at the time you set.
NOTE
If you have correctly entered an alarm time and the alarm is active, the alarm symbol
appears in standby mode. If no alarm is active for either of the user memories, no
symbol appears in standby mode.
3.5. Setting up the user memory
The 3NF1-2B gives you the opportunity to assign readings to one of two user
memories, each of which provides 99 memory slots. Switch the device to standby
mode. Press the TIMER button Wto select either user memory 1 or user memory 2
ak.
3.6. Selecting the 3MAM measuring method
With the 3NF1-2B, you can choose between two measuring modes.
• Single reading
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 14
15
• 3 consecutive readings ( Measurement Average Mode = 3/MAM-mode )
In the case of a single reading, just one blood pressure reading is taken and stored.
The 3/MAM-mode is to be recommended if you suffer from severely fluctuating blood
pressure. 3 successive readings are taken at 15 second intervals, thus eliminating
widely varying readings. In the case of serious deviations, a 4th reading may be taken.
From these three measurements, a weighted average value is calculated, displayed
and stored in the selected memory. A reading taken in this way is indicated in the
memory by an bk .
The 3/MAM procedure greatly minimizes the risk of an incorrect reading.
1. To switch between single measurement and 3 consecutive measurements (3MAM
procedure), press and hold the TIMER button Wuntil the symbol for 3MAM mode
and “ “ appear flashing in the display.
2. Press the MEMO button x to select either “ “ or “ “; “ “ for the
3MAM measuring method and “ “ for single measurement.
3. Confirm your selection by pressing the START button w(or press the TIMER
button W to make the next setting: “ Switch beep on/off “).
3.7. Switching beeps on/off
Beeps sound when you take a measurement using the 3NF1-2B blood pressure meter.
You can switch off the beeps by making the following setting.
1. To switch between “beep on” and “beep off”, press and hold the TIMER button W
until and “ “ appear flashing in the display.
2. Press the TIMER button W again. “ ” appears in the display, followed by “
“.
3. Press the MEMO button x to switch between “ “ and “ “.
4. Confirm your selection by pressing the START button w(or press the TIMER
button Wto make the next setting: “ Switch radio clock on/off “, see section 3,
subsection 3.3, point 4).
If you select “ “, the beep function remains switched off when you take
measurements.
4. Operation

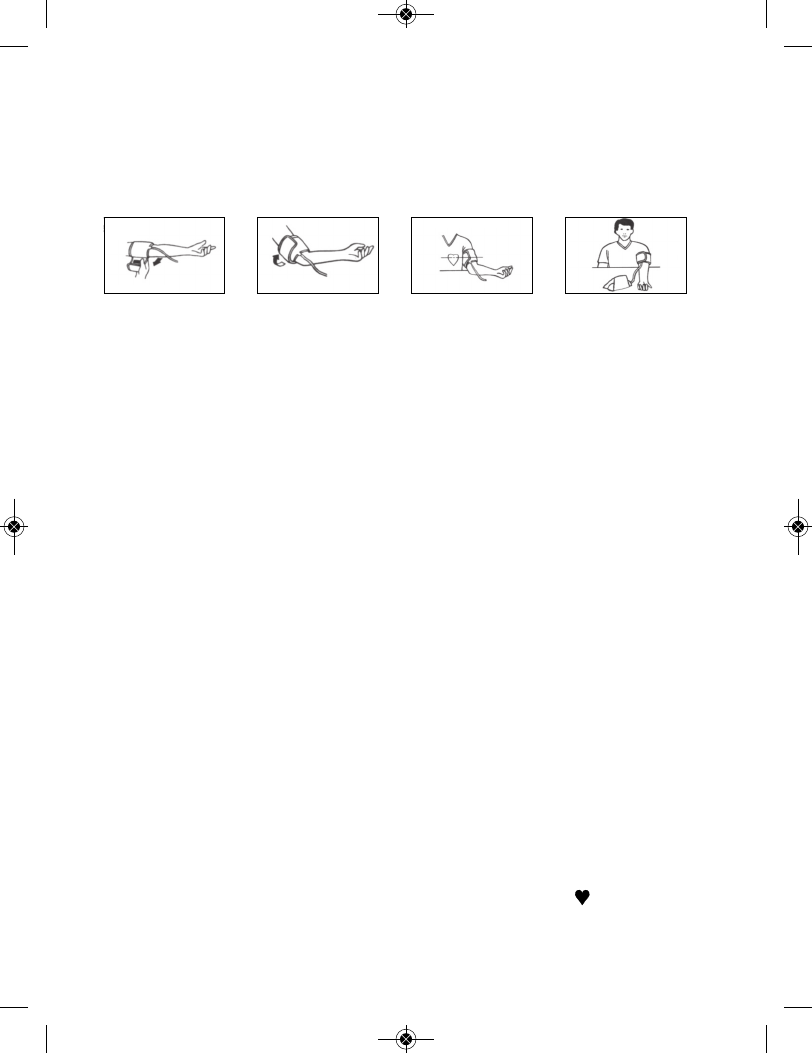

4.1. Fitting the cuff
First attach the free end of the cuff’s uair tube to the designated connectorXon the
unit. Open up the preformed cuff and slip it over the bare left upper arm just above the
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 15
16
elbow region. If wearing tight clothing, ensure that the circulation in the arm is not
impaired when rolling up the sleeve.
The tube should run along the centre of the inner arm towards the palm of the hand.
Ensure that the cuff itself is not twisted in any way.
Fasten the pressure cuff in such a way that it fits tightly but does not constrict the arm.
4.2. Correct position for taking readings
• Take readings while in a seated position.
• Relax your arm and rest it lightly on a surface such as a table. Relax during the
measuring process: do not move or talk, as this can affect the results.
4.3. Taking blood pressure readings
Single reading
To take a single measurement, you have to switch on the device using the ON/OFF
switch V and be in standby mode. You first have to complete any settings you require
as per section 3, subsections 3.3, 3.5, 3.6 and 3.7.
1. Press the START button . The device carries out a self test. Once this is complete, “
“ appears on the display. 5 short beeps sound during the procedure.
2. Next, the sleeve u automatically inflates until the pressure required for a measure-
ment has been reached. Alternatively, you can create this pressure manually by
pressing and holding the START button wafter the device has automatically
reached a pressure of at least 30 mmHg. When you think that the device has
reached the ideal starting pressure for a measurement, release the START button
w. The increasing pressure is displayed numerically.
3. The measuring process begins automatically when inflation is complete by releasing
the pressure built up in the cuff. The display shows the current pressure in the cuff.
NOTE
If you press the START button wwhen the device is inflating, the inflation process
stops. The device switches off and the air escapes from the sleeve.
4. Initially, deflation occurs at a constant speed. The pulse symbol ap appears on
the display. As soon as the pulse can be determined, deflation is synchronised with
the beating of the heart until the measurement ends. The device beeps for each
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 16
17
heartbeat during this procedure, if you did not switch off the beep function before-
hand. At the same time, the pulse symbol apflashes.
5. Once the measurement has been taken, the sleeve suddenly deflates and a longer-
beep sounds.
6. The measured valuesam ,an and ao are shown on the display, together with the
JNC7 blood pressure bar displaybm . At the same time, a longer beep sounds.
7. If the unit detects an arrhythmia during the measuring process, the arrhythmia
symbol ar will flash eight times while the reading is displayed. You may also
hear 8 short beeps; these warn the user of an irregular heartbeat.
8. If you do not press any buttons for approx. 1 minute, the device automatically
switches to standby mode.
3MAM measuring method
(3 consecutive measurements to calculate an average value)
To take a single measurement, you have to switch on the device using the ON/OFF
switch V and be in standby mode. You have selected the 3MAM measuring method
(see section 3, subsection 3.6). You first have to complete any settings you require as
per section 3, subsections 3.3, 3.5 and 3.7.
1. Press the START button w. The device carries out a self test. Once this is
complete, “ “ appears on the display. 5 short beeps sound during the procedure.On
the display, you can see bk (average) and “ 1“ for the first measurement.
2. Next, the sleeve uautomatically inflates until the pressure required for a
measurement has been reached. Alternatively, you can create this pressure manually
by pressing and holding the START button w after the device has automatically
reached a pressure of at least 30 mmHg. When you think that the device has
reached the ideal starting pressure for a measurement, release the START button
w. The increasing pressure is displayed numerically.
3. The measuring process begins automatically when inflation is complete by releasing
the pressure built up in the cuff. The display shows the currentpressure in the cuff.
4. Initially, deflation occurs at a constant speed. The pulse symbol ap appears on
the display. As soon as the pulse can be determined, deflation is synchronised with
the beating of the heart until the measurement ends. The device beeps for each
heartbeat during this procedure, if you did not switch off the beep function before-
hand. At the same time, the pulse symbol ap flashes.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 17
18
5. The first measurement ends when the pressure has been completely discharged
from the sleeve during a 15 second countdown. The countdown symbol bl flashes
during this process. Beeps sound during the last 5 seconds.
6. Instead of “ 1“, the display now shows “ 2“ for the second measurement. The
second measurement proceeds in the same way as the first (see points 2 - 5).
7. Instead of “ 2 “, the display now shows “ 3 “ for the third measurement. The third
measurement proceeds in the same way as the first (see points 2 - 4).
8. Once the 3MAM measurement has been taken, the sleeve suddenly deflates and a
longer beep sounds.
9. The measured values am , an and ao are shown on the display, together with the
WHO blood pressure bar display bm . At the same time, a longer beep sounds.
10.If the unit detects an arrhythmia during the measuring process, the arrhythmia
symbol ar will flash eight times while the reading is displayed. You may also
hear 8 short beeps; these warn the user of an irregular heartbeat.
11.If you do not press any buttons for approx. 1 minute, the device automatically
switches to standby mode.
NOTE
When the device is used, the errors Err 1, 2, 3, 5, 6 can occur in the integrated circuit.
Err 6 can only occur in 3MAM mode. In 3MAM mode, errors Err 1, 2, 3, 5 do not cause
the measurement to be cancelled, unless they occur twice in succession. The error
display is always accompanied by 3 short beeps.
4.4. Troubleshooting
Error messages
Possible causes and solutions
Err 1
Measurement of the systolic blood pressure was completed.
Either the connection with the hose has been interrupted or no pulse could be
determined.
Check the connections between the cuff and the main unit.
Err 2
Non-physiological pressure has been detected.
Cause: the arm was moved during the measurement.
Repeat the measurement, keeping your arm still.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 18
19
Err 3
If the cuff takes too long to inflate, it is possible that the cuff is incorrectly positioned
or that the connection with the hose is not airtight.
Check the connections and repeat the measurement.
Err 5
An average value could not be calculated due to unstable conditions while the
readings were being taken.
Repeat the measuring process, keeping your arm still and not speaking.
Err 6
There were too many errors during the measurement in MAM mode, making it impossi-
ble to obtain a final result.
Read through the checklist for performing reliable measurements and then repeat the
measurement.
HI
The pressure in the cuff is too high (over 300 mmHg) or the pulse is too high (over 200
beats per minute).
Relax for 5 minutes and repeat the measurement.
LO
The pulse is too low (less than 40 beats per minute).
Repeat the measurement.
4.5. Switching off the unit
If no buttons are pressed for approx. 1 minute, the device automatically switches to
standby mode. You can also switch to standby mode by pressing the START button w.
The blood pressure meter functions are now switched off. The time and the selected
user memory are continuously shown on the display.
The alarm function remains active. If you do not want to use the time display and the
alarm function, you can also completely switch off the device by sliding the ON/OFF
switch Von the back of the device into the “ OFF ” position.
4.6. IOS & Android BT APPs instruction
Compatibility:
- Paring your device running iOS 6.0 or better:
iPhone, iPad, and iPod touch.
- Paring your device running Android 2.3.3 and Later:
Android Phone, Android Tablets
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 19
20
Step 1 – Pairing [3NF1-2B] connect with Mobile Phones & Tablets for the first
time (before measurement). [3NF1-2B] connect only needs to be paired with a
given Mobile Phone or Tablet once.

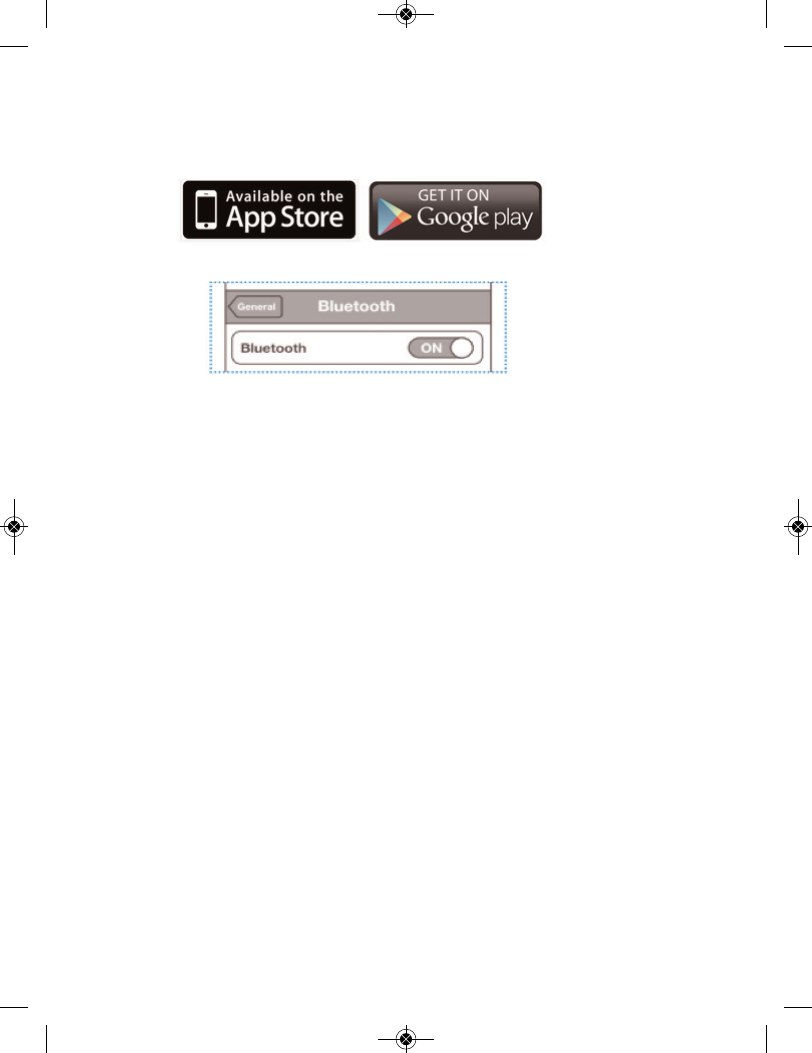

1.1.Download the VitaDock app in the App Store or Google Play Store for free.
Activate Bluetooth on your iOS or Android device
1.2.Switch BT “on/off button” to “On” at back-side of [3NF1-2B] to activate the
Bluetooth (BT Module is Off).
1.3. -User press & hold “Start” button for 5 Sec, then 3NF1-2B enters “Pairing” mode
- 3NF1-2B LCD: Show User, Time, & BT Icon (BT icon flashing)
-BT module is on and broadcasting for 60 seconds
1.4.- Activate the BT function on Smartphone
- “MTX-BT” should show up on list of devices available for BT connection
- Select “MTX-BT” to Pair Up
- Press “0000” to pair the devices
1.5.-3NF1-2B Completes pairing with Smartphone
- 3NF1-2B Date & Time Setting synchronized w/ Smartphone.
- BT module remains On & Broadcasting
1.6.-User press “Start” button once or Wait for 60 Sec, then 3NF1-2B turns Off
Step 2 – connect MTX with VitaDock App and do measurement. MTX is
switched of (BT ON /Off button is switched on)!
2.1.Open [VitaDock App] & Press button [New]
2.2.Press Button [Connect Bluetooth Device]àVitaDopck App on Stand-by &Wait for
3NF1-2B to Link-up.
2.3.User press “Start” Button (<5 Sec) on 3NF1-2B (BT Switch on device is On) 3NF1-
2B takes User BP measurement & Completes Link-up w/ Smartphone.
2.4.3NF1-2B Completes User BP Measurement , it then Automatically Transfer BP Data
to Smartphone (Current BP measurement Only)
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 20
21
2.5.3NF1-2B completes uploading Current BP Measurement to VitaDock App over
Bluetooth
Step 3 – Transfer stored values from 3NF1-2B to Smartphone / Tablets without
measurement (BT On /Off button is switched on)!
3.1.-Open [VitaDock App] & Press Button [Transfer BP Data]
-User select Either [Transfer Data Only] or [Trasnfer Data & Delet all Device BP Data]
3.2.Press Button [Connect Bluetooth Device]àVitaDopck App on Standby and Wait for
3NF1-2B to Link-up.
3.3.User press “Start” & “Memo” buttons on 3NF1-2B for >5 seconds, then 3NF1-2B
enters “Data Transfer” mode. 3NF1-2B LCD: Show User & Time & BT icon (Flashing) ,
BT module is on
3.4.3NF1-2B Links-up w/ Smartphone, it then Begins transfer all BP data on 3NF1-2B.
3.5.3NF1-2B LCD: Show User & Time & BT icon (Continuously) & Data Transfer Arrow
(Flashing)
3.6.3NF1-2B Completes all BP Data Transfer.

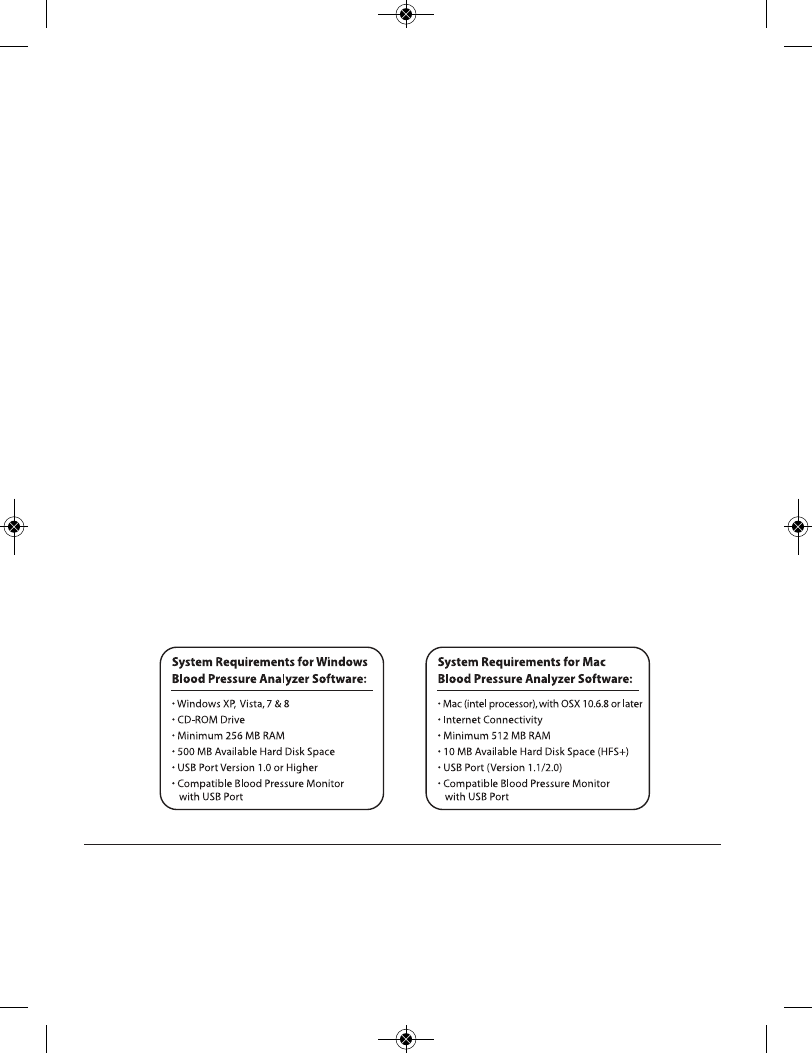

4.7. PC Link Software Functions
This unit can be used in connection with your computer (PC / MAC) running the PC Link
blood pressure analyzer software. Your computer will allow a capacity of monitoring 80
patients, each with 1000 data (note: overuse will lower system efficiency). The memory
data can be transferred to the computer by connecting the monitor via the included
USB cable. Users can download the BPA (Blood Pressure Analyzer) on Microlife web
site: http://www.microlife.com/support/software/
5. Memory
5.1. Recording the results
This unit features 2 separate memories, each with a capacity of 99 memory slots.
Results are automatically stored in the memory selected by the user. When the
memory is full, the oldest reading is always the first to be deleted.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 21
22
5.2. Displaying stored results
Press the MEMORY button x to display the stored readings. After all the segments
in the display have been shown, an average value of all the measurements in the
selected memory is displayed. This average is indicated by “ ”.
When the MEMORY button x is pressed again, the individual readings (switching
between systolic, diastolic, pulse and date/time) of the last measurement stored are
displayed. If this measurement was taken in the 3MAM procedure, bk is
displayed. If an arrhythmia was detected during the measuring
process, the arrhythmia symbol will be displayed, but not flashing.
Press the MEMORY button xagain to move backwards through the stored readings.
If you do not press any buttons for approx. 1 minute, the device automatically switch-
es back to standby mode.
5.3. Deleting a measurement
Select the entry for the measurement you want to delete. Press and hold the START
button w for approx. 10 seconds until the memory symbol aq flashes. Confirm your
deletion request by pressing the MEMO button x. “ ” appears briefly on the
display and 2 short beeps sound. The entry you selected has been deleted. The
display returns to standby mode.
5.4. Deleting memory
The data can be deleted from the memory selected by pressing and holding the
MEMORY button xfor about 7 seconds. After 7 seconds, the display v shows
“ ” ( CLEAR ) which indicates that all data will be deleted.
Confirm your deletion request by pressing the MEMO button xagain. Three short
beeps sound during the procedure.
6. Miscellaneous
6.1. Care and maintenance
• Remove the batteries before cleaning the unit.
• Never use strong detergents or hard brushes.
• Clean the unit with a soft cloth, moistened with mild soapy water. Do not let water
enter the unit. After cleaning, only use the unit when completely dry.
• Remove the batteries from the unit if you do not wish to use it for an extended
period of time, otherwise there is a risk of battery leakage.
• Do not expose the unit to direct sunlight, and protect it from dust and moisture.
• Only inflate the cuff when it is in position around the upper arm.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 22
23
• Servicing and calibration
The unit has been calibrated by the manufacturer for a period of two years’ use. In
the case of commercial use, the unit must be serviced and recalibrated at least
once every two years. This calibration will be charged for and can be carried out by
an appropriate authority or an authorised service centre - in accordance with the
regulations for users of medical equipment.
6.2. Disposal
This product must not be disposed of together with domestic waste.
All users are obliged to hand in all electrical or electronic devices, regardless of
whether or not they contain toxic substances, at a municipal or commercial collection
point so that they can be disposed of in an environmentally acceptable manner.
Please remove the batteries before disposing of the device / unit. Do not dispose of old
batteries with your household waste, but at a battery collection station at a recycling
site or in a shop.
Consult your municipal authority or your dealer for information about disposal.
6.3. Guidelines / Standards
Device standard: Device corresponds to the requirements of the standard for non-
invasive blood pressure monitors:
AAMI/ ANSI/ IEC 80601-2-30
IEC 60601-1
IEC 60601-1-2
- Bluetooth system to V3.0
- FCC Part 15C
Electromagnetic compatibility: Device fulfills the stipulations of the International
standard IEC 60601-1-2
Clinical trial results:
Clinical trials for this unit were carried out in the USA according to ANSI/AAMI
standard.
The B.H.S. (British Hypertension Society) clinical protocol was used to measure the
accuracy of this product. Blood pressure units using the same measurement technology
are graded "AA" for systolic/diastolic accuracy by independent investigators using the
BHS protocol (Use the same algorithm as B.H.S. grade"AA" model number 3BT0-1).
This is the highest grading available for blood pressure monitors. Please see bhsoc.org
for more information.
Electromagnetic compatibility:
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 23
24
The device complies with the IEC 60601-1-2 standard for electromagnetic compatibility.
Inquire at Microlife for details on this measurement data.
Intended use:
This unit is suitable for non-invasive blood pressure measurement in adults (i.e.,
suitable for external use).
6.4. Technical specifications
Name and model :Microlife blood pressure monitor 3NF1-2B
Display system :Digital display
Memory slots :2 x 99
Measuring technique :Oscillometric
Power supply : a) 4 AA batteries, 1.5 V
b) AC adapter 6 V DC 600 mA (voltage 4.5 V DC to 6 V DC)
Blood pressure measuring
range : 30 – 280 mmHg
Pulse measuring range : 40 – 200 beats / Min.
Maximum error tolerance
for static pressure : ± 3 mmHg
Maximum error tolerance
for pulse rate : ± 5 % of the reading
Pressure generation : Automatic, using micro pump
Deflation : Automatic
Operating conditions : After approx. 1 minute
Operating conditions : +10 °C to + 40 °C, 15 – 85 % humidity
Storage conditions : - 5 °C to + 50 °C
Dimensions : approx. 125 mm x 163 mm x 65 mm
Cuff size : Wide range easy-fit cuff for arm
circumference 22-42 cm (8.7”-16.5”)
Weight : approx. 535 g incl. batteries
Accessories : Mains adapter
Cuff, large 22 - 42 cm for adults with an
upper arm of large circumference
7. Warranty
Warranty and repair terms
Please contact your dealer or the service centre in case of a claim under the warranty.
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 24
25
If you have to return the unit, please enclose a copy of your receipt and state what the
defect is.
The following warranty terms apply:
1. The warranty period for Microlife products is three years from date of purchase. In
case of a warranty claim, the date of purchase has to be proven by means of the
sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the
warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for
the replacement parts.
4. The following is excluded under the warranty:
a. All damage which has arisen due to improper treatment, e.g. nonobservance of
the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised
third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer
or during transport to the service centre.
d. Accessories which are subject to normal wear and tear (cuff, batteries etc.).
5. Liability for direct or indirect consequential losses caused by the unit are excluded
even if the damage to the unit is accepted as a warranty claim.
For Customer Service
Microlife USA, Inc.
1617 Gulf to Bay Blvd 2nd Floor
Clearwater, FL 33755
Toll Free Help Line: 1-800-568-4147
Email: custserv@microlifeusa.com
Fax: (727) 451-0492
www.microlifeusa.com
Made in China
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 25
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operat-
ing in conjunction with any other antenna or transmitter.
26
2G-IB-edit for NF1-2B_rev_2.3:MLU3AC1-JAN05-2 14-11-20 10:25 Page 26
