Micron Electronics LLC. WCDMA Tracker
User manual
1
WCDMA Tracker
Prime One
User Manual
Revision: 1.00
Document Title Prime One User manual
Version 1.00
Finale Date 2015-05-21
Status Released
Document Control ID TRACKER Prime One
2
Contents
1 Introduction......................................................................................................................................3
2 Product Overview............................................................................................................................ 3
2.1 Appearance............................................................................................................................3
2.2 Buttons/Micro USB Interface Description........................................................................... 3
2.3 LED Description................................................................................................................... 4
3 Getting Started................................................................................................................................. 5
3.1 Parts List................................................................................................................................5
3.2 Battery Charging...................................................................................................................5
3.3 Prime One Data Cable.......................................................................................................... 6
3.4 Power on/Power off.............................................................................................................. 6
4 Trouble shooting and Safety info.....................................................................................................7
4.1 Trouble shooting................................................................................................................... 7
4.2 Safety info............................................................................................................................. 7
3
1 Introduction
Prime One is a powerful GPS locator which is designed for vehicle, pets and assets tracking. With
superior receiving sensitivity, fast WCDMA frequencies 850/1900 and GSM frequencies
850/900/1800/1900. Its location can be real time or schedule tracked by backend server or
specified terminals. Based on the embedded wireless tracking protocol, Prime One can
communicate with the backend server through WCDMA or GSM/GPRS network, and transfer
reports of emergency, Geo-fencing, device status and scheduled GPS position etc… Service
provider is easy to setup their tracking platform based on the functional wireless tracking protocol.
2 Product Overview

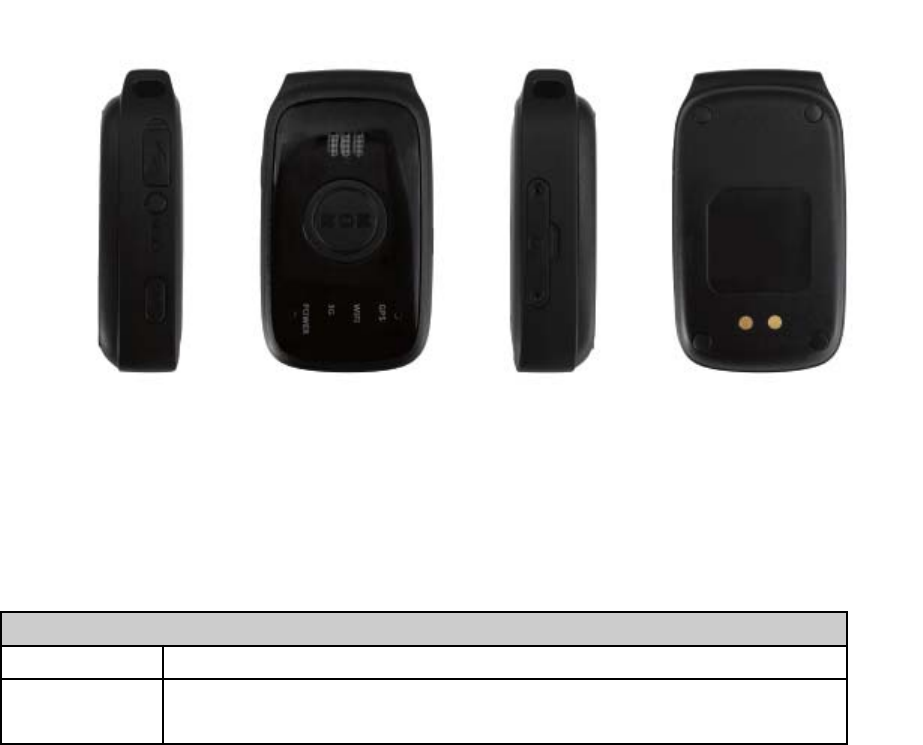

2.1 Appearance
Figure 1-1
2.2 Buttons/Micro USB Interface Description
Button /Micro USB Interface Description
KEY/interface Description
Power Key Power on Prime One
Power off Prime One (If power key is enabled)
4
Function Key Geo-Fence mode
Long press the key to enable/disable Geo-Fence ID0
Geo-Fence in current position mode
Long press the key to enable/disable Geo-Fence ID0. If enable Geo-Fence
ID0, using the current position as the centre of Geo-Fence 0.
SOS mode (default)
Long press the key to active SOS alarm
Micro USB
interface
Connect a 5V DC adapter can power on Prime One and charge the internal
battery
Connect a 3.7V Li-ion or Li-Polymer battery can power on Prime One
Backend server developer or administrator can use the data cable to configure
Prime One
Reset Key Click the key will turn off internal VBAT when OS is abnormal, and then
press Power Key to restart Prime One.
Note: Reset key is invalid when external battery is used.

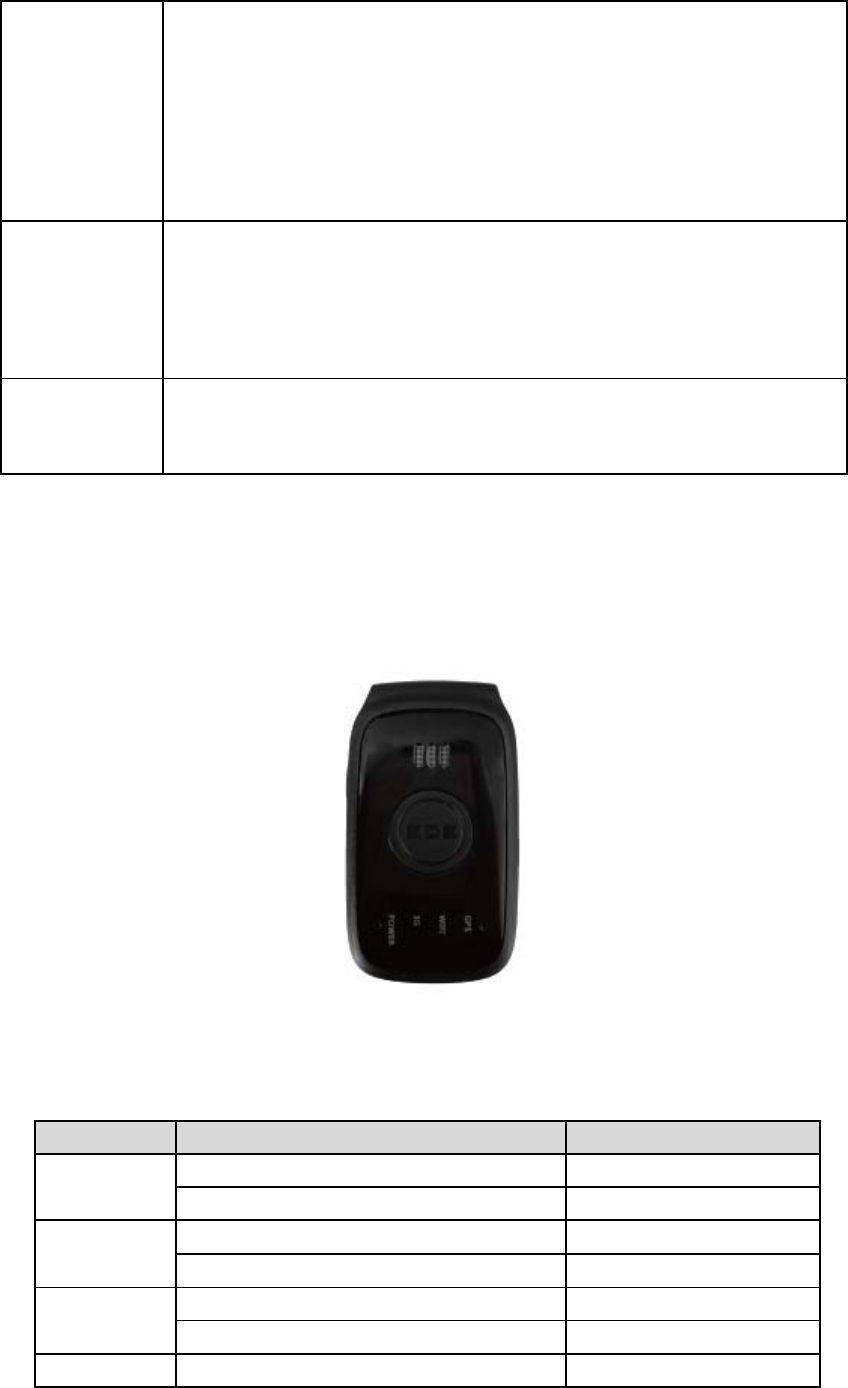

2.3 LED Description
Figure 1-2
There are four LED lights in Prime One device, the description as following.
Light Event State
GPS LED GPS fixed Fast flash
GPS has been turned off Dark
WCDMA
LED
Power on and normal Slow flash
Power off Dark
WIFI LED WIFI on Slow flash
WIFI off Dark
Power LED Power on and normal Dark
5
Fully charged Solid
In charging Slow flash
3 Getting Started

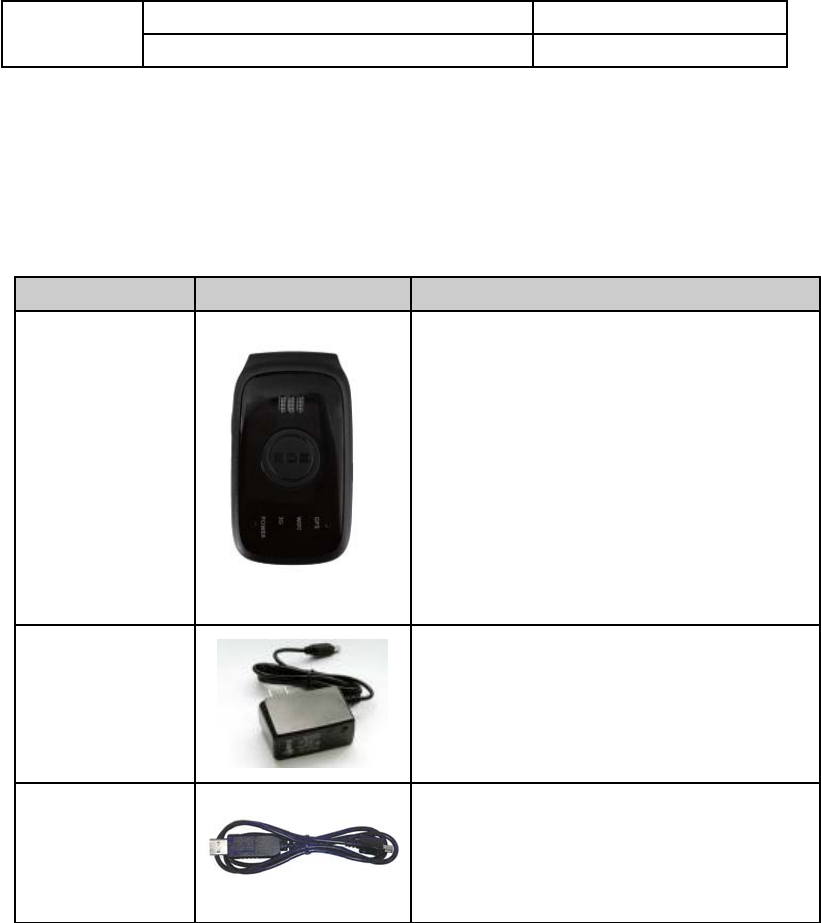

3.1 Parts List
Name Picture Remark
Prime One
Locater
The WCDMA/GPS locator.
AC-DC Power
Adapter
It is used to charge the internal battery of
Prime One.
Prime One Data
and charger Cable
It the USB data cable which can be used for
firmware upgrading and configuration.
It also includes the charger interface on the
Prime One.
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
Please connect AC-DC power adapter with Prime One device.
Insert the AC-DC power adapter into the power socket.
During the charging process, the Power LED light will solid. When the battery is
fully charged, the Power LED light will be Ever-light.
You can also charge the battery using USB cable which connects Prime One device
with the PC.
6
Charging will last about 5 hours.
Note: If the Prime One device is firstly used, please make sure the battery is fully charged,
which will make the life of battery much longer.

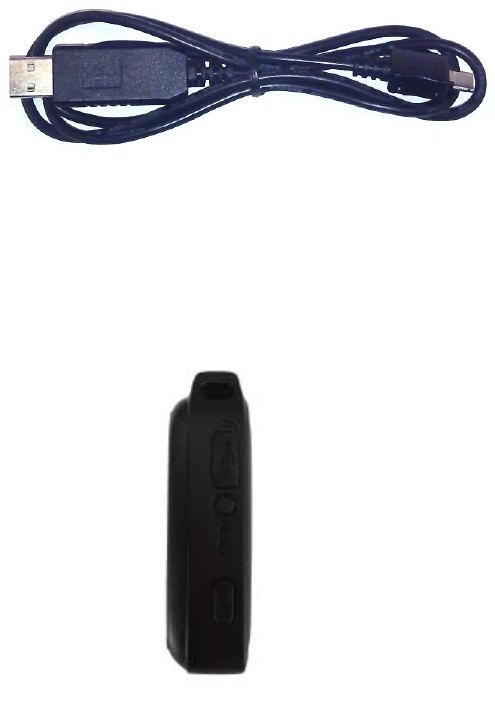

3.3 Prime One Data Cable
Prime One Data Cable is a cable with a Micro USB connector.
The USB data cable is used for data download, which will be used for firmware update
or configuration and can be used for charging at the same time.
Figure 2-1
3.4 Power on/Power off
Figure 2-2
Power on:
Press the Power key at least 3 seconds and release it to power on Prime One device.
Note that, the Power LED light will fast flash.
Power off:
Press the power key about 3 seconds; Power LED light will fast flash and then turn
off, which indicates that Prime One device has been powered off.
Note: the user can not power off Prime One if the power key is disabled by
7
protocol.
4 Trouble shooting and Safety info
4.1 Trouble shooting
4.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Prime One on the airplane or near medical equipment.
Trouble Possible Reason Solution
Messages can’t be
reported to the
backend server by
Mobile network.
APN is wrong. Some
APN can not visit the
internet directly.
Ask the network operator for the right
APN.
The IP address or port of
the backend server is
wrong.
Make sure the IP address for the
backend server is an identified address
in the internet.
Unable to power
off Prime One.
The function of power key
was disabled by
AT+GTFKS.
Enable the function of power key by
AT+GTFKS.
Battery can not be
charged
The battery has not been
used for too long time and
has been locked.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
Prime One can’t fix
GPS successfully.
The GPS signal is weak. Please move Prime One to a place with
open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
8
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
?
This WCDMA tracker meets the government's requirements for exposure to radio
waves. The guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific studies.
The standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6
W/kg averaged over one gram of tissue. Device types: Prime one (FCC ID:
ZKQ-ONE) has also been tested against this SAR limit. The highest SAR value
reported under this standard during product certification when properly worn on the
body is 1.11W/kg. This device was tested for typical body-worn operations with the
9
back of the handset kept 0.5 cm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a 0.5 cm separation distance
between the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 0.5 cm must be maintained between
the user’s body and the handset, including the antenna. Third-party belt-clips, holsters,
and similar accessories used by this device should not contain any metallic
components. Body-worn accessories that do not meet these requirements may not
comply with RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.
