Micron Electronics PL4Z Tracker User Manual ZKQ PL4Z User Manual
Micron Electronics LLC. Tracker ZKQ PL4Z User Manual
User Manual
1
EMTC/GPS Tracker
AT4V Manual
Revision: 1.00
Document Title AT4V manual
Version 1.00
Finale Date 2018-02-11
Status Released
Document Control ID
Contents
2
1 Introduction .................................................................................................................................... 3
2 Product Overview .......................................................................................................................... 3
2.1 Appearance .......................................................................................................................... 3
2.2 LED Description ................................................................................................................. 4
3 Getting Started ............................................................................................................................... 5
3.1 Parts List ............................................................................................................................. 5
3.2 How GPS position Fix ........................................................................................................ 5
4 Frequency ....................................................................................................................................... 6
5 Trouble shooting and Safety info ................................................................................................... 6
5.1 Safety info ........................................................................................................................... 6
3
1 Introduction
AT4V use primary batteries. it is a powerful GPS locator which is designed for vehicle, and assets
tracking . With superior receiving sensitivity, Its location can be real time or schedule tracked by
backend server or specified terminals. Based on the embedded wireless tracking protocol, Bolt
Mini can communicate with the backend server through EPTC network, and transfer reports of
emergency, Geo-fencing, device status and scheduled GPS position etc… Service provider is easy
to setup their tracking platform based on the functional wireless tracking protocol.
2 Product Overview
2.1 Appearance

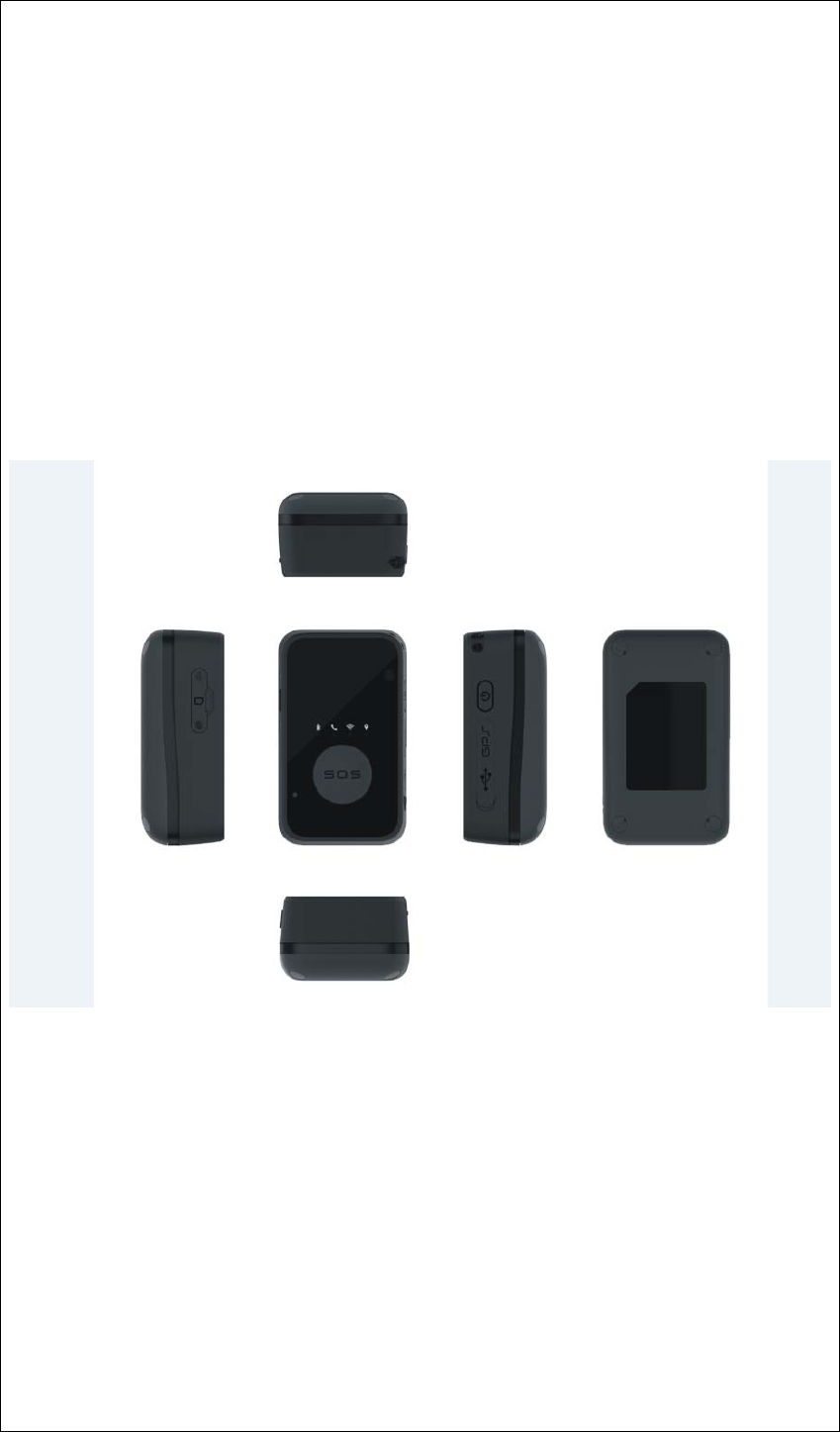

Figure 2-1
4
2.2 LED Description
Figure 2-2
There are four blue LED lights in AT4V device, the description as following.
Light Event State
POWER LED Power up solid
Cellular LED
WIFI LED
GPS LED
POWER LED charging flash
Cellular LED CAT-M net working Slow flash
WIFI LED WIFI working Slow flash
GPS LED GPS fixed Slow flash
5
3 Getting Started
3.1 Parts List
Name Picture Remark
CAT-M Tracker
3.2 How GPS position Fix
Your device has an unobstructed view of the sky,lying face up,so it can obtain the initial
GPS Fix
Figure 3-1
Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Bolt Mini on the airplane or near medical equipment.
6
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. The antennas used for the transmitter must be installed to
provide a separation distance of at least 20cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
