911 RESPONDER
User Guide
Revision: 1.00
Document Title 911 RESPONDER User Guide
Version 1.00
Finale Date 2015-05-21
Status Released
Document Control ID 911 RESPONDER
2
Contents
1 Introduction...........................................................................................................................................................................
2 Product Overview.................................................................................................................................................................
.
2.1 Appearance............................................................................................................................3
2.2 Buttons/Micro USB Interface Description........................................................................... 3
2.3 LED Description................................................................................................................... 4
3 Getting Started......................................................................................................................................................................
.
3.1 Parts List................................................................................................................................5
3.2 Battery Charging...................................................................................................................5
3.3 911 Responder Data Cable....................................................................................................6
3.4 Power on/Power off.............................................................................................................. 6
4 Trouble shooting and Safety info..........................................................................................................................................
4.1 Trouble shooting................................................................................................................... 7
4.2 Safety info.............................................................................................................................7
3
1 Introduction
911 Responder is a mobile phone which mainly is used for emergency call. With superior
receiving sensitivity, fast WCDMA frequencies 850/1900 and GSM frequencies
850/900/1800/1900. Based on the embedded wireless protocol, 911 Responder can communicate
with the backend server through WCDMA or GSM/GPRS network, and transfer reports of
emergency, low battery, device information etc…
2 Product Overview
2.1 Appearance

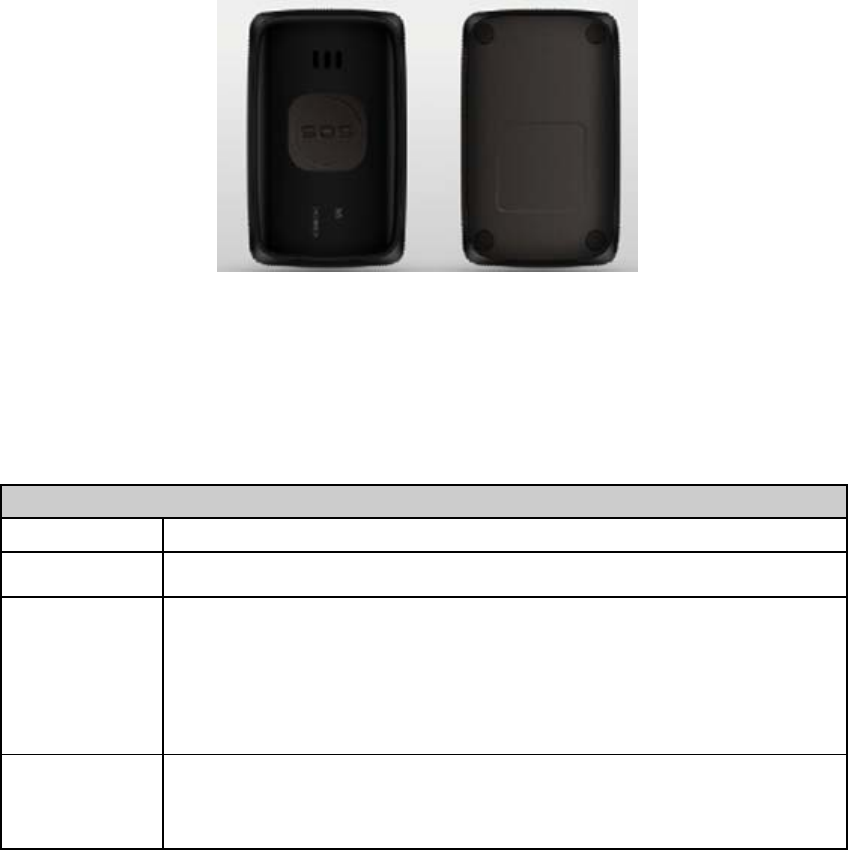

Figure 1-1
2.2 Buttons/Micro USB Interface Description
Button /Micro USB Interface Description
KEY/interface Description
SOS Key Power on 911 Responder and make a callIf call number is set by user.
Micro USB
interface
Connect a 5V DC adapter can power on 911 Responder and charge the
internal battery
Connect a 3.7V Li-ion or Li-Polymer battery can power on 911 Responder
Backend server developer or administrator can use the data cable to configure
911 Responder
Reset Key Click the key will turn off internal VBAT when OS is abnormal, and then
press Power Key to restart 911 Responder.
Note: Reset key is invalid when external battery is used.
4
2.3 LED Description

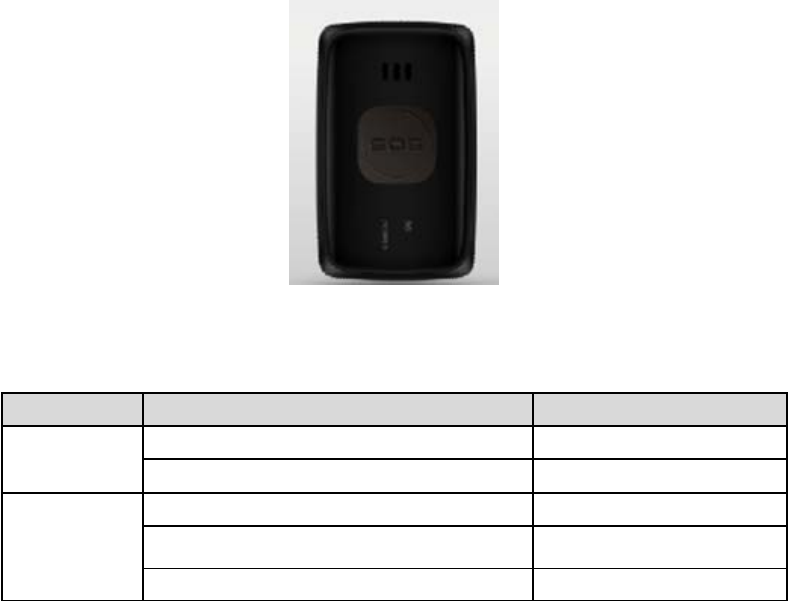

Figure 1-2
There are two LED lights in 911 Responder device, the description as following.
Light Event State
SOS LED Make a call Solid
Power on and normal Slow flash
LOW
BATTERY
LED
Fully charged Solid
In charging Solid
Low battery Fast flash
5
3 Getting Started
3.1 Parts List

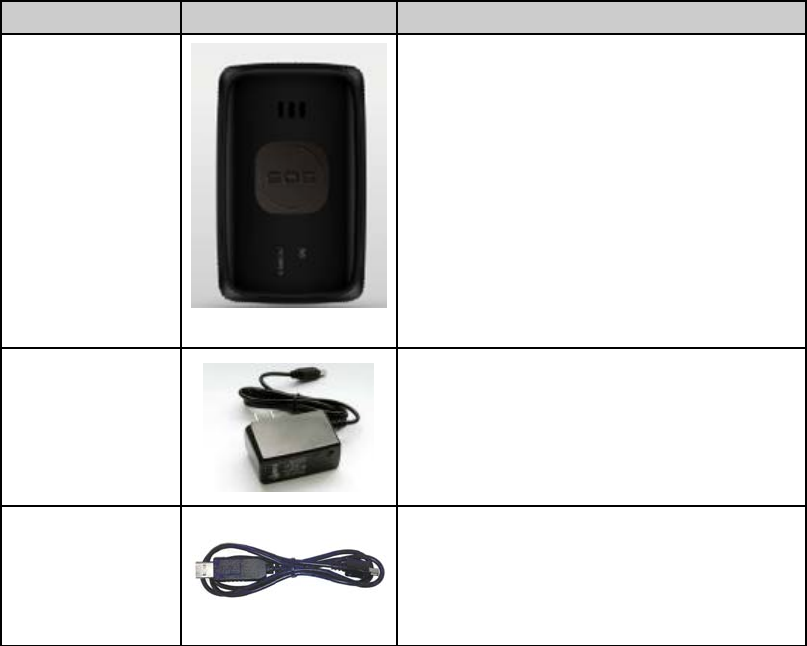

Name Picture Remark
911 Responder 911 Responder
AC-DC Power
Adapter
It is used to charge the internal battery of 911
Responder
911 Responder
Data and charger
Cable
It the USB data cable which can be used for
firmware upgrading and configuration.
It also includes the charger interface on the
Pa23W.
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
Please connect AC-DC power adapter with 911 Responder device.
Insert the AC-DC power adapter into the power socket.
During the charging process, the LOW BATTERY LED light will flash slow. When
the battery is fully charged, the Power LED light will be Ever-light.
You can also charge the battery using USB cable which connects 911 Responder
device with the PC.
Charging will last about 3 hours.
Note: If the 911 Responder device is firstly used, please make sure the battery is fully
6
charged, which will make the life of battery much longer.
3.3 911 Responder Data Cable
911 Responder Data Cable is a cable with a Micro USB connector.
The USB data cable is used for data download, which will be used for firmware update
or configuration and can be used for charging at the same time.

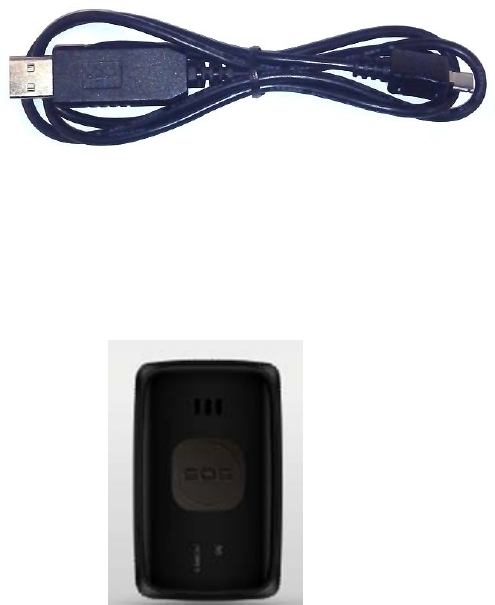

Figure 2-1
3.4 Power on/Power off
Figure 2-2
Power on:
Press the SOS key at least 3 seconds and release it to power on 911 Responder.
Note that, the LOW BATERRY LED and SOS LED light will be solid about 10
seconds.
Power off:
5 minutes after the call, the LOW BATTERY LED light will be solid and then turn
off, this indicates the 911 Responder has been powered off..
7
4 Trouble shooting and Safety info
4.1 Trouble shooting
4.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use 911 Responder on the airplane or near medical equipment.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Trouble Possible Reason Solution
Unable to power
off 911 Responder.
The device will power off automatically
5 minutes after the call
Battery can not be
charged
The battery has not been
used for too long time and
has been locked.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
8
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
?
This device meets the government's requirements for exposure to radio waves. The
guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6
W/kg averaged over one gram of tissue. Device types: 911 Responder (FCC ID:
ZKQ-PMA) has also been tested against this SAR limit. The highest SAR value
reported under this standard during product certification when properly worn on the
body is 1.11W/kg. This device was tested for typical body-worn operations with the
back of the handset kept 0.5 cm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a 0.5 cm separation distance
between the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 0.5 cm must be maintained between
the users body and the handset, including the antenna. Third-party belt-clips, holsters,
and similar accessories used by this device should not contain any metallic
components. Body-worn accessories that do not meet these requirements may not
comply with RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.
