Micron Electronics PMAX Tracker User Manual AIR2011 Interface Protocol
Micron Electronics LLC. Tracker AIR2011 Interface Protocol
User Manual
1
CDMA/GPS Tracker
Prime One X
User Manual
Revision: 1.00
Document Title
Prime One X User manual
Version
1.00
Finale Date
2016-03-22
Status
Released
Document Control ID
TRACKER Prime One X
2
Contents
1 Introduction...................................................................................................................................... 3
2 Product Overview............................................................................................................................ 3
2.1 Appearance............................................................................................................................3
2.2 Buttons/12PIN Interface Description................................................................................... 3
2.3 LED Description................................................................................................................... 4
3 Getting Started................................................................................................................................. 5
3.1 Parts List................................................................................................................................5
3.2 Battery Charging................................................................................................................... 6
3.3 Prime One X Data Cable.......................................................................................................6
3.4 Power on/Power off.............................................................................................................. 6
3.5 Insert SIM Card.....................................................................................................................7
3.6 How GPS position Fix.......................................................................................................... 7
4 Trouble shooting and Safety info.....................................................................................................8
4.1 Trouble shooting................................................................................................................... 8
4.2 Safety info............................................................................................................................. 8
3
1 Introduction
Prime One X is a powerful GPS locator which is designed for vehicle, human, pets and assets
tracking , including emergency call function meanwhile(e.g. a wearable product). With superior
receiving sensitivity, fast CDMA frequencies 850/1900. Its location can be real time or schedule
tracked by backend server or specified terminals. Based on the embedded wireless tracking
protocol, Prime One X can communicate with the backend server through CDMA network, and
transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc…
Service provider is easy to setup their tracking platform based on the functional wireless tracking
protocol.
2 Product Overview

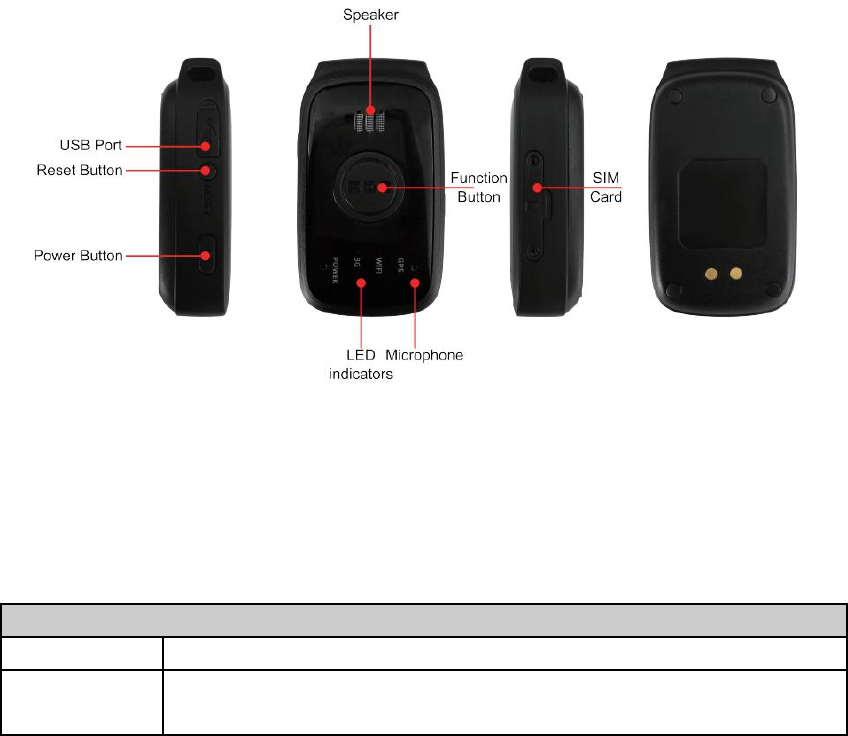

2.1 Appearance
Figure 2-1
2.2 Buttons/12PIN Interface Description
Button /12PIN Interface Description
KEY/interface
Description
Power Button
Power on Prime One X
Power off Prime One X (If power key is enabled)
4
Function
Button
Geo-Fence mode
Long press the key to enable/disable Geo-Fence ID0
Geo-Fence in current position mode
Long press the key to enable/disable Geo-Fence ID0. If enable Geo-Fence
ID0, using the current position as the centre of Geo-Fence 0.
SOS mode (default)
Long press the key to active SOS alarm
12PIN
interface(USB
port)
Connect a 5V DC adapter can power on Prime One X and charge the internal
battery
Connect a 3.7V Li-ion or Li-Polymer battery can power on Prime One X
Backend server developer or administrator can use the data cable to configure
Prime One X (by RD or engineer not by end user).
Reset Button
Click the key will turn off internal VBAT when OS is abnormal, and then
press Power Key to restart Prime One X.

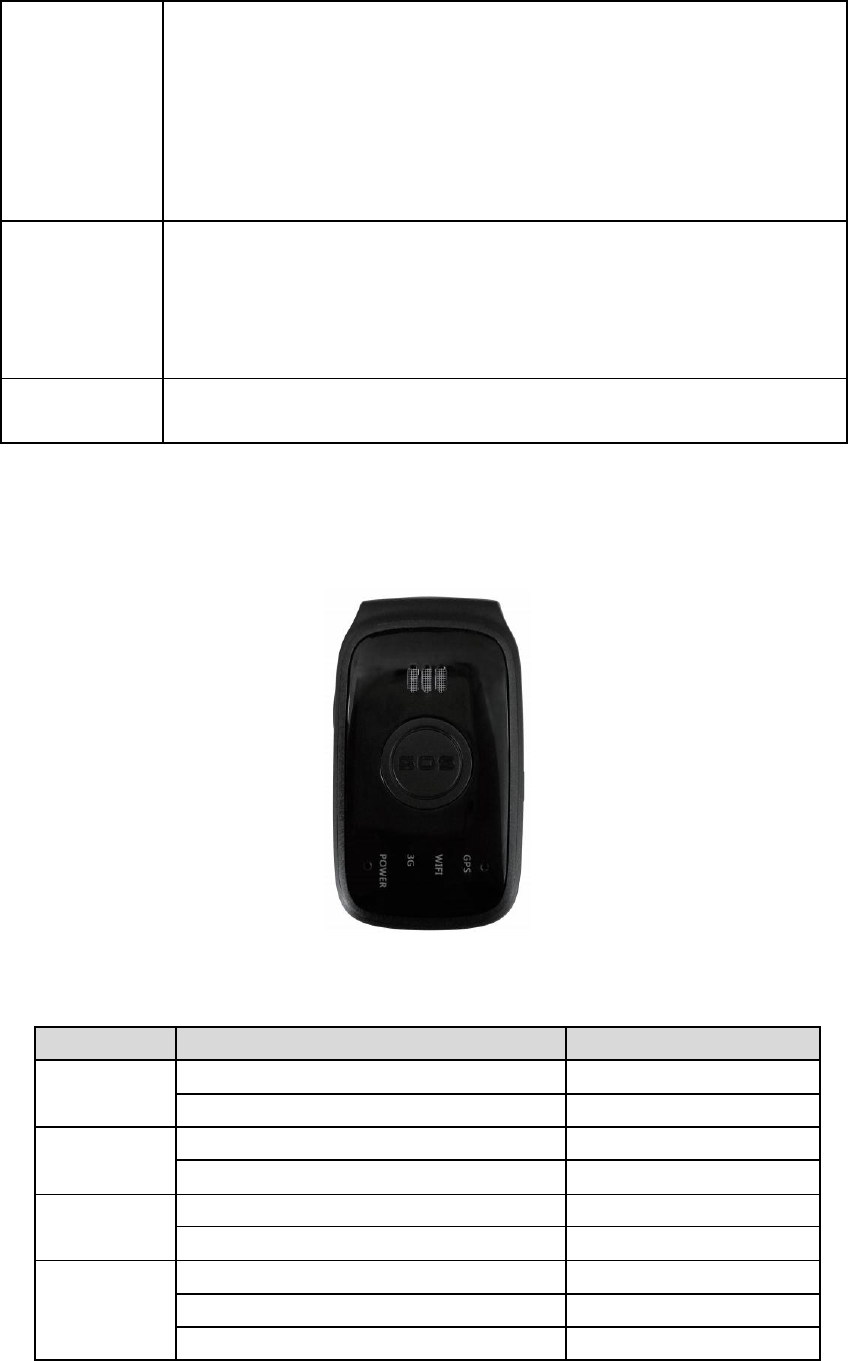

2.3 LED Description
Figure 2-2

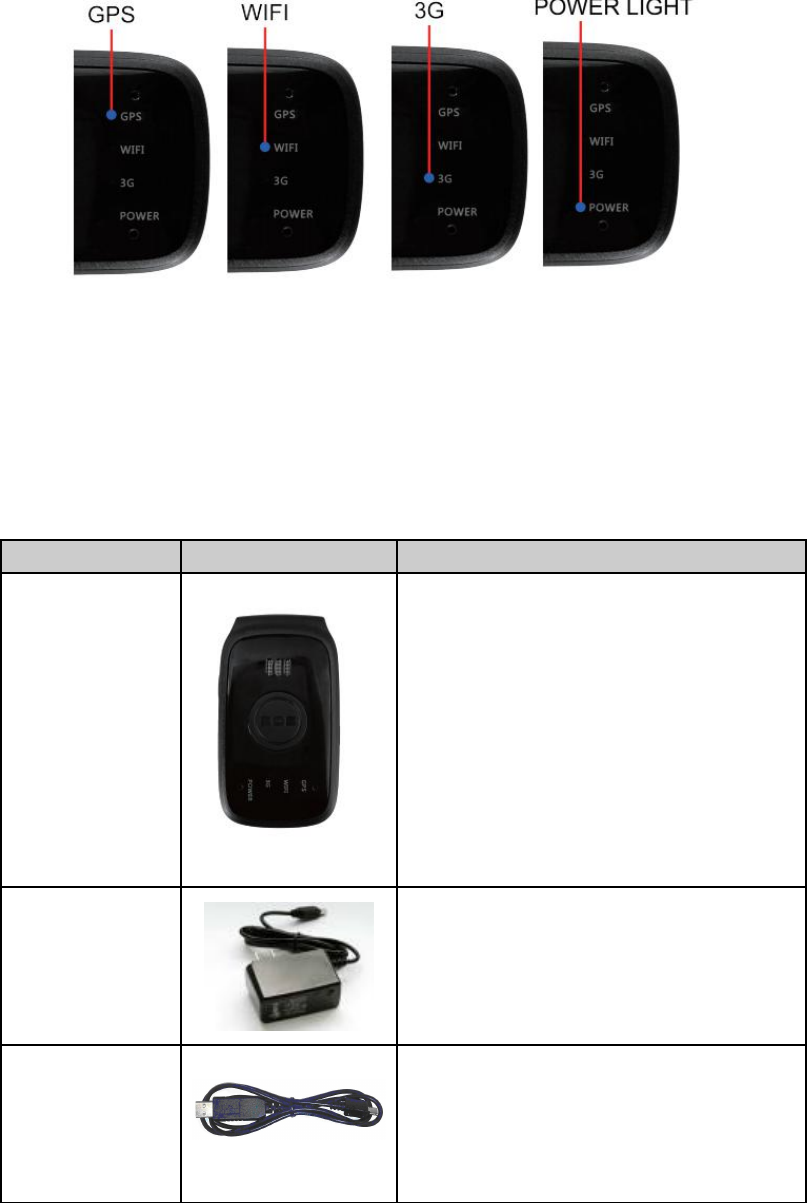

There are four LED lights in Prime One X device, the description as following.
Light
Event
State
GPS LED
GPS fixed
Fast flash
GPS has been turned off
Dark
CDMA
LED(3G)
Power on and normal
Slow flash
Power off
Dark
WIFI LED
WIFI on
Slow flash
WIFI off
Dark
Power LED
Power on and normal
Dark
Fully charged
Solid
In charging
Slow flash
5
Figure 2-3
3 Getting Started
3.1 Parts List
Name
Remark
Prime One X
Locater
The CDMA/GPS locator.
AC-DC Power
Adapter
It is used to charge the internal battery of
Prime One X.
Prime One X
Data and charger
Cable
It the data cable which can be used for
firmware upgrading and configuration.
It also includes the charger interface on the
Prime One X (by RD or engineer not by end
user)..
6
3.2 Battery Charging
The following items are suggestion for battery charge, please pay more attention.
Please connect AC-DC power adapter with Prime One X device.
Insert the AC-DC power adapter into the power socket.
During the charging process, the Power LED light will solid. When the battery is
fully charged, the Power LED light will be Ever-light.
You can also charge the battery using charging cable which connects Prime One X
device with the Adapter.
Charging will last about 5 hours.
Note: If the Prine One X device is firstly used, please make sure the battery is fully charged,
which will make the life of battery much longer.

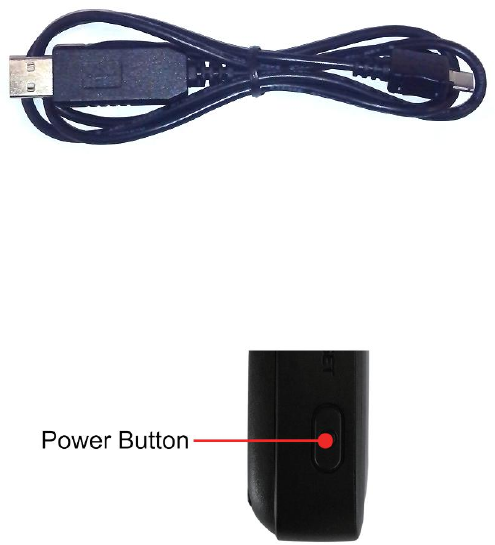

3.3 Prime One X Data Cable
Prime One X Data Cable is a cable with a 12PIN connector.
The data cable is used for data download, which will be used for firmware update or
configuration and can be used for charging at the same time (by RD or engineer not by
end user).
Figure 3-1
3.4 Power on/Power off
Figure 3-2
Power on:
Press the Power Button at least 3 seconds and release it to power on Prime One X
device. Note that, the Power LED light will fast flash.
7
Power off:
Press the power button about 3 seconds; Power LED light will fast flash and then
turn off, which indicates that Prime One X device has been powered off.
Note: the user can not power off Prime One X if the power key is disabled by
protocol.

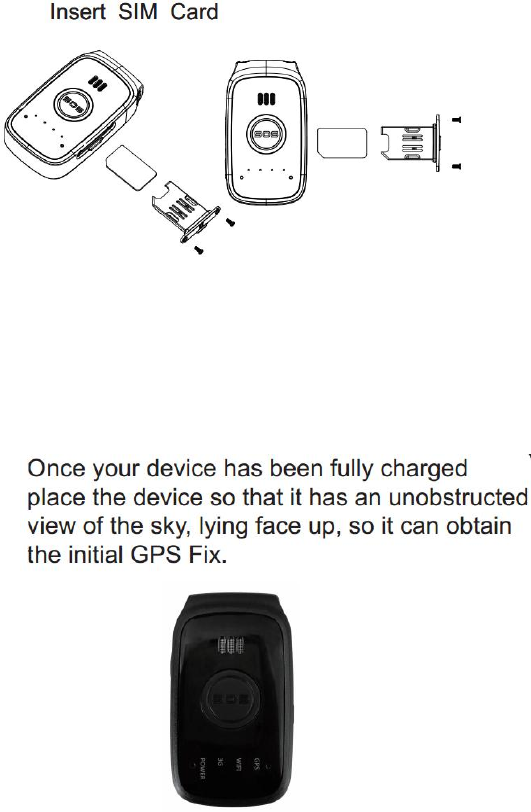

3.5 Insert SIM Card
Figure 3-3
3.6 How GPS position Fix
Figure 3-4
8
4 Trouble shooting and Safety info
4.1 Trouble shooting
4.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Please do not put the device on the overheating or too humid place, avoid exposure
to direct sunlight. Too high temperature will damage the device or even cause the
battery explosion.
Please do not use Prime One X on the airplane or near medical equipment.
FCC Caution.
§ 15.19 Labelling requirements.
Trouble
Possible Reason
Solution
Messages can’t be
reported to the
backend server by
Mobile network.
APN is wrong. Some
APN can not visit the
internet directly.
Ask the network operator for the right
APN.
The IP address or port of
the backend server is
wrong.
Make sure the IP address for the
backend server is an identified address
in the internet.
Unable to power
off Prime One X.
The function of power key
was disabled by
AT+GTFKS.
Enable the function of power key by
AT+GTFKS.
Battery can not be
charged
The battery has not been
used for too long time and
has been locked.
Using a external power source with 3.6V
to 4.2V DC power supply to active the
battery or apply for after sale help.
Prime One X can’t
fix GPS
successfully.
The GPS signal is weak.
Please move Prime One X to a place
with open sky.
It is better to let the top surface face to
the sky. (The same surface with
indication LED)
9
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This mobile phone meets the government's requirements for exposure to radio waves.
The guidelines are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health.
FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6
W/kg averaged over one gram of tissue. This device was tested for typical body-worn
operations with the back of the handset kept 0.5cm from the body. To maintain
compliance with FCC RF exposure requirements, use accessories that maintain a
0.5cm separation distance between the user's body and the back of the handset. The
use of belt clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 0.5cm must be maintained between
the user’s body and the handset, including the antenna. Third-party belt-clips, holsters,
and similar accessories used by this device should not contain any metallic
components. Body-worn accessories that do not meet these requirements may not
comply with RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.
