Ensure 100% Traceability and

Quality of Your Products using

Omron Microscan

Automatic Identification and

Machine Vision Systems

Presenter: Steven J. King –Machine

Vision Product Manager

Date: Oct 26, 2017

© Omron Microscan Systems Inc.2

Agenda

▪Automatic Identification and Machine Vision Tool Set

▪Traceability

▪Automatic ID Code Types

▪Code Marking Methods

▪Code Reading

▪Code Verification

▪Machine Vision Inspection

▪Presence/Absence

▪Color ID/Color Match

▪Count

▪Measurement/Gauging

▪Assembly and Assembly Verification

▪Defect Detection

© Omron Microscan Systems Inc.3

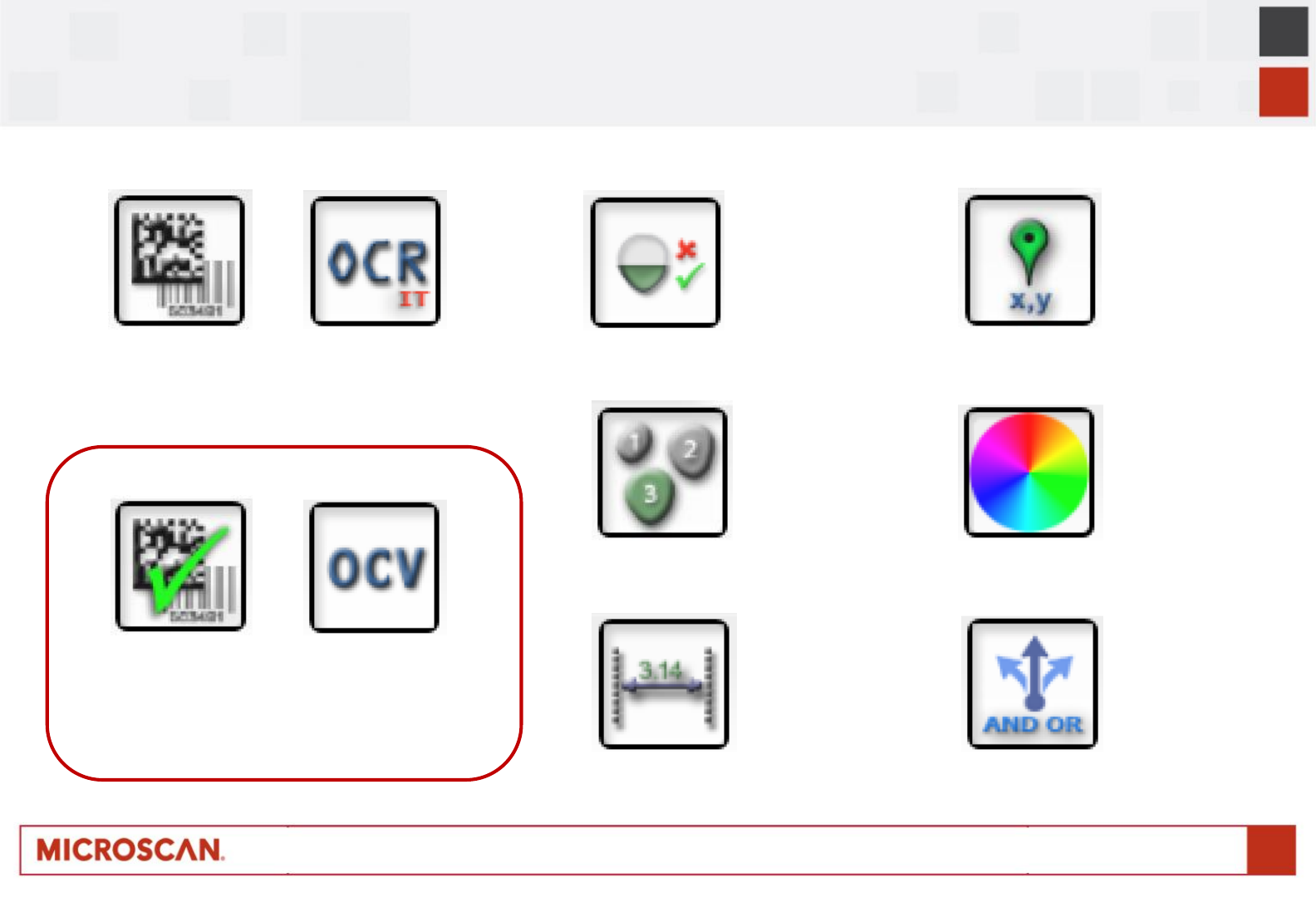

AutoID and Machine Vision Basic Toolset

Read

Codes

Read

Text

Verify

Code

Quality

Verify

Text

Quality

Presence/

Absence

Count

Measure

Locate

Color

Detect

Logic

© Omron Microscan Systems Inc.4

Traceability

▪Strategy

•Mark all parts with codes

•Enables automation

•Build a complete manifest

of what goes into a product

•Track from cradle to grave

▪Requirements

•Marking

•Mark quality verification

•Reading

•Data recording

Blade Runner Trivia –

Who made the Replicant snakes?

Abdul Ben Hassan

© Omron Microscan Systems Inc.5

Code Marking Types

▪Human Readable Codes

▪Machine Readable Codes

•1D Bar Codes

•2D Symbologies

Highest read reliability

© Omron Microscan Systems Inc.6

Traceability

© Omron Microscan Systems Inc.7

Traceability

▪Trace

▪Part Genealogy

▪Defective Part Tracking

▪Spill Containment

▪Selective Recalls

▪Anti Diversion

▪Counterfeit Prevention

▪Nabbing replicants

▪Track

▪In house

▪Part tracking

▪Process control

▪Process optimization

© Omron Microscan Systems Inc.8

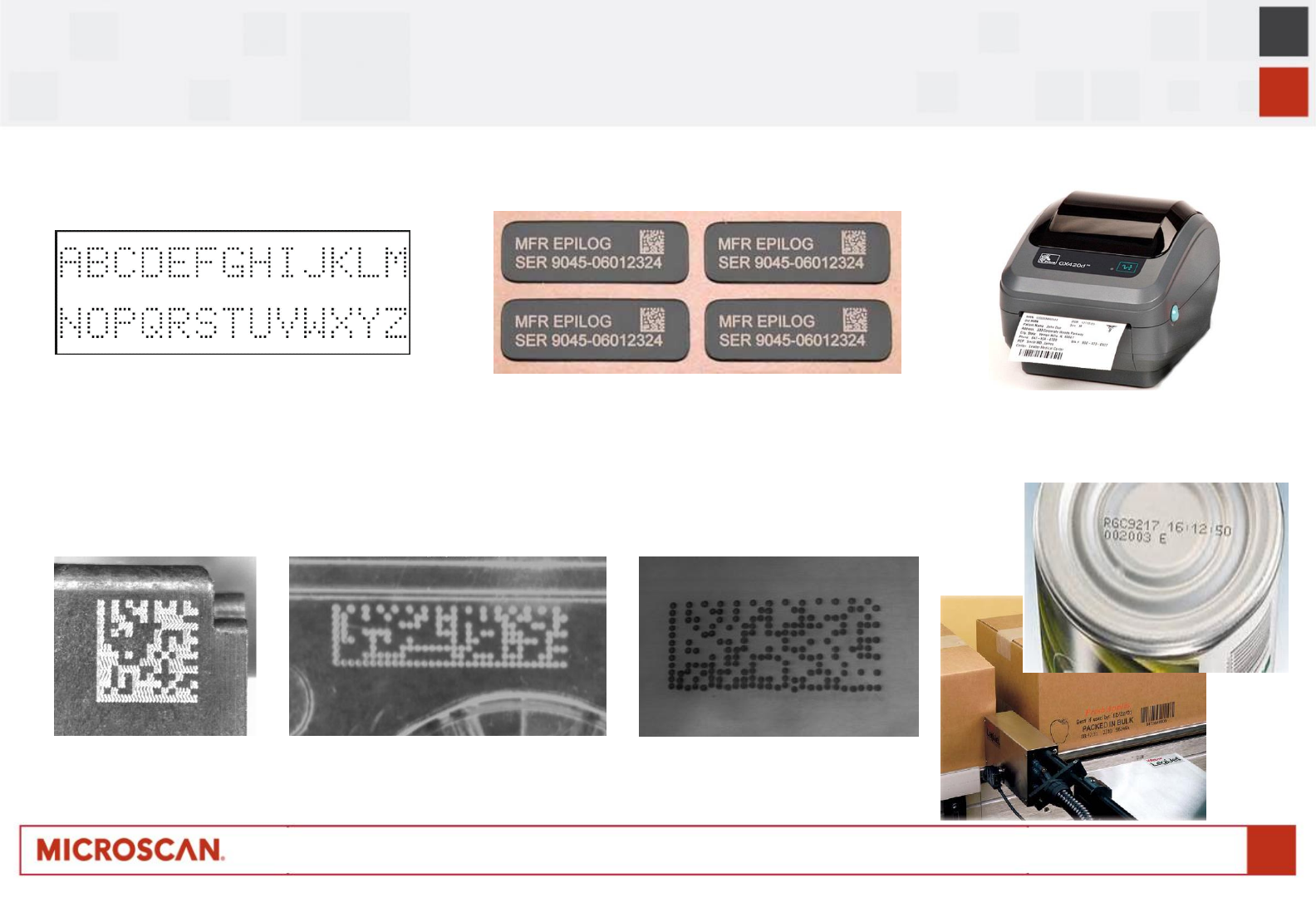

Code Marking Methods

▪Labels –Ink Jet, Laser, Thermal

▪Direct Part Marks –Laser, Dot Peen, Ink Jet

© Omron Microscan Systems Inc.9

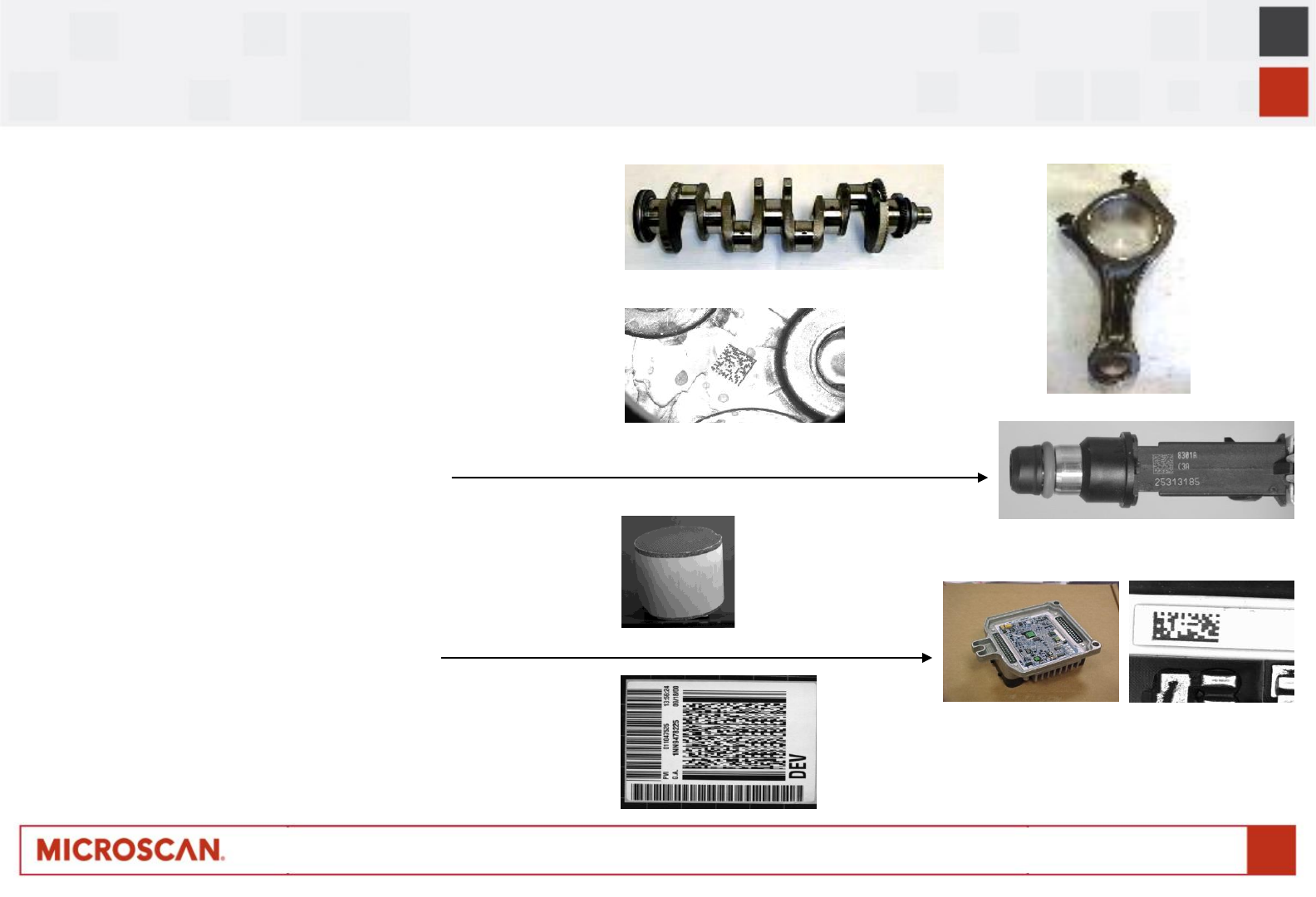

Direct Part Mark Application Examples

© Omron Microscan Systems Inc.10

Automotive Applications

▪Engine component traceability

•Head and block traceability

•Assembly error proofing

•Selective pairing of components

▪Transmission components

traceability

▪Fuel injector traceability

▪Catalytic converter traceability

▪PCB traceability

▪Final assembly and WIP verification

© Omron Microscan Systems Inc.11

Code Readers

▪Handheld label reader –HS 21

▪Handheld DPM (Direct Part Mark) reader –Mobile Hawk

▪Fixed mount label and DPM reader –MicroHAWK ID20, ID30, ID40

▪Fixed mount vision system with reading –MicroHAWK MV, HAWK MV

HS-21 Mobile Hawk MicroHAWK ID Reader

MicroHAWK/HAWK MV

© Omron Microscan Systems Inc.12

AutoID and Machine Vision Basic Toolset

Read

Codes

Read

Text

Verify

Code

Quality

Verify

Text

Quality

Presence/

Absence

Count

Measure

Locate

Color

Detect

Logic

© Omron Microscan Systems Inc.13

Code Verification –Check the handwriting

▪Marking processes drift from nominal

settings ultimately leading to unreadable

marks

▪Verification allows adjusting of marking

process before unreadable marks are

made

▪Verification is metrology tool to ensure

consistent mark quality

▪Verifier can tell not only that mark is

readable but also how close it is to edge

of readability that it is

Measurement value

Frequency

© Omron Microscan Systems Inc.14

▪Offline or Inline symbol verification

▪Verify or validate the symbol immediately after printing

▪Deviate from the standards if process or circumstances require

▪Provide results that correlate directly with ISO standards

▪Verification ensures that EVERY product ships with a good quality symbol despite

the fact that every marking system will degrade over time

Without verification, some “bad”

parts escape into the process With verification, we prevent bad

marks from ever being made.

Code Verification

© Omron Microscan Systems Inc.15

ISO15416 - 1D Label Verification

▪ISO 15416

•1D on Labels

•Requires even

illumination

•Requires good

lens with high

MTF

© Omron Microscan Systems Inc.16

ISO15415 - 2D Label Verification

▪ISO 15415

•2D on Labels

•Requires even

illumination

•Requires good

lens with high

MTF

▪Modulation

© Omron Microscan Systems Inc.17

ISO 29158 - 2D DPM Verification

▪ISO 29158

•Direct Part Marks

•More forgiving spec

•Requires application

specific lighting

© Omron Microscan Systems Inc.18

▪Direct inkjet printing is economical

▪But the results are not always pretty

▪No reads at big retail customers result in fines for each

unreadable code

▪Inline verification after printing ensures NO bad symbols ship

Verification Example: Inkjet on cartons

© Omron Microscan Systems Inc.19

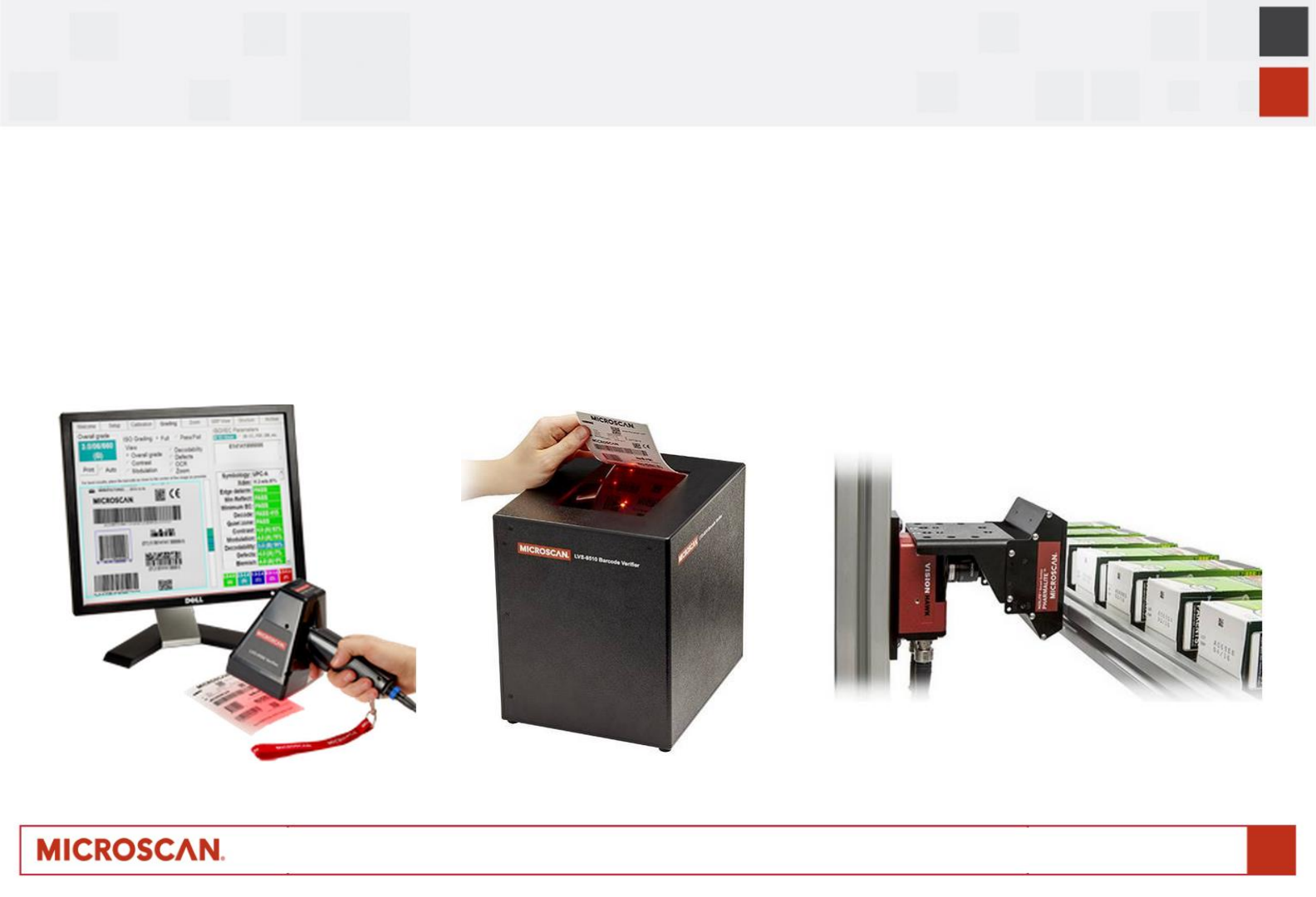

Code Verifiers

▪Offline

•Handheld label and DPM verifier –LVS-9580, LVS 9585

•Desktop Verifier –LVS-9510

▪Inline

•Fixed mount inline verifier –MicroHAWK MV, HAWK MV-4000

LVS-9580, LVS 9585 LVS-9510 MicroHAWK, HAWK MV

© Omron Microscan Systems Inc.20

Code Verification at the printing source

© Omron Microscan Systems Inc.21

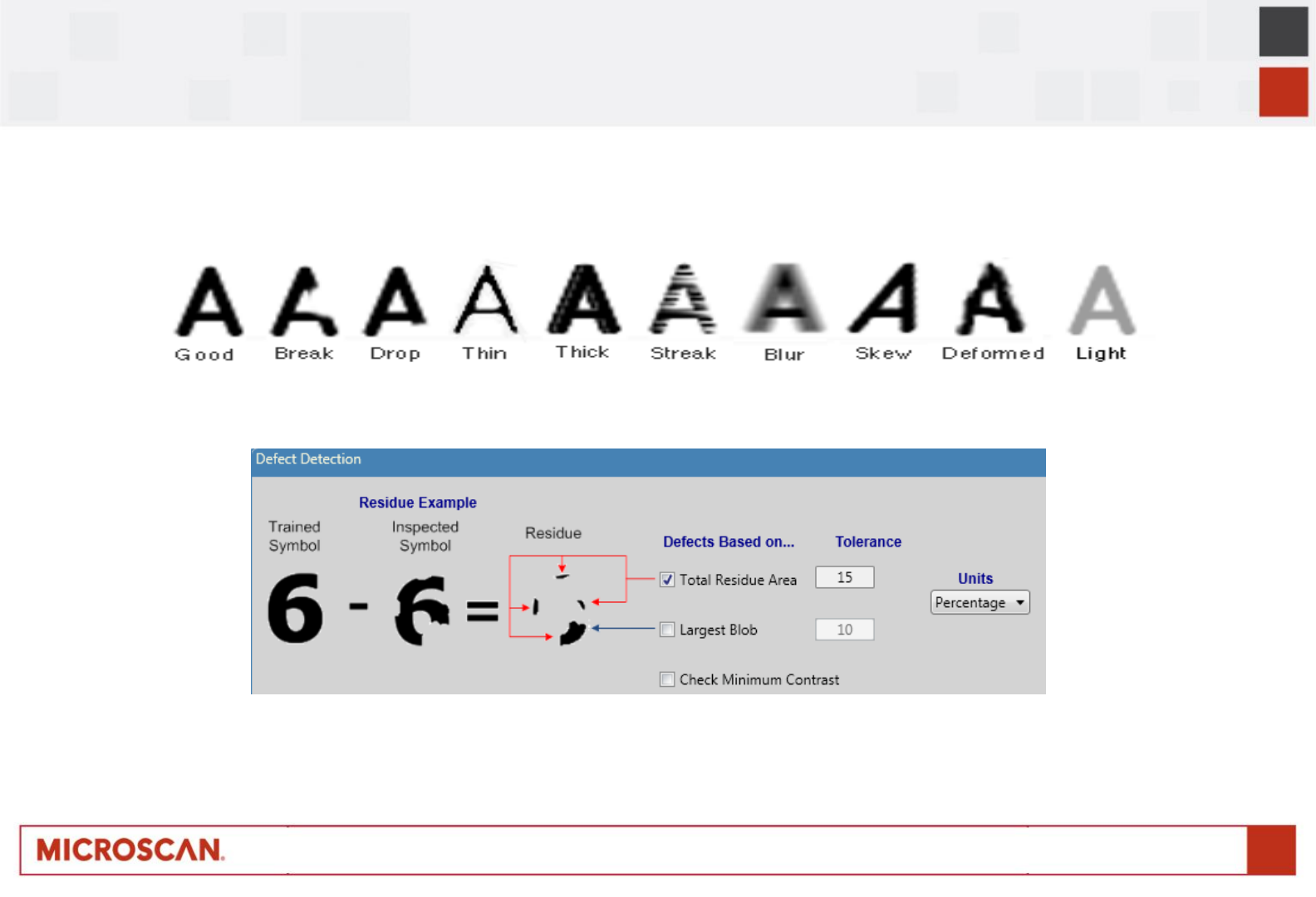

▪Show and Go Tool - Validate printed text by training on a good sample

▪Detects common printing problems and provides pass/fail output

▪Symbols are compared against trained golden symbol

▪Symbols are rejected if the total residue exceeds the set tolerance

▪Optional tests for Largest single defect, character breaks, contrast, and blurriness

Optical Character Verification

© Omron Microscan Systems Inc.22

Optical Character Verification - Example

Pad Printing

OCV on ICs

© Omron Microscan Systems Inc.23

AutoID and Machine Vision Basic Toolset

Read

Codes

Read

Text

Verify

Code

Quality

Verify

Text

Quality

Presence/

Absence

Count

Measure

Locate

Color

Detect

Logic

© Omron Microscan Systems Inc.24

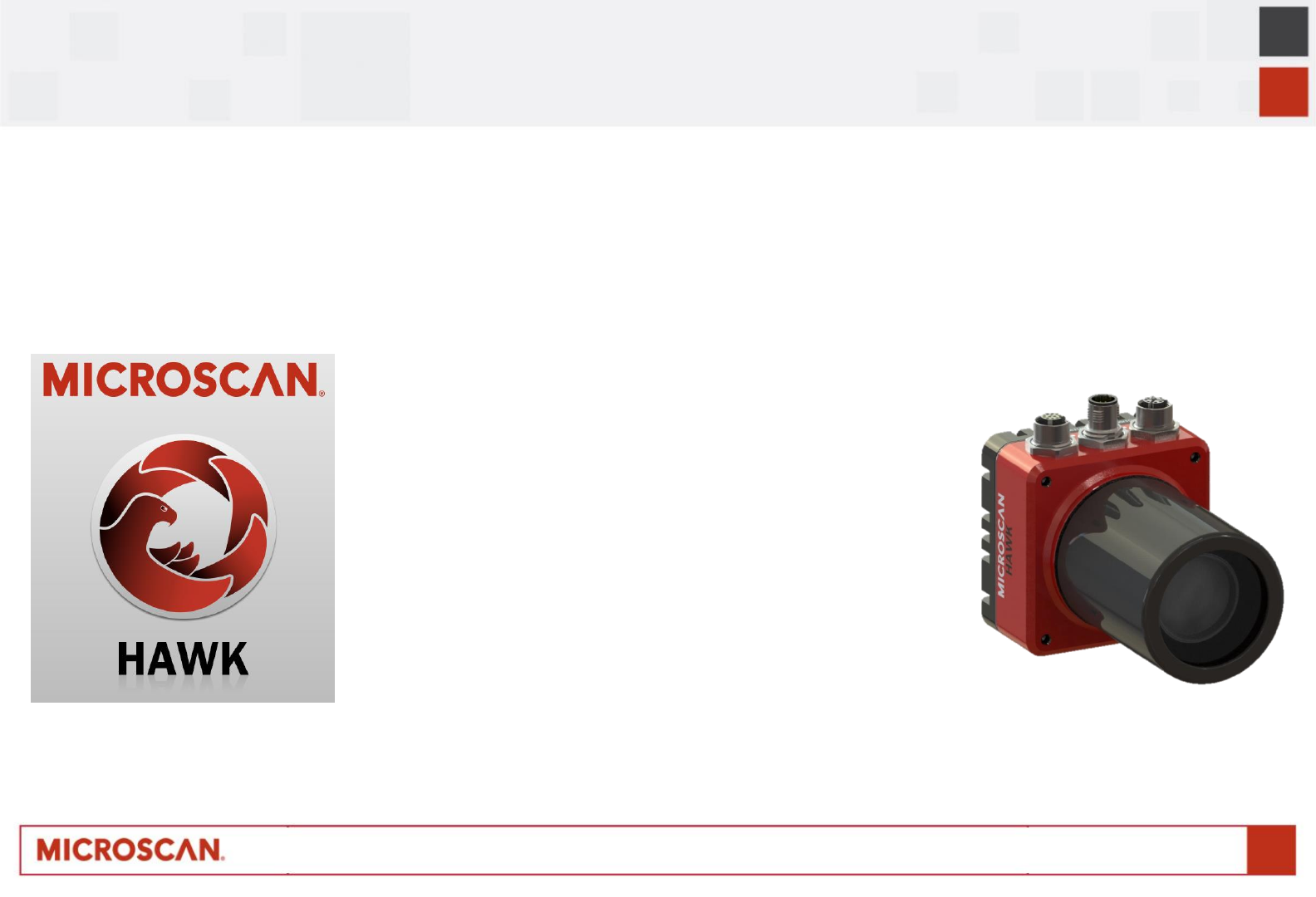

Full Machine Vision Smart Cameras –MicroHAWK MV

© Omron Microscan Systems Inc.25

Brand New High Performance Camera

▪8 Models

▪MV-4000-03, Mono, 0.3 MP

▪MV-4000-03C, Color, 0.3 MP

▪MV-4000-13, Mono, 1.3 MP

▪MV-4000-13C, Color, 1.3 MP

▪MV-4000-20, Mono, 2.0 MP

▪MV-4000-20C, Color, 2.0 MP

▪MV-4000-50, Mono, 5.0 MP

▪MV-4000-50c, Color, 5.0 MP

HAWK MV-4000

© Omron Microscan Systems Inc.26

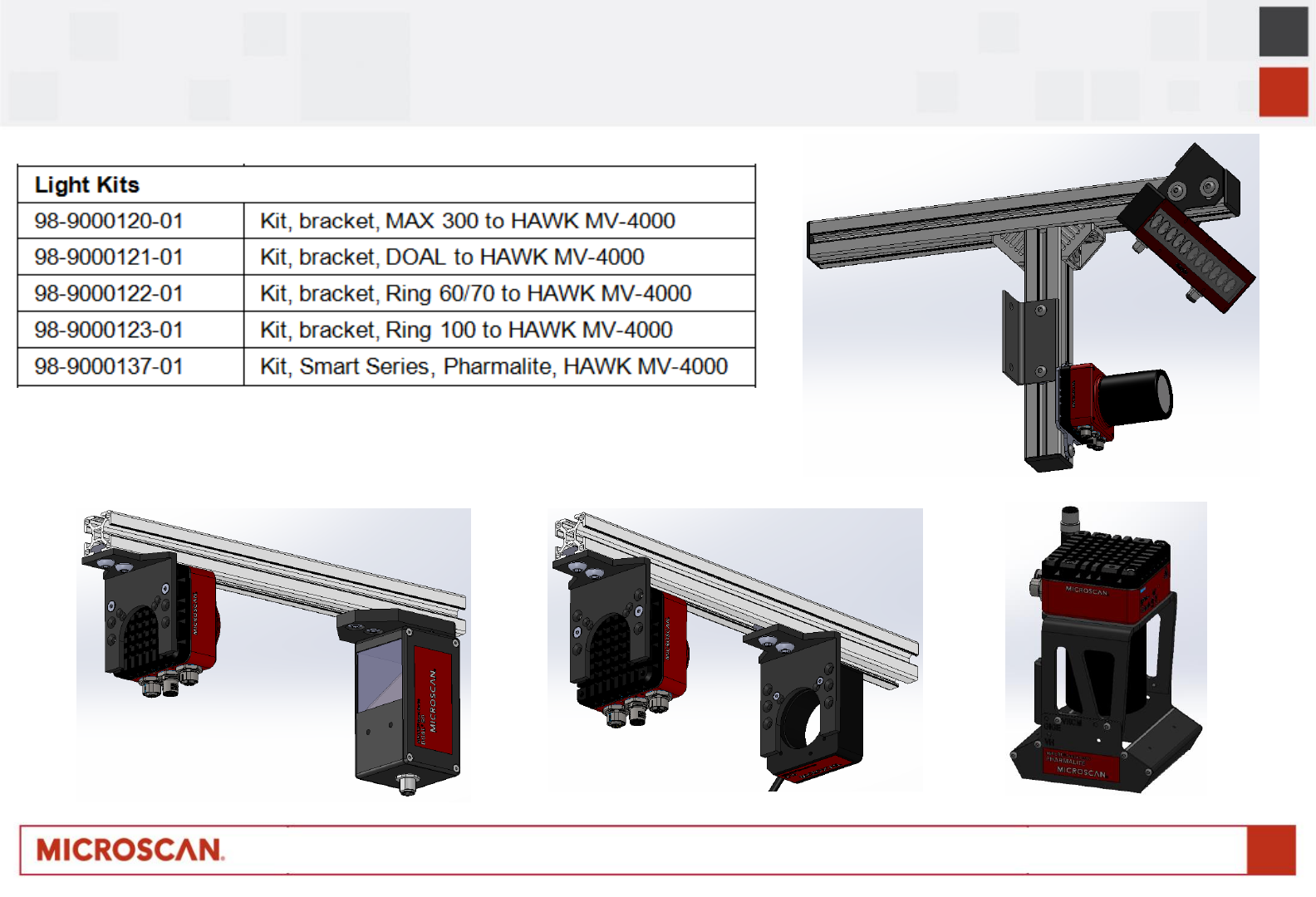

HAWK MV-4000 Light Kits

© Omron Microscan Systems Inc.27

Presence/Absence of Critical Parts and Features

▪Count Pixels

•Within range of

grayscale intensity

•Edge pixels

(brightness

invariant)

▪Tolerance

•Compare count to

min and max values

▪Output

•Pixel count

•Pass/Fail

© Omron Microscan Systems Inc.28

Presence/Absence using Color

▪Color ID

•Determine color

from library of

colors

▪Color Check

•Compare color to

one specific color

▪Tolerance

•Compare pixel

count to min values

▪Output

•Color

•Count of pixels

•Pass/Fail

© Omron Microscan Systems Inc.29

Count

▪Locate features

•Shape based

▪Tolerance

•Compare count

to min and max

allowed values

▪Output

•Count

•Locations

© Omron Microscan Systems Inc.30

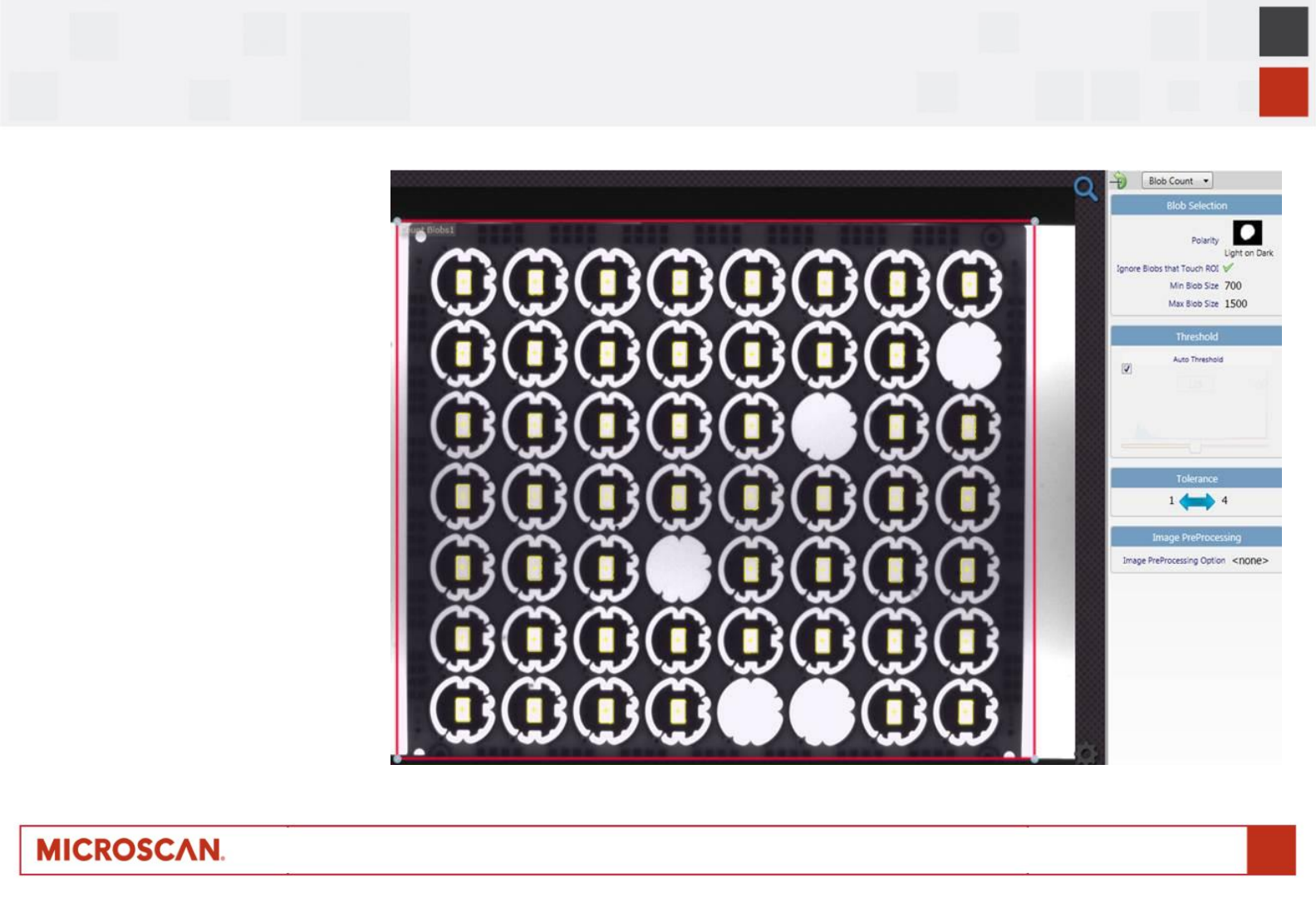

Count

▪Locate features

•Blob based

•Select based on

min and max

size of blob

▪Tolerance

•Compare count

to min and max

values

▪Output

•Count

•Locations

© Omron Microscan Systems Inc.31

Measurement

▪Locate features

•Lines

•Points

•Circles

•Patterns

▪Measure

•Line to Line

•Point to Point

•Point to Line

▪Calibration

•Convert pixels to

real world units

▪Tolerance

•Compare to min

and max values

▪Output –OK/NG

© Omron Microscan Systems Inc.32

Location and Guidance

▪Train a pattern

▪Return X, Y, Theta

▪Add encoder based

offset for “pickup

down the belt”

▪Intellifind Tool

•Edge Based Pattern Matching

•Allows 360 degree rotation

•Allows scale changes

•Lighting invariant

•Finds patterns amongst clutter

© Omron Microscan Systems Inc.33

Assembly

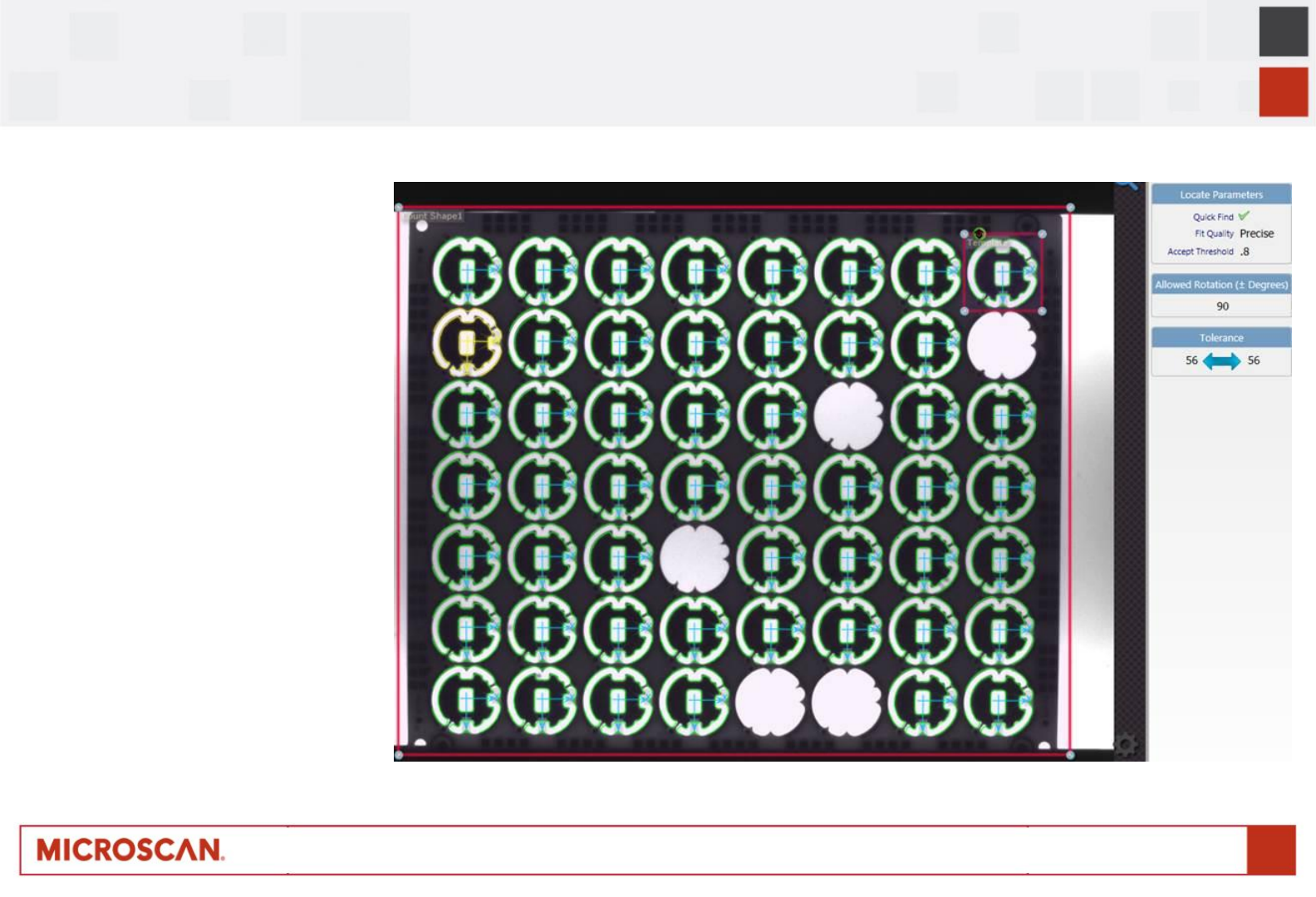

▪Train pattern of points on

each part

▪Compute offset of part 1

to blueprint

▪Compute offset of part 2

to blueprint

▪Compute offset part 1 to

part 2

▪Output X, Y, Theta to

assemble part 1 onto

part two

▪Uses “rigid body fit”

algorithm

© Omron Microscan Systems Inc.34

Defect Detection

▪Often difficult –Defects similar in size and shape to allowed features

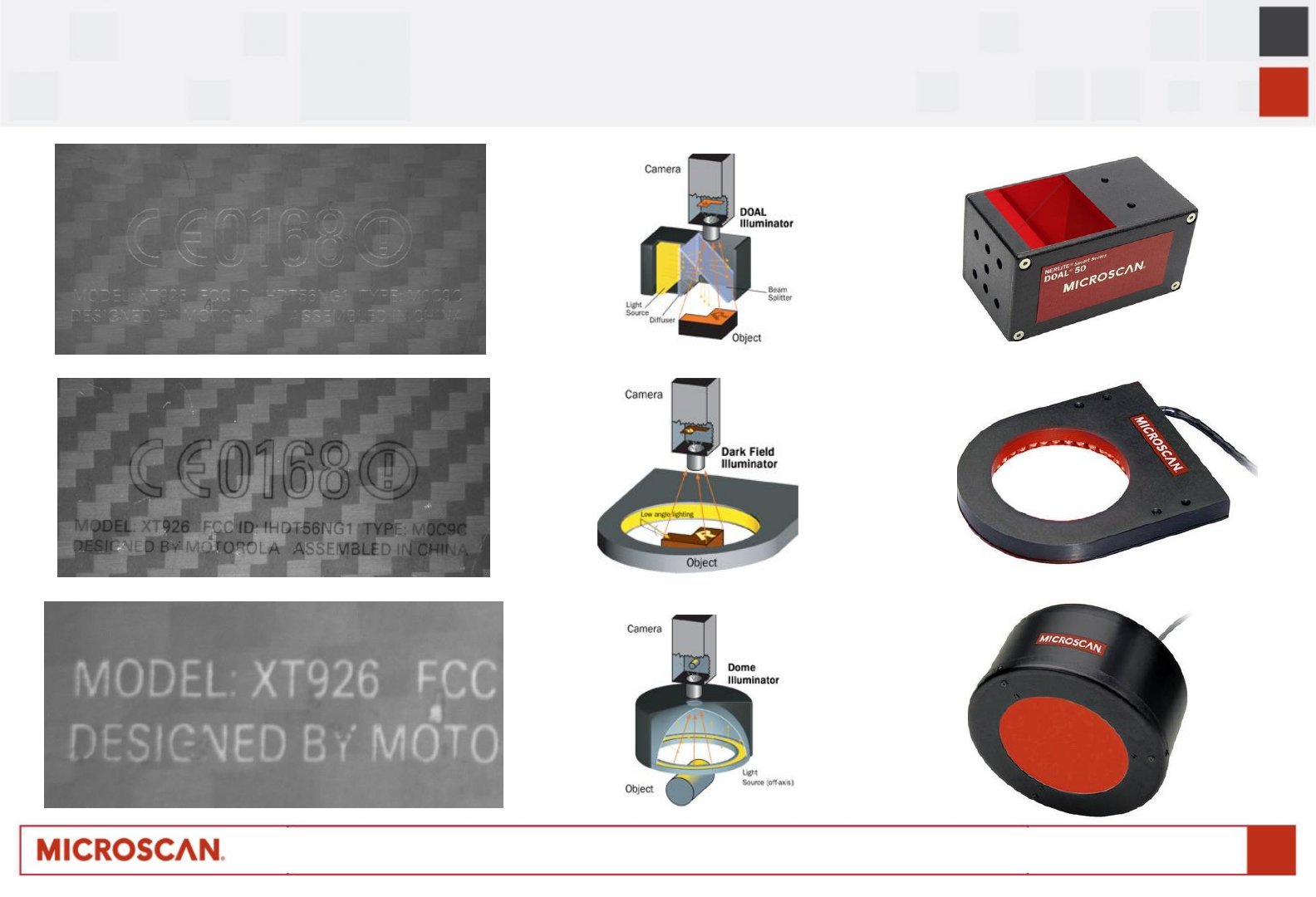

▪Highly dependent on lighting to create contrast

© Omron Microscan Systems Inc.35

Defect Detection –Lighting Dependency

© Omron Microscan Systems Inc.36

Defect Detection –Using OCV

▪OCV is not just for

characters

▪OCV can be used for

individual shapes or

symbols

▪OCV computes

difference between

trained and

inspected shape

▪OCV combined with

color checks is very

powerful

© Omron Microscan Systems Inc.37

Wrap Up

▪Modern Machine Vision Systems contain tools for

•Automatic Code Identification

•Code Verification

•Machine Vision

▪Traceability is a Strategy that involves

•Picking the correct code types

•Picking the correct code marking methods

•Code Reading

•Code Verification

▪Traditional Machine Vision is used for

•Presence/Absence

•Color ID/Color Match

•Count

•Measurement/Gauging

•Assembly and Assembly Verification

•Defect Detection

© Omron Microscan Systems Inc.38

Last Trivia Question

▪What is a Machine Vision Engineer’s favorite quote

from Blade Runner?

▪I just do eyes!

HAWK MV-4000

Coming in Dec 2017!

© Omron Microscan Systems Inc.39

Thank you!

For more information… visit booth number

www.microscan.com

Manuals, Software, Drivers,

Technical Publications, Knowledge Base

MicroscanCommunity

Blogs, Videos, Photos
