CONNECTORS

Scanner Connector: DB-9 plug

Pin Function

1 NC

2 Receive data RS-232 (in)

3 Transmit data RS-232 (out)

4 NC

5 Ground

6 NC

7 Request-to-send RS-232 (out)

8 Clear-to-send RS-232 (in)

9 NC

Host Connector: 5-pin MicroChange

Pin Function

1 Drain

2 Bus +

3 Bus –

4 CAN H

5 CAN L

Interface Box

DeviceNet is a communication protocol

managed by the Open DeviceNet Vendors

Association (ODVA), with Controller Area

Network (CAN) as the backbone technology.

The protocol is used in the automation

industry as a quick and economical way to

network a variety of devices.

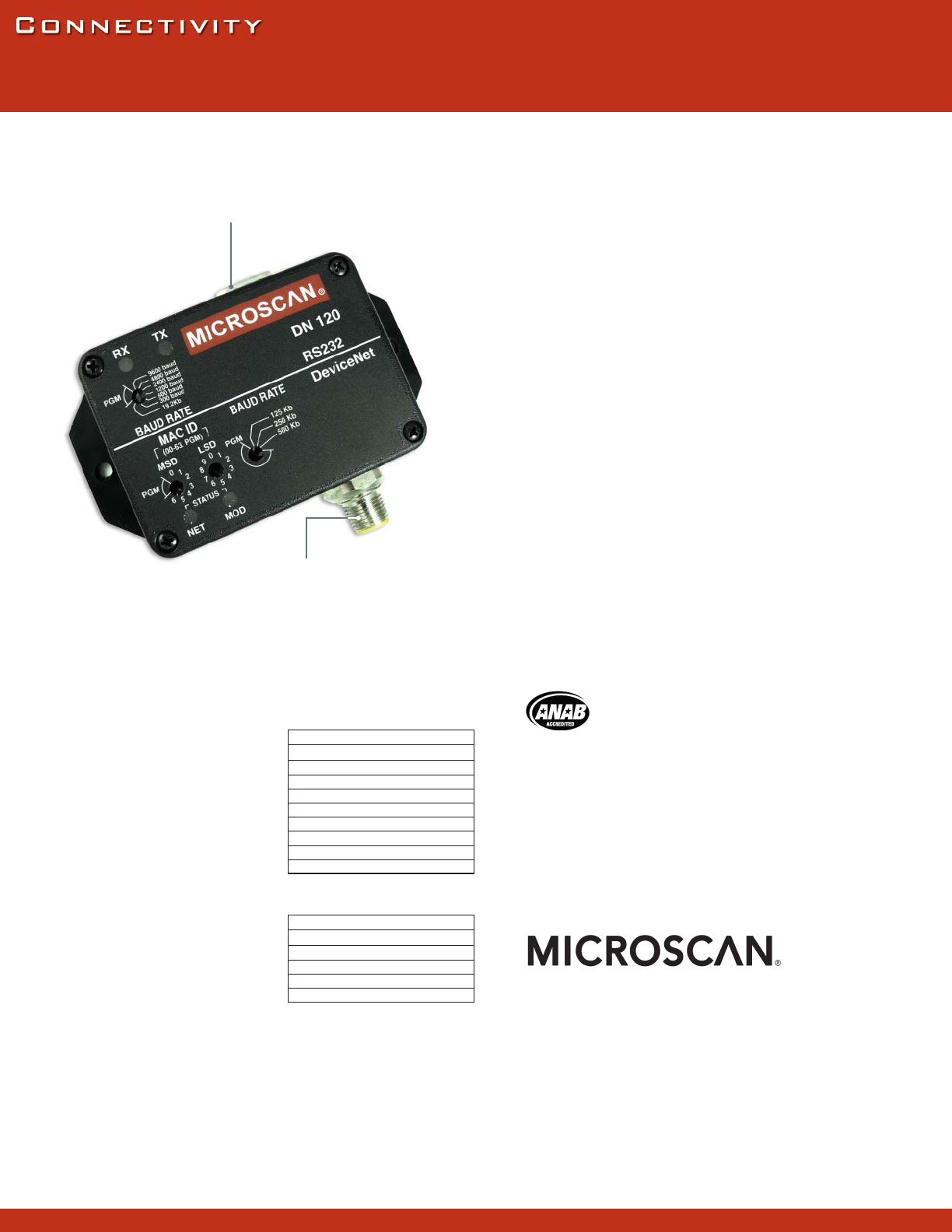

The DeviceNet DN-120 interface box easily

connects any Microscan RS-232 bar code

reader to a DeviceNet network. Mac ID and

serial channel are rotary switch selectable

or software configurable. Other DeviceNet

interface box features include a loss-of-

ground protection circuit, fully isolated RS-

232 serial channel, and selectable serial

baud rate (300 to 19.2k).

DeviceNet

For more information on this product, visit www.microscan.com.

MECHANICAL

Length: 3.25” (82.6 mm)

Width: 2.5” (63.5 mm)

Height: 1.08” (27.4 mm)

ELECTRICAL

Voltage: 11-28 VDC at 50 mA

Loss-of-ground Protection: Yes

Reverse Polarity: -30 VDC

Signal Levels: ISO 11898

Isolation: 500V

ESD Protection: ±10 kv

Overload Protection: ±30 V°

Short Circuit: Inde nite

Output Levels: ±7.9V (typical)

ENVIRONMENTAL

Enclosure: Plastic housing

Operating Temperature:

0° to 70° C (32° to 158°F)

COMMUNICATION

Interface: RS-232

Protocols: RS-232 to DeviceNet

serial gateway

Data Bits: 8, 7 (determined by

parity setting)

Parity: Even, odd, none (software

con gurable)

Stop Bits: 1 ( xed)

Baud Rate: 300, 1200, 2400,

4800, 9600, 19.2K (software/

hardware selected)

Flow Control: None, RTS/CTS,

X-on/X-off

Microscan Systems, Inc.

Tel 425 226 5700 / 800 251 7711

Fax 425 226 8250

Microscan Europe

Tel 31 172 423360 / Fax 31 172 423366

Microscan Asia Pacifi c R.O.

Tel 65 6846 1214 / Fax 65 6846 4641

Part of a full range of sales tools available from our website:

www.microscan.com

E-mail: info@microscan.com

Tech Support: helpdesk@microscan.com

ISO CERTIFICATION

Issued by TUV USA Inc, Member of TÜV NORD Group,

Cert No. 06–1080

©2007 Microscan Systems, Inc. Rev. A 09/07

Warranty–One year limited warranty on parts and labor. Extended warranty available.

ISO 9001:2000

Certifi ed QMS

Reader Connector

Host

Connector
