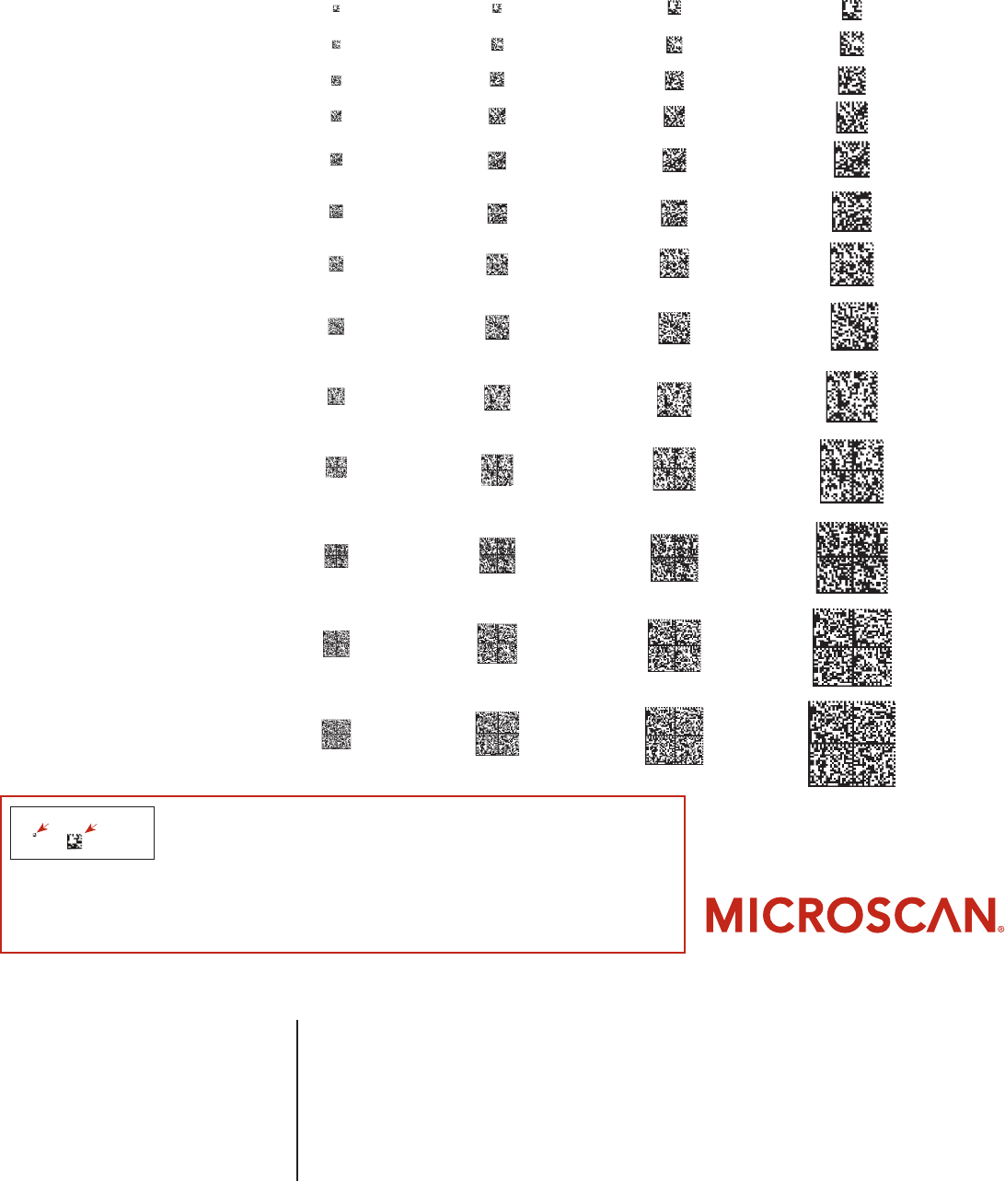

Symbol Size Data Capacity 5 mil Examples 7.5 mil Examples 10 mil Examples 15 mil Examples

Row x Column Numeric Alphanumeric

10 x 10 6 3 1.27 mm 1.90 mm 2.54 mm 3.81 mm

12 x 12 10 6 1.52 mm 2.29 mm 3.05 mm 4.57 mm

14 x 14 16 10 1.78 mm 2.67 mm 3.56 mm 5.33 mm

16 x 16 24 16 2.03 mm 3.05 mm 4.06 mm 6.10 mm

18 x 18 36 25 2.29 mm 3.43 mm 4.57 mm 6.87 mm

20 x 20 44 31 2.54 mm 3.81 mm 5.08 mm 7.62 mm

22 x 22 60 43 2.79 mm 4.19 mm 5.59 mm 8.38 mm

24 x 24 72 52 3.05 mm 4.57 mm 6.10 mm 9.14 mm

26 x 26 88 64 3.30 mm 4.95 mm 6.60 mm 9.91 mm

32 x 32 124 91 4.06 mm 6.10 mm 8.13 mm 12.19 mm

36 x 36 172 127 4.57 mm 6.86 mm 9.14 mm 13.72 mm

40 x 40 228 169 5.08 mm 7.62 mm 10.16 mm 15.24 mm

44 x 44 288 214 5.59 mm 8.38 mm 11.18 mm 16.76 mm

* Each Data Matrix shown is a square matrix. Symbols are for size reference only, and may not be accurately reproduced on screen or by some print methods. Scale is 1:1.

Microscan Systems, Inc.

Tel 425 226 5700 / 800 251 7711

Fax 425 226 8250

Microscan Europe

Tel 31 172 423360 / Fax 31 172 423366

Microscan Asia Pacific R.O.

Tel 82 65 6846 1214 / Fax 65 6846 4641

Part of a full range of sales tools available from our web site:

www.microscan.com

E-mail: info@microscan.com

Tech Support: helpdesk@microscan.com

©2008 Microscan Systems, Inc. 01/08

Size/Data Comparison Chart

For Data Matrix ECC 200 Symbology*

Data capacity information for additional Data Matrix symbol sizes

Square Rectangular

Symbol Size Data Capacity Symbol Size Data Capacity

Row x Column Numeric Alphanumeric Row x Column Numeric Alphanumeric

48 x 48 348 259 8 x 18 10 6

52 x 52 408 304 8 x 32 20 13

64 x 64 560 418 12 x 26 32 22

72 x 72 736 550 12 x 36 44 31

80 x 80 912 682 16 x 36 64 46

88 x 88 1152 862 16 x 48 98 72

2.5 mil Data Matrix

These extremely small Data Matrix symbols are nearly invisible to the naked

eye. They must be printed or marked with a high level of accuracy to ensure

readability. Microscan imagers can read Data Matrix symbols as small as

2.5 mil.

Symbol Size: 10 X 10

Capacity:

Numeric: 6

Alphanumeric: 3
