Copyright ©2008 Microscan Systems, Inc. P/N 83-211500 Rev A

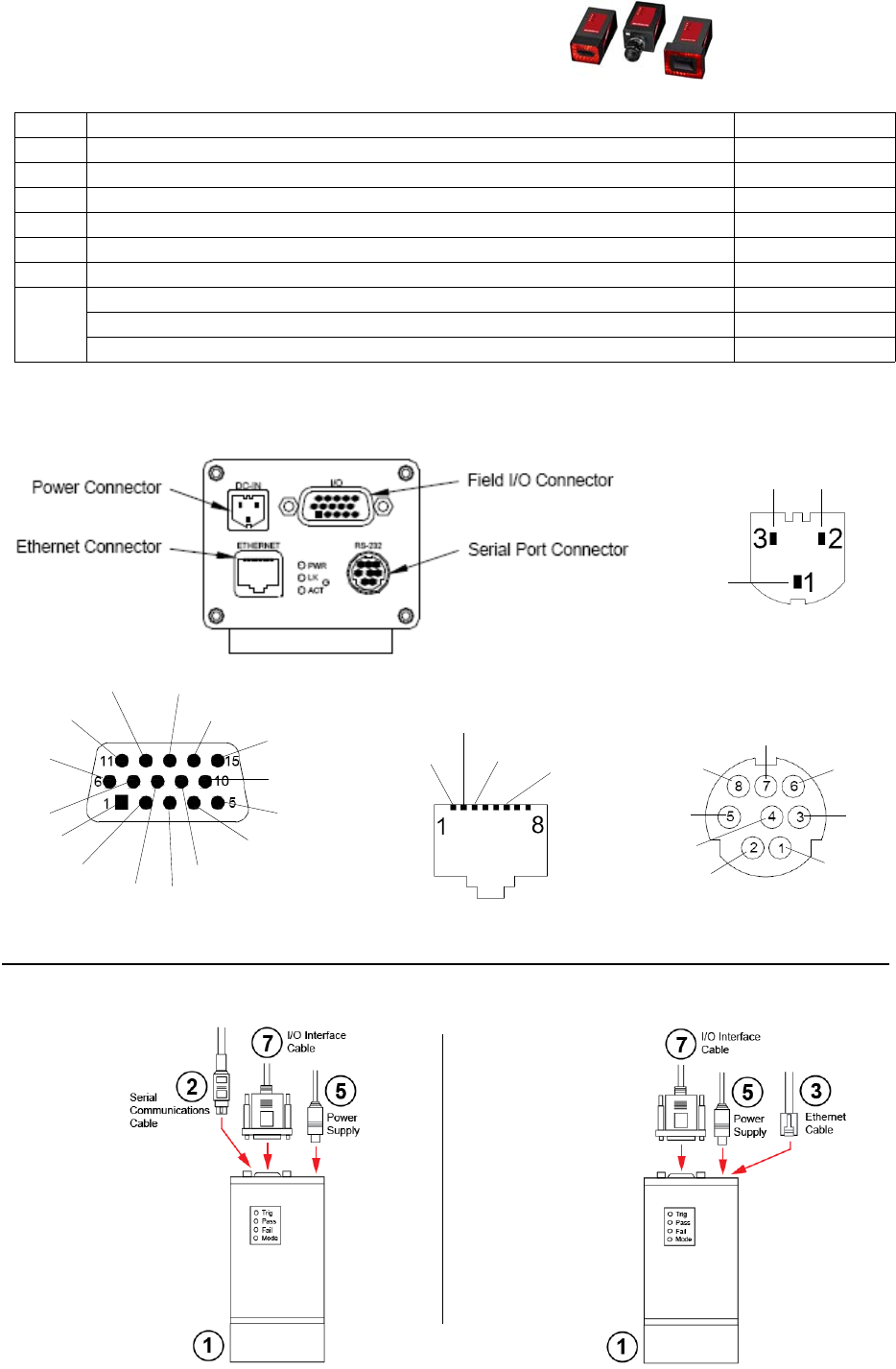

Hardware Required
Pin Assignments
Item Description Part Number
1HawkEye 1500 Series Reader or Verifier FIS-HE16-XXXX
2Serial Communications Cable, PS/2-to-9-pin 98-AC00-0SC0
3CAT5 Ethernet Cable User-Supplied
4Power Supply with International Plug Adapters (24V, 100-250V, 50-60 HZ) 98-HE15-0PS0
5Power Supply Connector 98-HECONNPS
6Power Cable, Flying Leads, 2 meters 98-AC00-0PC6
7
I/O Interface Cable, 25 feet 98-96601833
I/O Interface Cable, 15 feet 98-96601832
I/O Interface Cable, 10 feet 98-96601831
HawkEye 1500 Series Reader or Verifier
(Back View)
Serial Port Connector
8-pin Socket
Ethernet Connector
RJ45 Socket
Field I/O Connector
15-pin Socket
Configurations
Serial Standalone Ethernet Standalone
Power Connector
3-pin Socket
3 24V Return
1 Chassis
Ground
2 +24VDC
1 Ethernet
TX (–)
2 Ethernet
TX (+)
3 Ethernet
RX (+) 6 Ethernet
RX (–)
15 I/O Return
10 Sensor Power
Return
5 TTL I/O 1/
Ext. Strobe
11 Opto In B
1 Opto In A
6 Sensor Power
7 TTL I/O 2
12 Opto 1 Out B
14 Opto 3 Out B
13 Opto 2 Out B
4 Opto 3 Out A
9 TTL I/O 4
2 Opto 1 Out A
8 TTL I/O 3 3 Opto 2 Out A
1 N/C
2 N/C
3 TXD
4 RXD
5 RTS
6 CTS
7 GND
8 GND
HawkEye
®
1500
Series
Configuration Guide
Copyright ©2008 Microscan Systems, Inc.
HawkEye 1500 Series Configuration
HawkEye 1500 Series Accessories
Communication and I/O Cables
Accessory Part Number Description
Serial Communication Cable 98-AC00-0SC0 HawkEye 1500 Serial Communications Cable
Serial Interface Cable 98-HESC010 HawkEye 1500 Serial Interface Cable, 10 feet
I/O Interface Cable 98-96601833 External I/O Interface Cable, 25 feet
I/O Interface Cable 98-96601832 External I/O Interface Cable, 15 feet
I/O Interface Cable 98-96601831 External I/O Interface Cable, 10 feet
Power Supply
Power Supply 98-HE15-0PS0 HawkEye 1500 Power Supply, 24V, 100-250V, 50-60 HZ
Power Supply Connector 98-HECONNPS HawkEye 1500 Power Supply Connector
Power Cable 98-AC00-0PC6 HawkEye 1500 Power Cable, Flying Leads, 2 meters
Lighting Options
LED Ring Light 98-LG00-0XX0 HawkEye 1500 LED Ring Light, 25.5 mm Mount*
Light Mount 98-LG14-0XX0
HawkEye 1500 Light Mount, DF100 or DF150 (HELTMA 1L-M)*
Light Mount 98-LG15-0XX0 HawkEye 1500 Light Mount, R100 Ring (HELTMA 2L-M)*
Light Mount 98-LG16-0XX0 HawkEye 1500 Light Mount, R60 Ring (HELTMA 3L-M)*
Light Mount 98-LG17-0XX0 HawkEye 1500 Light Mount, DOAL 50 (HELTMA 4L-M)*
Strobe Interface Kit 98-LG18-0XX0 HawkEye 1500 Strobe Interface Kit*
Dark Field Light NER-LG03-0XX0 HawkEye 1500 Light, DF100 Dark Field*
Ring Light NER-LG05-0XX0
HawkEye 1500 Light, R60V2 Ring, HawkEye 1500 Power*
DOAL Light NER-010200913CST HawkEye 1500 Light, DOAL-50 V2, R LED-D, 12V-C,
Molex Connector*
Configuration Options
I/O Expansion Board 98-AC00-0EB0 HawkEye 1500 I/O Expansion Board
I/O Connector Kit 98-HECONNIO HawkEye 1500 I/O Connector and Ground Tab Kit
I/O Terminal Block 98-99000561 DIN-Rail-Mounted External I/O Terminal Block
Light Stack 98-AC00-0SA0 Three-Color Light Stack, Connects to HawkEye 1500
IP65 Enclosure Glass Window 98-AC00-0EC5 HawkEye 1500 IP65 Enclosure Glass Window
IP65 Enclosure Polycarbonate Window 98-AC00-0EC6 HawkEye 1500 IP65 Enclosure Polycarbonate Window
HawkEye DPM Verifier FIS-HEDPMVER-A0 HawkEye DPM Verifier (License Only)*
Mounting Options
Base Mount Adapter 98-AC00-0BM5 HawkEye 1500 Base Mounting Adapter
Base Mount Adapter 98-HEBMA4 HawkEye 1515 Base Mount Adapter
Demo Stand 98-HEDSL HawkEye 1500/1600T Demo Stand
Demo Stand 98-HEDS HawkEye Demo Stand
Documentation
Microscan Tools CD 37-000001 User’s Manuals, Quick Start Guides, Configuration
Guides, links to other documents on Microscan website
*Available to Microscan V2 and V3 Partners only.
Note: Additional accessories are available in the Microscan Product Pricing Catalog.
