CONNECTORS*

DD Series Decoder Connector:

25-pin D-subminiature Plug

Pin Function

2 +12 VDC

3 +Video

4 -Video

5 -Sync

6 +Sync

7NC

8 Package Detect

9 Laser Ground

10 Laser Ground

11 C Ground

12 +5 VDC

13 NC

14 NC

15 Laser Enable

Power Connector:

4-pin MicroChange Plug

Pin Function

1 Ground

2NC

3 +10-28 VDC

0.75"

(1.9!cm)

Mounting!Holes

3!Places

1.25"!(3.18!cm)

3.2"

(8.13!cm)

0.17"!(0.43!cm)!Dia.

3!Places

Scanner!A

Power

Supply Trigger

Decoder

Scanner!B

MS-820/MS-911 Scanner Port:

15-pin D-subminiature Socket

Pin Function

1 +10–28 VDC

2 Receive RS-232

3 Transmit RS-232

4 Signal Ground

MS-850 Port:

25-pin D-subminiature Socket

Pin Function

1 Chassis Ground

2 Receive RS-232

3 Transmit RS-232

7 Signal Ground

Microscan Corporate Office

Tel 425 226 5700 / 800 251 7711

Fax 425 226 8250

Microscan Europe

Tel 31 172 423360 / Fax 31 172 423366

Microscan Asia Pacific RO

Tel 65 6846 1214 / Fax 65 6846 4641

www.microscan.com

Product Information: info@microscan.com

Tech Support: helpdesk@microscan.com

The IB-140 extends the working life of your DS-DD series decoders by allowing a Microscan

bar code scanner to act as a replacement scan head for Allen-Bradley’s discontinued

L-LD series scan heads.

Compatible with Microscan’s MS-820, MS-911, MS-850, and MS-880 scanners, the

IB-140 converts decoded data from the scanner back into a bar code signal that can be read by an

Allen-Bradley DS-DD series decoder. In essence, it allows a fully integrated bar code scanner to

function as an undecoded scan head alongside an AB decoder.

In the future, should you need the scanner to function independently as a combined reader and

decoder, disconnecting the IB-140 will allow the scanner to revert to its fully functional, integrated

performance. If you have an existing application using a DS-DD series decoder, pairing a Microscan

scanner to the system will provide the application a reliable scanning source.

© 2002 Microscan Systems, Inc.

Specifications subject to change. 09/02

ISO 9001/Cert. No. 00-1047

MECHANICAL

Length: 3.2 in. (8.13 cm)

Width: 3.15 in. (8 cm)

Height: 0.75 in. (1.9 cm)

Connectivity Device

*Pinout tables show active pins only.

See Reverse Side for

Configuration Diagrams.

IB–140 SPECIFICATIONS

Trigger Connector:

4-pin MicroChange Socket

Pin Function

1 +10-28 VDC

2 Trigger

3 Ground

4N/C

ELECTRICAL

Supply Voltage Input:

Regulated +10–28 VDC

SAFETY CERTIFICATIONS

UL/cUL, FCC

MODEL REFERENCE LIST:

Compatible A-B Decoder Series

DD1A

DD4A

DS1A

DS4A

Obsolete A-B Scan Head Models

LD1

LD2

LD4

LD8

L4

L5

L7

L9

Microscan Replacement Scanners

MS-820

MS-911

MS-850

MS-880

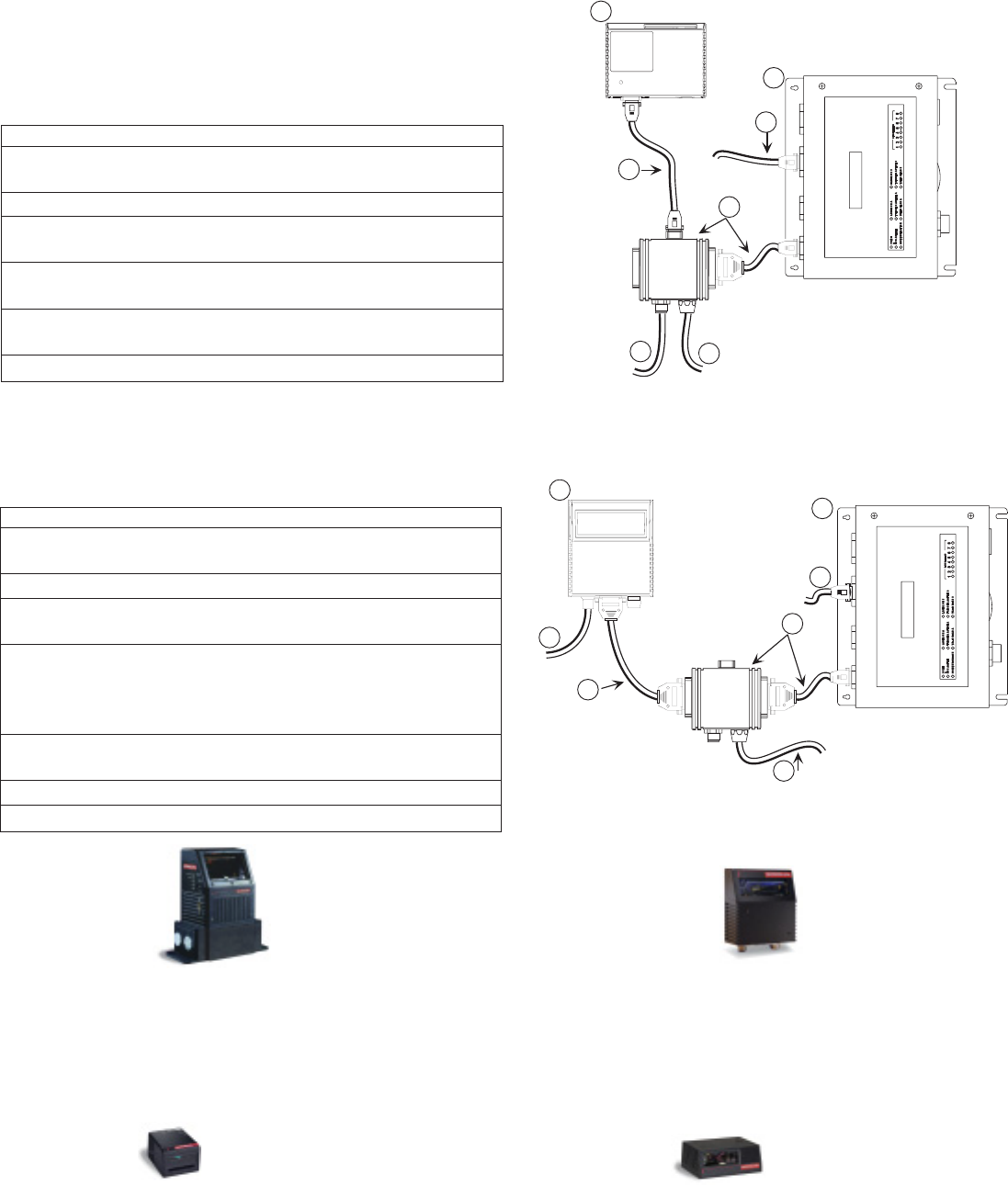

IB–140 CONFIGURATIONS

MS-911

Real-time decode rate of 2,000 scans per second for high speed applica-

tions. Provides strong quality control assurance with multiple looks at a

given label.

•scans/second: 2,000 •read range: 1 to 9” (2.54 to 22.9 cm)

•3 programmable outputs •10-28 VDC input

•OMR and invisible ink options

MS-820

Exceptionally compact single line industrial scanner offering

extended read range. An MS-820 is a compact scanner designed for

industrial applications.

•scans/second: 300-1,100 •read range: 2 to 32” (5.08 to 81.3 cm)

•optoisolated inputs/outputs •3 programmable outputs

•10-28 VDC input •PDF417

MS-850

Industrial high speed scanner equipped with an adjustable sweeping

raster that reads multiple labels in various locations.

The MS-850 reads PDF417 and all standard linear codes.

•scans/second: 350-1,100 •read range: 2 to 30” (5.08 to 76.2)

•optoisolated inputs/outputs •3 programmable outputs

•10-28 VDC input •Reads PDF417

MS-820 OR MS-911 SCANNERS

This diagram shows how to connect the MS-820

or MS-911 to the DS-DD series decoder.

This allows the scanner to function as an undecoded scan head.

MS-850 OR MS-880 SCANNERS

This diagram shows how to connect the MS-850 or

MS-880 to the DS-DD series decoder. This allows the

scanner to function as an undecoded scan head.

MS-880

The MS-880 is a versatile and high performance industrial automation

scanner. The MS-880 offers robust features including wireless program-

ming, autofocus, linear and 2-D code reading, and multiple protocols.

•scans/second: 400-1,000 •read range: 10 to 120” (25.4-304 cm)

•optoisolated inputs/outputs •10-28 VDC input

•3 programmable outputs •Reads linear bar codes and PDF417

Typical Configuration

1 Scanner FIS-0820-000X

FIS-0911-000X

2 Scanner/IB-140 Cable 61-000011-01 (no cable for MS-911)

3 IB-140 Kit 98-100016-02 (for DS1A/DD1A)

(1 per scanner) 98-000031-01 (for DS4A/DD4A)

4 Power Supply 97-100004-05 (110V)

97-100004-06 (220V)

5 Object Detector 99-440001-10 (MS-820)

99-440002-03 (MS-911)

6 Comm Cable 61-300026-01

Typical Configuration

1 Scanner FIS-0850-000X

FIS-0880-000X

2 Scanner/IB-140 Cable 61-330008-03

3 IB-140 Kit 98-100016-02 (for DS1A/DD1A)

(1 per scanner) 98-000031-01 (for DS4A/DD4A)

4 Power Supply 97-100004-05 (110V) (MS-850)

97-100004-06 (220V) (MS-850)

97-100004-11 (110V) (MS-880)

97-100004-12 (220V) (MS-880)

5 Object Detector 99-440001-10 (MS-850)

99-000004-01 (MS-880)

6 A-B Decoder Existing Equipment

7 Programming Cable 61-300026-02 (MS-850, 880)

Reader 15 Pin

DS/ DD Decoder

Reader 25 Pin

3

1

5

6

2

7

4

Reader 15 Pin

DS/ DD Decoder

Reader 25 Pin

2

4

5

1

6

3

7
