Visionscape® I-PAK® User Manual

Visionscape® I-PAK®

User Manual

84-100031-02 Rev A

Rev 3.7.3, May 2012

Microscan Systems, Inc.

Tel: +1.425.226.5700 / 800.762.1149

Fax: +1.425.226.8250

ISO 9001 Certified

Issued by TüV USA

customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced,

or used for any other purpose without written permission of Microscan.

Throughout this manual, trademarked names might be used. We state herein that we are using the names to the

benefit of the trademark owner, with no intention of infringement.

Disclaimer

The information and specifications described in this manual are subject to change without notice.

Latest Manual Version

For the latest version of this manual, see the Download Center on our web site at:

www.microscan.com.

Technical Support

For technical support, e-mail: helpdesk@microscan.com.

Warranty

For current warranty information, see: www.microscan.com/warranty.

Microscan Systems, Inc.

United States Corporate Headquarters

+1.425.226.5700 / 800.762.1149

United States Northeast Technology Center

+1.603.598.8400 / 800.468.9503

European Headquarters

+31.172.423360

Asia Pacific Headquarters

+65.6846.1214

Visionscape I-PAK User’s Manual iii

Contents

PREFACE Welcome! xv

Purpose of This Manual xv

Manual Conventions xv

Validation xv

Development Details xvi

21 CFR Part 11 xvi

I-PAK Distribution Media xvi

Related Documentation

All Visionscape documentation is provided in PDF format on the USB

drive and on the Microscan website. The PDFs are located in the

\Vscape\Documentation folder. You need Adobe Acrobat Reader (not

included) to open the PDF. After you install Adobe Acrobat Reader.

double-click any .pdf to open Acrobat and view a manual.

I-PAK Documentation

• Visionscape I-PAK V3.7.3 User’s Manual (this manual)

• Visionscape I-PAK V3.7.3 ReadMe

• Visionscape I-PAK Enclosure Product Information

Visionscape Documentation

• Getting Started With Visionscape Framegrabber Boards

• Perl Script Custom Tool Programmer’s Manual

• Visionscape 0740 Framegrabber Board Guide

• Visionscape V3.7.3 ReadMe

Typically, Visionscape I-PAK comes complete as a system from

Microscan. It has all the necessary components installed in the PC. The

Visionscape framegrabber documentation suite is shown in Figure 1.

Preface

xvi Visionscape I-PAK User’s Manual

FIGURE 1. I-PAK Documentation Map

Terminology

There are many camera options supported by the Visionscape I-PAK,

most easily recognized by the term 740 boards.

/Express

Install hardware

All Users

Hardware Software

Install software

Visionscape

FrontRunner

User’s Manual

Visionscape

Programmer’s

Kit (VSKit)

Manual

Programming

User

Visionscape

0740

Framegrabber

Board

Guide

Visionscape I-

PAK User’s

Manual

Visionscape I-

PAK User’s

Manual

Visionscape

Tools

Reference

Manual

Visionscape I-PAK User’s Manual 1-1

Visionscape I-PAK

Inspection

CHAPTER 1 Visionscape I-PAK

Inspection

Visionscape I-PAK’s primary focus is to inspect, measure, verify position,

verify characters, and detect flaws on pharmaceutical packaging. The

implementation of I-PAK is flexible, allowing for expansion of I-PAK into

the other vision areas of pharmaceutical companies, i.e., medical device

manufacturing, diagnostic drugs, glass vials, and laboratory automation.

I-PAK is adaptive and can easily be used in many other industries.

Note: You can use IntelliFind® if an IntelliFind® hardware key is installed. For

more information about IntelliFind®, see Chapter 7 of the Visionscape

Tools Reference (included on the USB drive).

Note: Use of this device other than specified by Microscan is prohibited.

Chapter 1Visionscape I-PAK Inspection

1-2 Visionscape I-PAK User’s Manual

System Specifications

I-PAK interfaces with the Visionscape framegrabber hardware on a

system-compatible PC as described in “I-PAK Hardware Components” on

page A-1. Ensure that you carefully review the complete system

requirements (hardware and software) provided.

I-PAK supports one 0740 framegrabber board in a PC.

Note: The 0740 supports two different camera resolutions. For more

information, see Table 1–2 on page 1-7

Each board provides for synchronous and asynchronous operations:

• Synchronous operation allows you to capture images from multiple

cameras simultaneously.

• Asynchronous operation involves the support of multiple independent

inspections. For example, using I-PAK to inspect parts at two

separate locations on the same production line where the inspections

are not synchronized and are run at different part rates.

Many other image resolutions are available using the CAM I/O 740 board.

All images and inspection results are uploaded from the framegrabber to

the host PC for viewing directly on I-PAK’s touchscreen.

For low-resolution applications, ensure that the camera’s field/frame

switch is set to FLD.

For high-resolution applications, ensure that the camera’s field/frame

switch is set to FRM.

I-PAK allows the programming of 16 programmable I/O points per

framegrabber board. You can configure the total number of input and

output points within the system. The trigger and strobe I/O are separate

I/O points that are not part of the programmable 16. These independent

trigger and strobe I/O points are available for each camera.

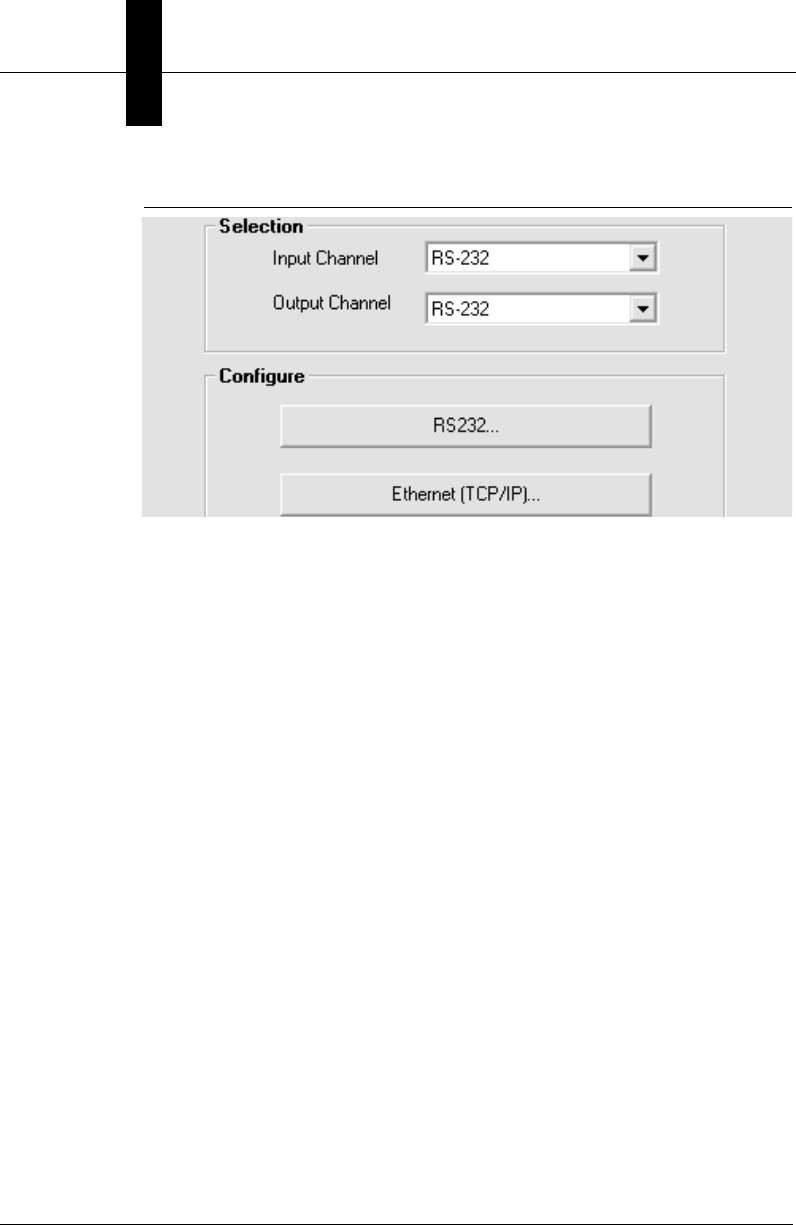

Communications with I-PAK occur through discrete I/O points, RS-232,

TCP/IP or through direct result uploads from the framegrabber to the host

PC. Pre-defined user access levels provide security to the programming

environment.

Product Specifications

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-3

Product Specifications

Table 1–1 lists the product specifications for I-PAK.

In the event of a PC reboot, upon restart of the PC and I-PAK, the last

vision product job definition and its statistics are downloaded to the

framegrabber and are ready to run, awaiting a trigger.

TABLE 1–1. Visionscape I-PAK Product Specifications

Feature Description

Hardware Supports one 0740 framegrabber board.

Trigger Per framegrabber board, 4 trigger inputs and 4 strobe outputs, which

allow separate camera triggering.

I/O Programmable 16-point I/O scheme (not including triggers and

strobes). The default configuration is 2 inputs and 14 outputs when

using the Microscan 16 point combination I/O board.

When using the Mini I/O board, the following I/O are available:

- 2 inputs

- 4 outputs

- 2 part sensor triggers

- 2 strobe outputs

Access Levels Predefined Operator, Supervisor, and Programmer levels are provided.

Predefined: Administrator to create a data file of 21 CFR Part 11 users.

21 CFR Part 11 user name login capability is provided and its users are

assigned access levels of Operator, Supervisor or Programmer.

Communications Digital I/O, RS-232, TCP/IP.

Backup of Statistics and

Product Definitions

All Statistics are saved in the PC’s registry. The last run Job’s name is

also stored in the PC’s registry. This feature enables the vision counts

and product definition to be restored in the event of power interruption

and power failure.

Chapter 1Visionscape I-PAK Inspection

1-4 Visionscape I-PAK User’s Manual

Functional Specifications

I-PAK resides on the PC in the Windows environment. It is designed to

create, manipulate, train, and execute vision tools via a user-friendly

program. I-PAK supports both Setup Mode (see Chapter 6, “Setup Mode

Reference”) and Run Mode (see Chapter 7, “Run Mode Reference”) in a

tri-level access scheme.

Note: Microscan supports Windows XP Professional SP3.

The following is a summary of the I-PAK functional specifications:

• Inspection Program Creation

– Acquiring an image in the display window. A region of interest

(ROI) is defined by established boundaries within the field of view

(FOV) where an inspection is performed.

– Selecting, positioning, and sizing vision tools.

– Training vision tools.

– Entering a match string for a Data Matrix, Barcode Tool, Font Tool

or OCRTrainable Font Tool.

– Specifying a font style for training of the Font Tool.

– Tweaking vision inspection properties.

– Saving and restoring Inspection Program (Job) definitions.

• Test Inspection Program in Tryout Mode

– Setting tryout inspection criteria.

– Performing a tryout inspection on a single vision tool or on all

vision tools within a Job.

– Modifying inspection criteria to retool tryout results.

• Product ChangeOver

– Quick restoration of pre-programmed Job definitions for ease of

batch changeover.

Functional Specifications

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-5

– Automated resetting of Statistics and Failures.

– Connecting to the framegrabber and downloading an I-PAK

program to the framegrabber.

• Viewing of the executing inspections in runtime

– Automatic uploading of inspection images and their results from

the framegrabber to I-PAK.

– Showing all camera views of product being inspected.

– Enabling and disabling runtime graphics.

– Zooming in and out on inspection images being displayed.

– Updating the video display to show the last inspection failure with

its graphics.

– Viewing of the Failure Report of ongoing inspection noting all the

failure types and their frequency for this inspection run.

• End of Batch Statistical and Failure information about the inspection

– On-Screen reviewing of Runtime Statistics and Failures.

– Transmitting of Runtime Statistics via RS-232 or TCP/IP to

another device.

– Ability to save Runtime Statistics to a file.

– Resetting of Statistical Information.

– Resetting of Failure Information.

• End of Batch Product Data

– On-Screen reviewing of Product Data.

– Transmitting of Product Data via RS-232 or TCP/IP to another

device.

– Ability to save the Product definition, its Failure Report and

Runtime Statistics to a file.

• Customizing of System Settings

Chapter 1Visionscape I-PAK Inspection

1-6 Visionscape I-PAK User’s Manual

– Ability to set camera triggering method, etc.

– Ability to define automated functions after Product ChangeOver.

• Support of 21 CFR Part 11 Compliance

– Login User Name Access with Password Expiration Feature.

– Configuration File Audit Trail.

– Login option available when re-training a Data Matrix or Barcode

Tool in Match Mode and Training a Font Tool or Runtime Font

Tool.

Supported PC

The I-PAK SE2 was tested and is supported by Microscan and this

release of I-PAK software. You can open the Touch Input software using

the following button:

The button is only available in Windows or dialog boxes where you can

enter data. Additionally, in Setup Mode, you can open the Touch Input

using

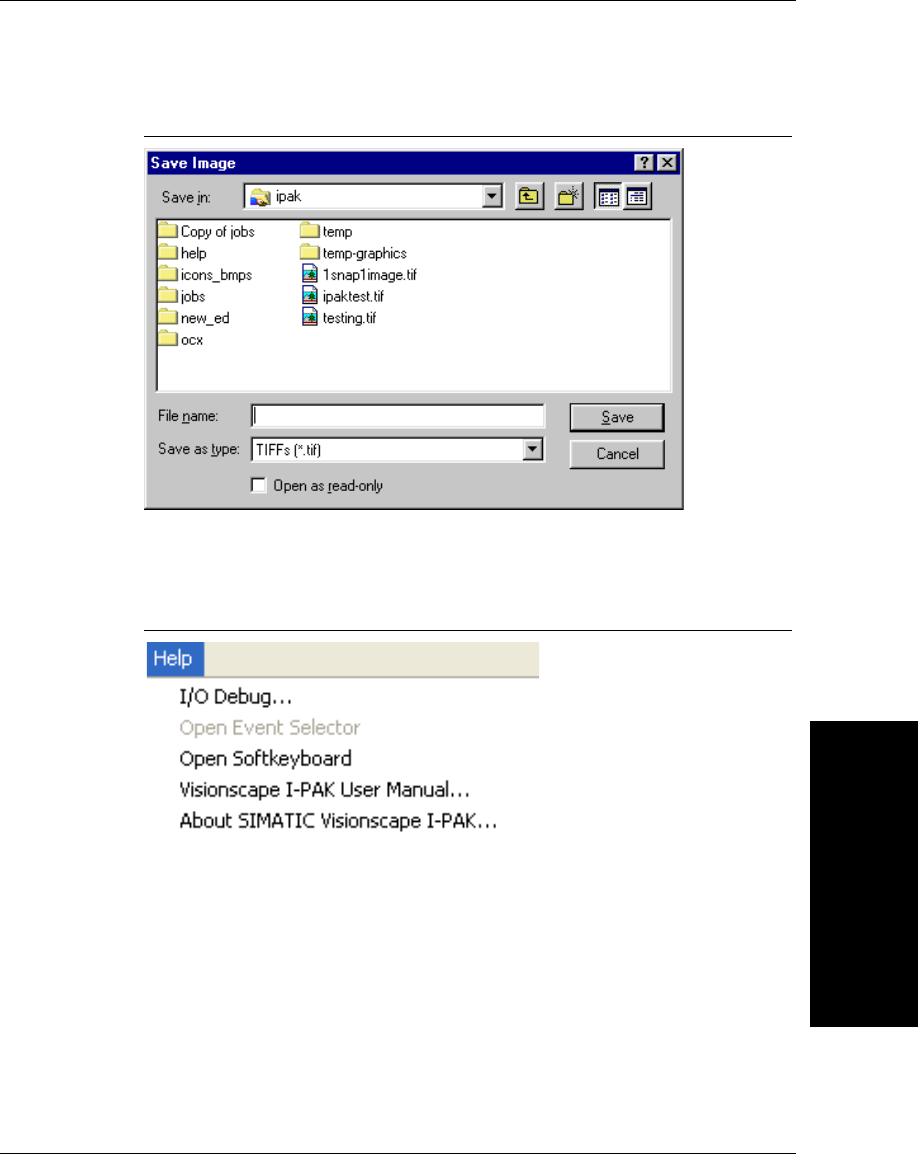

Help > Open Softkeyboard.

Supported Cameras

The following cameras are supported by Microscan and this release of I-

PAK software:

• 0740

– Microscan CM4000/Microscan CM4001

– Sentech STC-A33A

– Sentech A152A (No more than three cameras)

User Interface

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-7

User Interface

The UI is English only, and independent of the language setting of the

operating system.

Storing Inspection Results

You can store inspection results to a file. If the file does not exist when

you store inspection results, it will be created. If the file does exist,

inspection results are appended to the end of the file.

Note: Only Supervisor and Programmer can edit or select a file name.

Valid Camera Configurations

TABLE 1–2. 0740 Valid Camera Configurations

Camera - Type 1 Camera - Type 2 Remarks

Single Resolution

1-4 * CM4000 All the same resolution

640 * 480 or 320 * 240

No mixing of resolution allowed

1-4 * CM4001 All the same resolution

768 * 572 or 384 * 286

No mixing of resolution allowed

1-4 * A33 24 MHz 640 * 494 24 MHz or

640 * 104 24 MHz

1-2 * A33 36 MHz 640 * 494 36 MHz

1-3 * A152 1325 * 1040

Chapter 1Visionscape I-PAK Inspection

1-8 Visionscape I-PAK User’s Manual

Mixed Resolution

A33/24 MHz (640*494)

1 up to 3

A33/24 MHz (640*494)

1 up to 3

Any combination

A152

1 up to 3

A33/24MHz 640*494

1 up to 3

Any combination

A152

1 up to 3

A33/24MHz 640*140

1 up to 3

Any combination

TABLE 1–2. 0740 Valid Camera Configurations (continued)

Camera - Type 1 Camera - Type 2 Remarks

Moving and Sizing Tools

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-9

Moving and Sizing Tools

Table 1–3 lists the keys and key sequences to move and to size tools.

TABLE 1–3. Keys to Move and Size Tools

Key(s) Resulting Action

Up Arrow Moves shape up by one pixel

Down Arrow Moves shape down by one pixel

Right Arrow Moves shape to the right by one pixel

Left Arrow Moves shape to the left by one pixel

F Flips shape by 90° if shape is rotatable

L Rotates shape one degree to the left (counter clockwise)

if shape is rotatable

R Rotates shape one degree to the right (clockwise) if

shape is rotatable

Shift + Up Arrow Increases the height of the shape by one pixel

Shift + Down Arrow Decreases the height of the shape by one pixel

Shift + Right Arrow Increases the width of the shape by one pixel

Shift + Left Arrow Decreases the width of the shape by one pixel

Control + Up Arrow Moves shape up by one tenth of a pixel

Control + Down Arrow Moves shape down by one tenth of a pixel

Control + Right Arrow Moves shape to the right by one tenth of a pixel

Control + Left Arrow Moves shape to the left by one tenth of a pixel

Control + F Flips shape by 180° if shape is rotatable

Control + L Rotates shape one tenth of a degree to the left (counter

clockwise) if shape is rotatable

Control + R Rotates shape one tenth of a degree to the right

(clockwise) if shape is rotatable

Control + 0 Rotates shape to exactly 0°

Chapter 1Visionscape I-PAK Inspection

1-10 Visionscape I-PAK User’s Manual

Modifying AVPSYS Files from Previous Versions

I-PAK V3.7.3 can interpret and modify .avpsys files from previous

versions of I-PAK.

A Visionscape I-PAK Product

A Visionscape I-PAK Product is the combination of the tools and steps

written by an Application Engineer or Programmer to accomplish your

inspection tasks. These Products are also referred to as “Jobs”.

Note: I-PAK 3.7.3 can execute .avp files from previous versions of I-PAK.

Avps that handle more than one Visionscape board are rejected.

These product definitions are stored on the PC’s hard drive in a

subdirectory where you installed I-PAK software called “\Jobs”. For

example, if you install the I-PAK software in C:\Vscape, then, when you

first run I-PAK, it automatically creates the Jobs folder as follows:

C:\Vscape\I-Pak\Jobs

I-PAK software performs special functions to make using the Visionscape

Inspection device easier. In the case of Font Tools and Data Matrix Tools,

where most people are often interested in verifying the inspection strings

just read, I-PAK automatically adds steps to your Job to get this

information out of I-PAK and back up to the PC user interface.

Scan for Sequence Steps Using Outputs

Another useful automatic feature of I-PAK is “Scan for Sequence Steps

Using Outputs”, which checks the logic so that, when a snapshot step

fails (e.g., camera unplugged), the outputs used in sequence steps are

set to false. This prevents an inspection from passing (when monitoring

sequence step outputs) when the snapshot fails.

Compatibility of Products of Previous Versions of I-PAK

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-11

Compatibility of Products of Previous Versions of I-PAK

If a Job handles more than one Visionscape board, it is rejected.

Behavior for Camera Types Inside Old Jobs

• Visionscape I-PAK V3.7.3 supports the following cameras:

– Sentech A33A

– Sentech A152A

–CM4000

–CM4001

Jobs using these cameras will always be opened.

• Visionscape I-PAK V3.7.3 does not support the following cameras:

–JAI CV-M1

– KP-M1

– KP-M1 Field

– KPF100A

– Pulnix TM6730

– Sentech 1100B

When opening a Job using one these camera types, the following

message is displayed:

Product uses an unsupported camera and will not be opened

• For new unknown cameras, only cameras with the appropriate

camera definition file can be selected for a Job.

Chapter 1Visionscape I-PAK Inspection

1-12 Visionscape I-PAK User’s Manual

Software Systems

Note: You cannot mix a Software board and a Hardware board. If you try

this, an error message is displayed and I-PAK will be closed.

Software Systems are full featured devices. Software Systems support

Load Images from File mode to acquire an image while running in offline

mode. Software Systems are not simulators or emulators of a board. Jobs

that run on a Software System use the CPU resources and memory of the

host PC. A dongle is required to run Jobs on a Software Systems fully;

otherwise, the Jobs can be loaded or modified and run on a Software

System, but they cannot be saved.

When loading a Job created for a supported device, either board or Smart

Camera, the Job is not changed and can be used as is. When loading a

Job onto a device, you are prompted to adjust the camera definition if the

device is different from the one the Job was created on. Warnings that

require user action are shown if the I/O assignments are out of range for

the device or if the Job uses IntelliFind® but is loaded on a device that does

not support this tool. For more information about IntelliFind®, see Chapter

7 of the Visionscape Tools Reference (included on the USB drive)

Creating Jobs for these Systems is the same as creating Jobs for other

physical devices with the following differences:

• No specific camera definitions for a specific device are programmed

into the VisionSystemStep camera channels. The default for Software

Systems is CM4000. You must change the camera definition in the

VisionSystemStep properties page if a different (usually) image size is

required, or if your are working offline and plan to load the Job later

on a physical device.

• By default, the Acquire Tool is programmed to Load Images from File,

as there is no digitizer available on a Software System (Image List is

empty originally and must be populated also). When loaded on a

physical device, you must change the Acquire mode to Acquire from

Camera to enable acquisition from the device CCD sensor.

For complete information about the Acquire and the Vision System step,

see Chapter 1 of the Visionscape Tools Reference.

I-PAK Start-up Procedure

Visionscape I-PAK

Inspection

Visionscape I-PAK User’s Manual 1-13

I-PAK Start-up Procedure

Typically, I-PAK is the only program running on the PC. When you start

the PC and login to Windows, I-PAK starts because it is in the Windows

startup group. The first thing I-PAK does is to reboot the framegrabber

board(s), go into Run Mode, reference the PC’s registry, and download

the last run Job and its counters. Finally, I-PAK refreshes all the camera

views and is ready to run awaiting a trigger.

I-PAK Shutdown Procedure

To properly shut down I-PAK, exit Run Mode by entering the Programmer

password. Then, close I-PAK by clicking File > Exit. Next, via the PC’s

Start button, shutdown the PC. When the PC has completed shutting

down, turn off the UPS.

Chapter 1Visionscape I-PAK Inspection

1-14 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual 2-1

Visionscape I-PAK

Tutorials

CHAPTER 2 Visionscape I-PAK Tutorials

This chapter guides you through two tutorials:

• A basic I-PAK tutorial. See “Tutorial 1 — OCVFontless Tool” on

page 2-3.

• A more advanced tutorial using font-based Font tools.

See “Tutorial 2 — OCVRuntimeTool” on page 2-20.

This chapter serves as a guide. Your results may vary.

Ensure that the Visionscape framegrabber hardware and I-PAK software

have been properly installed and configured (see Appendix C, “Software

Installation”).

For more information on hardware and software installation and setup,

refer to the framegrabber board guides (on the USB drive).

As you go through these tutorials, refer to Chapter 5, “OCV Reference”,

Chapter 6, “Setup Mode Reference”, and Chapter 7, “Run Mode

Reference” for more information.

Chapter 2Visionscape I-PAK Tutorials

2-2 Visionscape I-PAK User’s Manual

Overview

I-PAK incorporates two primary functional categories: Run Mode and

Setup Mode. Security access is restricted by the current user access level

selected.

Setup Mode

Setup Mode allows a Supervisor to perform a Product ChangeOver, re-

train a Job, and view and reset end of batch statistics.

Setup Mode allows a Programmer to create a Job, define I-PAK system

parameters such as number of cameras, triggering methods, and so on.

This involves setup of all components of the application from positioning

the part in the camera’s FOV to training the vision tools.

The Run Mode button is grayed out until all tools in the current Job are

trained.

Run Mode

Run Mode allows an Operator to view the operation of the framegrabber

inspecting product. After a Product ChangeOver or after a new product is

defined, the Supervisor downloads the Job to the framegrabber where I-

PAK goes On-line and waits for an inspection trigger. When an input

trigger is received, the inspection Job executes, the digital outputs are set

and inspection images and their results are displayed on the I-PAK

monitor. Refer to Chapter 7, “Run Mode Reference” for more information.

Note: The Runtime and Setup screens have the standard Microsoft

Windows Minimize button on the upper right corner of the screens when

the Minimize option is enabled in the System Settings. When clicked, this

button “minimizes” the I-PAK application. When the run screen is

minimized, it automatically minimizes the child windows (camera views,

runtime stats, etc.).

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-3

Tutorial 1 — OCVFontless Tool

In this tutorial, you will create a simple I-PAK product that uses an

OCVFontless Tool. It is assumed that all System Settings are set to their

default values. If you have modified any System Settings, the figures and

descriptions in this tutorial may vary from the results you experience.

1. From Windows, select Start > Visionscape > Visionscape I-PAK. This

activates I-PAK, and the I-PAK Run Mode window is displayed, as

shown in Figure 2–1.

FIGURE 2–1. I-PAK Run Mode Window

2. Click the Key icon. This displays the Password dialog box, as shown

in Figure 2–2.

Chapter 2Visionscape I-PAK Tutorials

2-4 Visionscape I-PAK User’s Manual

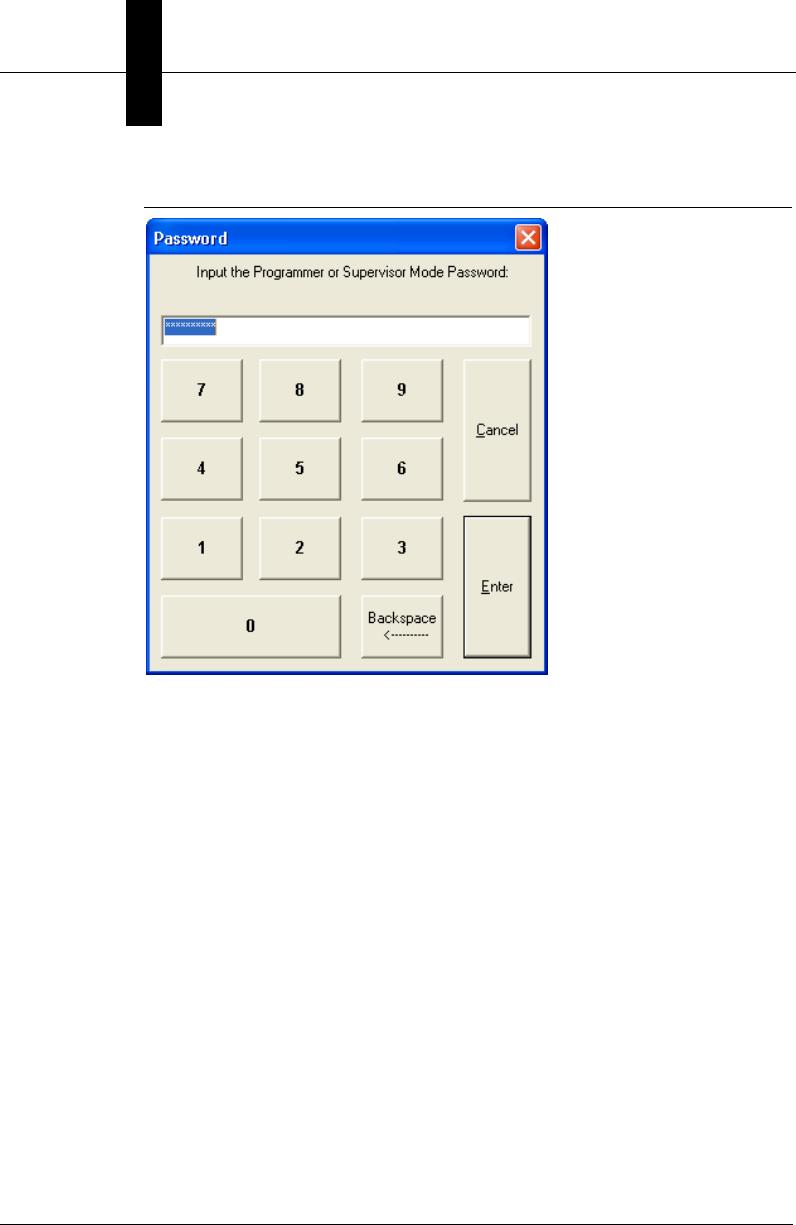

FIGURE 2–2. Password Dialog Box

3. Type 0101 and click Enter. This places you in Programmer Mode and

displays the Setup Mode window, as shown in Figure 2–3.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-5

FIGURE 2–3. I-PAK Setup Mode Window

4. Click Advanced Settings.

5. Click Create a Product. This displays the Product Settings dialog box,

as shown in Figure 2–4.

6. For Camera 1, change the Resolution Options to match the camera

currently connected to Camera 1 on the I-PAK; change

Trigger/Acquire Method to Continuous.

Chapter 2Visionscape I-PAK Tutorials

2-6 Visionscape I-PAK User’s Manual

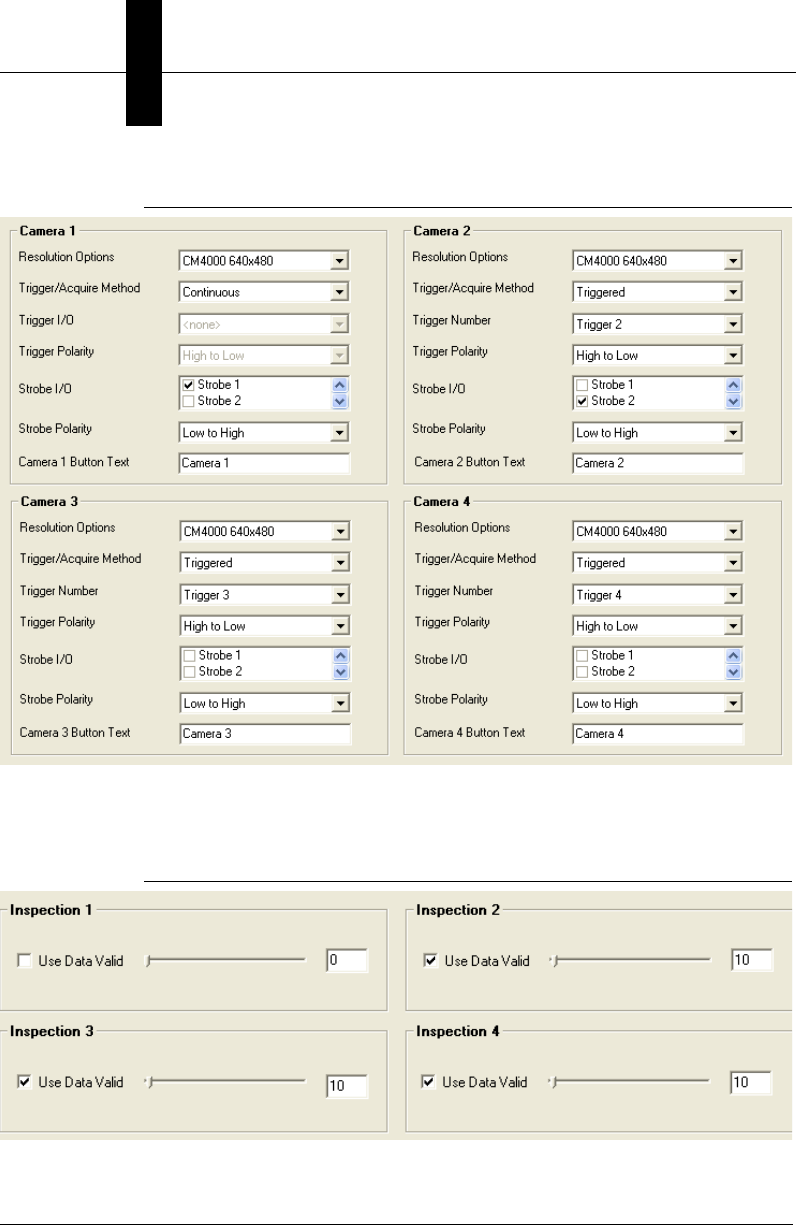

FIGURE 2–4. Product Settings Dialog Box — Cameras Tab

7. Click Next. This displays the Product Settings dialog box, Data Valid

tab, as shown in Figure 2–5.

FIGURE 2–5. Product Settings Dialog Box — Data Valid Tab

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-7

8. Observe the default settings. Click Next. This displays the Product

Setting dialog box — I/O tab, as shown in Figure 2–6.

FIGURE 2–6. Product Settings — I/O Tab

9. Observe the default settings. Click Next. This displays the System

Settings dialog box — Communication tab, as shown in Figure 2–7.

Chapter 2Visionscape I-PAK Tutorials

2-8 Visionscape I-PAK User’s Manual

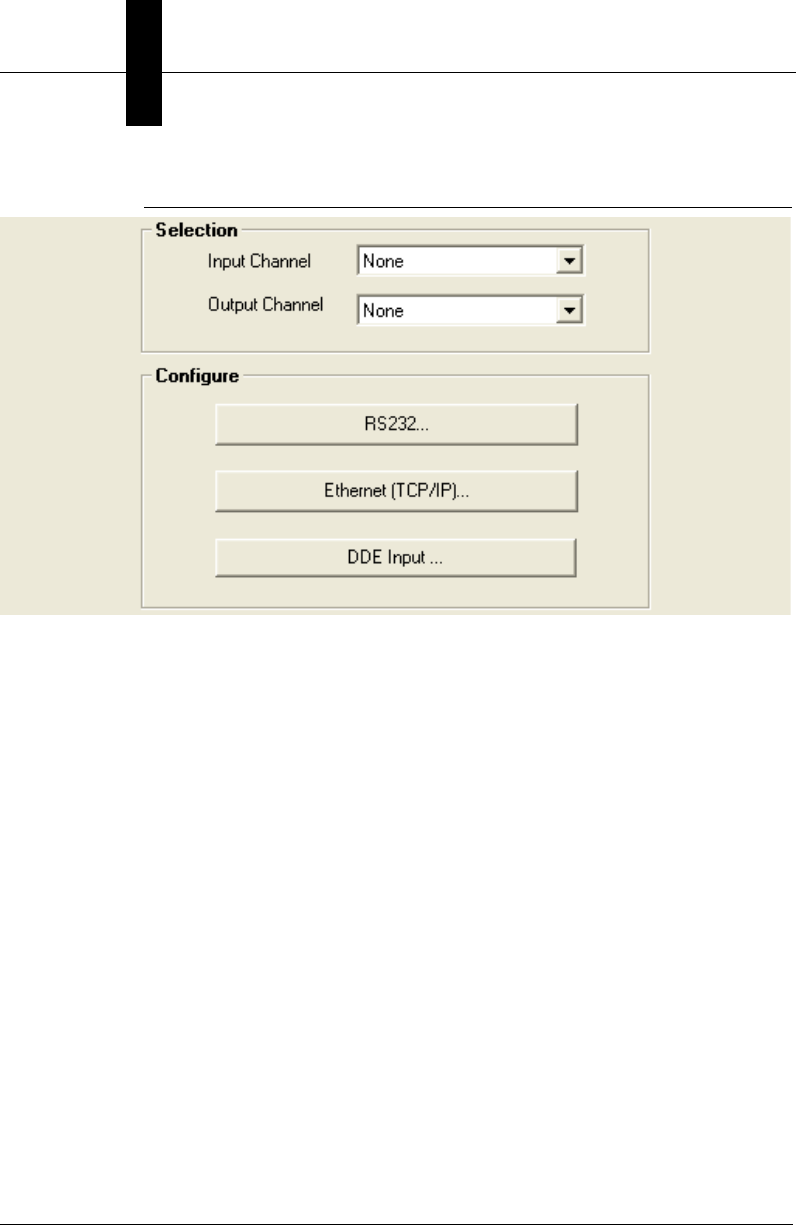

FIGURE 2–7. System Settings Dialog Box — Communication Tab

10. Observe the default settings. Click Next. This displays the System

Settings dialog box — Training and Results tab, as shown in

Figure 2–8.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-9

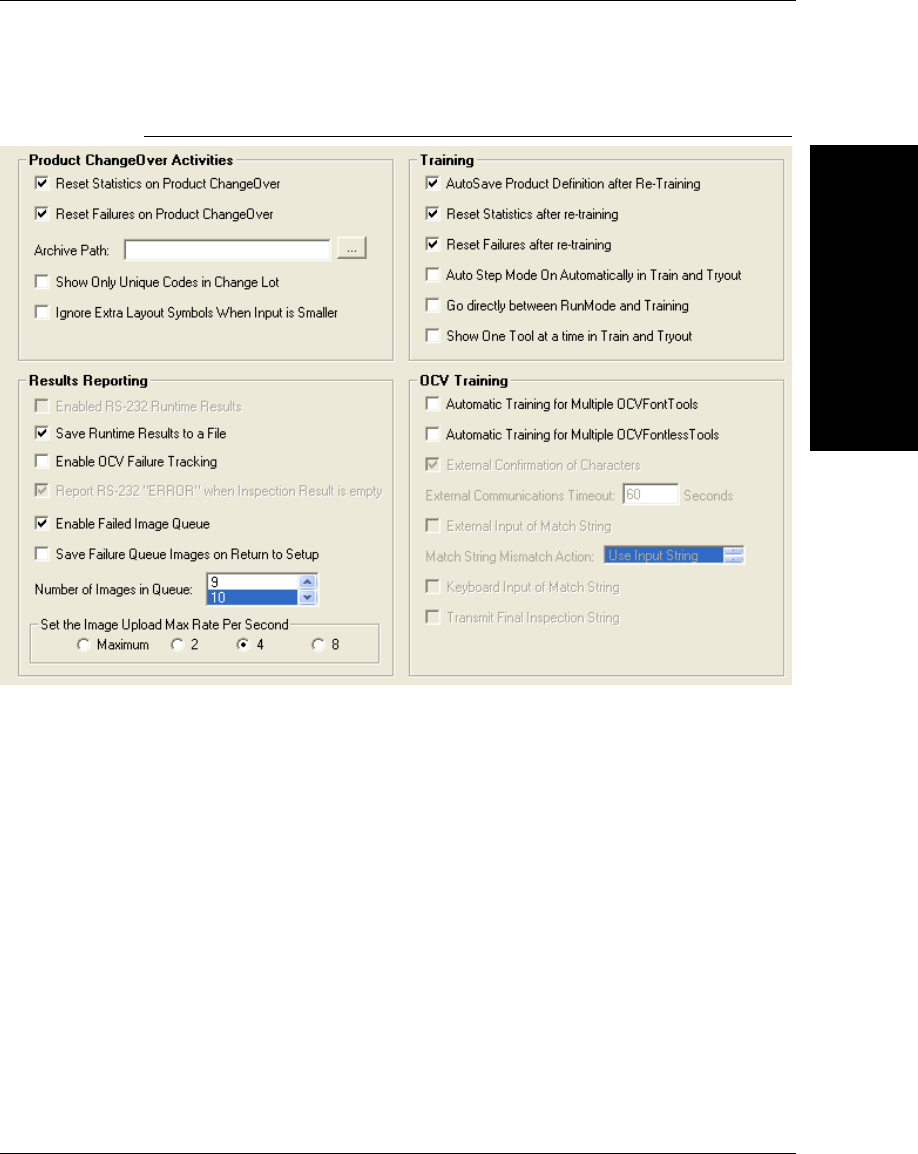

FIGURE 2–8. System Settings Dialog Box — Training and Results Tab

11. Observe the default settings. Click Next. This displays the System

Settings dialog box — General tab, as shown in Figure 2–9.

Chapter 2Visionscape I-PAK Tutorials

2-10 Visionscape I-PAK User’s Manual

FIGURE 2–9. System Settings Dialog Box — General Tab

12. Observe the default settings. All menu options must be available for

training and tryout during this tutorial. Click (to select) Show All Menu

Options (Advanced Users), as shown in Figure 2–9. Click OK. This

displays the Product Creation dialog box, as shown in Figure 2–10.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-11

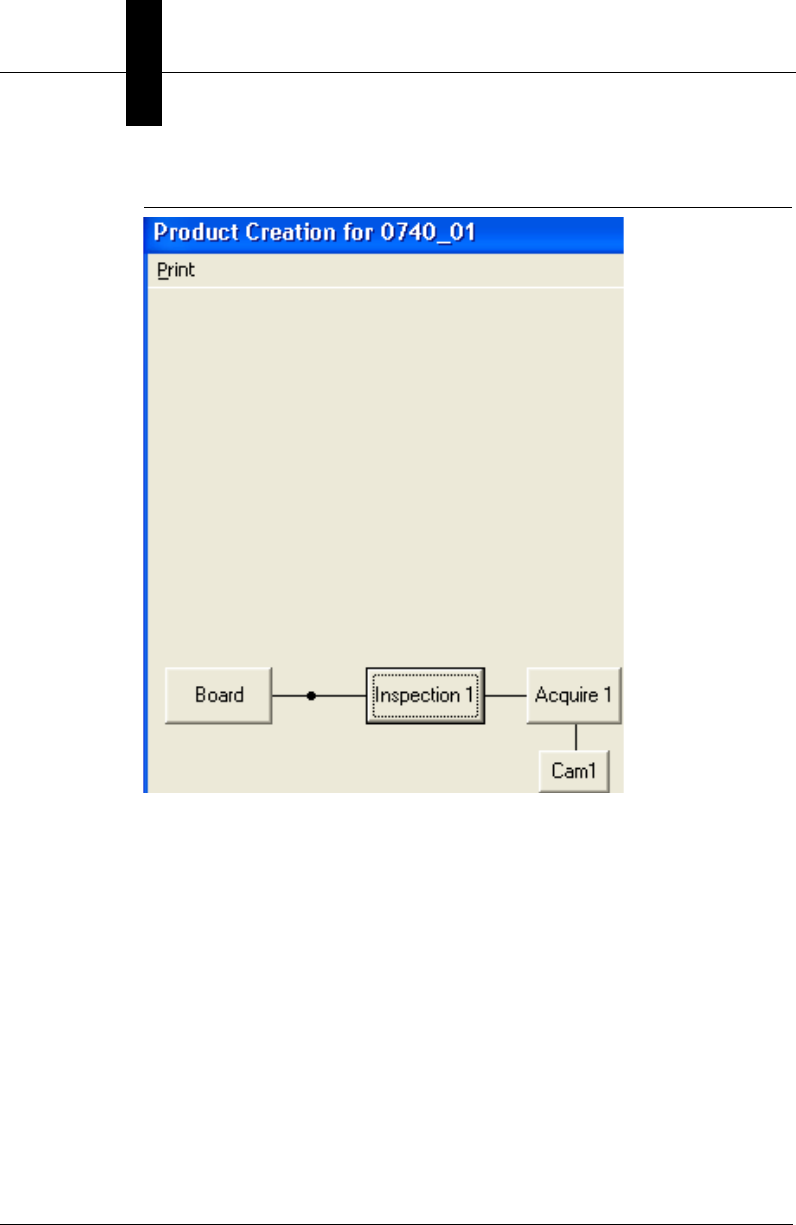

FIGURE 2–10. Product Creation Dialog Box

13. Right-click on Inspection 1. This displays the Add/Delete Snapshot

box, as shown in Figure 2–11.

FIGURE 2–11. Add/Delete Snapshot Box

14. Select Add Snapshot 1. This displays the Acquire1 window, as shown

in Figure 2–12.

Chapter 2Visionscape I-PAK Tutorials

2-12 Visionscape I-PAK User’s Manual

FIGURE 2–12. Product Creation — Acquire 1

15. Right-click on Acquire 1. This displays the Insert A Step dialog box,

as shown in Figure 2–13.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-13

FIGURE 2–13. Insert A Step Dialog Box

16. Select OCVFontlessTool and click OK.

17. Right click on Acquire 1, select Wait Step from the list, and click OK.

This displays the Product Creation dialog box shown in Figure 2–14.

Chapter 2Visionscape I-PAK Tutorials

2-14 Visionscape I-PAK User’s Manual

FIGURE 2–14. Product Creation — OCVFontlessTool

18. Click OK. This returns you to the dialog box shown in Figure 2–12,

“Product Creation — Acquire 1,” on page 2-12.

19. Click OK. This displays the Save Product dialog box, as shown in

Figure 2–15.

FIGURE 2–15. Save Product Dialog Box

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-15

20. Type Test1 and click Save. This displays the Setup Mode — Training

window, as shown in Figure 2–16.

FIGURE 2–16. Setup Mode — Training

21. Click Live to start a continuous live video loop. Use this to adjust your

f-stop and focus your camera.

22. Click Live again to stop live video. Obtain an image that contains

some text and/or numerical data. We will use the OCVFontlessTool

and your text.

23. The Train button shows red and the OCVFontlessTool is displayed.

Drag the tool and place it around the appropriate text, as shown in the

Chapter 2Visionscape I-PAK Tutorials

2-16 Visionscape I-PAK User’s Manual

example. Drag the AutoFind Tool and place it around the appropriate

text, as shown in Figure 2–17.

FIGURE 2–17. Fontless FontTool Position

24. Click Train. The Train button shows green. This indicates a

successful train.

25. Click Next. The Next button text will change to Finish. Click Finish.

26. Click Options. This displays the Options dialog box, as shown in

Figure 2–18.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-17

FIGURE 2–18. Options Dialog Box

27. Click (to select) Loop, and click OK.

28. Click Try All. This places the Job in a continuous loop allowing you to

observe your recently created Job.

29. Click Try Stop, and then click Exit Training to Main Setup. The Stats

to Zero dialog boxes and the Failures to Zero dialog boxes are

displayed. This returns you to the Setup Mode main window, as

shown in Figure 2–19.

Chapter 2Visionscape I-PAK Tutorials

2-18 Visionscape I-PAK User’s Manual

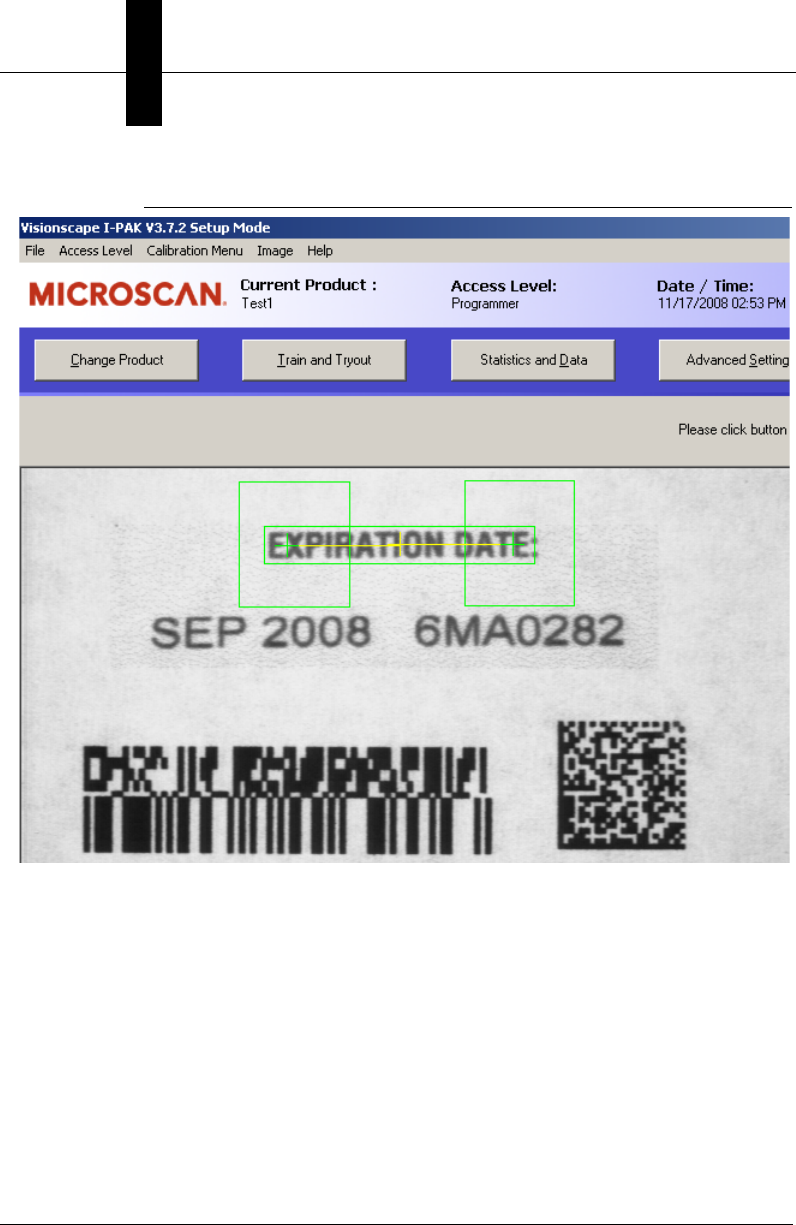

FIGURE 2–19. Setup Mode Main Window

30. Click Run Mode. This returns you to Operator Mode and displays the

Run Mode window, as shown in Figure 2–20.

Tutorial 1 — OCVFontless Tool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-19

FIGURE 2–20. Run Mode Window With Job Running

Your Job will run in the Camera 1 View window in a continuous mode.

Chapter 2Visionscape I-PAK Tutorials

2-20 Visionscape I-PAK User’s Manual

Tutorial 2 — OCVRuntimeTool

This tutorial takes you through the process of setting up an inspection

using OCVRuntimeTool. For more details, refer to “OCVRuntimeTool” on

page 5-44.

Note: Tutorial 1 steps 1-13 show additional details for steps 1-4 of Tutorial

Setting Up Tool Set

1. From the main Setup Mode window of I-PAK, click Advanced Settings

and Create a Product. This displays the Product Settings dialog box.

2. Select the appropriate settings from this dialog box and click Next.

3. Continue this process until the OK button is displayed. Click OK. This

displays the Product Creation screen.

4. Right-click on the Inspection and select Add Snapshot 1 from the

drop-down list.

5. Right-click on Acquire 1. The dialog box changes to display the tool

details of Acquire 1. This displays the Insert a Step dialog box, as

shown in Figure 2–21.

Tutorial 2 — OCVRuntimeTool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-21

FIGURE 2–21. Product Creation — Insert A Step Dialog Box

6. Right-click on Acquire 1 and select OCVRuntimeTool from the list.

7. Right-click on Acquire 1 and select Wait Step from the list. This

displays the Product Creation — Acquire 1 Tools Detail dialog box, as

shown in Figure 2–22.

Chapter 2Visionscape I-PAK Tutorials

2-22 Visionscape I-PAK User’s Manual

FIGURE 2–22. Product Creation — Acquire 1 Tools Detail

8. Now you have all the steps required for this tutorial. Click OK twice.

Type a name for the Job and click Save.

9. You are shown the Setup Mode Train and Tryout wizard window. If

AutoStep Mode is active, click Exit AutoStep Mode.

Font Training

At least one OCVFont is required to use the OCVRuntimeTool. OCVFonts

are stored in the Vscape\Jobs\Fonts folder on the hard drive. Also, you

will need a good image for training.

1. Place a good example under your camera, click Live, and adjust the

camera. Click Live again to stop the picture taking.

2. Click Next. The Current Tool panel at the lower left of the window

changes to indicate that the SnapShot step is now selected.

3. Click Next again to display the OCVRuntimeTool. The graphics for

the OCVRuntimeTool are displayed and the Current Tool panel shows

the OCVRuntimeTool. A Font Editor button is displayed on the

Toolbar, as shown in Figure 2–23.

Tutorial 2 — OCVRuntimeTool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-23

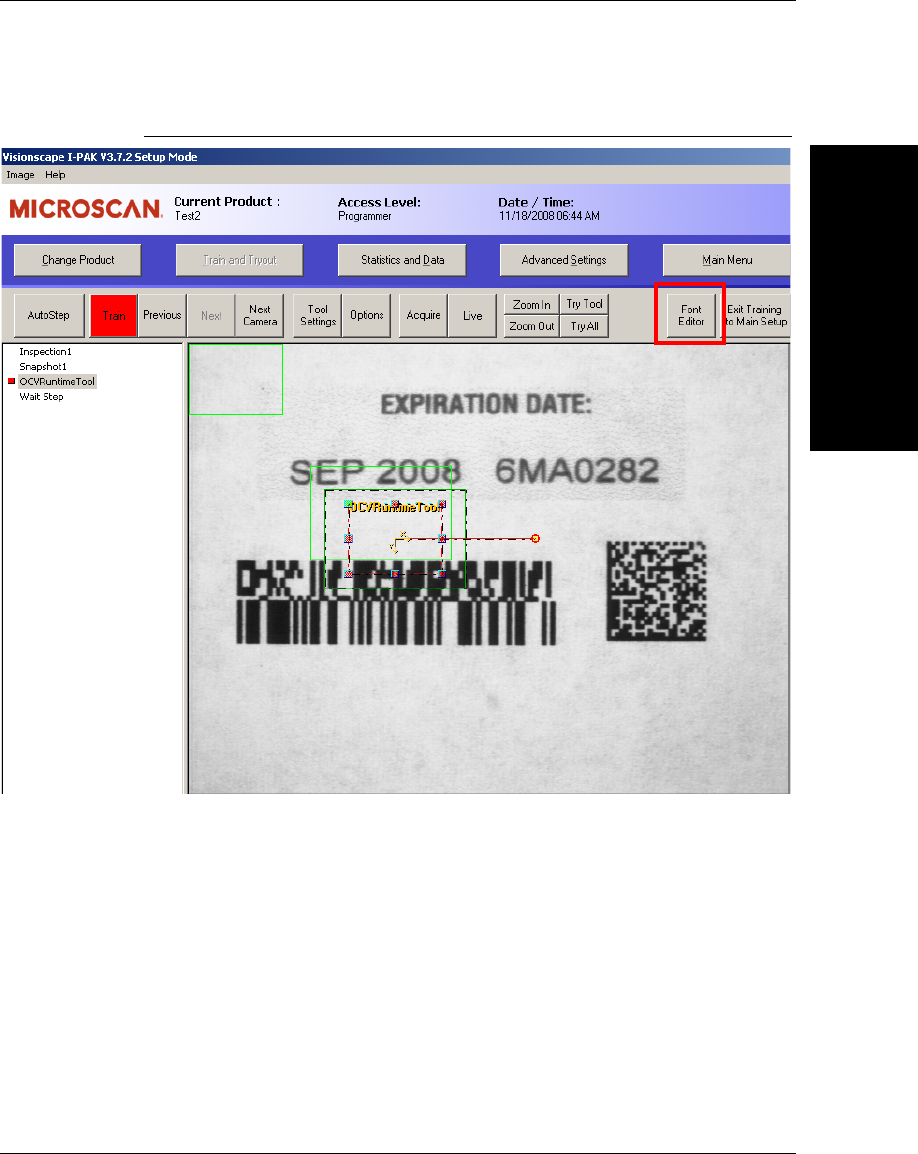

FIGURE 2–23. Font Editor Button on Toolbar

4. Because the OCVRuntimeTool requires a font, click Font Editor to

initiate font training. This displays the Custom Properties dialog box,

as shown in Figure 2–24.

Chapter 2Visionscape I-PAK Tutorials

2-24 Visionscape I-PAK User’s Manual

FIGURE 2–24. Font Selection And Training Dialog Box

The Custom Properties dialog box allows training of OCVFonts in the

current image. The Select Font button allows selecting an OCVFont

to train.

5. Click Select Font to bring up the Font Manager dialog box, as shown

in Figure 2–25.

Tutorial 2 — OCVRuntimeTool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-25

FIGURE 2–25. Font Manager Dialog Box

Any already existing OCVFonts in the Vscape\Jobs\Fonts folder are

listed in the “Available Fonts:” list.

6. Click New to display the Font Name dialog box (Figure 2–26), and to

create a new OCVFont.

FIGURE 2–26. Font Name Dialog Box

7. Name the font Font1 and then click OK.

8. Click Select to select the new font for training.

By default, I-PAK OCVFont training does not perform automatic

segmentation so that it can better perform Runtime ID Checking. For

this tutorial, we will turn automatic segmentation on, so that I-PAK

automatically locates and places a box around all characters in the

FOV. This makes the tutorial easier.

Chapter 2Visionscape I-PAK Tutorials

2-26 Visionscape I-PAK User’s Manual

The tool settings for the selected font are on the right hand side of the

Custom Properties dialog box.

9. Click Layout Step. Click (to select) Automatic Segmentation.

10. Move the Custom Properties dialog box so that you can see the

image and the training box.

11. Position the training box in the image over all the characters to be

included.

12. Click Train Symbol(s) on the Custom Properties dialog box to start

the training process. As each symbol is located, a green box is placed

around the character in the image and the Symbol Name dialog box

is displayed, prompting you to type a unique name for that symbol, as

shown in Figure 2–27.

FIGURE 2–27. Symbol Name Dialog Box

13. Enter a name for each symbol and click OK.

14. Now, the symbol is stored as part of the OCVFont. The current box

turns red and a green box is placed around the next character in the

image, as shown in Figure 2–28. You can click Skip to pass over a

character in the case of duplicates, or you can Cancel training at

anytime, in which case, no more symbols are added to the OCVFont.

Tutorial 2 — OCVRuntimeTool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-27

FIGURE 2–28. OCVFont Example

15. When all symbols are trained, click the Save Font button to save the

OCVFont and close the Custom Properties dialog box. Now, you are

ready to continue with the Setup Mode - Train and Tryout wizard

window.

OCVRuntimeTool Training

The OCVRuntimeTool should be selected in the Current Tool panel.

1. Now that the OCVFont has been trained, it needs to be selected for

use by this tool. Click Tool Settings (to the right of the Train button).

Click the Layout Step tab. Select the font named “Font1” from the

“Selected Font” list. Click Close.

2. Position the OCVRuntimeTool over the characters to be inspected,

making the ROI slightly larger than the inspected characters.

3. To start the training process, click Train.

As symbols in the OCVFont are found in the image, boxes are placed

over those positions. When all candidate layout positions are found,

any conflicts (two or more symbols found in the same position) are

resolved using runtime ID checking information. Each position of the

final layout is then trained as a symbol in a new font, the Runtime

font.

The Approve Inspect Characters window is displayed at the end of

the Train (learn layout) with the string of Inspect Chars:, as shown in

Figure 2–29.

Chapter 2Visionscape I-PAK Tutorials

2-28 Visionscape I-PAK User’s Manual

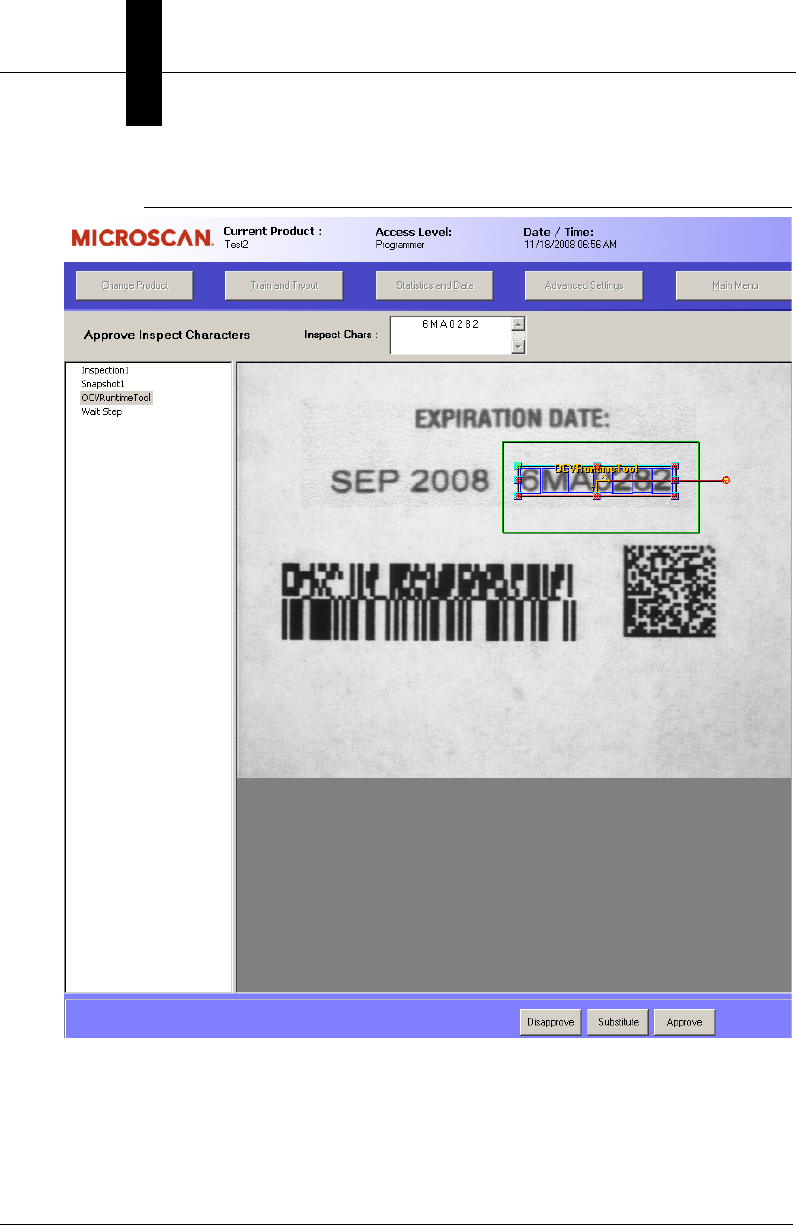

FIGURE 2–29. Setup Mode — Approve Inspect Characters

This allows characters to be substituted into the layout or ignored

entirely.

4. Click Substitute to display the Layout and Font boxes shown in

Figure 2–30.

Tutorial 2 — OCVRuntimeTool

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-29

FIGURE 2–30. Setup Mode — Layout and Font Boxes

The list of symbol names displayed in the Layout box contains the

names of all symbols in the layout, in the order in which they appear.

The Font box contains the name of all symbols in the selected

OCVFont. The first item in the list is IGN, which is used to ignore

characters.

5. To substitute one symbol for another, select the character in the

Layout box that you want to substitute for. Select the symbol from the

Font box that you want to use to replace the layout symbol. Click

Substitute. The Layout box and Inspect Chars: are updated.

6. To ignore one of the symbols in the layout (exclude it from being

inspected at runtime), select the symbol to be ignored from the

Layout box. Select IGN from the Font box. Click Substitute. The

symbol is removed from the Layout box and Inspect Chars:.

If you wish to re-train the tool, with the OCVRuntimeTool selected,

click Train Tool in the Setup Mode Train window. You can adjust the

properties of the tool and re-train until you achieve the desired layout

string.

7. Once you are satisfied with the layout shown in the Inspect Chars:

string, click Approve to return to the Setup Mode Train and Tryout

wizard window.

8. Position the AutoFind box for the OCVRuntimeTool over the area of

the image in which the characters are allowed to move/rotate.

Chapter 2Visionscape I-PAK Tutorials

2-30 Visionscape I-PAK User’s Manual

9. This completes the training of the OCVRuntimeTool. Click Try all to

verify the inspection, as shown in Figure 2–31.

FIGURE 2–31. Setup Mode — Try All

10. This runs the Job once, allowing you to observe your recently created

Job. Click Exit Training to Main Setup. The Stats to Zero dialog boxes

and Failures to Zero dialog boxes are displayed. This returns you to

the Setup Mode main window.

11. Click Run Mode. This returns you to Operator Mode and displays the

Run Mode window, as shown in Figure 2–32. Your Job will run in the

Camera 1 View window in a continuous mode.

What’s Next

Visionscape I-PAK

Tutorials

Visionscape I-PAK User’s Manual 2-31

FIGURE 2–32. Run Mode

What’s Next

Congratulations! You have successfully created, set up, and stored an I-

PAK program, trained the tools, and executed both a tryout and

continuous inspection in runtime.

This tutorial highlights the basic functionality of I-PAK and provides a

foundation for properly operating the product. You are ready to go into full

operation using I-PAK.

Chapter 2Visionscape I-PAK Tutorials

2-32 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual 3-1

21 CFR Part 11

CHAPTER 3 21 CFR Part 11

Visionscape® I-PAK is 21 CFR Part 11 technically compliant. This chapter

describes the components of our compliancy as well as the customer’s

responsibilities.

Overview

I-PAK’s technical 21 CFR Part 11 compliancy has the following

components:

•I-PAK’s Jobs are stored on the PC as binary files; you cannot edit

them except from within I-PAK. These “Jobs” are the vision

applications, “recipes” or step-by-step instructions that the vision

system follows to inspect product. Typically, you would associate one

Job per product being inspected and change or re-train the Date/Lot

Code or Expiration date while leaving everything else the same.

•I-PAK’s Audit Trail is a centralized, chronological, time-stamped

journal file of all I-PAK activities: from the automatic start-up of I-PAK

as part of the PC Start-Up items noting the version of I-PAK software,

through user login attempts, to every button pushed, every re-training

action, every new layout string and Data Matrix match strings, every

alarm acknowledged and the Statistics entering and exiting Run

Mode (Inspection). The Audit File records who makes a change and

the reason for the change. It is available for printout using Adobe

Acrobat’s PDF format - another safeguard to prevent unauthorized

Chapter 321 CFR Part 11

3-2 Visionscape I-PAK User’s Manual

modification of the Audit Trail - from inside I-PAK as part of the

Administrator’s role.

•I-PAK’s Configuration Files are an ASCII representation of the data

contained on I-PAK “Job” files. These are provided for the

convenience of our I-PAK customers to provide a readable

representation of the logic being used in the inspection. They are

stored on the PC as read-only files and are viewable from within I-

PAK as part of the Administrator’s role. Additionally, the Administrator

can reconcile between two of these files to note detailed changes of

all Job settings.

•I-PAK’s Statistics Files are an ASCII representation of the last

inspection results. These are summaries, and contain the Inspection

total, pass and failed as well as the inspection string (when

applicable) and the last login name and the timestamp of the last run

of the inspection. These are provided for the convenience of our I-

PAK customers to provide a readable representation of the data

results from the inspection. They are stored on the PC as read-only

files and are viewable, printable and exportable from I-PAK as part of

the Statistics/Data SubMenu. The data contained within these files is

automatically recorded in the Audit Trail.

Access Levels Defined

The ordering of access levels is:

• Programmer (highest access level)

• Supervisor

• Operator (lowest access level)

When the Part 11 option from the System Settings General menu is

enabled, the traditional I-PAK Supervisor and Programmer passwords will

not be used. Instead, User Login and Passwords will be used. Plus, the

concept of an I-PAK Administrator is introduced. An I-PAK Administrator

is responsible for creating user accounts and granting access levels to

those users.

When an Administrator creates a user account, a listing of user names,

encrypted user passwords and access levels will be created. When

entering Setup Mode from Run Mode, you will have to enter a user name

Access Levels Defined

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-3

and user password via the

I-PAK keyboard or a login dialog box. Based on the user name and

password entered, the appropriate access level will be granted during

Setup Mode.

At all times, the current access level is clearly displayed. An active user

reverts back to Operator mode after the user-defined “no activity” limit is

reached.

Anytime there is a login violation, an entry is made to a secuity.log and the

Audit Trail files.

21 CFR Part 11 Administrator — Administrator mode allows the defining

of valid users, their passwords and their security levels. This

Administrator, whose user name is I-PAKAdmin and default password is

999999, is your Configuration Manager. He or she is not a Programmer, a

Supervisor nor an Operator.

The Administrator password is stored in the PC’s registry settings and is

changeable through the I-PAK interface.

Note: The Administrator should be careful not to forget his or her

password, as it is very difficult to recover the Administrator password. You

will need to contact Microscan to recover a forgotten Administrator

password.

The Administrator should create a user account with the Programmer

security level right away so that the Vision System Settings can be

adjusted when necessary.

When you create a new user, Supervisor or Programmer, you must

specify whether or not that user is authorized to do Re-Training. By

default, this setting is disabled - no signature authority. Existing users will

be set to NOT have this Signature Authority feature and, therefore, will

NOT be able to approve training. Any existing users in your user group

must get a new user name and enable this Signature Authority feature to

approve training.

The Signature Authority function has been expanded so that, when

person #1 trains the OCV tools or match strings for the Barcode or Data

Matrix tools, I-PAK checks to make sure that user has “signature

Chapter 321 CFR Part 11

3-4 Visionscape I-PAK User’s Manual

authority”, in addition to continuing to check for a valid user name,

password and security level.

Customer Responsibilities

Microscan has made every attempt to provide an off-the-shelf software

solution for your vision needs. Working with I-PAK, you need to provide

Standard Operating Procedures (SOPs) at your company to further

safeguard your data and comply to 21 CFR Part 11. Microscan has the

following suggestions and recommendations.

Customer Responsibilities

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-5

Starting I-PAK, Using Part 11 and Adding I-PAK Users

1. Determine who in your company will be the I-PAK Administrator.

Remember, the Administrator creates user accounts but does not

have any “programming” rights (the Administrator is neither an I-PAK

Operator, Supervisor nor Programmer). Next, determine who will be a

Programmer. Microscan recommends this be a factory-trained I-PAK

user. The Programmer will set up the vision Jobs and adjust settings.

Then, determine who will be your Supervisors, those who can re-train

the vision tools to perhaps train a new lot code and those who can

perform a Product ChangeOver to start inspection on another product

type. Another decision in your Supervisor Configuration is what

access they have to the I-PAK System and whether or not they have

the ability to re-train key tools such as a Font Tool. The Programmer

can set up the Supervisors Access rights by clicking from the main

menu: Access Level > Configure Supervisor Access. The

Administrator assigns the right to re-train when they create a user

account.

Note: Create an SOP that defines your users and their access rights.

2. Turn on Part 11 in I-PAK. By default, to provide a generic solution of

all our customers, Part 11 is not enabled. As a Programmer, from the

Setup Mode, go to the Advanced > System Settings > General > 21

CFR Part 11 Configuration menu and click Enable User Name

Access (Enable Part 11); there should be a checkmark inside the box

to indicate this setting is enabled. This setting turns on Part 11 and

the Audit Trail.

Note: Create an SOP to never turn this option off.

3. Enable any other Advanced > System Settings > General > 21 CFR

Part 11 Configuration menu items that you require. These are

dependent on your regulations. For example, if you require that

passwords expire, set that option, as well as specifying the duration

of the password.

Note: Create an SOP that defines your password expiration duration.

Chapter 321 CFR Part 11

3-6 Visionscape I-PAK User’s Manual

Now, bring in your Administrator to begin assigning login names,

passwords, access and re-training rights. Always remember to define a

Programmer and at least one Supervisor. Your day-to-day users should

be Operators and Supervisors.

When the Enable User Name Access (Enable Part 11) option from the

System Settings General menu is enabled, the traditional I-PAK

supervision and Programmer passwords will not be used. An additional

drop-down menu will appear on the main I-PAK Setup menu, as shown in

Figure 3–1.

FIGURE 3–1. Setup Mode — 21 CFR Part11 Menu

When an Administrator creates a user account, a listing of user names,

encrypted user passwords and access levels will be created. When

entering Setup Mode from Run Mode, you will have to enter a user name

and user password via the

I-PAK keyboard or a login dialog box. Based on the user name and

password entered, the appropriate access level will be granted during

Setup Mode.

Note: A Part 11 System Setting enables an OnScreen Keyboard for

entering login and training approval user names and passwords rather

than the I-PAK keyboard.

At all times, the current access level is clearly displayed. An active user

reverts back to Operator mode after the user-defined “no activity” limit is

reached.

Anytime there is a login violation, an entry is made to a secuity.log file. An

Administrator can view this file from I-PAK by clicking on Display Login

Violation Log.

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-7

21 CFR Part 11 Functions

From the main I-PAK menu bar, there is a “21 CFR Part 11” menu item

that only shows up on the main I-PAK Setup menu bar when 21 CFR Part

11 is enabled from the System Settings screen. This drop-down menu is

accessible for Supervisors, Programmers and the I-PAK Administrator.

Operators have no access or visibility into this area of the software.

Typically, at the end of a batch or a run of product, you’ll want to gather

your data and record your inspection counts for Part 11 records. These

records and this functionality is discussed below.

End of Batch Reports

After you have finished running successfully a batch of product, you may

need to store the pertinent information about that batch to a secure place

for future review and reconciliation. An I-PAK Supervisor, Programmer, or

the I-PAK Administrator can view the batch reports, create PDF records of

the batch data, print these PDFs, and archive these PDFs to your archive

device.

Note: Anytime you write a file to disk or CD, such as when you create a

PDF or write that PDF to disk, I-PAK checks to make sure there is room

on the device for the files. It will post an error if there is not enough room

to write the file.

View

When you click End of Batch Reports…, you will see a dialog box that

contains the latest Inspection Results and its support files, as shown in

Figure 3–2. By default, you are presented with its “View” option. This

shows you the information from the Statistics File, the Configuration File

and the decrypted Audit Trail. You can choose to select all or some of

these files for the other options.

Chapter 321 CFR Part 11

3-8 Visionscape I-PAK User’s Manual

FIGURE 3–2. Viewing End of Batch Reports

PDFs

When you click on Create PDFs, the Reports that are selected

(checkboxes to the right of the description and to the left of the display)

will translate the latest reports into PDFs for added security. This can

include a translation of the encrypted Audit Trail into a human readable

PDF of the Audit Trail. PDFs are used because they are difficult to modify

and provide a “snapshot” of the batch report details.

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-9

A message box is displayed after the PDFs are created so that you can

see the file names and their paths on the hard drive of I-PAK. The folder

where these PDFs live is in a subfolder where I-PAK is installed and in

their own “PDF” folder. Typically, this is a path like: C:\Vscape\I-

Pak\Jobs\PDFs.

Each PDF uses a file name that contains the date/time stamp of when you

created these PDF reports and the type of report it is. For example, the

Statistics PDF might be called something like:

C:\Vscape\I-Pak\Jobs\PDFs\IpakStats-11-18-2008-07:28_24.pdf

You should be able to use this timestamp to your advantage and verify

that the timestamp of the file name is close to the timestamp contained in

the file itself. For example, in Figure 3–3, you can see that the Statistics

Current Date/Time is 11/18/2008 07:28:24. So, the PDFs were made two

seconds after this file was created.

FIGURE 3–3. Creating PDFs for End of Batch Reports

Chapter 321 CFR Part 11

3-10 Visionscape I-PAK User’s Manual

Printing

When you click Print, the Reports that are selected (checkboxes to the

right of the description and to the left of the display) will be sent to your

printer.

Note: Make sure you have set up previously a network or local printer. I-

PAK will look for the printer defined on the system.

FIGURE 3–4. Printing End of Batch Reports

Archive PDFs

When you click on Archive PDFs, the Reports that are selected

(checkboxes to the right of the description and to the left of the display)

and that have PDFs created, will be archived to your archive device. Also,

you can archive to every path selected in System Settings independent

from the device type. This can also be a USB drive or any device which is

connected to the PC and ready to store data.

Microscan strongly suggests you use the optional internal CD R/W device

or USB port with removable memory as your archive device and set the

path to your local CD R/W or USB drive path.

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-11

Note: You need to set up the archive path via the System Settings Menu.

You need to put a blank CD into the CD R/W drive and format it using

Direct CD; format it to allow multiple file writes from a program such as

Windows Explorer. Format the media before trying to use this feature.

When creating these archives on CD, several things are happening for

top security. First, a folder is created on the CD using the current

time/date stamp concatenated with the current product's name. The PDFs

are written to the CD using the previous names with the time/date stamp.

This ensures that the files are not modified, as the file date/times

themselves MUST be consistent with the file and folder names. A few

seconds differences in these is all that can be expected to be different.

Note: You should create an SOP to verify these date/times on the folder

and file names and inside the files themselves to ensure no one is

corrupting your data.

A message box is displayed after the PDFs are written so that you can

see the file names and their paths on the archive device of I-PAK.

FIGURE 3–5. Archiving PDF End of Batch Reports

Once the archive is complete, and you click OK on the message box, I-

PAK restores this dialog box back to the viewing status of all three files.

Chapter 321 CFR Part 11

3-12 Visionscape I-PAK User’s Manual

Reset Audit Trail

As an Administrator, after creating a PDF of the Audit Trail, which can

then be stored onto CD or long term storage device, you can select to

reset the Audit Trail. This prevents the PC from having a sluggish

response as it updates the Audit Trail file data.

Note: Create an SOP to determine when, if ever, you can reset the Audit

Trail.

FIGURE 3–6. Reset the Audit Trail as an I-PAK Administrator

Reconciliation of Configuration Files

You can display the file differences between two configuration files. When

you click on Reconcile Configuration Files from the main 21 CFR Part 11

task bar, the Reconcile Configuration Files dialog box is displayed, as

shown in Figure 3–7.

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-13

FIGURE 3–7. Reconcile Configuration Files

The upper left of the display shows you all the files in your

I-PAK\Jobs\ConfigurationArchive folder. From here, you select the two

files you wish to reconcile (perform a file difference on). When you click

Reconcile, the lowest display region will show you the file differences.

Chapter 321 CFR Part 11

3-14 Visionscape I-PAK User’s Manual

You can view these differences or save them to a file by clicking File >

Save As. You can also print these file difference by clicking File > Print.

Configure 21 CFR Part 11 Users

When you click on this, I-PAK brings up the Configure I-PAK Users dialog

box, as shown in Figure 3–8.

FIGURE 3–8. Configure 21 CFR Part 11 Users Dialog Boxes

Programmer

Admin

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-15

In general, this menu allows the Administrator to create and configure

user accounts before users can begin using the feature.

Notes: The Administrator should create a user account with the

Programmer security level right away so that the Vision System Settings

can be adjusted when necessary.

The buttons on the right-hand side of this display are restricted to the I-

PAK Administrator. You must be an Admin to access them.

• Display Programmers — This menu option enables the I-PAK

Administrator to see all the user accounts that have a security access

of Programmer. As a user, you can review this list of already created

Programmers as long as you are a Programmer. A Supervisor or

Operator cannot access this menu item. You are restricted in viewing

the list of other users that are at or below your security level.

• Display Supervisors — This menu option enables the I-PAK

Administrator to see all the user accounts that have a security access

of Supervisor. As a user, you can review this list of already created

Supervisor as long as long as you are a Supervisor or Programmer.

An Operator cannot access this menu item. You are restricted in

viewing the list of other users that are at or below your security level.

• Display Operators — This menu option enables the I-PAK

Administrator to see all the user accounts that have a security access

of Operator. As a user, you can review this list of already created

Operators as long as you are an Operator.

Chapter 321 CFR Part 11

3-16 Visionscape I-PAK User’s Manual

FIGURE 3–9. Configure 21 CFR Part 11 Users — Display Operators

• Change your Password — You can change your own password by

clicking this button. You will be asked to enter your password twice to

verify that the password is correct. An I-PAK Administrator can also

use this menu to Change his or her Administrator password.

• Suspend An Existing User — The I-PAK Administrator can suspend

an existing user’s account via this dialog box. This might be useful if

one of your employees leaves the company.

FIGURE 3–10. Configure 21 CFR Part 11 Users — Suspend an Existing

User

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-17

• Add a New User — The I-PAK Administrator can create new

accounts. This might be useful when a new employee joins your

company.

FIGURE 3–11. Configure 21 CFR Part 11 Users — Add a New User

• Restore A User Account — The I-PAK Administrator can restore a

suspended user’s account via this dialog box. This might be useful if

one of your former employees returns to the company.

FIGURE 3–12. Configure 21 CFR Part 11 Users — Restore a User

Account

Chapter 321 CFR Part 11

3-18 Visionscape I-PAK User’s Manual

• Reset a User’s Password — The I-PAK Administrator can reset a

users’s password via this dialog box. This might be useful if one of

your employees forgets his or her password.

FIGURE 3–13. Configure 21 CFR Part 11 Users — Reset a User’s

Password

• Display Login Violations — The I-PAK Administrator can review the

employees is constantly logging in incorrectly or you suspect a

security breach.

FIGURE 3–14. Configure 21 CFR Part 11 Users — Display Login

Violations

21 CFR Part 11 Functions

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-19

• Display User Changes — The I-PAK Administrator can review the

user changes log via this dialog box. This might be useful if one of

your employees is constantly changing his or her password or you

suspect a security breach.

FIGURE 3–15. Configure 21 CFR Part 11 Users — Display User

Changes

• Display Audit Trail — The I-PAK Administrator can review an ASCII

translation of the Audit Trail. He or she cannot do much with this data;

it is for reference only. If the I-PAK Administrator wanted to archive

this data or print this data, he or she should see “End Batch” starting

on page 6-109.

FIGURE 3–16. Configure 21 CFR Part 11 Users — Display Audit Trail

Chapter 321 CFR Part 11

3-20 Visionscape I-PAK User’s Manual

Common 21 CFR Part 11 Areas of Concern

From the numerous audits Microscan has hosted through the years, there

are certain questions that keep being asked regarding to how I-PAK is

technically compliant. Here are some of these questions and our

answers.

How is Part 11 activated in the product?

By default, I-PAK does not activate Part 11 functionality as a factory

setting. As an off-the-shelf product, not all of our users are required to use

Part 11. To enable Part 11, go to Advanced Settings > System Settings >

General > Enable User Name Access - (Enable Part 11). The activation

state (enabled or disabled) of Part11 is displayed in the status bar of

Setup mode.

What are the Password Schemes and Restrictions?

Passwords have restrictions based on the 21 CFR Part 11 guidelines. I-

PAK has implemented the following password specific rules:

• Passwords must be at least six characters in length and no longer

than 10 characters.

• Passwords are changeable through the Configure Part 11 Users

dialog box. You can change your own password only. The I-PAK

Administrator can change any user’s password.

• Passwords are encrypted when stored. Passwords are hidden when

typed into the login box.

• Microscan recommends that passwords be changed every 30 days.

Enforcement of this is left to the end user as your own SOP. You can

use System Setting > General > Set Passwords To Expire to aid in

this.

• Users entering new passwords are required to enter unique

passwords. No two users can have the same password. When

changing your password, you cannot change it to what it currently is

set to.

Common 21 CFR Part 11 Areas of Concern

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-21

• When there is a failed login attempt, the time and date, the user name

and the password entered are recorded to a security log and the Audit

Trail.

• After a user definable number (1 to 10) of failed login attempts, the

user name is suspended from the authorized user list. Only the

Administrator is able to Restore a User to restore this user account.

The suspension of the user is noted on the security log file.

When you create a new user, Supervisor or Programmer, you must

specify whether or not that user is authorized to do Re-Training. By

default, this setting is disabled (no signature authority). Existing users will

be set to NOT have this Signature Authority feature and, therefore, will

NOT be able to approve training. Any existing users in your user group

must get a new user name and enable this Signature Authority feature to

approve training.

The Signature Authority function has been expanded so that, when

person #1 trains the OCV tools or match strings for the Barcode or Data

Matrix tools,

I-PAK checks to make sure that user has signature authority, in addition to

continuing to check for a valid user name, password and security level.

How can I prevent my users from getting to the desktop?

The System Setting “Enabled Desktop” will allow or prevent users from

getting to the desktop. By default, this setting is enabled, meaning you

can Alt-Tab and get to the Windows Desktop from I-PAK. For our Part 11

users, this setting should be disabled (unchecked), so that users cannot

get to the desktop or taskbar. Disabling the Desktop prevents a user from

the following keystrokes: Alt-Tab; Ctrl+Esc (Start Menu and TaskBar);

Alt+Esc. This will prevent changes to the System Clock, and will be a

deterrent for people who want to use the PC for something other than I-

PAK.

How safe is the Audit Trail from being compromised?

The Audit Trail is an encrypted file. You cannot just open it with a common

editor and make sense of the data. Further, the Audit Trail can be made

into an Acrobat Reader PDF that can be stored on the local drive or

archived to another drive, network or CD. The Audit Trail provides a

detailed who, what, when log of all I-PAK changes. This Audit Trail is an

Chapter 321 CFR Part 11

3-22 Visionscape I-PAK User’s Manual

encrypted file. You can view the translated contents of this file as an

authorized user (Administrator, Programmer or Supervisor). Also, you can

use the mouse to to select some data to be printed. This could be used to

show a single Job’s production run from Product ChangeOver to

Reconciliation of that Batch records.

How safe are the Jobs files from being compromised?

Since the Jobs are binary files, you can only edit them with I-PAK. If

someone tries to edit a Job with, say, Notepad, and saves those changes,

the file will be corrupt and I-PAK will not read it in without error. The Jobs

are backed up automatically within I-PAK so, even if the file gets

corrupted, you can easily recover.

How safe are the Configuration and Statistics files from

being compromised?

In addition to the read-only property for the support files (Configuration

and Statistics files), I-PAK hides these files. This offers a more secure

method of saving support files that will prevent editing records. The data

contained in the Statistics file is completely free from editing because it is

written into the encrypted Audit Trail. Additionally, these files can be made

into Acrobat Reader PDFs that can be stored on the local drive or

archived to another drive, network or CD.

Can this data be saved to a non-editable format?

The Audit Trail, the Configuration file and the Statistic file can all be made

into Acrobat Reader PDFs that can be stored on the local drive or

archived to another drive, network or CD.

How do I know who made the last batch or change?

The Configuration Data and Statistics files are updated to include the last

to the Audit Trail file as well including that login data.

Common 21 CFR Part 11 Areas of Concern

21 CFR Part 11

Visionscape I-PAK User’s Manual 3-23

My company wants the number of login failures to be 3 but

I-PAK defaults this to 5. What can I do?

There is a System Setting to allow the I-PAK Programmer to define the

number of login failure attempts. By default, this value is set to 5. But, it is

user definable from 1 to 10. For more information, see Set Number of

Failed Logins on page 6–111.

If I get an alarm on I-PAK, how will I know someone saw it?

For Alarms, Overruns, you are required to acknowledge alarms with a

the Audit Trail file.

What is the date format used inside the Part 11 files?

The date format used inside Part 11 files is mm/dd/yyyy hh:mm:ss -- 24-

hour format, with leading zeros added for months/dates less than 10.

All this writing to disk, what if I-PAK runs out of hard drive

space?

The availability of disk space is always checked before writing the

following to disk: the Job, Audit Trail file, Statistics files, Configuration

files, and images.

Chapter 321 CFR Part 11

3-24 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual 4-1

Automatic

Identification

CHAPTER 4 Automatic Identification

This chapter discusses the following tools for automatic identification:

• “Barcode Reading” on page 4-1

• “Data Matrix Tool” on page 4-19

• “OCRTrainableFont Tool” on page 4-54

Barcode Reading

The Barcode Tool reads a barcode and converts the data to a string that

can be compared to a known string, or exported. The input to the tool

consists of an ROI, which types of barcodes to decode, and the search

method. The output of the tool will be the decoded string and a status

indicating a match with the known string.

Other Steps Used

None.

Theory of Operation

The Barcode Tool locates and decodes barcodes. It searches the

specified ROI for a barcode and attempts to decode it. The Barcode Tool

can be trained to set the match string for all types of barcodes. The

remaining parameters can only be trained for pharma code and will only

affect the reading of pharma codes.

Chapter 4Automatic Identification

4-2 Visionscape I-PAK User’s Manual

The Barcode Tool will only decode barcodes types that have been

enabled in the Enabled Codes selection list. The decoded string is

available for output, as well as a status indicating whether the barcode

data exactly matches the trained match string.

When reading Pharmacodes, the Pharmacode barcode type must be

selected in the enabled code section list.

To train the Barcode Tool, adjust the Barcode Tool ROI so that it contains

the barcode to be read. The ROI can be placed just around the barcode

or include the entire image. When placing the ROI around the barcode, be

sure to leave clean area on all sides of the code.

When training a Pharmacode, both narrow and wide bars must be

present in order to train successfully.

If a barcode is located and decoded when the tool is run, the decoded text

is displayed at the center of the ROI, as shown in Figure 4–1. The status

flag of the tool is set to pass if a barcode is found and decoded and, when

the match string is enabled, the decoded string must also match. The

output status datum ReadStatus is set true if a barcode is found and

decoded regardless of the decoded string.

FIGURE 4–1. Train VisionBoard1 — Barcode Tool — Match String

The Barcode Tool is inserted in a Job Tree inside of a Snapshot and an

Acquire.

Description

The Barcode Tool allows editing through the Barcode Tool properties

page, as shown in Figure 4–2.

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-3

Note: Click the A button to display advanced Barcode Tool properties.

Chapter 4Automatic Identification

4-4 Visionscape I-PAK User’s Manual

FIGURE 4–2. Barcode Tool Properties Page

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-5

TABLE 4–1. Links to Property Descriptions

For Information About... Go To...

Aperture page 4–14

Barcode Confidence Threshold page 4–9

BC412 Check Sum page 4–10

BC412 Decode Left Right page 4–10

BC412 Remove Check Sum Display page 4–10

BC412 Start/Stop page 4–10

BC412/QR Code Polarity page 4–10

Calibrated page 4–14

Calibration Cell Unit page 4–14

Calibration Contrast Max page 4–14

Calibration Contrast Min page 4–14

Cell Unit Report page 4–14

Code39 Check Sum page 4–11

Code39 Remove Check Sum Display page 4–11

Contrast Report page 4–13

Enabled Codes page 4–7

Finetune Method page 4–9

Hori. Probe Spacing page 4–8

I2of5 Check Sum page 4–11

I2of5 Remove Check Sum Display page 4–11

Match String page 4–6

Match String Enable page 4–6

Maximum Code Height page 4–8

Maximum Code Length page 4–8

Maximum No. of Bars page 4–8

Minimum Code Height page 4–8

Minimum Code Length page 4–8

Minimum Edge Strength page 4–9

Minimum No. of Bars page 4–8

Chapter 4Automatic Identification

4-6 Visionscape I-PAK User’s Manual

Settings

• Train String Only — After configuring the barcode tool and setting its

Match String Enabled to enabled, when you select the Train button in

Train and Tryout, only the match string field will be updated. None of

the other barcode parameters will be modified.

• Match String Enable — When enabled, the match string will be

compared against the decoded string of a barcode during a run to

determine if the step is run successfully. The result datum will be true

if a barcode is successfully decoded and the decoded string matches

the match string value when this box is checked. During training, the

decoded string from the training barcode will be placed in the Match

String Value box only when this property is enabled.

• Match String — The entered string will be compared against each

decoded string during each run when Enable Match String is enabled.

This datum will be filled in after a successful train only when Enable

Match String is enabled while training.

Default: Empty

Minimum Quiet Zone page 4–9

Narrow Bar Width page 4–8

Output UPC as EAN page 4–10

Print Verification page 4–11

QR Code Finder Pattern Misalignment page 4–11

Search Direction page 4–8

Target Contrast page 4–14

Tool Time Out (ms) page 4–7

Train String Only page 4–6

Verification Status Lower Threshold page 4–13

Verification Status Upper Threshold page 4–13

Vert. Probe Spacing page 4–9

Wide Bar Width page 4–8

TABLE 4–1. Links to Property Descriptions (continued)

For Information About... Go To...

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-7

• Tool Time Out (ms) — Maximum time to search for a barcode. When

a barcode is not found and decoded by this time, this step fails and

the program execution continues. After training, if a barcode takes x

milliseconds to decode, then the time-out value should be set to more

than x milliseconds when Search Direction is Horizontal or Vertical

only. The Tool Time Out value should be at least twice x when

Horizontal then Vertical or Vertical then Horizontal parameter is used.

When x milliseconds is used as the Tool Time Out value when

Horizontal then Vertical or Vertical then Horizontal parameter is used,

each search pass will time out in half of the x milliseconds.

Default: 600 milliseconds (0 milliseconds = no time out)

• Enabled Codes — Only enabled codes will be located within the ROI:

–BC412

– Codabar

– Code 128

– Code 39

– Code 93

–Composite

– I 2 of 5

–PDF

– Pharma Code

–Postnet

– QR Code

– RSS 14

– RSS Expanded

– RSS Limited

– RSS Stacked

– UPC / EAN

Chapter 4Automatic Identification

4-8 Visionscape I-PAK User’s Manual

–UPC-E

– UPC-Supplemental

• Minimum Code Height — Default: 4; Range: 4 to 1024 pixels.

• Maximum Code Height — Default: 1024 pixels; Range: 4 to 1024

pixels.

• Minimum Code Length — The minimum length of the barcode to be

decoded.

Default: 20 pixels

• Maximum Code Length — The maximum length of the barcode to be

decoded.

Default: 1024 pixels

• Minimum No. of Bars — Default: 2; Range: 2 to 256 bars.

• Maximum No. of Bars — Default: 256; Range: 2 to 256 bars.

• Narrow Bar Width — Default: 1; Range: 1 to 100 pixels.

• Wide Bar Width — Default: 100; Range: 1 to 100 pixels.

• Search Direction — Specifies the search method used within the ROI:

– Horizontal

– Vertical

– Horizontal then Vertical — This is the default, and should work

best for most cases.

– Vertical then Horizontal

– Criss Cross

• Hori. Probe Spacing — Sets the spacing in pixels between two

horizontal barcode locating probes. When reading short codes such

as postnet, the value should be set to 8.

Default: 16 pixels

Range: 8 to 256 pixels

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-9

• Vert. Probe Spacing — Similar to the horizontal probe spacing, it sets

the spacing in pixels between two vertical barcode locating probes.

This value does not apply to postnet or pharma code, which are not

designed to be read at more than ± 45o.

Default: 16 pixels

Range: 8 to 256 pixels

• Minimum Edge Strength — When the contrast of the barcodes is low,

especially for low contrast BC412 images, the edge strength value

can be set between 5 and 18 gray scale values. The edge strength

can be raised to a higher value when the barcode has very high

contrast. With higher edge strength, the tool will ignore most low

contrast objects and get to the barcode area more quickly. If the

barcode’s contrast is unlikely to change (e.g., when a stable lighting

source is employed), the level can be raised to 36 to produce the

optimum run performance. The value can be set between 5 and 100,

with a default of 18.

• Minimum Quiet Zone — If, for any reason, the quiet zone is less in the

image due to camera setup restrictions, the Minimum Quiet Zone

parameter can be lowered in order for the algorithm to accept shorter

space as quiet zone. On the other hand, if the barcode is big in the

FOV such that some space between two adjacent bars exceeds the

value specified in the Minimum Quiet Zone, then there is a possibility

that this space will be detected as possible quiet zone. To avoid this

situation, the Minimum Quiet Zone can be increased.

Default: 12 pixels

Range: 5 to 100 pixels

• Barcode Confidence Threshold — For barcodes that do not use

checksum such as Code 39, I 2 of 5, Codabar, and BC412, the

threshold value can help reduce potential misdecode. The value can

be set between 0 and 100. The default value is 0, meaning that any

possible decode is accepted. When the value is raised, a certain

number of decodes must agree before the decode is declared

successful. On the other hand, if the value is set too high, then a

normally decodable but imperfect barcode may not be decoded.

• Finetune Method — The only method is Decode Near Center; the

camera tries to read the symbol that is closest to the center of the

FOV.

Chapter 4Automatic Identification

4-10 Visionscape I-PAK User’s Manual

• Output UPC as EAN — When enabled, a UPC barcode string will be

formatted as an EAN barcode. UPC and EAN are overlapping

standards. In the one standard, the leading “0” is implied and not

output. In the other standard, all of the characters are displayed.

Therefore, if a user in Europe had an EAN code that would be a valid

UPC, a user in the United States would default to reporting it as a

UPC without the leading “0”. However, if the user in the United States

wanted it reported with the leading zero, that user must enable Output

UPC as EAN, and the leading zero will be sent as part of the decode

string.

• BC412/QR Code Polarity — Sets the polarity of a BC412 or QR

Code:

– Auto (Default)

– Light on Dark

– Dark on Light

• BC412 Start/Stop — Enable this property to read a SEMI BC412

barcode with a start and stop pattern. The default is disabled,

indicating a non-SEMI BC412 barcode without a start and stop

pattern.

• BC412 Check Sum — Enable this property to read a SEMI BC412

barcode with a checksum. The default is disabled, indicating a non-

SEMI BC412 barcode without a checksum character.

• BC412 Remove Check Sum Display — When this property is

enabled, the checksum character will not be displayed. The default is

disabled, meaning that the checksum character will be displayed.

• BC412 Decode Left Right — By default, this property is selected,

enabling left-to-right decoding of data. When deselected, the data will

be decoded from right-to-left. This is only useful when Start/Stop is

not selected.

Note: This mode should not be used for a SEMI BC412 barcode that

contains both a start and stop pattern and a checksum character.

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-11

• I2of5 Check Sum — Enable this property to read an I2of5 barcode

with a checksum. The default is disabled, indicating an I2of5 barcode

without a checksum character.

• I2of5 Remove Check Sum Display — When this property is enabled,

the checksum character will not be displayed. The default is disabled,

meaning that the checksum character will be displayed.

• Code39 Check Sum — Enable this property to read an Code 39

barcode with a checksum. The default is disabled, indicating an Code

39 barcode without a checksum character.

• Code39 Remove Check Sum Display — When this property is

enabled, the checksum character will not be displayed. The default is

disabled, meaning that the checksum character will be displayed.

• QR Code Finder Pattern Misalignment — Sets the QR code finder

pattern misalignment parameter.

Default: 0

Range: 0 to 6

• Print Verification — Enables Verifier outputs when set to anything

other than None:

–ANSI

– None (default)

Print Verification currently supports ANSI Print Verification for Code

128, Code 93, Code 39, I 2 of 5, UPC / EAN, RSS 14, RSS Limited,

RSS Expanded, RSS Stacked.

When Print Verification is set to anything other than None, in addition

to decoding the barcode, the BarCode Tool also computes the

barcode print quality according to the ANSI guideline. To measure the

print quality, a total of 10 scans are made to get 10 scan reflectance

profiles of the barcode. The scans are approximately equally spaced

within the barcode and are made parallel to the length of the barcode.

For each scan reflectance profile, the following parameters are

graded: Edge Determination, Minimum Reflectance, Reference

Decode, Quiet Zone, Minimum Edge Contrast, Symbol Contrast,

Modulation, Defects, and Decodability. Each parameter is given a

grade as follows:

Chapter 4Automatic Identification

4-12 Visionscape I-PAK User’s Manual

– A corresponding to a numeric scale of 4.

– B corresponding to a numeric scale of 3.

– C corresponding to a numeric scale of 2.

– D corresponding to a numeric scale of 1.

– F corresponding to a numeric scale of 0.

The lowest grade received from these parameters is used as the

Overall Profile Grade for the scan profile. The Final Symbol Grade is

the simple average of all the overall profile grades using the standard

weighting 4 = A, 3 = B, 2 = C, 1 = D, and 0 = F. The average is

converted to the Final Symbol Grade:

– 3.5 <= A <= 4.0

– 2.5 <= B < 3.5

– 1.5 <= C < 2.5

– 0.5 <= D < 1.5

–F < 0.5

When Print Verification is set to ANSI, the Final Symbol Grade and its

corresponding average score, as well as the ten Overall Profile

Grades, are available in Results to Upload. They are represented by

BarCode Tool.Final Grade, BarCode Tool.Final Grade Score, and

BarCode Tool.Scan X Grade, respectively, where X ranges from 0 to

Outputs include (see the ANSI specification for descriptions):

– Code Type

– Erasure Bits

–Error Bits

– Final Grade

– Number Found

– One X Dim

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-13

– Ratio [x] (where x is 0 through 2)

– Read Status

– Scan x Grade (where x is 0 through 9)

–Status

– Symbol Height

– Symbol Width

– SymResults

–Text

– Verification Details

– Verification Status

• Verification Status Upper Threshold — Allows you to set the upper

threshold at which the printed code is considered good. When the

final verification grade is greater than or equal to the value of this

datum, the code will be considered to be of good quality. This value

should always be greater than or equal to the Verification Status

Lower Threshold. If it is equal to the Verification Status Lower

Threshold, the resulting status will be good (3) or poor (1), with no fair

(2) status defined.

Valid Values: 4 to 1

• Verification Status Lower Threshold — Allows you to set the lower

threshold at which the printed code is considered fair. When the final

verification grade is greater than or equal to the value of this datum,

the code will be considered to be of fair quality. This value should

always be less than or equal to the Verification Status Upper

Threshold. If it is equal to the Verification Status Lower Threshold, the

resulting status will be good (3) or poor (1), with no fair (2) status

defined.

Valid Values: 3 to 1

• Contrast Report — The units that will be used for the reporting of

contrast. These are Uncalibrated, Self Calibrated, and Reflectance

Calibrated. Reflectance Calibrated is used if values from a Data

Chapter 4Automatic Identification

4-14 Visionscape I-PAK User’s Manual

Matrix tool calibration are available to enter into the Calibration

Contrast Max and Calibration Contrast Min parameters that

correspond to the Target Contrast of the Calibration Standard.

• Cell Unit Report — The units that will be used for the reporting of cell

size and symbol height and width. These are Pixels or Mils. Mils may

be used if the value from a Data Matrix tool verification is available to

enter into the Calibration Cell Unit parameter.

• Aperture — Used to set the synthetic aperture size in mils. The

default is 0 for AUTO, with manually set values in the range of 4 - 20.

• Calibrated — Since contrast and pixel to mils calibration are

performed with a Data Matrix tool and manually copied to a BarCode

tool, this parameter must be manually set to notify the software that it

needs to use the calibration parameters.

• Target Contrast— This is the contrast value of the calibration

standard used with the Data Matrix tool to generate the calibration

parameters.

• Calibration Contrast Max — The value returned from a Data Matrix

tool calibration that indicates the pixel brightness that represents

white. This must be manually entered for the BarCode tool to report

contrast in calibrated units.

• Calibration Contrast Min — The value used by a Data Matrix tool

calibration to represent what the camera sees as absolute black.

Because the gains and offset of the camera may not yield a value of 0

for black, this must be determined experimentally by blocking the light

from the camera and determining the average pixel brightness by

moving the cursor across the presented image. This must be

manually entered for the BarCode tool to report contrast in calibrated

units.

• Calibration Cell Unit — This value is returned from a Data Matrix tool

calibration that is the multiplier*100 to convert pixels to mils. This

must be manually entered for the BarCode tool to report sizes in

calibrated units.

Training

Place the ROI around the barcode to be trained. To train on any barcode

other than Postnet or Pharmacode, ensure at least one barcode in the

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-15

Enabled Codes is enabled. To train on a Postnet or Pharmacode, each

should be specifically enabled in the Enabled Codes. Perform the training

by clicking Train. When a barcode is successfully found and decoded and

Match String Enable is enabled, the match string will be set from that

barcode.

Results

• Status — The BarCode Tool status is true when a barcode is found

and decoded, and the decoded string matches the Match String when

Match String Enable is enabled.

• Symbol Height — The Symbol Height is reported if Print Verification is

set to ANSI and is reported in Pixels if Cell Unit Report is set to

Pixels. If Cell Unit Report is set to Mils, Calibrated is set On, and

Calibration Cell Unit is set to the results of a Data Matrix tool

calibration; Symbol Height will be reported in mils*100.

• Symbol Width — The Symbol Width is reported if Print Verification is

set to ANSI and is reported in Pixels if Cell Unit Report is set to

Pixels. If Cell Unit Report is set to Mils, Calibrated is set On, and

Calibration Cell Unit is set to the results of a Data Matrix tool

calibration; Symbol Width will be reported in mils*100.

• Text — String from the decoded barcode.

• Error Bits — Number of code words in error that are not erasure code

words used in error correction algorithm.

• Erasure Bits — Number of code words in error that are erasure code

words used in error correction algorithm.

• Code Type — Indicates the type of barcode that is decoded. This is

useful when multiple barcodes are enabled in Enabled Codes in order

Chapter 4Automatic Identification

4-16 Visionscape I-PAK User’s Manual

to read different types of barcodes after train. Table 4–2 lists and

describes the code types.

• Number Found — Number of barcodes found, decoded or not.

• ReadStatus — Status indicates true when a barcode is found and

decoded, regardless of whether the decoded string matches the

match string value.

• VerificationStatus — As defined by Verification Status Upper

Threshold and Verification Status Lower Threshold. Grades 4-0 (A-F)

are divided into three ranges:

– Good — Grades above or equal to the Upper Threshold

TABLE 4–2. Code Types

Code Type Description

16 PDF

32 Code 128

64 Code 93

128 Code 39

256 I 2 of 5

512 Codabar

1024 UPC / EAN

2048 UPC-E

4096 UPC-Supplemental

8192 BC412

16384 Postnet

32768 Pharma code

65536 RSS 14

131072 RSS Limited

262144 RSS Expanded

524288 RSS Stacked

1048576 Composite

2097152 QR Code

Barcode Reading

Automatic

Identification

Visionscape I-PAK User’s Manual 4-17

– Fair — Grades below the Upper Threshold but greater than or

equal to the Lower Threshold

– Poor — Grades below the Lower Threshold

VerificationStatus is only available when Print Verification is set to

ANSI.

• Scan [0-9] Grade — The overall grade for each of the 10 scans. This

is only available when Print Verification is set to ANSI.

• Final Grade — Final composite grade derived from the 10 Scan

Grades. This is only available when Print Verification is set to ANSI.

• Final Grade Score — Final score derived from the 10 Scans. This is

only available when Print Verification is set to ANSI. Reported value

is *10.

• One X Dim — The size of the smallest bar in pixels. This is only

available when Print Verification is set to ANSI. Reported value is *10.

• Ratio [0] — The widest bar to 1X dimension. This is only available

when Print Verification is set to ANSI.

• Ratio [1] — The next widest bar to 1X dimension. This is only

available when Print Verification is set to ANSI.

• Ratio [2] — The smallest widest bar to 1X dimension. This is only

available when Print Verification is set to ANSI.

• Verification Details — A summary of the grades and values of all

parameters for each of the 10 scans. This is only available when Print

Verification is set to ANSI.

Note: The reported Modulation, Defects and Decodability are *100.

Min Reflectance reported value is *10.

• Sym Results — A summary of locator and decoder statistics such as

angle, roi, and symbol type.

I/O Summary

BarCode Tool provides a I/O summary in the Status Bar located at the

bottom of the FrontRunner™ window.

Chapter 4Automatic Identification

4-18 Visionscape I-PAK User’s Manual

Inputs: N/A

Outputs: N/A

Error Messages:

The least significant digits of reported Error Messages may be interpreted

with the information in Table 4–3.

TABLE 4–3. BarCode Error Messages

General Error Code

IP_NO_EDGE_CANDIDATE_FOUND 127001

IP_FIRST_EDGE_NOT_FOUND_OR_TOO_SMALL 127004

IP_SECOND_EDGE_NOT_FOUND 127005

IP_THIRD_EDGE_NOT_FOUND 127011

IP_FOURTH_EDGE_NOT_FOUND 127012

IP_FOUR_CORNERS_NOT_FOUND 127020

IP_SIZE_TEST_FAILED 127021

IP_ROW_COL_TEST_FAILED 127022

IP_INSPECTION_TIMEOUT 127030

IP_BORDER_MATCH_TEST_FAILED 127033

IP_ECC_UNDECODABLE 127048

IP_CONTRAST_CALIBRATION_FAILURE 127050

IP_CELLUNIT_CALIBRATION_FAILURE 127051

IP_VERIFICATION_PROCESS_ERROR 127100

IP_VERIFICATION_UNSUPPORTED 127101

IP_VERIFICATION_TIMEOUT 127102

IP_ISOV_ECC200_REQUIRED 127110

IP_ISOV_APERTURE_TOO_SMALL 127111

IP_ISOV_APERTURE_TOO_LARGE 127112

IP_ISOV_INSUFFICIENT_SPACE 127113

IP_ISOV_FAIL_RDA_STEP_F_1 127114

IP_ISOV_FAIL_RDA_STEP_F_2 127115

IP_ISOV_FAIL_RDA_STEP_F_3 127116

IP_ISOV_FAIL_RDA_STEP_A_E 127117

QRCODE_DESIGN_UNIMPLEMENTED 128400

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-19

Data Matrix Tool

This tool reads a Data Matrix symbol and converts the data to a string that

can be compared to a known string, or exported. The input to DataMatrix

Tool consists of a Data Matrix description, and search criteria. The output

of DataMatrix Tool will be the decoded string and status indicating a

match with the known string.

Other Steps Used

None.

QRCODE_IP_GENERAL_ERROR 128401

QRCODE_IP_RATIO_ERROR 128402

QRCODE_IP_FINDER_ERROR 128403

QRCODE_IP_LINE_FIT_ERROR 128404

QRCODE_IP_LINE_INTERSECT_ERROR 128405

QRCODE_IP_CORNER_ERROR 128406

QRCODE_DEC_UNKNOWN_ERROR 128420

QRCODE_RS_LEVEL_INVALID 128421

QRCODE_FORMAT_INFO_FAILED 128422

QRCODE_VERSION_INFO_FAILED 128423

QRCODE_ROWS_COLS_INVALID 128424

QRCODE_DATA_CODEWORD_INVALID 128425

QRCODE_TOTAL_CODEWORD_INVALID 128426

QRCODE_MODE_INDICATOR_INVALID 128427

QRCODE_MODE_UNIMPLEMENT 128428

QRCODE_RS_DECODE_FAILED 128429

QRCODE_BCH15_5_UNDECODABLE 128430

QRCODE_MODEL_INVALID 128431

TABLE 4–3. BarCode Error Messages (continued)

General Error Code

Chapter 4Automatic Identification

4-20 Visionscape I-PAK User’s Manual

Theory of Operation

DataMatrix Tool locates and decodes Data Matrix codes. It will search the

specified ROI for a Data Matrix and attempt to decode it.

During the training process, a representative Data Matrix is placed in the

ROI. After you click Train, the system looks for any type of Data Matrix in

the ROI. Based on the first one it finds, it will set the DataMatrix Tool

parameters to optimize the reading process for the Data Matrix that it

found.

You can run this tool without training. While the untrained speed of

locating and decoding a Data Matrix will suffer, the Data Matrix tool will be

able to read a much larger range of Data Matrix sizes, shapes, and

qualities.

When running the Job, the system will look only for Data Matrices with

similar specifications. The decoded string is available for output, and the

step’s status will indicate the Data Matrix data exactly matches the trained

Data Matrix data when Enable Match String is selected.

If the Data Matrices being inspected will vary between runs including

changing in size, the search criteria can be relaxed. After training on the

representative Data Matrix, setting the height, width, rows and columns to

0 will allow the system to find a Data Matrix, regardless of the size. This

will slow the search somewhat, so, if the Data Matrix size is constant

between runs, the parameters should be set accordingly.

The DataMatrix Tool is inserted in a Job inside of a Snapshot, an NPt

Locator, Rect Warp, etc.

To train the DataMatrix Tool, adjust the DataMatrix Tool ROI so that it

contains the Data Matrix to be trained, and some clean area around the

Data Matrix, as shown in Figure 4–3.

Note: You can be generous with the clean area.

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-21

FIGURE 4–3. Data Matrix Tool — Trained

The DataMatrix Tool may fail to train when the ROI contains the full

image. In this case, reduce the ROI so that it fits just around the Data

Matrix and try to Train again. Once the step has been trained, the ROI

can be adjusted without re-training. If the tool still fails to train correctly, try

the assisted learn training method. When placing the ROI just around the

Data Matrix, be sure to leave some white space around the Data Matrix

(usually a little greater than the size of an individual cell).

When Assisted Learn is enabled, a second shape appears (Figure 4–4).

This shape defines the shape of the Data Matrix to be trained. Adjust the

corners of the assisted learn shape so that they are aligned with the

corners of the training Data Matrix. Only the ROI is used during the run of

DataMatrix Tool. Assisted Learn shape is used only during the training

procedure.

Chapter 4Automatic Identification

4-22 Visionscape I-PAK User’s Manual

FIGURE 4–4. Assisted Learn— Data Matrix Tool

If a Data Matrix is located and decoded from running the DataMatrix Tool,

the Data Matrix is outlined and the decoded text displayed above it, as

shown in Figure 4–4. The status flag of DataMatrix Tool is set to pass

when a Data Matrix is found and decoded and, if the Enable Match String

is selected, the decoded string must also match. The output status

ReadStatus is set to true when a Data Matrix is found and decoded

regardless of the decoded string.

Description

Data Matrix Tool allows editing through the Data Matrix Tool properties

page, as shown in Figure 4–5.

Train ROI

Assisted Learn ROI

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-23

FIGURE 4–5. Data Matrix Tool Properties Page

Chapter 4Automatic Identification

4-24 Visionscape I-PAK User’s Manual

TABLE 4–4. Links to Property Descriptions

For Information About... Go To...

Aperture page 4–35

Assisted Learn page 4–25

Calibrated page 4–25

Calibration Cell Unit page 4–35

Calibration Contrast Max page 4–35

Calibration Contrast Min page 4–35

Calibration Enable page 4–25

Cell Size page 4–27

Cell Unit Report page 4–35

Contrast Report page 4–35

ECC Level page 4–27

Finetune Method page 4–30

Graphics Level page 4–35

Height (pixels) page 4–26

Image Style page 4–27

Match String page 4–25

Match String Enable page 4–25

Matrix Angle Variation page 4–28

Matrix Orientation page 4–27

Matrix Polarity page 4–27

Matrix Size Variation page 4–28

Minimum Border Integrity page 4–28

Minimum Edge Strength page 4–28

No. of Matrix Columns page 4–27

No. of Matrix Rows page 4–26

Print Verification page 4–33

Robust Locate page 4–33

Samples per Matrix Cell page 4–28

Search Direction page 4–29

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-25

Settings

• Assisted Learn — Provides an additional shape to place over the

Data Matrix to show the system the exact location and size of the

Data Matrix. Check to enable.

• Train String Only — After configuring the barcode tool and setting its

Match String Enabled to enabled, when you select the Train button in

Train and Tryout, only the match string field will be updated. None of

the other barcode parameters will be modified.

• Match String Enable — When enabled, the match string will be

compared against the decoded string of a Data Matrix during a run to

determine if the step is run successfully. The status result parameter

will be true if a Data Matrix is successfully decoded and the decoded

string matches the match string value when this box is checked.

During training, the decoded string from the training Data Matrix will

be placed in the Match String Value box only if this box is checked.

• Calibration Enable — This parameter is set On prior to presenting a

calibration standard to the camera. When the next read occurs, this

parameter will be automatically turned back off.

• Calibrated — If the read of the calibration standard was successful,

this flag will be set on and valid Calibration Contrast Max, Calibration

Contrast Min, and Calibration Cell Unit values will be created.

Search Speed page 4–29

Target Contrast page 4–35

Threshold Method page 4–30

Tool Time Out (ms) page 4–26

Train String Only page 4–25

Use Wildcard ? in Match String page 4–26

Warp Method page 4–29

Width (pixels) page 4–26

Width to Height Ratio page 4–29

TABLE 4–4. Links to Property Descriptions (continued)

For Information About... Go To...

Chapter 4Automatic Identification

4-26 Visionscape I-PAK User’s Manual

• Use Wildcard ? in Match String — When enabled (checked), this can

be used in the match string to represent a don't care character, i.e.,

the character represented by ? can be anything. When disabled, any

character ? in the match string is treated as a regular character to be

matched.

• Match String — This string will be compared against each decoded

string during each run when Match String Enable is selected. This

property will be filled in after a successful train only when Match

String Enable is selected while training.

Default: Empty

• Tool Time Out (ms) — Maximum time to search for a Data Matrix.

When a Data Matrix is not found and decoded by this time, this step

fails and the program execution continues. After training, if a Data

Matrix takes x milliseconds to decode, then the time-out value should

be set to more than x milliseconds when Search Direction is

Horizontal or Vertical only. The Tool Time Out value should be at least

twice x when the Horizontal then Vertical or the Vertical then

Horizontal parameter is used. When x milliseconds is used as the

Tool Time Out value when Horizontal then Vertical or Vertical then

Horizontal parameter is used, each search pass will time out in half of

the x milliseconds.

Default: 600 ms (0 = No time out)

• Height (pixels) — The height of the Data Matrix in pixels. This

parameter will be filled in after a successful train.

Default: 0

Range: 20 to 1024 pixels (0 for Unknown)

• Width (pixels) — The width of the Data Matrix. This property will be

filled in after a successful train.

Default: 0 pixels

Range: 20 to 1024 pixels (0 for Unknown)

• No. of Matrix Rows — The number of Data Matrix rows including the

borders. It will be filled in after a successful train.

Default: 0

Range: 8 to 144 (0 for Unknown)

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-27

• No. of Matrix Columns — The number of Data Matrix columns, similar

to the row parameter.

Default: 0

Range: 8 to 144 (0 for Unknown)

• Image Style — Options include:

– Mirror — The Data Matrix is viewed as a mirror image.

– Normal — The Data Matrix is viewed as is.

– Auto — Set by default and will be set to Normal.

• Matrix Polarity — Specifies the border and background color

orientation:

– Auto — Set by default and will be set accordingly after a

successful train.

– Light on Dark — Light cells on a dark background.

– Dark on Light — Dark cells on a light background.

• Matrix Orientation — Selections are Omnidirectional, 0o, 90o, 180o,

270o, 45o, 135o, 225o, and 315o. When the Data Matrix orientation

changes from run to run, then Omnidirectional should be used. When

the orientation will not change, selecting the correct orientation angle

will produce a more robust read. The orientation angle is formed by

the x-axis and the bottom of the solid border of the L shape. The

angle is positive in a counterclockwise direction. Setting the

orientation to a certain degree will not necessarily prevent a Data

Matrix of different orientation from being located.

• ECC Level — Specifies the ECC level of the Data Matrix to decode,

or Auto for any ECC Level. The default is Auto. The options are ECC

200, ECC 140, ECC 100, ECC 80, ECC 50, ECC 0, ECC 250, and

SPEC.

• Cell Size — This is the nominal width and height of a Data Matrix cell

in pixels. This value will be set after a successful train.

Default: 6 pixels

Range: 3 to 20 pixels

Chapter 4Automatic Identification

4-28 Visionscape I-PAK User’s Manual

• Samples per Matrix Cell — The width and height of the sample area

of a cell. This ranges from 1 to 7 but should not be greater than Cell

Size setting.

Default: 5

• Minimum Edge Strength — This value informs the algorithm to search

for the edge of a Data Matrix whose intensity exceeds this value.

Default: 18

Range: 5 to 100; a setting of 5 will allow a Data Matrix of low contrast

be located.

• Minimum Border Integrity — Percentage of border that must be intact

to consider the Data Matrix valid.

Default: 80

Range: 55 to 100

• Matrix Size Variation — The size, representing the height and width

of a Data Matrix, is set after training. By default, this parameter is set

to 20%, which means the Data Matrix size in run can vary up to 10%

from the one used in Train. The number can be reduced to speed up

the run process. If the variation in size exceeds 20%, both Height and

Width should be set to 0 to disable size constraints.

Default: 20%

Range: 0 to 25%

• Matrix Angle Variation — The factor is set to up to 23° by default. This

means that the Data Matrix, in run mode, can rotate from the

orientation specified by the Matrix Orientation parameter (e.g., 0°,

90°, etc.) by up to 23° clockwise or counterclockwise. The range can

be reduced to increase the reading speed when appropriate. To read

a Data Matrix with significant amount of border damage, train the tool

on a good label. Set Matrix Size Variation and Angle Variation to 0

and Matrix Orientation to 0°. This will allow the tool to read a badly

damaged Data Matrix label as long as its orientation is approximately

0°.

Default: 23°

Range: 0 to 180°

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-29

• Width to Height Ratio — Matrix width to Data Matrix height ratio

scaled by 10. For a width:height ratio of 1.5, enter 15 in this box. This

value will be entered after a successful train. This is useful when a

tool reads a Data Matrix whose size varies more than 10% but the

Width to Height Ratio does not change. In this case, set this

parameter to match the Data Matrix and set the Height and Width

properties to 0. When the Data Matrix changes in size and shape, set

this property and Height and Width to 0 after the train.

Default: 10 (1:1 ratio)

• Search Speed — Specifies the method to locate the Data Matrix:

– Normal (Default) — Changing this may improve the speed (at the

cost of robustness).

– Overdrive — Increase the locating speed by up to 20% from

Normal.

– Turbo — Increase the locating speed by up to 20% from

Overdrive.

• Search Direction — Specifies the search method used within the ROI.

Changing this parameter requires Tool Time Out to be modified to

ensure the best performance:

– Horizontal — Search for Data Matrix using horizontal probes. The

time allowed by Tool Time Out (ms) will be used by horizontal

searches.

– Vertical — Search for Data Matrix using vertical probes. The time

allowed by Tool Time Out (ms) will be used by vertical searches.

– Horizontal then Vertical — Each search direction will be used up

to half of the time allowed by Tool Time Out (ms).

– Vertical then Horizontal — Each search direction will be used up

to half of the time allowed by Tool Time Out (ms).

– Criss Cross (Default) — This setting should work best for most

cases. This mode uses diagonal probes to optimize the search.

• Warp Method — Specifies the Data Matrix warping method:

Chapter 4Automatic Identification

4-30 Visionscape I-PAK User’s Manual

– Fast (Default) — Increase the reading speed. Uses

approximation to reduce the computation time. This may produce

a higher error bit rate than Slow.

– Slow — Enable when receiving a high error bit rate.

• Threshold Method — For dot-peen marks or inkjet printer marks, the

spacing between cells may not be accurate. Local or Adaptive cannot

replace Global because each is slower and less stable than Global for

most of the applications. By default, all three selections are enabled.

– Adaptive — May produce better decode results when the

background of the Data Matrix is uneven due to marking or

lighting.

– Global — A single threshold value determines whether a cell is

dark or light for all cells.

– Local — May yield less error used in the error correction

algorithm when Data Matrix rows or columns are not equally

spaced.

• Finetune Method — The methods are:

– Position Enhance — Attempts to locate the four corners of the

Data Matrix more precisely and to reduce the number of error

correction bits used during decoding.

Default: Off

– Intensity Enhance — Overcomes dramatic intensity variation over

the Data Matrix border area. For example, certain poorly marked

Data Matrix may have some cells that are almost invisible

compared to the rest of the cells:

• When disabled, the system may issue a status code

indicating a certain edge cannot be found.

• When enabled, the option will help read this type of Data

Matrix more consistently.

Default: On

– No Quiet Zone Clutter (default) — This property attempts to

locate a Data Matrix even if the background is noisy and

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-31

cluttered. When the Data Matrix is printed on a clean background,

enabling this property increases the locating process speed.

Default: Off

Chapter 4Automatic Identification

4-32 Visionscape I-PAK User’s Manual

– Ignore Single Edges — This property causes the decoder to

ignore single edges during the Data Matrix locate process. This

speeds up the locate process in the presence of unrelated lines

found in the image near the Data Matrix.

Default: Off

– Finetune — Reserved for future use.

– Allow Steep Angle — In some Data Matrix reading applications, it

is not possible to set up the camera such that the focal plane is in

parallel with the surface of the Data Matrix label. When the focal

plane and the label surface form a steep angle, the Data Matrix in

the image will have severe geometrical distortion. Use the

following steps to read a severely distorted Data Matrix in any

orientation:

1. Make sure all DataMatrix Tool settings are in their default

state.

2. Select No Quiet Zone Clutter and Allow Steep Angle for the

Finetune method.

3. Select Turbo for the Search Speed.

The distorted Data Matrix can then be read in Run mode.

Default: Off

– Allow Severe Damage — Enabling this option will increase the

robustness of the software in reading Data Matrices with severe

border damage. To use it, first train successfully on a Data Matrix

with less damage. Then, enable this option in the Finetune

Method to read labels with more damage in Run mode.

Default: Off

– Ensure Within ROI — Enabling the option ensures that no Data

Matrix is located unless it is fully inside the ROI.

Default: Off

– Allow Outlined Cells — Enabling the option helps the algorithm

decode a Data Matrix with outlined cells only. In this case, the On

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-33

and Off cells have little or no contrast but they are separated by

edges of the cells.

Default: Off

– Decode Near Center — The camera tries to read the symbol that

is closest to the center of the FOV.

Default: Off

• Robust Locate — When enabled, the system will first look for a Data

Matrix matching the given specifications. If it fails to find a Data

Matrix, the Data Matrix size parameters will be relaxed and the

system will try to find the Data Matrix up to two more times.

• Print Verification — Enables Verifier outputs when set to one of the

following:

–AIM

–ISO

–IAQG

–DPM

Note: For more information, see “Results” starting on page 4-37.

• Enabled DPM Verification Parameters — If DPM verification is

enabled in Print Verification, the parameters to be included for the

overall verification grade may be selected. This allows you to ignore a

parameter if it is not pertinent to their application. The parameters

are:

– Cell Size

– Center Offset

–Size Offset

– Cell Modulation

– Border Match

Chapter 4Automatic Identification

4-34 Visionscape I-PAK User’s Manual

– Contrast

– Axial Nonuniformity

– Print Growth

– Unused Error Correction

– Distortion Angle

• Verification Status Upper Threshold — Allows you to set the upper

threshold at which the printed code is considered good. When the

final verification grade is greater than or equal to the value of this

datum, the code will be considered to be of good quality. This value

should always be greater than or equal to the Verification Status

Lower Threshold. If it is equal to the Verification Status Lower

Threshold, the resulting status will be good (3) or poor (1) with no fair

(2) status defined.

Valid Values: 4 to 1

• Verification Status Lower Threshold — Allows you to set the lower

threshold at which the printed code is considered fair. When the final

verification grade is greater than or equal to the value of this datum,

the code will be considered to be of fair quality. This value should

always be less than or equal to the Verification Status Upper

Threshold. If it is equal to the Verification Status Lower Threshold, the

resulting status will be good (3) or poor (1) with no fair (2) status

defined.

Valid Values: 3 to 1

• {parameter} VerStat LoThresh and {parameter} Verstat UpThresh —

When DPM verification is enabled in Print Verification, each of the

Enabled DPM Verification Parameters will have its own high and low

threshold values. The behavior will be the same as for Verification

Status Upper Threshold and Verification Status Lower Threshold

except applied to classification of the single parameter’s grade. The

overall Verification Status for the inspection will be the lowest status

of the enable parameters.

• Target Print Growth — Reserved for future use.

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-35

• Graphics Level — Selects the amount of graphics displayed at the

completion of step execution:

– Show None — When enabled, no graphics are drawn.

– Show Graphics — When enabled, Data Matrix locating graphics

and any decoded text will be displayed.

• Contrast Report — The units that will be used for the reporting of

contrast. These are Uncalibrated, Self Calibrated, and Reflectance

Calibrated. Reflectance Calibrated may be used if values from a Data

Matrix tool calibration have been generated by reading a Calibration

Standard that corresponds to the entered Target Contrast of the

Calibration Standard.

• Calibration Contrast Max — The value returned from a Data Matrix

tool calibration that indicates the pixel brightness that represents

white.

• Calibration Contrast Min — The value used by a Data Matrix tool

calibration to represent what the camera sees as absolute black.

Because the gains and offset of the camera may not yield a value of 0

for black, this must be determined experimentally by blocking the light

from the camera and determining the average pixel brightness by

moving the cursor across the presented image. This must be

manually entered for the Data Matrix tool to report contrast in

calibrated units and entered before calibration is attempted.

• Cell Unit Report — The Units that will be used for the reporting of cell

size and symbol height and width. These are Pixels or Mils. Mils may

be used if the value of the Calibration Cell Unit is available following a

successful calibration.

• Calibration Cell Unit — This value is returned from a Data Matrix tool

calibration that is the multiplier*100 to convert pixels to mils.

• Aperture — Used to set the synthetic aperture size in mils. The

default is 0 for AUTO with manually set values in the range of 4 - 20.

• Target Contrast — The contrast value of the calibration standard

used with the Data Matrix tool to generate the calibration parameters.

Chapter 4Automatic Identification

4-36 Visionscape I-PAK User’s Manual

Training

• Normal Training — Place the ROI around the Data Matrix to be

trained, and click Train. If a Data Matrix is successfully found and

decoded, the trainable set-up parameters (Match String, Height,

Width, No. of Matrix Rows, No. of Matrix Columns, Image Style,

Matrix Polarity, ECC Level, Cell Size, Minimum Edge Strength, Width

to Height Ratio and Threshold Method) will be taken from that Data

Matrix, as shown in Figure 4–6. The remainder of the parameters will

be set to their defaults to ensure robust reading.

FIGURE 4–6. Normal Training — DataMatrix Tool

When the tool is trained successfully, the Train button will turn green

and the ROI displays a solid line. When the train fails, the Train button

becomes red, and the ROI displays a dashed line.

• Assisted Training — If the normal training method fails to work,

enable Assisted Learn on the properties page. Adjust the position of

the corners of the DataMatrix Tool shape over the Data Matrix to be

trained. No. of Matrix Rows, No. of Matrix Columns and Matrix

Polarity must be set correctly before clicking Train, as shown in

Figure 4–7. The remainder of the properties should be set to default

values.

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-37

FIGURE 4–7. Assisted Training — DataMatrix Tool

• No Training — The Data Matrix tool can operate without training,

which will allow a much wider range of Data Matrix codes to be

successfully located and decoded.

Results

• Error Code — Reported errors encountered when locating, decoding,

calibrating or verifying (see Table 4–5, “Data Matrix Error Messages,”

on page 4-45). The least significant digits of reported Error Messages

may be interpreted with the information in the table.

• Status — The DataMatrix Tool status is true when a Data Matrix is

found and decoded, and the decoded string matches the Match String

when Match String Enable is enabled.

• Text — The decoded string found in the Data Matrix.

• Center Point — X,Y location of the center of the Data Matrix.

• Angle — The rotation of the Data Matrix in degrees.

• Number Found — The number of Data Matrices found, decoded or

not.

• Read Status — Status indicates true when a Data Matrix is found and

decoded, regardless of whether the decoded string matches the

match string value.

Train ROI

Assisted Learn ROI

Chapter 4Automatic Identification

4-38 Visionscape I-PAK User’s Manual

• SymResults — Contains detailed Data Matrix results.

• Error Bits — The number of invalid bits in the Data Matrix.

• Decoded Image

If Print Verification is set to anything other than None, the following

outputs will be produced regardless of the type of verification being

performed:

• Symbol Height — The height of the Data Matrix in pixels if Cell Unit

Report is set to Pixels. If Cell Unit Report is set to Mils, Calibrated is

set On, and Calibration Cell Unit is set to the results of a Data Matrix

tool calibration; Symbol Height will be reported in mils*100.

• Symbol Width — The width of the Data Matrix in pixels if Cell Unit

Report is set to Pixels. If Cell Unit Report is set to Mils, Calibrated is

set On, and Calibration Cell Unit is set to the results of a Data Matrix

tool calibration; Symbol Width will be reported in mils*100.

• Verification Details — Provides a summary of verification results that

is specific to the type of verification selected in Print Verification.

• Verification Overall Grade — Selects the overall lowest grade among

the graded parameters for this type of verification.

• Verification Status — As defined by Verification Status Upper and

Lower Threshold. Grades 4-0 (A-F) are divided into three ranges.

– Good — Grades above or equal to the Upper Threshold.

– Fair — Grades below the Upper Threshold but greater than or

equal to the Lower Threshold.

– Poor — Grades below the Lower Threshold are considered Poor.

Note: For DPM verification, Verification Status is the lowest status

found in each of the enabled parameters and each enabled

parameter has its own set of threshold values.

Print Verification Types

The section discusses the following Print Verification types:

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-39

• “AIM” starting on page 4-40

• “ISO” starting on page 4-42

• “IAQG” starting on page 4-43

• “DPM” starting on page 4-43

Chapter 4Automatic Identification

4-40 Visionscape I-PAK User’s Manual

AIM

When you select AIM, in addition to decoding the Data Matrix, the tool

also computes the Data Matrix print quality according to the AIM

specification. The DataMatrix Tool computes:

• Axial Nonuniformity

• Contrast

• Print Growth

Each parameter can be graded as follows:

• A corresponding to a numeric value of 4.

• B corresponding to a numeric value of 3.

• C corresponding to a numeric value of 2.

• D corresponding to a numeric value of 1.

• F corresponding to a numeric value of 0.

The overall print quality grade is the lowest of the four grades:

• Axial Nonuniformity — Measures the difference in average spacing

between the center of adjacent cells in the horizontal axis versus that

of the vertical axis. A square Data Matrix with the same number of

rows and columns typically resembles a rectangular Data Matrix

when Axial Nonuniformity is significant as measured per the AIM

specification. The grading is:

A when AN <= 0.06

B when AN <= 0.08

C when AN <= 0.10

D when AN <= 0.12

F when AN > 0.12

The reported value is *100

• Axial Nonuniformity Grade

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-41

• Contrast — Refers to the difference in reflectance between the light

and dark cells of the symbol. It is measured according to AIM

specification. The Symbol Contrast Grade is given as follows:

A for 70%+ contrast

B for 55%+ contrast

C for 40%+ contrast

D for 20%+ contrast

F for less than 20% contrast

• Contrast Grade — The Contrast Grade is the difference in reflectance

(measured by grayscale values) between the light and dark cells of

the symbol. The arithmetic mean of the darkest 10% of the pixels and

that of the lightest 10% pixels within the Data Matrix area are

computed. The Symbol Contrast is the difference of the two means

divided by the full gray scale range. The Contrast Grade is given as:

A for 70%+ contrast

B for 55%+ contrast

C for 40%+ contrast

D for 20%+ contrast

F for less than 20% contrast

• Print Growth Grade — Print growth measures both X (the direction of

the bottom “L” solid border) and Y (the direction of the left “L” solid

border) direction and picks the worst as the print growth value for

determining the print growth grade.

• Print Growth X — Measurement of the direction of the bottom “L”

solid border.

• Print Growth Y — Measurement of the direction of the left “L” solid

border.

Chapter 4Automatic Identification

4-42 Visionscape I-PAK User’s Manual

• UEC Grade — A Data Matrix symbol has fixed error correction

capacity. When a Data Matrix is decoded, the Error Correction (used)

indicates how much of the error correction capacity is consumed in

order to decode the symbol. The more the error correction is used,

the less the Unused Error Correction is left within the error correction

capacity, which corresponding to poorer print quality of the symbol.

The grade is:

A if UEC >= 0.62

B if UEC >= 0.50

C if UEC >= 0.37

D if UEC >= 0.25

F if UEC < 0.25

ISO

Outputs include:

• Contrast — Data Matrix contrast 0 to 100%.

• Contrast Grade

• Axial Nonuniformity reported as *100

• Axial Nonuniformity Grade

• Print Growth X — Measurement of the direction of the bottom “L”

solid border.

• Print Growth Y — Measurement of the direction of the left “L” solid

border.

•UEC Grade

• Grid Nonuniformity Grade

• Grid Nonuniformity reported as *100

• Fixed Pattern Damage Grade

• Modulation Grade

• Reference Decode Grade

• Quality 20x Clear Zone

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-43

• Cell Size reported as *10

IAQG

Outputs include:

• Cell Fill X

• Cell Fill Y

• Cell Size reported as *10

• Distortion Angle

• Distortion Angle Grade

• Dot Center x (where x is 1 or 2) reported as *10

• Dot Center Grade

• Dot Size x (where x is 1 or 2) reported as *10

• Dot Size Grade

DPM

Outputs include:

• Axial Nonuniformity reported as *100

• Axial Nonuniformity Grade

• Border Match — Border match 0 to 100%.

• Border Match Grade

• Cell Modulation Grade

• Cell Modulation Off

• Cell Modulation On

• Cell Size reported as *10

• Cell Size Grade

• Center Offset reported as *10

Chapter 4Automatic Identification

4-44 Visionscape I-PAK User’s Manual

• Center Offset Grade

• Contrast — Data Matrix contrast 0 to 100%.

• Contrast Grade

• Distortion Angle

• Distortion Angle Grade

• Print Growth Grade

• Print Growth X — Measurement of the direction of the bottom “L”

solid border.

• Print Growth Y — Measurement of the direction of the left “L” solid

border.

• Size Offset reported as *10

• Size Offset Grade

•UEC Grade

I/O Summary

DataMatrix Tool provides an I/O summary in the Status Bar located at the

bottom of the FrontRunner™ window.

Inputs: Cell Size: aaa TimeOut: bbb Robust: FastWarp:

Where: aaa = datum value - not shown if cell size is zero (unknown)

bbb = inspection timeout in milliseconds - not shown when

timeout is set to zero (no timeout)

Robust = displayed only when Robust Locate is selected

FastWarp = displayed only when FastWarp is selected - not

shown when SlowWarp is selected

Outputs: Error Bits: cc Contrast: dd

Where: cc = number of error bits detected in the Data Matrix

dd = contrast of the Data Matrix

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-45

Error Messages:

The least significant digits of reported Error Messages may be interpreted

with the information in Table 4–5.

TABLE 4–5. Data Matrix Error Messages

General Error Code

IP_NO_EDGE_CANDIDATE_FOUND 127001

IP_FIRST_EDGE_NOT_FOUND_OR_TOO_SMALL 127004

IP_SECOND_EDGE_NOT_FOUND 127005

IP_THIRD_EDGE_NOT_FOUND 127011

IP_FOURTH_EDGE_NOT_FOUND 127012

IP_FOUR_CORNERS_NOT_FOUND 127020

IP_SIZE_TEST_FAILED 127021

IP_ROW_COL_TEST_FAILED 127022

IP_INSPECTION_TIMEOUT 127030

IP_BORDER_MATCH_TEST_FAILED 127033

IP_ECC_UNDECODABLE 127048

IP_CONTRAST_CALIBRATION_FAILURE 127050

IP_CELLUNIT_CALIBRATION_FAILURE 127051

IP_VERIFICATION_PROCESS_ERROR 127100

IP_VERIFICATION_UNSUPPORTED 127101

IP_VERIFICATION_TIMEOUT 127102

IP_ISOV_ECC200_REQUIRED 127110

IP_ISOV_APERTURE_TOO_SMALL 127111

IP_ISOV_APERTURE_TOO_LARGE 127112

IP_ISOV_INSUFFICIENT_SPACE 127113

IP_ISOV_FAIL_RDA_STEP_F_1 127114

IP_ISOV_FAIL_RDA_STEP_F_2 127115

IP_ISOV_FAIL_RDA_STEP_F_3 127116

IP_ISOV_FAIL_RDA_STEP_A_E 127117

QRCODE_DESIGN_UNIMPLEMENTED 128400

QRCODE_IP_GENERAL_ERROR 128401

QRCODE_IP_RATIO_ERROR 128402

Chapter 4Automatic Identification

4-46 Visionscape I-PAK User’s Manual

DMR Verification

DMR Step Output Datums

• AxialNonuniformity value = DoubleDm*0.01

• CellSizeResult value = DoubleDm*0.1

• CenterOffset value = DoubleDm*0.1

• DotCenter1 value = DoubleDm*0.1

• DotCenter2 value = DoubleDm*0.1

• DotSize1 value = DoubleDm*0.1

• DotSize2 value = DoubleDm*0.1

• GridNonuniformity value = DoubleDm*0.01

QRCODE_IP_FINDER_ERROR 128403

QRCODE_IP_LINE_FIT_ERROR 128404

QRCODE_IP_LINE_INTERSECT_ERROR 128405

QRCODE_IP_CORNER_ERROR 128406

QRCODE_DEC_UNKNOWN_ERROR 128420

QRCODE_RS_LEVEL_INVALID 128421

QRCODE_FORMAT_INFO_FAILED 128422

QRCODE_VERSION_INFO_FAILED 128423

QRCODE_ROWS_COLS_INVALID 128424

QRCODE_DATA_CODEWORD_INVALID 128425

QRCODE_TOTAL_CODEWORD_INVALID 128426

QRCODE_MODE_INDICATOR_INVALID 128427

QRCODE_MODE_UNIMPLEMENT 128428

QRCODE_RS_DECODE_FAILED 128429

QRCODE_BCH15_5_UNDECODABLE 128430

QRCODE_MODEL_INVALID 128431

TABLE 4–5. Data Matrix Error Messages (continued)

General Error Code

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-47

• SizeOffset value = DoubleDm*0.1

• SymbolHeight value = DoubleDm*0.01

• SymbolWidth value = DoubleDm*0.01

DMR Step Output Datums

• DoubleDm UnusedErrorCorrection value as a number from 0.00 to

1.00 to go along with the existing UnusedErrorCorrectionGrade

• IntDm OvalityGrade with values of 4 through 0 (A, B, C, D, F) for

IAQG Verification

• DoubleDm Ovality value as a number from 0.0 to 100.0 for IAQG

Verification

• StringDm ECCLevelResult as the decoded value translated to a string

because the value returned by the decoder is more specific than the

parameter value provided to the decoder as instructions (e.g. AUTO

could be used as setting while the decoded result might be ECC 200).

• StringDm VerificationType to report the selected verification type as a

string instead of a number that required a translation.

VerifyDetails

VerifyDetails is a variant array of all verification results necessary to

generate verification result reports for any DMR verification type. The

contents of this array and the enumerated position of values in the array

are provided in Table 4–6.

Chapter 4Automatic Identification

4-48 Visionscape I-PAK User’s Manual

TABLE 4–6. Contents of VerifyDetails

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

0 eVerType Verificatio

nType

VerType Datum.Stri

ng.1

XXXXX

1 eVeriStat Verificatio

n Status

VeriStat Datum.Int.

XXXXX

2 eOverallGr

ade

Verificatio

n Overall

Grade

OverallGra

Datum.Int.

XXXXX

3eSymHeig

Symbol

Height

SymHeigh

Datum.Do

uble.1

XXXXX

4 eAngle Angle

(Note 1)

Angle Datum.An

gle.1

XXXXX

5eSymWidt

Symbol

Width

SymWidth Datum.Do

uble.1

XXXXX

6 eCellSizeR

esult

Cell Size CellSizeRe

sult

Datum.Do

uble.1

XXXX

7 eCont Contrast Cont Datum.Int.

X X X X

8eContrGra

Contrast

Grade

ContrGrad

Datum.Int.

X XXX

9 eAxialNGr

ade

Axial

Nonunifor

mity Grade

AxialNGra

Datum.Int.

X XXX

10 ePrintGX Print

Growth X

PrintGX Datum.Int.

X XXX

11 ePrintGY Print

Growth Y

PrintGY Datum.Int.

X XXX

12 ePrintGGr

ade

Growth

Grade

PrintGGra

Datum.Int.

XXXX

13 eUECGrad

UEC

Grade

UECGrade Datum.Int.

X XXX

14 eGridNUG

rade

Grid

Nonunifor

mity Grade

GridNUGr

ade

Datum.Int.

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-49

15 eGridNU Grid

Nonunifor

mity

GridNU Datum.Int.

16 eFixPatDa

mGrade

Fixed

Pattern

Damage

Grade

FixPatDa

mGrade

Datum.Int.

17 eModulGr

ade

Modulatio

n Grade

ModulGra

Datum.Int.

18 eRefDecG

rade

Reference

Decode

Grade

RefDecGr

ade

Datum.Int.

19 eQual20Z Quality

20x Clear

Zone

Qual20Z Datum.Int.

20 eDotSizeG

rade

Dot Size

Grade

DotSizeGr

ade

Datum.Int.

21 eDotSize1 Dot Size 1 DotSize1 Datum.Do

uble.1

22 eDotSize2 Dot Size 2 DotSize2 Datum.Do

uble.1

23 eDotCent

Grade

Dot Center

Grade

DotCentGr

ade

Datum.Int.

24 eDotCent1 Dot Center

DotCent1 Datum.Do

uble.1

25 eDotCent2 Dot Center

DotCent2 Datum.Do

uble.1

26 eDistAngl

Grade

Distortion

Angle

Grade

DistAnglG

rade

Datum.Int.

27 eDistAngl Distortion

Angle

DistAngl Datum.Int.

28 eCellFillX Cell Fill X CellFillX Datum.Int.

29 eCellFillY Cell Fill Y CellFillY Datum.Int.

30 eCellSize

Grade

Cell Size

Grade

CellSizeGr

ade

Datum.Int.

TABLE 4–6. Contents of VerifyDetails (continued)

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

Chapter 4Automatic Identification

4-50 Visionscape I-PAK User’s Manual

31 eCentOffG

rade

Center

Offset

Grade

CentOffGr

ade

Datum.Int.

32 eCentOff Center

Offset

CentOff Datum.Do

uble.1

33 eSizeOffG

rade

Size Offset

Grade

SizeOffGr

ade

Datum.Int.

34 eSizeOff Size Offset SizeOff Datum.Do

uble.1

35 eCellMod

Grade

Cell

Modulatio

n Grade

CellModG

rade

Datum.Int.

36 eCellMod

Cell

Modulatio

n On

CellModO

Datum.Int.

37 eCellMod

Off

Cell

Modulatio

n Off

CellModO

Datum.Int.

38 eBordMatc

hGrade

Border

Match

Grade

BordMatc

hGrade

Datum.Int.

39 eBordMatc

Border

Match

BordMatc

Datum.Int.

40 eOvalityGr

ade

Ovality

Grade

OvalityGra

Datum.Int.

41 eOvality Ovality Ovality Datum.Do

uble.1

42 eCalibrate

Calibrated Calibrated Datum.Stat

us.1

XXXXX

43 eECCLeve

lResult

ECC Level

Result

ECCLevel

Result

Datum.Stri

ng.1

XXXXX

44 eVThrUp Verificatio

n Status

Upper

Threshold

VThrUp Datum.Int.

XXXXX

TABLE 4–6. Contents of VerifyDetails (continued)

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-51

45 eVThrLo Verificatio

n Status

Lower

Threshold

VThrLo Datum.Int.

XXXXX

46 eContRpt Contrast

Report

ContRpt Datum.En

um.1

XXXXX

47 eCellUnit

Rpt

Cell Unit

Report

CellUnitR

Datum.En

um.1

XXXXX

48 eAperture Aperture Aperture Datum.Int.

XXXXX

49 eTargtCon

Target

Contrast

TargtCont Datum.Int.

XXXXX

50 eContMax Calibration

Contrast

Max

ContMax Datum.Int.

XXXXX

51 eContMin Calibration

Contrast

Min

ContMin Datum.Int.

XXXXX

52 eCellUnit Calibration

Cell Unit

CellUnit Datum.Int.

XXXXX

53 eAxialN Axial

Nonunifor

mity

AxialN Datum.Int.

54 eCustVer Enabled

DPM

Verificatio

Parameters

CustVer Datum.En

um.1

55 eCSVThr

Cell Size

VerStat

UpThresh

CSVThrU

Datum.Int.

56 eCSVThrL

Cell Size

VerStat

LoThresh

CSVThrLo Datum.Int.

57 eCOVThr

Center

Offset

VerStat

UpThresh

COVThrU

Datum.Int.

TABLE 4–6. Contents of VerifyDetails (continued)

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

Chapter 4Automatic Identification

4-52 Visionscape I-PAK User’s Manual

58 eCOVThr

Center

Offset

VerStat

LoThresh

COVThrL

Datum.Int.

59 eSOVThr

Size Offset

VerStat

UpThresh

SOVThrU

Datum.Int.

60 eSOVThrL

Size Offset

VerStat

LoThresh

SOVThrL

Datum.Int.

61 eCMVThr

Cell

Modulatio

n VerStat

UpThresh

CMVThrU

Datum.Int.

62 eCMVThr

Cell

Modulatio

n VerStat

LoThresh

CMVThrL

Datum.Int.

63 eBMVThr

Border

Match

VerStat

UpThresh

BMVThrU

Datum.Int.

64 eBMVThr

Border

Match

VerStat

LoThresh

BMVThrL

Datum.Int.

65 eSCVThr

Symbol

Contrast

VerStat

UpThresh

SCVThrU

Datum.Int.

66 eSCVThrL

Symbol

Contrast

VerStat

LoThresh

SCVThrLo Datum.Int.

67 eANUVTh

rUp

Axial

Nonunifor

mity

VerStat

UpThresh

ANUVThr

Datum.Int.

TABLE 4–6. Contents of VerifyDetails (continued)

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

Data Matrix Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-53

Note 1: Writing out angle in degrees

68 eANUVTh

rLo

Axial

Nonunifor

mity

VerStat

LoThresh

ANUVThr

Datum.Int.

69 ePGVThr

Growth

VerStat

UpThresh

PGVThrU

Datum.Int.

70 ePGVThrL

Growth

VerStat

LoThresh

PGVThrL

Datum.Int.

71 eUECVTh

rUp

Unused

Error

Correction

VerStat

UpThresh

UECVThr

Datum.Int.

72 eUECVTh

rLo

Unused

Error

Correction

VerStat

LoThresh

UECVThr

Datum.Int.

73 eDAVThr

Angle of

Distortion

VerStat

UpThresh

DAVThrU

Datum.Int.

74 eDAVThr

Angle of

Distortion

VerStat

LoThresh

DAVThrL

Datum.Int.

75 eUEC Unused

Error

Correction

UEC Datum.Do

uble.1

X XXX

TABLE 4–6. Contents of VerifyDetails (continued)

Offset

Symbolic

Offset

Text

Name

(italics =

output)

Symbolic

Name

Current

Type AIM

IAQ

GISO

ISO

AIM DPM

Chapter 4Automatic Identification

4-54 Visionscape I-PAK User’s Manual

OCRTrainableFont Tool

This tool reads labels and marks and returns string results. Any mark and

label symbol can be trained incrementally at the time it is first seen, or

offline. Characters and symbols can have any shape or size, as long as

they can be mapped to an ASCII character. There are no limits on the

number of characters; however, character sets must be combined in

groups of at most 45. Each set of 45 characters constitutes a single font.

Execution time is proportional to the number of fonts that read the input

mark or label.

At the Step level, the OCRTrainableFont Tool encapsulates the user

interface elements to configure the Segment Agent, the FeatExtract

Agent, the classifier inputs (Font files), and confidence thresholds. It also

allows the learning of new fonts.

Font files are stored into text files and will be installed in a “Fonts”

directory at install time inside the Vscape\Jobs directory. A font file

consists of the following files:

• A fontname.nnd file contains runtime data necessary for OCR to read

labels and marks using that Font.

• A fontname.nna file contains the data necessary to incrementally train

a font.

• A fontname.nnc file contains the data defining the Font alphabet

(ASCII characters) and statistics information necessary to support

confidence levels.

By default, a special Font called new (i.e., new.nnd) is always available

and is necessary both for creating new fonts and for use at runtime by the

OCR tool itself.

The OCRTrainableFont Tool provides both runtime and training capability

for the OCR algorithm:

• Runtime — The tool is responsible for reading a mark or label within

an ROI using one or more Fonts and reporting results, including the

string read and confidence levels for each character read.

• Training — The tool allows the creation of new fonts and allows

training and incremental training of existing fonts.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-55

Theory of Operation

When an OCRTrainableFont Tool is inserted into a Visionscape Job, the

settings that control the behavior of the Segment Agent and the

FeatExtract Agent, as well as the font parameter settings, are available

on the tool’s property page. From FrontRunner™, when an

OCRTrainableFont Tool is present in a Job, a custom interface can edit

fonts (for more information, see “OCR Font Training” on page 4-61). The

Show Custom Properties for this Step button brings up a user interface

that can create a new font or incrementally train an existing font. The

settings on the property page can modify the way in which the

OCRTrainableFont Tool functions:

• If ROI Contains is set to Two or More Characters, see the properties

shown in Figure 4–8.

• If ROI Contains is set to Single Character, see the properties shown

in Figure 4–9.

Chapter 4Automatic Identification

4-56 Visionscape I-PAK User’s Manual

FIGURE 4–8. OCRTrainableFont Tool Properties Pages

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-57

FIGURE 4–9. OCRTrainableFont Tool Properties Pages

Chapter 4Automatic Identification

4-58 Visionscape I-PAK User’s Manual

Table 4–7 lists the OCRTrainableFont Tool properties in alphabetical

order, and indicates in which property page the property appears (either

Single Character or Two or More Characters).

TABLE 4–7. OCRTrainableFont Tool Settings (Alphabetized)

Property Description

Adaptive Thresholding

(Single Character)

(Two or More Characters)

When this option is checked, a Sobel operation will be

performed within the search area to determine the pixel

value that separates a light from a dark pixel. Otherwise, the

value given in the Threshold setting is used. By default,

adaptive thresholding is enabled.

Allow Overlapped Characters

(Two or More Characters)

When this option is checked, the boundaries of the

characters found by the tool can overlap. This is useful for

fonts that allow the tops of uppercase characters to extend

over the next lowercase character in a row.

Default: Enabled

Allow Segmented Characters

(Two or More Characters)

When this option is checked, the tool will combine adjacent

disconnected parts when searching for a character’s

boundary. This should be enabled when locating dot-matrix

characters.

Default: Disabled

Character Fills Entire ROI

(Single Character)

Uses the ROI perimeter as the character’s bounding box. Use

this option when two characters touch each other because the

tool will not separate contiguous segments. Ensure that the

ROI fits tightly around the character.

Default: Disabled

Check Character Confidence

(Single Character)

(Two or More Characters)

When enabled, the confidence level found by the font

reading process for each character will be checked against a

user input level. (See Minimum Confidence description.)

Default: Enabled

Collect All Character Segments

(Single Character)

When this option is checked, the tool combines all segments

in the ROI into a single character. The ROI can fit loosely

around the character, but different characters must not touch.

Default: Enabled

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-59

Discard Boundary Characters

(Two or More Characters)

When this option is checked, characters found touching the

ROI will be discarded.

Default: Enabled

Discard Boundary Segments

(Single Character)

(This option is displayed only when the Character Fills

Entire ROI option is disabled.) When this option is checked,

segments of characters found touching the ROI will be

discarded.

Default: Enabled

Edge Energy Threshold

(Single Character)

(Two or More Characters)

Defines the pixel value at which a pixel in a Sobel Edge

Enhancement is considered to be an edge pixel. This

property is only used when Auto Thresholding Enabled is

enabled.

Range: 0 to 255; Default: 20

Graphics Level

(Single Character)

(Two or More Characters)

Enables various graphics options at runtime.

Default: Show Basic Graphics

InputBuffer

(Single Character)

(Two or More Characters)

Allows selection of the buffer to work on from the list of

currently available buffers. The default buffer will be the

output buffer of its originator. This is usually the output

buffer of the closest enclosing Snapshot but can also be the

buffer of any step that generates an output image.

Limit Character Height

(Two or More Characters)

This allows you to specify a minimum and maximum height

for the characters found.

Default: No height limits

Limit Character Width

(Two or More Characters)

This allows you to specify a minimum and maximum width

for the characters found.

Default: No width limits

Limit the Number of Characters

(Single Character)

(Two or More Characters)

When enabled, the tool will return only a limited number of

characters. The characters with the maximum confidence

level up to that limit (see Maximum Number of Characters

description) will be returned.

Default: Disabled

TABLE 4–7. OCRTrainableFont Tool Settings (Alphabetized) (continued)

Property Description

Chapter 4Automatic Identification

4-60 Visionscape I-PAK User’s Manual

Min Character Area (pixels)

(Two or More Characters)

(This option is displayed only when you disable the Allow

Segmented Characters option.) This setting specifies the

minimum size of a character, thereby eliminating segments

that are too small to be characters by themselves.

Default: 40

Minimum Confidence

(Single Character)

(Two or More Characters)

(This option is displayed only when the Check Character

Confidence property is enabled.) You can enter a confidence

level that the tool must find for each character. Any

character that cannot be matched to at least this input level

will be returned as the unknown character.

Default: 70%

Pass On No Data

(Single Character)

(Two or More Characters)

When enabled, the status will report passed even if a

character is not recognized. When disabled, if any character

is reported as unknown, the status will be false.

Polarity

(Single Character)

(Two or More Characters)

Allows selection of the symbol type for which the tool will

search. Choices are Dark Characters or Light Characters,

with a default of Dark Characters.

ROI Contains

(Single Character)

(Two or More Characters)

Provides a choice between Single Character and Two or

More Characters. When you select the Single Character

option, only one character boundary will be found within the

search area. The boundaries of the character will be defined

so that they tightly enclose all blobs found.

Default: The tool searches for multiple characters.

TABLE 4–7. OCRTrainableFont Tool Settings (Alphabetized) (continued)

Property Description

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-61

OCR Font Training

1. In FrontRunner, click Editor.

2. Select the OCRTrainableFont tool.

3. When an OCRTrainableFont Tool is present in a Job, select Font

Editor (see Figure 4–10); I-PAK displays the font editor interface, as

shown in Figure •. This editor is used for all font creation and training.

Selected Font(s)

(Single Character)

(Two or More Characters)

This is a list box containing the names of all fonts that have

been stored on the system. Whenever a new font is created

and trained, its name will appear as an option in this list. You

can select from this list one or more fonts that are to be used

when reading characters from an image.

Set Unknown Characters To

(Single Character)

(Two or More Characters)

This is a character that will be returned from the font reading

process when no match can be made within the selected font.

Default: “?”

Threshold

(Single Character)

(Two or More Characters)

This value is the threshold above which a pixel’s value must

be for it to be considered a light pixel. If the Adaptive

Thresholding property is enabled, this value is ignored, but

the calculated threshold will be displayed.

Default: 25

Threshold Bias

(Single Character)

(Two or More Characters)

This value will be added to the Threshold value before a

comparison is made to determine whither a pixel is light or

dark.

Default: 0

TABLE 4–7. OCRTrainableFont Tool Settings (Alphabetized) (continued)

Property Description

Chapter 4Automatic Identification

4-62 Visionscape I-PAK User’s Manual

FIGURE 4–10. Font Editor Page Button

FIGURE 4–11. Custom Editor

Undo Last Include

Display character array

Display font histogram

Graphical view

Numeric view

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-63

4. Minimize the FrontRunner Editor (not the custom editor)

5. In the custom editor, click Select Font to select a new font to be

trained.

The Font Manager dialog box is displayed, as shown in Figure 4–12.

FIGURE 4–12. Font Manager Dialog Box

6. Click New.

The New Font dialog box is displayed, as shown in Figure 4–13.

Chapter 4Automatic Identification

4-64 Visionscape I-PAK User’s Manual

FIGURE 4–13. New Font Dialog Box

7. Type a name for the new font.

8. Select the initial character set (characters may be deleted or added

later).

9. Click OK to close the New Font dialog box.

The Font Manager is displayed again.

10. Highlight the newly-created font and click Select.

11. In FrontRunner, click Acquire New Image to capture a new image.

Acquiring a new image clears the image of all overlay graphics.

12. Size the ROI to completely surround the characters to be trained, as

shown in Figure 4–14.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-65

FIGURE 4–14. Sizing the ROI

13. In the custom editor, type the characters to be trained into the “Text or

Characters to Include” text box (Figure 4–14).

Note: Do not type spaces.

In the image in Figure 4–14, the ROI completely surrounds the

characters “12345”. The red lines defining the ROI should not touch

the characters to be included.

The Maintain Case checkbox forces the “Text or Character to Include”

to uppercase if the font consists of uppercase characters (ABC). For

example, if you type “klm”, the characters will be converted to “KLM”

when you click the Include button. Maintain Case also forces

characters to lowercase if the font consists of lowercase characters

(abc).

14. Click Include.

Recently included characters will be highlighted in blue. Characters

remain highlighted until the font is trained and saved. The most

recently included characters are displayed in the status bar, as shown

in Figure 4–15

Chapter 4Automatic Identification

4-66 Visionscape I-PAK User’s Manual

FIGURE 4–15. Recently Included Characters Highlighted

– If the characters do not train well, right click and select Undo

Include.

To undo the inclusion of the last set of characters, right click

somewhere in the dialog and select the option Undo Include

[characters]. There is one level of undo.

Undo is available even after a font is trained.

– If fewer characters than expected are found, a message box

appears, as shown in Figure 4–16. Resize the ROI or make

adjustments to the OCRTF tool.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-67

FIGURE 4–16. Fewer Characters Found

– If more characters are found that expected, only the found

characters are included.

15. Repeat steps 11 - 14 to include numerous character samples in the

font.

As characters are included, graphics appear in the image for each

character.

FIGURE 4–17. Graphics for Each Character

16. Click Acquire New Image to clear the image graphics.

The custom editor is updated to indicate all of the included

characters, as shown in Figure 4–18.

Chapter 4Automatic Identification

4-68 Visionscape I-PAK User’s Manual

FIGURE 4–18. Custom Editor Updated

17. Click Learn to train the font using the included characters.

You may stop training, if desired.

You may train at any time as you include characters.

18. When training is complete, click Save Font or Revert, as shown in

Figure 4–19.

The time required for training increases as more samples are added.

The default timeout is 1 minute; select shorter or longer training

periods from the Timeout drop-down list.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-69

FIGURE 4–19. Click Save Font

Clicking Save Font saves the new training. The train date and time

are displayed beneath the font name, as shown in Figure 4–20.

FIGURE 4–20. Font Name and Train Date and Time

Clicking Revert abandons the training. If the font had been trained

previously, it will revert to its previous trained state.

After training, characters are highlighted using red, yellow, and green

to indicate the number of trained samples for each character.

Chapter 4Automatic Identification

4-70 Visionscape I-PAK User’s Manual

FIGURE 4–21. After Training

When the mouse pointer rests over a character, a tool tip pops up

indicating the number of trained samples for the character. In the

image above, the tool tip shows that 6 samples have been trained for

the character “A”.

19. Defocus the lens slightly and repeat steps 11 - 18.

A font should be trained using samples that vary in quality. When

fewer samples than desired are available, the set of samples can be

re-used several times during training.

To re-use the character set after the first round of training, defocus the

lens slightly to render the characters a bit fuzzy. If the lens is not

easily accessible, image processing may be used to change the

appearance of the characters.

This method simulates the variability expected in large sample sets of

characters.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-71

FIGURE 4–22. Defocusing an Image

Another alternative to image processing is adjusting the Edge Energy

datum for the OCRTF step. Changing this parameter is similar to

changing focus to produce sharper or softer character edges.

Sharp Focus - Original Image

Defocused - Simulate using MeanLP filter

Thicker Characters - Simulate using

Thinner Characters - Simulate using

GrayMorph-Dilate Dark-1

GrayMorph-Erode Dark-1

Chapter 4Automatic Identification

4-72 Visionscape I-PAK User’s Manual

Numeric View

FIGURE 4–23. Numeric View Button

After you click Numeric View, the constants associated with each

character sample are displayed in a grid, as shown in Figure 4–24.

FIGURE 4–24. Constants for Character Samples

Committed Samples corresponds to included characters.

Numeric View

Graphical View

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-73

Individual samples may be deleted from the list by right clicking on the

grid and choosing Delete.

Selecting Character Statistics displays the training statistics for all

characters in the font, as shown in Figure 4–25.

FIGURE 4–25. Training Statistics for All Characters

Character-Related Features

FIGURE 4–26. Character Features Menu

This menu is displayed when you right click on a character in the

Graphical View.

Chapter 4Automatic Identification

4-74 Visionscape I-PAK User’s Manual

Show Character Array and Show StdDev Array

You can display constants for each character by selecting Show

Character Array or Show StdDev Array, as shown in Figure 4–27. These

displays are useful for low-level debugging and font testing only. These

displays may not be helpful for an operator.

FIGURE 4–27. Results of Show Character Array and Show StdDev

Array

Show Histogram and Show Font Histogram

You can display a histogram for a character (see Figure 4–28), or show

font histogram information (see Figure 4–29).

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-75

FIGURE 4–28. Results of Show Histogram for a Character

FIGURE 4–29. Results of Show Font Histogram

Chapter 4Automatic Identification

4-76 Visionscape I-PAK User’s Manual

Delete Training and Remove from Font

The Delete Training feature removes all trained samples for a character

from the font. This feature is useful if a particular character should be

retrained by itself. You will be prompted regarding deleting all samples for

a character.

Remove from Font deletes all training for a character and removes it

completely from the font. You will be prompted regarding excluding the

character from the font.

Training Tips

• The camera field of view should be configured so that the characters

read by the OCRTrainableFont tool have a character width of 25

pixels or larger.

• Given an initial set of sample parts, divided the samples into two

subsets. Use one subset for training and the other subset for reading

tests.

• For OCRTrainableFont, the image background should be relatively

free of noise.

• Be certain to train using samples of varying quality. The samples

should be representative of the character print/mark quality expected

during production runs of the printed characters.

• Train frequently. A font may be trained at any time.

• If the value of the RMS error increases significantly after a new

training cycle, consider deleting recently added samples.

• Changes should be made to the trained font whenever a camera

position is moved. If the change in camera position or lens focus is

minor, it may be necessary to add no more than a few characters

samples.

• Note that certain characters are more prone to be confused for other

characters. Examples include B/8, G/6, and numeral 0/ letter O.

During testing, confirm that these characters are distinguished from

one another accurately.

OCRTrainableFont Tool

Automatic

Identification

Visionscape I-PAK User’s Manual 4-77

• If the camera lens is inaccessible for defocusing, use software

methods to simulate variations in character quality.

• Note that each OCRTF step can use multiple trained fonts.

• If training takes longer than a minute, try dividing a font into two or

more smaller fonts. Click Select Font to display the Font Manager

dialog, then click Duplicate to create a copy of the font. Remove

characters from the font copy to reduce the size of the character set.

A font with characters A - Z can be split into fonts with A - M and N -

Z. Make sure all required fonts are selected in the OCRTrainableFont

Tool.

• Until Save Font is clicked, font changes may be abandoned. Close

the OCRTF training dialog and click the “No” button when prompted

to save changes.

Tips for Marking OCR Fonts

• Use either the numeral 0 or the letter O, but not both. If a human

operator has trouble distinguishing characters quickly, the vision

system will also have difficulty.

• Unlike machine-readable codes such as Data Matrix, OCR does not

have built-in error correction. Misreads are possible. For example,

“813” may be reported as “B13”. If possible, include a checksum

character in the printed text.

Results

• Status — Set to true after a successful execution of the step.

• Number of Characters Found — Total number of character objects

found, whether or not they were successfully decoded.

• Output String — The set of characters found within the ROI placed in

order from the top left most character and scanning to the right, then

down. Characters that are found but not decoded will be represented

by the character defined by Set Unknown Characters To.

• Minimum Character Confidence — The lowest match level of the

characters successfully decoded.

Chapter 4Automatic Identification

4-78 Visionscape I-PAK User’s Manual

• Mean Character Confidence — The mean match level of the

characters successfully decoded. This excludes the confidence level

of any characters that were excluded by the 'Minimum Confidence'

parameter.

• Maximum Character Confidence — The highest match level of the

characters successfully decoded.

• OCRTF Character Results — Contains a vector of the character

confidence values for the successfully decoded characters only. The

results are in the order of the characters in the output string skipping

unknown characters.

Visionscape I-PAK User’s Manual 5-1

OCV Reference

CHAPTER 5 OCV Reference

This chapter provides Optical Character Verification tool details.

Overview

Visionscape I-PAK has three options for Optical Character Verification

(OCV), each of which has an appropriate use:

• “OCVFontTool” on page 5-36

• “OCVRuntimeTool” on page 5-45

• “OCVFontless Tool” on page 5-54

This chapter outlines each of these tools along with their supporting

steps.

OCV Inspection

The OCV Tools and their supporting steps inspect codes such as

component ID and Date/Lot. The print may be either pre-print or On-line.

Individual printed features are referred to as symbols. The OCV

inspection methods inspect the quality of the individual printed symbols.

Quality checks include:

• Contrast — Contrast refers to the difference between symbol and

background. A contrast value is calculated for the symbol and

Chapter 5OCV Reference

5-2 Visionscape I-PAK User’s Manual

compared to a user-selectable contrast minimum. The symbol fails if

the calculated value is less than the minimum.

• Sharpness — Sharpness is an indication of symbol border definition

or symbol crispness. A sharpness value is calculated for the symbol

and compared to a user-selectable sharpness minimum. The symbol

fails if the calculated value is less than the minimum.

• Breaks — The current symbol data is compared to the trained symbol

data. If a break appears in the current data that was not in the trained

data, the symbol fails.

• Initial Residue — Initial residue of the symbol is basically a count of

those pixels that differ between the trained template and the current

image. A binary residue template is created that contains On pixels

only where a difference occurs between the current image data and

the trained symbol template. The sum of the On pixels in this residue

template is the initial residue value. If this value is greater than the

user-selectable maximum, the symbol fails. Refer to Figure 5–1.

Note: Typically, this test is not used in pharmaceutical applications.

FIGURE 5–1. Initial Residue Examples

• Final Residue Total Count — After performing a set of morphological

operations on the residue image, the final residue is calculated again

as the number of On pixels in the residue image. If this value is

greater than the user-selectable maximum, the symbol fails.

Increasing final residue % accepts symbols of lower quality.

• Final Residue Largest Blob — After performing a set of morphological

operations on the residue image, the largest blob is found in the

residue image. If the area of this blob is greater than the user-

selectable maximum, the symbol fails.

Template Symbol Initial Residue

OCV Inspection

OCV Reference

Visionscape I-PAK User’s Manual 5-3

• Runtime ID Checking — (For the font based tools OCVFontTool and

OCVRuntimeTool). When a symbol is trained and added to an

OCVFont, it is compared to other symbols already in the OCVFont.

Note: OCVFont boxes must be the same size in order to utilize

Runtime ID tests.

If the two symbols being compared are found to be similar, tests are

set up that verify that the correct symbol is present at runtime. If it

cannot be determined that the correct symbol is present at runtime,

the symbol fails the inspection.

Additional Filters

• Character Expansions are useful when dealing with print from a dot

matrix printer or any print that is broken up in segments. The broken

print is filtered so that it becomes solid by expanding the segments

until they come together. Dilations expand each segment. Then,

erosions decrease the size of the character in every direction except

the direction in which the segments have connected. Dilations and

erosions work together to make the segments solid without making

the character fatter.

• Filter Bright Defects is useful when dust or other material settles on

the print and appears brighter than the print in the image. This filter

eliminates the bright specks and allows proper inspection of the print.

Note: Typically, this test is not used in pharmaceutical applications.

Brief Descriptions

• OCVFont — An OCVFont step is a container of one or more

FontSymbol steps. The OCVFont contains a default FontSymbol that

is used only for setting default parameters (parameters that any

FontSymbol will inherit when inserted into the OCVFont). One or

more OCVFonts are required for font-based OCV. OCVFonts are

created and modified using the Custom Properties dialog box of the

OCVFontTool or OCVRuntimeTool. OCVFonts are stored separately

from the inspection Job file in the Vscape\Jobs\Fonts folder.

Chapter 5OCV Reference

5-4 Visionscape I-PAK User’s Manual

• FontSymbol — A FontSymbol is a collection of template images,

settings, and tolerances that inspect a character or logo at runtime.

• OCVFontTool — An OCVFontTool uses an OCVFont to learn the

layout, and determine which characters from the OCVFont are in

which locations in the FOV. Once the layout is learned, the

OCVFontTool expects to find these symbols at the same locations

during inspection. It uses the data from the FontSymbols in the

OCVFont to verify the quality of the characters being inspected.

• OCVRuntimeTool — An OCVRuntimeTool uses an OCVFont (called

the Master Font) to learn the layout, and determine which characters

from the OCVFont are in which locations in the FOV. Once the layout

is learned, the OCVRuntimeTool creates a new OCVFont (called a

Runtime Font) by training a new FontSymbol at each layout position,

using the current image data. The OCVRuntimeTool expects to find

the symbols at the same locations during inspection. It uses the data

from the Runtime Font to verify the quality of the characters being

inspected. The OCVRuntime Tool compensates for day-to-day

changes in On-line print and helps minimize false rejects. The

OCVRuntime Tool can be used when inspecting Date/Lot codes.

• OCVFontlessTool — An OCVFontlessTool does not require an

OCVFont. Instead, it determines the location of characters in the FOV

using a blob-analysis technique. It then stores training data for each

character location as an OCVSymbolStep. The OCVFontlessTool

expects to find the symbols at the same locations during inspection. It

uses the trained data to verify the quality of the characters being

inspected. The OCVFontless Tool checks symbol quality and not

symbol correctness. The OCVFontless Tool can be used on Date/Lot

codes when only symbol quality is a concern. Do not use the

OCVFontless Tool to inspect Component ID codes. Table 5–1

contains usage hints.

Note: When placing the ROI around the code to inspect, be sure to leave

clean area on either side of the code. This is called a quiet zone.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-5

• AutoFind — An AutoFind can optionally be used by any of the OCV

Tools. This step determines the location of the layout at runtime. An

AutoFind can be set up to use 1-Pin (no rotation) or 2-Pins (rotation).

The Pins can be set up by selecting which layout positions to use.

Custom Properties — Create/Modify OCVFonts

When I-PAK is first loaded, there are no fonts on the system. Fonts have

to be created in order to perform font based OCV inspection. Fonts are

stored in the Vscape\Jobs\Fonts folder. OCVFont files have the extension

“.ocv”. The location of the stored fonts is not modifiable so that all

Visionscape applications can locate the fonts in a single folder.

You can use the LayoutStep of the font based OCV tool to select a font for

training and inspection from a list of available fonts on the system.

TABLE 5–1. Usage Hints

Use This Tool... When You Want To...

OCVFontTool Inspect for code quality and correctness. Ensure that code

quality is always measured against the Font Library created by

the Programmer.

OCVFontless Inspect for code quality only.

OCVRuntime Inspect for code quality and correctness. Inspect on-line

printing.

Chapter 5OCV Reference

5-6 Visionscape I-PAK User’s Manual

Custom Settings

FIGURE 5–2. Custom Settings Dialog Box (accessed via Font Editor

Button)

The Custom Settings dialog box for the font based OCV tool creates and

modifies fonts on the system. With a font based OCV tool selected as the

current tool from the Train/Tryout screen of I-PAK, clicking on the Font

Editor toolbar button brings up the Custom Properties dialog box.

Note: The Font Editor toolbar button does not appear in AutoStep mode

because the AutoStep mode is only aware of tools and shapes within the

current Setup Manager configuration. “Font Editing” relies on the ability to

insert/remove OCVFont steps for training and manipulation. Because

these OCVFont steps are inserted/removed dynamically, the AutoStep

mode does not know about them and does not allow the shapes to

appear in the buffer. Without the shapes, the training of these OCVFonts

is not possible.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-7

Main Custom Properties Dialog

FIGURE 5–3. Main Custom Properties Dialog Box

The right side of the Custom Properties dialog box displays the properties

for the selected font. When no font is selected, no properties are

displayed.

The left side of the Custom Properties dialog box displays the name of the

selected font and the names of the symbols currently trained in that font.

Setting the “Training Debug Delay” to a non-zero value causes the

system to display detailed information during the training and scaling of

symbols.

Buttons

• Select Font — Displays the “Font Manager” dialog (see “Font

Manager Dialog” on page 5-9) and allows for a font to be selected for

training or modification.

Chapter 5OCV Reference

5-8 Visionscape I-PAK User’s Manual

• Train Font — Initiates the training of an OCVFont (see “Training

Fonts” on page 5-10). This is a change from previous I-PAK versions

where the user was required to train the OCVFont using the Train

button in I-PAK.

• Remove Symbols — Displays the “Remove Symbols” dialog (see

“Remove Symbol Dialog” on page 5-13) and allows for symbols to be

easily removed from the selected font.

• AutoFont and Scaling — Instructs I-PAK to determine automatically

the best font (from all fonts in the Vscape\Jobs\Fonts folder) for use

on the current image (see “Automatic Font Selection and Scaling

Dialog” on page 5-14).

• Revert — Reads in the last saved version of the selected font. This

allows the user to undo all changes since the last save.

• Save Font — Saves any changes made to the selected font.

By default, the “Always Ask To Save Font” checkbox is checked.

• If this box is checked when the custom properties dialog box is

closed or Select Font is clicked, the user is asked if any changes

should be saved.

• If this box is not checked, the user needs to remember to save

changes or they will be lost when the dialog box is closed or Select

Font is clicked.

By default, the “Use Selected Font on Exit” checkbox is checked.

• If this box is checked when the custom properties dialog box is

closed, the OCVFont currently active in the custom properties dialog

box becomes the selected OCVFont for the font based OCV tool that

is being trained in

I-PAK.

• If this box is not checked, no change is made to the selected

OCVFont for the tool being trained in I-PAK.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-9

Font Manager Dialog

FIGURE 5–4. Font Manager Dialog Box

The “Available Fonts” list is the list of all OCVFonts found in the

Vscape\Jobs\Fonts folder. OCVFont files have the extension “.ocv”.

Buttons

• Select — When clicked, this button returns the user to the Main

Custom Properties dialog box with the font selected in the “Available

Fonts” list as the selected font.

• New — When clicked, this button prompts the user to enter a name

for the new font.

FIGURE 5–5. Font Name Dialog Box

The user must enter a unique name for the new font. If an OCVFont

with the name “DefaultFont.ocv” does not exist in the fonts folder, I-

PAK will create one and give it the standard default property values. If

an OCVFont with the name “DefaultFont.ocv” already exists in the

fonts folder, it will not be overwritten. The values of all font properties

are copied from “DefaultFont.ocv” to the new font. This allows new

fonts to have customized settings based on the user’s requirements.

Chapter 5OCV Reference

5-10 Visionscape I-PAK User’s Manual

• Duplicate — When clicked, this button prompts the user for a name

for the new font. The user must enter a unique name for the new font.

The font that is selected in the “Available Fonts” list is then copied

and the copy is given the user provided name.

• Rename — When clicked, this button prompts the user for a name for

the new font. The user must enter a unique name for the new font.

The font that is selected in the “Available Fonts” list is then renamed

with the user provided name.

• Delete — When clicked, this button deletes the font that is selected in

the “Available Fonts” lists from the fonts folder.

• Cancel — When clicked, this button returns the user to the Main

Custom Properties dialog box with no change to the selected font.

Training Fonts

FIGURE 5–6. OCVFontTool Properties Dialog Box

When a new font is added and selected for training using the Font

Manager dialog, it needs to be trained before it can be used by a font

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-11

based OCV tool. First, the OCVFont shape needs to be positioned over

the symbols to be trained.

Second, select the LayoutStep tab and enable the Automatic

Segmentation option, as shown in Figure 5–5.

FIGURE 5–7. LayoutStep Properties Page

Clicking Train Font on the Custom Properties dialog box initiates the

training. The user is prompted to name each symbol found in the train

ROI.

FIGURE 5–8. Prompt to Enter Unique Name for the Symbol

When training is complete, the right hand side of the Custom Properties

dialog box is modified to contain a tab for each symbol that was added to

the OCVFont.

Chapter 5OCV Reference

5-12 Visionscape I-PAK User’s Manual

FIGURE 5–9. Tabs for Each Added Symbol

Note: There are many options for training OCVFonts. The example above

is the quickest way to train a font. For more details on training OCVFonts

and the properties and settings involved, see “OCVFont” on page 5-20.

Training the OCVFontTool

First, to train the OCVFontTool, the Custom Properties dialog box must be

closed. If changes have not been saved, the user is asked whether the

changes should be saved. Clicking Yes saves the changes; clicking No

loses any changes that were made.

FIGURE 5–10. Prompt to Save Changes

To train the OCVFontTool, place the tool shape around the characters that

are going to be inspected.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-13

Click Tool Settings to display the OCVFontTool’s datum page. Clicking on

the “LayoutStep” tab in the datum page will display all properties for the

LayoutStep. Select the correct font from the “Selected Font” datum’s list

of available fonts.

Clicking Train causes the tool to find all characters within the ROI that are

trained as symbols in the selected font. The tool sets up its inspection

“Layout” and is then ready to run.

Remove Symbol Dialog

FIGURE 5–11. Remove Symbol Dialog Box

The Remove Symbol dialog box deletes symbols from the Custom

Properties selected font. By selecting a symbol name from the list and

clicking Remove Symbol, the user is able to remove the selected symbol

from the font. Click the Done button to return to the Custom Properties

Main dialog box.

Chapter 5OCV Reference

5-14 Visionscape I-PAK User’s Manual

Automatic Font Selection and Scaling Dialog

FIGURE 5–12. Automatic Font Selection and Scaling Dialog Box

Buttons

• Done — Returns the user to the Custom Properties Main dialog box

when the user has finished with AutoFont and Scaling.

• Help — Displays or removes help information from the Automatic

Font Selection and Scaling dialog, as shown in Figure 5–13.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-15

FIGURE 5–13. Help Displayed

Automatic Font Selection — The AutoFont Button

The automatic font selection and scaling feature allows the system to

scan through all of the OCVFonts in the Vscape\Jobs\Fonts folder to

determine which one will work best with the current image data. When

scaling an OCVFont is required to make it the best match, the system

determines the proper scaling factors to use to create a scaled version of

the OCVFont. This scaled version of the OCVFont will be created at the

end of the automatic selection process. The name of the scaled OCVFont

will reflect the change in width and height used to perform the scaling. By

default, scaled OCVFonts are stored in the Job file as part of the

associated font based tool. These scaled OCVFonts can be stored on the

disk using the Save Scaled Font button.

The Automatic Font Selection and Scaling dialog box has two lists:

•The left hand list is a font list, containing the names of all the

OCVFonts in the Vscape\Jobs\Fonts folder.

Chapter 5OCV Reference

5-16 Visionscape I-PAK User’s Manual

•The right hand list is a symbol list, containing the names of all the

FontSymbols found in the OCVFont that is currently selected in the

font list.

Choosing a Symbol

Select a symbol from the symbol list. This symbol will determine the best

font. It is important to select a complex, uniquely shaped character. For

example, a 5 would be better than a 0 or a 1. The character should

appear in the current image and be crisply formed and printed (i.e., no

smudges or blurring).

Positioning the OCVFont Shape

The OCVFont shape of the currently selected font sets up the automatic

font selection and scaling process. This shape needs to be positioned

and sized around a character in the current image that matches the

character selected in the symbol list. It is important that the shape be

positioned and sized very tightly over the selected character (do not leave

any border). This ensures that the system will not mistake any part of

other characters as being part of the selected character.

Note: You may find it easier if the trained symbol shapes are not

displayed. Click Done and uncheck Show Trained Symbol Shapes (see

Figure 5–9, “Tabs for Each Added Symbol,” on page 5-12).

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-17

Performing the Automatic Font Selection and Scaling

FIGURE 5–14. Ready to Perform Automatic Font Selection and Scaling

Once a character has been selected and the OCVFont shape has been

correctly sized and positioned around that character in the image, the

system is ready to perform the automatic font selection and scaling. Click

AutoFont to start the process.

During the font selection process, each OCVFont that is in the

Vscape\Jobs\Fonts folder is tested. The first part of the test determines if

a symbol with the name of the selected character is trained in the

OCVFont. If not, the process continues to the next OCVFont. If the

symbol is in the font, the system will create several scaled versions of the

template based on the size of the symbol in the font and the size of the

OCVFont shape. Each scaled template is assigned a score value after it

is compared to the actual image data inside the OCVFont Box. If the

score value for any scaled template is better than any previous score

values, that score value is stored as the BestScore, along with the name

of the font that the template originated from and the scaling factors used

to derive the scaled template.

When the “Train Debug Delay” property on the Custom Properties Main

dialog box is set to a non zero value, the scaled templates and match

scores are displayed in the upper left corner of the screen.

After all OCVFonts have been tested, the OCVFont that is associated with

the BestScore is considered to be the font that will work best with the

Chapter 5OCV Reference

5-18 Visionscape I-PAK User’s Manual

current image data. When an OCVFont has been automatically selected,

a message box appears to display the name of the best matching

OCVFont and whether or not it requires scaling to match the current

image.

FIGURE 5–15. Name of Best Matching OCVFont

The dialog box also asks if the chosen font should be automatically

selected into the current font based OCV Tool.

• Choosing No results in no scaling being done to the best matching

OCVFont.

• Choosing Yes results in the OCVFont being scaled and the resulting

scaled font will become the selected font of the OCV Tool.

FIGURE 5–16. Scaled_6_10_NewFont Embedded in OCVFontTool

Choosing Yes will cause the scaled font to be created and inserted into

the OCV Tool, requiring that the OCV Tool be trained. The scaled

OCVFont will now be used when training the OCV Tool.

If none of the OCVFonts were able to match the current image data with

at least a 20% score, then no best font is found and an error message is

displayed.

Custom Properties — Create/Modify OCVFonts

OCV Reference

Visionscape I-PAK User’s Manual 5-19

Font Scaling — The Scale Button

The font scaling feature is useful when you already know which font

needs to be used, but the FOV has changed. Font scaling allows re-

sampling of all FontSymbol train data to match the current FOV. A scaled

version of the OCVFont will be created and the name of the scaled

OCVFont will reflect the change in width and height used to perform the

scaling. By default, scaled OCVFonts are stored in the Job file as part of

the associated font based tool. These scaled OCVFonts can be stored on

the disk using the Save Scaled Font button.

Choosing a Symbol

Choose the OCVFont that needs scaling from the font list. Select a

symbol from the symbol list. This symbol will determine the changes in

width and height that are needed to perform the font scaling. The

character should appear in the current image and be crisply formed and

printed (i.e., no smudges or blurring).

Positioning the OCVFont Shape

The OCVFont shape of the currently selected font sets up the font scaling

process. This shape needs to be positioned and sized around a character

in the current image that matches the character selected in the symbol

list. It is important that the shape be positioned and sized very tightly over

the selected character (do not leave any border). This ensures that the

system will correctly calculate the changes in width and height.

Note: You may find it easier if the trained symbol shapes are not

displayed. Click Done and uncheck Show Trained Symbol Shapes (see

Figure 5–9, “Tabs for Each Added Symbol,” on page 5-12.

Performing the Font Scaling

Once a character has been selected and the OCVFont shape has been

correctly sized and positioned around that character, the system is ready

to perform the font scaling. Click Scale to start the process. The system

compares the trained width of the selected FontSymbol with the width of

the OCVFont box and calculates the required change in width to scale the

FontSymbol in X. Then, the system compares the trained height of the

selected FontSymbol with the height of the OCVFont box and calculates

the required change in height to scale the FontSymbol in Y. Then, a new

OCVFont is created and given the name of the source OCVFont with the

Chapter 5OCV Reference

5-20 Visionscape I-PAK User’s Manual

addition of the change in width and change in height values. For example,

OldFont_2_-5 indicates that the OCVFont named “OldFont” was scaled

by increasing the width of the symbols by 2 and decreasing the height of

the symbols by 5. Each symbol that is in the source OCVFont is then

scaled and added to the new OCVFont.

When the “Train Debug Delay” property on the Custom Properties Main

dialog box is set to a non zero value, the scaled templates and other

FontSymbol training details are displayed in the upper left corner of the

screen.

OCVFont

An OCVFont step is a container of one or more FontSymbol steps. It

trains and groups a set of characters of a particular font style and size.

The OCVFont contains a default FontSymbol that is used only for setting

default parameters (parameters that any FontSymbol inherits when

inserted into the OCVFont). One or more OCVFonts are required for font

based OCV.

Creating FontSymbols

As a container step, the OCVFont step creates FontSymbol steps.

Creating FontSymbol steps can be accomplished by individual training or

automatic segmentation using the Custom Properties dialog box of the

OCVFontTool or OCVRuntimeTool.

FIGURE 5–17. OCVFont — Example 1

By default, I-PAK is designed such that you perform individual training of

characters. This is to activate runtime ID checking of special characters

like O, 0, B, 8, D, etc. ID checking requires that these symbol boxes be

the same size.

OCVFont

OCV Reference

Visionscape I-PAK User’s Manual 5-21

Individual character training requires that the OCVFont box be placed

close around a single character in the image, leaving a 1-2 pixel border,

as shown in Figure 5–17. This box should not include any portion of the

adjacent characters. The minimum recommended character width is 20

pixels. When Train Font is clicked, the Symbol Name dialog box is

displayed, asking for a unique name for the symbol, as shown in

Figure 5–18.

FIGURE 5–18. Symbol Name Dialog Box

Clicking Cancel or Skip aborts the training of this FontSymbol. When a

unique name is entered and OK is clicked, a FontSymbol is created, and

templates (created from the ROI area of the image) and default

parameters are stored in that FontSymbol. The OCVFont shape must be

placed around the next character to train it. This process continues until

all characters in the image have been trained as FontSymbols and added

to the OCVFont, as shown in Figure 5–19. Only one example of a given

character needs to be trained.

FIGURE 5–19. OCVFont — Example 2

The Automatic Segmentation feature can be enabled from the Custom

Properties dialog box. The Automatic Segmentation setting can be found

on the Layout Step property tab for the selected font. Automatic

segmentation training requires that the OCVFont shape be placed around

Chapter 5OCV Reference

5-22 Visionscape I-PAK User’s Manual

all the characters in the image that are going to be added as FontSymbols

in the OCVFont. Then, when Train Font is clicked, a green box appears in

the image over one of the characters. A dialog box is displayed, asking for

a unique name for this symbol.

• Clicking Cancel aborts the training of this FontSymbol and ends the

automatic segmentation training.

• Clicking Skip aborts the training of this FontSymbol and moves on to

the next character in the image.

Only one example of a character needs to be trained.

When a unique name is entered and OK is clicked, a FontSymbol is

created, and templates (created from the ROI area of the image) and

default parameters are stored in that FontSymbol. The green box

changes to a red box and a new green box appears over the next

character in the image. This process continues until all characters in the

image have been trained as FontSymbols and added to the OCVFont or

the process is canceled.

OCVFont Tab

When an OCVFont is selected in the Custom Properties dialog box, the

OCVFont tab displays the current settings for that OCVFont.

FIGURE 5–20. OCVFont Properties Page

• Apply Automatic Min Sharpness — When enabled, as FontSymbols

are trained and added to this OCVFont, a minimum tolerance for

sharpness is calculated for the FontSymbol. This value is 65% of the

sharpness value calculated using the trained grayscale template of

the FontSymbol.

OCVFont

OCV Reference

Visionscape I-PAK User’s Manual 5-23

Default: Disabled

• Apply Automatic Min Contrast — When enabled, as FontSymbols are

trained and added to this OCVFont, a minimum tolerance for contrast

is calculated for the FontSymbol. This value is 50% of the contrast

value calculated using the trained grayscale template of the

FontSymbol.

Default: Disabled

• Show Trained Symbol Shapes — When enabled, the shapes of all

FontSymbols that are part of this OCVFont are displayed whenever

the shape for this OCVFont is selected in the buffer view.

Default: Enabled

• ID Test Determination Pct — When a FontSymbol is trained as part of

an OCVFont, it is compared against all of the FontSymbols already in

the OCVFont. When FontSymbols are found to be similar, special

tests are set up to check for the presence of the correct symbol at

runtime.

Default: 90%

Range: 10% to 100%

ID Test Determination Pct adjusts the level at which symbols are

similar enough to require special runtime tests. Smaller percentages

cause more symbols to be flagged as similar, while larger

percentages cause less symbols to be flagged as similar.

Examples — When two symbols are found to be 75% similar, and the

value of this property is 85%, no special tests are set up for runtime

ID checking; if two symbols are found to be 90% similar, and the

value of the property is 85%, a special test is set up for runtime ID

checking.

LayoutStep Tab

The LayoutStep tab of the OCVFont is used for automatic segmentation

of the image, when enabled. When an OCVFont is selected in the Custom

Properties dialog box, the LayoutStep tab displays the current settings for

that OCVFont’s LayoutStep.

Chapter 5OCV Reference

5-24 Visionscape I-PAK User’s Manual

FIGURE 5–21. LayoutStep Properties Page

• Automatic Segmentation — When enabled, the training of the

OCVFont causes the image to be segmented using blob analysis. A

dialog box is displayed, asking for a unique name to give the

FontSymbol before training the FontSymbol for each position found.

Default: Disabled

• Min Symbol Size <in pixels> — Adjusts the minimum size that a blob

must be in order to be considered a symbol.

Default: 10 pixels

Range: 5 to 256 pixels

• Num Border Spaces to Add — Determines how many pixels to allow

between actual character pixels and the edge of the box that defines

the FontSymbol.

Default: 1 pixel

Range: 0 to 19 pixels

AutoThreshold Tab

The AutoThreshold tab of the OCVFont is part of the LayoutStep that is

used for automatic segmentation of the image, when enabled, as shown

in Figure 5–22.

OCVFont

OCV Reference

Visionscape I-PAK User’s Manual 5-25

FIGURE 5–22. AutoThreshold Properties Page

• Auto Thresholding Enabled — Enables and disables automatic

thresholding.

When enabled, a threshold is calculated using the ROI of the step.

This calculation uses edge detection to determine foreground and

background information. The calculated threshold is displayed in the

Threshold property.

When disabled, no calculation is done. The threshold used by the

step is whatever value is in the Threshold property. The Edge Energy

Threshold and Threshold Adjustment properties are not used when

Auto is disabled.

Default: Enabled

• Edge Energy Threshold — Defines the pixel value at which a pixel in

a Sobel Edge Enhancement is considered to be an edge pixel. This

property is only used when Auto Thresholding Enabled is enabled.

Default: 10

Range: 0 to 255

• Threshold Adjustment — Offsets or biases the dynamically calculated

threshold, when Auto is enabled.

Default bias: 0

Range: -64 to 64

• Threshold — Displays the dynamically calculated threshold when

Auto is enabled. When Auto is disabled, the value of this property is

the threshold that is used by the step.

Chapter 5OCV Reference

5-26 Visionscape I-PAK User’s Manual

Default 135

Range: 0 to 255

ComputePolarity Tab

The ComputePolarity tab of the OCVFont is part of the LayoutStep that is

used for automatic segmentation of the image, when enabled, as shown

in Figure 5–23.

FIGURE 5–23. ComputePolarity Properties Page

• Polarity — Allows the step to be set up to always return

Light_On_Dark, always return Dark_On_Light, or return an

automatically determined polarity.

Default: Automatic

DefaultSymb Tab

The DefaultSymb tab of the OCVFont sets default parameters that any

FontSymbol trained and added to the OCVFont receives.

FontSymbol

A FontSymbol is a collection of template images, settings, and tolerances

that inspect a character or logo at runtime. FontSymbols are created

during the training of an OCVFont. They are used by the OCVFontTool

and OCVRuntimeTool steps to learn the layout at train time and inspect

the layout at runtime.

FontSymbols are trained when they are added to an OCVFont.

FontSymbol

OCV Reference

Visionscape I-PAK User’s Manual 5-27

FIGURE 5–24. FontSymbol Properties Page

Chapter 5OCV Reference

5-28 Visionscape I-PAK User’s Manual

• Num of ON Pixels in Template — Displays the number of foreground

pixels in the trained binary template.

• Polarity — Allows the step to always train with polarity

Light_On_Dark, always train with polarity Dark_On_Light, or train

using an automatically calculated polarity.

Default: Automatic

• Legibility (%) — Passes/fails the symbol based on this minimum

correlation percentage. The symbol fails inspection when the

correlation percentage is less than this value.

Default: 25% (typical for pharmaceutical applications)

Range: 0% to 100%

• Allowed Movement in X (+/-) — Sets the maximum number of pixels

that a symbol can move in the X-axis (relative to other symbols) from

its trained position.

Default: 50 pixels (any movement is allowed)

Range: 0 to 50 pixels. The maximum of 50 pixels comes from the

parent OCVTool setting Individual Symbol Search X, which limits the

search range in X to a maximum of 50 pixels in either direction.

• Allowed Movement in Y (+/-) — Set the maximum number of pixels

that a symbol can move in the Y-axis (relative to other symbols) from

its trained position.

Default: 50 pixels (any movement is allowed)

Range: 0 to 50 pixels. The maximum of 50 pixels comes from the

parent OCVTool setting Individual Symbol Search Y, which limits the

search range in Y to a maximum of 50 pixels in either direction.

• Residue Limit Units — Inputs the residue limits in either a maximum

pixel count value or a percentage value (percentage value is based

on the number of On pixels in the trained template). When the value

of this property changes, the values of Initial Residue Limit and Final

Residue Limit are changed to match the selected units.

Default: Percentage

FontSymbol

OCV Reference

Visionscape I-PAK User’s Manual 5-29

• Initial Residue Limit — Provides a quick check of the character quality

and correctness. The initial residue calculation is done before any

image processing is performed on the residue image.

When the system looks at the symbol being inspected, it determines

the residue of the symbol, which is a count of those pixels that differ

between the trained template and the current image. Based on the

value of this property, the system determines if the residue is within

tolerances. If it is not within tolerances, the symbol fails. Otherwise,

the system continues on with the rest of the inspection procedure.

When Residue Limit Units is set to Percentage:

Default: 100.0%

Range: 0.0% to 100.0%

The value of this property is the smallest percentage of residue pixels

(relative to the trained On pixel count) in the inspected image that will

make the symbol fail the inspection.

When Residue Limit Units is set to Pixels:

Default: symbol size

Range: 0 to symbol size

The value of this property is the smallest count of residue pixels in the

inspected image that will make the symbol fail the inspection.

This property is good for catching smudges that are aesthetically

poor, but would pass after all inspection operations are performed on

it. A property value of 100% or symbol size means initial residue is

ignored.

• Final Residue Method — Selects between three algorithms for final

residue analysis.

– Total Residue Area — This is the default. This choice counts all

On pixels in the residue image and use the value in Final Residue

Limit (pixel or percent) as the tolerance.

– Max Residue Blob — Only counts the pixels in the largest blob of

the residue image and use the value in Final Residue Max Blob

Size as the tolerance.

– Both — Performs both methods.

Chapter 5OCV Reference

5-30 Visionscape I-PAK User’s Manual

• Final Residue Limit — Sets the amount of objectionable residue that

is to be deemed passable when Final Residue Method is set to Total

Residue Area or Both. Final residue calculation is done after the

image processing on the residue image that is associated with

Maximum Flaw Size.

An assignment of 0% (residue pixel count = 0) means that no residue

is passable. An assignment of 100% (residue pixel count = symbol

size) means that objectionable residue as large as the area of the

prototype itself is passable.

When Residue Limit Units is set to Percentage:

Default: 15.0% (meaning a 15% variation is acceptable)

Range: 0.0% to 100.0%

The value of this property is the smallest percentage of residue pixels

(relative to the trained On pixel count) in the inspected image that

makes the symbol fail the inspection.

When Residue Limit Units is set to Pixels:

Default: 15% of the symbol size

Range: 0 to symbol size

The value of this property is the smallest count of residue pixels in the

inspected image that makes the symbol fail the inspection.

Note: Determining the proper value for Final Residue Limit is a

subjective decision; the higher the quality of the character/symbol

desired, the lower the Final Residue Limit should be.

• Final Residue Max Blob Size — Used when Final Residue Method is

set to Max Residue Blob or Both. A blob analysis is performed on the

residue image and the largest blob is found. If this blob has an area

that is greater than the value of this property, the symbol fails the

inspection.

Default: 10

Range: 1 to 512

FontSymbol

OCV Reference

Visionscape I-PAK User’s Manual 5-31

• Maximum Flaw Size — Represents the maximum width in pixels that

a discrepancy is allowed to be before it is considered objectionable.

The larger the number assigned, the larger a discrepancy is allowed

before causing the symbol inspection to fail.

Default: 1 pixels

Range: 0 to 20 pixels

• Appearance Flaw Break Test — Determines whether the FontSymbol

is to inspect for character breaks in the symbol. When enabled, the

inspection fails if a break is found in the symbol. When disabled, the

inspection ignores breaks in the symbol.

Default: Enabled

• Min Appear. Flaw Break Size — Is the smallest size break that

causes a character break failure.

Default: 2 pixels

Range: 1 to 10 pixels

• Sharpness Limit Units — Sets the units for the “Minimum Allowed

Sharpness” property. The units can be set to either “Gray Level” or

“Percentage”. When set to “Gray Level”, the value of the “Minimum

Allowed Sharpness” property is used as an absolute minimum value

that the calculated sharpness value must be in order for the

inspection to pass. When set to “Percentage”, the value of the

“Minimum Allowed Sharpness” is used to calculate a percentage of

the trained sharpness value, which is then used as an absolute

minimum value that the calculated sharpness value must be in order

for the inspection to pass.

When switched from “Gray Level” to “Percentage”, the “Minimum

Allowed Sharpness” property is updated to be the percentage value

that corresponds to the gray level value that it previously held. When

switched from “Percentage” to “Gray Level”, the “Minimum Allowed

Sharpness” property is updated to be the gray level value that

corresponds to the percentage value that it previously held.

Default: “Gray Level”

Chapter 5OCV Reference

5-32 Visionscape I-PAK User’s Manual

• Minimum Allowed Sharpness — This value determines how crisp a

symbol must be to pass inspection. It is measured by average edge

strength over the entire symbol. Typical edge strengths are from 20 to

80 sharpness units.

Default: 0

Range: 0 to 256 “Gray Level” or 0 to 100 “Percentage”

• Contrast Limit Units — Sets the units for the “Minimum Allowed

Contrast” property. The units can be set to either “Gray Level” or

“Percentage”. When set to “Gray Level”, the value of the “Minimum

Allowed Contrast” property is used as an absolute minimum value

that the calculated contrast value must be in order for the inspection

to pass. When set to “Percentage”, the value of the “Minimum

Allowed Contrast” is used to calculate a percentage of the trained

contrast value, which is then used as an absolute minimum value that

the calculated contrast value must be in order for the inspection to

pass.

When switched from “Gray Level” to “Percentage”, the “Minimum

Allowed Contrast” property is updated to be the percentage value that

corresponds to the gray level value that it previously held. When

switched from “Percentage” to “Gray Level”, the “Minimum Allowed

Contrast” property is updated to be the gray level value that

corresponds to the percentage value that it previously held.

Default: “Gray Level”

• Minimum Allowed Contrast — The Contrast is the measurement that

defines the grayscale foreground to background relationship of the

symbol data. To calculate the contrast value, the average gray level

value of the background pixels is subtracted from the average gray

level of the foreground pixels. Whenever this property has a value of

0, no contrast checks are performed.

Default: 0

Range: 0 to 256 “Gray Level” or 0 to 100 “Percentage”

• Auto Threshold Enabled — Enables or disables the automatic

calculation of a threshold for binarizing the image at both train and

run time. When enabled, the calculated threshold is displayed in the

Manual Threshold property. When disabled, no calculation is done.

The threshold used for binarizing is whatever value is in the Manual

FontSymbol

OCV Reference

Visionscape I-PAK User’s Manual 5-33

Threshold property. The Edge Energy Threshold and Threshold

Adjustment properties are not used when disabled.

Default: Enabled

• Auto Threshold Adjustment — Offsets or biases the dynamically

calculated threshold when Auto Threshold Enabled is enabled.

Default: 0

Range: -64 to 64

• Manual Threshold — Displays the dynamically calculated threshold

when Auto Threshold Enabled is enabled. When Auto Threshold

Enabled is disabled, the value of this property is the threshold that is

used for binarizing the image.

Default: 135

Range: 0 to 255

• Edge Energy Threshold — Defines the pixel value at which a pixel in

a Sobel Edge Enhancement is considered to be an edge pixel. This is

only used when Auto Threshold Enabled is enabled.

Default: 10

Range: 0 to 255

• Character Expansions — Useful when dealing with print from a dot

matrix printer or any print that is broken up in segments. The more

sparse the print, the higher the value of this property should be. This

allows for the broken print to become solid by expanding the

segments until they come together. Dilations expand each segment.

Then, erosions decrease the size of the character in every direction

except the direction in which the segments have connected. Dilations

and erosions work together to make the segments solid without

making the character fatter.

Default: 0

Range: 0 to 9

• Filter Bright Defects — When enabled, runtime inspection of the

symbol includes a pre-processing step for filtering out any bright

defects in the image.

Default: Disabled

Chapter 5OCV Reference

5-34 Visionscape I-PAK User’s Manual

• Bright Defect % Range — The value is a percentage that determines

the threshold at which the bright defect filter processes. The threshold

is calculated by taking this percentage of the range between the

binarizing threshold and 255. This means that the binary threshold

would be used when Filter Bright Defects is enabled.

Default: 0

Range: 0 to 100

• Output Mask Type — Used in conjunction with the DynamicMask

step. The selections are:

– None — Adds nothing to the mask.

– Mask Template (default) — Only the foreground area of the

symbol is added to the mask.

– Mask ROI — The entire area within the symbol's ROI is added to

the mask.

• Apply to All FontSymbols — Sets the properties of all symbols in the

OCVFont to the values currently shown on the page.

• Apply to Default Symbol — Sets the properties of the default symbol

of the OCVFont to the values currently shown on the page.

The factory default settings work well for most applications. When

adjustments to Pass/Fail limits are required, the following settings

should be modified first:

– Final Residue Limit

– Maximum Flaw Size

Increasing Final Residue to 20% allows more variations to be

accepted. Changing the Final Residue % has a gradual effect on

Pass/Fail. Using a high Final Residue %, such as 50%, on small

characters such as - can reduce false rejects.

Increasing the Maximum Flaw Size has a pronounced effect on

Pass/Fail. Increasing Maximum Flaw Size allows more character

variations to be acceptable. For many applications, this value should

not be set greater than 2.

AutoFind

OCV Reference

Visionscape I-PAK User’s Manual 5-35

AutoFind

An AutoFind can optionally be used by any of the OCV Tools. This step

determines the location of the layout at runtime. An AutoFind can be set

up to use 1-Pin (no rotation) or 2-Pins (rotation). The Pins can be set up

by selecting which layout positions to use on the OCV Tool properties

page.

Training

The AutoFind pin(s) get trained automatically when the OCV Tool is

trained. When all characters have been located in the FOV during OCV

Tool training, the AutoFind Pin1 Index and AutoFind Pin2 Index properties

of the OCV Tool select which characters to use as the find pins. These

characters are trained as templates for the pins.

The AutoFindSearchArea box sets up the search regions of the find pins.

This box can be moved and sized anywhere in the image, independently

of the OCV Tool box. The size of the individual pin search areas is

determined by comparing the OCV Tool box to the AutoFindSearchArea

box. The position of the individual search areas is determined by the

position of the AutoFindSearchArea box.

FIGURE 5–25. AutoFind Properties Page

• Registration Method — Selects between a 1-Pin Find and a 2-Pin

Find.

Default: 2-Pin (OCVFontlessTool)

1-Pin (OCVFontTool and OCVRuntimeTool)

Chapter 5OCV Reference

5-36 Visionscape I-PAK User’s Manual

When set to 1-Pin, the locator will not handle any rotation of the

characters being inspected. Switching between the registration

methods requires

re-training the OCV Tool so that the appropriate templates can be set

up.

• Template Method — Sets the method for training the templates used

by the Autofind. When set to “OCV Symbols As Templates”, the

Autofind uses symbol positions from the OCV tool's trained layout to

automatically train templates for the locator. When set to “User

Defined Templates”, the user must manually position and size the

locator template and search boxes.

Default: OCV Symbols As Templates

OCVFontTool

An OCVFontTool uses an OCVFont to learn the layout, and determine

which characters from the OCVFont are in which locations in the ROI.

Once the layout is learned, the OCVFontTool expects to find these

symbols at the same locations in the ROI during inspection. It uses the

data from the FontSymbols in the OCVFont to verify the quality and

correctness of the characters being inspected.

Training

Training of the OCVFontTool involves placing and sizing the

OCVFontTool box around the area containing the symbols to be

inspected. When Train is clicked, the ROI is scanned for symbol

candidates. Symbol candidates are determined by searching for each

symbol that is in the selected OCVFont, chosen through the LayoutStep.

Then, the OCVFontTool box is reset based on the bounding rectangle of

all symbols found and the values of the search extra properties. The

AutoFind is trained automatically whenever the OCVFontTool is trained.

When the AutoFind Search Area Box is moved and/or sized, it is

automatically re-trained, without requiring re-training of the OCVFontTool.

OCVFontTool

OCV Reference

Visionscape I-PAK User’s Manual 5-37

Inspection

If AutoFind is enabled, the pins are located and the OCVFontTool box is

re-positioned based on the pin locations. Each symbol found during

training is expected to be at the same location within the OCVFontTool

box at runtime. For each symbol position, there are several ways that an

inspection can fail:

• The symbol cannot be located.

• The symbol can fail because the sharpness value is out of tolerance.

• The symbol can fail because the contrast value is out of tolerance.

• The symbol can fail because a break larger than the user-specified

size appears in the character.

• The symbol failed an ID Test. It could not be determined that the

correct symbol was present.

• The symbol can fail the initial residue check.

• The symbol can fail the final residue check, either or both methods.

This residue analysis allows for detection of the following:

– Symbol has become thicker or thinner

– Symbol has holes or missing features

– Symbol holes are filled in

– Symbol contains additional or stray markings

Chapter 5OCV Reference

5-38 Visionscape I-PAK User’s Manual

FIGURE 5–26. OCVFont Tool Properties Page

The following are properties of the OCVFontTool:

• Use AutoFind — Enables and disables the locator. Switching

between enabled and disabled requires re-training the OCV Tool so

that the appropriate templates can be set up.

Default: Enabled

• AutoFind Pin 1 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 1. When this property is set to a

value less than or equal to 1, the first symbol position is used. When

this property is set to a value greater than or equal to the number of

trained symbols, the last symbol position is used.

Default: 1, meaning use the first symbol

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

OCVFontTool

OCV Reference

Visionscape I-PAK User’s Manual 5-39

• AutoFind Pin 2 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 2 (when the AutoFind is set up

as a 2PinFind). When this property is set to a value less than or equal

to 1, the first symbol position is used. When this property is set to a

value greater than or equal to the number of trained symbols, the last

symbol position is used.

Default: 999 (use the last symbol)

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

• Max Contrast % Difference — Sets the maximum percentage

difference between the calculated contrast values for symbols being

inspected by the tool. When set to 100%, any contrast difference is

acceptable. If no contrast calculations are performed for the

inspected symbols, the calculated percent difference is 0. Otherwise,

the smallest contrast from the inspected symbols is divided by the

largest contrast from the inspected symbols. This value is then

subtracted from 1 to get the percentage difference. If the calculated

the difference is larger than the value of “Max Contrast % Difference”,

the inspection fails.

Default: 100%

Range: 0 to 100%

• Individual Symbol Search X — Determines the width of the search

area for individual symbols. This number is doubled and added to the

symbol width to get the search width.

Default: 3 pixels

Range: 0 to 50 pixels

• Individual Symbol Search Y — Determines the height of the search

area for individual symbols. This number is doubled and added to the

symbol height to get the search height.

Default: 3 pixels

Range: 0 to 50 pixels

• Test For Character Breaks — Enables and disables the checks for

character break appearance flaws.

Default: Disabled

Chapter 5OCV Reference

5-40 Visionscape I-PAK User’s Manual

• Runtime ID Checking — Enables and disables the tests that

determine if the correct symbol is present at runtime.

During training of an OCVFont, the FontSymbols that are added are

checked against each other to determine how similar they are. When

FontSymbols are found to be very similar, tests for determining the

presence of the correct symbol are set up and stored with the

FontSymbols. These tests are only performed at runtime when

Runtime ID Checking is enabled.

Default: Enabled

• Enable Mask Output — Enables and disables the creation and output

of a mask at runtime. This property is used in conjunction with the

DynamMask Tool to allow the printed characters to be excluded

(masked out) from other image processing. Enabling this property

increases inspection time.

Default: Disabled

• Mask: Number of Dilations — Sets the number of expansions that are

performed on the output mask. This property is used in conjunction

with the DynamMask Tool to allow the printed characters to be

excluded (masked out) from other image processing.

Default: 1

• Graphics Level — Sets up different levels of debug graphics at

runtime. The default Show ROI Only will only show the ROI boxes

associated with the OCVFontTool and the characters being inspected

(green for passed, red for failed). When set to Show None, no

graphics are shown at runtime. When set to Show Basic Graphics, a

number indicating the symbol's position in the layout is shown, along

with the ROI boxes.

OCVFontTool

OCV Reference

Visionscape I-PAK User’s Manual 5-41

FIGURE 5–27. Graphics Level — Example

When set to Show Details, residue graphics are displayed: green

pixels are those that were not there at train time but are in the image

at runtime (fills), while yellow pixels are those that were there at train

time but are not there at runtime (voids).

The LayoutStep for the OCVFont Tool selects an OCVFont and sets up

the learn layout process.

FIGURE 5–28. LayoutStep Properties Page

Chapter 5OCV Reference

5-42 Visionscape I-PAK User’s Manual

• Selected Font — Allows selection of an OCVFont to use for training

and inspections. This property is a drop-down list containing the

names of all OCVFonts that are in the Vscape\Jobs\Fonts folder.

• Allowed Overlap During Read — Used during the learn layout

process. The value of this property specifies the amount of symbol

candidate ROI overlap that is allowed. When symbol candidates

overlap more than the allowed value, tests are performed to

determine the best candidate at the overlap position. The other

candidate will not become part of the layout. This overlap

measurement is in pixels.

Default: 5 pixels

Range: 0 to 15 pixels

• Min Read Match % — Is a correlation percentage used as a minimum

requirement for a symbol to be considered a candidate during the

learn layout process.

Default: 65%

Range: 0% to 100%

Note: When characters are not being read during Learn Layout,

decrease this property to 60%. Avoid settings below 55%.

• Automatic Threshold Adjustment — Enables and disables the

automatic threshold adjustment feature. When enabled, the best

match location during the learn layout process calculates an

adjustment to the threshold used to create binary images at runtime.

This calculated value is set in the Threshold Adjustment property

(AutoThreshold tab).

The AutoThreshold tab of the OCVFontTool belongs to the

LayoutStep and is used only at runtime. The only property used is

Threshold Adjustment, which serves as a global adjustment for all

FontSymbols being inspected. FontSymbols may still make individual

adjustments to the thresholds using their own Auto Threshold

Adjustment properties.

The ComputePolarity step of the OCVFontTool belongs to the

LayoutStep. It is not used by an OCVFontTool.

OCVFontTool

OCV Reference

Visionscape I-PAK User’s Manual 5-43

Step Tip

After the OCVFont Tool has been trained, positioning the mouse over the

ROI displays a Step Tip. This Step Tip provides information and graphical

feedback for individual symbols when the mouse is over a symbol area.

Train information includes the Area of the symbol, the number of On

pixels in the binary template, and a bitmap representation of the binary

template, as shown in Figure 5–29.

FIGURE 5–29. Step Tip — Example 1

When the mouse is not positioned over a particular symbol area, the Step

Tip displays the currently trained Layout Characters, or just the name of

the OCVFont Tool when it is not trained, as shown in Figure 5–30.

FIGURE 5–30. Step Tip — Example 2

When the OCVFont Tool has been run doing a Tryout, additional runtime

information is available by holding down the Shift key when the mouse is

positioned over the symbol area, as shown in Figure 5–31.

Chapter 5OCV Reference

5-44 Visionscape I-PAK User’s Manual

FIGURE 5–31. Step Tip — Example 3

Inspection information includes:

• The Area of the symbol (the number of On pixels in the trained binary

template)

• The X and Y position (upper left corner) of the symbol relative to the

OCVFontTool shape

• The X and Y allowed movement of the symbol

• The Legibility Percentage and the Legibility Tolerance

• The Sharpness, Contrast and number of Breaks found along with the

associated tolerances

• The Initial and Final Residue percentages along with the associated

tolerances

• The Largest (Final) Residue Blob Percentage and its associated

tolerance

Note: A -1 for any value above, except the X and Y allowed

movement, indicates the test is disabled.

• The bitmap representation of the binary runtime symbol area

OCVRuntimeTool

OCV Reference

Visionscape I-PAK User’s Manual 5-45

When the OCVFont Tool has been run doing a Tryout, additional runtime

information is available by holding down the Shift key and moving the

mouse inside the OCVFont Tool ROI (but not over the symbol area), as

shown below.

FIGURE 5–32. Step Tip — Example 4

OCVRuntimeTool

An OCVRuntimeTool uses an OCVFont (called the Master Font) to learn

the layout, and determine which characters from the OCVFont are in

which locations in the ROI. Once the layout is learned, the

OCVRuntimeTool creates a new OCVFont (called a Runtime Font) by

training a new FontSymbol at each layout position, using the current

image data. The OCVRuntimeTool expects to find the symbols at the

same locations during inspection. It uses the data from the Runtime Font

to verify the quality and correctness of the characters being inspected.

Because the train image creates templates, this code should be of good

quality.

Training

Training of the OCVRuntimeTool involves placing and sizing the

OCVRuntimeTool box around the area containing the symbols to be

inspected. When Train is clicked, the ROI is scanned for symbol

candidates. Symbol candidates are determined by searching for each

symbol that is in the selected Master OCVFont (chosen through the

Chapter 5OCV Reference

5-46 Visionscape I-PAK User’s Manual

LayoutStep). When all candidates have been found, a new OCVFont is

created and a new symbol is trained and added to this Runtime Font for

each candidate position.

Then, the OCVRuntimeTool box is reset based on the bounding rectangle

of all symbols found and the values of the search extra properties. The

AutoFind is trained automatically whenever the OCVRuntimeTool is

trained. When the AutoFind Search Area Box is moved and/or sized, it is

automatically re-trained, without requiring re-training of the

OCVRuntimeTool.

Inspection

If AutoFind is enabled, the pins are located and the OCVRuntimeTool box

is repositioned based on the pin locations. Each of the symbols found

during training is expected to be at the same location within the

OCVRuntimeTool box at runtime. For each symbol position, there are

several ways that an inspection can fail:

• The symbol cannot be located.

• The symbol can fail because the sharpness value is out of tolerance.

• The symbol can fail because the contrast value is out of tolerance.

• The symbol can fail because a break larger than the user-specified

size appears in the character.

• The symbol failed an ID Test. It could not be determined that the

correct symbol was present.

• The symbol can fail the initial residue check.

• The symbol can fail the final residue check, either or both methods.

This residue analysis allows for detection of the following:

– Symbol has become thicker or thinner

– Symbol has holes or missing features

– Symbol holes are filled in

– Symbol contains additional or stray markings

OCVRuntimeTool

OCV Reference

Visionscape I-PAK User’s Manual 5-47

FIGURE 5–33. OCVRuntimeTool Properties Page

The following are properties of the OCVRuntimeTool:

• Use AutoFind — Enables and disables the locator. Switching

between enabled and disabled requires re-training the OCV Tool so

that the appropriate templates can be set up.

Default: Enabled

• AutoFind Pin 1 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 1. When set to a value less than

or equal to 1, the first symbol position is used. When set to a value

greater than or equal to the number of trained symbols, the last

symbol position is used.

Default: 1 (use the first symbol)

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

• AutoFind Pin 2 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 2 (when the AutoFind is set up

as a 2PinFind). When set to a value less than or equal to 1, the first

Chapter 5OCV Reference

5-48 Visionscape I-PAK User’s Manual

symbol position is used. When set to a value greater than or equal to

the number of trained symbols, the last symbol position is used.

Default: 999 (use the last symbol)

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

• Apply Automatic Min Sharpness — Allows the FontSymbols trained

and added to the Runtime Font to have a sharpness tolerance

automatically calculated for them. This automatically calculated

tolerance is equal to 65% of the sharpness value calculated using the

trained template.

Default: Disabled

• Apply Automatic Min Contrast — Allows the FontSymbols trained and

added to the Runtime Font to have a contrast tolerance automatically

calculated for them. This automatically calculated tolerance is equal

to 50% of the contrast value calculated using the trained template.

Default: Disabled

• Max Contrast % Difference — Sets the maximum percentage

difference between the calculated contrast values for symbols being

inspected by the tool. When set to 100%, any contrast difference is

acceptable. If no contrast calculations are performed for the

inspected symbols, the calculated percent difference is 0. Otherwise,

the smallest contrast from the inspected symbols is divided by the

largest contrast from the inspected symbols. This value is then

subtracted from 1 to get the percentage difference. If the calculated

difference is larger than the value of Max Contrast % Difference, the

inspection fails.

Default: 100%

Range: 0 to 100%

• Individual Symbol Search X — Determines the width of the search

area for individual symbols. This number is doubled and added to the

symbol width to get the search width.

Default: 3 pixels

Range: 0 to 50 pixels

OCVRuntimeTool

OCV Reference

Visionscape I-PAK User’s Manual 5-49

• Individual Symbol Search Y — Determines the height of the search

area for individual symbols. This number is doubled and added to the

symbol height to get the search height.

Default: 3 pixels

Range: 0 to 50 pixels

• Test For Character Breaks — Enables and disables the checks for

character break appearance flaws.

Default: Disabled

• Runtime ID Checking — Enables and disables the tests that

determine if the correct symbol is present at runtime. During training

of an OCVFont, the FontSymbols that are added are checked against

each other to determine how similar they are. When FontSymbols are

found to be very similar, tests for determining the presence of the

correct symbol are set up and stored with the FontSymbols. These

tests are only performed at runtime when Runtime ID Checking is

enabled.

Note: Microscan highly recommends that you do not use Automatic

Segmentation, that is, leave its setting in its default position of off, and

carefully use symbol boxes of equal size for all special characters like

O, 0, B, 8, D, and so on.

Default: Enabled

• Enable Mask Output — Enables and disables the creation and output

of a mask at runtime. This property is used in conjunction with the

DynamMask Tool to allow the printed characters to be excluded

(masked out) from other image processing. Enabling this property

increases inspection time.

Default: Disabled

• Mask:Number of Dilations — Sets the number of expansions that are

performed on the output mask. This property is used in conjunction

with the DynamMask Tool to allow the printed characters to be

excluded (masked out) from other image processing.

Default: 1

Chapter 5OCV Reference

5-50 Visionscape I-PAK User’s Manual

• Graphics Level — Sets up different levels of debug graphics at

runtime. The default Show ROI Only will only show the ROI boxes

associated with the OCVRuntimeTool and the characters being

inspected (green for passed, red for failed). When set to Show None,

no graphics are shown at runtime. When set to Show Basic Graphics,

a number indicating the symbol's position in the layout is shown,

along with the ROI boxes, as shown in Figure 5–34.

FIGURE 5–34. Graphics Level — Example

When set to Show Details, residue graphics are displayed: green

pixels are those that were not there at train time but are in the image

at runtime (fills), while yellow pixels are those that were there at train

time but are not there at runtime (voids).

The LayoutStep for the OCVRuntimeTool selects a Master OCVFont and

set up the learn layout process.

OCVRuntimeTool

OCV Reference

Visionscape I-PAK User’s Manual 5-51

FIGURE 5–35. LayoutStep Properties Page

• Selected Font — Allows selection of an OCVFont to use for training

and inspections. This property is a drop-down list containing the

names of all OCVFonts that are in the Vscape\Jobs\Fonts folder.

• Allowed Overlap During Read — Used during the learn layout

process. The value of this property specifies the amount of symbol

candidate ROI overlap that is allowed. When symbol candidates

overlap more than the allowed value, tests are performed to

determine the best candidate at the overlap position. The other

candidate will not become part of the layout. This overlap

measurement is in pixels.

Default: 5 pixels

Range: 0 to 15 pixels

• Min Read Match % — Is a correlation percentage used as a minimum

requirement for a symbol to be considered a candidate during the

learn layout process.

Default: 65%

Range: 0% to 100%

• Automatic Threshold Adjustment — Enables and disables the

automatic threshold adjustment feature. When enabled, the best

match location during the learn layout process calculates an

adjustment to the threshold used to create binary images at runtime.

This calculated value is set in the Threshold Adjustment property

(AutoThreshold tab).

Chapter 5OCV Reference

5-52 Visionscape I-PAK User’s Manual

The AutoThreshold tab of the OCVRuntimeTool belongs to the

LayoutStep and is used only at runtime. The only property used is the

Threshold Adjustment property, which serves as a global adjustment

for all FontSymbols being inspected. FontSymbols may still make

individual adjustments to the thresholds using their own Auto

Threshold Adjustment properties.

The ComputePolarity step of the OCVRuntimeTool belongs to the

LayoutStep. It is not used by an OCVFontTool.

Step Tips

After the OCVRuntimeTool has been trained, positioning the mouse over

the ROI displays a Step Tip. This Step Tip provides information and

graphical feedback for individual symbols when the mouse is over a

symbol area. Train information includes the Area of the symbol, the

number of On pixels in the binary template, and a bitmap representation

of the binary template, as shown in Figure 5–36.

FIGURE 5–36. Step Tip — Example 1

When the mouse is not positioned over a particular symbol area, the Step

Tip displays the currently trained Layout Characters, or just the name of

the OCVRuntime Tool when it is not trained, as shown in Figure 5–37.

OCVRuntimeTool

OCV Reference

Visionscape I-PAK User’s Manual 5-53

FIGURE 5–37. Step Tip — Example 2

When the OCVRuntimeTool has been run using Tryout, additional runtime

information is available by holding down the Shift key when the mouse is

positioned over the symbol area, as shown in Figure 5–38.

FIGURE 5–38. Step Tip — Example 3

Inspection information includes:

• The Area of the symbol, the number of On pixels in the trained binary

template

• The X and Y position, upper left corner, of the symbol relative to the

OCVRuntimeTool shape

• The X and Y allowed movement of the symbol

• The Legibility Percentage and the Legibility Tolerance

Chapter 5OCV Reference

5-54 Visionscape I-PAK User’s Manual

• The Sharpness, Contrast and number of Breaks found along with the

associated tolerances

• The Initial and Final Residue percentages along with the associated

tolerances

• The Largest (Final) Residue Blob Percentage and its associated

tolerance

Note: A -1 for any value above, except the X and Y allowed

movement, indicates the test is disabled.

• The bitmap representation of the binary runtime symbol area

When the OCVRuntime Tool has been run doing a Tryout, additional

runtime information is available by holding down the Shift key and moving

the mouse inside the OCVRuntime Tool ROI (but not over the symbols),

as shown in Figure 5–39.

FIGURE 5–39. Step Tip — Example 4

OCVFontless Tool

An OCVFontless Tool does not require an OCVFont. Instead, it

determines the location of characters in the FOV using a blob-analysis

technique. Then, it stores training data for each character location as an

OCVSymbolStep. The OCVFontless Tool expects to find the symbols at

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-55

the same locations during inspection. It uses the trained data to verify the

quality of the characters being inspected.

Training

Training the OCVFontless Tool involves placing and sizing the

OCVFontless Tool box around the area containing the symbols to be

inspected. When Train is clicked, the ROI is scanned for symbol

candidates. A symbol candidate is a group of connected pixels that have

foreground polarity. Each symbol candidate that contains enough pixels,

as defined by the Min Symbol Size in pixels parameter, is trained and

stored as an OCVSymbolStep.

Then, the OCVFontless Tool box is reset based on the bounding

rectangle of all symbols found and the values of the search extra

properties. The AutoFind is trained automatically whenever the

OCVFontless Tool is trained. When the AutoFind Search Area Box is

moved and/or sized, it is automatically re-trained, without requiring re-

training of the OCVFontless Tool.

Inspection

When AutoFind is enabled, the pins are located and the OCVFontless

Tool box is re-positioned based on the pin locations. Each symbol found

during training is expected to be at the same location within the

OCVFontless Tool box at runtime. For each symbol position, there are

several ways that an inspection can fail:

• The symbol cannot be located.

• The symbol can fail because the sharpness value is out of tolerance.

• The symbol can fail because the contrast value is out of tolerance.

• The symbol can fail because a break larger than the user-specified

size appears in the character.

• The symbol can fail the initial residue check.

• The symbol can fail the final residue check, either or both methods.

This residue analysis allows for detection of the following:

– Symbol has become thicker or thinner

Chapter 5OCV Reference

5-56 Visionscape I-PAK User’s Manual

– Symbol has holes or missing features

– Symbol holes are filled in

– Symbol contains additional or stray markings

FIGURE 5–40. OCVFontless Tool Properties Page

• Use AutoFind — Enables and disables the locator. Switching

between enabled and disabled requires re-training the OCV Tool so

that the appropriate templates can be set up.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-57

Default: Enabled

Chapter 5OCV Reference

5-58 Visionscape I-PAK User’s Manual

• AutoFind Pin 1 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 1. When set to a value less than

or equal to 1, the first symbol position is used. When set to a value

greater than or equal to the number of trained symbols, the last

symbol position is used.

Default: 1, meaning use the first symbol

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

• AutoFind Pin 2 Index — Allows selection of the symbol position that

trains the templates for AutoFind Pin 2, when the AutoFind is set up

as a 2PinFind. When set to a value less than or equal to 1, the first

symbol position is used. When set to a value greater than or equal to

the number of trained symbols, the last symbol position is used.

Default: 999, meaning use the last symbol

Range: 1 to n, where n is greater than or equal to the number of

trained symbols

• Min Symbol Size in pixels — Adjusts the minimum size that a blob

must be in order to be considered a symbol.

Default: 20 pixels

Range: 5 to 256 pixels

• Find Symbols That Touch ROI — When enabled, symbols are trained

for blobs that are not fully within the ROI. When disabled, blobs that

are not fully within the ROI are ignored.

Default: Disabled

• Num of Border Spaces to Add — Determines how many pixels to

allow between actual character pixels and the edge of the box that

defines the OCVSymbolStep.

Default: 1 pixels

Range: 0 to 19 pixels

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-59

• Symbol Sorting Sensitivity — Adjusts the sensitivity of the sorting of

symbols into rows during training. The sorting is based on the

positions of the symbols.

• Single OCV Symbol Step — When enabled, the OCVFontlessTool

trains a single OCVSymbolStep that includes all the symbols of the

mark that are within the mark area box. When disabled, the

OCVFontlessTool trains an OCVSymbolStep for each symbol of the

mark that is located within the mark area box.

Default: Disabled

• Apply Automatic Min Sharpness — Allows the OCVSymbolSteps

trained to have a sharpness tolerance automatically calculated for

them. This automatically calculated tolerance is equal to 65% of the

sharpness value calculated using the trained template.

Default: Disabled

• Apply Automatic Min Contrast — Allows the OCVSymbolSteps

trained to have a contrast tolerance automatically calculated for them.

This automatically calculated tolerance is equal to 50% of the

contrast value calculated using the trained template.

Default: Disabled

• Max Contrast % Difference — Sets the maximum percentage

difference between the calculated contrast values for symbols being

inspected by the tool. When set to 100%, any contrast difference is

acceptable. If no contrast calculations are performed for the

inspected symbols, the calculated percent difference is 0. Otherwise,

TABLE 5–2. Sorting Sensitivity

Level What It Means

Highest The allowed separation is decreased to 10% of the average height.

High The allowed separation is decreased to 25% of the average height.

Normal

(Default)

Any two symbols whose top Y positions are separated by more than

50 percent of the average height of all trained symbols will be

considered to be on separate rows.

Low The allowed separation is increased to 75% of the average height.

Lowest The allowed separation is increased to 90% of the average height.

Chapter 5OCV Reference

5-60 Visionscape I-PAK User’s Manual

the smallest contrast from the inspected symbols is divided by the

largest contrast from the inspected symbols. This value is then

subtracted from 1 to get the percentage difference. If the calculated

the difference is larger than the value of Max Contrast % Difference,

the inspection fails.

Default: 100%

Range: 0 to 100%

• Allowed Thickening of Symbol — Determines the number of pixels

that a symbol is allowed to grow along its perimeter. Residue will be

ignored if it is found in the region between the edge of the symbol and

the set number of pixels away from the edge, in the direction away

from the center of the symbol.

Default: 0 pixels

Range: 0 to 10 pixels

• Allowed Thinning of Symbol — Determines the number of pixels that

a symbol is allowed to shrink along its perimeter. Residue will be

ignored if it is found in the region between the edge of the symbol and

the set number of pixels away from the edge, in the direction toward

the center of the symbol.

Default: 0 pixels

Range: 0 to 10 pixels

• Individual Symbol Search X — Determines the width of the search

area for individual symbols. This number is doubled and added to the

symbol width to get the search width.

Default: 3 pixels

Range: 0 to 50 pixels

• Individual Symbol Search Y — Determines the height of the search

area for individual symbols. This number is doubled and added to the

symbol height to get the search height.

Default: 3 pixels

Range: 0 to 50 pixels

• Test For Character Breaks — Enables and disables the checks for

character break appearance flaws.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-61

Default: Disabled

• Enable Tryout Debug Info — Enables and disables the display of

debug information during tryout. When enabled, inspection data is

displayed on the Output line for each OCVSymbol that is part of the

OCVFontlessTool.

Default: Disabled

• Tryout Debug Delay — Sets a delay that is used during the display of

debug information. This delay is the minimum amount of time that the

information is displayed.

Default: 1500 ms

Chapter 5OCV Reference

5-62 Visionscape I-PAK User’s Manual

FIGURE 5–41. Symbol Group Settings

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-63

• Selected Symbol Group — Selects which symbol group has its

symbol properties displayed on the properties page. Changing this

value updates the property page to display the correct symbol group

properties.

Symbol groups are defined based on the number of On pixels in the

templates of the symbols. The grouping of symbols is accomplished

by setting a range of values, Group Min Pixels and Group Max Pixels,

for a group. By default, only one symbol group is defined. This group

contains all OCVSymbolSteps because the range is automatically set

to a minimum of 0 pixels and a maximum of 307200, maximum

possible in a 640x480 symbol.

The groups are defined in order of maximum character pixels, so that

group 2’s Group Min Pixels property is always equal to group 1’s

Group Max Pixels property plus one, group 3’s Group Min Pixels

property is always equal to group 2’s Group Max Pixels property plus

one, etc. The final group is always defined to have a Group Max

Pixels equal to 307200.

To add a group, change Group Max Pixels of the current group from

307200 to a lower value.

The following properties on the OCVFontlessTool property page can be

set on a group basis. Refer to “OCVSymbolStep” on page 5-71 for more

information.

– Group Legibility (%)

– Group Allowed Movement in X

– Group Allowed Movement in Y

– Group Residue Limit Units

– Group Initial Res Limit

– Group Final Res Method

– Group Final Res Limit

– Group Final Res Max Blob Size

– Group Max Flaw Size

Chapter 5OCV Reference

5-64 Visionscape I-PAK User’s Manual

– Group Appear. Flaw Break Test

– Group Appear. Flaw Break Size

– Group Sharpness Limit Units

– Group Min Allowed Sharpness

– Group Contrast Limit Units

– Group Min Allowed Contrast

– Group Auto Threshold Enabled

– Group Auto Threshold Adjust

– Group Manual Threshold

– Group Edge Energy Threshold

– Group Character Expansions

– Group Filter Bright Defects

– Group Bright Defect % Range

• Apply Symbol Group Settings — Sets the group parameters for the

currently selected group to the current values in the group properties.

FIGURE 5–42. Mask Settings

• Use Input Mask — This property is applicable only when the

OCVFontlessTool has a child step that produces a mask buffer as an

output. When such a child step is inserted into the OCVFontlessTool,

Use Input Mask is automatically enabled. When enabled, the

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-65

OCVFontlessTool must be trained. After it is trained, the mask pixels

are highlighted in red. When disabled, this property will allow the

OCVFontlessTool to retain the child mask-generating step but does

not apply the mask at runtime.

Default: Disabled

• Enable Mask Output — Enables and disables the creation and output

of a mask at runtime. This property is used in conjunction with the

DynamMask Tool to allow the printed characters to be excluded,

masked out, from other image processing.

Default: Disabled

• Mask:Number of Dilations — Sets the number of expansions that are

performed on the output mask. This property is used in conjunction

with the DynamMask Tool to allow the printed characters to be

excluded, masked out, from other image processing.

Default: Disabled

• Graphics Level — Sets up different levels of debug graphics at

runtime. The default Show ROI Only only shows the ROI boxes

associated with the OCVFontlessTool and the characters being

inspected, green for passed, red for failed. When set to Show None,

no graphics are shown at runtime. When set to Show Basic Graphics,

a number indicating the symbol's position in the layout is shown,

along with the ROI boxes, as shown in Figure 5–43.

Chapter 5OCV Reference

5-66 Visionscape I-PAK User’s Manual

FIGURE 5–43. Graphics Level — Example

When set to Show Details, residue graphics are displayed: green

pixels are those that were not there at train time but are in the image

at runtime (fills), while yellow pixels are those that were there at train

time but are not there at runtime (voids). Show Details also displays

the blob outline of the characters at train time.

The AutoThreshold properties page of the OCVFontlessTool is used for

segmentation of the image during training, as shown in Figure 5–44.

FIGURE 5–44. AutoThreshold Properties Page

• Auto Thresholding Enabled — Enables and disables the automatic

thresholding. When enabled, a threshold is calculated using the ROI

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-67

of the step. This calculation uses edge detection to determine

foreground and background information. The calculated threshold is

displayed in Threshold. Although it is called AutoThreshold, the Auto

portion can be disabled. When disabled, no calculation is done. The

threshold used by the parent step is whatever value is in the

Threshold property. The Edge Energy Threshold and Threshold

Adjustment properties are not used when Auto is disabled.

Default: Enabled

• Edge Energy Threshold — Defines the pixel value at which a pixel in

a Sobel Edge Enhancement is considered to be an edge pixel. This

property is only used when Auto Thresholding Enabled is enabled.

Default: 10

Range: 0 to 255

• Threshold Adjustment — Offsets or biases the dynamically calculated

threshold, when Auto is enabled.

Default: 0

Range: -64 to 64

• Threshold — Displays the dynamically calculated threshold when

auto is enabled. When auto is disabled, the value of this property is

the threshold that is used by the parent step.

Default: 135

Range: 0 to 255

The ComputePolarity step of the OCVFontlessTool is used for automatic

segmentation of the image during training.

Chapter 5OCV Reference

5-68 Visionscape I-PAK User’s Manual

FIGURE 5–45. ComputePolarity Properties Page

• Polarity — Allows the step to be set up to always return

Light_On_Dark, always return Dark_On_Light, or return an

automatically determined polarity.

Default: Automatic

Step Tips

After the OCVFontlessTool has been trained, positioning the mouse over

the ROI displays a Step Tip. This Step Tip provides information and

graphical feedback for individual symbols when the mouse is over a

symbol area. Train information includes the Area of the symbol, the

number of On pixels in the binary template, and a bitmap representation

of the binary template, as shown in Figure 5–46.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-69

FIGURE 5–46. Step Tip — Example 1

When the mouse is not positioned over a particular symbol area, the Step

Tip displays the name of the OCVFontless Tool, as shown in Figure 5–47.

FIGURE 5–47. Step Tip — Example 2

When the OCVFontless Tool has been run, additional runtime information

is available by holding down the Shift key when the mouse is positioned

over the symbol area, as shown in Figure 5–48.

Chapter 5OCV Reference

5-70 Visionscape I-PAK User’s Manual

FIGURE 5–48. Step Tip — Example 3

Inspection information includes:

• The Area of the symbol, the number of On pixels in the trained binary

template

• The X and Y position, upper left corner, of the symbol relative to the

OCVRuntime Tool shape

• The X and Y allowed movement of the symbol

• The Legibility Percentage and the Legibility Tolerance

• The Sharpness, Contrast and number of Breaks found along with the

associated tolerances

• The Initial and Final Residue percentages along with the associated

tolerances

• The Largest (Final) Residue Blob Percentage and its associated

tolerance

Note: A -1 for any value above, except the X and Y allowed

movement, indicates the test is disabled.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-71

• The bitmap representation of the binary runtime symbol area

When the OCVFontless Tool has been run doing a Tryout, additional

runtime information is available by holding down the Shift key and moving

the mouse inside the OCVFontless Tool ROI (but not over the symbols),

as shown in Figure 5–49.

FIGURE 5–49. Step Tip — Example 4

OCVSymbolStep

An OCVSymbolStep is a collection of template images, settings and

tolerances that inspect a character or logo at runtime. OCVSymbolSteps

are created during the training of an OCVFontlessTool. They are used by

the OCVFontlessTool to inspect the print at runtime.

Chapter 5OCV Reference

5-72 Visionscape I-PAK User’s Manual

FIGURE 5–50. Symb1 Properties Page

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-73

• Num of ON Pixels in Template — Displays the number of foreground

pixels in the trained binary template.

• Polarity — Allows the step to always train with polarity

Light_On_Dark, or always train with polarity Dark_On_Light. The

default is set by the OCVFontlessTool during training.

• Legibility (%) — Passes/fails the symbol based on this minimum

correlation percentage. The symbol will fail inspection when the

correlation percentage is less than this value.

Default: 25%

Range: 0% to 100%

• Allowed Movement in X (+/-) — Sets the maximum number of pixels

that a symbol can move in the X-axis (relative to other symbols) from

its trained position.

Default: 50 pixels (any movement is allowed)

Range: 0 to 50 pixels. The maximum of 50 pixels comes from the

parent OCVTool setting Individual Symbol Search X, which limits the

search range in X to a maximum of 50 pixels in either direction.

• Allowed Movement in Y (+/-) — Set the maximum number of pixels

that a symbol can move in the Y-axis (relative to other symbols) from

its trained position.

Default: 50 pixels (any movement is allowed)

Range: 0 to 50 pixels. The maximum of 50 pixels comes from the

parent OCVTool setting Individual Symbol Search Y, which limits the

search range in Y to a maximum of 50 pixels in either direction.

• Residue Limit Units — Inputs the residue limits in either a maximum

pixel count value or a percentage value (percentage value is based

on the number of On pixels in the trained template). When the value

of this property changes, the values of Initial Residue Limit and Final

Residue Limit are changed to match the selected units.

Default: Percentage

• Initial Residue Limit — Provides a quick check of the character quality

and correctness. The initial residue calculation is done before any

image processing is done on the residue image. When the system

looks at the symbol being inspected, it determines the residue of the

Chapter 5OCV Reference

5-74 Visionscape I-PAK User’s Manual

symbol, which is a count of those pixels that differ between the

trained template and the current image. Based on the value of this

property, the system determines if the residue is within tolerances. If it

is not within tolerances, the symbol fails. Otherwise, the system

continues on with the rest of the inspection procedure.

When Residue Limit Units is set to Percentage:

Default: 100.0%

Range: 0.0% to 100.0%

The value of this property is the smallest percentage of residue pixels

(relative to the trained On pixel count) in the inspected image that

makes the symbol fail the inspection.

When Residue Limit Units is set to Pixels:

Default: symbol size

Range: 0 to symbol size

The value of this property is the smallest count of residue pixels in the

inspected image that makes the symbol fail the inspection.

This property is good for catching smudges that are aesthetically

poor, but would pass after all inspection operations are performed on

it. A value of 100% or symbol size means initial residue is ignored.

• Final Residue Method — Selects between three algorithms for final

residue analysis:

– Total Residue Area — This is the default. This choice counts all

On pixels in the residue image and use the value in Final Residue

Limit, pixel or percent, as the tolerance.

– Max Residue Blob — Only counts the pixels in the largest blob of

the residue image and use the value in Final Residue Max Blob

Size as the tolerance.

– Both — Performs both methods.

• Final Residue Limit — Sets the amount of objectionable residue that

is to be deemed passable when Final Residue Method is set to Total

Residue Area or Both. Final residue calculation is done after the

image processing on the residue image that is associated with

Maximum Flaw Size.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-75

If there is little information in a symbol, i.e., a 1 as compared to an L,

the percentage variation allowed should be reduced. An assignment

of 0% (residue pixel count = 0) means that no residue is passable. An

assignment of 100% (residue pixel count = symbol size) means that

objectionable residue as large as the area of the prototype itself is

passable.

When Residue Limit Units is set to Percentage:

Default: 15.0%, meaning 15% variation is acceptable

Range: 0.0% to 100.0%

The value of this property is the smallest percentage of residue pixels

(relative to the trained On pixel count) in the inspected image that

makes the symbol fail the inspection.

When Residue Limit Units is set to Pixels:

Default: 15% of the symbol size

Range: 0 to symbol size, and the default is 15% of the symbol

size

The value of this property is the smallest count of residue pixels in the

inspected image that makes the symbol fail the inspection.

Note: Determining the proper value for Final Residue Limit is a

subjective decision; the higher the quality of the character/symbol

desired, the lower the Final Residue Limit should be.

• Final Residue Max Blob Size — Used when Final Residue Method is

set to Max Residue Blob or Both. A blob analysis is performed on the

residue image and the largest blob is found. If this blob has an area

that is greater than the value of this property, the symbol will fail the

inspection.

Default: 10

Range: 1 to 512

• Maximum Flaw Size — Represents the maximum width in pixels that

a discrepancy is allowed to be before it is considered objectionable.

The larger the number assigned, the larger a discrepancy is allowed

before causing the symbol inspection to fail.

Chapter 5OCV Reference

5-76 Visionscape I-PAK User’s Manual

Default: 1

Range: 0 to 20

• Appearance Flaw Break Test — Determines whether the

OCVSymbolStep is to inspect for character breaks in the symbol.

When enabled, the inspection fails if a break is found in the symbol.

When disabled, the inspection ignores breaks in the symbol.

Default: Enabled

• Min Appear. Flaw Break Size — Is the smallest size break that

causes a character break failure.

Default: 2 pixels

Range: 1 to 10 pixels

• Sharpness Limit Units — Sets the units for the “Minimum Allowed

Sharpness” property.

When set to Gray Level, the value of the “Minimum Allowed

Sharpness” property is used as an absolute minimum value that the

calculated sharpness value must be in order for the inspection to

pass.

When set to Percentage, the value of the “Minimum Allowed

Sharpness” is used to calculate a percentage of the trained

sharpness value, which is then used as an absolute minimum value

that the calculated sharpness value must be in order for the

inspection to pass.

When switched from Gray Level to Percentage, the Minimum

Allowed Sharpness property is updated to be the percentage value

that corresponds to the gray level value that it previously held.

When switched from Percentage to Gray Level, the Minimum

Allowed Sharpness property is updated to be the gray level value that

corresponds to the percentage value that it previously held.

Default: Gray Level

• Minimum Allowed Sharpness — Determines how crisp a symbol must

be to pass inspection. It is measured by average edge strength over

the entire symbol. Typical edge strengths are from 20 to 80

sharpness units.

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-77

Default: 0

Range: 0 to 256 Gray Level or 0 to 100 Percentage

• Contrast Limit Units — Sets the units for the Minimum Allowed

Contrast property.

When set to Gray Level, the value of the Minimum Allowed Contrast

property is used as an absolute minimum value that the calculated

contrast value must be in order for the inspection to pass.

When set to Percentage, the value of the Minimum Allowed Contrast

is used to calculate a percentage of the trained contrast value, which

is then used as an absolute minimum value that the calculated

contrast value must be in order for the inspection to pass.

When switched from Gray Level to Percentage, the Minimum

Allowed Contrast property is updated to be the percentage value that

corresponds to the gray level value that it previously held.

When switched from Percentage to Gray Level, the Minimum

Allowed Contrast property is updated to be the gray level value that

corresponds to the percentage value that it previously held.

Default: Gray Level

• Minimum Allowed Contrast — The Contrast is the measurement that

defines the grayscale foreground to background relationship of the

symbol data. To calculate the contrast value, the average gray level

value of the background pixels is subtracted from the average gray

level of the foreground pixels. Whenever Minimum Allowed Contrast

has a value of 0, no contrast checks are performed.

Default: 0

Range: 0 to 255 Gray Level or 0 to 100 Percentage

• Auto Threshold Enabled — Enables and disables the automatic

calculation of a threshold for binarizing the image at both train and

run time.

When enabled, the calculated threshold is displayed in the Manual

Threshold property.

When disabled, no calculation is done. The threshold used for

binarizing is whatever value is in the Manual Threshold property.

Chapter 5OCV Reference

5-78 Visionscape I-PAK User’s Manual

Edge Energy Threshold and Threshold Adjustment are not used

when this property is disabled.

Default: Enabled

OCVFontless Tool

OCV Reference

Visionscape I-PAK User’s Manual 5-79

• Auto Threshold Adjustment — Offsets or biases the dynamically

calculated threshold, when Auto Threshold Enabled is enabled.

Default: 0

Range: -64 to 64

• Manual Threshold — Displays the dynamically calculated threshold

when the Auto Threshold Enabled property is enabled. When Auto

Threshold Enabled is disabled, Manual Threshold is the threshold

that is used for binarizing the image.

Default: 135

Range: 0 to 255

• Edge Energy Threshold — Defines the pixel value at which a pixel in

a Sobel Edge Enhancement is considered to be an edge pixel. This

property is only used when the Auto Threshold Enabled property is

enabled.

Default: 10

Range: 0 to 255

• Character Expansions — Useful when dealing with print from a dot

matrix printer or any print that is broken up in segments. The more

sparse the print, the higher the value of this property should be.

This property allows for the broken print to become solid by

expanding the segments until they come together. Dilations expand

each segment. Then, erosions decrease the size of the character in

every direction except the direction in which the segments have

connected. Dilations and erosions work together to make the

segments solid without making the character fatter.

Default: 0

Range: 0 to 9

• Filter Bright Defects — When enabled, runtime inspection of the

symbol includes a pre-processing step for filtering out any bright

defects in the image.

Default: Disabled

Chapter 5OCV Reference

5-80 Visionscape I-PAK User’s Manual

• Bright Defect % Range — Percentage that determines the threshold

at which the bright defect filter processes. The threshold is calculated

by taking this percentage of the range between the binarizing

threshold and 255.

Default: 0 (binary threshold is used if Filter Bright Defects is enabled)

Range: 0 to 100

• Output Mask Type — Used in conjunction with the DynamicMask

step. This property allows three selections:

– None — Adds nothing the mask.

– Mask Template — Only the foreground area of the symbol is

added to the mask. This is the default.

– Mask ROI — The entire area within the symbol's ROI is added to

the mask.

The remainder of this chapter discusses the following:

• “Substitute/Ignore” on page 5-80

• “External Confirmation of Characters” on page 5-83

• “Keyboard Input of Match String” on page 5-88

• “External Input of Match String” on page 5-93

• “Lot ChangeOver — CHANGELAYOUT Command” on page 5-101

• “OCV Tips” on page 5-116

• “Troubleshooting” on page 5-120

Substitute/Ignore

When training either an OCVFontTool or OCVRuntimeTool, the Setup

Mode — Approve Inspect Characters dialog box is displayed at the end of

the learn layout. The string of layout characters is displayed at the top.

This dialog box allows characters to be substituted into the layout or

ignored entirely from the layout. Click Disapprove to return to the Setup

Mode Train dialog box and re-train the current tool. Click Approve to

accept the Inspect Chars: and return to the Setup Mode Train screen to

Substitute/Ignore

OCV Reference

Visionscape I-PAK User’s Manual 5-81

train any remaining tools. Click Substitute to initiate the Substitute/Ignore

window and modify the layout string.

FIGURE 5–51. Setup Mode — Approve Inspect Characters Dialog Box

The list of symbol names that is displayed on the left-hand side of the

Setup Mode — Approve Inspect Characters dialog box contains the

Chapter 5OCV Reference

5-82 Visionscape I-PAK User’s Manual

names of all symbols in the layout, in the order in which they appear, as

shown in Figure 5–52.

FIGURE 5–52. Setup Mode — Approve Inspect Characters Dialog Box

The Up and Down buttons scroll through the list to select a symbol name.

Clicking on a symbol name in the list also selects it. Clicking on the scroll

bar to the right of the list scrolls through the list.

The FONT box contains the name of all symbols in the selected

OCVFont. The first item in the list is IGN, which ignores characters. The

Up and Down buttons scroll through the list to select a symbol name.

Clicking on a symbol name in the list also selects it. Clicking on the scroll

bar scrolls through the list.

External Confirmation of Characters

OCV Reference

Visionscape I-PAK User’s Manual 5-83

Character Substitution

To substitute one symbol for another, select the layout character in the

layout list that you want to replace. Select the symbol from the Font box

that you want to use to replace the layout symbol and click Substitute.

The layout list will update, as well as the Inspect Chars: string.

Ignoring a Character

To ignore one of the symbols in the layout and exclude it from being

inspected at runtime, select the symbol to be ignored from the layout list.

Select the IGN symbol from the Font box. Then, click Substitute. The

symbol is removed from both the layout list and the Inspect Chars: string.

Finishing Up

If you are not satisfied with the layout and wish to re-train the tool, click

Disapprove in the Setup Mode Train window with the OCVRuntimeTool

still selected. You can adjust the properties of the tool and re-train until

you achieve the desired layout string.

When you are satisfied with the layout shown in the Inspect Chars: string

at the top of the window, click Approve to return to the Setup Mode Train

window.

External Confirmation of Characters

External Confirmation of Characters allows an external device, computer,

etc., to approve or disapprove the result of training an OCVFontTool or

OCVRuntimeTool. The learn layout string, string of symbol names for

those symbols found during training, is sent from I-PAK to the external

device. The external device sends back an approve or disapprove

message to I-PAK. An OCVFontTool or OCVRuntimeTool training session

is not complete without an approval from the external device.

External Confirmation is accomplished through a communications

handshake between I-PAK and the external device. The communications

can be accomplished through RS-232 or Ethernet.

Note: The OCVFontlessTool does not support this feature.

Chapter 5OCV Reference

5-84 Visionscape I-PAK User’s Manual

Enabling External Confirmation of Characters

I-PAK software allows the External Confirmation feature to be enabled.

The default is disabled.

I-PAK’s System Settings Training and Results dialog box has the training

options External Confirmation of Characters and External

Communications Timeout, as shown in Figure 5–53.

Note: These options are enabled, not greyed out, once you have selected

your communications protocol from the System Settings Communications

menu. You need to define either RS-232 or Ethernet for both your input

and output Communications channel.

FIGURE 5–53. Enabling External Confirmation of Characters

External Confirmation of Characters

OCV Reference

Visionscape I-PAK User’s Manual 5-85

External Confirmation of Characters Checkbox

By default, this checkbox is not checked, meaning that I-PAK expects no

external confirmation. When enabled (checked), I-PAK expects an

external confirmation whenever an OCVFontTool or OCVRuntimeTool is

trained.

External Confirmation of Characters data is transferred using the

communication method selected on the System Setting Communications

menu. The External Confirmation feature is only active if the

communication method is set to either RS-232 or Ethernet.

External Communications Timeout

By default, this is set to 60 seconds. This is the amount of time that I-PAK

waits for data from the external device before it displays an error

message.

Because they are System Settings, the status of External Confirmation,

enabled or disabled, and the timeout value remain the same when a new

product is loaded into I-PAK.

OCVFontTool and OCVRuntimeTool Training

The I-PAK OCVFontTool and OCVRuntimeTool use the External

Confirmation feature during the training sequence.

When External Confirmation of Characters mode is enabled,

OCVFontTool and OCVRuntimeTool training is unchanged until the

Approve Inspect Characters window is displayed. Only two buttons,

Substitute and External Confirmation, are displayed.

Clicking Substitute displays the Substitute window. This allows you to

manually change the characters in the inspection string.

When External Confirmation is clicked, I-PAK transmits a header line and

the inspection string over the selected communication port. The header

line is a line of information indicating which tool is requesting

confirmation. Following the header information is the inspection string as

it is displayed on the Approve Inspect Characters window.

Chapter 5OCV Reference

5-86 Visionscape I-PAK User’s Manual

I-PAK displays the Waiting for External Confirmation message box on the

user interface, as shown in Figure 5–54.

FIGURE 5–54. Waiting For External Confirmation Message Box

If, after the designated timeout expires, no message has been received

from the external device, I-PAK displays the External Confirmation

Timeout dialog box with the message Communications Timed Out, as

shown in Figure 5–55.

FIGURE 5–55. External Confirmation Timeout Dialog Box

The Approve Inspect Characters window displays only a Disapprove

button.

I-PAK waits for either of two responses from the external device:

• Approve — This is noted by the receipt of the string 0001 through the

communication port specified.

• Disapprove — This is noted by the receipt of the string 9999 through

the communication device specified.

Upon receipt of the Approve message, I-PAK displays the message

External Confirmation Received and continues in the same fashion as

when the Approve button is used.

FIGURE 5–56. External Confirmation Received

External Confirmation of Characters

OCV Reference

Visionscape I-PAK User’s Manual 5-87

Upon receipt of the Disapprove message, or any message other than

Approve, I-PAK displays the message External Confirmation Denied. At

this point, the

I-PAK displays only the Disapprove button.

FIGURE 5–57. External Confirmation Denied

Under no conditions will the layout be approved without an Approve

message from the external device.

External Confirmation Protocol

The I-PAK OCV Font Tool uses a standard communications protocol in

communicating the inspection string to an external device.

Header Line Protocol

The header line of data has the following form:

VisionBoard#, Insp#, Snapshot#, FontTool#<cr><lf>

• VisionBoard# — The # is replaced by the actual board number, such

as 1, inside the I-PAK system. This is the symbolic name of the

VisionBoard.

• Insp# — The # is replaced by the actual Inspection number from the

Job, such as 1. This is the symbolic name of the Inspection.

• Snapshot# — The # is replaced by the actual snapshot number from

the Job, such as 1. This is the symbolic name of the snapshot.

• FontTool# — The # is replaced by the actual OCVFontTool number

from the Job, such as 1. This is the symbolic name of the

OCVFontTool.

Note: OCVRunTool may be present in place of FontTool when the

OCVRuntimeTool is used in the inspection.

Chapter 5OCV Reference

5-88 Visionscape I-PAK User’s Manual

Inspection String Protocol

The inspection string transmitted has the following form:

1<sp>2<sp>/<sp>2<sp>2<sp>/<sp>0<sp>2 <cr><lf>

This string contains the names of the characters found during training.

• <sp> is a space character separating the names of the symbols.

• <cr> is a decimal 13.

• <lf> is a decimal 10.

Approve String Protocol

The Approve string returned from the external device has the following

form:

0001<cr>

Any other string returned is considered a Disapprove.

Keyboard Input of Match String

Keyboard Input of Match String allows you to specify the intended

inspection string for an OCVFontTool or OCVRuntimeTool. This is

accomplished by displaying an input box into which you can type the

necessary information.

Note: Enabling Keyboard Input of Match String mode automatically

disables the ignore and substitute character functionality of I-PAK.

The OCVFontlessTool does not support the Keyboard Input of Match

String feature.

Enabling Keyboard Input of Match String

I-PAK’s System Settings Training and Results dialog box has the training

option Keyboard Input of Match String. This is a System Settings; even

when you do a change product to another Job that contains an

OCVFontTool or OCVRuntimeTool, this setting will not change.

Keyboard Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-89

FIGURE 5–58. Enabling Keyboard Input of Match String

By default, the Keyboard Input of Match String checkbox item is not

checked, which means that I-PAK expects no keyboard match string input

for the OCVFontTool or OCVRuntimeTool. When enabled (checked), I-

PAK expects a match string to be input by the keyboard whenever an

OCVFontTool or OCVRuntimeTool is trained.

OCVFontTool and OCVRuntimeTool Training

The I-PAK OCVFontTool and OCVRuntimeTool use the Keyboard Input of

Match String, when enabled, in the training sequence.

When Keyboard Input of Match String is enabled, OCVFontTool and

OCVRuntimeTool training is unchanged until the Approve Inspect

Characters window is displayed, as shown in Figure 5–59.

Chapter 5OCV Reference

5-90 Visionscape I-PAK User’s Manual

FIGURE 5–59. Match String Training Dialog Box

For each line of characters found during training, I-PAK does the

following:

• Displays an input box Input Line N message, where N is replaced by

the number of the line being waited for.

Keyboard Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-91

FIGURE 5–60. Match String Input Prompt

• Waits for a string to be input.

When a string is input, I-PAK examines it to determine which symbol

names are in it. If any of the input symbol names are not found in the

OCVFont, I-PAK displays an error message, as shown in

Figure 5–61, and forces you to re-train by displaying only the

Disapprove button.

FIGURE 5–61. Match String Error Message — Bad Symbol Name

• If the number of symbols is not the same in each string, an error

message is displayed, as shown in Figure 5–62, and only the

Disapprove button is displayed, forcing you to re-train.

FIGURE 5–62. Match String Error Message — Incorrect Numbers of

Symbols

Chapter 5OCV Reference

5-92 Visionscape I-PAK User’s Manual

• If the input string is not the same as the string of characters found

during training, an error message is displayed, as shown in

Figure 5–63, and only the Disapprove button is displayed, forcing you

to re-train.

FIGURE 5–63. Match String Error Message — Strings Are Different

If all lines of input are received successfully, I-PAK displays a message,

as shown in Figure 5–64.

FIGURE 5–64. Successful Match String Input Message

When a string is successfully input, the layout is automatically approved

and the training sequence ends.

Keyboard Input Protocol

The I-PAK OCVFontTool and OCVRuntimeTool uses a standard protocol

in receiving the inspection string from you.

Inspection String Protocol

The input inspection string is of the following form:

1<sp>2<sp>/<sp>2<sp>2<sp>/<sp>0<sp>2

The <sp> is a space character, which is the separator between symbol

names.

External Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-93

External Input of Match String

Match String allows an external device (computer, etc.,) to specify the

intended inspection string for an OCVFontTool or OCVRuntimeTool.

External Input of Match String is accomplished by creating a

communications handshake between I-PAK and an external device. The

necessary information is sent from the external device to I-PAK. The

communications can be accomplished through RS-232 or Ethernet.

Note: Enabling Match String mode automatically disables the ignore and

substitute character functionality of I-PAK.

The OCVFontlessTool does not support the Match String feature.

Enabling External Input of Match String

I-PAK software allows the External Input of Match String feature and

related functionality to be enabled. By default, these features are

disabled.

Chapter 5OCV Reference

5-94 Visionscape I-PAK User’s Manual

FIGURE 5–65. Enabling External Input Feature

I-PAK’s System Settings Training and Results dialog box has options

External Input of Match String, Match String Mismatch Action: and

Transmit Final Inspection String. Since these are System Settings, even if

you do a change product to another Job that contains an OCVFontTool or

OCVRuntimeTool, these settings will not change.

External Input of Match String Checkbox

By default, the External Input of Match String checkbox item is not

checked, which means that I-PAK expects no match string input for the

OCVFontTool or OCVRuntimeTool. When this option is enabled

(checked), I-PAK expects a match string to be input whenever an

OCVFontTool or OCVRuntimeTool is trained.

External Input of Match String data is transferred using the

communication method selected on the System Setting Communications

menu. The External Input of Match String feature is only active if the

communication method is set to either RS-232 or Ethernet.

External Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-95

Match String Mismatch Action

I-PAK software allows the Mismatch Action to be selected. By default, the

list box is set to Use Input String. This setting defines the action that I-

PAK takes in the event that the string input from the external device does

not match the string learned when the tool was trained. The possible

selections and their meaning are:

• Use Input String — I-PAK uses the input string as the inspection

string.

• Use Learned String — I-PAK ignores the input string and sets the

string found during training as the inspection string.

• Retry by Learning — I-PAK forces you to re-train the tool and allow

the string to be entered again.

• Retry by Input — I-PAK allows the string to be entered again.

The Match Mode Mismatch Action selected is applied to any

OCVFontTool or OCVRuntimeTool in the current Job.

Chapter 5OCV Reference

5-96 Visionscape I-PAK User’s Manual

Transmit Final Layout String

By default, the Transmit Final Inspection String checkbox item is not

checked, which means that I-PAK will not send the inspection string out

when training of an OCVFontTool or OCVRuntimeTool is complete. When

this option is enabled (checked), I-PAK sends the inspection string out to

an external device whenever an OCVFontTool or OCVRuntimeTool is

trained successfully.

Transmit Final Inspection String data is transferred using the

communication method selected on the System Setting Communications

menu. The Transmit Final Inspection String feature is only active if the

communication method is set to either RS-232 or Ethernet.

OCVFontTool and OCVRuntimeTool Training

The I-PAK OCVFontTool and OCVRuntimeTool use the External Input of

Match String and Transmit Final Inspection String features, when

enabled, in the training sequence.

When External Input of Match String and/or Transmit Final Inspection

String is enabled, OCVFontTool and OCVRuntimeTool training is

unchanged until the Approve Inspect Characters window is displayed.

This window displays only one button, Input Match String.

When Input Match String is clicked, I-PAK sends a header line to the

external device to indicate which tool needs the inspection string. Then,

for each line of characters found during training, I-PAK does the following:

• Displays a Waiting for Input Match String Line N message, where N is

replaced by the number of the line being waited for.

FIGURE 5–66. Waiting For Input of Match String Message

• Prompts the external device for the input string by sending a

message with the following format: Input Line N, where N is the line

number for the string to be received.

External Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-97

• Waits for a response from the external device.

Note: Strings must be null terminated.

A timeout error occurs if no response is received within the time

specified in the System Setting External Communications Timeout.

FIGURE 5–67. External Communications Error Message — Timeout

If a timeout error occurs, I-PAK displays an error message and only

the Disapprove button is displayed, forcing you to re-train the layout.

• When a response is received, I-PAK displays the input string.

FIGURE 5–68. Display of Input String

The string is then examined to determine which symbol names are in

it. If any of the input symbol names are not found in the OCVFont, I-

PAK displays an error message, as shown in Figure 5–69 and forces

you to

re-train by displaying only the Disapprove button.

Chapter 5OCV Reference

5-98 Visionscape I-PAK User’s Manual

FIGURE 5–69. Input of Match String Error Message — Symbol Not in

Font

• If all symbols are in the OCVFont, the input string is compared to the

string of characters found during training. Any differences in the

symbol names are noted. If the number of symbols is not the same in

each string, an error message is displayed, as shown in Figure 5–70,

and only the Disapprove button is displayed, forcing you to re-train.

FIGURE 5–70. Match String Error Message — Wrong Number of

Symbols

Once all lines of input are received successfully, I-PAK checks for

mismatches in the string, which were noted earlier. In the event of a

mismatch, I-PAK displays the message: Mismatch… Strings Are

Different, and performs the selected Mismatch Action.

FIGURE 5–71. Mismatch Error Message

If the Match String Mismatch Action setting is set to Use Input String, the

I-PAK displays the message: Using Input String!, and uses the input string

as the inspection string.

External Input of Match String

OCV Reference

Visionscape I-PAK User’s Manual 5-99

FIGURE 5–72. Mismatch Action — Using Input String Message

If the Match String Mismatch Action setting is set to Use Learned String,

the

I-PAK displays the message: Using Learned String, and ignores the input

string. The string found during training is then set as the inspection string.

FIGURE 5–73. Mismatch Action — Using Learned String Message

If the Match String Mismatch Action setting is set to Retry by Learning, the

I-PAK displays the message: Retrain the Tool!, and displays only the

Disapprove button. This forces you to re-train the tool and allows the

string to be entered again.

FIGURE 5–74. Mismatch Action — Retrain the Tool Message

If the Match String Mismatch Action setting is set to Retry by Input, I-PAK

displays the message: Retry Input!, and displays only the Input Match

String button. This forces you to try to input the string again.

FIGURE 5–75. Mismatch Action — Retry Input Message

If there are no mismatches, I-PAK sets the inspection string to the learned

string and displays a message, Successful Input!

Chapter 5OCV Reference

5-100 Visionscape I-PAK User’s Manual

FIGURE 5–76. Successful Match String Input

Transmit Final Inspection String

If the Transmit Final Inspection String functionality is enabled, the

inspection string is sent to the external device. First, the header line is

sent to the device to indicate which tool is sending the string. Then, the

line Final Inspection String: is sent, followed by the actual inspection

string.

If the tool is an OCVRuntimeTool, the runtime OCVFont is trained based

on the inspection string.

When a string is successfully input, the layout is automatically approved

and the training sequence ends.

External Input of Match String Protocol

The I-PAK OCVFontTool and OCVRuntimeTool use a standard

communications protocol in communicating with an external device.

Header Line Protocol

The header line of data has the following form:

VisionBoard#, Insp#, Snapshot#, FontTool#<cr><lf>

• VisionBoard# — The # is replaced by the actual board number, such

as 1 inside the I-PAK system. This is the symbolic name of the

VisionBoard.

• Insp# — The # is replaced by the actual Inspection number from the

Job, such as 1. This is the symbolic name of the Inspection.

• Snapshot# — The # is replaced by the actual snapshot number from

the Job, such as 1. This is the symbolic name of the snapshot.

• FontTool# — The # is replaced by the actual FontTool number from

the Job, such as 1. This is the symbolic name of the FontTool.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-101

Note: When OCVRuntimeTool is used, FontTool is replaced with

OCVRunTool.

Input Line Protocol

The prompt for input line has the following form:

Input Line N<cr><lf>

where:

– N is the line number for the string to be received.

Input and Output Inspection String Protocol

The input and output inspection string has the following form:

1<sp>2<sp>/<sp>2<sp>2<sp>/<sp>0<sp>2 <cr><lf>

Transmit Final Layout String Protocol

The Transmit Final Layout String first sends the line:

Final Inspection String: <cr><lf>

Then, send the inspection string above.

• <sp> is a space character, which is the separator between symbol

names.

• <cr> is a decimal 13.

• <lf> is a decimal 10.

Lot ChangeOver — CHANGELAYOUT Command

An extended feature of the OCVFontTool is the ability to enter a new data

string (Layout String) during Run Mode. This allows an automated Lot

ChangeOver (CHANGELAYOUT Command) from an external RS-232

device or an external Ethernet device.

After training all the symbols in the OCVFont and training an

OCVFontTool, you can send a new string to inspect during Run Mode.

Chapter 5OCV Reference

5-102 Visionscape I-PAK User’s Manual

Setup Notes and Precautions

• You must stop triggering before sending a new inspect string.

• You must stop triggering and not re-start it before Runmode IO is

active.

• A maximum of one (1) input string is allowed in a single transmission.

The new string must have the same number of characters as the

original layout string and the character positions must be the same.

The characters must all be the same width.

• The character that the AutoFind uses cannot be substituted. This

means that there must be at least one character in the string that

never changes.

RS-232 Input of Layout String

RS-232 CHANGELAYOUT Usage

The RS-232 CHANGELAYOUT syntax requires user selectable tool

names as input rather than symbol tool names.

When there are multiple OCVFontTools, Barcode Tools, Data Matrix

Tools, or OCRTrainable Font Tools in the product definition, and one or

more of the tools is not inserted directly into the Snapshot step, the RS-

232 CHANGELAYOUT Syntax described above may be ambiguous. In

order to ensure that I-PAK uses the correct tool for the setting the Layout

String or Match String, the tools must be given unique names when the

product definition is being created and/or edited.

RS-232 CHANGELAYOUT Syntax

For each FontTool in the Inspection Job, the RS-232 CHANGELAYOUT

command can be used to input the Learn Layout string, as shown in

Table 5–3. By default, the colon (:) is the string delimiter.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-103

The CHANGELAYOUT command can also be used to change the match

string of a Barcode Tool, Data Matrix Tool, or OCRTrainable Font Tool.

For each good data string received, I-PAK acknowledges the input with

the following:

OK<EOT>

When bad data is received, I-PAK alerts the external RS-232 device with

the following:

FAIL<EOT>

If bad data is received, inspections may not restart. Look at the I-PAK

User Interface to see if intervention (clicking on the Cancel button) is

required. Then, you can either re-send correct information or go to Setup

Mode to manually re-train.

Once data has started to be received, I-PAK exits Run Mode, changes the

string, then returns to Run Mode. I/O #16 Run/Setup is asserted once I-

PAK is ready to receive triggers. Any errors that occur are displayed in

message boxes within

I-PAK.

I-PAK User Interface

In order to use the RS-232 Input of Layout String, you must set the Input

Channel and Output Channel to RS-232 in the System Settings dialog

box, as shown in Figure 5–77.

TABLE 5–3. RS-232 CHANGELAYOUT Syntax

RS-232 CHANGELAYOUT Syntax Comment

CHANGELAYOUT: VisionBoard1. Insp1. Snapshot1. FontTool1:

2003/02

Input String for Camera 1's

Font Tool #1 {Date}

CHANGELAYOUT: VisionBoard1. Insp1. Snapshot1. FontTool2:

251250430999

Input String for Camera 1's

Font Tool #2 {Lot Code}

CHANGELAYOUT: VisionBoard1. Insp2. Snapshot1. FontTool1:

2003/02

Input String for Camera 2's

Font Tool #1 {Date}

CHANGELAYOUT: VisionBoard1. Insp2. Snapshot1. FontTool2:

251250430999

Input String for Camera 2's

Font Tool #2 {Lot Code}

Chapter 5OCV Reference

5-104 Visionscape I-PAK User’s Manual

FIGURE 5–77. System Settings — RS-232

Clicking on RS-232... brings up the Configure Communications dialog box

for RS-232, as shown in Figure 5–78.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-105

FIGURE 5–78. System Settings — RS-232

If the selected RS-232 protocol is “I-PAK Enclosure Standard,” RS-232

communications are accomplished through Comm Port 3 of I-PAK. With

this protocol, the default RS-232 setting for this Comm Port 3 are:

• Baud Rate — 9600

• Parity — None

•Data Bits — 8

• Stop Bits — 1

These settings may be adjusted to properly configure the

communications with the host device.

When the selected RS-232 protocol is “I-PAK Selectable Main Port,” as

shown in Figure 5–79, the user can select the Comm Port used by I-PAK

Chapter 5OCV Reference

5-106 Visionscape I-PAK User’s Manual

for RS-232 communications. The RS-232 settings for the selected port

may then be properly configured for communications with the host device.

FIGURE 5–79. System Settings — RS-232

RS-232 ChangeLayout Error Debug

Any errors that occur are reported over RS-232 (via a “FAIL” message) to

the host device. These errors are also displayed in message boxes within

I-PAK. For example, when erroneous data (bad data, symbol not in

layout, too many symbols, etc.,) is received over RS-232 from a

customer's host machine, the ChangeLayout Dialog box stays on up on

the I-PAK Run Mode screen - everything else from Run Mode is Disabled

- except for the ChangeLayout Dialog box. It shows you the recently input

data-tool name and “new” layout string.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-107

FIGURE 5–80. ChangeLayout RS-232 Error Status: Run Mode

FIGURE 5–81. ChangeLayout RS-232 Error Details

Chapter 5OCV Reference

5-108 Visionscape I-PAK User’s Manual

You MUST take action by clicking the Cancel button before I-PAK will

“resume”. In this bad data sent state, I-PAK is declared “off-line”, the error

message is displayed along with the exact data input and the tools.

Note: The Cancel button makes you return to Run Mode but still in an Off-

Line state - as inspections are NOT restarted because the data was

invalid.

You may return to Setup Mode to re-train or try to send another (good)

Ethernet ChangeLayout data to I-PAK.

The RS-232 response back is immediate (FAIL).

RS-232 ChangeLayout Success Response

When the Lot Changeover is successful, the RS-232 message “OK” is

sent out and a message box is displayed.

For example, on good RS-232 ChangeLayout data, I-PAK will display the

ChangeLayout Dialog box for ~5 seconds; I-PAK will make the “mouse”

into an hourglass (wait), then control goes back to I-PAK. The RS-232

response back is immediate (OK).

FIGURE 5–82. ChangeLayout RS-232 Success: Run Mode

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-109

FIGURE 5–83. ChangeLayout RS-232 Successful Details

ChangeLayout Debug

Whether good or erroneous data is sent to I-PAK, these “debug” windows

help users by providing an RS-232 debugging tool that allows

Programmers to verify that string(s) are sent using correct formatting. I-

PAK tries to specify the exact syntax error (if any) of the input. I-PAK

displays and highlights errors on the

I-PAK screen for a longer period of time so that the user knows that a

ChangeLayout error has occurred. This causes user intervention to

acknowledge the bad data. When I-PAK displays the Change Lot screen,

users can clearly see the newly entered strings, to further provide debug

assistance.

Chapter 5OCV Reference

5-110 Visionscape I-PAK User’s Manual

RS-232 ChangeLayout Error Messages

In the event of data errors, the error messages shown in Table 5–4 are

displayed.

Ethernet Input of Layout String

Ethernet CHANGELAYOUT Usage

Prior to sending data, the host must ensure there are no inspections

taking place or pending.

TABLE 5–4. RS-232 ChangeLayout Error Messages

Error Message Meaning

Change Layout Error: Missing the Tool Name or

the Layout

The input string did not contain either the name of

the OCVFontTool or the new layout string.

Change Layout Error: The Tool name is not in the

Job. Check you input syntax.

An OCVFontTool with the given name could not

be found in the Job.

Input Symbol Name not found in OCVFont The new layout string contains a Symbol Name

that cannot be found in the selected OCVFont.

Missing 1st colon in layout The input string could not be parsed because it has

an incorrect format.

Missing 2nd colon in layout The input string could not be parsed because it has

an incorrect format.

Number of characters in layout does not match

characters sent.

Wrong Number of Symbols: For a given Font Tool,

the number of characters in the layout string is

different from the inputted number of characters.

Step FontTool Not Found The FontTool definition is not found in the input

string from the host.

Step Inspection Not Found The Inspection definition is not found in the input

string from the host.

Step Snapshot Not Found The Snapshot definition is not found in the input

string from the host.

Step Visionboard Not Found The Visionboard definition is not found in the input

string from the host.

The Font Tool is not trained! Go back to

Train/Tryout and train all the tools

The OCVFontTool with the given name is not

trained. Lot Changeover requires the tool to have a

layout string before changeover can occur.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-111

Ethernet CHANGELAYOUT Syntax

For each FontTool in the Inspection Job, there can be an Ethernet input of

the Learn Layout string, as shown in Table 5–5. By default, the colon (:) is

the string delimiter.

The CHANGELAYOUT command string must end with the termination

character EOT (hex #04).

The CHANGELAYOUT command can also be used to change the match

string of a Barcode Tool, Data Matrix Tool, or OCRTrainableFont Tool.

Note: A maximum of one (1) input string is allowed in a single

transmission.

The Ethernet Input Syntax requires user selectable tool names as input

rather than symbolic tool names.

When there are multiple OCVFontTools, Barcode Tools, Data Matrix

Tools, or OCRTrainableFont Tools in the product definition, and one or

more of the tools is not inserted directly into the Snapshot Step, the

Ethernet Input Syntax described above may be ambiguous. In order to

ensure that I-PAK uses the correct tools for setting the Layout String or

Match String, the tools must be given unique names when the product

definition is being created or edited.

TABLE 5–5. Ethernet Input Syntax

Ethernet Input Syntax Comment

CHANGELAYOUT: VisionBoard1. Insp1. Snapshot1. FontTool1:

2003/02 <EOT>

Input String for Camera 1's

Font Tool #1 {Date}

CHANGELAYOUT: VisionBoard1. Insp1. Snapshot1. FontTool2:

251250430999 <EOT>

Input String for Camera 1's

Font Tool #2 {Lot Code}

CHANGELAYOUT: VisionBoard1. Insp2. Snapshot1. FontTool1:

2003/02 <EOT>

Input String for Camera 2's

Font Tool #1 {Date}

CHANGELAYOUT: VisionBoard1. Insp2. Snapshot1. FontTool2:

251250430999 <EOT>

Input String for Camera 2's

Font Tool #2 {Lot Code}

Chapter 5OCV Reference

5-112 Visionscape I-PAK User’s Manual

I-PAK User Interface

In order to use Ethernet Input of Layout String, you must set the Input

Channel and Output Channel to Ethernet in the System Settings dialog

box, as shown in Figure 5–84.

FIGURE 5–84. System Settings — Ethernet

By default, while in Run Mode, I-PAK listens for input through Ethernet.

Once data has started to be received, I-PAK exits Run Mode, changes the

string, then returns to Run Mode. I/O #16 Run/Setup is asserted once I-

PAK is ready to receive triggers.

Ethernet ChangeLayout Error Debug

Any errors that occur are reported over Ethernet (via a “FAIL” message)

to the host device. These errors are also displayed in message boxes

within I-PAK. For example, when erroneous data (bad data, symbol not in

layout, too many symbols, etc.,) is received over Ethernet from a user’s

host machine, the ChangeLayout dialog box stays up on the I-PAK Run

Mode screen - everything else from Run Mode is Disabled - except for the

ChangeLayout Dialog box. It shows you the recently input data -tool

name and “new” layout string.

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-113

FIGURE 5–85. ChangeLayout Error Status: Run Mode

FIGURE 5–86. ChangeLayout Error Details

Chapter 5OCV Reference

5-114 Visionscape I-PAK User’s Manual

You MUST take action by clicking the Cancel button before I-PAK will

“resume”. In this bad data sent state, I-PAK is declared “off-line”. The

error message is displayed along with the exact data input and the tools.

Note: The Cancel button makes you return to Run Mode but still in an Off-

Line state - as inspections are NOT restarted because the data was

invalid.

You may return to Setup Mode to re-train or try to send another (good)

Ethernet ChangeLayout data to I-PAK.

The Ethernet response back is immediate (FAIL).

Ethernet ChangeLayout Success Response

When the Lot Changeover is successful, the Ethernet message “OK” is

sent out and a message box is displayed.

For example, on good Ethernet ChangeLayout data, I-PAK will display the

ChangeLayout Dialog box for ~5 seconds; I-PAK will make the “mouse”

into an hourglass (wait), then control goes back to I-PAK. The Ethernet

response back is immediate (OK).

FIGURE 5–87. ChangeLayout Successful

Lot ChangeOver — CHANGELAYOUT Command

OCV Reference

Visionscape I-PAK User’s Manual 5-115

FIGURE 5–88. ChangeLayout Successful Details

ChangeLayout Debug

Whether good or erroneous data is sent to I-PAK, these “debug” windows

help users by providing an Ethernet debugging tool that allows

Programmers to verify that string(s) are sent using correct formatting. I-

PAK tries to specify the exact syntax error (if any) of the input. I-PAK

displays and highlight errors on the

I-PAK screen for a longer period of time so that the user knows that a

ChangeLayout error has occurred. This causes user intervention to

acknowledge the bad data. When I-PAK displays the Change Lot screen,

users can clearly see the newly entered strings, to further provide debug

assistance.

Chapter 5OCV Reference

5-116 Visionscape I-PAK User’s Manual

Ethernet ChangeLayout Error Messages

In the event of data errors, the error messages shown in Table 5–6 are

displayed.

OCV Tips

The OCV tools found in I-PAK have many settings and adjustments to

allow for maximum flexibility. However, most applications require attention

to only a few of these settings and adjustments.

TABLE 5–6. Ethernet Error Messages

Error Message Meaning

Change Layout Error: Missing the Tool Name or

the Layout

The input string did not contain either the name of

the OCVFontTool or the new layout string

Change Layout Error: The Tool name is not in the

Job. Check you input syntax.

An OCVFontTool with the given name could not

be found in the Job

Input Symbol Name not found in OCVFont The new layout string contains a Symbol Name that

cannot be found in the selected OCVFont.

Missing 1st colon in layout The input string could not be parsed because it has

an incorrect format.

Missing 2nd colon in layout The input string could not be parsed because it has

an incorrect format.

Number of characters in layout does not match

characters sent.

Wrong Number of Symbols: For a given Font Tool,

the number of characters in the layout string is

different from the inputted number of characters.

Step FontTool Not Found The FontTool definition is not found in the input

string from the host.

Step Inspection Not Found The Inspection definition is not found in the input

string from the host.

Step Snapshot Not Found The Snapshot definition is not found in the input

string from the host.

Step Visionboard Not Found The Visionboard definition is not found in the input

string from the host.

The Font Tool is not trained! Go back to

Train/Tryout and train all the tools

The OCVFontTool with the given name is not

trained. Lot Changeover requires the tool to have a

layout string before changeover can occur.

OCV Tips

OCV Reference

Visionscape I-PAK User’s Manual 5-117

OCVFont

• ID Test Determination Pct — Lowering the default value of 85% to

80% or 75% causes more characters to be flagged as similar.

Layout Step

• Automatic Segmentation — By default, this option is off, which allows

the font library creation box to be manually sized around each

character as it is entered into the library. I-PAK is designed such that

you perform this individual training of characters to activate runtime

ID checking of special characters like O, 0, B, 8, D, etc. ID checking

requires that these symbol boxes be the same size.

Note: Whenever possible, use the same size box to train all font

library characters.

You can enable the automatic segmentation option, and I-PAK

automatically locates and places a box around all characters in the

FOV.

DefaultSymbol

• Final Residue Limit — Increasing the default value of 15% to a higher

number allows characters to vary more and still be accepted.

Increasing this value has a gradual effect.

• Max Flaw Size — Increasing the default value of 1 pixel to a higher

value allows characters to vary more and still be accepted. Increasing

this value has a rapid effect. This number should not be set greater

than 2.

OCVRuntime Tool

The OCVRuntime tool is the vision step that actually performs the

inspection of a code. The following settings are found under Tool

Settings.

Chapter 5OCV Reference

5-118 Visionscape I-PAK User’s Manual

Tool Settings

• Individual Symbol Search X — Increasing these values allows

individual characters to move more in relation to one another.

• Individual Symbol Search Y — Increasing these values allows

individual characters to move more in relation to one another.

Layout Step

• Allowed Overlap During Read — Increasing this value from the

default value of 5 allows characters to be identified during the train

step when their character boxes overlap.

• Min Read Match % — Decreasing the 65% default value allows

characters to be identified at train time when they vary significantly

from what was trained into the font library.

Converting Jobs with Embedded OCVFonts

FIGURE 5–89. Converting Jobs with Embedded OCVFonts

OCV Tips

OCV Reference

Visionscape I-PAK User’s Manual 5-119

Jobs created with Version 2.3 or earlier that contain font based OCV tools

are updated to use the new OCVFont method when those Jobs are read

into I-PAK. When the old Job is read in, any OCVFonts found in an

existing OCVFontFolder are saved to the Vscape\Jobs\Fonts folder using

the font name found in the Job. If a font with that name already exists, the

user is asked whether or not to overwrite the existing font.

FIGURE 5–90. Overwrite Existing Font Dialog Box

Clicking Cancel causes the font to not be saved. Clicking Yes causes the

font being read to overwrite the existing one. Clicking No causes a prompt

to appear so that the user can enter a unique name for the font being

saved.

FIGURE 5–91. Enter a Unique Name Dialog Box

When the old Job is read in, any font based OCV tool found is modified so

that the LayoutStep’s “Select Font” datum has the correct font chosen.

This allows old Jobs to be loaded and run without requiring a re-train of

the font based OCV tools.

Chapter 5OCV Reference

5-120 Visionscape I-PAK User’s Manual

Troubleshooting

Training Font Based Tools – Read Match%

To reproduce the behavior, Visionscape V2.5.1.12 was used. We believe

that this behavior is consistent across all versions of Visionscape.

The Behavior

1. First, train the OCVFont. In the example given, the “TEXT02.TIF” was

used to train characters “L”, “2”, “A”, “0”, “6”, “9”, “3”.

2. Set Read Match % = 80 % on Layout step in the OCV-Run time tool.

3. Train OCV-Run time tool.

4. You will find that the “L” character is not found even though the same

“TEXT02.TIF” file is being used.

The Explanation

Training

When a character is trained into an OCVFont, there are several templates

stored for the character. One of these templates is a Sobel Edge

Enhancement template.

When the OCVRuntimeTool is trained, the ROI being searched for

characters is first passed through a Sobel Edge Enhancement. Then, the

Sobel Edge Enhancement templates (for each symbol) are used in a

correlation to determine where the symbols are within the ROI. The “Read

Match%” value is used to accept/reject a found character based on

correlation match percentage.

Correct Character Training

When a character is trained, it is important to correctly size the training

box around the character. The I-PAK manual describes character training

as follows:

Individual character training requires that the OCVFont box be placed

close around a single character in the image, leaving a 1-2 pixel

Troubleshooting

OCV Reference

Visionscape I-PAK User’s Manual 5-121

border. This box should not include any portion of the adjacent

characters. The minimum recommended character width is 20 pixels.

The 1 - 2 pixel border is important because it allows room for proper

training of templates.

Auto-Segmenting Character Training

When the “Auto-Segment” option is used to train characters, the system

locates blobs within the ROI. A bounding box for each blob is used to train

the symbols. The “Num Border Spaces to Add” option of the OCVFont’s

LayoutStep can be used to increase the size of the box used to train the

symbols.

This “Auto-Segment” method of training OCVFonts is not necessarily the

optimal method for training characters. In particular, the 1 - 2 pixel border

requirement may not be met.

Example with Auto-Segment

Using the “TEXT02.TIF” image, a sample OCVFont was trained using

auto-segmentation with all parameters at the default values. The

characters “L”, “2”, “A”, “0”, “6”, “9”, “3” were trained into the OCVFont.

When the OCVRuntimeTool was trained, the Sobel Edge Enhancement

search buffer was:

FIGURE 5–92. Contents of Buffer

The Sobel Edge Enhancement templates and the resulting Match% were:

FIGURE 5–93. Resulting Match%

83% 85% 89% 90% 89% 93% 80%

Chapter 5OCV Reference

5-122 Visionscape I-PAK User’s Manual

When you look closely at the template images and compare them to the

search buffer, you can see that the template images are missing some

data. This is because the Auto-Segment boxes were not big enough

when the characters were trained. It is this missing data that causes the

match % to go down, even when training on the same image.

Example with Manually Trained Characters

Using the “TEXT02.TIF” image, a sample OCVFont was trained by

manually placing the training box over the characters. All parameters

were at the default values. The characters “L”, “2”, “A”, “0”, “6”, “9”, “3”

were trained into the OCVFont.

When the OCVRuntimeTool was trained, the Sobel Edge Enhancement

search buffer was (the same as above example):

FIGURE 5–94. Contents of Buffer

The Sobel Edge Enhancement templates and the resulting Match% were:

FIGURE 5–95. Resulting Match%

Comparing these templates to the search buffer, you can see that the

template characters more closely resemble those in the search area as

reflected by the Match % values. By manually positioning the training

boxes, we were able to ensure that the proper amount of spacing was

available for template training.

99% 95% 98% 98% 99% 99% 99%

Troubleshooting

OCV Reference

Visionscape I-PAK User’s Manual 5-123

Conclusions

• Microscan currently recommends that OCVFont training be

performed using manual placement of the training box. This is

because the training box should be the same size over symbols that

are similar in order for the Runtime ID Checking algorithms to work

optimally. The “Auto-Segmentation” cannot assure that the boxes

around similar characters are the same size. Using manual

placement with the correct 1 - 2 pixel border will also help prevent the

behavior described in this document.

• The “Auto-Segmentation” training of OCVFonts is useful for quick

demos or to quickly prove out an inspection scenario. While the

behavior described may cause confusion at train time when using a

frozen image, the Runtime inspections remain intact. The runtime

inspections do not use the Sobel Edge Enhancement templates.

• The default value for “Number of Border Spaces to Add” may need to

be increased to 2. This would give the Auto-Segmentation characters

more border space with which to train the characters. While this

would probably help with the Read Match%, increasing the border

space may cause some symbol overlap in cases where the symbols

are close together. Microscan recommends manual training of the

OCVFont.

Chapter 5OCV Reference

5-124 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual 6-1

Setup Mode

Reference

CHAPTER 6 Setup Mode Reference

This chapter presents the I-PAK Setup Mode functionality, and describes

the following:

• “Setup Mode Menus” on page 6-3

• “Run Mode” on page 6-15

• “Change Product” on page 6-16

• “Train and Tryout” on page 6-24

• “Statistics and Data” on page 6-42

• “Advanced Settings” on page 6-52

• “Troubleshooting” on page 6-122

Overview

You enter Setup Mode by entering correctly either the Supervisor’s

default password (1010) or the Programmer’s default password (0101)

from Run Mode. In Setup Mode, you create and program Jobs, re-train

tools, and review

end-of-batch results. The Setup Mode window is displayed in Figure 6–1.

Note: These illustrations show the expanded menus in I-PAK. By default,

I-PAK appears in “streamline” mode — a system setting. This presents a

Chapter 6Setup Mode Reference

6-2 Visionscape I-PAK User’s Manual

cleaner operator interface to users. Use the system setting according to

your preferences.

FIGURE 6–1. I-PAK Setup Mode

Access level is set depending on which password was entered:

• A Supervisor can perform a product changeOver, re-train tools,

perform a tryout, write data out to a file, and reset statistics and

failures.

• A Programmer can perform all the Supervisor functions plus create a

new product definition, adjust system settings, modify tools in a

product definition, adjust tool settings and save a product definition at

any time.

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-3

There are various dialog boxes, windows, menus, and buttons that are

displayed as a result of action taken on the Setup Mode window.

The still picture in the upper right corner indicates Setup Mode status.

The Setup Mode window contains some read-only information, such as

the

I-PAK name and version number, the name of the current product, current

access level, the date, and the time.

As you go into the I-PAK submenus (Change Product, Train and Tryout,

Statistics and Data, and Advanced Settings), you will see the main toolbar

as a guide to remind you which submenu you are currently in. The active

submenu is grayed out; inactive submenus are not grayed out.

Setup Mode Menus

This section describes the following:

• “File Menu” starting on page 6-3

• “Access Level Menu” starting on page 6-4

• “21 CFR Part 11 Menu” starting on page 6-8

• “Calibration Menu” starting on page 6-8

• “Image Menu” starting on page 6-9

• “Help Menu” starting on page 6-11

File Menu

FIGURE 6–2. File Menu

To exit I-PAK, you must be at the Programmer’s access level. If you are

not, you will be prompted to enter the Programmer’s password.

Chapter 6Setup Mode Reference

6-4 Visionscape I-PAK User’s Manual

Access Level Menu

FIGURE 6–3. Setup Mode — Access Level Menu

The ordering of access levels is Programmer, Supervisor and Operator. If

you are at a lower access level and are trying to go up to a higher access

level, you will be prompted for a password. If you are trying to go to a

lower access level, you will be allowed to go to that lower access level

without entering a password.

• Programmer — Displays prompt for the Programmer’s password.

Successful entry enables Programmer and Supervisor Level

Capabilities. The default password for Programmer Access Level is

0101. This data is saved in the PC’s registry.

• Supervisor — Displays prompt for the Supervisor’s password.

Successful entry enables Supervisor Level Capabilities. The default

password for Supervisor Access Level is 1010. This data is saved in

the PC’s registry.

• Operator — Immediately places I-PAK into Operator level.

• Change Password — Displays a dialog box for a new password for

the currently enabled access level.

Note: Passwords must use numeric symbols.

• Change ‘Change Lot’ Password… — Allows the Programmer to

change the Change Lot password (default is 1101) to something else.

Highest Access Level

Lowest Access Level

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-5

This is active only if the access level is Programmer. For Supervisor

access, Changing Lot at Run Time is activated.

• 21 CFR Part 11 Administrator — When using the 21 CFR Part 11

option, this choice is enabled. The Administrator mode allows the

defining of valid users, their passwords and their security levels. This

Administrator, whose user name is I-PAKAdmin and default password

is 999999, is your Configuration Manager. He or she is not a

Programmer, a Supervisor nor an Operator.

The Administrator password is stored in the PC’s registry settings and

is changeable through the I-PAK interface.

Note: The Administrator should be careful not to forget his or her

password, as it is very difficult to recover the Administrator password.

You will need to contact Microscan to recover a forgotten

Administrator password.

• Configure Supervisor Access — This command is available to

Programmers to configure the tasks a Supervisor can perform. When

you do not have Programmer level access, this menu item is grayed

out so that it cannot be selected. When a Programmer selects this

item, the Configure Supervisor Access dialog box is displayed, as

shown in Figure 6–4.

Chapter 6Setup Mode Reference

6-6 Visionscape I-PAK User’s Manual

FIGURE 6–4. Configure Supervisor Access

The Programmer can define the following abilities for a Supervisor:

– Allowing access train mode to tool settings, font training and

scaling.

– Changing Product and System settings.

– Editing the Tool Set - Job View.

– Shutting down I-PAK, launching the Windows Explorer,

calibration and saving Product definitions.

– Changing Lot at Run Time — By default, Changing Lot at Run

Time is checked; the Supervisor is allowed to change the lot

string using the Change Lot button on the main Run Screen.

When the Supervisor clicks Change Lot, he or she is prompted

for either the Programmer or Supervisor password, as shown in

Figure 6–5:

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-7

FIGURE 6–5. Input Programmer, Supervisor Mode, or Change Lot

Password

When Changing Lot at Run Time is not checked, the Supervisor

is not allowed to change the lot string using the Change Lot

button on the main Run Screen. When the Supervisor clicks

Change Lot, he or she is prompted for the Programmer

password:

Chapter 6Setup Mode Reference

6-8 Visionscape I-PAK User’s Manual

FIGURE 6–6. Input Programmer Mode or Change Lot Password

21 CFR Part 11 Menu

For complete information regarding 21 CFR Part 11 and its menu, see

Chapter 3, “21 CFR Part 11”.

Calibration Menu

FIGURE 6–7. Calibration Menu

This menu allows you to calibrate camera views on any target in the

system. Camera views are simply Snapshot Steps on any target in the

system, but they are arranged according to the hardware camera on a

target system.

• Open Calibration — Reloads calibration data from an existing file.

When reloading data, calibration data is read from the file into the

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-9

corresponding Snapshot on a one to one basis. If the number of

Snapshots does not equal the number of calibration data objects in

the file, then as many Snapshot steps that can receive calibration

data do so.

• Save Calibration — Saves calibration data to a separate file. When

saving data, calibration data from each Snapshot Step in every target

is saved in one file with a .cal extension.

• Save Calibration as Text — Writes the entire calibration World tree to

disk as a text file.

• Calibrate — Starts the calibration process on Snapshot x of Camera

• Display Calibrated Results — Enables or disables the display of the

calibrated measurement results at Runtime in calibrated units.

Different Snapshot Steps, which use the same camera, are considered

different views of the camera and can be calibrated individually or as a

group. The different camera menus under “Calibrate” list the names of

each Snapshot in the corresponding target. When you click one of these

menus, the Calibration Wizard from the Calibration Manager control is

displayed, and you can calibrate the camera view.

When a camera is calibrated, its data is saved in the .avp file. The

open/save menu items are a means to extract the calibration data into a

file and reload it into a different program.

For further information, please refer to Chapter 2 of the Visionscape Tools

Reference. This manual is included on the USB drive in PDF format.

Image Menu

FIGURE 6–8. Image Menu

• Open — When Open is selected, the Open Image dialog box is

displayed, as shown in Figure 6–9. You can open a previously saved

Chapter 6Setup Mode Reference

6-10 Visionscape I-PAK User’s Manual

I-PAK image. This may be useful for re-training tools or debugging an

application with a frozen image.

FIGURE 6–9. Open Image Dialog Box

• Save — When Save is selected, the Save Image dialog box is

displayed, as shown in Figure 6–10. You can save an I-PAK image to

your hard drive. This may be useful in storing a golden training image

or for debugging purposes.

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-11

FIGURE 6–10. Save Image Dialog Box

Help Menu

FIGURE 6–11. Help Menu

• I/O Debug... — When I/O Debug... is selected, the I-PAK I/O Debug

diagnostic tool is displayed, as shown in Figure 6–12.

Chapter 6Setup Mode Reference

6-12 Visionscape I-PAK User’s Manual

FIGURE 6–12. I/O Debug Diagnostic Display

A Programmer can access an I/O Diagnostic tool to set and view the

state of physical and virtual I/O. This graphical representation is

available only in Setup Mode and only at the Programmer access

level.

Once the I/O Diagnostic tool is displayed, the Programmer must

connect to a Visionscape framegrabber board by selecting the name

of the framegrabber board from the drop-down list, and clicking on the

Connect button that is to the right of the drop-down list.

The top portion of the window displays the physical I/O; the bottom

portion displays the virtual I/O. Inputs are indicated as yellow buttons.

Where applicable, you can click the I/O LED and change the state of

the given I/O point.

• Open Event Selector — The Event Selector allows the user to change

how a touchscreen button press is received. By default, pressing the

touchscreen is equivalent to a left mouse click. By pressing the Event

Selector, the next touchscreen press will be read as a right mouse

click. The Event Selector will show the status of the touchscreen

selection based on the button that colored dark blue in its window.

Connect

Setup Mode Menus

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-13

• Open Softkeyboard — The Softkeyboard allows the user to enter text

by pressing keys of the keyboard displayed in this program. The text

can be entered via left mouse clicks or touching the key on the

touchscreen.

If you are working on a Panel PC with an integrated Touch Screen,

and no keyboard is connected to the PC, you can open the Touch

Input Software using the following button:

The button is only available in Windows or dialog boxes where it is

possible to enter data. You can also open the Touch Input via the

Menu entry

Help > Open Softkeyboard in Setup Mode.

If I-PAK is not running on a Panel PC, or the Touch Input Software in

not installed on the Panel PC, the button is not available.

• Visionscape I-PAK User Manual — When you select Visionscape

I-PAK User Manual, the PDF for the manual is opened immediately. If

the PDF cannot be found in the installation path, a dialog box is

displayed, as shown in Figure 6–13. Navigate to the I-PAK User

Manual PDF and click Open.

Chapter 6Setup Mode Reference

6-14 Visionscape I-PAK User’s Manual

FIGURE 6–13. Open PDF File Dialog Box

Then, an Acrobat Reader program will launch and you can review the

manual. After you go into Run Mode, the Acrobat Reader program will

close automatically.

• About Visionscape I-PAK... — Click About Visionscape I-PAK... to

display information about the version of I-PAK running on your PC.

Run Mode

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-15

Run Mode

Note: For information about PreProduction Mode and Production Mode,

see Production Mode on page 6–114.

Use the Run Mode button when you want to leave Setup Mode after

performing a Product ChangeOver, configuring or re-training a Job, and

return to Run Mode with your Access Level reset to Operator.

At this time, the inspection Job is downloaded to the framegrabber(s).

Windows Registry information is updated with the name of this Job. This

provides recovery in the event of a power loss, and enables I-PAK to

recover to Run Mode running this last Product. Run Mode can be

accessed by any user: Administrator, Programmer, Supervisor or an

Operator.

The current product must be fully trained: all tools must be trained before

you can run your product in Run Mode. The Run Mode button is grayed

out until all tools in the current Job are trained.

Chapter 6Setup Mode Reference

6-16 Visionscape I-PAK User’s Manual

Change Product

The Change Product button displays the Change Product dialog box, as

shown in Figure 6–14.

FIGURE 6–14. Change Product Dialog Box

The Change Product dialog box displays a listing of pre-existing Jobs

from the Jobs directory. The Supervisor can select from these pre-

programmed Products by scrolling the list, selecting the Product, and

clicking OK.

Once selected, the product is read in from disk, and the new Product

name replaces all occurrences of the previously displayed Product name

on all windows, menus, and dialog boxes. Any changes to the former Job

that were not saved are discarded.

The product description text (up to 1000 characters) is stored with the

product definition in the .avpsys file. This allows each product definition to

have a unique description.

The Supervisor can perform a Change Lot by clicking Change Lot.

The Supervisor can archive or restore pre-programmed Products from a

specified archive path such as a CD-RW or network path by clicking the

Change Product

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-17

Archive/Restore button. Click Cancel to exit without changing the

Product.

This remainder of this section describes the following:

• “Change Lot Feature” starting on page 6-17

• “Location of Jobs Folder” starting on page 6-19

• “Advanced Topic: Remote Change Product” starting on page 6-20

• “Archiving and Restoring Products” starting on page 6-20

Change Lot Feature

From the Change Product dialog box, the Supervisor can change:

• The match string for a Barcode Tool, a Data Matrix Tool, and an

OCRTrainableFont Tool after the tool has initially been trained using

the Change Lot feature.

• The expected Font Tool layout after the tool has been initially trained.

Note: You must ensure that the Font Tool has already been trained,

its number of layout characters is not changing, its AutoFind

characters are not changing, and its character symbols are well

defined in the font library.

I-PAK provides a unique default password for Operators; this password

allows Operators to perform a “Change Lot” function, but does not allow

them to enter Setup Mode. When 21 CFR Part 11 user control is enabled,

Operators can perform a “'Change Lot” function.

When you click Change Lot, a dialog box is displayed, similar to

Figure 6–15 and Figure 6–16. It displays the full path of all tool names

and their associated match strings or layouts for the Data Matrix/Barcode

and Font Tools, respectively, for all the tools in the Job available for Lot

ChangeOver. It will display five strings at a time. Use the Next and

Previous buttons to display all the tools in the Job.

Chapter 6Setup Mode Reference

6-18 Visionscape I-PAK User’s Manual

FIGURE 6–15. Lot ChangeOver - Edit Code

FIGURE 6–16. Lot ChangeOver - Complete

If you want to change a Code, simply click Edit Code for the specific

tool(s). This allows you to edit the contents of the match or layout string.

This also enables the Change this Tool’s Code and the Change all Tool’s

Code buttons.

Change Product

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-19

When you want to just change one match or layout string at a time, edit

the code and click Change this Tool’s Code. This will change the match or

layout string to the contents you just specified. I-PAK will display an error

message if the number of characters in the new string is not equal to the

number of characters in the old string. I-PAK will display a message if any

of the characters in the new string are not defined in the OCVFont used

by the tool. When no errors are encountered, I-PAK displays a “success”

message.

If a Job has multiple tools that have identical match or layout strings, you

can change them all at once by editing the code for any one and then

clicking Change all Tool’s Code. Then, I-PAK will go through the Job and

change the match or layout string to the contents you just specified for all

tools that had the same code.

Note: The Font Tool IGNORE character “@” and Data Matrix Tool

IGNORE character “?” are allowed in this dialog box.

This feature supports up to 99 Font, Data Matrix and Barcode tools total in

any one Job.

Location of Jobs Folder

The Jobs folder is created in the directory in which I-PAK was installed

and from which you run I-PAK. For example, if you install the I-PAK

software in C:\Vscape, then, when you first run I-PAK, it automatically

creates the Jobs folder as follows:

C:\Vscape\I-Pak\Jobs

Using Windows Explorer, you can back up your Job definitions to another

disk or floppy.

Automatic Backup of Jobs

I-PAK performs an automatic backup of the current product definition to

help you recover in the event of a PC disk error. Every time that a product

definition is about to be saved, an automatic copy of the Job is created in

a directory called JobsBackup that is located within your Jobs directory.

For example, this automatic backup directory will be C:\Vscape\I-

Pak\Jobs\JobsBackup.

Chapter 6Setup Mode Reference

6-20 Visionscape I-PAK User’s Manual

In the event of a PC disk error, you can recover the .avp and .avpsys files

for your products short of your last edits. The file is suffixed with a -1 to

further designate that these file copies are one revision behind the current

product definition.

Advanced Topic: Remote Change Product

You can use an external program to change the product on I-PAK. When

an external program downloads a product using a runtime manager, I-

PAK recognizes the download and changes the active product to be the

one downloaded. This requires that, before the external program

downloads the product, it must change the registry setting for I-PAK that

indicates the name of the active product.

Note: I-PAK must be in Run Mode operation when the change of product

occurs.

Archiving and Restoring Products

Through the I-PAK interface, you can archive and restore products from a

CD-RW or any other valid path, such as a directory or across a network. I-

PAK Job files are rather large and typically do not fit on a floppy. By using

a CD-RW, you can archive your Jobs and restore them safely. The setup

of the CD-RW software is necessary before you can use this feature and

is described in “CD-RW Support” on page C-10. A system-level I-PAK

system has a CD-RW as an optional configuration.

Setting Archival Pathname

In the System Settings menu, in the Product ChangeOver Activities dialog

box, you need to specify the path of the archive location. For example,

when using a CDR, this path might be D:\.

Change Product

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-21

Archive/Restore Dialog Box

When you go to the Product ChangeOver dialog box, you’ll notice the

Archive/Restore button. Click this button to display the Job Archive dialog

box, as shown in Figure 6–17.

FIGURE 6–17. Job Archive Dialog Box — Archive Example

In this Job Archive/Restore dialog box, the left-hand display shows the

Jobs from the current I-PAK\Jobs folder, while the right-hand display

shows the Jobs from the archival path. In this example, we used a CDR

for the archival path.

You must ready the CD media before you can begin using it.

You’ll always need to archive and restore both the .avp and .avpsys files

for a product to run in I-PAK.

To archive a Job from the Current Jobs folder to the Archived Jobs, click

on the Job name and its associated .avpsys file from the left-hand list.

Then, click on Save-> to copy those files onto the archival path. In this

case, it copies the files from the I-PAK\Jobs directory to the CDR.

Chapter 6Setup Mode Reference

6-22 Visionscape I-PAK User’s Manual

To select more than one file at a time, hold the Ctrl key while clicking file

names.

FIGURE 6–18. Archive/Restore Dialog Box After Successful Archive

Likewise, to restore a Job from the Archived Jobs to the Current Jobs

folder, simply click on the Job name and its associated .avpsys file from

the right-hand list. Then, click on <-Restore to copy those files back to the

Current Jobs folder. In this case, it will copy the files from the CDR to the

I-PAK\Jobs directory.

There are error messages and prompts to handle overwriting file names,

etc.

Change Product

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-23

Archiving Fonts

I-PAK allows the user to archive OCVFonts. After a valid archive path has

been entered on the System Settings screen, the Archive/Restore button

on the Product ChangeOver dialog box is enabled. Clicking this button

brings up the Job Archive dialog box.

Clicking Fonts allows the user to archive/restore font files and images

from/to the Vscape\Jobs\Fonts folder.

FIGURE 6–19. Job Archive Dialog Box — Fonts Button

To archive Fonts from the Current Fonts folder to the Archived Fonts, click

on the Font name from the left-hand list. Then, click on Save-> to copy

those files onto the archival path.

To select more than one file at a time, hold the Ctrl key while clicking file

names.

To restore Fonts from the Archived Fonts to the Current Fonts folder,

simply click on the Font name from the right-hand list. Then, click on <-

Restore to copy that Font back to the Current Fonts folder.

Chapter 6Setup Mode Reference

6-24 Visionscape I-PAK User’s Manual

Train and Tryout

Train and Tryout displays the Train and Tryout wizard mode window, as

shown in Figure 6–20. The Training and Tryout functions are grouped into

one and utilize the same display. The Supervisor/Programmer can train,

re-train, and tryout the tools from this display. The concept of wizard

mode exists in this menu much like the Create a Product wizard mode.

You want to first train your tools. AutoStep guides you through the training

process.

FIGURE 6–20. Train and Tryout Wizard Window

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-25

This remainder of this section describes the following:

• “AutoStep or Wizard Training Method” starting on page 6-25

• “AutoStep Off” starting on page 6-27

• “Train and Tryout Mode” starting on page 6-27

• “Train and Tryout Toolbar” starting on page 6-27

• “Automatically Setting Tool Settings” starting on page 6-35

• “Special Training of Tools with I-PAK” starting on page 6-36

AutoStep or Wizard Training Method

The AutoStep or Wizard method of training walks the Supervisor or

Programmer through each step of the training sequence. The I-PAK

interface uses the term “AutoStep” rather than “Wizard”. By default,

AutoStep training is invoked automatically when you first enter this

window, but can be changed via a system setting. See the AutoStep

Mode On Automatically in Train and Tryout setting on page 6–106.


The image will display the last runtime or acquired image associated with

that snapshot with the tool graphics superimposed. The

Programmer/Supervisor is required to train each tool and then click Next

to proceed to the next tool.

Masking Tool

When a vision tool that uses an input mask is selected, the Masking Tool

menu option becomes available. Clicking on this menu option brings up

the ROI Masking Tool dialog box, as shown in Figure 6–21.

Chapter 6Setup Mode Reference

6-26 Visionscape I-PAK User’s Manual

FIGURE 6–21. ROI Masking Tool Dialog Box

The dialog box allows a mask to be drawn into the buffer. Then, the

associated tool uses this mask at run time. Only tools that have input

mask capabilities (in other words, Blob, Flaw, etc.) can use the ROI

Masking Tool.

This dialog box allows you to select a pen style and drawing style for

drawing a mask directly into the buffer. You can also use the Fill Style or

Eraser Style to fill an enclosed area or erase part of the drawn mask.

• Fill ROI — Fills the entire ROI

• Clear ROI — Clears the entire ROI

When editing the mask is complete, you must close the ROI Masking Tool

to continue with Train and Tryout activities.

Job View

The data on the left-hand side of the display is your Job. As you

successfully train each tool in your Job, a green check mark appears next

to each tool name. With AutoStep off, you can click directly on a tool in

this view for re-training, or click on its shape in the image window.

Note: Some steps like the Inspection step update its status after all of the

tools in that Inspection have completed. This means that the Inspection

step could display a red X until the last tool has been trained and then

would change to a green check mark.

Completing AutoStep Mode

When all tools have been trained, the Next button on the Toolbar changes

to a Finish button. Then, the Programmer/Supervisor clicks on Finish to

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-27

complete the training process. The Programmer/Supervisor is notified

when AutoStep training is complete.

AutoStep Off

The Programmer/Supervisor can manually select the tools to be trained.

This method of training may also be called random access training. With

AutoStep off, all tools can be graphically displayed in the image window.

You can click on a tool to select it. The Programmer/Supervisor can also

use the Next and Previous buttons to select a tool. Once selected, the

tool can be trained by clicking Train.

By default, upon entering train mode, AutoStep (wizard mode) is on. To

exit AutoStep, click Exit AutoStep. This puts you in manual train mode.

When in manual train mode, you can click Next Camera or right-click on

Next, which allows you to skip to the next snapshot or camera view.

The Programmer/Supervisor can click Exit Training to Main Setup to exit

this menu at any time.

Train and Tryout Mode

With AutoStep off, or once all vision tools in a Product have been trained

successfully, Train and Tryout Mode allows you to tryout the Job. This

mode allows you to monitor the execution of each step in the Product.

This allows for debugging and proving the integrity of an inspection before

running production mode.

With AutoStep off, Train and Tryout Mode is active and additional buttons

are displayed to the right of the Toolbar. Below the Toolbar is an area for

image display. Scroll bars are provided to allow you to access all areas of

the image. Vision tools are graphically displayed over the image and can

be selected by clicking on their graphical representations.

Train and Tryout Toolbar

This toolbar enables you to move through the train and tryout process,

acquire images, view live images, and tryout the product. Refer to

Figure 6–22 and the descriptions on page 6–28 through page 6–35.

Chapter 6Setup Mode Reference

6-28 Visionscape I-PAK User’s Manual

FIGURE 6–22. Train and Tryout Buttons

AutoStep

AutoStep enables the Train and Tryout wizard to guide you, tool by tool,

through the re-training process. This is a Supervisor level function. The

default is based on the System Setting AutoStep Mode On Automatically

in Train and Tryout. The default is On. To exit AutoStep, click Exit

AutoStep Mode or change the default setting.

Train

Train enables the training of the currently selected tool. Once the tool is

trained, you can go to the Next Tool in the Job definition. The Train button

is red when the current tool is not trained and turns green once that tool is

successfully trained. This is a Supervisor level function.

Previous enables you to return to the previous tool in the Job definition.

This is a Supervisor level function. With AutoStep Off, right-click on

Previous to move backward to the previous snapshot in your Job.

Next enables you to go forward to the next tool in the Job definition if the

current tool is trained successfully. This is a Supervisor level function.

With AutoStep Off, right-click on Next to move forward to the next

snapshot in your Job.

Next Camera

Next Camera is displayed when AutoStep is off. Clicking Next Camera

allows you to move ahead to the next camera’s view and to its tools in

your Job. This is a Supervisor level function.

Tool Settings

Tool Settings displays the Tool Settings dialog box, as shown in

Figure 6–23. This shows the training and inspection parameters relative

to the selected tool. This is a Programmer’s level function.

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-29

FIGURE 6–23. Tool Settings Dialog Box

Options

Options displays the Tryout Options dialog box, as shown in Figure 6–24.

This dialog box allows the Supervisor to temporarily disable the Trigger

for Tryout Mode only. These options are grouped by functionality. You can

verify that the tool is running properly by viewing the graphics and

examining data along the Status Bar. Click OK if you make any changes

to this dialog box. This is a Supervisor level function.

Chapter 6Setup Mode Reference

6-30 Visionscape I-PAK User’s Manual

FIGURE 6–24. Options Dialog Box — Tryout

Run Options — Allows you to set which step to run when executing a

tryout:

• Tryout All Inspections — Runs all inspections in Job definition. The

default is selected.

• Tryout Current Inspection — Runs the current inspection. The default

is not selected.

• Tryout Current Snapshot — Runs the current snapshot. The default is

not selected.

Break Options — Allows you to set the circumstances under which the

tryout will be stopped:

• Don’t Stop — Runs through the entire Job definition without stopping.

The default is selected.

• Stop on Tools — Halts inspection on each tool of the Job definition to

allow for viewing of results. The default is not selected.

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-31

• Stop on Failed Tools — Halts inspection on tools of the Job definition

that have failed vision processing to allow for debug viewing of

results. The default is not selected.

Control Options — Allows you to set the Tryout operation:

• Do Acquire — During a Tryout, this allows you to make I-PAK acquire

an image. Otherwise, it uses the image already shown. The default is

selected.

• Show I/O Results — Sets the Opto Outputs as a result of running the

Job definition in Tryout. This allows for a near-live simulation. The

default is selected.

• Triggered (I/O or Sensor) — During a Tryout, this allows I-PAK to use

the trigger mechanism. When you select Trigger in the

Trigger/Acquire Method of the Product Setting — Cameras dialog

box, this appears checked.

Note: This setting is applicable only when Do Acquire is selected.

• Loop — Allows the system to loop continuously through the Job

definition performing a Tryout inspection, rather than running through

just once. If selected, the Try All button’s text changes to Try Stop.

The Supervisor can stop this continuous tryout cycle by then

selecting Try Stop. The default is not selected.

• Delay — Allows you to pause briefly between tools to analyze

resulting graphics. The default is not selected.

Acquire

Acquire takes an Image using the pre-defined trigger criteria (fire strobe,

etc.,) from the Options dialog box. The image is displayed on the display

buffer in the lower part of the screen. This is useful when using a strobe,

allowing you to view a production image. This is a Supervisor level

function.

The image last Acquired is saved by I-PAK. In the Training and Tryout

menu, as you go through the Job by clicking Next and Previous, the

image displayed is the last runtime image for that camera. If you are on

the inspection step, it will show you the first snapshot’s image for that

inspection.

Chapter 6Setup Mode Reference

6-32 Visionscape I-PAK User’s Manual

When you do an Acquire or a Live, I-PAK replaces that stored runtime

image with the newly acquired image.

Live

Live takes a live image from the camera and displays it on the display

buffer in the lower part of the screen. When you click the button once to

activate Live Mode, the button appears depressed. The image area is

updated dynamically with live video of the image. Click the button again to

exit Live Mode, and the button resumes a normal position. Live Mode

does not wait for a trigger. This is a Supervisor level function.

The last image acquired from Live is saved by I-PAK. In the Training and

Tryout menu, as you go through the Job by clicking Next and Previous,

the image displayed is the last runtime image for that camera. If you are

on the inspection step, it will show you the first snapshot’s image for that

inspection.

When you do an Acquire or a Live, I-PAK replaces that stored runtime

image with the newly acquired image.

Zoom In

Zoom In causes the currently displayed image to show more detail.

Zoom Out

Zoom Out causes the currently displayed image to show less detail.

Try Tool

Try Tool causes the currently selected tool to be run. Any tools that the

current tool depends on for execution are also run. Runtime debug

graphics are displayed over the image. Debug information is displayed in

the status bar below the image. This selection uses the triggering

mechanism you defined in the Tryout options. Be sure to provide a trigger

if one is defined in the product. This is a Supervisor level function.

Try All

Try All causes all tools in the Job definition to be run. Runtime debug

graphics are displayed over the image. Debug information is displayed in

the Status Bar below the image. Clicking Try All changes the caption to

Try Stop. Clicking Try Stop stops the tryout of the program and returns the

caption to Try All. This selection uses the triggering mechanism you

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-33

defined in the Tryout options. Be sure to provide a trigger if one is defined

in the product. This is a Supervisor level function.

Chapter 6Setup Mode Reference

6-34 Visionscape I-PAK User’s Manual

Custom Settings

The OCVFontTool, OCVRuntimeTool, Trajectory Tool and

OCRTrainableFont Tool require a Custom Settings dialog box for proper

setup and training. When the Trajectory Tool is selected while in

Train/Tryout, the Custom Settings button appears in the toolbar.

Figure 6–25 contains the Trajectory Tool Custom Settings window. When

the OCRTrainableFont Tool is selected while in Train/Tryout, the Font

Folder button appears in the toolbar. Figure 6–26 contains the

OCRTrainableFont Tool Custom Settings window.

FIGURE 6–25. Trajectory Tool Custom Settings Window

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-35

FIGURE 6–26. OCRTrainable Font Tool Custom Settings Window

For more information about using the custom settings for these tools, see

the Visionscape Tools Reference.

When either the OCVFontTool or the OCVRuntimeTool are selected while

in Train/Tryout, the Font Editor button appears in the toolbar. For more

information about using Font Editor, see “Custom Properties —

Create/Modify OCVFonts” on page 5-5.

Exit Training to Main Setup

Exit Training to Main Setup allows the Supervisor to leave Train and

Tryout Mode and return to the Setup Mode window. All tools should be

trained before clicking Exit Training to Main Setup. The Job definition is

saved to the hard drive when Exit Training to Main Setup is selected. This

is a Supervisor level function.

Automatically Setting Tool Settings

The I-PAK interface automatically sets tool settings that are the most

useful for users.

• When inserting a Data Matrix Tool, Barcode Tool, Runtime Font Tool

or the OCV Font Tool, I-PAK automatically selects the .text

component of each tool in the Inspection step’s Select Results to

Upload field. This data is shown on the Results Display dialog box in

Chapter 6Setup Mode Reference

6-36 Visionscape I-PAK User’s Manual

the String field, Requested Result and Value fields. Only one .text

field can be displayed in the String field.

These .text fields are the Font Tool’s character string being inspected

or the match string for the Data Matrix or Barcode Tool.

• When inserting a Data Matrix Tool, its tool graphics are set to show

basic graphics.

Special Training of Tools with I-PAK

The I-PAK interface allows for special training of the Barcode Tool, Data

Matrix Tool, and OCRTrainableFont Tool when they are used with the

Match String Enable checkbox, as shown in Figure 6–23, “Tool Settings

Dialog Box,” on page 6-29.

Match String

Typically, these tools perform a read at inspection time, and report these

results. Some users want to use a pre-determined code on their product

and verify that the string read is what they expect. This concept is known

as Match String. With Match String enabled, these tools still perform a

read at inspection time and compare it internally against the given Match

String to decide if the inspection passed or failed. When the data read is

the same as the Match String, this inspection is deemed Pass. If,

however, the data read is not the same as the Match String, then this

inspection is deemed Fail.

Training Match String Enabled Tools

When training a Barcode Tool, a Data Matrix Tool, or an

OCRTrainableFont Tool with the Match String enabled, I-PAK displays a

Match String dialog box, as shown in Figure 6–27. This dialog box is

displayed immediately after you select one of these tools either by clicking

on the tool or by clicking Next or Previous. The dialog box displays the

current match string for that tool. When you train the tool, the newly

learned string replaces this string.

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-37

FIGURE 6–27. Match String Dialog Box

Data Matrix Tool Wildcard Match Character

The Data Matrix Tool accepts a wildcard character in the match string. By

enabling Use Wildcard ? in Match String on the Data Matrix Tool

properties page, wildcard processing occurs. When disabled, no

wildcards are allowed in the match string.

When enabled, a “?” character in the match string allows the inspection to

pass for any character that appears in the corresponding position of the

string read by the Data Matrix Tool. Multiple wildcard characters are

allowed in the match string. By default, this setting is disabled.

• Current Match String for the Tool — Displays the current match string

for the Barcode, Data Matrix, or OCRTrainableFont tool.

• New Match String Entry Mode — You can enter a new Match String

either with the keyboard or by the input channel for remote

downloading of the Match String. The Input Channel is configured

from the System Settings dialog box to either RS-232 or Ethernet

(TCP/IP).

– Keyboard — To enter the new string with the Keyboard, click

Keyboard. Then, type the new string directly into the Match String

Chapter 6Setup Mode Reference

6-38 Visionscape I-PAK User’s Manual

dialog box with your keyboard. When you are done, click OK to

set the tool’s match string. When you click Cancel, the current

match string will not change.

– OnScreen Keyboard — To enter data using the OnScreen

Keyboard, click OnScreen Keyboard. For touch screen users, this

is useful so that you don’t have to open up and use the I-PAK

Keyboard.

– Input Channel

• RS-232 — To enter the new Match String via RS-232, you

need to define the Input Channel on the System Settings

menu to be RS-232 and define its RS-232 protocol. For

details on how to choose an RS-232 communications port

and how to set your I-PAK system’s physical communications

port, refer to “RS-232” on page 6-83.

• Once the Match String dialog box is displayed, I-PAK sends

out a message on the RS-232 stating it is ready to receive

data. “Waiting for RS-232 Input of Match String for Tool:

Board, Inspection Number, Snapshot, Toolname <lf><cr>)” is

the message sent out. Then, I-PAK begins waiting for the

input of the match string.

When I-PAK does not receive the match string within the

specified timeout period, then this transaction times out. I-

PAK closes the

RS-232 port.

When I-PAK does receive the match string, the string is

displayed in the Match String dialog box. Click OK to accept

this new string or Cancel to revert to the old string.

Note: The RS-232 input of match string must be terminated

with either an “Enter” or “Return” character. Once I-PAK

receives this termination character, it closes the RS-232 port

and ignores anything else sent.

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-39

– COM1 Properties — Your RS-232 device settings should

be set. This example is from HyperTerminal.

Chapter 6Setup Mode Reference

6-40 Visionscape I-PAK User’s Manual

– Properties — Your RS-232 device settings should be set,

as shown below. This example is from HyperTerminal.

Train and Tryout

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-41

– ASCII Setup — Your RS-232 device settings should be

set, as shown in below. This example is from

HyperTerminal.

Note: DO NOT check Send line ends with line feeds. This

causes the match string to include this line feed as an actual

character in the match string.

• TCP/IP — To enter the new Match String via TCP/IP, you

need to define the Input Channel on the System Settings

menu to be TCP/IP and define its TCP/IP protocol. Once the

Match String dialog box is displayed, you will need to click

Input Channel. I-PAK acts as a Server application and is in

Listen Mode until the Client machine connects to it.

Before sending data, the client has to request a connection. Once

the connection has been made, I-PAK can receive the match

string. If the connection is broken, the application resets and

places itself in Listen Mode. In this case, the client needs to

reconnect. When I-PAK does receive the match string, the string

is displayed in the Match String dialog box. Click OK to accept

this new string or Cancel to revert to the old string.

Chapter 6Setup Mode Reference

6-42 Visionscape I-PAK User’s Manual

Note: The TCP/IP input of match string must be terminated with a

NULL (\0) character.

Note: I-PAK expects the entire match string to be contained within

one packet. This means that you cannot type the match string in

from a terminal program such as HyperTerminal.

Statistics and Data

The Statistics and Data button displays the Statistics and Data Toolbar, as

shown in Figure 6–28. Refer to the descriptions on page 6–43 through

page 6–51.

FIGURE 6–28. Statistics and Data Toolbar

This remainder of this section describes the following:

• “Clear Statistics” starting on page 6-43

• “Clear Failures” starting on page 6-43

• “Save Stats File” starting on page 6-43

• “Save Config File” starting on page 6-44

• “Save Images” starting on page 6-44

• “Transmit Config File” starting on page 6-47

• “Transmit Statistics” starting on page 6-47

• “Preview Config File” starting on page 6-50

• “Preview Statistics” starting on page 6-51

Statistics and Data

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-43

• “Close Statistics” starting on page 6-51

Clear Statistics

Clear Statistics resets the Inspect, Pass, and Fail counts to zero (0). It

also resets the Failure Counters on the Failure Report to zero (0). At this

point, I-PAK clears the counts (sets them to zero) that are stored in the

registry. A dialog box is displayed to the Supervisor verifying that statistics

have been reset. This is a Supervisor level function.

Note: There are limits on the counters based on display restrictions. For

example:

Inspected:10 characters – up to 2, 147, 483, 647

Pass:10 characters – up to 2, 147, 483, 647

Fail:10 characters – up to 2, 147, 483, 647

If another inspection occurs after the counters have reached this limit,

then the counter is set to “-2,147,483,647” and stops incrementing. This

limit, 2,147,483,647, is based on the size of a VB LONG.

Clear Failures

Clear Failures clears the Failure Report and resets the failure frequencies

to zero (0). It does not reset the Inspect, Pass and Fail counts. A dialog

box is displayed to the Supervisor verifying that failures have been reset.

This is a Supervisor level function.

Save Stats File

Save Stats File saves the last runtime statistics to a file. The data saved

includes: Product, date, time, and counters. When Part 11 is enabled, the

statistics file is read-only.

Chapter 6Setup Mode Reference

6-44 Visionscape I-PAK User’s Manual

Save Config File

Save Config File saves a human-readable version of the current product’s

Job definition and its essential data to a file. I-PAK prompts for a name.

The data saved includes: Product, date/time, counters, Inspected

Character String, and Fail Counters. This is a Supervisor level function.

When Part 11 is enabled, the configuration file is read-only.

Note: When there is more than one OCVFontTool, OCVRuntimeTool,

Barcode Tool, or Data Matrix Tool, only the last inspected tool’s string is

saved.

Save Images

Save Images displays the Retrieve and Save Image As dialog box, as

shown in Figure 6–29.

Filling in the Retrieve and Save Image As dialog box is a two-step

process:

• Fill in the Part Image Storage information (top half) before you enter

Run Mode.

• Fill in the Image File Name information (bottom half) after you exit

Run Mode.

Statistics and Data

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-45

FIGURE 6–29. Retrieve and Save Image As Dialog Box

• Part Image Storage Mode — Allows you to select which inspection

images are to be stored:

– Store All Images — Saves all images in the inspection.

– Store No Images — Saves no images in the inspection. This is

the default.

– Store Failed Images — Saves all images in the inspection

whenever a part fails.

– Store Passed Images — Saves all images in the inspection

whenever a part passes.

When an inspection runs and meets the image storage criteria, the

Inspection step saves all camera images for that part to memory on

the framegrabber; they can be saved to disk at a later time.

Chapter 6Setup Mode Reference

6-46 Visionscape I-PAK User’s Manual

• Part Image Queue Size — Allows you to specify the number of

images to be stored.

Note: The total number of images for all inspections cannot exceed

10.

Based on Part Image Storage Mode, images are stored in a first-in,

first-out (FIFO) queue. When the number of images stored reaches

the size specified by this parameter, the oldest image in the queue is

overwritten so that the queue never expands beyond this size. The

default value is 0.

Note: After running your inspection, open the Retrieve and Save

Image As dialog box to set up Image File Name. Select the path and

file names of the currently stored image files on the vision board. This

allows the images to be uploaded and saved on the PC.

• Image File Name — When the Inspection step in the current Job has

been set up to store images based on the part pass/fail status, you

will specify a file destination to which these images should be stored.

When the Product is run in a loop, the Inspection step stores images

based on its Part Image Storage Mode setting.

– Base File Path Name — Takes a base file name.

– Base File Number — Takes a base file number.

If the Inspection Step was set up to store the last 10 failed images,

you could enter c:\fail for the Base File Path Name and 0 for the Base

File Number. Then, the 10 failed images would be saved as:

Statistics and Data

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-47

c:\fail_Snap1_0.tif

c:\fail_Snap1_1.tif

c:\fail_Snap1_2.tif

c:\fail_Snap1_3.tif

c:\fail_Snap1_4.tif

c:\fail_Snap1_5.tif

c:\fail_Snap1_6.tif

c:\fail_Snap1_7.tif

c:\fail_Snap1_8.tif

c:\fail_Snap1_9.tif

When there were two cameras in the inspection, the images would be

saved as:

c:\fail_Snap1_0.tif, c:\fail_Snap2_0.tif

c:\fail_Snap1_1.tif, c:\fail_Snap2_1.tif

c:\fail_Snap1_2.tif, c:\fail_Snap2_2.tif

c:\fail_Snap1_3.tif, c:\fail_Snap2_3.tif

c:\fail_Snap1_4.tif, c:\fail_Snap2_4.tif

c:\fail_Snap1_5.tif, c:\fail_Snap2_5.tif

c:\fail_Snap1_6.tif, c:\fail_Snap2_6.tif

c:\fail_Snap1_7.tif, c:\fail_Snap2_7.tif

c:\fail_Snap1_8.tif, c:\fail_Snap2_8.tif

c:\fail_Snap1_9.tif, c:\fail_Snap2_9.tif

In these file names, the “Snap1” indicates the first camera; the

“Snap2” indicates the second camera. A similar file naming scheme

results from an inspection with three or four cameras. The Base File

Number can be greater than zero (0), making it easy to identify stored

images from different batch runs.

Transmit Config File

Transmit Config File sends, through user-specified RS-232 or Ethernet,

the data file out to another device. This is a Supervisor level function.

Transmit Statistics

Transmit Statistics sends the following statistics to another device through

a user-specified RS-232 or Ethernet (TCP/IP) (this is a Supervisor level

function):

• Product Name.

Chapter 6Setup Mode Reference

6-48 Visionscape I-PAK User’s Manual

• Current date and time.

• Inspected string — When the Match String for the Barcode Tool or

Data Matrix Tool is used or when the FontTool.text or

OCVRunTool.text is uploaded.

• Last Runtime Statistics.

Transmit Statistics sends this data in the following formats:

• RS-232 Protocol and Syntax — The RS-232 protocol and syntax for a

transmission of statistics is as follows:

– RS-232 Protocol — The RS-232 default baud rate is 9600, No

Parity, 8 data bits and 1 stop bit. Any of these can be changed

using the System Setting dialog box — Communications tab.

– RS-232 Syntax for a Single-Camera Job

Product=product_name<lf><cr>

Date/Time=mm/dd/yyyy hh:mm:ss <lf><cr>

Inspected Characters=inspected_characters <lf><cr>

I=# <lf><cr>

P=# <lf><cr>

R=# <lf><cr>

Note: EOT is the end of text character; (chr(4)) or Ctrl-D in HyperTerminal,

LF is the LineFeed character (chr(10), CR is the Carriage Return

character (chr(13)).

A dialog box is displayed to the Supervisor, indicating statistics

have been sent.

If there are no Inspected Characters in the Job, the third line of

data will not be present.

– RS-232 Syntax for a Multi-Camera Job — Each Inspection Step

has the following format. Complete data is terminated by the

<eot><lf><cr>.

Product=product_name<lf><cr>

Date/Time=mm/dd/yyyy hh:mm:ss <lf><cr>

Statistics and Data

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-49

Inspected Characters=inspected_characters1 <lf><cr>

I1=# <lf><cr>

P1=# <lf><cr>

R1=# <lf><cr>

Inspected Characters=inspected_characters2 <lf><cr>

I2=# <lf><cr>

P2=# <lf><cr>

R2=# <lf><cr>

Inspected Characters=inspected_characters3 <lf><cr>

I3=# <lf><cr>

P3=# <lf><cr>

R3=# <lf><cr>

Inspected Characters=inspected_characters4 <lf><cr>

I4=# <lf><cr>

P4=# <lf><cr>

R4=# <lf><cr>

A dialog box is displayed to the Supervisor, indicating statistics

have been sent.

When there are no Inspected Characters in that inspection, the

Inspected Character line of data will not be present.

• TCP/IP Protocol and Syntax — The TCP/IP protocol and syntax for a

transmission of statistics is as follows:

– TCP/IP Protocol — I-PAK is the Server. The TCP/IP default

Server Port is 7000. You can change any of these using the

System Setting dialog box — Communications tab.

– TCP/IP Syntax for Single-Camera Job.

Product=product_name<lf>

Date/Time=m/d/yyyy h:mm <lf>

Inspected Characters=inspected_characters <lf>

I=# <lf>

P=# <lf>

R=# <lf>

<cr>

If there are no Inspected Characters in the Job, the third line of

data will not be present.

Chapter 6Setup Mode Reference

6-50 Visionscape I-PAK User’s Manual

– TCP/IP Syntax for a Multi-Camera Job.

Product=product_name<lf>

Date/Time=m/d/yyyy h:mm <lf>

Inspected Characters=inspected_characters1 <lf>

I1=# <lf>

P1=# <lf>

R1=# <lf>

Inspected Characters=inspected_characters2 <lf>

I2=# <lf>

P2=# <lf>

R2=# <lf>

Inspected Characters=inspected_characters3 <lf>

I3=# <lf>

P3=# <lf>

R3=# <lf>

Inspected Characters=inspected_characters4 <lf>

I4=# <lf>

P4=# <lf>

R4=# <lf>

<cr>

If there are no Inspected Characters in that inspection, the

Inspected Character line of data will not be present.

Preview Config File

Preview Config File displays the contents of the current Product’s Data

File Statistics, as shown in Figure 6–30. This is a Supervisor level

function.

Statistics and Data

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-51

FIGURE 6–30. Preview Config File

Preview Statistics

Preview Statistics displays the I-PAK dialog box, as shown in

Figure 6–31. This shows the current runtime statistics. This is a

Supervisor level function.

FIGURE 6–31. I-PAK Dialog Box — Preview Statistics

Close Statistics

Close Statistics quits this Statistics and Data Toolbar and returns you to

the

I-PAK Setup Mode window. This is a Supervisor level function.

Chapter 6Setup Mode Reference

6-52 Visionscape I-PAK User’s Manual

Advanced Settings

Advance Settings displays the Advanced Settings Toolbar, as shown in

Figure 6–32. The Advanced Settings Toolbar is accessed only via

Programmer Mode.

FIGURE 6–32. Advanced Settings Toolbar

This remainder of this section describes the following:

• “Create A Product” starting on page 6-52

• “Save Product” starting on page 6-70

• “Product Settings” starting on page 6-71

• “System Settings” starting on page 6-81

• “Edit Tool Set” starting on page 6-119

• “Tool Settings” starting on page 6-120

• “Windows Explorer” starting on page 6-121

• “Close Advanced” starting on page 6-121

Create A Product

The Create A Product button allows the Programmer to define a new

product. The Create A Product wizard is a series of interconnected dialog

boxes that navigate the Programmer from the Product Settings to the

System Settings to a flowchart-like interface for Step Program Creation.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-53

After defining all the tools, the Programmer is taken into Wizard Training

mode in order to train the tools. After you successfully train all the tools,

you can perform a tryout, in Tryout Mode.

For consistency of menu flow description, all steps and sequences are

shown and all general details listed. This is a Programmer level function.

The first series of dialog boxes shown to the Programmer are the Product

Settings dialog boxes, as shown in Figure 6–33, Figure 6–34,

Figure 6–35. Here, the Programmer defines the camera settings and I/O

configuration.

By clicking Next, you can move ahead to the next menu in the Create A

Product wizard series.

Chapter 6Setup Mode Reference

6-54 Visionscape I-PAK User’s Manual

FIGURE 6–33. Create a Product — Product Settings Dialog Box —

Cameras

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-55

FIGURE 6–34. Create a Product — Product Settings Dialog Box — Data

Valid

Chapter 6Setup Mode Reference

6-56 Visionscape I-PAK User’s Manual

FIGURE 6–35. Create a Product — Product Settings Menus — I/O

The next series of dialog boxes provided for the Programmer are the

System Settings dialog boxes, as shown in Figure 6–36, Figure 6–37,

and Figure 6–38. Here, the Programmer defines the Communication and

Reset settings.

Note: When you return to Setup Mode from RunMode, all inspection

Passed outputs are set FALSE.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-57

FIGURE 6–36. Create a Product — System Settings Menu —

Communication

Chapter 6Setup Mode Reference

6-58 Visionscape I-PAK User’s Manual

FIGURE 6–37. Create a Product - System Settings Menu - Training and

Results

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-59

FIGURE 6–38. Create a Product - System Settings Menu - General

Quit Product Creation — Allows you to abort the product creation during

Product Settings and System Settings.

The next series of dialog boxes provided for the Programmer are the Step

Program Creation dialog boxes, as shown in Figure 6–39, Figure 6–40,

and Figure 6–41. This is a visual representation of the tools to be

programmed and used in the product definition. A new product definition

displays Board, Inspection, and Acquire.

For this window, the glidepoint input device is needed with the

touchscreen to support 2-button mouse controls.

Chapter 6Setup Mode Reference

6-60 Visionscape I-PAK User’s Manual

FIGURE 6–39. Create a Product — Step Program Creation — Acquire

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-61

FIGURE 6–40. Create a Product — Step Program Creation — Acquire1

Tool

Chapter 6Setup Mode Reference

6-62 Visionscape I-PAK User’s Manual

FIGURE 6–41. Create a Product — Step Program Creation — Save

Product

The Programmer can add additional Inspections by right-clicking on the

Board step. The Programmer can add subsequent Snapshots for this job

by right-clicking on the Inspection step.

Right-clicking on the Acquire step results in the Insert A Step dialog box

being displayed. This dialog box displays the names of steps that can be

inserted into an Acquire step. Once a Board, Inspection, or Snapshot

block has been inserted, it can be changed by right-clicking on it. Left-

clicking on a primary tool deletes all secondary tools.

Right-clicking on a tool button, such as the Barcode Tool shown in

Figure 6–40, displays the Insert A Step dialog box with all possible vision

tools. The Programmer selects a tool and clicks on Insert Before, Insert

After, or Insert Into. Clicking OK causes an Insert Into action.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-63

Right-clicking on a secondary tool button displays the Insert A Step dialog

box with all possible vision tools. The Programmer selects a tool and

clicks Insert Before or Insert After. Click OK to cause an Insert After

action.

The Programmer can delete any primary or secondary tool at any location

by left-clicking on the tool. The Delete Tool/SubTool dialog box is

displayed. This will prompt the Programmer to confirm the action. Click

OK to delete. Click Cancel to abort this action.

This process continues until the Programmer has completed the selection

of tools in this Product build. Click OK. The Programmer is prompted to

name the Product. Click OK to save the Product and the Product name

associated with this Product.

During Product creation, in the System Settings — General dialog box, if

Reset Statistics on Product ChangeOver is checked, the appropriate

dialog box is displayed.

Special Features of I-PAK’s Tools and Steps in Job Creation

I-PAK uses the Visionscape Toolset as the basis for the I-PAK Toolset. I-

PAK has its own rules that are different from Visionscape, and Job

creation and implementation are different in I-PAK from FrontRunner.

Below are some of these I-PAK unique features and implementation

details. Because of these differences, the Programmer should never

create a Job using FrontRunner and then try to make I-PAK use it.

FrontRunner uses a Job file that consists of only an .avp file. I-PAK uses

an .avp file and an .avpsys file, as well, to store many other details about

its Job. If the Programmer tries to use a FrontRunner Job in I-PAK, it

posts an error message saying that it cannot find the associated .avpsys

file.

The tool limit for insertion in the flowchart view of product creation is six

primary tools and six secondary tools in each parent tool. If the

Programmer needs more than these six tools, he or she can use the

Advanced Menu item Edit Tool Set to add more tools.

Note: You can print the Product Creation Flow Chart.

When you insert a tool in I-PAK, a tool specified Fail Counter is

automatically inserted into the Job by I-PAK. At Runtime, this Fail Counter

Chapter 6Setup Mode Reference

6-64 Visionscape I-PAK User’s Manual

tracks and records when that tools fails. When you delete tools in I-PAK,

you’ll need to delete its associated Fail Counter.

I-PAK allows you to insert Custom Step or CustomVision Tool anywhere in

a Product Definition. The Custom Step consists of optional input datums,

optional output datums and a script file written in the Perl programming

language. The Perl Package Script determines the number and type of

inputs and outputs. The Perl Package Script controls the functionality of

the Custom Step. Custom Steps cannot perform vision operations

because they do not allow for a buffer to be input to the Perl Package

Script.

The CustomVision Tool consists of an input image (required), optional

input datums, optional output datums and a script file written in the Perl

programming language. The Perl Package Script determines the number

and type of inputs and outputs. The Perl Package Script controls the

functionality of the CustomVision Tool. CustomVision Tools can perform

vision operations because they require a buffer to be input to the Perl

Package Script.

I-PAK supports a limited set of Perl Language Package Scripts. These

scripts allow changing the functionality of a Custom Step or CustomVision

Tool by simply selecting a different script.

Note: I-PAK supports the Package Scripts as they are distributed with the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by Microscan.

See Appendix E, “Perl Gems: Tips & Techniques,” for full details about

Perl.

Inspection Steps Without Snapshots

I-PAK allows inspection steps to be used in a product definition even

when those inspection steps contain no snapshot child steps.

Product Creation

The Job creation flow chart allows the insertion of inspection steps that

cannot contain snapshot steps. When you right click Board, menu options

add or delete up to four inspection steps that cannot contain snapshot

steps.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-65

FIGURE 6–42. Context Menu — New Inspection No Camera Options

When inserted, a button appear to show that the Inspection is part of the

product definition, as shown in Figure 6–43.

FIGURE 6–43. Inspection — No Camera Inserted

All other aspects of Job creation remain the same. Inserting steps into the

inspection is accomplished by right clicking on the associated button.

Train/Tryout

Inspections containing no snapshots are selectable from the item list of

the Train/Tryout dialog box, as shown in Figure 6–44.

Chapter 6Setup Mode Reference

6-66 Visionscape I-PAK User’s Manual

FIGURE 6–44. Train and Tryout Dialog Box

You can select these steps and use the Tool Settings button to modify the

settings for these inspection steps and any child steps.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-67

FIGURE 6–45. Tool Settings Dialog Box

Chapter 6Setup Mode Reference

6-68 Visionscape I-PAK User’s Manual

Run Mode

Upon entering run mode, all inspections steps are started. Reports are

available only for those inspection steps that contain snapshots. Results

for inspections that do not contain snapshots are not available for display.

Upon returning to Setup Mode, all inspection steps are stopped.

I/O

I-PAK makes no special provisions for setting up Data Valid or Inspection

Passed for inspection steps that do not contain snapshots. If these I/O

points are required, they can be set up manually using the Job Editor in

Train/Tryout mode.

Example of Usage

Inspection steps without snapshots are useful when I/O handling is

required outside of the vision inspections. For example, an inspection

step could be set up to pulse a virtual I/O point. That virtual I/O point could

be used by the vision inspections as a trigger signal.

Continue Product Creation by Training the Tools

After naming the Product, the Programmer will be transferred

automatically to the automated training for these vision tools, Wizard

Training, as shown in Figure 6–46.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-69

FIGURE 6–46. Create a Product — Wizard Training

The wizard method of training walks the Programmer through each step

of the training sequence. Wizard training is invoked automatically when

the Programmer first enters this window. You can disable it via a system

setting. See the “System Settings” on page 6-81 for the AutoStep Mode

On Automatically in Train and Tryout setting.

Refer to the section of this chapter dedicated to Training for full training

and tryout details. See “AutoStep or Wizard Training Method” on

page 6-25.

Chapter 6Setup Mode Reference

6-70 Visionscape I-PAK User’s Manual

Save Product

Save Product displays the Save Product dialog box, as shown in

Figure 6–47.

FIGURE 6–47. Save Product Dialog Box

Type the Product File Name you desire and click Save. I-PAK saves the

current product name and Job to disk. This is a Programmer level

function. By default, this button is not selected until you click on it.

The product description text can be up to 1000 characters. This allows

each product definition to have a unique description.

Note: There is a special I-PAK feature, available for our advanced

Programmers, when using the Product Name “ByPass.” When doing a

product changeover, the product named “bypass.avp” only appears in the

list if the current access level is Programmer. This allows for customer-

specific Jobs to be run by Programmers. For example, the “ByPass”

product could be set up to bypass the I-PAK vision processing and allow a

line to clear old product before beginning the inspection of new product.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-71

Product Settings

Product Settings displays the Product Settings dialog box, as shown in

Figure 6–48, Figure 6–49, and Figure 6–50. The Product Settings dialog

box allows the Programmer to define the Triggering Method, Data Valid,

Camera button identifiers, and I/O. These are Programmer level

functions.

Cameras Tab

This tab allows you to specify, on a per camera basis, the Trigger method,

Strobe Settings, and Camera Button Text.

Note: The polarity must be the same for two or more cameras using the

same triggers.

FIGURE 6–48. Product Settings Dialog Box — Cameras Tab

Chapter 6Setup Mode Reference

6-72 Visionscape I-PAK User’s Manual

• Resolution Options — The Programmer can select the camera and

resolution to be used by the product.

• Trigger/Acquire Method — The Programmer can select any one of

these methods:

– Triggered — Acquire an image, firing the strobe if connected, and

begin inspection when the part sensor detects a part. This trigger

is a physical trigger input on the I/O board. The default is

selected.

Note: When Triggered is selected, Trigger Polarity is displayed

with a default of High to Low. If Triggered is not selected, Trigger

Polarity is grayed out (disabled).

– I/O Triggered — Acquire an image and begin inspection when the

pre-defined inspection Input contact is True. The default is not

selected.

Note: When I/O Triggered is selected, Trigger I/O is displayed

with a default of Digital I/O1. When I/O Triggered is no selected,

Trigger I/O is grayed out (disabled).

– Continuous — Acquire an image, firing the strobe if connected,

and begin inspection in a continuous loop. For debug purposes

only, and never a Production mode setting. The default is not

selected. This is the default for Camera 1.

• Trigger Number

– When the Programmer selects a Trigger/Acquire Method of

Triggered, the sensor number to be used is designated as the

trigger. The Trigger displays Trigger Number.

Default: Trigger 1

Range: Trigger 1 through Trigger 4

– When the Programmer selects a Trigger/Acquire Method of I/O

Triggered, the I/O is designated to be used as the trigger. The

Trigger displays Trigger I/O.

Default: Digital I/O

Range: Any valid physical input point

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-73

• Trigger Polarity — When the Programmer selects a Trigger/Acquire

Method of Triggered or I/O Triggered, Trigger Polarity is designated.

Default: High to Low

• Strobe I/O — When the Programmer selects a Trigger/Acquire

Method of Triggered and is using strobes, the Strobe is designated.

The Programmer can select any combination of the four strobe

outputs for this camera.

• Strobe Polarity — When the Programmer selects a Trigger/Acquire

Method of Triggered and is using strobes, the Strobe Polarity is

designated. Microscan supplied strobes require Low to High.

Default: Low to High

• Camera Button Text — The Programmer can modify the contents of

the Camera Button text to better reflect the inspection being done by

that camera. The default text is the word “Camera” followed by the

camera number (in other words, Camera 1). The maximum length for

the camera button text is 30 characters.

Data Valid Tab

This tab allows you to specify, on a per inspection basis, data valid

settings.

FIGURE 6–49. Product Settings Dialog Box — Data Valid Tab

• Use Data Valid — The Programmer can use Data Valid for each

camera’s results. When Data Valid is True, inspection results can be

Chapter 6Setup Mode Reference

6-74 Visionscape I-PAK User’s Manual

sampled. Data Valid is On for the data valid duration specified and

then Off for the data valid duration specified. The On duration of Data

Valid is added to the execution time. The Off time is a background

task and does not impact execution time.

Default: Enabled (duration of 10ms)

Note: Data Valid is On and Off for the length of time specified. For

example, using the default 10 ms, when the inspection is complete

and inspection results are available, Data Valid is set TRUE for 10 ms

then FALSE for

10 ms. You are to sample the inspection results while data valid is

TRUE.

I/O Tab

I-PAK can accept input signals and perform inspections accordingly. I-

PAK reports the results of each inspection by setting output points On or

Off, and displaying screen messages. There are a total of 16 I/O points on

I-PAK.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-75

FIGURE 6–50. Product Settings Dialog Box — I/O Tab (16 Point I/O

Board)

Chapter 6Setup Mode Reference

6-76 Visionscape I-PAK User’s Manual

FIGURE 6–51. Product Settings Dialog Box — I/O Tab (Mini I/O Board)

• I/O Board Type — Allows you to toggle between “16 Point I/O Board”

(Figure 6–50) and “Mini I/O Board” (Figure 6–51).

Figure 6–51 shows the factory defaults for this kind of I/O board. The

number of physical inputs and outputs for a Mini I/O board is fixed to 2

inputs and 4 outputs.

Note: Do not modify the GPIO Mask within the ToolSet Editor when a

Mini I/O board is selected.

You can only select the I/O board during product creation. If the

product has already been created, the I/O board type and Set/Reset

I/O cannot be changed.

• Set/Reset I/O

– Number of Physical Inputs — Set the number of physical inputs in

your I-PAK. This is a read-only field on the Product Settings

Menu. The Programmer defined this number of inputs when the

Job definition was created.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-77

– Number of Physical Outputs — Set the number of physical

outputs in your I-PAK. The Programmer defined this number of

outputs when the Job definition was created.

• Configure I/O — Allows you to define a value for each physical I/O

contact in your I-PAK. Refer to Table 6–1 for single-camera default

I/O and to Table 6–2 for four-camera default I/O.

TABLE 6–1. Single Camera Default I/O Scheme

# I/O Function Comment

1 Input — —

2 Input — —

3 Output Data Valid — Inspection 1 When TRUE, Inspection 1 Passed output can be

sampled.

4 Output — —

5 Output — —

6 Output — —

7 Output Inspection 1 Passed TRUE if all Tool passed for Inspection 1.

8 Output — —

9 Output — —

10 Output — —

11 Output Overrun Camera 1 TRUE if there is an Overrun on Camera 1.

12 Output — —

13 Output — —

14 Output — —

15 Output — —

16 Output Run/Setup TRUE for Run Mode. FALSE for Setup Mode

Chapter 6Setup Mode Reference

6-78 Visionscape I-PAK User’s Manual

I/O Definitions for Table 6–1 and Table 6–2

– Outputs — TRUE when enabled:

• Data Valid is an output that indicates the Inspection Passed

output is valid. The duration of Data Valid is user

programmable via the Product Setting Menu. Data Valid is

TRUE for the duration specified.

Default: 10ms

Range: 1 - 500ms

• Overruns — All overruns, underruns, or misses. I-PAK

processing is too slow and causes an overrun when it

receives an inspect trigger while it is processing the last

TABLE 6–2. Suggested Four Camera Default I/O Scheme

# I/O Function Comment

1 Input — —

2 Input — —

3 Output Data Valid — Inspection 1 When TRUE, the Inspection 1 Passed output can be

sampled.

4 Output Data Valid — Inspection 2 When TRUE, the Inspection 2 Passed output can be

sampled.

5 Output Data Valid — Inspection 3 When TRUE, the Inspection 3 Passed output can be

sampled.

6 Output Data Valid — Inspection 4 When TRUE, the Inspection 4 Passed output can be

sampled.

7 Output Inspection 1 Passed TRUE if all Tool passed for Inspection 1.

8 Output Inspection 2 Passed TRUE if all Tool passed for Inspection 2

9 Output Inspection 3 Passed TRUE if all Tool passed for Inspection 3

10 Output Inspection 4 Passed TRUE if all Tool passed for Inspection 4

11 Output Overrun Camera 1 TRUE if there is an Overrun on Camera 1.

12 Output Overrun Camera 2 TRUE if there is an Overrun on Camera 2.

13 Output Overrun Camera 3 TRUE if there is an Overrun on Camera 3.

14 Output Overrun Camera 4 TRUE if there is an Overrun on Camera 4.

15 Output — —

16 Output Run/Setup TRUE for Run Mode. FALSE for Setup Mode

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-79

inspection, as parts are coming in at burst rates. Before I-

PAK is finished processing, it receives inspect triggers faster

than 16ms.

• Inspection Passed is an output to indicate a good part. The

part passed all the inspection criteria set by you.

Note: When you return to Setup Mode from Run Mode, all

inspection Passed outputs are set FALSE.

• Run Mode is an output that indicates that I-PAK is operating

in Run Mode and awaiting the next inspection trigger.

• HeartBeat — At system start-up time, the HeartBeat output

begins its operation by being set TRUE for 1 second and then

FALSE for 1 second, alternatively, to indicate that I-PAK is

functional. At this one second interval, the I-PAK software is

verifying the operational mode of the framegrabber. If the

framegrabber is not operational, the HeartBeat output is set

to FALSE and remains FALSE until the framegrabber is again

operational. When in Setup Mode and training OCVFont

Tools, the timing of HeartBeat may deviate from 1 second

True, 1 second False.

– Inputs — Must be set to TRUE to Enable:

• Inspection Trigger is an input that instructs I-PAK to conduct

one inspection cycle for each inspection trigger I-PAK

receives from an external source.

• You may use an input as a handshake to clear a pass output.

TABLE 6–3. Mini Opto I/O Default Settings (1 Camera)

# I/O Function Comment

1 Output Data Valid — Inspection 1 When TRUE, Inspection 1 Passed output can be

sampled.

2 Output Inspection 1 Passed TRUE if all Tool passed for Inspection 1.

3 Output None —

4 Output Run/Setup TRUE for Run Mode. FALSE for Setup Mode

5 Input — —

6 Input — —

Chapter 6Setup Mode Reference

6-80 Visionscape I-PAK User’s Manual

Outputs

There are a few outputs defined by Microscan for I-PAK, including the

System HeartBeat output and the Run/Setup Mode Output.

While in Setup Mode, the System HeartBeat output continues to be set

TRUE for 1 second and then FALSE for 1 second, alternatively, to

indicate that I-PAK is functional. At this one second interval, the I-PAK

software is verifying the operational mode of the framegrabber. If the

framegrabber is not operational, the HeartBeat output is set to FALSE

and remains FALSE until the framegrabber is again operational.

The HeartBeat output is generated by I-PAK. During periods of heavy PC

loading, the HeartBeat Output frequency can change. For example,

during a download, the HeartBeat will not pulse, because all resources

are downloading the Job to the board(s). PLC monitoring must be written

with these scenarios in mind. For example, monitor the HeartBeat every 1

second when the Run Mode output is also asserted.

While in Setup Mode, the Run Mode/Setup Mode Output is set to FALSE.

During Run Mode, the Run Mode/Setup Mode Output is set to TRUE.

External monitoring of the I/O point indicates when I-PAK is ready to run.

TABLE 6–4. Mini Opto I/O Suggested 2 Camera Settings

# I/O Function Comment

1 Output Data Valid — Inspection 1 When TRUE, Inspection 1 Passed output can be

sampled.

2 Output Inspection 1 Passed TRUE if all Tool passed for Inspection 1.

3 Output Data Valid — Inspection 2 When TRUE, Inspection 2 Passed output can be

sampled.

4 Output Inspection 2 Passed TRUE if all Tool passed for Inspection 2.

5 Input — —

6 Input — —

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-81

System Settings

The System Settings dialog box allows the Programmer to:

• Define and configure the Input and Output Channels

• Define automatic Product ChangeOver activities:

– Resetting statistics

– Resetting failures

– Setting the archive path

– Showing only unique codes in change lot

– Ignoring extra layout symbols

• Define training Session activities:

– Autosave

– Resetting statistics

– Resetting failures

– AutoStep Mode default on/off in Training

– Go directly into Training when you exit Run Mode

– Train Multiple OCV Tools

• Define an End Batch option

• Enable the 21 CFR Part 11 Compliance options:

– Login capability

– Configuration Audit trail

– Login Passwords Expirations

– Login Prompt on Training Feature

These are Programmer level functions.

For the System Settings dialog box with General tab selected, see

“System Settings — General Tab” on page 6-113.

Chapter 6Setup Mode Reference

6-82 Visionscape I-PAK User’s Manual

The remainder of this section describes:

• “System Settings — Communication Tab” starting on page 6-82

• “System Settings — Training and Results Tab” starting on page 6-91

• “System Settings — General Tab” starting on page 6-113

System Settings — Communication Tab

FIGURE 6–52. System Settings Dialog Box — Communication Tab

Selection

This section allows you to define the Input and Output Channel to

communicate to a host for download of match string and OCV FontTool

string.

• Input Channel — Choose from None (default), RS-232, or Ethernet.

• Output Channel — Choose from None (default), RS-232, or Ethernet.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-83

Configure

This section allows you to configure the Input and Output Channel, and

contains the following buttons:

• “RS-232” on page 6-83

• “Ethernet (TCP/IP)” on page 6-86

RS-232

After you click on this button, the Configure Communications dialog box is

displayed, as shown in Figure 6–53. You can use the defaults or can

customize your Communications ports.

I-PAK supports two RS-232 ports. They must be configured as COM1 and

COM2.

If a Comm Port is already used by another program, it is displayed inside

the frame of the port (“Comm Port x used by another program or not

available”) and the Input fields are hidden (see Figure 6–54). If a Comm

Port is not available (Hardware), it is displayed inside the frame of the port

(“Comm Port x used by another program or not available”) and the Input

fields are hidden (see Figure 6–54).

Chapter 6Setup Mode Reference

6-84 Visionscape I-PAK User’s Manual

FIGURE 6–53. Configure Communication Dialog Box — RS-232

Settings

This dialog box is driven by the type of Protocol being used.

• Protocol — Defines which RS-232 protocol scheme is used.

– I-PAK Enclosure Standard — I-PAK defaults its Protocol as I-PAK

Enclosure Standard, which means that RS-232 Comm Port 1 is

used for all RS-232 Communications. When this protocol is used,

you cannot use the other ports or change their settings.

– I-PAK Selectable Main Port — I-PAK expects the RS-232

communications to be made through the Comm port indicated by

the Main Comm Port item on the RS-232 Configuration screen.

• RS-232 Settings — You can define the RS-232 Settings as follows:

– Baud Rate — Default of 9600. Range is 110 to 115200.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-85

– Parity — Default of None. Range includes None, Even, Odd.

– Data Bits — Default of 8. Range includes 4, 5, 6, 7, 8.

– Stop Bits — Default of 1. Range includes 1, 1.5, 2.

– Timeout (Seconds) — Default of 15 seconds. Range is 1 to 99.

– Field Delimiter Char — Default of “,”. Range of “,”, “*” and “#”.

– Main Comm Port — This setting selects between the two

available Comm ports in I-PAK. This setting can only be selected

when the Protocol is set to “I-PAK Selectable Main Port”.

Default: Comm Port 1

Range: 1 to 2

Chapter 6Setup Mode Reference

6-86 Visionscape I-PAK User’s Manual

FIGURE 6–54. Configure Communication Dialog Box — RS-232

Settings

Ethernet (TCP/IP)

After you click this button, the Configure Communications dialog box is

displayed, as shown in Figure 6–55.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-87

FIGURE 6–55. Configure Communication — Ethernet Settings

Define the TCP/IP Settings as follows:

• Local Port Number — The default is 7000. The range is 7000 to 7004.

• Local Host Name — Read-only display of the local host.

• Local IP Address — Read-only display of the IP address.

Remote Commands Supported by RS-232 and Ethernet

Remote commands allow an external device or computer to perform a

limited set of functions on I-PAK. These functions can be accomplished

through either

RS-232 or Ethernet, depending on the selected Input Channel. The

commands are accepted by I-PAK in either Run Mode or Setup Mode.

Using remote commands, you can clear statistics, retrieve statistics, enter

Chapter 6Setup Mode Reference

6-88 Visionscape I-PAK User’s Manual

Setup Mode, enter Run Mode, and change product. The syntax of these

commands is:

• Retrieve Statistics: RETRIEVESTATS <EOT>

• Clear Statistics: CLEARSTATISTICS <EOT>

• Go To Setup Mode: ENTERSETUPMODE<EOT>

• Go To Run Mode: ENTERRUNMODE<EOT>

• Change Product:

CHANGEPRODUCT<sp>newproductname<EOT>

• Lot Change: CHANGELAYOUT:path:newstring<EOT>

Where:

• The commands themselves are in ALL CAPS.

• <EOT> is an end of text character (chr(4)) or Ctrl-D in HyperTerminal.

• <sp> is a space character.

• newproductname is the name of a valid product definition in the I-PAK

Job Folder.

• path is the unique path to the tool.

• newstring is the new layout or match string.

See “Ethernet CHANGELAYOUT Usage” on page 5-105 for details on the

Ethernet CHANGELAYOUT command. See “RS-232 CHANGELAYOUT

Usage” on page 5-96 for details on the RS-232 CHANGELAYOUT

command.

Remote Commands Details and Syntax

Below are the details and syntax for each of the remote commands.

• Retrieve Statistics

When I-PAK receives this command, the following statistics are sent

to the Output Channel specified:

– Product Name.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-89

– Current Date and Time.

– Inspected string — When the Match String for the Barcode Tool

or Data Matrix Tool are used or when the FontTool.text or

OCVRunTool.text is uploaded.

– Last Run Time Statistics.

The data is sent in the following format to the RS-232 port as

specified in the Output Channel in conjunction with the RS-232

Protocol specified:

– Product=product_name<lf><cr>

– Date/Time=mm/dd/yyyy hh:mm<lf><cr>

– Inspected Characters=inspected_characters<lf><cr>

– I=#<lf><cr>

– P=#<lf><cr>

– R=#<lf><cr>

– <eot><lf><cr>

Where:

– product_name is the name of the currently selected product

– mm is the month (01 - 12)

– dd is the day (01 - 31)

– yyyy is the year (i.e., 2000)

– hh is the hour (01 - 12)

– mm is the minute (00 - 59)

– inspected_characters is a string of the characters inspected by

the Job

– # is a number

– <lf> is a line feed character, chr(10)

Chapter 6Setup Mode Reference

6-90 Visionscape I-PAK User’s Manual

– <cr> is a carriage return character, chr(13)

– <eot> is an end of text character; (chr(4)) or Ctrl-D in

HyperTerminal

Note: If there are no Inspected Characters in the Job, the third line of

data will not be present. When there is more than one inspection, the

“I” “P” and “R” lines indicate the inspection number, such as “I1” “P1”

“R1”.

• Clear Statistics — When I-PAK receives this command, the “Inspect”,

“Pass”, and “Fail” counts are set to zero.

• Go To Setup Mode — When I-PAK receives this command, the

system returns to Setup Mode without requiring a password. If I-PAK

is already in Setup Mode, no action is taken.

• Go To Run Mode — When I-PAK receives this command, the system

enters Run Mode. If I-PAK is already in Run Mode, no action is taken.

• Change Product — This is the only remote command that requires a

parameter (see Protocol on page 6–84). When I-PAK receives this

command, the system attempts to load the indicated product. If the

product cannot be found or has other problems loading, I-PAK returns

a “FAIL” to the Output Channel selected.

If I-PAK is in Run Mode, inspections stop. The new product is loaded

into

I-PAK and downloaded to the framegrabber board. Then, inspections

begin.

If I-PAK is in Setup Mode, the new product is loaded into I-PAK.

I-PAK sends an “OK” message when the command is successfully

received and processed. I-PAK sends a “FAIL” message when the

command is not successfully received or processed.

Note: When using the CHANGEPRODUCT command, the “OK”

response is sent out before the new product is read in. This is

because the new product may not have the same Input/Output

channel selections.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-91

System Settings — Training and Results Tab

FIGURE 6–56. System Setting Dialog Box — Training and Results Tab

The Training and Results Tab window contains the following sections:

• “Product ChangeOver Activities” on page 6-92

• “Results Reporting” on page 6-94

• “Training” on page 6-106

• “OCV Training” on page 6-108

Chapter 6Setup Mode Reference

6-92 Visionscape I-PAK User’s Manual

Product ChangeOver Activities

This section allows you to set the automated reset of statistics and failure

upon Product ChangeOver.

• Reset Statistics on Product ChangeOver — Enabling this setting

automatically resets the Runtime statistics to zero when you perform

a Product ChangeOver and when you create a new product. This

makes I-PAK ready to go On-line with counters set to zero. The

default is selected.

• Archive Path — Enabling this setting enables the Archive/Restore

button on the Product ChangeOver dialog box. Through this feature,

you can archive and restore products from a CD-RW or any other

valid path, such as a directory or across a network. I-PAK Job files

are rather large and typically do not fit on a floppy. You’ll always need

to archive and restore both the .avp and .avpsys files for a product to

run in I-PAK. By default, this setting is left blank.

You can select the Archive Path using a browser by clicking on the

ellipsis to the right of the Edit field.

• Show Only Unique Codes in Change Lot Setting — Enables and

disables the display of only unique codes in the lot changeover dialog

box.

FIGURE 6–57. Lot ChangeOver Dialog Box

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-93

With Show Only Unique Codes in Change Lot enabled:

– The list of tools on the Lot ChangeOver dialog box only shows

tools with unique codes. When the Job is scanned looking for

OCV Tools to display, I-PAK also checks to see if a tool with the

same code is already displayed. If a tool with the same code is

found, the new tool is not added to the list.

– Clicking Change all Tool’s Code initiates a scan of the Job to find

all tools with the associated code (using the old code). When a

tool is found, it is updated to have the new code.

– The Change This Tool’s Code buttons are not displayed. The

user is required to change all tools that share the same code.

• Ignore Extra Layout Symbols When Input is Smaller — Enables and

disables the automatic ignore feature of lot changeover.

FIGURE 6–58. Lot ChangeOver Dialog Box

When the user clicks Change All Tool’s Code or Change This Tool’s

Code, the I-PAK software checks to make sure that the number of

symbols input by the user is equal to the number of symbols currently

in the OCV Tool’s layout. With Ignore Extra Layout Symbols When

Input is Smaller enabled, the user is able to enter fewer symbols than

Chapter 6Setup Mode Reference

6-94 Visionscape I-PAK User’s Manual

the number in the current layout. I-PAK software automatically

ignores the extra symbol positions.

Although the OCV Tool ignores the symbols during OCV inspection,

the AutoFind still uses those symbol positions as templates if they

were assigned as templates when the tool was trained. If the user

wishes to completely ignore symbol positions at runtime, the user

must ensure that those symbol positions are not used by the

AutoFind.

Results Reporting

This section allows you to configure I-PAK to output selected inspection

results through the RS-232 Communications Port and/or to a file on the

PC. This may be useful when you need a matrix match or read string or a

Font Tool’s string to be communicated to an external device at runtime, in

the case of RS-232 Runtime Result, or to log inspection at runtime, in the

case of Save Runtime Results to a File.

In either case, the setup is similar. I-PAK presents a list of inspection

results to upload as part of the Inspection Step. These are noted as Select

Results to Upload on the Inspection Step’s property page. I-PAK selects

certain results our users are most interested in automatically. These can

easily be seen on the Run Mode Display Results window.

To use these features, verify that any inspection results you might need

are selected on the Inspection Step’s property page in the Select Results

to Upload dialog box and enable an RS-232 port on the System Setting

Communications Menu.

• Enable RS-232 Runtime Results — By default, this selection is

disabled until you enable an RS-232 port. Once a port is established,

you can select this option. Exit the Advanced SubMenu and go to the

Statistics/Data SubMenu. You will notice an additional button

available on the Statistics/Data SubMenu called RS-232 Results, as

shown in Figure 6–59.

FIGURE 6–59. Updated Statistics SubMenu for RS-232 Results

Click RS-232 Results and go into the dialog box (see Figure 6–60).

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-95

FIGURE 6–60. Tool Results to Output

– The Cancel button allows you to discard any modification that

was done. Only the OK button will take over the selection.

– The Select all button allows you to select all entries in the list.

You will see a listing of all the selected results from the Inspection

Step’s property page in the Select Results to Upload dialog box. Click

any of these results to be output via the RS-232 Communications

Port. Click OK to exit the dialog box.

Notes: You may select any or all of these inspection results to be

reported at runtime through RS-232. RS-232 result reporting will

affect inspection time and system throughput. The fewer items you

output, the more efficient

I-PAK will be.

When a tool is not run, any of its results that are selected for RS-232

reporting will contains the string “Error:”.

In the case of a Barcode Tool or Data Matrix Tool, when the tool was

unable to successfully read the code, the tool result for RS-232

reporting will contain the string “Error:”.

Chapter 6Setup Mode Reference

6-96 Visionscape I-PAK User’s Manual

Once this product’s tools are trained, you can go into Run Mode.

Using a program such as HyperTerminal, you can verify that the

inspection results are being output from I-PAK to the Communications

port specified. For example:

FIGURE 6–61. Sample RS-232 Results Output

Each grouping of results is terminated with an EOT.

The format of these inspection results is:

STX symbolic name = result ETX

Where:

STX is Chr(2)

ETX is Chr(3)

EOT is Chr(4)

Note: Sometimes, inspection results reported are in the form of arrays

or lists. Data will be reported in full; no parsing or interpretation of

data results will be done by I-PAK.

• Save Runtime Results to a File — By default, this setting is not

selected. Once selected, click OK from the System Settings menu

and exit the Advanced SubMenu.

Note: Follow the same setup of I-PAK’s inspection results to upload

as described above before going into the Save Results dialog box.

Then, you will notice an additional button available on the

Statistics/Data SubMenu called Save Results.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-97

FIGURE 6–62. Updated Statistics SubMenu for Save Results

Click Save Results and go into the dialog box.

FIGURE 6–63. Save Results

The Cancel button allows you to discard any modification that was

done. Only the OK button will take over the selection.

The Select all button allows you to select all entries in the list.

The Browse… button allows you to navigate to the folder and file of

the used file. Clicking this button opens the Select DAT File dialog

box, as shown in Figure 6–64.

Chapter 6Setup Mode Reference

6-98 Visionscape I-PAK User’s Manual

FIGURE 6–64. Select DAT File Dialog Box

In this dialog box, the user can select an existing DAT file used for

writing the Output data. It is s also possible to write a new filename

into the filename field. The file will be created and can be used.

You will see a listing of all the selected results from the Inspection

Step’s property page in the Select Results to Upload dialog box. Now,

you need to click any of these results to be output to a File.

You must also specify the File Delimiter. You can choose between the

comma, default or a “#' or a “*”.

By default, the File name is “InspectionResults.dat”. If you wish to

change the file name or its path, specify this data on this dialog box.

Click OK to exit this dialog box.

Once this product’s tools are trained, you can then go into Run Mode.

Using a program such as Notepad, you can verify the inspection

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-99

results are being output from I-PAK to the File specified. The example

below shows such an exercise.

FIGURE 6–65. Sample Save Results Output

The format of these inspection results is:.

VisionBoard.Snapshot Name.symbolic name = result <delimiter>

Where <Delimiter> is one of these user defined symbols: comma,

pound sign, or asterisk.

Each grouping of results is terminated with a <CR> --carriage return.

Note: Sometimes, inspection results reported are in the form of arrays

or lists. Data will be reported in full and no parsing or interpretation of

data results will be done by I-PAK.

At Runtime, I-PAK will write these inspection results to the file after

every results upload. The default file name is: “InspectionResults.dat”

and its path is the directory where I-PAK was started.

• Enable OCV Failure Tracking — When checked, enables the failure

tracking for every OCV tool in the product definition file.

OCVResultsDm Upload

When OCV Failure Tracking is enabled, for each OCV tool in the

current product, I-PAK automatically selects the “OCVResultsDm”

from the inspection step’s list of results to be uploaded. When OCV

Failure Tracking is disabled, I-PAK ensures that this inspection result

is not selected for upload.

The OCVResultsDm holds all of the pass/fail information for each

symbol in the OCV tool. At runtime, this datum will be parsed in order

that a grid of pass/fail counts and failure types for each symbol can be

Chapter 6Setup Mode Reference

6-100 Visionscape I-PAK User’s Manual

filled. Types of symbol failures are: Correlation Failure, Sharpness

Failure, Contrast Failure, Appearance Flaw Break Failure, Initial

Residue Failure, Final Residue Failure, Max Blob Residue Failure, B8

ID Test Failure, Quad ID Test Failure, Break ID Test Failure, X Offset

Failure, Y Offset Failure.

Setup Mode Viewing of Failures

With OCV Failure Tracking enabled, a new button, OCV Tracking, is

displayed on the toolbar of the Statistic Screen, as shown in

Figure 6–66.

FIGURE 6–66. OCV Tracking Button Displayed

When OCV Tracking is clicked, the OCV Failure Tracking screen is

displayed, as shown in Figure 6–67. It lists all of the OCV tools that

are in the current product definition.

FIGURE 6–67. OCV Failure Tracking Screen

– The Previous and Next buttons cycle through the available OCV

Tools when there are more than four in the product definition.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-101

– The Save Data to File button saves all OCV Tracking data to a

file. The file is named “SymbolTracking,” concatenated with the

current time/date stamp.

– The Done button closes the OCV Failure Tracking dialog box.

The center of the dialog box displays the names of the OCV Tools

and the number of failures for the tools. The number of failures is

based only on Symbol failures; locator failures will not be included in

these counts.

Next to the number of failures is a Details… button. When you click

one of the Details… buttons, an Individual Symbol Results dialog box

is displayed, as shown in Figure 6–68.

FIGURE 6–68. Individual Symbol Results Dialog Box

This dialog box displays all of the symbols for the associated OCV

tool along with the failure counts for each possible type of OCV

failure. The information on this dialog box is in a grid format. The grid

is filled at runtime.

Run Mode Viewing of Failures

With OCV Failure Tracking enabled, a new button, OCV Result

Tracking, is displayed on the Failure Report dialog box, as shown in

Figure 6–69.

Chapter 6Setup Mode Reference

6-102 Visionscape I-PAK User’s Manual

FIGURE 6–69. OCV Result Tracking Button Displayed

When you click this button, the OCV Failure Tracking dialog box is

displayed. This dialog box is the same as the Setup Mode dialog box

except that it does not allow saving the data to a file (see

Figure 6–67, “OCV Failure Tracking Screen,” on page 6-100).

Loading New Jobs

When a new Job is loaded and OCV Failure Tracking is enabled, any

existing Individual Results dialogs are removed from I-PAK. Then, the

Job is scanned for OCV tools. For each OCV tool found, the

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-103

OCVResultsDm is selected for upload and an “Individual Results”

dialog box is created for the tool. The OCV Tracking screen is

updated to reflect the OCV tools that are in the currently loaded Job.

• Report RS-232 ERROR when inspection Result is Empty — I-PAK

has a System Setting to enable/disable the RS-232 Error codes from

being sent during any tool failure. By default, this setting is enabled

and allows I-PAK to report “ERROR” when the RS-232 result data is

empty. You can disable this setting so that when the data is empty, I-

PAK does not report anything. This only effects data sent our RS-232

not what you see on the I-PAK display.

• Enable Failed Image Queue — When you check Enable Failed Image

Queue, the Failed Image Queue button on the Camera View

becomes active, and all images from inspections that fail that are

displayed in the Camera View are saved to the Failed Image Queue.

• Save Failure Queue Images on Return to Setup — Enables and

disables the saving of the failure queue images when the user returns

to Setup Mode. By default, this feature is disabled.

You can view a queue of the last 1 to 20 failures per camera. When

the user-settable maximum number of images is reached, a new

failure image overwrites the image in the first image frame.

Only images that are successfully uploaded to the I-PAK interface

from the framegrabber board are entered into the queue. Not all

images get uploaded to the I-PAK interface to avoid compromising

inspection throughput. For that reason, when failures occur in rapid

succession, the failed images may not be entered into the queue.

When this feature is enabled by the user, a message box is displayed

(Figure 6–70) to warn the user about the extensive memory usage

that occurs when saving the images.

FIGURE 6–70. Fail Image Queue Warning Dialog Box

Chapter 6Setup Mode Reference

6-104 Visionscape I-PAK User’s Manual

• Number of Images In Queue — Allows the user to input the number of

images contained in the failure image queue. By default, I-PAK has

room for 10 images in the failure image queue.

Using the Failed Image Queue at Runtime

Failure Image Queue Button

The buttons on the camera view have been rearranged to allow for a

new button (Failed Image Queue), as shown in Figure 6–71.

FIGURE 6–71. Failed Image Queue Button

When Failed Image Queue is clicked, the display changes to allow

cycling through the failed images, as shown in Figure 6–72.

FIGURE 6–72. Screen to Cycle Through Failed Images

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-105

Clicking the < and > buttons cycles the display through the available

image frames. If no failed image has been assigned to a frame, that

frame will appear gray. Zoom In and Zoom Out bring the displayed

failed image to the desired magnification level.

Saving the Images to Disk

When the Supervisor or Programmer returns to Setup Mode with the

Save Failure Queue Images on Return to Setup enabled, the queue

of failed images gets saved to the system’s hard drive. At startup, the

I-PAK software creates the folder I-PAK\FailedImages (if it does not

already exist). This is the folder into which the failed images are

stored. The images are named Image_bn_cn_fn:

Where:

– bn is the visionboard number

– cn is the camera number

– fn is the failure number

When failed images are written to the hard disk, I-PAK overwrites any

images that may already be in the I-PAK\FailedImages folder. It is the

Supervisor’s (or Programmer’s) responsibility to save any images that

might be needed for debugging or other purposes at a later time.

Image Upload Maximum Rate

To better I-PAK’s CPU usage, there is a System Setting on the

General Tab for you to set the Image Upload Maximum Rate. This

setting is for the number of images transferred back to the PC per

second.

At runtime, the inspected images from the cameras get transferred

back from the framegrabber board to the PC and are displayed on the

“Camera” views on the I-PAK Run Mode interface. In recent software

from Microscan, we had tried to show the most images for users to

view. This unfortunately seemed to bog down the PC’s CPU - in fact,

causing the CPU usage to become high and in some cases causes

the CPU usage to “Max out”.

By default, this is set to “2”. You can increase this to “4”, “8” or

“Maximum”. By increasing this setting, you will enable more images

Chapter 6Setup Mode Reference

6-106 Visionscape I-PAK User’s Manual

to come back to the PC. But, as you increase this setting, you will

also be increasing the CPU usage. By decreasing this setting, you

limit the number of images coming back to the PC. Therefore, you

may not see “every image” that the framegrabber board processes.

Setting a small number here will result in a “sluggish” update of the

camera’s images. Setting a higher number will result in a more “lively”

update of runtime images. Microscan can only suggest settings for

this field. You need to run your production line at line speeds and

judge the best setting for yourself.

Note: You can reliably trust the framegrabber board’s processing - if

the framegrabber board reports a Pass signal through the IO, then

the part is good. Likewise, a Fail IO signal, should cause the part to

be rejected. You may not see all these failed images if you are

running at high production rates (Parts per minute) and depending on

the Image Upload Rate setting.

Note: When using a Job that is inspecting “frozen” images, or images

from disk, set this to “Maximum” for the best runtime user interface

response.

Training

This section allows you to set the automated saving of the product

definition every time the Job is re-trained.

• AutoSave Product Definition after Re-Training — Enabling this setting

automatically saves the product definition after each re-training of the

Job. This prevents changes from being lost. The default is selected.

• Reset Statistics after re-training — Enabling this setting automatically

resets the Runtime statistics to zero when you perform a Product

ChangeOver and when you create a new product. This makes I-PAK

ready to go On-line with counters set to zero. The default is selected.

• AutoStep Mode on Automatically in Train and Tryout — Enabling this

setting sets the Train and Tryout menu’s AutoStep (Wizard) Mode on.

Some users may want to disable this AutoStep Mode option so they

can just go right to the tools they wish to re-train or adjust. By default,

this setting is selected.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-107

• Go directly between RunMode and Training — Enabling this setting

brings you right into the Train and Tryout menus directly from Run

Mode. You will bypass the main Setup Menu. You may find this useful

if you usually come out of Run Mode and go directly into Train and

Tryout. This saves a mouse click. By default, this setting is not

selected.

• Show One Tool at a time in Train and Tryout — When enabled, the

tool graphics for the selected tool will be the only tool graphics

displayed in the buffer on the Train and Tryout screen. Tools can be

selected using the list on the left hand side of the screen. See

Figure 6–73.

FIGURE 6–73. Training Screen Showing One Tool at a Time

When disabled, the tool graphics for all tools will be displayed (unless

in AutoStep mode) in the buffer on the Train and Tryout screen. Tools

Chapter 6Setup Mode Reference

6-108 Visionscape I-PAK User’s Manual

can be selected using the list on the left hand side of the screen or by

clicking on the tool graphics for the tool. See Figure 6–74.

FIGURE 6–74. Training Screen Showing All Tools

OCV Training

Automatic training of multiple OCV tools allows a Programmer to quickly

train multiple OCVFont Tools, typically, where each tool uses the same

OCVFont and has the same layout. It also allows a Programmer to quickly

train multiple OCVFontlessTools. Automatic training requires that an

image be available for training and that the Programmer train the first tool

in the group of the multiple tools. Two menu items on the System Settings

menu of I-PAK allow automatic training of multiple OCVFontTools and

OCVFontlessTools.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-109

• Automatic Training for Multiple OCV Font Tools — Enabling this

setting allows the Automatic Training For Multiple OCVFontTools. By

default, this setting is disabled and requires every OCVFontTool to be

trained manually.

With Automatic Training for Multiple OCVFontTools enabled, when

an OCVFontTool is trained, the user sees with the Approval Screen.

When the layout is approved, the I-PAK software scans the other

tools in the snapshot looking for OCVFontTools with the same name

or same match criteria as the OCVFontTool that was just approved.

Match criteria is defined as a string of characters that comes after a

“ - “(space, dash, space) separator in the tool name. For example, if a

tool is named “OCVFontTool - Date Code”, the match criteria is “Date

Code”. After training this tool, when Approval is clicked, I-PAK will

scan for and train any OCVFontTools in the snapshot that have the

same match criteria (must use the “ - ” notation to separate tool name

from match criteria). If there is no match criteria in the tool name (no

“-”), I-PAK will use the entire tool name when searching for tools to

train.

• Automatic Training for Multiple OCV Fontless Tools — Enabling this

setting allows the Automatic Training For Multiple OCVFontlessTools.

By default, this setting is disabled and requires every

OCVFontlessTools to be trained manually.

With Automatic Training for Multiple OCVFontlessTools enabled,

when an OCVFontlessTool is trained, the I-PAK software scans the

other tools in the snapshot looking for OCVFontlessTools with the

same name or same match criteria as the OCVFontlessTool that was

just trained.

Match criteria is defined as a string of characters that comes after a “

- ” (space, dash, space) separator in the tool name. For example, if a

tool is named “OCVFontless Tool - Random Code”, the match criteria

is “Random Code”. After training this tool, when Approval is clicked, I-

PAK will scan for and train any OCVFontlessTools in the snapshot

that have the same match criteria (must use the “ - ” notation to

separate tool name from match criteria). If there is no match criteria in

the tool name (no “-”), I-PAK will use the entire tool name when

searching for tools to train.

Chapter 6Setup Mode Reference

6-110 Visionscape I-PAK User’s Manual

FIGURE 6–75. Training Screen from Training Multiple OCV Tools

• External Confirmation of Characters — Enabling this setting allows an

external device (computer, etc.,) to approve or disapprove the result

of training an OCVFontTool or OCVRuntimeTool. The learn layout

string (string of symbol names for those symbols found during

training) is sent from I-PAK to the external device. The external

device sends back an approve or disapprove message to I-PAK. An

OCVFontTool or OCVRuntimeTool training session is not complete

without an approval from the external device.

Note: External Confirmation of Characters is accomplished through a

communications handshake between I-PAK and the external device.

The communications can be accomplished through RS-232 or

Ethernet.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-111

Refer to “External Confirmation of Characters” on page 5-79 for more

information.

• External Communications Timeout — Setting this field determines the

amount of time that the communications handshake waits.

• External Input of Match String — Enabling this setting allows an

external device (computer, etc.,) to specify the intended inspection

string for an OCVFontTool or OCVRuntimeTool. This is accomplished

by creating a communications handshake between I-PAK and an

external device. The necessary information is sent from the external

device to I-PAK. External Confirmation is accomplished through a

communications handshake between I-PAK and the external device.

The communications can be accomplished through RS-232 or

Ethernet.

Note: Enabling External Input of Match String mode automatically

disables the ignore and substitute character functionality of I-PAK.

Refer to “External Input of Match String Checkbox” on page 5-90 for

more information.

• Match String Mismatch Action — Defines the action that I-PAK takes

in the event that the string input from the external device does not

match the string learned when the tool was trained. By default, the list

box is set to Use Input String. The possible selections and their

meaning are:

– Use Input String — I-PAK uses the input string as the inspection

string.

– Use Learned String — I-PAK ignores the input string and set the

string found during training as the inspection string.

– Retry by Learning — I-PAK forces you to re-train the tool and

allows the string to be entered again.

– Retry by Input — I-PAK allows the string to be entered again.

Note: The Match String Mismatch Action selected is applied to any

OCVFontTool or OCVRuntimeTool in the current Job.

Chapter 6Setup Mode Reference

6-112 Visionscape I-PAK User’s Manual

Refer to “Match String Mismatch Action” on page 5-90 for more

information.

• Keyboard Input of Match String — Enabling this setting allows you to

specify the intended inspection string for an OCVFontTool or

OCVRuntimeTool. This is accomplished by displaying an input box

into which you can type the necessary information.

Note: Refer to “Keyboard Input of Match String” on page 5-84 for

more information.

• Transmit Final Inspection String — Enabling this setting allows I-PAK

to send the final inspection string out after training an OCVFontTool or

OCVRuntimeTool.

Note: Refer to “Transmit Final Inspection String” on page 5-94 for

more information.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-113

System Settings — General Tab

FIGURE 6–76. System Settings Dialog Box — General Tab

The General Tab window contains the following sections:

• “Job Settings” on page 6-114

• “End Batch” on page 6-115

• “21 CFR Part 11 Configuration” on page 6-115

• “Menu Settings” on page 6-117

• “I-PAK Windows Settings” on page 6-118

• “Config File Format” on page 6-118

• “I-PAK System Name” on page 6-119

Chapter 6Setup Mode Reference

6-114 Visionscape I-PAK User’s Manual

Job Settings

This section allows you to select or change the following:

• Production Mode — By default, Production Mode is off, meaning I-

PAK is in PreProduction Mode.

Note: From Setup Mode, you can display the Production Mode

checkbox by selecting Advanced Settings > System Settings >

General.

– PreProduction Mode — When you start I-PAK initially, it is in

PreProduction Mode. In this mode, you configure and test your

Job. When you are ready to run the Job, you want to activate

Production Mode.

– Production Mode — You use this mode AFTER you have

configured and tested your Job, and when you are ready to run

your Job.

There are two ways to activate Production Mode; one way is

described in the Note above. The other way to activate

Production Mode is to click Yes when you see the following

screen (after you click the Run Mode button from Setup Mode):

If you click Yes, I-PAK runs in Production Mode.

If you click No, I-PAK runs in PreProduction Mode.

• Runtime Inspection Priority — This is the runtime priority of the

current process. The options are Normal, High, and Realtime.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-115

Note: You must have access rights to change the process setting.

End Batch

This section allows you to add the “End Batch” capability when exiting

Run Mode, which automatically saves the read-only statistics file to the

hard drive and prompt you for a file name. The counters are stored in the

PC registry. By default, Enable End Batch Functionality is Off.

21 CFR Part 11 Configuration

This section allows you to set the 21 CFR Part 11 compliance features for

user access control (logins) and creating an audit trail.

• Enable User Name Access (Enable Part 11) — Enabling this setting

disables the traditional supervision and Programmer modes and

replaces it with an Administrator mode. An Administrator then defines

valid users, their passwords and their security levels. This

Administrator, whose user name is I-PAKAdmin and default password

is 999999, is your Configuration Manager. He or she is not a

Programmer, a Supervisor nor a Operator. The Administrator must

create the valid user accounts before users can begin using the

feature. By default, this setting is Off.

• Enable Configuration File Audit Trail — When this setting is enabled,

each time the Job definition file is saved to disk, a new read-only

configuration file is saved to the archive directory {i.e.,

C:\Vscape\I-Pak\Jobs\ConfigurationArchives}. This configuration file

is marked with the user name, date and time. Old configuration files

will not be overwritten. You can determine changes by looking at

sequential configuration files. Names for the configuration files are

the product name with a date/time identifier. By default, this setting is

Off.

• Enable User Logins for Training Approvals — Enabling this option

requires your user name/password login when training the following

tools:

– Training a Font Tool or Runtime Font Tool.

– Entering a keyboard match string entry for a Data Matrix or

barcode match.

Chapter 6Setup Mode Reference

6-116 Visionscape I-PAK User’s Manual

As you train the tools in a Job, you are prompted to enter your I-PAK

Part 11 user name and password for training any FontTool or Runtime

Font Tool, and for the Data Matrix and Barcode Tools when in match

mode. By default, this setting is Off.

Notes: The System Setting for “Enable User Name Access” must be

enabled.

Training a Font Tool or Runtime Font Tool:

When training any font based Font Tool, as you click Train, you are

prompted for your user name and password. When you have the

system setting for the Font Tool’s “Keyboard Input of Match String”

enabled, you are prompted for your user name and password before

entering the Font Tool’s match string.

Training a Data Matrix or Barcode Tool in Match Mode:

When training a Data Matrix or Barcode Tool in AutoStep Mode, with

the “Match String Enable” option of the tool selected, I-PAK

automatically prompts you for your user name and password before

entering the Data Matrix or Barcode Tool’s match string. I-PAK also

prompts you for your user name and password when you click Train

with a Data Matrix or Barcode Tool selected with the “Match String

Enable” option selected. I-PAK will not prompt you for the login when

just re-training a read mode Data Matrix or Barcode Tool.

When in Part 11 mode, Enable User Logins for Training Approvals

affects the Operator:

– When Enable User Logins for Training Approvals is on,

Operators cannot change lot in Run Mode.

– When Enable User Logins for Training Approvals is off, Operators

can change lot in Run Mode.

• Set Passwords to Expire — Enabling this option makes your

password expire after a certain specified time period (15, 30, 60 or 90

days). When this option is selected, a submenu is displayed where

you can select the duration. By default, this setting is Off.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-117

Note: The System Setting for “Enable User Name Access” must also

be enabled.

When this option is used, as you successfully exit Run Mode using

your Part 11 login user name and password, I-PAK checks this user’s

password and the current date and time to see if your password has

expired. A pop-up message box is displayed if you need to reset your

password.

You will not be penalized or lose your account if you do not reset your

password. However, you will continue to see these message boxes

every time you exit Run Mode or enter your user name and password.

• Set Time Limit for System Inactivity — Setting the time interval to 5,

15, 30 or 60 minutes causes the I-PAK system to revert back to the

Operator access level after that period of System Inactivity. The

default time interval is 15 minutes.

• Set Number of Failed Logins — Setting the number of failed login

attempts to a number between 1 and 10 causes the I-PAK system to

suspend a user who has unsuccessfully tried to login X number of

times in a row. Only an I-PAK Administrator can restore this

suspended account. The default time Number of Failed Logins is 5.

• Enable Saving Stats and Config Files from Stats Menu — Enabling

this option makes a more configurable I-PAK user interface. This

setting enables and disables the buttons for Save Stats and Save

Config Files, saving the Statistics and Configuration files, from the

Statistics and Data submenus.

• Use OnScreen Keypad instead of PC Keyboard — Enabling this

option causes I-PAK to display an OnScreen Keyboard for entering

Menu Settings

This section allows you to streamline the menus.

• Streamline Menus (I-PAK default) — By default, I-PAK is configured

using its streamline menu system. This presents a clean, less

cluttered Operator interface.

Chapter 6Setup Mode Reference

6-118 Visionscape I-PAK User’s Manual

• Show All Menu Options (Advanced Users) — Select this option to

display the menus like they are presented in this user manual.

• Enable Change Lot in Run Mode — When checked, the Change Lot

button is visible in Run Mode (meaning Change Lot is possible).

• Automatic Open Softkeyboard — When checked, the Softkeyboard is

opened automatically if the selected dialog requires data input. This is

available only when I-PAK is running on a Touch panel PC.

I-PAK Windows Settings

This section allows you to configure I-PAK to run with other programs on

the PC.

• Enable I-PAK Always On Top (Must Restart I-PAK) — By default,

I-PAK is enabled to be Always on Top so that other applications are

blocked from view while I-PAK is running. Some users may want to

disable this setting so that their other applications can be viewed

easily.

• Enable I-PAK to be Minimized — Allows the I-PAK user interface to

be minimized while running. Inspections still occur and results are

transferred back to the I-PAK interface. By defaults, this setting is

disabled.

Note: When you change these settings, you must restart the I-PAK

interface, since this is a Windows call that goes into effect at start up

of the interface.

• Enable Desktop — Allows the user to show or hide the PC Desktop.

When disabled, I-PAK will trap user keys like Ctrl-Esc and the PC’s

Start button to prevent the Start menu from appearing; Alt-Tab to

prevent the user from leaving the I-PAK interface, and Alt-Esc from

displaying the TaskBar. I-PAK does not trap or disallow the Ctrl-Alt-

Del sequence, as Microsoft recommends against such action as it

would interfere with the PC’s security. By default, I-PAK enables the

desktop.

Config File Format

This section allows you to configure the file format.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-119

• US Letter Format — By default, the file format is set to US Letter

(about 66 lines/page).

• A4 Format — Sets the file format to A4 Format (about 72 lines/page).

I-PAK System Name

You can name the I-PAK system, which is a useful feature when you have

several I-PAK systems dumping Configuration files to a central PC, and

you need a way to identify uniquely each I-PAK system.

Edit Tool Set

Edit Tool Set allows the Programmer to add, delete, or edit all the tools in

the current product Job definition in a tree-like structure, as shown in

Figure 6–77. This is a Programmer level function. You can print the Tree

View of your Job, and you can save the Tree View data of the Job to a file.

Note: Edit is intended to give the advanced Programmer a chance to tune

an inspection. Some I-PAK settings that you make when you insert steps

through edit need to be added manually. For example, if you insert a

camera, you must manually set up the virtual I/O for overruns. If you are

unsure how to do this, be careful with this feature or you may get

unexpected results.

Chapter 6Setup Mode Reference

6-120 Visionscape I-PAK User’s Manual

FIGURE 6–77. Edit Tool Set Menu

Tool Settings

Tool Settings displays the Tool Settings menu, as shown in Figure 6–78.

The Tool Settings dialog box contains training and inspection parameters

relative to the selected tool, and allows the Programmer to edit the

individual tool settings. This is a Programmer level function.

The Programmer can select Next Tool and Previous Tool to go through all

the tools in the product. When complete, close the Tool Settings dialog

box. Refer to the Visionscape Tools Reference for complete information

on the latest tool settings.

Advanced Settings

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-121

FIGURE 6–78. Tool Settings Dialog Box

Windows Explorer

Windows Explorer allows a Programmer to launch a Windows Explorer

program for configuration management. Reviewing the read-only

configuration files, or moving, copying or deleting files can now occur

without leaving the

I-PAK interface. Every time this button is clicked, it launches another

Windows Explorer session.

Note: Do not move the Jobs from the I-PAK\Jobs folder while I-PAK is

running.

Close Advanced

Close Advanced quits the Advanced Settings Toolbar and returns you to

the main I-PAK Setup Mode window. This is a Programmer level function.

Chapter 6Setup Mode Reference

6-122 Visionscape I-PAK User’s Manual

Troubleshooting

Shutting Down I-PAK

The I-PAK program should be shut down before disconnecting,

connecting or reconfiguring the cameras. If I-PAK is running when the

cameras are disconnected and reconnected, setup mode may not

properly display images, in which case, it will be necessary to shut down

the I-PAK application and then restart it.

Troubleshooting

Setup Mode

Reference

Visionscape I-PAK User’s Manual 6-123

Chapter 6Setup Mode Reference

6-124 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual 7-1

Run Mode Reference

CHAPTER 7 Run Mode Reference

This chapter describes the Visionscape I-PAK Run Mode functionality.

Overview

When I-PAK starts up, by default, the Run Mode window is displayed, as

shown in Figure 7–1. This is the main user interface for the I-PAK

Operator, and allows viewing of the I-PAK inspection Job.

Note: You must let I-PAK fully download your Job and assert the Run

Mode output before giving it triggers.

I-PAK runs the last Job downloaded to the Visionscape® framegrabber.

All important I-PAK data is saved in the Windows registry. This data

includes the last downloaded Job, last statistics and others, as needed.

Notice

It is critical that you use a UPS with your I-PAK to ensure your

inspection counts are retained. Inspection counts are written to the

system registry on the way out of Run Mode. In the event of power

loss, a UPS ensures that your counts are written to the registry and that

I-PAK and Windows shutdown gracefully.

Chapter 7Run Mode Reference

7-2 Visionscape I-PAK User’s Manual

Initial I-PAK Usage

When you run I-PAK for the first time, a sample Job (Sample.avp) is

created and downloaded to the framegrabber. Sample.avp contains a

default vision tool setup that includes an Inspection, a Snapshot using

camera 1 with a Trigger, and a Fontless Tool. All tools are untrained. I-

PAK waits for a system trigger to start inspecting, or allows you to go to

Setup Mode.

Outputs

By default, Microscan defines the following outputs for I-PAK:

• Run/Setup Mode Output — During Run Mode, the Run Mode/Setup

Mode Output is set TRUE. During Setup Mode, the Run Mode/Setup

Mode Output is set FALSE. External monitoring of the I/O point

indicates when I-PAK is ready to run.

Run Mode Window

Figure 7–1 shows the I-PAK Run Mode window.

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-3

FIGURE 7–1. I-PAK Run Mode Window

Run Mode Buttons

• Camera x — Displays information about the active camera(s). In a

multi-camera Job, you can toggle the display of the active camera by

clicking the Camera 1, Camera 2, Camera 3, and Camera 4 buttons.

This displays a separate camera view, its toolbar, its statistics and its

fail messages.

Hotkey: ALT+<Number of camera>

Camera Button

Reset Interval Counters

Display Failure Image Queue

Expand Toolbar Buttons

Failure Report Info

Exit to Change Lot

Exit to Setup Mode

Chapter 7Run Mode Reference

7-4 Visionscape I-PAK User’s Manual

FIGURE 7–2. I-PAK Run Mode (4 Cameras)

In a system configuration with less than four cameras, those camera

buttons are disabled and unavailable for the Operator to view. For

example, in a two-camera inspection, only the Camera 1 button and

the Camera 2 button are displayed and available for enabling. The

buttons for Camera 3 and Camera 4 are not displayed and, thus,

rendered unavailable for viewing.

A Programmer can define the text for a button (Advanced Settings >

Product Settings > Camera x Button Text). By default, the first

camera button reads Camera 1. You might want to specify the text for

the camera to best describe the view that is being displayed by that

camera. For example, Date/Lot Code might be more meaningful in

your application.

This is an Operator level function. Showing all views or no views will

not impact the inspection process.

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-5

Camera views cannot be moved or resized. You can enable or

disable the camera views in any combination. The Operator can

relocate camera views.

FIGURE 7–3. Camera View

• Reset Interval Counters — Click this button to reset the interval

counters to zero.

• Display/Hide Failure Image Queue — Click this button to display the

Failed Image Queue (Figure 7–4). You can display a queue of up to

20 failed images (default is 10) per camera. Set the number of

images in the queue using Advanced Settings > System Settings >

Training and Results > Number of Images in Queue. When the queue

reaches the maximum number of images, and an additional failure

occurs, the first image in the queue gets overwritten by the new

failure image. Use the Previous and Next buttons to cycle through the

Chapter 7Run Mode Reference

7-6 Visionscape I-PAK User’s Manual

images in the Failure Image Queue. No images or details appear if

there hasn’t been a failure yet. Click Display/Hide Failure Image

Queue to return to the regular I-PAK Camera display. Zoom In and

Zoom Out bring the displayed failed image to the desired

magnification level.

FIGURE 7–4. Failure Image Queue Displayed

• Expand Toolbar Buttons — Click this button to display describing text

under the toolbar button icons.

• Failure Report — Click this button to display failure information, as

shown in Figure 7–5. Advanced Settings > System Settings >

General > Show All Menu Options (Advanced Users) must be

selected.

Hotkey: ALT+F

Previous/Next Image in Failed Image Queue

Display/Hide Failure Image Queue

Number, Date, and Time of Failed Image

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-7

FIGURE 7–5. Failure Report Information

The Failure Report information box lists Inspection Failures and their

occurrences. Failures are generated by Inspection and are displayed

by Inspection. The tool’s symbolic names are displayed under Failure

Type, and the failure counts are displayed under Frequency. The

Failure Report information box is displayed below the Camera

windows. To close the Failure Report, click Failure Report again.

The FailureReport form will be cleared each time the user goes to

Run Mode.

The Supervisor or Programmer can reset these failure types and

counts using the Reset Failures button on the Setup Mode’s Statistics

and Data toolbar.

When Failures are reset, the Job will automatically be downloaded to

the framegrabber, while placing the system in Run Mode.

Chapter 7Run Mode Reference

7-8 Visionscape I-PAK User’s Manual

• Exit to Change Lot — Click this button to display the Lot ChangeOver

dialog box (you will be prompted to enter a password), as shown in

Figure 7–6. Advanced Settings > System Settings > General >

Enable Change Lot in Run Mode must be selected.

Hotkey: ALT+C

FIGURE 7–6. Lot ChangeOver Dialog Box

• Exit to Setup Mode — Click this button to exit Run Mode and enter

Setup Mode. You will be prompted to enter a password. You need to

enter the correct Programmer’s or Supervisor’s password to get into

Setup Mode with that Access Level. This is a Programmer or

Supervisor level function.

Hotkey: ALT+S

Run Mode Window in PreProduction Mode

There are four potential outputs of the UI when I-PAK is in PreProduction

Mode:

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-9

• NO CPU Overload

• CPU Overload, Process priorities are lowered and process may no

longer be in Realtime

• CPU Overload, Inspection Thread Priorities have been lowered

• CPU Overload and both events have occurred

Note: No Trigger or Process Overruns are displayed while a CPU

Overload is active.

Note: For detailed information regarding PreProduction Mode and

Production Mode, see page 6–108.

For each of these overload states, Visionscape will adjust either process

or inspection thread priorities in an attempt to prevent the PC UI from

becoming non-responsive. The consequences of this overload state will

be that your inspection timing and I/O timing may vary greatly. In other

words, do not leave I-PAK running in an overload state.

Chapter 7Run Mode Reference

7-10 Visionscape I-PAK User’s Manual

Description of Toolbar Buttons

FIGURE 7–7. Toolbar Buttons

• Zoom In/Out — Displays more or less detail for the inspected image.

This is useful for examining why a part failed or to get closer to a ROI

in the FOV.

• Fit— Re-size the image to fit into the available area.

• Show All — Displays all inspected images, including those that pass

the inspection criteria and those that fail the inspection criteria.

• Last Rej. — Displays the last rejected image.

• Graphics — Displays tool graphics

• Results — Toggles the display of the Camera Results information

box, as shown in Figure 7–8.

FIGURE 7–8. Camera Results Information Box

Results Display

Show Tools Graphics

Last Reject

Show All/No Images

Fit Image

Zoom In/Zoom Out

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-11

The Camera Results information box provides inspection result data

from a Job. It displays the Requested Result and its Value per

inspection. The Camera Results information box appears over the

Runtime Window in an always on top mode. The Operator can

relocate the Camera Results information box. The default is Off.

To close the Camera Results information box, click Results again.

Camera Results displays updated data from the actively running

vision tools, including the following:

– Inspections — Total number of inspections being performed.

– Passed — Total number of passed inspections observed.

– Time — Total inspection time in milliseconds.

– String — The Font Tool’s character string being inspected or the

match string for the Data Matrix or Barcode Tool.

Note: When inserting a Data Matrix Tool, Barcode Tool, Runtime

Font Tool or the OCV Font Tool, I-PAK automatically selects the

.text component of each tool in the Inspection step’s Select

Results to Upload field. This data shows in the String field and the

Requested Result and Value fields. Only one .text field can be

displayed in the String field.

– Requested Result — Reports on the items selected at Select

Results to Upload in the Inspection properties page.

– Value — Inspection results associated with the Requested Result

items described above.

Each camera view contains an image display area showing the camera’s

FOV. Zoom control and scroll bars are provided to allow you to access all

areas of the image. The inspected images appear in the image area with

tool graphics optionally overlaid.

Each of the Camera Views contains a toolbar that displays the current

Runtime Inspection statistics for that camera. This read-only informational

includes: Number of parts Inspected, Number of parts Passed, Number of

parts Failed, and the inspection time of the last part inspected. The

inspection time does not include image acquisition.

Chapter 7Run Mode Reference

7-12 Visionscape I-PAK User’s Manual

Under this main counter toolbar is another toolbar representing Interval

Counters. These provide an inspection-based set of interval counters for:

Total Inspected, Passed and Failed. There is also a Reset button on each

Inspection window.

At the start of Run Mode, these interval counters are set to zero. Per

inspection result, the interval counters are updated. When Reset is

clicked, the interval counters are reset to zero.

The maximum value for any counter that can be displayed and retained in

the registry is:

• Inspected: 10 characters – up to 2,147,483,648

• Pass: 10 characters – up to 2,147,483,648

• Fail: 10 characters – up to 2,147,483,648

Note: On the way out of Run Mode, counters are written to the PC registry

to preserve their values. Therefore, it is imperative that customers use a

UPS with an I-PAK system to avoid losing the counters if a power

interruption should occur while I-PAK is in Run Mode.

Interval counters are not saved with the Job or to the registry.

Runtime Change Lot

Change Lot functionality allows a Programmer or Supervisor to quickly

change the Data Matrix Tool match string, the Barcode Tool match string,

the OCRTrainableFont Tool match string, and the OCVFontTool layout

string without re-training the tools in the Job.

When you click Change Lot, a prompt for a password is displayed. If a

valid password is entered, the Change Lot dialog box is displayed.

Password — 21 CFR Part 11 Access

If 21 CFR Part 11 is active, the user is prompted for user name and

password, as shown in Figure 7–9.

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-13

FIGURE 7–9. Prompt for User Name and Password

You must enter a valid user name with the correct password to access the

Change Lot dialog box. If the Enable User Logins for Training Approvals

system setting is enabled, the user name entered must have training

authority. User names with “Operator” security level are allowed to

perform Change Lot in Run Mode when Enable User Logins for Training

Approvals (Systems Settings > General tab) is off. When Enable User

Logins for Training Approvals is on, Operators cannot Change Lot in Run

Mode.

I-PAK provides a unique default password (1101) that allows a user that

does not have supervisor or programmer access to use the Change Lot

function. This allows an operator to perform a Change Lot but does not

allow the operator to enter Setup Mode.

Password — Standard Access

If 21 CFR Part 11 is not active, the user is prompted to enter either the

current Supervisor password or the current Programmer password, as

shown in Figure 7–10.

Chapter 7Run Mode Reference

7-14 Visionscape I-PAK User’s Manual

FIGURE 7–10. Prompt to Enter Password

A valid password must be entered in order for the Change Lot dialog box

to be accessed.

Change Lot Dialog Box

The Change Lot dialog box is the same as the Change Lot dialog box

used in Setup Mode. If there are no Data Matrix Tools, Barcode Tools,

OCVFontTools, or OCRTrainableFont Tools in the product definition, the

Change Lot dialog box is displayed “empty”, with none of the tool or string

fields filled in (Figure 7–11). Otherwise, the dialog box displays the tools

names and the associated match or layout strings (Figure 7–12).

Overview

Run Mode Reference

Visionscape I-PAK User’s Manual 7-15

FIGURE 7–11. Lot Changeover — Empty

• When Show Full Path is checked, I-PAK displays the full path to the

tools, as shown in Figure 7–12:

FIGURE 7–12. Full Path to Tools Shown

• If you do not push Show Full Path, I-PAK displays the simple tool

name, as shown in Figure 7–13:

Chapter 7Run Mode Reference

7-16 Visionscape I-PAK User’s Manual

FIGURE 7–13. Simple Tool Names Shown

Use Previous and Next to display all the tools in the Job.

To change a Code, the user must click on Edit Code for the specific tool.

This allows the contents of the match or layout string to be changed. This

also enables the Change this Tool’s Code and the Change all Tool’s Code

buttons.

To change one match or layout string at a time, the user edits the code

and clicks Change this Tool’s Code. This changes the match or layout

string to the contents specified. For OCVFontTools, error checking is

performed to verify that the same number of characters are in the new

string, and to verify that all symbols in the new string are in the OCVFont.

A status message is displayed, after trying to change the lot, to indicate

status.

If a Job has multiple tools that have identical match or layout strings, the

user is able to change them all at once by editing the code for any one

and then clicking Change all Tool’s Code. I-PAK goes through the Job

and changes the match or layout string to the contents you just specified

for all tools that had the same code.

Overruns

Run Mode Reference

Visionscape I-PAK User’s Manual 7-17

Note: The Font Tool IGNORE character “@” and Matrix Tool IGNORE

character “?” are allowed in this dialog box.

The Change Lot dialog box can supports up to 99 OCVFontTools, Data

Matrix Tools, and Barcode Tools in any one Job.

Overruns

I-PAK monitors Run Mode for process and trigger overruns. If one occurs,

the

I-PAK Overrun dialog box is displayed, as shown in Figure 7–14.

FIGURE 7–14. I-PAK Overrun! Dialog Box

Note: This should be considered an alarm condition and reported

immediately to the Operator’s management. Efforts should be taken to

prevent and correct overruns. When using Part 11, alarms must be

acknowledged by providing your username and password.

When overruns occur and their dialog box is displayed but not

acknowledged by the user, the user will be alerted to these when he or

she tries to exit Run Mode and return to SetupMode. The password box

will not be displayed until these overrun alarm messages have been

acknowledged. Additionally, the timestamp of the overrun will be

displayed in the message.

A process overrun occurs when images are not processed fast enough.

The I-PAK system has a limited set of image buffers. When images are

processed, image buffers are freed for re-use. If the buffers are not freed

Chapter 7Run Mode Reference

7-18 Visionscape I-PAK User’s Manual

fast enough because image processing is taking too long, the acquisition

process will run out of buffers.

A trigger overrun occurs when triggers arrive too frequently for the

acquire to process. In low resolution images, the maximum achievable

rate is 60 triggers per second, or not faster than 16.667ms apart. In high

resolution images, the maximum achievable rate is 30 triggers per

second, or not faster than 33.334ms apart.

Exiting Run Mode

To exit Run Mode, click the Key button located in the upper right corner of

the Run Mode window. This is the Return to Setup Mode button. Clicking

this button begins the sequence of exiting Run Mode. All camera displays

will automatically be closed. All open reports, failure reports, result

displays, and extended results will automatically be closed. I-PAK saves

the last runtime image for each camera. These images are used in

subsequent training sequences. The inspection counters are saved to the

registry.

When running with 21 CFR Part 11, Enable User Name Access (Enable

Part 11) on, a login dialog box is displayed, as shown in Figure 7–15.

Enter your user name and password.

FIGURE 7–15. I-PAK Login Dialog Box

Otherwise, you are presented with a keypad to enter your Supervisor’s or

Programmer’s password, as shown in Figure 7–16. In either scenario,

once your password is successfully entered, your inspection stops

running and you are transferred to Setup Mode.

Exiting Run Mode

Run Mode Reference

Visionscape I-PAK User’s Manual 7-19

FIGURE 7–16. Password Dialog Box

Default Passwords

The default Supervisor password is 1010. The default Programmer

password is 0101.

Note: Microscan strongly advises that you change these default

passwords in a production environment.

Forgotten Passwords

In the event that you forget your password, Microscan provides a

mechanism to reset the password and get into the system once. At the

password keypad, enter 228489, which spells Acuity on a telephone

keypad. A random string then appears on the password keypad.

Note: Make a note of the random string. Then, call Microscan’s customer

service with the information displayed on the screen.

The Customer Service representative will be able to look up a one-time

use password for you to enter.

Chapter 7Run Mode Reference

7-20 Visionscape I-PAK User’s Manual

If you are in Run Mode when you forget your password and contact

Microscan, you can exit Run Mode into Setup Mode by using the

password provided by Microscan Customer Service. Then, immediately

go into the Change Password menu to reset your password.

If you are in Setup Mode when you forget your password, you must go

into the Change Password menu after receiving the one-time password

from Microscan’s Customer Service to reset it.

If you fail to reset your password and you go back to Run Mode, you will

either have to remember your original password or call Microscan

Customer Service again for a new one-time password.

Forgotten Passwords — Using 21 CFR Part 11

In the event that you have forgotten your password, you’ll need to contact

your

I-PAK Administrator to suspend your existing user name and create a new

user name and password.

End Batch

When running with the End Batch option On, I-PAK prompts you for a

response to save the End Batch results. If you answer no, I-PAK just

returns to Setup Mode and awaits further action from you. If you answer

yes, I-PAK begins to automatically save the read-only statistics file to the

hard drive and prompts you for a file name as you return to Setup Mode.

Cancelling out of this End Batch saving statistics file option is allowed.

Either way, you get an End Batch Successful message and the batch

results are stored in the Statistics menus.

Visionscape I-PAK User’s Manual A-1

I-PAK Enclosure

APPENDIX A I-PAK Enclosure

Before you install your Visionscape I-PAK, be sure you have all of the

necessary I-PAK components. This appendix helps you prepare for a

successful installation.

I-PAK Hardware Components

The following lists itemize the contents of the system-level and module-

level

I-PAK components:

• System-level I-PAK — To best serve the pharmaceutical market, the

I-PAK SE2 product is packaged as a turnkey Windows XP

Professional SP3 PC in an Industrial stainless steel enclosure.

– I-PAK stainless steel enclosure.

– PC with Windows XP Professional Service Pack 3 or later.

– One Visionscape 0740 framegrabber board.

– Standard Floorstand (optional)

– Microscan’s Combination I/O board and Camera Distribution

Cable.

Notes: After installing the UPS, the installer should add the

appropriate labels, in the appropriate language, to the side of the

UPS. (Labels are supplied with the UPS.)

Appendix AI-PAK Enclosure

A-2 Visionscape I-PAK User’s Manual

The I-PAK installer installs support for the UPS.

The UPS communicates with the PC via RS-232 to initiate a

controlled shutdown of the I-PAK application and Windows

operating system.

– RS-232 Port 1 available for user input of Match String Characters

and output end of batch Runtime Statistics.

– I-PAK Executive Application and Visionscape operating system

software on CD-ROM - CD R/W recommended.

– User Manual set including this Visionscape I-PAK User’s Manual

and the Visionscape manuals are available on the USB drive.

The I-PAK Stainless Steel Enclosure was designed to meet the needs of

the pharmaceutical market and to allow for convenient access to the

system components.

• Module-level I-PAK — I-PAK is also available at a module level.

Therefore, our customers can build their own enclosure and supply

their own PC to build the I-PAK right into their machinery. These

customers must configure the equipment as stated in System-level I-

PAK.

– One Visionscape 0740 framegrabber board.

– Microscan’s Combination I/O board and Camera Distribution

Cable

– I-PAK Executive Application and Visionscape operating system

software on CD-ROM - CD R/W recommended.

– User Manual set including this I-PAK User Manual and the

Visionscape manuals are available on the USB drive.

Notice

Microscan imperatively recommends the use of an Uninterruptable

Power Supply (UPS) with USB Communication to PC in a I-PAK. In the

event of power loss, a UPS will help Windows shut down gracefully and

retain important registry information including vision counts and the last

Job downloaded.

I-PAK Hardware Components

I-PAK Enclosure

Visionscape I-PAK User’s Manual A-3

Note: After installing the UPS, the installer should add the appropriate

labels, in the appropriate language, to the side of the UPS (labels are

supplied with the UPS).

UPS-to-PC communication is via RS-232.

Appendix AI-PAK Enclosure

A-4 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual B-1

Hardware Installation

APPENDIX B Hardware Installation

This appendix describes the installation of the module-level Visionscape

I-PAK into a PC. Refer to the Visionscape FrontRunner User Manual for

the minimum PC requirements or “I-PAK Hardware Components” on

page A-1.

Basic Setup Procedures

1. Unpack the framegrabber board and Visionscape software.

2. Install the framegrabber board and its IO.

3. Install the Camera Power cable.

4. Mount the camera.

5. Connect all cables and power.

6. Install the Visionscape software, and then the I-PAK software. See

Appendix C, “Software Installation,” for more information.

7. Test the system.

Appendix BHardware Installation

B-2 Visionscape I-PAK User’s Manual

General Location Considerations

You can place I-PAK in most pharmaceutical packaging environments

without any concern for special enclosures or cabinets. Consider the

following when locating the components:

• Ensure that the camera, monitor, strobe, and any other cables are

long enough to reach your PC.

• Avoid severe vibrations.

• Locate the components to avoid accidental bumping.

• Protect your PC and components against dust, humidity, extreme

temperatures, and extremely harsh environments.

Visionscape I-PAK User’s Manual C-1

Software Installation

APPENDIX C Software Installation

This appendix guides you through the installation of Visionscape I-PAK

and its companion software to support UPS and the CD-ROM.

Installing Software

On system-level I-PAK’s, the software is configured and installed from the

factory. For module-level I-PAK’s, install the Visionscape framegrabber

board into your PC before installing the I-PAK software.

This section describes how to install the I-PAK software, its driver, and its

support software. The installation is allowed on the Windows XP

operating system. Visionscape Studio must be installed before you install

I-PAK.

Before installing any software, ensure that you log into the computer with

an account that has administrator privileges. Be sure to disable any virus

protection software you are running.

The I-PAK USB drive contains the following folders:

• Additional Camera Definition Files — Contains additional camera

definition files. These files have not been tested.

• i-pak — Contains the Visionscape I-PAK software.

• setup — Contains the Visionscape software.

• vskit — Contains the VSKit software and manual.

Appendix CSoftware Installation

C-2 Visionscape I-PAK User’s Manual

Install Visionscape Software

1. To install Visionscape software, place the USB drive into a

USB port on your computer.

If the interface is not displayed automatically, double click setup.html

(at the root of the USB drive).

Note: Visionscape can also be downloaded from the Microscan

website.

2. Click Install Visionscape Software. The InstallShield Wizard starts,

and displays the following screens:

– Several messages about Run or Save; click Run.

– Welcome screen; click Next.

– License Agreement screen; Select the “I accept...” radio button,

and then click Next.

– Select Destination screen; we suggest you accept the default

location (C:\Vscape) and click Next.

– Start Copying Files screen; click Next.

– The installer displays the ReadMe.wri file, which you can read as

the installer finishes.

The install process takes a couple of minutes. It may appear that

nothing is happening, but that is not the case. Don’t try to do anything

until you are prompted to reboot your PC.

All required components are automatically installed to your hard disk.

The default location is:

C:\Vscape

Camera definition files are stored under:

\Vscape\Drivers\Camdefs

3. When the InstallShield Wizard prompts you to reboot your PC, select

the Yes, I want to restart my computer now radio button, and then

click Finish.

Software Upgrades — 21 CFR Part 11 Usage

Software Installation

Visionscape I-PAK User’s Manual C-3

4. Wait for your PC to reboot.

5. Go to the next section to install the I-PAK software.

Install Visionscape I-PAK Software

1. After your PC reboots, double click setup.html (at the root of the USB

drive).

The Visionscape Install screen in is displayed

2. Click Install Visionscape I-PAK Software. The InstallShield Wizard

starts, and displays the following screens:

– Several messages about Run or Save; click Run.

– Welcome screen; click Next.

– License Agreement screen; Select the “I accept...” radio button,

and then click Next.

– Select Destination screen; we suggest you accept the default

location (Visionscape I-PAK) and click Next.

– Start Copying Files screen; click Next.

– The InstallShield Wizard Complete screen; click Finish.

3. Close the web browser

The I-PAK software is installed and ready for you to use.

Software Upgrades — 21 CFR Part 11 Usage

The Part 11 user names, their encrypted passwords, and the original

time/datestamp when a user was created or last changed his or her

password are stored in a data file called ipak.usr.

When you upgrade the I-PAK software, you must manually move the

ipak.usr data file to the current version of I-PAK. These paths can be

determined quickly by looking at the Compatibility section of the I-PAK

ReadMe file or product information.

Appendix CSoftware Installation

C-4 Visionscape I-PAK User’s Manual

Uninstalling I-PAK Software

1. Open the Control Panel and run Add/Remove Programs.

2. Select I-PAK and click Add/Remove to remove the component.

3. Finally, restart the PC.

Starting the I-PAK Program

When you successfully install the Visionscape and I-PAK software, the

installer automatically puts an Visionscape I-PAK shortcut into your

Start > Visionscape sequence so that I-PAK automatically begins as soon

as you have logged on.

As part of the I-PAK startup sequence, a splash screen is displayed and

reports the startup sequence, as shown in Figure C–1.

FIGURE C–1. I-PAK Splash Screen

UPS and UPS Software

Software Installation

Visionscape I-PAK User’s Manual C-5

After starting the interface, the framegrabber board in the PC is rebooted

automatically. Once this is complete, the last run Job is downloaded and

transfers control to Run Mode awaiting a trigger (if one is configured).

UPS and UPS Software

Microscan mandates the use of an uninterruptable power supply (UPS),

model Smart-UPS SC 420, with the I-PAK system. The UPS provides a

safety factor so that your vision inspection system is protected from

power outages and brown-outs.

The UPS ensures that I-PAK stays running by providing battery-backup

for a user-specified time, then gracefully shutting down the I-PAK

program, saving all batch data (Job name, counters, etc.) and, finally,

performing a PC shutdown before removing power to the PC.

Note: You may lose inspection counts if you do not use a UPS!

When power is restored, the PC restarts and the I-PAK program starts up,

rebooting the framegrabber board, downloading the last run Job,

restoring all previous counters and awaiting a trigger (if configured) to

continue inspection.

Microscan supplies one of two Uninterruptable Power Supplies

depending on the voltage required at the customer site. Depending on

availability, actual model numbers may change while functionality remains

intact.

• 120 Volt version: APC BP420SUS;

Microscan Part Number: A1-20918-1

• 240 Volt Version: APC SC420i;

Microscan Part Number: A1-20919-1

Both of these UPSs are external. They are not inside the I-PAK enclosure

due to their form factor.

Note: After installing the UPS, the installer should add the appropriate

labels, in the appropriate language, to the side of the UPS.

Appendix CSoftware Installation

C-6 Visionscape I-PAK User’s Manual

Configuring the UPS Software

I-PAK uses the Windows integrated UPS support. Therefore it’s

necessary to setup some parameters, e.g. the UPS type, using the

Windows Control Panel.

1. Select Start > Settings > Control Panel to open the Windows Control

Panel.

2. Double click Power Options.

3. Click on the UPS tab.

The Uninterruptible Power Supply dialog box is displayed, as shown

in Figure C–2.

FIGURE C–2. Power Options Properties — UPS Tab

4. Click Select....

The following dialog box is displayed.

UPS and UPS Software

Software Installation

Visionscape I-PAK User’s Manual C-7

FIGURE C–3. Select Manufacturer, Model, and COM Port

5. In the Select manufacturer drop down menu, select American Power

Conversion.

6. In the Select model list, highlight (to select) Smart-UPS.

7. In the On port drop down menu, select the COM port you have

chosen to connect the UPS system to your PC.

8. Click Finish to store the selected values.

The following dialog box is displayed.

Appendix CSoftware Installation

C-8 Visionscape I-PAK User’s Manual

FIGURE C–4. Power Options Properties — UPS Tab with Configure

Enabled

9. Click Configure.

The following dialog box is displayed.

UPS and UPS Software

Software Installation

Visionscape I-PAK User’s Manual C-9

FIGURE C–5. UPS Configuration Dialog Box

10. Adjust the values so that they are the same as those shown in

Figure C–5.

11. Close the Power Option Properties dialog box.

Appendix CSoftware Installation

C-10 Visionscape I-PAK User’s Manual

CD-RW Support

I-PAK supports a CD-RW for the archival and restoration of its product

definition files.

To add a CD-RW, install the CD-RW in place of the CD in the I-PAK PC.

Installing the CD-RW hardware is not included in this description.

Windows XP

For Windows XP, you can use the integrated burn functionality.

Note: If you use the integrated burn functionality, it is only possible to copy

files to a subfolder of the CD drive, and not to the root of the CD drive.

Visionscape I-PAK User’s Manual D-1

Demo Mode

APPENDIX D Demo Mode

Demo Mode allows you to display quickly the capabilities of I-PAK. Demo

Mode is password protected. It allows I-PAK to run a saved Job, using

saved images, for a pre-set amount of time and then switch to the next

desired Job and run it. Demo Mode runs automatically until you manually

enter Setup Mode.

Note: You need a Visionscape hardware key to run in Demo Mode.

Note: Disable Failed Image Queue while Demo Mode is active (see

Enable Failed Image Queue on page 6–97).

Note: Before starting I-PAK, copy the sample products and the associated

images

from C:\Vscape\I-Pak\Demo to C:\Vscape\I-Pak\Jobs.

If you installed I-PAK onto a drive other than drive C:, adjust the image

paths of the jobs.

Appendix DDemo Mode

D-2 Visionscape I-PAK User’s Manual

Demo Mode Jobs

Before entering Demo Mode, you can create several products that show

the functionality that you want to demonstrate. These products should be

configured so that they Load Images from File instead of acquiring the

images from a camera. This can be modified when the selected product is

trained.

Note: When using Demo Mode, set Image Upload Rate to MAXIMUM.

When the current step is the Snapshot, click Tool Settings and then click

the Acquire tab. The dialog box shown in Figure D–1 is displayed, which

shows how one of the demo Jobs has been configured.

FIGURE D–1. Load Images From File

You can also see that the desired image files have been added to the File

List. The products and associated images must be stored in the

\Vscape\I-Pak\Jobs directory.

Once the product has been trained using the saved images, it is a good

idea to run the Job to make sure that everything has been configured

properly and operates as expected. Once all of your products have been

tested, Demo Mode can be configured to run the desired products.

Enabling Demo Mode

Demo Mode

Visionscape I-PAK User’s Manual D-3

Enabling Demo Mode

To access Demo Mode, exit Run Mode using the password 78743366.

Note: 21 CFR Part 11 cannot be used with Demo Mode.

After this password is entered, you enter Setup Mode with the

Programmer access level.

To enable Demo Mode:

1. Click Advanced Settings on the I-PAK Setup Menu.

You will see an additional button called Demo Mode, as shown in

Figure D–2.

FIGURE D–2. Advanced Menu With Demo Mode Button Enabled

2. Click Demo Mode.

The Demonstration Mode Parameters dialog box is displayed, as

shown in Figure D–3.

Appendix DDemo Mode

D-4 Visionscape I-PAK User’s Manual

FIGURE D–3. Demo Mode Parameters Dialog Box

3. Click the Enable Demonstration Mode checkbox.

4. To the right of Demonstration Time for Each Product, specify the

amount of time you want each product to run in Demo Mode. The

default time is 60 seconds.

5. In the left pane (Available Products), highlight at least two products

that you want to run (you can highlight as many as 20 products). Click

Select Products, and then click OK.

Disabling Demo Mode

Demo Mode

Visionscape I-PAK User’s Manual D-5

FIGURE D–4. Demo Mode Parameters Dialog Box — Selecting

Products

I-PAK checks the number of products selected and makes sure that you

did not select too many (more than 20) or too few (less than 2) products. If

the Enable Demonstration Mode checkbox is not checked, Demo Mode is

disabled.

If Demo Mode is enabled when you return to the main Setup screen, the

title bar for I-PAK will also state “Demonstration Mode”. When Run Mode

is clicked and “Demonstration Mode” is displayed in the title bar, I-PAK

enters Demo Mode. I-PAK loads the first product in the selected product

list and runs it for the time set in the Demonstration Mode Parameters

dialog box. Once this time limit has been reached, I-PAK automatically

stops the product, enters Setup Mode, changes to the next product in the

list and returns to Run Mode. This cycle continues indefinitely until you

manually exit Run Mode.

Disabling Demo Mode

Each of these methods will disable Demo Mode:

• The first method is to change to a different user mode (User,

Supervisor, or Programmer). If any password other than 78743366 is

Appendix DDemo Mode

D-6 Visionscape I-PAK User’s Manual

entered, Demo Mode is disabled and the button removed from the

Advanced Settings menu.

• The second method can be used if you are in Demo Mode and I-PAK

is currently in Setup Mode. In this scenario, you can enter the

Advanced Settings menu, click Demo Mode (which displays the

Demo Mode Parameters dialog box), and uncheck the Enable

Demonstration Mode checkbox. This prevents Demo Mode from

being activated when Run Mode is clicked. This option will not

remove the Demo Mode button from the Advanced Settings menu.

The Demo Mode button is only removed when you change to a

different user mode.

• The third method is to close and restart I-PAK.

Visionscape I-PAK User’s Manual E-1

Perl Gems: Tips and

Techniques

APPENDIX E Perl Gems: Tips and

Techniques

Custom Steps and CustomVision Tools allow new steps and tools to be

used in Visionscape using Perl, an interpreted script language. These

steps are now available in Visionscape I-PAK, with a limited set of I-PAK

supported Perl language Package Scripts. Only the steps illustrated are

supported.

Note: I-PAK supports the Package Scripts as they are distributed with the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by I-PAK.

I-PAK Custom Step and CustomVision Tool

I-PAK software allows a Custom Step or CustomVision Tool to be inserted

anywhere in a Product Definition. The CustomVision Tool has a built in

Input Datum for accessing a buffer (Input Buffer) on which to perform a

vision operation. The Custom Step does not support an Input Buffer and

can only be used for non-vision operations.

Properties Pages

Each Perl Package Script has a unique Properties Page. You can change

the values of the input datums required by the script. Every script results

Appendix EPerl Gems: Tips and Techniques

E-2 Visionscape I-PAK User’s Manual

in a minimum set of common properties. These properties are the only

properties of the “none” script.

Custom Step

The Custom Step consists of optional input datums, optional output

datums and a script file written in the Perl programming language. The

Perl Package Script determines the number and type of inputs and

outputs. The Perl Package Script controls the functionality of the Custom

Step. Custom Steps cannot perform vision operations because they do

not allow for a buffer to be input to the Perl Package Script. The Custom

Step supports the following scripts:

• “none” on page E-2

• “FailCode” on page E-3

none

The “none” script is the default Perl Package Script used by a Custom

Step when inserted into a Job. This script has no functionality.

FIGURE E–1. The “none” Script

• Avail Package Scripts — This property allows selection of a Perl

Package Script for the step to use. You can select:

– none

– “FailCode” on page E-3

• Re-Parse Package Script — When clicked, this button causes the

package script to be parsed. Whenever any changes to the script files

are made, this button needs to be clicked to make these changes

take effect.

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-3

Note: I-PAK supports the Package Scripts as they are distributed with

the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by I-PAK.

• Recreate Step Datums — When clicked, this button causes the input

and output datum lists in the step to be re-created. You only need to

click this button when a datum is added, removed or changed in the

script. If the script is changed, but no input or output datums are

changed, then this button does not need to be clicked. Clicking this

button also causes all input datums to be set to their default values

and to lose their connections to other step results or parameters.

Datums created by the package script are added to the user

interface. Input datums are shown as a box with a drop-down list

button. The input datums can be linked to other similar type datums in

the Job. Clicking the drop-down list button causes the Job tree to be

displayed, allowing you to select the datum to link to the input datum.

Resource datums are shown as user-editable boxes that can be set

to a value directly. Output datums are not shown in the user interface

for this step, but can be seen in the Job tree that comes up when

linking an input datum.

Note: I-PAK supports the Package Scripts as they are distributed with

the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by I-PAK.

FailCode

The FailCode script allows you to encode the failed statuses of various

Steps in your Job into a single 32 bit integer value. Typically, this is used

when the user wants to cut down on the amount of data that is uploaded

from the inspection, but also wants to know the status of a large number

of Steps.

When added to your Job, the FailCode script will present you with a list of

32 inputs on the properties page, as shown in Figure E–2:

Appendix EPerl Gems: Tips and Techniques

E-4 Visionscape I-PAK User’s Manual

FIGURE E–2. FailCode Script

Each of these inputs can be connected to any Status datum in your job.

Typically, you would connect the Statuses of all of the Steps whose

pass/fail state you care about. In the example here, we have connected

the statuses of the Snapshot step to Bit 0, a Blob Step to Bit 1, a Flaw Tool

to Bit 2 and an OCV Fontless Tool to Bit 3. If all of these Steps should

pass, the FailCode script will produce an output value of 0. If any of these

Steps should fail, the corresponding Bit in the output integer value will be

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-5

set to a 1. So, for example, if the Blob tool and the OCV Fontless tool

should fail, this would mean that bits 1 and 3 would be set to 1, producing

an output value of 10. Any Bits that are left “Unassigned” are ignored and

will not effect the output value.

Settings

• Bit0 - Bit31 — Each of these input datums can be connected to any

Status Datum in the Job. If the Status is False, then the corresponding

bit of the output word is set to 1.

Results

• Output Value — This integer value holds the failure code. The bits of

this word correspond to the 32 input datum values.

Custom Vision Tool

The CustomVision Tool consists of an input image (required), optional

input datums, optional output datums and a script file written in the Perl

programming language. The Perl Package Script determines the number

and type of inputs and outputs. The Perl Package Script controls the

functionality of the CustomVision Tool. CustomVision Tools can perform

vision operations because they require a buffer to be input to the Perl

Package Script.

The Custom Vision Tool supports the following scripts:

• “none” on page E-6

• “Cylinder_UnWarp” on page E-7

• “Dynamic_Binarize” on page E-11

• “FailCode” on page E-14

• “FindRotated” on page E-14

Appendix EPerl Gems: Tips and Techniques

E-6 Visionscape I-PAK User’s Manual

none

The “none” script is the default Perl Package Script used by a

CustomVision Tool when inserted into a Job. This script has no

functionality.

FIGURE E–3. The “none” Script

• Avail Package Scripts — This property allows selection of a Perl

Package Script for the step to use. You can select:

– none

– “Cylinder_UnWarp” on page E-7

– “Dynamic_Binarize” on page E-11

– “FailCode” on page E-14

– “FindRotated” on page E-14

• Re-Parse Package Script — When clicked, this button causes the

package script to be parsed. Whenever any changes to the script files

are made, this button needs to be clicked to make these changes

take effect.

Note: I-PAK supports the Package Scripts as they are distributed with

the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by I-PAK.

• Recreate Step Datums — When clicked, this button causes the input

and output datum lists in the step to be re-created. You only need to

click this button when a datum is added, removed or changed in the

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-7

script. If the script is changed, but no input or output datums are

changed, then this button does not need to be clicked. Clicking this

button also causes all input datums to be set to their default values

and to lose their connections to other step results or parameters.

Datums created by the package script are added to the user

interface. Input datums are shown as a box with a drop-down list

button. The input datums can be linked to other similar type datums in

the Job. Clicking the drop-down list button causes the Job tree to be

displayed, allowing you to select the datum to link to the input datum.

Resource datums are shown as user-editable boxes that can be set

to a value directly. Output datums are not shown in the user interface

for this step, but can be seen in the Job tree that comes up when

linking an input datum.

Note: I-PAK supports the Package Scripts as they are distributed with

the

I-PAK software. Changing these script files or creating new script files

renders them unsupported and non-validated by I-PAK.

Cylinder_UnWarp

This step is an image-in, image-out operation, and unwraps an image on

a cylindrical surface, reducing the distortion caused by the surface.

Theory of Operation

Given a description of the geometry of a cylinder, the CylinderUnwrap

step will warp the image on the cylinder in such a way as to unwrap the

image onto a flat surface. This reduces the distortion caused by the

cylindrical surface.

The geometry of the cylinder is specified using the:

• Radius of the cylinder

• Distance the cylinder is from the camera

• Vertical axis of the cylinder

• Point within the ROI where the image is correct (not distorted)

Appendix EPerl Gems: Tips and Techniques

E-8 Visionscape I-PAK User’s Manual

Cylinder Unwrap ROI

The Cylinder Unwrap ROI is a rotatable rectangle. Typically, the rectangle

is rotated to match the angle of the cylinder axis.

Using the Cylinder Unwrap Warp

Typically, other tools and steps are placed in its output image where the

image pixels have been unwrapped into a rectangle. This is useful for

studying features or text on a cylinder that will be distorted closer to the

edges of the cylinder.

The ROI that defines the pixels to warp can be adjusted by moving, sizing

and rotating the search area shape associated with a CylinderUnwrap

Warp.

Figure E–4 and Figure E–5 show an input image and the corresponding

output image for a Cylinder Unwrap Warp. The cylinder axis input is set to

the output of a BisectLines Meas step, which is the line which bisects the

left and right edges of the cylinder.

FIGURE E–4. Input Image to Cylinder Unwrap Operation Example

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-9

FIGURE E–5. Output Image to Cylinder Unwrap Operation Example

Description

CylinderUnwrap Warp allows editing through the CylinderUnwrap Warp

properties page, as shown in Figure E–6.

FIGURE E–6. Cylinder Unwrap Warp Properties Page

Settings

• Cylinder Axis — An input line datum that is selectable. This input line

is usually the bisecting line of the right and left edges of the cylinder.

The point within the ROI where the image is correct (i.e., the point of

no distortion) should lie along the cylinder axis.

• Re-Parse Package Scripts — This button causes the package script

to be parsed when clicked. Whenever any changes to the script are

made, this button needs to be clicked to make these changes take

effect.

Appendix EPerl Gems: Tips and Techniques

E-10 Visionscape I-PAK User’s Manual

• Recreate Step Datums — This button causes the input and output

datum lists in the step to be recreated. This button only needs to be

clicked when a datum is either added, removed or changed in the

script. If the script is changed, but no input or output datums are

changed, then this button does not need to be clicked. Clicking this

button also causes all input datums to be set to their default values

and lose their connections to other step results or parameters.

Datums created by the package script are added to the user

interface. Input datums are shown as a box with a drop-down list

button. The input datums can be linked to other similar type datums in

the Job. Clicking the drop-down list button causes the Job Tree to be

displayed, allowing you to select the datum to link to the input datum.

Resource datums are shown as user-editable boxes that can be set

to a value directly. Output datums are not shown in the user interface

for this step, but can be seen in the Job Tree that comes up when

linking an input datum.

• Cylinder Radius — The radius of the cylinder.

• DistanceFromCamera — The distance from the camera to the

cylinder.

• UseCalibration — If the inputs (CylinderRadius,

DistanceFromCamera) are specified in calibrated/world coordinates

(for example, millimeters), then the UseCalibration checkbox should

not be checked. If the inputs are specified in pixel coordinates, then

UseCalibration should be checked.

Training

None.

Results

• Status — Set to true after a successful execution of the step.

• CylUnwrapped Image — The modified image.

I/O Summary

None.

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-11

Dynamic_Binarize

Theory of Operation

The Dynamic Binarize script is used when you want to binarize your

image, which means to convert all of the pixels below a threshold to 0 and

all those above the threshold to 255. This script will dynamically calculate

its binary threshold each time it runs.

Using Dynamic_Binarize

This script provides you with an ROI like any other Vision tool in

Visionscape would. You can position and size the ROI over any area of

your image, and an output buffer will be created of the same width and

height, and containing the binary representation of all of the pixels within

the ROI. In Figure E–7 and Figure E–8, we demonstrate how the text on a

chip can be binarized:

FIGURE E–7. Custom Vision Tool Running Dynamic_Binarize Perl

Script

Appendix EPerl Gems: Tips and Techniques

E-12 Visionscape I-PAK User’s Manual

FIGURE E–8. Output Buffer produced by Dynamic_Binarize Perl Script

Description

The Dynamic Binarize script will calculate either the average or median

gray value of all the pixels within its ROI, and this value will be used as

the binarize threshold. When calculating the average, you can choose to

ignore the very lowest and highest gray values. You may also apply an

offset to the calculated threshold.

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-13

Settings

FIGURE E–9. Dynamic Binarize Script

• Histogram Low Clip — Pixels below this gray value will be left out of

the calculation of the average or median gray value.

• Histogram High Clip — Pixels above this gray value will be left out of

the calculation of the average or median gray value.

• Threshold Offset — An offset that will be applied to the calculated

binary threshold.

• Polarity — Determines the polarity of the pixels in the output buffer.

• Method — Selects whether you want the threshold to be based on the

average or the median gray value.

Results

• Average — Calculated average gray value.

• RunLoThr — When polarity is set to “Bright”, this will hold the actual

threshold that was used to binarize the image; in other words, it will

be the average or median gray value + the Offset value. When

polarity is set to “Dark”, this will always be 0.

• RunHiThr — When polarity is set to “Dark”, this will hold the actual

threshold that was used to binarize the image; in other words, it will

be the average or median gray value - the Offset value. When polarity

is set to “Bright”, this will always be 255.

Appendix EPerl Gems: Tips and Techniques

E-14 Visionscape I-PAK User’s Manual

• Median — The calculated median gray value.

• ComputedGray — This is the computed gray value that was

combined with the offset value to produce the threshold. In other

words, if the selected “Method” was “Average”, this will be equivalent

to the Average output datum, and if the selected “Method” was

“Median”, this will be equivalent to the Median output datum.

FailCode

The FailCode script does not draw any graphics nor does it need an ROI,

so it is best used with the Custom Step rather than the Custom Vision

Tool. See “FailCode” starting on page E-3.

FindRotated

The FindRotated script allows you to run the correlation algorithm over a

range of angles, allowing you to find features that will rotate by more than

5° from the trained orientation. The Template Find step in Visionscape

runs the correlation algorithm, but typically can only find features that will

rotate by no more than ±5°.

Using FindRotated

FindRotated is used in the same way that the Template Find step is used.

You will be provided with two ROIs:

• The first ROI represents the template you wish to train on.

• The second ROI represents the search area (the area within which

you will search for the template).

You must train this step before you can use it.

Insert a Custom Vision tool into your Job, and then select the Find

Rotated script. You should see two ROIs in your image that look

something like the ones in Figure E–10 and Figure E–11:

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-15

FIGURE E–10. Two ROIs

Unfortunately, the ROIs are not labeled, so it is confusing to understand

which of the ROIs is used for the Template, and which is used for the

search area. We have labeled the ROIs in Figure E–10. If we wanted to

train the tool to find the “KOREA” text in our sample image, we would

position the ROIs like the ones in Figure E–11:

Appendix EPerl Gems: Tips and Techniques

E-16 Visionscape I-PAK User’s Manual

FIGURE E–11. Positioning ROIs to Find KOREA

Press the Train button to train the template.

Description

The FindRotated script will search for the trained template by searching

over a specified range of angles specified by the Maximum Search Angle

and Minimum Search Angle datums. It accomplishes this by warping the

image contents inside of its ROI. It will start by warping the image

contents by the angle specified by the Minimum Search Angle datum, and

then it will run correlation on the result. All qualifying match locations are

recorded, and then the angle is incremented by an amount equal to the

value specified in the Angle Step Size datum, and the image is warped

and searched again. It will continue in this fashion until it reaches the

angle value specified in the Maximum Search Angle datum, and then it

will stop. Then, the script will scan through all of the qualifying template

locations, and choose the best one.

I-PAK Custom Step and CustomVision Tool

Perl Gems: Tips and

Techniques

Visionscape I-PAK User’s Manual E-17

Settings

FIGURE E–12. FindRotated Script

• Minimum Search Angle — The minimum warp angle that the step

should start searching at.

• Maximum Search Angle — The maximum warp angle that the step

should search at.

• Angle Step Size — This is the amount in degrees that the angle

should be incremented by for each search iteration.

• Accept Threshold — This is the minimum correlation match

percentage.

Results

• Point of Best Match — This is the X,Y location and angle of the best

match found.

Appendix EPerl Gems: Tips and Techniques

E-18 Visionscape I-PAK User’s Manual

Visionscape I-PAK User’s Manual Index-1

Index

Symbols

.cal File 6-8

.text Component 6-32

Numerics

21 CFR Part 11 xvi, 3-1, 6-7, 6-109

access levels

defined 3-2

administrator 3-3, 6-5

default password 3-3, 6-5

user name 3-3, 6-5

areas of concern 3-19

audit trail 3-1

turning on 3-4

compliance options 6-76

configuration 6-109

files 3-2

enabled

can perform change lot 6-15

end of batch reports 3-6

jobs 3-1

reconciliation of configuration files 3-11

statistics files 3-2

support 1-6

A4 Format 6-112

Access Levels

change password 6-4

defined 3-2

menu 6-4

operator 6-4

programmer 6-2, 6-4

supervisor 6-2, 6-4

Acquire

button 6-29

tab D-2

Adaptive 4-28

thresholding 4-57

Add

a new user button 3-16

Advanced Settings 6-49

button 6-49, D-3

close advanced 6-115

create a product 6-49

edit tool set 6-113

product settings 6-67

save product 6-66

system settings 6-77

tool settings 6-113

Windows Explorer 6-114

AIM Print Verification 4-36

Allow

outlined cells 4-29

severe damage 4-29

steep angle 4-29

Allowed

movement in

x 5-27, 5-70

y 5-27, 5-70

overlap during read 5-41, 5-50, 5-112

thickening of symbol 5-58

thinning of symbol 5-58

Alt

+c 7-7

+esc

preventing getting to desktop 3-20

+f 7-6

+number of camera 7-3

Index

Index-2 Visionscape I-PAK User’s Manual

+s 7-7

Always Ask To Save Font 5-8

Angle

variation 4-26

Appearance Flaw Break Test 5-30, 5-73

Apply

automatic min

contrast 5-22, 5-47, 5-57

sharpness 5-22, 5-47, 5-57

symbol group settings 5-62

to all fontsymbols 5-33

to default symbol 5-33

Approval

button 6-103

from external device 5-79

Approve 5-76, 5-79

button 5-82

inspect characters dialog box 5-77

response 5-82

string protocol 5-84
