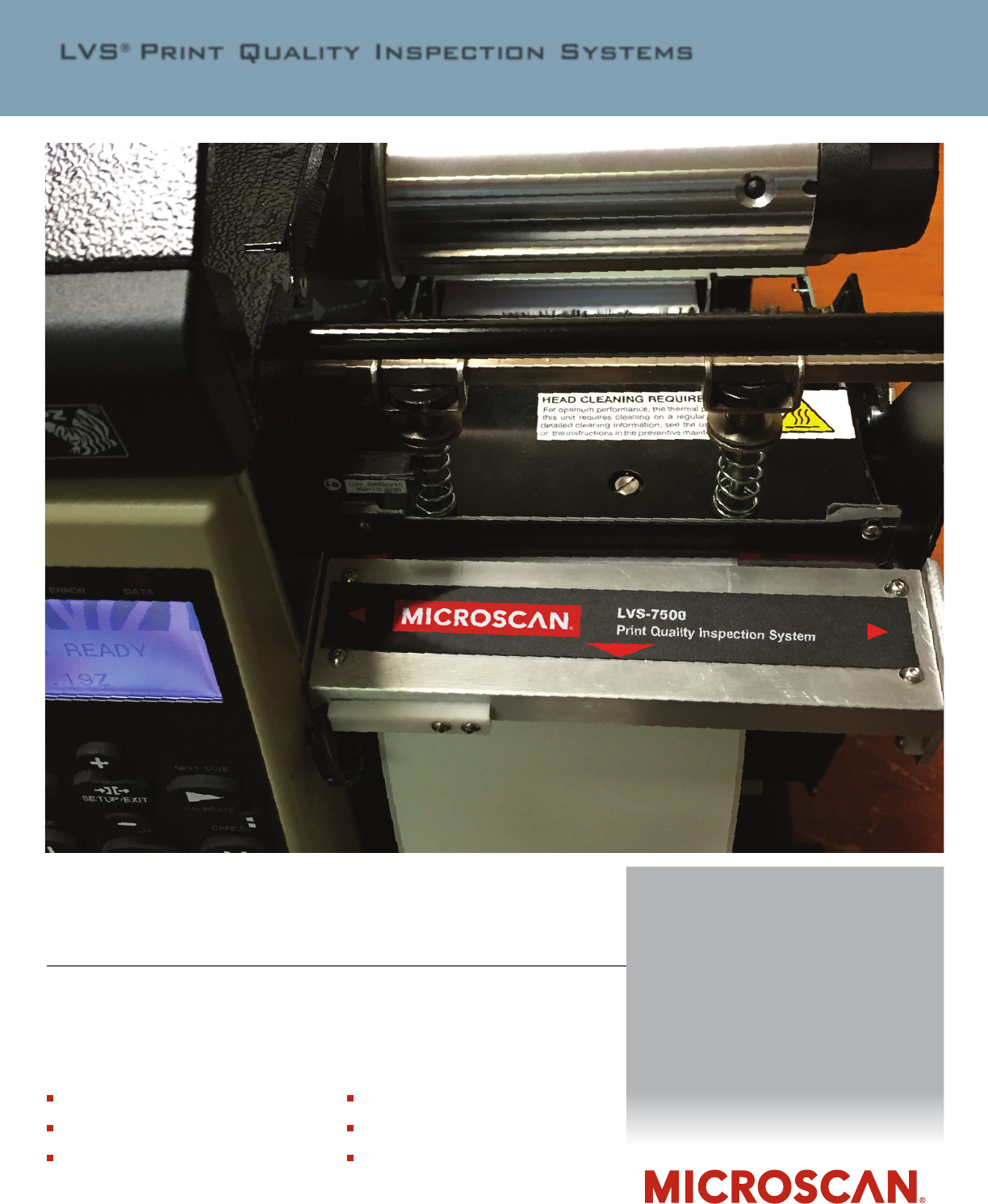

LVS-7500

Ensure Accuracy and Data Integrity

on Each Label

Identify Defects

Eliminate Fines & Disputes

Reduce Rework

Control Waste

Avoid Liability

Data Management

LVS® Print Quality Inspection Systems

IDEAL APPLICATIONS:

Pharmaceuticals

Medical Devices

Clinical Trials

Contract Packaging

Manufacturing

Label Converting

LVS-7500 CAPABILITIES

System Features

Bar Code Validation

(Reading of 1D and 2D Codes)

Bar Code Validation inspects

codes to determine if they

are readable. No attempt is

made to grade according to

any standard.

Bar Code Verification

(Grading of 1D and 2D Codes)

Bar Code Verication

inspects any combination of

1D and 2D codes and grades

them using internationally

accepted standards. The

software displays a real-

time graph indicating the

overall ISO grade allowing

the operator to view trends in

print quality for hundreds of

previously inspected labels.

As errors are detected, the

graph changes color. Other

error warning indicators are

available including printer

stop, light stack, alarm, etc.

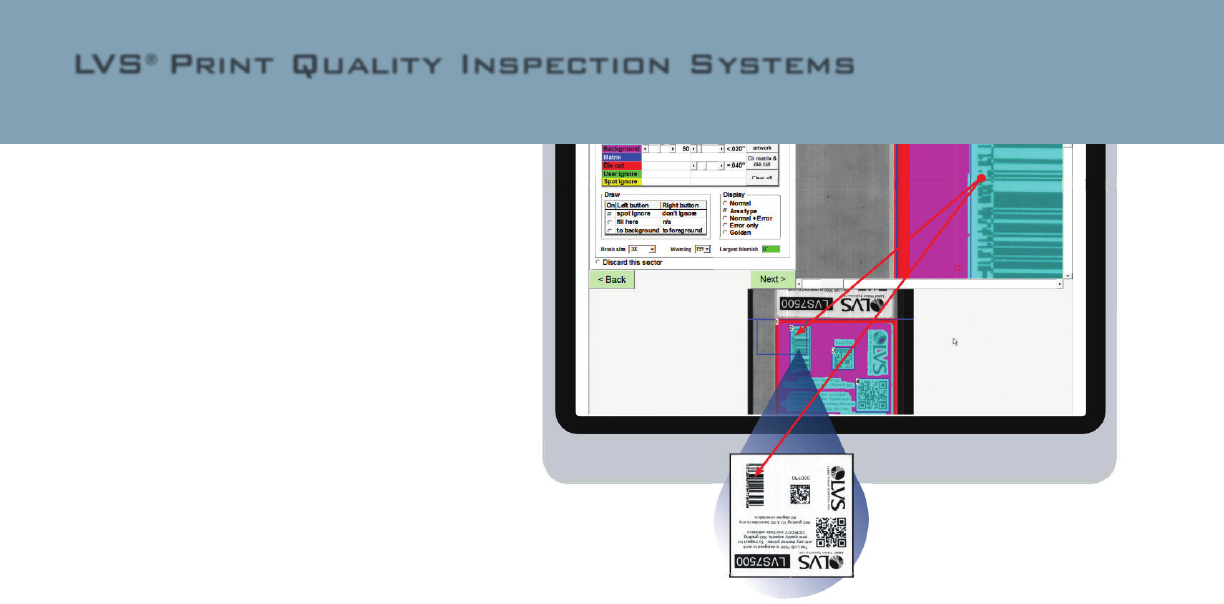

Master to Label Comparison

(Blemish Detection)

Master to Label Comparison

identies print faults, such as

skews, smears, registration

errors, die-cut errors and

missing information. This

module includes a variable

data feature that recognizes

expected variables within a

pattern-matching zone but

does not report the data as

a blemish. Also includes a

variable sensitivity setting for

each label eld inspected.

Optical Character

Recognition (OCR)

The OCR function "reads"

characters and reports the

data content.

Optical Character

Verification (OCV)

The OCV function ensures

that a string of sequential

characters are read and/or

veried against a match le.

Number Validation

Number Validation veries

the expected order of any

numerical series, detects

duplicates and sequence

errors, and matches variable

numbers with external data

les.

Data and Code Matching

Matching veries encoded

data that represents human

readable information and

ensures synchronicity of

multiple elds within a label.

Bar Code Validation

(Reading of 1D and 2D Codes)

Bar Code Validation inspects

codes to determine if they

are readable.

Auto Setup

Software automatically

identies label elds allowing

for rapid set-up and change-over

Job Retrieval

Quickly access previous

jobs to run again, or apply or

modify formats for new jobs.

Alarm Matrix

Multiple output options for

error notication including

stop relay, light stack, on-

screen warning, etc. set to

user-dened thresholds

Security

• Multiple past were security

levels

• 21-CFR Part 11 Compliant

Ready

• Audit trail for system

interaction

Data Management

• Job data archive and stored

in CSV le format for ease

of export

• All records are date, time

stamped and automatically

archived

• Remotely review errors

and record acceptance or

rejection action

• Run summary report

for quality control and

customer assurance

LVS-7500

True 100%

Inspection with

LVS-7500

LV S ® Print Quality Inspection Systems

The LVS-7500

confirms the

accuracy of the

printed label image

to user defined

levels ensuring

quality standards

are met and

providing peace of

mind throughout

the supply chain.

Standard Configuration

Includes

•LVS-7500 Installation

Drive (includes LVS-7500

software and LVS-7500

Operations Manual)

•LVS-7500 Installation and

Quick Start Guide

•LVS-7500 Readhead

(5.4"/137 mm) or (8.5"/216

mm)

•Calibration Card (NIST

Traceable)

•Base Plate

•Mounting Bracket with

attached Internal Rewind

Bar

•Docking Plate

•USB Cable 2.0 Certified

(6 feet) (1.8 m)

•Power Supply (5 Volts).

Requires localized power

cord for shipments outside

North America

•AC Line Cord (for North

American customers only)

•Stop Motion Interface Unit

(customer may purchase

optional Light Tower

Interface Unit instead of

Stop Motion Interface Unit)

•5/32" Allen Key

Minimum PC Requirements

(PC Supplied by Customer)

• Intel® Core™ 2 Quad

Processor

• 4G B R AM

• 500 GB Hard Drive

• 1280 x 1024 Screen

Resolution

• Windows® 7 Professional,

Windows® 8.1 Professional,

and Windows® XP

Professional. Windows®

Vista is not supported.

• Two available USB 2.0 ports

(required for the Read Head

and Stop Motion Unit/Light

Tower Unit)

Characteristics

5.4" (137 mm) Read Head:

• Maximum readable label

width: 5.4" (137 mm)

• Maximum width of web:

5.7" (145 mm)

8.5'' (216 mm) Read Head:

• Maximum readable label

width: 8.5'' (216 mm)

• Maximum width of web: 9"

(229 mm)

Options

• 5.4" (137 mm) or 8.5'' (216

mm) Read Head

• Light Tower Interface Unit.

Replaces Stop Motion

Unit.Provides color-coded

warning lights to operator

• Motor-driven take up nip roll

(designed for fan-fold)

• HMI (Multi LVS-7500

system interface and

display)

• Table top label rewinder

(winds up labels into a

roll as they come out of a

printer)

Two available options:

• 1" to 4"(25.4 mm to 101.6

mm) Adjustable Core Holder

• 8.6" (220 mm) wide

"Quick-Chuck" and two

label Flanges

International Standards

• ISO/IEC 15415

• ISO/IEC 15426 -1

• All supported ISO/IEC

symbology specifications

• ISO/IEC 15416

• ISO/IEC 15426 -2

Supported Symbologies

Aztec

Coda bar

Code 128

Code 39

Code 93

Data Matrix

Databar expanded

EAN-13

EAN-13 (2-digit supplemental)

EAN-13 (5-digit supplemental)

EAN-8

ECC-200 Data Matrix

GS1-128

GS1 Databar Limited

GS1 Databar Stacked

GS1 Databar-14

GS1 Data Matrix

Interleaved 2 of 5 (ITF)

Laetus Pharmacode

Micro QR Code

MicroPDF417

PDF417

QR Code

UPC-A

UPC-A (2 digit supplemental)

UPC-A (5 digit supplemental)

UPC-E

UPC-E (2 digit supplemental)

UPC-E (5 digit supplemental)

All applicable GS1 composite

components

ISO Verification

Challenge/Test Details

Verify

Any combination of linear, matrix or stacked codes to ISO Print Quality Standards including:

• ISO/IEC 15416 - Linear Verier Conformance

• ISO/IEC 15415 - Two-Dimensional (2D) Verier Conformance

Orientation & Number Any orientation and number of codes on a label

Read and Analyze 1D and 2D to published International specications, with an overall ISO (ANSI) grade

Minimum 1D NBW Read only: 6.3 Mils (.0063") (.160 mm)

Verication: 8.8 Mils (.0088") (.223 mm)

Minimum 2D Cell Size Read only: 10.0 Mils (.0100") (.254 mm)

Verication: 12.5 Mils (.0125") (.317 mm)

Reporting Detailed data to be reported is in .csv format for extraction by the end user. Immediate reporting is available for

viewing via the monitor and Light Tower if utilized.

Microscan reserves the right to change or modify this information without prior notice.

LV S ® Print Quality Inspection Systems

SAFETY CERTIFICATIONS

DESIGNED FOR

FCC, CE, UL (Pending)

ROHS COMPLIANT

QMS CERTIFICATION

www.microscan.com/quality

©2017 Microscan Systems, Inc. ML057B-EN-0217
