Ensure that 100% of labels are compliant with regulations and
quality requirements at the point of label production, avoiding
costly downstream errors.
The LVS-7510 provides print quality inspection and barcode
verification, with integration into popular industrial thermal transfer

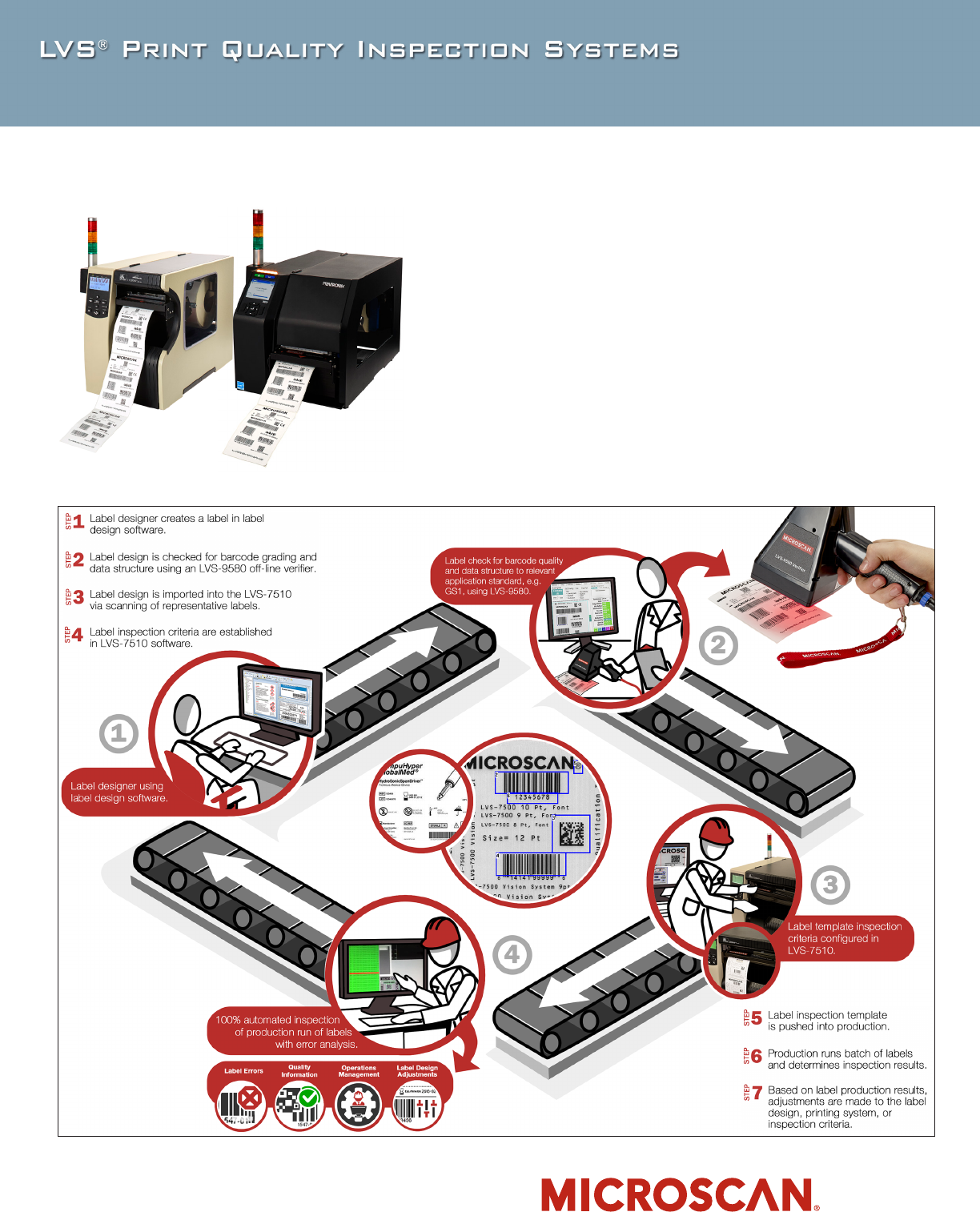

printers. In-line inspection is an integral part of a label compliance
and quality approach, which includes label design software, off-line
barcode verification, and 100% label quality checks, as shown below.
Thermal Printer Label
Inspection System
LVS–7510
LVS–7510
Thermal Printer Label Inspection System
Barcode Verification and Trend Graphing
Grade 1D and 2D symbols to ISO/IEC 15415 and ISO/IEC 15416
standards with user-congurable thresholds for establishing a
"pass" grade. ECC-200 Data Matrix, QR Code, PDF417, Micro-
PDF417, GS1-128, Code 39, UPC-A, UPC-E, EAN, Aztec, and other
symbologies are supported.
Blemish Detection
Create and store hundreds of reference "golden images" with
the ability to detect print faults, to distinguish xed from variable
information, to detect die-cut errors and label misalignment, and
to identify missing information. Blemish, barcode, and OCR/OCV
error images can be viewed on the operator HMI.
OCR and OCV
Verify Optical Character Recognition (OCR) and Optical Character
Verication (OCV) data such as lot number or expiration date,
comparing information against expected values and triggering errors
when a mismatch occurs. Validation of an expected numerical
series, such as serial numbers, can be compared against an
imported le containing expected numbers. The system can be
trained to learned additional Latin-based character fonts.
Database Archive and Connectivity
Job data is archived and stored in .csv le format for ease of export.
All records are date, time-stamped and automatically archived.
Remotely review errors and record acceptance or rejection action.
Run summary report for quality control and data validity checking.
Import of matchle date in .csv format for use in inspection jobs
supported. Data exchange via TCP/IP commands is supported.
Error Notification
Multiple output options for error notication including stop relay
interface to the printer, external light stack, and on-screen warning
set to user-dened thresholds.
Validated System Applications
21 CFR part 11-compliant-ready with multiple security levels and
comprehensive data management and reporting options. Microsoft
Active Directory, audit trail of operator actions, and inspection
archive for each label.
AutoExecute Function
AutoExecute allows the user to initiate the automatic import of
one or more LVS-7510 jobs. This helps automate the processing
of multiple jobs without operator interaction.
Optional PDF Comparator Software
The PDF Comparator is an optional advanced error detection
program for the LVS-7510 which compares one reference "golden
image” to a PDF master artwork le selected by the user. The PDF
Comparator compares the approved master artwork le to the
golden image, and the Blemish Detection Tool compares the golden
image to the rest of the labels.
Accuracy and Data Integrity
• Reduce Inspection Costs
• Identify Defects
• Maintain Quality
• Reduce Rework
• Control Waste
• Reduce Non-Compliance Risk
Typical LVS-7510 Applications
• Medical Device Manufacturing
• Pharmaceutical Manufacturing
• Consumer Goods Packaging
• Specialty Chemical Manufacturing

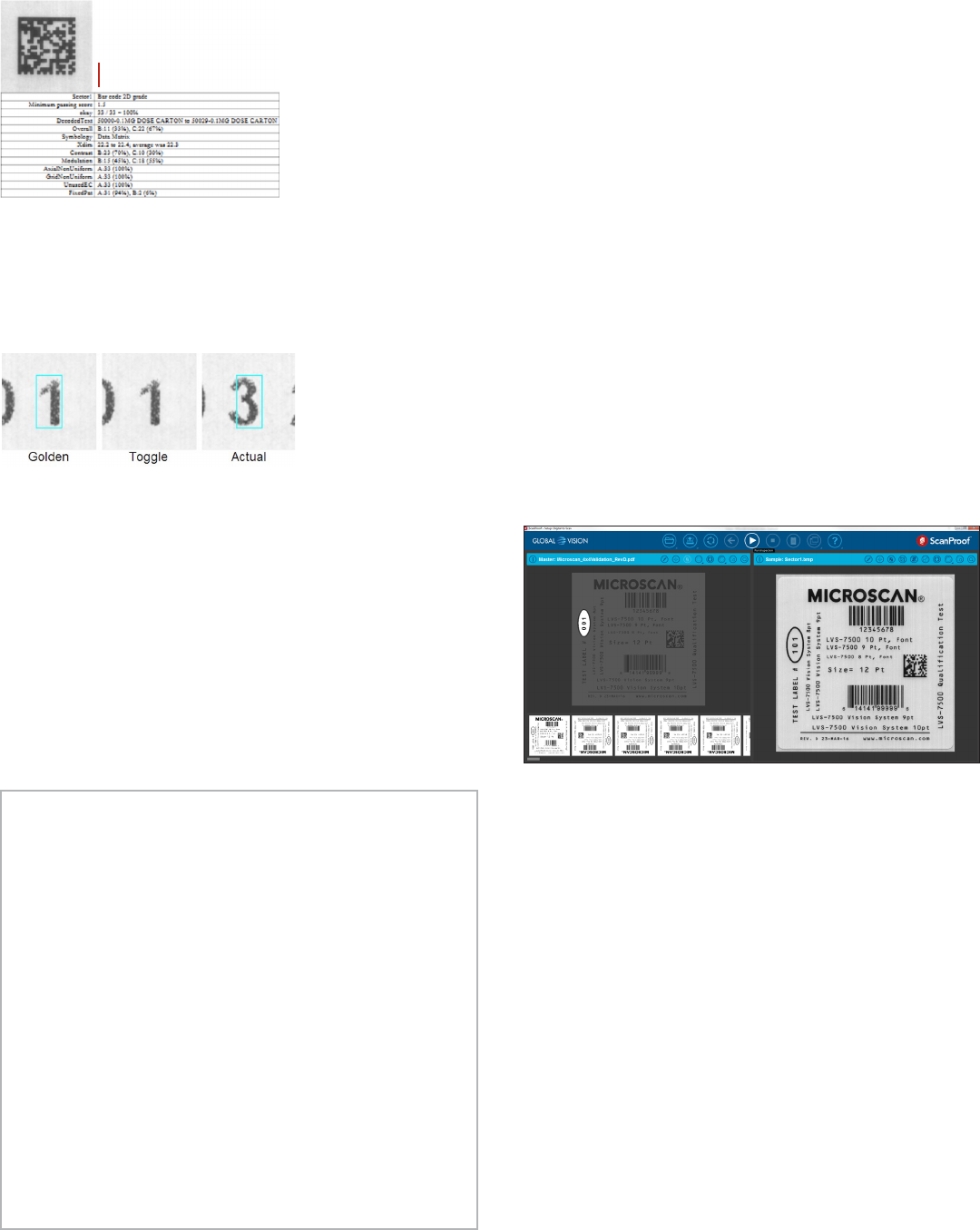

Data Matrix verication
parameters and results
LVS-7510 Functionality at a Glance
• Used for product label verification in medical device
manufacturing, pharmaceutical manufacturing, consumer
goods packaging, cosmetics packaging, food and beverage
packaging, and specialty chemical manufacturing.
• 100% label inspection, including 1D/2D barcode quality
verification, OCR/OCV verification, serialization, and
blemish detection.
• Integrated into popular Zebra and Printronix industrial
thermal transfer printers.
• Provides operator notification of print quality degradation,
enabling proactive maintenance.
• Can be used with off-line verifiers to create a seamless
label design and production quality system.
For more information, visit www.microscan.com/LVS-7510.
Design Mode Production Mode
• Create a new job template (Design Mode only). • Reusable job templates imported and become executable jobs.
• Load an existing or unnished job template. • Load an existing or unnished job.
• Retrieve a job template from archive. • Login credentials create an audit trail of operator actions.
• Close out and clear templates that are production-ready. • Operator administration and permissions optionally
controlled through Microsoft Active Directory.
• Promote a job template to production. • Combine data from multiple runs with summary data
reports.
LVS–7510
Thermal Printer Label Inspection System
LVS-7510 software can be congured via settings in an intuitive
editor. Two operation modes are available: Design Mode and
Production Mode. These two modes provide a secure environ-
ment for label production and validation. The option of using one
LVS-7510 system to switch between Design Mode and Production
Mode is available. Job templates are created in Design Mode only.
The job templates are then imported and become executable jobs
in Production Mode. Functions of each are listed below.

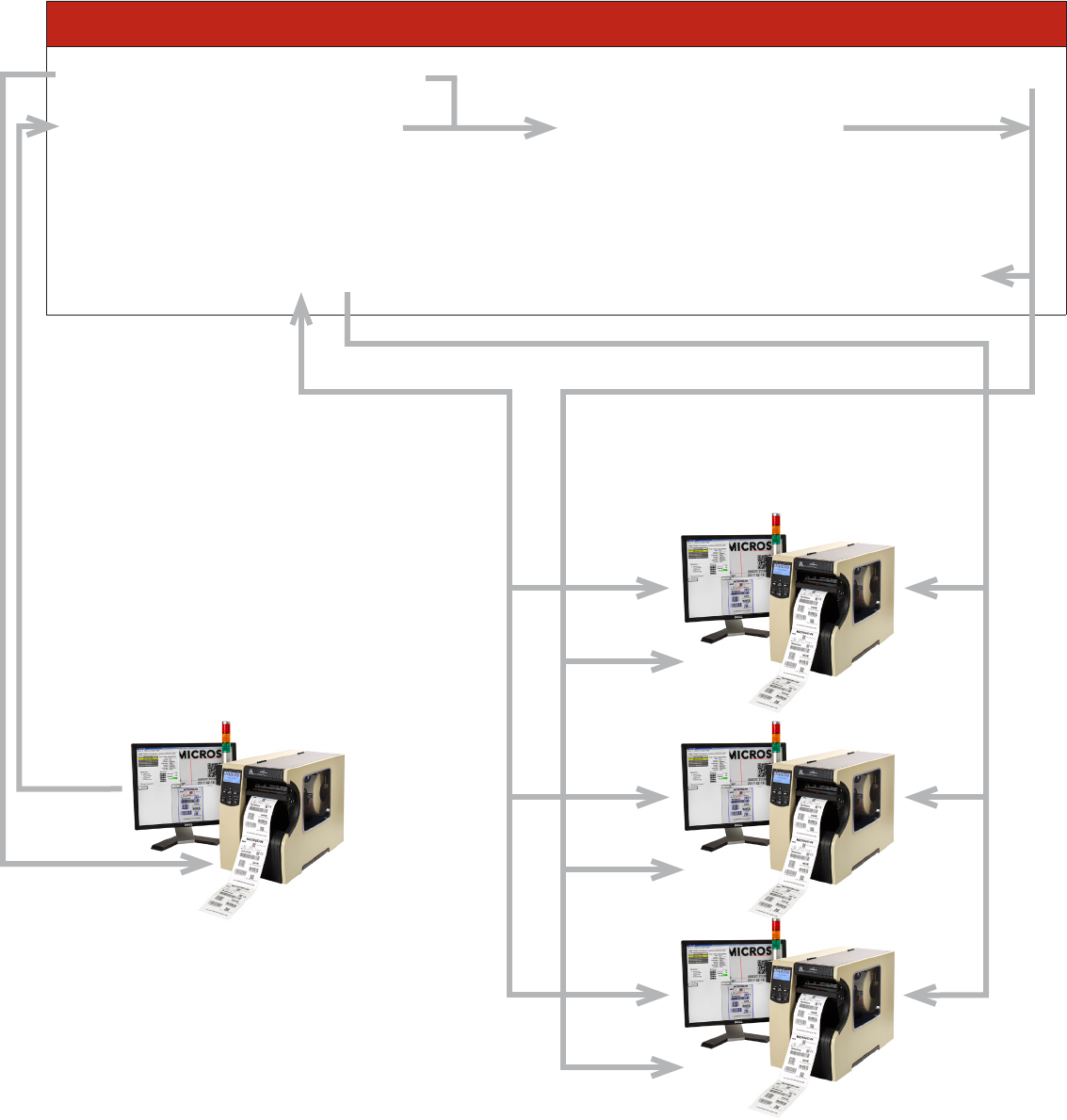

System Overview
Print Job Template Design
Design Mode
Production Mode
Print Job Execution
JOBS
JOBS
JOBS
JOBS

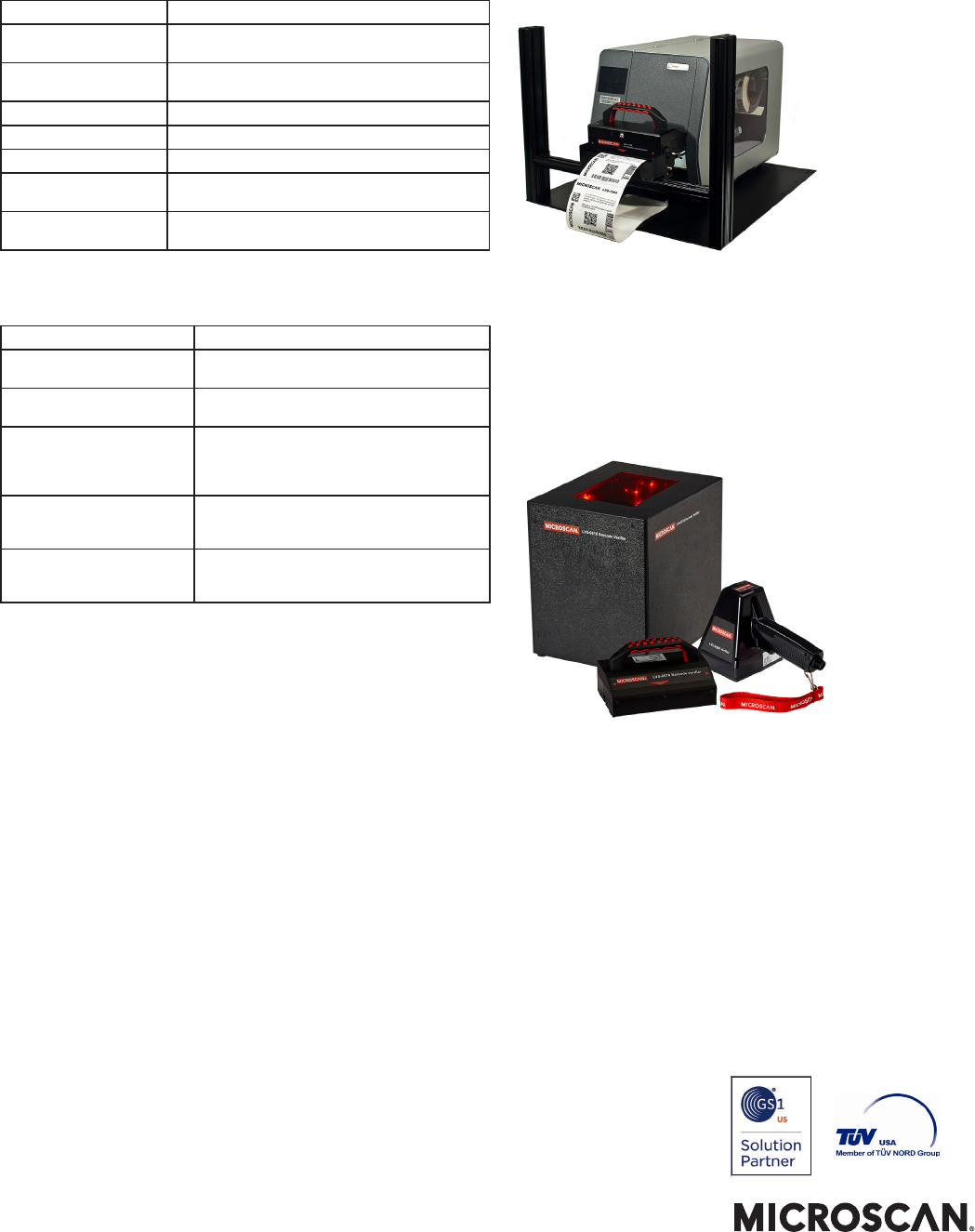

ALSO AVAILABLE FROM MICROSCAN
LVS-7500 External System
For use with a broad variety of thermal label printers that have
I/O interface capability. Adjustable stainless steel mounting
brackets allow the read head to be mounted and matched to the
height of the printer. The user’s printer is placed onto the steel
base plate where the printer discharge aligns to the LVS-7500
read head.
LVS-95XX Series Barcode Verifiers
Off-line solutions include the LVS-95XX series of barcode veriers,
which evaluate the quality and data integrity of 1D and 2D symbol-
ogies to ISO, ANSI, and GS1 standards.
LVS–7510
Thermal Printer Label Inspection System
SAFETY CERTIFICATIONS
DESIGNED FOR
FCC, CE, UL
RoHS COMPLIANT
QMS CERTIFICATION
www.microscan.com/quality
©2017 Microscan Systems, Inc. ML064C-EN-0617
Warranty – For current war ranty information about this product,
please visit www.microscan.com/warranty.
www.microscan.com
ISO 9001 Registered
AVAILABLE MODELS
Printer Model Number Description
7510P-5-110Xi4-300DPI LVS-7510 5" System w/LT, Zebra 110Xi4 Kit, 300 dpi
with Printer
7510P-5-110XI4-600DPI LVS-7510 5" System w/LT, Zebra 110Xi4 Kit, 600 dpi
with Printer
7510P-5- 170XI-300DPI LVS-7510-5-170XI4-300DPI, Integrated with Printer
7510P-8- 170XI-300DPI LVS-7510-8-170XI4-300DPI, Integrated with Printer
7510P-8- 2200XI-300DPI LVS-7510-8-220XI4-300DPI, Integrated with Printer
7510P-5-T8304 LVS-7510 5" System w/LT, Printronix T8304, Integrated
with Printer
7510P-8-T8308 LVS-7510 8" System w/LT, Printronix T8308, Integrated
with Printer
Contact Microscan for additional models not listed here.
SPECIFICATIONS
Maximum Print Speed Up to 254 mm/sec (10"/sec)
Supported Print Widths Up to 216 mm (8.5") of label width inspected,
maximum web width of 220 mm (8.7").
Barcode Verification Grading according to ISO 15415 and ISO 15416
of 1D and 2D codes.
Minimum Barcode Dimension
For reading only: 1D = 0.160 mm (0.0063")
2D = 0.254 mm (0.0100")
For verication: 1D = 0.223mm (0.0088")
2D = 0.317 mm (0.0125")
OCR Fonts Supported
Minimum 6-point font, Latin-based fonts,
Mono-spaced fonts, OCR-B for upper and
lower case, maximum of 39 characters.
Label Sizes
Up to 300 mm (12") long labels, with ability to
inspect multiple labels across the 216 mm
(8.5") width of the label roll.
SYSTEM PERFORMANCE AND REQUIREMENTS
• Inspects at print speeds of up to 254 mm/sec (10"/sec)
• Requires PC for each connected printer, with Intel® Quad Core
2.6GHz processor, 4GB RAM, 500 GB storage
• Windows® 7, Windows® 8.1 Pro, or Windows® 10 Pro
SERVICES AND ACCESSORIES
• Optional PDF Comparator Software is available
• IQ/OQ validation procedure guidelines are available
• On-site installation and training services
