LVS® 95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 2 of 18

Microscan Systems, Inc.

Tel: +1.425.226.5700 / 800.762.1149

Fax: +1.425.226.8250

purpose of allowing customers to operate and/or service Microscan manufactured equipment and is

not to be released, reproduced, or used for any other purpose without written permission of

Microscan.

Throughout this manual, trademarked names might be used. We state herein that we are using the

names to the benefit of the trademark owner, with no intention of infringement.

GS1 Solution Partner

Disclaimer

The information and specifications described in this manual are subject to change without notice.

Latest Manual Version

For the latest version of this manual, see the Download Center on our web site at:

www.microscan.com.

Technical Support

For technical support, e-mail: helpdesk@microscan.com.

Warranty

For current warranty information, see: www.microscan.com/warranty.

Microscan Systems, Inc.

United States Corporate Headquarters

+1.425.226.5700 / 800.762.1149

United States Northeast Technology Center

+1.603.598.8400 / 800.468.9503

European Headquarters

+31.172.423360

Asia Pacific Headquarters

+65.6846.1214

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 3 of 18

No part of this publication may be reproduced or transcribed, stored in a retrieval system,

computer or otherwise, in any form or by any means, magnetic, mechanical, electronic,

optical, manual, or otherwise, and may not be translated into any language without the

express written permission of Microscan Systems, Inc. (“Microscan”). Information in this

document may be changed or updated without notice.

All Microscan publications contain proprietary confidential information of Microscan ,and

possession and use of such proprietary confidential information is subject to restrictions set

forth by Microscan as described in the applicable non-disclosure agreements and/or license

agreements with Microscan. Any use of this publication and related materials beyond the

terms of said agreements is prohibited, and Microscan reserves all rights in this publication

and related materials.

The name Microscan is a registered trademark of Microscan Systems, Inc.

IMPORTANT

• While all information contained in this document is believed to be

accurate and complete, the continual improvements of Microscan

products may cause information in this document to become outdated.

Contact Microscan or your distributor if you have product questions or to

verify you have the most current version of the document.

• The information in this guide is for informational purposes only. It is not

intended for use as an Operations Manual.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 4 of 18

IMPORTANT: Read This Before You Continue

Contact Microscan

If any of the steps in this document do not resolve your issue, contact your local

Microscan Distributor or Microscan Headquarters for technical support:

MICROSCAN HEADQUARTERS:

Phone: 1-425-226-5700 +1-800-762-1149

E-mail: helpdesk@microscan.com

Microscan representatives are available Monday through Friday, 9:00 a.m. to 4:00 p.m.

(EST/EDT).

GLOBAL DISTRIBUTORS:

Microscan serves the entire world with vision inspection solutions. To locate an

authorized Microscan distributor, log on to www.microscan.com and click the “Contact

Us” tab. You will find a list of authorized Microscan distributors located around the

world.

Helpful Notes

1. DO NOT unplug or plug in your LVS-95XX system USB while the software is open.

2. If there is only one admin account (with permissions to add\remove operators), this

account will never be locked out on software version 3.0.9HH and higher.

3. Default admin account: Operator ID: admin Password: admin

4. Prior to calibration, clean your system according to the cleaning instructions in the

Operations manual to avoid calibration issues.

5. The I9500.mdb file is the LVS-95XX database; this is where your factory calibration

is stored. When installing on a new computer from a link, you will be notified that

Factory Calibration is missing. Go to the original installation media (installation

flash drive) and recover your i9500.mdb file. (See appendix J in the manuals

folder)

6. On-site or on-line training is available for your LVS-95XX system. For more

information, contact info@microscan.com.

7. Throughout this document, “Calibrated Conformance Standard Test Card” is

referred to as “Calibration Card.”

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 5 of 18

Table of Contents

Below are the questions featured in this document. Click on the question to directly access

the answer, or simply scroll down the document to access the question and answer.

Q1. How can I acquire an Operations Manual? ................................................................. 6

Q2. How do I reset my password? ..................................................................................... 6

Q3. When logging onto my system, I am receiving the following error message: “The

machine is not authorized to perform this function.” .................................................... 8

Q4. How do I acquire the latest software updates? ......................................................... 10

Q5. My code is graded an “F” and the following message appears: “Required <FNC1>

not found.” Why is it that when I switch application standards to ISO/IEC

15415/15416, I do not receive the error message? ................................................... 10

Q6. Why am I receiving a “Calibration Failed” message when I attempt to calibrate? ..... 11

Q7. How do I replace the light tray on my LVS-95XX system? ........................................ 12

Q8. How do I perform Factory Calibration? ...................................................................... 12

Q9. I have placed a label in the field of view. Why does the picture remain black? ......... 12

Q10. How can I change the format of my reports? ............................................................ 13

Q11. How can I send a barcode to Microscan for analysis when the barcode is receiving

failing or poor grades? ............................................................................................... 13

Q12. How do I activate an optional feature? ...................................................................... 14

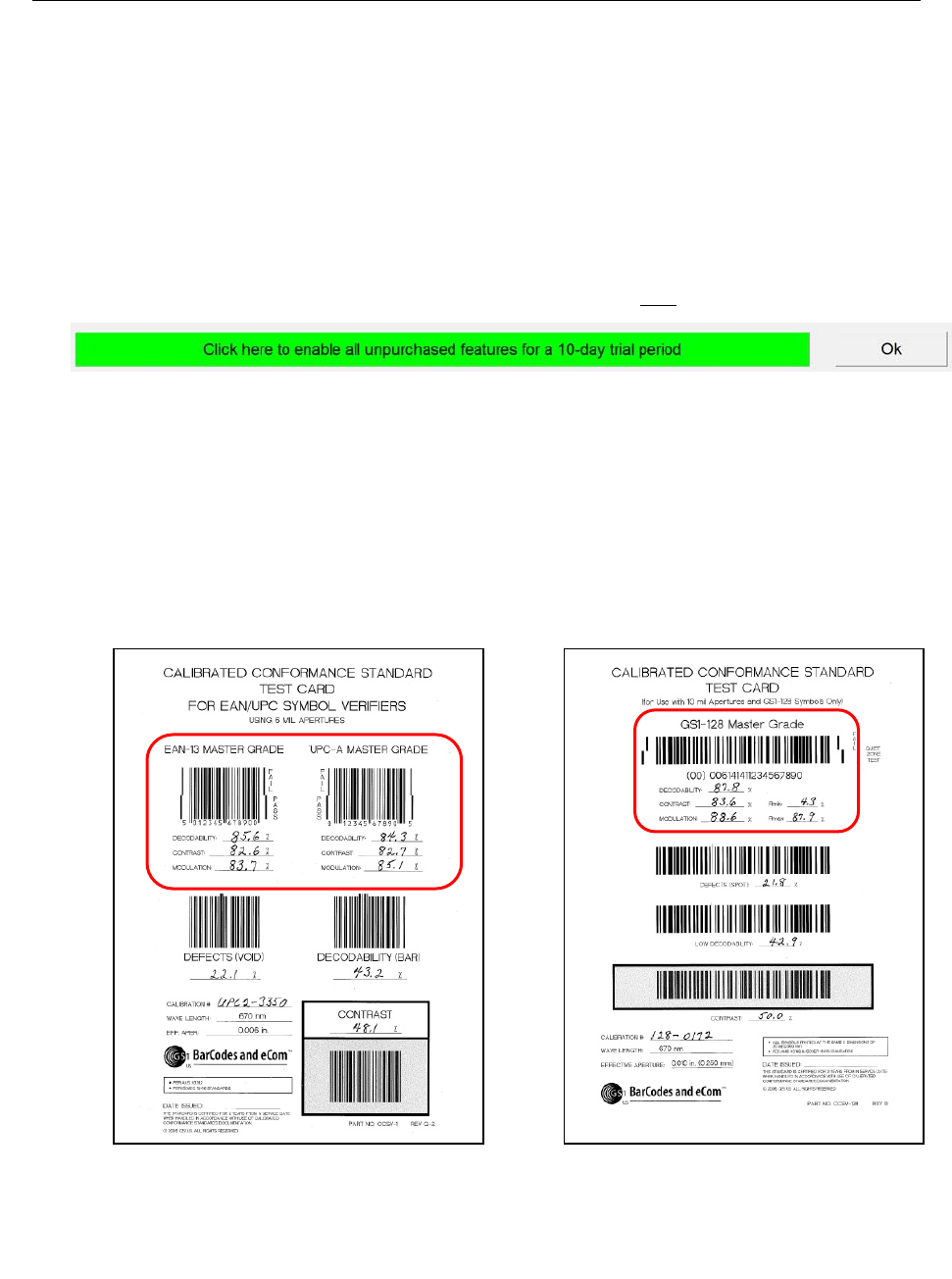

Q13. What symbol do I use for calibration on my Calibration Card? ................................. 15

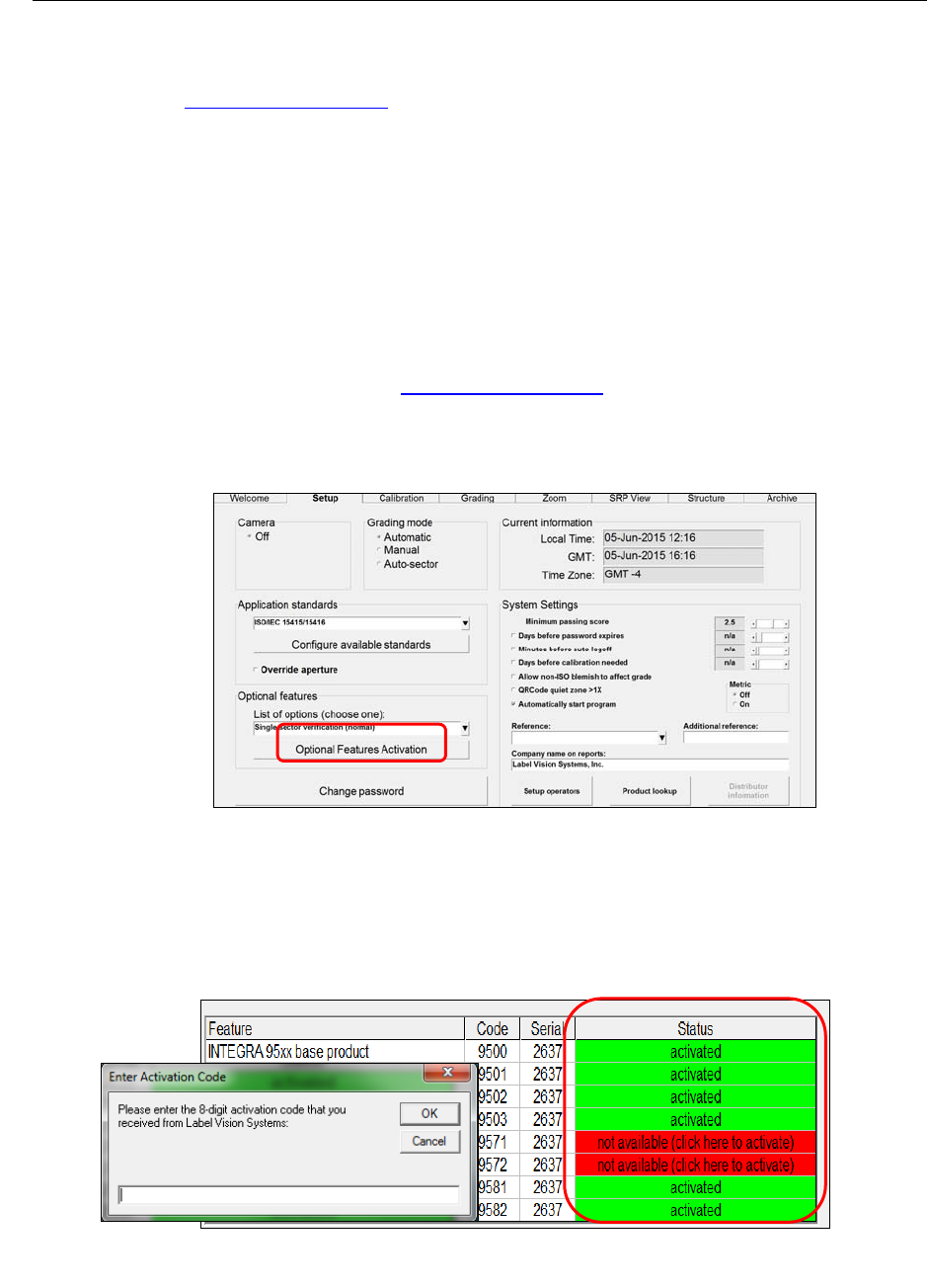

Q14. Is it acceptable if my calibration values measured do not match exactly, but

calibration passes? .................................................................................................... 16

Q15. When does my calibration card expire? .................................................................... 16

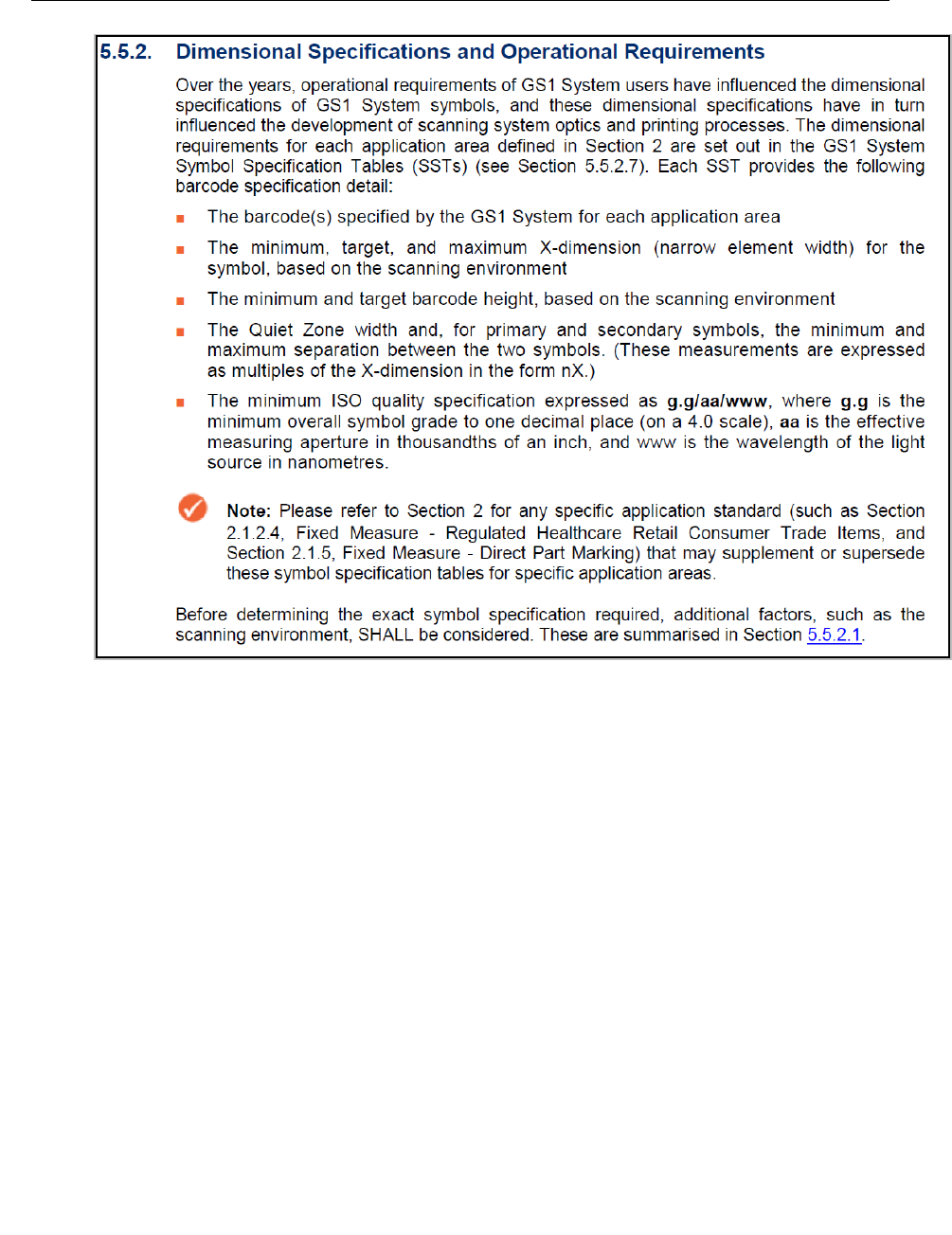

Q16. What are GS1 System Symbol Specification Tables? .............................................. 17

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 6 of 18

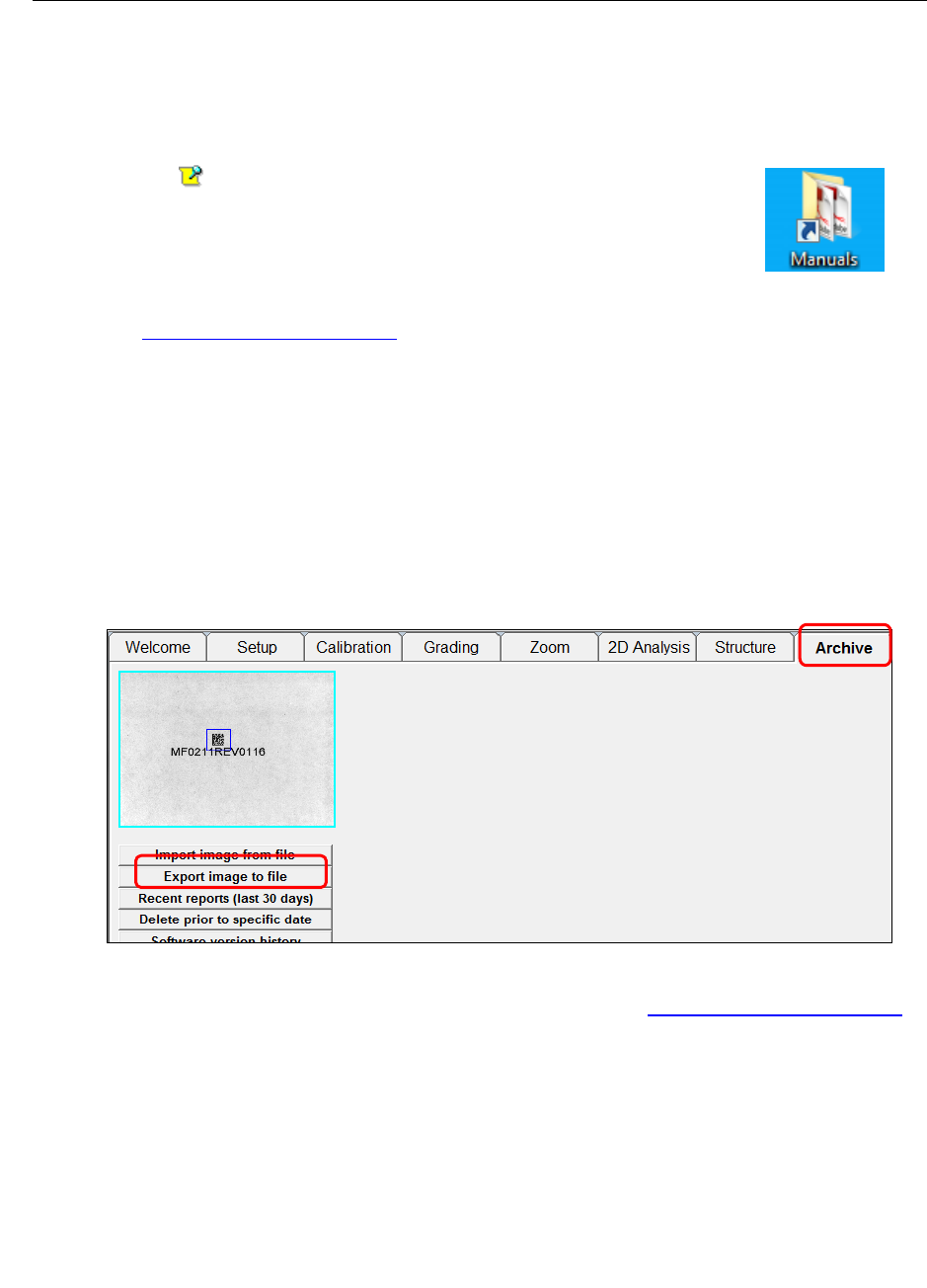

Q1. How can I acquire an Operations Manual?

An electronic version of the “LVS-95XX Series Operations Manual” in .pdf

format is located on the Installation media (installation flash drive) that came

with the software. After the LVS-95XX software is installed, a shortcut to the

“Manuals” folder is automatically saved on the computer desktop. If you do

not have the Installation media or the “Manuals” folder, contact

helpdesk@microscan.com for a quote.

Q2. How do I reset my password?

• If there is only one administrator account (with permissions to add\remove

operators), this administrator account will never be locked out on software

versions 3.0.9HH and higher.

• The administrator can unlock the account by following the instructions in Step 3

below.

• After three attempts to login with an incorrect password, the system locks out

the operator. If the locked out account is an administrator, use the secondary

administrator to unlock the account. If all administrator accounts are locked out,

you are required to have the password of the day.

1. Contact Microscan to obtain the password of the day.

2. Log in to the LVS-95XX software. Enter lvs in the “Operator ID” field. Enter the

password of the day obtained by Microscan in the “Password” field. Click the

“OK” button. You are now logged in to the LVS-95XX software.

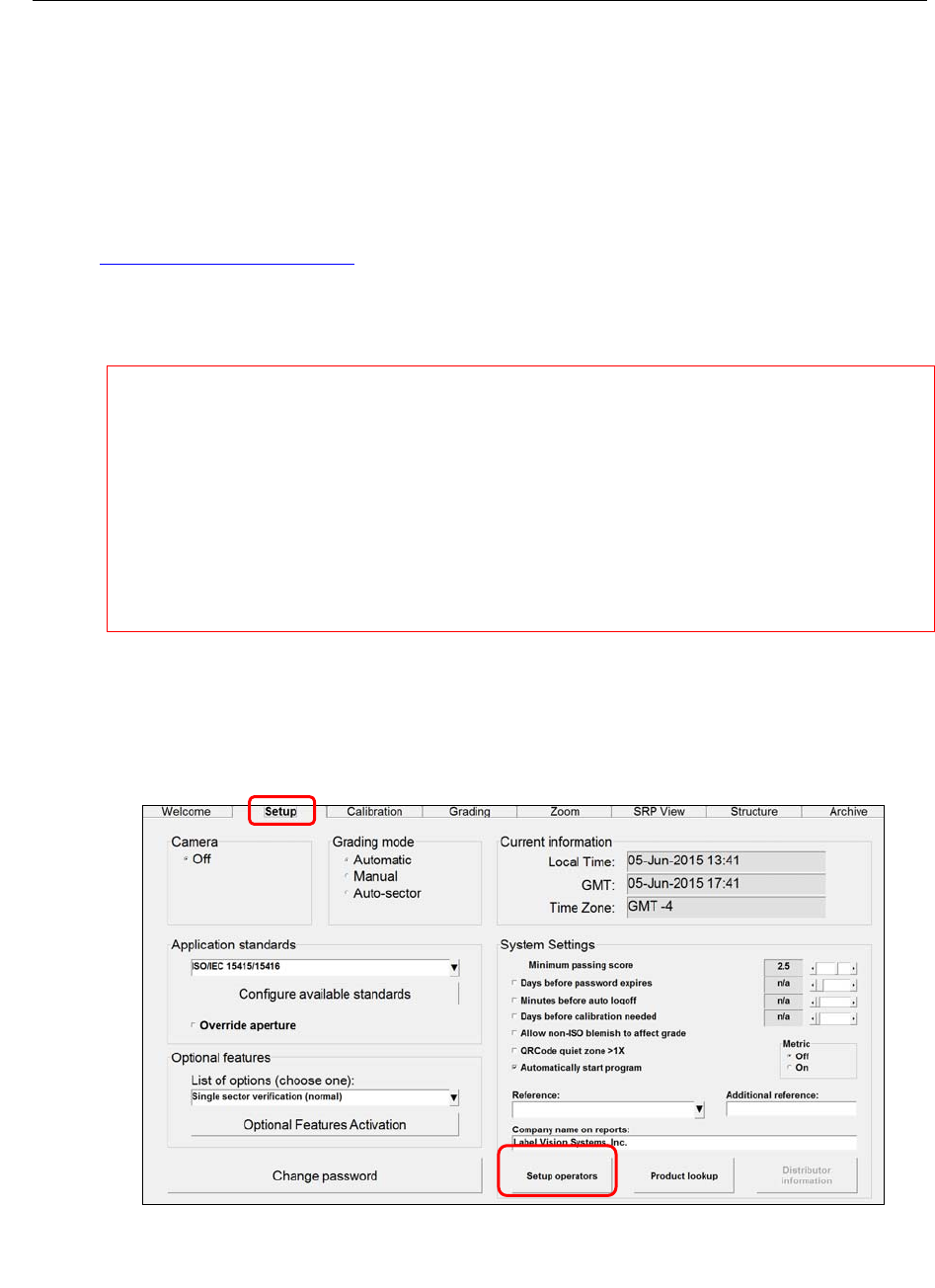

3. Click the “Setup” tab and then click the “Setup Operators” button.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 7 of 18

4. Select the desired operator name from the “Operators” list.

5. Click the “Change this operator” button.

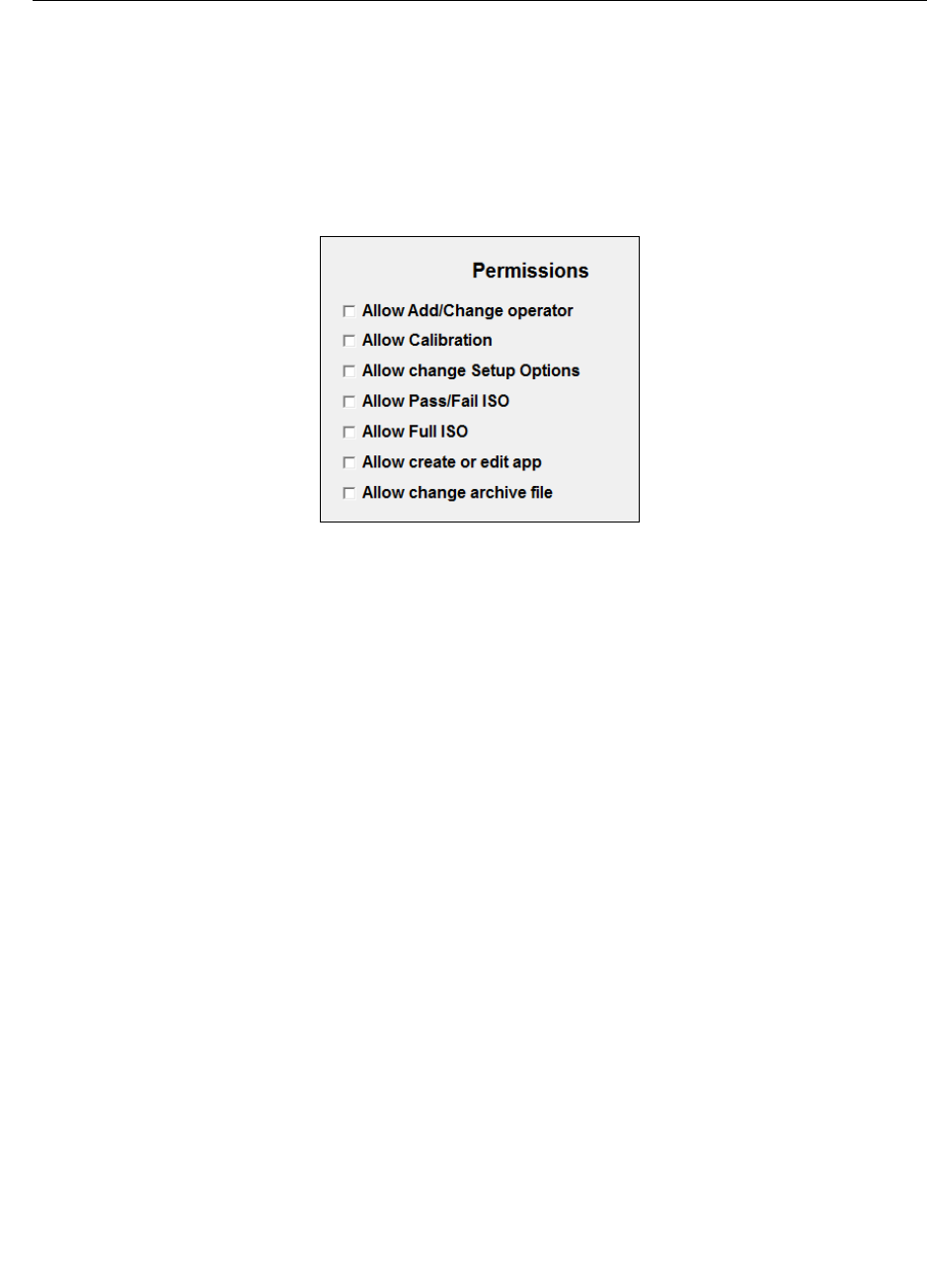

6. Uncheck, and then recheck any of the permissions (see below).

7. Click the “Save Changes” button, and then click the “Done” button.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 8 of 18

Q3. When logging onto my system, I am receiving

the following error message: “The machine is

not authorized to perform this function.”

This error message is typically a result of the USB serial dongle not being

recognized. To resolve this issue, close the LVS-95XX software and unplug the USB

from your computer that is attached to the system. Plug back in another USB port on

your computer wait 10 seconds. Then, reopen the software. If this step does not

resolve the issue, follow the remaining steps.

Make sure that you have administrator privileges to the computer prior to install.

1. Close the LVS-95XX software.

2. Unplug the USB cable of the Microscan system from the computer.

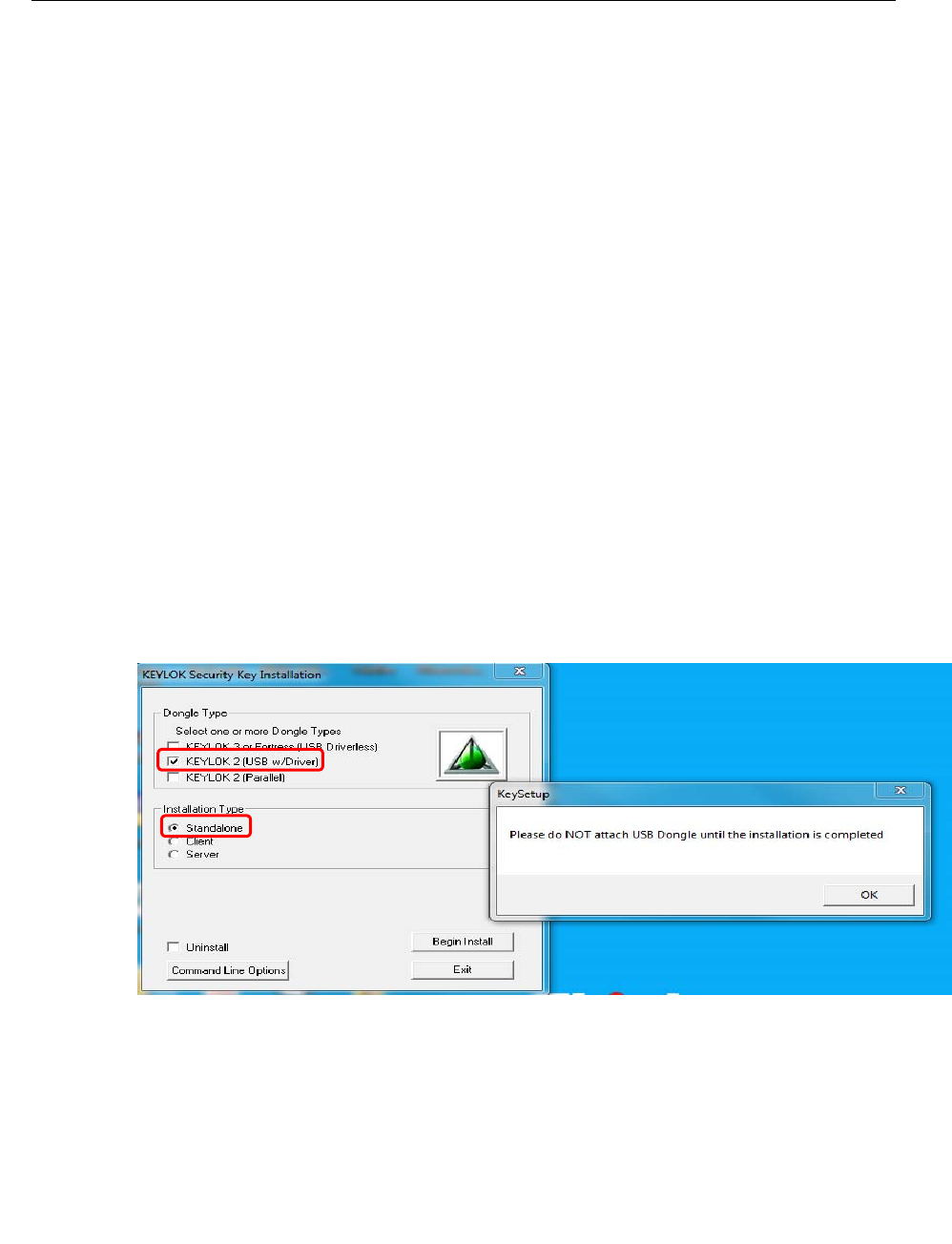

3. Go to Installation Flash Drive  “Other setup” folder  click “Keysetup.exe.”

4. Select “Keylok 2 (USB w/ Driver)” and “Standalone.”

5. Click the “Begin Install” button. A message appears indicating that all files

have been copied. Close the dialog box.

6. Plug in the USB cable.

7. Windows should report a "New hardware found” message. Select “No, not

this time.”

8. On the next screen, select “Install software automatically.”

9. Click “Finish.”

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 9 of 18

10. Run the LVS-95XX software. You should be able to correctly log on to your

system and the “The machine is not authorized to perform this function”

message should not appear. If the message appears, follow the next step.

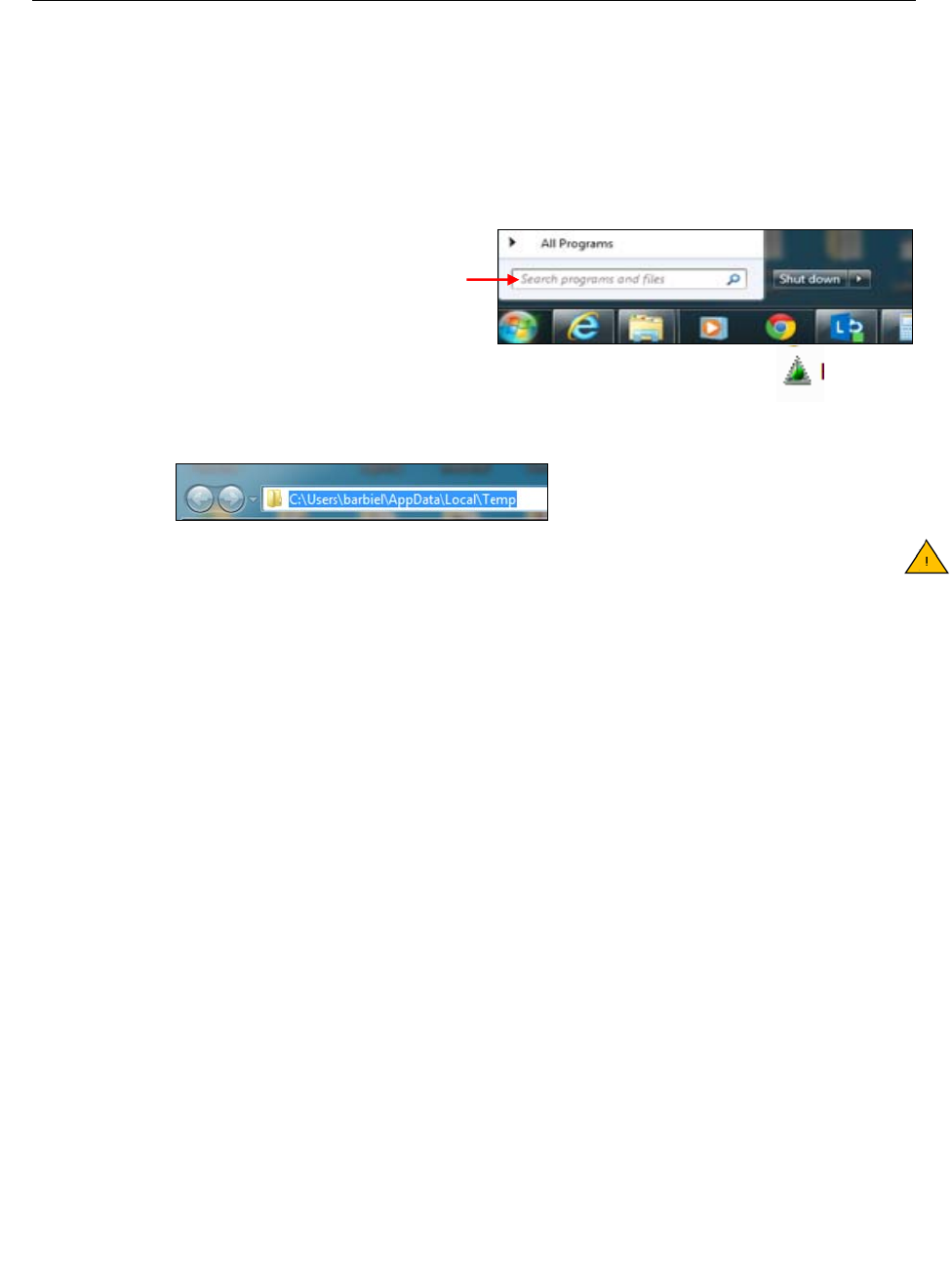

11. If the “The machine is not authorized to perform this function” appears again,

and this is a new installation, click on the Windows search bar and search for

%temp%.

12. Open the temp folder and scroll down to locate the Keyloc icon.

13. If the icon is present, go to the address bar and copy the file path.

14. Open your Device Manager and click on the USB that has the warning icon.

15. Right-click and select “Update Driver Software.”

16. Select “Browse my computer for driver software” and paste in the link copied

from the address bar from the temp file into the browse bar.

17. Click “Next.” The drivers will be automatically installed.

18. If the issue persists, please make sure that firewalls are allowing for

installation.

In the search field enter: %temp%

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 10 of 18

Q4. How do I acquire the latest software updates?

1. Send an e-mail to helpdesk@microscan.com and request the latest version of

software for your system. In the e-mail, include the following:

• System Model (LVS-9510, LVS-9570, LVS-9580)

• System Serial Number (located on system)

• Current version of software that you are running (located on “Welcome”

tab)

• Windows Operating System that you are using

2. Microscan will send you a link to download the latest software. Do not plug in

your system until installation is complete. Make sure that you have administrator

privileges to download the software. Save the software to your desktop and unzip

the extract files prior to installing. You MUST install the software with

administrative rights.

3. Prior to installation, copy your i9500.mdb (the path can be found on the “Archive”

tab  “Change SQL Connection” button  Data Source). Save the file to place

back into the specified folder when complete. If you do not save off your

i9500.mdb file, you will be prompted when opening the software to perform a

factory calibration or that factory calibration is not found.

4. Double-click on “setup exe” to install the software and follow the prompts

accordingly.

5. After installation is complete, connect the USB to your LVS-95XX system.

Right-click on the LVS-95XX icon and run as an administrator.

Q5. My code is graded an “F” and the following

message appears: “Required <FNC1> not

found.” Why is it that when I switch

application standards to ISO/IEC

15415/15416, I do not receive the error

message?

<FNC1> is a special character reserved for GS1-compliant symbols when using

Code 128, QR code or Data Matrix. If “GS1 General Specifications” is selected as

the Application Standard on the “Setup” tab, and FNC1 is not encoded in the first

position of the code, the code will automatically be graded an “F” since it is not GS1

compliant. If the code is intended to be GS1 compliant, notify the originator that

ISO/IEC 15415/15416 does not require that FNC1 be present. If you are not grading

a GS1 barcode, change your Application Standard on the “Setup” tab to “ISO/IEC

15415/15416.”

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 11 of 18

Q6. Why am I receiving a “Calibration Failed”

message when I attempt to calibrate?

Follow the suggestions below:

1. Make sure your system is clean and free of debris, dust, dirt, oils or other

contaminates.

2. If using an LVS-95XX, use the top cover provided with the system and turn

off any overhead lighting. Then, turn on the system and check that all LEDs

are illuminated on the light tray; if they are not, the light tray will need to be

replaced.

3. Confirm that the serial number on the LVS-95XX system matches the serial

number on the Installation Flash Drive.

4. Confirm the following on your calibration card:

• The serial number on the calibration card matches the serial number

on the LVS-95XX system

• The values on the GS1 CC match the “Goal” values on the

“Calibration” tab (Decodability, Contrast, Modulation, and Rmax)

• The calibration card it is not expired

• The calibration card is not damaged

5. If calibration does not pass after attempting the above suggestions, contact

Microscan technical support (helpdesk@microscan.com) and provide the

following information:

• LVS-95XX system model number (example: LVS-9510)

• LVS-95XX system serial number (located on system)

• LVS-95XX software version running on your computer (located on

“Welcome” tab)

Runtime 214:

• “Runtime 214” will be shown if the USB is unplugged while the software is

running. Close the software, plug in the USB and restart the software.

• “Runtime 214” can also be associated with older revisions of software, which

is an indication that your database is full or corrupt. This issue can be

resolved by updating the software and performing a Factory Calibration.

Prior to updating the software, if you wish to keep previous data, you must

save off the i9500.mdb file and rename it or copy it from your installation

media as described in “Appendix J: Factory Calibration Not Found.”

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 12 of 18

Q7. How do I replace the light tray on my

LVS-95XX system?

Send an e-mail to helpdesk@microscan.com and request a quote for a light tray. In

your e-mail, include the model number and serial number of your LVS-95XX system.

When you receive the light tray, replacement instructions are included with the

package.

Q8. How do I perform Factory Calibration?

Read the instructions in “Appendix J: Factory Calibration Not Found” located on the

installation media (installation flash drive) that came with your system. If you do not

have the installation media that came with your system, contact

helpdesk@microscan.com.

To perform Factory Calibration, you must contact Microscan Technical Support for

the password of the day: helpdesk@microscan.com

Q9. I have placed a label in the field of view. Why

does the picture remain black?

1. Make sure the system camera is turned on. Do this by clicking the “Setup” tab.

Within the “Camera” section, make sure the “ON” option is selected. If this step

does not work, follow the remaining steps.

2. Shut down the LVS-95XX software.

3. Right-click on “My Computer”  select “Properties”  “Hardware” tab  “Device

Manager” button.

4. Locate an entry called “Imaging Devices.” If the entry exists, check that it

contains a “Lumenera Imaging Device” or a “Microscan camera.” If the entry

does not exist, contact Microscan Technical Support at

helpdesk@microscan.com.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 13 of 18

Q10. How can I change the format of my reports?

1. Refer to “Appendix G: Special Features” for detailed instructions on changing

report formats.

Note: When you install the LVS-95XX software, a

shortcut icon labeled “Manuals” (see right) is automatically

installed on the computer’s desktop. This shortcut contains

“Appendix G: Special Features.”

2. Some changes require you to have the password of the day. Contact

helpdesk@microscan.com to obtain the password of the day.

Q11. How can I send a barcode to Microscan

for analysis when the barcode is receiving

failing or poor grades?

1. Place your barcode on the system window (grading is not required).

2. Click the “Archive” tab and select “Export image to file.”

3. Save the image as a .bmp.

4. Send an e-mail to Microscan Technical Support (helpdesk@microscan.com)

and include the .bmp, the report from the image and below information:

• LVS-95XX model number (such as LVS-9510)

• LVS-95XX serial number (located on system)

• LVS-95XX software version running on your computer (located on

“Welcome” tab)

5. Microscan will send you a report defining the issues of the barcode up to a

maximum of five barcodes.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 14 of 18

If you have more than five barcodes that you would like analyzed and verified

by Microscan, you must send an e-mail to the Microscan sales team

(info@microscan.com) and request a quote for barcode analysis. Include the

following information in your e-mail:

• The number of barcodes you want analyzed and verified

• LVS-95XX serial number and model number

• LVS-95XX software version running on your computer

Q12. How do I activate an optional feature?

1. Optional features must be purchased through Microscan by sending an e-mail to

the Microscan sales team: info@microscan.com.

2. After the optional feature is purchased, you will receive an 8-digit activation code.

3. Click the “Setup” tab and then click the “Optional Features Activation” button.

4. Under the “Status” column, click on the optional feature you wish to activate.

• Features highlighted in green are activated.

• Features highlighted in red are not activated. To activate the feature,

double-click in the red area and enter the 8-digit authorization code when

prompted.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 15 of 18

5. Close and then reopen the LVS-95XX software. The optional feature is now

activated.

6. Detailed instructions on using each optional feature is documented in

“Appendix G: Special Features” located in the “Manuals” folder.

Optional Features Trial Period

All unpurchased optional features can be enabled for a free 10-day trial period (the

“Enhanced Application Identifier Verification” feature requires training prior to use). Click

on the green area at the bottom of the screen (see below) to enable an optional feature

for the trial period. An optional feature can be selected only one time for the trial period.

Q13. What symbol do I use for calibration on my

Calibration Card?

1. Microscan supplies two calibration cards: EAN/UPC and GS1-128 (see examples

below). You will receive the calibration card that is to be used to calibrate your

LVS-95XX system; this card will be the ONLY calibration card that you will use

for calibration purposes. Locate your calibration card and follow the remaining

steps.

EAN/UPC Calibrated Conformance

Standard Test Card GS1-128 Calibrated Conformance

Standard Test Card

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 16 of 18

2. EAN/UPC Calibration Cards:

a. Choose the appropriate “Master Grade” barcode. The “EAN-13 Master

Grade” code is used to calibrate systems in Europe. The “UPC-A Master

Grade” code is used to calibrate systems within the United States.

b. Place the calibration card in the system’s field of view.

c. Choose one of the “Master Grade” barcodes and place it so the blue line

goes through the middle of the “PASS” portion of the barcode.

d. Confirm that the “Goal” values in the software (on the “Setup” tab) match the

values on the calibration card. If the values do not match, confirm that you

have the correct calibration card for the LVS-95XX system serial number

(located on system) that you are calibrating.

3. GS1-128 Calibration Cards: Larger fields of view require a “GS1-128”

calibration card. Use the “PASS” portion of the GS1-128 barcode to calibrate

your system.

Q14. Is it acceptable if my calibration values

measured do not match exactly, but

calibration passes?

The ISO\IEC 15426 requirements for verifiers allows for a tolerance (+\- )

Parameter Symbology Type Tolerance

Rmax Both ± 5% reflectance

Rmin Both ± 3% reflectance

UEC Both ± 0%

Decodability Multi-row ± 8%

Defects Multi-row ± 8%

Codeword Yield Multi-row ± 8%

Grid Nonuniformity Matrix ± 6%

Modulation Matrix ± 8% of the value (Measured for

the reduced dark window on a

calibrated test symbol card)

Fixed Pattern Damage Matrix Within calibrated grade

boundaries

Q15. When does my calibration card expire?

Calibration cards expire two years from the issue date on your card. Please

make sure that you keep current to avoid any audit findings. To replace your

calibration card, contact helpdesk@microscan.com.

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 17 of 18

Q16. What are GS1 System Symbol Specification

Tables?

IMPORTANT: Microscan is providing training sessions to help you understand

the new changes to the GS1 System Symbol Specification Tables and how they

affect your organization.

• Training sessions are held the second Tuesday of each month at 10:00 a.m.

EST/EDT (schedule permitting) and last approximately one hour. There will be

a Q&A at the end of training for participants to ask questions.

• The sessions are conducted remotely using GoToMeeting's conferencing

software (www.gotomeeting.com).

• Unlimited number of participants allowed per organization

• To request a training session, please send an e-mail to info@microscan.com.

To meet the evolving needs of data carriers and their use within the GS1 System,

GS1 has updated the GS1 System Symbol Specification Tables within the “GS1

General Specifications” document.

Consideration should be given to how these changes affect barcode production and

the maintenance of quality in the production process.

GS1 System Symbol Specification Tables are specified by GS1 for each application

area, which include:

Table Description

Table 1 Trade Items Scanned in General Retail POS and not General

Distribution

Table 2 Trade Items Scanned in General Distribution Only

Table 3 Trade Items Scanned at General Retail POS and General Distribution

Table 4 Trade Items – Packages/Containers Not Scanned at POS or General

Retail

Table 5 Trade Items Scanned in General Distribution that are Logistics Units

Table 6 Regulated Healthcare Non-Retail Consumer Trade Items Not Scanned

in General Distribution

Table 7 Direct Part Marking

Table 8 Trade Items Scanned in Pharmacy (Retail or Non-Retail) and General

Distribution

Table 9 GS1 Keys GDTI, GRAI, GIAI and GLN

Table 10 Regulated Healthcare Retail Consumer Trade Items Not Scanned in

General Distribution

Table 11 GS1 GSRNs

The GS1 System Symbol Specification Tables contain the following information for

each application, as defined in Section 5.5.2 of the “GS1 General Specifications”

document (Version 15, Issue 2, Jan-2015):

LVS-95XX Frequently Asked Questions

LVS-95XX Frequently Asked Questions Page 18 of 18

The following pages provide additional information on the GS1 System Symbol

Specification Tables and is taken directly from the “GS1 General Specifications”

document (Version 15, Issue 2, Jan-2015).

GS1 General Specifications

Section 5: Data Carriers

Note: If an item is a General Retail Consumer Trade Item and Regulated Healthcare

Retail Consumer Trade Item then the barcode marking for general retail is required at a

minimum.

Figure 5.5.2.6.1-3. Summary of the Symbol Specification Tables per following Figure 5.5.2.6.1 - 2 GS1

Symbology Operational Environment Decision Tree

Symbol

Spec.

Tables

General

Retail

POS

Retail

Pharmacy * Non-

Retail

Pharmacy

Non-Retail

Non-

Healthcare

General

Distribution Direct

Part

Marking

Logistics

Unit

(SSCC)

GIAI,

GRAI,

GLN

GSRN

Table 1

Yes

Table 2

Yes

Table 3

Yes

Table 4

Yes

Table 5

Yes

Table 6

Yes

Table 7

Yes

Table 8

Yes

Table 9

Yes

Table 10

Yes

Table 11

Yes

* Table 6 should be used for products scanned at bedside

5.5.2.7. GS1 System Symbol Specification Tables

In order to find the correct barcode specification, you must:

■ Find the appropriate GS1 System application area using Figure 5.5.2.6 - 1.

■ If the application area references two Symbol Specification Tables, use the decision

tree in Figure 5.5.2.6.1 - 2 to determine which one to use.

Figure 5.5.2.7 - 1 provides a quick reference list of the symbol quality parameters depending on

their type and their application.

Figure 5.5.2.7-1. Quick Reference on Symbol Quality

Symbology Application or ID Key ISO (ANSI)

Symbol Grade Aperture Wavelength

EAN/UPC GTIN-8 1.5 (C) See Symbol

Specification Tables

1, 2, 3, 4, 6, 8 and

10 for values

660 nm +/-10

EAN/UPC GTIN-12 1.5 (C) See Symbol

Specification Tables

1, 2, 3, 4, 6, 8 and

10 for values

660 nm +/-10

EAN/UPC GTIN-13 1.5 (C) See Symbol

Specification Tables

1, 2, 3, 4, 6, 8 and

10 for values

660 nm +/-10

GS1-128 GTIN-12, GTIN-13,

GTIN-14 1.5 (C) See Symbol

Specification Tables

2, 4, 5, 6, 8, 9 and

10 for values

660 nm +/-10

GS1-128 SSCC 1.5 (C) 10 mils 660 nm +/-10

GS1 General Specifications

Section 5: Data Carriers

Symbology Application or ID Key ISO (ANSI)

Symbol Grade Aperture Wavelength

ITF-14 (<0.635 mm

(0.025 in.) X) GTIN-12, GTIN-13,

GTIN-14 1.5 (C) See Symbol

Specification Tables

2, 4, 6, 8, and 10 for

values

660 nm +/-10

ITF-14 (≥0.635 mm

(0.025 in.) X) GTIN-12, GTIN-13,

GTIN-14 0.5 (D) 20 mils 660 nm +/-10

Composite GTIN-8, GTIN-12,

GTIN-13,GTIN-14 and

other AIs

1.5 (C) 6 mils 660 nm +/-10

GS1 DataBar GTIN-8, GTIN-12,

GTIN-13,GTIN-14 and

other AIs

1.5 (C) See Symbol

Specification Tables

1, 2, 3, 4, 6, 8 and

660 nm +/-10

GS1 DataMatrix Direct Part Marking,

Regulated Healthcare

Retail or Non-Retail

Consumer Trade

Items Extended

Packaging

1.5 (C) See Symbol

Specification Tables

6, 7, 8, 9, 10 and 11

Table 1 Addendum

for values.

660 nm +/-10

GS1 QR Code Direct Part Marking,

Custom Trade Item,

Extended Packaging

GDTI, and GSRN

1.5 (C) See Symbol

Specification Table

1 Addendum, 7, 9,

and 11 for values.

660 nm +/-10

Note: An EAN/UPC-based symbol SHALL be verified using a 6 mils (0.006 inch)

aperture, a 660 nanometres +/-10 nanometres wavelength of light, and requires a

minimum symbol grade of 1.5 (overall symbol grade on a 4.0 scale) equivalent to a “C”

under the ANSI X3.182 standard. In the Symbol Specification Tables that follow, as well

as on a typical barcode purchase order, this is expressed as 1.5/06/660.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.1. Symbol Specification Table 1 - Trade Items Scanned in General Retail POS and

not General Distribution

Figure 5.5.2.7.1-1. GS1 System Symbol Specification Table 1

Primary

Symbol(s)

Specified

X-d

imension

mm (inches) (**)

Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

(*)

Minimum Target Maximum For Minimum

X-dimension For Target

X-dimension For Maximum

X-dimension Left Right

EAN-13 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70 (1.800") 11X

7X 1.5/06/660

EAN-8 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 14.58 (0.574") 18.23 (0.718") 36.46 (1.435") 7X

7X 1.5/06/660

UPC-A 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70 (1.800") 9X

9X 1.5/06/660

UPC-E 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70 (1.800") 9X

7X 1.5/06/660

GS1 DataBar

Omnidirectio

nal

(****)

0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 12.14 (0.478”) 15.19 (0.598”) 30.36 (1.195”) None None 1.5/06/660

GS1 DataBar

Stacked

Omnidirectio

nal

(***)

(****)

0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260”) 25.10 (0.988 ”) 31.37 (1.235”) 62.70 (2.469”) None None 1.5/06/660

GS1 DataBar

Expanded 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 8.99 (0.354”) 11.23 (0.442”) 22.44 (0.883”) None None 1.5/06/660

GS1 DataBar

Expanded

Stacked

(*****)

0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.75 (0.738”) 23.44 (0.923”) 46.86 (1.845”) None None 1.5/06/660

Primary

Symbol(s)

Specified

Plus Add-

on 2 or 5

X-dimension

mm (inches)

(**) Minimum Symbol Height for

Given X

mm (inches)

Quiet

Zone

Min

separati

between

symbols

Max

separati

between

symbols

Quiet

Zone

Min.

Quality

Spec.

(*)

Minimum Target Maximum For Min.

X-

dimension

For Target

X-

dimension

For Max.

X-

dimension Left Right

EAN-13 + 2 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 11X 7X 12X 5X 1.5/06/ 660

EAN-13 + 5 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 11X 7X 12X 5X 1.5/06/ 660

UPC-A + 2 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 9X 12X 5X 1.5/06/ 660

UPC-A + 5 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 9X 12X 5X 1.5/06/ 660

UPC-E + 2 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 7X 12X 5X 1.5/06/ 660

UPC-E + 5 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 7X 12X 5X 1.5/06/ 660

GS1 General Specifications

Section 5: Data Carriers

(*) These barcodes may only be printed using an X-dimension below 0.264 millimetre (0.0104 inch) or 80 percent

magnification under the following conditions:

 The allowance for X-dimensions between 0.249 millimetre (0.0098 inch) or 75 percent magnification and

0.264 millimetre (0.0104 inch) or 80 percent magnification is only applicable to on demand (e.g., thermal,

laser) print processes. For all other printing processes, an X-dimension of 0.264 millimetre (0.0104 inch) is

attainable and is the minimum allowable size.

 When printing a minimum symbol with any method of printing, the area provided for printing the symbol and

the required Quiet Zone should never be less than the area required for an X-dimension of 0.264 millimetre

(0.0104 inch).

 When printing a minimum symbol with any method of printing, the symbol height SHALL never be truncated

below the minimum.

(**) The minimum symbol height dimensions listed for all symbologies including EAN/UPC Symbols do not include

the Human Readable Interpretation. The minimum heights of EAN/UPC Symbols do not include the extended

bars: see Section 5.2.1.4.2 for dimensions of the extended bars. Because of the operative scanning

environment for EAN/UPC Symbols, there is a direct relationship between the symbol’s height and width. This

means the minimum symbol height listed is tied to the minimum, target, and maximum X-dimension listed.

There is no maximum for the height, but if the maximum X-dimension is used, the symbol height must be equal

to or greater than those listed in the Minimum Symbol Height column. For GS1 DataBar Expanded Stacked

symbols, the table reflects the minimum symbol height for symbols that are two rows in height.

(***) In addition to the factors above related to digital printing, one other exception is permitted; For loose produce

being weighed at the Point-of-Sale (POS) using GS1 DataBar Stacked Omnidirectional minimum X-dimension

of 0.203 millimetre (0.0080 inch) is permitted but may produce scanning performance reduction. However, for

POS, this performance drop off is not noticeable when the product must be weighed at the Point-of-Sale. Even

with a slower scanning performance to conduct the transaction, the weighing process takes longer than the

scanning process. For that reason, a lower minimum X-dimension should never be used on products crossing

Point of Sale which are not weighed as loose produce during the scan event.

(****) The current symbol specification for GS1 DataBar Omni-directional (minimum height 33X) and GS1 DataBar

Stacked Omni-directional (minimum height 69X) indicate a square aspect ratio for the symbol segments. To

enhance scanning performance, in an omni-directional scanning environment, an over square aspect ratio

shall be used following the example of the EAN/UPC symbology specification and rigorous field test of the GS1

DataBar symbology (46X or 95X).

(*****) For North American Coupon Codes using GS1 DataBar Expanded Stacked in 2 row and 3 row configurations

the X Dimension may be as low as 0.0080” (0.203mm) as long as a minimum overall bar height of 1.020”

(25.91mm) is maintained. X-dimensions less than 0.0100” (.254mm) might not always be feasible for all GS1

DataBar Coupon barcodes due to variables, such as printing process, symbol orientation, and material. Due to

the time sensitive nature of the coupon printing process, these variables should be considered during the

design and barcode origination processes. Barcode verification should always be done from printing press

proofs.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

GS1 General Specifications

Section 5: Data Carriers

In addition to the symbol used at general retail POS, an additional 2D symbol may be used to

carry AI (8200). As AI (8200) has a mandatory association with GTIN, the GTIN within the

symbol ensures compatibility with direct or indirect mode. GS1 DataMatrix is approved for all

applications including regulated healthcare trade items covered by SSTs 6, 7, 8, and 10, but for

general retail consumer trade items, either GS1 QR Code or GS1 DataMatrix are GS1 approved

options. When using 2D symbols to carry AI (8200) on general retail trade items, the following

specifications are required.

Figure 5.5.2.7.1-2. GS1 System Symbol Specification Table 1 Addendum for AI (8200)

Symbol(s)

Specified (**) X-dimension

mm (inches) Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

Minimum Target Maximum For Minimum

X-dimension For Target

X-dimension For Maximum

X-dimension Surrounding

Symbol

GS1

DataMatrix

(ECC 200) (*) 0.396

(0.0150") 0.495

(0.0195")

0.743

(0.0293”)

Height is determined by X-dimension for Data

that is encoded 1X on all

four sides 1.5/12/660

GS1 QR

Code (*)

0.396

(0.0150") 0.495

(0.0195")

0.743

(0.0293”)

Height is determined by X-dimension for Data

that is encoded 4X on all

four sides 1.5/12/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix and

GS1 QR Code Symbols be printed at 1.5 times the equivalent X-dimension allowed for linear symbols.

(**) Where a linear symbol appears on the package, reverse and mirror-image representation of GS1 2D

symbols shall not be permitted.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.2. Symbol Specification Table 2 - Trade Items Scanned in General Distribution

Only

Figure 5.5.2.7.2-1. GS1 System Symbol Specification Table 2

Symbol(s)

Specified (*) X-dimension

mm (inches) (**) Minimum Symbol Height for Given X

mm (inches) Quiet Zone (***) Minimum

Quality

Specification

Minimum Target Maximum For

Minimum X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension

Left Right

EAN-13 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 11X 7X 1.5/10/660

EAN-8 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 27.35

(1.077") 36.46

(1.435") 36.46

(1.435") 7X 7X 1.5/10/660

UPC-A 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 9X 9X 1.5/10/660

UPC-E 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 9X 7X 1.5/10/660

ITF-14 0.495

(0.0195") 0.495

(0.0195") 1.016

(0.0400") 31.75

(1.250") 31.75

(1.250") 10X 10X 1.5/10/660

GS1-128 0.495

(0.0195") 0.495

(0.0195") 1.016

(0.0400") 31.75

(1.250") 31.75

(1.250") 10X 10X 1.5/10/660

GS1 DataBar

Omnidirection

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 16.34

(0.644”) 21.78

(0.858”) 21.78

(0.858”) NA NA 1.5/10/660

GS1 DataBar

Stacked

Omnidirection

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.16

(1.346”) 45.54

(1.794”) 45.54

(1.794”) NA NA 1.5/10/660

GS1 DataBar

Expanded 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 16.83

(0.663”) 22.44

(0.884”) 22.44

(0.884”) NA NA 1.5/10/660

GS1 DataBar

Expanded

Stacked

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 35.15

(1.385”) 46.86

(1.846”) 46.86

(1.846”) NA NA 1.5/10/660

GS1 DataBar

Stacked 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 6.44

(0.254”) 8.58

(0.338”) 8.58

(0.338”) NA NA 1.5/10/660

GS1 DataBar

Limited 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 4.95

(0.195”) 6.60

(0.260”) 6.60

(0.260”) NA NA 1.5/10/660

GS1 DataBar

Truncated 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 6.44

(0.254”) 8.58

(0.338”) 8.58

(0.338”) NA NA 1.5/10/660

(*) UPC-E and EAN-8 Symbols are designed for use on small packages. Whenever space permits, UPC-A, EAN-

13, ITF-14, or GS1-128 Symbols should be used in the General Distribution Scanning environment.

The minimum symbol height dimensions listed for all symbologies including EAN/UPC Symbols do not include

the Human Readable Interpretation (or Bearer Bars for ITF-14 Symbols). The minimum heights of EAN/UPC

Symbols do not include the extended bars: see Section 5.2.1.4.2 for dimensions of the extended bars.

Because of the operative scanning environment for EAN/UPC Symbols, there is a direct relationship between

the symbol’s height and width. This means the minimum symbol height is tied to the minimum, target, and

maximum X-dimension listed.

ITF-14 Symbols with X-dimensions below 0.635 millimetre (0.0250 inch) should not be printed directly on

corrugate with conventional (plate-based) processes. Packages and/or containers marked with ITF-14

Symbols with X-dimensions between 1.016 millimetres (0.0400 inch) and 1.219 millimetres (0.048 inch) are

acceptable based on historical specifications, but a migration to the 1.016 millimetres (0.0400 inch) maximum

X-dimension should be made on new artwork. The ITF-14 Symbol’s bar width ratio target is 2.5:1, and the

acceptable range is 2.25:1 to 3:1.

GS1 General Specifications

Section 5: Data Carriers

GS1-128 Symbols have a maximum symbol length of 165.10 millimetres (6.500 inch), which may impact the

maximum achievable X-dimension. For example, a GS1-128 Symbol containing an SSCC has a maximum

achievable X-dimension for 0.940 millimetre (0.0370 inch)

(**) The minimum symbol height for General Distribution Scanning is always 31.75 millimetres (1.250 inch). The

minimum symbol height dimensions for ITF-14 and GS1-128 Symbols relate to the bar heights only (do not

include Human Readable Interpretation text or ITF-14 Symbol Bearer Bars). There is no maximum for the

height, but if the maximum X-dimension is used, the symbol height must be equal to or greater than those

listed in the Minimum Symbol Height column.

(***) For ITF-14 Symbols printed on labels with off-set, thermal, or laser print with an X-dimension 0.495 millimetre

(0.0195 inch), the minimum quality specification is 1.5/10/660. For ITF-14 Symbols printed directly on

corrugate or labels with an X-dimension greater than or equal to 0.635 millimetre (0.0250 inch), the minimum

quality specification is 0.5/20/660.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.3. Symbol Specification Table 3 - Trade Items scanned at General Retail POS and

General Distribution

Figure 5.5.2.7.3-1. GS1 System Symbol Specification Table 3

Symbol(s)

Specified (*) X-dimension

mm (inches) (**) Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

Minimum Target Maximum For Minimum

X-dimension

For Target

X-dimension For Maximum

X-dimension Left Right

EAN-13 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 11X 7X 1.5/06/660

EAN-8 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 27.35

(1.077") 36.46

(1.435") 36.46

(1.435") 7X 7X 1.5/06/660

UPC-A 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 9X 9X 1.5/06/660

UPC-E 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.28

(1.350") 45.70

(1.800") 45.70

(1.800") 9X 7X 1.5/06/660

GS1 DataBar

Omnidirectional

(***)

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 22.77

(0.897”) 30.36

(1.196”) 30.36

(1.196”) None None 1.5/06/660

GS1 DataBar

Stacked

Omnidirectional

(***)

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 47.03

(1.853”) 62.70

(2.470”) 62.70

(2.470”) None None 1.5/06/660

GS1 DataBar

Expanded 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 16.83

(0.663”) 22.44

(0.884”) 22.44

(0.884”) None None 1.5/06/660

GS1 DataBar

Expanded

Stacked

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 35.15

(1.385”) 46.86

(1.846”) 46.86

(1.846”) None None 1.5/06/660

(*) UPC-E and EAN-8 Symbols are designed for use on small packages. Whenever space permits, UPC-A and

EAN-13 Symbols should be used.

(**) The minimum symbol height dimensions listed for all symbologies including EAN/UPC Symbols do not include

the Human Readable Interpretation. The minimum heights of EAN/UPC Symbols do not include the extended

bars: see Section 5.2.1.4.2 for dimensions of the extended bars. Because of the operative scanning environment

for EAN/UPC Symbols, there is a direct relationship between the symbol’s height and width. This means the

minimum symbol height listed is tied to the minimum, target, and maximum X-dimension listed.

There is no maximum for the height, but if the maximum X-dimension is used, the symbol height must be equal

to or greater than those listed in the Minimum Symbol Height column.

(***) The current symbol specification for GS1 DataBar Omni-directional (minimum height 33X) and GS1 DataBar

Stacked Omni-directional (minimum height 69X) indicate a square aspect ratio for the symbol segments. To

enhance scanning performance, in an omni-directional scanning environment, an over square aspect ratio shall

be used following the example of the EAN/UPC symbology specification and rigorous field test of the GS1

DataBar symbology (46X or 95X).

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.4. Symbol Specification Table 4 – Trade Items – Packages/Containers Not

Scanned at POS or General Retail - Also not scanned in General Distribution or

Regulated Healthcare (retail or non-retail)

Figure 5.5.2.7.4-1. GS1 System Symbol Specification Table 4

Symbol(s)

Specified (*) X-dimension

mm (inches) (**) Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

Minimum Target Maximum For Minimum

X-dimension For Target

X-dimension

For

Maximum

X-

dimension

Left Right

EAN-13 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70

(1.800") 11X 7X 1.5/06/660

EAN-8 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 14.58 (0.574") 18.23 (0.718") 36.46

(1.435") 7X 7X 1.5/06/660

UPC-A 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70

(1.800") 9X 9X 1.5/06/660

UPC-E 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28 (0.720") 22.85 (0.900") 45.70

(1.800") 9X 7X 1.5/06/660

GS1 DataBar

Omnidirectional 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 8.71 (0.343") 10.90 (0.429") 21.78

(0.858”) NA NA 1.5/06/660

GS1 DataBar

Stacked

Omnidirectional 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.24 (0.718") 27.78 (0.897") 45.54

(1.794”) NA NA 1.5/06/660

GS1 DataBar

Expanded 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 8.99 (0.354") 11.23 (0.442") 22.44

(0.883”) NA NA 1.5/06/660

GS1 DataBar

Expanded

Stacked 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.75 (0.738") 23.44 (0.923") 46.86

(1.845”) NA NA 1.5/06/660

GS1 DataBar

Stacked 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 3.43 (0.135”) 4.29 (0.169”) 8.58 (0.338”) N/A N/A 1.5/06/660

GS1 DataBar

Limited 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 2.64 (0.104”) 3.3 0 (0.130”) 6.60 (0.260”) N/A N/A 1.5/06/660

GS1 DataBar

Truncated 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 3.43 (0.135”) 4.29 (0.169”) 8.58 (0.338”) N/A N/A 1.5/06/660

ITF-14 0.250

(0.00984") 0.495

(0.0195") 0.495

(0.0195") 12.70 (0.500") 12.70 (0.500") 12.70

(0.500") 10X 10X 1.5/06/660

GS1- 128 0.250

(0.00984") 0.495

(0.0195") 0.495

(0.0195") 12.70 (0.500") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

(*) ITF-14 Symbols with X-dimensions below 0.635 millimetre (0.0250 inch) should not be printed directly on

corrugate with conventional (plate based) processes. Packages and/or containers marked with ITF-14

Symbols with X-dimensions between 1.016 millimetres (0.0400 inch) and 1.219 millimetres (0.0480 inch)

are acceptable based on historical specifications, but a migration to the 1.016 millimetre (0.0400 inch)

maximum X-dimension should be made on new artwork. The ITF-14 Symbol’s bar width ratio target is

2.5:1, and the acceptable range is 2.25:1 to 3:1.

Section 5.5.3.4 gives full details on when barcodes can be printed at less than the minimum X-dimension.

In general, barcodes may only be printed using an X-dimension below 0.264 millimetre (0.0104 inch) or 80

percent magnification under the following conditions:

 The allowance for X-dimensions between 0.249 millimetre (0.0098 inch) or 75 percent magnification and

0.264 millimetre (0.0104 inch) or 80 percent magnification is only applicable to on demand (e.g., thermal,

laser) print processes. For all other printing processes, an X-dimension of 0.264 millimetre (0.0104 inch)

is attainable and is the minimum allowable size.

 When printing a minimum symbol with any method of printing, the area provided for printing the symbol

and the required Quiet Zone should never be less than the area required for an X-dimension of 0.264

millimetre (0.0104 inch).

GS1 General Specifications

Section 5: Data Carriers



When printing a minimum symbol with any method of printing, the symbol height SHALL never be

truncated.

(**) The minimum symbol height dimensions listed for all symbologies including EAN/UPC Symbols do not

include the Human Readable Interpretation (or Bearer Bars for ITF-14 Symbols), The minimum heights of

EAN/UPC Symbols do not include the extended bars: see Section 5.2.1.4.2 for dimensions of the extended

bars.

Because of the operative scanning environment for EAN/UPC Symbols, there is a direct relationship

between the symbol’s height and width. This means the minimum symbol height listed is tied to the

minimum, target, and maximum X-dimension listed.

The minimum bar height for ITF-14 and GS1-128 Symbols in this operative scanning environment is 12.70

millimetres (0.500 inch), but if the package is physically too small to accommodate this rule, further

truncation is permitted. In no case shall the bar height be less than 5.08 millimetres (0.200 inch).

There is no maximum for the symbol height, but if the maximum X-dimension is used, the symbol height

must be equal to or greater than those listed in the Minimum Symbol Height column.

Whereas, linear symbol heights are set at a fixed dimension, Composite Components are printed at the

same X-dimension as the linear portion of the Composite Symbology, and the barcode height varies

depending on the amount of data, the X-dimension, and which linear symbol is used in conjunction with the

Composite Component. Note that Composite Components have to be printed with a linear symbol such as

GS1 DataBar, GS1-128, UPC-A, or EAN-13. ITF-14 cannot be used with Composite Components.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

5.5.2.7.5. Symbol Specification Table 5 – Trade Items scanned in General Distribution

that are Logistics Units

Figure 5.5.2.7.5-1. GS1 System Symbol Specification Table 5

Symbol(s)

Specified (*) X-dimension

mm (inches) (**)

Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum Quality

Specification

Minimum Target Maximum For

Minimum X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension

Left Right

GS1-128 0.495

(0.0195") 0.495

(0.0195") 0.940

(0.0370") 31.75

(1.250") 31.75

(1.250") 10X 10X 1.5/10/660

(*) If the item is too small to accommodate the minimum X-dimension, the minimum X-dimension is 0.250

millimetre (0.0098 inch).

(**) The minimum symbol height indicated is for bar height only and does not include the Human Readable

Interpretation. If the item is too small to accommodate the minimum, the minimum bar height is the

greater of 15 percent of the symbol width including Quiet Zones or 12.70 millimetres (0.500 inch). If the

package is physically too small to accommodate this rule, further truncation is permitted, but in no case

shall the bar height be less than 5.08 millimetres (0.200 inch).

There is no maximum for the height, but if the maximum X-dimension is used, the symbol height must

be equal to or greater than those listed in the Minimum Symbol Height column.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.6. Symbol Specification Table 6 - Regulated Healthcare Non-Retail Consumer

Trade Items Not Scanned in General Distribution

Figure 5.5.2.7.6-1. GS1 System Symbol Specification Table 6

Symbol(s)

Specified X-dimension

mm (inches) Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

Minimum Target Maximum

For

Minimum

X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension Left Right

GS1- 128 0.170

(0.0067") 0.495

(0.0195") 0.495

(0.0195") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

GS1 DataMatrix

(ECC 200) (*) 0.255

(0.0100") 0.380

(0.0150") 0.495

(0.0195") Height is determined by X-dimension for

Data that is encoded 1X on all four sides 1.5/08/660

GS1 DataBar

Omnidirectional 0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 5.61

(0.221") 6.60

(0.260") 21.78

(0.858”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Truncated 0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 2.21

(0.087") 2.60

(0.102") 8.58

(0.338”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Stacked 0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 2.21

(0.087") 2.60

(0.102") 8.58

(0.338”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Stacked

Omnidirectional

0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 11.73

(0.462") 13.80

(0.543") 45.54

(1.794”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Limited 0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 1.70

(0.067") 2.00

(0.079") 6.60

(0.260”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Expanded 0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 5.78

(0.228") 6.80

(0.268") 22.44

(0.884”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Expanded

Stacked

0.170

(0.0067") 0.200

(0.0080") 0.660

(0.0260") 12.07

(0.475") 14.20

(0.559") 46.86

(1.846”) Not

Applicable Not

Applicable 1.5/06/660

EAN-13 0.170

(0.0067") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 11X 7X 1.5/06/660

EAN-8 0.170

(0.0067") 0.330

(0.0130") 0.660

(0.0260") 14.58

(0.574") 18.23

(0.718") 36.46

(1.435") 7X 7X 1.5/06/660

UPC-A 0.170

(0.0067") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 9X 1.5/06/660

UPC-E 0.170

(0.0067") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 7X 1.5/06/660

ITF-14 0.170

(0.0067") 0.495

(0.0195") 0.495

(0.0195") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

CC-A All CCs need to be printed at the same

X-dimensions as their linear

components, therefore consult the

appropriate row and column for the linear

symbol to be used.

Height is determined by X-dimension for

data that is encoded

1X 1X 1.5/06/660

CC-B 1X 1X 1.5/06/660

CC-C 2X 2X 1.5/06/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix symbol be

printed at 1.5 times the equivalent printing X-dimension allowed for linear or Composite Symbols.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

Note: This table contains several symbol options. All are permitted to promote backward

compatibility, but Section 2 Application Standards define which symbols are the preferred

options for the future.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.7. Symbol Specification Table 7 - Direct Part Marking

Figure 5.5.2.7.7-1. GS1 System Symbol Specification Table 7

Symbol(s)

Specified X-dimension

mm (inches) Note 1 Note 6 Minimum Symbol Height for Given X

mm (inches) Quiet

Zone

Minimum

Quality

Specification

Minimum Target Maximum For Minimum, Target and Maximum X-

dimension

GS1 DataMatrix 0.254(0.0

100”) 0.300

(0.0118”) 0.615

(0.0242”) Height is determined by X-dimension

for data that is encoded 1X on all

four

sides

1.5/06/660

Note 5

For Direct

Marking of items

other than

Medical devices

GS1

QR Code

0.254

(0.0100”) 0.300

(0.0118”) 0.615

(0.0242”) Height is determined by X-dimension

for data that is encoded 4X on all

four

sides

1.5/06/660 For Direct

Marking of items

other than

Medical devices

GS1 DataMatrix

Ink Based

Direct Part

Marking

0.254

(0.0100”)

0.300

(0.0118”)

0.615

(0.0242”)

Height is determined by X-dimension

for data that is encoded 1X on all

four

sides 1.5/08/660

Note 5

For Direct

Marking of

Medical devices

such as Small

Medical / Surgical

Instruments

GS1

DataMatrix

Direct Part

Marking - A

Note 2

0.100

(0.0039”)

0.200

(0.0079”)

0.300

(0.0118”)

Height is determined by X-dimension

for data that is encoded 1X on all

four

sides

1.5/03/Note3

Note 4 Note 5

For Direct

Marking of

Medical devices

such as Small

Medical / Surgical

Instruments

GS1

DataMatrix

Direct Part

Marking - B

Note 2

0.200

(0.0079")

0.300

(0.0118”)

0.495

(0.0195")

Height is determined by X-dimension

for data that is encoded 1X on all

four

sides

1.5/06/Note 3

Note 4 Note 5

For

Direct

Marking of Small

Medical / Surgical

Instruments

Note 1: Optical effects in the image capture process require that label based GS1

DataMatrix and GS1 QR Code symbols be printed at approximately 1.5 times the

equivalent X-dimension allowed for linear symbols in the same application.

Note 2: There are two basic types of non ink based Direct Part Marks, those with

“connected modules” in the “L” shaped finder pattern (GS1 DataMatrix Direct Part Marking

– A) created by DPM marking technologies such as laser or chemical etching and those

with “non connected modules” in the “L” shaped finder pattern (GS1 DataMatrix Direct Part

Marking – B) created by DPM marking technologies such as dot peen. Due to the marking

technologies and characteristics of reading they each have varied ranges of X-dimensions

and different quality criteria recommended and may require different reading equipment.

GS1 DataMatrix – A is suggested for marking of medical devices such as small medical /

surgical instruments. The Minimum X-dimension of 0.100mm is based upon the specific

need for permanence in direct marking of small medical instruments which have limited

marking area available on the instrument with a target useable area of 2.5mm x 2.5mm and

a data content of GTIN (AI 01) plus Serial Number (AI 21).

Note 3: The wavelength for Direct Part Marked GS1 DataMatrix and GS1 QR Code is

based upon the practical scanning environment and thus must in the grade be matched to

the scanner / imagers being used. See ISO/IEC 15415 and ISO/IEC 29158.

Note 4: The angle is an additional parameter defining the angle of incidence (relative to the

plane of the symbol) of the illumination for Direct Part Marking verification. It shall be

GS1 General Specifications

Section 5: Data Carriers

included in the overall symbol grade when the angle of incidence is other than 45 degrees.

Its absence indicates that the angle of incidence is 45 degrees. See ISO/IEC 15415 and

ISO/IEC 29158.

Note 5: The effective aperture for GS1 DataMatrix and GS1 QR Code quality

measurements should be taken at 80 percent of the minimum X-dimension allowed for the

application. For Direct Part Marking - A this would equate to an aperture of 3; for Direct

Park Marking – B this would equate to an aperture of 6 and for general healthcare label

printing, an aperture of 8. See ISO/IEC 15415 and ISO/IEC 29158.

Note 6: The largest X-dimension in a given range that will allow a symbol with the needed

data content to fit within the available marking area should be used to maximize marking

and reading performance (depth of field, tolerance to curvature, etc.).

Note 7: In practical application, where very small symbol sizes are needed, it may be

necessary to work with GS1 DataMatrix module X-dimensions smaller than those 2342

suggested. Where dimensional restrictions prohibit the application of a full size code,

reduced x-dimension AIDC marking is encouraged to facilitate information capture. It

should be noted that these practices may limit the symbol effectiveness, including but not

limited to:

- the effect of smaller X-dimensions on reading performance,

- the need for, and limited availability of, special scanners/imagers for reading,

- special processes for marking,

- the overall cost considerations.

These smaller X-dimensions should therefore only be used internally or by mutual

agreement between trading partners

Note: In small instrument marking, mixed marking technologies used within the same

scanning environment should be avoided to ensure highest reading performance. Laser

etching is recommended for small instrument marking.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.8. Symbol Specification Table 8 - Trade Items Scanned in Retail Pharmacy and

General Distribution or Non-Retail Pharmacy and General Distribution

Figure 5.5.2.7.8-1. GS1 System Symbol Specification Table 8

Symbol(s)

Specified X-dimension

mm (inches) Minimum Symbol Height for Given X

mm (inches) Quiet Zone Minimum

Quality

Specification

Minimum

Target

Maximum

For

Minimum X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension

Left

Right

GS1- 128

0.495

(0.0195")

0.495

(0.0195")

1.016

(0.0400")

31.75

(1.250")

31.75

(1.250")

31.75

(1.250")

10X 10X 1.5/10/660

GS1

DataMatrix

(ECC 200)

(*)

0.750

(0.0300") 0.750

(0.0300") 1.520

(0.0600") Height is determined by X-dimension for

Data that is encoded 1X on all four sides 1.5/20/660

EAN-13

0.495

(0.0195")

0.660

(0.0260")

0.660

(0.0260")

34.28

(1.350")

45.70

(1.800")

45.70

(1.800")

11X 7X 1.5/10/660

EAN-8

0.495

(0.0195")

0.660

(0.0260")

0.660

(0.0260")

27.35

(1.077")

36.46

(1.435")

36.46

(1.435")

7X 7X 1.5/10/660

UPC-A

0.495

(0.0195")

0.660

(0.0260")

0.660

(0.0260")

34.28

(1.350")

45.70

(1.800")

45.70

(1.800")

9X 9X 1.5/10/660

UPC-E

0.495

(0.0195")

0.660

(0.0260")

0.660

(0.0260")

34.28

(1.350")

45.70

(1.800")

45.70

(1.800")

9X 7X 1.5/10/660

ITF-14

0.495

(0.0195")

0.495

(0.0195")

1.016

(0.0400")

31.75

(1.250")

31.75

(1.250")

31.75

(1.250")

10X 10X 1.5/10/660

GS1 DataBar

Omnidirectio

nal

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 16.34

(0.644”) 21.78

(0.858”) 21.78

(0.858”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Truncated 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 6.44

(0.254”) 8.58

(0.338”) 8.58

(0.338”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Stacked 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 6.44

(0.254”) 8.58

(0.338”) 8.58

(0.338”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Stacked

Omnidirectio

nal

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 34.16

(1.346”) 45.54

(1.794”) 45.54

(1.794”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Limited 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 4.95

(0.195”) 6.60

(0.260”) 6.60

(0.260”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Expanded 0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260") 16.83

(0.663”) 22.44

(0.884”) 22.44

(0.884”) Not

Applicable Not

Applicable 1.5/10/660

GS1 DataBar

Expanded

Stacked

0.495

(0.0195") 0.660

(0.0260") 0.660

(0.0260")

35.15

(1.385”) 46.86

(1.846”) 46.86

(1.846”) Not

Applicable Not

Applicable 1.5/10/660

CC-A All CCs need to be printed at the same X-

dimensions as their linear components,

therefore consult the appropriate row and

column for the linear symbol to be used.

Height is determined by X-dimension for

data that is encoded 1X 1X 1.5/06/660

CC-B 1X 1X 1.5/06/660

CC-C 2X 2X 1.5/06/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix and GS1 QR

Code symbols be printed at 1.5 times the equivalent printing X-dimension allowed for linear symbols.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

Note: This table contains several symbol options. All are permitted to promote backward

compatibility, but Section 2 Application Standards define which symbols are the preferred

options for the future.

GS1 General Specifications

Section 5: Data Carriers

Note: Since June 2007 GS1 has recommended all trading partners in the healthcare

sector invest exclusively in imaging-based scanners. Now that GS1 DataMatrix has been

approved within the standard, it is important to inform all trading partners of a process

within GS1 to establish target deployment dates. Without these dates, brand owners do

not have a way know when to deploy GS1 DataMatrix on their packaging and those

needing to invest in scanning equipment may inadvertently purchase equipment that will

not support the standards. To see GS1 Healthcare’s Position Paper on GS1 DataMatrix

adoption, visit http://www.gs1.org/healthcare.

5.5.2.7.9. Symbol Specification Table 9 - GS1 Keys GDTI, GRAI, GIAI and GLN

Figure 5.5.2.7.9-1. GS1 System Symbol Specification Table 9

Symbol(s)

Specified

X-dimensions mm(inches) Minimum Symbol Height for Given X

mm(inches Quiet Zone Minimum Quality

Specification

Minimum

Target Maximum For

Minimum

X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension

Left Right

GS1- 128 0.250

(0.0098") 0.250

(0.0098") 0.495

(0.0195") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

GS1

DataMatrix

(ECC 200)

(*)

0.380

(0.0150") 0.380

(0.0150") 0.495

(0.0195") Height is determined by X-dimension for

Data that is encoded 1X on all four sides

1.5/08/660

GS1 QR

Code (*) 0.380

(0.0150") 0.380

(0.0150") 0.495

(0.0195") Height is determined by X-dimension for

Data that is encoded 4X on all four sides 1.5/08/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix and GS1 QR

Code symbols be printed at 1.5 times the equivalent printing X-dimension allowed for linear symbols.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

Note: This table contains several symbol options. All are permitted to promote backward

compatibility, but Section 2 Application Standards define which symbols are the preferred

options for the future.

GS1 General Specifications

Section 5: Data Carriers

5.5.2.7.10. Symbol Specification Table 10 – Regulated Healthcare Retail Consumer

Trade Items Not Scanned in General Distribution

Figure 5.5.2.7.10-1. GS1 System Symbol Specification Table 10

Symbol(s)

Specified X-dimension

mm (inches)

Minimum Symbol Height for Given X

mm (inches)

Quiet Zone

Minimum Quality

Specification

Minimum Target Maximum

For

Minimum

X-

dimension

For Target

X-

dimension

For

Maximum

X-dimension Left Right

GS1- 128 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

GS1 DataMatrix

(ECC 200) (*) 0.396

(0.0156") 0.495

(0.0195") 0.990

(0.0390")

Height is determined by X-dimension for

Data that is encoded

1X on all four sides 1.5/08/660

GS1 DataBar

Omnidirectional 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 8.71

(0.343") 10.89

(0.429") 21.78 (0.858) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Truncated 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 3.43

(0.135") 4.29

(0.169") 8.58 (0.338”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Stacked 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 3.43

(0.135") 4.29

(0.169") 8.58 (0.338”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Stacked

Omnidirectional

0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.22

(0.718") 27.77

(0.897") 45.54

(1.794”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Limited 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 2.64

(0.104") 3.30

(0.130") 6.60 (0.260”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Expanded 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 8.98

(0.354") 11.22

(0.442") 22.44

(0.883”) Not

Applicable Not

Applicable 1.5/06/660

GS1 DataBar

Expanded

Stacked

0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.74

(0.738") 23.43

(0.923") 46.86

(1.846”) Not

Applicable Not

Applicable 1.5/06/660

EAN-13 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 11X 7X 1.5/06/660

EAN-8 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 14.58

(0.574") 18.23

(0.718") 36.46

(1.435") 7X 7X 1.5/06/660

UPC-A 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 9X 1.5/06/660

UPC-E 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 18.28

(0.720") 22.85

(0.900") 45.70

(1.800") 9X 7X 1.5/06/660

ITF-14 0.264

(0.0104") 0.330

(0.0130") 0.660

(0.0260") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

CC-A All CCs need to be printed at the

same X- dimensions as their linear

components, therefore consult the

appropriate row and column for the

linear symbol to be used.

Height is determined by X-dimension for

data that is encoded 1X 1X 1.5/06/660

CC-B 1X 1X 1.5/06/660

CC-C 2X 2X 1.5/06/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix and GS1 QR

Code symbols be printed at 1.5 times the equivalent printing X-dimension allowed for linear symbols.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

Note: Since June 2007 GS1 has recommended all trading partners in the healthcare

sector invest exclusively in imaging-based scanners. Now that GS1 DataMatrix has been

GS1 General Specifications

Section 5: Data Carriers

approved within the standard, it is important to inform all trading partners of a process within

GS1 to establish target deployment dates. Without these dates, brand owners do not have a

way know when to deploy GS1 DataMatrix on their packaging and those needing to invest in

scanning equipment may inadvertently purchase equipment that will not support the standards.

To see GS1 Healthcare’s Position Paper on GS1 DataMatrix adoption, visit GS1.org\GS1Healthcare.

5.5.2.7.11. Symbol Specification Table 11 – GS1 GSRNs

Figure 5.5.2.7.11-1. GS1 System Symbol Specification Table 11

Symbol(s)

Specified

X-dimensions mm(inches) Minimum Symbol Height for Given X

mm(inches Quiet Zone Minimum Quality

Specification

Minimum

Target Maximum For

Minimum

X-

dimension

For Target

X-

dimension

For

Maximum

X-

dimension

Left Right

GS1- 128 0.170

(0.0067") 0.250

(0.0098") 0.495

(0.0195") 12.70

(0.500") 12.70

(0.500") 10X 10X 1.5/06/660

GS1

DataMatrix

(ECC 200)

(*)

0.255

(0.0100") 0.380

(0.0150") 0.495

(0.0195") Height is determined by X-dimension for

Data that is encoded 1X on all four sides 1.5/08/660

GS1 QR

Code (*) 0.255

(0.0100") 0.380

(0.0150") 0.495

(0.0195") Height is determined by X-dimension for

Data that is encoded 4X on all four sides 1.5/08/660

(*) 2D X-dimension - Optical effects in the image capture process require that the GS1 DataMatrix and GS1 QR

Code symbols be printed at 1.5 times the equivalent printing X-dimension allowed for linear symbols.

Note: See Section 5.5.2.6 to ensure the correct Symbol Specification Table is used.

Note: This table contains several symbol options. All are permitted to promote backward

compatibility, but Section 2 Application Standards define which symbols are the preferred

options for the future.

5.5.3. Barcode Production

The following subsections will:

■ Provide background on major barcode printing methods and materials

■ Provide general printing and packaging background for major application groups

The various definitions and specialist terms used throughout this section are found in ISO/IEC

15419, Information Technology, Automatic Identification and Data Capture Techniques, Bar

Code Digital Imaging and Printing Performance Testing, ISO/IEC 15416, Information

technology, Automatic Identification and Data Capture Technologies, Bar Code Print Quality

Test Specification – Linear Symbols and ISO/IEC 15415, Information technology, Automatic

Identification and Data capture Techniques, Bar Code Print Quality Test Specification, Two-

dimensional Symbols.

LVS 95XX Frequently Asked Questions

Navigation menu

Versions of this User Manual:

Views

Navigation
