Mobile Hawk Highest-Performance

Handheld DPM Imager

The Mobile Hawk is the world’s highest perfor-

mance handheld imager and easily reads any

challenging direct part marks (DPM), from linear

barcodes to 2D symbols. Using advanced technol-

ogy, the Mobile Hawk combines patent-pending

MAXlite illumination with aggressive X-Mode DPM

algorithms.

The result is a truly plug-and-play mobile imager

that is easy to use and extremely reliable for low

contrast DPM applications.

X-Mode Decode Algorithms

Using advanced X-Mode decode

algorithms, the Mobile Hawk

consistently captures low

contrast, damaged, or other-

wise challenging direct part

marks. Both linear and 2D

symbols are read in any

orientation.

Easy to Use

Mobile Hawk imagers feature

simple point-and-click target-

ing, with audible, vibrator,

and multipurpose visual user

systems to provide real-time

feedback. Easy connectivity

and portability are ensured

with direct, single USB power

connection; no additional

power connection is required.

Rugged Design

Featuring a ruggedized design

with a permanent lanyard hook,

the Mobile Hawk includes a

secured cable and durable

overmolded housing capable

of withstanding over 50 drops

of 6’ to concrete.

MAXlite Illumination

The Mobile Hawk includes

MAXlite (Multi-Axis Light-

ing) technology for even

illumination of at, shiny sur-

faces, enhancing embossed

features, or differentiating

features on curved surfaces.

The wide range of capabili-

ties ensures reliable reading

of the toughest direct part

marks.

High Processing Speed

Fast processing speed

allows the imager to acquire

and decode multiple sym-

bologies within seconds

of each other, without any

adjustment to the imager.

Application Examples

•Automotive

•

Electronics

•Aerospace

•Department of Defense

suppliers

Durable

Industrial

Design

Integrated

MAXlite™

Technology

Lanyard

Hook

Mobile Hawk: Available Codes

Linear

All Standard

Data

Matrix QR

Stacked

PDF417 GS1 Databar

2D Micro QR

For more information on this product, visit www.microscan.com.

Mobile Hawk: At a Glance

• Decodes/second: up to 10

• Read Range: contact to 2” (51 mm)

• USB Bus Powered

• Rugged Ergonomic Design

• ISO/IEC 15434, MIL-STD-130, UII Validation Options

ESP®Easy Setup Program: Single-point

software provides quick and easy setup and

configuration of all Microscan readers.

Advanced

DPM

Decoding

IMAGE COLLECTION OPTIONS

Sensor: 1280 x 1024 high resolution CMOS

COMMUNICATION PROTOCOLS

Standard Interface: USB, RS-232

READ PARAMETERS

Pitch: ±30° (front to back)

Skew: ±30°

Rotational Tolerance: ±180°

Focal Range: 0 to 2" (0 to 50.8 mm)

Focal Point: Optimal at 0.25” (6.3 mm)

Ambient Light Immunity: Sunlight: Up to

9,000 ft-candles/96,890 lux

INDICATORS

Status Indicators: Vibration motor, audible

tones, visual feedback with multi-color LED,

blue line targeting pattern

IMAGE OUTPUT OPTIONS

Format: JPEG, TIFF

ELECTRICAL

Power Requirements: 5 VDC (mA)

Typical: 408mA Peak: 500mA Idle: 285mA

MECHANICAL

Height: 7” (180 mm)

Width: 2.5” (63 mm)

Depth: 4.5” (114 mm)

Weight: 7.2 oz. (204 g), not including cable

ENVIRONMENTAL

Operating Temperature: 0° to 50° C (32° to

122° F)

Storage Temperature: -20° to 65° C (-4° to

150° F)

Humidity: 5% to 95% (non-condensing)

Shock: Withstands over 50 drops of 6’ (1.8

meters) to concrete

MAXLITE ILLUMINATION

Combination dome and dark eld illumination

system

Dome: Two color, 630 nm (Red) and 470 nm

(Blue)

Dark Field: Quadrant 30°, 630 nm (Red)

SYMBOLOGIES

2D Symbologies: Data Matrix, QR Code,

Micro QR Code

Stacked Symbologies: PDF417, GS1 Databar

(Composite & Stacked)

Linear Barcodes: Code 39, Code 128, I2 of 5,

UPC/EAN, Codabar, Code 93, BC 412

DATA VALIDATION STANDARDS

ISO/IEC 15434

MIL-STD-130 (UII formating available)

Mobile Haw k Han dHe l d iM a g e r SpecificationS and opt ion S

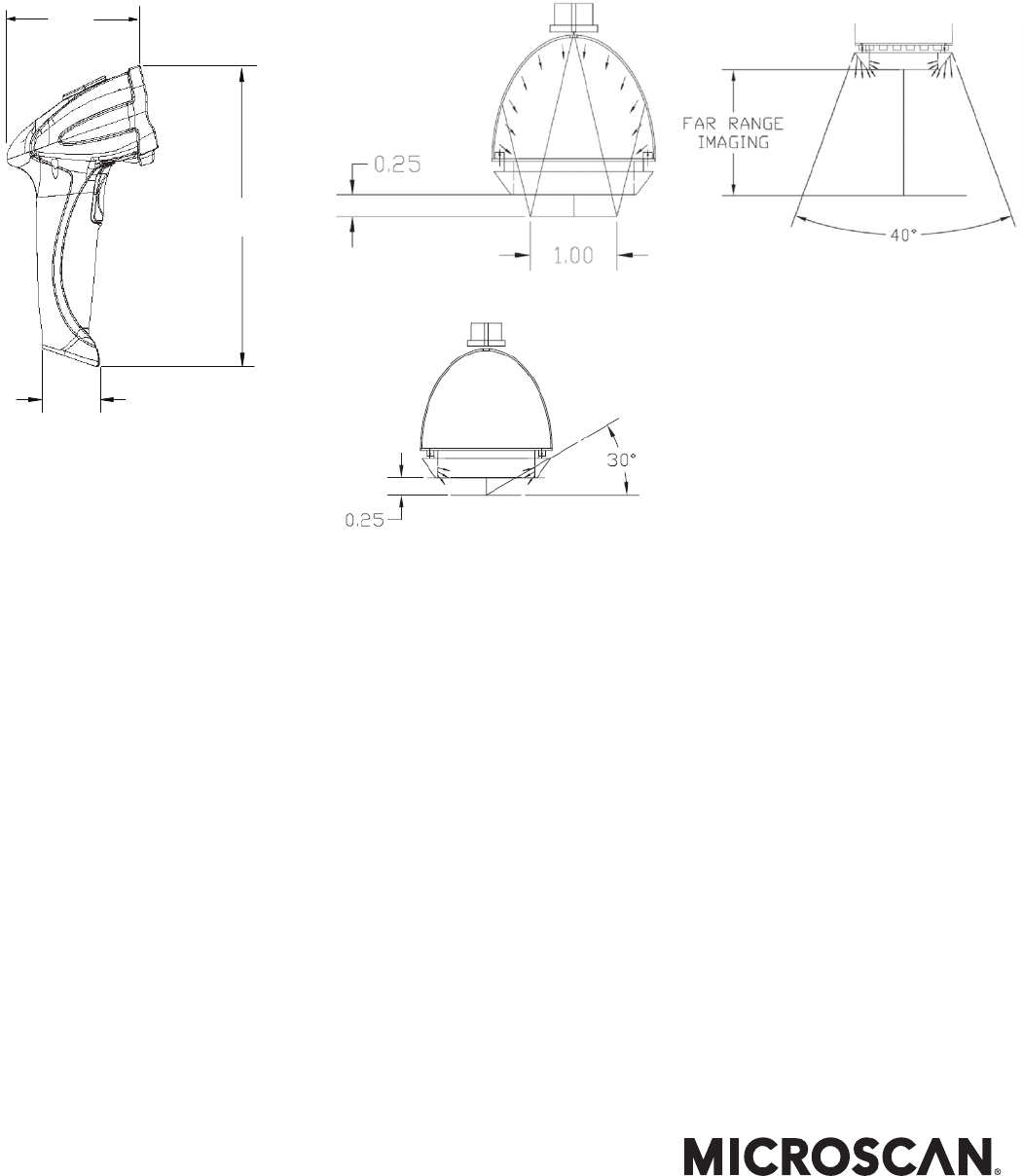

MAXLITE ILLUMINATION

4.44”

(113 mm)

7.23”

(184 mm

)

1.72”

(44 mm)

SIDE VIEW

Diffuse Reective Dome Illumination Method Bright Field with Prism

Dark Field with Prism

QMS CERTIFICATION

www.microscan.com/quality

©2017 Microscan Systems, Inc. SP063H-EN-0217
