Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

Bar Code Readers Streamline

Manufacturing Process

Industry Solutions for Auto ID

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

Streamlining operations

An engine manufacturer needed

to maximize production by

increasing line speeds.

They needed a scanner that

could read the bar codes on the

engines as they moved passed

the scanner without requiring a

line stop for each read. After

installing several MS-880s, the

manufacturer not only

eliminated the production

delays, but were able to

increase line speeds even more

than they originally had

intended.

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

The symbol

Code Types: 10 mil Code 39

black on white

thermal transfer

Application:

The bar codes on the engine are applied in ladder orientation

and pass by the MS-880 bar code scanners at a distance of

approximately 48 inches.

Code 39

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

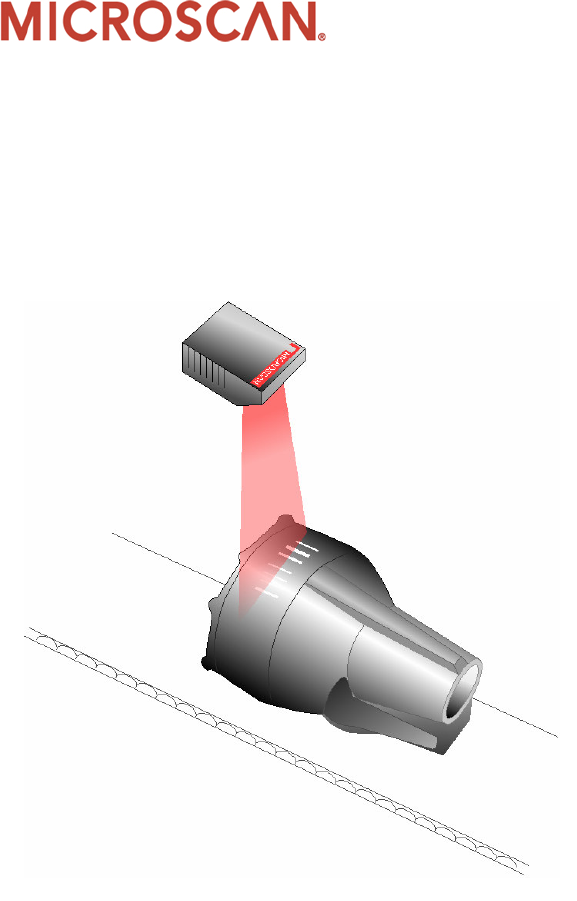

The installation

The MS-880 was mounted to a post

beside the conveyor. The laser is

programmed as a static line and

crosses the conveyor at a 45 degree

angle to read the bar codes on the

engine block approximately 48

inches away.

Since the MS-880 has an extended

read range of more than 7.5 feet, it

could easily read the bar codes on

the engine block over the required

distance without slowing down

production speeds.

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

Why the MS-880

The MS-880 provided the following

features:

•Long read range

•Able to read over a 48”

distance

•High speed scan rate

•Auto focus

•Sweeping programmable raster

•Allowed engine

manufacturer to get a good

read regardless of where the

engine block was located on

the conveyor.

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

The bottom line

By installing a data

capture system that

could read the bar

codes dynamically

without requiring

conveyor stops, the

manufacturer was able

to increase production

throughput and meet

product demands

Microscan Training Materials ©Microscan Systems, Inc. All rights reserved.

More information

•If you would like further information about the MS-880, we

recommend you check out the MS-880 product specifications or

additional applications demonstrating the MS-880’s capabilities

•If you have questions regarding this topic, send us an e-mail to

training@microscan.com
