Microsoft 1488 802.11 b/g/n WLAN Client User Manual Users Manaul
Microsoft Corporation 802.11 b/g/n WLAN Client Users Manaul
Users Manaul
Model 1488 OEM Manual
Microsoft Corp.
Model 1488 installation instructions
Notes for OEM Integrators
This device is for use only in the Xbox console system for which it was designed, and installed during the console manufacturing process.
The antenna must be installed such that 20 cm is maintained between the antenna and users. The transmitter module may not be co-
located with any other transmitter or antenna. The transmitter module is approved using the FCC “unlicensed modular transmitter”
approval method, therefore the module must only be used with the originally approved antennas.
The end user should NOT be provided any instructions on how to remove or install the device.
End Product Labelling
The Final end product label must contain the following statement on the product label:
For United States & Canada
“This Device Contains FCC ID: C3K1488”
”This Device Contains IC: 3048A-1488”
For Taiwan
User Manual Statements
The end product user manual must contain the following statements;
For customers in Taiwan
功機管
經格功機，經可，公、
均得更、加大功更計及功能。
功機得及干；經
干，，改干得繼。
，規。功機
工、科及機干
：「，及，其內得較產及簡
Model 1488 OEM Manual

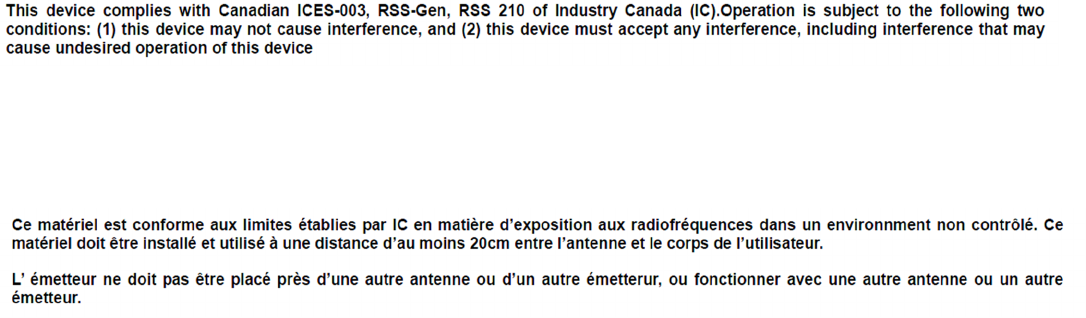

For customers in Canada
Cet appareil numérique de la classe B est conforme aux normes NMB-003, CNR-Gen, et CNR-210 du Canada. Son fonctionnement est
assujetti aux deux conditions suivantes : (1) Cet appareil ne peut pas provoquer d’interférences nuisibles et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement non désiré.
To comply with IC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
For Customers in the United States
"IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter."
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.” (reference FCC Section 15.19(a)(3) )
A statement to caution the user that changes or modifications not expressly appproved by Microsoft could void the user’s authority
to operate the equipment. (reference FCC Title 47 Section 15.21)
“This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.”
(reference FCC Title 47 Section 15.105)
