Nokia Bluetooth Headset BH-214
9214987/1
13
24
5
6
78
9
10
12
11 13
14 15
BH-214_en_1_with_FCC&IC_notice.fm Page 1 Thursday, February 12, 2009 3:33 PM
ENGLISH

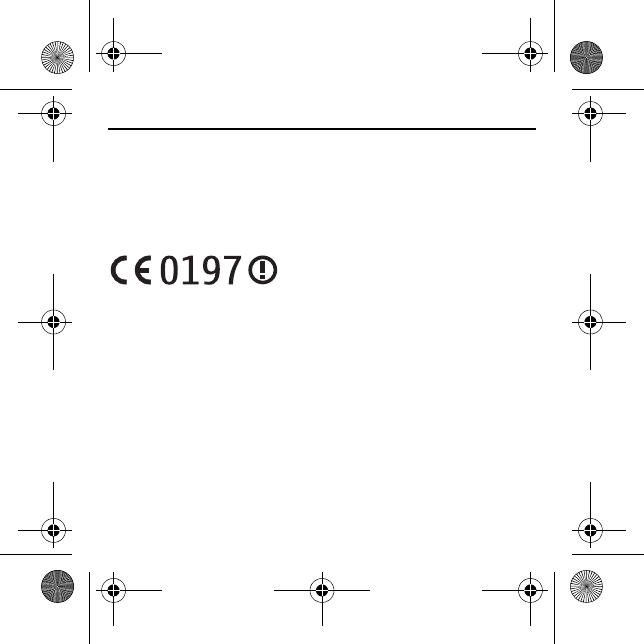

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that
this BH-214 product is in compliance with
the essential requirements and other
relevant provisions of Directive 1999/5/EC. A
copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People and the
Nokia Original Accessories logo are
trademarks or registered trademarks of
Nokia Corporation. Nokia tune is a sound
mark of Nokia Corporation. Other product
and company names mentioned herein may
be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution, or
storage of part or all of the contents in this
document in any form without the prior
written permission of Nokia is prohibited.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Nokia operates a policy of ongoing
development. Nokia reserves the right to
make changes and improvements to any of
the products described in this document
without prior notice.
To the maximum extent permitted by
applicable law, under no circumstances shall
Nokia or any of its licensors be responsible
for any loss of data or income or any special,
incidental, consequential or indirect
damages howsoever caused.
The contents of this document are provided
"as is". Except as required by applicable law,
no warranties of any kind, either express or
implied, including, but not limited to, the
implied warranties of merchantability and
fitness for a particular purpose, are made in
relation to the accuracy, reliability or
contents of this document. Nokia reserves
the right to revise this document or
withdraw it at any time without prior notice.
The availability of particular products may
vary by region. Please check with your Nokia
dealer for details.
Export controls
This device may contain commodities,
technology or software subject to export
BH-214_en_1_with_FCC&IC_notice.fm Page 2 Thursday, February 12, 2009 3:33 PM
ENGLISH
laws and regulations from the US and other
countries. Diversion contrary to law is
prohibited.
Introduction
With the Nokia Bluetooth Headset
BH-214, you can make and answer
calls hands-free with your compatible
mobile device. You can also listen to
music from a compatible music player.
Read this user guide carefully before
using the headset. Also, read the user
guide for the device that you connect
to the headset.
This product may contain small parts.
Keep them out of the reach of small
children. The surface of this device is
nickel-free.
Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. The headset and the
other device do not need to be in line
of sight, but they should be within 10
metres (33 feet) of each other.
Connections may be subject to
interference from obstructions, such
as walls, or other electronic devices.
The headset is compliant with the
Bluetooth Specification 2.1 + EDR
supporting the following profiles:
Headset Profile 1.2, Hands-Free
Profile (HFP) 1.5, Advanced Audio
Distribution Profile (A2DP) 1.2, and
Audio Video Remote Control Profile
1.0. Check with the manufacturers of
other devices to determine their
compatibility with this device.
BH-214_en_1_with_FCC&IC_notice.fm Page 3 Thursday, February 12, 2009 3:33 PM
ENGLISH
Get started

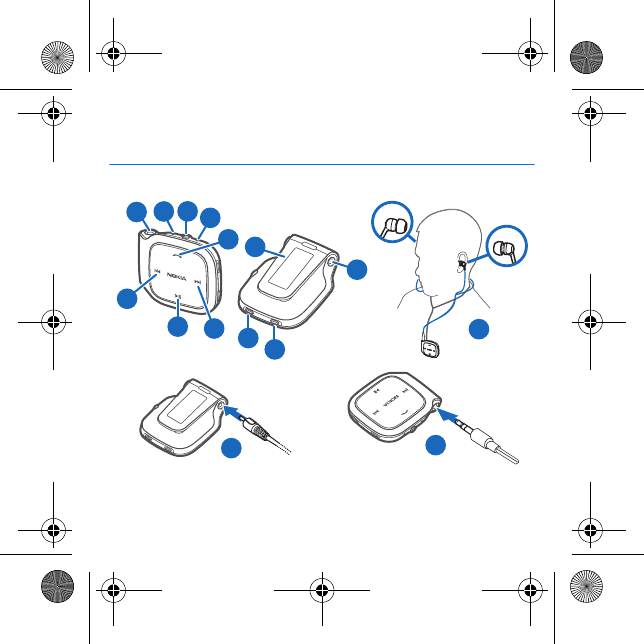

The headset contains the following
parts shown on the title page: 3.5 mm
audio connector (1) for headphones,
microphone (2), power key (3),
indicator light (4), answer/end key (5),
rewind key (6), play/pause key (7),
forward key (8), clip (9), charger
connector (10), volume up key (11),
and volume down key (12).
Before using the headset, you must
charge the battery and pair the
headset with a compatible device.
Parts of the device are magnetic. Metallic
materials may be attracted to the device.
Do not place credit cards or other
magnetic storage media near the device,
because information stored on them may
be erased.
Charge the battery
Before charging the battery, carefully
read “Battery and charger
information”.
Warning: Use only chargers
approved by Nokia for use
with this particular model.
The use of any other types may invalidate
any approval or warranty, and may be
dangerous.
When you disconnect the power cord of
any accessory, grasp and pull the plug,
not the cord.
1. Connect the charger to a wall
outlet.
2. Connect the charger cable to the
charger connector (13). The red
indicator light is displayed during
charging. Charging the battery
fully may take up to 2 hours.
BH-214_en_1_with_FCC&IC_notice.fm Page 4 Thursday, February 12, 2009 3:33 PM
ENGLISH
3. When the battery is fully charged,
the green indicator light is
displayed. Disconnect the charger
from the headset, then from the
wall outlet.
The fully charged battery has power
for up to 8 hours of talk time, up to
300 hours of standby time, or up to 7
hours of music playing time.
To check the battery charge when the
headset is not connected to a charger,
press the answer/end key when the
headset is switched on and no call is
in progress. If the indicator light is
green, the charge level is sufficient. If
the light is yellow, you may need to
recharge the battery soon. If the light
is red, recharge the battery.
When the battery charge is low, the
headset beeps every 5 minutes and
the red indicator light flashes.
Switch on or off
To switch on, press and hold the power
key for about 2 seconds. The headset
beeps, and the green indicator light is
displayed. The headset tries to
connect to the last connected mobile
device.
To switch off, press and hold the
power key for about 5 seconds. The
headset beeps, and the red indicator
light is briefly displayed. If the headset
is not connected to a device within
about 30 minutes, it switches off
automatically.
Pair and connect the headset
Before using the headset, you must
pair and connect it with a compatible
device.
If your mobile device supports the
A2DP Bluetooth profile and has a
music player feature, you can use the
BH-214_en_1_with_FCC&IC_notice.fm Page 5 Thursday, February 12, 2009 3:33 PM
ENGLISH
device to also play music through the
headset.
If your mobile device does not support
the A2DP profile, you can separately
pair the headset with the mobile
device and a music player that
supports this profile. If you have
paired and connected the headset
with your mobile device, disconnect
the headset from it before pairing the
headset with the music player.
1. Ensure that your mobile device or
music player is switched on and
the headset is off.
2. Press and hold the power key (for
about 5 seconds) until the blue
indicator light starts to flash
quickly.
3. Within about 3 minutes, activate
the Bluetooth feature on your
device, and set it to search for
Bluetooth devices.
4. Select the headset from the list of
found devices.
5. If necessary, enter the passcode
0000 to pair and connect the
headset to your device. If your
device does not have a keypad, it
may use this passcode by default.
In some devices, you may need to
make the connection separately
after pairing.
When the headset is connected to
your device and is ready for use, the
blue indicator light flashes slowly.
You can pair the headset with up to
eight devices but connect it to only
one device supporting the HFP profile
and another device supporting the
A2DP profile at a time.
To manually connect the headset to
the last used device that supports the
HFP profile (for example, after
connection loss), switch the headset
off and on, or press and hold the
BH-214_en_1_with_FCC&IC_notice.fm Page 6 Thursday, February 12, 2009 3:33 PM
ENGLISH
answer/end key for about 2 seconds.
To manually connect the headset to a
device that supports the A2DP profile,
press the play/pause key.
You may be able to set your device so
that the headset connects to it
automatically. To activate this feature
in a Nokia device, change the paired
device settings in the Bluetooth menu.
Basic use
Wear the headset
Plug a pair of headphones into the
audio connector (15).
Use the clip to attach the headset to
your clothing. Place the right
headphone cable (indicated with R)
over your shoulders, and gently insert
the earplugs into your ears (13). Place
the headset within about 30 cm (11.81
inches) from your mouth.
Warning: When you use the
headset, your ability to hear
outside sounds may be
affected. Do not use the headset where it
can endanger your safety.
Adjust the volume
To adjust the headset volume, press
the volume up or down key during a
call or while listening to music. To
adjust the volume quickly, press and
hold either key.
You can also adjust the headset
volume on the connected A2DP device
if it supports this feature.
Calls
To make a call, use your mobile device
in the normal way when the headset is
connected to it.
BH-214_en_1_with_FCC&IC_notice.fm Page 7 Thursday, February 12, 2009 3:33 PM
ENGLISH
To redial the number you last called (if
your mobile device supports this
feature with the headset), when no
call is in progress, press the answer/
end key twice.
To activate voice dialling (if your
mobile device supports this feature
with the headset), when no call is in
progress, press and hold the answer/
end key for about 2 seconds. Proceed
as described in the user guide of the
mobile device.
To answer or end a call, press the
answer/end key. To reject a call, press
this key twice.
To switch a call from the headset to a
compatible mobile device, press and
hold the answer/end key for about 2
seconds, or switch off the headset. To
switch the call back to the headset,
press and hold the answer/end key for
about 2 seconds, or switch on the
headset.
Listen to music
To listen to music, connect the
headset to a compatible music player
that supports the A2DP Bluetooth
profile.
The available music functions depend
on your music player.
If you receive or make a call while
listening to music, the music is paused
until you end the call.
Warning: Listen to music at
a moderate level. Continuous
exposure to high volume may
damage your hearing.
To play a song, select it in the music
player, and press the play/pause key.
To pause or resume playing, press the
play/pause key. To stop playing, press
and hold the play/pause key.
To select the next song during
playback, press the forward key. To
select the previous song, press the
BH-214_en_1_with_FCC&IC_notice.fm Page 8 Thursday, February 12, 2009 3:33 PM
ENGLISH
rewind key twice. To scroll through the
current song quickly, press and hold
either key.
Turn lights on or off
By default, the indicator lights are
shown in all situations. To turn the
lights off in some situations (for
example, during a call or when the
headset is connected to a mobile
device) or back on, press and hold the
power key and the answer/end key for
about 5 seconds when the headset is
connected to a device.
Clear settings or reset
To clear the volume and pairing
settings from the headset, press and
hold the power key and the answer/
end key (for about 5 seconds) until the
red and green indicator lights start to
alternate.
To reset the headset if it stops
functioning, even though it is charged,
connect the headset to a charger
while you press and hold the power
key.
Troubleshooting
If you cannot connect the headset to
your compatible device, check that
the headset is charged, switched on,
and paired with the device.
Battery and charger information
This device has an internal,
nonremovable, rechargeable battery. Do
not attempt to remove the battery from
the device as you may damage the
device. This device is intended for use
when supplied with power from the
BH-214_en_1_with_FCC&IC_notice.fm Page 9 Thursday, February 12, 2009 3:33 PM
ENGLISH
following chargers: AC-3, AC-4, AC-5,
AC-8, DC-4, and DC-9. The exact charger
model number may vary depending on
the type of plug. The plug variant is
identified by one of the following: E, EB,
X, AR, U, A, C, or UB. The battery can be
charged and discharged hundreds of
times, but it will eventually wear out.
Recharge your battery only with Nokia
approved chargers designated for this
device. Use of an unapproved charger
may present a risk of fire, explosion,
leakage, or other hazard.
If a battery is being used for the first time
or if the battery has not been used for a
prolonged period, it may be necessary to
connect the charger, then disconnect and
reconnect it to begin charging the
battery. If the battery is completely
discharged, it may take several minutes
before the charging indicator light is
displayed.
Unplug the charger from the electrical
plug and the device when not in use. Do
not leave a fully charged battery
connected to a charger, since
overcharging may shorten its lifetime. If
left unused, a fully charged battery will
lose its charge over time.
Always try to keep the battery between
15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and
lifetime of the battery. A device with a
hot or cold battery may not work
temporarily. Battery performance is
particularly limited in temperatures well
below freezing.
Do not dispose of batteries in a fire as
they may explode. Batteries may also
explode if damaged.
Never use any charger that is damaged.
Important: Battery operating
times are estimates only and
depend on network
conditions, features used, battery age
and condition, temperatures to which
battery is exposed, and many other
factors.
BH-214_en_1_with_FCC&IC_notice.fm Page 10 Thursday, February 12, 2009 3:33 PM
ENGLISH
Care and maintenance
Your device is a product of superior
design and craftsmanship and should be
treated with care. The following
suggestions will help you protect your
warranty coverage.
• Keep the device dry. Precipitation,
humidity, and all types of liquids or
moisture can contain minerals that
will corrode electronic circuits. If your
device does get wet, allow it to dry
completely.
• Do not use or store the device in
dusty, dirty areas. Its moving parts
and electronic components can be
damaged.
• Do not store the device in hot areas.
High temperatures can shorten the
life of electronic devices, damage
batteries, and warp or melt certain
plastics.
• Do not store the device in cold areas.
When the device returns to its normal
temperature, moisture can form
inside the device and damage
electronic circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the
device. Rough handling can break
internal circuit boards and fine
mechanics.
• Do not use harsh chemicals, cleaning
solvents, or strong detergents to
clean the device.
• Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
These suggestions apply equally to your
device, charger, or any accessory. If any
device is not working properly, take it to
the nearest authorised service facility for
service.
BH-214_en_1_with_FCC&IC_notice.fm Page 11 Thursday, February 12, 2009 3:33 PM
ENGLISH
Recycle
The crossed-out wheeled-bin
symbol on your product, battery,
literature, or packaging reminds
you that all electrical and electronic
products, batteries, and accumulators
must be taken to separate collection at
the end of their working life. This
requirement applies in the European
Union. Do not dispose of these products
as unsorted municipal waste. For more
environmental information, see the
product Eco-Declarations at
www.nokia.com/environment.
Always return your used electronic
products, batteries, and packaging
materials to a dedicated collection point.
This way you help prevent uncontrolled
waste disposal and promote the recycling
of materials. More detailed information
is available from the product retailer,
local waste authorities, national
producer responsibility organisations, or
your local Nokia representative. Check
how to recycle your Nokia products at
www.nokia.com/werecycle, or if
browsing on a mobile device,
www.nokia.mobi/werecycle.
FCC/Industry Canada notice
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: 1. This device may not cause
harmful interference; and 2. This device
must accept any interference received,
including interference that may cause
undesired operation. This equipment has
been tested and found to comply with the
limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and,
if not installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
BH-214_en_1_with_FCC&IC_notice.fm Page 12 Thursday, February 12, 2009 3:33 PM
ENGLISH
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver. Connect the
equipment into an outlet on a circuit
different from that to which the receiver is
connected. Consult the dealer or an
experienced radio/TV technician for help.
NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
co-located or operating in conjunction with
any other antenna or transmitter. NOTE:
Changes or modifications not expressly
approved by Nokia could void the user's
authority to operate the equipment.
BH-214_en_1_with_FCC&IC_notice.fm Page 13 Thursday, February 12, 2009 3:33 PM
