User Manual

Nokia Lumia 1520
Welcome to your new amazing
Lumia. Get started, learn more,
enjoy!
123456 Issue 1 (draft) EN

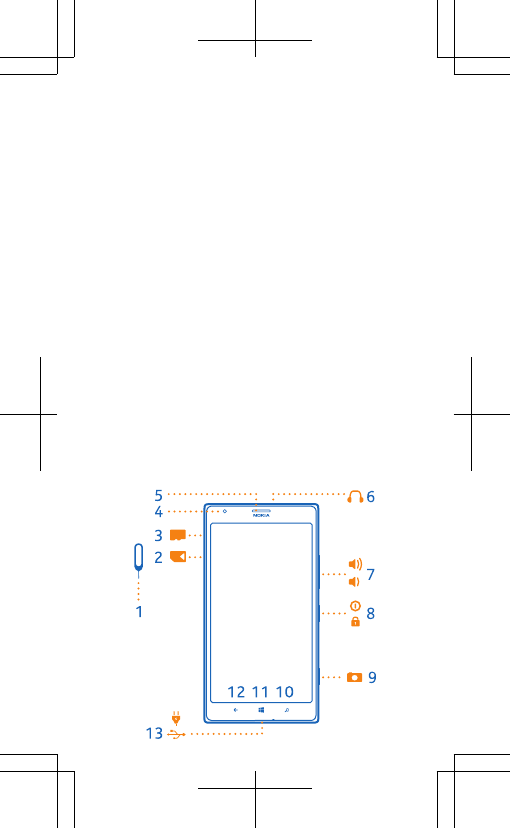

Keys and parts
1 SIM and memory card holder tool, available
in the sales box.
2Nano-SIM holder
3 Memory card holder
4 Front camera
5Earpiece
6 Connector for headphones and
loudspeakers (3.5 mm)
7Volume keys
8 Power/Lock key
9 Camera key
10 Search key
11 Start key
12 Back key
13 Micro-USB connector
Do not attempt to open the back cover or remove
the battery from the device. To replace the
battery, take the device to your nearest
authorised service facility.
2
Some of the accessories mentioned in this user
guide may be sold separately.
3

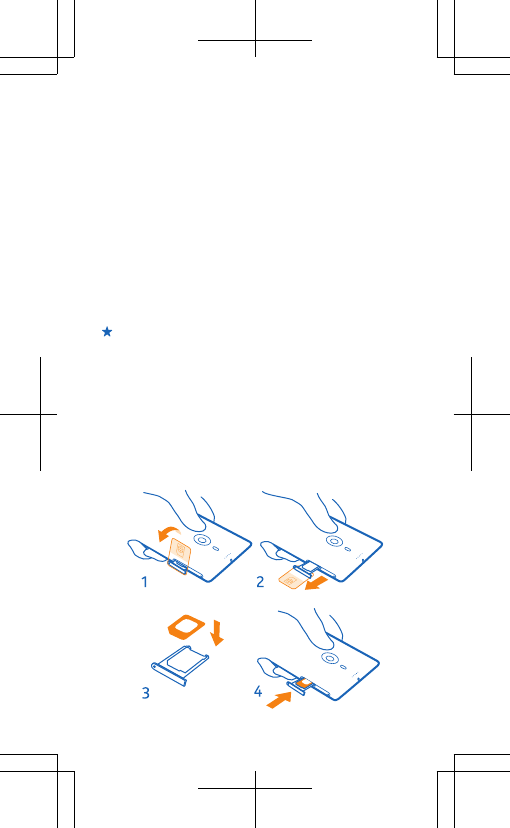

Insert the SIM card
Your phone uses a nano-SIM card, also known as
a nano-UICC card.
Your phone must be switched off before you
insert the SIM card.
1. Hold your phone face down and pull the SIM
holder out
2. Put the card in the holder with the contact area
face up, and push the holder back in.
To switch the phone on, press and hold the power
key.
Tip: For info about reopening the SIM holder,
see the user guide in your phone or the online user
guide.
4

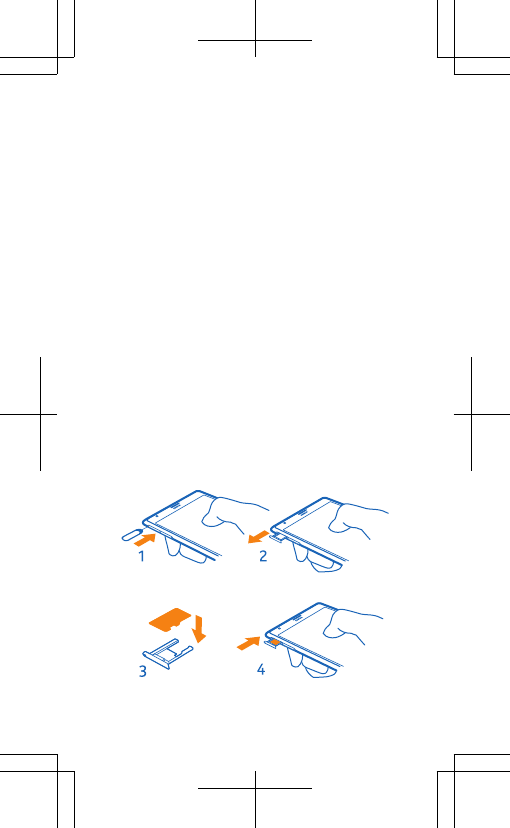

Insert the memory card
The phone must be switched off before inserting
the memory card. The memory card holder tool is
available in the sales box.
1. Hold your phone face up, and push the tool into
the hole until the memory card holder is released.
2. Put the card in the holder with the contact area
face down, and push the holder back in.
Charge the battery
To charge the battery, connect the USB cable to
the charger, plug the charger into a wall outlet,
and connect the micro-USB end to your phone.
You can also charge the phone from your
computer with the USB cable.
If the battery is completely discharged, it may
need to charge for up to 20 minutes before you
can use your phone. The charging indicator may
not be displayed in this time.
5
Help and tips
There's a user guide in your phone – it's always
with you, available when needed. On the start
screen, swipe left, and tap Nokia Care.
For the online user guide, even more info, and
troubleshooting help, go to www.nokia.com/
support, or press , and tap . Point the camera
at the code, and tap the result.
Check out the videos at www.youtube.com/
NokiaSupportVideos.
If your phone freezes
Press and hold the power key for about 10
seconds. The phone vibrates and restarts.
6
Product and safety information
Important: For important info on the safe use of your device and
battery, read “Safety” and “Product and safety info” in the device
user guide at www.nokia.com/support and in the in-device user guide
before you take your device into use. Select Nokia Care.
For info on Nokia Service terms and Privacy policy, go to
www.nokia.com/privacy.
You can only use your device on the LTE 800, 900, 1800, 2100, 2600;
WCDMA 850, 900, 1900, 2100; and GSM 850, 900, 1800, 1900 MHz
networks. Support for LTE networks may have been disabled on your
device depending on your country or service provider networks.
Use your device only with an original BV-5XW rechargeable battery.
To replace the battery, take the device to the nearest authorised
service facility. Do not dispose batteries as household waste. Charge
your device with AC-60Ucharger. Charger plug type may vary. Nokia
may make additional battery or charger models available for this
device.
Third-party chargers that comply with the IEC/EN 62684 standard,
and that can connect to your device micro USB connector, may also
be compatible.
Note: Using Wi-Fi may be restricted in some countries. For
example, in the EU, you are only allowed to use 5150–5350 MHz Wi-Fi
indoors, and in the USA and Canada, you are only allowed to use 5.15–
5.25 GHz Wi-Fi indoors. For more info, contact your local authorities.
To prevent possible hearing damage, do not listen at high volume
levels for long periods. Exercise caution when holding your device
near your ear while the loudspeaker is in use.
Additional safety information
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all
individuals, including those with disabilities. For more information,
visit the Nokia website at www.nokiaaccessibility.com.
Hearing
Warning: When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it can
endanger your safety.
Some wireless devices may interfere with some hearing aids.
Safety and texting while driving
Safety should be every driver’s first priority. Drivers must obey all
local laws that may include restrictions on the use of cellular
telephones or accessories while driving. If use is legal, always keep
your hands free to operate the vehicle while driving and use a
7
handsfree device whenever possible. Suspend calls in heavy traffic or
hazardous weather. Get to know your cellular phone and its features
and make any necessary information inputs prior to driving. Do not
input data or engage in text messaging while driving. Cellular
telephones should not be used when use may be a distraction to the
driver.
The Cellular Telecommunications & Internet Association (CTIA) has
published further info and tips on safe use of cellular telephones at
www.ctia.org/consumer_info/safety, which we encourage you to
review.
Certification information (SAR)
This mobile device meets international guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields), recommended by international guidelines
from the independent scientific organization ICNIRP. These
guidelines incorporate substantial safety margins that are intended
to assure the protection of all persons regardless of age and health.
The exposure guidelines are based on the Specific Absorption Rate
(SAR), which is an expression of the amount of radio frequency (RF)
power deposited in the head or body when the device is transmitting.
The ICNIRP SAR limit for mobile devices is 2.0 W/kg averaged over 10
grams of tissue.
SAR tests are carried out with the device in standard operating
positions, transmitting at its highest certified power level, in all its
frequency bands. The maximum recorded SAR values for this device
are:
Maximum SAR value Frequency bands
used when
Maximum SAR value
was recorded
When held against
the head
0.64 W/kg over 10g WCDMA 2100 and
WLAN 2450
When operated at a
separation distance
of 1.5 centimetres
(5/8 inch) from the
body
0.20 W/kg over 10g WCDMA 1900 and
WLAN 2450
Your mobile device is also designed to meet the United States Federal
Communications Commission (FCC) and Industry Canada SAR (IC)
guidelines. FCC ratings for your device and more information on SAR
8
can be found at transition.fcc.gov/oet/rfsafety/sar.html.
Information on IC SAR can be found at www.ic.gc.ca.
This device meets RF exposure guidelines when used against the head
or when positioned at least 1.5 centimetres (5/8 inch) away from the
body. When a carry case, belt clip or other form of device holder is
used for body-worn operation, it should not contain metal and should
provide at least the above stated separation distance from the body.
To send data or messages, a good connection to the network is
needed. Sending may be delayed until such a connection is available.
Follow the separation distance instructions until the sending is
finished.
During general use, the SAR values are usually well below the values
stated above. This is because, for purposes of system efficiency and
to minimise interference on the network, the operating power of your
mobile is automatically decreased when full power is not needed for
the call. The lower the power output, the lower the SAR value.
Device models may have different versions and more than one value.
Component and design changes may occur over time and some
changes could affect SAR values. The latest available SAR information
for this and other Nokia device models can be found at
www.nokia.com.
For more info, go to www.sar-tick.com. Note that mobile devices may
be transmitting even if you are not making a voice call.
The World Health Organization (WHO) has stated that current
scientific information does not indicate the need for any special
precautions when using mobile devices. If you are interested in
reducing your exposure, they recommend you limit your usage or use
a hands-free kit to keep the device away from your head and body.
For more information and explanations and discussions on RF
exposure, go to the WHO website at www.who.int/peh-emf/en.
Nokia Care
For questions regarding your plans, billing or network please contact
your operator. For questions regarding your Nokia product and
warranty, please visit the support pages for your country at
www.nokia.com/support.
Copyrights and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-937 product is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at www.nokia.com/global/declaration/
declaration-of-conformity.
The availability of products, features, apps and services may vary by
region. For more info, contact your Nokia dealer or your service
provider. This device may contain commodities, technology or
software subject to export laws and regulations from the US and other
countries. Diversion contrary to law is prohibited.
9
The contents of this document are provided "as is". Except as
required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document.
Nokia reserves the right to revise this document or withdraw it at any
time without prior notice.
To the maximum extent permitted by applicable law, under no
circumstances shall Nokia or any of its licensors be responsible for
any loss of data or income or any special, incidental, consequential or
indirect damages howsoever caused.
Reproduction, transfer or distribution of part or all of the contents in
this document in any form without the prior written permission of
Nokia is prohibited. Nokia operates a policy of continuous
development. Nokia reserves the right to make changes and
improvements to any of the products described in this document
without prior notice.
Nokia does not provide a warranty for or take any responsibility for
the functionality, content, or end-user support of third-party apps
provided with your device. By using an app, you acknowledge that the
app is provided as is. Nokia does not make any representations,
provide a warranty, or take any responsibility for the functionality,
content, or end-user support of third-party apps provided with your
device.
The software in this device includes software licensed by Nokia from
Microsoft Corporation or its affiliates. To access the Windows Phone
software license terms, select Settings > about. Please read the
terms. Please note that by using the software, you accept the terms.
If you do not accept the terms, do not use the device or software.
Instead contact Nokia or the party from which you purchased the
device to determine its return policy.
FCC/MEXICO NOTICE
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Nokia could
void the user's authority to operate this equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
10
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Manufacturer: Nokia Corporation, Keilalahdentie 2–4, P.O. Box 226,
FI-00045 Nokia Group, Finland
Importer: Nokia Corporation (see above), or Nokia Komárom Kft,
Nokia Utca 1., 2900 Komárom, Hungary
TM & © 2013 Nokia. All rights reserved. Third party products/names
may be TMs of their respective owners.
© 2013 Microsoft Corporation. All rights reserved. Microsoft, Windows
and the Windows logo are trademarks of the Microsoft group of
companies.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Nokia is under license.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license from Dolby Laboratories.
This product is licensed under the MPEG-4 Visual Patent Portfolio
License (i) for personal and noncommercial use in connection with
information which has been encoded in compliance with the MPEG-4
Visual Standard by a consumer engaged in a personal and
noncommercial activity and (ii) for use in connection with MPEG-4
video provided by a licensed video provider. No license is granted or
shall be implied for any other use. Additional information, including
that related to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See www.mpegla.com.
The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
11
NOKIA MANUFACTURER’S LIMITED
WARRANTY
Note: This Manufacturer’s Limited Warranty (“Warranty”) is
applicable only for this Nokia product sold through authorised Nokia
retail, and which Nokia has intended for sale in the European Union,
Iceland, Norway, Switzerland, and Turkey since 1 September 2011.
Note: This Warranty does not limit the rights you may have under
any mandatory consumer protection laws of your country.
1. GENERAL
Nokia Corporation ("Nokia") provides this limited Warranty
(“Warranty”) for this Nokia product included in the original sales
package sold through authorised Nokia retail ("Product"). Your
Product is a sophisticated electronic device. Nokia strongly
encourages you to read and follow its user guide. Please also note
that your Product may contain parts which can be damaged if not
handled very carefully.
During the warranty period, Nokia or a Nokia authorised service centre
will remedy defects in materials and workmanship free of charge and
in a commercially reasonable time by either repairing or replacing
your Product at its option.
2. WARRANTY PERIOD
The warranty period starts when the Product is sold to the first end-
user for the first time. This can be evidenced either by (i) the proof of
purchase issued by the first retailer or (ii) the date your Product has
first been registered by Nokia.
Nokia provides the Warranty for the Products in the sales pack as
follows:
1 Twenty four (24) months for the main device;
2 Twelve (12) months for the main device battery and accessories;
3 Six (6) months for the charger;
4 Three (3) months for the CD-ROM.
No repair or replacement will renew or extend the warranty periods.
However, original or replacement parts or replacement Products
provided under this Warranty will be covered by this Warranty for the
remainder of the original warranty period or for sixty (60) days from
the date of repair or replacement, whichever is longer.
3. HOW TO OBTAIN YOUR WARRANTY SERVICE
If you suspect that your Product may require service under this
Warranty, please first visit www.nokia.com and follow any
instructions on how to troubleshoot the suspected issue and how to
proceed. You can also call a Nokia call centre for assistance (national
or premium rates may apply). You can find information about Nokia
call centres and Nokia authorised service centres in the sales package,
or from local Nokia web pages, where available. If you call a Nokia call
centre or use other available support, please have the following
information readily available:
12
• Your full name, address, telephone number, Nokia user account
details, and other contact information;
• Your Product type, name, model number, product code, and serial
number, which are available from the sales package of your Product;
• Date and place of purchase, as well as the name of the retailer from
whom your Product was first purchased; and
• A short description of the issue affecting your Product.
If you visit a Nokia authorised service centre for assistance under this
Warranty, please remember to bring along a copy of the original proof
of purchase.
You must inform Nokia or a Nokia authorised service centre of the
issue affecting your Product within a reasonable time from noticing
it and always before the applicable warranty period expires (see
section 2 above).
Nokia recommends that you register your Product with Nokia or
activate a Nokia user account, which may in some circumstances
enable Nokia to provide you a more personalised warranty service.
4. WHAT THIS WARRANTY DOES NOT COVER
Nokia does not provide this Warranty for the following:
1 User guides;
2 Any third party software, settings, content, data, or links installed
or downloaded onto your Product at any time;
3 Nokia and third party services or enabling clients (please read the
terms and conditions that may accompany the services to review your
applicable rights and obligations);
4 Normal wear and tear;
5 Reduced charging capacity of the battery, which is a result of the
natural end of life process of batteries;
6 Defects or damage caused by: (a) misuse, (b) not using your Product
in accordance with the user guide, (c) using your Product with, or
connecting it to, any product, accessory, software, or service not
manufactured or supplied by Nokia, (d) any products combined with
your Product by a third party, or (e) other acts beyond Nokia’s
reasonable control;
7 Pixel defects in your Product’s display that are within the scope of
industry standards. For more information on pixel defects and
industry standards, please visit www.nokia.com.
8 Damage caused by hacking, cracking, viruses, or other malware, or
by unauthorised access to services, accounts, computer systems or
networks;
This Warranty is not valid if:
1 Your Product has been (a) opened, modified, or repaired without
Nokia’s authorisation, or (b) repaired with unauthorised spare parts;
2 Your Product’s serial number, the mobile accessory date code, or
the IMEI number has been removed, erased, defaced, altered or if
these are illegible in any way.
3 The software your Product runs on has been modified.
For the purposes of this Warranty, all software that Nokia has
preinstalled on the Product and which is necessary for its normal
13
operation is considered Nokia software. Nokia does not warrant that
any Nokia software (including updates and upgrades) provided with,
in, or for your Product will meet your requirements, work in
combination with any hardware or software not provided by Nokia,
that the operation of Nokia software will be uninterrupted or error
free or that any defects in the software are correctable or will be
corrected. For Nokia software related defects, Nokia or a Nokia
authorised service centre will make available the latest version of the
Nokia software for reinstallation on your Product. Some Nokia
software may be subject to separate licence terms. Please refer to
local Nokia web pages (where available) or the license terms, which
apply to the Nokia software, for information on support that may be
available for it.
5. OTHER IMPORTANT NOTICES
An independent operator provides the SIM card and the cellular or
other network or system on which your Product operates. Therefore,
Nokia does not assume any responsibility for the operation,
availability, coverage, services, or range of the cellular or other
networks or systems. Before Nokia or a Nokia authorised service
centre can repair or replace your Product, the operator may need to
unlock the SIM-lock or other lock that may lock your Product to a
specific network or operator. In these situations, please first contact
your operator and request it to unlock your Product.
All parts of your Product that Nokia has replaced become Nokia’s
property. When repairing or replacing your Product, Nokia may use
new or re-conditioned parts or products.
If this Warranty does not cover your Product or the issue based on
which it requires service, Nokia and its authorised service centres
reserve the right to charge for the repair or replacement of your
Product, as well as a handling fee.
Your Product may contain country specific elements, including
software. The warranty services available in a particular country may
be limited to the Products and country specific elements available in
that country. Also, if your Product has been re-exported from its
original destination to another country, your Product may contain
country specific elements that are not considered a defect under this
Warranty even if they would not be operational.
6. LIMITATION OF NOKIA'S LIABILITY
To the extent permitted by applicable law(s), Nokia shall not under
any circumstances be liable, either expressly or implicitly, for any
damages or losses of any kind whatsoever resulting from loss of,
damage to, or corruption of, content or data or the recreation or
transfer thereof even if such loss, damage, or corruption was a result
of a defect in your Product. Please note that you should always back
up all data and content (including, without limitation, any licence
numbers and activation codes) stored on your Product before taking
your Product in for service since service activities will erase all data
from your Product.
14
To the extent permitted by applicable law(s) Nokia SHALL NOT UNDER
ANY CIRCUMSTANCES BE LIABLE for any loss of profit, Products or
functionality, business, contracts, revenues or anticipated savings,
increased costs or expenses, or for any indirect, consequential or
special loss or damage.
To the extent permitted by applicable law(s), Nokia’s liability shall be
limited to the purchase value of your Product. The limitations in this
clause 6 shall not apply in case of Nokia’s negligence or intentional
misconduct or in case of death or personal injury resulting from
Nokia’s proven negligence.
Nokia Corporation, Keilalahdentie 2-4, FIN-02150 Espoo, Finland
15

Navigation menu
