User Manual
User Guide
Wireless Charging Plate DT-903
Issue 1 EN
Contents
Safety 3
About your accessory 4
Keys and parts 5
Charge your phone 6
Get notifications 7
About Bluetooth connectivity 8
Indicator lights and multifunction key
actions 9
Product and safety info 10
Copyrights and other notices 11
User Guide
Wireless Charging Plate DT-903
© 2014 Microsoft Mobile. All rights reserved.
2
Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with
this device. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
© 2014 Microsoft Mobile. All rights reserved.
3
About your accessory
With the Wireless Charging Plate DT-903, you can charge the battery of your phone without
connecting any cables to your phone. Your wireless charging plate can also let you know, for example,
when the battery on your phone is running low, or when you’ve missed a call or you have unread
messages.
Your wireless charging plate is compliant with the Qi standard. The NFC feature works with Nokia
Lumia devices that support NFC. The smart features, such as alerts on low battery level or missed
calls, work with Nokia Lumia devices with Windows Phone 8.1.1 and Bluetooth 4.0 or higher.
For more info on operation and safety, see the user guide of your phone or other device.
© 2014 Microsoft Mobile. All rights reserved.
4

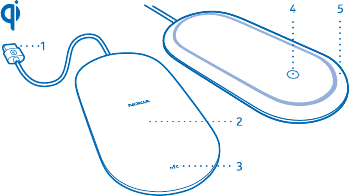

Keys and parts
Get to know your wireless charging plate.
1 USB connector
2 Charging area for charging the phone
3NFC area
4Multifunction key
5 Charging and notification indicator light
The surface of this product is nickel-free.
© 2014 Microsoft Mobile. All rights reserved.
5
Charge your phone
It’s simple: place your phone or another Qi-compatible device on the charging plate to start charging.
1. Connect the USB cable of your charging plate to a compatible charger plugged into a wall outlet,
or to another suitable USB power source.
2. Make sure the charging plate is facing up and there's nothing on the plate.
3. Place your phone on the charging plate. The indicator light is on when a phone is being charged,
and fades out when the phone’s battery is full.
It's normal for the charging plate and phone to get warm while charging. If there’s a problem with the
charging, the indicator light flashes quickly.
© 2014 Microsoft Mobile. All rights reserved.
6
Get notifications
To get notified about a low charging level on your phone, or about missed calls or messages, among
other things, pair your charging plate with your phone using NFC or Bluetooth.
Make sure your charging plate is connected to a power source.
For more info on how to switch NFC or Bluetooth on, see your phone's user guide.
1. When using NFC, touch the NFC areas of your charging plate and phone together, and follow the
instructions shown on the phone.
When using Bluetooth, on your phone, swipe left, tap Settings > Bluetooth, and select your charging
plate.
2. In Nokia Device Hub, change the settings to choose how you want your charging plate to notify
you.
For example, you can set the indicator light to flash slowly when the phone battery is low, or flash
twice repeatedly to notify you of other events.
To adjust the indicator light brightness, or to dismiss a notification, press the multifunction key. To
clear the Bluetooth pairing, press the multifunction key for more than 8 seconds.
© 2014 Microsoft Mobile. All rights reserved.
7
About Bluetooth connectivity
You can use Bluetooth to connect wirelessly to other compatible devices, such as mobile phones.
The devices don't have to be in direct line of sight, but they must be within 10 metres (33 feet) of
each other. The connection may be affected by obstructions such as walls or other electronic devices.
This device is compliant with Bluetooth Specification 4.0. Check with the manufacturers of other
devices to determine their compatibility with this device.
© 2014 Microsoft Mobile. All rights reserved.
8
Indicator lights and multifunction key actions
Wonder what the different lights on your charging plate mean or what the multifunction key does?
Table 1: Indicator light patterns
Continuous Charging
Off The battery of your phone or other device is fully
charged
Flashing quickly Charging error, or the connected power source
is not able to provide enough power
Flashing twice repeatedly Notification
Flashing slowly The battery of the phone connected to the
charging plate is low
Table 2: Multifunction key actions
Press once Adjust the indicator light brightness, or dismiss
a notification
Press for more than 8 seconds Empty the list of paired devices
© 2014 Microsoft Mobile. All rights reserved.
9
Product and safety info
Take care of your device
Handle your device, charger and accessories with care. The following suggestions help you keep your device operational.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic
circuits. If your device gets wet, let the device dry.
• Use the charger for intended purposes only. Improper use, or use of incompatible chargers may present a risk of fire,
explosion, or other hazard. Never use a damaged charger.
• Do not attempt to charge a device having a damaged, cracked or open battery case or a device that is not compatible with
Qi.
• Do not use or store the device in dusty or dirty areas.
• Do not store the device in high temperatures. High temperatures may damage the device.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside
the device and damage it.
• Do not open the device.
• Unauthorised modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device or the battery. Rough handling can break it.
• Only use a soft, clean, dry cloth to clean the surface of the device.
During extended operation, the device may feel warm. In most cases, this is normal. If the device is not working properly, take
it to the nearest authorised service facility.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you
help prevent uncontrolled waste disposal and promote the recycling of materials. All materials of the device can be recovered
as materials and energy. Check how to recycle your Microsoft Mobile products at www.nokia.com/recycle.
Crossed-out wheeled-bin symbol
The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and
electronic products and batteries must be taken to separate collection at the end of their working life. Do not dispose of these
products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local
waste authority, or go to www.nokia.com/support. For more info on the environmental attributes of your device, see
www.nokia.com/ecoprofile.
Battery and charger info
Microsoft Mobile may make additional battery or charger models available for this device.
Implanted medical devices
To avoid potential interference, manufacturers of implanted medical devices recommend a minimum separation of 15.3
centimetres (6 inches) between a wireless device and the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.
• Not carry the wireless device in a breast pocket.
• Switch the wireless device off if there is any reason to suspect that interference is taking place.
• Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.
© 2014 Microsoft Mobile. All rights reserved.
10
Copyrights and other notices
DECLARATION OF CONFORMITY
Hereby, Microsoft Mobile Oy declares that this DT-903 product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/global/
declaration/declaration-of-conformity.
The availability of products may vary by region. For more info, contact your dealer. This device may contain commodities,
technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is
prohibited.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy, reliability or contents of this document. Microsoft Mobile reserves the right to revise this document
or withdraw it at any time without prior notice.
To the maximum extent permitted by applicable law, under no circumstances shall Microsoft Mobile or any of its licensors be
responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
Reproduction, transfer or distribution of part or all of the contents in this document in any form without the prior written
permission of Microsoft Mobile is prohibited. Microsoft Mobile operates a policy of continuous development. Microsoft Mobile
reserves the right to make changes and improvements to any of the products described in this document without prior notice.
Microsoft Mobile does not make any representations, provide a warranty, or take any responsibility for the functionality, content,
or end-user support of third-party apps provided with your device. By using an app, you acknowledge that the app is provided
as is.
FCC/INDUSTRY CANADA NOTICE
This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. For more info, go to transition.fcc.gov. Any changes or
modifications not expressly approved by Microsoft Mobile could void the user's authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
TM & © 2014 Microsoft Mobile. All rights reserved. Nokia is a TM of Nokia Corporation. Third party products/names may be TMs
of their respective owners.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Microsoft Mobile is under
license.
The ‘Qi’ symbol is a trademark of the Wireless Power Consortium.
