With the Nokia Speakerphone HF-310, you can make and answer calls
hands free.
You can connect the speakerphone to a compatible mobile device that
supports Bluetooth wireless technology.
Read this user guide carefully before using the speakerphone. Also, read
the user guide for the device that you connect to the speakerphone. For
the latest version of the user guide and additional information related to
your Nokia product, see www.nokia.com/support or your local Nokia
website.
This product may contain small parts. Keep them out of the reach of
small children. The surface of this device does not contain nickel in the
platings. The surface of this device contains stainless steel.
■Bluetooth wireless technology
In a Bluetooth connection, the mobile device and the speakerphone
should be within 10 meters (33 feet) of each other. Connections can be
subject to interference from other electronic devices.
The speakerphone is compliant with the Bluetooth Specification 2.1
supporting the Hands-Free Profile (HFP) 1.5. Check with the
manufacturers of other devices to determine their compatibility with
this device.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 5 Friday, January 9, 2009 2:42 PM
Get started
6
2. Get started

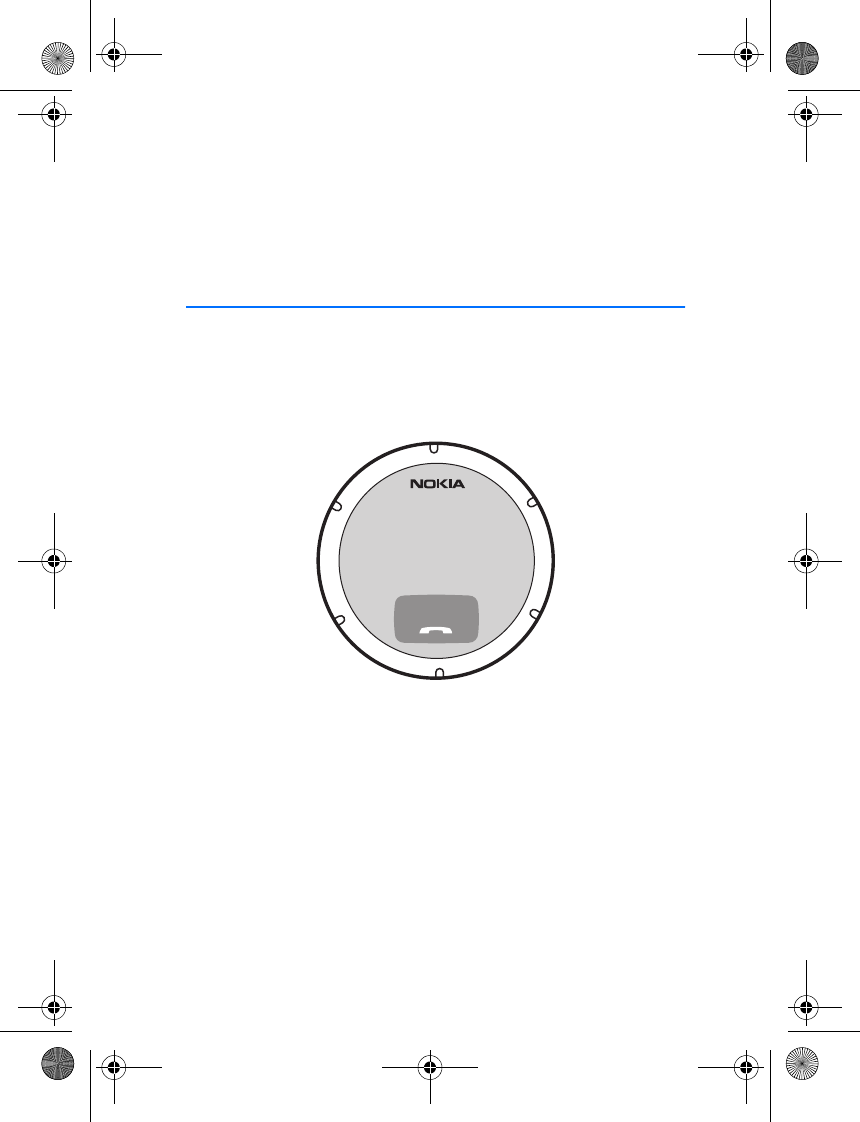

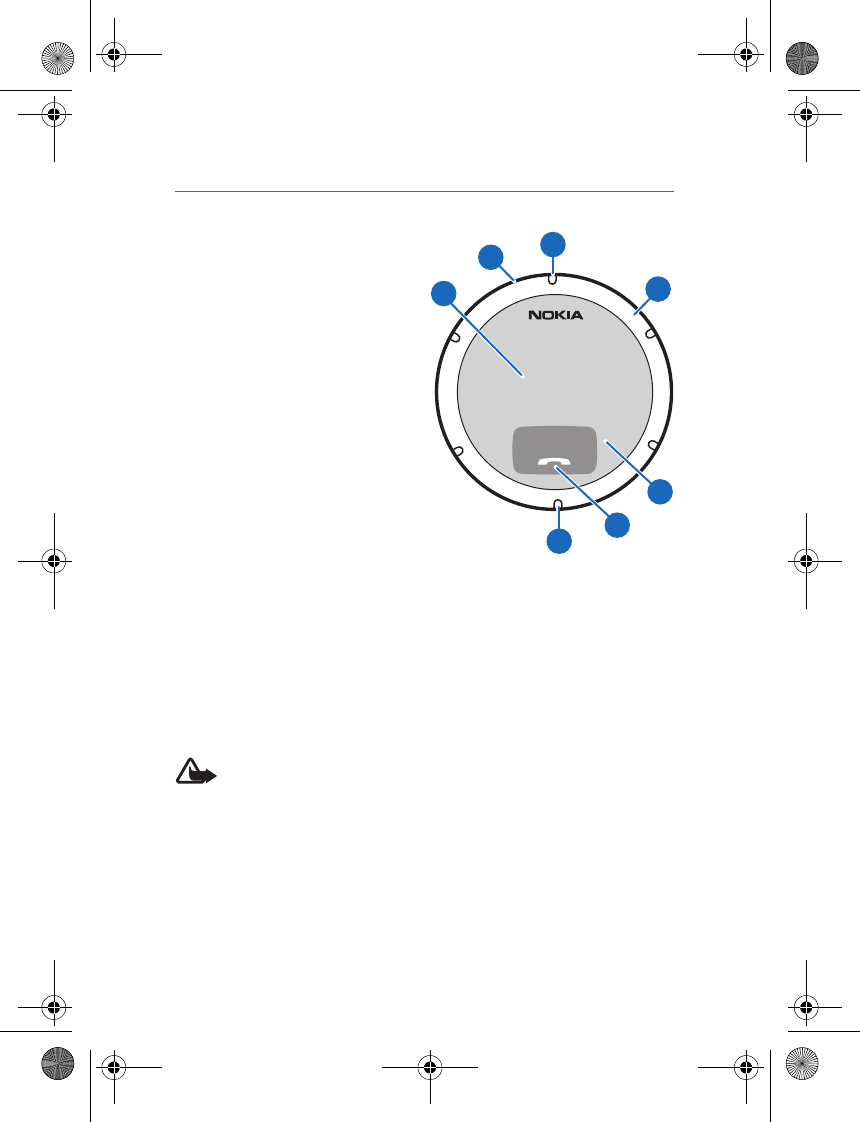

The speakerphone contains the
following parts:
1. Power key
2. Microphone
3. Speaker
4. Volume wheel
5. Indicator light
6. Answer/end key
7. Charger connector
Before using the speakerphone,
you must charge the battery and
pair the speakerphone with a
compatible device.
Parts of the speakerphone are
magnetic. Metallic materials may be attracted to the speakerphone. Do not place
credit cards or other magnetic storage media near the speakerphone, because
information stored on them may be erased.
■Charge the battery
Before charging the battery, carefully read Battery and charger
information p. 16.
Warning: Use only chargers approved by Nokia for use with this
particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
When you disconnect the power cord of any accessory, grasp and pull the plug,
not the cord.
1. Connect the charger cable to the charger connector.
2. Connect the charger to the power source. For example, connect the
DC-4 charger to the cigarette lighter socket of your car or the AC-5
charger to a wall outlet. During charging, the red indicator light is
1
2
34
76
5
HF-310_UG_en1_with_FCC&IC_notice.fm Page 6 Friday, January 9, 2009 2:42 PM
Get started
7
displayed. Charging the battery fully may take up to 2 hours and 10
minutes.
If you use a charger that is connected to the cigarette lighter socket,
power must be supplied by a 12-volt car battery. Ensure that the
charger is properly inserted in the cigarette lighter socket and does
not interfere with the normal operation of the car.
In some car models, the cigarette lighter socket is powered by the car
battery even when you remove the ignition key. In those cases, the
car battery might be discharged even if the speakerphone is not in
use. For more information, contact the vehicle manufacturer.
3. When the battery is fully charged, the speakerphone beeps.
Disconnect the charger from the speakerphone, then from the power
source.
The fully charged battery has power for up to 24 hours of talk time or up
to 80 days of standby time.
When the battery charge is low, the red indicator light flashes slowly
and the speakerphone beeps about every 5 minutes. Recharge the
battery.
■Switch on or off
Switch on
To switch on, press the power key. The speakerphone plays an ascending
sequence of beeps, and the green indicator light flashes once. The
speakerphone tries to connect to the device that was last connected to
it.
When the speakerphone is connected to your device and ready for use,
the green indicator light flashes slowly.
Switch off
To switch off, press and hold the power key for about 2 seconds. The
speakerphone plays a descending sequence of beeps, and the red
indicator light flashes once.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 7 Friday, January 9, 2009 2:42 PM
Get started
8
If the speakerphone is not connected to a device within about 30
minutes, it switches off automatically.
■Pair and connect with another device
1. Ensure that the speakerphone is switched off and your mobile device
is switched on.
2. If you have not previously paired the speakerphone with a device,
switch on the speakerphone. The speakerphone enters pairing mode,
and the green indicator light flashes quickly.
If you have previously paired the speakerphone with another device,
switch off the device, and switch on the speakerphone.
3. Within about 5 minutes, activate the Bluetooth feature on the
mobile device, and set the device to search for Bluetooth devices. For
details, see the user guide of your device.
4. In your device, select the speakerphone (Nokia HF-310) from the list
of found devices.
5. Enter the Bluetooth passcode 0000 to pair and connect the
speakerphone to your device. In some devices, you may need to make
the connection separately after pairing.
If pairing succeeds, the speakerphone is shown on the list of currently
paired Bluetooth devices in your mobile device.
When the speakerphone is connected to your device and ready for use,
the green indicator light flashes slowly.
You can pair the speakerphone with up to four devices but connect it to
only one device at a time.
Disconnect the speakerphone
To disconnect the speakerphone from your mobile device, do one of the
following:
• Switch off the speakerphone.
• Disconnect the speakerphone in the Bluetooth menu of your device.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 8 Friday, January 9, 2009 2:42 PM
Get started
9
• Move the speakerphone more than 10 metres (33 feet) away from
the device.
You do not need to delete a pairing with the speakerphone to disconnect
it.
Connect the speakerphone manually
When you switch on the speakerphone, it tries to connect to the device
that was last connected to it.
To manually connect the speakerphone to the last used device (for
example, after connection loss), ensure that the other device is switched
on, and press and hold the answer/end key for about 2 seconds.
Alternatively, switch the speakerphone off and back on. To connect the
speakerphone to another paired device, make the connection in the
Bluetooth menu of the device.
You may be able to set your mobile device so that the speakerphone
connects to it automatically. To activate this feature in a Nokia device,
change the paired device settings in the Bluetooth menu.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 9 Friday, January 9, 2009 2:42 PM
Mount in a car
10
3. Mount in a car

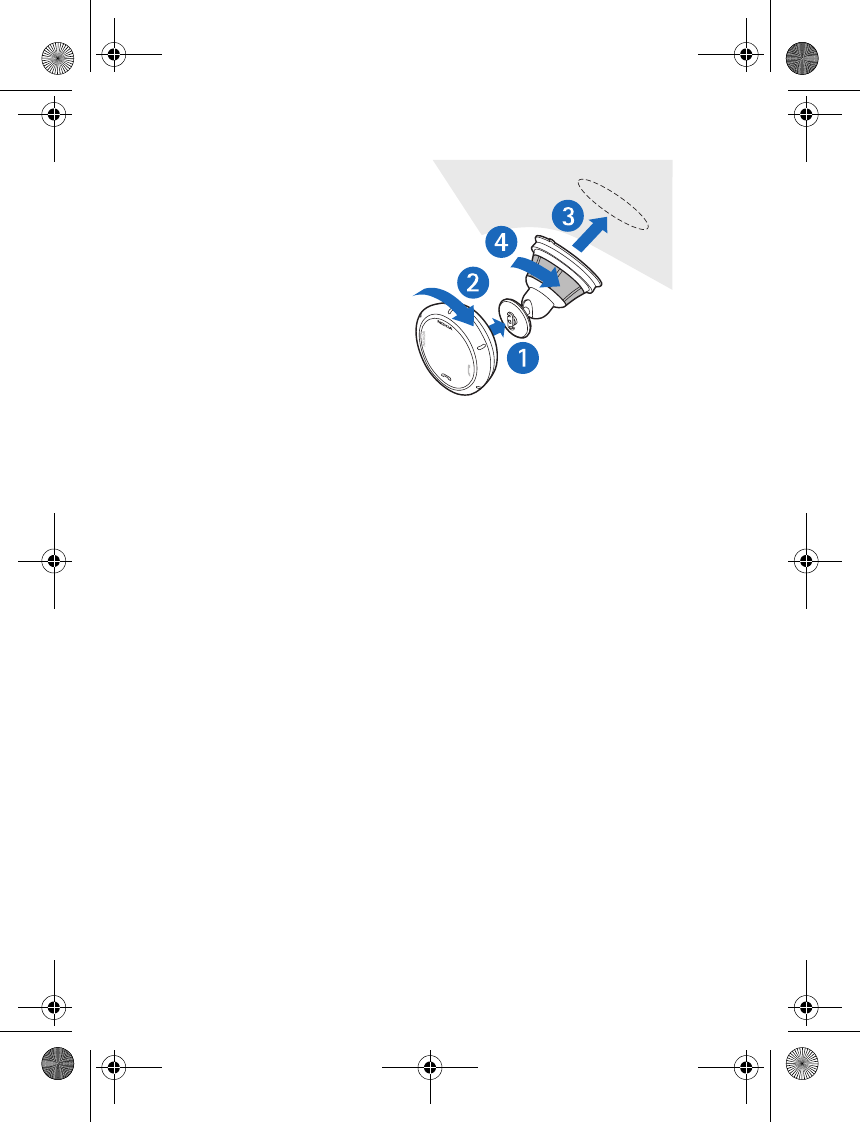

You can attach the speakerphone to the sunvisor, windscreen, or
dashboard in your car.
■General safety instructions

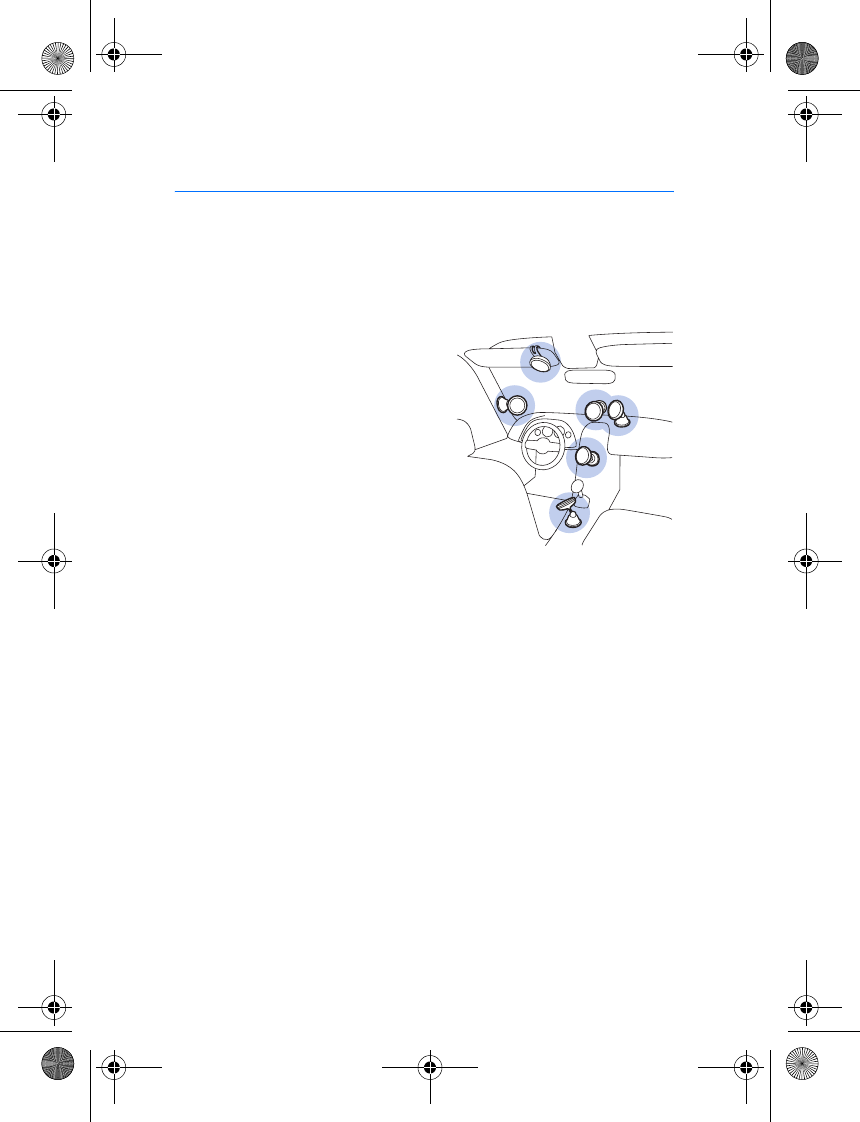

The figure shows possible mounting
locations.
When you install the speakerphone in
a car, ensure that it does not interfere
with or hinder the systems used in the
operation of the vehicle (for example,
airbags) or disturb your field of vision
while driving.
Check that the deployment of the
airbags is not blocked or impaired in
any way. Only operate the speakerphone if it is safe to do so under all
driving conditions.
To use the speakerphone when it is attached to the sunvisor, ensure that
the sunvisor is up against the car roof.
Do not adjust the mounting device while driving.

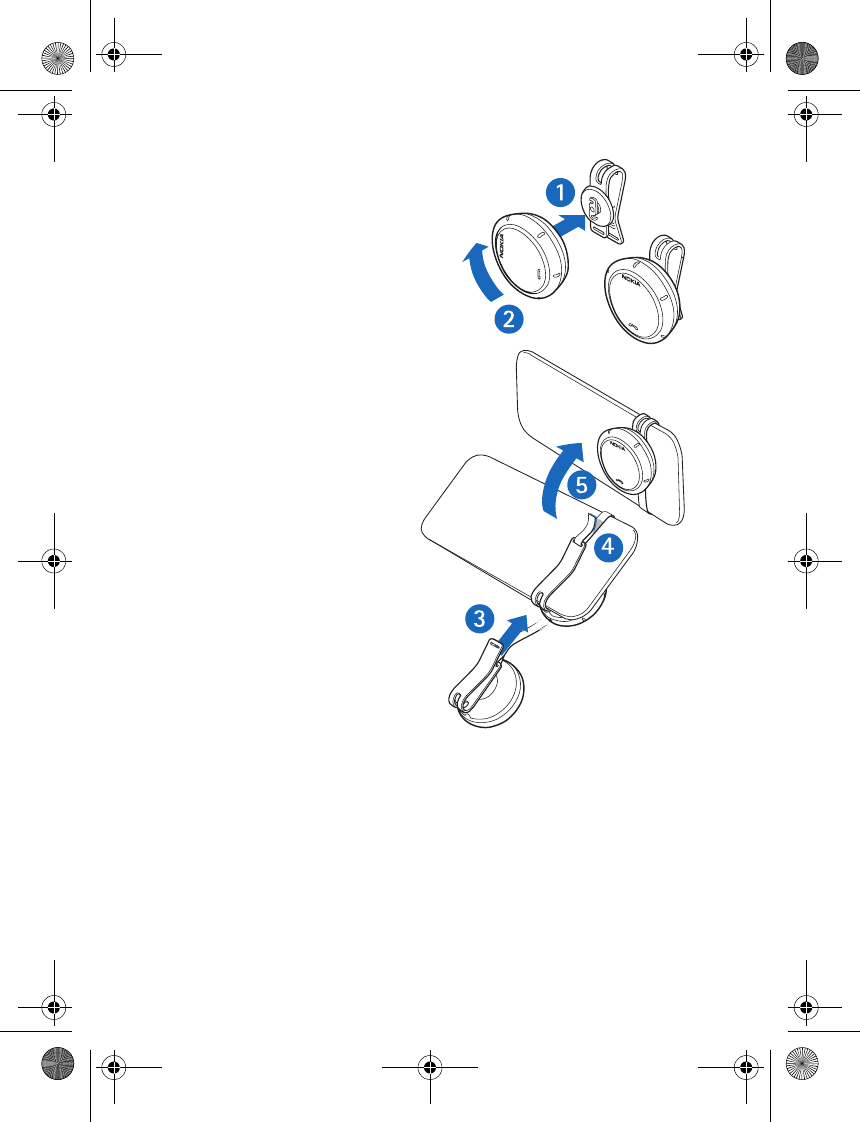

■Attach to a sunvisor
You can attach the speakerphone to the sunvisor of your car using the
supplied clip.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 10 Friday, January 9, 2009 2:42 PM
Mount in a car
11
1. To attach the speakerphone to
the clip, insert the catch on the
clip into the slot at the back of
the speakerphone (1). Rotate the
speakerphone clockwise until it
locks into place (2). (To detach
the speakerphone, rotate it
anticlockwise.)
2. Slide the clip around the
sunvisor from the driver’s
or passenger’s side (3), and
wrap the strap attached to
the clip around the sunvisor
from the back.
3. Thread the strap through
the slot on the clip (4).
Tighten the strap to keep
the speakerphone securely
in place, and firmly press
the hook and loop end of
the strap against the felt on
the strap.
4. Fold the sunvisor up
against the car roof (5).
■Attach to a
windscreen
You can attach the speakerphone to the windscreen using the supplied
mounting device.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 11 Friday, January 9, 2009 2:42 PM
Mount in a car
12
1. Insert the catch on the
mounting device into the
slot at the back of the
speakerphone (1). Rotate
the speakerphone clockwise
until it locks into place (2).
2. Locate a safe mounting
surface on the windscreen,
and clean the surface
thoroughly with a glass
cleaner and a clean towel.
If the ambient temperature
is below +15°C (60°F), carefully warm the surface and the suction
cup with a hair dryer to ensure a firm grip on the windscreen. Ensure
that you do not heat the windscreen excessively to avoid damage to
it.
3. Press the suction cup of the mounting device against the windscreen
(3), and rotate the mounting device clockwise (4) to create a vacuum
between the suction cup and the windscreen. Check that the suction
cup is firmly attached.
4. Turn the speakerphone to the desired position.
To detach the speakerphone from the mounting device, rotate it
anticlockwise.
To detach the suction cup from the windscreen, rotate the mounting
device anticlockwise, and pull the strap located on the edge of the
suction cup.

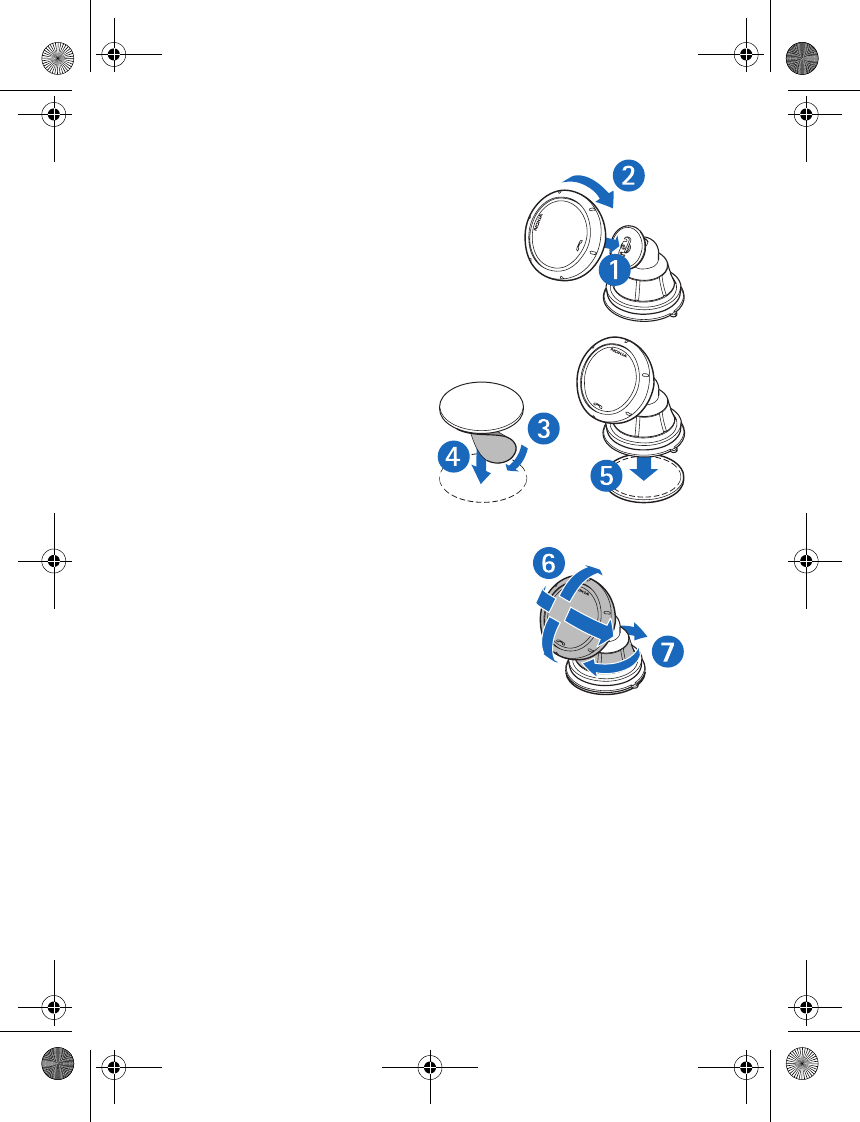

■Attach to a dashboard
You can attach the speakerphone to the dashboard using the supplied
mounting device and adhesive pad.
1. Ensure that the surface where you attach the adhesive pad on the
dashboard is flat, dry, and free from dirt and dust.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 12 Friday, January 9, 2009 2:42 PM
Mount in a car
13
2. Insert the catch on the mounting device
into the slot at the back of the
speakerphone (1). Rotate the
speakerphone clockwise until it locks into
place (2).
3. Peel off the protective sheet
from the adhesive side of the
pad (3), and press the pad
against the dashboard (4) so
that it stays firmly in place.
When you peel off the
protective sheet from the pad,
do not touch the adhesive
side.
4. Peel off the protective sheet from the other
side of the pad, and press the suction cup
on the mounting device against the pad (5).
5. Turn the speakerphone to the desired
position (6).
6. Rotate the mounting device clockwise to
create a vacuum (7). Check that the suction
cup is firmly attached.
To detach the speakerphone from the mounting device, rotate it
anticlockwise.
To detach the mounting device from the dashboard, rotate the
mounting device anticlockwise, and pull the strap located on the edge
of the suction cup.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 13 Friday, January 9, 2009 2:42 PM
Basic use
14
4. Basic use
■Make or end a call
To make a call from your mobile device that is connected to the
speakerphone, use the device in the normal way. Speak towards the
speakerphone. For optimal performance, check that there are no objects
in front of the microphone and that the microphone is in front of you.
To redial the number you last called (if your device supports this feature
with the speakerphone), press the answer/end key twice when no call is
in progress.
To activate voice dialling (if your device supports this feature with the
speakerphone), press and hold the answer/end key for about 2 seconds
when no call is in progress. Proceed as described in the user guide of
your device.
To end a call or cancel a call attempt, press the answer/end key.
■Answer or reject a call
When you receive a call, you hear a ringing tone through the
speakerphone and the green indicator light flashes quickly.
To answer the call, press the answer/end key. To reject the call, press the
answer/end key twice.
■Adjust volume
To increase the speakerphone volume during a call, turn the volume
wheel right. To decrease the volume, turn the wheel left.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
■Switch a call to the connected device
To switch a call from the speakerphone to the connected device, switch
off the speakerphone, or press and hold the answer/end key for about 2
seconds.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 14 Friday, January 9, 2009 2:42 PM
Basic use
15
To switch the call back to the speakerphone, switch on the
speakerphone (if it is off), or press and hold the answer/end key for
about 2 seconds.
■Clear settings or reset
To clear the pairing settings from the speakerphone, press and hold the
power key and the answer/end key (for over 4 seconds) until the red and
green indicator lights start to alternate. After the settings are cleared,
the speakerphone enters pairing mode.
To reset the speakerphone if it stops functioning even though it is
charged, connect the speakerphone to a charger while you press and
hold the answer/end key.
■Troubleshooting
If you cannot connect the speakerphone to your compatible device, do
the following:
• Ensure that the speakerphone is charged, switched on, and paired
with your device.
• Ensure that the Bluetooth feature is activated on your device.
• Ensure that the speakerphone is within 10 metres (33 feet) of your
device and that there are no other electronic devices between the
speakerphone and the device.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 15 Friday, January 9, 2009 2:42 PM
Battery and charger information
16
5. Battery and charger information
This device has an internal, nonremovable, rechargeable battery. Do not attempt
to remove the battery from the device as you may damage the device. This device
is intended for use when supplied with power from the following chargers: AC-3,
AC-4, AC-5, and DC-4. The exact charger model number may vary depending on
the type of plug. The plug variant is identified by one of the following: E, EB, X,
AR, U, A, C, or UB. The battery can be charged and discharged hundreds of times,
but it will eventually wear out. Recharge your battery only with Nokia approved
chargers designated for this device. Use of an unapproved charger may present a
risk of fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery has not been used for a
prolonged period, it may be necessary to connect the charger, then disconnect
and reconnect it to begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging indicator light is
displayed.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot
or cold battery may not work temporarily. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
Never use any charger that is damaged.
Important: Battery talk and standby times are estimates only and
depend on network conditions, features used, battery age and
condition, temperatures to which battery is exposed, and many other
factors. The amount of time a device is used for calls will affect its standby time.
Likewise, the amount of time that the device is turned on and in the standby
mode will affect its talk time.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 16 Friday, January 9, 2009 2:42 PM
Care and maintenance
17
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts, microphone, or
speaker and prevent proper operation.
These suggestions apply equally to your device, charger, or any accessory. If any
device is not working properly, take it to the nearest authorised service facility
for service.
Recycle
The crossed-out wheeled-bin symbol on your product, battery, literature,
or packaging reminds you that all electrical and electronic products,
batteries, and accumulators must be taken to separate collection at the end of
their working life. This requirement applies in the European Union. Do not dispose
of these products as unsorted municipal waste. For more environmental
information, see the product Eco-Declarations at www.nokia.com/environment.
Always return your used electronic products, batteries, and packaging materials
to a dedicated collection point. This way you help prevent uncontrolled waste
disposal and promote the recycling of materials. More detailed information is
available from the product retailer, local waste authorities, national producer
HF-310_UG_en1_with_FCC&IC_notice.fm Page 17 Friday, January 9, 2009 2:42 PM
Care and maintenance
18
responsibility organisations, or your local Nokia representative. Check how to
recycle your Nokia products at www.nokia.com/werecycle, or if browsing on a
mobile device, www.nokia.mobi/werecycle.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 18 Friday, January 9, 2009 2:42 PM
Additional safety information
19
Additional safety information
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer, or its
representative, of your vehicle or any equipment that has been added.
Faulty installation or service may be dangerous and may invalidate any warranty
that may apply to the device. Check regularly that all wireless device equipment
in your vehicle is mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the same compartment as the
device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 19 Friday, January 9, 2009 2:42 PM
FCC/Industry Canada notice
20
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
This device may not cause harmful interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
NOTE: Changes or modifications not expressly approved by Nokia could void the user's authority to operate
the equipment.
HF-310_UG_en1_with_FCC&IC_notice.fm Page 20 Friday, January 9, 2009 2:42 PM
