Nokia Speakerphone HF-300
User Guide
9203867
Issue 1 EN
![](/img.php?id=817101&img=bg2.png)
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HF-34W product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The product is
in conformity with the limits defined in Directive 2004/104/EC (amending Directive 72/245/
EEC), Annex I, paragraph 6.5, 6.6, 6.8 and 6.9.
A copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
© 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Unauthorized changes or modifications to this device may void the user's authority to
operate the equipment.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9203867 / Issue 1 EN
![](/img.php?id=817101&img=bg3.png)
3
Contents
For your safety......................... 4
1. Introduction ......................... 5
Bluetooth wireless technology .......... 5
2. Get started............................ 6
Chargers and batteries......................... 6
Insert and charge the battery ............ 6
Switch on or off..................................... 8
Pair the speakerphone.......................... 8
Disconnect the speakerphone ........ 8
Reconnect the speakerphone ......... 9
3. Call handling ...................... 10
Adjust speaker volume....................... 10
Call handling......................................... 10
Mount in a car ..................................... 11
General safety instructions ........... 11
Attach the clip to the sunvisor .... 11
Fix the speakerphone to the clip. 12
Clear settings or reset........................ 13
4. Battery information ........... 14
Charging and discharging................. 14
Care and maintenance ........... 15
Additional safety
information............................. 17
![](/img.php?id=817101&img=bg4.png)
For your safety
4
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should
be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could
affect performance.
![](/img.php?id=817101&img=bg5.png)
Introduction
5
1. Introduction

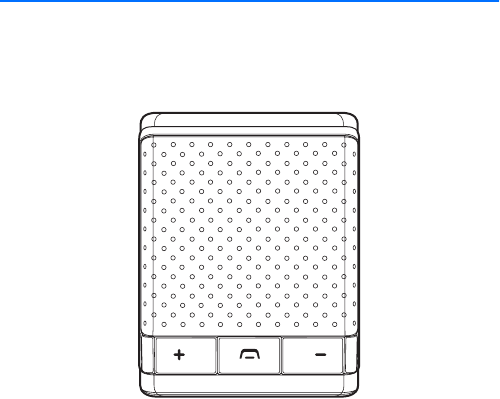

With the Nokia Speakerphone HF-300 you can make and receive
hands-free calls. You can connect the speakerphone to a compatible
mobile device that supports Bluetooth wireless technology.
Read this user guide carefully before using the speakerphone. Also read
the user guide for the device that you connect to the speakerphone,
which provides important safety and maintenance information. Keep all
accessories and enhancements out of reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you to connect compatible
devices without cables. In a Bluetooth connection, the mobile device
and the speakerphone should be within 10 meters (33 feet) of each
other. Connections can be subject to interference from obstructions,
such as other electronic devices.
The speakerphone is compliant with the Bluetooth Specification 2.0
supporting the Hands-Free Profile 1.5. Check with the manufacturers of
other devices to determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
![](/img.php?id=817101&img=bg6.png)
Get started
6
2. Get started
The speakerphone contains the following parts:
• Charger connector (1)
•Speaker (2)
• Power key (3)
• Volume up key (4)
• Answer/end key (5)
• Volume down key (6)
• Microphone (7)
Before using the speakerphone,
you must charge the battery
and pair the speakerphone with
a compatible device.
Parts of the speakerphone are
magnetic. Metallic materials may
be attracted to the speakerphone. Do not place credit cards or other magnetic
storage media near the speakerphone, because information stored on them may
be erased.
■Chargers and batteries
Check the model number of any charger before using it with this speakerphone.
The speakerphone is intended for use with the AC-4, AC-5, and DC-4 chargers.
Warning: Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types may
invalidate any approval or warranty and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the
plug, not the cord.
■Insert and charge the battery
To insert the battery, do the following:
46
5
3
7
Get started
7
1. To remove the back cover, slide it toward the side of the
speakerphone.
2. Align the contact area of the battery with the connectors on the
speakerphone, and push the battery into place.
3. To replace the back cover, insert the catches on the cover into the
corresponding slots in the speakerphone, and slide the back cover
into the speakerphone until it snaps into place.
(To remove the battery, detach the back cover, and lift the battery from
the end opposite to the contact area.)
To recharge the battery, do the following:
1. Connect the charger cable to the charger connector on the
speakerphone.
2. Connect the charger to the power source. For example, connect the
DC-4 charger to the cigarette lighter socket of your car or the AC-5
charger to a wall outlet.
If you use a charger that is connected to the cigarette lighter socket,
power must be supplied by a 12-volt car battery. Ensure that the
charger is properly inserted in the cigarette lighter socket and does
not interfere with the normal operation of the car. In some car
models, the cigarette lighter socket is powered by the car battery
even when you remove the ignition key. In those cases, the car
battery might be discharged even if the speakerphone is not used.
Contact the vehicle manufacturer for more information.
The red indicator light is continuously on while charging. It may take
a while before charging starts. If charging does not start, disconnect
the charger, plug it in again, and retry. Charging the battery fully
may take up to 2 hours and 30 minutes.
3. When the battery is fully charged, the red indicator light turns green.
Disconnect the charger from the speakerphone and the power
source.
The fully charged battery has power for up to 20 hours of talk time or up
to 240 hours of standby time. However, the times may vary when used
with different compatible Bluetooth devices, usage settings, usage
styles, and environments.
![](/img.php?id=817101&img=bg8.png)
Get started
8
When battery power is low, the red indicator light flashes slowly.
■Switch on or off
To switch on, press and hold the power key until the speakerphone beeps
and the green indicator light turns on. The indicator light flashes when
the speakerphone tries to connect to a paired device. When the
speakerphone is connected to a paired device and is ready for use, the
blue indicator lights are displayed.
To switch off, press and hold the power key until all the indicator lights
turn off. If the speakerphone is not connected to a paired device within
about 5 minutes, it switches off automatically to save power.
■Pair the speakerphone
1. Ensure that your mobile device is switched on, and switch on the
speakerphone. The green indicator light flashes slowly.
2. Activate the Bluetooth feature on the mobile device, and set the
device to search for Bluetooth devices. See the user guide of your
device for instructions.
3. Select the speakerphone from the list of found devices.
4. Enter the Bluetooth passcode 0000 to pair and connect the
speakerphone to your device. In some devices you may need to make
the connection separately after pairing.
If pairing is successful, the speakerphone sounds a beep and appears in
the menu of the mobile device where you can view the currently paired
Bluetooth devices. When the speakerphone is connected with your
mobile device, the blue indicator lights are displayed.
To pair and connect the speakerphone with a new device, disconnect the
speakerphone from the current device, then pair and connect the new
device.
Disconnect the speakerphone
To disconnect the speakerphone from your mobile device, do one of the
following:
![](/img.php?id=817101&img=bg9.png)
Get started
9
• Switch off the speakerphone.
• Disconnect the speakerphone in the Bluetooth menu of your device.
• Move the speakerphone more than 10 meters (33 feet) away from
the device.
You do not need to delete pairing with the speakerphone to disconnect
it.
Reconnect the speakerphone
To connect the speakerphone to your paired device, switch on the
speakerphone, and press and hold the answer/end key; or make the
connection in the Bluetooth menu of your device.
In your device, you may be able to allow the speakerphone to connect to
it automatically when the speakerphone is switched on. To do this in
Nokia devices, change your paired device settings in the Bluetooth
menu.
![](/img.php?id=817101&img=bga.png)
Call handling
10
3. Call handling
■Adjust speaker volume
To adjust the speakerphone volume, use the volume keys on the
speakerphone.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
■Call handling
To make a call, use your mobile device in the normal way when the
speakerphone is connected to it. Speak toward the speakerphone
microphone. For optimal performance, check that there are no objects in
front of the microphone and that the microphone is in front of the user,
not beneath or behind. The green indicator light is displayed during a
call.
If your device supports last number redial with the speakerphone, press
the answer/end key twice when no call is in progress.
If your device supports voice dialing with the speakerphone, press and
hold the answer/end key when no call is in progress, and proceed as
described in the user guide of your device.
When you receive a call, you hear a ringing tone through the speaker on
the speakerphone, and the green indicator light flashes. To answer the
call, press the answer/end key, or use the device keys. To reject an
incoming call, press the answer/end key twice.
To end a call, press the answer/end key, or use the device keys.
To switch the active call between the speakerphone and your device,
press and hold the answer/end key.
To mute or unmute the microphone during a call, briefly press the power
key.
![](/img.php?id=817101&img=bgb.png)
Call handling
11
■Mount in a car
You can attach the speakerphone to the sunvisor of your car using the
supplied clip.
General safety instructions
When you install the speakerphone in a car,
ensure that it does not interfere with or
hinder the systems used in the operation of
the vehicle (for example, airbags) or disturb
your field of vision while driving.
Check that the deployment of the airbags is
not blocked or impaired in any way. Only
operate the speakerphone if it is safe to do
so under all driving conditions.
To use the speakerphone when it is attached
to the sunvisor, ensure that the sunvisor is
up at the car roof.
Attach the clip to the sunvisor
Slide the clip around the sunvisor from the driver’s or passenger’s side so
that the "OPEN" text is on the top of the sunvisor, and wrap the strap
attached to the clip around the sunvisor from the back (1).
1
![](/img.php?id=817101&img=bgc.png)
Call handling
12
Thread the strap through the slot on the clip. Tighten the strap to keep
the speakerphone securely in place, and firmly press the hook and loop
end of the strap against the felt on the strap (2).
Fix the speakerphone to the clip
Align the speakerphone sidewise with the clip so that the hole located
at the back of the speakerphone is facing the catch on the clip. Insert
the catch into the hole, and turn the speakerphone clockwise until it
locks into place (3). (To detach the speakerphone, turn it
counterclockwise.)
Fold the sunvisor up against the car roof.
2
3
Call handling
13
■Clear settings or reset
To clear the pairing settings from the speakerphone, press and hold the
answer/end key and the volume up key at the same time for about 10
seconds. When the settings have been cleared, the indicator light
alternates red and green.
To reset the speakerphone if it stops functioning, although it is charged,
press the answer/end key and the power key at the same time. The
speakerphone switches off. To use the speakerphone, reconnect it to
your mobile device. The reset does not clear the pairing settings.
![](/img.php?id=817101&img=bge.png)
Battery information
14
4. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace the battery. Use only
Nokia approved batteries, and recharge your battery only with Nokia approved
chargers designated for this device.
If a replacement battery is being used for the first time or if the battery has not
been used for a prolonged period, it may be necessary to connect the charger,
then disconnect and reconnect it to begin charging the battery.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
Do not dismantle or shred cells or batteries. In the event of a battery leak, do not
allow the liquid to come in contact with the skin or eyes. In the event of such a
leak, flush your skin or eyes immediately with water, or seek medical help.
![](/img.php?id=817101&img=bgf.png)
Care and maintenance
15
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery, and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts, microphone, or
speaker and prevent proper operation.
These suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that in the European Union all electrical and
electronic products, batteries, and accumulators must be taken to
separate collection at the end of their working life. Do not dispose of these
products as unsorted municipal waste.
Return the products to collection to prevent possible harm to the environment or
human health from uncontrolled waste disposal and to promote the sustainable
reuse of material resources. Collection information is available from the product
retailer, local waste authorities, national producer responsibility organizations,
Care and maintenance
16
or your local Nokia representative. For more information, see product
Eco-Declaration or country-specific information at www.nokia.com.
![](/img.php?id=817101&img=bg11.png)
Additional safety information
17
Additional safety information
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Faulty installation or service may be dangerous and may invalidate any warranty
that may apply to the device. Check regularly that all wireless device equipment
in your vehicle is mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the same compartment as the
device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
![](/img.php?id=817101&img=bg12.png)
FCC/Industry Canada Notice
18
FCC/Industry Canada Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions: 1. This device may not cause harmful interference; and 2.
This device must accept any interference received, including interference that
may cause undesired operation. NOTE: Changes or modifications not expresssly
approved by Nokia could void the user’s authority to operate the equipment.
NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
