Microsoft HF-36W Bluetooth Handsfree Unit User Manual HF 36W UG en Draft5 with FCC no CE
Microsoft Mobile Oy Bluetooth Handsfree Unit HF 36W UG en Draft5 with FCC no CE
Manual
Nokia Speakerphone HF-200
User Guide
???????
Issue 1 EN, Draft 5
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 1 Monday, December 10, 2007 1:37 PM
© 2008 Nokia. All rights reserved.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or
any of its licensors be responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with your Nokia
dealer for details.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
??????? / Issue 1 EN
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 2 Monday, December 10, 2007 1:37 PM
3
Contents
For your safety......................... 4
1. Introduction ......................... 5
Bluetooth wireless technology .......... 5
2. Get started............................ 6
Chargers ................................................... 6
Charge the battery................................ 6
Switch on or off..................................... 7
Pair with another device ..................... 8
Disconnect the speakerphone ........ 8
Reconnect the speakerphone ......... 9
3. Installation ......................... 10
General safety instructions............... 10
Attach to the sunvisor
using the clip ........................................ 10
Fix the speakerphone
to the clip........................................... 10
Attach the clip to the sunvisor .... 11
4. Basic use ............................. 12
Adjust volume....................................... 12
Calls......................................................... 12
Make a call ........................................ 12
Answer a call..................................... 12
End a call............................................ 12
Switch a call between
speakerphone and connected
device .................................................. 13
Clear settings or reset........................ 13
Troubleshooting ................................... 13
5. Battery information ........... 14
Care and maintenance ........... 15
Additional safety information 17
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 3 Monday, December 10, 2007 1:37 PM
For your safety
4
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should
be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could
affect performance.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 4 Monday, December 10, 2007 1:37 PM
Introduction
5
1. Introduction
With the Nokia Speakerphone HF-200, you can make and answer calls
hands free. You can connect the speakerphone to a compatible mobile
device that supports Bluetooth wireless technology.
Read this user guide carefully before using the speakerphone. Also, read
the user guide for the device that you connect to the speakerphone. It
provides important safety and maintenance information. Check
www.nokia.com/support or your local Nokia website for the latest
version of the user guide and additional information related to your
Nokia product.
Keep all accessories and enhancements out of the reach of small
children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you to connect compatible
devices without cables. In a Bluetooth connection, the mobile device
and the speakerphone should be within 10 meters (33 feet) of each
other. Connections can be subject to interference from other electronic
devices.
The speakerphone complies with the Bluetooth Specification 2.0 that
supports the Handsfree Profile 1.5. Check with the manufacturers of
other devices to determine their compatibility with this device.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 5 Monday, December 10, 2007 1:37 PM
Get started
6
2. Get started

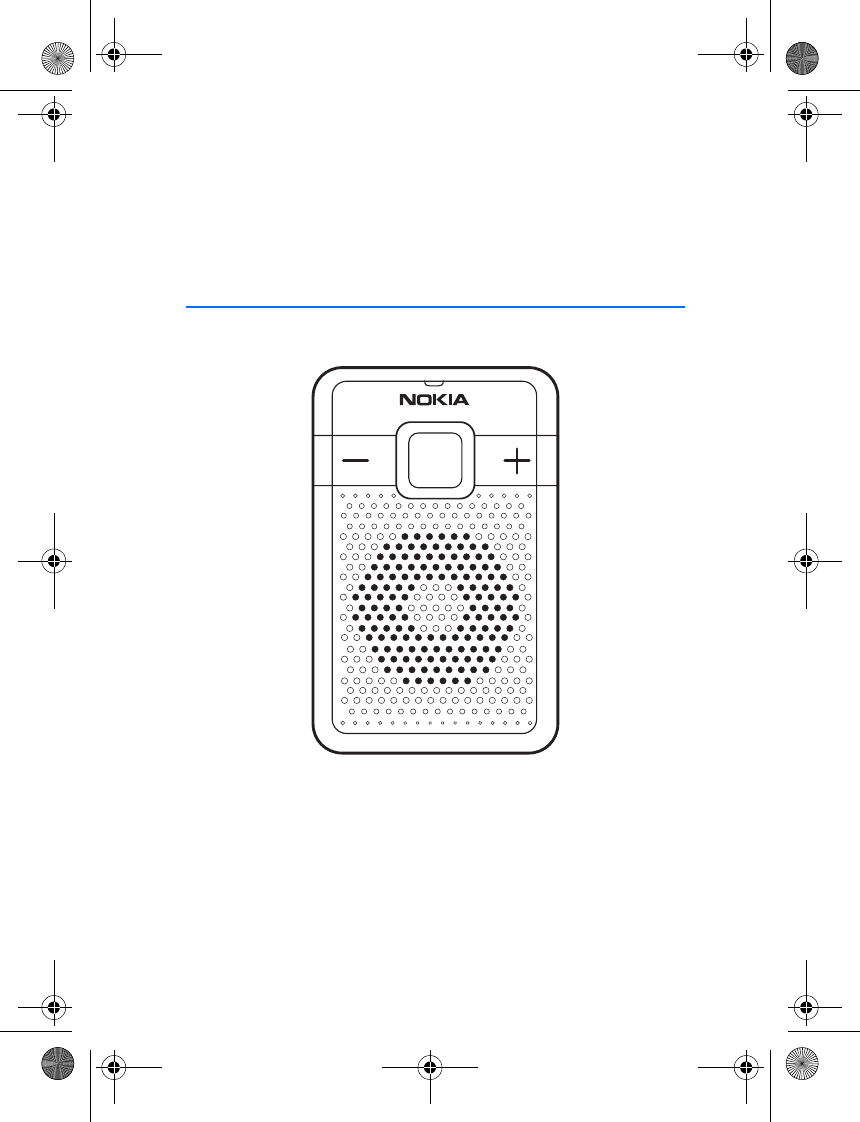

The speakerphone contains the following parts:
• Microphone (1)
• Indicator light (2)
• Answer/end key (3)
• Volume down key (4)
• Volume up key (5)
•Speaker (6)
• Charger connector (7)
Before using the speakerphone, you
must charge the battery and pair the
speakerphone with a compatible
device.
Parts of the speakerphone are magnetic.
Metallic materials may be attracted to the
speakerphone. Do not place credit cards or
other magnetic storage media near the
speakerphone, because information stored on them may be erased.
■Chargers
The speakerphone is intended for use when supplied with power from the AC-3,
AC-4, AC-5, and DC-4 chargers.
Warning: Use only chargers approved by Nokia for use with this
particular enhancement. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the
plug, not the cord.
■Charge the battery
Before charging the battery, read “Battery information,” p. 14.
3
4
6
5
7
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 6 Monday, December 10, 2007 1:37 PM
Get started
7
1. Connect the charger cable to the charger connector on the
speakerphone.
2. Connect the charger to the power source. For example, connect the
DC-4 charger to the cigarette lighter socket of your car or the AC-5
charger to a wall outlet. The red indicator light is displayed while
charging.
• If you use a charger that is connected to the cigarette lighter
socket, power must be supplied by a 12-volt car battery. Ensure
that the charger is properly inserted in the cigarette lighter
socket and does not interfere with the normal operation of the
car.
• In some car models, the cigarette lighter socket is powered by the
car battery even when you remove the ignition key. In those
cases, the car battery might be discharged even if the
speakerphone is not used. For more information, contact the
vehicle manufacturer.
• It may take a while before charging starts. If charging does not
start, disconnect the charger, plug it in again, and retry. Charging
the battery fully may take up to ???2 hours and 30 minutes???.
3. When the battery is fully charged, the indicator light turns off.
Disconnect the charger from the speakerphone and the power
source.
The fully charged battery has power for up to 10??? hours of talk time or
up to 150??? hours of standby time.
When battery power is low, the red indicator light flashes slowly.
Recharge the battery.
■Switch on or off
To switch on, press and hold the answer/end key until the speakerphone
beeps and the green indicator light turns on. The indicator light flashes
when the speakerphone tries to connect to a paired device. When the
speakerphone is connected to a paired device and is ready for use, the
green indicator light is continuously displayed.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 7 Monday, December 10, 2007 1:37 PM
Get started
8
To switch off, press and hold the answer/end key until the red indicator
light is briefly displayed. If the speakerphone is not connected to a
paired device within about 5 minutes, it switches off automatically to
save power.
■Pair with another device
1. Ensure that your mobile device is switched on.
2. If you have not previously paired the speakerphone with a device,
switch on the speakerphone. The indicator light flashes green slowly.
If you have previously paired the speakerphone with another device,
disconnect the speakerphone from the current device, then switch
on the speakerphone.
3. Activate the Bluetooth feature on the mobile device, and set the
device to search for Bluetooth devices. See the user guide of your
device for instructions.
4. Select the speakerphone (Nokia HF-200) from the list of found
devices.
5. Enter the Bluetooth passcode 0000 to pair and connect the
speakerphone to your device. In some devices, you may need to make
the connection separately after pairing.
If pairing succeeds, the speakerphone is shown in the list of currently
paired Bluetooth devices in your mobile device.
When the speakerphone is connected to your mobile device, the green
indicator light is continuously displayed.
You can pair the speakerphone with up to eight devices but connect it to
only one device at a time. To pair and connect the speakerphone with a
new device, disconnect the speakerphone from the current device, then
pair and connect the new device.
Disconnect the speakerphone
To disconnect the speakerphone from your mobile device, do one of the
following:
• Switch off the speakerphone.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 8 Monday, December 10, 2007 1:37 PM
Get started
9
• Disconnect the speakerphone in the Bluetooth menu of your device.
• Move the speakerphone more than 10 metres (33 feet) away from
the device.
You do not need to delete pairing with the speakerphone to disconnect
it.
Reconnect the speakerphone
When you switch on the speakerphone, it tries to connect to the device
that was last used with it. If the connection fails, the speakerphone tries
to connect to one of the other recently used devices.
To connect the speakerphone when it is on but not connected to a
device, ensure that the other device is on, and press the answer/end key;
or make the connection in the Bluetooth menu of your device.
In your mobile device, you may be able to allow the speakerphone to
connect to it automatically. To do this in a Nokia device, change your
paired device settings in the Bluetooth menu.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 9 Monday, December 10, 2007 1:37 PM
Installation
10
3. Installation
You can attach the speakerphone to the sunvisor of your car using the
supplied clip.
■General safety instructions
When you install the speakerphone in a car,
ensure that it does not interfere with or
hinder the systems used in the operation of
the vehicle (for example, airbags) or disturb
your field of vision while driving.
Check that the deployment of the airbags is
not blocked or impaired in any way. Only
operate the speakerphone if it is safe to do
so under all driving conditions.

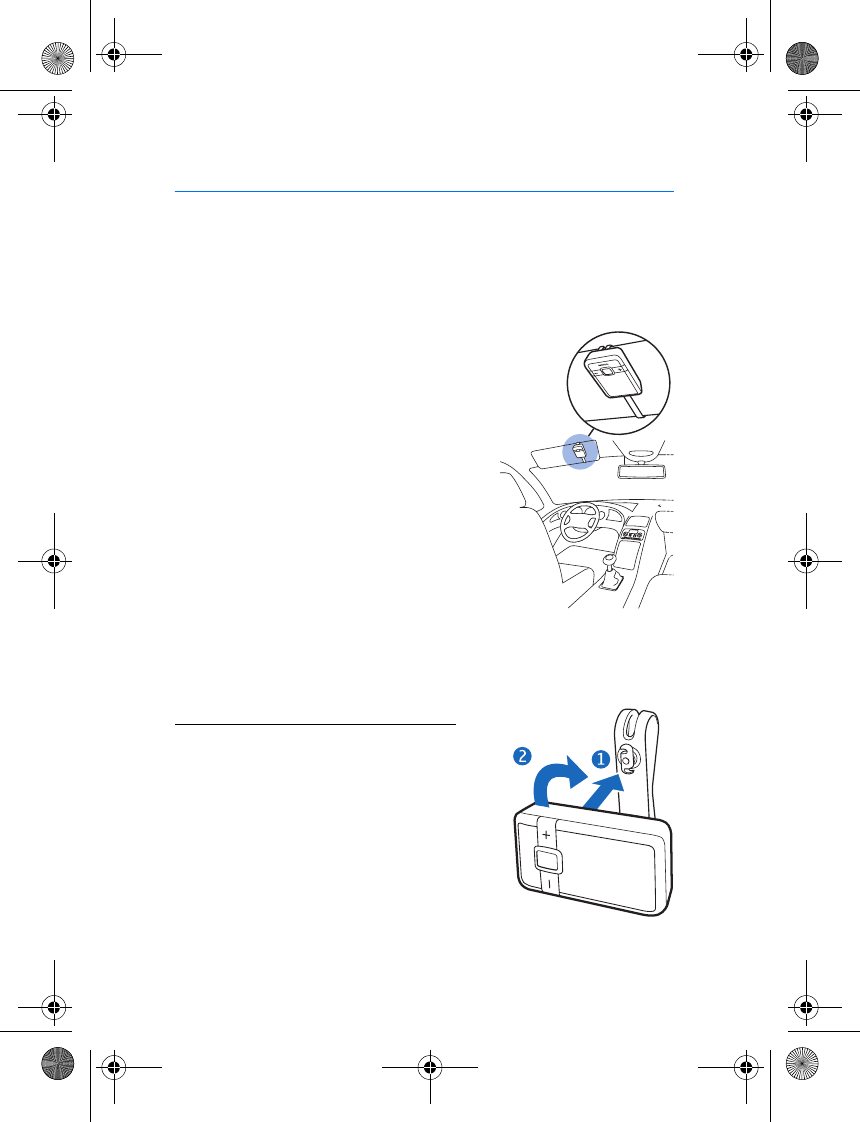

To use the speakerphone when it is attached
to the sunvisor, ensure that the sunvisor is
up at the car roof (as shown in the figure).

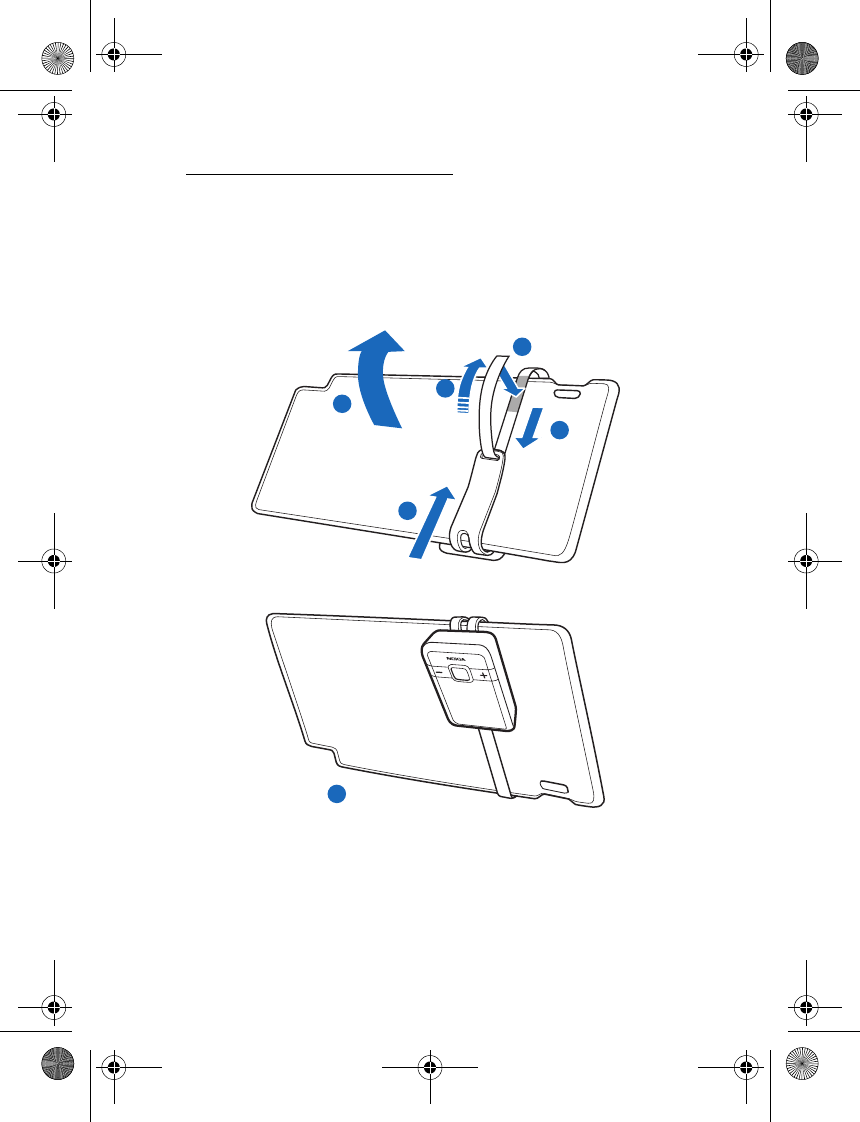

■Attach to the sunvisor using the clip
You can attach the speakerphone to the sunvisor using the supplied clip.
Fix the speakerphone to the clip
Turn the speakerphone sideways, as shown in
the figure. Push the speakerphone towards the
clip (1), and turn the speakerphone clockwise
(2) until it locks into place. (To detach the
speakerphone, turn it counterclockwise, and
pull it away from the clip.)
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 10 Monday, December 10, 2007 1:37 PM
Installation
11
Attach the clip to the sunvisor
Slide the clip (and the speakerphone attached to it) around the sunvisor
from the driver’s or passenger’s side as shown in the figure.
Push the clip towards the sunvisor (3), and pull the strap attached to the
clip (4 and 5). Firmly press the hook and loop end of the strap against
the felt on the strap (6) to keep the speakerphone securely in place. Fold
the sunvisor up against the car roof (7).
Check that the speakerphone is in the correct position (8).
4
6
7
3
5
8
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 11 Monday, December 10, 2007 1:37 PM
Basic use
12
4. Basic use
■Adjust volume
To adjust the speakerphone volume during a call, use the volume keys on
the speakerphone.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
■Calls
Make a call
To make a call, use your mobile device in the normal way when the
speakerphone is connected to it. Speak towards the speakerphone
microphone. For optimal performance, check that there are no objects in
front of the microphone and that the microphone is in front of you.
During a call, the green indicator light is displayed.
If your device supports last number redial with the speakerphone, press
the answer/end key twice when no call is in progress.
If your device supports voice dialing with the speakerphone, press the
answer/end key when no call is in progress, and proceed as described in
the user guide of your device.
Answer a call
When you receive a call, you hear a ringing tone through the speaker on
the speakerphone. To answer the call, press the answer/end key. To
reject the call, press the answer/end key twice.
End a call
To end a call, press the answer/end key. The speakerphone beeps.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 12 Monday, December 10, 2007 1:37 PM
Basic use
13
Switch a call between speakerphone and connected
device
To switch the active call from the speakerphone to your device, press
and hold the answer/end key.
To switch the call back to the speakerphone, press the answer/end key.
■Clear settings or reset
To clear the pairing settings from the speakerphone, press and hold the
answer/end key and the volume up key at the same time for about 10
seconds. When the settings have been cleared, the indicator light
alternates red and green.
To reset the speakerphone if it stops functioning, although it is charged,
press and hold the answer/end key, and plug the speakerphone into a
charger. The speakerphone switches off. To use the speakerphone,
reconnect it to your mobile device. The reset does not clear the pairing
settings.
■Troubleshooting
If you cannot connect the speakerphone to your compatible device, do
as follows:
• Ensure that the speakerphone is charged, switched on, and paired
with your device.
• Ensure that the Bluetooth feature is activated on your device.
• Ensure that the speakerphone is within 10 metres (33 feet) of your
device and that there are no other electronic devices between the
speakerphone and the device.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 13 Monday, December 10, 2007 1:37 PM
Battery information
14
5. Battery information
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge your
battery only with Nokia approved chargers designated for this device. Use of an
unapproved charger may present a risk of fire, explosion, leakage, or other
hazard.
If a battery is being used for the first time or if the battery has not been used for a
prolonged period, it may be necessary to connect the charger, then disconnect
and reconnect it to begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging indicator appears.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot
or cold battery may not work temporarily. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
Improper battery use may result in a fire, explosion, or other hazard. If the device
is dropped, especially on a hard surface, and you believe the battery has been
damaged, take it to a service centre for inspection before continuing to use it.
Never use any charger that is damaged.
Important: Battery talk and standby times are estimates only and
depend on network conditions, features used, battery age and
condition, temperatures to which battery is exposed, and many other
factors. The amount of time a device is used for calls will affect its standby time.
Likewise, the amount of time that the device is turned on and in the standby
mode will affect its talk time.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 14 Monday, December 10, 2007 1:37 PM
Care and maintenance
15
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts, microphone, or
speaker and prevent proper operation.
These suggestions apply equally to your device, charger, or any enhancement. If
any device is not working properly, take it to the nearest authorised service
facility for service.
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that all electrical and electronic products,
batteries, and accumulators must be taken to separate collection at the
end of their working life. This requirement applies to the European Union and
other locations where separate collection systems are available. Do not dispose
of these products as unsorted municipal waste.
By returning the products to collection you help prevent uncontrolled waste
disposal and promote the reuse of material resources. More detailed information
is available from the product retailer, local waste authorities, national producer
responsibility organizations, or your local Nokia representative. For the product
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 15 Monday, December 10, 2007 1:37 PM
Care and maintenance
16
Eco-Declaration or instructions for returning your obsolete product, go to
country-specific information at www.nokia.com.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 16 Monday, December 10, 2007 1:37 PM
Additional safety information
17
Additional safety information
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Faulty installation or service may be dangerous and may invalidate any warranty
that may apply to the device. Check regularly that all wireless device equipment
in your vehicle is mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the same compartment as the
device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 17 Monday, December 10, 2007 1:37 PM
FCC/Industry Canada notice
18
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
This device may not cause harmful interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
NOTE: Changes or modifications not expressly approved by Nokia could void the user's authority to operate
the equipment.
HF-36W_UG_en_Draft5_with_FCC_no_CE.fm Page 18 Monday, December 10, 2007 1:37 PM
