Nokia Bluetooth Headset BH-703
User Guide
9207478
Issue 1 EN
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 1 Monday, March 10, 2008 4:55 PM
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-106W product is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
© 2008 Nokia. All rights reserved.
Nokia, Nokia Connecting People and the Nokia Original Accessories logo are registered
trademarks of Nokia Corporation. Other product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any
of its licensors be responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with your Nokia dealer
for details.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 2 Monday, March 10, 2008 4:55 PM
Export controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9207478/Issue 1 EN
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 3 Monday, March 10, 2008 4:55 PM
4
Contents
1. Introduction ......................... 5
Bluetooth wireless technology........... 5
2. Get started ........................... 7
Overview................................................... 7
Chargers.................................................... 7
Charge the battery ................................ 8
Switch the headset on or off.............. 9
Pair the headset ..................................... 9
Disconnect the headset ................. 10
Reconnect the headset .................. 10
Troubleshooting................................... 10
3. Basic use............................. 12
Change the earplug............................ 12
Place the headset on the ear........... 12
Carry the headset in the strap ........ 14
Calls ........................................................ 14
Adjust the headset volume............... 15
Mute or unmute the microphone... 15
Switch the call between
the headset and mobile device ....... 16
Clear pairings or reset the headset 16
4. Battery information........... 17
Care and maintenance........... 19
FCC/Industry Canada notice.. 21
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 4 Monday, March 10, 2008 4:55 PM
Introduction
5
1. Introduction
With the Nokia Bluetooth Headset BH-703, you can make and receive
calls while on the move. You can use the headset with compatible devices
that support Bluetooth wireless technology.
Read this user guide carefully before using the headset. Also, read the
user guide for your mobile device that you connect to the headset. It
provides important safety and maintenance information. Check
www.nokia.com/support or your local Nokia website for additional
information related to your Nokia product.
This product may contain small parts. Keep them out of the reach of small
children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you
to connect compatible devices without
cables. The mobile device and the headset
do not need to be in line of sight, but the
maximum distance between the devices
should be 10 metres (33 feet). The closer
the mobile device and the headset are to
each other, the better the performance.

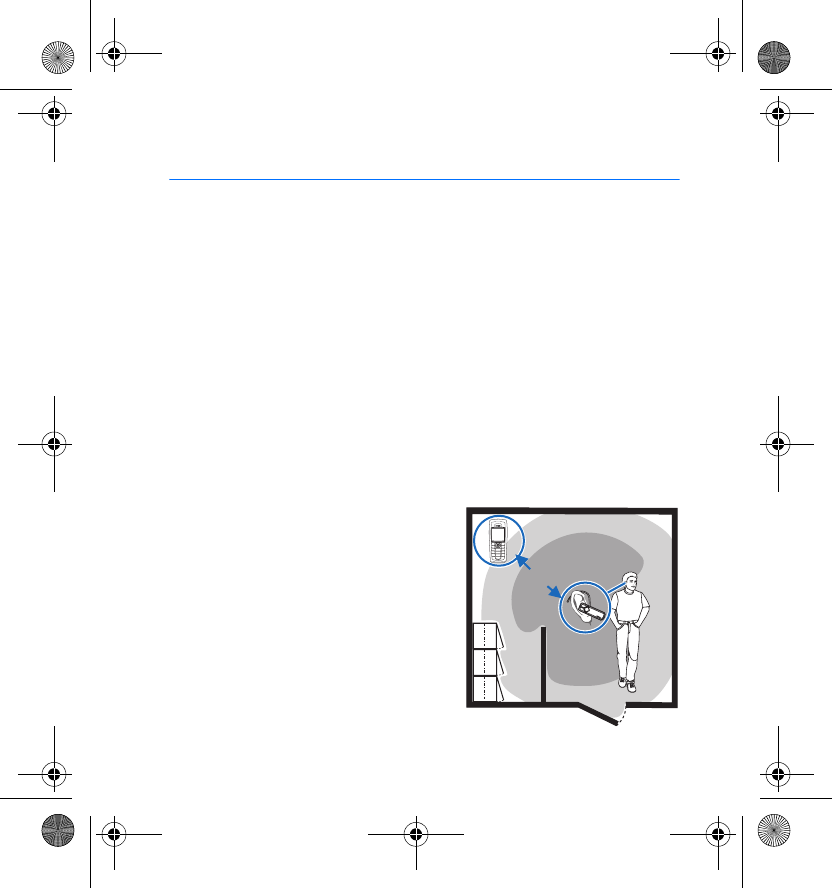

The optimal operating range is shown in
dark grey in the picture. The connection is
<10m
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 5 Monday, March 10, 2008 4:55 PM
Introduction
6
subject to interference from obstructions (shown in light grey) or other
electronic devices.
The headset is compliant with the Bluetooth Specification 2.1 + EDR
supporting the following profiles: Headset Profile 1.1 and Hands-Free
Profile 1.5. Check with the manufacturers of other devices to determine
their compatibility with this device.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 6 Monday, March 10, 2008 4:55 PM
Get started
7
2. Get started
■Overview

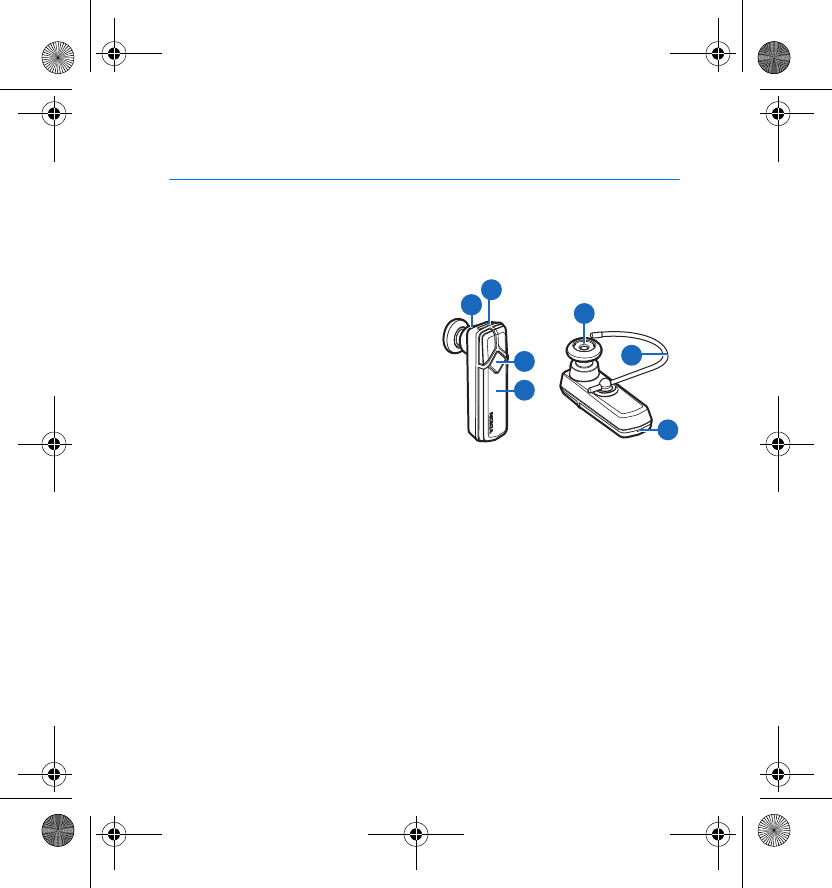

The headset contains the following parts:
1. Indicator light
2. Charger connector
3. Multifunction key
4. Touch-sensitive area for volume
adjustment
5. Earpiece with a changeable
earplug
6. Earloop
7. Microphone
Before you can start using the headset, you must charge the battery and
pair the headset with a compatible device.
Parts of the headset are magnetic. Metallic materials may be attracted to the
headset. Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers
The headset is intended for use with the AC-6 and DC-6 chargers.
12
36
7
5
1
4
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 7 Monday, March 10, 2008 4:55 PM
Get started
8
Warning: Use only chargers approved by Nokia for use with this
particular enhancement. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the plug,
not the cord.
■Charge the battery
Before charging the battery, carefully read “Battery information,” p. 17.
1. Connect the charger to a wall outlet.

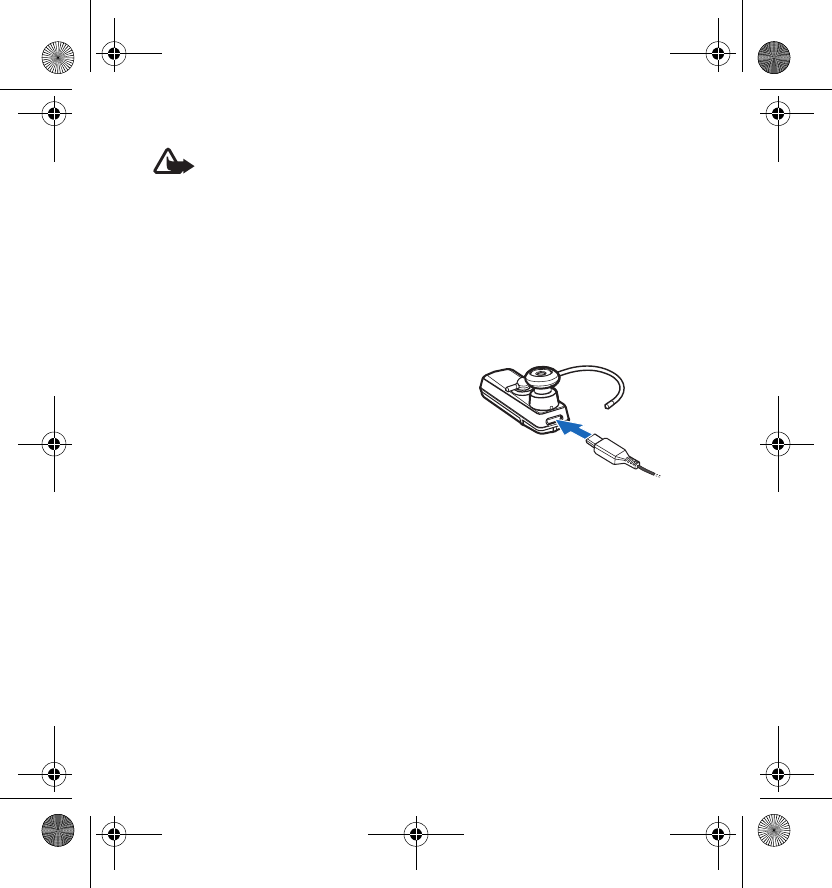

2. Connect the charger cable to the charger
connector. The indicator light is red while
charging. Charging the battery fully may
take up to 1 hour with the AC-6 or DC-6
charger.
3. When the battery is fully charged, the
indicator light turns green. Disconnect the charger from the headset
and the wall outlet.
You can also charge the battery through the USB port of a compatible PC
using the Nokia Connectivity Cable CA-101 (sold separately). Connect one
end of the cable to the charger connector and the other end to the USB
port on the PC.
The fully charged battery has power for up to 6 hours of talk time or up to
160 hours of standby time.
When battery power is low, the headset beeps at regular intervals, and the
indicator light slowly flashes red.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 8 Monday, March 10, 2008 4:55 PM
Get started
9
■Switch the headset on or off
To switch on, press and hold the multifunction key until the headset beeps
and the indicator light turns on. When the headset can be connected to a
paired device, the indicator light slowly flashes green. When the headset
is connected to a paired device and is ready for use, the indicator light
slowly flashes blue. If the headset has not been paired with a device, it
automatically enters the pairing mode (see “Pair the headset,” p. 9).
To switch off, press and hold the multifunction key for at least 4 seconds
until the headset beeps and the indicator light turns red. If the headset is
not connected to a paired device within about 30 minutes, it switches off
automatically.
■Pair the headset
1. Ensure that your mobile device is switched on.
2. To pair the headset if it has not been previously paired with a device,
switch on the headset. The headset enters the pairing mode, and the
indicator light starts to flash blue quickly.
To pair the headset if it has been previously paired with another
device, ensure that the headset is switched off, and press and hold the
multifunction key until the indicator light starts to flash blue quickly.
3. Activate the Bluetooth feature on the mobile device, and set it to
search for Bluetooth devices. See the user guide of your device for
instructions.
4. Select the headset (Nokia BH-703) from the list of found devices.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 9 Monday, March 10, 2008 4:55 PM
Get started
10
5. Enter the passcode 0000 to pair and connect the headset to your
device, if your device asks you to do so. In some mobile devices, you
may need to make the connection separately after pairing. See the
user guide of your device for details. You only need to pair the headset
with your device once.
If pairing is successful, the headset appears in the menu of the mobile
device where you can view the currently paired Bluetooth devices.
Disconnect the headset
To disconnect the headset from your mobile device, switch off the
headset, or disconnect it in the Bluetooth menu of your device.
You do not need to delete pairing with the headset to disconnect it.
Reconnect the headset
To connect the headset to your paired mobile device, switch on the
headset, and make the connection in the Bluetooth menu of your device,
or press and hold the multifunction key until you hear a short beep.
You may be able to set your mobile device so that the headset connects to
it automatically. To activate this feature in a Nokia device, change the
paired device settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your mobile device, do as follows:
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 10 Monday, March 10, 2008 4:55 PM
Get started
11
• Ensure that the headset is charged, switched on, and paired with your
device.
• Ensure that the Bluetooth feature is activated on your device.
• Ensure that the headset is within 10 metres (33 feet) of your device
and that there are no obstructions between the headset and the
device, such as walls, or other electronic devices.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 11 Monday, March 10, 2008 4:55 PM
Basic use
12
3. Basic use
■Change the earplug
The headset may be provided with different sized earplugs. Select the
earplug that fits the best and is the most comfortable for your ear. When
you insert the earpiece into your ear, do not push the earplug deep into
the outer auditory canal because in that case the volume may sound too
loud.

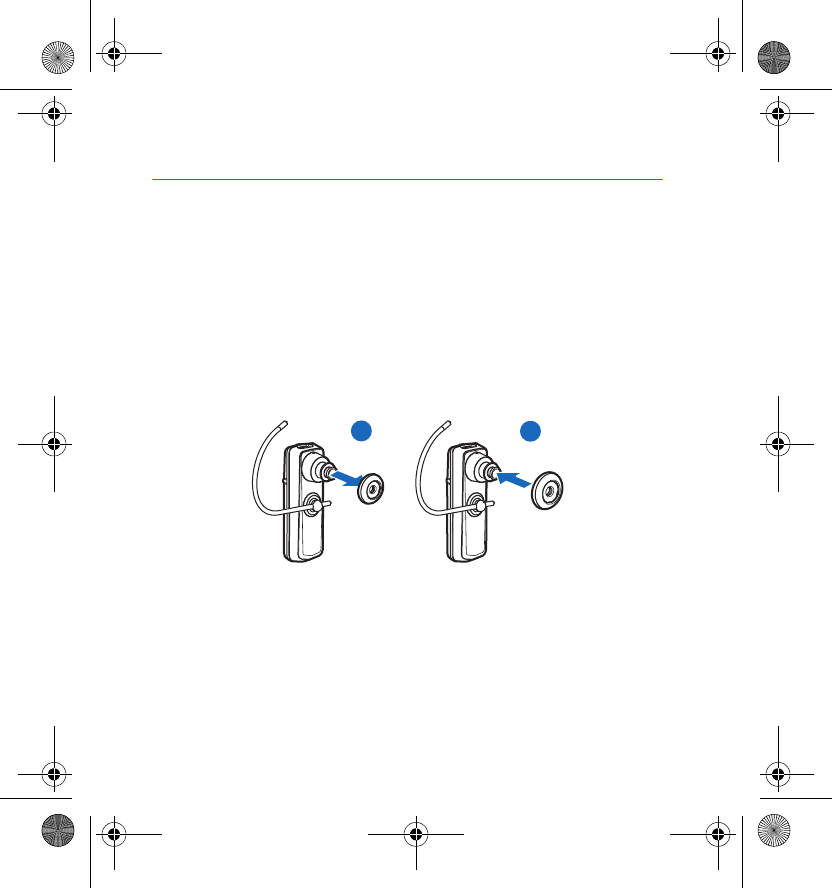

To change the earplug, pull the current earplug from the earpiece (1), and
push the new earplug over the earpiece in the same position (2).

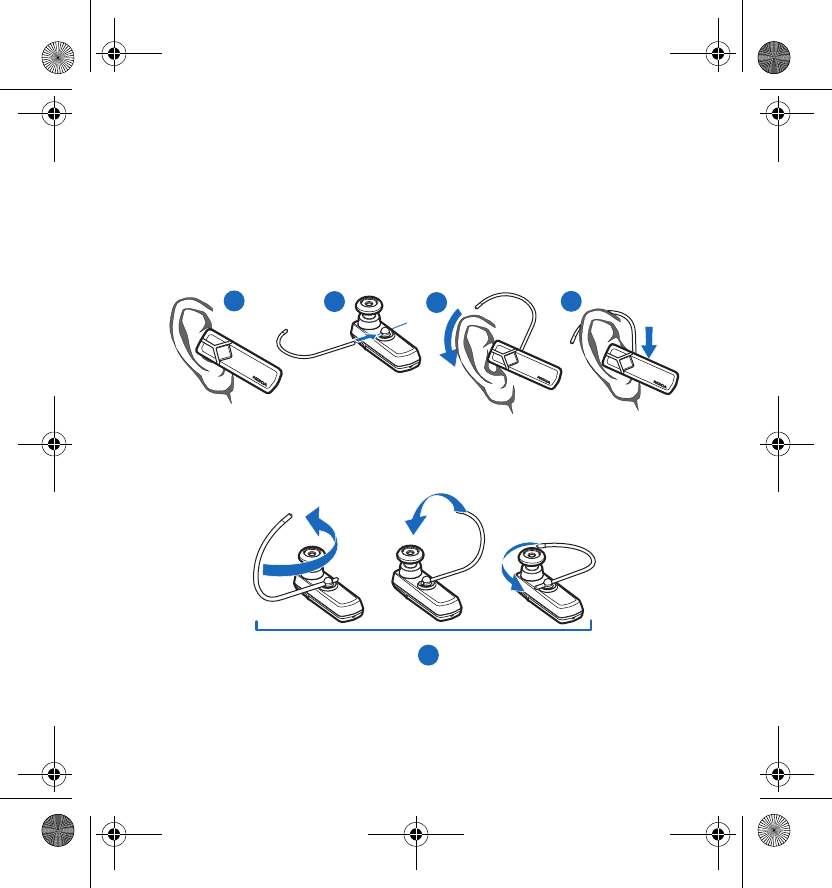

■Place the headset on the ear
The headset is provided with an earloop.
To use the headset without the earloop, gently push the earpiece into your
ear (1), and point the headset toward your mouth.
12
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 12 Monday, March 10, 2008 4:55 PM
Basic use
13
To use the headset with the earloop, insert the earloop into the small
opening at the back of the headset (2). To wear the headset on the right
ear, rotate the earloop so that the loop is to the right of the Nokia logo.
Slide the earloop over your ear (3), and push or pull the earloop to set its
length. Gently push the earpiece into your ear, and set the headset so that
it points toward your mouth (4).
To use the headset on the left ear, rotate the earloop so that it is to the
left of the Nokia logo (5).
To detach the earloop, gently pull it from the headset.
1234
5
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 13 Monday, March 10, 2008 4:55 PM
Basic use
14

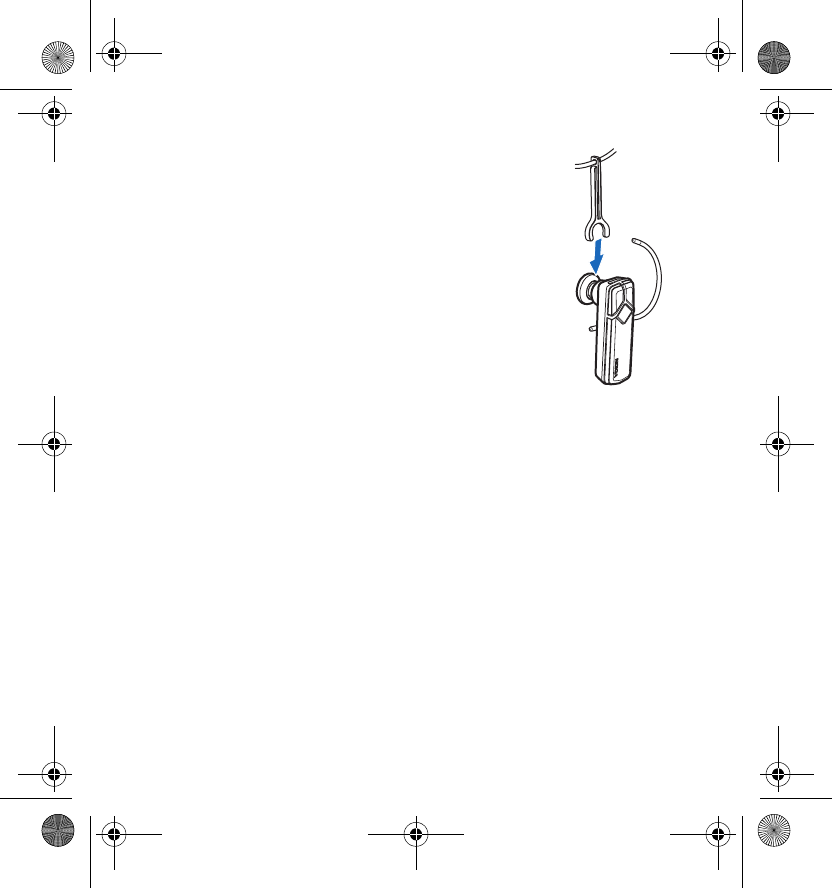

■Carry the headset in the strap
The headset may be provided with a carrying strap. You
can use the strap to wear the headset around your neck.
To attach the headset to the strap, insert the headset into
the catch at the end of the strap.
To detach the headset, pull it from the catch.
■Calls
To make a call, use your mobile device in the normal way
when the headset is connected to the device. The blue
indicator light flashes during the call.
To redial the number you last called (if your mobile device supports this
feature with the headset), press the multifunction key twice.
To activate voice dialling (if your mobile device supports this feature with
the headset), when no call is in progress, press and hold the multifunction
key for about 2 to 3 seconds until the mobile device starts voice dialling,
and proceed as described in the user guide of the device.
When you receive a call, the indicator light flashes blue quickly, and you
hear a ringing tone through the headset. To answer the call, press the
multifunction key, or use the keys of the mobile device. To reject the call,
press the multifunction key twice, or use the keys of the mobile device.
To end a call, press the multifunction key, or use the keys of the mobile
device.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 14 Monday, March 10, 2008 4:55 PM
Basic use
15
To put a call on hold (or to return to a call on hold), press and hold the
multifunction key.
To answer a waiting call and put the current call on hold, press and hold
the multifunction key. To answer a waiting call and end the current call,
briefly press the multifunction key. To switch between the active call and
the call on hold, press and hold the multifunction key for about 2 to 3
seconds. To end the active call and activate the call on hold, briefly press
the multifunction key. To use these features, your mobile device must
support the Bluetooth Hands-Free profile 1.5, and call waiting (network
service) must be activated in the device.

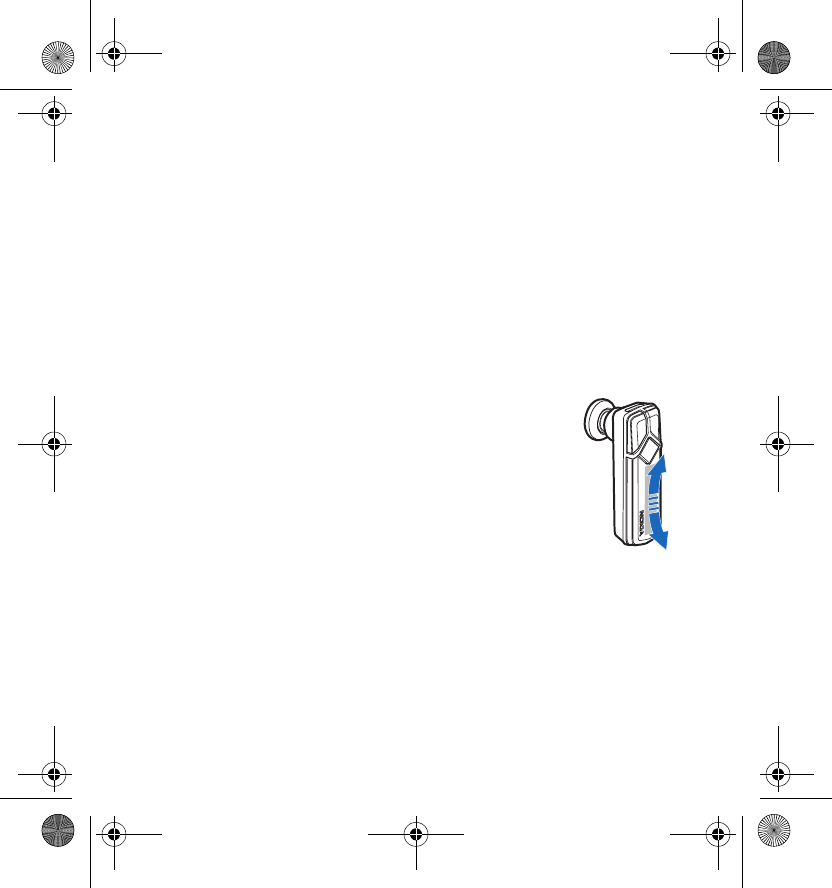

■Adjust the headset volume
Move your finger on the touch-sensitive area toward the
multifunction key to increase or toward the microphone
to decrease the volume during a call, or use the keys of
the mobile device.
■Mute or unmute the microphone
To mute or unmute the microphone during a call, tap the touch-sensitive
area twice with your finger, or use the respective function in your mobile
device.
+
-
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 15 Monday, March 10, 2008 4:55 PM
Basic use
16
■Switch the call between the headset and mobile
device
To switch the call from the headset to a connected device, press and hold
the multifunction key for about 4 seconds (the headset switches off), or
use the keys of your device. To switch the call back to the headset, switch
on the headset (and connect it to your paired device), or press and hold
the multifunction key for about 2 to 3 seconds (when the headset is on).
■Clear pairings or reset the headset
To clear all the pairing settings from the headset when the headset is on,
press and hold the multifunction key, and move your finger three times on
the touch-sensitive area toward the multifunction key. The indicator light
alternates between red, green, and blue twice. After the settings are
cleared, the headset enters the pairing mode for about 5 minutes (the
indicator light flashes blue quickly).
To reset the headset if it stops functioning even though it is charged, plug
the charger into the headset while you press and hold the multifunction
key. The reset does not clear the pairing settings.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 16 Monday, March 10, 2008 4:55 PM
Battery information
17
4. Battery information
This device has an internal, nonremovable, rechargeable battery. Do not attempt to
remove the battery from the device as you may damage the device. The battery can
be charged and discharged hundreds of times, but it will eventually wear out.
Recharge your battery only with Nokia approved chargers designated for this
device. Use of an unapproved charger may present a risk of fire, explosion, leakage,
or other hazard.
If the battery is completely discharged, it may take several minutes before the
charging indicator light is displayed.
Unplug the charger from the electrical plug and the device when not in use. Do not
leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot or
cold battery may not work temporarily. Battery performance is particularly limited
in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
Never use any charger that is damaged.
Important: Battery talk and standby times are estimates only and depend
on the mobile device used, features used, battery age and condition,
temperatures to which battery is exposed, and many other factors. The
amount of time a device is used for calls will affect its standby time. Likewise, the
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 17 Monday, March 10, 2008 4:55 PM
Battery information
18
amount of time that the device is turned on and in the standby mode will affect its
talk time.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 18 Monday, March 10, 2008 4:55 PM
Care and maintenance
19
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does
get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
These suggestions apply equally to your device, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorised service facility for
service.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 19 Monday, March 10, 2008 4:55 PM
Care and maintenance
20
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that all electrical and electronic products, batteries,
and accumulators must be taken to separate collection at the end of their
working life. This requirement applies to the European Union and other locations
where separate collection systems are available. Do not dispose of these products
as unsorted municipal waste.
By returning the products to collection you help prevent uncontrolled waste
disposal and promote the reuse of material resources. More detailed information is
available from the product retailer, local waste authorities, national producer
responsibility organizations, or your local Nokia representative. For the product
Eco-Declaration or instructions for returning your obsolete product, go to country-
specific information at www.nokia.com.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 20 Monday, March 10, 2008 4:55 PM
FCC/Industry Canada notice
21
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the equipment
into an outlet on a circuit different from that to which the receiver is
connected. Consult the dealer or an experienced radio/TV technician for
help. NOTE: FCC Radiation Exposure Statement: This equipment complies
with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. NOTE: Modifications
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 21 Monday, March 10, 2008 4:55 PM
FCC/Industry Canada notice
22
not expressly approved by Nokia could void the user's authority to operate
the equipment.
HS-106W_UG_en1_with_FCC&IC_notice.fm Page 22 Monday, March 10, 2008 4:55 PM
