Introduction
With the Nokia Bluetooth Headset
BH-606, you can make and receive
calls while on the move.
Read this user guide carefully before
using the headset. Also, read the user
guide for your phone. This product
may contain small parts. Keep them
out of the reach of small children.
Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. The phone and the
headset do not need to be in line of
sight, but they should be within 10
metres (33 feet) of each other.
Connections may be subject to
interference from obstructions, such
as walls, or other electronic devices.
The headset is compliant with the
Bluetooth Specification 2.0 + EDR
supporting the Headset Profile 1.1 and
Hands-Free Profile 1.5. Check with the
manufacturers of other devices to
determine their compatibility with
this device.
Get started

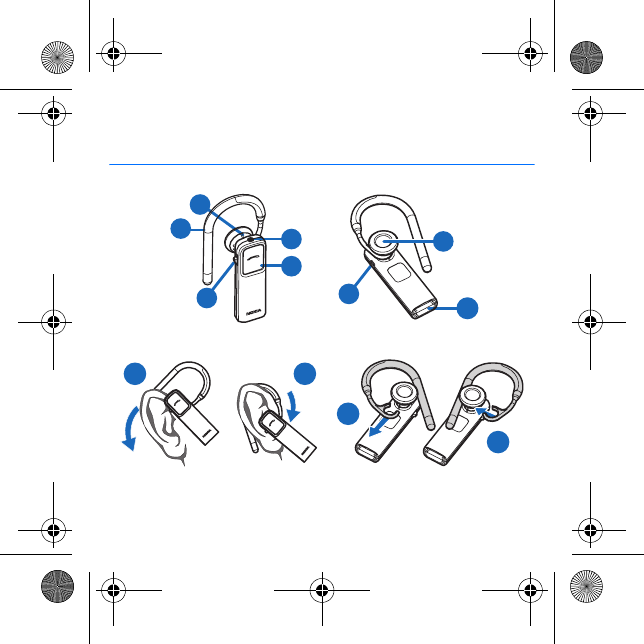

The headset contains the following
parts shown on the title page: white
indicator light (1), earloop (2), volume
key (3), power key (4), answer/end key
(5), earpiece (6), charger connector
(7), and microphone (8).
HS-128W_en1_with_FCC&IC_notice.fm Page 3 Thursday, September 11, 2008 12:55 PM
ENGLISH
Before using the headset, you must
charge the battery and pair the
headset with a compatible phone.
Parts of the device are magnetic. Metallic
materials may be attracted to the device.
Do not place credit cards or other
magnetic storage media near the device,
because information stored on them may
be erased.
Charge the battery
Before charging the battery, carefully
read “Battery and charger
information”.
Warning: Use only chargers
approved by Nokia for use
with this particular model.
The use of any other types may invalidate
any approval or warranty, and may be
dangerous.
When you disconnect the power cord of
any accessory, grasp and pull the plug,
not the cord.
1. Connect the charger to a wall
outlet.
2. Connect the charger cable to the
charger connector. During
charging, the indicator light is on
and the headset cannot be used.
Charging the battery fully may take
up to 2 hours.
3. When the battery is fully charged,
the indicator light turns off.
Disconnect the charger from the
headset, then from the wall outlet.
If the headset was connected to
your phone before charging, the
headset connects to it again.
The fully charged battery has power
for up to 8 hours of talk time or up to
280 hours of standby time.
When the battery is discharged, the
headset beeps every minute and the
indicator light flashes quickly.
HS-128W_en1_with_FCC&IC_notice.fm Page 4 Thursday, September 11, 2008 12:55 PM
ENGLISH
Switch on or off
To switch on, press and hold the power
key for about 2 seconds. The headset
beeps, and the indicator light is
displayed. The headset tries to
connect to a paired phone.
To switch off, press and hold the
power key for about 2 seconds. The
headset beeps, and the indicator light
turns off.
Pair the headset
1. Ensure that your phone is on and
the headset is off.
2. Press and hold the power key (for
about 5 seconds) until the
indicator light starts to flash
quickly.
3. Activate the Bluetooth feature on
the phone, and set it to search for
Bluetooth devices.
4. Select the headset from the list of
found devices.
5. Enter the passcode 0000 to pair
and connect the headset to your
phone. In some phones, you may
need to make the connection
separately after pairing.
When the headset is connected to
your phone and is ready for use, the
indicator light flashes about every 5
seconds.
Basic use
Place the headset on the ear
Slide the earloop behind your ear, and
point the headset toward your mouth
(9 and 10). Gently push the earpiece
into your ear. To use the headset on
HS-128W_en1_with_FCC&IC_notice.fm Page 5 Thursday, September 11, 2008 12:55 PM
ENGLISH
the left ear, detach the earloop (11),
flip it, and push it into place (12).
Calls
To make a call, use your phone in the
normal way when the headset is
connected to it.
To redial the number you last called (if
your phone supports this feature with
the headset), when no call is in
progress, press the answer/end key
twice.
To activate voice dialling (if your
phone supports this feature with the
headset), when no call is in progress,
press and hold the answer/end key for
about 2 seconds. Proceed as described
in the phone user guide.
To answer or end a call, press the
answer/end key. To reject a call, press
this key twice.
To set the headset volume, slide the
volume key up or down.
To mute or unmute the microphone
during a call, press the middle of the
volume key.
To switch a call between the headset
and a compatible phone, press and
hold the answer/end key (or the power
key) for about 2 seconds.
Handle two calls
To answer a waiting call and put the
active call on hold, press and hold the
answer/end key for about 2 seconds.
To answer a waiting call and end the
active call, press the answer/end key.
To end the active call and activate the
call on hold, press the answer/end key.
To switch between the active call and
the call on hold, press and hold the
answer/end key for about 2 seconds.
To use these features, your phone
must support the Bluetooth Hands-
Free profile 1.5, and call waiting
HS-128W_en1_with_FCC&IC_notice.fm Page 6 Thursday, September 11, 2008 12:55 PM
ENGLISH
(network service) must be activated in
the phone.
Clear settings or reset
To delete the pairings from the
headset, switch off the headset, and
press and hold the power key and the
answer/end key for about 5 seconds.
To reset the headset if it stops
functioning, even though it is charged,
connect the headset to a charger that
is connected to a wall outlet.
Troubleshooting
If you cannot connect the headset to
your compatible phone, check that the
headset is charged, switched on, and
paired with the phone.
Battery and charger information
This device has an internal,
nonremovable, rechargeable battery. Do
not attempt to remove the battery from
the device as you may damage the
device. This device is intended for use
when supplied with power from the
following chargers: AC-3, AC-4, AC-5,
and DC-4. The exact charger model
number may vary depending on the type
of plug. The plug variant is identified by
one of the following: E, EB, X, AR, U, A, C,
or UB. The battery can be charged and
discharged hundreds of times, but it will
eventually wear out. Recharge your
battery only with Nokia approved
chargers designated for this device. Use
of an unapproved charger may present a
risk of fire, explosion, leakage, or other
hazard.
If a battery is being used for the first time
or if the battery has not been used for a
prolonged period, it may be necessary to
connect the charger, then disconnect and
reconnect it to begin charging the
HS-128W_en1_with_FCC&IC_notice.fm Page 7 Thursday, September 11, 2008 12:55 PM
ENGLISH
battery. If the battery is completely
discharged, it may take several minutes
before the charging indicator light is
displayed.
Unplug the charger from the electrical
plug and the device when not in use. Do
not leave a fully charged battery
connected to a charger, since
overcharging may shorten its lifetime. If
left unused, a fully charged battery will
lose its charge over time.
Always try to keep the battery between
15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and
lifetime of the battery. A device with a
hot or cold battery may not work
temporarily. Battery performance is
particularly limited in temperatures well
below freezing.
Do not dispose of batteries in a fire as
they may explode. Batteries may also
explode if damaged.
Never use any charger that is damaged.
Important: Battery talk and
standby times are estimates
only and depend on network
conditions, features used, battery age
and condition, temperatures to which
battery is exposed, and many other
factors. The amount of time a device is
used for calls will affect its standby time.
Likewise, the amount of time that the
device is turned on and in the standby
mode will affect its talk time.
Care and maintenance
Your device is a product of superior
design and craftsmanship and should be
treated with care. The following
suggestions will help you protect your
warranty coverage.
• Keep the device dry. Precipitation,
humidity, and all types of liquids or
moisture can contain minerals that
will corrode electronic circuits. If your
HS-128W_en1_with_FCC&IC_notice.fm Page 8 Thursday, September 11, 2008 12:55 PM
ENGLISH
device does get wet, allow it to dry
completely.
• Do not use or store the device in
dusty, dirty areas. Its moving parts
and electronic components can be
damaged.
• Do not store the device in hot areas.
High temperatures can shorten the
life of electronic devices, damage
batteries, and warp or melt certain
plastics.
• Do not store the device in cold areas.
When the device returns to its normal
temperature, moisture can form
inside the device and damage
electronic circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the
device. Rough handling can break
internal circuit boards and fine
mechanics.
• Do not use harsh chemicals, cleaning
solvents, or strong detergents to
clean the device.
• Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
These suggestions apply equally to your
device, charger, or any accessory. If any
device is not working properly, take it to
the nearest authorised service facility for
service.
Disposal
The crossed-out wheeled-bin
symbol on your product,
literature, or packaging reminds
you that all electrical and
electronic products, batteries, and
accumulators must be taken to separate
collection at the end of their working life.
This requirement applies to the European
Union and other locations where
separate collection systems are available.
Do not dispose of these products as
unsorted municipal waste.
By returning the products to collection
you help prevent uncontrolled waste
disposal and promote the reuse of
material resources. More detailed
HS-128W_en1_with_FCC&IC_notice.fm Page 9 Thursday, September 11, 2008 12:55 PM
ENGLISH
information is available from the product
retailer, local waste authorities, national
producer responsibility organisations, or
your local Nokia representative. For the
product Eco-Declaration or instructions
for returning your obsolete product, go to
country-specific information at
www.nokia.com.
FCC/Industry Canada notice
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: 1. This device may not cause
harmful interference; and 2. This device
must accept any interference received,
including interference that may cause
undesired operation. This equipment has
been tested and found to comply with the
limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and,
if not installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver. Connect the
equipment into an outlet on a circuit
different from that to which the receiver is
connected. Consult the dealer or an
experienced radio/TV technician for help.
NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
co-located or operating in conjunction with
any other antenna or transmitter. NOTE:
Changes or modifications not expressly
HS-128W_en1_with_FCC&IC_notice.fm Page 10 Thursday, September 11, 2008 12:55 PM
ENGLISH
approved by Nokia could void the user's
authority to operate the equipment.
HS-128W_en1_with_FCC&IC_notice.fm Page 11 Thursday, September 11, 2008 12:55 PM
