Introduction
4
1. Introduction
With the Nokia Bluetooth Headset BH-601, you can make and receive
phone calls with your compatible mobile phone, and listen to music
with your compatible MP3 music player. The music player can be the
music player feature of your phone or a separate music playing device.
Read this user guide carefully before using the headset. Read also the
user guide for your phone, which provides important safety and
maintenance information, and the user guide for your music playing
device. Keep the headset out of reach of small children.
■Bluetooth wireless technology
The headset can be connected to a compatible mobile phone or other
device that supports Bluetooth wireless technology. This technology
makes it possible to connect compatible communication devices
without cables. A Bluetooth connection does not require that the phone
and the headset be in line of sight, but both devices should be within
10 meters (30 feet) of each other. Connections can be subject to
interference from obstructions, such as walls, or other electronic
devices.
This headset is compliant with Bluetooth Specification 1.2 supporting
the following profiles: Headset Profile 1.1, Handsfree Profile 1.0,
Advanced Audio Distribution Profile 1.0, and Audio Video Remote
Control Profile 1.0. Check with the manufacturers of other devices to
determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
HS-34W_en1_with_FCC_Notice.fm Page 4 Tuesday, January 10, 2006 4:22 PM
Get started
5
2. Get started
The headset contains the parts shown in the figures.
• Headband (1)
• Volume down button (2)
• Volume up button (3)
• Multifunction button (4)
• Track reverse button (5)
• Track forward button (6)
• Microphone (7)
• Blue/red indicator light (8)
• Green indicator light (9)
• Charger socket (10)
• Reset button (11)
Before you can start to use the headset, you
must charge the battery and pair the headset with a compatible phone.
If your phone does not have a music player feature, you also need to pair
the headset with your music player.
Note: Parts of the headset are magnetic. Metallic materials may be
attracted to the headset. Do not place credit cards or other magnetic
storage media near the headset, because information stored on them
may be erased.
■Chargers and batteries
Check the model number of any charger before use with this device.
The BH-601 headset is intended for use with the AC-4 and DC-4 chargers.
Warning: Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
8
9
10 11 7
HS-34W_en1_with_FCC_Notice.fm Page 5 Tuesday, January 10, 2006 4:22 PM
Get started
6
For availability of approved enhancements, please check with your dealer. When
you disconnect the power cord of any enhancement, grasp and pull the plug, not
the cord.
■Charge the battery
This headset has an internal, nonremovable, rechargeable battery. Do
not attempt to remove the battery from the device as you may damage
the headset.
1. If the headset is on, switch it off. You
can also charge the battery while the
headset is on, but the charging time is
longer.

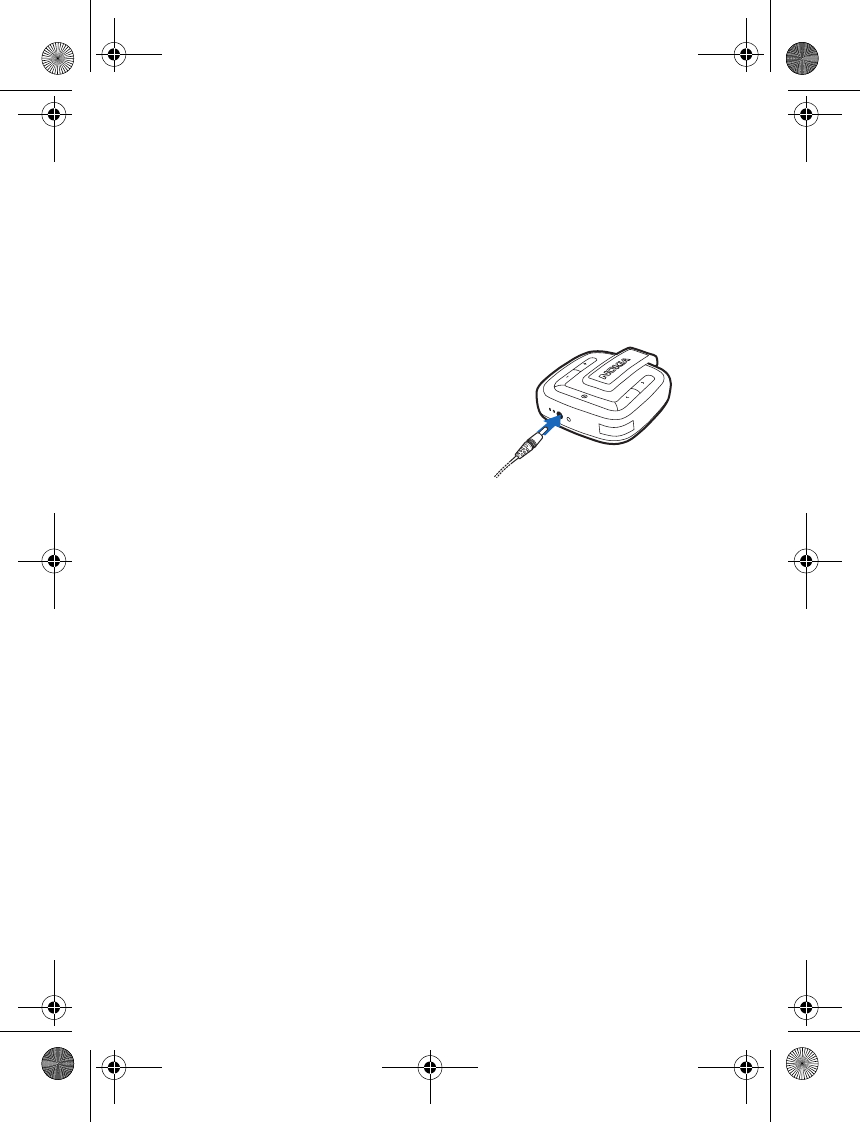

2. Connect the charger to the headset as
shown in the figure.
3. Connect the charger to a wall outlet.
The green indicator light flashes during charging. If the indicator
light is not green, check the charger connection.
Charging the battery fully may take up to 3 hours if the headset is
off. Charging takes longer if the headset is on.
When the battery is fully charged, the green indicator light is
continuously shown.
4. Disconnect the charger from the wall outlet and the headset.
The fully charged battery has power for up to 8 hours of talktime, up to
250 hours of standby time, and up to 8 hours of music playing time.
However, the times may vary with different mobile phones, products
that use a Bluetooth connection, usage settings, usage style, and
environments.
When the battery is running out of power and about 20 minutes of
talktime or music playing time is left, the headset beeps twice, and the
red indicator light starts to flash. Recharge the battery.
■Switch the headset on or off
Press and hold the multifunction button for about 3 seconds.
HS-34W_en1_with_FCC_Notice.fm Page 6 Tuesday, January 10, 2006 4:22 PM
Get started
7
If you do not connect the headset to a phone or a music player within 3
minutes, the headset switches off to save battery power. If you connect
the headset to a phone or a music player but do not use it for a while,
switch off the headset to save power.
■Pair the headset
Pair with a phone that has a compatible music player
feature
If your phone has a compatible music player feature, you can use the
phone to make and receive calls and to play music.
1. Switch on your phone.
2. Ensure that the headset is off. If it is on, switch it off.
3. Press and hold the headset multifunction button for 10 seconds until
the indicator light flashes blue and red.
4. Activate the Bluetooth feature on the phone, and set the phone to
search for Bluetooth devices. See the user guide of your phone for
instructions.
5. Select the headset (Nokia BH-601) from the list of found devices.
6. Your phone should ask for a Bluetooth passcode. Enter the passcode
(0000) on your phone. In some phones you may need to make the
Bluetooth connection separately after pairing. You only need to pair
the headset with your phone once.
7. If the pairing is successful and the headset is connected with your
phone, the blue indicator light of the headset flashes. You can now
start to use the headset.
Pair with a phone and a music player
If your phone does not have a compatible music player feature, you can
separately pair the headset with your phone and a compatible music
player.
1. Switch on your phone.
2. Ensure that the headset and the music player are off.
HS-34W_en1_with_FCC_Notice.fm Page 7 Tuesday, January 10, 2006 4:22 PM
Get started
8
3. Press and hold the headset multifunction button for at least 10
seconds until the indicator light flashes blue and red.
4. Pair and connect the headset with your phone in the same way as
when the phone has a music player feature.
5. Once the phone is paired with the headset, switch off the headset.
6. Switch off the phone, or turn off the Bluetooth feature on your
phone.
7. Switch on the music player.
8. Press and hold the headset multifunction button for at least 10
seconds until the indicator light flashes blue and red.
9. Follow the pairing instructions in the user guide for your music
player. When the music player asks for a device to pair, select Nokia
BH-601 from the list. If you are asked for a Bluetooth passcode, enter
0000 on the music player.
If your music player does not have a keypad, the device may use the
Bluetooth passcode 0000 by default. If this is not the case, see the
user guide of your music player to change the default Bluetooth
passcode to 0000.
10.If the pairing is successful and the headset is connected with your
music player, the blue indicator light of the headset flashes.
Automatic connection set-up
If you have a Nokia phone, you can set it to connect with the headset
automatically when the headset is switched on. On your Nokia phone,
change your paired device settings in the Bluetooth menu.
Use the headset with several music players
If you have paired the headset with several music players, to switch
between them, press the track reverse and track forward buttons at the
same time.
By default, the headset uses the music player that you used with the
headset first. If you want to change this default device, you need to
HS-34W_en1_with_FCC_Notice.fm Page 8 Tuesday, January 10, 2006 4:22 PM
Get started
9
clear the pairing and volume settings as described on page 11, and pair
the music players again in the desired order.
HS-34W_en1_with_FCC_Notice.fm Page 9 Tuesday, January 10, 2006 4:22 PM
Basic use
10
3. Basic use
■Place the headset over the ears
Lower the headband behind your head. Place the
headset over your ears so that the speaker pads fit
comfortably.
Warning: When using the headset your ability
to hear outside sounds may be affected. Do not use the headset where
it can endanger your safety.
■Adjust the earpiece volume
Press the volume up button to increase or the volume down button to
decrease the volume.
■Call handling
To make a call when the headset is connected to the phone, use your
phone in the normal way.
If your phone supports redialing, press the multifunction button and the
volume down button at the same time when no call is in progress.
If your phone supports voice dialing, press the multifunction button and
the volume up button at the same time when no call is in progress, and
proceed as instructed in the user guide of your phone.
To answer a call, briefly press the multifunction button, or use the phone
keys. To reject the call, press the multifunction button twice.
To end a call, press the multifunction button, or use the phone keys.
To mute or unmute the microphone during a call, press the volume up
and volume down buttons at the same time.
To switch a call from the headset to your phone or vice versa, briefly
press the volume up button and the track forward button at the same
time, or use the respective function in your phone.
HS-34W_en1_with_FCC_Notice.fm Page 10 Tuesday, January 10, 2006 4:22 PM
Basic use
11
■Listen to music
When you switch on the headset, it tries to connect to a music player
with which you have paired it.
When the headset is connected to a phone but not to a music player, the
headset can only be used to make and receive calls if your phone does
not have a compatible music player feature.
The available music functions depend on your music player.
If you receive or make the call while listening to the music player, the
music is muted until you end the call.
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing.
To play music, select a track on your music player, or press the track
forward or track reverse button on your headset to select the track. To
start playing, briefly press the multifunction button.
To pause playing, briefly press the multifunction button. To resume
playing, press the multifunction button.
To move to the next track, briefly press the track forward button
repeatedly. To move to the previous track, briefly press the track reverse
button twice.
■Clear the settings or reset the headset
To clear the pairing and volume settings, switch off the headset, and
press the multifunction and track forward buttons at the same time for
about 10 seconds.
If the headset stops functioning, although it has been charged, you need
to reset it. Gently press and hold the reset button (see page 5) with an
unfolded paper clip (or another small object without a sharp tip) for 10
seconds. The reset does not clear your pairing and volume settings.
HS-34W_en1_with_FCC_Notice.fm Page 11 Tuesday, January 10, 2006 4:22 PM
Battery information
12
4. Battery information
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. Recharge your battery only with Nokia approved chargers
designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave the device connected to a charger, since overcharging may shorten the
battery lifetime. If left unused, a fully charged battery will lose its charge over
time.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
HS-34W_en1_with_FCC_Notice.fm Page 12 Tuesday, January 10, 2006 4:22 PM
Care and maintenance
13
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow the device to dry completely.
• Do not attempt to remove the battery from the device. Nokia recommends to
take it to the nearest authorized service facility for replacement of the
battery.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use chargers indoors.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
HS-34W_en1_with_FCC_Notice.fm Page 13 Tuesday, January 10, 2006 4:22 PM
FCC notice
14
FCC notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
HS-34W_en1_with_FCC_Notice.fm Page 14 Tuesday, January 10, 2006 4:22 PM
