User guide for the Nokia
Bluetooth Headset (HS-
37W)
9238645
Issue 1
HS-37W_1_nk_sgml.fm Page 1 Friday, February 4, 2005 1:18 PM
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the
product HS-37W is in conformity with the provisions of the following
Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can
be found at http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products described
in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or
income or any special, incidental, consequential or indirect damages
howsoever caused.
HS-37W_1_nk_sgml.fm Page 2 Friday, February 4, 2005 1:18 PM
The contents of this document are provided "as is". Except as required by
applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the
right to revise this document or withdraw it at any time without prior
notice.
The availability of particular products may vary by region. Please
check with the Nokia dealer nearest to you.
Unauthorized changes or modifications to this device may void the
user's authority to operate the equipment.
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
9238645 / Issue 1
HS-37W_1_nk_sgml.fm Page 3 Friday, February 4, 2005 1:18 PM
Contents
4
Contents
1. Introduction.............................................................. 5
Bluetooth wireless technology........................................................... 6
2. Get started................................................................ 8
Insert the battery ................................................................................... 9
Pair the headset with a compatible phone .................................. 10
3. Basic use ................................................................. 12
Call handling ......................................................................................... 12
Standby mode ....................................................................................... 13
Light indicator....................................................................................... 14
Use the headset on the left ear ....................................................... 14
Store the headset................................................................................. 15
Troubleshooting.................................................................................... 15
HS-37W_1_nk_sgml.fm Page 4 Friday, February 4, 2005 1:18 PM
Introduction
5
1. Introduction
Read this user guide carefully before using the headset.
Read also the user guide for your phone, which provides
important safety and maintenance information. Keep
the headset out of reach of small children.
The Nokia Bluetooth headset HS-37W is designed for
all-day wear, and provides up to 15 hours of talk time
with a single AAA battery.
This device is intended for use when supplied with
power from a 1.5 V LR03 / AAA Alkaline battery. The use
of any other types may invalidate any approval or
warranty, and may be dangerous. Always switch the
device off before removing the battery. Ensure the
correct polarity is observed when inserting the battery.
HS-37W_1_nk_sgml.fm Page 5 Friday, February 4, 2005 1:18 PM
Introduction
6
Do not try to recharge the battery unless the
manufacturer of the battery has intended the battery to
be rechargeable.
■Bluetooth wireless technology
The HS-37W headset can be connected to a compatible
mobile phone that supports Bluetooth wireless
technology. The Bluetooth wireless technology makes it
possible to connect compatible communication devices
without cables. A Bluetooth connection does not require
that the phone and the headset be in line of sight, but
both devices should be within 10 meters of each other.
Connections can be subject to interference from
obstructions, such as walls, or other electronic devices.
The HS-37W headset is compliant with the Bluetooth
Specification 1.2 supporting the following profiles:
Headset Profile and Handsfree Profile. Interoperability
between the HS-37W headset and other Bluetooth-
enabled products is not guaranteed. Check with the
HS-37W_1_nk_sgml.fm Page 6 Friday, February 4, 2005 1:18 PM
Introduction
7
manufacturers of other devices to determine their
compatibility with this device.
HS-37W_1_nk_sgml.fm Page 7 Friday, February 4, 2005 1:18 PM
Get started
8
2. Get started
There may be restrictions on using Bluetooth wireless
technology in some locations. Check with your local
authorities or service provider.

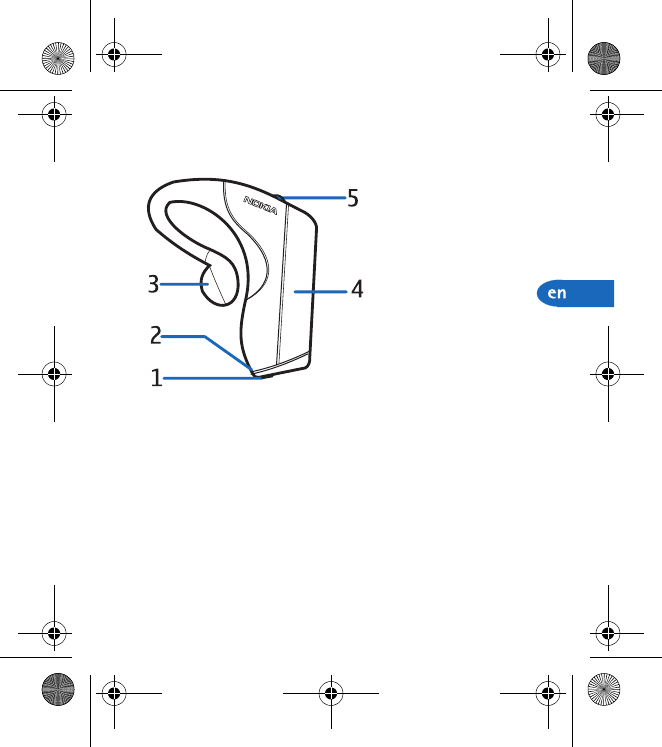

The headset contains the following parts:
• Answer/end key (1)
• Yellow light indicator (LED) (2)
• Earpiece (3)
• Battery compartment (4)
• Volume key (5)
HS-37W_1_nk_sgml.fm Page 8 Friday, February 4, 2005 1:18 PM
Get started
9
Before you can start using the headset, you must insert
a battery, and pair a compatible phone with the
headset.

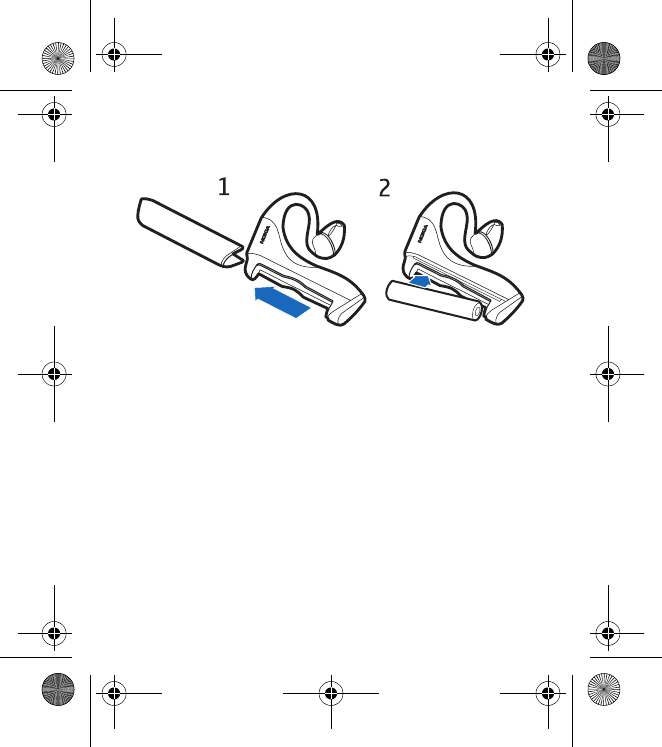

■Insert the battery
Open the battery compartment by sliding the battery
panel off, and insert the battery.
HS-37W_1_nk_sgml.fm Page 9 Friday, February 4, 2005 1:18 PM
Get started
10
■Pair the headset with a compatible
phone
The HS-37W headset goes into the pairing mode when
you insert or replace the battery. The yellow LED lights up
and remains on for 5 minutes, during which the headset
can be paired to a compatible mobile phone.
1. Set the phone to search for Bluetooth devices. See the
user guide of your phone for instructions.
HS-37W_1_nk_sgml.fm Page 10 Friday, February 4, 2005 1:18 PM
Get started
11
2. When your phone finds the HS-37W headset,
confirm the pairing from your phone.
3. When prompted for the Bluetooth passcode of the
headset, enter 0000.
If the pairing was successful, the yellow LED flashes
briefly and then switches off.
If the pairing was unsuccessful, the yellow LED stays on
for 5 minutes, during which you must pair the devices
again.
You only need to pair the headset with your phone once.
To exit the pairing mode, press the answer/end key
briefly.
You are now ready to use the headset.
HS-37W_1_nk_sgml.fm Page 11 Friday, February 4, 2005 1:18 PM
Basic use
12
3. Basic use
■Call handling
To answer a call with your mobile phone, press the
answer key on your phone. You can transfer the call to
the headset by pressing the answer/end key on the
headset briefly.
To answer a call with the headset, press the answer/end
key on the headset briefly. There may be a slight delay in
transfering the call from the mobile phone to the
headset. To avoid missing calls, it is recommended that
you answer calls with your mobile phone, and then
transfer the call to the headset.
If you do not want to answer a call, press and hold the
answer/end key on the headset for a second.
To make a call, dial the number with your mobile phone
and press the answer key on your phone. Then press the
HS-37W_1_nk_sgml.fm Page 12 Friday, February 4, 2005 1:18 PM
Basic use
13
answer/end key on the headset to transfer the call to
the headset.
If your phone supports voice dialing and there is no call
in progress, press the answer/end key on the headset,
and proceed with the voice dialing as described in the
user guide of your phone. For the best result, record
the voice tag through your headset.
To increase or decrease the volume of the headset, press
the volume key briefly until the satisfactory volume
level is reached.
To end a call, press the end key on your mobile phone or
the answer/end key on your headset.
■Standby mode
To maximise the battery life, the headset automatically
switches off after each call. To prevent this, set the
headset in the standby mode. The standby mode speeds
up the connection to your mobile phone, but reduces
HS-37W_1_nk_sgml.fm Page 13 Friday, February 4, 2005 1:18 PM
Basic use
14
battery life. To activate the standby mode, press and hold
the volume and answer/end keys for 5 seconds.
To switch the headset on in the standby mode, press the
answer/end key. To switch the headset off in the standby
mode, press and hold the answer/end key for 5 seconds.
■Light indicator
The HS-37W headset has a yellow light indicator (LED).
When you insert or replace the battery and switch the
headset on, the LED lights up. This indicates that the
headset is in the pairing mode. When the power level of
the battery in the headset is getting low, the LED flashes
twice every 5 seconds. Replace the battery.
■Use the headset on the left ear
The HS-37W headset is ready to be worn on the right ear.
If you want to use it on the left ear, gently rotate the
earpiece.
HS-37W_1_nk_sgml.fm Page 14 Friday, February 4, 2005 1:18 PM
Basic use
15
■Store the headset
Always store the headset with the power off and safely
protected.
Avoid storage in high temperatures (above 45°C / 113°F)
- such as direct sunlight. Storage in high temperatures
can degrade performance and reduce the battery life.
Low temperatures (down to -10°C / 14°F) shorten the
battery life and may affect operation.
Do not expose the headset to rain or other liquids.
■Troubleshooting
The audio quality is poor
Check that the headset is within a maximum of 10
meters from your phone, and that there are no
obstructions, such as walls, or other electronic devices
between the headset and the phone.
HS-37W_1_nk_sgml.fm Page 15 Friday, February 4, 2005 1:18 PM
Basic use
16
There is no audio in the headset
• Increase the volume on the headset by pressing the
volume key.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset.
If not, try pairing the devices again.
Cannot answer calls with the headset
because the phone stops ringing before
the headset is activated
The headset is designed to maximise battery life by
automatically switching off after a call. The standby
mode speeds up the connection between your phone and
the headset, see Standby mode, 13.
HS-37W_1_nk_sgml.fm Page 16 Friday, February 4, 2005 1:18 PM
Basic use
17
I have pairing problems even though my
phone indicates otherwise
You may have deleted the headset pairing in your
mobile phone. Pair the devices again.
HS-37W_1_nk_sgml.fm Page 17 Friday, February 4, 2005 1:18 PM
Care and maintenance
18
Care and maintenance
Your device is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will help
you protect your warranty coverage.
• Keep all accessories and enhancements out of the reach of
small children.
• Keep the device dry. Precipitation, humidity and all types of
liquids or moisture can contain minerals that will corrode
electronic circuits. If your device does get wet, remove the
battery and allow the device to dry completely before
replacing it.
• Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries, and
warp or melt certain plastics.
HS-37W_1_nk_sgml.fm Page 18 Friday, February 4, 2005 1:18 PM
Care and maintenance
19
• Do not store the device in cold areas. When the device
returns to its normal temperature, moisture can form inside
the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed
in this guide.
• Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
All of the above suggestions apply equally to your device,
battery, charger, or any enhancement. If any device is not
working properly, take it to the nearest authorized service
facility for service.
HS-37W_1_nk_sgml.fm Page 19 Friday, February 4, 2005 1:18 PM
FCC notice—Nokia Bluetooth Headset HS-
37W
20
FCC notice—Nokia Bluetooth
Headset HS-37W
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: 1.
This device may not cause harmful interference; and 2.
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
HS-37W_1_nk_sgml.fm Page 20 Friday, February 4, 2005 1:18 PM
FCC notice—Nokia Bluetooth Headset
HS-37W
21
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure
Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or
transmitter.
HS-37W_1_nk_sgml.fm Page 21 Friday, February 4, 2005 1:18 PM
