User Guide for the Wireless Boom
Headset (HS-4W)
9311010
Issue 1
HS-4W_en1_sgml.fm Page 1 Monday, December 15, 2003 5:20 PM

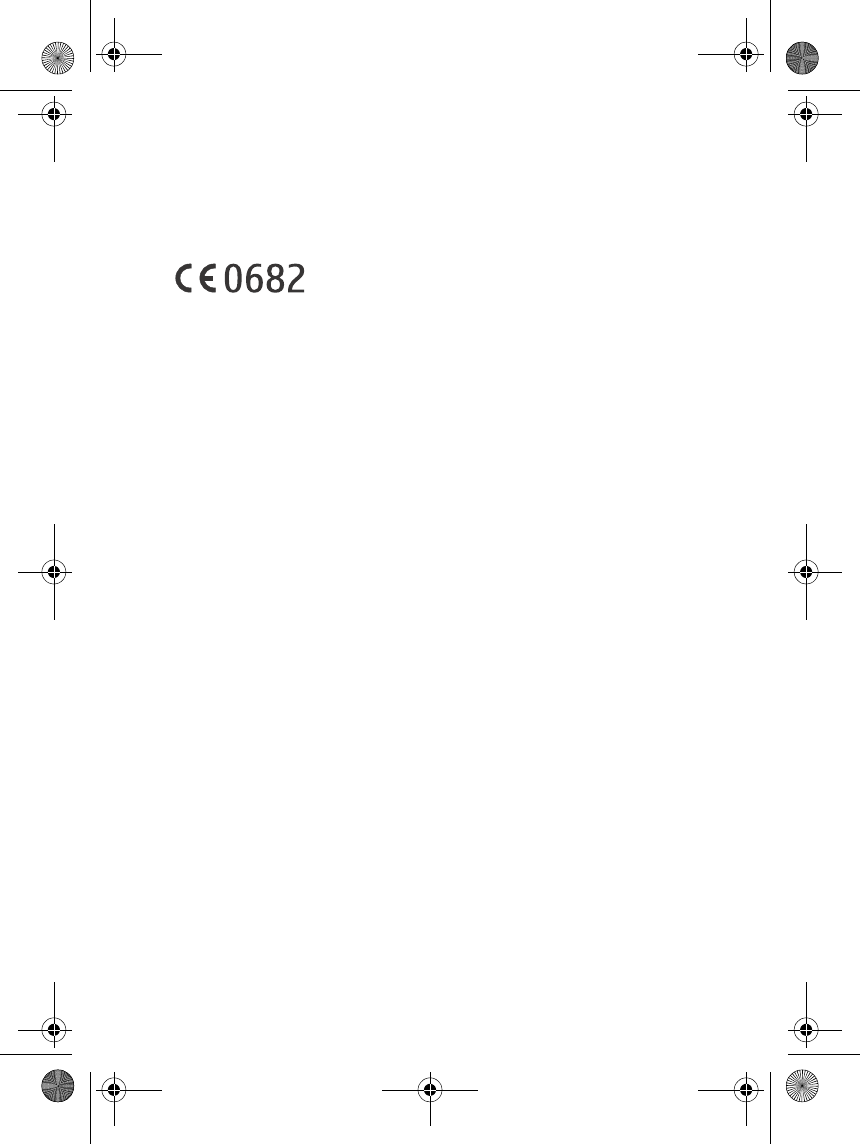

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product
HS-4W is in conformity with the provisions of the following Council Directive:
1999/5/EC. A copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
In some countries there may be restrictions in using Bluetooth devices. Check with your local
authorities.
9311010 / Issue 1
HS-4W_en1_sgml.fm Page 2 Monday, December 15, 2003 5:20 PM
3
Contents
1. Introduction ......................... 4
Bluetooth wireless technology .......... 4
Bluetooth passcode............................... 4
2. Getting started..................... 5
Overview .................................................. 5
Chargers and batteries......................... 5
Charging the battery ............................ 6
When the battery charge
falls low ................................................ 6
Pairing the headset with
a compatible phone.............................. 6
Disconnecting the headset
from the phone................................... 7
Reconnecting the paired headset
to the compatible phone ................. 7
Troubleshooting ..................................... 8
3. Using the headset ................ 9
Switching the headset on or off ....... 9
Using the headset .............................. 9
Call functions ......................................... 9
Answering and ending a call .......... 9
Automatic answer.............................. 9
Rejecting a call................................. 10
Redialling the last
dialled number.................................. 10
Muting an ongoing call.................. 10
Voice dialling..................................... 10
Adjusting the earphone volume...... 10
Switching the call between
phone and headset.............................. 10
Using the headset with
several paired phones......................... 11
Resetting the headset ........................ 11
4. Battery information ........... 12
Charging and Discharging................. 12
Care and maintenance ........... 13
HS-4W_en1_sgml.fm Page 3 Monday, December 15, 2003 5:20 PM
Introduction
4
1. Introduction
The Wireless Boom Headset HS-4W can be connected to a compatible
phone that supports Bluetooth technology. This allows you freedom to
make and receive calls while on the move or in the office.
Read this user guide carefully before using the headset. In addition to
this Wireless Boom Headset HS-4W user guide, read also the phone’s
user guide, which provides important safety and maintenance
information. Keep the headset out of reach of small children.
■Bluetooth wireless technology
The Wireless Boom Headset HS-4W is specially designed for compatible
Nokia phones that support Bluetooth technology. The headset can,
however, be used with any compatible Bluetooth devices that support
the compatible Handsfree or Headset profiles. (A profile is a set of
Bluetooth commands that the phone uses to control the headset).
The Bluetooth technology makes it possible to connect compatible
communication devices without using cables. A Bluetooth connection
does not require that the phone and the headset be in line of sight, but
both devices should be within 10 metres of each other. Connections can
be subject to interference from obstructions, such as walls, or other
electronic devices.
The Wireless Boom Headset HS-4W is compliant with and adopts the
Bluetooth Specification 1.1. However, interoperability between the
Wireless Boom Headset HS-4W and other Bluetooth-enabled products
is not guaranteed because it depends on compatibility. For more
information on the compatibility between the Wireless Boom Headset
HS-4W and other Bluetooth-enabled products, please check with your
dealer.
■Bluetooth passcode
You need a Bluetooth passcode for pairing the headset with a
compatible phone. The passcode is 0000.
HS-4W_en1_sgml.fm Page 4 Monday, December 15, 2003 5:20 PM
Getting started
5
2. Getting started
Note: The use of wireless devices may be restricted in some situations.
Observe any restrictions and obey all signs and instructions concerning
use of wireless devices.
■Overview

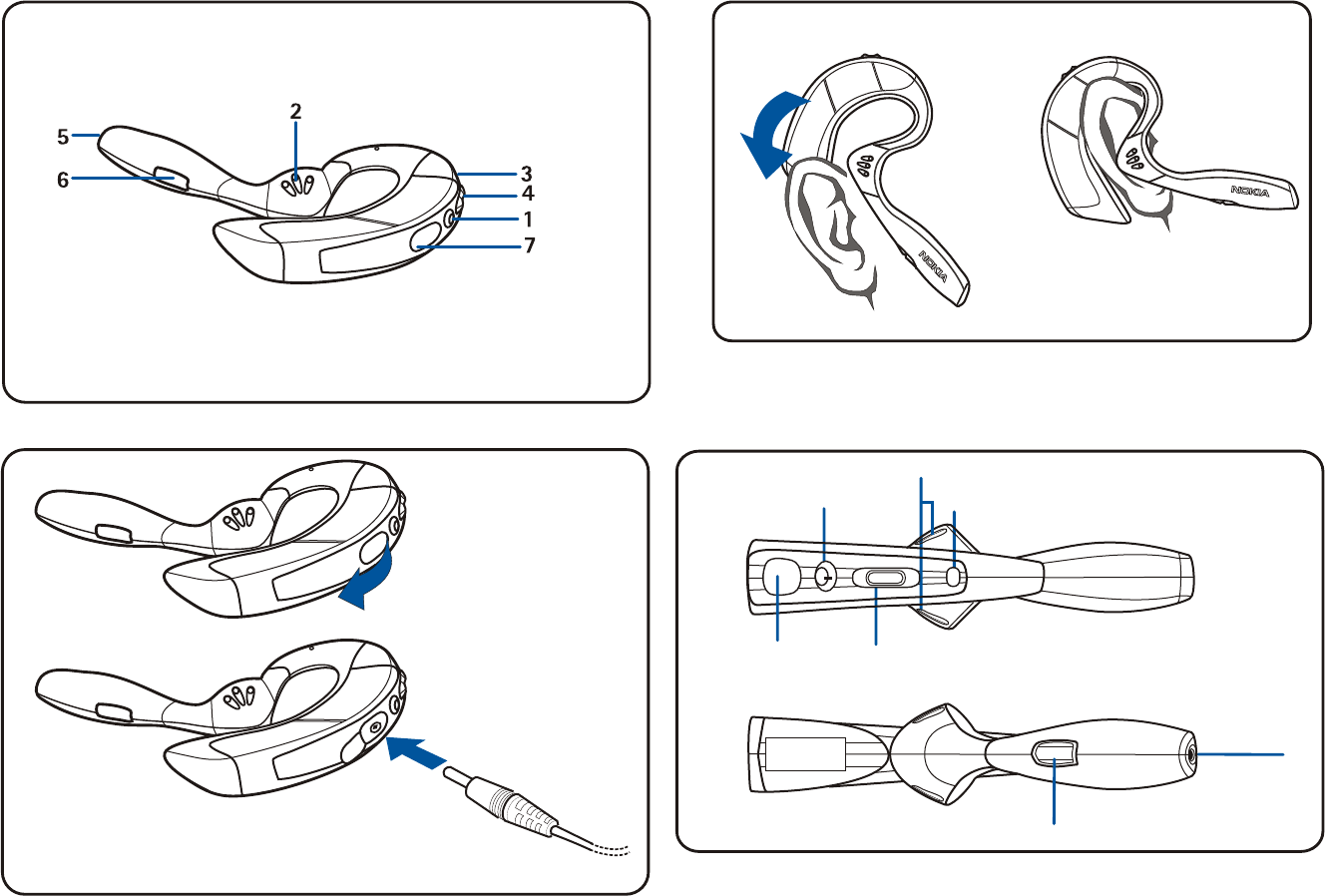

The headset contains the following parts, as shown in Figure 1.
1 - Power key: Switches the headset on and off, or mutes the ongoing
call.
2 - Speaker: Relays the caller’s voice.
3 - Indicator light: Displays the current status of the headset.
4 - Volume control key: Increases/decreases the earphone volume
during a call.
5 - Microphone: Picks up your voice.
6 - Answer/end key: Answers or ends the call. This key can also be used
for voice dialling, redialling and switching an active call between the
headset and the compatible phone.
7 - Charger connector
Before you can start using the headset, you must:
• Charge the battery
• Pair a compatible phone with the headset
■Chargers and batteries
Check the model number of any charger before using it with this device. The
Wireless Boom Headset HS-4W is intended for use with the following chargers:
AC-1, ACP-7, ACP-8, ACP-9, ACP-12, and LCH-12.
Warning! Use only batteries and chargers approved by Nokia for use
with this particular enhancement. The use of any other types will
invalidate any approval or warranty applying to the enhancement, and
may be dangerous.
HS-4W_en1_sgml.fm Page 5 Monday, December 15, 2003 5:20 PM
Getting started
6
For availability of approved batteries and chargers, please check with your local
dealer.
When you disconnect the power cord of any enhancement, grasp and pull the
plug, not the cord.
■Charging the battery
1. Connect the charger cable to the headset as shown in Figure 2.
Before connecting the charger cable to the headset, open the flap.
2. Connect the charger to an AC wall outlet. The red indicator light is
displayed during charging. Charging the battery fully may take up to
2 hours 45 minutes depending on the charger.
3. When the battery is fully charged, the green indicator light is
displayed. Disconnect the charger from the AC wall outlet and the
headset.
When the battery charge falls low
Fully charged batteries last up to 6 hours of talk-time and up to 160
hours of standby time. (In standby mode the headset is switched on but
no call is in progress.)
When the battery is running out of power, the headset beeps. Charge
the battery as described above.
■Pairing the headset with a compatible phone
1. Make sure that the compatible phone is switched on.
2. Switch on the headset. Make sure that the headset is charged.
3. Activate the Bluetooth connection from the phone. For more
information, see the user guide of the phone.
4. Set the phone to search for Bluetooth devices as instructed in the
user guide of the phone.
5. Select the Nokia HS-4W from the list.
6. Enter the generic passcode 0000 to associate ("pair") and connect
the headset to the phone.
HS-4W_en1_sgml.fm Page 6 Monday, December 15, 2003 5:20 PM
Getting started
7
Once you have entered the passcode, the phone becomes the default
phone for the headset, if the headset has not been previously paired
with another phone. See also Using the headset with several paired
phones on page 11.
The headset beeps once and an active Bluetooth connection is
displayed by a blinking yellow indicator light. The headset should
now appear in the phone menu where you can view the Bluetooth
devices that are currently paired with the compatible phone.
7. Start using the headset (see page 9).
Disconnecting the headset from the phone
The headset can be disconnected from the phone, if, for example, you
want to use another Bluetooth device with it. To disconnect the headset,
do one of the following:
• Switch off the headset.
• Disconnect the headset in the phone’s Bluetooth menu.
• Move the headset more than 10 metres away from the phone.
The headset is also disconnected if the battery of the headset or the
phone becomes flat.
Note that you do not need to delete the pairing with the headset to
disconnect it. When you reconnect a paired headset, you are not asked
for its passcode.
Reconnecting the paired headset to the compatible
phone
To reconnect the headset to the default phone or the last phone used,
switch on the headset. Otherwise, make the connection in the phone’s
Bluetooth menu as instructed in the user guide of the phone.
Note that switching on the headset creates the connection
automatically only if you have set the phone to accept Bluetooth
connection requests without your permission. In Nokia phones this can
be done by changing your paired devices settings in the Bluetooth
menu.
HS-4W_en1_sgml.fm Page 7 Monday, December 15, 2003 5:20 PM
Getting started
8
■Troubleshooting
If you cannot connect the headset to the compatible phone, proceed as
follows:
• Make sure that the Bluetooth feature is activated on the compatible
phone.
• Make sure that the headset is switched on and paired with the
compatible phone.
• Make sure that you have disconnected the previous Bluetooth
connection from the phone.
• Check that the headset is within 10 metres of the phone and that
there are no obstructions, such as walls, or other electronic devices
between the headset and the phone.
• The pairing information list of the headset may be full. The headset
can store the information of up to 8 phones at a time. If the list
becomes full, reset the headset to the original settings. See Resetting
the headset on page 11.
• If the headset does not automatically reconnect to the default/last
user, press and hold the answer/end key.
HS-4W_en1_sgml.fm Page 8 Monday, December 15, 2003 5:20 PM
Using the headset
9
3. Using the headset
Note: The use of wireless devices may be restricted in some situations.
Observe any restrictions and obey all signs and instructions concerning
use of wireless devices.
■Switching the headset on or off
To switch on the headset, press and hold the power key for 2 seconds.
The headset beeps and the green indicator light starts blinking. The
blinking continues until the headset is connected to a compatible
phone.
To switch off the headset, press and hold the power key for 2 seconds
when no call is in progress. The headset beeps and the red indicator light
is displayed briefly.
UsingPlacing the headset over the ear
Slide the headset onto your ear as shown in Figure 3.
■Call functions
When the headset is connected to the phone, make a call by using the
phone in the normal way. Note that the call functions depend on the
phone that you use.
Answering and ending a call
When you receive a call, you hear a ringing tone through the headset.
Press the answer/end key to answer the call or to end the currently
active call.
You can also answer or end the call using the phone.
Automatic answer
If, on the phone, the Automatic answer function is set to on, the phone
automatically answers the incoming call after one ring and forwards it
to the headset.
HS-4W_en1_sgml.fm Page 9 Monday, December 15, 2003 5:20 PM
Using the headset
10
Rejecting a call
When you receive an incoming call that you do not want to answer,
briefly press the answer/end key twice.
Redialling the last dialled number
Press the answer/end key twice briefly when no call is in progress.
Muting an ongoing call
You can mute or unmute the ongoing call by pressing the power key
briefly.
Voice dialling
When no call is in progress, press and hold the answer/end key until you
hear a tone that indicates that you can say the desired name ("voice
tag"). Say the voice tag. The phone plays the voice tag and dials the
related phone number.
You can also activate voice dialling with the phone. For details on voice
dialling, see the phone’s user guide.
Note that this function is only available if the phone supports voice
dialling.
■Adjusting the earphone volume
Press the volume control key to increase or decrease the volume.
■Switching the call between phone and headset
You can switch an active call between the headset and a compatible
device. To switch the call from the headset to a phone and vice versa,
press and hold the answer/end key or use the respective function in your
phone.
HS-4W_en1_sgml.fm Page 10 Monday, December 15, 2003 5:20 PM
Using the headset
11
■Using the headset with several paired phones
Before the headset can be used, the compatible phone has to be paired
with the headset. The headset can be paired with up to 8 compatible
phones but connected to only one phone at a time.
The phone that was first paired with the headset is called the "default
phone". The phone that was last used with the headset is called the "last
used phone".
If the headset is switched on within 10 metres of several paired phones,
the headset will try to connect to the "default phone" within a few
seconds.
If the headset cannot connect to the "default phone" (for example, it is
switched off or its user rejects the connection), the headset tries to
connect to the "last used phone" within a few seconds.
If the headset cannot connect to either of these phones, it remains
discoverable for other phones, which is displayed by the blinking green
indicator light.
If you want to use the headset with a paired phone that is not a "default
phone" or "last used phone", make the connection in the phone’s
Bluetooth menu.
■Resetting the headset
You can reset the headset to its original settings, for example, to change
the default user of the headset. Resetting the headset clears all of its
settings, including pairing information. To reset the headset:
Press and hold the power key and the upper end of the volume control
key for 10 seconds. After the headset has been reset, it beeps twice and
the red and the green indicator lights alternate for several seconds.
HS-4W_en1_sgml.fm Page 11 Monday, December 15, 2003 5:20 PM
Battery information
12
4. Battery information
Your headset is powered by a rechargeable battery. Take good care of
the battery and follow the guidelines below.
■Charging and Discharging
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk time and standby time) is
noticeably shorter than normal, it is time to buy a new battery.
Use only batteries approved by the manufacturer and recharge your battery only
with the chargers approved by the manufacturer. Unplug the charger when not in
use. Do not leave the battery connected to a charger for longer than a week, since
overcharging may shorten its lifetime. If left unused a fully charged battery will
discharge itself over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object (coin, clip or pen) causes direct connection of the + and -
terminals of the battery (metal strips on the battery), for example, when you
carry a spare battery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59° F and 77° F). A headset with a
hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries' performance is particularly limited in temperatures well
below freezing.
Do not dispose of batteries in a fire!
Discard batteries according to local regulations (e.g. recycling). Do not dispose as
household waste.
HS-4W_en1_sgml.fm Page 12 Monday, December 15, 2003 5:20 PM
Care and maintenance
13
Care and maintenance
Your headset is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you to fulfil any warranty
obligations and to enjoy this product for many years.
• Keep all accessories out of the reach of small children.
• Keep the headset dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits.
• Do not use or store the headset in dusty, dirty areas. Its moving parts can be
damaged.
• Do not store the headset in hot areas. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the headset in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic circuit
boards.
• Do not attempt to open the headset. Non-expert handling may damage it.
• Do not drop, knock or shake the headset. Rough handling can break internal
circuit boards.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the headset.
• Do not paint the headset. Paint can clog the moving parts and prevent proper
operation.
If the headset is not working properly, take it to your nearest qualified service
facility. The personnel there will assist you and, if necessary, arrange for service.
HS-4W_en1_sgml.fm Page 13 Monday, December 15, 2003 5:20 PM
FCC Notice - Nokia Wireless Boom Headset HS-4W
14
FCC Notice - Nokia Wireless Boom
Headset HS-4W
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
HS-4W_en1_sgml.fm Page 14 Monday, December 15, 2003 5:20 PM
NOTE: Modifications not expressly approved by Nokia could void
the user's authority to operate the equipment.
Fig 2
Fig 3
1
4
2
3
7
5
6
Fig 1
old
