Nokia Bluetooth Headset
BH-600
9250102/1
2
2
1
4
3
5
7
6
HS-59W_UG_draft6.fm Page 1 Wednesday, April 12, 2006 1:33 PM
8 9 10
HS-59W_UG_draft6.fm Page 2 Wednesday, April 12, 2006 1:33 PM
ENGLISH

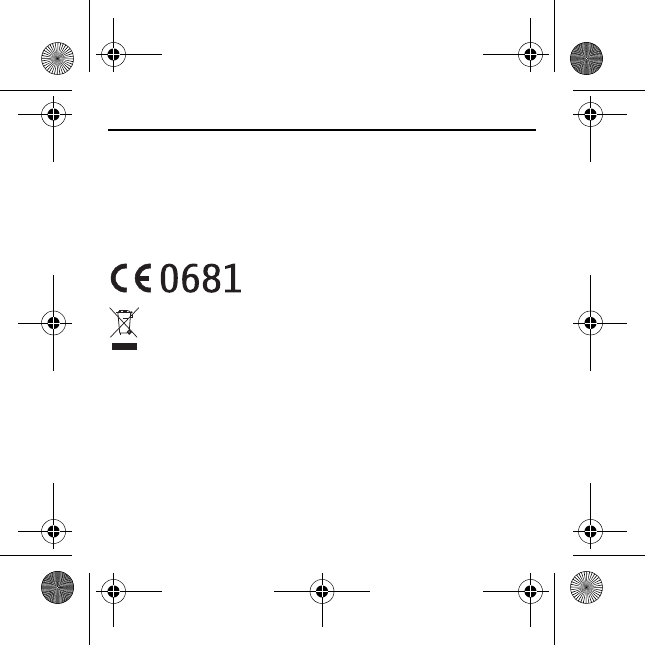

DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our
sole responsibility that the product HS-59W
is in conformity with the provisions of the
following Council Directive: 1999/5/EC. A
copy of the Declaration of Conformity can be
found at http://www.nokia.com/phones/
declaration_of_conformity/.
The crossed-out wheeled bin
means that within the European
Union the product must be taken
to separate collection at the
product end-of-life. Do not
dispose of these products as unsorted
municipal waste.
© 2006 Nokia. All rights reserved.
Reproduction, transfer, distribution or
storage of part or all of the contents in this
document in any form without the prior
written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are
registered trademarks of Nokia Corporation.
Other product and company names
mentioned herein may be trademarks or
tradenames of their respective owners.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Nokia operates a policy of continuous
development. Nokia reserves the right to
make changes and improvements to any of
the products described in this document
without prior notice.
Under no circumstances shall Nokia be
responsible for any loss of data or income or
any special, incidental, consequential or
indirect damages howsoever caused.
The contents of this document are provided
"as is". Except as required by applicable law,
no warranties of any kind, either express or
implied, including, but not limited to, the
implied warranties of merchantability and
fitness for a particular purpose, are made in
relation to the accuracy, reliability or
contents of this document. Nokia reserves
the right to revise this document or
withdraw it at any time without prior notice.
The availability of particular products may
vary by region. Please check with the Nokia
dealer nearest to you.
HS-59W_UG_draft6.fm Page 3 Wednesday, April 12, 2006 1:33 PM
ENGLISH
Unauthorized changes or modifications to
this device may void the user's authority to
operate the equipment.
Export Controls
This device may contain commodities,
technology or software subject to export
laws and regulations from the US and other
countries. Diversion contrary to law is
prohibited.
Introduction
The Nokia Bluetooth Headset BH-600
allows you the freedom to make and
receive calls while on the move. You
can use the headset with compatible
phones that support Bluetooth
wireless technology.
Read this user guide carefully before
using the headset. Also read the user
guide for your phone, which provides
important safety and maintenance
information. Keep the headset out of
reach of small children.
Bluetooth wireless technology
Bluetooth wireless technology allows
you to connect compatible devices
without cables. A Bluetooth
connection does not require that the
phone and the headset be in line of
sight, but both devices should be
within 10 meters (30 feet) of each
other. Connections may be subject to
interference from obstructions, such
as walls, or other electronic devices.
The headset is compliant with the
Bluetooth Specification 2.0 + EDR
supporting the Headset Profile 1.1 and
Handsfree Profile 1.5. Check with the
manufacturers of other devices to
determine their compatibility with
this device.
HS-59W_UG_draft6.fm Page 4 Wednesday, April 12, 2006 1:33 PM
ENGLISH
There may be restrictions on using
Bluetooth technology in some
locations. Check with your local
authorities or service provider.
Get started
The headset contains the following
parts shown in Figure 1 at the start of
this guide: answer/end key (1),
indicator light (2), charging socket (3),
volume keys (4), earloop (5), and
microphone (6).
Before using the headset, you must
charge the battery and pair a
compatible phone with the headset.
Note: Parts of the headset are
magnetic. Metallic materials
may be attracted to the
headset. Do not place credit
cards or other magnetic storage media
near the headset, because information
stored on them may be erased.
Chargers
Check the model number of any charger
before using it with this device. The
headset is intended for use with the
AC-3, AC-4, and DC-4 chargers.
Warning: Use only chargers
approved by Nokia for use
with this particular
enhancement. The use of any other types
may invalidate any approval or warranty
and may be dangerous.
For availability of approved
enhancements, please check with your
dealer. When you disconnect the power
cord of any enhancement, grasp and pull
the plug, not the cord.
HS-59W_UG_draft6.fm Page 5 Wednesday, April 12, 2006 1:33 PM
ENGLISH
Charge the battery
The headset has an internal,
nonremovable, rechargeable battery.
Do not attempt to remove the battery
from the device, as you may damage
the device.
1. Connect the charger to a wall
outlet.
2. Connect the charger to the headset
(7). The indicator light is
continuously displayed during
charging.
If charging does not start, disconnect
the charger, plug it in again, and
retry. Charging the battery fully
may take up to 2 hours.
3. When the battery is fully charged,
the indicator light turns off.
Disconnect the charger from the
headset and the wall outlet.
The fully charged battery has power
for up to 7 hours of talk-time or up to
170 hours of standby time. However,
the talk and standby times may vary
when used with different mobile
phones or other compatible Bluetooth
devices, usage settings, usage styles,
and environments.
When the battery is running out of
power, the indicator light flashes fast.
Switch the headset on or off
To switch on, press the answer/end
key. The headset beeps.
To switch off, press and hold the
answer/end key for about 5 seconds.
Pair the headset
1. When the headset is off, press and
hold the answer/end key until the
indicator light is continuously
displayed.
2. Switch on your compatible phone.
HS-59W_UG_draft6.fm Page 6 Wednesday, April 12, 2006 1:33 PM
ENGLISH
3. Activate the Bluetooth feature on
the phone, and set the phone to
search for Bluetooth devices.
4. Select the headset from the list of
found devices.
5. Enter the passcode 0000 to pair
and connect the headset to your
phone. In some phones you may
need to make the connection
separately after pairing. You only
need to pair the headset with your
phone once.
If the pairing is successful, the
indicator light starts to flash slowly,
and the headset appears in the phone
menu where you can view the
currently paired Bluetooth devices.
The headset is now ready for use.
Basic use
Wear the headset
Slide the earloop behind your ear (8),
and point the headset toward your
mouth. To use the headset on the left
ear, gently flip (9) and rotate the
earloop (10).
Call handling
To make a call, use your phone in the
normal way when the headset is
connected to your phone.
If your phone supports last number
redialing with this device, press and
hold the answer/end key when no call
is in progress.
If your phone supports voice dialing
with this device, press the answer/end
key when no call in progress, and
proceed as described in the user guide
of your phone.
HS-59W_UG_draft6.fm Page 7 Wednesday, April 12, 2006 1:33 PM
ENGLISH
To answer a call, press the answer/end
key. If you do not want to answer the
call, press the answer/end key
twice???.
To end a call, press the answer/end
key.
To answer another call during a call
and put the active call on hold, press
the answer/end key. To switch
between the two calls, press the
answer/end key. To end the active call,
press the answer/end key.
Adjust the earphone volume
Press the + key to increase or the - key
to decrease the volume.
Mute the microphone
Press both volume keys at the same
time during a call. When the
microphone is muted, the headset
beeps at regular intervals.
To unmute the microphone, briefly
press either volume key.
Battery information
Your device is powered by a rechargeable
battery. The battery can be charged and
discharged hundreds of times, but it will
eventually wear out. Recharge your
battery only with Nokia approved
chargers designated for this device.
Unplug the charger from the electrical
plug and the device when not in use. Do
not leave a fully charged battery
connected to a charger, since
overcharging may shorten its lifetime. If
left unused, a fully charged battery will
lose its charge over time.
Never use any charger that is damaged.
Leaving the device in hot or cold places,
such as in a closed car in summer or
winter conditions, will reduce the
capacity and lifetime of the battery.
HS-59W_UG_draft6.fm Page 8 Wednesday, April 12, 2006 1:33 PM
ENGLISH
Always try to keep the battery between
15°C and 25°C (59°F and 77°F). A device
with a hot or cold battery may not work
temporarily, even when the battery is
fully charged. Battery performance is
particularly limited in temperatures well
below freezing.
Do not dispose of batteries in a fire as
they may explode. Batteries may also
explode if damaged. Dispose of batteries
according to local regulations. Please
recycle when possible. Do not dispose as
household waste.
Care and maintenance
Your device is a product of superior
design and craftsmanship and should be
treated with care. The suggestions below
will help you protect your warranty
coverage.
• Keep all accessories and
enhancements out of the reach of
small children.
• Keep the device dry. Precipitation,
humidity, and all types of liquids or
moisture can contain minerals that
will corrode electronic circuits. If your
device does get wet, allow it to dry
completely.
• Do not use or store the device in
dusty, dirty areas. Its moving parts
and electronic components can be
damaged.
• Do not store the device in hot areas.
High temperatures can shorten the
life of electronic devices, damage
batteries, and warp or melt certain
plastics.
• Do not store the device in cold areas.
When the device returns to its normal
temperature, moisture can form
inside the device and damage
electronic circuit boards.
• Do not attempt to open the device.
HS-59W_UG_draft6.fm Page 9 Wednesday, April 12, 2006 1:33 PM
ENGLISH
• Do not drop, knock, or shake the
device. Rough handling can break
internal circuit boards and fine
mechanics.
• Do not use harsh chemicals, cleaning
solvents, or strong detergents to
clean the device.
• Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
All of the above suggestions apply
equally to your device, battery, charger,
or any enhancement. If any device is not
working properly, take it to the nearest
authorized service facility for service.
FCC notice
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: 1. This device may not cause
harmful interference; and 2. This device
must accept any interference received,
including interference that may cause
undesired operation. This equipment has
been tested and found to comply with the
limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and,
if not installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver. Connect the
equipment into an outlet on a circuit
different from that to which the receiver is
connected. Consult the dealer or an
experienced radio/TV technician for help.
NOTE: FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
HS-59W_UG_draft6.fm Page 10 Wednesday, April 12, 2006 1:33 PM
ENGLISH
co-located or operating in conjunction with
any other antenna or transmitter. NOTE:
Changes or modifications not expressly
approved by Nokia could void the user's
authority to operate the equipment.
HS-59W_UG_draft6.fm Page 11 Wednesday, April 12, 2006 1:33 PM

Navigation menu
