Introduction
5
1. Introduction
With the Nokia Bluetooth Headset BH-803 you can make and receive
calls while on the move and use your mobile device hands free. You can
use the headset with compatible devices that support Bluetooth wireless
technology.
Read this user guide carefully before using the headset. Also read the user
guide for your mobile device, which provides important safety and
maintenance information. Keep the headset and its accessories out of
reach of small children.
■Bluetooth wireless technology
Bluetooth wireless technology allows you
to connect compatible devices without
cables. A Bluetooth connection does not
require that the mobile device and the
headset be in line of sight, but the
maximum distance between the devices
is 10 meters (33 feet). The closer the
mobile device and the headset are to
each other, the better is the performance.

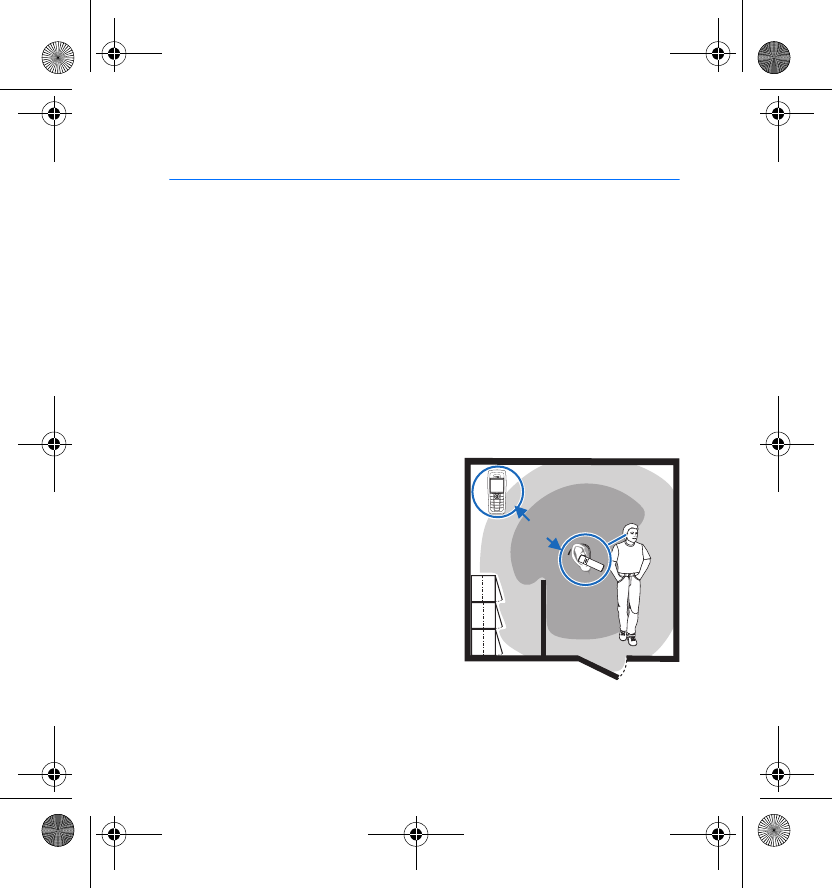

The optimal operating range is shown in
dark grey in the picture. The connection is
subject to interference from distance and obstructions (shown in light
grey) or other electronic devices.
<10m
HS-89W_en1.fm Page 5 Tuesday, June 19, 2007 5:43 PM
Introduction
6
The headset is compliant with the Bluetooth Specification 2.0 + EDR
supporting the following profiles: Headset Profile 1.1 and Hands-Free
Profile 1.5. Check with the manufacturers of other devices to determine
their compatibility with this device.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
HS-89W_en1.fm Page 6 Tuesday, June 19, 2007 5:43 PM
Get started
7
2. Get started
■Overview

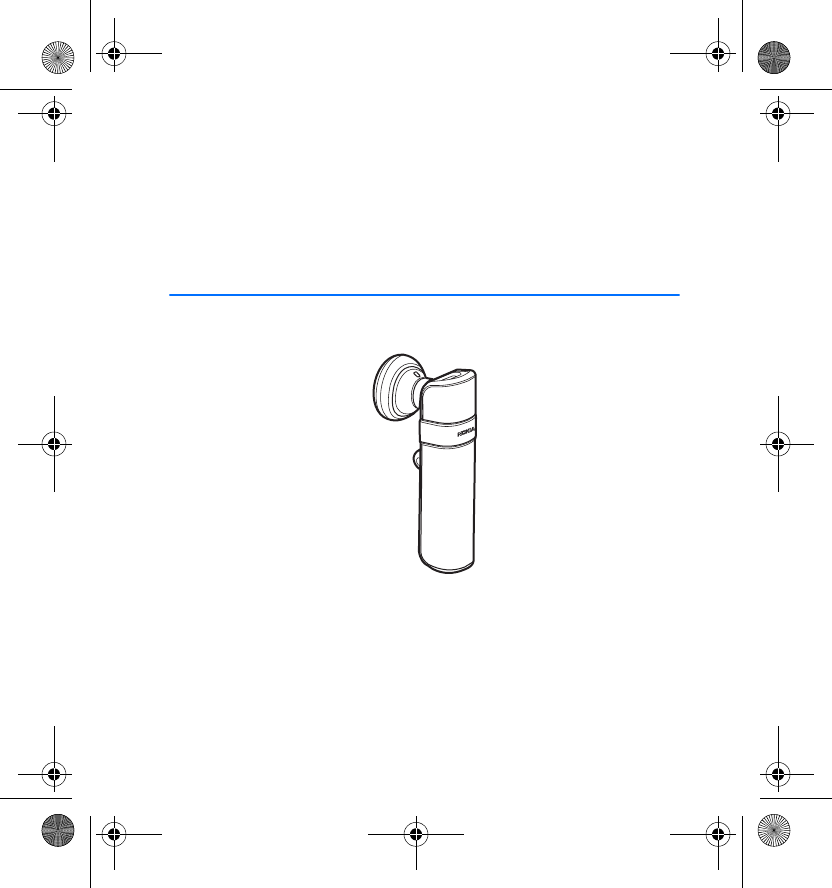

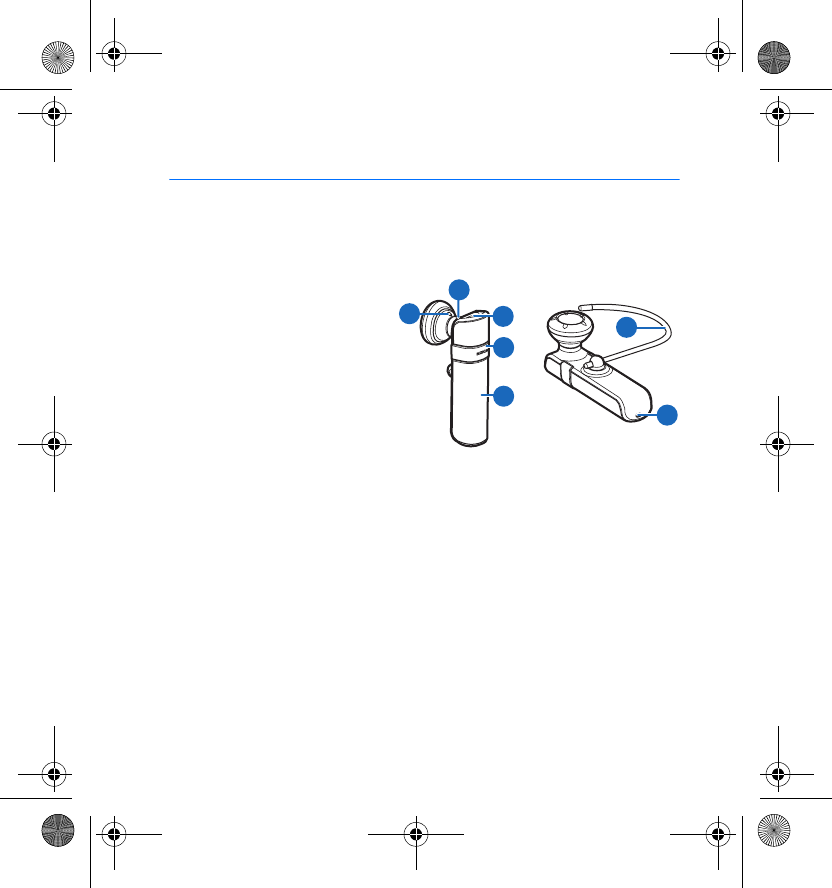

The headset contains the following parts:
• Earpiece (1)
• Indicator light (2)
• Charger connector (3)
• Multifunction key (4)

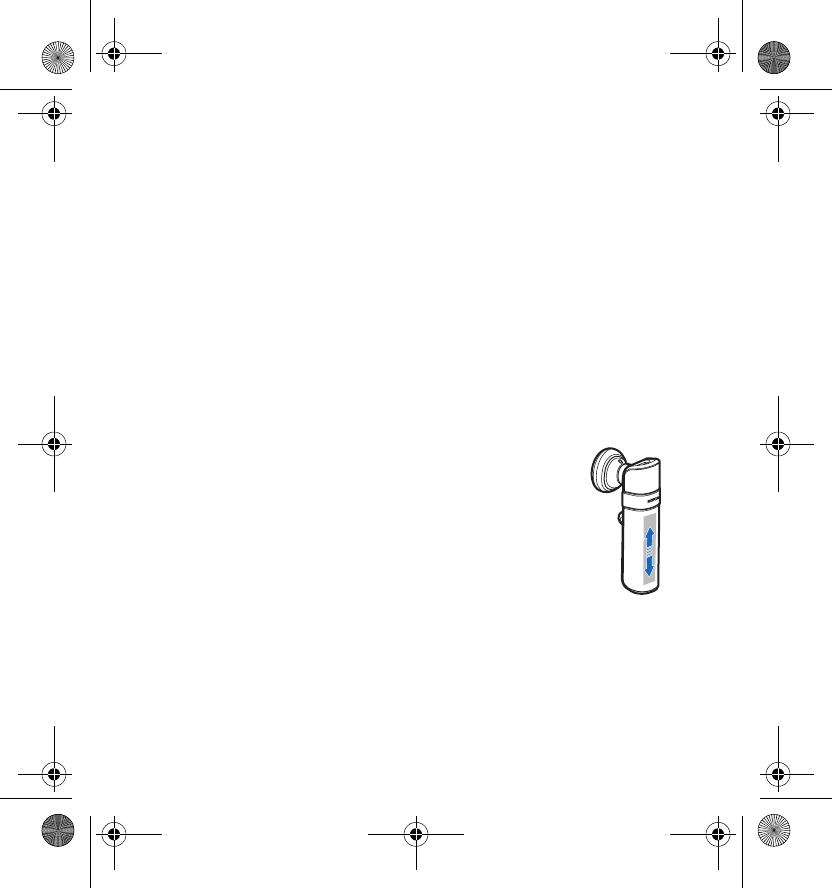

• Touch sensitive area for
volume adjustment (5)
• Earloop (6)
• Microphone (7)
Before you can start using the headset, you must charge the battery and
pair the headset with a compatible device.
Parts of the headset are magnetic. Metallic materials may be attracted to the
headset. Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers
Check the model number of any charger before using it with this headset. The
headset is intended for use with the AC-6 and DC-6 chargers.
1
2
3
4
5
7
6
HS-89W_en1.fm Page 7 Tuesday, June 19, 2007 5:43 PM
Get started
8
Warning: Use only chargers approved by Nokia for use with this
particular enhancement. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
When you disconnect the power cord of any enhancement, grasp and pull the plug,
not the cord.
■Charge the battery
The headset has an internal, nonremovable, rechargeable battery. Do not
attempt to remove the battery from the headset, as you may damage the
headset.

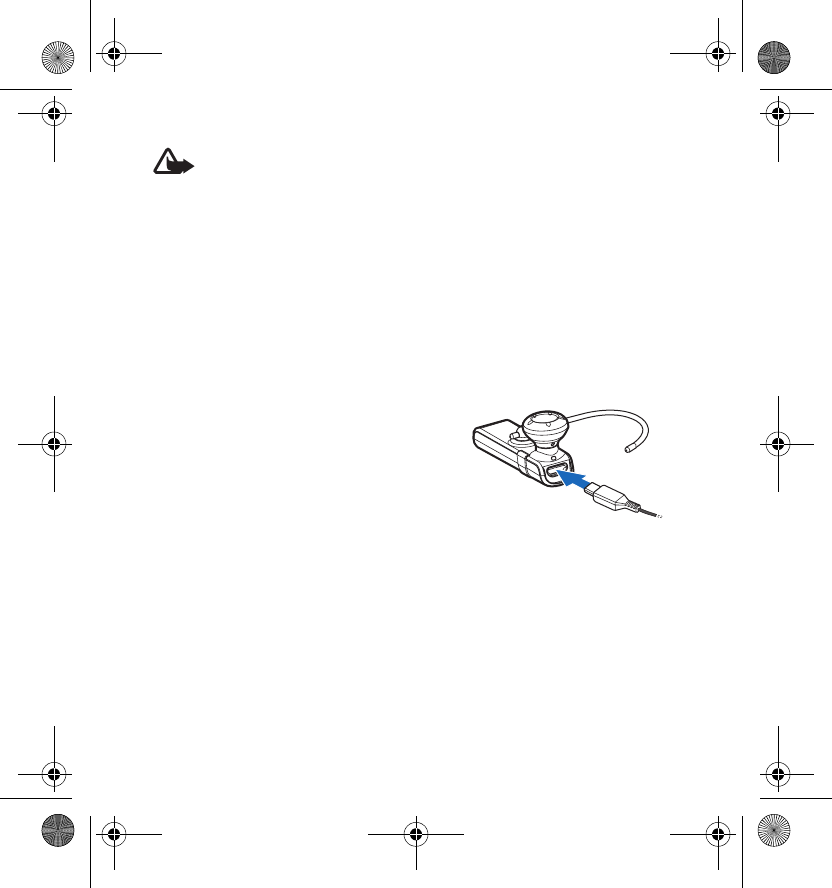

1. Connect the charger to a wall outlet.
2. Connect the charger cable to the
charger connector. The indicator light is
red while charging. It may take a while
before charging starts. If charging does
not start, disconnect the charger, plug it
in again, and retry. Charging the battery
fully may take up to 1 hour with the AC-6 or DC-6 charger.
3. When the battery is fully charged, the indicator light turns green.
Disconnect the charger from the headset and the wall outlet.
The battery can also be charged through the USB port of a compatible PC
using the Nokia Connectivity Cable CA-101 (sold separately). Connect one
end of the cable to the charger connector and the other end to the USB
port on the PC.
HS-89W_en1.fm Page 8 Tuesday, June 19, 2007 5:43 PM
Get started
9
The fully charged battery has power for up to 6 hours of talk time or up to
160 hours of standby time. However, the talk and standby times may vary
when used with different compatible Bluetooth devices, usage settings,
usage styles, and environments.
When battery power is low, the headset beeps at regular intervals, and the
indicator light slowly flashes red.
■Switch the headset on or off
To switch on, press and hold the multifunction key until the headset beeps
and the indicator light turns on. When the headset can be connected to a
paired device, the indicator light slowly flashes green. When the headset
is connected to a paired device and is ready for use, the indicator light
slowly flashes blue. If the headset has not been paired with a device, it
automatically enters the pairing mode (see “Pair the headset,” p. 9).
To switch off, press and hold the multifunction key for at least 4 seconds
until the indicator light turns red. If the headset is not connected to a
paired device within about 30 minutes, it switches off automatically.
■Pair the headset
1. Ensure that your mobile device is switched on.
2. To pair the headset if it has not been previously paired with a device,
switch on the headset. The headset enters the pairing mode, and the
indicator light starts to flash blue quickly.
HS-89W_en1.fm Page 9 Tuesday, June 19, 2007 5:43 PM
Get started
10
To pair the headset if it has been previously paired with another
device, ensure that the headset is switched off, and press and hold the
multifunction key until the indicator light starts to flash blue quickly.
3. Activate the Bluetooth feature on the mobile device, and set it to
search for Bluetooth devices. See the user guide of your device for
instructions.
4. Select the headset (Nokia BH-803) from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your
device. In some mobile devices, you may need to make the connection
separately after pairing. See the user guide of your device for details.
You only need to pair the headset with your device once.
If pairing is successful, the headset appears in the menu of the mobile
device where you can view the currently paired Bluetooth devices.
Disconnect the headset
To disconnect the headset from your mobile device, switch off the
headset, or disconnect it in the Bluetooth menu of your device.
You do not need to delete pairing with the headset to disconnect it.
Reconnect the headset
To connect the headset to your paired mobile device, switch on the
headset, and make the connection in the Bluetooth menu of your device,
or press and hold the multifunction key until you hear a short beep.
HS-89W_en1.fm Page 10 Tuesday, June 19, 2007 5:43 PM
Get started
11
In your device, you may be able to allow the headset to connect to it
automatically when the headset is switched on. To do this in Nokia
devices, change your paired device settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your mobile device, do as follows:
• Ensure that the headset is charged, switched on, and paired with your
device.
• Ensure that the Bluetooth feature is activated on your device.
• Ensure that the headset is within 10 meters (33 feet) of your device
and that there are no obstructions between the headset and the
device, such as walls, or other electronic devices.
HS-89W_en1.fm Page 11 Tuesday, June 19, 2007 5:43 PM
Basic use
12
3. Basic use
■Place the headset on the ear

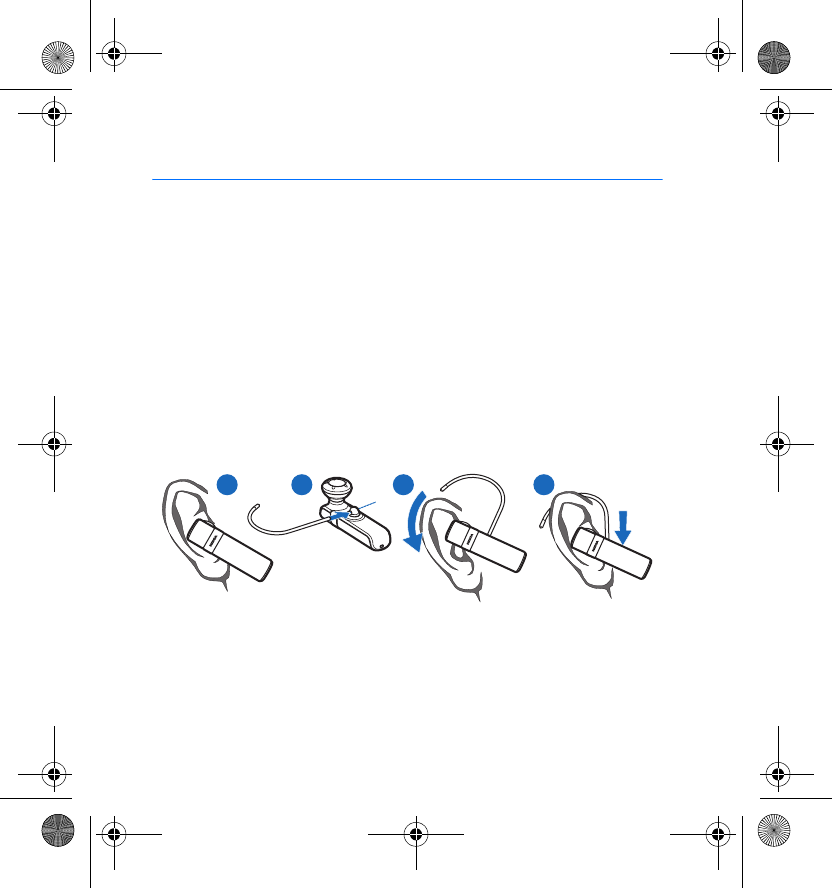

The headset is provided with an earloop that you can use for a better fit
on your ear.
To use the headset without the earloop, gently push the earpiece into your
ear (1), and point the headset toward your mouth.

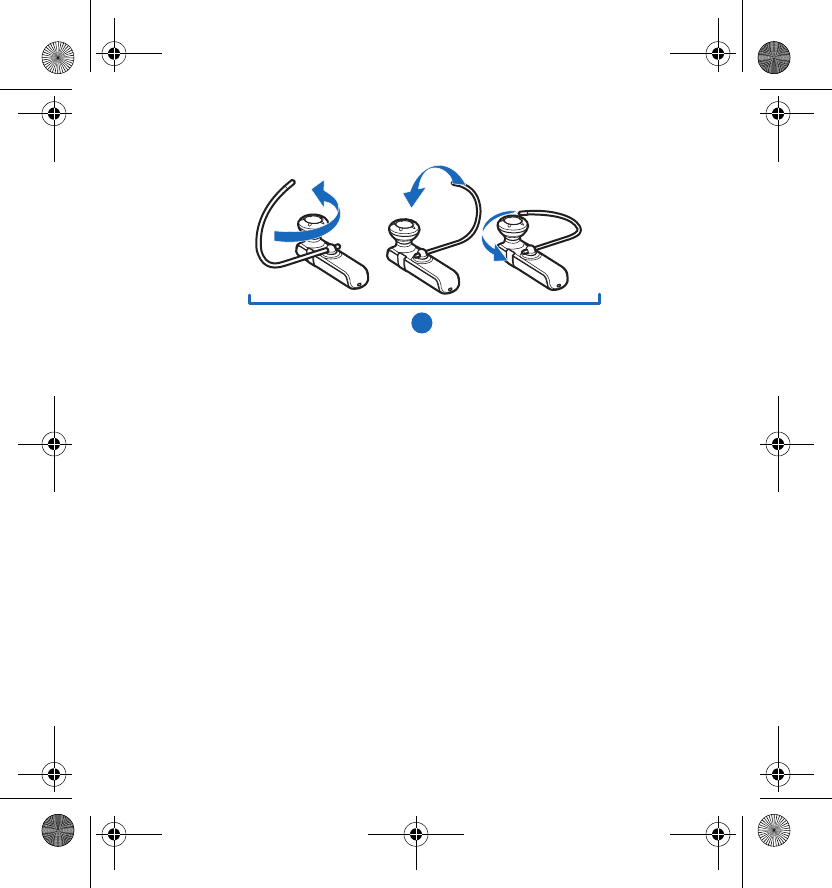

To use the headset with the earloop, insert the earloop into the small
opening at the back of the headset (2). To wear the headset on the right
ear, rotate the earloop so that the loop is to the right of the "Nokia" logo.
Slide the earloop over your ear (3), and push or pull the earloop to set its
length. Set the headset so that it points toward your mouth (4).
To use the headset on the left ear, rotate the earloop so that the loop is to
the left of the logo (5).
1234
HS-89W_en1.fm Page 12 Tuesday, June 19, 2007 5:43 PM
Basic use
13
To detach the earloop, gently pull it from the headset.
■Call handling
To make a call, use your mobile device in the normal way when the
headset is connected to it. The blue indicator light flashes during the call.
If your device supports last number redialing with the headset, press the
multifunction key twice when no call is in progress.
If your device supports voice dialing with the headset, press and hold the
multifunction key for about 2 to 3 seconds until the mobile device starts
voice dialing, and proceed as described in the user guide of the device.
Voice dialing cannot be used during a call.
When you receive a call, the indicator light flashes blue quickly, and you
hear a ringing tone through the headset. To answer the call, press the
multifunction key, or use the keys of the mobile device.
To reject an incoming call, press the multifunction key twice, or use the
keys of the mobile device.
5
HS-89W_en1.fm Page 13 Tuesday, June 19, 2007 5:43 PM
Basic use
14
To end a call, press the multifunction key, or use the keys of the mobile
device.
To put a call on hold (or unhold the call), press and hold the multifunction
key.
To answer a waiting call and put the current call on hold, press and hold
the multifunction key. To answer a waiting call and end the current call,
press the multifunction key briefly. To switch between the active call and
the call on hold, press and hold the multifunction key. To end the active
call and make the call on hold active, briefly press the multifunction key.
To use these features, your mobile device must support the Bluetooth
Hands-Free profile 1.5, and call waiting must be set to on in the device.
Call waiting is a network service.
■Adjust the headset volume
Move your finger on the touch sensitive area toward the
multifunction key to increase or toward the microphone to
decrease the volume during a call, or use the keys of the
mobile device.
■Mute or unmute the microphone
To mute or unmute the microphone during a call, tap the touch sensitive
area twice with your finger, or use the respective function in your mobile
device.
+
-
HS-89W_en1.fm Page 14 Tuesday, June 19, 2007 5:43 PM
Basic use
15
■Switch the call between headset and mobile
device
To switch the call from the headset to a connected device, press and hold
the multifunction key for about 4 seconds (the headset switches off), or
use the keys of your device. To switch the call back to the headset, switch
on the headset (and connect it to your paired device), or press and hold
the multifunction key (when the headset is on).
■Clear settings or reset
To clear all the pairing settings from the headset, press and hold the
multifunction key, and move your finger three times on the touch
sensitive area toward the multifunction key. The indicator light alternates
red, green, and blue twice. After the settings are cleared, the headset
enters the pairing mode for about 5 minutes (the indicator light flashes
blue quickly).
To reset the headset if it stops functioning, although it is charged, plug
the charger into the headset while you press and hold the multifunction
key. The reset does not clear the headset settings.
HS-89W_en1.fm Page 15 Tuesday, June 19, 2007 5:43 PM
Battery information
16
4. Battery information
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge your
battery only with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do not
leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep
the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold
battery may not work temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged.
HS-89W_en1.fm Page 16 Tuesday, June 19, 2007 5:43 PM
Care and maintenance
17
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does
get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
HS-89W_en1.fm Page 17 Tuesday, June 19, 2007 5:43 PM
Care and maintenance
18
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that in the European Union all electrical and
electronic products, batteries, and accumulators must be taken to separate
collection at the end of their working life. Do not dispose of these products as
unsorted municipal waste.
Return the products to collection to prevent possible harm to the environment or
human health from uncontrolled waste disposal and to promote the sustainable
reuse of material resources. Collection information is available from the product
retailer, local waste authorities, national producer responsibility organizations, or
your local Nokia representative. For more information, see product Eco-Declaration
or country-specific information at www.nokia.com.
HS-89W_en1.fm Page 18 Tuesday, June 19, 2007 5:43 PM
FCC/Industry Canada notice
19
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This
device may not cause harmful interference; and 2. This device must accept any interference received, including
interference that may cause undesired operation. This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. NOTE: Changes or modifications not expressly
approved by Nokia could void the user's authority to operate the equipment.
HS-89W_en1.fm Page 19 Tuesday, June 19, 2007 5:43 PM
