1. Introduction
With the Nokia Bluetooth Headset BH-602 you can make
and receive calls while on the move and use your mobile
device hands free. You can use the headset with compatible
devices that support Bluetooth wireless technology.
Read this user guide carefully before using the headset. Also
read the user guide for your mobile device, which provides
important safety and maintenance information. Keep the
headset and its accessories out of reach of small children.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 5 Thursday, June 21, 2007 3:46 PM
Introduction
6
■Bluetooth wireless technology
Bluetooth wireless technology
allows you to connect compatible
devices without cables. A
Bluetooth connection does not
require that the mobile device and
the headset be in line of sight, but
the maximum distance between
the devices is 10 meters (33 feet).

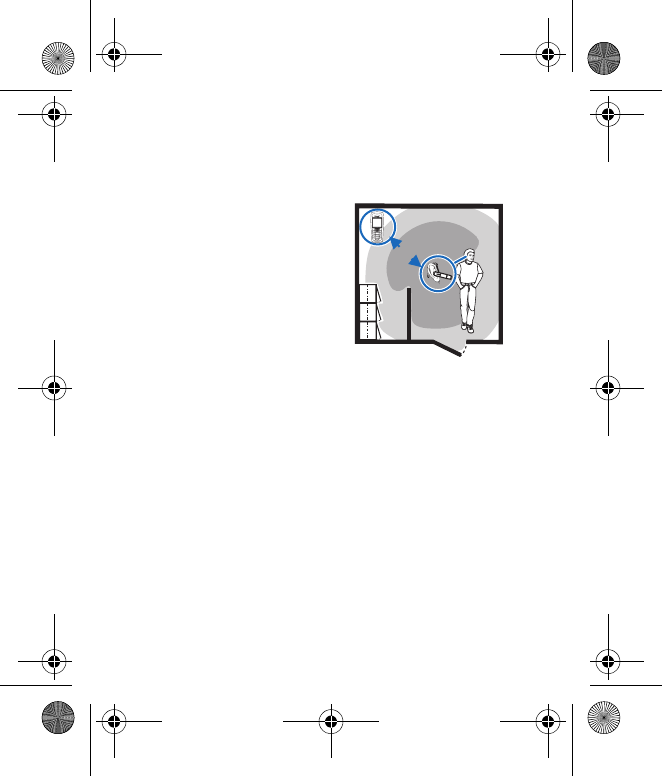

The closer the mobile device and the headset are to each
other, the better is the performance. The optimal operating
range is shown in dark grey in the picture. The connection is
subject to interference from distance and obstructions
(shown in light grey) or other electronic devices.
The headset is compliant with the Bluetooth Specification
2.0 + EDR supporting the following profiles: Headset Profile
1.1 and Hands-Free Profile 1.5. Check with the
manufacturers of other devices to determine their
compatibility with this device.
<10m
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 6 Thursday, June 21, 2007 3:46 PM
Introduction
7
There may be restrictions on using Bluetooth technology in
some locations. Check with your local authorities or service
provider.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 7 Thursday, June 21, 2007 3:46 PM
Get started
8
2. Get started
■Overview

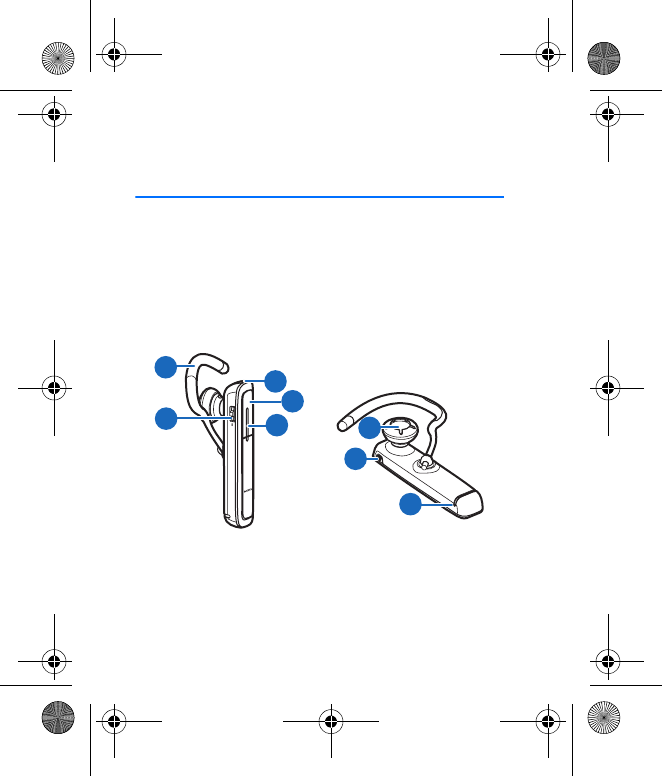

The headset contains the following parts: earloop (1),
volume key (2), charger connector (3), answer/end key (4),
indicator light (5), earpiece (6), power key (7), and
microphone (8).
Before you can start using the headset, you must charge the
battery and pair the headset with a compatible device.
+
1
2
3
4
8
6
7
5
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 8 Thursday, June 21, 2007 3:46 PM
Get started
9
Parts of the headset are magnetic. Metallic materials may
be attracted to the headset. Do not place credit cards or
other magnetic storage media near the headset, because
information stored on them may be erased.
■Chargers
Check the model number of any charger before using it with
this headset. The headset is intended for use with the AC-3,
AC-4, and DC-4 chargers.
Warning: Use only chargers approved by Nokia for
use with this particular enhancement. The use of
any other types may invalidate any approval or
warranty, and may be dangerous.
When you disconnect the power cord of any enhancement,
grasp and pull the plug, not the cord.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 9 Thursday, June 21, 2007 3:46 PM
Get started
10
■Charge the battery
The headset has an internal, nonremovable, rechargeable
battery. Do not attempt to remove the battery from the
headset, as you may damage the headset.
1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger connector. The
indicator light is red while charging. It may take a while
before charging starts. If charging does not start,
disconnect the charger, plug it in again, and retry.
Charging the battery for 15 minutes provides about
5 hours of talk time with the AC-4 charger. Charging
the battery fully may take up to 45 minutes with the
AC-4 charger.
3. When the battery is fully charged, the indicator light
turns green. Disconnect the charger from the headset
and the wall outlet.
The fully charged battery has power for up to 11 hours of
talk time or up to 300 hours of standby time. However, the
talk and standby times may vary with different compatible
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 10 Thursday, June 21, 2007 3:46 PM
Get started
11
Bluetooth devices, usage settings, usage styles, and
environments.
To check the battery charge when the headset is not
connected to a charger, briefly press the power key. When
the indicator light is green (displayed for about 3 seconds),
the charge level is sufficient. When the light is yellow, you
may need to recharge the battery soon. When the light is
red, recharge the battery.
When battery power is low, the headset beeps at regular
intervals, and the indicator light slowly flashes red.
■Switch the headset on or off
To switch on, press and hold the power key until the headset
beeps and the green indicator light is displayed. When the
headset tries to connect to a paired device, the indicator
light slowly flashes green. When the headset is connected
to a paired device and is ready for use, the indicator light
slowly flashes blue. If the headset has not been paired with
a device, it automatically enters the pairing mode (see “Pair
the headset,” p. 12).
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 11 Thursday, June 21, 2007 3:46 PM
Get started
12
To switch off, press and hold the power key until the
headset beeps and the red indicator light flashes once.
■Pair the headset
1. Ensure that your mobile device is switched on.
2. To pair the headset if it has not been previously paired
with a device, switch on the headset. The headset enters
the pairing mode, and the indicator light flashes blue
quickly.
To pair the headset if it has been previously paired with
another device, ensure that the headset is switched off,
and press and hold the power key until the indicator
light starts to flash blue quickly.
3. Activate the Bluetooth feature on the mobile device,
and set it to search for Bluetooth devices. See the user
guide of your device for instructions.
4. Select the headset from the list of found devices.
5. Enter the passcode 0000 to pair and connect the
headset to your device. In some mobile devices, you may
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 12 Thursday, June 21, 2007 3:46 PM
Get started
13
need to make the connection separately after pairing.
See the user guide of your device for details. You only
need to pair the headset with your device once.
If pairing is successful, the headset appears in the menu of
the mobile device where you can view the currently paired
Bluetooth devices.
Disconnect the headset
To disconnect the headset from your mobile device, switch
off the headset, or disconnect it in the Bluetooth menu of
your device.
You do not need to delete pairing with the headset to
disconnect it.
Reconnect the headset
To connect the headset to your mobile device, switch on the
headset, and make the connection in the Bluetooth menu of
your device, or press and hold the answer/end key for about
2 to 3 seconds until you hear a short beep.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 13 Thursday, June 21, 2007 3:46 PM
Get started
14
In your device, you may be able to allow the headset to
connect to it automatically when the headset is switched
on. To do this in Nokia devices, change your paired device
settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your mobile device, do
as follows:
• Ensure that the headset is charged, switched on, and
paired with your device.
• Ensure that the Bluetooth feature is activated on your
device.
• Ensure that the headset is within 10 meters (33 feet) of
your device and that there are no obstructions between
the headset and the device, such as walls, or other
electronic devices.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 14 Thursday, June 21, 2007 3:46 PM
Basic use
15
3. Basic use
■Place the headset on the ear
The headset is provided with an earloop that you can use for
a better fit on your ear.

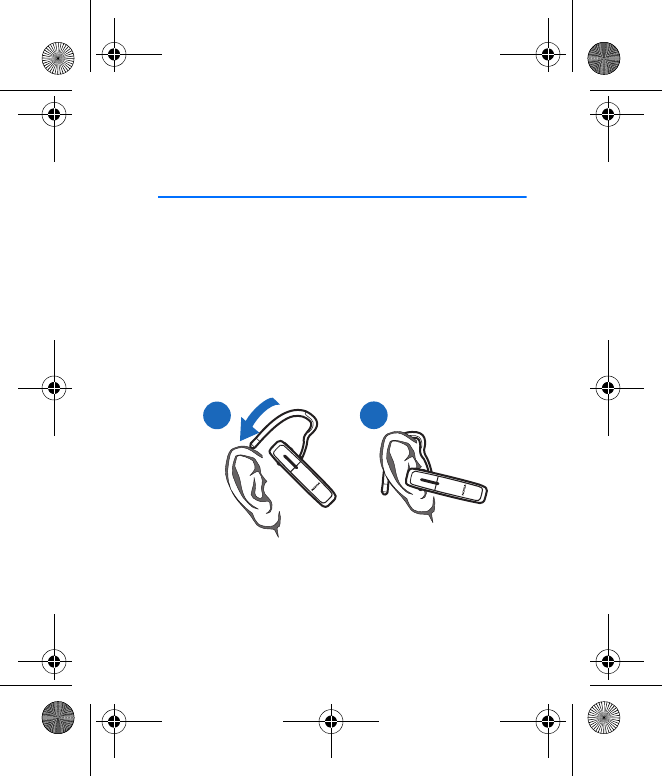

Slide the earloop over your ear (1), and gently plug the
earpiece into your ear. Push or pull the earloop to set its
length. Set the headset so that it points toward your mouth
(2).
12
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 15 Thursday, June 21, 2007 3:46 PM
Basic use
16

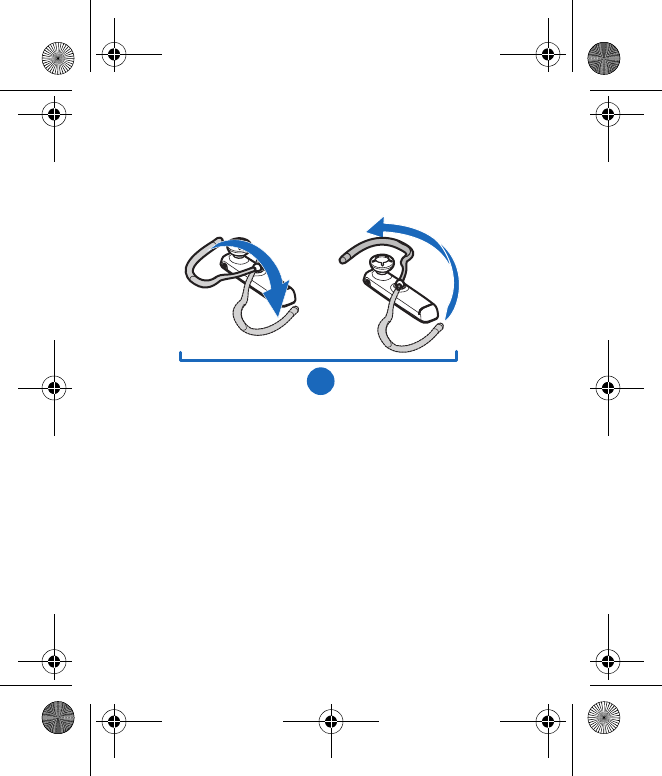

To use the headset on the left ear, rotate the earloop so that
the loop is to the left of the Nokia logo (3).
■Call handling
To make a call, use your mobile device in the normal way
when the headset is connected to it.
If your device supports last number redialing with the
headset, press the answer/end key twice when no call is in
progress.
3
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 16 Thursday, June 21, 2007 3:46 PM
Basic use
17
If your device supports voice dialing with the headset, press
and hold the answer/end key until the mobile device starts
voice dialing, and proceed as described in the user guide of
the device. Voice dialing cannot be used during a call.
When you receive a call, the indicator light flashes blue
quickly, and you hear a ringing tone through the headset. To
answer the call, press the answer/end key, or use the keys of
the mobile device.
To reject an incoming call, press the answer/end key twice,
or use the keys of the mobile device.
To end a call, press the answer/end key, or use the keys of
the mobile device.
To answer a waiting call and put the current call on hold,
press and hold the answer/end key. To answer a waiting call
and end the current call, press the answer/end key briefly.
To reject a waiting call, press the answer/end key twice. To
switch between the active call and the call on hold, press
and hold the answer/end key. To end the active call and
make the call on hold active, press the answer/end key. To
use these features, your mobile device must support the
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 17 Thursday, June 21, 2007 3:46 PM
Basic use
18
Bluetooth Hands-Free profile 1.5, and call waiting must be
set to on in the device. Call waiting is a network service.
■Adjust the headset volume
The headset automatically adjusts the volume according to
ambient noise. To set the minimum volume, press the
volume key up to increase or down to decrease the volume,
or use the keys of the mobile device. To adjust the volume
quickly, press and hold the volume key in the desired
direction.
■Mute or unmute the microphone
To mute or unmute the microphone during a call, press the
middle of the volume key.
■Switch the call between headset and
mobile device
To switch the call from the headset to the connected mobile
device, press and hold the power key for about 2 to 3
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 18 Thursday, June 21, 2007 3:46 PM
Basic use
19
seconds (the headset switches off), or use the respective
function in your device. To switch the call back to the
headset, switch on the headset, or press and hold the
answer/end key (when the headset is on).
■Turn off indicator light
To turn the indicator light off or on, briefly press the power
key and the answer/end key at the same time when no call
is in progress.
When the indicator light is off, it is not shown when the
headset is connected to a device, when you handle calls, or
when the microphone is muted. When you switch on the
headset, the indicator light is enabled.
■Clear settings or reset
To clear all the pairing settings from the headset, press and
hold the power key and the answer/end key until the
headset beeps and the indicator light alternates red and
green.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 19 Thursday, June 21, 2007 3:46 PM
Basic use
20
To reset the headset if it stops functioning, although it is
charged, plug the charger into the headset, and briefly press
the power key and the answer/end key at the same time. The
headset switches off. To use the headset, reconnect it to
your mobile device. The reset does not clear the headset
settings.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 20 Thursday, June 21, 2007 3:46 PM
Battery information
21
4. Battery information
Your device is powered by a rechargeable battery. The
battery can be charged and discharged hundreds of times,
but it will eventually wear out. Recharge your battery only
with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery
connected to a charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its
charge over time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed
car in summer or winter conditions, will reduce the capacity
and lifetime of the battery. Always try to keep the battery
between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the
battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 21 Thursday, June 21, 2007 3:46 PM
Battery information
22
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 22 Thursday, June 21, 2007 3:46 PM
Care and maintenance
23
Care and maintenance
Your device is a product of superior design and
craftsmanship and should be treated with care. The
following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals that
will corrode electronic circuits. If your device does get
wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be
damaged.
• Do not store the device in hot areas. High temperatures
can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device
returns to its normal temperature, moisture can form
inside the device and damage electronic circuit boards.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 23 Thursday, June 21, 2007 3:46 PM
Care and maintenance
24
• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
All of the above suggestions apply equally to your device,
battery, charger, or any enhancement. If any device is not
working properly, take it to the nearest authorized service
facility for service.
Disposal
The crossed-out wheeled-bin symbol on your
product, literature, or packaging reminds you that
in the European Union all electrical and electronic
products, batteries, and accumulators must be taken to
separate collection at the end of their working life. Do not
dispose of these products as unsorted municipal waste.
Return the products to collection to prevent possible harm
to the environment or human health from uncontrolled
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 24 Thursday, June 21, 2007 3:46 PM
Care and maintenance
25
waste disposal and to promote the sustainable reuse of
material resources. Collection information is available from
the product retailer, local waste authorities, national
producer responsibility organizations, or your local Nokia
representative. For more information, see product
Eco-Declaration or country-specific information at
www.nokia.com.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 25 Thursday, June 21, 2007 3:46 PM
FCC/Industry Canada notice
26
FCC/Industry Canada notice
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: 1. This
device may not cause harmful interference; and 2. This
device must accept any interference received, including
interference that may cause undesired operation. This
equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 26 Thursday, June 21, 2007 3:46 PM
FCC/Industry Canada notice
27
of the following measures: Reorient or relocate the
receiving antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver
is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure
Statement: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. NOTE:
Modifications not expressly approved by Nokia could void
the user's authority to operate the equipment.
HS-91W_UG_draft7_with_FCC&IC_notice.fm Page 27 Thursday, June 21, 2007 3:46 PM
