Welcome

Congratulations on your purchase of a Microsoft® wireless suite—which includes a wireless

keyboard, wireless mouse, and a dual receiver. Setting up the devices takes a few simple

steps, and then you can enjoy the freedom of wireless technology and the convenience of a

clutter-free desktop.

Important! Install the Software

Your Microsoft wireless suite includes a CD-ROM with IntelliType Pro keyboard software and

IntelliPoint mouse software. This software enables the unique features of your wireless

devices and provides battery status information.

Note If you do not already have a mouse, you can connect the receiver (step 5) before

software installation so you can use your mouse during Setup.

To install IntelliType Pro keyboard software and IntelliPoint mouse software

1Insert the software installation CD-ROM into the computer’s CD-ROM drive.

If the Setup screen does not appear automatically, do the following:

•Click the Start button, and then click Run.

•Type [drive]:setup. For example, if your CD-ROM drive is drive E, type e:setup

2Click Install Microsoft IntelliType Pro to begin the keyboard software installation.

Follow the Setup Wizard instructions on the screen.

3Restart the computer, if prompted to do so, before proceeding.

If the Setup screen does not appear after IntelliType Pro installation is complete, do the

following:

•Click the Start button, and then click Run.

•Type [drive]:setup. For example, if your CD-ROM drive is drive E, type e:setup

4Click Install Microsoft IntelliPoint to begin the mouse software installation.

Follow the Setup Wizard instructions on the screen, and then restart the computer, if

prompted to do so.

Note After you install each software product and restart the computer (if necessary), a

Quick Start Guide opens automatically, which describes the keyboard or mouse features.

Insert the Batteries

The keyboard and mouse each require two batteries, which are included in the package.

Whenever you insert batteries, always make sure both of them are new. Alkaline batteries

are recommended.

To insert the batteries

1Turn the device upside down, and then remove the battery compartment cover.

2Insert new batteries, making sure to properly orient the positive (+) and negative (–)

ends as specified by the battery compartment labels.

3Close the battery compartment cover.

Important Before boarding any aircraft, remove the batteries from the wireless keyboard

and mouse. The wireless keyboard and mouse can transmit radio frequency (RF) energy,

much like a cellular telephone, whenever batteries are installed and either a key is pressed

on the keyboard or the mouse is moved.

Wireless Desktop

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM1

3Position the Receiver, Keyboard, and Mouse

For optimum performance, position the receiver so that it is at least 8 inches (20 cm)

away from the keyboard, mouse, and any items that might cause interference. Items that

might cause interference include: computer monitors, large metal objects (such as com-

puter cases and metal furniture), desktop fans, or fluorescent lights.

The keyboard or mouse may work up to 6 feet (1.8 m) away from the receiver. This dis-

tance varies depending on the positioning of the receiver and wireless devices, nearby

items causing interference, and other factors.

Connect the Receiver to Your Computer

The connection procedure depends on the type of computer you are using. A PS/2 con-

nection is recommended for Windows®-based computers because Universal Serial Bus

(USB) keyboards may not be fully supported on these systems.

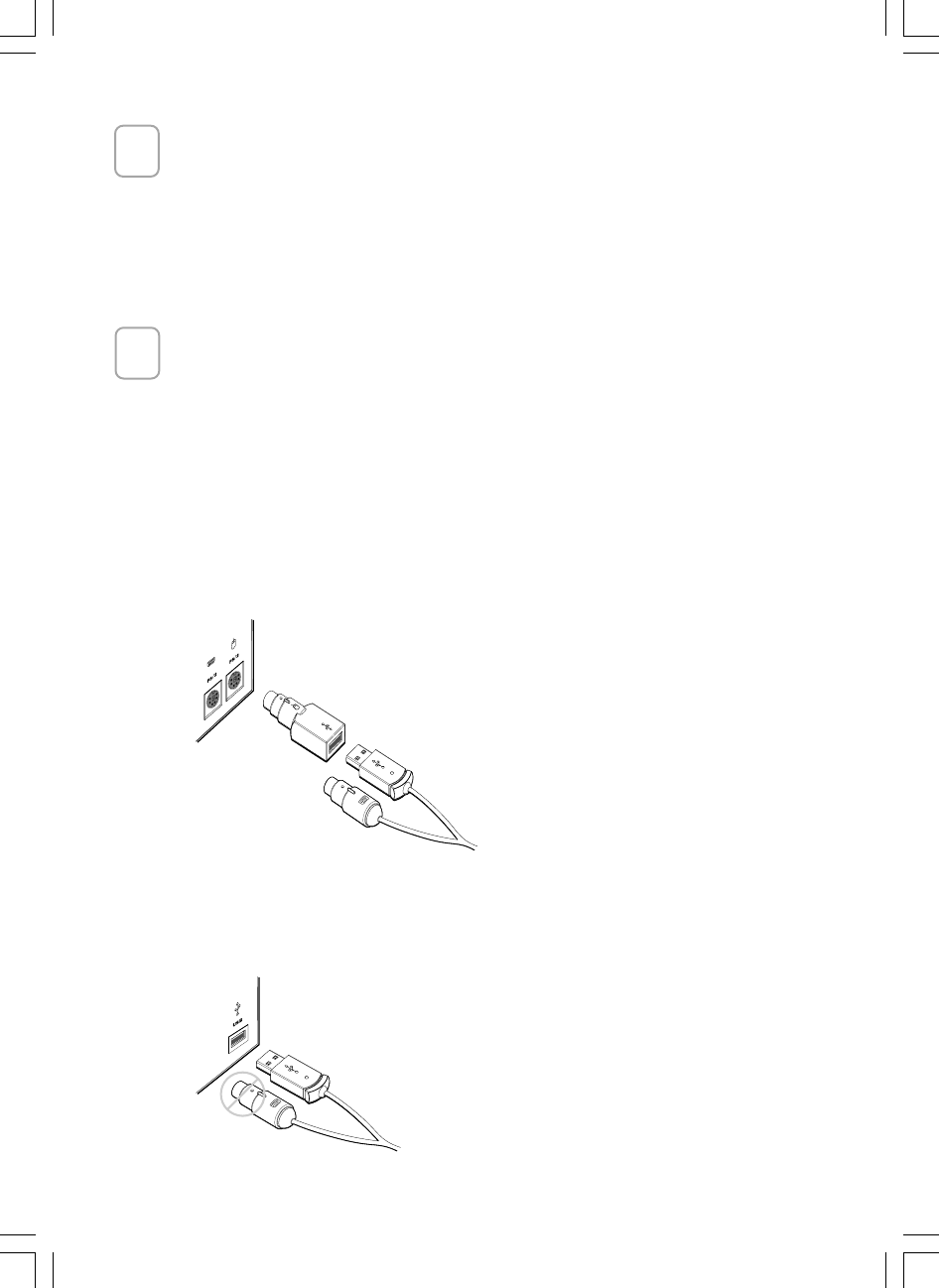

PS/2 connection (Windows)

1Shut down and turn off the computer.

2Plug the purple PS/2 connector into the computer’s round PS/2 keyboard port, which

may be similarly colored and labeled with a keyboard icon.

3Attach the green USB-to-PS/2 adapter to the USB connector, and then plug it into the

computer’s round PS/2 mouse port, which may be similarly colored and labeled with a

mouse icon.

4Turn on the computer.

USB connection (Macintosh, laptop, and advanced users)

You can plug your receiver into the USB port of your Windows- or Macintosh-based PC.

• With your computer turned on, plug the rectangular USB connector into your

computer’s rectangular USB port, and leave the round PS/2 connector unplugged.

PS/2 connection

USB connection

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM2

Note If you are running Windows 98, you may be prompted to insert the Windows 98

CD-ROM after plugging the rectangular USB connector into your computer’s USB port. The

required USB driver is located in the Win98 folder of the Windows 98 CD-ROM.

Important Before using this product, read about the potential for radio interference in the

topic titled “Radio and TV interference regulations” in the User's Guides installed with the

software.

Test the Keyboard and Mouse

Try using the keyboard and mouse to make sure that they are working. If either device does

not work as expected, make sure the following procedures were completed as specified

earlier in these instructions:

•New batteries are inserted and positioned correctly for each device

•The receiver is properly connected to the computer

•Both devices are properly positioned and there are no nearby items that might cause

interference

If the keyboard or mouse is still not working, try changing the wireless connection channel

for the device. Changing the wireless connection channel is useful if your wireless device

has more than one channel and you are experiencing interference.

To change the wireless connection channel

•Press the button on the bottom of the wireless keyboard or mouse.

If changing the channel does not solve the problem, you may need to reconnect the device

to the receiver. To avoid potential interference, each wireless keyboard and mouse trans-

mits data using a unique code, which the receiver is preset to accept. In rare circum-

stances, a device may need to be reconnected with the receiver to work properly.

To reconnect the keyboard or mouse to the receiver

1Make sure that the device and receiver are positioned as specified earlier in these

instructions.

2Press the button on the top of the wireless receiver.

The receiver lights blink to indicate that it is in “connect” mode.

3Press the button on the bottom of the device.

The wireless device may not work for a few seconds until the reconnection process is

completed.

Note You can only reconnect one device for each press of the receiver button, so repeat as

necessary for the other device.

If reconnecting the device to the receiver does not solve the problem, refer to the User’s

Guides installed with the keyboard or mouse software for additional troubleshooting

information.

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM3

Read the User’s Guide for Your Keyboard and Mouse

The User’s Guide is your complete product manual. The User’s Guide for your keyboard is

installed with IntelliType Pro software, and the User’s Guide for your mouse is installed

with IntelliPoint software. The User’s Guides contain important product information in a

searchable format, including:

•Hardware and software feature descriptions and instructions

•Troubleshooting topics and Product Support Services information

•End-User License Agreement (EULA), Limited Warranty, and regulatory information

•Healthy Computing Guide

To open the User’s Guide for your keyboard or mouse (Windows)

1Click the Start button, point to Programs (or All Programs), click Microsoft Keyboard or

Microsoft Mouse.

2Click the Help button on the IntelliType Pro Key Settings tab or any IntelliPoint tab.

To open the User’s Guide for your keyboard or mouse (Macintosh)

•Click the Apple menu, point to Control Panels (or click System Preferences), click

Microsoft Keyboard or Microsoft Mouse, and then click User’s Guide on the Help

menu.

Customize the Keyboard and Mouse Settings (Optional)

You can start IntelliType Pro keyboard software or IntelliPoint mouse software and custom-

ize your devices.

Using IntelliType Pro keyboard software, you can:

•Reassign many of the keys to open a program, file, Web page, or shortcut—or to per-

form a command, such as Select All or Close.

•Disable keys you sometimes press accidentally, such as CAPS LOCK.

•Print out a list of your current key assignments.

Using IntelliPoint mouse software, you can:

•Reassign each of the mouse buttons, including the wheel button, to perform a com-

mand or keyboard shortcut.

•Modify the mouse settings, such as the pointer speed or wheel scrolling rate.

To start IntelliType Pro or IntelliPoint software (Windows)

•Click the Start button, point to Programs (or All Programs), and then click Microsoft

Keyboard or Microsoft Mouse.

To start IntelliType Pro or IntelliPoint software (Macintosh)

•Click the Apple menu, point to Control Panels (or click System Preferences), and then

click Microsoft Keyboard or Microsoft Mouse.

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM4

Adjusting the Keyboard Legs

The keyboard legs are designed to accommodate various body sizes, chairs, and desks.

•Pull out or push in the keyboard legs to a position that minimizes bending of your wrists

while typing.

Connecting the Palm Rest (certain keyboard models only)

•On a level surface, insert the tabs on the palm rest into the slots on the front of the

keyboard, and then snap them together.

About the Receiver Lights

The receiver lights indicate the status of the toggle keys, such as NUM LOCK or CAPS LOCK.

For example, if NUM LOCK is on, the NUM LOCK light is on; if CAPS LOCK is off, the CAPS

LOCK light is off. Certain keyboard models may use an on-screen display (rather than a

light) to indicate the status of the SCROLL LOCK toggle key.

Using the F LOCK Key (certain keyboard models only)

The F LOCK toggle key gives your keyboard more functionality by providing two command

modes for the top row of keys. When F LOCK is off (F LOCK light off), the enhanced com-

mands printed on the top of the keys are enabled. When F LOCK is on (F LOCK light on), the

standard commands printed on the front of the keys are enabled.

Depending on your keyboard model, you may need to turn F LOCK on (F LOCK light on) to

access certain system key commands labeled on the front of the keys, such as INSERT or

SCROLL LOCK.

Troubleshooting

If you have a question about your wireless keyboard or mouse, try the following options:

•View the User's Guide, which contains product information and troubleshooting tips.

•Look in Readme.txt on the installation CD-ROM for late-breaking product information.

•Go to the Microsoft Keyboard and Microsoft Mouse Web sites at:

http://www.microsoft.com/keyboard/

http://www.microsoft.com/mouse/

for additional product information and software updates.

•See the Product Support Services section of the User's Guides, or go to:

http://www.microsoft.com/support/

for information about how to contact Microsoft Product Support Services.

Product Information and Software Updates

For general product information and software updates, go to the Microsoft Keyboard and

Microsoft Mouse Web sites at:

http://www.microsoft.com/keyboard/

http://www.microsoft.com/mouse/

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM5

Important Battery Information

General Precautions

•Keep batteries out of reach of children.

•Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries).

•Always remove old, weak, or worn-out batteries promptly and recycle or dispose of them in accordance with Local and

National Disposal Regulations.

•If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacturer’s

instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the battery

compartment with a damp paper towel, or follow the battery manufacturer’s recommendations for cleanup. If fluid from

the battery comes into contact with skin or clothes, flush skin with water immediately.

•Remove the batteries if your device is to be stored for longer than a month without being used.

Special Precautions

The precautions below are to prevent the sudden release of electrolytes, which these prohibited actions can cause:

•Do not open, puncture, or mutilate the batteries.

•Do not heat batteries.

•Do not use a fire to dispose of batteries.

Released battery electrolyte is corrosive, can cause damage to the eyes and skin, and may be toxic if swallowed.

Product Disposal Information

Dispose of this product in accordance with Local and National Disposal Regulations.

Regulatory Information

This device complies with part 15 of the FCC Rules and Industry Canada RSS-210. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Tested to comply with FCC standards. For home and office use. Model number: Wireless Optical Desktop receiver (all models),

; Wireless Optical Desktop Pro receiver (all models)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Note Any changes or modifications not expressly approved by Microsoft could void the user's authority to operate these

devices.

For use with UL Listed and GS approved personal computers.

Note For detailed information on U.S. and Canadian radio interference regulations, search for “regulations” in the User’s

Guide installed with IntelliType Pro or IntelliPoint software.

Microsoft Corporation; One Microsoft Way; Redmond, WA 98052-6399; U.S.A.

United States: (800) 426-9400 Canada: (800) 933-4750

No serviceable parts included. This device is rated as a commercial product for operation at +41ºF (+5ºC) to +95ºF (+35ºC).

RF Technical specifications

RF output power: < 80 dBµV/m at 3 m

Keyboard channel RF frequencies: Channel 1–27.095MHz, Channel 2–27.195MHz

Mouse channel RF frequency: Channel 1–27.145MHz

Information for Optical Pointing Devices Only

User-observable light is 15 microwatts in normal operation.

This product has been tested to comply with International Standard IEC 60825-1: (1993), incld. Amd.2(2001). This

product uses LEDs that are inherently Class 1.

Class 1 LED Product

Xxx-xxxxx_Mnl_Ret_Wireless_Suites.p65 3/6/2002, 9:55 AM6

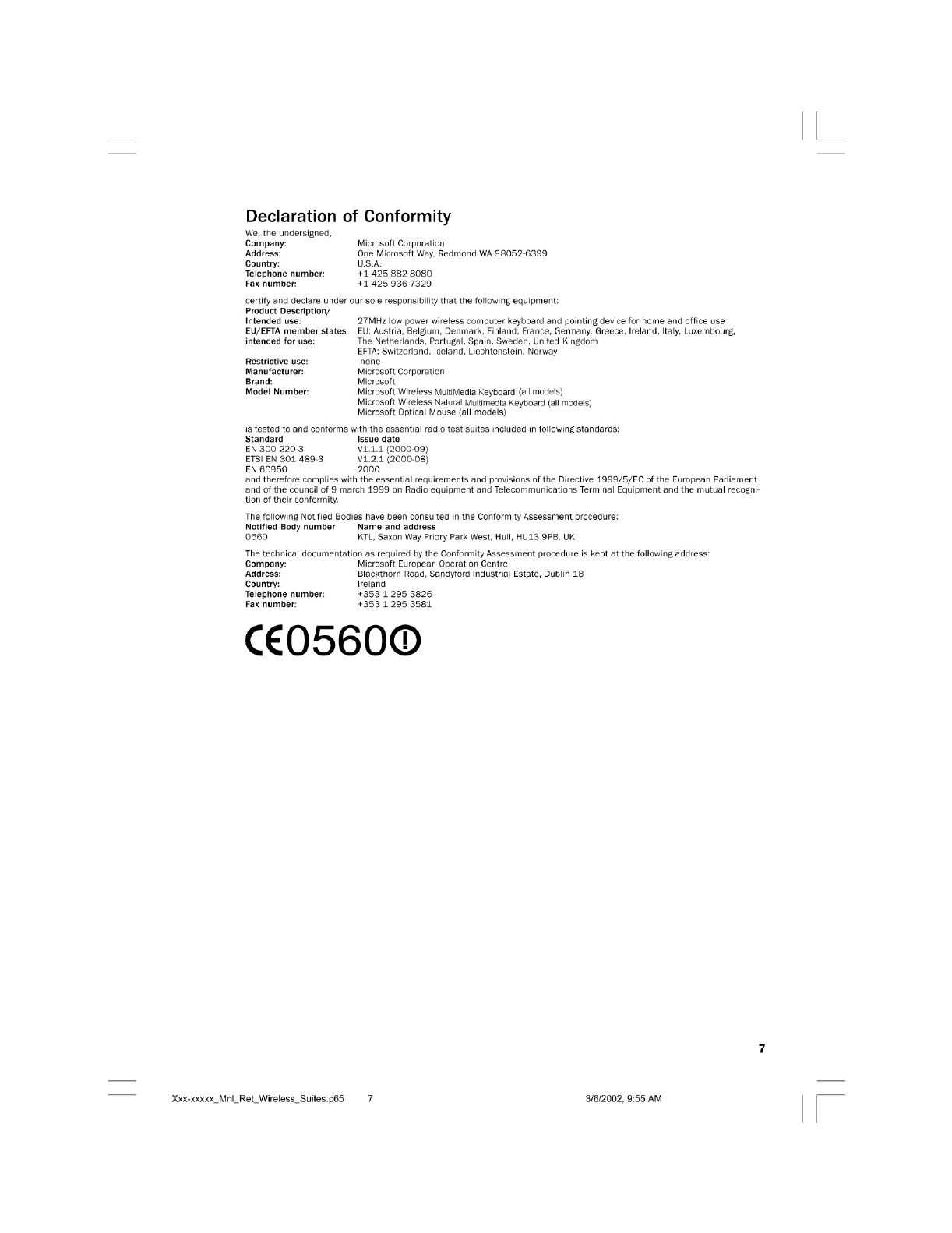

Xxx-xxxxx_Cvr_Ret_Wireless_Suites.p65 3/6/2002, 9:56 AM3

0302 Part #X08-XXXXX

Xxx-xxxxx_Cvr_Ret_Wireless_Suites.p65 3/6/2002, 9:56 AM4

Microsoft KB10 Wireless Keyboard User Manual

Microsoft Corporation Wireless Keyboard Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
