Microsoft LD-6T Nokia HAIP Tag User Manual

Microsoft Mobile Oy Nokia HAIP Tag

User Manual

1
Nokia HAIP Tag LD-6T
User Guide
2
Nokia LD-6T User Guide
Contents
1. Introduction ................................................................................................................................ 3
2. Get started .................................................................................................................................. 4
Features ...................................................................................................................................... 4
Start using the tag ...................................................................................................................... 5
Activate the tag ....................................................................................................................... 5
Attach the tag to a locatable object ....................................................................................... 5
Reset factory settings ................................................................................................................ 5
Product information ....................................................................................................................... 6
Waterproof casing ...................................................................................................................... 6
Battery ......................................................................................................................................... 6
Technical data ............................................................................................................................. 6
Care and Maintenance .................................................................................................................... 7
Recycle ..................................................................................................................................... 7
Copyright and other notices .......................................................................................................... 8
3
Nokia LD-6T User Guide
1. Introduction
Nokia HAIP Tag LD-6T is part of the Nokia HAIP system. Other parts of the
HAIP system are HAIP Locator LD-6L and HAIP Positioning Software. The
HAIP system allows you to locate and track any objects equipped with
HAIP tags in an indoor environment equipped with HAIP locators.
Read the HAIP System User Guide carefully before starting to use the HAIP
system. For the latest guides, additional information, and downloads
related to your Nokia product, go to www.nokia.com/support.
This product may contain small parts. Keep them out of reach of small
children.
4
Nokia LD-6T User Guide
2. Get started

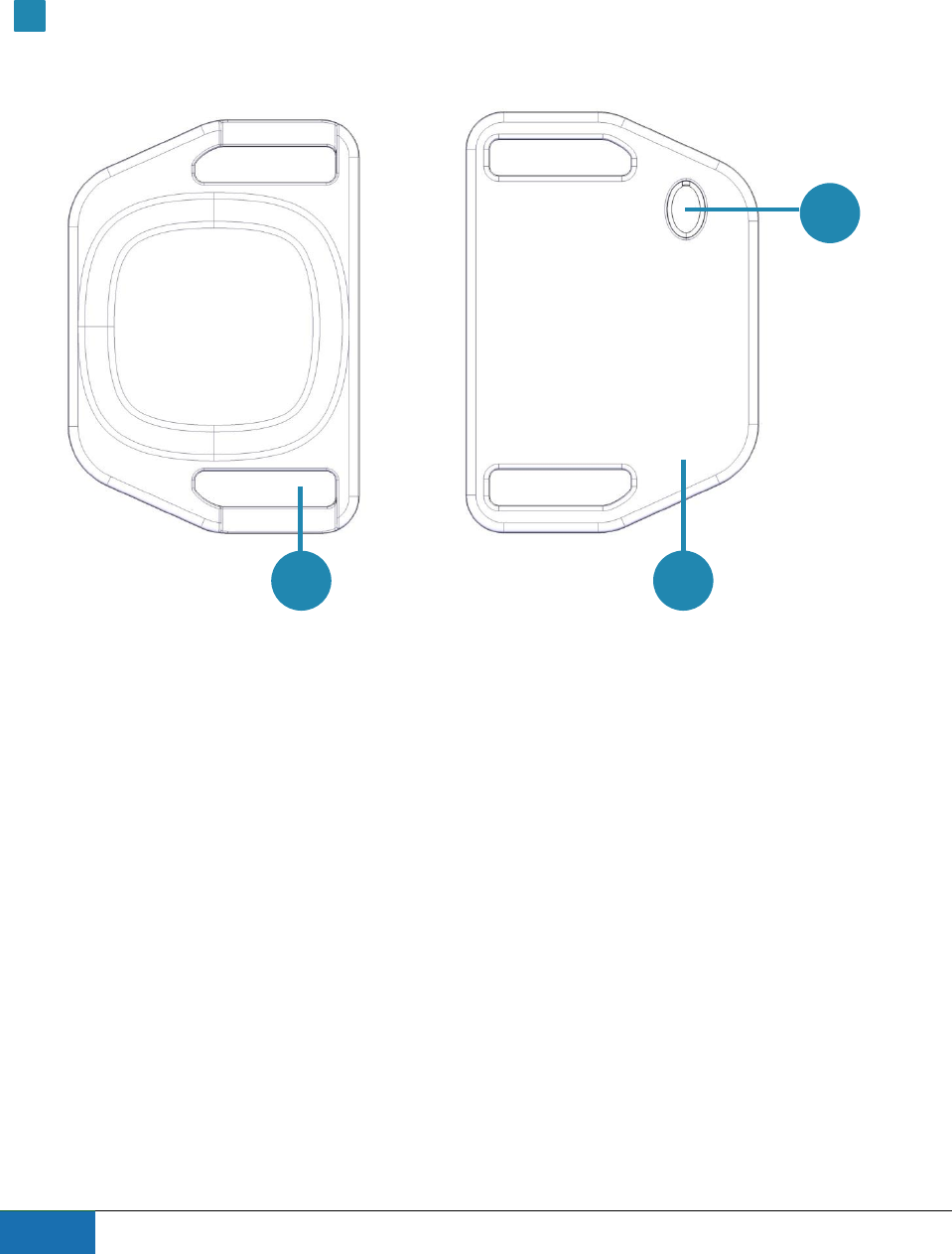

Features
1. Mounting hole
2. Reset button
3. Waterproof casing
2
3
5
Nokia LD-6T User Guide
Start using the tag
Activate the tag
Before using the tag, you must activate it and configure it for your HAIP
System.
1. Press the reset button to activate the tag
2. Within 30 seconds, send a configuration command to the tag. For
details, see HAIP System User Guide.
Attach the tag to a locatable object
Tie the tag to a locatable object through the mounting holes by using a
cable tie.
WARNING: Never attach the HAIP Tag to hot surfaces.
IMPORTANT: For optimal operation do not attach the
HAIP Tag on top of a large metal surface. Refer to HAIP
System User Guide for further information.
Reset factory settings
To reset factory settings, press and hold the reset button for 10 seconds.
6
Nokia LD-6T User Guide
Product information
Waterproof casing
Your tag is protected against water until 1 meter of depth for maximum
of 30 minutes.
Battery
The tag has an in-built CR2032 battery. In normal operation the battery
will last for several years. The battery charge level can be monitored using
the HAIP system, refer to HAIP System User Guide for details. Once the
battery is empty the tag has to be recycled properly. Do not attempt to
open the tag casing to replace the battery.
WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORIDNG TO THE INSTRUCTIONS.
Technical data
Operating frequency range: 2400…2483 MHz
Maximum transmit power: +7 dBm EIRP
Operating temperature range: 0°C…+60°C
Storage temperature range: 30°C…+70°C
IP protection class: IP57
Dimensions: 44 mm × 31 mm × 8 mm
Weight: 10g
7
Nokia LD-6T User Guide
Care and Maintenance
Your tag is a product of superior design and craftmanship and should be
treated with care. The following suggestions will help you protect your
warranty coverage.
Do not attempt to open the tag.
Do not sink the tag in deep water (> 1m).
Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean the tag. Only use water and soap or a dry cloth to clean the
surface of the tag.
Do not paint the tag.
Recycle
Always return your used electronic products, batteries, and packaging
materials to dedicated collection points. This way you help prevent
uncontrolled waste disposal and promote the recycling of materials.
Check product environmental information and how to recycle your Nokia
products at www.nokia.com/werecycle, or nokia.mobi/werecycle.
The crossed-out wheeled-bin symbol on your product, battery,
literature, or packaging reminds you that all electrical and
electronic products, batteries, and accumulators must be taken
to separate collection at the end of their working life. This
requirement applies in the European Union. Do not dispose of these
products as unsorted municipal waste. For more environmental
information, see the product Eco-Declarations at
www.nokia.com/environment.
8
Nokia LD-6T User Guide
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this LD-6T product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at
http://www.nokia.com/global/declaration/declaration-of-conformity.
© 2012 Nokia. All rights reserved.
FCC/INDUSTRY CANADA NOTICE
This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: 1. This device may not cause
harmful interference; and 2. This device must accept any interference received, including
interference that may cause undesired operation. This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected. Consult the dealer or an experienced radio/TV technician
for help. NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter. NOTE:
Changes or modifications not expressly approved by Nokia could void the user's authority to
operate the equipment.
Nokia, Nokia Connecting People, Navi and the Nokia Original Accessories logo are trademarks
or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
9
Nokia LD-6T User Guide
Reproduction, transfer, distribution, or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy
of continuous development. Nokia reserves the right to make changes and improvements to
any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES
SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS
OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW
IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products may vary by region. Please check with your Nokia dealer
for details. This device may contain commodities, technology or software subject to export
laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
