connect
whether you are ready to begin
2
wireless adapter
install
3
Xbox Dashboard update
This Start Here guide will help you set up your Microsoft® Broadband Networking
Xbox® Wireless Adapter on a Microsoft Xbox video game system. Before you
go to the next page, make sure that you have everything you need to begin.
To play games on the Xbox Live™ online game service, you need:
OExisting network that has a wireless router, base station, or gateway
OXbox game that has the Xbox Live logo
OSubscription to Xbox Live service (sold separately)
OBroadband Internet connection (cable or DSL)
To create a wireless connection for System Link (console-to-console) play,
you need:
OTwo Xbox video game systems
OSecond Xbox wireless adapter
OXbox game that supports System Link play
© 2003 Microsoft Corporation. All rights reserved.
0803 Part No. X09-97724
check
If you just purchased a router, base station, or gateway, set it up before
setting up this adapter.

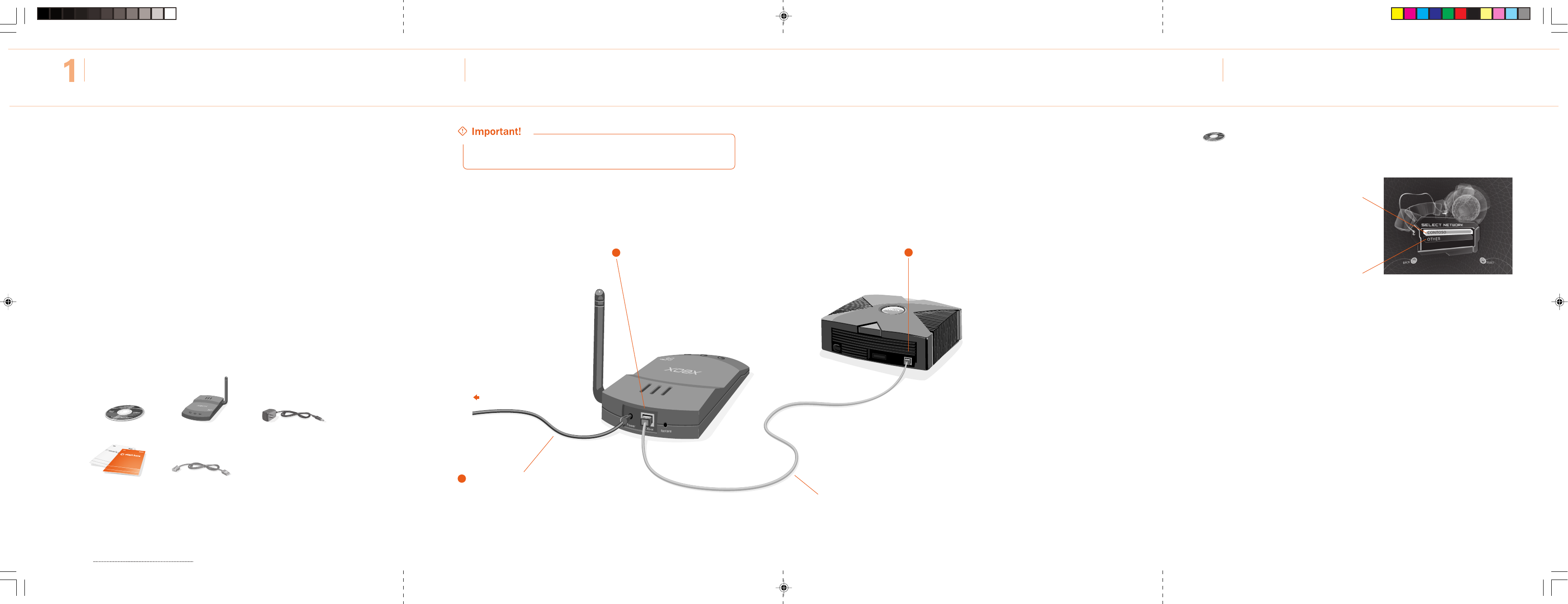

To connect the Microsoft Xbox Wireless Adapter
Leave your Xbox console and any wireless networking devices (such as a router)
turned on when you connect the wireless adapter. For suggestions on placing
your wireless networking devices for best performance, see Chapter 2 of the
User’s Guide.
Insert the Xbox wireless adapter setup disc into the disc tray of your Xbox console.
Your Xbox Dashboard will be updated if necessary. Setup then detects available
wireless networks, and displays them on the Select Network screen.
Ethernet cable
O...and you want to connect to an
existing network, select the
network name. Setup will detect
many of the settings that the Xbox
wireless adapter needs for connect-
ing to that network. Go to step 4
on the next page.
O...and you want to set up the first
Xbox console in a new System Link
connection, select Other, enter a
network name on the Network
Name screen, and then go to step
4 on the next page. When you set
up the second Xbox console, the
network name that you specify will
appear on the Select Network
screen.
To power
supply
...and then connect the other end
of the Ethernet cable to the Ethernet
port on your Xbox console.
Connect one end of the provided
Ethernet cable to the To Xbox port
on your Xbox wireless adapter...
1
Plug one end of the power supply into
the Power port on the Xbox wireless
adapter, and then plug the other end
into an electrical outlet.
3
2
Before using this product, read both the Xbox wireless adapter User’s Guide and the Xbox
Instruction Manual for important safety information and health warnings. Please retain these
manuals for future reference.
If the Select Network screen appears...
If the Select Network screen does
not appear...
O...and you want to connect to an
existing network, see Chapter 3
in the User’s Guide for trouble-
shooting information.
O...and you want to set up the first
Xbox console in a new System
Link connection, skip to step 4
on the next page to specify and
describe your wireless network.
Micr
Microsof
osoft Br
t Broadband Ne
oadband Netwtwor
orking
king
Xbox Wx Wireless Aeless Adapdapter
MN-7
MN-74040
Micr
Microsof
osoft Brt Broadband Neoadband Networorkingking
XboXbox Wx Wireless Aeless Adapterer
MN-7MN-740
Box Contents
Xbox wireless adapter
(MN-740)
Power supply cord
Ethernet cable
Xbox wireless adapter
setup disc
User’s Guide and
Start Here guide
![](/img.php?id=360381&img=bg2.png)
start here
test5
network connections
configure4
wireless adapter

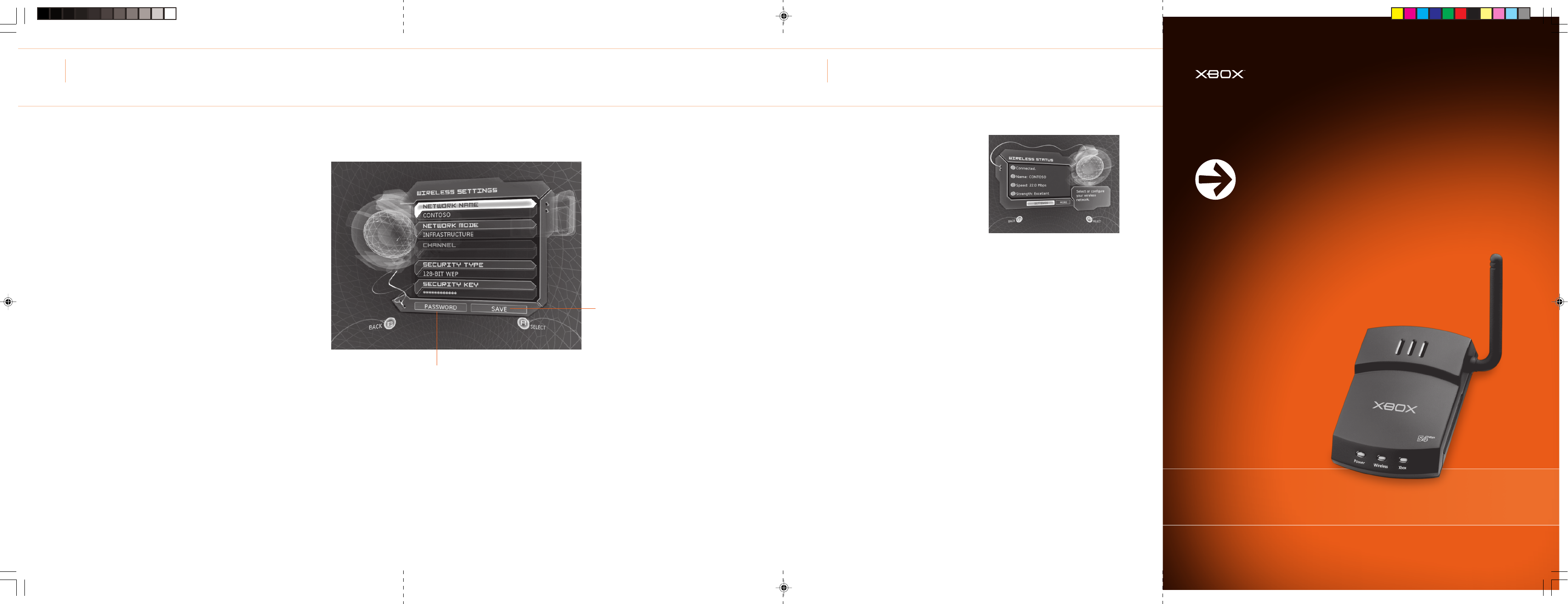

On the Wireless Settings screen, enter information about your network.
Try one of these tests to confirm that the setup of your adapter was
successful:
OIf you added your Xbox console to an existing network with a shared broadband
Internet connection, start a game that is supported by Xbox Live. Make sure
that you can access the service with your account.
OIf you connected two Xbox consoles, start a game that supports System Link
play. Use the System Link play option in the game, and make sure that you can
play with the team that is using the other Xbox console.
OIf you have other Microsoft Broadband Networking products installed on your
network, start the Broadband Network Utility from a computer on your network.
Make sure that your Xbox wireless adapter appears under Network Devices.
To troubleshoot network problems
Xbox® Wireless Adapter
MN-740
Microsoft® Broadband Networking
m
Check your wireless connection status
on the Wireless Status screen:
OIf your adapter is correctly configured
for the network, your connection
status will appear as Connected.
OIf your connection status appears
as Not Connected, select Settings
to review your wireless settings.
Check out the following resources to
help identify and solve common
problems:
OThe User’s Guide contains basic
troubleshooting instructions and
technical support information.
OOur Web site at www.microsoft.com/
broadbandnetworking includes
the most recent troubleshooting
information and product updates.
An adapter password is required for
installing adapter updates. The password
must contain no fewer than 3 characters
and no more than 16. If you do not specify
a password, you must use the default
password, admin, to update your adapter.
If you are connecting to an existing network that you chose
on the Select Network screen:
OSpecify the Security Type and Security Key if your
network uses wireless security. Do not change any other
settings on this screen.
The Xbox wireless adapter supports both 128-bit and 64-
bit WEP. The security type and security key that you specify
on your Xbox wireless adapter must match those specified
on your other network devices.
If you are setting up the first Xbox console for System Link
(console-to-console) play:
OSelect Network Name to create a wireless network name
(SSID). This name is case sensitive. When you set up the
wireless adapter on your second Xbox console, this name
will appear on the Select Network screen.
OSelect Network Mode, and then specify the network mode
as ad hoc 802.11b/g.
OSelect Channel to choose a channel. When you set up your
second Xbox wireless adapter, it will use the same channel.
OSelect Security Type to enable wireless security. Wireless
security helps protect your wireless network from
unauthorized access. 128-bit WEP is more secure than
64-bit WEP. We recommend using the highest security
setting that is supported by your second wireless adapter.
You must use the same security type on your second Xbox
console.
OIf you enabled wireless security, select Security Key to
specify a WEP key. For 128-bit WEP, use 26 characters. For
64-bit WEP, use 10. Use a combination of numbers and
the letters A through F. You must use the same WEP key on
your second Xbox console.
Important! Select Save when all
available items on this screen display
the settings that you want to use.
![](/img.php?id=360381&img=bg3.png)
start here
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
