User Guide
User Guide
Nokia 7160
User Guide
The wireless phone described in this guide is approved for use in TDMA
and AMPS networks.
Copyright information
Part No. 9352079, Issue No. 1
© 2000 Nokia Mobile Phones. All rights reserved.
Printed in Canada 09/2000
Nokia, Nokia Connecting People and the Original Accessories logos are
trademarks of Nokia Corporation and/or its affiliates.
US Patent No 5818437 and other pending patents.
T9 text input software Copyright (C) 1999. Tegic Communications, Inc.
All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software
from RSA Security.
The information contained in this Owner’s Manual was written for Nokia
phone NSW-5. The right to make changes and improvements to any of the
products described in this guide without prior notice is reserved.
These commodities are authorized by the U.S. Government for export only
to Canada, Mexico, or the United States. They may not be resold, diverted,
transferred, or otherwise disposed of in any other country, either in their
original form or after being incorporated through an intermediate process
into other end-items, without the written approval of the U.S.
Department of State.
FCC/Industry Canada Notice
Your phone may cause TV or radio interference (for example, when using
a telephone in close proximity to receiving equipment). The FCC or Industry
Canada can require you to stop using your telephone if such interference
cannot be eliminated. If you require assistance, contact your local service
facility.
This device complies with part 15 of the FCC rules. Operation is subject to
the condition that this device does not cause harmful interference.
[ i ]
Contents
For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Your phone’s label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1. Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How to contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Contacting your service provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2. Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

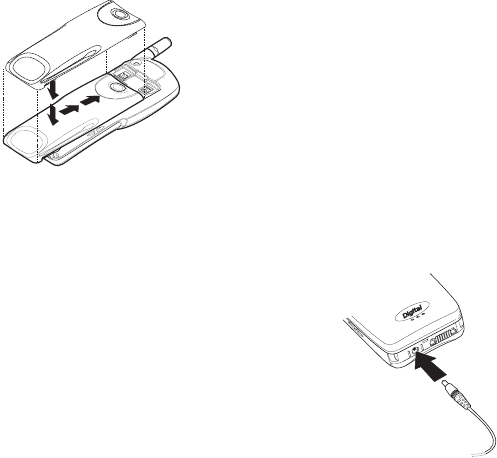

Attach your battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Charge your battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

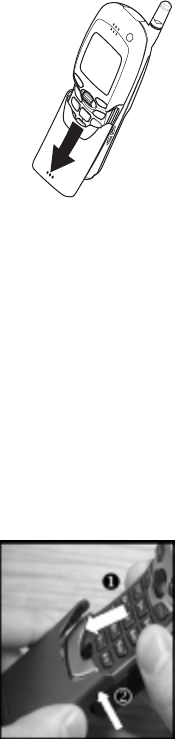

Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Prolonging battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. About your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Switch the phone on (or off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
About your phone’s display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

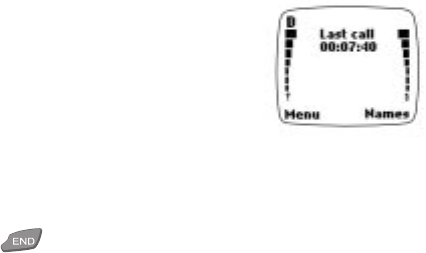

The Start screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Indicators and Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the selection keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the NaviTM roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the sliding cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Just in case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
[ ii ]
4. Your phone’s menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Browsing the menus via the roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
List of main menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. Making/receiving calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Making a call using the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Making a call using the phone book . . . . . . . . . . . . . . . . . . . . . . . 20
Making other types of phone calls. . . . . . . . . . . . . . . . . . . . . . . . . 20
Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Last number redial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Calling your voice mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Adjusting the earpiece volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

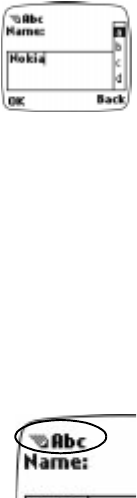

6. Letters and numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Entering characters via the NaviTM roller . . . . . . . . . . . . . . . . . . . 23
Entering characters via the keypad . . . . . . . . . . . . . . . . . . . . . . . . 23
7. Phone book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Saving names and numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Saving names and numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Saving via the phone book menu. . . . . . . . . . . . . . . . . . . . . . . . . . 25
Working with the phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Making a call from the phone book. . . . . . . . . . . . . . . . . . . . . . . . 26
Phone book menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Organizing the phone book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Editing a name and number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Erasing a phone book entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
[ iii ]
8. Call log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing call-related information. . . . . . . . . . . . . . . . . . . . . . . . . . .29
Call-related information options. . . . . . . . . . . . . . . . . . . . . . . . . . .30
Clear call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Other call log options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Call timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Clear call timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
9. Voice messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Setting up your voice mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Greetings, passwords, and prompts. . . . . . . . . . . . . . . . . . . . . . . . .32
Listening to your voice messages . . . . . . . . . . . . . . . . . . . . . . . . . .32
10. Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Selecting another profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
11. Advanced calling features . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Exploring the In-call menu options . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Send touch tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Send flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
End all calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
New call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Accessing Phone book and Menu . . . . . . . . . . . . . . . . . . . . . . . . . .35
Muting/unmuting the microphone . . . . . . . . . . . . . . . . . . . . . . . . .36
Anykey answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Call forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Send own caller ID with next call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
3-way conference calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Automatic redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Calling card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
[ iv ]
Voice dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Assigning a voice tag to a phone number. . . . . . . . . . . . . . . . . . . .41
Dialing a number using voice dialing . . . . . . . . . . . . . . . . . . . . . . 43
Working with an existing voice tag . . . . . . . . . . . . . . . . . . . . . . . . 43
1-touch dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting up 1-touch dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Phone book enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Multiple numbers per phone book entry . . . . . . . . . . . . . . . . . . . . 45
Primary number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing a number type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Saving text information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Searching the phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Phone book scroll view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Caller groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Memory status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
12. Customize your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Customizing the Navi roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Working with profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Settings you can customize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Renaming profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Display options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Setting the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Display contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Displaying the current call timer . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Selecting a time format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Displaying or hiding the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Welcome note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Restore factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Disable/enable the active slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
[ v ]
13. Security settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Keypad lock (Keyguard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Phone lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Activating and deactivating phone lock . . . . . . . . . . . . . . . . . . . . .57
Allowed number when phone locked . . . . . . . . . . . . . . . . . . . . . . .57
Access codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Security code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Lock code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Call restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Selecting call restrictions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
14. Text messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Reading text messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Using predictive text input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Writing and sending text messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Replying to a message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Messages in the Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
15. Your personal assistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Calendar views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Adding a calendar note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
To-do list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Calculator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Using the calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Using calculator for currency conversion . . . . . . . . . . . . . . . . . . . .76
Contact manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
[ vi ]
16. Infrared connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Sending and receiving data via IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Checking the status of an IR connection . . . . . . . . . . . . . . . . . . . 79
Other types of IR connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Transmitting phone book via IR . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Calendar notes via IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
17. DLR-3P connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
18. WAP services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Services menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
About your service provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Launching the browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Understanding a WAP web site . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Understanding and navigating a WAP card . . . . . . . . . . . . . . . . . 84
The browser menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
The card Options menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Working with bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Download a ringing tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Play, save, or erase a ringing tone . . . . . . . . . . . . . . . . . . . . . . . . . 88
19. Games. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
20. Network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Network selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Voice privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Own number selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Network feature setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
[ vii ]
Call forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Send own caller ID when calling . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Call mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Public system setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
21. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Charging Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Standby and Talk Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Chargers and Other Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . .98
22. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
23. Frequently Asked Questions (FAQ) . . . . . . . . . . . . . . . . . . . .103
24. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
25. Reference information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Using batteries and chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Accessories and batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Traffic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Electronic Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Potentially Explosive Atmospheres . . . . . . . . . . . . . . . . . . . . . . . . 116
Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Emergency Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
IMPORTANT! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Making an Emergency Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Radio Frequency (RF) Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
[ 1 ]
• For your safety
Read these simple guidelines before using your phone. Failure to
comply with these guidelines may be dangerous or illegal.
Road Safety Comes First
Don’t use a hand-held phone while driving; park the vehicle first.
Switch Off In Hospitals
Follow any regulations or rules. Switch phone off near medical
equipment.
Switch Off While On Aircraft
Wireless phones can cause interference. Using them on aircraft is
illegal.
Switch Off When Refueling
Don’t use phone at a refueling point. Don’t use near fuel or
chemicals.
Switch Off Near Blasting
Do not use the phone where blasting is in progress. Observe
restrictions, and follow any regulations or rules.
Interference
All wireless phones may get interference which could affect
performance.
Use Sensibly
Use only in the normal position (to ear). Don’t touch the antenna
unnecessarily.
Qualified Service
Only qualified service personnel must install or repair equipment.
Accessories and Batteries
Use only approved accessories and batteries. Do not connect
incompatible products.
[ 2 ]
Connecting To Other Devices
When connecting to any other device, read its user’s guide for
detailed safety instructions. Do not connect incompatible products.
Remember to make backup copies of all important data.
Making Calls
Ensure the phone is switched on and in service. Enter the phone
number, including the area code, then press . To end a call
press . To answer a call press .
Emergency Calls
Ensure the phone is switched on and in service. If the word “Clear”
appears on the display above the key, press and hold Clear
to clear the display. Enter the emergency number, then press
. Give your location. Do not end the call until told to do so.
Infrared Precautions
Do not point the IR beam at anyone’s eyes or allow it to interfere
with other IR devices.
• Your phone’s label
The label found on the back of your phone (under the battery) contains
important information about your phone, including the model and serial
numbers. You will be required to provide information from this label, in
the event you call Nokia Customer Service (or call your service provider).
Therefore, please do not remove or deface this label.
[ 3 ]
Welcome
1. Welcome
Congratulations on your purchase of a Nokia 7160 mobile phone. You are
now on your way to using a new and exciting tool.
However, before you use your phone, read this chapter. It provides
information that you need to know about how to use this manual and
how to contact Nokia.
• Network services
Call Forwarding and Call Waiting are two examples of features called
Network Services. Network Services are special services provided by your
wireless service provider, and are described later in this guide. Before you
can take advantage of any of these Network Services, you must subscribe
to these service(s) from your wireless service provider and obtain
instructions from them for their use.
Note: Some networks may not support all language-dependent
characters.
Updates
The latest version of this Owner’s Manual may be available on Nokia’s
World Wide Web site at http://www.NokiaUSA.com.
• How to contact Nokia
Nokia Contact Center Customer Care, Canada
Nokia Customer Care Center
7725 Woodland Center Boulevard, Suite #150
Tampa, Florida 33614
Tel: 1-888-NOKIA2U (1-888-665-4228)
Fax: 1-813-249-9619
TTY: 1-800-24NOKIA (1-800-246-6542)
Nokia Products Ltd.
575 Westney Rd. South
Ajax, Ontario L1S 4N7
Tel: 1-888-22NOKIA
(1-888-226-6542)
Fax: 1-905-427-1070
[ 4 ]
• Contacting your service provider
Some service providers have pre-programmed their customer support
number into the phone. Pressing and holding the key (or the key
that your service provider instructed you to use) for 2 seconds will
automatically dial their customer support number. This feature can be
helpful if you’re having difficulties dialing a number, especially when
traveling outside your home area.
If your service provider deems your problem to be Nokia-related, they will
direct you to contact Nokia Customer Service.
Note: This one-key feature might not be available on all systems.
Contact your service provider for availability.
[ 5 ]
Before you begin
2. Before you begin
• Attach your battery
Prior to using your phone, the battery must
be installed and charged. Grasp the phone
near the display (rather than on the slide
mechanism). Place the battery in the grooves
on the back of your phone. Then slide the
battery upward until it clicks.
Note: Use only those batteries approved by
the phone manufacturer. See “Using
batteries and chargers” on page 112.
• Charge your battery
1. With your phone on or off, connect the
lead from the charger to the bottom of the
phone.
2. Connect the charger to an AC wall outlet.
The battery indicator bar starts to scroll
after a few seconds.
3. Disconnect the charger from the phone
and AC outlet when the battery is fully
charged.
Note: When the indicator bar stops scrolling, the battery will accept a
"trickle charge" for an additional 2 hours until it is 100% fully
charged (except BMS-2V). See “Charging Times” on page 96 for
more information.
[ 6 ]
Important battery information:
• Recharge your battery only with the chargers approved by the
manufacturer.
• The phone can be used while charging if the phone is switched on.
• If the battery is totally empty, it may take a few minutes before the
charging indication appears on the display.
• If the phone is switched on when charging is completed, Battery full
is displayed on the screen momentarily.
• Unlike NiMH batteries, the BLS-2S Li-Ion battery does not need to be
fully discharged before recharging.
• Charging time depends on the charger and battery used. For example,
the charging time for the BLS-2S battery with the ACP-8U charger
takes about 2 hours. See page 96 for charging times.
• Removing the battery
It is necessary to remove the existing battery if you purchase (and want
to use) a different battery model, or have purchased a spare battery.
To remove the battery:
1. Make sure the phone has been turned off for 10 seconds.
2. While holding the phone by the display (and not on the slide
mechanism), press and hold the battery release button.
3. Slide the battery downward and away from the antenna.
4. Remove the battery from the grooved back of the phone.
Prolonging battery life
A NiMH battery lasts longer and performs better if you fully discharge it
from time to time. To discharge your battery:
• Leave your phone switched on until the battery is drained. Ignore any
messages to recharge your battery.
• Use the battery discharge feature of any approved accessory available
for your phone.
Note: Do not attempt to discharge the battery by any means other than
those just described.
[ 7 ]
About your phone
3. About your phone
• Diagrams
Front Fixed antenna
Power key
Earpiece
Microphone
Sliding key cover
NaviTM roller
Selection keys
Phone Display
Infrared port
External antenna
jack
(utilized by
Car kit)
Back Bottom
AC power
Headset, DLR-3P
[ 8 ]
• Switch the phone on (or off)
To switch the phone on or off, press and hold for 2 seconds.
Warning! Do not switch on the phone when wireless phone
use is prohibited or when it may cause interference or danger.
As with any other radio transmitting device, do not touch the
antenna unnecessarily when the phone is switched on. Contact
with the antenna affects call quality and may cause the phone
to operate at a higher power level than otherwise needed.
• About your phone’s display
Your phone’s display provides several different types of information through
the use of various display indicators and icons. Most essential indicators
and icons related to various phone functions are explained later in this
user’s guide.
The Start screen
The Start screen refers to the phone’s display when
no calls are in progress, and there are currently no
menu or phone book entries displayed.
You can easily return to the Start screen from
any location (other than an active call) simply by
pressing the key. However, keep in mind that any text or numbers
that you were entering at the time will be lost, and your work will not be
saved.
HOME Often times your service provider’s name will appear here.
Shows the signal strength of the wireless network at your current
location. The higher the bar, the stronger the signal.
Shows the battery charge level. The higher the bar, the more power
in the battery.
Indicates that you are in a digital network.
[ 9 ]
About your phone
Header and scroll bar
A header line appears at the top of your screen
when in the phone book or while navigating the
menus, providing you with a reminder of the
phone book entry you are working with, or
functions as a reminder of the menu or
sub-menu with which you are working.
A scroll bar is displayed on the right edge of your screen, giving you a
visual representation of your relative position while navigating the menu
and sub-menu structure. The scroll bar is not visible in the phone book.
• Indicators and Icons
The following is a collection of the various other indicators and icons that
you may see on your phone’s display:
Icon Description
You have an active call.
The phone is waiting for you to enter numbers or text.
You have turned off your phone’s keypad tones, warning tones, message
alert tones, and set your ringing tone to Silent.
Keyguard has been activated to help prevent any accidental keypresses.
You have one or more voice messages waiting.
You have one or more unread text messages waiting.
Digital service is available.
Any characters you enter will be upper-case letters or numbers. Press the
key to switch letter case.
Scroll barHeader
[ 10 ]
Any characters you enter will be lower-case letters or numbers. Press the
key to switch letter case.
Indicates sentence case. You will not need to switch between upper case and
lower case for the first word in a sentence. Available when entering calendar
notes, to-do list events, or writing text messages.
Also indicates title case. Automatically capitalizes first letter in every word.
Available when entering names in the phone book.
Appears when you press and hold the key while entering/editing text.
Only numbers can be entered while in this mode.
Indicates insert special characters mode. Appears when you press and hold
the key while entering/editing text. Only special characters can be
entered.
The alarm clock is set.
You have a general reminder entered in your calendar (appears only on
Calendar display).
You have a reminder in your calendar that it’s someone’s birthday (appears
only on Calendar display).
You have a reminder in your calendar to call someone (appears only on
Calendar display).
You have a reminder in your calendar of a meeting (appears only on Calendar
display).
Indicates an active data or fax call.
Appears when the DLR-3P data cable is connected to your phone.
Icon Description
[ 11 ]
About your phone
•Using the keys
The following table contains information on using the various keys found
on your phone:
Using the selection keys
Two selection keys are located below the
display. Their functions can be identified
by the text shown above the keys in the
display.
For example, pressing the left selection
key when Menu appears above it
displays the first of many menus.
Similarly, pressing the right selection key when Names appears
above it displays the phone book menu.
Key: Description:
Power: Press and hold to switch the phone on or off.
Selection: Press to perform the function indicated by the label
above the key (on the phone’s display).
Roller: Roll to scroll through lists or menus. Press to select the
highlighted item. Used during a call to adjust the earpiece
volume. See page 12.
Talk: Press to make a call to name/number shown on the display
or to answer a call. Press once at the Start screen to enter the list
of last dialed numbers.
End: Press to end a call or to silence an incoming call.
- Number: Used for entering numbers and letters.
Tip: Press and hold to call your voice mailbox.
Special characters: is used for entering special characters.
is used to perform special functions (example: changing
letter case in alpha mode).
[ 12 ]
In this manual, the selection keys are referred to by the texts that appear
above them, and appear in bold (for example, Menu or Names).
Left selection key
The left selection key will frequently display one of the most commonly
used sub-menus when scrolling through the phone’s menu. For example,
when you access the Messages menu, the left selection key is Inbox. Use
this shortcut to access the feature displayed, or press the roller to access
the entire list of sub-menus.
•Using the Navi
TM roller
The NaviTM roller is a multi-function key used to
navigate through your phone’s menus and
phone book.
Roll the roller up or down to scroll through lists
of names and numbers, or through the phone’s
menus, submenus and option lists.
Press once to perform one of the following (depending on what is displayed):
• show details of the highlighted name or number
• display a sub-menu (same as pressing the Options selection key,
whether visible or not).
• select the highlighted function or setting
• automatically select the most frequently used menu or sub-menu
option
Press and hold to make a call to the name or number displayed when the
sliding cover of your phone is closed.
Tips:
• Pressing the roller is the same as pressing Select.
• Press the roller when no calls are in progress (or when no menus are
displayed) to display the Phone book’s Names List. For information
about customizing the roller’s function, see page 50.
[ 13 ]
About your phone
• Using the sliding cover
The sliding cover protects your phone’s keypad,
and can be used to answer, end or reject a call.
(See page 21 for details.)
To open the sliding cover, slide it down.
To close the cover, slide it up until it locks into
place.
Tip: Closing the sliding cover always exits the
menu or phone book functions and returns you
to the Start screen.
Note: If you have locked the keypad of your phone, the keypad is always
unlocked when you open the sliding cover.
To close the sliding cover without ending a call:
1. Before closing the cover, press the Options selection key
2. Close the sliding cover.
To end a call with the sliding cover closed:
•Press the Options selection key (when it appears), scroll to End all
calls, then press the roller.
Just in case
If the plastic part of your phone’s sliding cover accidentally comes off,
reattach it as described on the following page:
1. Make sure metal frame of slide is fully
extended and locked into the open
position. (slide will "click" into place).
2. Place the right edge of the plastic slide
cover on the right side of the metal frame
(depressing the microphone contacts in
the process).
[ 14 ]
3. Rotate the plastic slide cover onto the
metal slide frame. Make sure the middle
snap is secured properly (turn the phone
over to check).
4. Press the left side of the plastic slide cover
onto the metal slide frame until it snaps
into place.
5. Check to confirm that all 3 snaps are
securely fastened.
[ 15 ]
Your phone’s menus
4. Your phone’s menus
The phone’s menus allow you to tailor the phone to your needs. Each menu
can contain several levels of submenus.
The menus and submenus can be accessed by rolling the roller or using
the appropriate shortcut number (see page 16).
Help texts
A brief help text is available for most menu items. To view the help text,
scroll to the desired menu function and wait for 10 seconds.
• Browsing the menus via the roller
Using the multi-function Navi roller, you can scroll through the various
menus and sub menus by rolling the roller up or down. To make your
selection, simply press the roller.
1. Press Menu.
2. Use the roller to scroll to the desired main menu.
3. Press the roller to make your choice (for example, Settings), and to
view the sub-menu(s).
Note: If the submenu contains submenus,
scroll to the desired submenu and
press the roller to select (for example,
Call settings).
4. Scroll to the desired setting option (for
example, 1-touch dialing) and press the
roller to select.
Tips:
• Some of the most frequently used sub-menu options can be found by
rolling up, in addition to rolling down.
[ 16 ]
• You can return to the previous menu level by pressing Back, or exit
the menu by pressing Exit (if displayed).
• You can exit the menu by pressing and holding Back (including when
the slide is closed).
• You can always exit the menu by pressing without changing
the menu settings. Pressing returns you to the Start screen.
Accessing a menu function by its shortcut
Most menu items (menus, submenus and setting options) are numbered
and can be accessed by their shortcut number. The shortcut number is
shown in the top right corner of the display. For menu shortcut numbers
see “List of main menu functions” on page 16.
1. Press Menu.
2. Within 3 seconds, enter the first number of the menu function you
want to access. Repeat until you have entered all of the numbers.
For example: To set the menu function 1-touch dialing to on, press
Menu 4-2-3-1 (Settings-Call settings-1-touch dialing-On).
• List of main menu functions
1Messages
01-1 Inbox
01-2 Outbox
1-3 Archive
1-4 Voice messages
1-4-1 Listen to voice messages
1-4-2 Voice mailbox number
1-5 Erase messages
1-5-1 All messages
1-5-2 Inbox
1-5-3 Outbox
1-5-4 Archive
1-6 Write messages
1-7 Write e-mail
[ 17 ]
Your phone’s menus
2Call log
2-1 Missed calls
2-2 Received calls
2-3 Dialed calls
2-4 Clear call lists
2-4-1 All calls
2-4-2 Missed calls
2-4-3 Dialed calls
2-4-4 Received calls
2-5 Call timers
2-5-1 Last call
2-5-1-1 Current call timer
2-5-2 All calls
2-5-3 Life timer
2-5-4 Clear timers
3Profiles
3-1 Normal
3-1-1 Select
3-1-2 Customize
3-1-2-1 Ringing options
3-1-2-2 Ringing tone
3-1-2-3 Ringing volume
3-1-2-4 Message alert tone
3-1-2-5 Keypad tones
3-1-2-6 Warning and game tones
3-1-2-7 Allowed caller groups
3-1-2-8 Vibrating alert (only when vibrating battery is
attached)
3-2 Silent
3-2-1 Select
3-2-2 Customize (same submenus as Normal profile)
3-2-3 Rename
3-3 Meeting (same submenus as Silent profile)
3-4 Outdoor (same submenus as Silent profile)
[ 18 ]
3-5 Pager (same submenus as Silent profile)
3-6 Handsfree1
3-6-1 Customize (same submenus as Normal profile, plus
Automatic Answer and Lights)
3-7 Headset2
3-7-1 Customize (same submenus as Normal profile, plus
Automatic Answer)
4Settings
4-1 Time settings
4-1-1 Alarm clock
4-1-2 Clock
4-1-2-1 Show (hide) clock
4-1-2-2 Set the time
4-1-2-3 Time format
4-2 Call settings
4-2-1 Anykey answer
4-2-2 Automatic redial
4-2-3 1-touch dialing
4-2-4 Calling card
4-3 Phone settings
4-3-1 Language
4-3-2 Touch tones
4-3-2-1 Manual touch tones
4-3-2-2 Touch tone length
4-3-3 Welcome note
4-3-4 Roller function
4-3-5 Display contrast
4-3-6 Slide settings
4-4 Security settings
4-4-1 Call restrictions
4-4-1-1 Restrict outgoing calls
4-4-1-2 Restrict incoming calls
1. Automatically selected when placed in car kit or hands free desk charging stand.
2. Automatically selected when headset is attached.
[ 19 ]
Your phone’s menus
4-4-2 Access codes
4-4-2-1 Phone lock
4-4-2-2 Allowed number when phone locked
4-4-2-3 Change security code
4-4-2-4 Change lock code
4-5 Network services
4-5-1 Voice privacy
4-5-2 Own number selection
4-5-3 Network feature setting
4-5-4 Call forwarding*
4-5-5 Call waiting*
4-5-6 Send own caller ID when calling*
4-5-7 Call mode (not visible in all wireless systems)
4-5-8 Public system setting (not visible in all wireless systems)
( * ) - Indicates option is visible in menu only when enabled
4-6 Restore factory settings
5 System
5-1 Automatic
5-2 Manual
5-3 New Search
6Games
6-1 Snake II
6-2 Rotation
6-3 Racket
6-4 Opposite
6-5 Settings
7Calculator
8Calendar
9 To-do list
10 Services
11 I n f r a r e d
12 Keyguard
[ 20 ]
5. Making/receiving calls
The following pages give you a brief description of the different ways to
handle incoming and outgoing calls.
Making a call using the keypad
1. Open the sliding cover.
2. Enter the phone number including the area code and press .
Making a call using the phone book
For instructions on saving names and numbers to your phone book, see
"Working with the phone book" on page 26.
1. Press the roller and scroll to the desired name/entry.
2. Press the roller and scroll to the desired number.
3. Press the roller.
Note: Sliding cover can be open or closed.
Making other types of phone calls
For more information on:
• Making a call using voice dialing, see "Dialing a number using voice
dialing" on page 43.
• Making a call with the sliding cover closed, see "Making a call using
the phone book" on page 20.
• Making a call using 1-touch dialing, see "1-touch dialing" on page 44.
• Making an emergency call, see "Making an Emergency Call" on page 117.
Answering a call
You can answer a call using any one the following methods:
• Open the sliding cover, OR
[ 21 ]
Making/receiving calls
•Press the Answer selection key, OR
•Press .
Ending a call
You can end a call using any one the following methods:
• Close the sliding cover, OR
•Press the End call selection key, OR
•Press the key
Rejecting a call
If you don’t want to answer a call, but still want to silence the ringer and
allow the call to go to your voicemail:
• Close the sliding cover, OR
•Press the Silent selection key, OR
•Press
Last number redial
The last ten phone numbers you dialed are saved in the phone’s memory.
To redial one of these last dialed numbers:
1. At the Start screen, press . A list of the last 10 numbers dialed
appears.
2. Scroll with the roller to the desired name/number.
3. Press to dial the displayed name/number.
Also see "Call log" on page 29.
Calling your voice mailbox
Note: Voice mail is a network service. For more information and for the
voice mailbox number, contact your service provider. Also see
"Voice messages" on page 32.
[ 22 ]
To call your voice mailbox:.
• Press and hold (at the Start screen)
OR
•Press
Listen when New voice message
and the icon is displayed.
Note: If the phone asks for your voice mailbox number,
enter it and press OK.
• Adjusting the earpiece
volume
You can adjust the earpiece volume while in a call
by rolling the Navi roller upwards to increase the
volume and downwards to decrease the volume.
Note: You may need to press the Clear key to delete any characters on
the phone’s screen prior to adjusting volume.
[ 23 ]
Letters and numbers
6. Letters and numbers
When working with the phone book, calendar, or to-do list, you can enter
letters and numbers either via the phone’s keypad (1 to 9), or using the
roller. When working with text messages or the to-do list, an additional
option, called "predictive text input" is also available. For more information
on this feature, see "Using predictive text input" on page 64.
Entering characters via the NaviTM roller
Enter letters, numbers, and punctuation using the roller
1. Use the roller to scroll through the available
characters (upper/lower case characters,
numbers, and punctuation).
2. Press the roller to insert the highlighted letter
or number.
TIP:
• If you make a mistake, you can remove characters to the left by
pressing Clear as many times as needed. Pressing and holding Clear
clears the screen.
• To move the cursor, scroll to one of the arrow symbols (6,8, 7, or #9)
and press the roller to move the cursor in the direction of the
highlighted arrow symbol.
Note: You can also move the cursor by first pressing Options, then pressing
the roller at Move cursor. Scroll to the location you want and press
Done to move the cursor.
Entering characters via the keypad
If you chose to use the keypad when entering text and
other characters, the keypad functions in 2 modes:
alpha mode and numeric mode. A status indicator in
the upper left corner indicates what mode you are in.
[ 24 ]
Alpha mode has 4 sub-modes: ABC (upper case) and abc (lower case),
title case, and sentence case (both indicated by Abc). Numeric mode is
indicated by 123 in the upper left corner of the display.
To enter a character, press the key labeled with the character you want;
press once for the first character, twice for the second and so on.
The available characters, depending on the display language chosen
(see page 52), are:
• To switch between upper case and lower case, press quickly.
• To insert a number, press and hold the corresponding number key.
Or, press and hold to switch to number mode. To switch back
to alpha mode, press and hold again.
• To insert a space, press (only works in alpha mode).
• Pressing brings up a list of special characters. Scroll to the
desired character and press the roller to select the highlighted
character.
TIP: When entering names in phone book, the phone uses title case, which
automatically writes the first character of a name in upper case and
the rest of the name in lower case. When writing a text message or
other text, the phone uses sentence case, which automatically writes
the first character of each sentence in upper case.
KEY CHARACTERS KEY CHARACTERS
1. , ? ! - & 1 6 M N O 6 Ö Ô Ñ Ò Ó Ø
2 A B C 2 Ä À Á Â Ç Ã Æ 7 P Q R S 7 $ ß
3 D E F 3 È É Ë Ê 8 T U V 8 Ü Ù Û Ú
4 G H I 4 Î Ï Ì Í Ð Ý 9 W X Y Z 9
5 J K L 5 £ 0 space, 0
[ 25 ]
Phone book
7. Phone book
You can save up to 1000 entries (names and
associated numbers) in your phone’s phone book.
In addition, your phone book is capable of storing
multiple numbers for each name (fax, business,
mobile, etc.), as well as text information (postal
address, e-mail address, etc.).
Note: For more information on saving multiple numbers per name,
as well as other information, see page 45.
• Saving names and numbers
Saving names and numbers
There are several ways to save names and numbers in your phone book.
To quickly save a number and name (Quick Save):
1. Enter the phone number using the keypad.
2. Press the left selection key twice (Options - Save).
3. Enter a name and press OK.
4. Press Done to return to the Start screen.
TIP: Pressing and holding the Options selection key for 2 seconds after
entering the number will store the number only.
Saving via the phone book menu
1. Press Names.
2. Scroll to Add entry and press Select.
3. Enter the name and press OK.
4. Enter the area code (as necessary) and phone number, and press OK.
[ 26 ]
• Working with the phone book
Using the phone book
•Press
Names, scroll to the desired function (for example, Add entry or
Find) and press the roller.
Accessing your list of saved names and numbers
• At the Start screen, press the roller. The Names list will be displayed.
TIP: You can also access the phone book by pressing Names, then select
List names from the sub-menu.
Making a call from the phone book
Making a call from the phone book can come in handy when you want to
make a call with the slide closed.
1. Press Names, then select List names (or press the roller).
2. Scroll to the desired name.
3. Press and hold the roller to call the highlighted name.
If there is more than one number saved under the name:
1. Scroll to the desired name, and press the roller.
2. Scroll to the desired number; press and hold the roller to dial the call.
Note: For more information on saving multiple numbers per name, see
"Multiple numbers per phone book entry" on page 45.
• Phone book menus
• List names
• Find
• Add entry
• Edit
• Erase
- One by one
- Erase all
[ 27 ]
Phone book
• Add number
• Options
- Phone book view
- Memory status
• 1-touch dialing
• Caller groups
- Family
Rename group
Group ringing tone
Group graphic
Group members
- VIP (same sub-menus as Family)
- Friends (same sub-menus as Family)
- Business (same sub-menus as Family)
- Other (same sub-menus as Family)
• Voice tags
• Organizing the phone book
Editing a name and number
You can easily edit the name of a phone book entry, as well as the number
or numbers assigned to that entry.
1. Recall the phone book entry you want to edit and press Options.
2. Select Edit name.
3. Edit the name and press OK, then select the number you wish to edit
and press Options.
4. Scroll to Edit number and press Select.
5. Edit the number and press OK.
TIP: If you have other text information saved with this Phone book entry,
highlight the entry and use Edit text to edit postal or E-mail address,
or to edit the text note you have saved under a name.
[ 28 ]
Erasing a phone book entry
You can remove a phone book entry (name and phone number(s)) from the
phone book one by one or erase the entire contents of your phone book.
Erasing a phone book entry
1. Press the roller, scroll to the phone book entry to erase, and press
Options.
2. Scroll to Erase name and press Select.
3. Press OK to confirm your choice.
Note: All details (including multiple numbers and any text information)
will be erased when using this option, and cannot be undone.
Erasing all phone book entries
1. At the Start screen, press Names.
2. Scroll to Erase and press the roller.
3. Scroll to Erase all and press the roller.
4. Press OK to confirm your selection, enter your security code, then
press OK to complete the process.
Note: Once all names and numbers have been erased, they cannot be
recovered.
[ 29 ]
Call log
8. Call log
Your phone keeps a log (record) of call-related information including the
phone number of the other party. Calls are classified as missed (unanswered),
received (answered), or dialed (either via the phone book or numbers
entered from the keypad). In addition, the call log can record:
•The
duration (elapsed time) of the last call.
•The
date and time when the call was connected.
For this feature to work properly
• you must have a subscription to Caller ID service.
• your phone was turned on and in a digital service area when the party
placed the call.
• the caller did not choose to block Caller ID.
• the phone’s time and date must be set.
Note: If the incoming call has caller ID blocked, the number cannot be
recorded in the call log. For example, if you miss a call whose caller
ID is blocked, pressing List at the missed call message will cause
the message No new numbers to be displayed, then present the
most recent call whose caller ID was available.
Viewing call-related information
Your phone records information about the 10 most recent missed, received,
and dialed calls (10 entries for each type of call). To view call log entries:
1. Press Menu 2 (Call log).
2. Scroll to the type of call for which you want to view call-related
information (Missed calls, Received calls, or Dialed calls), then press
Select.
3. If a phone book entry or phone number is displayed:
• press to dial the number, or
•press
Options to view the associated details of the call or work with
the number.
[ 30 ]
Note: If the call log is empty, No numbers is displayed.
TIP: You can also access the last 10 dialed numbers by pressing
then use the roller to scroll through the list. Press and hold the roller
to redial the number, or press Options to work with the entry.
Call-related information options
The following options are available for call log entries:
•Call - Redials the number displayed.
•Call time - Displays the date and time when the call was first
connected (if clock has been set).
•Edit number - Allows you to edit the number in the call log.
•Save - Allows you to quickly add the number to your phone book
•Add to phone book - Allows you to save the number to an existing
phone book entry.
•Erase - Erases the number from the call list (does not erase the
number from your phone book, if it exists there)
•View number - When log entry matches a number in your phone book,
this option permits you to view the number associated with the phone
book entry (this option appears only if the number is stored in the
phone book and a name is associated with it).
Press the Options selection key to view any of the above options for an
entry in the call log.
Clear call lists
This feature allows you to clear numbers from any one of the call lists, or
all call lists simultaneously. To clear the call list(s):
1. Press Menu 2-4 (Call log - Clear call lists).
2. Scroll to All calls, Missed calls, Dialed calls, or Received calls, and
press OK (All calls will clear all call lists, while the others clear their
respective call lists).
IMPORTANT: You cannot undo this operation.
[ 31 ]
Call log
Note: When the Dialed calls list is cleared, it includes the shortcut to this
list accessed when you press and roll with the roller.
• Other call log options
Call timers
This menu feature is used to display the call duration of the Last call
placed, and All calls made since the phone was reset by the user. The Life
timer displays duration of all calls for the life of the phone (and cannot
be reset).
The phone can also display the call timer for the current call while in a
call; when the call is completed, the timer displays the final call length.
Press to clear the timer from the display.
To display/hide current call timer:
1. Press Menu 2-5-1 (Call log-Call timers-Last call); press Details
(or wait 2 seconds).
2. Press Select; scroll to either On or Off, and press OK.
Clear call timers
This feature clears all call timers (except for the life timer) for your phone.
Note: This action cannot be undone.
To clear all call timers:
1. Press Menu 2-5-4 (Call log - Call timers - Clear timers).
2. Press OK (or wait 3 seconds).
3. Enter your security code (see page 58), and press OK to clear timers.
[ 32 ]
9. Voice messages
Voice Mail is a feature that enables those who
call you to leave a voice message, in the event
you are unable to answer your phone. Using
your phone in conjunction with your service
provider’s voice mail system, you can retrieve
your messages at any time.
When you receive a voice message, New voice
message will appear on the display (along with the icon), and you’ll
hear a short beep. If you’ve received more than one message, your phone
will indicate the number of new voice messages received.
Setting up your voice mailbox
Before you can retrieve any voice messages, you need to store your voice
mailbox number in your phone. If your service provider has not already
done this for you, they should provide you with information needed to
access your voicemail.
To store your voice mailbox number:
•Press
Menu 1-4-2. Enter your voice mailbox number and press OK.
(This number can be up to 32 digits long).
Greetings, passwords, and prompts
These may vary in different wireless systems. Your service provider should
have provided you with information regarding how to record your greeting
or how to store your password, in addition to information on how to listen
to voice messages (once you’ve connected to your voice mailbox).
Listening to your voice messages
If New voice message is displayed, just press Listen and follow the
prompts. If you’d rather listen to your messages later, press Exit.
You can listen to messages anytime if you press and hold (or press
, then press ); Calling voice mailbox will appear on the display.
Or if you prefer, you can access your voice mailbox by pressing Menu 1-4-1.
[ 33 ]
Profiles
10. Profiles
Your phone has various ways of notifying you
of incoming calls, voice and text messages,
reminders and warnings. The various settings
relating to the audible, visible and vibrating
alerts are stored as "profiles" in your phone.
These profiles can be recalled quickly, based
on the setting or environment in which you
find yourself.
The following customizable profiles are available: Normal, Silent, Meeting,
Outdoor, and Pager.
In addition, your phone has special profiles that are recalled when you
plug in the optional headset, use the optional car kit, or use the hands free
desktop charging stand (Headset and Hands free). Connecting your
phone to these devices automatically enables these profiles.
Normal is the default setting. However, you can switch to another profile
as described in the next section.
For more information on customizing a profile, see “Customizing a profile”
on page 50.
• Selecting another profile
1. At the Start screen, press the key momentarily.
2. Scroll to the profile to that you want to use.
3. Press the Navi roller to select the profile.
Note: Use the Silent profile to silence the ringer on your phone.
TIP: You can also access the profiles list by pressing Menu, scrolling to
the Profiles menu, then pressing the Navi roller.
[ 34 ]
11. Advanced calling features
Once you have familiarized yourself with the basic features of your phone,
you may want to consider the following features to increase your
productivity and enhance your calling experience.
• Exploring the In-call menu options
Your phone provides you with a number of features and options while you
are in a call. Press the Options selection key while in a call to display the
following in-call menu options:
The following can be performed while a call is active:
Send touch tones
When you press the keys during a call, your phone generates sounds known
as touch tones. Use touch tones to access many automated, over-the-phone
services such as voice mail, checking airline arrival/departure times, and
bank balances. You must be on an active call to send touch tones.
Choice What it does
Send touch
tones
Sends a series of touch tones (either stored in the phone book,
or entered from the keypad).
Send flash Sends a flash command to the network (either stored in the
phone book, or entered from the keypad).
New call Allows you to initiate a new call for 3-way calling.
End all calls Ends all active calls (mainly for call-waiting/3-way calling).
Phone book Allows you to access your phone book and all related menus.
Menu Used to access your phone’s menu.
Mute Used to mute the phone’s microphone.
[ 35 ]
Advanced calling features
To send a series of touch-tones to the wireless system:
1. While in a call, press Options.
2. Select Send touch tones
3. Enter the string of touch tones to be sent via the keypad and press
Tones, OR:
Press Find, select the appropriate touch tone string saved in your
phone book, press Select, then press Tones.
Note: Touch tones are sometimes referred to as DTMF tones.
Send flash
This option allows you to send various types of commands to the wireless
network (for example, transferring a call to another number). Consult your
service provider for more information on how to use this feature.
End all calls
This option allows you to end all active and waiting calls simultaneously.
Pressing the key during a 3-way call also ends all calls.
New call
This option is used to initiate a 3rd call for 3-way calling. Select this
option, enter the new phone number, then press Call. Press to
connect the new call to the call already in progress.
Accessing Phone book and Menu
Use these 2 options to access your phone book, or the phone’s menus.
After selecting either of these 2 options from the in call menu, use the
Phone book or phone’s menus as you normally would.
Note: Not all of the Menus and Phone book options are available during
a call (for example you cannot add a voice tag to a number while
you have an active call).
[ 36 ]
Muting/unmuting the microphone
You can mute and unmute your phone’s microphone while a call is in
progress. When your microphone is muted, you can still hear the other caller.
1. Press Options.
2. Scroll to Mute, then press Select.
3. To unmute the microphone, press Unmute.
4. Muting and unmuting also affects the microphones of any accessories
connected to the phone.
Anykey answer
When this feature is turned on, you can answer an incoming call by briefly
pressing any key (while the sliding cover is open) except the Silent
selection key, or .
To enable/disable Anykey answer:
1. Press Menu 4-2-1 (Settings - Call settings - Anykey answer)
2. Scroll to either Off or On, and press Select.
• Caller ID
This is a network service that helps identify incoming calls. Contact your
service provider for details and availability.
When Caller ID is active, your phone may display the caller’s phone number.
The caller’s name may also display if their name and number has been
stored in the phone book or if the wireless network supports it.
Call-caller ID unavailable will display when the wireless network doesn’t
recognize the calling number. Also, Call-caller ID blocked may display if
the calling party has blocked caller ID.
Note: If you have stored a number more than once in your phone book,
and that number is stored each time with a different name, then
a name will not appear when someone calls from that number.
See “Phone book” on page 25 for details on your phone book.
[ 37 ]
Advanced calling features
• Call forwarding
This network service allows you to forward your incoming calls to another
number (for example, your home or office phone number). Contact your
service provider for more details, and for the proper activation codes.
You can select one of the following forwarding modes:
•Forward all calls - all voice calls are forwarded and no ringing tone is
played at an incoming call.
•Forward calls if number busy - voice calls are forwarded when your
number is busy.
•Forward calls if not answered - voice calls are forwarded when you
don’t answer a call within the preset time-out.
•Forward calls if out of reach or phone is off - voice calls are
forwarded when your phone is switched off or outside of the network
service area.
•Cancel all call forwarding - all call forwarding options are cancelled.
For each of the above modes you can select Activate (turns forwarding
on if allowed by the network) and Cancel (turns forwarding off). For more
information on activating this service, see “Network feature setting” on
page 91, and “Call forwarding” on page 91.
• Call waiting
This network service lets you receive an incoming call when you’re already
in a call. (Contact your service provider for availability.) The phone beeps
to let you know of the incoming call.
To answering a waiting call:
Press the key (or the Answer selection key) to automatically place
the current active call on hold and answer the new call.
[ 38 ]
To reject a waiting call
Either let the phone ring, or press the Quit selection key.
To switch between the 2 calls
•Press
To end the active call
Simply allow the other party to hang up; the call on hold then becomes
the active call. OR:
1. Press while in the active call.
2. The network will cause the call on hold to call your phone. Answer this
as you would any normal incoming call.
• Send own caller ID with next call
This feature allows you to block caller ID when you call someone (your
number will not be displayed on their caller ID). This feature works on a
per-call basis. Contact your service provider for more details.
Note: This feature is only effective when calling to a number that is
equipped with Caller ID.
Note: This feature is available only when supported by the wireless
network, and may not function if you are roaming.
For more information on activating and using this service, see “Network
feature setting” on page 91, and “Send own caller ID when calling” on
page 93.
• 3-way conference calls
This network service allows you to talk to two people at the same time.
Note: Check with your service provider to make sure this service is
available in your network.
1. Make a call to the first participant as usual.
[ 39 ]
Advanced calling features
2. When you’re ready to place a call to the third party, enter the number
and press .
3. Press again to connect both parties.
4. To end the call, press . This will disconnect both parties. If you
only wish to disconnect with one party, have the other party terminate
the call on his/her end.
TIP: You can also dial the third party from the phone book. While in the
call, press Options, scroll to Phone book. Press the roller twice. Scroll
to the desired entry and press the roller. Scroll to the desired number
(if necessary), then press and hold the roller to dial the call.
Placing one of the parties on hold
While all three parties are connected, pressing the key places the
2nd party to join on hold. Pressing a third time returns the 2nd
party to the conversation while putting the 1st party on hold.
Note: Once you place one of the parties on hold, you are unable to rejoin
all three parties in the conference call.
• Automatic redial
When this feature is turned on, your phone will make up to four attempts
to connect the call after an unsuccessful call attempt.
To enable automatic redial:
1. Press Menu 4-2-2 (Settings - Call settings - Automatic redial).
2. Highlight On, then press Select.
• Calling card
If you wish to use a calling card for long
distance calls, you must first save your calling
card information into your phone. Your phone
is equipped to handle up to 4 calling cards.
Calling card
Call settings
Back
None
Select
5
[ 40 ]
Saving calling card information
1. Press Menu 4-2-5.
2. Scroll to the calling card you want to edit, then press Options.
3. Scroll to Edit, then press OK.
4. Enter your security code (see page 58), then press OK.
5. At Dialing sequence, press Select. Scroll to the dialing sequence your
card uses, then press Select.
6. Enter access number (usually the 1-800 number listed on the back of
the calling card), then press OK.
7. Enter your card number and/or PIN, then press OK. Your phone
displays Save changes? Press OK.
8. Scroll to Card name, then press Select. Enter the card name using
your phone’s keypad, then press OK.
Note: This procedure might not work with all calling cards. Please look
at the back of your calling card or contact your long distance
company for more information.
Dialing sequence Use for cards that
require you to:
Cards using this
sequence
Access number
+ phone number
+ card number
Dial 1-800 access number, then
phone number, then card
number (+ PIN if required)
MCI, AT&T True
Choice, Sprint
Canada, Unitel
Access number
+ card number
+ phone number
Dial 1-800 access number, then
card number (+ PIN if required),
then phone number
networkMCI,
WorldPhone
MCI, AT&T
Prefix
+ phone number
+ card number
Dial the prefix (any numbers
that must precede the phone
number) and phone number you
want to dial, then card number
(+ PIN if required)
GTE, PacBell,
AT&T, Stentor
[ 41 ]
Advanced calling features
Choosing a calling card to use
Use Menu 4-2-5 to select a calling card to use. You will be required to
enter your security code.
Making calling card calls
After you have saved your calling card information in your phone, you can
make a call using your calling card.
1. Enter the phone number, including any prefix (such as 0 or 1) that your
calling card may require when you make a calling card call. See your
calling card for instructions.
2. Press and hold for a few seconds until your phone displays Card
call.
3. Your phone displays Wait for tone, then press OK. When you hear
the tone or system message, press OK.
4. Your phone displays Wait for tone, press OK again. When you hear
the tone or system message, press OK.
• Voice dialing
You can dial up to 10 of your phone book’s stored numbers using the voice
dialing feature. Before you can place a call using voice dialing, you must
first assign a voice "tag" to the number.
Assigning a voice tag to a phone number
You can create a voice "tag" (such as a person’s name), for up to 10 phone
book entries, then dial the number using the Voice dialing feature (see
“Dialing a number using voice dialing” on page 43).
Assigning a voice tag to an entry
1. At the Start screen, press the roller. Scroll to the desired phone book
entry, and press the roller.
2. Highlight the phone number to which you want to add a voice tag and
press Options.
[ 42 ]
3. Scroll to Add voice tag and press Select. (The phone displays Press
Start, then speak after the tone).
4. Press Start, and after the tone, speak the voice tag clearly into the
phone’s microphone.
Note: If recording is not successful, your phone asks if you want to try
again.
Press Yes to try again or Quit to exit.
The message Voice tag saved is displayed upon completion of the recording
process. The icon next to a phone number denotes that a voice tag
exists for this number.
Important notes about voice tags:
• The voice tag can be no longer than 2 seconds in length.
• The voice tag is replayed immediately after recording as confirmation.
•The recording process stops automatically; pressing
Quit
aborts the
recording attempt.
• For best results, choose a quiet location when creating the voice tag
(avoiding those areas with background noise).
•Unique tags are recognized more accurately. Consider using first and last
name, or first name, last name, and number type (e.g. mobile, home,
work, etc.) when tagging a number. For example, "
John Smith, work
."
• Avoid pauses or silence as you record the voice tag.
•If the voice tag memory is full, the phone displays
Erase an existing
voice tag?
If so, press
OK
, scroll to locate a tag to erase, then press
Erase
.
• Deleting a phone number erases any associated voice tags.
Warning! Do not use a voice tag for dialing emergency numbers. In
emergencies, stress causes changes in your voice, which may keep the
phone from recognizing your voice command.
[ 43 ]
Advanced calling features
Dialing a number using voice dialing
1. At the Start screen, press and hold the Names selection key for 2
seconds. A tone is heard and Please speak now is displayed.
2. After the tone, clearly speak the voice tag that you recorded
previously into the microphone.
Note: If the voice tag is not recognized by the phone (or if you fail to
speak a tag within 3 seconds after the tone), the message
Name not recognized will be displayed, and then you are
returned to the Start screen.
3. When the voice tag is recognized:
• the phone book entry will be displayed on the screen for 3 seconds
AND
• the voice tag is replayed (via the earpiece).
• After 3 seconds, the number is dialed.
TIP: When the headset is connected, pressing the headset button
momentarily at the Start screen has the same effect as pressing
Names for 2 seconds. The alert tones will play through the headset.
Speak the voice tag into the headset microphone. The voice tag will
playback through the headset to confirm your choice.
Working with an existing voice tag
You can listen to an existing voice tag (in case you forgot what you
recorded), re-record a voice tag, or erase an existing tag.
1. At the Start screen, press the Names selection key. Scroll to Voice
tags and press the roller.
Note: This option displays a list of only those names/numbers that
have been assigned a voice tag.
2. Scroll to the phone number whose voice tag you want to edit, then
press Options.
3. Scroll to either Playback, Change, or Erase, and press the roller.
Note: If you chose Change, press Start to begin re-recording. The new
tag that is recorded replaces the old information.
[ 44 ]
• 1-touch dialing
When a phone number is assigned to one of the number keys (2 to 9), you
can call the phone number in either of the following ways:
• Press the corresponding number key (2 to 9) and press .
• If the menu function 1-touch dialing is turned on (Menu 4-2-3), press
and hold the corresponding number key until the call is started.
Note: is pre-assigned to dial your voice mailbox number.
Setting up 1-touch dialing
If you want to assign a number to one of the number keys (2-8), do the
following:
1. Press Names.
2. Scroll to 1-touch dialing and press the roller.
3. Scroll to the desired number key (key 2 to key 9), and press Assign.
Note: If a phone number is already assigned to a key, the phone book
entry name is displayed and the left selection key is Options.
4. Enter the phone number manually, or press Find to locate a phone
book entry.
5. Select the desired name or entry from the phone book. If more than 1
number is stored for that entry, scroll to the desired number and press
Select.
1-touch dialing options
You can change or erase (clear) numbers assigned to 1-touch dialing, view
the number assigned to a key, or call from the 1-touch dialing menu.
1. Press Names.
2. Scroll to 1-touch dialing and press the roller.
3. Scroll to the desired number key (key 2 to key 9), and press Options.
4. Scroll to either Call, Change, Erase, or View number and press Select.
[ 45 ]
Advanced calling features
• Phone book enhancements
Multiple numbers per phone book entry
The phone’s internal phone book allows you to
store multiple phone numbers per name, as well as
an e-mail address, street address, and text notes.
You can store up to 5 numbers per name. The first
number saved under a name is automatically set as
the primary number for the name. For more
information on primary numbers, see “Primary number” on page 46.
Adding a new number to a name
1. From the Start screen, press the roller. Scroll to the phone book entry
you want to edit, and press Options.
2. Scroll to Add number, and press the roller.
3. Scroll to General, Mobile, Home, Work, or Fax, and press the roller.
Note: You can later change the number type by using the Change
Type option in the option list.
4. Enter the number and press OK to save it.
Editing a number
1. From the Start screen, press the roller. Scroll to the phone book entry
you want to edit, and press the roller.
2. Scroll to the number you wish to edit and press the roller.
3. Scroll to Edit number and press the roller.
4. After making changes to the number, press OK.
Erasing a number
1. From the Start screen, press the roller. Scroll to the phone book entry
you want to edit, and press the roller
2. Scroll to the number you wish to erase and press the roller.
3. Scroll to Erase number and press the roller.
[ 46 ]
4. Press OK to confirm your choice.
Warning! Once an entry is erased, it cannot be recovered.
Primary number
The first number stored with a name is designated as the "primary number,"
and is the number dialed when pressing and holding the roller on the
selected name/phone book entry.
If you have multiple numbers stored in a phone book entry, you can
designate any of the other numbers as the primary number:
1. From the Start screen, press the roller. Scroll to the phone book entry
you want to edit, and press the roller.
2. Highlight the number you wish to designate as the primary number
and press the roller.
3. Scroll to Set as primary no. and press the roller.
Note: The primary number is always the first number displayed when
viewing the details of a phone book entry.
Changing a number type
When you add a new number to an existing phone book entry, you can
specify what type of number you are entering at that time (General,
Mobile, Home, Work, or Fax).
If you need to change the number type:
1. At the Start screen, press the roller. Select the
phone book entry to edit, and press the roller.
2. Press Options. Scroll to Change type and
press the roller.
3. Scroll and highlight the new number type.
Press the roller to confirm your new selection.
[ 47 ]
Advanced calling features
Saving text information
You can store text information (such as E-mail address, postal address, or
a personal note) with each phone book entry.
Adding a text item to a name
1. From the Start screen, press the roller. Scroll to the phone book entry
you want to edit, and press Options.
2. Scroll to Add text and press the roller.
3. Scroll to either E-mail, Address, or Note, and press the roller.
4. Enter the text (for example, an e-mail address), then press OK.
Note: You may not be able to save multiple e-mail addresses, postal
addresses or text notes, due to your phone book’s memory.
Searching the phone book
1. Press Names, scroll to Find and press the roller.
2. Enter the first character(s) of the name you
want to find and press Find.
3. Scroll to the correct name and press the roller
to view phone number(s).
Quick Find: At the Start Screen, press the roller and enter the first few
character(s) of the desired name. Scroll to the desired entry and press the
roller to view the phone number(s) or other details.
Phone book scroll view
You can change the way you view the phone book’s information from the
default Names list (showing an alphabetized list of entries) to Name and
number (displays the name and the primary number).
To change the phone book’s scrolling view:
1. At the Start screen, press Names.
2. Scroll to Options and press the roller.
[ 48 ]
3. Select Phone book view.
4. Scroll to select the desired view and press the roller.
• Caller groups
You can set the phone to sound a specific ringing tone and flash a graphic
(picture) on the display when you receive a call from a particular name
and phone number. To do this, first include the name and number in the
desired caller group. Then, select a ringing tone and graphic for this group.
Note: You can set the phone to ring only upon calls from names and
numbers that belong to a specific caller group. See “Advanced
calling features” on page 34.
Adding a name and phone number to a caller group
1. Once you have recalled the desired name and number from the phone
book, press Options.
2. Scroll to Caller groups, and press the roller.
3. Scroll to the desired caller group (for example Family), and press the
roller.
Setting a ringing tone and graphic for a caller group
1. Press Names.
2. Scroll to Caller groups and press the roller.
3. Scroll to one of the caller groups and press the roller.
4. Scroll to one of the following functions and press the roller.
•Rename group
Enter the new name for the caller group and press OK.
•Group ringing tone
Scroll to the desired tone and press OK. Default is the tone selected
for the currently selected profile.
[ 49 ]
Advanced calling features
•Group graphic
Scroll to On, Off, View graphic, Send graphic (sent via SMS), and
press OK.
•Group Members
Press Select to view group members. To add or remove a member,
press Options, then select Add name or Remove name.
5. If you selected Send graphic (sent via SMS), enter the recipient’s
phone number or recall it from phone book and press OK.
Note: You can also receive graphics via SMS. Once you receive a new
graphic, scroll to View graphic or Save graphic and press OK.
If you selected Save graphic, select the desired caller group and
press OK.
•Memory status
You can check what percentage of the phone’s internal memory is in use
and how much memory is still unoccupied.
1. Press Names.
2. Scroll to Options and press the roller.
3. Scroll to Memory status and press the roller.
The bar graph displayed is a visual representation of the percentage of the
phone’s memory that is in use vs. available memory. The actual percentage
of free and used memory is also displayed numerically.
[ 50 ]
12. Customize your phone
• Customizing the Navi roller
Pressing the roller at the Start screen activates the Roller menu. As a
default, the Roller menu provides access to your phone book. You can
change the Roller menu to provide access to any of the following optional
menus:
Quick Menu (allows you quick access to Messages, Calendar, To-do list,
Profiles, Settings, Phone book, and Full menu), 1-touch dialing, and the
Profiles menu.
Changing roller function
1. At the Start screen, press Menu 4-3-4, then press Select (or wait for
3 seconds).
2. Scroll to the desired menu and press Select (or press the roller).
• Working with profiles
Even though your phone comes pre-configured with many different profiles
to match your business and non-business environments, you can modify
the existing profiles to better suit your needs.
Customizing a profile
1. Press once.
2. Scroll to one of the following profiles: Normal
(default), Silent, Meeting, Outdoor, Pager,
Hands free, or Headset and press Options.
Note: If phone is connected to car kit, hands
free desktop charging stand, or headset,
access to profiles is available via the Profiles menu only.
3. Select Customize and press OK.
[ 51 ]
Customize your phone
4. Scroll to the setting you want to customize (for example, Ringing
tone) and press the roller.
5. Scroll to the option you want and press OK.
Settings you can customize
Ringing option
Defines how the phone notifies you of an incoming voice call. The options
are: Ring, Ascending, Ring once, Beep once, and Silent.
Note: If the ringing option is set to Silent, no ringing tone, message alert
tone, keypad tones, warning tones, or game tones will be heard.
Ringing tone
Sets the ringing tone for voice calls. There are 35 to choose from, which
will play as you scroll through the list.
Ringing volume
Sets the volume level for ringing and message alert tones.
Message alert tone
Sets the ringing tone type for text messages.
Keypad tones
Sets the volume level for keypad tones or turns the keypad tones off.
Warning and game tones
Turns warning and game tones on or off. For example, when turned on,
the phone sounds a warning tone when the battery is running out of
power.
Accepted caller groups
Allows you to have the phone alert you only when a member of a selected
calling group is calling.
[ 52 ]
Vibrating alert
If you are using the optional vibrating battery, you can set your phone to
vibrate on an incoming voice call.
Note: The vibrating alert does not work when the phone is connected to
a charger or desktop stand.
Automatic answer (Hands free and Headset profiles only)
Sets the phone to answer an incoming voice call after one ring.
Note: This function can only be used when your phone is connected to a
headset, to the hands free desktop charging stand, or to a car kit
equipped with the ignition sense option, with the ignition on.
Lights (in Hands free profile only)
Turns the display and keypad lights on or off.
Renaming profiles
You can rename any profile except Normal, Hands free, and Headset.
1. Press Menu, scroll with the roller to Profiles and press the roller.
2. Scroll to the profile you want to rename and press Options.
3. Scroll to Rename and press OK.
4. Press and hold Clear to erase the existing name, then enter the new
name and press OK. For information about entering letters, see page 23.
• Display options
Setting the display language
You can use the Language menu (4-3-1) to select the language for your
phone’s display. You can choose from the following languages:
English, French, Spanish, Portuguese, Hebrew, and Russian.
Language setting also affects the time and date formats of the following
functions: Alarm clock (Menu 4-1-1), Clock (Menu 4-1-2) and Calendar
(Menu 8), as well as enables the special character set (for text entry)
unique to the language selected.
[ 53 ]
Customize your phone
Display contrast
To adjust the contrast of the phone’s LCD display, press Menu 4-3-5
(Settings-Phone settings-Display contrast), and use the roller to adjust
the contrast. Press OK to save the new setting.
Displaying the current call timer
The current call timer displays the approximate
running time of the call you are currently on.
To display the current call timer:
1. Press Menu 2-5-1, then press Details
(or wait for 3 seconds).
2. Press Select and scroll to either Off or On.
Press OK to confirm your choice.
During a call, your phone displays the elapsed time of the current call.
Upon completion of the call, the timer will show the final call time.
Pressing the key clears the timer and returns you to the Start screen.
•Clock
Your phone contains a real-time clock that is integrated into other functions
of your phone, as well as can be displayed on the Start screen.
The clock will display the current time and date on the Start screen.
You can also choose to hide the clock if you prefer. See "Displaying or
hiding the clock" on page 54.
Note: Your phone also features an alarm clock. See "Alarm clock" on
page 75 for details.
Setting the time
1. Press Menu 4-1-2 (Settings - Time settings - Clock), and press Select
(or wait 3 seconds).
2. Scroll to Set the time, and press the roller.
[ 54 ]
3. Enter the current time, then press OK (time will appear in hh:mm).
4. Select am or pm and press OK.
Selecting a time format
1. Press Menu 4-1-2 (Settings - Time settings - Clock), and press
Select (or wait 3 seconds).
2. Scroll to Time format, and press the roller.
3. Scroll to either 24-hour or am/pm and press the roller.
Displaying or hiding the clock
1. Press Menu 4-1-2 (Settings - Time settings - Clock), and press
Select (or wait 3 seconds).
2. Depending on the current settings, either Hide clock or Show clock
will be highlighted.
3. Press Select.
•Welcome note
You can use the Welcome note menu (4-3-3) to create a brief message
(up to 44 characters) that displays briefly every time the phone is
switched on.
• Restore factory settings
You can use the Restore factory settings menu (Menu 4 - 6) to restore
your phone back to its original configuration, without affecting the phone
book, language settings or timers.
Note: You will be required to enter your Security code before restoring
the factory settings.
[ 55 ]
Customize your phone
• Disable/enable the active slide
You can disable the active slide feature in the event you don’t wish to
answer or end calls using the slide.
1. Press Menu 4-3-6 (Settings - Phone settings - Slide setting).
2. Press Select. Scroll to Off or On and press the roller.
Note: If you disable the active slide, closing or opening the cover will no
longer activate or deactivate Keyguard. If you wish to use
Keyguard with the active slide deactivated, you must manually
enable and disable keyguard.
[ 56 ]
13. Security settings
• Keypad lock (Keyguard)
With keypad lock (keyguard) you can temporarily lock your phone’s keypad
to prevent the keys from being accidentally pressed (for example, when
the phone is in your pocket or in your purse).
To lock the keypad:
• Close the sliding cover and press Lock Keys.
appears at the top of the display.
To unlock the keypad:
• Open the sliding cover.
If you want to lock the keys without closing the slide, press Menu followed
by (within three seconds). To unlock the keypad, press Unlock
followed by either (within three seconds), or OK.
It is possible to answer a call, even though keyguard is activated (see
“Answering a call” on page 20). When the call has ended, keyguard will
reactivate only if you used the Answer selection key or .
Note: Calls may be possible to the emergency number programmed into
your phone (for example, 911 or other official emergency number).
• Phone lock
This feature protects your phone from unauthorized outgoing calls or
unauthorized access to information stored in the phone. When activated,
Phone locked will be displayed each time you turn your phone on or off.
When you press either Names or Menu, you will be prompted for your lock
code. Once your lock code has been accepted, your phone will function
normally.
Note: Call not allowed will be displayed if you attempt to place a call
while phone is locked.
[ 57 ]
Security settings
Activating and deactivating phone lock
Press Menu 4-4-2-1 (Settings - Security settings - Access codes -
Phone lock). Enter the lock code then press OK. Then scroll to On or Off,
and press OK. Complete the phone lock activation or deactivation by
turning your phone off and back on.
When your phone is locked, calls may be possible to the emergency number
programmed into your phone (e.g. 911 or other official emergency number).
You can also store a number in the Allowed number when phone locked
location, which allows you to call this number even though your phone is
locked (For more details, see “Storing the allowed phone number” on page 57).
Answering a call with phone lock on
Press any key except and .
Allowed number when phone locked
When the phone lock is on, no calls can be made. But if you store a number
in the allowed number location, you can make a call to that number while
the phone is locked.
Storing the allowed phone number
1. Press Menu 4-4-2-2 (Settings - Security settings - Access codes -
Allowed number when phone locked)
2. Enter lock code and press OK
3. Enter phone number at Number: (or press Find and recall the number
from the phone book) and press OK.
Calling the allowed phone number
Note: Your phone must be locked via the phone lock to use this feature.
Roll the roller either up or down. The allowed number will be displayed.
Press to place the call.
[ 58 ]
• Access codes
These codes may only include the characters 0 to 9. The phone prompts
you to enter the current code and the new code. It also prompts you to
verify the new code.
Note: Avoid using access codes similar to the emergency numbers, such
as 911, to prevent accidental dialling of the emergency number.
Security code
Your phone will prompt you for a five digit security code for certain
features. These features can be used only after the correct security code
has been successfully entered.
Note: When entering your security code, ***** will appear on the
display to keep others from viewing your code.
If you make a mistake entering the code, erase the last entered digit by
pressing Clear (or press and hold Clear to delete all the digits on your display).
Then enter the correct code or press Back to exit the current feature.
If you enter an incorrect security code (Code error will appear) five times
in a row, your phone won’t accept any entries for the next five minutes.
Your phone’s default security code is 12345. It’s highly recommended
that you change this code at once, write it down, and store it in a safe
place away from your phone.
Changing your security code
1. Press Menu 4-4-2-3 (Settings - Security settings - Access codes -
Change security code) and press Select.
2. Enter existing (or default) security code and press OK.
3. Enter new 5-digit security code and press OK.
4. Re-enter your new 5-digit security code for verification, and press OK.
5. Phone will display Security code changed.
Note: If you have changed your security code and don’t remember the
new code, contact your service provider. Once you have changed
your security code, the default setting is no longer valid.
[ 59 ]
Security settings
Lock code
You’ll need the lock code to activate and deactivate Phone Lock, or to
change your lock code. The default lock code is 1234. If you enter an
incorrect lock code five times in a row, your phone will prompt you for
the security code (see page 58).
Changing your lock code
In a lock code, only numeric characters are accepted.
1. Enter Menu 4-4-2-4 (Settings - Security settings - Access codes -
Change lock code) and press Select.
2. Enter current (or default) lock code and press OK.
3. Enter new lock code, press OK.
4. Re-enter new lock code for verification, press OK.
Note: When you change your lock code, make sure you store it in a safe
place, away from your phone. Avoid entering access codes similar
to emergency numbers to prevent accidental emergency calls.
• Call restrictions
This feature allows you to restrict incoming and outgoing calls. Outgoing
calls are restricted from a list of restrictions that you create yourself.
Incoming calls are restricted to the All calls option (you cannot create a
list of restrictions for incoming calls).
Restricting outgoing calls
Upon selecting Restrict outgoing calls from the menu, you are presented
with the following options:
•Select allows you to select call restrictions from the outgoing calls list.
Note: This menu option is available only when one restriction has been
enabled.
•Add restriction allows you to create your own list of outgoing call
restrictions.
[ 60 ]
Once you have accessed Add restriction and have added at least one
restriction, the following options will be added to the menu for that
option:
•Edit allows you to edit an existing outgoing call restriction.
•Erase will erase any existing outgoing call restrictions.
Note: When calls are restricted, calls may be possible to the emergency
number programmed into your phone (e.g. 911 or other official
emergency numbers).
Adding outgoing call restrictions
You can add up to 10 restrictions for outgoing calls. The maximum
number of characters you can enter for each restriction is 15.
1. Press Menu 4-4-1 (Settings - Security settings - Call restrictions)
2. Select Restrict outgoing calls.
3. Enter the security code and press OK.
4. Scroll to Add restriction to create an outgoing call restriction and
press OK.
5. Enter the number string you wish to restrict and press OK. For example:
• If you wish to restrict all calls that begin with 1, enter 1
• If you wish to restrict all calls that begin with 1972, enter 1972
• If you wish to restrict all calls that begin with 214, enter 214
• If you wish to enter a name for the call restriction, enter the name
using your phone’s keypad, then press OK. If a name is not entered,
the number that is restricted will appear in place of the name.
Note: When creating a new restriction, that restriction is automatically
selected (enabled) at the time it is saved.
[ 61 ]
Security settings
Selecting call restrictions
1. Press Menu 4-4-1 (Settings - Security
settings - Call restrictions).
2. Scroll to Restrict outgoing calls or Restrict
incoming calls and press Select.
3. Enter the security code and press OK.
4. Scroll to Select and press OK.
5. Scroll to each restriction you wish to use and press Mark; press
Unmark to deactivate existing restrictions.
6. Press Back and then press Yes (when prompted Save changes?).
Editing call restrictions
1. Press Menu 4-4-1 (Settings - Security settings - Call restrictions).
2. Scroll to Restrict outgoing calls and press Select.
3. Enter the security code and press OK.
4. Scroll to Edit and press Select.
5. Scroll to the restriction you wish to edit, press Select.
Note: If no name has been entered for a restriction, the restricted
number will be displayed.
6. Press and hold Clear to erase entire number, then enter the new
characters. Or use the roller to insert additional characters. Press OK
when finished.
7. Edit name if desired using same procedure as above.
Erasing call restrictions
1. Press Menu 4-4-1 (Settings - Security settings - Call restrictions)
2. Scroll to Restrict outgoing calls and press Select.
3. Enter the security code and press OK.
4. Scroll to Erase and press Select.
5. Scroll to the restriction you wish to erase, press Select.
6. Press OK again to erase restriction.
[ 62 ]
14. Text messages
Using the Messages menu (Menu 1) and Short
Message Service (SMS), you can read, write and
send text messages to another phone or to an
e-mail address (if supported by your network).
Note: Text messaging is a network-dependent
feature. You may be required to subscribe to
this service. Please contact your service provider for more
information.
• Reading text messages
When you have received a text message, the indicator and the text:
(#) Message(s) received will appear on the display (where # is the
number of new messages received).
1. Press OK to read the message or press Exit to view it later.
2. While reading the message, press Options to scroll through the list of
message options and press the roller to select the highlighted option.
Reading unread messages later/re-reading messages
From the Messages menu, press Inbox. Scroll to the desired message and
press the roller to read it.
Note: in front of the message header indicates the message has not
been read. in front of the message header indicates you have
already viewed the message.
Message options
The Options sub-menu includes options for reading, erasing, replying,
forwarding, or moving the message to the Archive folder.
• You can also copy the message to your phone’s calendar as a reminder
note by using the Copy to calendar option.
[ 63 ]
Text messages
•The
Use number option captures a phone number that appears in the
text message (or from the phone sending the SMS message) and
provides you with options to Save the number to your phone book,
Add to name (add to existing phone book entry), Send message
(to the number) or Call.
About message memory
Messages are stored in the following locations:
•Inbox - stores new messages and read messages.
•Outbox - saves copies of all sent messages or messages waiting to be
sent (in the event the network is temporarily unavailable).
•Archive - used to file read messages and sent messages for long-term
storage.
A blinking icon indicates the text message memory is full. Before you
can receive, save, or send any new messages, you must delete older
messages from your Inbox, Outbox, or the Archive folder.
Erasing individual text messages
1. Once in the Messages menu, highlight the message you wish to erase
in either the Inbox, Outbox, or Archive.
2. Press Options, scroll to Erase and press Select. Press OK to confirm
your choice.
Erase message options
The Messages menu has an option that allows you to erase the entire
contents of your messages folders as described below:
All messages - erases all messages in all folders; however, unread messages
in the Inbox remain intact.
Inbox - erases all read messages in this folder; unread messages remain
intact.
Outbox - erases all messages in this folder.
Archive - erases all messages in this folder.
[ 64 ]
Erasing messages in the message folders
1. At the Start screen, press Menu 1-5 (Messages - Erase messages).
2. Highlight the folder whose contents you wish erased and press OK.
3. Enter your security code and press OK to complete the erase process.
• Using predictive text input
Your phone offers you a quick way to write text messages via a very highly
compressed database of common words (or "dictionary"). When you use
the keypad to spell a word, predictive text input tries to anticipate the
word you are trying to enter, saving you time when creating messages.
Enabling predictive text input
1. Begin writing a message. Press the Options key after you have entered
the first letter.
2. Scroll to Dictionary and press the roller.
3. Scroll to select the desired dictionary language, and press the roller.
TIP: To quickly enable or disable predictive text input, press and hold the
Options selection key at the text input display.
Note: When predictive text input is in use, the indicator is shown
at the top of the display.
Note: If you decide not to use predictive text input for writing messages,
use the same procedure to select Dictionary off.
Entering text using predictive text input
1. Press each key only once for each letter (unlike traditional text input).
For example, to write ’Nokia’, press 6-6-5-4-2.
Note: Do not pay attention to how the word appears on the display until
you have completed the word.
[ 65 ]
Text messages
2. If the displayed word is correct, press to get a space, then start
writing the next word. If the displayed word is not correct, press
to view other word options. To return to the previous match,
press Previous.
TIP: To view the list of matches, press Options, scroll to Next match, then
press the roller. If there is no matching word, press Insert to enter via
traditional text input. See “Adding a new word to the dictionary” on
page 66.
Inserting numbers
To enter a number, press and hold the desired number key.
If you wish to switch to traditional number input, press and hold the
key. Upon completion of the number entry, press and hold the key again
to return to predictive text entry.
Inserting punctuation symbols and special characters
Press to add a punctuation symbol. The phone tries to predict the
correct symbol. To change the symbol (when the symbols is highlighted),
press repeatedly until the desired symbol appears.
To insert a different symbol or special character, press and hold to
enter the list of special characters. Then scroll to the character you want
to use and press OK.
Deleting characters and words
Press Clear to delete the character to the left of the cursor.
To delete the highlighted word, press first and then press Clear.
When the cursor is between two words, press first and then press
Clear to delete the preceding word.
Changing character case
Press once to change the character case (when the cursor is next
to a word or within a word).
[ 66 ]
Adding a new word to the dictionary
You will be prompted to add a new word to the dictionary (via traditional
text input) if you try to write a word that does not already exist.
1. Press Spell.
Note: You can also access the traditional text input screen by
pressing Options, then selecting Edit word.
2. Enter the word via traditional text input (see page 23) and press Save.
The word is added to the dictionary and to the message you are
writing, and you return to the predictive text input screen.
You can add hundreds of words to the dictionary, depending on the
language used and the length of words added.
Notes:
• The words not included in the dictionary and which you accept (even
accidentally) while in the predictive text input by pressing the roller,
by pressing 0, or by deleting space between two words (thus forming
a compound word), will automatically be saved in the dictionary.
• When the dictionary becomes full, the most recently added word will
replace the oldest word you have previously added.
Writing compound words
Instead of writing the whole compound word at once, you can write its
first part, press the roller to accept it, and write the second part.
TIP: You can also accept the first part of the compound word by first
adding a space (by pressing 0) and then removing the space by
pressing Clear once.
[ 67 ]
Text messages
• Writing and sending
text messages
You can use the Messages menu to create and
send text messages to another mobile phone, or
to an e-mail address. You can also save a draft of
your message in the Archives folder for later use.
TIP: Since SMS limits the number of characters in the message, a
character counter appears in the upper right-hand corner of your
phone’s display.
Writing and sending a text message
1. From the Start screen, press Menu, then press the roller.
2. Scroll to Write message and press the roller.
3. Enter your message. For more information about entering text,see
“Entering characters via the keypad” on page 23, and see “Using
predictive text input” on page 64.
4. To send the message, press Options, and select Send message. Enter
the phone number (or press Find to recall a number from the phone
book) and press Send.
TIP: The Message Options menu includes options for sending, saving, or
erasing the message you are writing.
Writing and sending an e-mail message
1. From the Start screen, press Menu, then press the roller.
2. Scroll to Write e-mail and press the roller.
3. Enter the e-mail address (or press Find to recall an address from the
phone book) and press OK.
4. Enter a subject for your message, then press OK.
Note: The recipient’s e-mail address and message subject appear at
the beginning of the text message.
[ 68 ]
5. Enter your message. For more information about entering text,see
“Entering characters via the keypad” on page 23, and see “Using
predictive text input” on page 64.
6. Press Options, then select Send e-mail.
Note: Please contact your service provider in the event you are
prompted for the e-mail gateway number.
7. Press Send to send the message.
A copy of all sent messages remain in your Outbox. Press Back to return
to the Messages menu, or press to return to the Start screen.
Replying to a message
Your phone allows you to reply to a text message
with either a similar text message, or as an e-mail
message. The origin of the message or the sender’s
wireless network will affect how you reply to the
incoming message.
Note: Check with your service provider to see if mobile originated e-mail
messages are available in your network.
Replying via SMS
1. While viewing a message, press Options.
2. Scroll to Reply and press the roller.
3. Scroll to one of the following reply types and press the roller:
•Empty screen - gives you an empty text buffer.
•Original messages - original message is included in the reply
message.
• One of the standard answer templates (includes the ability to edit
the answer or add additional text). Standard answers include: Yes,
No, OK, Thank you, Congratulations, Happy birthday, I love you
too, Hugs and kisses, Sorry, and Sorry, I’m late.
4. After you write your reply, press Options, and select Send message.
Press Send to send the message to the displayed number.
[ 69 ]
Text messages
Replying via e-mail
1. While viewing a message, press Options.
2. Scroll to Reply as e-mail and press the roller.
3. Scroll to one of the following reply types and press the roller:
•Empty screen - gives you an empty text buffer.
• One of the standard answer templates (includes the ability to edit
the answer or add additional text). Standard answers include: Yes,
No, OK, Thank you, Congratulations, Happy birthday, I love you
too, Hugs and kisses, Sorry, and Sorry, I’m late.
Note: If the incoming e-mail message is improperly formatted, you
may be required to re-enter the e-mail address (or press Find
to recall an address from the phone book), then press OK.
4. Enter a subject for your message, then press OK.
Note: The recipient’s e-mail address and message subject appear at
the beginning of the text message.
5. Enter your message. For more information about entering text, see
“Entering characters via the keypad” on page 23, and see “Using
predictive text input” on page 64.
6. Press Options, then select Send e-mail.
Note: Please contact your service provider in the event you are
prompted for the e-mail gateway number.
7. Press Send to send the message.
A copy of all sent messages remain in your Outbox. Press Back to return
to the Messages menu, or press to return to the Start screen.
Forwarding messages
Use the Forward or Forward as e-mail options to forward incoming
messages to other users.
• After you select Forward, see “Writing and sending a text message” on
page 67 and follow the instructions for completing the message.
[ 70 ]
• After you select Forward as e-mail, see “Writing and sending an e-mail
message” on page 67 and follow the instructions for completing the
message.
Message settings
You can assign several settings to the text messages you create. To access
these options, press Options, scroll to Message settings, then press
Select.
Your choices are:
•Urgent - sends the message as urgent.
•Receipt for read - lets you know when the recipient has read your
message.
•Callback - includes your number in the message so the recipient can
easily call you once they have received your message.
Messages in the Outbox
If you try to send a text message and the network is unavailable, the
outgoing message will be saved in the Outbox.
Viewing the message saved in the Outbox
1. From the Messages menu, scroll to Outbox and press the roller.
2. Scroll to the desired message and press the roller to view it.
3. To resend the message, press Options, select the desired send option
(Send message, Send e-mail), and press Send.
The Outbox Options includes the same options as the Options list for
reading the message; however, Reply is not available.
[ 71 ]
Your personal assistant
15. Your personal assistant
Did you know that your phone can wake you up in the morning, remind
you of meetings, birthdays, and tasks, display the current time, calculate
your tip at dinner, and convert currencies? Your phone has a calendar,
to-do list, clock, alarm clock, calendar, and phone book—everything you
need in a personal digital assistant. Read on to find out more.
• Calendar
You can use the phone’s calendar to record "calendar notes" to remind
you of appointments such as meetings, phone calls, birthdays, or general
reminders. Alarms can also be set to notify you of your appointments or
notes.
Remember! Your phone must be switched on to use this function. Do not
switch on the phone when wireless phone use is prohibited or when it
may cause interference or danger.
Calendar views
Week list
Press Menu, scroll to Calendar, and press View
to view the week list. Use week list to view
your calendar week by week.
Tips:
• You can also access the week list while in
the Day list by pressing Options, scrolling
to View by weeks, and pressing Select.
• In either the day list or week list, you can quickly jump to a certain
date by entering the date via the keypad. For example, if today is
the 9th, and you enter 3, the calendar displays the 3rd day of the
following month.
Picture of
Week View
[ 72 ]
Day list
Press Menu, scroll to Calendar, and press the
roller to access the day list.
Use the Day list to scroll through your
calendar day by day. For each day, the day list
shows the date and the icon for each type of
appointment you have set for the day. See
“Adding a calendar note” on page 73.
Day view
Once in the day list, scroll to the desired day
and press the roller to access the day view.
Day view allows you to scroll through the notes
made for the selected day. The option list for
day view includes the following options: Make
a note, Erase, Edit, Reschedule, Repeat the
current note (every day, every week, biweekly or
every year), and View the current note.
View by weeks returns you to the week list. Go to date is used to jump
to a specific date. You can also Copy the note to another day.
The Send note option provides various options for sending the current
note (via IR, via SMS, or as an SMS text message).
The Settings option allows you to set the date, time, date format, time
format and week format for the calendar. The option Auto erase allows
you to set the phone to automatically delete old notes after a specified
period of time. However, repeat notes (for example, birthday or
anniversary notes) will not be deleted.
Tip: When you are in the day list, day view or week list, you can quickly
go to today’s day view by pressing .
[ 73 ]
Your personal assistant
Note view
Once in the day view, scroll to the desired note and
press the roller to view the details of the
appointment or reminder. Note view allows you to
view the details of the selected note.
The option list for note view include: Make a note,
Erase, Edit, Reschedule, Repeat the current note
(every day, every week, biweekly or every year).
View by weeks returns you to the week list. Go to date is used to jump
to a specific date. You can also Copy the note to another day.
The Send note option provides various options for sending the current
note (via IR, via SMS, or as an SMS text message).
The Settings option allows you to set the date, time, date format, time
format and week format for the calendar. The option Auto erase allows
you to set the phone to automatically delete old notes after a specified
period of time. However, repeat notes (for example, birthday or anniversary
notes) will not be deleted.
Adding a calendar note
1. While in the Day view, scroll to the desired day and press Options.
2. Select Make note.
3. Scroll to one of the following note types and press the roller:
(for information about entering letters and numbers, see page 23)
Note: Predictive text input is not available for this feature.
•Meeting - Enter the note and press OK. Enter the time and press OK.
•Call - Enter the desired phone number (or press Find to recall it
from phone book) and press OK. Enter the time and press OK.
•Birthday - Enter the person’s name (or press Find to recall it from
phone book) and press OK. Enter date of birth and year (optional).
If you enter the year of birth, the note also displays the person’s age.
[ 74 ]
•General note - Enter the note and press OK.
4. Scroll to the desired alarm option and press the roller. If you select
Other, enter the alarm time and press Select.
The presence of an alarm is indicated by when you view the notes.
When the alarm sounds for a note
The phone flashes its lights, beeps, and displays the note. With a Call note
on the display, you can call the displayed number by pressing .
To stop the alarm, press Exit or .
• To-do list
Use this feature to create a to-do list and
prioritize to-do items.
Adding a task
1. Press Menu, scroll to To-do list and press
Add.
2. Enter the subject of the To-do note and press OK. (For information
about entering text, see “Letters and numbers” on page 23 and “Using
predictive text input” on page 64.)
3. Then scroll to the desired priority (1, 2 or 3) and press Select. You can
change the priority later by using the Options menu: Change priority.
Viewing tasks
Once in the To-do list, scroll to an item and
press the roller to view its details.
From the tasks’ Options menu, you can add,
erase or edit the note. There are also options for:
• Viewing the calendar
• Saving the to-do note to the calendar as a day note.
• Sending the note via SMS.
• Turning on/off predictive text (dictionary)
[ 75 ]
Your personal assistant
• Alarm clock
The Alarm clock function of your phone’s clock (Menu 4-1-1) can be set
to sound an alarm at a time you specify.
The alarm clock uses the time format set for the phone clock (12-hour or
24-hour format). The icon, displayed on the Start screen, indicates
that an alarm is set. The alarm clock will work, regardless if the phone is
on or off.
When the alarm sounds
The phone sounds an alert tone. In addition, the text Alarm!, the current
time, a series of animated icons, and the phone’s lights all flash
simultaneously.
Pressing the Stop selection key or the key stops the alarm from
sounding, and returns you to the Start screen.
Snoozing
There are several ways you can enable the Snooze feature:
•Press the Snooze selection key.
• Press any key (except ).
• Allow the alarm to sound for 1 minute.
Once snooze is enabled, the alarm will sound again in five (5) minutes.
If an alarm is set to ring while the phone is switched off, the phone will
turn itself on and sound the alarm. If you press Stop, the text Switch the
phone on? is displayed. Press Yes to place the phone in call mode, or No
to switch off the phone.
Remember! Do not switch on the phone when wireless phone use is
prohibited or when it may cause interference or danger.
[ 76 ]
•Calculator
You can use your phone’s calculator to add, subtract, multiply or divide
numbers and convert currencies.
REMEMBER! Do not switch on the phone when wireless phone use is
prohibited or when it may cause interference or danger.
Using the calculator
1. Press Menu, scroll to Calculator, and press the roller.
2. “0” appears on the screen. Enter the first number in the calculation
(press for decimal point).
3. To add, press once (+ appears); to subtract, press twice
( - ); to multiply, press three times ( * ); to divide, press
four times ( / ).
Note: You can also press Options, scroll to Add, Subtract, Multiply
or Divide and press Select.
4. Enter the second number. Repeat steps 3 and 4 as many times as
necessary.
Note: A subtotal is shown after you enter the next operant (+, -, *, or /).
5. For a total, press Options (or press the roller) twice.
6. To start a new calculation, press and hold Clear for 2 seconds.
Note: This calculator has limited accuracy and rounding errors may
occur, especially in long divisions.
Using calculator for currency conversion
Setting the exchange rate
1. Press Menu, scroll to Calculator, and press the roller.
2. Press Options. Select Exchange rate.
[ 77 ]
Your personal assistant
3. Scroll to How many foreign units to a home unit or How many
home units to a foreign unit (depending on how you wish to convert
the currency), and press Select.
4. Enter the appropriate exchange rate and press OK (use the key
for decimals). Exchange rate is displayed.
Currency conversion
1. Once you have set the exchange rate, enter the amount to be
converted (use to enter a decimal point).
2. Press Options scroll to either In home currency or In foreign
currency, and press OK.
The phone displays the converted amount.
TIP: If you chose How many foreign units to a home unit while saving
the exchange rate, the How many home units to a foreign unit
option is automatically calculated and saved (or vice versa).
• Contact manager
You can use your phone’s internal phone book as a contact manager by
saving a person’s contact information (such as street address, e-mail
address, text notes, etc.) along with their name. See “Saving text
information” on page 47.
[ 78 ]
16. Infrared connections
Use the Infrared menu (Menu 11) to activate
communications between your phone and
other devices through its infrared (IR) port.
To connect via IR, the device with which you
want to connect must be IrDA compliant.
Your Nokia phone is a Class 1 Laser Product.
Note: The preferable distance between the two devices in infrared
connection is a range of 3 inches to three feet maximum. There
must be no obstructions between the two devices and the IR ports
of the two devices have to be pointing at each other.
• Sending and receiving data via IR
Your phone has the ability to send and receive certain types of data via
the infrared port; no additional cable or software is needed.
You can send and receive phone book entries (business cards), and calendar
notes via IR. Transmission/reception must be to/from a compatible phone or
device (for example, another phone, computer or handheld device).
General notes about sending or receiving via IR
1. Ensure that the IR ports of the two devices are pointing at each other.
2. IR must be activated via the IR menu prior to sending or receiving.
3. The user of the sending device selects the desired IR function to start
data transfer.
If data transfer is not started within 2 minutes after the activation of the
IR port, the connection is cancelled and has to be started again.
[ 79 ]
Infrared connections
Checking the status of an IR connection
The status of an IR connection is indicated by .
• When is shown continuously, there is an IR connection between
your phone and the other device.
• When is not shown, no IR connection exists.
• When blinks, your phone is trying to connect to the other device
or the connection has been lost.
Other types of IR connections
You can also establish a 2-way connection between your PC or laptop
computer and your phone via infrared. With this type of connection, your
phone can:
• function as an external modem connected via IR. Use your existing
data software (Dial-up Networking, AOL, etc.) or fax software (WinFax
Pro, HotFax, etc.) to send and receive faxes, connect to the Internet,
or check e-mail. For more information, see the accompanying PC
Connectivity Guide.
• synchronize it’s phone book, calendar, and to-do list with some of the
most popular Personal Information Manager (PIM) programs on the
market (Outlook, ACT!, Lotus Organizer, Gold Mine, etc.). Use the
FoneSync application found on the Nokia CD-ROM in conjunction
with your existing PIM application to keep all of your information
up-to-date.
Transmitting phone book via IR
Your phone can transmit its phone book information using the industry
standard v.card format via it’s infrared (IR) port. "Business cards" (v.cards)
can be sent to another phone, a PC (running the appropriate software) or
other IR-equipped handheld devices (such as Palm™, and Psion Series 5™).
[ 80 ]
Sending a business card to another phone or other device
Note: Make sure that the other phone or device is set to receive data via
its IR port. Please refer to the user guide for the receiving device
for more information on enabling IR communications and receiving
data over IR.
1. Press the roller and scroll to the desired phone book entry. Press the
roller twice.
2. Scroll to Send card via IR (to send phone book entry).
3. Align the infrared ports of both devices, then press the roller.
Receiving a business card from another phone or other device
To receive business cards from another compatible phone, you need to
first enable infrared communications using the Infrared menu (Menu 11).
Then, the user of the other phone or devices sends you a business card as
described above.
Once you have received the name and phone number, press Show. Then
press Options, select Save or Discard, and press OK.
Calendar notes via IR
You can send and receive calendar notes between phones, as well as
between other IR-equipped devices (such as Palm™, and Psion Series 5™).
Note: Make sure that the other phone or device is set to receive data via
its IR port. Please refer to the user guide for the receiving device
for more information on enabling IR communications and receiving
data over IR.
Sending a calendar note to another device
1. Scroll to the day on which the calendar note you wish to send is saved
and press the roller.
2. Scroll (if necessary) and highlight the desired note and press Options.
3. Scroll to Send note and press the roller.
4. Align the infrared ports of both devices
5. Highlight Send via IR and press the roller to initiate data transfer.
[ 81 ]
DLR-3P connections
17. DLR-3P connections
You can establish a 2-way connection between your PC or laptop computer
and your phone via the DLR-3P serial cable. With this type of connection,
your phone can:
• function as an external modem connected via the DLR-3P. Use your
existing data software (Dial-up Networking, AOL, etc.) or fax software
(WinFax Pro, HotFax, etc.) to send and receive faxes, connect to the
Internet, or check E-mail.
• synchronize the phone book, calendar, and to-do list with some of the
most popular Personal Information Manager (PIM) programs on the
market (Outlook, ACT!, Lotus Organizer, Gold Mine, etc.). Use the
FoneSync application found on the Nokia CD-ROM in conjunction
with your existing PIM application to keep all of your information
up-to-date.
For more information on connecting your phone to your PC or laptop via
the DLR-3P, see the accompanying PC Connectivity Guide.
For more information on synchronizing data between your phone and
popular Personal Information Manager (PIM) programs using the DLR-3P,
please refer to the FoneSync Getting Started brochure.
[ 82 ]
18. WAP services
Note: This menu may not be visible if WAP services are unavailable in
your area.
WAP (short for Wireless Application Protocol) is to mobile devices what
WWW (world wide web) is to computers. The mobile community began
developing WAP in 1997 to give mobile device users access to the internet.
Today, most WAP sites are made up of text and hyperlinks, with some sites
capable of text input or selection items in a list. Some pages even contain
low-resolution graphics. Because your service provider and others are free
to design WAP sites as they choose, each site can vary almost as much as
a web page on the Internet.
• Services menu
The Services menu (Menu 10) allows you
to access special Internet content designed
specifically for viewing from your mobile phone.
You can use your phone’s WAP (Wireless
Application Protocol) browser to view news, get
weather reports, check flight times, access financial information, etc.
The browser’s menu allows you to save addresses of WWW services as
bookmarks, so you can return to your favorite web sites quickly and easily.
Note: You may be required to subscribe to these additional services
before you can use the browser. Your service provider may also
need to configure your phone for browsing. Check with your
service provider for more information on this feature.
Important! Internet content received over a secure connection and
stored in your browser's cache can be reused over non-secure
connections. To avoid security issues, empty your browser's
cache after each browsing session.
[ 83 ]
WAP services
• About your service provider
Because the WAP content is specifically designed to be viewed from your
mobile phone, your wireless service provider now also becomes your
"wireless Internet service provider."
Your service provider has created a special home page for you, and configured
your phone to take you directly to this site. There, you will find additional
links to other wireless Web sites, providing a variety of content both
locally, and from around the world.
• Launching the browser
Note: Before you can connect to the Internet, you may be required to
subscribe to this service. Check with your wireless service provider
for more information on WAP services.
From the Start screen, press Menu, scroll to
Services, and press Home. Your phone will
attempt to connect to the wireless Internet.
Note: If your phone displays Check service
settings, it may not be configured to
access the Internet. Please check with
your service provider for wireless Internet
settings and configuration.
Note: Pressing terminates any active browser session and returns
you to the Start screen.
Understanding a WAP web site
While Web sites on the World Wide Web (WWW) are thought of as a
"book" comprised of a group of interlinked pages, WAP web sites can be
thought of as a "deck of interlinked cards."
Some cards are comprised of text and hyperlinks. Other cards may require
user input (entering text or numbers, selecting items from a list, etc.).
Some pages may even contain low-resolution graphic images.
[ 84 ]
Because your service provider (as well as WAP services providers around
the world) are free to employ a variety of programming techniques, each
"card" viewed could contain a variety of elements. The following section
is designed to familiarize you with some of the most common WAP
elements and how to get the most out of your browser.
Understanding and navigating a WAP card
Some of the most common card elements:
•Header line - shows current location.
•Active hyperlink - highlighted and awaiting
action. Press the roller to select the link and
display additional content.
•Hyperlink - used to navigate to other cards
or sites. Scroll to select the link, then click
the roller.
•Text - use the roller to scroll through the
text. Cursor will automatically jump to the
next hyperlink to activate it.
•Selection list - identified by text in
brackets. Click this link to display additional
choices or links.
•Options/Back - Displays a card’s options
menu and/or the browser menu. Back takes
you back to the previous page.
•Data entry field - identified by ellipse in
brackets [...]. This field is used when
specific user input is required (example: city
name, stock symbol, airline name or flight
number, etc.). To edit this field:
[ 85 ]
WAP services
1. Highlight the data entry field and press the
roller.
2. Enter the text requested by the data entry field
(example: Miami) and press OK.
Note: The text you entered on the previous
screen is displayed between the brackets.
3. Scroll to the link that indicates an action based on your text input.
Press the roller.
The browser menu
You can access the browser menu by pressing the Navi roller at the WAP
Services menu.
The following is a list and description of the browser menu items:
•Home - starts a browser session and takes you to your service
provider’s home page.
•Bookmarks - displays a list of all bookmarks saved.
•Settings - displays the browser’s settings menu.
•Go to address - allows you to enter an address of your choosing.
•Clear the cache - used to empty the browser’s temporary memory
location.
Note: Some service providers may have customized the Services menu
structure, placing many of the above selections under a WAP
page’s Options menu. Please contact your service provider for
more information, in the event that any of the above menu options
are unavailable.
Note: For successful browsing, it is suggested that you empty the cache
at the end of each session.
[ 86 ]
The card Options menu
Pressing the Options selection key while browsing a card displays the
following menu:
•Home - takes you back to your home page from the current location.
•Bookmarks - displays a list of all bookmarks saved.
•Edit or Select - allows you to either edit the currently selected
browser element (for example, a checklist or text entry field), or
selects the active (highlighted) hyperlink.
•Go to address - allows you to enter an address of your choosing.
•Use Number - captures a phone number displayed on the card in
order to place a call or add the number to the phone book.
•Empty cache - used to empty the browser’s temporary memory
location.
•Exit - exits the current browser session and returns you to the Start
screen.
Additional menu items
Developers of WAP web sites can also add additional Options menu items
specific to their web site. Often times, these options are actually links to
other decks within the web site. Use the roller to select any of the additional
options; press the roller to view the additional content.
• Bookmarks
You can save the address of your favorite sites
as bookmarks, then use the bookmarks to
return to those sites quickly and easily. If a
site’s programmers have included a title for
the card, then the name of the card will appear
in the list (example: Yahoo! News, ebay on
WAP, Mapquest).
[ 87 ]
WAP services
If there is no title to the card, then the site’s address will appear in
the list of bookmarks (example: http://www.yahoo.com/news.wml,
http://www.ebay.com/WAP/index.wml, http://www.mapquest.com/
default.wml).
To save a site’s address as a bookmark
1. Navigate to the desired site, then press the Options selection key.
2. Scroll to Bookmarks and press the roller.
3. Press the Options selection key.
4. Scroll to Save as bookmark and press Select.
New bookmarks can be added manually, either while off-line, or during
browsing.
To save a bookmark manually
1. From the Services menu, press the roller. Scroll to Bookmarks and
press the roller.
2. Press the Options selection key. Scroll to Add bookmark and press the
roller.
3. Enter the web site address (example: my.yahoo.com) and press OK.
Note: It is not necessary to enter http://. This is added automatically.
4. Enter a title for the new bookmark and press OK.
Working with bookmarks
You can use the bookmarks you save to return to your favorite sites
quickly and easily.
To return to a bookmarked site
From the Services menu:
1. Press the roller. Scroll to Bookmarks and press the roller.
2. Scroll to the desired bookmark and press the roller.
Note: If you are not currently in a browsing session, the phone will
connect to the Internet.
[ 88 ]
Other options
The Bookmarks options menu provides you with several options for using
or manipulating existing bookmarks. From this menu, the following
options are available:
•Add a bookmark - used to add a bookmark manually (while off-line
or while browsing).
•Go to - takes you to the highlighted bookmark from the previous
screen (the equivalent of highlighting a bookmark and pressing the
roller).
•Edit - used to edit the highlighted bookmark from the previous screen.
•Erase - used to erase the highlighted bookmark from the previous
screen.
• Download a ringing tone
You can download up to five ringing tones to your phone from some WAP
sites, sites on the WWW, or through SMS. For more information about
downloading ringing tones, contact your service provider.
Play, save, or erase a ringing tone
Once you’ve downloaded a ringing tone, your phone displays the message
Ringing tone received.
1. Press Options, then choose Playback, Save, or Erase.
2. Press OK.
If you chose to save the new ringing tone, it becomes available to you
when customizing a profile (see “Customizing a profile” on page 50).
[ 89 ]
Games
19. Games
Not only can you use your phone for communication but also for some
serious fun. Your phone offers you four games from which to choose.
•In
Snake II, you are to feed the snake with as many goodies as
possible. The longer the snake’s tail grows, the higher your score.
•In
Rotation, the object is to get all the numbers in sequential order as
you rotate the numbers and move them.
•In
Racket, you will play the traditional game of tennis. Use the roller
to control the racket.
•In
Opposite, try to change your opponent’s pieces into your own color.
Warning! Do not switch on the phone when wireless phone use is
prohibited or when it may cause interference or danger.
Starting a new game
1. Go to the Games menu, scroll to the desired game and press the roller.
2. Select New game.
Use the option Instructions to learn how to play the game. With the
option Level you can choose the difficulty level of the game.
In Snake you can pause the game by pressing either selection key and
then resume a paused game with the option Continue. Use Top score
(available in some games) to check the high score in your phone.
[ 90 ]
20. Network settings
The System and Settings menu are used to change a number of settings
related to how the phone searches for service, and to modify the phone’s
functions and security settings.
• Network selection
Use the System menu (Menu 5) to change how your phone searches for
service. The following options are available:
•Automatic - the phone automatically selects one of the wireless
networks available in your area.
•Manual - the phone will show a list of available networks and you can
select the desired network if this network has a roaming agreement
with your home network operator. Otherwise the text No Access is
displayed and another network must be selected. The phone will stay
in manual mode until the automatic mode is selected, or when phone
is turned off and back on again.
•New search - causes the phone to perform a new search in order to
locate the best wireless service to use in your area.
• Network services
Voice privacy
Use this menu option to enable or disable voice encryption for all calls
(when this service is available)
Own number selection
Use this feature to view your own phone number, or switch between
multiple wireless service accounts (phone numbers) programmed into
your phone. Consult your service provider for more information on using
this feature.
[ 91 ]
Network settings
Network feature setting
This menu allows you to enable or disable various network services
(Call Forwarding, Call Waiting, Send Own Caller ID) through the use
of special feature codes provided to you by your service provider.
You must first store the feature code given to you by your service provider
(unless already pre-programmed) before the feature appears in the menu
or functions properly.
Important! Only those menu features that have been activated will
appear in the menu; therefore the menu shortcuts in the following
sections may not always reflect the actual position in the menu as
described below (or as shown on page 16).
Storing the feature code
1. Press Menu 4-5-3 (Settings - Network services - Network feature
settings), then press Select.
2. Enter the feature code for the desired feature (for example: -
- to activate Call Forwarding, then press Select.
3. To locate the type of Call Forwarding associated with the code, press
Select, or use the Navi roller and scroll to Call waiting or Send own
caller ID when calling, and press Select.
4. Select the command associated with the feature code you wish to
store (Activate, Cancel, Yes or No) and press Select to complete the
process.
Call forwarding
This network service allows you to forward your incoming calls to another
number (for example, your office number). For more information and
feature codes, contact your service provider.
Once you activate this feature by entering the proper feature code, you
can select one of the following forwarding modes: Forward all calls,
Forward calls if number busy, Forward calls if not answered, Forward
calls if out of reach or phone is off, and Cancel all call forwarding. See
“Call forwarding” on page 37 for a description of the features listed above.
[ 92 ]
Forwarding your calls
Once you have stored the appropriate feature code for Call Forwarding
(see “Storing the feature code” on page 91):
1. Press Menu 4-5-4 (Settings - Network services - Call forwarding),
then press Select.
2. Scroll (if necessary) to the Call Forwarding option stored and press
Select.
3. Press Select again and enter the number to which all incoming calls
should be forwarded, or press Find and locate a number already stored
in your phone book.
4. Press Select. Your phone calls the wireless system and sends the
information you just entered. After approximately 5 seconds, the Start
screen will reappear.
Call waiting
This network service lets you receive an incoming call when you’re already
in a call. (Contact your service provider for availability.) The phone beeps
to let you know of the incoming call while you are in an active call. Please
see “Call waiting” on page 37 for details.
If this feature is not automatically available from your service provider,
you may have to activate it through the use of a Network Services feature
code. See “Storing the feature code” on page 91 for instruction on storing
the codes that activate and cancel this feature.
Activating or cancelling Call Waiting
1. Press Menu 4-5-5 (Settings - Network services - Call waiting),
then press Select.
2. Highlight either Activate or Cancel, then press Select.
[ 93 ]
Network settings
Send own caller ID when calling
This feature allows you to block caller ID when you call someone (your
number will not be displayed on their caller ID). This feature works on a
per-call basis. Contact your service provider for more details.
This feature is only effective when calling to a number that is equipped
with Caller ID.
Before you can use this service, you must store the feature code in your
phone. See “Storing the feature code” on page 91. Make sure to store the
code in the No option.
Blocking your own caller ID
1. Press Menu 4-5-6 (Settings - Network services - Send own caller
ID when calling), and press Select.
2. Scroll to No (to block number) and press OK
3. Enter the number you wish to call (or press Find to retrieve the
number from the phone book and press OK), then press Select.
4. Your phone will attempt to call this number with the feature code you
stored in Menu 4-5-6.
Call mode
In certain wireless networks, the Call mode sub-menu option may be
visible under the Settings - Network services menu. The following Call
mode options are available:
•Analog - causes the phone to use an analog channel only. If no analog
channel is available, you will not be able to place a call.
•Digital - causes the phone to use a digital channel only. If no digital
channel is available, you will not be able to place a call.
•Analog & digital - the phone will be able to place calls on both analog
and digital channels (searching for an available digital signal first).
[ 94 ]
Public system setting
In certain wireless networks, the Public system settings sub-menu option
may be visible under the Settings - Network services menu. The
following Public system settings are available:
•Any system - causes the phone to search for and use any available
home type system, followed by non-home type system (in the event
that your service provider’s network is unavailable).
•Home type - causes the phone to use only a home type system (in the
event that your service provider’s network is unavailable).
•Non-home type - causes the phone to use only a non-home type
system (in the event that your service provider’s network is unavailable).
•Home only - causes the phone to use only your service provider’s
network.
Depending on the roaming agreements between service providers, you
may be able to save money by "forcing" your phone to use certain networks
when outside your service provide’s area of coverage. Contact your service
provider for more information on this feature.
[ 95 ]
Accessories
21. Accessories
If you want to enhance your phone’s functionality, an extensive range of
accessories is available for you. You can select any of these items to help
accommodate your specific communication needs. For availability of
these and other accessories, contact your service provider.
A few practical rules for accessory operation:
• Keep all accessories out of reach of small children.
• When you disconnect the power cord of any accessory, grasp and pull
the plug, not the cord.
• Check regularly that any vehicle-installed accessories are mounted and
are operating properly.
• Installation of any complex car accessories must be made by qualified
personnel only.
Note: Use only batteries, chargers and accessories approved by the
phone manufacturer for use with this particular phone model.
The use of any other types may invalidate any approval or warranty
applying to the phone, and may be dangerous.
Note: See “Using batteries and chargers” on page 112. for important
battery usage information.
Note: For availability of approved accessories, please check with your
authorized Nokia dealer.
[ 96 ]
•Batteries
A variety of Nokia battery options are available for your phone. Each
battery provides you with the performance, quality and convenience
you’ve come to expect with your Nokia phone.
Charging Times
The following table shows the battery options that are available for your
phone. The charging times with the Rapid Travel Charger (ACP-8U), the
Rapid Cigarette Lighter Charger (LCH-9), and the Standard Travel Charger
(ACP-7U) are listed beside each option.
Note: The times displayed below are approximate and will allow your
battery to obtain approximately 90% of its capacity. At this time,
the battery scroll bars on your phone’s display will stop scrolling.
To obtain 100% battery capacity for all batteries except BMS-2V,
allow another two hours to “trickle” or “maintenance” charge.
Batteries
Standard
Travel Charger
ACP-7U
Rapid Travel
Charger
ACP-8U
Rapid Cigarette
Lighter Charger
LCH-9
Handsfree
Desktop
Charger
DCH-12K
Ultra Slim Li-Polymer
Battery 600 mAh
(BPS-1) 2h30m 1h30m 1h25m 1h25m
Extended Li-Ion Battery
900 mAh
(BLS-2S/BLS-2N) 4h 2h 2h 2h
Extended NiMH Battery
900 mAh
(BMS-2S) 4h 2h 1h30m 1h30m
Extended NiMH Vibrating
Battery 900 mAh
(BMS-2V) 4h 2h 1h30m 1h30m
Ultra Extended Li-Ion
Battery 1500 mAh
(BLS-4) 5-6h 4h 3h30m 3h30m
[ 97 ]
Accessories
Standby and Talk Times
The times shown in the following table are approximate, and represent a
range for either standby or talk times (not a combination of both). Battery
operation times vary according to signal conditions, network parameters
set by the service provider, and how you use your phone.
Warning! Dispose of used batteries in accordance with any local
regulations.
Please refer to the following table for more information on talk and
standby times in both digital and analog networks:
Battery
Option
Digital
Talk Time
Analog
Talk Time
Standby
Time
Digital Analog
Ultra Slim Li-Polymer
Battery 600 mAh
(BPS-1)
1h to 2h40m 35m to 1h30m 2.5 to 6 days 18h to 30h
Extended Li-Ion Battery
900 mAh
(BLS-2S/BLS-2N)
2h to 4h30m 1h to 2h30m 4 to 10 days 30h to 50h
Extended NiMH Battery
900 mAh
(BMS-2S)
2h to 4h30m 1h to 2h30m 4 to 10 days 30h to 50h
Extended NiMH
Vibrating
Battery 900 mAh
(BMS-2V)
2h to 4h30m 1h to 2h30m 4 to 10 days 30h to 50h
Ultra Extended Li-Ion
Battery 1500 mAh
(BLS-4)
3h to 7h30m 1h40m to 4h 6.5 to 16.5 days 50h to 83h
[ 98 ]
Chargers and Other Accessories
The following chargers and charging accessories are available for your
phone; please see your dealer for details. Also, refer to the accessories
brochure that was included in your sales package for the entire line of
Nokia Original Accessories.
Rapid Travel Charger (ACP-8U)
This lightweight AC charger can be used with all battery
options. Calls can be made during charging, even with a
fully discharged battery.
To use the Rapid Travel Charger (ACP-8U), first plug the
lead with the arrow into the transformer. Twist the lead
1/4 turn to lock it in place. Then connect the lead from
the charger to the base of your phone. Finally, plug the
charger into a standard 120V AC wall outlet.
The charger can also be used together with the optional
Compact Desktop Charging Stand (DCH-8 or DCH-9). Approximate
charging times for discharged batteries are shown at the beginning of this
section.
Standard Travel Charger (ACP-7U)
Use this durable and economical charger to
charge all battery options. Plug the connector into
the bottom of your phone, then plug the charger
into a wall outlet. Check the charging status on
the phone display.
Note: If the battery is completely empty, you
cannot use the phone until it has enough
charge to operate.
The Standard Travel Charger is available for different voltage levels and
can also be used with the DCH-9 Compact Desktop Charging Stand.
[ 99 ]
Accessories
Rapid Cigarette Lighter Charger (LCH-9)
You can charge your phone’s battery
from your vehicle battery by using the
Rapid Cigarette Lighter Charger
(LCH-9).
Calls are possible during charging.
A green light indicates the charger is
ready for charging. The battery charging times are shown at the beginning
of this section.
The input voltage range is from 11 to 32V DC, negative grounding. Avoid
prolonged charging with the Rapid Cigarette Lighter Charger (LCH-9)
when the car engine is not running; this may cause the battery of your car
to drain. Note also that in some cars the cigarette lighter plug is not
provided with electricity if the ignition is not switched on.
Compact Desktop Charging Stand (DCH-9)
Used together with the Standard Travel
Charger (ACP-7U) or the Rapid Travel
Charger (ACP-8U), the Compact Desktop
Charging Stand (DCH-9) is an economical
choice when you need to charge your phone
and/or a spare battery.
With the battery still attached, place your phone in the charging stand to
begin charging your phone’s battery.
Compact Desktop Charging Stand (DCH-8)
Used together with the Standard Travel
Charger (ACP-7U) or the Rapid Travel Charger
(ACP-8U), the Compact Desktop Charging
Stand (DCH-8) is an economical choice when
you need your phone close at hand.
[ 100 ]
Hands-free desktop charging stand kit (DCH-12K)
This hands-free desktop charging stand kit consists of the (DCH-12)
(Handsfree Desktop Charging Stand) and the (ACS-6U) AC Adapter.
The (DCH-12K) provides the same charging times as the (LCH-9) Rapid
Cigarette Lighter Charger, and allows for handsfree usage of the phone via
the stand's built in speaker and microphone. The phone uses the Handsfree
profile when in the charging stand. You can use either voice dialing or use
the Phone book menu to dial a call (as the keypad is not accessible while
in the stand).
[ 101 ]
Troubleshooting
22. Troubleshooting
Problem Possible cause Possible solution
My phone isn’t
charging.
Charger and phone are
not properly connected.
Check connection
between charger and
phone/charger stand
and phone.
Charger is not properly
plugged in.
Make sure charger is
properly plugged into
wall outlet.
My phone isn’t
making/answering
calls.
Battery is not charged. Charge the battery.
Poor signal strength If you are indoors, move
toward a window.
Outside of service area. Change locations until
the phone displays
service available.
I can’t listen to my
voice messages.
You don’t have voice
mail service.
Call your wireless
service provider.
You have not set up
your voice mailbox with
your service provider.
Call your wireless
service provider.
You have not saved your
voice mail number in
your phone.
See page 32.
The voice mail number
you have saved is
incorrect.
Call your wireless
service provider.
You have forgotten your
password or are entering
it incorrectly.
Call your wireless
service provider.
[ 102 ]
My SMS messages
are not being
delivered.
You don’t have SMS
service.
Call your wireless
service provider.
I can’t successfully
tag a phone book
entry.
Excessive background
noise during the
recording process.
Find a quiet location
and try again.
Voice tag memory is
full.
Follow screen prompt to
erase an existing tag,
making room for new
voice tag.
Voice dialing will
not recognize my
voice.
Voice tag was recorded
by someone other than
yourself.
Re-record voice tag
using your voice.
Problem Possible cause Possible solution
[ 103 ]
Frequently Asked Questions (FAQ)
23. Frequently Asked
Questions (FAQ)
This section lists and answers the questions that you most frequently ask.
Where necessary, the answers refer you to the appropriate text within this
guide.
Note: Some of the answers tell you to use menu shortcuts. For a complete
listing of these shortcuts, refer to “List of main menu functions” on
page 16.
Q. How do I lock my phone?
A. Press Menu 4-4-2-1, press Select, enter your lock code, scroll to On,
and press OK.
Refer to “Lock code” on page 59 for more information.
Q. How do I unlock my phone?
A. Press Menu 4-4-2-1, press Select, enter your lock code, scroll to Off,
and press OK.
Refer to “Lock code” on page 59 for more information.
Q. What is my lock code?
A. The lock code enables you to lock your phone, thus preventing someone
else from using it. The default lock code is 1234. However, it is suggested
that you change this code immediately.
Refer to “Lock code” on page 59 for more information.
Q. What is my security code?
A. The default security code is 12345. However, it is suggested that you
change this code immediately. Certain features can be used only after
the correct security code has been successfully entered.
Refer to “Security code” on page 58 and “Changing your security
code” on page 58 for more information.
[ 104 ]
Q. How do I lock the keypad?
A. There are three ways you can lock the keypad:
•Press
Menu, scroll to Keyguard and press the roller.
•Press
Menu followed by .
• Close the slide, then press the Lock keys selection key.
Refer to “Keypad lock (Keyguard)” on page 56 for more information.
Q. How do I unlock the keypad?
A. There are three ways you can unlock the keypad:
•Press
Unlock and OK.
•Press
Unlock, followed by .
• Open the sliding cover.
Refer to “Keypad lock (Keyguard)” on page 56 for more information.
Q. How do I make the ringing louder?
A. Press Menu 3-1-2-3, press Select, then choose a volume level.
Refer to “Ringing volume” on page 51 for more information.
Q. How do I change the ringing tone?
A. Press Menu 3 and scroll through the list of profiles until you find the
one for which you want to set the ringing tone, then press Options.
Highlight Customize and press OK.
Scroll to Ringing tones, then press Select.
Scroll through the options. After you hear the tone you want to use,
press OK.
Refer to “Ringing tone” on page 51 for more information.
Q. How do I store my voice mailbox number?
A. Press Menu 1-4-2, enter your voice mailbox phone number, and press
OK. The screen tells you that the number is saved.
[ 105 ]
Frequently Asked Questions (FAQ)
This voice mailbox number is valid unless your phone number changes.
If your phone number changes, you will have to save a new voice
mailbox number.
Refer to “Setting up your voice mailbox” on page 32 for more information.
Q. How do I call my voice mailbox number (retrieve voice messages)?
When your phone alerts you to new voice messages, press Listen and
follow the prompts. If you’d rather listen to your messages later, press
Exit.
To listen to your voice messages at a later time, perform one of the
following actions:
• Press and hold the key.
• Press Menu 1-2-1. The message Calling voice mailbox appears
on the screen. Follow the prompts to access your messages.
Q. How do I find my phone’s model number?
A. Turn your phone off, then remove the battery from the back of the
phone. Your phone’s model number is printed on the sticker that is on
the rear cover, and is labeled, "Model."
Q. How do I redial the last-dialed number.
A. Press in two quick successions
Refer to “Last number redial” on page 21 for more information.
Q. How do I assign a key to 1-touch dialing?
A. Press Names and scroll to 1-touch dialing.
Press Select.
Scroll to the first number that includes the message (empty) and
press Assign.
Scroll to the name/number to which you want to assign to this key
and press Select.
Repeat these steps as many times as necessary.
Refer to “Setting up 1-touch dialing” on page 44 for more
information.
[ 106 ]
Q. How do I find out how many memory locations the phone has?
A. Press Names and scroll to Options.
Press Select.
Scroll to Memory status and press Select again. A message appears
that says Phone: xx free, xx in use where xx indicates the percent of
memory used.
For more information, refer to “Memory status” on page 49 and
“Technical information” on page 120.
Q. How do I find my phone’s ESN (electronic serial number)?
A. Turn your phone off, then remove the battery from the back of the
phone. Your phone’s ESN number is printed on the sticker that is on
the rear cover, and is labeled, "ESN."
Q. How can I change the contrast of my phone’s display?
A. Press Menu 4-3-5 and press Select. Use the roller to adjust the
contrast, then press OK (or the roller).
For more information, refer to “Network selection” on page 90
Q. How do I clear my call timers?
A. WARNING: The clearing of call timers cannot be undone.
Press Menu 2-5-4 and press OK. Enter your security code and press
OK.
Refer to “Clear call timers” on page 31 for more information.
[ 107 ]
Glossary
24. Glossary
Term: Definition:
analog network A network where the signal is conveyed by varying the
frequency, amplitude or phase of the transmission.
antenna The portion of your phone designed to transmit and
receive the wireless signal.
antenna jack The connector used to attach an external antenna to
your mobile phone (typically used by the CARK-91US
car kit).
battery The source of power for your mobile phone when the
phone is not connected to a charger.
bookmark A way to save a web site address (or URL) to your phone’s
memory. Use bookmarks to store the addresses of your
favorite web sites, then recall them so you can return to
the location quickly and easily.
browser A software program used to view and navigate a portion
of the Internet called the World Wide Web, or Internet
locations developed for the Wireless Application Protocol
(WAP).
data call A call in which your Nokia phone functions as a data/fax
modem, connected to your PC via the DLR-3P cable or
infrared port.
digital network Network where the signal is converted to a digital or
binary code before transmission.
earpiece The portion of your phone that contains the speaker.
Used to play the audio portion of a voice call as well
as any other audible tones (for example: ringing,
warning, etc.)
[ 108 ]
earpiece volume The sound level of the earpiece’s speaker during a call.
E-mail Electronic Mail. A written form of communication in
which text (and other types of information) is transmitted
between recipients electronically via special electronic
mail systems managed by corporations and/or Internet
service providers.
END key Used to terminate an active call or reject an incoming
call. Also used to return to the Start screen from the
phone book or from within the phone’s menu.
ESN Electronic Serial Number. Used by wireless service providers
to identify your phone on the wireless network.
fax call A call in which your Nokia phone functions as a data/fax
modem, connected to your PC via the DLR-3P cable or
infrared port.
home system Refers to the wireless system to which you are subscribed.
home type
system
Refers to the same type of system to which you are
subscribed, but a system that is not your primary home
system.
Internet An elaborate system of interconnected public and private
computer networks around the world, used to provide
access to information and enable communication
between users worldwide.
keypad tones The sound heard when a key on your phone’s keypad is
pressed.
message alert
tone
The sounds that are heard upon receipt of a text or
system message (e.g. call waiting notification) by your
phone.
microphone The electronic element in the base of your phone that
picks up your voice and other sounds.
Term: Definition:
[ 109 ]
Glossary
navigate A term that refers to the act of moving from one Internet
site or page to another, or to the act of moving from one
area of your phone’s memory or menu to another.
non-home type
system
Any system that does not use the same wireless "format"
as your home system.
number keys The numbered keys on your phone’s keypad.
power key A key on the front of the phone that allows you to turn
the phone on or off. This key can also be used to recall
and switch your phone’s profiles.
predictive text
input
A system developed for rapid text entry using your
phone’s keypad.
preferred system Refers to a system that is the same "format" as your
home system, but is not the system to which you have
subscribed.
ringing option Refers to the way your phone plays (or if it plays) a
ringing tone when you have an incoming call.
profile Refers to the various settings relating to your phone’s
audible, visible and vibrating alerts, and the ability to
have multiple configurations to match your location or
environment.
ringing tone The tone or melody that is heard when you have an
incoming call.
ringing volume Refers to the volume of your phone’s ringing tone.
roaming The state of your phone when you are no longer in your
home system. Additional charges may result.
Term: Definition:
[ 110 ]
roller A multi-function key on the front of the phone. Roll the
roller to scroll through your phone’s menus and phone
book. Press the roller to make a selection or to access the
phone book.
screen Your phone’s display.
scroll To move through a list of names, menu items, etc. by
rolling the roller up or down. Each new selection or
option is highlighted as you roll to it.
selection keys Refers to the keys under the lower left and lower right
corners of your phone’s screen.
slide The moving keypad cover, used to protect the keypad as
well as answer and end calls.
SMS Short Message Service. A service whereby you can send
and receive short text messages (typically around 150
characters) with your phone.
system Another way to refer to your wireless service provider’s
wireless network.
TALK key The key used to make or answer a call.
text message See SMS.
URL Universal Resource Locator. A URL is a Web site’s specific
address or location on the Internet (for example:
http://www.nokia.com).
voice dialing The ability to dial numbers in your phone using the
phone’s voice recognition feature. (see voice tags)
voice mail A system maintained by your service provider, used to
record voice messages when you are unable to answer
a call.
Term: Definition:
[ 111 ]
Glossary
voice mailbox The location on your service provider’s network used to
store voice mail messages.
voice tag A recording of a user’s voice that is assigned to a phone
book entry. Voice tag is used in conjunction with voice
dialing feature (see voice dialing).
volume See earpiece volume or ringing volume.
warning and
game tones
The tone played when your phone displays a warning, or
those tones that are heard when you are playing one of
the phone’s games.
WAP Wireless Application Protocol. WAP is a new section of
the Internet designed to provide information and services
to you, and viewable from your mobile phone’s screen.
wireless network Your service provider’s operating environment, including
various types of hardware, software, and landline
connections, which makes wireless calls possible.
World Wide
Web
The part of the Internet that is viewed using a special
software application called a web browser. The browser
in your Nokia phone can access many sites on the World
Wide Web, as well as sites designed specifically to be
browsed from a mobile phone (see WAP).
WWW See World Wide Web.
Term: Definition:
[ 112 ]
25. Reference information
• Using batteries and chargers
For charging and recharging your phone battery, see “Charge your
battery” on page 5.
Use only batteries approved by the phone manufacturer and recharge
your battery only with the chargers approved by the manufacturer.
A new battery's full performance is achieved only after two or three
complete charge and discharge cycles!
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the operating time (talk-time and stand-by
time) is noticeably shorter than normal, it is time to buy a new battery.
When a charger is not in use, disconnect it from the power source. Do not
leave the battery connected to a charger for longer than a week, since
overcharging may shorten its life. If left unused a fully charged battery
will discharge itself over time.
For good operation times, discharge NiMH batteries from time to time by
leaving your phone switched on until it turns itself off (or by using the
battery discharge facility of any approved accessory available for your
phone). Do not attempt to discharge the battery by any other means.
Temperature extremes will affect the ability of your battery to charge:
allow it to cool down or warm up first.
When the battery is running out of power and only few minutes of talk
time remain, a warning tone is heard and Battery low is briefly displayed.
When no more talk time is left, the phone will beep three times and
Recharge battery is displayed. The phone then switches itself off.
Use the battery only for its intended purpose.
Never use any charger or battery which is damaged or worn out.
[ 113 ]
Reference information
Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object (coin, clip or pen) causes direct connection of the
+ and - terminals of the battery (metal strips on the back of the battery)
for example when you carry a spare battery in your pocket or purse.
Short-circuiting the terminals may damage the battery or the connecting
object.
Leaving the battery in hot or cold places, such as in a closed car in summer
or winter conditions, will reduce the capacity and lifetime of the battery.
Always try to keep the battery between 59° F and 77° F (15° C and 25°
C). A phone with a hot or cold battery may temporarily not work, even
when the battery is fully charged. NiMH batteries performance is
particularly limited in temperatures below 14° F (-10°C). Li-Ion batteries
performance is particularly limited in temperatures below 32° F (0° C).
Batteries must be recycled or disposed of properly. Must not be disposed
of in municipal waste.
Do not dispose of batteries in fire!
• Accessories and batteries
This apparatus is intended for use when supplied with power from ACP-7U,
ACP-8U, DCH-12K, LCH-9 and DCH-9. Other usage will invalidate any
approval given to this apparatus and may be dangerous.
Warning! Use only batteries, chargers and accessories approved
by the phone manufacturer for use with this particular phone
model. The use of any other types will invalidate any approval or
warranty applying to the phone, and may be dangerous.
For availability of approved accessories, please check with your
dealer.
When you disconnect the power cord of any accessory, grasp and
pull the plug, not the cord.
[ 114 ]
• Important Safety Information
Traffic Safety
Do not use a hand-held telephone while driving a vehicle. If using a hand-
held phone park the vehicle before conversing.
Always secure the phone in its holder; do not place the phone on the
passenger seat or where it can break loose in a collision or sudden stop.
The use of an alert device to operate a vehicle’s lights or horn on public
roads is not permitted.
Remember, road safety always comes first!
Operating Environment
Remember to follow any special regulations in force in any area and
always switch off your phone whenever it is forbidden to use it, or when
it may cause interference or danger.
When connecting the phone or any accessory to another device, read its
user’s guide for detailed safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting equipment, users are advised that
for the satisfactory operation of the equipment and for the safety of
personnel, it is recommended that the equipment should only be used in
the normal operating position (held to your ear with the antenna pointing
over your shoulder).
Electronic Devices
Most modern electronic equipment is shielded from radio frequency (RF)
signals. However, certain electronic equipment may not be shielded
against the RF signals from your wireless phone.
[ 115 ]
Reference information
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
6 inches (15 cm) be maintained between a handheld wireless phone and
a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers:
• Should always keep the phone more than 6 inches (15 cm) from their
pacemaker when the phone is switched on;
• Should not carry the phone in a breast pocket;
• Should use the ear opposite the pacemaker to minimize the potential
for interference.
• If you have any reason to suspect that interference is taking place,
switch off your phone immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your service provider.
Other Medical Devices
Operation of any radio transmitting equipment, including cellular phones,
may interfere with the functionality of inadequately protected medical
devices. Consult a physician or the manufacturer of the medical device to
determine if they are adequately shielded from external RF energy or if
you have any questions. Switch off your phone in health care facilities
when any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that could be
sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles (e.g. electronic fuel injection systems, electronic
anti-skid (anti-lock) braking systems, electronic speed control systems, air
bag systems). Check with the manufacturer or its representative regarding
your vehicle. You should also consult the manufacturer of any equipment
that has been added to your vehicle.
[ 116 ]
Posted Facilities
Switch your phone off in any facility where posted notices so require.
Potentially Explosive Atmospheres
Switch off your phone when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
Users are advised to switch off the phone while at a refueling point
(service station). Users are reminded of the need to observe restrictions on
the use of radio equipment in fuel depots (fuel storage and distribution
areas), chemical plants or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often but not always
clearly marked. They include below deck on boats; chemical transfer or
storage facilities; vehicles using liquefied petroleum gas (such as propane
or butane); areas where the air contains chemicals or particles, such as
grain, dust or metal powders; and any other area where you would
normally be advised to turn off your vehicle engine.
Vehicles
Only qualified personnel should service the phone, or install the phone in
a vehicle. Faulty installation or service may be dangerous and may
invalidate any warranty which may apply to the unit.
Check regularly that all wireless phone equipment in your vehicle is
mounted and operating properly.
Do not store or carry flammable liquids, gases or explosive materials in the
same compartment as the phone, its parts or accessories.
For vehicles equipped with an air bag, remember that an air bag inflates
with great force. Do not place objects, including both installed or portable
wireless equipment, in the area over the air bag or in the air bag deployment
area. If in-vehicle wireless equipment is improperly installed and the air
bag inflates, serious injury could result.
[ 117 ]
Reference information
Switch off your phone before boarding an aircraft. The use of wireless
telephones in an aircraft may be dangerous to the operation of the
aircraft, disrupt the wireless telephone network and may be illegal.
Failure to observe these instructions may lead to the suspension or denial
of telephone services to the offender, or legal action, or both.
•Emergency Calls
IMPORTANT!
This phone, like any wireless phone, operates using radio signals,
wireless and landline networks as well as user- programmed
functions which cannot guarantee connection in all conditions.
Therefore, you should never rely solely upon any wireless phone
for essential communications (e.g. medical emergencies).
Remember, to make or receive any calls the phone must be
switched on and in a service area with adequate signal strength.
Emergency calls may not be possible on all wireless phone
networks or when certain network services and/or phone
features are in use. Check with local service providers.
Making an Emergency Call
1. If the phone is not on, switch it on.
2. If the word Clear appears above right selection key, press and hold the
selection key to clear the display.
3. Key in the emergency number for your present location (e.g. 911 or
other official emergency number). Emergency numbers vary by location.
4. Press .
Note:
If certain features are in use (Keyguard, call restrictions, etc.), you
may first need to turn those features off before you can make an
emergency call. Consult this document and your local service
provider for more information.
[ 118 ]
When making an emergency call, remember to give all the necessary
information as accurately as possible. Remember that your wireless phone
may be the only means of communication at the scene of an accident -
do not cut off the call until given permission to do so.
• Radio Frequency (RF) Signals
Your wireless handheld portable telephone is a low power radio transmitter
and receiver. When it is ON, it receives and also sends out radio frequency
(RF) signals.
In August, 1996, the Federal Communications Commission (FCC) adopted
RF exposure guidelines with safety levels for handheld wireless phones.
Those guidelines are consistent with safety standards previously set by
both U.S. and international standards bodies:
ANSI C95.1 (1992)*, NCRP Report 86 (1986)*, ICNIRP (1996)*.
Those standards were based on comprehensive and periodic evaluations
of the relevant scientific literature. For example, over 120 scientists,
engineers, and physicians from universities, government health agencies
and industry reviewed the available body of research to develop the ANSI
Standard (C95.1).
The design of your phone complies with the FCC guidelines (and those
standards).
Use of non-Nokia-approved accessories may violate FCC RF exposure
guidelines.
*American National Standards Institute, National Council on Radiation Protection
and Measurements; International Commission on Non-Ionizing Radiation
Protection.
[ 119 ]
Reference information
• Care and Maintenance
• Your phone is a product of superior design and craftsmanship and
should be treated with care. The suggestions below will help you to
fulfill any warranty obligations and allow you to enjoy this product for
many years. When using your phone, battery, charger, OR any
accessory:
• Keep it and all its parts and accessories out of small children’s reach.
• Keep it dry. Precipitation, humidity and liquids contain minerals that
will corrode electronic circuits.
• Do not use or store it in dusty, dirty areas as its moving parts can be
damaged.
• Do not store it in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain
plastics.
• Do not store it in cold areas. When the phone warms up (to its normal
operating temperature), moisture can form inside the phone, which
may damage the phone's electronic circuit boards.
• Do not attempt to open it. Non-expert handling of the device may
damage it.
• Do not drop, knock or shake it. Rough handling can break internal
circuit boards.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean it. Wipe it with a soft cloth slightly dampened in a mild soap-
and-water solution.
• Do not paint it. Paint can clog the device’s moving parts and prevent
proper operation.
• Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications or attachments could damage
the phone and may violate regulations governing radio devices.
• If the phone, battery, charger, or any accessory is not working properly,
take it to your nearest qualified service facility. The personnel there
will assist you, and if necessary, arrange for service.
[ 120 ]
26. Technical information
Wireless networks Dual band/tri-mode TDMA and AMPS
Weight 4.9 oz. (139 g); With BLS-2S, 5.0 oz. (141 g)
Size 7.6 cu. in. (125 cc)
Dimensions: Length: 4.9 in / 125 mm (min)
7.2 in / 185 mm (max)
Width: 2.1 in / 53 mm (max)
Frequency range: Lowband 824.04 - 848.97 MHz (TX)
869.04 - 893.97 MHz (RX)
Highband 1850.04 - 1909.92 MHz (TX)
1930.08 - 1989.96 MHz (RX)
Transmitting power up to 600 mW nominal
Battery voltage 3.6 V nominal
Charging current 750 mAh max.
Operating temperature -4°F to + 104°F (-20°C to + 40°C)
Number of channels: 832 lowband, 1997 highband
Number of NAMs 3
Memory locations: Phone book: up to 1000 entries with
up to 5 numbers per name
Calendar: up to 660 entries
To-do list: up to 100 entries
Text messages: up to 100
Memory capacity: Phone book-alpha: 50 characters per location
Phone book-num: 32 digits per location
Calendar: 48 characters per note
To-do list: 40 characters per note
Digital data: Data call: 9600bps
Fax call: 9600bps, Class 2.0
[ 121 ]
Nokia One-Year Limited Warranty
27. Nokia One-Year
Limited Warranty
Nokia Mobile Phones, Inc. (“NMP”) warrants that this cellular phone
(“Product”) is free from defects in material and workmanship that result
in Product failure during normal usage, according to the following terms
and conditions:
1. The limited warranty for the Product extends for ONE (1) year beginning
on the date of the purchase of the Product.
2. The limited warranty extends to the original purchaser of the Product
(“Consumer”) and is not assignable or transferable to any subsequent
purchaser/end-user.
3. The limited warranty extends only to Consumers who purchase the
Product in the United States.
4. During the limited warranty period, NMP will repair, or replace, at
NMP's option, any defective parts, or any parts that will not properly
operate for their intended use with new or factory rebuilt replacement
items if such repair or replacement is needed because of product
malfunction or failure during normal usage. No charge will be made to the
Consumer for any such parts. NMP will also pay for the labor charges
incurred by NMP in repairing or replacing the defective parts. The limited
warranty does not cover defects in appearance, cosmetic, decorative or
structural items, including framing, and any non-operative parts. NMP's
limit of liability under the limited warranty shall be the actual cash value
of the Product at the time the Consumer returns the Product for repair,
determined by the price paid by the Consumer for the Product less a
reasonable amount for usage. NMP shall not be liable for any other losses
or damages. These remedies are the Consumer’s exclusive remedies for
breach of warranty.
[ 122 ]
5. Upon request from NMP, the Consumer must prove the date of the
original purchase of the Product by a dated bill of sale or dated itemized
receipt.
6. The Consumer shall bear the cost of shipping the Product to NMP in
Melbourne, Florida. NMP shall bear the cost of shipping the Product back
to the Consumer after the completion of service under this limited
warranty.
7. The Consumer shall have no coverage or benefits under this limited
warranty if any of the following conditions are applicable:
a) The Product has been subject to abnormal use, abnormal conditions,
improper storage, exposure to moisture or dampness, unauthorized
modifications, unauthorized connections, unauthorized repair, misuse,
neglect, abuse, accident, alteration, improper installation, or other acts
which are not the fault of NMP, including damage caused by shipping.
b) The Product has been damaged from external causes such as collision
with an object, or from fire, flooding, sand, dirt, windstorm, lightning,
earthquake or damage from exposure to weather conditions, an Act of
God, or battery leakage, theft, blown fuse, or improper use of any
electrical source, or damage caused by the connection to other products
not recommended for interconnection by NMP.
c) NMP was not advised by the Consumer in writing of the alleged defect
or malfunction of the Product within fourteen (14) days after the
expiration of the applicable limited warranty period.
d) The Product serial number plate or the accessory data code has been
removed, defaced or altered.
e) The defect or damage was caused by the defective function of the
cellular system, by inadequate signal reception by the external antenna,
or by viruses or other software problems introduced into the Product.
8. Nokia does not warrant uninterrupted or error-free operation of the
Product. If a problem develops during the limited warranty period, the
Consumer shall take the following step-by-step procedure:
[ 123 ]
Nokia One-Year Limited Warranty
a) The Consumer shall return the Product to the place of purchase for
repair or replacement processing.
b) If “a” is not convenient because of distance (more than 50 miles) or for
other good cause, the Consumer shall ship the Product prepaid and
insured to:
Nokia Mobile Phones, Inc.
Attn: Repair Department
795 West Nasa Blvd.
Melbourne, FL 32901
c) The Consumer shall include a return address, daytime phone number
and/or fax number, complete description of the problem, proof of
purchase and service agreement (if applicable). Expenses related to
removing the Product from an installation are not covered under this
limited warranty.
d) The Consumer will be billed for any parts or labor charges not covered
by this limited warranty. The Consumer will be responsible for any
expenses related to reinstallation of the Product.
e) NMP will repair or authorize the repair of the Product under the limited
warranty within 30 days after receipt of the Product by NMP or an NMP
authorized service center. If NMP cannot perform repair covered under
this limited warranty within 30 days, or after a reasonable number of
attempts to repair the same defect, NMP at its option, will provide a
replacement Product or refund the purchase price of the Product less a
reasonable amount for usage.
f) If the Product is returned to NMP during the limited warranty period,
but the problem with the Product is not covered under the terms and
conditions of this limited warranty, the Consumer will be notified and
given an estimate of the charges the Consumer must pay to have the
Product repaired, with all shipping charges billed to the Consumer. If the
estimate is refused, the Product will be returned freight collect. If the
Product is returned to NMP after the expiration of the limited warranty
period, NMP's normal service policies shall apply and the Consumer will
be responsible for all shipping charges.
[ 124 ]
9. The Product consists of newly assembled equipment that may contain
used components that have been reprocessed to allow machine
compliance with Product performance and reliability specifications.
10. ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF
THE FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE
FOREGOING LIMITED WARRANTY IS THE CONSUMER'S SOLE AND
EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED. NMP SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, LOSS OF
ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE,
PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED
EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR
FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING
CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE
PURCHASE OR USE OF THE PRODUCT OR ARISING FROM BREACH OF THE
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY
OTHER LEGAL OR EQUITABLE THEORY, EVEN IF NMP KNEW OF THE
LIKELIHOOD OF SUCH DAMAGES. NMP SHALL NOT BE LIABLE FOR DELAY
IN RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF
USE DURING THE PERIOD THAT THE PRODUCT IS BEING REPAIRED.
11. Some states do not allow limitation of how long an implied warranty
lasts, so the above one-year warranty limitation may not apply to you (the
Consumer). Some states do not allow the exclusion or limitation of
incidental and consequential damages, so certain of the above limitations
or exclusions may not apply to you (the Consumer). This limited warranty
gives the Consumer specific legal rights and the Consumer may also have
other rights which vary from state to state.
12. NMP neither assumes nor authorizes any authorized service center or
any other person or entity to assume for it any other obligation or liability
beyond that which is expressly provided for in this limited warranty
including the provider or seller of any extended warranty or service
agreement.
[ 125 ]
Nokia One-Year Limited Warranty
13. This is the entire warranty between NMP and the Consumer, and
supersedes all prior and contemporaneous agreements or understandings,
oral or written, and all communications relating to the Product, and no
representation, promise or condition not contained herein shall modify
these terms.
14. This limited warranty allocates the risk of failure of the Product
between the Consumer and NMP. The allocation is recognized by the
Consumer and is reflected in the purchase price of the Product.
15. Any action or lawsuit for breach of warranty must be commenced
within eighteen (18) months following delivery of the Product.
16. Questions concerning this limited warranty may be directed to:
Nokia Customer Care Center
7725 Woodland Center Blvd., Ste. 150
Tampa, FL 33614
Telephone: 1-888-NOKIA2U (1-888-665-4228)
Facsimile: 1-813-249-9619
TTY Users: 1-800-24NOKIA (1-800-246-6542)
17. The limited warranty period for NMP supplied attachments and
accessories is specifically defined within their own warranty cards and
packaging.
© Nokia is a registered trademark of Nokia Corporation.
[ 126 ]
28. Index
Numerics
1-touch dialing 44
setup 44
3-way conference calls 38
A
ABC mode 24
access codes 58
lock code 59
security 58
accessories 95
batteries 96
chargers 98
accessories and batteries 113
adjusting earpiece volume 22
advanced calling features 34
anykey answer 36
B
Batteries
Charging times 96
Standby and talk times 97
batteries 96
attaching 5
charge level indicator 8
charging 5
removing 6
using with chargers 112
vibrating alert 52
bookmarks
about 86
options 88
returning 87
saving 87
C
calculator 76
currency conversion 76
using 76
call forwarding 37, 91
call log 29
call timers 31
clear lists 30
options 30
viewing 29
call mode 93
call restrictions 59
adding 60
editing 61
erasing 61
selecting 61
call timers
clear 31
display 31
call waiting 37, 92
caller groups 48
caller ID 36
calling your voice mailbox 21
calls
1-touch dialing 44
3-way calls 38
adjusting earpiece volume 22
[ 127 ]
advanced features 34
answering 20
anykey answer 36
automatic redial 39
call forwarding 37, 91
call waiting 37, 92
caller groups 48
caller ID 36
ending 21
in-call menu 34
making 20
mute 36
phone lock 57
redial last number 21
rejecting 21
send own caller ID 38, 93
voice mailbox 21
changing a number type 46
charging
chargers 98
clock 53
displaying/hiding 54
setting the time 53
time format 54
contact information
Nokia 3
service provider 4
contact manager 77
customize profile settings 51
D
diagrams 7
display 8
header 9
icons 9
indicators 9
scroll bar 9
Start screen 8
display contrast 53
display options 52
contrast 53
current call timer 53
language 52
show/hide clock 54
DLR-3P 81
modem connection 81
PC Connectivity Guide 81
synchronization 81
download a ringing tone 88
E
emergency calls 117
ending a call 21
entering text
keypad 23
Navi roller 23
F
feature codes 91
G
games 89
starting 89
getting started 5
[ 128 ]
I
In-call menu 34
in-call menu
end all calls 35
menu 35
mute 36
new call 35
phone book 35
send flash 35
send touch tones 34
indicators and icons 9
Infrared 78
calendar notes 80
phone book 79
sending/receiving data 78
status 79
types of connections 79
K
keyguard 56
keypad lock 56
keys 11
end 11
Navi roller 11, 12
number 11
selection 11
talk 11
L
labels 2
last number redial 21
Launching the browser 83
letters and numbers 23
lock code 59
changing 59
M
making a call 20
memory status 49
menus
browsing 15
help texts 15
list of functions 16
shortcuts 16
N
Navi roller 12
customizing 50
entering characters 23
network feature setting
storing feature code 91
network features
call waiting 92
public system setting 94
send own caller ID 93
network services 3
call forwarding 91
call mode 93
O
Opposite 89
P
phone book 25
adding a new number 45
editing 27
[ 129 ]
editing a number 45
erasing a number 45
erasing an entry 28
making a call 26
menus 26
multiple numbers 45
number types 46
organizing 27
primary number 46
scroll view 47
searching 47
text information 47
using 26
working with 26
phone lock 56
activating/deactivating 57
allowed number 57
lock code 59
making a call 57
power switch 8
primary number 46
profiles 33
customizing 50
renaming 52
selecting 33
settings 51
public system setting 94
Q
quick save 25
R
Racket 89
rejecting a call 21
renaming a profile 52
restore factory settings 54
ringing tones, download 88
Rotation 89
S
safety guidelines 114
safety information 1
saving names and numbers 25
saving text information 47
saving via phone book menu 25
scroll view 47
searching the phone book 47
security code 58
changing 58
Security settings 56
security settings
access codes 58
call restrictions 59
keyguard 56
phone lock 56
selecting call restrictions 61
send own caller ID 38, 93
setting display language 52
setting the time 53
setting time format 54
slide
disable/enable 55
sliding cover 13
re-attaching 13
Snake II 89
starting a game 89
[ 130 ]
T
technical information 120
U
Understanding a WAP web site 83
updates 3
V
voice dialing 41
dialing a number 43
important notes 42
voice tags 41
working with tags 43
voice mail 32
voice mailbox
listen to messages 32
setup 32
Voice messages
Greetings, passwords, and
prompts 32
Listening to your voice
messages 32
Setting up your voice mailbox 32
voice messages 32
W
WAP card 84
WAP services 82
bookmarks 86
browser 83
browser menu 84, 85
card Options menu 86
navigating a WAP card 84
service provider 83
WAP web sites 83
warranty
contact information 125
warranty information 121
welcome note 54
Wireless Application Protocol 82
working with bookmarks 87
Para obtener un manual del usuario en español favor de
llamar o enviar un fax al teléfono 1-888-NOKIA2U,
fax 813-249-9619.
