User Guide for

Nokia NFC Shell

for Nokia 3220

0903390

Issue 1

Gepe_UG_en.fm Page 1 Friday, February 11, 2005 11:41 AM

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the product CC-229D

is in conformity with the provisions of the following Council Directive: 1999/5/EC.

A copy of the Declaration of Conformity can be found at

http://www.nokia.com/phones/declaration_of_conformity/.

FCC ID: PYAR2

IC: 661V-R2

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, Xpress-on and the Nokia Original Enhancements logo are

trademarks or registered trademarks of Nokia Corporation. Other product and company names

mentioned herein may be trademarks or tradenames of their respective owners.

Java™ and all Java-based marks are trademarks or registered trademarks of Sun

Microsystems, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to

make changes and improvements to any of the products described in this

document without prior notice.

Covered by one or more of the following U.S. patents: 6,790,396; 6773644; 6,816,083;

6,810,238; 6,771,981; 6,522,520; 6,487,397; 6,456,487. Readers attention is directed to the

following U.S. Patents which may cover future implementations of the product described in

this user guide: 6,594,472; 6,563,927; 6,608,996, 6466299, 6,327,153. Other patents pending.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR

INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES

HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY

APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

Gepe_UG_en.fm Page 2 Wednesday, February 16, 2005 12:39 PM

PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS

OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW

IT AT ANY TIME WITHOUT PRIOR NOTICE.

The availability of particular products may vary by region. Please check with the Nokia dealer

nearest to you.

This device may contain commodities, technology or software subject to US and other

countries export control laws and regulations. Diversion contrary to law is prohibited.

0903390/ Issue 1

Gepe_UG_en.fm Page 3 Friday, February 11, 2005 11:41 AM

Contents

FOR YOUR SAFETY............................................................................. 5

1. Overview......................................................................................... 6

What are RFID and NFC? ................................................................................................. 7

Nokia NFC shell .................................................................................................................. 8

Service Discovery application......................................................................................... 8

Tags........................................................................................................................................ 9

2. Installation ..................................................................................... 9

Check the phone’s network settings .......................................................................... 11

3. Tags............................................................................................... 11

Tag features....................................................................................................................... 11

Place tags........................................................................................................................... 12

Touch tags with RFID reader ........................................................................................ 12

Create your own service shortcuts ............................................................................. 12

4. Service Discovery application ..................................................... 13

Start and close the application.................................................................................... 13

Change application language....................................................................................... 13

Read, view, and save a shortcut .................................................................................. 14

Create and edit a shortcut ............................................................................................ 15

Give a shortcut ................................................................................................................. 16

Launch a shortcut and write into a tag .................................................................... 17

Delete a shortcut ............................................................................................................. 18

View the log ...................................................................................................................... 18

Care and maintenance..................................................................... 20

Gepe_UG_en.fm Page 4 Thursday, February 10, 2005 11:46 AM

FOR YOUR SAFETY

Read these simple guidelines. Not following them may be dangerous or illegal.

Read the complete user guide for further information.

QUALIFIED SERVICE

Only qualified personnel may repair this device.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

Gepe_UG_en.fm Page 5 Thursday, February 10, 2005 11:46 AM

Overview

1. Overview

Nokia NFC shell allows you to use touch to quickly and conveniently

access various services with your Nokia 3220 phone. By touching Radio

Frequency Identification (RFID) tags, you can launch the service shortcut

contained in the tag (call dialling, web browsing, and SMS sending).

Nokia NFC shell includes a Java™ application called Service Discovery and

four RFID tags. You can create your own service shortcuts and write all

service shortcuts stored in your phone memory into the tags. You can also

give the service shortcuts stored in your phone to another Nokia 3220

equipped with the Nokia NFC shell.

Your device and its enhancements may contain small parts. Keep them

out of reach of young children.

This Nokia NFC shell is designed to be used in the Nokia 3220 phone that

is available separately. For more information about the Nokia 3220 phone,

see www.nokia.com.

Note: This user’s guide contains information and instructions for

Nokia NFC shell. For instructions on how to use your Nokia 3220

phone, see the Nokia 3220 user guide.

For examples of how you can use your Nokia NFC shell, see

www.nokia.com/nfc.

Gepe_UG_en.fm Page 6 Thursday, February 10, 2005 11:46 AM

Overview

■What are RFID and NFC?

RFID

RFID technologies use radio waves to automatically identify individual

objects. The most common method of identifying objects using RFID is to

store a serial number that identifies the object on an RFID tag, and attach

the tag to the object.

The RFID tag is able to transmit the information it contains to an RFID

reader device. The RFID reader is a short-range device (reading range

0-5 cm) and it converts the radio waves returned from the RFID tag into a

format that can then be passed on to an application in the phone.

To transmit data from the RFID tag to the RFID reader, Nokia NFC shell

uses the radio frequency 13.56 MHz, which is the most widely used

globally available frequency for RFID.

NFC

NFC (Near Field Communication) is a short-range radio frequency

technology that evolved from a combination of contactless radio

frequency identification (RFID) and interconnection technologies. By

emitting a short-range radio signal, the NFC device supplies power to an

otherwise inactive tag, allowing the device to read the tag or write data

to the tag's memory. Operating over a distance of only very few

centimetres, it allows users to read small amounts of data from tags, as

well as to communicate with other devices, by a simple touch.

When touching a tag, the NFC device reads the data stored on the tag,

and initiates the appropriate action after the user's confirmation. For

example, it will open a web page, call a favourite number, or send an SMS.

Gepe_UG_en.fm Page 7 Thursday, February 10, 2005 11:46 AM

Overview

Small items such as web links can also be shared by touching another NFC

device.

■Nokia NFC shell

Nokia NFC shell contains the RFID reader that enables you

to read tags and to write into them with your Nokia 3220

phone. The RFID reader is located inside the lower part of

the back cover of the shell (dark area in the picture).

The Nokia NFC shell also stores the Service Discovery

application, and the Cover browser application. When you

install the Nokia NFC shell, the Cover browser application

is automatically downloaded to the phone, after which you

can use it to download the Service Discovery application.

Note: The Nokia NFC shell is only compatible with the Nokia

3220 phone. Do not try to use it with other phones.

The RFID reader in the Nokia NFC shell takes its power from the

phone battery. Using the RFID reader may drain the phone

battery faster.

■Service Discovery application

The Service Discovery application is used for accessing services with your

Nokia 3220 phone.

The Service Discovery application enables you to read shortcuts from tags,

save shortcuts to phone memory, write shortcut information into a tag,

and give shortcuts to another Nokia 3220 phone with Nokia NFC shell.

Gepe_UG_en.fm Page 8 Thursday, February 10, 2005 11:46 AM

Installation

■Tags

Nokia NFC shell comes with four tags. The tags are used for reading and

writing service shortcut information. A service shortcut is either call

dialling, web browsing, or SMS sending. You can create your own service

shortcuts and write and rewrite them into the tags.

Note: The tags may set off the Electronic Article Surveillance

(EAS) alarms used, for example, for theft-protection in shops.

2. Installation

Note: Before removing the cover, always switch off the power

from your phone and disconnect the charger and any other

device. Avoid touching electronic components while changing

the covers. Always store and use the device with the covers

attached.

For general instructions on changing the back and front cover of your

Nokia 3220 phone, see the user guide that came with it.

To install the Nokia NFC shell and its connector:

Gepe_UG_en.fm Page 9 Thursday, February 10, 2005 11:46 AM

Installation

1. Remove the original

back cover of your

Nokia 3220 phone,

remove the protective

cover from the

connector’s slot, and

insert the connector

supplied with the shell

into the corresponding

slot in the phone.

2. Install the front cover of the Nokia NFC shell.

3. Install the back cover of the Nokia NFC shell.

4. Switch on the phone, and make sure that the time and date are set

correctly in the phone.

The shell automatically installs the Cover browser application in the

Applications > Collection menu in your phone. The shell also contains

the Service Discovery application that you can now install. Installation

may take several minutes.

If you do not install the Service Discovery application when installing

the Nokia NFC shell, you can install it later using the Cover browser

application. This is done as follows:

5. Select Menu > Applications > Collection > Select application >

Cover browser > Open.

Gepe_UG_en.fm Page 10 Thursday, February 10, 2005 11:46 AM

Tags

■Place tags

You can place tags on any non-conductive material, such as glass, plastic,

or wood.

Do not place tags on metal or other conductive surfaces, as it may prevent

the RFID reader from being able to read the tags.

■Touch tags with RFID reader

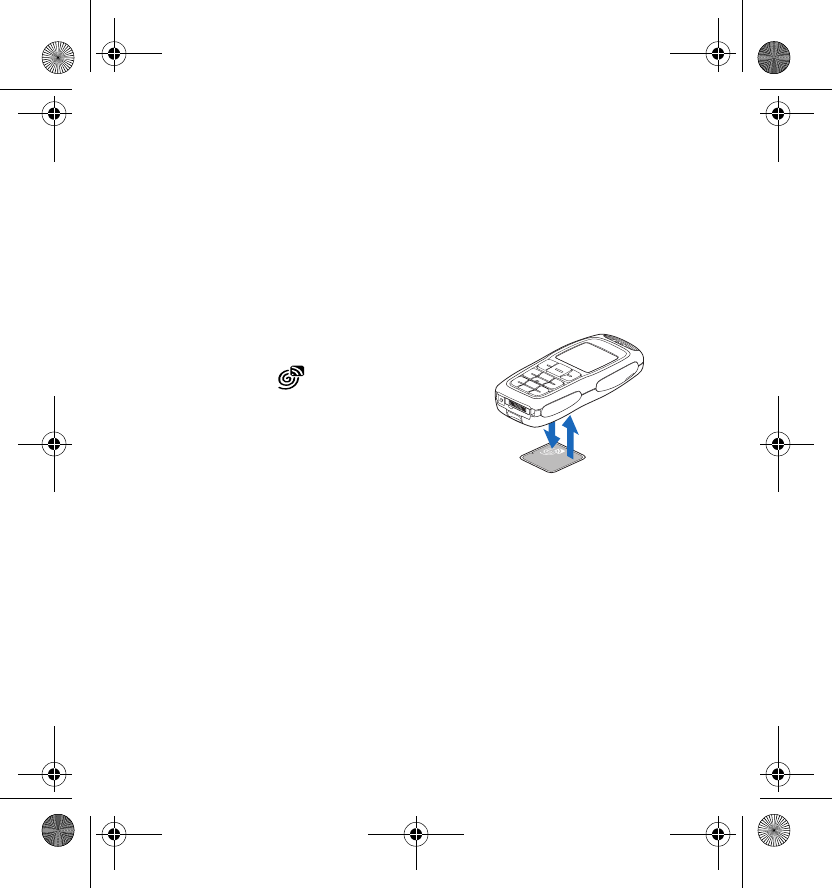

The RFID reader is located on the back of the

lower part of the Nokia NFC shell, inside the

area marked with .

When using the RFID reader, touch the tag

with that area at close proximity. The reading

range is typically 0-5 cm, depending on the

tag type and size.

■Create your own service shortcuts

With the Service Discovery application, you can create your own service

shortcuts that you can use as you would use a service shortcut that you

have read from a tag.

Gepe_UG_en.fm Page 12 Thursday, February 10, 2005 11:46 AM

Service Discovery application

4. Service Discovery application

■Start and close the application

Note: If the application is not active when you touch a tag with

the RFID reader, the phone automatically starts the application.

To manually start an application:

1. Press Menu > Applications > Collection > Select application >

Service Discovery > Open.

Please touch tag is displayed.

Note: If you receive an incoming call while using an application,

you can answer the call normally and continue using the

application after ending the call.

You can view basic information about the application in the Please touch

tag view: select Options > About.

To close the application: in the Please touch tag view either press Exit or

press .

■Change application language

You can change the user interface language of the Service Discovery

application by changing the language in your Nokia 3220 phone.

The supported languages are English, German, French, Spanish, Italian,

Finnish, Norwegian, Polish, Danish, Dutch, Portuguese, and Swedish. If an

Gepe_UG_en.fm Page 13 Thursday, February 10, 2005 11:46 AM

Service Discovery application

unsupported language is selected as the phone language, the default

language English is used for the application.

■Read, view, and save a shortcut

Touching a tag with the RFID reader launches a shortcut contained in the

tag.

To read a tag:

1. Touch the tag with the RFID reader.

The phone flashes green lights on the sides of the cover and displays

the shortcut defined in the tag. If the Service Discovery application is

not on when reading a tag, the RFID shell recognises the presence of a

tag and launches the application.

Note: If the tag contains no information the phone flashes

the red lights on the sides of the cover and gives an error

message: No shortcut on tag, and prompts you to select a

service shortcut to write to the empty tag: Please select

shortcut to write. If the tag is empty and you don’t yet have

any shortcuts stored in your phone’s memory, the phone

prompts you to create a shortcut: Please create a shortcut for

writing. If the empty tag is write-protected, the phone

indicates this with the message: Tag is write protected.

2. Depending on the type of the shortcut, the phone either makes a

phone call or sends an SMS to the predefined phone number, or

connects to the predefined web site over a GPRS connection.

Gepe_UG_en.fm Page 14 Thursday, February 10, 2005 11:46 AM

Service Discovery application

Before completing the function defined in the shortcut, the phone asks

you for a confirmation. To confirm, press OK, to decline, press Cancel.

3. To view the shortcut you read, perform step 1 and select Options >

Details.

4. To save the shortcut you read into the phone memory, perform step 1

and select Options > Details > Save.

■Create and edit a shortcut

You can create new shortcuts, and edit shortcuts saved in the phone

memory. In the latter case, the old shortcut information and all related log

data is deleted.

To create a shortcut:

1. In the Please touch tag view, select: Shortc. > Add.

The options for the shortcut types you can create are displayed.

If you already have shortcuts in your phone memory, you start creating

new shortcuts by selecting Shortc. > Options > Add in the Please

touch tag view.

2. Select the type of shortcut you wish to create.

3. Enter the information for all the shortcut fields:

Having edited a field, press OK. If you wish to move back to a field you

have already edited, select Options > Back.

•Call - enter the name of the shortcut and the number to which the

phone call is to be made.

Gepe_UG_en.fm Page 15 Thursday, February 10, 2005 11:46 AM

Service Discovery application

•URL - enter the name of the shortcut and the URL.

•SMS - enter the name of the shortcut, the number to which the

SMS is to be sent, and the SMS text content.

When defining phone numbers for the Call and SMS functions, you

can also use a phone number defined in your phone’s Contacts:

1. When editing the phone number field, select Options > Search.

2. Select a contact on the list and press Select.

3. When the phone number is displayed, press OK.

If you later edit or delete the contact, this does not affect the

information stored in the application in any way.

To edit a shortcut:

4. To edit a shortcut; in the Please touch tag view, select Shortc. >

Options, scroll to the shortcut you want to edit and select Edit.

5. Edit the fields and select OK.

When editing the shortcut information, if you wish to return to the

previous information field, select Options > Back. Selecting Options >

Back in the first information field takes you back to the Shortc. field

and restores the shortcut information to what it was before editing. If

you wish to change the phone function for the shortcut, you must

define the shortcut again.

■Give a shortcut

To give a shortcut into a compatible phone:

Gepe_UG_en.fm Page 16 Thursday, February 10, 2005 11:46 AM

Service Discovery application

1. In the Please touch tag view, select Shortc..

2. Scroll to the shortcut you want to give and select Options > Give.

The phone displays the text: Please touch other phone.

3. Hold your phone 0-3 centimetres from

the shortcut recipient’s phone so that the

NFC logos face each other (see picture).

If giving a shortcut succeeded, the phone

displays the message: Giving successful.

If giving a shortcut failed, the phone

displays an error message.

■Launch a shortcut and write

into a tag

To launch a shortcut:

1. In the Please touch tag view, select Shortc..

2. Scroll to the shortcut you want to launch and select Launch.

The phone asks for a confirmation to perform the shortcut function. To

confirm, press OK, to decline, press Cancel.

To write into a tag:

3. To write shortcut into a tag, perform step 1, scroll to the shortcut

which you want to write, and select Options > Write.

The phone displays the text: Please touch tag.

4. Hold your phone 0-3 centimetres from the tag into which you want to

write. If writing the shortcut succeeded, the phone displays the

Gepe_UG_en.fm Page 17 Thursday, February 10, 2005 11:46 AM

Service Discovery application

message: Writing successful. If the writing failed, the phone displays

an error message. You can overwrite the shortcut information in the

tags you have created as many times as you wish.

■Delete a shortcut

To delete a shortcut:

1. In the Please touch tag view, select Shortc..

2. Select the shortcut you wish to delete and select Options > Delete. If

you wish to delete all shortcuts, select Options > Delete all.

3. When the phone asks you for a confirmation, press OK.

Information about the shortcut and all related log data is deleted.

■View the log

In the Service Discovery application log, you can view the phone calls that

have been made, the SMS messages that have been sent, and the web

sites that have been connected to through the application. The log stores

the 20 most recent log events.

To view the log:

1. In the Please touch tag view, select Options > Log.

A list of the events logged for the tag is displayed. Events are listed in

chronological order, starting with the most recent event.

2. To delete a logged event, select the log event you wish to delete and

select Options > Delete.

Gepe_UG_en.fm Page 18 Thursday, February 10, 2005 11:46 AM

Service Discovery application

3. If you wish to delete all logged events, select Options > Delete all >

OK.

4. To view detailed information about a logged event, select the event on

the list and press Details.

Gepe_UG_en.fm Page 19 Thursday, February 10, 2005 11:46 AM

Care and maintenance

Your device is a product of superior design and craftsmanship and should be

treated with care. The suggestions below will help you protect your warranty

coverage.

• Keep the device dry. Precipitation, humidity and all types of liquids or moisture

can contain minerals that will corrode electronic circuits.

• Do not use or store the device in dusty, dirty areas. Its moving parts and

electronic components can be damaged.

• Do not store the device in hot areas. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the device in cold areas. When the device returns to its normal

temperature, moisture can form inside the device and damage electronic

circuit boards.

• Do not attempt to open the device other than as instructed in this guide.

• Do not drop, knock, or shake the device. Rough handling can break internal

circuit boards and fine mechanics.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the

device.

• Do not paint the device. Paint can clog the moving parts and prevent proper

operation.

• Use a soft, clean, dry cloth to clean any light sensors lenses.

If the device is not working properly, take it to your nearest authorized service

facility for service.

Gepe_UG_en.fm Page 20 Thursday, February 10, 2005 11:46 AM

Care and maintenance

FCC/INDUSTRY CANADA NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation. Changes or modifications not expressly approved

by Nokia may void the user's authority to operate the equipment.

Your device may cause TV or radio interference (for example, when using a device

in close proximity to receiving equipment). The FCC or Industry Canada can require

you to stop using your device if such interference cannot be eliminated. If you

require assistance, contact your local service facility.

Gepe_UG_en.fm Page 21 Thursday, February 10, 2005 11:46 AM

Gepe_UG_en.fm Page 22 Thursday, February 10, 2005 11:46 AM

Microsoft R2 Nokia NFC Shell User Manual Gepe UG en

Microsoft Mobile Oy Nokia NFC Shell Gepe UG en

Manual

Navigation menu

Namespaces

Views

Navigation
