Nokia 7070 prism User
Guide
DRAFT
© 2008 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered
trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
US Patent No 5818437 and other pending patents. T9 text input software
Copyright (C) 1997-2008. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software
from RSA Security.
Java and all Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent
Portfolio License (i) for personal and noncommercial use in connection
with information which has been encoded in compliance with the MPEG-4
Visual Standard by a consumer engaged in a personal and noncommercial
activity and (ii) for use in connection with MPEG-4 video provided by a
licensed video provider. No license is granted or shall be implied for any
other use. Additional information, including that related to promotional,
internal, and commercial uses, may be obtained from MPEG LA, LLC. See
http://www.mpegla.com.
DRAFT
Nokia operates a policy of ongoing development. Nokia reserves the right
to make changes and improvements to any of the products described in
this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE
RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER
CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE
THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for
these products may vary by region. Please check with your Nokia dealer for
details, and availability of language options.
Export controls
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
The third-party applications provided with your device may have been
created and may be owned by persons or entities not affiliated with or
related to Nokia. Nokia does not own the copyrights or intellectual
property rights to the third-party applications. As such, Nokia does not
take any responsibility for end-user support, functionality of the
DRAFT
applications, or the information in the applications or these materials.
Nokia does not provide any warranty for the third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE
APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA
NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF
TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR
THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS,
COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a
telephone in close proximity to receiving equipment). The FCC or Industry
Canada can require you to stop using your telephone if such interference
cannot be eliminated. If you require assistance, contact your local service
facility. This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Any
changes or modifications not expressly approved by Nokia could void the
user's authority to operate this equipment.
DRAFT
Contents
For your safety......................................................................... 7
General information .............................................................. 10
Access codes........................................................................................................... 10
Nokia support on the web.................................................................................. 11
1. Get started ......................................................................... 12

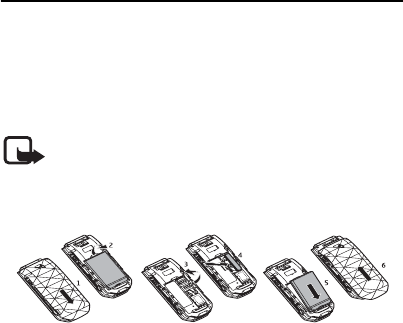

Install the SIM card and battery....................................................................... 12
Charge the battery................................................................................................ 13
Normal operating position ................................................................................. 14
2. Your phone ........................................................................ 15

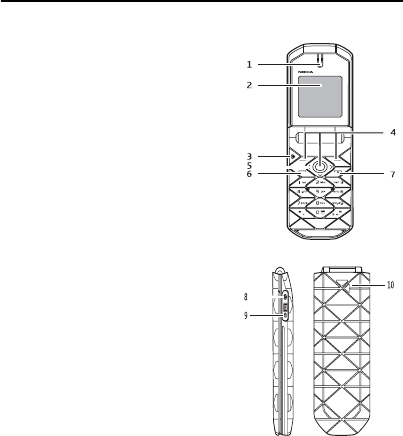

Keys and parts........................................................................................................ 15
Switch the phone on or off................................................................................ 16

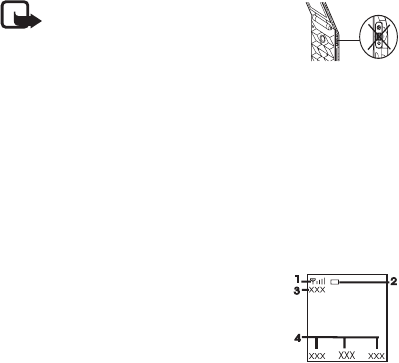

Standby mode ........................................................................................................ 16
Keypad lock............................................................................................................. 17
3. Call functions .................................................................... 17
Make and answer a call ...................................................................................... 17
Loudspeaker............................................................................................................ 18
4. Write text........................................................................... 18
5. Menu functions ................................................................. 19
Messaging ............................................................................................................... 20
Contacts................................................................................................................... 28
Log............................................................................................................................. 30
Settings.................................................................................................................... 31
Operator menu....................................................................................................... 37
Gallery ...................................................................................................................... 38
DRAFT
Media........................................................................................................................ 38
Organiser ................................................................................................................. 39
Applications............................................................................................................ 41
Web........................................................................................................................... 42
SIM services............................................................................................................ 45
6. Battery information .......................................................... 45
Charging and discharging................................................................................... 45
Nokia battery authentication guidelines........................................................ 48
7. Enhancements.................................................................... 50
Care and maintenance........................................................... 51
Additional safety information .............................................. 53
Index ....................................................................................... 60
7
DRAFT
For your safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for further
information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use
is prohibited or when it may cause interference or
danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to
operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near
medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause
interference in aircraft.
8
DRAFT
SWITCH OFF WHEN REFUELING
Do not use the device at a refueling point. Do not use
near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device where
blasting is in progress.
QUALIFIED SERVICE
Only qualified personnel may install or repair this
product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
9
DRAFT
■About your device
The wireless device described in this guide is approved for use on
GSM 850 and 1900 networks. Contact your service provider for
more information about networks.
When using the features in this device, obey all laws and respect
local customs, privacy and legitimate rights of others, including
copyrights.
Copyright protections may prevent some images, music
(including ringing tones), and other content from being copied,
modified, transferred, or forwarded.
Warning: To use any features in this device, other than
the alarm clock, the device must be switched on. Do not
switch the device on when wireless device use may
cause interference or danger.
■Network services
To use the phone you must have service from a wireless service
provider. Many of the features require special network features.
These features are not available on all networks; other networks
may require that you make specific arrangements with your
service provider before you can use the network services. Your
service provider can give you instructions and explain what
charges will apply. Some networks may have limitations that
10
DRAFT
affect how you can use network services. For instance, some
networks may not support all language-dependent characters
and services.
Your service provider may have requested that certain features be
disabled or not activated in your device. If so, these features will
not appear on your device menu. Your device may also have a
special configuration such as changes in menu names, menu
order, and icons. Contact your service provider for more
information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run
on TCP/IP protocols. Some features of this device, such as
multimedia messaging service (MMS), remote synchronization,
and accessing internet with the browser, require network support
for these technologies.
General information
■Access codes
The security code supplied with the phone protects your
phone against unauthorized use. You can create and
change a code, and set the phone to request the code.
The PIN code supplied with the SIM card, protects the card
against unauthorized use. The PIN2 code supplied with
11
DRAFT
some SIM cards, is required to access certain services. If
you enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your local service provider.
The module PIN is required to access the information in
the security module of your SIM card. The signing PIN may
be required for the digital signature. The barring password
is required when using the call barring service.
Select Menu > Settings > Security to set how your phone
uses the access codes and security settings.
■Nokia support on the web
Check www.nokia.com/support or your local Nokia website for
the latest version of the user guide, additional information,
downloads, and services related to your Nokia product.
12
DRAFT
1. Get started
■Install the SIM card and battery
For availability and information on using SIM card services,
contact your SIM card vendor. This may be the service provider or
other vendor.
Note: Always switch off the power and disconnect the
charger and any other device before removing the
cover. Avoid touching electronic components while
changing the cover. Always store and use the device
with the cover attached.
1. To remove the cover, press and slide the back cover
toward the bottom of the phone (1).
2. Remove the battery (2).
3. Insert the SIM card (3) and (4).
4. Insert the battery (5), and replace the back cover (6).
13
DRAFT
■Charge the battery
Warning: Use only batteries, chargers, and
enhancements approved by Nokia for use with this
particular model. The use of any other types may
invalidate any approval or warranty, and may be
dangerous.
Check the model number of any charger before use with this
device. This device is intended for use when supplied with power
from the AC-3 charger.
This device is intended to use the BL-4B battery.
For availability of approved enhancements, please check with
your dealer. When you disconnect the power cord of any
enhancement, grasp and pull the plug, not the cord.
1. Connect the charger to a wall outlet.
2. Connect the lead from the charger to the
charger connector of your phone.
If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
14
DRAFT
■Normal operating position
Your device has an internal antenna.
Note: As with any radio transmitting
device, avoid touching an antenna
unnecessarily when the antenna is in
use. For example, avoid touching the
cellular antenna during a phone call.
Contact with a transmitting or
receiving antenna affects the quality
of the radio communication, may
cause the device to operate at a
higher power level than otherwise
needed, and may reduce the battery
life.
15
DRAFT
2. Your phone
■Keys and parts
• Earpiece (1)
• Display (2)
• Microphone (3)
• Selection keys (4)
• Navi™ key: hereafter
referred to as scroll key (5)
• Call key (6)
• End key and power key (7)
• Headset connector (8)
• Charger connector (9)
• Loudspeaker (10)
16
DRAFT
Note: Do not touch this connector
as it is intended for use by
authorized service personnel only.
■Switch the phone on or off
To switch the phone on or off, press and hold the power
key. See ’Keys and parts’, page 15.
■Standby mode
When the phone is ready for use, before you enter any
characters, the phone is in the standby mode:
Network signal strength (1)
Battery charge level (2)
Network name or the operator logo (3)
Functions of selection keys (4)
The left selection key is Go to for you to view the
functions in your personal shortcut list. When viewing the
list, select Options > Select options to view the available
functions that you can add in the options list; select
Organise to rearrange the functions of your shortcut list.
17
DRAFT
■Keypad lock
Select Menu and press * quickly to lock the keypad to
prevent accidental keypresses. To answer a call when the
keyguard is on, press the call key. When you end or reject
the call, the keypad remains locked. To unlock, select
Unlock and press * quickly.
Select Menu > Settings > Phone > Automatic keyguard >
On to set the keypad to lock automatically after a preset
time delay when the phone is in the standby mode.
When the keypad lock is on, calls may be possible to the official
emergency number programmed into your device.
3. Call functions
■Make and answer a call
To make a call, enter the phone number including the area
code if necessary. The country code should be included, if
necessary. Press the call key to call the number. Scroll
right to increase or left to decrease the volume of the
earpiece or headset during the phone call.
18
DRAFT
To answer an incoming call, press the call key. To reject
the call without answering, press the end key.
■Loudspeaker
If available, you may select Loudsp. or Normal to use the
loudspeaker or the earpiece of the phone during a call.
Warning: Do not hold the device near your ear when
the loudspeaker is in use, because the volume may be
extremely loud.
4. Write text
You can enter text in predictive text ( ) and
traditional text ( ) input. To use traditional text input,
press a number key (1 to 9) repeatedly until the desired
character appears. To turn predictive text input on or off
when writing, press and hold #, and select Prediction on
or Prediction off.
When using predictive text input, press each key once for
a single letter. If the displayed word is the one you want,
press 0, and write the next word. To change the word,
press * repeatedly until the word you want appears. If ? is
19
DRAFT
displayed after the word, the word is not in the dictionary.
To add the word to the dictionary, select Spell, enter the
word (using traditional text input), and select Save.
Tips for writing text: to add a space, press 0. To quickly
change the text input method, press # repeatedly, and
check the indicator at the top of the display. To add a
number, press and hold the desired number key. To get a
list of special characters when using traditional text input,
press *; when using predictive text input, press and hold *.
5. Menu functions
The phone functions are grouped into menus. Not all
menu functions or option items are described here.
In the standby mode, select Menu and the desired menu
and submenu. Select Exit or Back to exit the current level
of menu. Press the end key to return to the standby mode
directly. To change the menu view, select Menu >
Options > Main menu view > List or Grid.
20
DRAFT
■Messaging
The message services can only be used if they
are supported by your network or service
provider.
Note: Your device may indicate that your message was
sent to the message center number programmed into
your device. Your device may not indicate whether the
message is received at the intended destination. For
more details about messaging services, contact your
service provider.
Important: Exercise caution when opening messages.
Messages may contain malicious software or
otherwise be harmful to your device or PC.
Text and multimedia message settings
Select Menu > Messaging > Message settings > Text
messages > Message centres. If your SIM card supports
more than one message center, select or add the one you
want to use. You may need to get the center number from
your service provider.
Select Menu > Messaging > Message settings >
Multimedia msgs. and from the following:
21
DRAFT
Allow multimedia reception—Select No, Yes, or In home
network to use the multimedia service.
Configuration settings—to select the default service
provider for retrieving multimedia messages. Select
Account to see the accounts provided by the service
provider and to select the one you want to use. You may
receive the settings as a configuration message from the
service provider.
Allow adverts—to choose whether you allow the reception
of messages defined as advertisements. This setting is not
shown if Allow multimedia reception is set to No.
MMS creation mode >Restricted—to set the phone to not
allow the type of content that may not be supported by
the network or the receiving device in a multimedia
message. Select Free to allow such contents, but the
receiving device may not receive the message properly.
Image size (restricted) or Image size (free)—to define the
size of the image you may insert into a multimedia
message when MMS creation mode is set to Restricted or
Free
22
DRAFT
Text messages
Your device supports sending text messages beyond the
character limit for a single message. Longer messages are sent as
a series of two or more messages. Your service provider may
charge accordingly. Characters that use accents or other marks
and characters from some language options take up more space,
limiting the number of characters that can be sent in a single
message.
An indicator at the top of the display shows the total
number of characters left and the number of messages
needed for sending. For example, 673/2 means that there
are 673 characters left and that the message will be sent
as a series of 2 messages.
The blinking indicates that the message memory is
full. Before you can receive new messages, delete some of
your old messages.
Multimedia messages
Only devices that have compatible features can receive and
display multimedia messages. The appearance of a message may
vary depending on the receiving device.
23
DRAFT
The wireless network may limit the size of MMS (multimedia
messaging service) messages. If the inserted picture exceeds this
limit, the device may make it smaller so that it can be sent by
MMS.
A multimedia message can contain text, pictures, sound
clips, and video clips.
Create text or multimedia message
Select Menu > Messaging > Create message > Message.
To add recipients, scroll to the To: field, and enter the
recipient’s number or e-mail address, or select Add to
select recipients from the available options. To add Cc or
Bcc recipients, select Options > Add recipient > Cc or Bcc.
To enter message text, scroll to the Text: field, and enter
the text. To add a subject for the message, select
Options > Add subject, and enter the subject. To attach
content to the message, select Options > Insert and the
desired type of attachment. To send the message, press
the call key.
The message type is changed automatically depending on
the content of the message. Operations that may cause
the message type to change from text message to
24
DRAFT
multimedia message include, but are not limited to, the
following:
Attach a file to the message.
Request a delivery report.
Set priority for the message to high or low.
Add a Cc or Bcc recipient or subject to the message or an
e-mail address in the recipient field.
When the message type changes to multimedia message,
the phone may briefly display Message changed to
multimedia, and the header text of the message editing
window changes to New multimedia. Check the header
text for message type.
Service providers may charge differently depending on the
message type. Check with your service provider for details.
Flash messages
Flash messages (network service) are text messages that
are instantly displayed.
Select Menu > Messaging > Create message > Flash
message.
25
DRAFT
Instant messages
To use instant messaging (IM) (network service) to send
short, simple text messages to online users, you have to
subscribe to a service and log in to it. Contact your service
provider for details.
Note: Depending on your IM service, you may not have
access to all of the features described in this guide, and
some icons and display texts may vary .
To connect to the service, select Menu > Messaging >
Instant messages. Select the desired connection setting
and account, and enter the user ID and password.
Audio message
You can use MMS to create and send a voice message.
MMS must be activated before you can use audio
messages.
Select Menu > Messaging > Create message > Audio
message. The recorder opens. When you finish recording
an audio message, enter the recipient’s phone number in
the To: field to send the message. To retrieve a phone
number from Contacts, select Add > Contacts. To view the
available options, select Options.
26
DRAFT
When your phone receives audio messages, to open the
message, select Play; or if more than one message is
received, select Show > Play. To listen to the message
later, select Exit. Select Options to see the available
options. The audio message is played through the earpiece
by default. Select Options > Loudspeaker to choose
loudspeaker.
Voice messages
The voice mailbox is a network service and you may need
to subscribe to it. Contact your service provider for a voice
mailbox number and detailed information.
Select Menu > Messaging > Voice messages.
E-mail application
The e-mail application uses a packet data connection
(network service) to allow you to access your compatible
e-mail account from your phone. Before you can send and
retrieve any e-mail, you must obtain an e-mail account
and the required settings. You may receive the e-mail
configuration settings as a configuration message. Your
phone supports POP3 and IMAP4 e-mail servers.
27
DRAFT
To create an e-mail account, select Menu > Messaging,
scroll to E-mail mailbox, and select Options > Add
mailbox > E-mail wizard, Create manually, or Saved
settings.
To access e-mail settings, select Menu > Messaging >
Message settings > E-mail messages.
To write an e-mail, select Menu > Messaging > Create
message > E-mail message. To attach a file to the e-mail,
select Options > Insert. To send the e-mail, press the call
key. Select the desired account if necessary.
To select the retrieve mode, select Menu > Messaging >
Message settings > E-mail messages > Edit mailboxes and
the desired mailbox, and select Downloading settings >
Retrieve mode > Headers only, Whole e-mail, or E-mail
text only (for IMAP4 server only).
To download, select Menu > Messaging and the desired
mail box; confirm the query for connection if necessary.
If the retrieve mode is set to Headers only, to download
the whole e-mail, mark the headers of the desired e-mail
in mailbox, and select Options > Retrieve marked.
28
DRAFT
■Contacts
You can save names and phone numbers in
the phone memory and in the SIM card
memory. The phone memory may save
contacts with numbers and text items. Names and
numbers saved in the SIM card memory are indicated by
.
To search a contact, select Menu >Contacts > Names >
Options > Search. Scroll through the list of contacts or
enter the first letters of the name for which you are
searching. To add a new contact, select Menu >
Contacts > Names > Options > Add new contact. To add
more details to a contact, make sure that the memory in
use is either Phone or Phone and SIM. Scroll to the name
to which you want to add a new number or text item, and
select Details > Options > Add detail.
To copy a contact, select Menu > Contacts > Names >
Options > Copy contact. You can copy names and phone
numbers between the phone contact memory and the SIM
card memory. The SIM card memory can save names with
one phone number attached to them.
29
DRAFT
You can send and receive a person’s contact information
from a compatible device that supports the vCard
standard as a business card. To send a business card,
search for the contact whose information you want to
send, and select Details > Options > Send bus. card > Via
multimedia, or Via text message. When you receive a
business card, select Show > Save to save the business
card in the phone memory. To discard the business card,
select Exit > Yes.
Select Menu > Contacts > Settings and from the
following:
Memory in use—to select SIM card or phone memory for
your contacts
Contacts view—to select how the names and numbers in
contacts are displayed
Memory status—to view the free and used memory
capacity
30
DRAFT
■Log
The phone registers the missed, received, and
dialed calls if the network supports it and the
phone is switched on and within the network
service area.
You can view the date and the time of the call, edit or
delete the phone number from the list, save the number in
Contacts, or send a message to the number.
To view the information on your calls, select Menu >
Log > Missed calls, Received calls, or Dialled numbers. To
view your recent missed and received calls and the dialed
numbers chronologically, select Call log. To view the
contacts to whom you most recently sent messages, select
Message recipients.
Select Menu > Log > Call duration, Packet data counter,
or Packet data conn. timer for approximate information on
your recent communications.
Note: The actual invoice for calls and services from
your service provider may vary, depending on network
features, rounding off for billing, taxes, and so forth.
31
DRAFT
To delete the recent calls lists, select Clear log lists. You
cannot undo this operation.
■Settings
You can adjust various phone settings in this
menu. To reset some of the menu settings to
their original values, select Menu > Settings > Restore
factory sett..
Profiles
Your phone has various setting groups called profiles for
which you can customize the phone tones for different
events and environments.
Select Menu > Settings > Profiles, the desired profile, and
Activate to activate the selected profile, Personalise to
personalize the profile, or Timed to set the expiry time for
the active profile. When the time set for the profile
expires, the previous profile that was not timed becomes
active.
To activate silent mode, you can also press and hold #.
32
DRAFT
Tone settings
Select Menu > Settings > Tones, and change any of the
available options for the active profile. Your phone
supports mp3 format ringing tones. You can also set your
recordings as ringing tones.
To set the phone to ring only for a selected caller group,
select Alert for:.
My shortcuts
With personal shortcuts, you get quick access to
frequently used phone functions. Select Menu >
Settings > My shortcuts and from the following options:
Right selection key or Left selection key—to allocate one
phone function to the right or left selection key
Navigation key—to select shortcut functions for the scroll
key. Scroll to the desired scroll key, select Change or
Assign and a function from the list.
Call and phone settings
Select Menu > Settings > Call and from the following:
33
DRAFT
Call divert (network service)—to divert your incoming
calls. For details, contact your service provider.
Automatic redial > On—to make 10 attempts to connect
the call after an unsuccessful attempt
Call waiting > Activate—to let the network notify you of
an incoming call while you have a call in progress
(network service)
Send my caller ID (network service)—to set whether to
show your number to the person you are calling
Select Menu > Settings > Phone > Language settings >
Phone language to set the display language of your phone.
Display settings
To save battery power with the power saver, select
Menu > Settings > Display > Power saver > On. A digital
clock is displayed when no function of the phone is used
for a certain period of time.
To save battery power in the sleep mode, select Menu >
Settings > Display > Sleep mode > On. The display turns
off when no function of the phone is used for a certain
period of time.
34
DRAFT
Time and date settings
Select Menu > Settings > Date and time. Select Date and
time settings to set the date and time. Select Date and
time format settings to set the formats for date and time.
Select Auto-update of date & time (network service) to set
the phone to update the time and date automatically
according to the current time zone.
Connectivity
GPRS
General packet radio service (GPRS) (network service) is a
data bearer that enables wireless access to data networks
such as the internet. The applications that may use GPRS
are MMS, browsing, and Java application downloads.
Before you can use GPRS technology, contact your
network operator or service provider for availability of and
subscription to the GPRS service. Save the GPRS settings
for each of the applications used over GPRS. For
information on pricing, contact your network operator or
service provider.
35
DRAFT
Select Menu > Settings > Connectivity > Packet data >
Packet data connection. Select Always online to set the
phone to automatically register to a GPRS network when
you switch the phone on. Select When needed, and the
GPRS registration and connection are established when
an application using GPRS needs it and closed when you
end the application.
Data transfer
Your phone allows transfer of data (such as calendar,
contacts data, and notes) with a remote internet server
(network service).
Synchronize from a server
To use a remote internet server, subscribe to a
synchronization service. For more information and the
settings required for this service, contact your service
provider.
To start the synchronization from your phone, select
Menu > Settings > Connectivity > Data transfer > Server
sync.
36
DRAFT
Synchronizing for the first time, or after an interrupted
synchronization, may take up to 30 minutes to complete.
Enhancement settings
The compatible mobile enhancement item is shown only if
the phone is or has been connected to it.
Select Menu > Settings > Enhance-ments and the
available enhancement. If available, you may select
Automatic answer to set the phone to answer an
incoming call automatically. If the Incoming call alert is
set to Beep once or Off, automatic answer will not be in
use.
Configuration settings
Some of the network services need configuration settings
on your phone. Get the settings from your SIM card or a
service provider as a configuration message, or enter your
personal settings manually.
Select Menu > Settings > Configura-tion and from the
following:
37
DRAFT
Default configu- ration settings—to view the list of service
providers stored on the phone (the default service provider
is highlighted)
Activate default in all applications—to set the applications
to use the settings from the default service provider
Preferred access point—to select another access point.
Normally the access point from your preferred network
operator is to be used.
Connect to service provider support—to download the
configuration settings from your service provider
To enter, view, and edit the settings manually, select
Menu > Settings > Configuration > Personal configu-
ration settings.
■Operator menu
This menu lets you access a portal to services provided by
your network operator. This menu is operator specific. The
name and the icon depend on the operator. The operator
can update this menu with a service message. For more
information, contact your network operator.
38
DRAFT
■Gallery
In this menu, you can manage themes,
graphics, recordings, and tones. These files are
arranged in folders.
Your phone supports a digital rights management (DRM)
system to protect acquired content. Always check the
delivery terms of any content and activation key before
acquiring them, as they may be subject to a fee.
Select Menu > Gallery > Images, Music files, Themes,
Graphics, Tones, Recordings, and Receiv. files.
■Media
Voice recorder
You can record pieces of speech, sound, or an
active call. This is useful for recording a name and phone
number to write them down later.
Select Menu > Media > Recorder and the virtual record
button on the display to start recording. To start the
recording during a call, select Options > Record. When
you record a call, hold the phone in the normal position
39
DRAFT
near your ear. The recording is saved in Gallery >
Recordings. To listen to the latest recording, select
Options > Play last recorded. To send the last recording
using a multimedia message, select Options > Send last
recorded.
■Organiser
Alarm clock
To use the alarm clock, select Menu >
Organiser > Alarm clock and from the following:
Alarm:—to set the alarm on or off
Alarm time:—to set the time for the alarm
Repeat:—to set the phone to alert you on selected days of
the week
Alarm tone:—to select or personalize the alarm tone
Snooze time-out:—to set the time out for the snooze alert
The phone will sound an alert tone and flash Alarm! and
the current time on the display even if the phone is
switched off. Select Stop to stop the alarm. If you let the
phone continue to sound the alarm for a minute or select
40
DRAFT
Snooze, the alarm stops for the snooze time you set, and
then resumes.
If the alarm time is reached while the device is switched off, the
device switches itself on and starts sounding the alarm tone. If
you select Stop, the device asks whether you want to activate the
device for calls. Select No to switch off the device or Yes to make
and receive calls. Do not select Yes when wireless phone use may
cause interference or danger.
Calendar
Select Menu > Organiser > Calendar. The current day is
indicated by a frame. If there are any notes set for the day,
the day is in bold type. To view the notes, select View. To
delete all notes in the calendar, select the month view or
week view, and select Options > Delete all notes. Other
options may be creating, deleting, editing, and moving a
note; copying a note to another day; or sending a note
directly to another compatible phone calendar as a text
message or an attachment.
41
DRAFT
To-do list
Select Menu > Organiser > To-do list. The to-do list is
displayed and sorted by priority. Select Options, and you
may add, delete, or send a note; mark the note as done; or
sort the to-do list by deadline.
■Applications
Your phone software may include some games
and Java applications specially designed for
this Nokia phone.
To view the amount of memory available for game and
application installations, select Menu > Applications >
Options > Memory status. To launch a game or an
application, select Menu > Applications > Games, or
Collection. Scroll to a game or an application, and select
Open. To download a game or an application, select
Menu > Applications > Options > Downloads >Game
downloads or App. downloads. Your phone supports
J2ME™ Java applications. Make sure that the application
is compatible with your phone before downloading it.
Important: Only install applications from sources that
offer adequate protection against harmful software.
42
DRAFT
Note that when downloading an application, it may be
saved in the Gallery menu instead of the Applications
menu.
■Web
You can access various mobile internet
services with your phone browser. Check the
availability of these services, pricing, and
tariffs with your network operator or the service provider.
Important: Use only services that you trust and that
offer adequate security and protection against harmful
software.
Service connection
Make sure that service settings are saved and activated.
To make a connection to the service, open the start page
(for example, the home page of the service provider),
select Menu > Web > Home, or in the standby mode,
press and hold 0. To access a bookmark, select Menu >
Web > Bookmarks. If the bookmark does not work with
the current active service settings, activate another set of
service settings and try again. To access the last URL,
43
DRAFT
select Menu > Web > Last web addr.. To enter the address
of the service, select Menu > Web > Go to address.
To quit browsing and to end the connection, press and
hold the end key.
After you connect to the service, you can browse its pages.
The function of the phone keys may vary in different
services. Follow the text guides on the phone display.
If GPRS is selected as the data bearer, is shown at the
top left of the display during browsing. If you receive a call
or a text message, or make a call during a GPRS
connection, is shown at the top left of the display to
indicate that the GPRS connection is suspended (on hold).
After a call, the phone tries to reconnect the GPRS
connection.
Your device may have preinstalled bookmarks and links for
third-party internet sites. You may also access other third-party
sites through your device. Third-party sites are not affiliated with
Nokia, and Nokia does not endorse or assume liability for them. If
you choose to access such sites, you should take precautions for
security or content.
44
DRAFT
Browser appearance settings
In the standby mode, select Menu > Web > Settings >
Appearance settings. Select Text wrapping > On to allow
the text to continue on the next line. If you select Off, the
text will be abbreviated. Select Show images > No, and
any pictures appearing on the page are not shown. To set
the phone to alert when a secure connection changes to
an insecure one during browsing, select Alerts > Alert for
unsecure connection > Yes. To set the phone to alert when
a secure page contains an insecure item, select Alert for
unsecure items > Yes. These alerts do not guarantee a
secure connection. To select the character set for showing
browser pages that do not include that information or to
select whether to always use UTF-8 encoding when
sending a web address to a compatible phone, select
Character encoding.
Service inbox
The phone can receive service messages (network service)
(pushed messages) sent by your service provider. To read
this service message, select Show. If you select Exit, the
message is moved to the Service inbox. To set the phone to
45
DRAFT
receive service messages, select Menu > Web >
Settings > Service inbox settings > Service messages >
On.
Browser security
Security features may be required for some services, such
as banking services or online shopping. For such
connections you need security certificates and possibly a
security module which may be available on your SIM card.
For more information, contact your service provider.
■SIM services
Your SIM card may provide additional
services. For information, contact your service
provider.
6. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The battery can
be charged and discharged hundreds of times, but it will
46
DRAFT
eventually wear out. When the talk and standby times are
noticeably shorter than normal, replace the battery. Use only
Nokia approved batteries, and recharge your battery only with
Nokia approved chargers designated for this device.
If a replacement battery is being used for the first time or if the
battery has not been used for a prolonged period, it may be
necessary to connect the charger, then disconnect and reconnect
it to begin charging the battery.
Unplug the charger from the electrical plug and the device when
not in use. Do not leave a fully charged battery connected to a
charger, since overcharging may shorten its lifetime. If left
unused, a fully charged battery will lose its charge over time.
If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the display or
before any calls can be made.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can
occur when a metallic object such as a coin, clip, or pen causes
direct connection of the positive (+) and negative (-) terminals of
the battery. (These look like metal strips on the battery.) This
might happen, for example, when you carry a spare battery in
your pocket or purse. Short-circuiting the terminals may damage
the battery or the connecting object.
47
DRAFT
Leaving the battery in hot or cold places, such as in a closed car in
summer or winter conditions, will reduce the capacity and
lifetime of the battery. Always try to keep the battery between
15°C and 25°C (59°F and 77°F). A device with a hot or cold
battery may not work temporarily, even when the battery is fully
charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Dispose of batteries
according to local regulations. Please recycle when possible. Do
not dispose as household waste.
Do not dismantle or shred cells or batteries. In the event of a
battery leak, do not allow the liquid to come in contact with the
skin or eyes. In the event of such a leak, flush your skin or eyes
immediately with water, or seek medical help.
Important: Battery talk and standby times are
estimates only and depend on signal strength, network
conditions, features used, battery age and condition,
temperatures to which battery is exposed, use in digital
mode, and many other factors. The amount of time a
device is used for calls will affect its standby time.
Likewise, the amount of time that the device is turned
on and in the standby mode will affect its talk time.
48
DRAFT
■Nokia battery authentication
guidelines
Always use original Nokia batteries for your safety. To check that
you are getting an original Nokia battery, purchase it from an
authorized Nokia dealer, look for the Nokia Original
Enhancements logo on the packaging, and inspect the hologram
label using the following steps:
Successful completion of the four steps is not a total assurance of
the authenticity of the battery. If you have any reason to believe
that your battery is not an authentic, original Nokia battery, you
should refrain from using it, and take it to the nearest authorized
Nokia service point or dealer for assistance. Your authorized
Nokia service point or dealer will inspect the battery for
authenticity. If authenticity cannot be verified, return the battery
to the place of purchase.
49
DRAFT
Authenticate hologram
1. When looking at the hologram
on the label, you should see the
Nokia connecting hands symbol
from one angle and the Nokia
Original Enhancements logo when
looking from another angle.
2. When you angle the hologram
left, right, down, and up, you
should see 1, 2, 3, and 4 dots on
each side respectively.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram
on the label is an authentic Nokia battery, please do not use the
battery. Take it to the nearest authorized Nokia service point or
dealer for assistance. The use of a battery that is not approved by
the manufacturer may be dangerous and may result in poor
performance and damage to your device and its enhancements. It
50
DRAFT
may also invalidate any approval or warranty applying to the
device.
To find out more about original Nokia batteries, visit
www.nokia.com/battery.
7. Enhancements
Practical rules about accessories and enhancements
• Keep all accessories and enhancements out of the reach of
small children.
• When you disconnect the power cord of any accessory or
enhancement, grasp and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are
mounted and are operating properly.
• Installation of any complex car enhancements must be made
by qualified personnel only.
51
DRAFT
Care and maintenance
Your device is a product of superior design and craftsmanship and
should be treated with care. The following suggestions will help
you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of
liquids or moisture can contain minerals that will corrode
electronic circuits. If your device does get wet, remove the
battery, and allow the device to dry completely before
replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving
parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries, and
warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns
to its normal temperature, moisture can form inside the
device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in
this guide.
• Do not drop, knock, or shake the device. Rough handling can
break internal circuit boards and fine mechanics.
52
DRAFT
• Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and
prevent proper operation.
• Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the device and may violate regulations governing
radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as
contacts and calendar notes.
• To reset the device from time to time for optimum
performance, power off the device and remove the battery.
These suggestions apply equally to your device, battery, charger,
or any enhancement. If any device is not working properly, take it
to the nearest authorized service facility for service.
53
DRAFT
Additional safety information
■Small children
Your device and its enhancements may contain small parts. Keep
them out of the reach of small children.
■Operating environment
This device meets RF exposure guidelines when used either in the
normal use position against the ear or when positioned at least
2.2 centimeters (7/8 inch) away from the body. When a carry
case, belt clip, or holder is used for body-worn operation, it
should not contain metal and should position the device the
above-stated distance from your body. To transmit data files or
messages, this device requires a quality connection to the
network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure the
above separation distance instructions are followed until the
transmission is completed.
Parts of the device are magnetic. Metallic materials may be
attracted to the device. Do not place credit cards or other
magnetic storage media near the device, because information
stored on them may be erased.
54
DRAFT
■Medical devices
Operation of any radio transmitting equipment, including
wireless phones, may interfere with the functionality of
inadequately protected medical devices. Consult a physician or
the manufacturer of the medical device to determine if they are
adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when
any regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a minimum
separation of 15.3 centimeters (6 inches) should be maintained
between a wireless device and an implanted medical device, such
as a pacemaker or implanted cardioverter defibrillator, to avoid
potential interference with the medical device. Persons who have
such devices should:
• Always keep the wireless device more than 15.3 centimeters
(6 inches) from the medical device when the wireless device is
turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical
device to minimize the potential for interference.
55
DRAFT
• Turn the wireless device off immediately if there is any reason
to suspect that interference is taking place.
• Read and follow the directions from the manufacturer of their
implanted medical device.
If you have any questions about using your wireless device with
an implanted medical device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing
aids. If interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as electronic
fuel injection systems, electronic antiskid (antilock) braking
systems, electronic speed control systems, and air bag systems.
For more information, check with the manufacturer, or its
representative, of your vehicle or any equipment that has been
added.
Only qualified personnel should service the device or install the
device in a vehicle. Faulty installation or service may be
dangerous and may invalidate any warranty that may apply to
the device. Check regularly that all wireless device equipment in
your vehicle is mounted and operating properly. Do not store or
56
DRAFT
carry flammable liquids, gases, or explosive materials in the same
compartment as the device, its parts, or enhancements. For
vehicles equipped with an air bag, remember that air bags inflate
with great force. Do not place objects, including installed or
portable wireless equipment in the area over the air bag or in the
air bag deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
Using your device while flying in aircraft is prohibited. Switch off
your device before boarding an aircraft. The use of wireless
teledevices in an aircraft may be dangerous to the operation of
the aircraft, disrupt the wireless telephone network, and may be
illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially
explosive atmosphere, and obey all signs and instructions.
Potentially explosive atmospheres include areas where you would
normally be advised to turn off your vehicle engine. Sparks in
such areas could cause an explosion or fire resulting in bodily
injury or even death. Switch off the device at refueling points
such as near gas pumps at service stations. Observe restrictions
on the use of radio equipment in fuel depots, storage, and
distribution areas; chemical plants; or where blasting operations
are in progress. Areas with a potentially explosive atmosphere are
57
DRAFT
often, but not always, clearly marked. They include below deck on
boats, chemical transfer or storage facilities, vehicles using
liquefied petroleum gas (such as propane or butane), and areas
where the air contains chemicals or particles such as grain, dust,
or metal powders.
■Emergency calls
Important: Wireless phones, including this device,
operate using radio signals, wireless networks, landline
networks, and user-programmed functions. Because of
this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless
device for essential communications like medical
emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal
strength.
Some networks may require that a valid SIM card is properly
inserted in the device.
2. Press the end key as many times as needed to clear the display
and ready the device for calls.
3. Enter the official emergency number for your present
location. Emergency numbers vary by location.
58
DRAFT
4. Press the call key.
If certain features are in use, you may first need to turn those
features off before you can make an emergency call. Consult this
guide or your service provider for more information.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless device may
be the only means of communication at the scene of an accident.
Do not end the call until given permission to do so.
■Certification information (SAR)
This mobile device meets guidelines for exposure to radio
waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and
include safety margins designed to assure the protection of all
persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR. The
SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram
(W/kg) averaged over 10 grams of tissue. Tests for SAR are
conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested
59
DRAFT
frequency bands. The actual SAR level of an operating device can
be below the maximum value because the device is designed to
use only the power required to reach the network. That amount
changes depending on a number of factors such as how close you
are to a network base station. The highest SAR value under the
ICNIRP guidelines for use of the device at the ear is 1.60 W/kg.
Use of device accessories and enhancements may result in
different SAR values. SAR values may vary depending on national
reporting and testing requirements and the network band.
Additional SAR information may be provided under product
information at www.nokia.com.
Your mobile device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada. These
requirements set a SAR limit of 1.6 W/kg averaged over one gram
of tissue. The highest SAR value reported under this standard
during product certification for use at the ear is 0.98 W/kg and
when properly worn on the body is 0.38 W/kg.
60
DRAFT
Index
A
access codes 10
alarm clock 39
applications 41
audio messages 25
B
battery
authentication 48
charging 13
installation 12
bookmarks 42
browsers 42
C
calendar 40
calls 17
charge the battery 13
contacts 28
E
emergency calls 57
enhancements 50
K
keypad lock 17
L
log 30
loudspeaker 18
M
messages 20
multimedia messages 22
P
password 10
S
shortcuts 32
SIM card installation 12
standby mode 16
T
text entry 18
text messages 22
to-do list 41
