Manual rev

Nokia 1100

User Guide

Note: Spanish translation follows page 50 of the English guide.

Portuguese translation follows page 36 of the Spanish guide.

LEGAL INFORMATION

PART NO. 9310129, ISSUE NO. 2

Nokia, Nokia Connecting People, Xpress-on, Navi-key, and the Nokia Original Enhancements logos are

trademarks or registered trademarks of Nokia Corporation. Other company and product names mentioned

herein may be trademarks or trade names of their respective owners.

Printed in Mexico, 02/2004

Includes RSA BSAFE cryptographic or security protocol software from RSA Security.

The information contained in this user guide was written for the Nokia 1100 product. Nokia operates a

policy of ongoing development. Nokia reserves the right to make changes to any of the products

described in this document without prior notice.

UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR

ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE

CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW,

NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN

RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE

RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.

EXPORT CONTROLS

This device contains commodities, technology, or software exported from the United States in accordance

with the Export Administration regulations. Diversion contrary to U.S. or Canadian law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close proximity

to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such

interference cannot be eliminated. If you require assistance, contact your local service facility. This device

complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not

cause harmful interference.

PATENT NUMBERS

U.S. Patent Nos. 5818437, 5953541, 6011554 and other pending patents associated with this product’s

hardware and software

Manufactured or sold under one or more of the following U.S. Patents:

5818437 5953541 6011554 6594472 5845219 5892475

6151507 5692032 5479476 6094587 6115617 6487397

6347218 5241583 5794142 5870683 6026161 6185295

6188909 6043760 6292668 6049796 5920826 5956633

544816 5669482 5701392 5754976 4969192 RE32580

Contents

1 For your safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About your device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Network Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Accessibility solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Charger and enhancements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 Get started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FInd the label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Insert the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Charge the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Keys and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Display and standby mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Change covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Attach the wrist strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3 Call functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Answer a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

In-call operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Listen to voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Lock the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 Writing text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Predictive text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

traditional text input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5 Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

List of menu functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Messages (Menu 0-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Contacts (Menu 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Call log (Menu 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Tones (Menu 5). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Profiles (Menu 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Settings (Menu 7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Alarm clock (Menu 8). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Reminders (Menu 9). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Games (Menu 10). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Extras (Menu 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

SIM services (Menu 12). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6 Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Battery information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Enhancements, Batteries, and Chargers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Care and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Additional safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

7 Nokia One-Year Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Appendix A Message from the CTIA . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Appendix B Message from the FDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

For your safety

1 For your safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the

complete user guide for further information.

SWITCH ON SAFELY

Do not switch on the phone when wireless phone use is prohibited or when it

may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless phones may be susceptible to interference, which could

affect performance.

SWITCH OFF IN HOSPITALS

Follow any restrictions. Switch the phone off near medical equipment.

SWITCH OFF IN AIRCRAFT

Follow any restrictions. Wireless devices can cause interference in aircraft.

SWITCH OFF WHEN REFUELING

Don't use the phone at a refueling point. Don't use near fuel or chemicals.

SWITCH OFF NEAR BLASTING

Follow any restrictions. Don’t use the phone where blasting is in progress.

USE SENSIBLY

Use only in the normal position as explained in the product documentation. Do

not touch the antenna unnecessarily.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ENHANCEMENTS

Use only approved enhancements and batteries. Do not connect incompatible

products.

WATER-RESISTANCE

Your phone is not water-resistant. Keep it dry.

BACKUP COPIES

Remember to make back-up copies or keep a written record of all important

information stored in your phone.

EMERGENCY CALLS

Ensure the phone is switched on and in service. Press C as many times as needed

to clear the display and return to the main screen. Enter the emergency number,

then press Call. Give your location. Do not end the call until told to do so.

• ABOUT YOUR DEVICE

The wireless device described in this guide is approved for use on the GSM network. Contact

your service provider for more information about networks.

When using the features in this device, obey all laws and respect privacy and legitimate

rights of others.

Warning: To use any features in this device, other than the alarm clock, the phone

must be switched on. Do not switch the device on when wireless phone use may

cause interference or danger.

• NETWORK SERVICES

To use the phone you must have service from a wireless service provider. Many of the features

in this device depend on features in the wireless network to function. These network services

may not be available on all networks or you may have to make specific arrangements with

your service provider before you can utilize network services. Your service provider may need

to give you additional instructions for their use and explain what charges will apply. Some

networks may have limitations that affect how you can use network services. For instance,

some networks may not support all language-dependent characters and services.

Your service provider may have requested that certain features be disabled or not activated

in your device. If so, they will not appear on your device menu. Contact your service provider

for more information.

For your safety

• ACCESSIBILITY SOLUTIONS

Nokia is committed to making mobile phones easy to use for all individuals, including those

with disabilities. Nokia maintains an internet site that is dedicated to accessibility solutions. For

more information about phone features, enhancements, alternate format user guides, and

other Nokia products designed with your needs in mind, visit the web site at:

www.nokiaaccessibility.com.

The Nokia 1100 phone is equipped with a universal 2.5-mm accessory jack that can be used

to connect any “cellular ready” or “cellular compatible” TTY/TDD device cable.

Important: Once your TTY/TDD device is connected, you must use the phone menu

Menu > Settings > Enhancement settings > TTY/TDD to enable the TTY/TDD mode.

• CHARGER AND ENHANCEMENTS

Check the model number of any charger before use with this device. This device is intended

for use when supplied with power from ACP-7, ACP-8, ACP-12 and, LCH-9 and LCH-12.

Warning: Use only batteries, chargers and enhancements approved by the phone

manufacturer for use with this particular phone model. The use of any other types

may invalidate any approval or warranty applying to the phone, and may be dangerous.

For availability of approved ehancements, please check with your dealer.

When you disconnect the power cord of any enhancement, grasp and pull the plug,

not the cord.

2 Get started

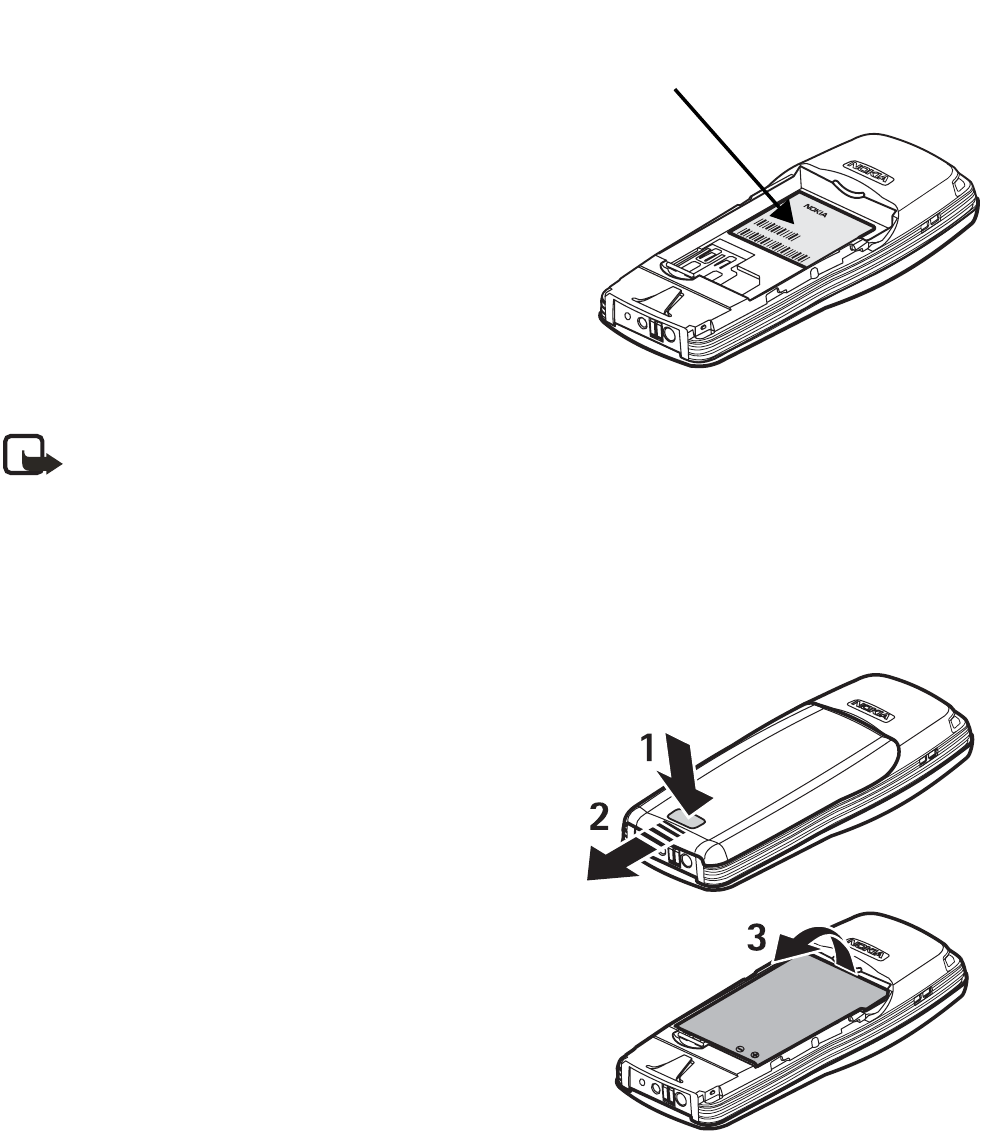

• FIND THE LABEL

If you ever need to call Nokia Customer Care or your service provider, you will need to provide

specific information about your phone. This information appears on the phone label.

The label is on the back of the phone

(under the battery). It shows the following:

• Model number

1100a (approved for the GSM 900/1800

network) or 1100b (approved for the GSM

850/1900 network).

• Phone type (a technical designation)

• International Mobile Equipment Identification

(IMEI)

Do not remove or deface the label.

• INSERT THE SIM CARD

Note: Before installing the SIM card, make sure that the phone is switched off,

disconnected from the charger or any other device and then remove the battery.

Keep all miniature SIM cards out of the reach of small children. The SIM card and

contacts are easily damaged by scratches or bending, so be careful when handling,

inserting or removing the card. For availability and information on using SIM card

services, contact your SIM card vendor. This may be the service provider, network

operator, or other vendor.

1Remove the back cover (1 and 2).

2Remove the battery (3).

3Insert the SIM card with the gold area down and

the bevelled corner on the right (4 and 5).

Information

label

Get started

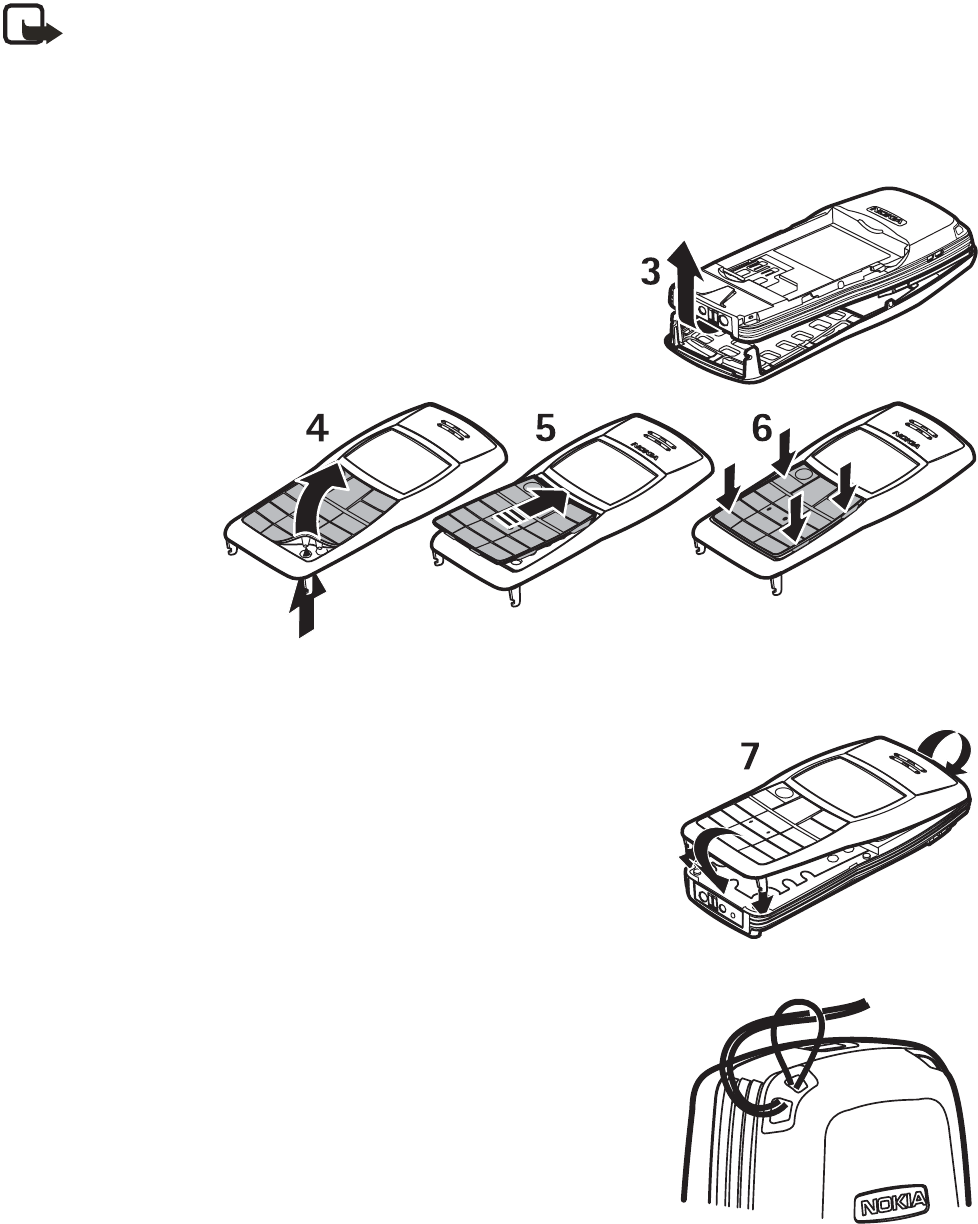

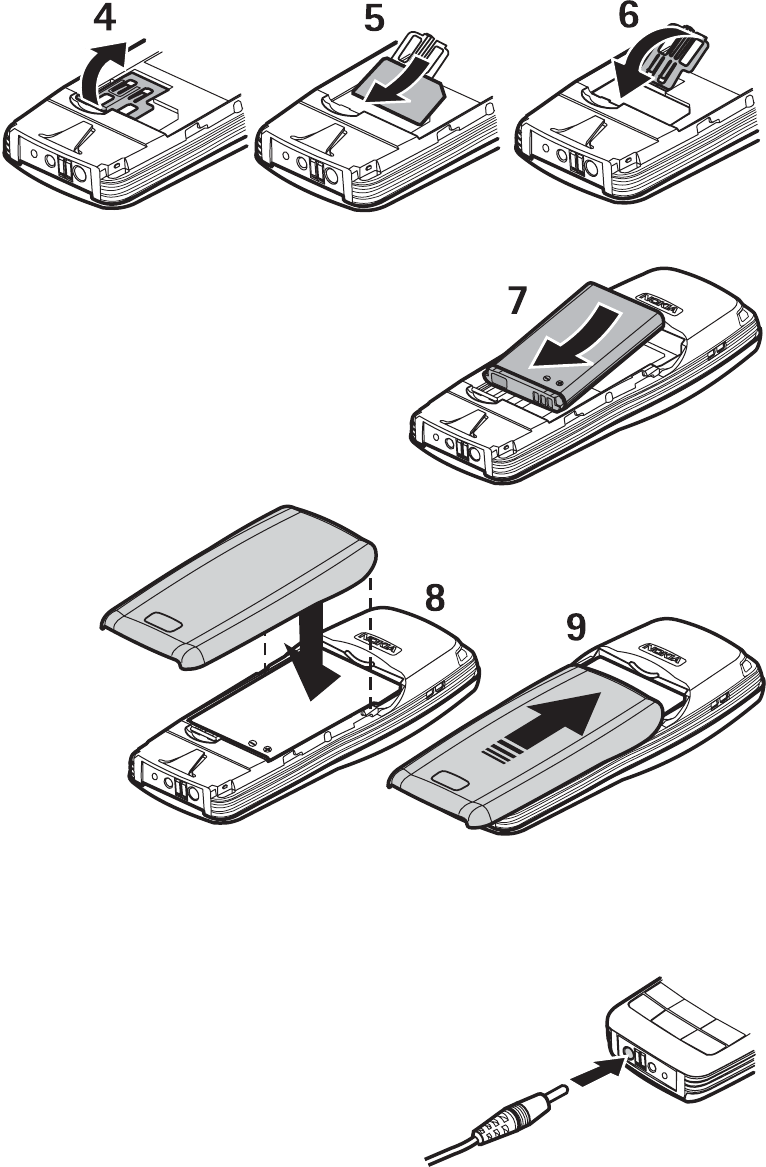

4Close the

SIM card

holder and

press to

lock it (6).

5Align the gold connectors on the battery with the

connectors on the phone and insert the battery (7).

6Replace the back

cover (8 and 9).

• CHARGE THE BATTERY

Do not charge the battery if the phone covers are removed.

1Connect the charger plug into the connector in

the phone.

2Connect the charger to an ac wall outlet.

The battery indicator bar starts scrolling.

• Charging a BL-5C battery with the ACP-7

charger takes up to 3 hours.

•If Not charging appears, wait for a while,

disconnect the charger, reconnect it, and retry.

If charging still fails, contact your dealer.

When the battery is fully charged, the bar stops scrolling. Disconnect the charger from

the phone and the ac outlet.

• KEYS AND CONNECTORS

1Flashlight See “Flashlight” on page 26.

2Nokia Navi™ key

Text above the Navi key shows the

current function of the key. In this

guide, instructions such as “Press Menu”

mean to press the key located beneath

the word Menu.

3Power key

Press and hold to switch the phone on or

off. Press and release for quick access to

a list of profiles [see “Profiles (Menu 6)”

on page 20]. When the keypad is locked,

press to turn on the display lights for

about 15 seconds.

4Scroll keys

Scroll through names, phone numbers,

menus or settings. Adjusts the earpiece

volume during a call. In the standby

mode, press to show the list of last

dialed numbers and press to show

names and phone numbers saved

in Contacts.

5Clear/Exit, or C key

Deletes characters from the display and exits from different functions.

6Use keys 0 through 9 to enter numbers and characters.

Use the * and # keys for various purposes in different functions.

7Charger connector

8Headset connector

9Microphone

Get started

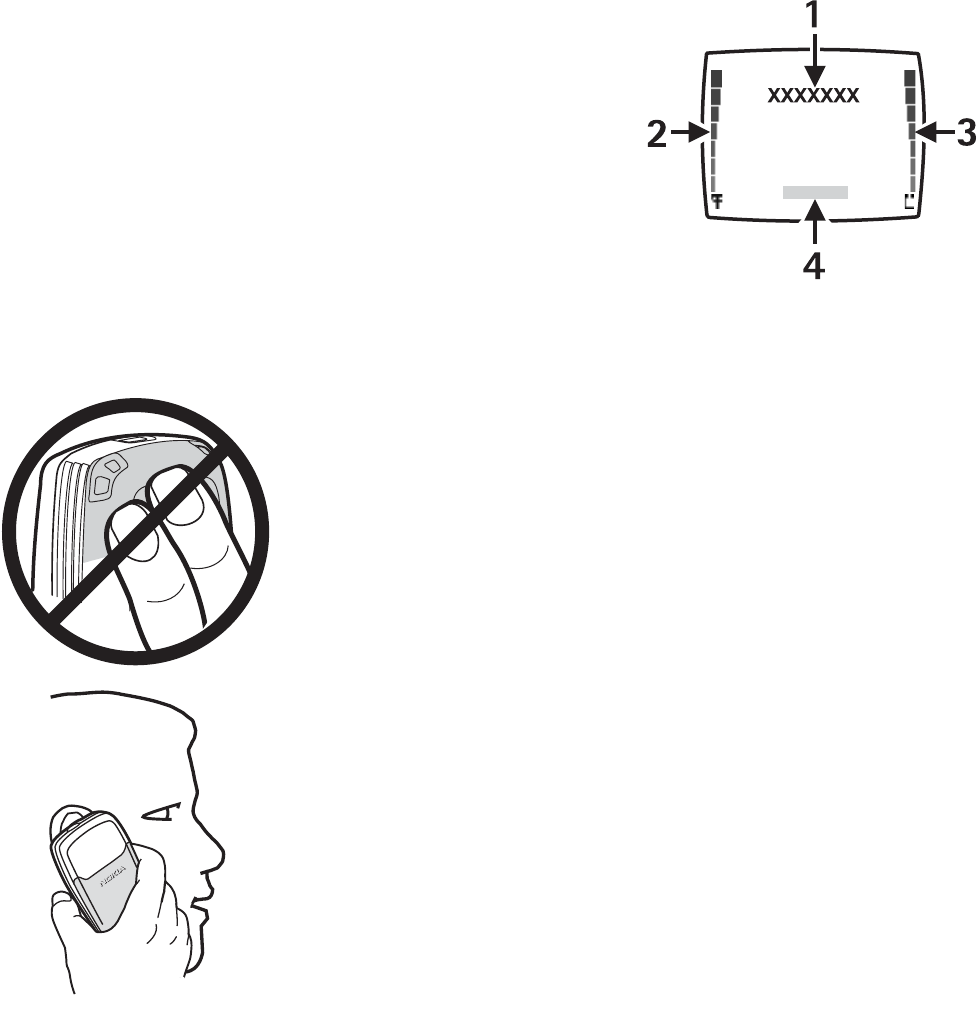

• DISPLAY AND STANDBY MODE

In the standby mode, the indicators described below

appear when the phone is ready for use and no

characters have been keyed in.

1Cellular network in use, or the operator logo

2Signal intensity of the cellular network at your

current location

3Battery charge level

4Current function of the Navi key

TIPS ON EFFICIENT OPERATION:

Your phone has a built-in antenna. As with any other radio

transmitting device, do not touch the antenna unnecessarily

when the device is switched on. Contact with the antenna

affects call quality and may cause the phone to operate at a

higher power level than otherwise needed. Avoid contact with

the antenna area when operating the phone to optimize the

antenna performance and the battery life.

Hold the phone as you would any other telephone with the

antenna pointed up and over your shoulder.

• CHANGE COVERS

Note: Before removing the cover, always switch off the power and disconnect the

charger and any other device. Avoid touching electronic components while changing

the covers. Always store and use the device with the covers attached.

1Remove the back cover of the phone and battery. See steps 1 and 2 in “Insert the SIM

card” on page 4.

2Carefully remove the front cover (3).

3Remove the

keymat

carefully (4).

Insert the

new keymat

(5) and make

sure it is

properly

positioned

(6).

4Align the top of the front cover with the top of the

phone and press the front cover to lock it into place (7).

5Insert the battery and replace the back cover. See steps

4 and 5 in “Insert the SIM card” on page 4.

• ATTACH THE WRIST STRAP

Thread the strap through the holes as shown, and tighten it.

Call functions

3 Call functions

• MAKE A CALL

1Key in the phone number including the area code.

Press C to delete the last entered digit.

2Press Call.

Press to increase or to decrease the volume of the earpiece or headset.

3Press End to end the call.

Use the phone book

In the standby mode, press to find the name you want, then press Call.

Conference calling

Conference calling is a network service that allows up to four people to participate in the

same call.

1Call the first participant.

2To call a new participant, press Options > New call, and enter the number or select it

from the phone book.

3When the call is answered, press Options > Conference, to join the conference call.

4To add another participant, repeat steps 1 to 3.

5To end the conference call, press End.

Redialing

Press , scroll to the phone number or name you want, and press Call.

1-touch dialing

Assign a phone number to a key:

1Press Menu > Settings > Call settings >1-touch dialing and select On.

2Press C to return to the standby mode.

3Press Menu > Contacts > 1-touch dialing.

4Select the key you want, (2–9) and press Assign.

5Select Assign to call or Assign to SMS.

6Scroll the name or number you want and press Select.

To use 1-touch dialing, press and hold the corresponding number key.

• ANSWER A CALL

In the standby mode, press Answer. To divert or reject the call without answering, press C.

• IN-CALL OPERATIONS

During a call, press C and Options for some of the following functions. Many of these are

network services. Hold or Unhold, New call, Answer, Reject, End all calls, Contacts, Send

DTMF, Swap, Menu and Mute or Unmute, Flashlight on or Flashlight off.

• LISTEN TO VOICE MAIL

Voice mailbox is a network service. For more information, and to receive your voice mailbox

number, contact your service provider.

Press and hold 1. To change the voice mailbox number, see “Voice mailbox number” on

page 17.

To forward calls to your voice mailbox, refer to “Call settings” on page 21.

• LOCK THE KEYPAD

The keypad lock prevents accidental key presses.

To lock or unlock the keypad, press Menu > * quickly. When the keypad is locked,

appears.

You can also Automatic keyguard to lock the keypad after a certain period of time. Refer to

“Keyguard settings” on page 22.

Note: When the Keyguard is on, calls still may be possible to the official emergency

number programmed into your phone. Key in the emergency number and press Call.

Writing text

4Writing text

You can enter text two ways: use the traditional text input (indicated with ) or using

predictive text input (indicated with ).

• PREDICTIVE TEXT

Set on or off

When writing text, press Options > Predictive text > English > OK.

To revert to traditional text input, select Prediction off.

Tip: To quickly set the predictive text input on or off when writing text,

press # twice.

Use predictive text

Predictive text input is an easy way to write text. It is based on a built-in dictionary to which

you can also add new words.

1Key in the word you want by pressing each key once for one letter. The word changes

after each keystroke. For example, to write ‘Nokia’ when the English dictionary is

selected, press 66542.

• To delete the character to the left of the cursor, press C. To clear the screen, press

and hold C.

• To switch between upper and lowercase, or between traditional and predictive text

input, press # repeatedly and check the indicator at the top of the display.

• To switch between letters and numbers, press and hold #.

• To get a list of special characters, press and hold *, select the character you want,

and press Use.

• To insert a number, press and hold the number key you want. To insert several

numbers, press and hold # and key in the numbers.

2If the displayed word is the one you want, press 0 and start writing the next word.

• To change the word, press * repeatedly until the word you want appears.

• If the "?" is displayed after the word, the word is not in the dictionary. To add the

word to the dictionary, press Spell, key in the word (using traditional text input),

and press OK.

Writing compound words

Key in the first half of the word, press , and key in the second half.

• TRADITIONAL TEXT INPUT

Press the key marked with the letter that you want repeatedly until the letter appears.

Use the following functions to edit the text:

• To add a space, press 0.

• To add a punctuation mark or special character, press 1 repeatedly, or press *, select

the desired character, and press Use.

• To move the cursor left or right, press or , respectively.

• To delete the character to the left of the cursor, press C. To clear the screen, press and

hold this key.

• To switch between upper and lower case, press #.

• To add a number, press and hold the desired key. To switch between letters and

numbers, press and hold #.

• To key in a letter which is on the same key as the previous one, press or

(or wait until the cursor appears), and key in the new letter.

Menu functions

5 Menu functions

You can use the key features in the menus in the following ways:

SCROLLING

1Press Menu in the standby mode.

2Press or to scroll to the main menu you want, and press Select to enter it.

Press C to exit a main menu.

3If the menu contains submenus, scroll to the one you want and press Select to enter

it. Press C to exit a submenu.

If you do not want to save the changes you made to menu settings, press and hold C.

SHORTCUT

The menus, submenus, and setting options are numbered. These numbers are called

shortcut numbers.

In the standby mode, press Menu and key in quickly, within three seconds, the shortcut

number of the menu you want to access. Repeat for submenus.

For example, if you want to activate Call waiting service, press Menu > 7 (for Settings),

2 (for Call settings), 4 for Call waiting service), 1 (for Activate).

Note that the shortcut number for Messages is 0-1 because there are more than 10 menus.

• LIST OF MENU FUNCTIONS

Messages 0-1

Contacts 2

Call log 4

Tones 5

Profiles 6

Settings 7

Alarm clock 8

Reminders 9

Games 10

Extras 11

SIM services 12

(if available)

• MESSAGES (MENU 0-1)

Write messages

Your Nokia 1100 phone lets you send text messages beyond the

normal 160-character limit (check with your service provider to make sure their system can

handle long messages). If your message exceeds 160 characters, it will be sent as a series of

two to four messages. As you write the message, look in the upper right part of the screen. You

can see the message length indicator counting backwards from 459. For example, 420/1means

that you have used 39 characters and the message will be sent in one part. But 298/2 means

that you have used 161 characters, so the message will be divided and sent in two parts.

Using special (Unicode) characters, such as ë, â, á, ì, takes up more space. If there are special

characters in your message, the indicator may not show the message length correctly.

Before the message is sent, the Nokia 1100 phone tells you if the message exceeds the

maximum length allowed for one message. You can cancel sending by pressing Cancel or

you can save the message in the inbox.

To send a message, the phone number of your message center has to be saved in the phone.

See “Message settings” on page 16.

1In the standby mode, press Menu > Messages > Create message.

2Key in the message. The number of available characters and the current part number

are shown on the top right of the display.

3When the message is complete, press Options > Send, key in the recipient’s phone

number, and press OK.

If you want to send the message to several people, select Sending options and Send to

many, scroll to the first recipient, and press Send. Repeat this for each recipient.

To send a message to a predefined distribution list, select Sending options and Send

to list. To define and edit distribution lists, see “Distribution lists” on page 15.

Other options are Insert options, Use template, Small fonts, Save message, Clear

text, Predictive text, Instructions, and Exit editor.

Note: When sending messages using the SMS network service, your phone may

display the words Message sent. This is an indication that the message has been

sent by your phone to the message center number programmed into your phone. This

is not an indication that the message has been received at the intended destination.

For more details about SMS services, check with your service provider.

Menu functions

Read a text message (Inbox)

When you have received text messages in the standby mode, the number of new messages

as well as a are shown on the display.

1Press Show to view the messages immediately.

To view the messages later, press C. When ready to read the message, go to the Inbox

menu (Menu 0-1-2).

2Use the scroll keys to browse through the message.

While reading the message, you can press Options for these functions: Delete, Reply,

Edit, Use, Forward, As reminder, Small fonts, and Details.

Sent items

The Sent items menu lets you view the copies of the messages that you have sent.

Press Options for these functions: Use, Forward, Delete, Edit, Details.

Drafts

In the Drafts menu, you can view the messages you have saved in the Write message menu.

Picture messages

You can receive and send messages that contain pictures (network service). Picture messages

are saved in the phone. Note that each picture message comprises several text messages.

Therefore, sending one picture message may cost more than one text message.

Note: This function can be used only if it is supported by your network operator or

service provider. Only compatible phones that offer picture message features can

receive and display picture messages.

RECEIVING A PICTURE MESSAGE

To view the message immediately, press Show. Press Options and you have the following

options for the picture message: Delete, Reply, Chat, Edit text, Save picture, as screensaver,

Use number, Copy to Reminder and Details.

Distribution lists

If you need to send messages frequently to a fixed group of recipients, you can define a

distribution list and use it when sending a message. You can define up to 6 distribution

lists with up to 10 recipients in each. The phone sends a text message to each recipient

separately.

To view and edit distribution lists, press Menu > Messages > Distribution lists.

Press Options to create a distribution list.

If a message fails to be sent to one or more recipients, a report listing the number of failures,

successful sendings and not found names will be displayed. You can select each category by

pressing Select.

• Names in the not found group are names in the distribution list that have been deleted

from the phone book. Press Remove to remove them.

•Resend to resend the message to the failed recipients.

•View to view the list of failed recipients.

Templates

You can view or edit the preset messages (templates) that you can use for writing a message.

Smileys

You can edit and store the smileys such as ":-)", and use them in compiling messages.

Delete messages

Press Menu > Messages > Delete messages.

To delete all read messages from all folders, select All read > OK. When Delete read

messages from all folders? appears, press OK.

To delete all the read messages in a folder, scroll to the folder and press OK. Then press OK

when Delete all read messages from folder? appears.

Message settings

The phone offers two kinds of message settings: settings specific to each setting group

(profile) and settings common to all text messages.

TEXT MSG (MENU 0-1-1-0-1)

This profile contains settings needed for sending text and picture messages. The settings

include Message center number (get this number from your service provider), Messages sent

as, Message validity, and Rename sending profile. You must have the message center

number to send text and picture messages. The total number of profiles depends on how

many your SIM card offers.

COMMON (MENU 0-1-1-0-2)

The settings in this submenu apply to all text messages that you send, regardless of the

chosen profile. The available settings are: Delivery reports, Reply via same center and

Character support.

Select Character support to define how the phone handles Unicode characters in text

messages. (Check with your service provider for availability.)

The Full option sends all Unicode characters in a text message to a compatible phone

(if supported by your network).

The Reduced option tries to convert Unicode characters into the corresponding non-

Unicode characters (for example ’á’ to ’a’). If no non-Unicode counterpart exists, the

characters are sent unchanged.

Menu functions

Info service

With this network service, you can receive messages on various topics from the network.

For details, contact your service provider.

Voice mailbox number

You can save and change the phone number of your voice mailbox (network service).

Service command editor

You can send service requests to your service provider. Key in the characters you want. Press

and hold # to switch between letters and numbers. Press Send to send the request.

• CONTACTS (MENU 2)

You can save names and phone numbers in phone memory (internal

phone book) and in SIM card memory (SIM phone book). The internal

phone book can store up to 50 names.

Searching for a name and phone number

In the standby mode, press Menu > Contacts > Find. Key in the first characters of the name

you are looking for and press Find. Scroll to find the name you want.

If the name or phone number is saved in SIM card memory, is shown at the upper right

corner of the display; if it is saved in phone internal memory, is shown instead.

Tip: For a quick search, press in the standby mode, key in the first letter of the

name. Scroll to find the name you want.

You can also use the following options:

•Service Nos. to call the service numbers of your service provider if the numbers are

included on your SIM card (network service).

•Add contact to save names and phone numbers in the phone book.

•Delete to delete names and phone numbers from the phone book one by one or all

at once.

•Edit to edit the names and numbers in Contacts.

•Copy to copy names and phone numbers all at once or one by one from phone memory

to SIM card memory, or vice versa.

•Assign tone to set the phone to play the ringing tone you want when you receive a call

from a particular phone number. Select the phone number or name you want and press

Assign. Note that this function only works when both the network and the phone are

able to identify and send the caller´s identity.

•Send phone no. to send a person´s phone number as an over the air (OTA) message if

supported by the network.

Phone book settings

In the standby mode, press Menu > Contacts > Settings. Then select from the following:

Memory in use—to select whether the names and phone numbers are saved in SIM card

or Phone. Note that when you change the SIM card, SIM card memory is automatically

selected.

Contacts view—to select how the names and phone numbers are shown, either Name +

number (one name and number at a time), or Contacts list (three names at a time).

Memory status—to check how many names and phone numbers are already saved and how

many can still be saved in each phone book.

• CALL LOG (MENU 4)

The call log records information about calls you make and receive.

The phone stores the numbers of the last ten calls that you missed,

the last ten calls that you received, and the last ten calls that you

dialed. For call log to work properly:

• You must be in a digital network, your service provider must support caller ID, and it

must be enabled in the phone.

• Your calls cannot be blocked.

• Your phone must be on and within the service area, or in a compatible network

if roaming.

Check missed, received, or dialed calls

1From the menu select Call log; then select either Missed calls, Received calls, or

Dialed numbers.

2Scroll through the list of numbers and highlight your selection.

3Select Options; then select one of the following options:

Call—Dial the number from the call log.

Send message—Send a text message to the person who called you or whom you called.

Call time—Show the time when the call was connected.

Edit number—Edit the number and save it with a name to your phone book.

Save—Enter a name for the number and save both to your phone book.

Delete—Erase the number from the call list.

Delete recent call lists

Note: You cannot undo this operation.

From the menus, select Call log > Delete recent call lists > All, Missed, Dialed, or Received.

Menu functions

Call timers

Your phone tracks the amount of time you spend on each call.

Note: The actual time invoiced for calls by your service provider may vary,

depending upon network features, rounding off for billing, and so forth.

View call durations

1From the menus, select Call log > Call timers.

2Select one of the following options:

3 Duration of last call—Show the call duration of the last call.

4 Duration of all calls—Show the call duration of all calls that have been made and

received since you reset the timers.

5 Duration of received calls—Show the duration of all received calls.

6 Duration of dialed calls—Show the duration of all calls dialed.

7Clear timers—Clear all call timers for the currently selected phone number. (Your phone

includes separate timers for each number used.) This action cannot be undone.

Clear call timers

8Press Menu > Call log > Call timers > Clear timers.

9Enter your security code and select OK.

Prepaid credit

Note: This feature is not available in all areas and may not appear in the menu.

Check with your service provider for availability.

When using a prepaid SIM card, you can make calls only when there are enough credit units

on the SIM card (network service). Options are Credit info display (show or hide remaining

units in the standby mode), Credit available (amount of remaining units), Last event costs,

and Recharge status.

Note: When no charging or currency units remain, calls may only be possible to the

emergency number programmed into your phone (for example, 911).

• TONES (MENU 5)

In this menu, you can change the settings of the currently selected

profile and create ringing tones of your own. See “Profiles (Menu 6)”

on page 20.

Ringing tone—Sets the tone that you hear when you receive a call.

Ringing volume—Sets the volume level for the ringing and message alert tones.

Ringing options—Defines how the phone notifies you of incoming voice calls. For example,

when Silent is selected, the phone stays silent when you receive a call and is shown in

the standby mode.

Message alert tone—Sets the tone that you hear when you receive a text message.

Keypad tones—Sets the volume for keypad tones.

Warning tones—Sets the phone to sound tones, e.g. when the battery is running out of power.

Vibrating alert—Sets the phone to vibrate when you receive a call or a text message.

The vibrator does not operate when the phone is connected to a charger.

Rhythmic backlight alert—Sets the backlights of the phone to flash in the rhythm of the

selected ringing tone or message alert tone.

• PROFILES (MENU 6)

You can customize the phone for different events and environments.

Initially, personalize the setting groups and profiles to your liking and

then you only need to activate a profile to use it.

Activate and customize

In the Profiles menu, select a profile and press OK.

To change the settings of the profile, select Customize > OK. Available options are Ringing

tone, Ringing volume, Ringing options, Message alert tone, Keypad tones, Warning

tones, Vibrating alert, Rhythmic backlight alert, Screen saver, or Rename (not available

under Normal). Select the option you want and press OK.

You can also change the settings of the currently selected profile in Tone settings, see

“Tones (Menu 5)” on page 19.

Tip: To activate a profile quickly in the standby mode or during a call, press and

release the power key, scroll to the desired profile, and press OK.

• SETTINGS (MENU 7)

In this menu you can adjust various settings of the phone. You can

also reset some menu settings to their default values by choosing

Restore factory settings.

Time and date settings

CLOCK

Lets you set the phone to show the current time in the standby mode, adjust the time, and

select the 12- or 24-hour time format. If the battery was removed from the phone, you may

need to set the time again.

DATE SETTING

Lets you set the correct date. If the battery was removed from the phone, you may need to

set the date again.

Menu functions

AUTO UPDATE OF DATE & TIME

This network service updates the date and time according to the current time zone.

The automatic update of date and time does not change the time you have set for the

alarm clock or the reminder notes. They are in local time. Updating may cause some

alarms that you have set to expire without sounding.

Call settings

•Call forwarding forwards incoming calls to your voice mailbox or to some other phone

number (network service).

Select the forwarding option you want, for example, select Forward if busy to forward

the calls when you are on a call or when you reject a call.

Several forwarding options may be active at the same time. When Forward all voice

calls is active, appears.

Set the selected option on (Activate) or off (Cancel), check whether the option is

activated by selecting Check status, or specify a delay for certain diverts in Set delay

(not available for all forwarding options).

•Automatic redial sets your phone to redial up to ten times after an unsuccessful

call attempt.

•1-touch dialing lets you press and hold the 1-touch dial keys (2–9) to dial names and

phone numbers assigned to the corresponding keys.

•Call waiting is a network service that notifies you of a new incoming call while you

have a call in progress. Press Answer to answer the waiting call and put the first call

on hold. Press End to end the active call.

•Send my own caller ID when calling is a network service that lets your phone number

appear to (Default or Yes) or be hidden from (No) the person you are calling. When you

select Preset, the setting agreed with your service provider is used.

Phone settings

Language—To select the language for the display texts.

Cell info display—To set the phone to indicate when it is used in a cellular network based

on Micro Cellular Network (MCN) technology (network service). For more information,

contact your service provider.

Welcome note—You can key in a message that will be shown briefly on the display when

the phone is switched on.

Network selection—To set the phone to automatically select a cellular network available in

your area, or you can select the network manually. The network you select must have a

roaming agreement with your home network.

Confirm SIM service actions—To set the phone to show or hide confirmation messages

when you use the SIM card services [see “SIM services (Menu 12)” on page 26].

Enhancement settings

You can use your phone with many Nokia enhancements. However, the Enhancement

settings menu appears only after an accessory has been connected to the phone at least

once. You can select a default profile that will be associated with each accessory.

• Headset (such as the HDC-5 or HDE-2)

• Handsfree Car kit (such as the CARK-125 or PPH-1)

• Loopset (LPS-3)

• TTY/TDD Adapter (HDA-9)

Keyguard settings

Use Automatic keyguard to automatically lock the phone keypad after a preset time delay.

The phone must be idle in the standby mode. You can also lock the keypad of the phone with

Keyguard code.

• Select Menu > Settings > Keyguard settings > Automatic keyguard > On. When Set

delay appears, key in the time and press OK. You can set the time from 10 seconds to

60 minutes. To deactivate the automatic keyguard, select Off.

• Select Menu > Settings > Keyguard settings > Keyguard code request, key in the

security code, and press OK. After you have selected On, the phone asks for the security

code every time you press Unlock. To deactivate the security keyguard, select Off.

See also “Lock the keypad” on page 10.

Security settings

Note: When calls are restricted, calls still may be possible to the official emergency

number programmed into your phone.

Several types of codes are used in the phone:

• The security code, supplied with the phone, protects your phone against unauthorized

use. The preset code is 12345.

• The PIN code, supplied with the SIM card, protects the card against unauthorized use.

The preset code is 1234. If you enter the PIN code incorrectly three times in succession,

the SIM card is blocked. You must enter the PUK code to unblock the SIM card and set

a new PIN code.

• The PIN2 code is supplied with some SIM cards and is required to access certain

services, such as charging unit counters. If you enter the PIN2 code incorrectly three

times in succession, PIN2 code blocked appears on the display, and you will be asked

for the PUK2 code.

• The PUK and PUK2 codes may be supplied with the SIM card. If this is not the case,

contact your local service provider.

PIN code request—You can set your phone to ask for the PIN code of the SIM card when

the phone is switched on. Some SIM cards require activating this function at all times.

Menu functions

Call restrictions—This network service lets you restrict incoming and outgoing calls with

your phone. Choose an option and select Activate, Cancel, or check whether a service is

activated (Check status).

Fixed dialling—This network service lets you lets you restrict outgoing calls to selected

phone numbers.

Closed user group—This network service lets you specify a group of people whom you can

call and who can call you.

Security level—Sets the phone to ask for the security code when a new SIM card is inserted

in the phone or when you select the internal phone book.

Note: When you change the security level, all the recent calls lists are cleared,

including missed calls, received calls and dialed numbers.

Change of access codes—Lets you change the security code, PIN code, PIN2 code, or

restriction password. These codes can include the numbers 0 to 9 only.

Avoid using access codes similar to the emergency numbers, such as 911, to prevent

accidental dialling of the emergency number.

Restore factory settings

To reset some of the menu settings to their original values. Press Menu > Settings >

Restore factory settings. Key in the security code and press OK. The names and phone

numbers saved in the phone book are not deleted.

• ALARM CLOCK (MENU 8)

You can set the alarm to sound at the time you want just once, or

repeatedly, for example every working day.

Press Menu > Alarm clock. Key in the time for the alarm. When the

alarm sounds, pressing C to stop it. If you press Snooze, the alarm stops and rings again in

5 minutes.

If the alarm time is reached while the phone is switched off, the phone switches itself on

and starts sounding the alarm tone. If you press C, the phone asks whether you want to

activate the phone for calls. Press C to switch off the phone or Yes to make and receive calls.

Note: Do not press Yes when wireless phone use is prohibited or when it may cause

interference or danger.

• REMINDERS (MENU 9)

Note: Your phone must be switched on to use this function.

Do not switch on the phone when wireless phone use is

prohibited or when it may cause interference or danger.

With this memory aid, you can save up to 10 short text notes with an alarm. The alarm is

activated when the set date and time is reached.

You can select: Add new, View all, Delete, Edit or To calendar to add a new reminder, view,

edit or send the existing reminders and delete the reminders one by one or all at once.

When the reminder time is reached, you can stop the alarm by pressing C. If you press

Snooze, the phone alarms again in about 10 minutes.

•GAMES (MENU 10)

The phone offers you some games to play. Each game is provided

with a brief help text.

Adjust common game settings

Select Settings. You can set the sounds, lights, and vibrations (Shakes) for the game.

Note that when Warning tones (Menu 5-1-6) is off, there may be no sound even if

Game sounds is on. When Vibrating alert (Menu 5-1-7) is off, the phone does not

vibrate even if Shakes is on.

• EXTRAS (MENU 11)

Calculator

The phone is provided with a calculator that can also be used for rough

currency conversions.

Note: This calculator has limited accuracy and is designed for simple calculations.

Select Menu > Extras > Calculator.

MAKE A CALCULATION

• The keys 1-9 insert a digit. The # key inserts a decimal point. Press C to delete the last

digit. To change the sign, press Options and select Change sign.

• Press * once for add (+), twice for subtract (-), three times for multiply (*), and four times

for divide (/).

• To get the result, press Options and select Equals. Press and hold C to clear the display

for a new calculation.

CURRENCY CONVERSION

To save the exchange rate, press Options > Exchange rate > Foreign unit expressed in

domestic units or Domestic unit expressed in foreign units, key in the value (press # for

a decimal point), and press OK.

To make the conversion, key in the currency amount to be converted, press Options >

In domestic or In foreign.

Menu functions

Stopwatch

The stopwatch can be used for time measurement, for example in different sports. Select

Menu > Extras > Stopwatch.

Press Start to start timing. To take the time, press Stop. When the timing is stopped, press

Options for Start, Reset, or Exit. If you select Start, timing continues from the previous

stop time. Reset stops the current timing and sets the time to zero.

To set the timing to continue in the background, press C three times. While the time is

running, is flashing in the standby mode.

Note: Using the stopwatch consumes the battery and phone operating time will

be reduced. Be careful not to let it run in the background when performing other

operations with your phone.

Countdown timer

You can set the alarm to sound after a period of lapsed time. The countdown timer contains

two separate timers. Traditional timer enables you to activate the timer quickly for simple tasks.

Interval timers enables you to save cyclic time periods, for example, for different exercises.

Select Menu > Extras > Countdown timer. Key in the alarm time and press OK. You can

also key in a note for the alarm, change the time and stop the timer.

When the timer is running, is shown in the standby mode.

When the alarm time is reached, the phone sounds a tone and a note for the alarm appears.

Press any key to stop the alarm.

Composer

You can create your own ringing tones. Select the tone that you want

to edit and key in the notes. For example, press 4 for note F.

The 8 key shortens (-) and the 9 key lengthens (+) the duration of the

note or rest. Insert a rest with 0. The * key sets the octave and the # key

makes the note sharp (not available for notes E and B). Use and

to move the cursor left or right. Press C to delete a note or rest to the

left of the cursor.

When the tone is complete, press Options and select Play, Save, Tempo, Clear screen

or Exit

Screen saver

Choose a picture for the phone display. Select Menu > Extras > Screen saver, then scroll

to select the picture. You can choose the Time-out duration so the picture appears after a

pause of only five seconds or as long as 10 minutes. The picture stays visible until you press

any key. Note that the screen saver overrides all the graphics and texts on the display in the

standby mode.

Flashlight

To activate the flashlight, press Menu > Extras > Flashlight > On or Off. The following

options are available:

• In the standby mode, press and release C. The flashlight comes on for about 1.5 seconds

and appears.

•Press and hold C. The flashlight stays on while you hold the key and goes off when you

release the key.

• To turn the flashlight on continuously, press C twice. Press C again to turn it off.

• During a call, press Options > Flashlight on or Flashlight off

• SIM SERVICES (MENU 12)

This menu appears only if your SIM card provides additional services.

The name and contents of this menu depend on the services available.

Note: For availability, rates and information on using SIM

services, contact your SIM card vendor or service provider.

• ENHANCEMENTS

Battery BL-5C

Chargers ACP-7, ACP-8,

ACP-12

Mobile chargers LCH-9, LCH-12

Car kit HFM-8, PPH-1

Headsets HDC-5, HDE-2,

HDD-1, HDC-10

Inductive loopset LPS-3

Xpress-on covers

Carry cases

Wrist strap

wearables

Several styles to

choose from

Reference Information

6 Reference Information

• BATTERY INFORMATION

Charging and discharging

Your device is powered by a rechargeable battery. The full performance of a new battery is

achieved only after two or three complete charge and discharge cycles. The battery can be

charged and discharged hundreds of times but it will eventually wear out. When the talk

and standby times are noticeably shorter than normal, buy a new battery. Use only Nokia

approved batteries, and recharge your battery only with Nokia approved chargers

designated for this device.

Unplug the charger from the electrical plug and the device when not in use. Do not leave

the battery connected to a charger. Overcharging may shorten its lifetime. If left unused, a

fully charged battery will lose its charge over time. Temperature extremes can affect the

ability of your battery to charge.

Use the battery only for its intended purpose. Never use any charger or battery that

is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic

object such as a coin, clip, or pen causes direct connection of the positive (+) and negative

(-) terminals of the battery. (These look like metal strips on the battery.) This might happen,

for example, when you carry a spare battery in your pocket or purse. Short-circuiting the

terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter

conditions, will reduce the capacity and lifetime of the battery. Always try to keep the

battery between 59°F and 77°F (15°C and 25°C). A device with a hot or cold battery may

not work temporarily, even when the battery is fully charged. Battery performance is

particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations.

Please recycle when possible. Do not dispose as household waste.

BL-5C Talk time,

Standby time

Talk–time: up to 4.5 hours

Standby time: up to 10 days

BL-5C Charging time

(approximate)

ACP-7 Charger—3 hours

ACP-8 Charger—2 hours

ACP-12 Charger—1 hour, 30 min.

Battery talk and standby times are estimates only and depend on signal strength, network

conditions, features used, battery age and condition (including the effect of charging

habits), temperatures to which battery is exposed, use in digital mode, and many other

factors. Please note that the amount of time a phone is used for calls will affect its standby

time. Likewise, the amount of time that the phone is turned on and in standby mode will

affect its talk–time.

• ENHANCEMENTS

A few practical rules about accessories and enhancements:

• Keep all accessories and enhancements out of the reach of

small children.

• When you disconnect the power cord of any accessory or

enhancement, grasp and pull the plug, not the cord.

• Check regularly that enhancements installed in a vehicle are

mounted and are operating properly.

• Installation of any complex car enhancements must be made by qualified personnel only.

• ENHANCEMENTS, BATTERIES, AND CHARGERS

Check the model number of any charger before use with this device. This device is intended

for use when supplied with power from the ACP-7 charger.

Warning: Use only batteries, chargers, and enhancements approved by Nokia for

use with this particular model. The use of any other types may invalidate any

approval or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you

disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Your device and its enhancements may contain small parts. Keep them out of reach of

small children.

• CARE AND MAINTENANCE

Your device is a product of superior design and craftsmanship and should be treated with

care. The suggestions below will help you protect your warranty coverage and enjoy your

device for many years.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can

contain minerals that will corrode electronic circuits. If your device does get wet,

remove the battery and allow the device to dry completely before replacing it.

• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic

components can be damaged.

• Do not store the device in hot areas. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or melt certain plastics.

Reference Information

• Do not store the device in cold areas. When the device returns to its normal temperature,

moisture can form inside the device and damage electronic circuit boards.

• Do not attempt to open the device other than as instructed in this guide.

• Do not drop, knock, or shake the device. Rough handling can break internal circuit

boards and fine mechanics.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.

• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorized antennas,

modifications, or attachments could damage the device and may violate regulations

governing radio devices.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement.

If any device is not working properly, take it to the nearest authorized service facility for service.

• ADDITIONAL SAFETY INFORMATION

Operating environment

Remember to follow any special regulations in force in any area and always switch off your

device when its use is prohibited or when it may cause interference or danger. Use the device

only in its normal operating positions. To maintain compliance with radio frequency exposure

guidelines only use accessories approved by Nokia for use with this device. When the device

is on and being worn on the body, always use an approved carrying case.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may interfere

with the functionality of inadequately protected medical devices. Consult a physician or the

manufacturer of the medical device to determine if they are adequately shielded from

external RF energy or if you have any questions. Switch off your phone in health care

facilities when any regulations posted in these areas instruct you to do so. Hospitals or

health care facilities may be using equipment that could be sensitive to external RF energy.

PACEMAKERS

Pacemaker manufacturers recommend that a minimum separation of 6 inches (15.3 cm) be

maintained between a wireless phone and a pacemaker to avoid potential interference with

the pacemaker. These recommendations are consistent with the independent research by

and recommendations of Wireless Technology Research. To minimize the potential for

interference, persons with pacemakers should

• Always keep the device more than 6 inches (15.3 cm) from their pacemaker when the

device is switched on

• Not carry the device in a breast pocket

• Hold the device to the ear opposite the pacemaker

If you have any reason to suspect that interference is taking place, switch off your

device immediately.

HEARING AID

Some digital wireless devices may interfere with some hearing aids. If interference occurs,

consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in

motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)

braking systems, electronic speed control systems, air bag systems. For more information,

check with the manufacturer or its representative of your vehicle or any equipment that has

been added.

Only qualified personnel should service the device, or install the device in a vehicle. Faulty

installation or service may be dangerous and may invalidate any warranty that may apply to

the device. Check regularly that all wireless device equipment in your vehicle is mounted

and operating properly. Do not store or carry flammable liquids, gases, or explosive materials

in the same compartment as the device, its parts, or enhancements. For vehicles equipped

with an air bag, remember that an air bags inflate with great force. Do not place objects,

including installed or portable wireless equipment in the area over the air bag or in the air

bag deployment area. If in-vehicle wireless equipment is improperly installed and the air

bag inflates, serious injury could result.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and obey

all signs and instructions. Potentially explosive atmospheres include areas where you would

normally be advised to turn off your vehicle engine. Sparks in such areas could cause an

explosion or fire resulting in bodily injury or even death. Switch off the device at refuelling

points such as near gas pumps at service stations. Observe restrictions on the use of radio

equipment in fuel depots, storage, and distribution areas, chemical plants or where blasting

operations are in progress. Areas with a potentially explosive atmosphere are often but not

always clearly marked. They include below deck on boats, chemical transfer or storage

facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas

where the air contains chemicals or particles such as grain, dust or metal powders.

AIRCRAFT

FCC regulations prohibit using your wireless device while in the air. The use of wireless

telephones in an aircraft may be dangerous to the operation of the aircraft, disrupt the

wireless telephone network, and may be illegal.

Failure to observe these instructions may lead to suspension or denial of telephone services

to the offender, legal action, or both.

Reference Information

EMERGENCY CALLS

Important: Wireless phones, including this phone, operate using radio signals,

wireless networks, landline networks, and user-programmed functions. Because

of this, connections in all conditions cannot be guaranteed. You should never

rely solely on any wireless phone for essential communications like medical

emergencies.

To make an emergency call:

1If the phone is not on, switch it on. Check for adequate signal strength. Some networks

may require that a valid SIM card is properly inserted in the phone.

2Press C as many times as needed to clear the display and ready the phone for calls. You

may need to disable any security features activated on the phone.

3Key in the official emergency number for your present location. Emergency numbers

vary by location.

4Press Call.

If certain features are in use, you may first need to turn those features off before you can

make an emergency call. Consult this guide or your service provider. When making an

emergency call, give all the necessary information as accurately as possible. Your wireless

phone may be the only means of communication at the scene of an accident. Do not end

the call until given permission to do so.

CERTIFICATION INFORMATION (SAR)

THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO

RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not

to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal

Communications Commission of the U.S. Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the general population. The

guidelines are based on standards that were developed by independent scientific organizations

through periodic and thorough evaluation of scientific studies. The standards include a

substantial safety margin designed to assure the safety of all persons, regardless of age

and health.

The exposure standard for wireless mobile phones employs a unit of measurement known

as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for

SAR are conducted using standard operating positions accepted by the FCC with the phone

transmitting at its highest certified power level in all tested frequency bands. Although the

SAR is determined at the highest certified power level, the actual SAR level of the phone

while operating can be well below the maximum value. This is because the phone is designed

to operate at multiple power levels so as to use only the power required to reach the

network. In general, the closer you are to a wireless base station antenna, the lower the

power output.

Before a phone model is available for sale to the public, it must be tested and certified to the

FCC that it does not exceed the limit established by the government-adopted requirement for

safe exposure. The tests are performed in positions and locations (for example, at the ear

and worn on the body) as required by the FCC for each model.

The highest SAR value for this model phone as reported to the FCC when tested for use at

the ear is .97 W/kg, and when worn on the body, as described in this user guide, is .64 W/kg.

(Body-worn measurements differ among phone models, depending upon available

enhancements and FCC requirements).

While there may be differences between the SAR levels of various phones and at various

positions, they all meet the government requirement. The FCC has granted an Equipment

Authorization for this model phone with all reported SAR levels evaluated as in compliance

with the FCC RF exposure guidelines. SAR information on this model phone is on file with

the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid

after searching on FCC ID QTKRH-36X.

Reference Information

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines

for use with a carry case, belt clip, or holder that contains no metal and that positions the

handset a minimum of 5/8-inch (1.5 cm) from the body. Use of other carry cases, belt clips,

or holders may not ensure compliance with FCC RF exposure guidelines. If you do not use a

body-worn accessory and are not holding the phone at the ear, position the handset a

minimum of 5/8-inch (1.5 cm) from your body when the phone is switched on.

*In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6

watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a substantial

margin of safety to give additional protection for the public and to account for any variations

in measurements. SAR values may vary depending on national reporting requirements and

the network band. For SAR information in other regions please look under product

information at www.nokia.com.

7 Nokia One-Year Limited Warranty

Nokia Inc. (“Nokia”) warrants that this cellular phone (“Product”) is free from defects in

material and workmanship that result in Product failure during normal usage, according to

the following terms and conditions:

1The limited warranty for the Product extends for ONE (1) year beginning on the date of

the purchase of the Product. This one year period is extended by each whole day that

the Product is out of your possession for repair under this warranty.

2The limited warranty extends only to the original purchaser (“Consumer”) of the Product

and is not assignable or transferable to any subsequent purchaser/end-user.

3The limited warranty extends only to Consumers who purchase the Product in the

United States of America.

4During the limited warranty period, Nokia will repair, or replace, at Nokia’s sole option,

any defective parts, or any parts that will not properly operate for their intended use

with new or refurbished replacement items if such repair or replacement is needed

because of product malfunction or failure during normal usage. No charge will be made

to the Consumer for any such parts. Nokia will also pay for the labor charges incurred by

Nokia in repairing or replacing the defective parts. The limited warranty does not cover

defects in appearance, cosmetic, decorative or structural items, including framing, and

any non-operative parts. Nokia’s limit of liability under the limited warranty shall be

the actual cash value of the Product at the time the Consumer returns the Product for

repair, determined by the price paid by the Consumer for the Product less a reasonable

amount for usage. Nokia shall not be liable for any other losses or damages. These

remedies are the Consumer’s exclusive remedies for breach of warranty.

5Upon request from Nokia, the Consumer must prove the date of the original purchase

of the Product by a dated bill of sale or dated itemized receipt.

6The Consumer shall bear the cost of shipping the Product to Nokia in Melbourne,

Florida. Nokia shall bear the cost of shipping the Product back to the Consumer after

the completion of service under this limited warranty.

7The Consumer shall have no coverage or benefits under this limited warranty if any of

the following conditions are applicable:

a) The Product has been subjected to abnormal use, abnormal conditions, improper

storage, exposure to moisture or dampness, unauthorized modifications,

unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident,

alteration, improper installation, or other acts which are not the fault of Nokia,

including damage caused by shipping.

Nokia One-Year Limited Warranty

b) The Product has been damaged from external causes such as collision with an

object, or from fire, flooding, sand, dirt, windstorm, lightning, earthquake or damage

from exposure to weather conditions, an Act of God, or battery leakage, theft,

blown fuse, or improper use of any electrical source, damage caused by computer

or internet viruses, bugs, worms, Trojan Horses, cancelbots or damage caused by

the connection to other products not recommended for interconnection by Nokia.

c) Nokia was not advised in writing by the Consumer of the alleged defect or

malfunction of the Product within fourteen (14) days after the expiration of the

applicable limited warranty period.

d) The Product serial number plate or the accessory data code has been removed,

defaced or altered.

e) The defect or damage was caused by the defective function of the cellular system

or by inadequate signal reception by the external antenna, or viruses or other

software problems introduced into the Product.

8Nokia does not warrant uninterrupted or error-free operation of the Product. If a

problem develops during the limited warranty period, the Consumer shall take the

following step-by-step procedure:

a) The Consumer shall return the Product to the place of purchase for repair or

replacement processing.

b) If “a” is not convenient because of distance (more than 50 miles) or for other good

cause, the Consumer shall ship the Product prepaid and insured to:

Nokia Inc., Attn: Repair Department

795 West Nasa Blvd.

Melbourne, FL 32901

c) The Consumer shall include a return address, daytime phone number and/or fax

number, complete description of the problem, proof of purchase and service

agreement (if applicable). Expenses related to removing the Product from an

installation are not covered under this limited warranty.

d) The Consumer will be billed for any parts or labor charges not covered by this

limited warranty. The Consumer will be responsible for any expenses related to

reinstallation of the Product.

e) Nokia will repair the Product under the limited warranty within 30 days after

receipt of the Product. If Nokia cannot perform repairs covered under this limited

warranty within 30 days, or after a reasonable number of attempts to repair the

same defect, Nokia at its option, will provide a replacement Product or refund the

purchase price of the Product less a reasonable amount for usage. In some states

the Consumer may have the right to a loaner if the repair of the Product takes

more than ten (10) days. Please contact the Customer Service Center at Nokia at

the telephone number listed at the end of this warranty if you need a loaner and

the repair of the Product has taken or is estimated to take more than ten (10) days.

f) If the Product is returned during the limited warranty period, but the problem with

the Product is not covered under the terms and conditions of this limited warranty,

the Consumer will be notified and given an estimate of the charges the Consumer

must pay to have the Product repaired, with all shipping charges billed to the

Consumer. If the estimate is refused, the Product will be returned freight collect.

If the Product is returned after the expiration of the limited warranty period,

Nokia’s normal service policies shall apply and the Consumer will be responsible for

all shipping charges.

9You (the Consumer) understand that the product may consist of refurbished equipment

that contains used components, some of which have been reprocessed. The used

components comply with Product performance and reliability specifications.

10 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR

PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED

WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE

CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED. NOKIA SHALL NOT BE LIABLE FOR SPECIAL,

INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO

LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF

DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED

EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES,

DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING CUSTOMERS, AND

INJURY TO PROPERTY, RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR

ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT

TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF NOKIA KNEW OF THE

LIKELIHOOD OF SUCH DAMAGES. NOKIA SHALL NOT BE LIABLE FOR DELAY IN RENDERING

SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE

PRODUCT IS BEING REPAIRED.

11 Some states do not allow limitation of how long an implied warranty lasts, so the one

year warranty limitation may not apply to you (the Consumer). Some states do not

allow the exclusion or limitation of incidental and consequential damages, so certain

of the above limitations or exclusions may not apply to you (the Consumer). This limited

warranty gives the Consumer specific legal rights and the Consumer may also have

other rights which vary from state to state.

12 Nokia neither assumes nor authorizes any authorized service center or any other person

or entity to assume for it any other obligation or liability beyond that which is expressly

provided for in this limited warranty including the provider or seller of any extended

warranty or service agreement.

13 This is the entire warranty between Nokia and the Consumer, and supersedes all prior

and contemporaneous agreements or understandings, oral or written, relating to the

Product, and no representation, promise or condition not contained herein shall modify

these terms.

Nokia One-Year Limited Warranty

14 This limited warranty allocates the risk of failure of the Product between the Consumer

and Nokia. The allocation is recognized by the Consumer and is reflected in the

purchase price.

15 Any action or lawsuit for breach of warranty must be commenced within eighteen (18)

months following purchase of the Product.

16 Questions concerning this limited warranty may be directed to:

Nokia Inc.

Attn: Customer Service

7725 Woodland Center Blvd., Ste. 150

Tampa, FL 33614

Telephone: 1-888-NOKIA-2U (1-888-665-4228)

Facsimile: (813) 287-6612

TTY/TDD Users Only: 1-800-24-NOKIA (1-800-246-6542)

17 The limited warranty period for Nokia supplied attachments and accessories is

specifically defined within their own warranty cards and packaging.

NOTES

Appendix A

Message from the CTIA

(Cellular Telecommunications &

Internet Association)

to all users of mobile phones.

Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone: (202) 785-0081

Safety is the most important call you will ever make.

A Guide to Safe and Responsible Wireless Phone Use

Tens of millions of people in the U.S. today take advantage of the unique combination of

convenience, safety and value delivered by the wireless telephone. Quite simply, the wireless

phone gives people the powerful ability to communicate by voice--almost anywhere, anytime-

-with the boss, with a client, with the kids, with emergency personnel or even with the

police. Each year, Americans make billions of calls from their wireless phones, and the

numbers are rapidly growing.

But an important responsibility accompanies those benefits, one that every wireless phone

user must uphold. When driving a car, driving is your first responsibility. A wireless phone

can be an invaluable tool, but good judgment must be exercised at all times while driving a

motor vehicle--whether on the phone or not.

The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution

and courtesy. It requires a heavy dose of basic common sense---keep your head up, keep your

eyes on the road, check your mirrors frequently and watch out for other drivers. It requires

obeying all traffic signs and signals and staying within the speed limit. It means using seatbelts

and requiring other passengers to do the same.

But with wireless phone use, driving safely means a little more. This brochure is a call to

wireless phone users everywhere to make safety their first priority when behind the wheel of

a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting

us in emergencies and providing opportunities to help others in need.

When it comes to the use of wireless phones, safety is your most important call.

Wireless Phone "Safety Tips"

Below are safety tips to follow while driving and using a wireless phone which should be easy

to remember.

1 Get to know your wireless phone and its features such as speed dial and redial. Carefully

read your instruction manual and learn to take advantage of valuable features most

phones offer, including automatic redial and memory. Also, work to memorize the phone

keypad so you can use the speed dial function without taking your attention off the road.

2 When available, use a hands free device. A number of hands free wireless phone

accessories are readily available today. Whether you choose an installed mounted device

for your wireless phone or a speaker phone accessory, take advantage of these devices if

available to you.

3 Position your wireless phone within easy reach. Make sure you place your wireless phone

within easy reach and where you can grab it without removing your eyes from the road.

If you get an incoming call at an inconvenient time, if possible, let your voice mail answer

it for you.

4 Suspend conversations during hazardous driving conditions or situations. Let the person

you are speaking with know you are driving; if necessary, suspend the call in heavy traffic

or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but so is

heavy traffic. As a driver, your first responsibility is to pay attention to the road.

5 Do not take notes or look up phone numbers while driving. If you are reading an address

book or business card, or writing a "to do" list while driving a car, you are not watching

where you are going. It’s common sense. Don’t get caught in a dangerous situation

because you are reading or writing and not paying attention to the road or nearby

vehicles.

6 Dial sensibly and assess the traffic; if possible, place calls when you are not moving or

before pulling into traffic. Try to plan your calls before you begin your trip or attempt to

coincide your calls with times you may be stopped at a stop sign, red light or otherwise

stationary. But if you need to dial while driving, follow this simple tip--dial only a few

numbers, check the road and your mirrors, then continue.

7 Do not engage in stressful or emotional conversations that may be distracting. Stressful

or emotional conversations and driving do not mix--they are distracting and even

dangerous when you are behind the wheel of a car. Make people you are talking with

aware you are driving and if necessary, suspend conversations which have the potential to

divert your attention from the road.

8 Use your wireless phone to call for help. Your wireless phone is one of the greatest tools

you can own to protect yourself and your family in dangerous situations--with your

phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency

number in the case of fire, traffic accident, road hazard or medical emergency.

Remember, it is a free call on your wireless phone!

9 Use your wireless phone to help others in emergencies. Your wireless phone provides

you a perfect opportunity to be a "Good Samaritan" in your community. If you see an

auto accident, crime in progress or other serious emergency where lives are in danger, call

9-1-1 or other local emergency number, as you would want others to do for you.

10 Call roadside assistance or a special wireless non-emergency assistance number when

necessary. Certain situations you encounter while driving may require attention, but are

not urgent enough to merit a call for emergency services. But you still can use your wireless

phone to lend a hand. If you see a broken-down vehicle posing no serious hazard, a broken

traffic signal, a minor traffic accident where no one appears injured or a vehicle you know

to be stolen, call roadside assistance or other special non-emergency wireless number.

Careless, distracted individuals and people driving irresponsibly represent a hazard to

everyone on the road. Since 1984, the Cellular Telecommunications Industry Association

and the wireless industry have conducted educational outreach to inform wireless phone

users of their responsibilities as safe drivers and good citizens. As we approach a new century,

more and more of us will take advantage of the benefits of wireless telephones. And, as we

take to the roads, we all have a responsibility to drive safely.

The wireless industry reminds you to use your phone safely when driving.

For more information, please call 1-888-901-SAFE.

For updates: http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID=85

NOTES

Appendix B

Message from the FDA

(U.S. Food and Drug Administration)

to all users of mobile phones.

July 18, 2001......For updates: http://www.fda.gov/cdrh/phones

Consumer Update on Wireless Phones

U.S. Food and Drug Administration

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with

using wireless phones. There is no proof, however, that wireless phones are absolutely safe.

Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while

being used. They also emit very low levels of RF when in the stand-by mode. Whereas high

levels of RF can produce health effects (by heating tissue), exposure to low level RF that does

not produce heating effects causes no known adverse health effects. Many studies of low

level RF exposures have not found any biological effects. Some studies have suggested that

some biological effects may occur, but such findings have not been confirmed by additional

research. In some cases, other researchers have had difficulty in reproducing those studies,

or in determining the reasons for inconsistent results.

2. What is FDA's role concerning the safety of wireless phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such

as wireless phones before they can be sold, as it does with new drugs or medical devices.

However, the agency has authority to take action if wireless phones are shown to emit

radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could

require the manufacturers of wireless phones to notify users of the health hazard and to

repair, replace or recall the phones so that the hazard no longer exists.

Although the existing scientific data do not justify FDA regulatory actions, FDA has urged

the wireless phone industry to take a number of steps, including the following:

• Support needed research into possible biological effects of RF of the type emitted by

wireless phones;

• Design wireless phones in a way that minimizes any RF exposure to the user that is not

necessary for device function; and

• Cooperate in providing users of wireless phones with the best possible information on

possible effects of wireless phone use on human health.

FDA belongs to an interagency working group of the federal agencies that have

responsibility for different aspects of RF safety to ensure coordinated efforts at the federal

level. The following agencies belong to this working group:

• National Institute for Occupational Safety and Health

• Environmental Protection Agency

• Federal Communications Commission

• Occupational Safety and Health Administration

• National Telecommunications and Information Administration

The National Institutes of Health participates in some interagency working group activities,

as well.

FDA shares regulatory responsibilities for wireless phones with the Federal Communications

Commission (FCC). All phones that are sold in the United States must comply with FCC

safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for

safety questions about wireless phones. FCC also regulates the base stations that the

wireless phone networks rely upon. While these base stations operate at higher power than

do the wireless phones themselves, the RF exposures that people get from these base stations

are typically thousands of times lower than those they can get from wireless phones. Base

stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

The term wireless phone refers here to hand-held wireless phones with built-in antennas,

often called cell mobile or PCS phones. These types of wireless phones can expose the user

to measurable radiofrequency energy (RF) because of the short distance between the phone

and the user’s head. These RF exposures are limited by Federal Communications Commission

safety guidelines that were developed with the advice of FDA and other federal health and

safety agencies. When the phone is located at greater distances from the user, the exposure

to RF is drastically lower because a person's RF exposure decreases rapidly with increasing

distance from the source. The so-called cordless phones; which have a base unit connected

to the telephone wiring in a house, typically operate at far lower power levels, and thus

produce RF exposures far below the FCC safety limits.

4. What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered

from flaws in their research methods. Animal experiments investigating the effects of

radiofrequency energy (RF) exposures characteristic of wireless phones have yielded

conflicting results that often cannot be repeated in other laboratories. A few animal studies,

however, have suggested that low levels of RF could accelerate the development of cancer in

laboratory animals. However, many of the studies that showed increased tumor development

used animals that had been genetically engineered or treated with cancer-causing chemicals

so as to be pre-disposed to develop cancer in the absence of RF exposure. Other studies

exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the

conditions under which people use wireless phones, so we don’t know with certainty what

the results of such studies mean for human health.

Three large epidemiology studies have been published since December 2000. Between them,

the studies investigated any possible association between the use of wireless phones and

primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or

salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence

of any harmful health effects from wireless phone RF exposures. However, none of the

studies can answer questions about long-term exposures, since the average period of phone

use in these studies was around three years.

5. What research is needed to decide whether RF exposure from wireless

phones poses a health risk?

A combination of laboratory studies and epidemiological studies of people actually using

wireless phones would provide some of the data that are needed. Lifetime animal exposure

studies could be completed in a few years. However, very large numbers of animals would be

needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological

studies can provide data that is directly applicable to human populations, but 10 or more

years follow-up may be needed to provide answers about some health effects, such as cancer.

This is because the interval between the time of exposure to a cancer-causing agent and the

time tumors develop - if they do - may be many, many years. The interpretation of

epidemiological studies is hampered by difficulties in measuring actual RF exposure during

day-to-day use of wireless phones. Many factors affect this measurement, such as the angle

at which the phone is held, or which model of phone is used.

6. What is FDA doing to find out more about the possible health effects of

wireless phone RF?

FDA is working with the U.S. National Toxicology Program and with groups of investigators

around the world to ensure that high priority animal studies are conducted to address

important questions about the effects of exposure to radiofrequency energy (RF).

FDA has been a leading participant in the World Health Organization International

Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this

work has been the development of a detailed agenda of research needs that has driven the

establishment of new research programs around the world. The Project has also helped

develop a series of public information documents on EMF issues.

FDA and the Cellular Telecommunications & Internet Association (CTIA) have a formal

Cooperative Research and Development Agreement (CRADA) to do research on wireless

phone safety. FDA provides the scientific oversight, obtaining input from experts in

government, industry, and academic organizations. CTIA-funded research is conducted

through contracts to independent investigators. The initial research will include both

laboratory studies and studies of wireless phone users. The CRADA will also include a

broad assessment of additional research needs in the context of the latest research

developments around the world.

7. How can I find out how much radiofrequency energy exposure I can get by

using my wireless phone?

All phones sold in the United States must comply with Federal Communications Commission

(FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC established these

guidelines in consultation with FDA and the other federal health and safety agencies. The

FCC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate

(SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety

standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the

National Council on Radiation Protection and Measurement. The exposure limit takes into

consideration the body’s ability to remove heat from the tissues that absorb energy from the

wireless phone and is set well below levels known to have effects.

Manufacturers of wireless phones must report the RF exposure level for each model of

phone to the FCC. The FCC website (http://www.fcc.gov/oet/rfsafety) gives directions for

locating the FCC identification number on your phone so you can find your phone’s RF

exposure level in the online listing.

8. What has FDA done to measure the radiofrequency energy coming from

wireless phones?

The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard

for measuring the radiofrequency energy (RF) exposure from wireless phones and other

wireless handsets with the participation and leadership of FDA scientists and engineers. The

standard, Recommended Practice for Determining the Spatial-Peak Specific Absorption

Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental

Techniques, sets forth the first consistent test methodology for measuring the rate at which

RF is deposited in the heads of wireless phone users. The test method uses a tissue-simulating

model of the human head. Standardized SAR test methodology is expected to greatly

improve the consistency of measurements made at different laboratories on the same phone.

SAR is the measurement of the amount of energy absorbed in tissue, either by the whole

body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This

measurement is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to radiofrequency energy from

my wireless phone?

If there is a risk from these products--and at this point we do not know that there is--it is

probably very small. But if you are concerned about avoiding even potential risks, you can

take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time

is a key factor in how much exposure a person receives, reducing the amount of time spent

using a wireless phone will reduce RF exposure.

If you must conduct extended conversations by wireless phone every day, you could place

more distance between your body and the source of the RF, since the exposure level drops

off dramatically with distance. For example, you could use a headset and carry the wireless

phone away from your body or use a wireless phone connected to a remote antenna.

Again, the scientific data do not demonstrate that wireless phones are harmful. But if you

are concerned about the RF exposure from these products, you can use measures like those

described above to reduce your RF exposure from wireless phone use.

10. What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including

children and teenagers. If you want to take steps to lower exposure to radiofrequency energy

(RF), the measures described above would apply to children and teenagers using wireless

phones. Reducing the time of wireless phone use and increasing the distance between the

user and the RF source will reduce RF exposure.Some groups sponsored by other national

governments have advised that children be discouraged from using wireless phones at all. For

example, the government in the United Kingdom distributed leaflets containing such a

recommendation in December 2000. They noted that no evidence exists that using a wireless

phone causes brain tumors or other ill effects. Their recommendation to limit wireless

phone use by children was strictly precautionary; it was not based on scientific evidence that

any health hazard exists.

11. What about wireless phone interference with medical equipment?

Radiofrequency energy (RF) from wireless phones can interact with some electronic devices.

For this reason, FDA helped develop a detailed test method to measure electromagnetic

interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless

telephones. This test method is now part of a standard sponsored by the Association for the

Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA,

medical device manufacturers, and many other groups, was completed in late 2000. This

standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are

safe from wireless phone EMI. FDA has tested hearing aids for interference from handheld

wireless phones and helped develop a voluntary standard sponsored by the Institute of

Electrical and Electronic Engineers (IEEE). This standard specifies test methods and

performance requirements for hearing aids and wireless phones so that no interference

occurs when a person uses a compatible phone and a accompanied hearing aid at the same

time. This standard was approved by the IEEE in 2000.

FDA continues to monitor the use of wireless phones for possible interactions with other

medical devices. Should harmful interference be found to occur, FDA will conduct testing to

assess the interference and work to resolve the problem.

12. Where can I find additional information?

For additional information, please refer to the following resources:

• FDA web page on wireless phones

http://www.fda.gov/cdrh/phones/index.html

• Federal Communications Commission (FCC) RF Safety Program

http://www.fcc.gov/oet/rfsafety

• International Commission on Non-Ionizing Radiation Protection

http://www.icnirp.de

• World Health Organization (WHO) International EMF Project

http://www.who.int/emf

• National Radiological Protection Board (UK)

http://www.nrpb.org.uk/

July 18, 2001 For updates: http://www.fda.gov/cdrh/phones

Index

Numerics

1-touch dialing 9

access codes 22

accessibility

website 3

accessories 2

answering calls 10

battery

charging,talk,standby times 27

calculations 24

calculator 24

callcall waiting options 21

dialed calls 18

duration 19

forward 21

making calls 9

redialing 9

using the phone book 9

charge the battery 5

clear call lists 18

clock settings 20

conference calling 9

countdown timer 25

covers 8

currency conversion 24

date setting 20

delete. see erase

enhancements 26

erase

call lists 18

messages 16

games 24

imei 4

in-call operations 10

input methods 11

insert a sim card 4

label 4

lock the keypad 10

memory status 18

functions 13

scrolling 13

shortcut 13

missed calls 18

model number 4

network services 2

nokia customer care

phone information 4

phone label 4

phone security 22

picture messages 15

pin and pin 2 codes 22

predictive text input 11

profiles 20

puk and puk2 codes 22

read a text message 15

received calls 18

reminders 23

safety instructions 1

name and phone number 17

security code 22

settings 24

settings

call 21

message 16

phone 21

restore factory 23

security 22

sim services 26

smileys 16

standby mode 7

standby time 27

talk time 27

templates 16

timers, call 19

traditional input 12

view

dialed calls 18

missed calls 18

received calls 18

voice message

listening to 10

voice mailbox number 17

Nokia 1100

User Guide Update

This update describes the instant messaging feature. For complete information

about other phone features and important safety and maintenance information,

continue using your Nokia1100 User Guide.

• INSTANT MESSAGING (IM)

You can now take text messaging to the next level by experiencing instant

messaging in a wireless environment. You can engage in instant messaging with

friends and family, regardless of the mobile system or platform (like the Internet)

they are using, as long as you all use America Online Instant Messaging (AIM).

Check with your wireless service provider for availability.

Before you can start using instant messaging on your phone, you must first

subscribe to your wireless service provider’s text messaging service and register

with the instant messaging service you want to use. See “Register with the instant

messaging service” on page 1 for more information.

Note: Depending on both your IM service provider and your wireless

service provider, you may not have access to all of the features described

in this guide.

• REGISTER WITH THE INSTANT MESSAGING SERVICE

Before you can begin to use instant messaging with AIM, you must obtain an IM

user name and password. You can do this by registering over the Internet (via your

computer) with the IM service provider you will be using for instant messaging.

Information on the AIM web site will guide you through the registration process.

(You can also download and install either instant messaging service on your

computer.)

password.

1100.Addendum1.ENv1_9311029_011304.fm Page 1 Tuesday, January 13, 2004 2:37 PM

• IM SERVICE PROVIDER ICONS

Instant messaging service has its own display text and icons associated with it, the

display text and icons on your phone will appear differently. The following table

shows instant messaging icons and their descriptions for AIM.

• USE INSTANT MESSAGING WITH AIM

AIM menu

OFFLINE

Before you connect to AIM, the AIM menu appears like this:

Sign On

Availability

Saved convers.

IM Settings

Description AIM Icon

IM service provider’s branding

splash

Available

Offline/Appear offline

Blocked contact

Unread/New message

Read message

1100.Addendum1.ENv1_9311029_011304.fm Page 2 Tuesday, January 13, 2004 2:37 PM

ONLINE

After connecting to AIM, the AIM menu appears like this:

Buddy List

Create group

Availability

Saved convers.

IM Settings

Sign Off

Log into service

The first time you use instant messaging, select AIM as the IM provider. Enter your

screen name and password to log into the service. After the first successful login,

you will not have to select the IM provider or enter your password again.

LOG INTO SERVICE FIRST TIME

1 Select Menu > IM > Sign on.

2 Enter your screen name and select OK.

3 Enter your password and select OK.

LOG INTO SERVICE AFTER FIRST TIME

1 Select Menu > IM > Sign on.

The Screen Name screen appears, with your screen name displaying.

2 Select OK, enter your password and select OK.

Set your availability

You can determine if other users can tell whether you are available or not.

From the AIM online menu, select Availability, then select either Available or

Appear offline.

IM conversations

You can send instant messages to anyone registered with AIM if you have the

person’s screen name. You can also add that person to your Buddy List during an

IM conversation. You can have more than one IM conversation active at the same

time.

1100.Addendum1.ENv1_9311029_011304.fm Page 3 Tuesday, January 13, 2004 2:37 PM

Conversation view

The conversation view of your IM conversation shows your initial message at the

top of the screen, followed by the reply. As the conversation progresses, the initial

message will no longer display. The most recent message appears at the bottom of

the screen, causing the message above it to move up one level. You can have more

than one IM conversation active at the same time.

The conversation is still active, even if you leave the conversation view. You can

return to it at any time.

1 From the AIM online menu, select Buddy List.

2 Scroll to the buddy you want, and select Options > Send IM.

The conversation view appears.

3 Select Options > Create message.

4 Enter your message, then select Options > Send.

WRITE AND SEND

1 From the AIM online menu, select Buddy List > Options > Write message.

2 Enter the screen name of the person to whom you want to send an instant

message, then select OK.

3 Write the message.

4 Select Options > Send.

WRITE AND SEND TO BUDDY

1 From the AIM online menu, select Buddy List and select the buddy to whom

you want to send a message.

2 Select Options > Send IM > Options > Create message.

3 Enter a message, and select Options > Send.

RECEIVE AND REPLY IN CONVERSATION VIEW

When you receive an instant message, your phone alerts you, and the sender’s reply

appears below your most recent message.

1 Select Options > Create message > OK.

2 Enter a message, then select Options > Send.

RECEIVE AND REPLY OUTSIDE CONVERSATION VIEW

When you receive an instant message, your phone alerts you and a message

appears saying that you have received an instant message.

Select Read > Options > Create message.

1100.Addendum1.ENv1_9311029_011304.fm Page 4 Tuesday, January 13, 2004 2:37 PM

SAVE

1 From the conversation view, select Options > Save convers.

2 Keep the conversation name that appears in the display and select Ok.

Press C as many times as necessary to delete the conversation name, then

enter the name you want and select OK.

VIEW

From either the AIM online or offline menu, select Saved convers., then select the

conversation you want to view.

RENAME

1 From either the AIM online or offline menu, select Saved convers., then select

the conversation you want to rename and select Options > Rename.

2Press C as many times as necessary to delete the conversation name, then

enter the new conversation name.

3 Select OK.

DELETE

From either the AIM online or offline menu, select Saved convers., then select the

conversation you want to delete and select Options > Delete.

END IN CONVERSATION VIEW

1 Select Options > End convers. > OK.

2 Select the conversation you want to end and select End conversation.

Buddy List

You can add the names of your friends and family with whom you will be

interacting frequently via instant messaging to your Buddy List.

ADD

1 From the AIM online menu, select Buddy List > Options > Add Buddy.

2 Enter the buddy’s screen name, select OK, enter the buddy’s nick name, and

select > OK.

ADD DURING INSTANT MESSAGING SESSION

1Press C, select Add as buddy > OK.

2 Enter a nickname and press OK.

1100.Addendum1.ENv1_9311029_011304.fm Page 5 Tuesday, January 13, 2004 2:37 PM

DELETE

From the AIM online menu, select Buddy List and select the buddy you want to

delete, then select Delete buddy > OK.

BLOCK

1 From the AIM online menu, select Buddy List and select the buddy from whom

you want to block messages.

2 Select Block IMs > OK.

UNBLOCK

1 From the AIM online menu, select Buddy List and select the buddy from whom

you want to unblock messages.

2 Select Unblock > OK.

SET TRACKING

You can set the tracking feature for a contact to notify you when the contact’s

availability changes.

1 From the AIM online menu, select Buddy List, then select the buddy you want

to track.

2 Select Start tracking.

REMOVE AN ALERT

From the AIM online menu, select Buddy List, then select the buddy for whom you

want to remove an alert and select Remove alert.

Instant messaging settings

You can customize your instant messaging settings. Select Settings from either the

AIM online or offline menu and the following options appear in the display:

Option What it does

Nickname Allows you to change your nickname.

Availability

notification

Allows you to update your buddies’ online

availability (presence)

Show availability to Lets you alert others to your presence online.

Auto-sign on Allows you to sign-on to the automatically at

power-up or start-up.

1100.Addendum1.ENv1_9311029_011304.fm Page 6 Tuesday, January 13, 2004 2:40 PM

NICKNAME

You can change a nickname that is 1–20 characters in length.

1 From either the AIM online or offline menu, select Settings > Nickname.

The Nickname screen appears, with your screen name displaying.

2 Select Clear as many times as necessary to delete the screen name.

3 Enter the new nickname and select OK.

AUTOMATIC SIGN-ON

You can use automatic sign on after you have logged in with your screen name and

password.

From either the AIM online or offline menu, select Settings > Auto Sign-On. Then

choose from On power-up, or At start-up. To deactivate, select Auto Sign-on off.

Sign off service

From the AIM online menu, you can exit the IM application but still stay connected

to the IM service. This enables you to receive instant messages from your contacts,

when using your phone for other purposes, for example, if you are playing a game.

If you are connected to your IM service, but you have not used your IM application

for some time, you may be automatically disconnected from the IM service. The

next time you open the IM application, you will receive a message, Not connected

and you will be taken to the offline menu where you have to sign in again.

To disconnect from the IM service, you must log out from the AIM online menu.

You will then be taken to the AIM offline menu, where you can sign in again or exit

the IM application.

SIGN OFF INSTANT MESSAGING

From the AIM online menu, select Sign Off > OK.

Network sett. Allows you to change your Screen Name or

Password.

Option What it does

1100.Addendum1.ENv1_9311029_011304.fm Page 7 Tuesday, January 13, 2004 2:37 PM

Nokia Inc.

7725 Woodland Center Blvd., Ste. 150

Tampa, FL 33614

Telephone: 1-888-NOKIA-2U (1-888-665-4228)

Facsimile: 1-813-249-9619

TTY/TDD Users: 1-800-24-NOKIA (1-800-246-6542)

www.nokia.com/us

www.nokiahowto.com

1100.Addendum1.ENv1_9311029_011304.fm Page 8 Tuesday, January 13, 2004 2:37 PM

Microsoft RH-36X GSM 850/1900 Cellular telephone User Manual 1100 ENv2 9310129

Microsoft Mobile Oy GSM 850/1900 Cellular telephone 1100 ENv2 9310129

Manual rev

Navigation menu

Namespaces

Views

Navigation
