User Guide
Nokia E70 User Guide
9242084
Issue 1
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 1 Dec 13, 2005 8:14:13 AM
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RM-10 is in conformity with the
provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from
www.nokia.com/phones/declaration_of_conformity/.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry
Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service
facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.
Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia
is prohibited.
Nokia, Nokia Connecting People, Xpress-on and Pop-port are trademarks or registered trademarks of Nokia Corporation. Other product and company
names mentioned herein may be trademarks or tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
This product includes software licensed from Symbian Software Ltd (c) 1998-2004. Symbian and Symbian OS are trademarks of Symbian
Ltd.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2004. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which
has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in
connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information,
including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 2 Dec 13, 2005 8:14:13 AM
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this
document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever
caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including,
but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or
contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice
The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.
EXPORT CONTROLS
This device may contain commodities, technology, or software subject to export laws and regulations from the US and other countries. Diversion contrary
to law is prohibited.
9242084/Issue 1
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 3 Dec 13, 2005 8:14:13 AM
Contents
For your safety..............................................................7
NETWORK SERVICES...................................................................8
Enhancements, batteries, and chargers............................8
1. Get started.................................................................9

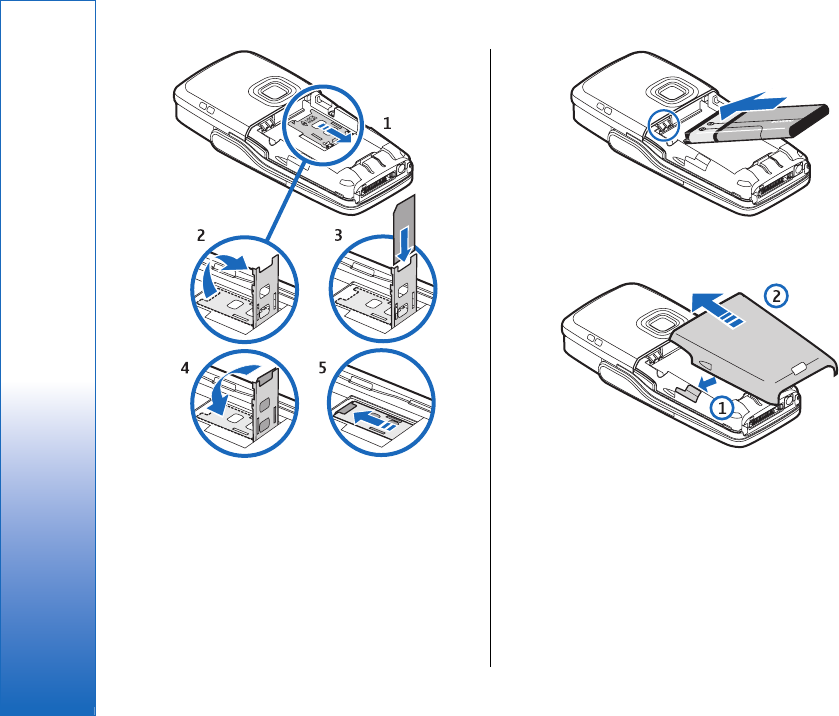

Insert the SIM card and battery...........................................9
Insert a memory card...........................................................10
Charge the battery.................................................................11
Switch on your device..........................................................11
Enter basic settings...............................................................12

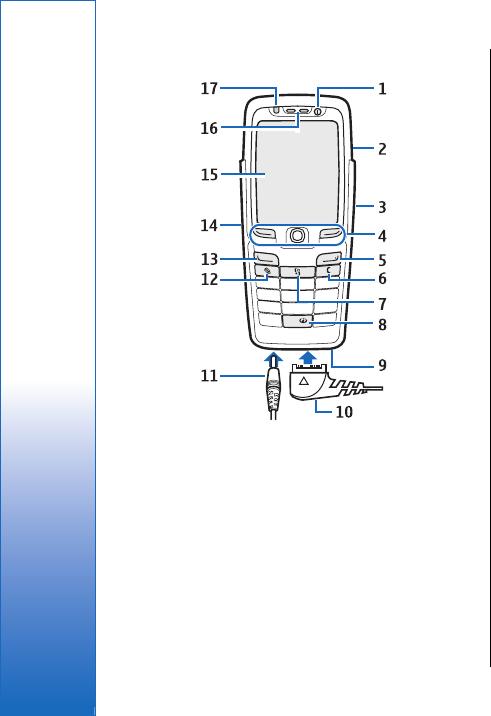

Keys and parts.........................................................................13
Keypad lock (keyguard).......................................................14
Connectors...............................................................................15
Antennas...................................................................................15
About the display...................................................................16
Standby modes.......................................................................16
Display indicators..................................................................17
Volume control.......................................................................18
Change writing language....................................................18
Memory.....................................................................................19
CD-ROM......................................................................................20
Transfer content between devices...................................20
2. Your device..............................................................22
Settings.....................................................................................22
Menu..........................................................................................22
Help and tutorial....................................................................22
Scroll and make selections.................................................23
Common actions in several applications........................23
3. Make calls.................................................................25
1-touch dial..............................................................................25
Answer a call...........................................................................26
Forward calls...........................................................................26
Call restriction.........................................................................26
Video calls................................................................................27
Log..............................................................................................28
Push to talk..............................................................................28
Internet calls...........................................................................31
Device security .......................................................................32
4. Contacts....................................................................35
Manage contact groups.......................................................35
Manage default information..............................................36
Copy contacts between SIM and device memory........36
Select ringing tones for contacts......................................36
Business cards.........................................................................36
5. Messages..................................................................38
Organize messages...............................................................38
Messaging settings................................................................39
Text messages........................................................................39
Multimedia messages...........................................................41
E-mail messages.....................................................................44
Instant messaging.................................................................49
Special messages...................................................................53
6. Connectivity.............................................................54
Internet access points..........................................................54
Cable connection....................................................................56
Contents
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 4 Dec 13, 2005 8:14:13 AM
Bluetooth..................................................................................56
SIM access profile...................................................................59
Infrared.....................................................................................60
Data connections...................................................................60
Connection manager............................................................62
Modem......................................................................................63
Mobile VPN ..............................................................................63
Email data roaming...............................................................64
7. Web............................................................................65
Access points...........................................................................65
Browse the Web.....................................................................65
Bookmarks...............................................................................66
Download items.....................................................................66
End a connection....................................................................67
News feeds and blogs..........................................................67
Web settings...........................................................................67
Services.....................................................................................68
8. Media applications................................................69
Gallery........................................................................................69
RealPlayer ................................................................................70
Music player.............................................................................72
Voice recorder.........................................................................73
Flash player..............................................................................73
9. Camera......................................................................75
Take a picture.........................................................................75
Record a video clip................................................................75
Insert pictures into messages............................................76
Insert videos into messages...............................................76
Settings.....................................................................................76
10. Office applications..............................................77
File manager...........................................................................77
Documents...............................................................................77
Sheet..........................................................................................79
Presentation............................................................................80
Screen export..........................................................................82
Print............................................................................................83
11. Settings..................................................................84
Phone settings........................................................................84
Call settings..............................................................................85
Connection settings..............................................................86
Date and time settings.........................................................91
Security settings.....................................................................91
Enhancement settings.........................................................91
12. Organizer...............................................................92
Calendar....................................................................................92
Notes..........................................................................................93
Calculator..................................................................................93
Converter..................................................................................94
Voice mailbox..........................................................................94
Clock...........................................................................................94
13. Tools........................................................................96
Positioning...............................................................................96
Navigator..................................................................................96
Landmarks...............................................................................97
Voice commands....................................................................97
Application manager............................................................98
Nokia Catalogs........................................................................99
14. Device management.......................................100
Remote configuration network service.......................100
Data synchronization.........................................................100
Contents
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 5 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 5 Dec 13, 2005 8:14:13 AM
15. Personalization.................................................102
Profiles....................................................................................102
Themes...................................................................................103
16. Nokia original enhancements......................104
Enhancements......................................................................104
17. Shortcuts.............................................................105
Battery information................................................107
970 mAh Li-Ion battery (BL-6C) information..............107
Nokia battery authentication guidelines....................107
Care and maintenance...........................................109
Additional safety information.............................110
Operating environment.....................................................110
Medical devices....................................................................110
Vehicles...................................................................................111
Potentially explosive environments..............................111
Emergency calls....................................................................111
CERTIFICATION INFORMATION(SAR).................................112
Index............................................................................114
Contents
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 6 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 6 Dec 13, 2005 8:14:13 AM
For your safety
Read these simple guidelines. Not following them may
be dangerous or illegal. Read the complete user guide
for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands
free to operate the vehicle while driving.
Your first consideration while driving should
be road safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off
near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can
cause interference in aircraft.
SWITCH OFF WHEN REFUELLING
Do not use the device at a refueling point. Do
not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device
where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained
in the product documentation. Do not touch
the antennas unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and
batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it
dry.
BACK-UP COPIES
Remember to make back-up copies or keep
a written record of all important
information.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read
its user guide for detailed safety instructions.
Do not connect incompatible products.
7
For your safety
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 7 Dec 13, 2005 8:14:13 AM
EMERGENCY CALLS
Ensure the phone function of the device is
switched on and in service. Press the end key
as many times as needed to clear the display
and return to the standby mode. Enter the
emergency number, then press the call key.
Give your location. Do not end the call until
given permission to do so.
NETWORK SERVICES
To use the phone you must have service from a wireless
service provider. Many of the features in this device
depend on features in the wireless network to function.
These network services may not be available on all
networks or you may have to make specific
arrangements with your service provider before you
can utilize network services. Your service provider may
need to give you additional instructions for their use
and explain what charges will apply. Some networks
may have limitations that affect how you can use
network services. For instance, some networks may not
support all language-dependent characters and
services.
Your service provider may have requested that certain
features be disabled or not activated in your device. If
so, they will not appear on your device menu. Your
device may also have been specially configured. This
configuration may include changes in menu names,
menu order and icons. Contact your service provider for
more information.
This device supports WAP 2.0 protocols (HTTP and SSL)
that run on TCP/IP protocols. Some features of this
device, such as MMS, browsing, e-mail, and content
downloading using the browser or over MMS, require
network support for these technologies.
Enhancements, batteries,
and chargers
Check the model number of any charger before use with
this device. This device is intended for use when
supplied with power from the LCH-12, ACP-12, and AC-1
chargers.
Warning: Use only batteries, chargers, and
enhancements approved by Nokia for use with this
particular model. The use of any other types may
invalidate any approval or warranty, and may be
dangerous.
For availability of approved enhancements, please
check with your dealer. When you disconnect the power
cord of any enhancement, grasp and pull the plug, not
the cord.
Your device and its enhancements may contain small
parts. Keep them out of reach of small children.
8
For your safety
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 8 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 8 Dec 13, 2005 8:14:13 AM
Get started
Note: Your service provider may have requested
that certain features be disabled or not activated in
your device. If so, they do not appear on your device
menu. Your device may also have been specially
configured for your network provider. This
configuration may include changes in menu names,
menu order and icons. Contact your service provider for
more information.
Model number: Nokia E70-1
Hereinafter referred to as Nokia E70.
Insert the SIM card and
battery
Keep all SIM cards out of the reach of small children. For
availability and information on using SIM card services,
contact your SIM card vendor. This may be the service
provider, network operator, or other vendor.
1. Always switch the device off, and disconnect the
charger before removing the battery.
With the back of the device facing you, press the
cover release button (1), and slide the back cover in
the direction of the arrow (2).
2. If the battery is installed, lift the battery from the
battery compartment in the direction of the arrow
to remove it .
3. To release the SIM card holder, slide it in the
direction of the arrow (1), and lift it (2). Insert the
SIM card into the SIM card slot (3).
Ensure that the beveled corner of the SIM card is
pointing up and the contact area on the card is
facing the device. Lower the SIM card holder (4), and
slide it until it locks into place (5). 9
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 9 Dec 13, 2005 8:14:13 AM
4. To insert the battery, align the contacts of the
battery with the corresponding connectors on the
battery compartment, insert in the direction of the
arrow, and gently click the battery into place.
5. Insert the locking catches of the back cover into the
corresponding slots (1), and slide the cover in the
direction of the arrow (2).
Instead of a SIM card, you may also have a USIM card,
which is an enhanced version of the SIM card and is
supported by UMTS (network service) mobile phones.
Contact your service provider for more information and
settings.
Insert a memory card
If you have a memory card, follow the instructions to
insert it.
See "Memory," p. 19.
10
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 10 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 10 Dec 13, 2005 8:14:13 AM
1. Remove the battery cover.
2. Insert the memory card fully into the memory card
slot. Ensure that the beveled corner of the memory
card is pointing towards the device and the contact
area is facing down.
3. Replace the battery cover.
4. To remove the memory card, remove the battery
cover and push the memory card into the device to
activate the release mechanism. Then, gently pull
the card out of your device.
Important: Do not remove the memory card
in the middle of an operation when the card is being
accessed. Removing the card in the middle of an
operation may damage the memory card as well as
the device, and data stored on the card may be
corrupted.
Charge the battery
1. Connect the charger to a wall outlet.
2. Connect the power cord to the bottom of the device.
The battery indicator bar starts scrolling on the
display. If the battery is completely discharged, it
may take a few minutes before the charging
indicator is shown. The device can be used while
charging.
3. When the battery is fully charged, the bar stops
scrolling. Disconnect the charger from the device,
then from the outlet.
When the battery charge level is too low for operation,
the device switches itself off.
Switch on your device
1. To switch the device on, press the power key.
2. If the device asks for a PIN code (or UPIN code, if you
have a USIM card), lock code or security code, enter
the code, and select OK.
3. To switch the device off, press the power key.
Tip: When you switch the device on, it may
recognize the SIM card provider and configure
the correct text message, multimedia message,
and GPRS settings automatically. If not, contact
your service provider for the correct settings.
The device can be used without the network dependant
phone functions when a SIM card is not inserted or
when the Offline profile is selected.
The picture shows the location of the power key.
11
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 11 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 11 Dec 13, 2005 8:14:13 AM
Enter basic settings
When you power on the device for the first time, and
when you power on the device after the battery has
been empty or removed for a longer period of time,
your device asks for the city in which you are located,
time, and date. You can change the settings later.
1. Select the city in which you are located from the list
and OK. To browse for a city, start to type the name
of the city, or scroll to a city. It is important to select
the correct city, because scheduled calendar entries
that you create can change if the new city is located
on a different time zone.
2. Set the time, and select OK.
3. Set the date, and select OK.
You can use your device with the cover keypad closed
or open.
1. To open the cover, lift the keypad into the direction
of the arrow (1). When you open the front cover, you
can use the full-size keyboard (2).
2.
The device changes the orientation of the display to
portrait or landscape, depending on whether you
use the device with front cover open or closed.
12
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 12 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 12 Dec 13, 2005 8:14:13 AM
Keys and parts
Full keyboard open
1 — Keypad light key. Press the key to illuminate your
keypad for a period of time.
2 — Power key
3 — Selection keys
4 — Internet key. Press and hold the key in the standby
mode to browse the Web.
5 — Clear (backspace) key
6 — Chr key. Press the Chr key to open a character table
where you can select special characters.
7 — Menu key. Press the Menu key to access the
applications installed in your device. With a long
keypress, you can see a list of the active applications
and switch between them. In this User Guide, "select
Menu" refers to pressing this key.
8 — Shift key. Press Shift+character key to produce
uppercase letters.
9 — Space bar
10 — Call key
11 — Light sensor and earpiece
12 — Joystick. Press the joystick to enter a selection.
Use the joystick to scroll left, right, up, down, or to move
around on the screen.
13 — End key
Press the end key to reject a call, end active calls and
held calls, close applications, and with a long keypress,
end data connections (GPRS, data call).
14 — Space bar
15 — Shift key. Press shift and character key to produce
uppercase letters.
16 — Ctrl key
17 — Enter key
Tip: Press the clear (backspace) key to delete
items such as calendar entries and messages.
Press the clear (backspace) key to delete
characters on the left side of the cursor, or shift
+clear (backspace) key to delete characters on
the right side of the cursor.
The display changes from portrait to landscape when
you open the cover. The application that was active the
last time the device was used is shown on the display.
When you close the cover, the display changes from
landscape to portrait.
13
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 13 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 13 Dec 13, 2005 8:14:13 AM
Full keyboard closed
1 — Power key
2 — Loudspeaker
3 — Infrared port
4 — Left selection key, joystick, and right selection key.
Press either selection key to perform the function
shown above it on the display. Press the joystick to
enter a selection or access most commonly used
functions in different applications. Use the joystick to
scroll left, right, up, down, or to move around on the
screen. During a call, scroll left or right with the joystick
to change volume.
5 — End key
6 — Clear key
7 — Menu key. Press the Menu key to access the menu.
In this User Guide, "select Menu" refers to pressing this
key.
8 — Internet key. Press and hold the key in the standby
mode to browse the Web.
9 — Microphone. Do not cover the microphone with
your hand during phone calls.
10 — PopPort™ connector for the USB data cable,
headset, and loopset
11 — Charger connector
12 — Edit key
13 — Call key
14 — Voice key/push to talk (PTT) key.
15 — Display
16 — Earpiece
17 — Light sensor
Keypad lock (keyguard)
When the keypad lock is on, calls may be possible to the
official emergency number programmed into your
device.
Use the keypad lock (keyguard) to prevent the keys on
the device from being accidentally pressed.
14
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 14 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 14 Dec 13, 2005 8:14:13 AM
To lock the keypad in the
standby mode, press the left
selection key and *. To unlock,
press the left selection key and
* again.
Tip: To lock the keypad
in the Menu or in an
open application, press
the power key briefly,
and select Lock keypad.
To unlock, press the left
selection key and *.
You can also lock the device in
the standby mode using your
lock code. Press the power key,
select #MISSING, and enter your lock code. To unlock,
press the left selection key and *. Enter your lock code,
and press the joystick.
Connectors
Warning: When you use the headset, your ability
to hear outside sounds may be affected. Do not use the
headset where it can endanger your safety.
Battery
charger
connector
PopPort
connector for
headset and
other
enhancements
Antennas
Your device has two internal antennas.
Note: As with any other radio transmitting
device, do not touch either of the antennas
unnecessarily when the device is switched on. Contact
with the antenna affects call quality and may cause the
device to operate at a higher power level than
otherwise needed. Not touching the antenna area
during a phone call optimises the antenna performance
and the talktime of your device. 15
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 15 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 15 Dec 13, 2005 8:14:13 AM
The picture shows the normal
use of the device at the ear for
voice calls.
About the display
A small number of missing, discolored, or bright dots
may appear on the screen. This is a characteristic of this
type of display. Some displays may contain pixels or
dots that remain on or off. This is normal, not a fault.
Standby modes
Your device has two different standby modes: standby
mode and active standby mode.
Active standby mode
After you have switched on your device and it is ready
for use, but you have not entered any characters or
made other selections, the device is in the active
standby mode. In the active standby mode, you can
view your service provider and network, different
indicators such as indicators for alarms, and
applications you want to access fast.
To select applications that you want to access from
active standby, select Standby apps. Scroll to the
different shortcut settings, and press the joystick. Scroll
to the desired application, and press the joystick.
To activate standby, select Menu > Tools > Settings >
Phone > Standby mode > Active standby > Off.
Tip: You can also see the messages in a
messaging folder such as inbox or mailbox in
the active standby mode. Select Menu >
Messag. > Options > Settings > Other and
the folders in Active standby mode.
Standby mode
In the standby mode, you can see different information,
such as your service provider, time, and different
indicators, such as indicators for alarms.
The picture shows a the display in the standby mode.
16
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 16 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 16 Dec 13, 2005 8:14:13 AM
1 — Service provider
2 — Signal strength indicator
3 — Command for left selection key
4 — Command for right selection key
5 — Battery strength indicator
Shortcuts in standby mode
In the standby mode, you can use the following
shortcuts. These shortcuts are usually not available in
the active standby mode, where the joystick is used for
normal scrolling.
To view the most recently dialed numbers, press the call
key. Scroll to a number or name, and press the call key
again to call the number.
To call your voice mailbox (network service), press and
hold 1.
To view calendar information, scroll right.
To write and send text messages, scroll left.
To open the contacts list, press the joystick.
To change the profile, press the power key briefly, scroll
to the profile you want, and press the joystick to
activate the profile.
To open Services and connect to the Web, press 0.
To activate the camera, scroll up with the joystick.
To change these shortcuts, select Menu > Settings >
Phone > Standby mode.
Display indicators
The device is being used in a GSM network. The bar
next to the icon indicates the signal strength of the
network at your current location. The higher the bar,
the stronger the signal.
The device is being used in a UMTS network
(network service). The bar next to the icon indicates the
signal strength of the network at your current location.
The higher the bar, the stronger the signal.
The battery charge level. The higher the bar, the
stronger the charge in the battery.
The application is open. This icon is shown in the
Menu.
You have one or more unread messages in the
Inbox folder in Messag..
You have received new e-mail in the remote
mailbox.
You have one or more missed phone calls.
An alarm is active.
You have selected the silent profile, and the device
does not ring for an incoming call or message.
Bluetooth is activated.
An infrared connection is active. If the indicator
blinks, your device is trying to connect to the other
device, or the connection has been lost.
17
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 17 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 17 Dec 13, 2005 8:14:13 AM
A GPRS or EDGE packet data connection is available.
A GPRS or EDGE packet data connection is active.
A GPRS or EDGE packet data connection is on hold.
A UMTS packet data connection is available.
A UMTS packet data connection is active.
A UMTS packet data connection is on hold.
You have set the device to scan for wireless LANs,
and a wireless LAN is available.
A wireless LAN connection is active in a network
that does not have encryption.
A wireless LAN connection is active in a network
that has encryption.
Your device is connected to a PC with a USB data
cable.
A data call is active.
IP passthrough is active.
and Indicate the phone line that you have
selected, if you have subscribed to two phone lines
(network service).
All calls are forwarded to another number.
A headset is connected to the device.
The connection to a headset with Bluetooth
connectivity has been lost.
A hands-free car kit is connected to the device.
A loopset is connected to the device.
A TTY is connected to the device.
Your device is synchronizing.
You have an ongoing push to talk connection.
Volume control
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume
may be extremely loud.
To adjust the volume during a call, scroll left or right.
To adjust the volume when using the loudspeaker,
scroll left or right.
Change writing language
If you are writing text, for example a note or a message,
you can change the writing language. When you are
writing and press a key several times to reach a specific
character, changing the writing language gives you
access to a different characters.
For example, if you are writing text using a non-Latin
alphabet and want to write Latin characters for Web
addresses, select Options > Writing language and the
writing language to have access to a language that uses
Latin characters.
18
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 18 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 18 Dec 13, 2005 8:14:13 AM
If you are writing with the full-sized keyboard, press
Shift+Chr to change the language.
Memory
There are two types of memory into which you can save
data or install applications: device memory and
removable memory.
Select Menu > Options > Memory details.
You can see how much memory is currently in use, how
much free memory remains, and how much memory is
consumed by each data type. For example, you can see
how much memory your e-mail messages, text
documents, or calendar appointments consume.
Tip: To ensure that you have adequate
memory, you should regularly delete or
transfer data to a memory card or PC.
Memory card
Use only compatible miniSD cards with this device.
Other memory cards, such as MultiMediaCards, reduced-
size MultiMediaCards or full-size SD cards, do not fit in
the memory card slot and are not compatible with this
device. Using an incompatible memory card may
damage the memory card as well as the device, and
data stored on the incompatible card may be corrupted.
Your Nokia device only supports the FAT16 file system
for memory cards. If you use a memory card from
another device or if you want to ensure compatibility
of the memory card with your Nokia device, you may
need to format the memory card with your Nokia
device. However, all data in the memory card is
permanently deleted if you format the memory card.
It is recommended to back up device memory regularly
to the memory card. The information can be restored
to your device later. To back up information from device
memory to a memory card, select Menu > Tools >
Memory card > Options > Backup phone mem. To
restore information from the memory card to the
device memory, select Menu > Tools > Memory
card > Options > Restore from card.
To remove the memory card, press the power key and
select Remove mem. card.
Do not remove the memory card when the card is being
accessed. Removing the card in the middle of an
operation may damage the memory card as well as the
device, and data stored on the card may be corrupted.
If you cannot use a memory card in your device, you
may have the wrong type of memory card, the card may
not be formatted for your device, or the card has a
corrupted file system.
MiniSD
This device uses a mini Secure Digital (SD)
card.
Check the compatibility of a miniSD with its
manufacturer or provider. Use only compatible miniSD
cards with this device. Other memory cards, such as
MultiMediaCards (MMC) or full-size SD cards, do not fit in
the miniSD card slot and are not compatible with this
device. Using an incompatible memory card may
damage the memory card as well as the device, and 19
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 19 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 19 Dec 13, 2005 8:14:13 AM
data stored on the incompatible card may be corrupted.
Keep all memory cards out of the reach of small
children.
CD-ROM
The sales package CD-ROM is compatible with Windows
98SE, Windows ME, Windows 2000, and Windows XP.
You can install Nokia PC Suite from the CD-ROM. Nokia
PC Suite can be used only with Windows 2000 and
Windows XP.
Transfer content between
devices
You can transfer content, such as contacts, from a
compatible Nokia device to your Nokia E70 using
Bluetooth connectivity or infrared. The type of content
that can be transferred depends on the phone model.
If the other device supports synchronization, you can
also synchronize data between the other device and
your Nokia E70.
Transfer data from another device
Tip: If you transfer data from your previous
phone, the phone may require you to insert the
SIM card. Your Nokia E70 does not need a SIM
card when transferring data.
To start transferring data from a compatible device,
select Menu > Tools > Transfer > Transfer data.
1. In the information view, select Continue.
2. Select Via Bluetooth. Both devices must support the
selected connection type.
3. Activate Bluetooth in your other device, and select
Continue in your Nokia E70 to start searching for
devices with active Bluetooth connectivity.
4. Select Stop in your Nokia E70 after it has found your
other device.
5. Select your other device from the list. You are asked
to enter a passcode (1 to 16 digits) on your Nokia
E70. The passcode is used only once to confirm this
connection.
6. Enter the code on your Nokia E70, and select OK.
Enter the passcode on your other device, and select
OK. The devices are now paired. See "Pair
devices," p. 58.
For some phone models, the Transfer data
application is sent to your other device as a
message. To install Transfer data on your other
device, open the message, and follow the
instructions on the display.
7. From your Nokia E70, select the content you want
to transfer from your other device, and OK.
Infrared connectivity
1. In the information view, select Continue.
2. Select Via infrared. Both devices must support the
selected connection type.
3. Connect the two devices. See "Infrared," p. 60.
4. From your Nokia E70, select the content you want
to transfer from your other device, and OK.
20
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 20 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 20 Dec 13, 2005 8:14:13 AM
Content is copied from the memory of the other device
to the corresponding location in your device. Copying
time depends on the amount of data to be transferred.
You can also cancel and continue later.
The necessary steps for data transfer may vary
depending on your device, and whether you have
interrupted data transfer earlier. The items that you can
transfer vary depending on the other device.
Synchronize data with another
device
If you have previously transferred data to your Nokia
E70, and your other device supports synchronization,
you can use Transfer to keep the data of the two devices
up to date.
1. Select Phones, and press the joystick.
2. Scroll to the device from which you transferred data,
and press the joystick.
3. Select Synchronize, and press the joystick. The
devices start synchronizing using the same
connection type that you selected when you
originally transferred data. Only the data that you
originally selected for data transfer is synchronized.
To modify the data transfer and synchronization
settings, select Synchronize, scroll to a device, press the
joystick, and select Edit.
21
Get started
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 21 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 21 Dec 13, 2005 8:14:13 AM
Your device
Settings
When you switch the device on, it may recognize the
SIM card provider and configure the correct text
message, multimedia message, and GPRS settings
automatically. You may also receive the settings as a
special text message from your service provider.
Menu
The Menu is a starting point from which you can open
all applications in the device or on a memory card. The
Menu contains applications and folders, which are
groups of similar applications. Use the joystick to scroll
up and down on the screen.
Applications that you install are saved in the Installat.
folder by default.
To open an application, scroll to it, and press the
joystick.
To view the applications in a list, select Options >
Change view > List. To return back to the grid view,
select Options > Change view > Grid.
To view the memory consumption of different
applications and data stored on the device or memory
card and to check the amount of free memory, select
Options > Memory details and the memory.
To rearrange the folder, scroll to the application you
want to move, and select Options > Move. A check mark
is placed beside the application. Scroll to a new location,
and select OK.
To move an application to a different folder, scroll to
the application you want to move to another folder, and
select Options > Move to folder, the new folder, and OK.
To download applications from the Web, select
Options > App. downloads.
To create a new folder, select Options > New folder.
You cannot create folders inside folders.
To rename a new folder, select Options > Rename.
Tip: To switch between several open
applications, press and hold the menu key. The
application-switching window opens and
displays the open applications. Scroll to an
application, and press the joystick to switch to
it.
When you switch off the device, all applications are
closed and unsaved data is saved automatically.
Help and tutorial
You can find answers to your questions while using the
device even with no user guide present, because your
device includes both a task-specific help and a tutorial.
Tip: Task-specific means you can access
instructions from Options lists.
22
Your device
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 22 Dec 13, 2005 8:14:13 AM
Device help
You can access the device help from an open application
or from the Menu. When you have an application open,
select Options > Help to read instructions for the
current view.
To open help from Menu, select Help > Help. In Help,
you can select categories for which you want to see
instructions. Scroll to a category, such as Messaging,
and press the joystick to see what instructions (help
topics) are available. While you are reading the topic,
scroll left or right to see the other topics in that
category.
When you are reading the instructions, press and hold
the menu key to switch between help and the
application that is open in the background.
Tutorial
The tutorial provides you information about your
device and shows you how to use it.
To access the tutorial in the menu, select Menu >
Help, open Tutorial and the section you want to view.
Scroll and make selections
Use the joystick to move and make selections. With the
joystick, you can move up, down, left and right in the
Menu or in different applications or lists. You can also
press the joystick to open applications, files, or edit
settings.
To select text, press and hold the edit key, and scroll left
or right until you have selected the text.
To select different items, such as messages, files, or
contacts, scroll up, down, left or right to highlight the
item you want to select. Select Options > Mark/
Unmark > Mark to select one item or Options > Mark/
Unmark > Mark all to select all items.
Tip: To select almost all items, first select
Options > Mark/Unmark > Mark all, then
select the items you do not want, and
Options > Mark/Unmark > Unmark.
To select an object (for example, an attachment in a
document) scroll to the object so that square markers
appear on each side of the object.
Common actions in several
applications
You can find the following actions in several
applications:
To switch between open applications, press and hold
the menu key to see a list of open applications. Select
an application.
To change the profile or switch off or lock the device,
press the power key briefly.
To save a file, select Options > Save. There are different
save options depending on the application you use.
To send a file, select Options > Send. You can send a file
in an e-mail or multimedia message, or using infrared
or Bluetooth. 23
Your device
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 23 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 23 Dec 13, 2005 8:14:13 AM
To print to a compatible printer, select Options >
Print. You can preview items that you want to print, or
edit the way printed pages look. Before you can print,
you must define a compatible printer to your device.
See "Print," p. 83.
To copy, press the edit key, and select the text with the
joystick. Press and hold the edit key, and select Copy. To
paste, scroll to where you want to paste the text, press
and hold the edit key, and select Paste. This method
may not work in applications such as Documents that
have their own copy and paste commands.
To delete a file, press the clear key, or select Options >
Delete.
To insert characters such as question marks or
parentheses to text, press *.
24
Your device
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 24 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 24 Dec 13, 2005 8:14:13 AM
Make calls
When the device is locked, calls still may be possible to
the official emergency number programmed into your
device.
In the offline profile, you may need to enter the lock
code and change the device to a calling profile before
making any call, including a call to an emergency
number.
To make and receive calls, the device must be switched
on, the device must have a valid SIM card installed, and
you must be located in a service area of the cellular
network. The GPRS connection is put on hold during
voice calls unless the network supports dual transfer
mode or you have a USIM card and are within the
coverage of a UMTS network.
Enter the phone number, including the area code, and
press the call key. If you enter an incorrect character,
press the clear key.
Tip: For international calls, press the * key
twice to add the + character that replaces the
international access code, and enter the
country code, area code (omit the leading 0, if
necessary), and phone number.
To end the call or cancel the call attempt, press the end
key.
To make a call using the saved contacts, press
Contacts in standby mode. Enter the first letters of the
name, scroll to the name, and press the call key. See
"Contacts," p. 35.
Press the call key to view up to 20 numbers that you last
called or attempted to call. Scroll to the desired number
or name, and press the call key to dial the number.See
"Log," p. 28.
To adjust the volume of an active call, scroll left or right
with the joystick.
When you open the cover of the device during a call, the
loudspeaker is activated.
To call your voice mailbox (network service) in standby
mode, press and hold 1, or press 1 then the call key.
1-touch dial
1-touch dialing allows you to make a call by pressing
and holding a number key.
Before using 1-touch dialing, select Menu > Tools >
Settings > Call > 1-touch dialing > On.
To assign a number key to a phone number, select
Menu > Tools > 1-touch dial. Scroll to the number key
(2 - 9) on the screen, and select Options > Assign. Select
the desired number from the Contacts directory.
To delete the phone number assigned to a number key,
scroll to the speed dialing key, and select Options >
Undo.
To modify a phone number assigned to a number key,
scroll to the 1-touch dialing key, and select Options >
Change.25
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 25 Dec 13, 2005 8:14:13 AM
Answer a call
Note: The actual invoice for calls and services
from your service provider may vary, depending on
network features, rounding off for billing, taxes, and so
forth.
To answer a call, press the call key.
To decline the call, press the end key.
To mute a ringing tone instead of answering a call,
select Silence.
To answer a new call during a call when the Call
waiting function is activated, press the call key. The first
call is put on hold. To end the active call, press the end
key.
Forward calls
Select Menu > Tools > Settings > Call forwarding.
Forward incoming calls to your voice mailbox or to
another phone number. For details, contact your service
provider.
1. Select a call type from the following:
•Voice calls — Incoming voice calls.
•Data and video calls — Incoming data and video
calls.
•Fax calls — Incoming fax calls.
2. Select one of the following call forwarding options:
•All voice calls, All data and vid. calls, or All fax
calls. — Forward all incoming voice, data and
video, or fax calls.
•If busy — Forward incoming calls when you have
an active call.
•If not answered — Forward incoming calls after
your device rings for a specified period of time.
Define the time you let the device ring before
forwarding the call in the Delay time: field.
•If out of reach — Forward calls when the device
is switched off or out of network coverage.
•If not available — Activate the last three settings
at the same time. This option forwards calls if
your device is busy, not answered, or out of
reach.
3. Select Activate.
To check the current forwarding status, scroll to the
forwarding option, and select Options > Check status.
To stop forwarding voice calls, scroll to the forwarding
option, and select Options > Cancel.
Call restriction and call forwarding cannot be active at
the same time.
Call restriction
When calls are restricted, calls still may be possible to
the official emergency number programmed into your
device.
Select Menu > Tools > Settings > Call restriction.
You can restrict the calls that can be made or received
with the device (network service). To change the
settings, you need the restriction password from your
26
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 26 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 26 Dec 13, 2005 8:14:13 AM
service provider. Call restriction affects all calls,
including data calls. Call restriction and call forwarding
cannot be active at the same time.
To restrict calls, select Cellular call restriction, and select
from the following options:
•Outgoing calls — Prevent making voice calls with
your device.
•Incoming calls — Restrict incoming calls.
•International calls — Prevent calling to foreign
countries or regions.
•Incoming if roaming — Restrict incoming calls when
outside your home country.
•Intern. except home — Prevent calls to foreign
countries or regions, but to allow calls to your home
country.
To check the status of voice call restriction, scroll to the
restriction option, and select Options > Check status.
To stop all voice call restrictions, scroll to a restriction
option, and select Options > Cancel all restrict..
Internet call restriction
To restrict Internet calls, select Menu > Tools >
Settings > Call restriction > Internet call restriction.
To reject Internet calls from anonymous callers, select
Anonymous calls > On.
Video calls
To be able to make a video call, you need to be in the
coverage of a UMTS network. For availability of and
subscription to video call services, contact your network
operator or service provider. While talking, you can see
a real-time, two-way video between you and the
recipient of the call, if the recipient has a compatible
mobile phone. The video image captured by the camera
in your device is shown to the video call recipient. A
video call can only be made between two parties.
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume
may be extremely loud.
To make a video call, enter the phone number or select
the recipient of the call from Contacts, and select
Options > Call > Video call. When the video call starts,
the camera of your device is activated. If the camera is
already in use, video sending is disabled. If the recipient
of the call does not want to send a video back to you, a
still image is shown instead. You can define the still
image in Tools > Settings > Call settings > Image in
video call. You cannot convert the video call to a normal
voice call.
During the call, select Options and from the following:
•Disable — Select to disable Sending audio, Sending
video or Sending audio & video.
•Activate loudsp. — Select to use the loudspeaker for
receiving audio.
•Activate handset — Mute the loudspeaker and use
the handset.
•End active call — End the active call.
•Open active standby — Open the active standby
view.
•Change image order — Swap the places of images.
•Zoom in or Zoom out — Zoom the image on the
display. 27
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 27 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 27 Dec 13, 2005 8:14:13 AM
Log
Select Menu > Log.
In the Log, you can view information about the
communication history of the device.
To view the logs for recent voice calls, their
approximate duration, and packed data connections,
select Recent calls, Call timers, or Packet data; and press
the joystick.
To sort the events by type or direction, scroll right to
open the general log, and select Options > Filter. Scroll
to a filter type, and press the joystick. Select the type or
direction, and press the joystick.
To set the time how long all communication events are
held in the log, select Options > Settings > Log
duration, an option, and OK.
To clear missed and received calls and dialed numbers,
select Recent calls > Options > Clear recent calls.
Push to talk
Select Menu > Connect. > PTT.
Push to talk (PTT) (network service) provides direct
voice communication connected with the push of a key.
With push to talk, you can use your device as you would
use a walkie-talkie.
You can use push to talk to have a conversation with
one person or with a group of people, or to join a
channel. A channel is like a chat room: you can call the
channel to see if anyone is online. The channel call does
not alert the other participants; the participants just
join the channel and start speaking with each other.
In push to talk communication, one person talks while
the other participants listen through the built-in
loudspeaker. Participants take turns responding to
each other. Because only one participant can talk at a
time, the maximum duration of a speech turn is limited.
For details of the speech turn duration for your network,
contact your network operator or service provider.
Remember to hold the device in front of you during a
push to talk call so you can see the display. Speak
towards the microphone, and do not cover the
loudspeaker with your hands.
Phone calls always take priority over push to talk.
Before you can use push to talk, you must define the
push to talk access point and push to talk settings. You
may receive the settings in a special text message from
the service provider that offers the push to talk service.
User settings
Select Options > Settings > User settings.
Define the following:
•Incoming PTT calls — Select Notify if you want to see
a notification of incoming calls. Select Auto-accept if
you want push to talk calls to be answered
automatically. Select Not allowed if you want push
to talk calls to be rejected automatically.
•PTT call alert tone — Select Set by profile if you want
the incoming call alert setting for push to talk to
follow your profile settings. If your profile is silent,
you are not available to others using push to talk,
except for callback requests.
28
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 28 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 28 Dec 13, 2005 8:14:13 AM
•Callback request tone — Define the ringing tone for
callback requests.
•Application start-up — Select if you want to log in to
the push to talk service when you switch on your
device.
•Default nickname — Enter your default nickname
(20 characters maximum) that is displayed to other
users.
•Show my PTT address — Define if you want callers
to see your push to talk address. You can let all callers
see the address, show the address only to one-to-
one callers or channel participants, or hide the
address from all callers.
•Show my login status — Define whether your login
to the push to talk server is shown or hidden from
other users.
Connection settings
Select Options > Settings > Connection settings.
Define the following:
•Domain — Enter the domain name obtained from
your service provider.
•Access point name — Select the push to talk access
point.
•Server address — Enter the IP address or domain
name of the push to talk server obtained from your
service provider.
•User name — Enter your user name obtained from
your service provider.
•PTT password — Enter a password, if required, to log
into the push to talk service. The password is
provided by the service provider.
Log in to push to talk service
If you have set Application start-up on in User
settings, push to talk automatically logs in to the service
when started. If not, you must log in manually.
To log in to a push to talk service, select Options >
Settings > Connection settings, and enter your User
name, PTT password, Domain, Server address, and
Access point name. Select Options > Switch PTT on.
When the Ringing type setting of your device is set to
Beep once or Silent, or there is an ongoing phone call,
you cannot make or receive push to talk calls.
Push to talk calls
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume
may be extremely loud.
Select Options > PTT contacts.
To make a push to talk call, select one or several
contacts from the list, and press the voice key.
Remember to hold the device in front of you during a
push to talk call so you can see the display. The display
informs you when it is your turn to speak. Speak
towards the microphone, and do not cover the
loudspeaker with your hands. Press and hold the voice
key the entire time you are talking. When you have
finished talking, release the key.
To end the push to talk call, press the end key.
29
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 29 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 29 Dec 13, 2005 8:14:13 AM
Answer or reject a call
When you receive a push to talk call, press the call key
to answer the call or the end key to dismiss the call.
Callback requests
To send a callback request, select Options > PTT
contacts, scroll to the desired contact, and select
Options > Send callback request.
To answer a callback request, select Show to open the
callback request. To make a push to talk call to the
sender, press the voice key.
Contacts view
To view, add, modify, delete, or call contacts, select
Options > PTT contacts. A list of names from your
device Contacts application is displayed with
information about their login status.
To call a selected contact, select Options > Talk 1 to 1.
To make a group call, select Options > Make PTT group
call.
To send the contact a request to call you, select
Options > Send callback request.
Create a channel
A channel is like a chat room: you can call the channel
to see if anyone is online. The channel call does not alert
the other participants; the participants just join the
channel and start speaking with each other.
To create a channel, select Options > New channel >
Create new.
Select Options and define the following:
•Channel name — Write the channel name.
•Channel privacy — Select Private or Public.
•Nickname in channel — Enter your nickname (20
characters maximum) that is displayed to other
users.
•Channel thumbnail — Insert a picture that describes
the channel.
To delete a channel, press the clear key.
When you log in to push to talk, push to talk
automatically connects to the channels that were active
when the application was last closed.
Register PTT channels
To register a channel to the push to talk service,
select Options > Register.
To edit the channel details, select Options > Edit.
Join a channel
To join a channel, select Options > PTT channels. Select
the channel you want to talk to, and press the voice key.
Remember to hold the device in front of you during a
push to talk call so you can see the display. The display
informs you when it is your turn to speak. Speak
towards the microphone, and do not cover the
loudspeaker with your hands. Press and hold the voice
key the entire time you are talking. When you have
finished talking, release the key.
30
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 30 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 30 Dec 13, 2005 8:14:13 AM
To switch between channels during multiple calls,
select Swap. The active channel is highlighted.
To view the currently active participants in the channel,
select Options > Active members.
To invite a participant to a channel, select Options >
Send invitation.
Push to talk log
To open the push to talk log, select Options > PTT log.
The log shows the date, time, duration, and other
details of your push to talk calls.
Exit push to talk
Select Options > Exit. Select Yes to log out and close the
service. Press No if you want to keep the application
active on the background.
Internet calls
Your device supports voice calls over the Internet
(Internet calls). Your device attempts emergency calls
primarily over cellular networks. If an emergency call
using cellular networks is not successful, then your
device attempts an emergency call through your
Internet call provider. Due to the established nature of
cellular telephony, you should use cellular networks for
emergency calls, if possible. If you have cellular network
coverage available, please make sure that your cellular
phone is switched on and ready to make calls before
you attempt an emergency call. The capability for an
emergency call using Internet telephony depends on
the availability of a WLAN network and your Internet
call provider's implementation of emergency call
capabilities. Contact your Internet call provider to check
the Internet telephony emergency call capability
VoIP (voice over Internet protocol) technology is a set
of protocols that facilitate phone calls over an IP
network, such as the Internet. VoIP phone calls can be
established between computers, between mobile
phones, and between a VoIP device and a traditional
telephone. To make or receive a VoIP call, your device
must be within WLAN coverage, for example.
You can make an Internet call from all applications
where you can create a regular voice call.
You must define session initiation protocols (SIP)
settings in Menu > Tools > Settings > Connection >
SIP settings and VoIP settings in Menu > Tools >
Settings > Call and Menu > Tools > Settings > Call >
Connection. Contact your service provider for more
information and correct settings.
Preferred profile
Select Menu > Connect. > Internet tel. to change
settings.
Before you can select the default profile, you must
create profiles in Menu > Tools > Settings >
Connection > Internet tel. settings.
To select the profile that is used by default when you
make Internet calls, select Preferred profile, and press
the joystick. Scroll to the desired profile, and press the
joystick. 31
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 31 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 31 Dec 13, 2005 8:14:13 AM
Register profiles
Only those profiles where the you have selected
Registration > When needed setting in Menu >
Tools > Settings > Connection > Internet tel.
settings are shown in the list.
To change the registration of your Internet telephone
profiles, scroll to the profile that you want to register
or unregister, and press the joystick. Press the joystick
again to select Registered or Not registered.
To save your settings, select Back.
Device security
Select Menu > Tools > Settings > Security > Phone
and SIM.
You can modify the security settings for the PIN code,
automatic lock, and SIM card change, and change codes
and passwords.
Avoid using codes that are similar to emergency
numbers to prevent accidental dialing of the
emergency number.
Codes are shown as asterisks. When you change a code,
enter the current code, then the new code twice.
Define security settings
To define device and SIM card settings, select a setting
and Options > Change.
When calls are limited to closed user groups, calls may
be possible to the official emergency number
programmed into your device.
Define the following settings:
•PIN code request — Select On to request that the PIN
code is entered each time the device is switched on.
This setting cannot be changed if the device is
switched off. Some SIM cards do not allow turning
off the PIN code request.
•PIN code — Change the PIN code. The PIN code must
be 4 to 8 numbers long. The PIN code protects your
SIM card against unauthorized use and is provided
with the SIM card. After three consecutive incorrect
PIN code entries, the PIN code is blocked, and you
need to use the PUK code to unblock it before you
can use the SIM card again.
•PIN2 code — Change the PIN2 code. The PIN2 code
must be 4 to 8 numbers long. The PIN2 code is
required to access some functions of the device and
is provided with the SIM card. After three consecutive
incorrect PIN2 code entries, the PIN2 code is blocked,
and you need to use the PUK2 code to unblock it
before you can use the SIM card again.
•Autolock period — Set a time-out after which the
device is automatically locked and can be used only
if the correct lock code is entered. Enter a number for
the time-out in minutes, or select None to turn off
the autolock period. When the device is locked, you
can still answer incoming calls and calls may still be
possible to the official emergency number
programmed into your device.
•Lock code — Change the lock code. The new code
must be 5 digits long. The preset code is 12345. To
avoid unauthorized use of your device, change the
32
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 32 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 32 Dec 13, 2005 8:14:13 AM
lock code. Keep the new code secret and in a safe
place separate from your device.
•Lock if SIM changed — Set the device to ask for the
lock code when an unknown, new SIM card is
inserted into your device. The device maintains a list
of SIM cards that are recognized as the owner’s cards.
•Allow remote lock — If you set this option on, you
can lock the device by sending a predefined text
message from another phone. When you set this
option on, you need to enter the remote lock
message and confirm the message. The message
must be at least 5 characters long.
•Closed user group (network service) — Specify a
group of people to whom you can call and who can
call you.
•Confirm SIM services (network service) — Set the
device to display confirmation messages when you
are using a SIM card service.
Change the restriction password
To change the password used for restricting voice, fax,
and data calls, select Menu > Tools > Settings > Call
restriction > Cellular call restriction > Options > Edit
restr. password. Enter the current code, then the new
code twice. The restriction password must be four
digits long. For details, contact your service provider.
Fixed dialing
When fixed dialing is activated, calls may be possible to
the official emergency number programmed into your
device.
Select Menu > Contacts > Options > SIM contacts >
Fixed dialing contacts.
With the fixed dialing service, you can restrict calls from
your device to only certain phone numbers. Not all SIM
cards support the fixed dialing service. Contact your
service provider for more information.
Select Options, and select from the following options:
•Activ. fixed dialing — Restrict calls from your device.
To cancel the service, select Deact. fixed dialing. You
need your PIN2 code to activate and deactivate fixed
dialing or edit your fixed dialing contacts. Contact
your service provider if you do not have the code.
•New SIM contact — Add a phone number to the list
of numbers to which calls are allowed. Enter the
contact name and phone number. To restrict calls by
a country prefix, enter the country prefix in New SIM
contact. All phone numbers to which calls are
allowed must start with this country prefix.
•Copy to Contacts — Copy the fixed dialing contact to
Contacts.
•Add from Contacts — Copy a contact from Contacts
to your fixed dialing list.
Tip: To send text messages to the SIM contacts
while the fixed dialing service is active, you
need to add the text message center number
to the fixed dialing list.
To view or edit a phone number to which calls from your
device are allowed, select Options > SIM contacts >
Fixed dialing contacts.
To call the contact, press the call key.
33
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 33 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 33 Dec 13, 2005 8:14:13 AM
To edit the phone number, select Options > Edit. You
may need your PIN2 code to edit your fixed dialing
numbers.
To delete the contact, press the clear key.
34
Make calls
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 34 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 34 Dec 13, 2005 8:14:13 AM
Contacts
Select Menu > Contacts.
Manage all of your contact information, such as phone
numbers and addresses. Add a personal ringing tone,
voice tag, or a thumbnail image to a contact. Send
contact information to compatible devices or receive
contact information as business cards from compatible
devices, and add them to your own list of contacts.
To add a contact, select Options > New contact. Enter
the contact information, and select Done.
To edit information in a contact card, scroll to the
contact, and select Options > Edit, and select from the
following options:
•Add thumbnail — Add a thumbnail image that will
display when a contact calls you. The image must be
previously saved to your device or memory card.
•Remove thumbnail — Remove the image from the
contact card.
•Add detail — Add fields of information to a contact
card, such as Job title.
•Delete detail — Delete any details that you added to
a contact card.
•Edit label — Edit the field names of the contact card.
•Writing language — Select the writing language for
the contact card.
Manage contact groups
Create a contact group so that you can send text or e-
mail messages to several recipients at the same time.
1. Scroll to the right, and select Options > New group.
2. Enter a name for the group or use the default name,
and select OK.
3. Open the group, and select Options > Add
members.
4. Scroll to each contact you want to add to the group,
and press the joystick to mark it.
5. Select OK to add all marked contacts to the group.
The following options are available when you select
Options in the contact groups view:
•PTT options — Make a push to talk call either to
an individual or to a group, or send a callback
request.
•Open — Open the contact group and view the
group members.
•Create message — Send a message.
•New group — Create a new contact group.
•Delete — Delete a contact group.
•Rename — Rename the contact group.
•Ringing tone — Assign a ringing tone to a
contact group.
•Contacts info — View the information for a
contact group. 35
Contacts
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 35 Dec 13, 2005 8:14:13 AM
•Settings — Set the name display settings for
contact group members.
Manage default
information
Assign a default number or address to a contact so you
can easily call or send a message to the default number
or address, even if several numbers or addresses are
saved to that contact.
To change default information for a contact, open the
contact, and select Options > Defaults. Select the
number or address you want to set as a default, and
select OK.
The default number or address is underlined in the
contact.
Copy contacts between SIM
and device memory
For availability and information on using SIM card
services, contact your SIM card vendor. This may be the
service provider, network operator, or other vendor.
To copy contacts from a SIM card to device memory,
select Options > SIM contacts > SIM directory to open
the SIM directory. Mark the contacts you want to copy,
or select Mark all to copy all contacts. Select Options >
Copy to Contacts.
To copy contacts from the device memory to a SIM card,
select Options > Copy to SIM direct.. Mark the contacts
you want to copy, or select Mark all to copy all contacts.
Select Options > Copy to SIM direct..
Select Options > SIM contacts > SIM directory to see
the names and numbers stored on the SIM card. In SIM
directory you can add, edit, or copy numbers to
Contacts, and you can make calls.
Select ringing tones for
contacts
Select a ringing tone for a contact or contact group. If
the caller's phone number is sent with the call and your
device recognizes the number, the ringing tone plays
when the contact calls you.
To select a ringing tone for a contact or contacts group,
open the contact or contact group, and select
Options > Ringing tone. A list of ringing tones opens.
Select the ringing tone you want to use, and select OK.
To remove the ringing tone, select Default tone from
the list of ringing tones.
Business cards
Select Menu > Contacts.
You can send, receive, view, and save contact cards as
business cards in vCard or Nokia Compact Business Card
format.
You can send business cards to compatible devices
using SMS, MMS, or e-mail, or an infrared or Bluetooth
connection.
36
Contacts
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 36 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 36 Dec 13, 2005 8:14:13 AM
To send a business card, select the contact card from
the contacts list, and select Options > Send. Select Via
text message, Via multimedia, Via e-mail, Via
Bluetooth, or Via infrared. Enter the phone number or
address, or add a recipient from the contacts list. Select
Options > Send business card. If you select SMS as the
sending method, contact cards are sent without
images.
To view a received business card, select Open from the
displayed notification, or open the message from the
inbox folder in Messag..
To save a business card, select Options > Save business
card when the incoming message appears on the
device.
To save a received business card, select Options > Save
business card.
To delete a received business card, select Options >
Delete.
37
Contacts
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 37 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 37 Dec 13, 2005 8:14:13 AM
Messages
Select Menu > Messag..
Before sending or receiving messages, you may need to
do the following:
• Insert a valid SIM card in the device and be located
in a service area of the cellular network.
• Verify that the network supports the messaging
features you want to use and that they are activated
on your SIM card.
• Define Internet access point (IAP) settings on the
device. See "Access points," p. 86.
• Define e-mail account settings on the device. See "E-
mail account settings," p. 48.
• Define SMS settings on the device. See "Text message
settings," p. 40.
• Define MMS settings on the device. See "Multimedia
message settings," p. 43.
The device may recognize the SIM card provider and
automatically configure some of the message settings.
If not, you may need to define the settings manually, or
contact your service provider, network operator, or
Internet service provider to configure the settings.
The Messag. application displays each type of
messaging folder in a list format with the newest
message displayed first in each folder. Any remote
mailboxes that you define are displayed last in the list
of folders.
Select one of the following:
•New message — Create and send a new text,
multimedia, or e-mail message.
•Inbox — View received messages, except e-mails
and cell broadcast messages.
•My folders — Create your own folders to store
messages and templates.
•Mailbox — View and reply to received e-mail.
•Drafts — Store messages that have not been sent.
•Sent — Store messages that have been sent.
•Outbox — View messages waiting to be sent.
•Reports — View information about the delivery of
sent messages.
Organize messages
To create a new folder to organize your messages,
select My folders > Options > New folder. Enter the
folder name, and select OK.
To rename a folder, select the folder and Options >
Rename folder. Enter the new folder name, and select
OK. You can only rename folders that you have created.
To move a message to another folder, open the
message, and select Options > Move to folder, the
folder, and OK.
To sort messages in a specific order, select Options >
Sort by. You can sort the messages by Date, Sender,
Subject, or Message type.
38
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 38 Dec 13, 2005 8:14:13 AM
Messaging settings
Select Options > Settings.
To define or edit settings for different message types,
select Text msg., Multim. msg., E-mail, Service
message, Cell broadcast, or Other.
See "Text message settings," p. 40.
See "Multimedia message settings," p. 43.
See "E-mail account settings," p. 48.
Other settings
Select Menu > Messag. > Options > Settings > Other.
Select from the following:
•Save sent messages — Select whether to store sent
messages in the Sent folder.
•No. of saved msgs. — Enter the number of sent
messages that you want to save. When the limit is
reached, the oldest message is deleted.
•Memory in use — Select where to save your received
messages. You can save messages to memory card
only if a memory card is inserted.
•New e-mail alerts — Select whether you want to be
alerted when a new message arrives in your
mailbox.
•Active standby mode — Select the messaging folder
(for example, your inbox or an e-mail account) that
you want to see in the active standby mode.
•Folder view — Define how you want the messages
in the inbox to be shown.
The settings available for editing may vary.
Text messages
Your device supports the sending of text messages
beyond the character limit for a single message. Longer
messages are sent as a series of two or more messages.
Your service provider may charge accordingly.
Characters that use accents or other marks, and
characters from some language options like Chinese,
take up more space limiting the number of characters
that can be sent in a single message.
Write and send text messages
Select Menu > Messag. > New message > Text
message.
1. In the To field, press the joystick to select recipients
from Contacts, or enter the recipients' mobile phone
numbers manually. If you enter more than one
number, separate the numbers with a semicolon. To
insert a semicolon, press *.
2. Enter the text of the message. To use a template,
select Options > Insert > Template.
3. Select Options > Send to send the message.
Note: When sending messages, your device
may display Message Sent. This is an indication that
the message has been sent by your device to the
message center number programmed into your
device. This is not an indication that the message
has been received at the intended destination. For
more details about messaging services, check with
your service provider. 39
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 39 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 39 Dec 13, 2005 8:14:13 AM
Reply to received text messages
To reply to a text message, open the message from the
Inbox. Select Options > Reply. Enter the text of the
message, and select Options > Send.
To call the sender of a text message, open the message
from the Inbox, and select Options > Call.
Text messages on the SIM card
Text messages may be stored on your SIM card. Before
you can view SIM messages, you must copy the
messages to a folder in the device. After copying the
messages to a folder, you can view them in the folder
or delete them from the SIM card.
Select Options > SIM messages.
1. Select Options > Mark/Unmark > Mark or Mark all
to mark every message.
2. Select Options > Copy.
3. Select a folder and OK to begin copying.
To view SIM card messages, open the folder where you
copied the messages, and open a message.
To delete a text message from the SIM card, select the
message, and press the clear key.
Text message settings
Select Options > Settings > Text msg..
Define the following:
•Message centers — View the available message
centers for your device.
•Msg. center in use — Select a message center to send
the message.
•Character encoding — Select Reduced support to
use automatic character conversion to another
encoding system when available.
•Receive report — Select Yes if you want that the
network sends you delivery reports on your
messages (network service).
•Message validity — Select how long the message
center resends your message if the first attempt fails
(network service). If the recipient cannot be reached
within the validity period, the message is deleted
from the message center.
•Message sent as — Convert the message to another
format, such as Text, Fax, Paging or E-mail. Change
this option only if you are sure that your message
center is able to convert text messages into these
other formats. Contact your network operator.
•Preferred conn. — Select the preferred method of
connection when sending text messages from your
device.
•Reply via same ctr. — Select whether you want the
reply message to be sent using the same text
message center number (network service).
Picture messages
Note: Picture message function can be used only
if it is supported by your network operator or service
provider. Only devices that offer picture message
features can receive and display picture messages.
40
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 40 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 40 Dec 13, 2005 8:14:13 AM
Select Menu > Messag..
To view a picture message, open the message from the
Inbox folder.
Forward picture messages
Copyright protections may prevent some images,
ringing tones, and other content from being copied,
modified, transferred or forwarded.
1. In the Inbox, open a picture message.
2. In the To field, enter a recipient's number, or press
the joystick to add a recipient from Contacts. If you
enter more than one number, separate the numbers
with a semicolon. To insert a semicolon, press *.
3. Enter the text of your message. The text can have
120 characters. To use a template, select Options >
Insert > Template.
4. To send the message, press the call key.
Tip: To remove the picture from the message,
select Options > Remove picture.
Multimedia messages
A multimedia message (MMS) can contain text and
objects such as images, sound clips, or video clips.
Note: Only devices that have compatible features
can receive and display multimedia messages. The
appearance of a message may vary depending on the
receiving device.
Before you can send or receive multimedia messages
on your device, you must define the multimedia
message settings. Your device may have recognized the
SIM card provider and automatically configured the
multimedia message settings. If not, contact your
service provider. See "Multimedia message
settings," p. 43.
Create and send multimedia
messages
The default setting of the multimedia message service
is generally on.
Select New message > Multimedia message.
Copyright protections may prevent some images,
ringing tones, and other content from being copied,
modified, transferred or forwarded.
1. In the To field, press the joystick to select recipients
from Contacts, or enter the recipients' mobile phone
numbers or e-mail addresses manually.
2. In the Subject field, enter a subject for the message.
To change the fields that are visible, select
Options > Address fields.
3. Enter the text of the message, and select Options >
Insert object to add media objects. You can add
objects such as Image, Sound clip, or Video clip.
The wireless network may limit the size of MMS
messages. If the inserted picture exceeds this limit,
the device may make it smaller so that it can be sent
by MMS.
41
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 41 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 41 Dec 13, 2005 8:14:13 AM
4. Each slide of your message can contain only one
video or audio clip. To add more slides to your
message, select Options > Insert new > Slide. To
change the order of slides in your message, select
Options > Move.
5. To preview a multimedia message before sending
it, select Options > Preview.
6. Press the joystick to send the multimedia message.
Create presentations
Select New message > Multimedia message.
1. In the To field, press the joystick to select recipients
from Contacts, or enter the recipients' mobile phone
numbers or e-mail addresses manually.
2. Select Options > Create presentation and a
presentation template.
Tip: A template may define which media
objects you can include in the presentation,
where they appear, and which effects are
displayed between images and slides.
3. Scroll to a text area and enter the text.
4. To insert images, sound, video, or notes in your
presentation, scroll to the corresponding object
area, and select Options > Insert.
Tip: To move between object areas, scroll
up and down.
5. To add slides, select Insert > New slide.
6. Select Options and from the following:
•Preview — See what your multimedia presentation
looks like when it is opened. Multimedia
presentations may only be viewed in compatible
devices that support presentations. They may
appear different in different devices.
•Backgrnd. settings — Select the background color
for the presentation and background images for
different slides.
•Effect settings — Select effects between images or
slides.
Creating multimedia presentations is not possible if
MMS creation mode is Restricted. To change MMS
creation mode, select Messag. > Options > Settings >
Multimedia message.
The available options may vary.
To send your multimedia presentation, press the call
key.
Tip: To save the message in Drafts without
sending it, select Done.
Receive and reply to multimedia
messages
Important: Multimedia message objects may
contain viruses or otherwise be harmful to your device
or PC. Do not open any attachment if you are not sure
of the trustworthiness of the sender.
Before you can send or receive multimedia messages
on your device, you must define the multimedia
message settings. Your device may have recognized the
SIM card provider and automatically configured the
42
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 42 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 42 Dec 13, 2005 8:14:13 AM
multimedia message settings. If not, contact your
service provider. See "Multimedia message
settings," p. 43.
If you receive multimedia messages containing objects
unsupported by your device, you cannot open them.
1. To reply to a multimedia message, open the
message from the Inbox, and select Options >
Reply.
2. Select Options > To sender to reply to the sender
with a multimedia message or Options > Via text
message to reply to the sender with a text message.
3. Enter the text of the message, and press the joystick
to send it.
View presentations
Open the Inbox, scroll to a multimedia message that
contains a presentation, and press the joystick. Scroll to
the presentation, and press the joystick.
To pause the presentation, press either selection key
below the display.
After you pause the presentation or playing finishes,
select Options and from the following:
•Open link — Open a Web link and browse the Web
page.
•Activate scrolling — Scroll text or images too large
to fit on the display.
•Continue — Resume playing the presentation.
•Play — Replay the presentation from the start.
•Find — Find phone numbers and e-mail or Web
addresses the presentation may contain. You may
use these numbers and addresses to make calls, send
messages, or create bookmarks, for example.
The available options may vary.
View media objects
Open the Inbox, scroll to a received multimedia
message and press the joystick. Select Options >
Objects.
To view or play a media object, scroll to it, and press the
joystick.
Media objects and message attachments may contain
viruses or other harmful software. Do not open any
objects or attachments unless you are sure of the
trustworthiness of the sender.
To save a media object in its corresponding application,
scroll to the object, select Options > Save.
To send a media object to compatible devices, scroll to
it, and select Options > Send.
Tip: If you receive multimedia messages that
contain media objects your device cannot
open, you may be able to send these objects to
another device such as a computer.
Multimedia message settings
Select Options > Settings > Multimedia message.
Define the following settings:
•Image size — Select Small or Large to scale images
in multimedia messages. Select Original to maintain
the original image size of multimedia messages. 43
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 43 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 43 Dec 13, 2005 8:14:13 AM
•MMS creation mode — Select Restricted to have your
device prevent you from including content in
multimedia messages that may not be supported by
the network or the receiving device. To receive
warnings about including such content, select
Guided. To create a multimedia message with no
restrictions on attachment type, select Free. If you
select Restricted, creating multimedia presentations
is not possible.
•Access point in use — Select the default access point
to connect to the multimedia message center. You
may not be able to change the default access point
if it is preset in your device by your service provider.
•Multimedia retrieval — Select Always automatic to
always receive multimedia messages automatically,
Aut. in home network to receive notification of a new
multimedia message that you can retrieve from the
message center (for example, when you are
traveling abroad and are outside your home
network), Manual to retrieve multimedia messages
from the message center manually, or Off to prevent
receipt of any multimedia messages.
•Allow anon. msgs. — Select whether you want to
receive messages from unknown senders.
•Receive ads — Select whether you want to receive
messages defined as advertisements.
•Receive report — Select Yes to have the status of the
sent message to be shown in the log (network
service). Receiving a delivery report of a multimedia
message that has been sent to an e-mail address
may not be possible.
•Deny report sending — Select Yes to not send
delivery reports from your device for received
multimedia messages.
•Message validity — Select how long the messaging
center tries to send the message (network service).
If the recipient of a message cannot be reached
within the validity period, the message is removed
from the multimedia messaging center. Maximum
time is the maximum amount of time allowed by the
network.
E-mail messages
To receive and send mail, you must have a remote
mailbox service. This service may be offered by an
Internet service provider, a network service provider, or
your company. Your device is compliant with Internet
standards SMTP, IMAP4 (revision 1), and POP3.
Before you can send, receive, retrieve, reply to, and
forward mail on your device, you must also do the
following:
• Configure an Internet access point (IAP). See "Access
points," p. 86.
• Set up an e-mail account, and define the e-mail
settings correctly. See "E-mail account
settings," p. 48.
Follow the instructions from your remote mailbox and
Internet service providers. Contact your network and
Internet service providers or operator for the correct
settings.
44
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 44 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 44 Dec 13, 2005 8:14:13 AM
Set up your e-mail
If you select Mailbox and have not set up your e-mail
account, you are prompted to do so. To start setting up
the e-mail account with the mailbox guide, select Yes.
1. To start entering the e-mail settings, select Start.
2. In Mailbox type, select IMAP4 or POP3, and select
Next.
Tip: POP3 is a version of the post office
protocol that is used to store and retrieve
e-mail or Internet mail messages. IMAP4 is
a version of the Internet message access
protocol that lets you access and manage
e-mail messages while the messages are
still on the e-mail server. You can then
choose which messages to download to
your device.
3. In My e-mail address, enter your e-mail address. To
insert @ or other special characters, press *. To
insert a full stop, press 1. Select Next.
4. In Incoming mail serv., enter the name of the
remote server that receives your e-mail, and
select Next.
5. In Outgoing mail serv., enter the name of the remote
server that sends your e-mail, and select Next.
Depending on your e-mail provider, you might have
to use your mobile operator's outgoing mail server
instead of your e-mail provider's.
6. In Access point, select the Internet access point your
device should use when it retrieves the e-mails. If
you select Always ask, each time the device starts to
retrieve e-mail, it asks which Internet access point
it should use, but if you select an access point, the
device makes the connection automatically. Select
Next.
Tip: If you select Select group, the device
makes the connection automatically using
the best available Internet access point
from the access point group. Select the
access point group, and Back to save the
selection.
7. Enter a name for your new mailbox, and select
Finish.
When you create a new mailbox, the name you give to
the mailbox replaces Mailbox in the Messag. main view.
You can have up to six mailboxes.
Connect to mailbox
E-mail addressed to you is not automatically received
by your device, but by your remote mailbox. To read
your e-mail, you must first connect to the remote
mailbox; then select the e-mails you wish to retrieve
into your device. To receive and send e-mail, you need
to register for an e-mail service. To set up a mailbox in
your device, select Messag. > Options > Settings > E-
mail > Options > New mailbox. Contact your service
provider for the correct settings.
To ret rieve rece iv ed e-mai l m es sages to your device and
view them offline, select your mailbox in the Messag.
main view. When the device asks Connect to mailbox?,
select Yes.
45
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 45 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 45 Dec 13, 2005 8:14:13 AM
To view e-mail messages in a folder, scroll to the folder,
and press the joystick. Scroll to a message, and press
the joystick.
To retrieve e-mail messages to your device, select
Options > Retrieve e-mail > New to retrieve new
messages that you have neither read nor retrieved,
Selected to retrieve only messages you select from the
remote mailbox, or All to retrieve all messages not
previously retrieved.
To disconnect from a remote mailbox, select Options >
Disconnect.
View e-mail offline
Working offline means that your device is not
connected to a remote mailbox. Managing your e-mail
offline enables you to save in connection costs and work
in conditions that do not allow a data connection. Any
changes you make in the remote mailbox folders while
offline take effect in your remote mailbox the next time
you go online and synchronize. For example, if you
delete an e-mail from your device when offline, the e-
mail is deleted from the remote mailbox the next time
you connect to the mailbox.
To view e-mail offline, select your mailbox. When the
device asks Connect to mailbox?, select Yes.
To view new e-mail messages offline, you need to
retrieve them from your remote mailbox. To retrieve e-
mail messages to your device, select Options >
Retrieve e-mail > New to retrieve new messages that
you have neither read nor retrieved, Selected to retrieve
only messages you select from the remote mailbox,
or All to retrieve all messages not previously retrieved.
To return to the offline mode, select Options >
Disconnect.
To view an e-mail message, scroll to it, and press the
joystick.
Some options require you to connect to your remote
mailbox.
Tip: To subscribe to other folders in your
remote mailbox, select E-mail settings >
Retrieval settings > Subscribed folders. E-mail
in all subscribed folders is updated when you
retrieve e-mail from your remote mailbox.
Read and reply to e-mail
Important: E-mail messages may contain viruses
or otherwise be harmful to your device or PC. Do not
open any attachment if you are not sure of the
trustworthiness of the sender.
To read a received e-mail, scroll to the e-mail, and press
the joystick.
To open an attachment, select Options >
Attachments. Scroll to the attachment, and press the
joystick.
To reply only to the sender of an e-mail, open the e-mail,
and select Options > Reply > To sender.
To reply to all recipients of an e-mail, open the e-mail,
and select Options > Reply > To all.
To delete an attachment from an e-mail that you are
sending, select the attachment and Options >
Attachments > Remove.
46
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 46 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 46 Dec 13, 2005 8:14:13 AM
Tip: If you reply to an e-mail that contains
attached files, the attachments are not
included in the reply. If you forward the
received e-mail, attachments are included.
To set the message priority, select Options > Priority
and from the available options.
To forward an e-mail, open the e-mail, and select
Options > Forward.
Delete messages
To free up memory space on your device, regularly
delete messages from the Inbox and Sent folders, and
delete retrieved e-mail messages.
To delete a message, scroll to it, and press the clear key.
You can select to delete local e-mail messages on the
device and keep the original on the server, or you can
delete both the local e-mail messages on the device and
the original messages on the server.
To delete e-mails from the device only, select
Options > Delete > Phone only.
To delete e-mail both from the device and from the
remote server, open an e-mail, and select Options >
Delete > Phone and server.
E-mail folders
If you create subfolders in your IMAP4 mailboxes on a
remote server, you can view and manage these folders
with your device. You can only subscribe to folders in
your IMAP4 mailboxes. Subscribing to folders in a
remote mailbox allows you to view those folders on
your device.
To view folders in your IMAP4 mailbox, establish a
connection, and select Options > E-mail sett. >
Retrieval settings > Subscribed folders.
To view a remote folder, select a folder and Options >
Subscribe. Every time you go online, the subscribed
folders are updated. This may take some time if the
folders are large.
To update the list of folders, select a folder and
Options > Update folder list.
Write and send e-mail
To write an e-mail, select Options > Add recipient to
select the recipients' e-mail addresses from the
contacts list, or enter the e-mail addresses in the To
field. Use a semicolon to separate entries. Scroll down,
and use the Cc field to copy other recipients, or the
Bcc field to blind copy recipients. In the Subject field,
enter the subject of the e-mail. Enter your e-mail
message in the text area, and select Options > Send.
To attach a file to an e-mail, select Options > Insert, and
select the attachment you want to add. For example,
you can insert images, sound clips, notes and other files
such as office files.
To set the sending time for an e-mail message, select
Options > Sending options > Send message. Select
Immediately or During next conn. if you are working
offline.
47
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 47 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 47 Dec 13, 2005 8:14:13 AM
E-mail messages are stored in the Outbox before
sending. Unless the e-mail is sent immediately, you can
open the Outbox and suspend and resume sending or
view the e-mail.
E-mail account settings
Select Menu > Messag. > Mailbox.
The settings available for editing may vary. Some
settings may be preset by your service provider.
If you try to edit mailbox settings but have not set up
an e-mail account, the mailbox guide opens and helps
you set up your e-mail account.
Settings for the received e-mail
Select Incoming e-mail and from the following settings:
•User name — Enter the user name for the e-mail
service.
•Password — Enter the password for the e-mail
service.
•Incoming mail serv. — Enter the IP address or host
name of the server that receives your e-mail.
•Access point in use — Select the Internet access
point that the device uses for retrieving the e-mail
messages that you receive.
•Mailbox name — Enter a name for the mailbox.
•Mailbox type — Select the mailbox protocol that
your remote mailbox service provider recommends.
The options are POP3 and IMAP4. This setting can be
selected only once and cannot be changed if you
have saved or exited from the mailbox settings. If
you use the POP3 protocol, e-mail messages are not
updated automatically when you are online. To see
the latest e-mail messages, you must disconnect and
make a new connection to your mailbox.
•Security (ports) — Select the security option used to
secure the connection to the remote mailbox.
•Port — Define a port for connection.
•APOP secure login (for POP3 only) — Use with the
POP3 protocol to encrypt the sending of passwords
to the remote e-mail server while connecting to the
mailbox.
Settings for sent e-mail
Select Outgoing e-mail and from the following settings:
•My e-mail address — Enter the e-mail address given
to you by your service provider. Replies to your
messages are sent to this address.
•User name — Enter the user name for the e-mail
service.
•Password — Enter the password for the e-mail
service.
•Outgoing mail serv. — Enter the IP address or host
name of the mail server that sends your e-mail. You
may only be able to use the outgoing server of your
network operator. Contact your service provider for
more information.
•Access point in use — Select the Internet access
point that the device uses for sending the e-mail
messages that you send.
•Security (ports) — Select the security option used to
secure the connection to the remote mailbox.
•Port — Define a port for connection.
User settings
Select User settings and from the following settings:
48
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 48 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 48 Dec 13, 2005 8:14:13 AM
•My name — Enter a name to appear before your e-
mail address when you send e-mail.
•Reply-to — Select whether you want replies to be
redirected to a different address. Select On, and enter
the e-mail address to which you want to direct the
replies. You can only enter one address to which
replies are directed.
•Send message — Select to send the e-mail as soon
as possible, to send it the next time you retrieve e-
mail, or to store the e-mail in the Outbox, from where
you can send it later.
•Send copy to self — Select whether you want to save
a copy of the e-mail to your remote mailbox and to
the address defined in My e-mail address in the
settings for Outgoing e-mail.
•Include signature — Select whether you want to
attach a signature to your e-mail messages.
•New e-mail alerts — Select whether you want to
receive the new e-mail indications, a tone and a
note, when new mail is received to the mailbox.
•Default encoding — Select the preferred method for
character encoding.
Retrieval settings
Select Retrieval settings and from the following
settings:
•E-mail to retrieve (for POP3 mailboxes
only) — Select whether you want to retrieve only
the e-mail header information such as sender,
subject and date, e-mail, or e-mail with attachments.
•Retrieval amount — Select the number of e-mails
you want to retrieve from the remote server to your
mailbox.
•IMAP4 folder path (for IMAP4 mailboxes
only) — Define the folder path for folders to be
subscribed.
•Folder subscriptions (for IMAP4 mailboxes
only) — Subscribe to other folders in the remote
mailbox and retrieve content from those folders.
Automatic retrieval settings
Select Automatic retrieval and from the following
settings:
•E-mail notifications — Select whether you want to
receive notifications when new e-mail is received in
your remote mailbox. Select Always enabled to
always automatically retrieve new e-mail messages
from your remote mailbox, or Only in home net. to
automatically retrieve new e-mail messages from
your remote mailbox only when you are in your
home network and not, for example, traveling.
•Retrieval days — Select the days on which e-mails
are retrieved to your device.
•Retrieval hours — Define the hours between which
the e-mails are retrieved.
•Retrieval interval — Select the time interval
between retrieving new e-mails.
Instant messaging
Select Menu > Connect. > IM.
Instant messaging (IM) (network service) allows you to
converse with other people using instant messages and
join discussion forums (IM groups) with specific topics.
Various service providers maintain IM servers that you 49
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 49 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 49 Dec 13, 2005 8:14:13 AM
can log in to after you register to an IM service. Service
providers may differ in their support of features.
If IM is not available from your wireless service provider,
it may not appear in the menu of your device. Contact
your service provider for more information about
signing up for IM services and costs for services. For
more information on the availability of IM settings,
contact your network operator, service provider, or
dealer.
You may receive the settings in a special text message
from the network operator or service provider that
offers the IM service. You must save the settings to
access the service that you want to use. You can also
enter the settings manually.
Connect to an IM server
To converse with an IM user or users, and to view and
edit your IM contacts, you must log into the instant
messaging server. Open IM, and select Options >
Login. Enter your user ID and password, and press the
joystick to log in. You can obtain the user name,
password, and other settings to log in from your service
provider when you register for the service.
Search IM users or IM groups
To search for IM users and user IDs, select IM
contacts > Options > New IM contact > Search. You
can search by User's name, User ID, Phone number, and
E-mail address.
To search for IM groups and group IDs, select IM
groups > Options > Search. You can search by Group
name, Topic, and Members (user ID).
Conversations with a single IM
user
The Conversations view shows a list of the individual
conversation participants with whom you have an
ongoing conversation. Ongoing conversations are
automatically closed when you exit IM.
To view a conversation, scroll to a participant, and press
the joystick.
To continue the conversation, enter your message, and
press the joystick.
To return to the conversations list without closing the
conversation, select Back. To close the conversation,
select Options > End conversation.
To start a new conversation, select Options > New
conversation. You can start a new conversation with a
different contact while you are inside another active
conversation. However, you cannot have two active
conversations with the same contact.
To insert an image to an instant message, select
Options > Send image, and select the image you want
to send.
To save a conversation participant to your IM contacts,
select Options > Add to IM contacts.
To save a conversation, while in the conversation view,
select Options > Record chat. The conversation is saved
50
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 50 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 50 Dec 13, 2005 8:14:13 AM
as a text file that can be opened and viewed in the
Notes application.
To send automatic replies to incoming messages, select
Options > Set auto reply on. You can still receive
messages.
IM groups
The IM groups view shows a list of the IM groups that
you have saved or to which you are currently joined.
IM groups is available only if you logged into an IM
server when you opened the IM application, and the
server supports IM groups.
To create an IM group, select Options > Create new
group.
To join an IM group or to continue a group conversation,
scroll to the group, and press the joystick. Enter a
message, and press the call key to send it.
To join an IM group that is not on the list, but for which
you know the group ID, select Options > Join new
group.
To leave the IM group, select Options > Leave IM group.
To remove an IM group, press the clear key.
Ban from groups
Scroll to the IM group, and select Options > Group >
Settings > Banned list.
To prevent IM users from joining the group, select
Options > Add to banned list and from the following:
•IM contact — Ban one or several of your IM contacts.
•Enter user ID — Enter the ID of the IM user.
To allow a banned user to join the group, select
Options > Remove.
IM contacts
When login to an IM service is complete, your contact
list for the service provider is retrieved automatically. If
your contact list is not available, wait a few minutes and
try to retrieve your contacts list manually.
Tip: The online status of your IM contacts is
shown by an indicator next to the contact
name.
To create an IM contact card, select Options > New IM
contact. Enter the user ID and a nickname, and select
Done. The user ID can be up to 50 characters, and the
IM service provider may require the user ID to be in the
username@domain.com format. The nickname is
optional.
To view a different list of your IM contacts, select
Options > Change contact list.
Scroll to an IM contact, select Options and from the
following:
•Open conversation — Start or continue instant
messaging with the contact.
•Contact details — View the contact card.
•Editing options — Edit or delete the contact card,
move it to another contact list, or receive a note
when the contact's online status changes.
•Belongs to groups — See the IM groups the contact
has joined. 51
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 51 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 51 Dec 13, 2005 8:14:13 AM
•New contact list — Create a contact list for a specific
group of IM contacts.
•Reload users' availab. — Update the online status of
your IM contacts.
•Blocking options — Prevent or allow the reception
of messages from the contact.
•Login — Connect to an instant messaging server if
you did not log in when you opened the application.
•Logout — Disconnect from the IM server.
•Settings — Edit instant messaging application or
server settings.
The available options may vary.
To delete an IM contact, press the clear key.
Blocked contacts
Select IM contacts > Options > Blocking options >
View blocked list.
To find a blocked IM user, enter the first letters of the
user's name. Matching names appear in a list.
To allow receiving messages from a blocked IM user,
select Options > Unblock.
To prevent receiving messages from other IM users,
select Options > Block new contacts. Select the IM user
from your IM contacts, or enter the user ID.
Settings
Select Options > Settings > IM settings.
Select from the following settings:
•Use screen name — To change the name that
identifies you in IM groups, select Yes.
•Allow messages from — Select to receive instant
messages from all other IM users, your IM contacts
only, or not to receive messages at all.
•Allow invitations from — Select to receive
invitations to IM groups from all IM users, your IM
contacts only, or not to receive invitations at all.
•Msg. scrolling speed — To decrease or increase the
speed at which new messages are displayed, scroll
left or right.
•Sort IM contacts — Select to list your IM contacts
alphabetically or by their online status.
•Availabil. reloading — To update the online status
of your IM contacts automatically, select Automatic.
•Offline contacts — Select if IM contacts with an
offline status are shown in the IM contacts list.
The settings available for editing may vary. Contact your
service provider for more information.
IM server settings
Select Options > Settings > Server settings.
Scroll to the following options, and press the joystick to
configure your IM server:
•Servers — Add new, edit, or delete servers.
•Default server — Change the server to which your
device automatically logs into, scroll to the desired
server, and press the joystick.
•IM login type — To establish a connection between
your device and the default server automatically,
select Automatic. Select Aut. in home net. to
automate the connection when in your home
network. Select On app. start-up to connect to the
server when you open the messaging application.
52
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 52 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 52 Dec 13, 2005 8:14:13 AM
Select Manual to connect to the server manually at
any time.
Special messages
Your device can receive many kinds of messages that
contain data:
•Operator logo — To save the logo, select Options >
Save.
•Ringing tone — To save a ring tone, select
Options > Save.
•Configuration message — You may receive settings
from your network operator, service provider, or
company information management department in
a configuration message. To accept the settings,
open the message, and select Options > Save all.
•E-mail notification — The note tells you how many
new e-mails you have in your remote mailbox. An
extended notification may list more detailed
information.
Send service commands
Send a service request message to your service provider
and request activation for certain network services.
To send a service request to your service provider, select
Options > Service command. Enter the service request
as a text message, and select Options > Send.
53
Messages
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 53 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 53 Dec 13, 2005 8:14:13 AM
Connectivity
Copyright protections may prevent some images, music
(including ringing tones), and other content from being
copied, modified, transferred or forwarded.
Your device offers several options to connect to the
Internet, a corporate intranet, or to another device or
PC. Wireless methods include wireless LAN, Bluetooth,
and infrared. Your device supports a wired solution
with a USB (Universal Serial Bus) cable connection for
Nokia PC Suite or IP passthrough. Your device also
allows you to communicate using internet calls (Voice
over IP), push to talk, instant messaging (chat), and
modem-based connections.
Internet access points
An access point is where your device connects to a
network. To use e-mail and multimedia services or to
connect to the Internet and browse web pages, you
must first define Internet access points for these
services. You may need to set up several Internet access
points, depending on the sites you want to access. For
example, browsing the Web may require one access
point, and accessing your company intranet may
require another. To connect to the Internet over GPRS,
your device may have predefined, default Internet
access point settings.
When you switch on your device for the first time, the
access points may be configured automatically based
on the service provider information in your SIM card.
You can also receive the access points settings in a
message from your service provider. This might reduce
the number of settings you need to enter yourself.
The available options may vary. Some or all access
points may be preset for your device by your service
provider. You may not be able to add, edit, or delete
access points.
Contact your service provider and e-mail service
provider for more information on access points and
their settings.
See "Connection settings," p. 86.
Set up an Internet access point for
packet data (GPRS)
1. Select Menu > Tools > Settings > Connection >
Access points.
2. Select Options > New access point. To use an
existing access point as a basis for the new one,
select Use existing settings. To start with an empty
access point, select Use default settings.
3. Define the following settings.
•Connection name — Enter a descriptive name for
the connection.
•Data bearer — Select Packet data.
54
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 54 Dec 13, 2005 8:14:13 AM
•Access point name — Enter the name for the
access point. The name is usually provided by
your service provider or network operator.
•User name — Enter your user name if required
by the service provider. User names are often
case-sensitive and provided by your service
provider.
•Prompt password — Select Yes to enter your
password each time you log into a server or No
to save the password in your device memory and
automate the login.
•Password — Enter your password if required by
the service provider. The password is often case-
sensitive provided by the service provider.
•Authentication — Select Secure to always send
your password encrypted or Normal to send your
password encrypted when possible.
•Homepage — Enter the Web address of the page
you want to display as a home page when you
use this access point.
4. After defining the settings, select Options >
Advanced settings to define the advanced settings
or Back to save the settings and exit.
For information on the advanced settings, see the
extended user guide on the Web.
Set up an Internet access point for
wireless LAN
1. Select Menu > Tools > Settings > Connection >
Access points.
2. Select Options > New access point. To use an
existing access point as a basis for the new one,
select Use existing settings. To start with an empty
access point, select Use default settings.
3. Define the following settings.
•Connection name — Enter a descriptive name for
the connection.
•Data bearer — Select Wireless LAN.
•WLAN netw. name — To enter the name that
identifies the specific wireless LAN, select Enter
manually. To select the network from the
wireless LANs in range, select Search for netw..
•Hide WLAN network — Select Yes if the network
you are connecting to is hidden, or No if it is not
hidden.
•WLAN netw. mode — If you select
Infrastructure, devices can communicate with
each other and with wired LAN devices through
a wireless LAN access point. If you select Ad-hoc,
devices can send and receive data directly with
each other, and no wireless LAN access point is
needed.
•WLAN security mode — You must select the
same security mode that is used in the wireless
LAN access point. If you select WEP (wired
equivalent privacy), 802.1x, or WPA (Wi-Fi
protected access), you must also configure the
relevant additional settings. See the extended
user guide on the Web or the device help for
more information.
•WLAN security sett. — Edit the security settings
for the selected WLAN security mode.
•Homepage — Enter the Web address of the page
you want to display as a home page when you
use this access point.
The settings available for editing may vary. 55
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 55 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 55 Dec 13, 2005 8:14:13 AM
Cable connection
Install the USB data cable driver to your PC before you
use a cable connection. You can use the Data transfer
without installing the USB data cable drivers.
Select Menu > Connect. > Data cbl..
Using a USB data cable, you can connect your device to
a compatible PC . Connect the USB data cable to the
bottom of the device.
To change the device type you normally connect to your
device with the data cable, press the joystick.
Select from the following:
•Ask on connection — Select whether you want to be
asked for the device type every time you connect the
data cable to your device.
•PC Suite — Connect the PC Suite to your device with
the data cable, and use your device as a modem.
•Data transfer — Access and transfer data such as
music or image files from your computer using the
data cable connection. To use the Data transfer
mode, make sure that you have not selected USB as
a connection type in the Manage connections
settings in Nokia PC Suite. Insert a memory card to
your device, connect the device to a compatible
computer with the USB data cable, and select Data
transfer when the device asks which mode is used.
In this mode, your device acts as a mass storage
device and you can see it as a removable hard drive
in your computer. The device will switch into the
Offline profile if this is selected. End the connection
from the PC (for example, from an Unplug or Eject
Hardware wizard in Windows) to avoid damaging
the memory card. After you end the connection, the
device returns to the profile in which it was before
using the data transfer mode.
•IP passthrough — Select an access point through
which to transfer data using the Internet protocol.
To save your selection, select Back.
Bluetooth
There may be restrictions on using Bluetooth
technology in some locations. Check with your local
authorities or service provider.
Features using Bluetooth technology, or allowing such
features to run in the background while using other
features, increase the demand on battery power and
reduces the battery life.
This device is compliant with Bluetooth Specification
1.2 supporting the following profiles: Generic Access
Profile, Serial Port Profile, Dial-up Networking Profile,
Headset Profile, Handsfree Profile, Generic Object
Exchange Profile, Object Push Profile, File Transfer
Profile, SIM Access Profile, and Basic Imaging Profile. To
ensure interoperability between other devices
supporting Bluetooth technology, use Nokia approved
enhancements for this model. Check with the
manufacturers of other devices to determine their
compatibility with this device.
Bluetooth technology enables wireless connections
between electronic devices within a range of 10 meters
(33 feet). A Bluetooth connection can be used to send
images, videos, texts, business cards, calendar notes, or
to connect wirelessly to devices using Bluetooth
technology, such as computers.
56
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 56 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 56 Dec 13, 2005 8:14:13 AM
Since devices using Bluetooth technology
communicate using radio waves, your device and the
other devices do not need to be in direct line-of-sight.
The two devices only need to be within a maximum of
10 meters of each other, although the connection can
be subject to interference from obstructions such as
walls or from other electronic devices.
Start using Bluetooth
Select Menu > Connect. > Bluetooth.
1. When you activate Bluetooth for the first time, you
are asked to give a name to your device. Give your
device a unique name to make it easy to recognize
if there are several Bluetooth devices in the vicinity.
2. Select Bluetooth > On.
3. Select My phone's visibility > Shown to all.
Your device and the name you entered can now be seen
by other users with devices using Bluetooth
technology.
Settings
Define the following settings:
•Bluetooth — Select On to be able to connect to
another compatible device using Bluetooth
connectivity.
•My phone's visibility — Select Shown to all to allow
other devices using Bluetooth technology to find
your device when you have set Bluetooth > On. To
prevent other devices from finding your device,
select Hidden. Even if you select Hidden, paired
devices can still detect your device.
•My phone's name — Enter a name for your device.
The name is visible to other devices that search for
devices using Bluetooth technology. The maximum
length of the name is 30 characters.
•Remote SIM mode — Select On to enable another
device, such as a compatible car kit enhancement, to
use the SIM card in your device to connect to the
network. See "SIM access profile," p. 59.
If Bluetooth was turned off as a result of entering
Offline profile, you must re-enable Bluetooth manually.
Security tips
When you are not using Bluetooth connectivity,
select Bluetooth > Off or My phone's visibility >
Hidden.
Do not pair with an unknown device.
Send data
Several Bluetooth connections can be active at a time.
For example, if you are connected to a headset, you can
also transfer files to another compatible device at the
same time.
1. Open the application where the item you want to
send is stored.
2. Select the item, and select Options > Send > Via
Bluetooth. The device searches for other devices
using Bluetooth technology within range and lists
them.
57
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 57 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 57 Dec 13, 2005 8:14:13 AM
Tip: If you have sent data using Bluetooth
before, a list of the previous search results
is displayed. To search for more Bluetooth
devices, select More devices.
3. Select the device with which you want to connect,
and press the joystick to set up the connection. If
the other device requires pairing before data can be
transmitted, you are asked to enter a passcode.
4. When the connection has been established, Sending
data is shown.
The Sent folder in Messag. does not store messages sent
using Bluetooth connectivity.
Bluetooth connectivity indicators
Bluetooth is active.
When the icon is blinking, your device is trying to
connect to the other device. When the icon is shown
continuously, the Bluetooth connection is active.
Pair devices
Select Menu > Connect. > Bluetooth, and scroll right
to open the Paired devic. page.
Before pairing, create your own passcode (1-16 digits),
and agree with the user of the other device to use the
same code. Devices that do not have a user interface
have a fixed passcode. You need the passcode only
when you connect the devices for the first time. After
pairing, it is possible to authorize the connection. See
"Authorize a device," p. 59. Pairing and authorizing
the connection makes connecting quicker and easier,
as you do not have to accept a connection between
paired devices every time you establish the connection.
The passcode for remote SIM access must have 16 digits.
1. Select Options > New paired device. The device
starts to search for Bluetooth devices within range.
Tip: If you have sent data using Bluetooth
before, a list of the previous search results
is displayed. To search for more Bluetooth
devices, select More devices.
2. Select the device with which you want to pair, and
enter the passcode. The same passcode must be
entered to the other device as well.
3. Select Yes to make the connection between your
device and the other device automatic or No to
confirm the connection manually every time a
connection attempt is made. After pairing, the
device is saved to the paired devices page.
To give a nickname to a paired device that is only
displayed in your device, scroll to the device with which
you have paired, and select Options > Assign short
name.
To delete a pairing, select the device whose pairing you
want to delete and Options > Delete. To delete all
pairings, select Options > Delete all.
Tip: If you are currently connected to a device
and cancel the pairing with that device, pairing
is removed immediately, and the connection is
switched off.
58
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 58 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 58 Dec 13, 2005 8:14:13 AM
Authorize a device
If you trust a paired device, you can allow it to connect
automatically to your device. You can select from the
following options:
•Set as authorized — Connections between your
device and the other device can be made without
your knowledge. No separate acceptance or
authorization is needed. Use this status for your own
devices, such as your compatible headset or PC, or
devices that belong to someone you trust.
•Set as unauthorized — Connection requests from
the other device must be accepted separately every
time.
Receive data
If you want to receive data using Bluetooth, select
Bluetooth > On and My phone's visibility > Shown to
all. When you receive data through Bluetooth
connectivity, a tone sounds, and you are asked if you
want to accept the message. If you accept, the message
is placed in the Inbox folder in Messag.
Tip: You can access the files in the device or on
the memory card using a compatible accessory
that supports the File Transfer Profile Client
service (for example, a laptop computer).
SIM access profile
When the wireless device is in the remote SIM mode,
you can only use a compatible connected enhancement,
such as a car kit, to make or receive calls. Your wireless
device will not make any calls, except to the emergency
numbers programmed into your device, while in this
mode. To make calls from your device, you must first
leave the remote SIM mode. If the device has been
locked, enter the code to unlock it first.
With the SIM access profile, you can access the SIM card
of your device from a compatible car kit device. This
way, you do not need a separate SIM card to access SIM
card data and connect to the GSM network.
To use the SIM access profile, you need the following:
• Compatible car kit device that supports Bluetooth
wireless technology
• Valid SIM card in your device
For more information about car kit devices and
compatibility with your device, see www.nokia.com
and your car kit user guide.
Manage the SIM access profile
1. Select Menu > Connect. > Bluetooth to activate
Bluetooth connectivity in your device.
2. To enable remote SIM access, scroll to Remote SIM
mode, and press the joystick.
3. Activate Bluetooth in the car kit device.
4. Use your car kit device to start a search for
compatible devices. For instructions, see the user
guide of your car kit device.
5. Select your device from the list of compatible
devices.
6. To pair the devices, enter the Bluetooth passcode
shown on the display of the car kit device to your
device. 59
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 59 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 59 Dec 13, 2005 8:14:13 AM
7. Authorize the car kit device. Select Menu >
Connect. > Bluetooth, and scroll to the Paired
devic. page. Scroll to the car kit device, and enter the
Bluetooth passcode. When the device asks to make
the connection automatic, select Yes. Connections
between your device and the car kit device can be
made without separate acceptance or
authorization. If you select No, connection requests
from this device must be accepted separately every
time.
Tip: If you have already accessed the SIM card
from the car kit with the active user profile, the
car kit searches automatically for a device with
the SIM card. If it finds your device, and
automatic authorization is activated, the car
device automatically connects to the GSM
network when you switch on the car ignition.
When you activate the remote SIM access profile, you
can use applications on your device that do not need
network or SIM services.
To end the remote SIM access connection from your
device, select Menu > Connect. > Bluetooth > Remote
SIM mode > Off.
Infrared
Do not point the IR (infrared) beam at anyone's eye or
allow it to interfere with other IR devices. This device is
a Class 1 laser product.
Use infrared to connect two devices and transfer data
between them. With infrared, you can transfer data
such as business cards, calendar notes, and media files
with a compatible device.
Send and receive data
1. Ensure that the infrared ports of the devices face
each other. The positioning of the devices is more
important than angle or distance.
2. Select Menu > Connect. > Infrared, and press the
joystick to turn on infrared on your device. Turn on
infrared on the other device.
3. Wait a few seconds until an infrared connection is
established.
4. To send, locate the desired file in an application or
the file manager, and select Options > Send > Via
infrared.
If data transfer is not started within 1 minute after the
activation of the infrared port, the connection is
cancelled and must be started again.
All items received through infrared are placed in the
Inbox folder in Messag..
Positioning devices away from each other breaks a
connection, but the infrared light beam remains active
on your device until it is deactivated.
Data connections
Packet data
GPRS (general packet radio service) enables wireless
access for mobile phones to data networks (network
service). GPRS uses packet data technology where
60
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 60 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 60 Dec 13, 2005 8:14:13 AM
information is sent in short bursts of data over the
mobile network. The benefit of sending data in packets
is that the network is occupied only when sending or
receiving data. As GPRS uses the network efficiently, it
allows for quick data connection set-up and fast data
transmission speeds.
You must subscribe to the GPRS service. For availability
and subscription to GPRS, contact your network
operator or service provider.
Enhanced GPRS (EGPRS) is similar to GPRS, but it enables
faster connection. For more information on the
availability of EGPRS and data transfer speed, contact
your network operator or service provider. Note that
when you have selected GPRS as a data bearer, the
device uses EGPRS instead of GPRS if this is available in
the network.
During a voice call, you cannot establish a GPRS
connection, and any existing GPRS connection is put on
hold unless the network supports dual transfer mode.
UMTS
UMTS (universal mobile telecommunications system) is
3G mobile communication system. Besides voice and
data, UMTS enables audio and video delivery to wireless
devices.
Your device can automatically switch between the GSM
and UMTS networks.
To select which network to use, select Menu > Tools >
Settings > Network and the network in Network
mode. If you want the device to switch between the
networks automatically, select Dual mode.
The GSM network is indicated with , the UMTS
network with .
When you use your device in GSM and UMTS networks,
multiple data connections can be active at the same
time, and access points can share a data connection. In
the UMTS network, data connections remain active
during voice calls. You can, for example, surf the Web
faster than previously possible while simultaneously
speaking on the phone.
Wireless local area network
(WLAN)
There may be restrictions on using wireless LAN in some
locations. Check with your local authorities or service
provider.
Features using wireless LAN, or allowing such features
to run in the background while using other features,
increase the demand on battery power and reduce the
battery life.
France has restrictions on the use of wireless LAN.
This device can detect and connect to a wireless local
area network.
If you move the device to another location within the
wireless LAN and out of range of a wireless LAN access
point, the roaming functionality can automatically
connect your device to another access point that
belongs to the same network. As long as you remain
within range of access points that belong to the same
network, your device can stay connected to the
network. 61
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 61 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 61 Dec 13, 2005 8:14:13 AM
Tip: A wireless LAN connection is established
when you create a data connection using a
wireless LAN Internet access point. The active
wireless LAN connection is ended when you
end the data connection.
Your device enables different types of communication
in a wireless LAN. The two operating modes are
infrastructure and ad hoc.
• The infrastructure operating mode allows two kinds
of communication: wireless devices communicate
with each other through a wireless LAN access point
or wireless devices communicate with a wired LAN
device through a wireless LAN access point. The
advantage of the infrastructure operating mode is
that you can have more control over network
connections because they pass through an access
point. A wireless device can access the services that
are available in a regular wired LAN: company
database, e-mail, the Internet, and other network
resources, for example.
• In the ad hoc operating mode you can send data to
and receive it from other devices with compatible
wireless LAN support , for example, to be printed.
These functions may require an additional third
party application to work. No wireless LAN access
point is required. Simply make the necessary
configurations and start communicating. Ad hoc
networking is easy to set up, but communication is
limited to devices that are within range and support
compatible wireless LAN technology.
Connection manager
Select Menu > Connect. > Conn mgr.
To view the status of data connections or end
connections, select Act. data conn..
To search for wireless LANs available within range,
select Availab. WLAN.
View and end active connections
Note: The actual time invoiced for calls by your
service provider may vary, depending on network
features, rounding off for billing, and so forth.
In the active connections view, you can see the open
data connections: data calls, packet data connections,
and wireless LAN connections.
To view detailed information about network
connections, select the connection from the list and
Options > Details. The type of information shown
depends on the connection type.
To end a network connection, select the connection
from the list and Options > Disconnect.
To end all active network connections simultaneously,
select Options > Disconnect all.
To view the details of a network, press the joystick.
62
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 62 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 62 Dec 13, 2005 8:14:13 AM
Search for wireless LAN
To search for wireless LANs available within range,
select Menu > Connect. > Conn mgr > Availab.
WLAN. A list of found networks is displayed.
The available wireless LAN view shows a list of wireless
LANs within range, their network mode (infrastructure
or ad-hoc), signal strength indicator and network
encryption indicators, and if your device has an active
connection with the network.
To view the details of a network, press the joystick.
To create an Internet access point in a network,
select Options > Define access point.
Modem
Select Menu > Connect. > Modem.
Together with a compatible computer, you can use your
device as a modem to connect to the Web.
Before you can use your device as a modem
• You need the appropriate data communications
software on your computer.
• You must subscribe to the appropriate network
services from your service provider or Internet
service provider.
• You must have the appropriate drivers installed on
your computer. You must install drivers for your
cable connection, and you may need to install or
update Bluetooth or infrared drivers.
To connect the device to a compatible computer using
infrared, press the joystick. Make sure the infrared ports
of the device and computer are directly facing each
other with no obstacles between them.
To connect your device to a computer using Bluetooth
wireless technology, initiate the connection from the
computer. To activate Bluetooth in your device, select
Menu > Connect. > Bluetooth and select Bluetooth >
On.
If you use a cable to connect your device to a computer,
initiate the connection from the computer.
Note that you may not be able to use some of the other
communication features when the device is used as a
modem.
Mobile VPN
Select Menu > Tools > Settings > Connection > VPN.
The Nokia mobile virtual private network (VPN) client
creates a secure connection to compatible corporate
Intranet and services, such as e-mail. Your device
connects from a mobile network, through the Internet,
to a corporate VPN gateway that acts as a front door to
the compatible corporate network. VPN client uses IP
Security (IPSec) technology. IPSec is a framework of
open standards for supporting secure exchange of data
over IP networks.
VPN policies define the method used by VPN client and
a VPN gateway to authenticate each other, and the
encryption algorithms that they use to help protect the
confidentiality of data. Contact your corporation for a
VPN policy.
63
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 63 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 63 Dec 13, 2005 8:14:13 AM
To use VPN with an application, the application must be
associated with a VPN access point. A VPN access point
is made up of an Internet access point and a VPN policy.
To manage VPN, select VPN management > Options >
Open and from the following options:
•VPN policy — Install, view, and update VPN policies.
•VPN policy servers — Edit the connection settings of
VPN policy servers from which you can install and
update VPN policies.
•VPN log — View the log for your VPN policy
installations, updates and synchronizations, and
other VPN connections.
Email data roaming
Select Menu > Tools > Settings > Connection >
Access point groups.
Your device allows roaming between wireless access
technologies, such as WLAN and GPRS, for e-mail. For
example, you can start an e-mail session at home and
continue the session on your way to work. While your
session continues uninterrupted, your handheld device
switches from WLAN to GPRS and back to WLAN when
you arrive at your workplace.
Access point groups
To create an access point group, select Access point
groups > Options > New group. In the Group name
field, enter a name for the group. Define in the Conn.
switching field whether to show the connection
switching process on the display of your device. Choose
and edit the access points that belong to this group in
the Access points section.
To remove an access point in an access point group,
select the access point and Options > Remove.
64
Connectivity
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 64 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 64 Dec 13, 2005 8:14:13 AM
Web
Select Menu > Web (network service).
Web is one of the two browsers in your device. With
Web, you can browse regular Web sites. These pages
use the extensible hypertext markup language (XHTML)
or hypertext markup language (HTML). If you want to
browse WAP pages, use Menu > Media > Services.
Both of the browsers use the same bookmarks. The links
in your received messages open in the Services browser.
Check the availability of services, pricing, and fees with
your network operator or service provider. Service
providers will also give you instructions on how to use
their services.
Access points
To browse the Web, you need to configure Internet
access point settings. If you are using a data call or a
GPRS connection, your wireless network must support
data calls or GPRS, and the data service must be
activated for your SIM card. Your device might have
configured the Internet access point settings
automatically based on your SIM card. If not, contact
your service provider for the correct settings.
Tip: You may receive the Internet access point
settings from your service provider as a special
text message or from the network operator's
or service provider's Web pages.
You can also enter the Internet access point settings
manually. See "Internet access points," p. 54.
Browse the Web
Use the joystick for browsing. The joystick is shown as
a pointer on a Web page, and you can scroll the pages
up, down, left and right with it. When you move the
pointer over a link, the pointer changes into a hand.
Press the joystick to open the link.
To browse the Web, select a bookmark, and press the
joystick. You can also enter the Web address, and press
the joystick. Use only services that you trust and that
offer adequate security and protection against harmful
software.
Tip: When you start to enter the address,
addresses of pages you have previously visited
that match your input are displayed. To open a
page, scroll to the address, and press the
joystick.
To open a Web link, scroll to it and press the joystick.
On a Web page, new links appear underlined in blue and
previously visited links in purple. Images that act as
links have a blue border around them.
Addresses of the pages you visit are saved in the Auto.
bookmarks folder.
Keyboard shortcuts: 65
Web
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 65 Dec 13, 2005 8:14:13 AM
• Press 1 to open your Bookmarks.
• press 2 to find text.
• Press 3 to return to the previous page.
• Press 6 to switch between your open browser
windows.
• Press 7 to enable or disable page overview.
• Press 8 to open page overview.
• Press 9 to go to a different Web page.
Bookmarks
Your device may have some bookmarks loaded for sites
not affiliated with Nokia. Nokia does not warrant or
endorse these sites. If you choose to access them, you
should take the same precautions, for security or
content, as you would with any Internet site.
To view a bookmarked Web page, scroll to the
bookmark, and press the joystick.
To browse another Web pages, select Options >
Navigation options > Go to web address, enter the
page address, and select Go to.
To delete a bookmark, scroll to it, and press the clear
key.
To add a bookmark, select Menu > Web > Options >
Bookmark manager > Add bookmark. Scroll to Name
to enter a descriptive name for the bookmark,
Address to enter the Web page address, Access point to
change the access point to connect to the Web page,
and User name or Password to enter your user name
and password, if required by the service provider. To
save the bookmark, select Back.
Tip: You can also add bookmarks while
browsing. Select Options > Save to
bookmarks.
Download items
Important: Only install and use applications and
other software from sources that offer adequate
security and protection against harmful software.
You can download different items such as ringing tones,
images, operator logos, themes, and video clips. To
download an item, scroll to it, and press the joystick.
These items can be provided free, or you can purchase
them. Downloaded items are handled by the respective
applications in your device.
When you start a download, a list of ongoing, paused,
and completed downloads from the current browsing
session is displayed. To view the list, you can also select
Options > Tools > Downloads. In the list, scroll to an
item, and select Options to pause, resume, or cancel
ongoing downloads; or open, save, or delete completed
downloads.
To purchase items:
1. To download the item, scroll to the link, and press
the joystick.
2. Select the appropriate option to purchase the item.
3. Carefully read all the information provided. To
continue the download, select Accept. To cancel the
download, select Cancel.
66
Web
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 66 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 66 Dec 13, 2005 8:14:13 AM
End a connection
To end the connection and view the browser page
offline, select Options > Advanced options >
Disconnect; or to end the connection and close the
browser, select Options > Exit.
Clear the cache
A cache is a memory location that is used to store data
temporarily. If you have tried to access or have accessed
confidential information requiring passwords, empty
the cache after each use. The information or services
you have accessed are stored in the cache.
To clear the cache, select Options > Advanced
options > Clear cache.
News feeds and blogs
Select Menu > Web > Web feeds.
Feeds usually contain headlines and articles, often
about recent news or other topics.
Tip: Blog is a shortening of Weblog, which is a
continuously updated Web diary . Often the
author's personality is an important factor in
the blog.
To download a feed or blog, scroll to it, and press the
joystick.
To add a feed or blog, select Options > Manage feed >
New feed, and enter the information.
To edit a feed or blog, scroll to a feed, select Options >
Manage feed > Edit, and modify the information.
Web settings
Select Menu > Web > Options > Settings.
Define the following settings:
•Access point — Scroll to the access point to connect
to Web pages, and press the joystick.
•Load imgs. & sounds — Select No to load pages
faster when browsing by not loading the images on
them. You can still choose to load images when
browsing individual pages. Select Options > Show
images.
•Font size — Select the font size that you want to use
when viewing the Web pages.
•Default encoding — Select the correct character
encoding for your language.
•Auto. bookmarks — Select On to save Web page
addresses that you visit automatically in the Auto.
bookmarks folder. To hide the folder, select Hide
folder.
•Screen size — Select Full screen to use the whole
display area for viewing Web pages. You can press
the left selection key to open Options and use the
available options while browsing in full screen
mode.
•Homepage — Select the page that you want to
appear as your homepage. Select Default to use the
access point homepage, User defined to enter the
homepage address, or Use current page to use the
currently open Web page.
67
Web
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 67 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 67 Dec 13, 2005 8:14:13 AM
•Mini map — Select whether you want to see an
overview of the page as a miniature on top of the
page you are viewing.
•History list — Select whether you want to see
miniatures of the pages you have visited when you
want to go back in your browsing history.
•Cookies — Select to allow or reject the sending and
receiving of cookies. Cookies are info the network
server collects about your visits to various Web
pages. They are necessary if you shop on the Web
(for example, to retain the items you buy until you
reach the cashier page). However, the information
may be misused (for example, you may receive
unwanted advertisements in your device).
•Java/ECMA script — Some Web pages may include
program commands that affect the appearance of
the page or interaction between the page and its
browsers. To deny the use of such scripts, select
Disabled (for example, if you have trouble
downloading).
•Security warnings — Select Show or Hide to see or
hide the security warnings you may receive during
browsing.
•Block pop-ups — Select whether you want to allow
pop-ups. Some pop-ups may be necessary (for
example, smaller windows where you write e-mails
in Web-based mail systems), but they may also
contain unwanted advertising.
Services
Select Menu > Media > Services (network service).
Services is one of the two browsers in your device. With
Services, you can browse WAP pages that have been
designed specially for mobile devices. For example,
operators may have WAP pages for mobile devices. To
browse regular Web pages, use the other browser in
Menu > Web.
Check the availability of services, pricing, and fees with
your network operator or service provider. Service
providers will also give you instructions on how to use
their services.
Tip: To start a connection, press and hold 0 in
the standby mode.
68
Web
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 68 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 68 Dec 13, 2005 8:14:13 AM
Media applications
Copyright protections may prevent some images, music
(including ringing tones), and other content from being
copied, modified, transferred or forwarded.
Select Menu > Media.
Media contains different media applications that allow
you to save and view images, record sounds, and play
sound clips.
Gallery
Select Menu > Media > Gallery.
Use Gallery to access and use different types of media,
including images, videos, music, and sounds. All viewed
images and videos and all received music and sounds
are automatically saved to Gallery. You can browse,
open, and create folders; and mark, copy, and move
items to folders. Sound clips are opened in the Music
Player, and video clips and streaming links in the
RealPlayer application.
To open a file or a folder, press the joystick. Images are
opened in the image viewer.
To create a new folder, select Options > Organize >
New folder.
To copy or move files, select a file and Options >
Organize > Move to folder, New folder, Move to
memory card, Copy to memory card, Copy to phone
mem., or Move to phone mem..
To download files into the Gallery in one of the main
folders using the browser, select Graphic downl., Video
downl., Track downl., or Sound downl.. The browser
opens, and you can choose a bookmark or enter the
address for the site to download from.
To search for a file, select Options > Find. Start to enter
a search string (for example, the name or date of the
file you are searching for). Files that match the search
are shown.
Images
Select Menu > Media > Gallery > Images.
Images consists of two views:
• In the image browser view you can send, organize,
delete, and rename images stored in your device or
memory card. You can set images as wallpaper for
your display.
• In the image viewer, which opens when you select
an image in the image browser view, you can view,
and send individual images.
The following file formats are supported: JPEG, BMP,
PNG, and GIF 87a/89a. The device does not necessarily
support all variations of the file formats.
To open an image for viewing, select an image in the
image browser view, and select Options > Open. The
image opens in the image viewer.
69
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 69 Dec 13, 2005 8:14:13 AM
To open the next or previous image for viewing, scroll
right or left in the image viewer.
To enlarge the viewed image on the display, select
Options > Zoom in, or press 5 or 7. To reduce the
viewed image on the display, select Zoom out or press 0.
To view the image in full screen size, select Options >
Full screen or press 7 twice. To return to normal view,
select Options > Normal screen.
To rotate an image, select an image, and Options >
Rotate. Select Right to rotate the image clockwise by 90
degrees, or select Left to rotate the image
counterclockwise by 90 degrees.
Manage image files
Copyright protections may prevent some images,
ringing tones, and other content from being copied,
modified, transferred or forwarded.
To view detailed information about an image, select an
image and Options > View details. Size and format of
the file, the time and date the file was last modified and
the resolution of the image in pixels are displayed.
To send an image, select the image, Options > Send,
and the method for sending.
To rename an image, select an image and Options >
Rename. Enter a new name, and select OK.
To set an image as wallpaper, select the image and
Options > Set as wallpaper.
To add an image to a contact card, select an image and
Options > Assign to contact. The contacts view opens,
and you can select the contact for the image.
RealPlayer
Copyright protections may prevent some images,
ringing tones, and other content from being copied,
modified, transferred or forwarded.
Select Menu > Media > RealPlayer.
RealPlayer can play video clips and audio files that are
stored in the device memory or on a memory card,
transferred to your device from e-mail or compatible
PC, or streamed to your device over the Web.
Formats supported by RealPlayer include MPEG-4, MP4
(not streaming), 3GP, RV, RA, AAC, AMR, and
Midi.RealPlayer does not necessarily support all
variations of a media file format.
Tip: Streaming audio and video files means
playing them directly from the Web without
downloading them first to your device.
Play video clips and stream links
To select audio and video files to play with RealPlayer,
select Options > Open, and scroll to a media clip in your
device or on a memory card.
To play streaming media, select a Web link that points
to a media clip, and select Play; or connect to the Web,
browse to a video clip or audio file, and select Play.
RealPlayer recognizes two kinds of links: an rtsp:// URL
and an http:// URL that points to a RAM file. Before the
content begins streaming, your device must connect to
a Web site and buffer the content. If a network
connection problem causes a playback error,
70
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 70 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 70 Dec 13, 2005 8:14:13 AM
RealPlayer attempts automatically to reconnect to the
Internet access point.
To save a media clip, select Options > Save, scroll to a
folder in device memory or on a memory card, and
select Save. To save a link to a media file on the Web,
select Save link.
To fast-forward or rewind the clip during playback,
scroll up or down.
To increase or decrease the volume during playback,
scroll right or left.
Settings
Select Menu > Media > RealPlayer > Options >
Settings.
Video settings
Select Video > Loop > On, if you want to replay video
clips automatically after they finish playing.
Connection settings
Select Connection, scroll to the following settings, and
press the joystick to edit:
•Proxy — Select whether to use a proxy server and to
key in the proxy server's IP address and port number.
•Network — Change the access point to connect to
the Internet and to set the port range used when
connecting.
Proxy settings
Proxy servers are intermediate servers between media
servers and their users. Some service providers use
them for additional security or to speed up access to
Web pages that contain media files.
Contact your service provider for the correct settings.
Select Connection > Proxy, scroll to the following
settings, and press the joystick to edit:
•Use proxy — Select Enable to use a proxy server.
•Proxy serv. address — Enter the IP address of the
proxy server. This setting is only available if you
select to use a proxy server.
•Proxy port number — Enter the port number of the
proxy server. This setting is only available if you
select to use a proxy server.
Network settings
Contact your service provider for the correct settings.
Select Connection > Network, scroll to the following
settings, and press the joystick to edit:
•Default access point — Scroll to the access point to
connect to the Internet, and press the joystick.
•Online time — Set the time when RealPlayer
disconnects from the network when you pause a
media clip that plays using a network link. Select
User defined, and press the joystick. Enter the time,
and select OK.
•Lowest UDP port — Enter the lowest port number of
the server port range. The minimum value is 1024.
•Highest UDP port — Enter the highest port number
of the server port range. The maximum value is
65535.
71
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 71 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 71 Dec 13, 2005 8:14:13 AM
Music player
Warning: Do not hold the device near your ear
when the loudspeaker is in use, because the volume
may be extremely loud.
Select Menu > Media > Mus. plyr..
With the music player, you can play music files and
create and listen to playlists. The music player supports
files with extensions such as MP3 and AAC.
Listen to music
Warning: Listen to music at a moderate level.
Continuous exposure to high volume may damage your
hearing.
To select a music track, select Options > Music library.
All tracks lists all music on your device. To view sorted
songs, select Albums, Artists, Genres, or Composers. To
play a track, scroll to the track, and select Options >
Play. When a track is playing, to change between play
and pause, press and . To stop a track, press .
After you add or remove music files in the device,
update your Music library. Select Options > Update
Music library. The player searches the device memory
for music files and updates them to the Music library.
To select the previous or next track, scroll the joystick
up or down.
To play the music tracks repeatedly, select Options >
Loop. Select All to repeat all the tracks in the current
folder, One to repeat the selected track, or Off to set off
the repeating.
To play music in random order, select a folder and
Options > Random play.
To view music track information, scroll to the desired
track and select Options > Track details.
Adjust music volume
To control the music volume, scroll left or right. To mute
the volume, scroll left until the volume is muted.
Playlists
You can create a new playlist and add tracks to it, or
select a saved playlist.
To create a new playlist, select Options > Music
library > Track lists > Options > New track list. Write
the name of the new playlist, and select OK.
To add a track to a playlist, open the playlist, and select
Options > Add tracks.
Equalizer
Select Menu > Media > Mus. plyr. > Options >
Equalizer.
You can personalize the sound of your music files with
Equalizer. You can use preset frequency settings based
on styles of music, like classical or rock. You can also
create customized settings based on your own listening
preferences.
72
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 72 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 72 Dec 13, 2005 8:14:13 AM
You cannot use other functions of Mus. plyr. while
Equalizer is open.
With Equalizer, you can enhance or diminish
frequencies during music playback and modify how
your music sounds. There are preset frequency settings
in your device, for example, Classical and Rock.
To use a preset frequency setting when playing music,
scroll to the frequency setting you want to use, and
select Options > Activate.
Create your own frequency setting
1. To create your own frequency setting, select
Options > New preset.
2. Enter a name for the preset frequency setting, and
select OK.
3. Scroll up or down to move between the frequency
bands and set the frequency on each band. To move
between bands, scroll left or right.
4. Select Back to save the new frequency setting or
select Options > Reset to defaults to set the bands
at a neutral frequency and start over.
Voice recorder
The recorder cannot be used when a data call or GPRS
connection is active.
Select Menu > Media > Recorder.
With Recorder, you can record up to 60 seconds of a
voice memo, save the voice recording as a sound clip,
and play the sound clip. Recorder supports the AMR
format.
To record a voice memo, select Options > Record sound
clip. Select Pause to pause the recording and Record to
resume recording . When you finish recording, select
Stop. The sound clip is automatically saved.
The maximum length of a voice recording is 60 seconds,
but it also depends on the storage space available in
device memory or on a memory card.
Play a voice recording
To listen to a voice recording that you just recorder,
select the play icon. ( ). Select Stop to cancel playback.
The progress bar displays the playing time, position,
and length of a voice recording.
To pause playback of a voice recording, select Pause.
Playback resumes when you select Play.
Voice recordings that you receive or record are
temporary files. You must save the files that you want
to keep.
Flash player
Select Menu > Media > Flash Player.
With Flash Player, you can view, play, and interact with
flash files made for mobile devices.
The flash files originally designed for the portrait mode
may not fully support the landscape mode of your
device. For example, the command text may be on the
bottom of the display and not directly next to the
selection keys. 73
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 73 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 73 Dec 13, 2005 8:14:13 AM
To open a folder or play a flash file, scroll to the folder
or file, and press the joystick.
To send a flash file to compatible devices, scroll to it,
and press the call key. Copyright protection may prevent
the sending of some flash files.
To switch between flash files saved on your device
memory or memory card, scroll left or right.
The available options may vary.
74
Media applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 74 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 74 Dec 13, 2005 8:14:13 AM
Camera
When taking and using images or video clips, obey all
laws, and respect local customs as well as privacy and
legitimate rights of others.
You can take photos or record video clips with the built-
in camera. The camera lens is on the back of the device,
and the display works as a viewfinder. The camera
produces pictures in .jpeg format and video clips
in .3gpp format.
Take a picture
1. Select Menu > Media > Camera.
The Nokia E70 device supports an image capture
resolution of up to 1600 x 1200 pixels. The image
resolution in these materials may appear different.
2. Use the display as a viewfinder, aim at your subject,
and press the joystick. The device saves the photo
in the default folder, or in the folder you have
defined.
Tip: To zoom in or out before taking a
picture, scroll up or down.
3. If you do not want to keep the saved photo, select
Options > Delete. Select Back to return to the
viewfinder to take another picture. Select
Options > Go to Gallery to view the photo in Gallery.
If the light is dim, select Options > Night mode after
you have opened Camera but before taking a picture.
To adjust the image, select Options > Adjust > White
balance or Color tone.
To take pictures in a sequence, select Options >
Sequence mode. The camera takes six pictures in a row.
To take timed pictures, select Options > Self-timer,
select the desired timeout, and press Activate. The
camera takes a picture after the timeout has passed.
Tip: You can view and modify photos in
Menu > Media > Gallery > Images.
Record a video clip
1. Select Camera, and scroll right to activate the video
recorder.
2. To start recording a video clip, press the joystick.
3. The remaining recording time is shown on the top
of the display. To pause the recording, select
Pause; to resume the recording, select Continue.
4. To stop the recording, select Stop. The device saves
the clip in the default folder, or in the folder you
have defined.
5. If you do not want to keep the saved video clip,
select Options > Delete. Select Back to return to the
viewfinder to record another video clip. Select
Options > Play to view the video clip in the
RealPlayer application.
75
Camera
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 75 Dec 13, 2005 8:14:13 AM
Insert pictures into
messages
When you are creating a new multimedia message, you
can open the camera to insert a new picture into the
message.
To insert a picture into a multimedia message, select
Options > Insert new > Image. The viewfinder shows
you the image to be captured. To take a picture, press
the joystick. To insert the picture in the message, press
the joystick.
Insert videos into messages
When you are creating a new multimedia message, you
can open the camera to insert a new video into the
message.
To insert a video into a multimedia message, select
Options > Insert new > Video clip. Press the joystick
to start recording. To insert the video in the message,
select Options > Select.
Settings
To edit the image settings, select Options > Settings >
Image, and define the following:
•Image quality — Define how much the picture is
compressed when being saved. High provides the
best image quality, but takes more memory.
Normal is the default quality setting. Basic takes the
least amount of memory.
•Show captured img. — Select whether you want the
captured image to be displayed after the capture.
•Image resolution — Select the resolution of the
images you capture.
•Default image name — Select Date or Text for the
default title assigned to a picture. Date assigns the
date of the capture as the title. Text assigns the term
you define and a number to the picture.
•Memory in use — Select the memory to use for
storing images: Phone memory or Memory card.
To edit the video settings, select Options > Settings >
Video, and define the following:
•Length — Select the length of the video clips that
you record. The maximum length of a video clip
depends on the available memory.
•Video resolution — Select the resolution to use
during video recording. The default setting for the
resolution is always the lowest setting.
•Default video name — Select Date or Text for the
default title assigned to a recorded video. Date
assigns the date of the recording as the title. Text
assigns the term you define and a number to the
recorded video.
•Memory in use — Select the memory to use for
storing recorded videos: Phone memory or Memory
card.
76
Camera
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 76 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 76 Dec 13, 2005 8:14:13 AM
Office applications
Select Menu > Office.
Some office applications are not available in all
languages.
Opening a large file may not be possible or it may take
a while.
File manager
With File mgr., you can manage the contents and
properties of files and folders. You can open, create,
move, copy, rename, and search for files and folders.
Copyright protection may prevent sending some files.
Documents
You can open, edit, and save documents created with
Microsoft Word for Windows versions 97 or later. Note
that not all features and formatting of the original files
are supported.
Select Menu > Office > Docum..
To open an existing document, browse for the folder
and document, and press the joystick. To read the
document, select the middle view.
Tip: To open a recently used document, select
Options > Most recent files, select the
document, and press the joystick.
To create a new document, select Options > New file.
Select Blank to create a new document without using a
template or Use template to create a document based
on an existing template.
To read a document, select the middle view and
Options. You can browse for different types of objects
in the document, zoom in or out, switch between full
and normal screen views, or view objects, such as
images. You can also search for text and edit application
settings such as zooming, scrolling, and handling of
invisible characters.
Tip: To switch between full and normal screen
views in an open document, press *. To zoom
in, press 5, and to zoom out, press 0.
View objects in a document
To view all objects, such as tables, comments,
workbooks, and video clips in their place in the
document, select the middle view and Options >
Browse > Pages and objects.
To open a table or comment, scroll to the object or its
icon, and press the joystick twice.
To open an image or go to a hyperlink or reference,
scroll to the object, and press the joystick three times.
77
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 77 Dec 13, 2005 8:14:13 AM
Edit documents
To be able to edit a document, you must activate the
edit mode: select the middle view and Options > Edit
document. Select Options > Format, and the
appropriate formatting option. For example, you can
add bold, italic, and underline formatting, change the
font size and color, and add bullets. You can also modify
the paragraph settings such as text alignment and line
spacing.
Tip: To cancel an action in the editing mode,
select Options > Undo.
To insert a new object to the document, select
Options > Insert object. Scroll to the desired object
type, and select Options > Insert. If you want to insert
a new document, workbook, or presentation, select
Insert new. To insert an existing document, workbook,
presentation, select Insert existing.
To format the style settings of a paragraph, select
Options > Format > Style. Select the style you want to
format and Options > Edit. Select New style to add a
new style. In the style editing view, select Options >
Format, and the style you want. You can modify the font,
formatting, paragraph, bullet, and border styles.
View document structure
To view the document outline, select the left view.
Select Options > Expand or Collapse to show only main
chapters or all subchapters. If there are objects in the
document, select Options > Display objects or Display
headings to switch between object list and chapter
heading views.
Tip: To open a selected chapter in the normal
view, scroll to the chapter, and press the
joystick.
Preview the page layout
To preview the page layout, select the view on the right
and Options.
Define the following options:
•Normal view — Show the current open page in
normal view.
•Pan and zoom — Zoom the page layout view.
•View — Select Full screen or Normal screen to switch
between full screen and normal views.
To zoom the page layout, select the view on the right,
scroll to the desired page, and select Options > Pan and
zoom. A black selection frame appears above the page
layout, showing the area to zoom. Select the area
and Options > Zoom.
Select from the following options:
•In or Out — Select In to zoom in one step in the
selected area, or Out to zoom out one step in the
selected area.
•Fit to screen — Adjust the zoom level to fit the page
to the screen width.
•Ratio — Edit the zoom level, enter the zoom ratio
between 10 and 999, and select OK.
78
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 78 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 78 Dec 13, 2005 8:14:13 AM
Find text
To find a piece of text from the document, select
Options > Find, enter the text in the Find: field, and
press the joystick.
To change search options such as case sensitivity and
search direction, select Options > Search options.
Table editor
You can view tables created in applications, like
documents and MS Word.
To view a table in a file, scroll to the file so that a dotted
line appears around it, and press the joystick.
To change the selected cell, scroll up, down, left or right.
If the selected cell does not fit into visible area, pressing
the joystick pans the whole content first before the cell
changes.
To edit the text in a cell, select the cell, and press the
joystick. To end editing, press the joystick again.
Select Options and from the following options:
•Zoom — Zoom the table view in, out and to edit a
zoom ratio.
•Format — Modify the font style and formatting,
paragraphs, bullets, and borders.
•Cell size — Change the size of the cells, rows and
columns.
•Cells — Select option to insert, delete, merge or
separate cells.
•Copy table — Copy the text of the whole table to the
clipboard.
Sheet
Select Menu > Office > Sheet.
To open an existing workbook, browse for the folder
where the file is saved, and press the joystick.
To create a new workbook, select Options > New file.
Select Blank to create a new file without using any
template or Use template to create a file based on an
existing template. Select the worksheet in the outline
view, and press the joystick to open the file.
Work with worksheets
To insert data into cells, open the worksheet view. Use
the joystick to move to the cell, and select Options >
Show cell field > Edit cell field. An upper part editing
field opens. Enter the data, and select Done to finish
editing.
To select a range of cells, press and hold the edit key
while you scroll right.
To modify the worksheet view, select Options > View.
Select from the following options:
•Pan worksheet — Define the size of the visible area
of the whole worksheet.
•Full screen — Switch to the full screen view.
•Hide headers — Hide header field and release more
space for the worksheet grid.
•Hide gridlines — Hide gridlines.
To change the font and number formatting, borders,
and alignments, select Options > Format and the
appropriate option. 79
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 79 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 79 Dec 13, 2005 8:14:13 AM
Work with cells
To insert cells, select the area where you want to insert
new cells and Options > Cells > Insert. You can insert
cells above (Shift cells down) or to the left (Shift cells
right) of the selected range. If you select only one cell,
only one new cell is inserted. If you select a range of
cells, a corresponding range of blank cells is inserted.
You can also insert a new row or column.
To delete cells, rows, or columns, select the items you
want to delete and Options > Cells > Delete. You can
delete an entire row or column. If you select Shift cells
left, the selected cells are deleted, and the cells right of
the selected cells are shifted left. If you select Shift cells
up, the cells below the deleted cells are shifted up.
To insert a function into a cell, select a cell. Select
Options > Insert > Function and a function from the
list. For example, #MIN finds the lowest value in the
numeric contents of a selected range of cells,
#AVERAGE calculates the average of the values, and
#SUM adds the values together. Once you have selected
a function, press the joystick. The function is inserted
into the selected cell. On the worksheet, enter the cells
you want to include in the function inside the brackets,
and press the joystick.
Tip: Before inserting a function, verify that
Options > Show cell field > Edit grid is active
and that the selected cell is empty or starts with
=.
Create and modify charts
When you change the information on a worksheet, the
chart is updated simultaneously.
To open a chart, open the outline view, select the
worksheet and chart, and press the joystick. If charts
are not visible, select Options > Expand.
To create a new chart, select the worksheet cells that
contain the information you want to include in the
chart and Options > Insert > Chart. To change the
general appearance of an existing chart, open a chart
view. Select Options > View > Chart. You can change
the name of the chart and define the cell area. You can
change the type of the chart, and make the chart two
or three-dimensional or change the color of the
background and axis. Scroll right to add a title to the
chart and axis.
To format a chart in more detail, open a chart view.
Select Options > View and the object you want to edit.
You can change the series, X-axis, and Y-axis settings
(such as the tick marks of either axis).
Presentation
You can open, view, edit, and save presentations
created with Microsoft PowerPoint 97 or later. You can
also create new presentations. Note that not all
features and formatting of the original files are
supported.
Select Menu > Office > Presentat..
To open an existing presentation, browse for the folder
and file, and press the joystick.
80
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 80 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 80 Dec 13, 2005 8:14:13 AM
To create a new presentation, select Options > New
file. Select Blank to create a new presentation without
using a template or Use template to create a
presentation based on an existing template.
View slide shows
To start a slide show, select Options > Presentation.
Select from the following options:
•Manual — Move from one slide to another manually.
•Slide show — Move from one slide to another
manually, or use the automatic slide switching. You
must specify the duration for a slide.
•Manual looped — The slide show continues from the
beginning when the last slide of a presentation has
been shown.
•Looped slide show — The slide show continues
automatically from the beginning when the last
slide of a presentation has been shown.
To move between slides in a slide show, scroll up to
display a previous slide and down to display the next
slide.
To end the slide show, press the right selection key.
Work with different views
The presentation application consists of different views
that help you when reading and creating presentations.
To switch between the different views, scroll right and
left with the joystick.
Layout view
To open the layout view, select the view in the middle.
To enable or disable the visibility of charts, comments,
tables, images, and shapes, select Options > Settings,
scroll to the settings item, and press the joystick.
Outline view
The outline view is used to navigate through long
presentation documents. The view enables fast vertical
scrolling, rearranging of slides, and editing of objects.
To open the outline view, scroll to the view on the left.
In the outline view, each slide has its own main level
entry. Under the main level there is a sublevel for each
text field and object.
To view the slide content, select Options > Expand. To
hide the content, select Options > Collapse. To collapse
or expand all entries, select Options > View > Collapse
all or Expand all.
To change the order of slides, scroll to the slide you
want to move, and select Options > Slide > Move.
Scroll up and down to select a new location, and select
OK.
Notes view
In the notes view, you can read notes that are attached
to slides in the presentation. You can also add your own
notes.
To open the notes view, scroll to the view on the right.
Each slide has its own main level entry. Under the main
level there is a sublevel for notes. If notes are not visible, 81
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 81 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 81 Dec 13, 2005 8:14:13 AM
select Options > View > Expand all. To edit a note,
scroll to the note, and press the joystick.
Edit presentations
To edit a presentation, open the layout view, and select
Options > Edit slide. Scroll right or down with the
joystick to move forward and left or up to move
backward. Select Options.
Define the following options:
•Add title, Add subtitle, Add text, Insert table, Insert
image — Add a new text or object inside the
selected area.
•Edit text, Edit table, Edit document, Edit
workbook — Edit the selected object.
•Edit object — Select Move to move the object, scroll
to the item, and press the joystick. Select Resize to
change the size of the object. Scroll right and left to
change the horizontal size of the object and up and
down to change the vertical size. To accept the
changes, press the joystick. Select Rotate to rotate
the object. Scroll right to rotate the object clockwise
and left to rotate counterclockwise. To accept the
changes, press the joystick. Select Properties to edit
text, line, border, or background properties of the
object.
•Object — Delete, copy, paste, or add a link to the
selected object.
•Object position — Change the layered position of
the selected object in the presentation: up, down,
front, or back.
•Insert — Add a new text box, image, shape, table, or
comment to the presentation.
•Undo, Redo — Withdraw the latest modifications.
Find text in a presentation
To find a piece of text from in the presentation, select
any of the views. Select Options > Find, enter the text
in the Find: field, and press the joystick.
To change the search option for case and whole words,
select Options > Search options.
Screen export
You can show the screen of the device to an audience
with a compatible data projector, or other compatible
projection system. The screen content is transferred to
the data projector using, for example, a Bluetooth
connection.
Select Menu > Office > Screen export.
To be able to show screen content with a compatible
data projector, you must install the drivers of the data
projector. For more information, check with the data
projector manufacturer or its representative.
Not all applications support this feature. You can start
the external viewer in two ways: from the Office folder
or inside an application that supports it.
Show screen content
To show screen content with a data projector, open the
screen export application, and select Options > Select
device. In the list of available devices, scroll to the device
82
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 82 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 82 Dec 13, 2005 8:14:13 AM
you want to use, and select OK. Select Options >
Enable to show screen content.
To hide the screen content, select Options > Hide. The
screen exporter application is moved to the
background.
To stop showing screen content, select Options >
Disable.
Print
Print a message or file from the device. Preview a print
job, define page layout options, select a printer, or print
to a file.
Before you print, make sure that your device is properly
connected to the printer.
To print a message or file, open the message or file, and
select Options > Print.
Define the following options:
•Printer — Select an available printer from the list.
•Print — Select All pages, Even pages, or Odd pages
as the print range.
•Print range — Select All pages in range, Current
page, or Defined pages as the page range.
•Number of copies — Select the number of copies to
print.
•Print to file — Select to print to a file and determine
the location for the file.
You may not be able to print all messages, such as
multimedia messages or other special message types.
To preview a file or message before you print, select
Options > Print > Preview.
To change the page layout before printing, select
Options > Print > Page setup and from the following
tabs:
•Paper size — Change the paper size or orientation
and customize the height and width.
•Margins — Change the size of the left, right, top, or
bottom margins.
•Header — The maximum length of the header is 128
characters. You can set the distance from the header
to the text and choose to include the header on the
first page of the document.
•Footer — The maximum length of the footer is 128
characters. You can set the distance from the footer
to the text.
To add or delete a printer, select Menu > Office >
Printers > Options > Add or Delete.
83
Office applications
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 83 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 83 Dec 13, 2005 8:14:13 AM
Settings
Select Menu > Tools > Settings.
You can define and modify various settings of your
device. Modifying these settings affects the operation
of your device across several applications.
Some settings may be preset for the device or sent to
you in a configuration message by your network
operator or service provider. You may not be able to
change such settings.
Scroll to the setting that you want to edit, and press the
joystick to do the following:
• Switch between two values, such as on or off.
• Select a value from a list.
• Open a text editor to enter a value.
• Open a slider to decrease or increase the value by
scrolling left or right.
Phone settings
Select Phone to change the language settings, standby
mode settings, and display settings of your device.
General settings
Select General and from the following:
•Phone language — Select a language from the list.
Changing the device language affects every
application in your device. When you change the
language, the device restarts.
•Writing language — Select a language from the list.
Changing the writing language also affects the
characters that are available when writing text and
the predictive text dictionary that is used.
•Predictive text — Select On to use predictive text
input. The predictive text dictionary is not available
for all languages.
•Welcome note / logo — Select Default to use the
default image, Text to enter a welcome note of your
own, or Image to select an image from the Gallery.
The welcome note or image is displayed briefly each
time you switch on the device.
•Orig. phone settings — Restore the original device
settings. To do this, you need your device lock code.
After resetting, the device may take a longer time to
power on. Documents, contact information,
calendar entries, and files are unaffected.
Standby mode settings
Select Standby mode and from the following:
•Active standby — Select On to have shortcuts to
different applications available in the active standby
mode.
•Left selection key, Right selection key — Change the
shortcuts that open from the left and right selection
keys in the standby screen.
84
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 84 Dec 13, 2005 8:14:13 AM
•Navigation key right, Navigation key left, Navigat.
key down, Navigation key up, Selection
key — Change the shortcuts that open when you
scroll to different directions. These settings are not
available if you select Active standby > On.
Display settings
Select Display and from the following:
•Light sensor — Adjust the amount of light required
to illuminate the device display.
•Power saver time-out — Select the amount of time
before the screen saver is activated. Activating the
screen saver lengthens the device operating time.
•Light time-out — Set how quickly after last keypress
the display dims.
Call settings
Select Call and from the following:
•Send my caller ID — Select Yes to display your phone
number to the person you are calling or Set by
network to let the network to determine whether
your caller ID is sent.
•Send my net call ID — Set this feature on if you want
to display your Internet caller ID to the person you
are calling.
•Call waiting — Select Activate to be notified of a new
incoming call while you have a call in progress or
Check status to check if the function is active on the
network.
•Internet call waiting — Activate this feature to be
notified of a new incoming call while you have an
internet call in progress.
•Internet call alert — Set this on if you want the
device to respond to the caller that it is busy. If you
set this off, the device emits a busy tone to the caller
and you receive a notification about the missed call.
•Default call type — Select Cellular to make normal
calls to the phone number or Internet to use VoIP to
call the number or address.
•Reject call with SMS — Select Yes to send a text
message automatically to the person who is calling
you informing why you cannot answer their
incoming call.
•Message text — Enter the text that is sent when you
cannot answer an incoming call and want to
automatically send a text message as a reply.
•Image in video call — Select Use selected to select a
still image to be displayed instead of a video during
a video call or None to not send any image during a
video call.
•Automatic redial — Select On to redial a number if it
was busy at the first call attempt. Your device makes
a maximum of 10 attempts to connect the call.
•Summary after call — Select On to briefly display the
approximate duration of the last call.
•1-touch dialing — Select On to activate speed
dialing on your device. To dial a phone number
assigned to the speed dialing keys (2-9), press and
hold the key.
See "1-touch dial," p. 25.
•Anykey answer — Select On to answer an incoming
call by briefly pressing any key, except the end key.
85
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 85 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 85 Dec 13, 2005 8:14:13 AM
•Line in use — Select Line 1 or Line 2 to change the
phone line for outgoing calls and text messages
(network service). This setting is displayed only if the
SIM card supports the alternate line service and a
subscription to two phone lines.
•Line change — Select Disable to prevent line
selection (network service). To change this setting,
you need the PIN2 code.
•Internet call alert — Select Off to notify incoming
Internet calls that your device is busy or On to accept
incoming Internet calls.
Connection settings
Select Menu > Tools > Settings > Connection and
from the following:
•Access points — Set up new or edit existing access
points. Some or all access points may be preset for
your device by your service provider, and you may
not be able to create, edit, or remove them.
•Access point groups — Set up new or edit existing
access point groups that are used in automatic
connection establishment and e-mail roaming.
•Packet data — Determine when packet data
connections are used, and enter the access point if
you use your device as a modem for a computer.
•Internet tel. settings — Define settings for Internet
calls.
•SIP settings — View or create session initiation
protocol (SIP) profiles.
•Data call — Set the time-out period after which data
call connections automatically end.
•VPN — Install and manage VPN policies, manage
VPN policy servers, see the VPN log, and create and
manage VPN access points.
•Wireless LAN — Determine if the device displays an
indicator when a wireless LAN is available, and how
often the device searches for networks.
•Configs. — View and delete trusted servers from
which your device may receive configuration
settings.
To obtain information about wireless LAN or
subscribing to a packet data service and the
appropriate connection and configuration settings,
contact your network operator or service provider.
The settings available for editing may vary.
Access points
Select Menu > Tools > Settings > Connection >
Access points.
An access point is where your device connects to the
network by way of a data connection. To use e-mail and
multimedia services or to browse web pages, you must
first define access points for these services.
An access point group is used for grouping and
prioritizing access points. An application can use a
group as a connection method instead of a single access
point. In that case, the best available access point inside
a group is used for making the connection, and in case
of e-mail, also for roaming.
Some or all access points may be preset for your device
by your service provider, and you may not be able to
create, edit, or remove them.
86
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 86 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 86 Dec 13, 2005 8:14:13 AM
See "Internet access points," p. 54.
Access point groups
Select Menu > Tools > Settings > Connection >
Access point groups.
An access point group is used for grouping and
prioritizing access points. An application can use a
group as a connection method instead of a single access
point. In that case the best available access point inside
a group is used for making connection and in case of e-
mail, also for roaming. See "Access point groups," p. 64.
Packet data
Select Menu > Tools > Settings > Connection >
Packet data.
Your device supports packet data connections, such as
GPRS in the GSM network. When you are using your
device in GSM and UMTS networks, it is possible to have
multiple data connections active at the same time;
access points can share a data connection, and data
connections remain active (for example, during voice
calls). See "Connection manager," p. 62.
Packet data settings
The packet data settings affect all access points using a
packet data connection.
Select from the following:
•Packet data conn. — Select When available to
register the device to the packet data network when
you switch the device on in a supported network.
Select When needed to establish a packet data
connection only when an application or action
requires it.
•Access point — Enter the access point name
provided by your service provider to use the device
as a packet data modem to your computer.
These settings affect all access points for packet data
connections.
Internet call settings
Select Menu > Tools > Settings > Connection >
Internet tel. settings. Select Options > New profile or
Options > Edit.
Scroll to Name, press the joystick, enter a name for the
profile, and select OK.
Scroll to SIP profiles, press the joystick, select a profile
and OK. SIP protocols are used for creating, modifying,
and terminating communications sessions such as
Internet calls with one or more participants. SIP profiles
include settings for these sessions.
To save your settings, press Back.
Data call settings
Select Menu > Tools > Settings > Data call.
To set the time-out period after which data calls
automatically end if no data has been transferred,
select Online time, and press the joystick. Select User
defined to enter the time yourself or Unlimited to keep
the connection active until you select Options >
Disconnect.87
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 87 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 87 Dec 13, 2005 8:14:13 AM
VPN
VPN access points
To manage VPN access points, select VPN > VPN access
points > Options, and from the following:
•Edit — Edit the selected access point. If the access
point is in use or its settings are protected, you
cannot edit it.
•New access point — Create a new VPN access point.
•Delete — Delete the selected access point.
VPN access point settings
Contact your service provider for the correct access
point settings.
To edit VPN access point settings, select the access point
and Options.
Select from the following:
•Connection name — Enter a name for the VPN
connection. The maximum length of the name is 30
characters.
•VPN policy — Select a VPN policy to be used with this
access point.
•Internet access pt. — Select the Internet access
point to be used with this VPN access point.
•Proxy serv. address — Enter the proxy server
address of this VPN access point.
•Proxy port number — Enter the number of the proxy
port.
Wireless LAN
Select Menu > Tools > Settings > Connection >
Wireless LAN.
To have an indicator displayed when there is a wireless
LAN available in your current location, select Show
availability > Yes.
To select the time interval for your device to scan for
available wireless LANs and update the indicator, select
Scan for networks. This setting is not visible unless you
select Show availability > Yes.
Advanced WLAN settings
Select Menu > Tools > Settings > Connection >
Wireless LAN > Options > Advanced settings. The
wireless LAN advanced settings are normally defined
automatically, and changing them is not
recommended.
To edit the settings manually, select Automatic
config. > Disabled, and define the following:
•Long retry limit — Enter the maximum number of
transmission attempts if the device does not receive
a receiving acknowledgement signal from the
network.
•Short retry limit — Enter the maximum number of
transmission attempts if the device does not receive
a clear-to-send signal from the network.
•RTS threshold — Select the data packet size at which
the wireless LAN access point device issues a request
to send before sending the packet.
•TX power level — Select the power level of your
device when sending data.
88
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 88 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 88 Dec 13, 2005 8:14:13 AM
•Radio measurem. — Enable or disable the radio
measurements.
To restore all settings to their original values, select
Options > Restore defaults.
Security settings for wireless LAN access
points
WEP security settings
Select Menu > Tools > Settings > Connection >
Access points. Select Options > New access point, or
select an access point and Options > Edit.
In the access point settings, select WLAN security
mode > WEP.
Wired equivalent privacy (WEP) encryption method
encrypts data before it is transmitted. Access to the
network is denied to users who do not have the
required WEP keys. When WEP security mode is in use,
if your device receives a data packet not encrypted with
the WEP keys, the data is discarded.
In an Ad-hoc network, all devices must use the same
WEP key.
Select from the following:
•WEP key in use — Select the desired WEP key.
•Authentication type — Select Open or Shared.
•WEP key settings — Edit the settings for the WEP key.
WEP key settings
Select Menu > Tools > Settings > Connection >
Access points. Select Options > New access point, or
select an access point and Options > Edit.
In the access point settings, select WLAN security
mode > WEP.
In an Ad-hoc network, all devices must use the same
WEP key.
Select WLAN security sett. > WEP key settings and from
the following:
•WEP encryption — Select the desired WEP
encryption key length.
•WEP key format — Select whether you want to enter
the WEP key data in ASCII or Hexadecimal format.
•WEP key — Enter the WEP key data.
802.1x security settings
Select Menu > Tools > Settings > Connection >
Access points. Select Options > New access point, or
select an access point and Options > Edit.
In the access point settings, select WLAN security
mode > 802.1x.
802.1x authenticates and authorizes devices to access
a wireless network, and prevents access if the
authorization process fails.
Select WLAN security sett.. and from the following:
•WPA mode — Select EAP (Extensible Authentication
Protocol) or Pre-shared key (a secret key used for
device identification).
•EAP plug-in settings — If you selected WPA mode >
EAP, select which EAP plug-ins defined in your device
to use with the access point.
•Pre-shared key — If you selected WPA mode > Pre-
shared key, enter the shared private key that
identifies your device to the wireless LAN to which
you connect. 89
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 89 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 89 Dec 13, 2005 8:14:13 AM
The settings available for editing may vary.
WPA security settings
Select Menu > Tools > Settings > Connection >
Access points. Select Options > New access point, or
select an access point and Options > Edit.
In the access point settings, select WLAN security
mode > WPA/WPA2.
Select WLAN security sett.. and from the following:
•WPA mode — Select EAP (Extensible Authentication
Protocol) or Pre-shared key (a secret key used for
device identification).
•EAP plug-in settings — If you select WPA mode >
EAP, select which EAP plug-ins defined in your device
to use with the access point.
•Pre-shared key — If you select WPA mode > Pre-
shared key, enter the shared private key that
identifies your device to the wireless LAN to which
you connect.
•TKIP encryption — To enable TKIP encryption, based
on transient keys changed often enough to prevent
misuse, select Allowed. All devices in the wireless
LAN must either allow or prevent the use of TKIP
encryption.
The settings available for editing may vary.
EAP
To view the EAP (extensible authentication protocol)
plug-ins currently installed in your device (network
service), select Menu > Tools > Settings >
Connection > Access points. Select Options > New
access point and define an access point that uses
wireless LAN as a data bearer and 802.1x or WPA/
WPA2 as their security mode. Select WLAN security
sett. > WPA mode > EAP, scroll to EAP plug-in
settings, and press the joystick.
EAP settings
Select Menu > Tools > Settings > Connection >
Access points. Select Options > New access point, or
select an access point and Options > Edit.
Select WLAN security mode > 802.1x or WPA/WPA2.
Select WLAN security sett. > WPA mode > EAP, scroll
to EAP plug-in settings, and press the joystick.
The extensible authentication protocol (EAP) plug-ins
are used in wireless networks to authenticate wireless
devices and authentication servers, and the different
EAP plug-ins make possible the use of various EAP
methods (network service).
To use an EAP plug-in when you connect to a WLAN
using the access point, select the desired plug-in and
Options > Enable. The EAP plug-ins enabled for use
with this access point have a check mark next to them.
To not use a plug-in, select Options > Disable.
To edit the EAP plug-in settings, select Options >
Configure.
To change the priority of the EAP plug-in settings, select
Options > Move up to attempt to use the plug-in before
other plug-ins when connecting to the network with
the access point, or Options > Move down to use this
plug-in for network authentication after attempting to
use other plug-ins.
The available options may vary.
See the device help for more information on EAP
plugins.
90
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 90 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 90 Dec 13, 2005 8:14:13 AM
Configurations
To view and delete configurations for trusted servers,
select Menu > Tools > Settings > Connection >
Configs..
You can receive messages from your network operator,
service provider, or company information management
that contain configuration settings for trusted servers.
These settings are automatically saved in Configs.. You
may receive configuration settings for access points,
multimedia or e-mail services, and IM or
synchronization settings from trusted servers.
To delete configurations for a trusted server, scroll to
the server, and press the clear key. The configuration
settings for other applications provided by this server
are also deleted.
Date and time settings
See "Clock settings," p. 95.
Security settings
See "Define security settings," p. 32.
Enhancement settings
Select Menu > Tools > Settings > Enhancement.
Warning: When you use the headset, your ability
to hear outside sounds may be affected. Do not use the
headset where it can endanger your safety.
With most enhancements, you can select from the
following settings:
•Default profile — Select the profile that is activated
when you attach an enhancement to your device.
•Automatic answer — Let the device answer phone
calls automatically when an enhancement is
attached. Select On to have the device answer an
incoming call automatically after 5 seconds. If the
ringing type is set to Beep once or Silent in the
Profiles menu, automatic answer is disabled.
•Lights — Select On to illuminate the device while it
is attached to an enhancement.
91
Settings
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 91 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 91 Dec 13, 2005 8:14:13 AM
Organizer
Select Menu > Organizer.
Organizer includes tools that help you organize and
manage the details of different events in your personal
and business life.
Calendar
Select Menu > Organizer > Calendar.
In Calendar, you can create and view scheduled events
and appointments. You can also set alarms for calendar
entries.
You can synchronize your calendar data with a
compatible computer using Nokia PC Suite. For
information on synchronization, see the PC Suite guide.
Create calendar entries
You can create four types of calendar entries:
•Meeting entries have a specific date and time.
•Memo entries are related to the whole day but not
to a specific time of the day. Memo entries do not
appear in the weekly time schedule view.
•Anniversary entries remind you of birthdays and
special dates. They refer to a certain day but not a
specific time of the day. Anniversary entries are
repeated every year.
•To-do note entries remind you of a task that has a
due date but not a specific time of the day.
To create a calendar entry, scroll to a date, and select
Options > New entry. Select an entry type. Available
settings for meeting, memo, anniversary, and to-do
entries vary.
To open and edit an existing entry, scroll to the entry,
and select Options > Open. Edit the details in the
various fields.
Tip: When you edit or delete a repeated entry,
choose how you want the change to take effect.
If you select All calendar entries deleted, all
repeated entries are deleted. If you select
Delete entry, only the current entry is deleted.
To-do
You can create and maintain a task or list of tasks that
must be done by a certain day. Each task can be
assigned a due date, but not a specific time of the day.
To open the list of to-do notes, select Options > To-do
list.
To add a to-do note, select Options > New entry > To-
do. Start to write the task in the Subject field. You can
set a due date for the task, and specify a priority. The
priority icons are ( ! ) High and ( - ) Low. There is no icon
for Normal.
92
Organizer
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 92 Dec 13, 2005 8:14:13 AM
To mark a task as completed, scroll to the task in the to-
do list, and select Options > Mark as done.
To restore a task, scroll to it in the todo list, and
select Options > Mark as not done.
Calendar views
To switch between the different calendar views,
select Options in any calendar view. Select a type of view
from the list.
To set the default calendar view, select Options >
Settings > Default view > Month view , Week view,
Day view, or To-do view.
To view a specific date in the calendar view, select
Options > Go to date. Enter the date, and select OK.
Add a received calendar entry to
your calendar
You can receive a calendar entry as an attachment to a
multimedia or e-mail message.
To add a received calendar entry to your calendar, open
the calendar entry attachment in the message, and
select Options > Save to Calendar. The entry is added
to your default calendar.
Notes
Select Menu > Organizer > Notes.
You can create and send notes to other compatible
devices, and save plain text files (.txt format) that you
receive to Notes.
To write a new note, select Options > New note, write
the text and press Done.
Calculator
Note: This calculator has limited accuracy and is
designed for simple calculations.
Select Menu > Organizer > Calculator.
To make a calculation, enter the first number of the
calculation. Scroll to and select a function such as add
or subtract from the function map. Enter the second
number of the calculation, and select =. To add a
decimal point, press #.
The calculator performs operations in the order they are
entered. The result of the calculation remains in the
editor field and can be used as the first number of a new
calculation.
To save the results of a calculation, select Options >
Memory > Save. The saved result replaces the
previously stored number in memory.
To retrieve the results of a calculation from memory and
use them in a calculation, select Options > Memory >
Recall.
To view the last saved result, select Options > Last
result.
Exiting the calculator application or turning off the
device does not clear the memory. You can recall the 93
Organizer
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 93 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 93 Dec 13, 2005 8:14:13 AM
last saved result the next time you open the calculator
application.
Converter
Select Menu > Organizer > Converter.
The converter has limited accuracy, and rounding errors
may occur.
Convert measurements
1. Scroll to the Type field, and select Options >
Conversion type to open a list of measures. Scroll to
the measure you want to use, and select OK.
2. Scroll to the first Unit field, and select Options >
Select unit. Select the unit from which you want to
convert, and select OK. Scroll to the next Unit field,
and select the unit to which you want to convert.
3. Scroll to the first Amount field, and enter the value
you want to convert. The other Amount field
changes automatically to show the converted value.
Press # to add a decimal and * for + and - (for
temperature), and E (exponent) symbols.
Set base currency and exchange
rate
Note: When you change base currency, you must
enter new exchange rates because all previously set
exchange rates are cleared.
Before you can make currency conversions, you must
choose a base currency and add exchange rates. The
rate of the base currency is always 1. The base currency
determines the conversion rates of the other
currencies.
1. To set the rate of exchange for the unit of currency,
scroll to the Type field, and select Options >
Currency rates.
2. A list of currencies opens, and you can see the
current base currency at the top. Scroll to the
currency type and enter the exchange rate you
would like to set per single unit of currency.
3. To change the base currency, scroll to the currency,
and select Options > Set as base curr..
4. Select Done > Yes to save the changes.
After you have inserted all the necessary exchange
rates, you can make currency conversions.
Voice mailbox
Select Menu > Organizer > Voic. mail.
When you open the voice mailbox application for the
first time, you are asked to enter the number of your
voice mailbox. To change the number, select Options >
Change number. To call the number, select Options >
Call voice mailbox.
Clock
Select Menu > Clock.
94
Organizer
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 94 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 94 Dec 13, 2005 8:14:13 AM
Clock settings
If the alarm time is reached while the device is switched
off, the device switches itself on and starts sounding the
alarm tone. If you select Stop, the device asks whether
you want to activate the device for calls. Select No to
switch off the device or Yes to make and receive calls.
Do not select Yes when wireless phone use may cause
interference or danger.
To change the clock type, select Options > Settings >
Clock type > Analog or Digital.
To set an alarm, select Options > Set alarm. Enter the
alarm time, and select OK.
To view and change alarms, select Reset alarm.
To remove an alarm, select Remove alarm.
Date and time settings
To change the date and time, their display formats,
alarm tone, and to define whether you want to use
automatic time update and daylight savings time,
select Options > Settings and from the following:
•Time — Enter the time, and select OK.
•Time zone — Enter the time zone, and select OK.
•Date — Enter the date, and select OK.
•Date format — Change how the date is displayed.
Scroll to the desired format, and select OK.
•Date separator — Change the symbol that separates
days, months, and years. Scroll to the symbol you
want, and select OK.
•Time format — Select 24-hour or am/pm.
•Time separator — Select the symbol that separates
hours and minutes.
•Clock type — Select Analog or Digital.
•Clock alarm tone — Select the tone that you want to
use for the alarm clock.
•Auto time update — Update time, date, and time
zone information automatically (network service).
Select On to activate. This service may not be
available in all networks.
•Daylight-saving — Set the clock to automatically
adjust for daylight savings time. Select On. This
setting is only available if Auto time update is set to
Off.
Add and delete cities
To add a city, scroll right, and select Options > Add
city. Scroll to a city, and select Options > Select.
Tip: To search for a city in the Cities list, select
Options > Add city > Options > Find. Enter
the city name in the search field.
To delete a city, scroll right, scroll to the city, and select
Options > Remove.
Changing the home city may change the general system
time of your device.
95
Organizer
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 95 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 95 Dec 13, 2005 8:14:13 AM
Tools
Select Menu > Tools.
The Tools folder contains applications used to configure
your device and to configure other applications.
Memory card—See "Memory card," p. 19.
Transfer—See "Transfer content between
devices," p. 20.
Profiles—See "Profiles," p. 102.
Settings—See "Settings," p. 84.
Positioning
With the positioning service you can receive
information from service providers about local issues
such as weather or traffic conditions, based on the
location of your device (network service).
Select Menu > Tools > Positioning.
To select a positioning method, scroll to the positioning
method, and select Options > Enable. To stop using it,
select Options > Disable. The Bluetooth positioning
method enables you to use Bluetooth GPS
enhancements for positioning. The Network based
positioning method is provided by your network
operator or service provider. Both positioning methods
can be used simultaneously.
Navigator
This feature is not designed to support positioning
requests for related calls. Contact your service provider
for more information about how your phone complies
with government regulations on location based
emergency calling services.
GPS should not be used for precise location
measurement, and you should never rely solely on
location data from the GPS receiver.
Select Menu > Tools > Navigator.
Navigator is a GPS application that enables you to view
your current location, find your way to a desired
location, and track distance. The application requires a
Bluetooth GPS accessory to operate. You must also have
Bluetooth GPS positioning method enabled in Menu >
Tools > Positioning.
The application must receive positioning info from at
least three satellites to use it as a traveling aid. Changes
to this application may affect your privacy, so you must
control how it is used.
Select from the following:
•Navigator — View navigating information to your
trip destination.
•Position — View positioning information about
your current location.
96
Tools
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 96 Dec 13, 2005 8:14:13 AM
•Trip dist. — View your traveling information such as
the distance and duration you have traveled and
your average and maximum speeds.
Landmarks
Select Menu > Tools > Landmarks.
Landmarks are coordinates to geographic locations
that you can save to your device for later use in different
location-based services. You can create landmarks
using a Bluetooth GPS enhancement or network
(network service). See "Navigator," p. 96.
To create a landmark, select Options > New
landmark. Select Current position to make a network
request for the latitude and longitude coordinates of
your current location or Enter manually to fill in the
necessary location information such as a name,
category, address, latitude, longitude and altitude.
To delete a landmark, scroll to it, and press the clear key.
For more information, see the extended User's Guide on
the Web.
Voice commands
Select Menu > Tools > Voice commands.
Use voice commands to make phone calls and to launch
applications, profiles, or other functions on the device.
The device creates a voice tag for the entries in the
contacts list and for the functions designated in the
Voice commands application. When a voice command
is spoken, the device compares the spoken words to the
voice tag in the device.
Use a voice command to make a
call
The voice tag for a contact is the name or nickname that
is saved on the contact card in Contacts. To listen to the
voice tag, open a contact card, and select Options >
Playback.
1. To make a call using a voice command, press and
hold the voice key.
2. When you hear the tone or see the visual display,
clearly speak the name saved on the contact card.
3. The device plays a synthesized voice tag for the
recognized contact in the selected device language,
and displays the name and number. After a timeout
of 1.5 seconds, the device dials the number. If the
recognized contact was not correct, select Next to
view a list of other matches or Quit to cancel dialing.
Use a voice command to launch an
application
The device creates voice tags for the applications listed
in the Voice commands application.
To launch an application using a voice command, press
and hold the voice key, and clearly speak the voice
command. If the recognized application was not
correct, select Next to view a list of other matches or
Quit to cancel.
97
Tools
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 97 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 97 Dec 13, 2005 8:14:13 AM
To add more applications to the list, select Options >
New application.
To change the voice command of an application, scroll
to the application, and select Options > Change
command. Type the new voice command, and select OK.
Use voice commands for profiles
The device creates a voice tag for each profile. To set on
a profile using a voice command, press and hold the
voice key, and say the name of the profile.
To change the voice command, scroll to the desired
profile, and select Profiles > Options > Change
command.
Voice command settings
To switch off the synthesizer that plays recognized
voice commands in the selected device language, select
Settings > Synthesizer > Off.
To reset voice recognition learning when the main user
of the device has changed, select Reset voice adapts..
Application manager
Select Menu > Tools > App. manager.
When you open the application manager, you see all
the software packages that have been installed, with
their name, version number, type, and size. You can
view the details of installed applications, remove them
from your device, and specify installation settings.
Certificate manager
Important: Note that even if the use of
certificates makes the risks involved in remote
connections and software installation considerably
smaller, they must be used correctly in order to benefit
from increased security. The existence of a certificate
does not offer any protection by itself; the certificate
manager must contain correct, authentic, or trusted
certificates for increased security to be available.
Certificates have a restricted lifetime. If Expired
certificate or Certificate not valid yet is shown even if
the certificate should be valid, check that the current
date and time in your device are correct.
Before changing any certificate settings, you must
make sure that you really trust the owner of the
certificate and that the certificate really belongs to the
listed owner.
Digital certificates are used to verify the origins of
software but do not guarantee safety. There are three
different types of certificates: authority certificates,
personal certificates, and server certificates. During a
secure connection, a server may send a server
certificate to your device. Upon receipt, it is checked
through an authority certificate stored on your device.
You receive notification if the identity of the server is
not authentic or if you do not have the correct
certificate in your device.
Download a certificate from a web site, or receive a
certificate as an e-mail attachment, or as a message
sent through a Bluetooth or infrared connection.
Certificates should be used when you connect to an
98
Tools
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 98 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 98 Dec 13, 2005 8:14:13 AM
online bank or a remote server to transfer confidential
information. They should also be used if you want to
reduce the risk of viruses or other malicious software,
and to check the authenticity of software when you
download and install software to your device.
Tip: When you add a new certificate, check its
authenticity.
Nokia Catalogs
Select Menu > Tools > Catalogs. Select OK if you accept
the disclaimer.
Nokia Catalogs (network service) is a mobile content
shop available on your device. With Nokia Catalogs you
can discover, preview, buy, download, and upgrade
content, such as games, ringing tones, wallpapers,
services, and applications, for your device. The available
content depends on your network operator and service
provider.
Nokia Catalogs uses your network services to access the
most updated catalog content. For information on
additional items available through Nokia Catalogs,
contact your network operator or service provider.
Nokia Catalogs receives ongoing updates, bringing you
the latest content your network operator or service
provider offers for your device. To update the catalogs
manually, select Options > Refresh list.
99
Tools
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 99 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 99 Dec 13, 2005 8:14:13 AM
Device management
Manage data and software on your device.
Remote configuration
network service
Select Menu > Connectivity > Device mgr..
You can connect to a server and receive configuration
settings for your device. You may receive server profiles
and different configuration settings from your network
operator, service providers, and company information
management department. Configuration settings may
include connection and other settings used by different
applications in your device. Available options may vary.
The remote configuration connection is usually started
by the server when the device settings need to be
updated.
Remote configuration settings
In the Device mgr. main view, select Options and select
from the following:
•Start configuration — Connect to the server and
receive configuration settings for your device.
•New server profile — Create a new server profile.
•Edit profile — Change the profile settings.
•Delete — Remove the selected profile.
•Enable config. — Select to receive configuration
settings from those servers for which you have a
server profile and have allowed configuration.
•Disable config. — Select to stop receiving
configuration settings from all servers for which you
have a server profile.
•View log — View the configuration log of the
selected profile.
Data synchronization
Menu > Connectivity > Sync.
Use Sync to synchronize your contacts, calendar, notes,
or mailboxes with corresponding applications on a
compatible computer or remote Internet server. Your
synchronization settings are saved in a synchronization
profile. The application uses SyncML technology for
remote synchronization. For information on SyncML
compatibility, contact the supplier of the applications
with which you want to synchronize your device.
The available applications you can synchronize may
vary. Contact your service provider for more
information.
Tip: You may receive the synchronization
settings as a message from your service
provider.
100
Device management
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 100 Dec 13, 2005 8:14:13 AM
Create a synchronization profile
To create a profile, select Options > New sync profile
and select from the following options:
•Sync profile name — Enter a name for the profile.
•Applications — Select the applications to
synchronize with the profile.
•Connection settings — Specify the needed
connection settings. Contact your service provider
for information.
101
Device management
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 101 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 101 Dec 13, 2005 8:14:13 AM
Personalization
Profiles
Warning: In the offline profile you cannot make
or receive any calls, including emergency calls, or use
other features that require network coverage. To make
calls, you must first activate the phone function by
changing profiles. If the device has been locked, enter
the lock code.
Select Menu > Tools > Profiles.
You can adjust and customize the ringing tones, alert
tones, and other device tones for different events,
environments, or caller groups.
To customize a profile, scroll to the desired profile in
the list, and select Options > Customize.
Define the following settings:
•Ringing tone — Select a ringing tone from the list,
or select Tone downloads to open a bookmark folder
containing a list of bookmarks for downloading
tones using the browser. To listen to the selected
tone, select Play. If you have two alternate phone
lines in use, you can specify a ringing tone for each
line.
•Video call tone — Select a ringing tone for video
calls.
•Say caller's name — Activate the text-to-speech
ringing tone feature. When someone from your
contacts list calls you, the device sounds a ringing
tone that is a combination of the spoken name of
the contact and the selected ringing tone.
•Ringing type — Select how you want the ringing
tone to alert.
•Ringing volume — Select the volume level of the
ringing tone.
•Message alert tone — Select a tone for received text
messages.
•E-mail alert tone — Select a tone for received e-mail
messages.
•IM alert tone — Select a tone for received instant
messages.
•Vibrating alert — Select whether you want the
device to vibrate when you receive a call.
•Keypad tones — Set the volume level of the device
keypad tones.
•Warning tones — Set the warning tones on or off.
•Alert for — You can set the device to ring only upon
calls from phone numbers that belong to a selected
contact group. Phone calls coming from outside that
group have a silent alert.
•Profile name — You can give a name to a new profile
or rename an existing profile. The Normal and
Offline profiles cannot be renamed.
The Offline profile prevents your device from
accidentally switching on, sending or receiving
messages, or using Bluetooth; it also closes any
Internet connection that may be in operation when
the profile is selected. The Offline profile does not
prevent you from establishing a wireless LAN
102
Personalization
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 102 Dec 13, 2005 8:14:13 AM
connection at a later time, so comply with any
applicable safety requirements when establishing
and using wireless LAN connections.
To change a profile, scroll to the desired profile in the
list, and select Options > Activate. If you select the
Offline profile, you cannot send or receive messages or
use WLAN to read your e-mails.
To create a new profile, select Options > Create new,
and define the settings.
Themes
Select Menu > Tools > Themes.
You can change the look of the display of your device.
To change the look of the display, highlight the theme
you want to use, and select Options > Apply.
To edit a theme, highlight the theme you want to edit,
and select Options > Edit.
To download themes, you need to establish a network
connection that allows you to download themes from
Internet sources that are compatible with your device.
To download a theme, select Theme downloads. Enter
the link from which you want to download your theme.
Once the theme is downloaded you can preview,
activate, or edit it.
To preview a theme, highlight the theme you want to
preview, and select Options > Preview. Select Apply to
start using the new theme.
103
Personalization
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 103 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 103 Dec 13, 2005 8:14:13 AM
Nokia original enhancements
An extensive range of enhancements is available for
your device. Select the enhancements that
accommodate your specific communication needs. For
availability of the enhancements, check with your local
dealer.
Compatible power enhancements:
• 1150 mAh Li-Po battery (BL-6C)
• Charger (ACP-12)
• Retractable charger (AC-1)
• Mobile charger (LCH-12)
Compatible audio enhancements:
• Headset (HS-5)
• Boom headset (HDB-4)
• Wireless boom headset (HS-4W)
• Wireless headset (HS-11W)
• Loopset (LPS-4)
• TTY adapter (HDA-10)
Compatible messaging and data enhancements:
• Wireless keyboard (SU-8W)
• Connectivity cable (CA-53)
• Mini SD (64 MB - 1 GB)
• Wireless GPS module (LD-1W)
Compatible imaging enhancements:
• Remote camera (PT-6)
• Image album (PD-1)
• Photo flash (PD-2)
Compatible car enhancements:
• Mobile holder (MBC-13L)
• Hands-free headrest (BHF-3)
• Hands-free car plug-in (HF-3)
• Wireless hands-free car plug-in (HF-6W)
• Basic car kit (CK-10)
• Advanced car kit (CK-7W)
• Car kit phone (N616)
Enhancements
A few practical rules about accessories and
enhancements.
• Keep all accessories and enhancements out of the
reach of small children.
• When you disconnect the power cord of any
accessory or enhancement, grasp and pull the plug,
not the cord.
• Check regularly that enhancements installed in a
vehicle are mounted and are operating properly.
• Installation of any complex car enhancements must
be made by qualified personnel only.
104
Nokia original enhancements
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 104 Dec 13, 2005 8:14:13 AM
Shortcuts
Here are some of the available keyboard shortcuts in
your device. Shortcuts can make the use of the
applications more efficient.
Some shortcuts are application-specific and they are
not available for all applications.
Active standby mode
Left selection
key + *
Lock and unlock the keypad.
Call key Open the call log.
0Press and hold to open your home
page in the Web browser.
#Press and hold to switch between
the Silent and Normal profiles.
1Press and hold to call your voice
mailbox.
Number key (2–
9)
Call a phone number using speed
dialling. You must first activate
speed dialling (Menu > Tools >
Settings > Call > 1-touch dialing >
On).
Full-sized keyboard open
Shift + joystick Press and hold the Shift key and
scroll left or right with the joystick
to select text.
Ctrl+X Cut text.
Ctrl+C Copy text.
Ctrl+V Paste text.
Chr + Shift Change the writing language.
Full-sized keyboard closed
Edit key +
joystick
Press and hold the Edit key and scroll
left, right, up or down with the
joystick.
#Press to switch between the
different text cases. Press twice
quickly to set the predictive text
input on and off.
#Press and hold to switch between
letter and number mode.
Number keys
(0–9)
When writing text, press and hold a
number key to insert a number.
Image viewer
Call key Send the image.
0Zoom out.
5Zoom in.
105
Shortcuts
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 105 Dec 13, 2005 8:14:13 AM
7Zoom in. Press twice for the full
screen size.
4Scroll left in the zoomed image.
6Scroll right in the zoomed image.
2Scroll up in the zoomed image.
8Scroll down in the zoomed image.
3Rotate clockwise.
1Rotate counterclockwise.
*Switch between the full screen size
and normal view.
106
Shortcuts
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 106 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 106 Dec 13, 2005 8:14:13 AM
Battery information
Your device is powered by a rechargeable battery. The
full performance of a new battery is achieved only after
two or three complete charge and discharge cycles. The
battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, buy
a new battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved
chargers designated for this device.
Unplug the charger from the electrical plug and the
device when not in use. Do not leave fully charged
battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged
battery will lose its charge over time.
If the battery is completely discharged, it may take a
few minutes before the charging indicator appears on
the display or before any calls can be made.
Use the battery only for its intended purpose. Never use
any charger or battery that is damaged.
Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object such as a
coin, clip, or pen causes direct connection of the positive
(+) and negative (-) terminals of the battery. (These look
like metal strips on the battery.) This might happen, for
example, when you carry a spare battery in your pocket
or purse. Short-circuiting the terminals may damage
the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a
closed car in summer or winter conditions, will reduce
the capacity and lifetime of the battery. Always try to
keep the battery between 15°C and 25°C (59°F and 77°
F). A device with a hot or cold battery may not work
temporarily, even when the battery is fully charged.
Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Dispose of
batteries according to local regulations. Please recycle
when possible. Do not dispose as household waste.
1150 mAh Li-Ion battery
(BL-6C) information
Variation in talk time and standby time may occur,
depending on the SIM card, network and usage settings,
and the style and environment of use.
• GSM talk time: up to 6 hours
• WCDMA talk time: up to 6 hours
• GSM standby time: up to 7.6 days
• WCDMA standby time: up to 8.7 days
Nokia battery
authentication guidelines
Always use original Nokia batteries for your safety. To
check that you are getting an original Nokia battery, 107
Battery information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 107 Dec 13, 2005 8:14:13 AM
purchase it from an authorized Nokia dealer, look for
the Nokia Original Enhancements logo on the
packaging, and inspect the hologram label using the
following steps:
Successful completion of the four steps is not a total
assurance of the authenticity of the battery. If you have
any reason to believe that your battery is not an
authentic original Nokia battery, you should refrain
from using it, and take it to the nearest authorized
Nokia service point or dealer for assistance. Your
authorized Nokia service point or dealer will inspect the
battery for authenticity. If authenticity cannot be
verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram
on the label, you should see the
Nokia connecting hands
symbol from one angle and the
Nokia Original Enhancements
logo when looking from
another angle.
2. When you angle the hologram
left, right, down, and up, you
should see 1, 2, 3, and 4 dots
on each side respectively.
3. Scratch the side of the label to
reveal a 20-digit code, for
example,
12345678919876543210.
Turn the battery so that the
numbers are facing upwards.
The 20-digit code reads
starting from the number at
the top row followed by the
bottom row.
4.
You should receive a message indicating whether the
code can be authenticated.
What if your battery is not
authentic?
If you cannot confirm that your Nokia battery with the
hologram on the label is an authentic Nokia battery,
please do not use the battery. Take it to the nearest
authorized Nokia service point or dealer for assistance.
The use of a battery that is not approved by the
manufacturer may be dangerous and may result in poor
performance and damage to your device and its
enhancements. It may also invalidate any approval or
warranty applying to the device.
To find out more about original Nokia batteries, visit
www.nokia.com/battery.
108
Battery information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 108 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 108 Dec 13, 2005 8:14:13 AM
Care and maintenance
Your device is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals
that will corrode electronic circuits. If your device
does get wet, remove the battery, and allow the
device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas.
Its moving parts and electronic components can be
damaged.
• Do not store the device in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain
plastics.
• Do not store the device in cold areas. When the
device returns to its normal temperature, moisture
can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as
instructed in this guide.
• Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and fine
mechanics.
• Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving
parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses, such
as camera, proximity sensor, and light sensor lenses.
• Use only the supplied or an approved replacement
antenna. Unauthorized antennas, modifications, or
attachments could damage the device and may
violate regulations governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep,
such as contacts and calendar notes, before sending
your device to a service facility.
All of the above suggestions apply equally to your
device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest
authorized service facility for service.
109
Care and maintenance
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 109 Dec 13, 2005 8:14:13 AM
Additional safety information
Operating environment
Remember to follow any special regulations in force in
any area, and always switch off your device when its
use is prohibited or when it may cause interference or
danger. Use the device only in its normal operating
positions. This device meets RF exposure guidelines
when used either in the normal use position against the
ear or when positioned at least 1.5 centimeters (5/8
inches) away from the body. When a carry case, belt clip
or holder is used for body-worn operation, it should not
contain metal and should position the device the
above-stated distance from your body.
To transmit data files or messages, this device requires
a quality connection to the network. In some cases,
transmission of data files or messages may be delayed
until such a connection is available. Ensure that the
above separation distance instructions are followed
until the transmission is completed.
Parts of the device are magnetic. Metallic materials may
be attracted to the device. Do not place credit cards or
other magnetic storage media near the device, because
information stored on them may be erased.
Medical devices
Operation of any radio transmitting equipment,
including wireless phones, may interfere with the
functionality of inadequately protected medical
devices. Consult a physician or the manufacturer of the
medical device to determine if they are adequately
shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities
when any regulations posted in these areas instruct you
to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
energy.
Pacemakers
Pacemaker manufacturers recommend that a
minimum separation of 15.3 centimeters (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent
with the independent research by and
recommendations of Wireless Technology Research.
Persons with pacemakers should do the following:
• Always keep the device more than 15.3 centimeters
(6 inches) from the pacemaker
• Not carry the device in a breast pocket
• Hold the device to the ear opposite the pacemaker
to minimize the potential for interference.
• If you suspect interference, switch off your device,
and move the device away.
110
Additional safety information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 110 Dec 13, 2005 8:14:13 AM
Hearing aids
Some digital wireless devices may interfere with some
hearing aids. If interference occurs, consult your service
provider.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles such as electronic fuel injection systems,
electronic antiskid (antilock) braking systems,
electronic speed control systems, and air bag systems.
For more information, check with the manufacturer, or
its representative, of your vehicle or any equipment
that has been added.
Only qualified personnel should service the device, or
install the device in a vehicle. Faulty installation or
service may be dangerous and may invalidate any
warranty that may apply to the device. Check regularly
that all wireless device equipment in your vehicle is
mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the
same compartment as the device, its parts, or
enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not
place objects, including installed or portable wireless
equipment in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is
improperly installed, and the air bag inflates, serious
injury could result.
Potentially explosive
environments
Switch off your device when in any area with a
potentially explosive atmosphere, and obey all signs
and instructions. Potentially explosive atmospheres
include areas where you would normally be advised to
turn off your vehicle engine. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refueling points
such as near gas pumps at service stations. Observe
restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas; chemical
plants; or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are
often, but not always, clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such
as propane or butane), and areas where the air contains
chemicals or particles such as grain, dust, or metal
powders.
Emergency calls
Important: Wireless phones, including this
device, operate using radio signals, wireless networks,
landline networks, and user-programmed functions.
Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any
wireless device for essential communications like
medical emergencies.
To make an emergency call: 111
Additional safety information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 111 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 111 Dec 13, 2005 8:14:13 AM
1. If the device is not on, switch it on. Check for
adequate signal strength.
Some networks may require that a valid SIM card is
properly inserted in the device.
2. Press the end key as many times as needed to clear
the display and ready the device for calls.
3. Enter the official emergency number for your
present location. Emergency numbers vary by
location.
4. Press the call key.
If certain features are in use, you may first need to turn
those features off before you can make an emergency
call. Consult this guide or your service provider for more
information.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless
device may be the only means of communication at the
scene of an accident. Do not end the call until given
permission to do so.
CERTIFICATION
INFORMATION(SAR)
THIS MOBILE DEVICE MEETS
GUIDELINES FOR EXPOSURE TO
RADIO WAVES.
Your mobile device is a radio transmitter and receiver.
It is designed not to exceed the limits for exposure to
radio waves recommended by international guidelines.
These guidelines were developed by the independent
scientific organization ICNIRP and include safety
margins designed to assure the protection of all
persons, regardless of age and health.
The exposure guidelines for mobile devices employ a
unit of measurement known as the Specific Absorption
Rate or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg) averaged over
10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device
transmitting at its highest certified power level in all
tested frequency bands. The actual SAR level of an
operating device can be below the maximum value
because the device is designed to use only the power
required to reach the network. That amount changes
depending on a number of factors such as how close
you are to a network base station. The highest SAR value
under the ICNIRP guidelines for use of the device at the
ear is 1.01 W/kg.
Use of device accessories and enhancements may result
in different SAR values. SAR values may vary depending
on national reporting and testing requirements and the
network band. Additional SAR information may be
provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the
requirements for exposure to radio waves established
by the Federal Communications Commission (USA) and
Industry Canada. These requirements set a SAR limit of
1.6 W/kg averaged over 1 gram of tissue. The highest
SAR value reported under this standard during product
certification for use at the ear is 0.99 W/kg and when
properly worn on the body is 0.67 W/kg. Information
about this device model can be found at /www.fcc.gov/
112
Additional safety information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 112 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 112 Dec 13, 2005 8:14:13 AM
oet/fccidby searching the equipment authorization
system using FCC ID: PYARM-10.
113
Additional safety information
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 113 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 113 Dec 13, 2005 8:14:13 AM
Index
Symbols/Numerics
1-touch dialing 25
A
access points 54, 86
ad hoc network 62
answering calls 26
application manager 98
applications
common actions 23
attachments 46
audio files 70
authority certificates 98
automatic answer 91
B
battery
charge level 17
charging 11
installing 9
blogs 67
Bluetooth
connections 56
pairing 58
settings 57
bookmarks 66
browsing Web pages 65, 68
business cards 36
C
cable 56
calculator 93
calendar 92
calling 25
calls
forwarding 26
restricting 26
settings 85
camera 75
recording a video clip 75
taking a picture 75
CD-ROM 20
cells 80
certificates 98
charging the battery 11
chart sheets 80
chat 49
clock 94
connecting to the Internet 54
connection manager 62
connection methods
Bluetooth 56
cable 56
infrared 60
modem 63
WLAN 61
connections
GPRS settings 54
WLAN settings 55, 88
contact groups 35
contact information 36
contacts
adding 35
copying information 36
default information 36
groups 35
ringing tones 36
D
data
connections 60
declining calls 26
display
indicators 17
settings 85
documents 77
E
e-mail
accounts 48
messages 44
replying 46
writing 47
email data roaming 64
ending network connections 62
enhancement settings 91
enhancements 104
equalizer 72
114
Index
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 114 Dec 13, 2005 8:14:13 AM
F
feeds 67
file manager 77
flash player 73
forwarding calls 26
front cover 12
G
gallery 69
general packet radio service
See
GPRS
GPRS
access point settings 54
general 60
settings 87
H
help 22
I
IM 49
images
add to contacts 70
set as wallpaper 70
zooming in or out 69
indicators 17
infrared 60
infrared port 15
installing
battery 9
SIM card 9
instant messaging 49
Internet 65
access points 54
call settings 86
settings 54
internet calls 31
J
joystick 13, 84
K
keyboard 13
keyguard 14
keypad lock 14
L
landmarks 97
language 84
listening to music 72
locking
device 15
keypad 14
logs 28
M
mail
See
e-mail
media applications 69
memory 19
memory card 19
menu 22
messages
deleting 47
e-mail 44
folders 38
multimedia messages 41
picture messages 40
special messages 53
text messages 39
miniSD card 19
mobile VPN
See
VPN
modem 63
multimedia messages
creating 41
receiving 42
replying to 42
sending 41
settings 43
music player 72
N
navigation 96
notes 93
O
outline view 78
P
packet data
access point settings 54
general 60
settings 87
pairing 58
personal certificates 98
personalization 102, 103
phone
calls 25
language 84 115
Index
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 115 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 115 Dec 13, 2005 8:14:13 AM
settings 84
video calls 27
photos 75
picture messages 40
playing
music 72
video and audio 70
voice recordings 73
playlists 72
PopPort connector 15
predictive text input 84
presentations 80
printing 83
profiles 102
R
RealPlayer
playing media clips 70
settings 71
recording
calls 73
video clips 75
voice 73
rejecting calls 26
remote configuration
settings 100
remote synchronization 100
restricting
calls 26
restriction password 33
ringing tones 36
S
screen export 82
security
device 32
selecting text and objects 23
selection key settings 84
service commands 53
settings
Bluetooth 57
calendar 93
calls 85
connection 86
display 85
general 84
Internet 54
message centers 39
multimedia messages 43
profiles 102
remote configuration 100
security 32
standby 84
text messages 40
Web 67
WLAN 88
shortcuts 17, 105
signal strength 17
SIM access profile 59
SIM card
installing 9
text messages 40
slide shows 81
SMS messages 39
special messages 53
standby
mode 16
settings 84
storage 19
switching device on and off 11
T
text
selecting 23
text messages
editing message centers 39
managing messages in the SIM
card 40
replying 40
sending 39
writing 39
themes 103
to-do list 92
tools folder 96
tutorial 22
U
USB data cable 56
V
video calls 27
video clips 70, 75
virtual private network 63
voice commands 97
voice dialing 97
voice mailbox 25
voice memos 73
voice over IP 31
voice recorder 73
volume 18, 72
VPN 63
116
Index
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 116 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 116 Dec 13, 2005 8:14:13 AM
W
Web 65
welcome note 84
WLAN
access point settings 55
general 61
security settings 89, 90
settings 88
worksheets 79
writing language 84
117
Index
file:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 117 Dec 13, 2005 8:14:13 AMfile:///C:/USERS/MODEServer/rapi/21325020/rm-10_zeus/en/issue_1/rm-10_zeus_en_1.xml Page 117 Dec 13, 2005 8:14:13 AM
