User Guide
Quick Guide
Nokia Lumia 530
123123 Issue 1 EN RM-1018

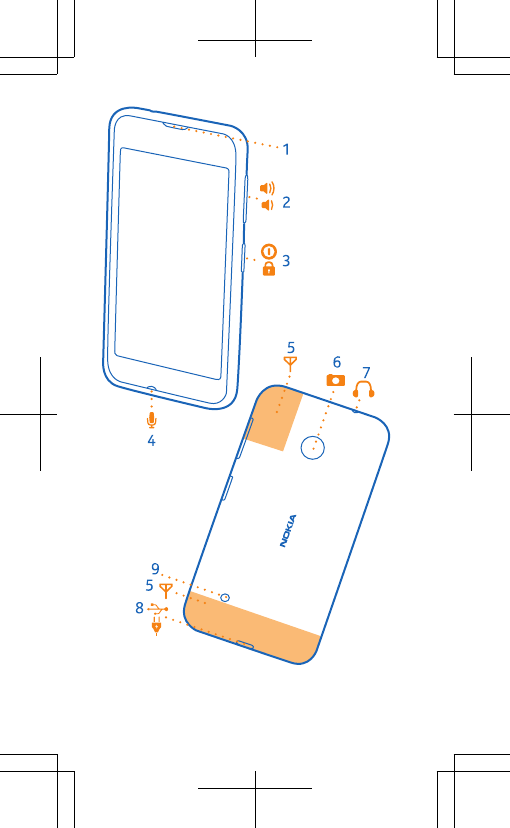

Keys and parts
Important: For important info on the safe use
of your device and battery, read “Safety” and
“Product and safety info” in the device user guide
at www.nokia.com/support and in the in-device
user guide before you take your device into use.
Select Nokia Care.
1Earpiece
2Volume keys
3 Power/Lock key
4Microphone
5 Antenna areas
6Camera
7 Audio connector 3.5 mm
8Micro-USB connector
9 Loudspeaker
Some of the accessories mentioned in this user
guide, such as charger, headset, or data cable,
may be sold separately.
Avoid touching the antenna area while the
antenna is in use. Contact with antennas affects
the communication quality and may reduce
battery life due to higher power level during
operation.
Get started
Before you start using your phone, remove the
back cover to insert the micro-SIM card (also
known as the mini-UICC card).

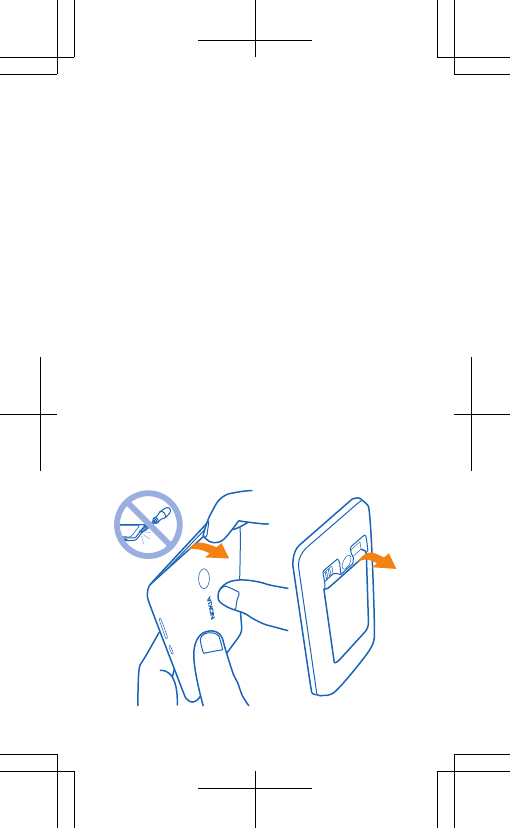

Remove the back cover
Make sure the phone is switched off.
1. At the top of the phone, put your fingernails in
the seam between the screen frame and the back
cover. Do not use any sharp tools, as they may
damage the phone.
2. Place your thumb in the middle of the back
cover and bend the cover to remove it.
3. If the battery is in, lift it out from the upper right
corner.
Insert the SIM and memory cards
1. Carefully slide the micro-SIM card into the SIM
slot with the metal contact area down.
2. Slide the memory card into the memory card
slot.
Important: Your device uses a micro-SIM card,
also known as a mini-UICC SIM card. Use of
incompatible SIM cards, or use of SIM card
adapters, may damage the card or the device, and
may corrupt data stored on the card.
Tip: For best performance, it is recommended
that you use a fast 4–128GB memory card by a
well-known manufacturer.

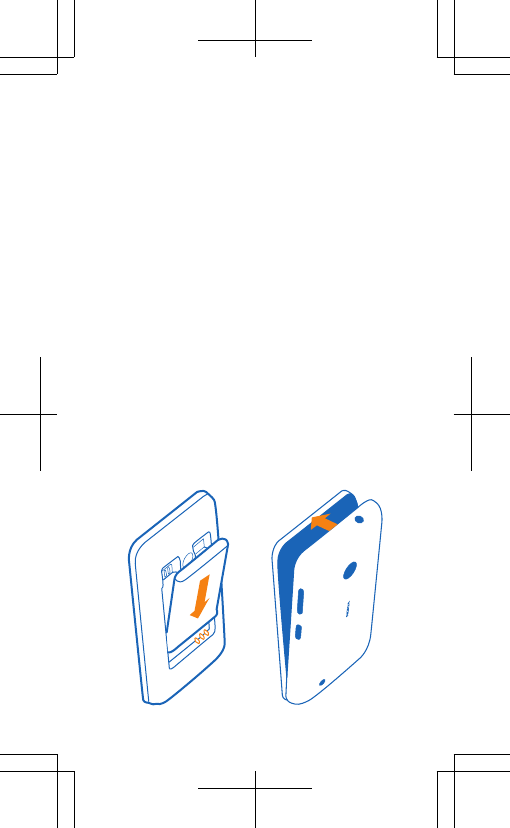

Replace the battery and back cover
1. Line up the battery contacts, and put the
battery in.
2. Press the bottom edge of the back cover
against the bottom edge of your phone, and snap
the cover into place.
3. To switch your phone on, press the power key.
Charge the battery
Plug a compatible charger into a wall outlet, and
connect the micro-USB end to your phone. You
can also charge your phone from a computer with
a USB cable.
If the battery is completely discharged, it may
need to charge for up to 20 minutes before you
can use your device. The charging indicator may
not be displayed in this time.
Help and tips
There's a user guide in your phone – it's always
with you, available when needed. Check out
videos, find answers to your questions, and get
helpful tips. On the start screen, swipe left, and
tap Nokia Care. If you’re new to Windows Phone,
check out the section for new Windows Phone
users.
To transfer contacts and text messages from
your old phone, on the start screen, swipe left,
and tap Transfer my Data. For more info, see
the Nokia Care app.
For the online user guide, even more info, and
troubleshooting help, go to www.nokia.com/
support.
If your phone freezes
To reset the phone without losing your data and
settings, press and hold the power key for about
10 seconds. The phone vibrates and restarts.
Product and safety information
For info on Microsoft Mobile Service terms and Privacy policy, go to
www.nokia.com/privacy.
You can only use your device on the WCDMA 850, 900, 1900, 2100;
and GSM 850, 900, 1800, 1900 MHz networks.
Use your device only with an original BL-5J rechargeable battery. Do
not dispose batteries as household waste. Charge your device with
AC-18U charger. Charger plug type may vary. Microsoft Mobile may
make additional battery or charger models available for this device.
Do not drop, knock, or shake the device or the battery. Rough
handling can break them.
Third-party chargers that comply with the IEC/EN 62684 standard,
and that can connect to your device micro USB connector, may also
be compatible.
To prevent possible hearing damage, do not listen at high volume
levels for long periods. Exercise caution when holding your device
near your ear while the loudspeaker is in use.
When using this device, obey all laws and respect local customs,
privacy and legitimate rights of others, including copyrights.
Additional safety information
Accessibility solutions
Microsoft Mobile is committed to making mobile phones easy to use
for all individuals, including those with disabilities. For more
information, visit www.nokiaaccessibility.com.
Hearing
Warning: When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it can
endanger your safety.
This device has been tested and rated for use with hearing aids for
some of the wireless technologies used in this device. However, there
may be some newer wireless technologies used in this device that
have not yet been tested for use with hearing aids. It is important to
try the different features of this device thoroughly and in different
locations, using your hearing aid or cochlear implant, to determine if
you hear any interference. Consult your service provider about its
return and exchange policies and for information on hearing aid
compatibility.
Some wireless devices may interfere with some hearing aids.
Your device complies with FCC rules on hearing aid compatibility.
These rules require an M3 rating or higher. The M value of your device
is marked on the device sales package. To determine the M-rating of
your hearing aid and compatibility with this device, consult your
hearing health professional. For more info about accessibility, go to
www.nokiaaccessibility.com.
Nickel
The surface of this device is nickel-free.
Information on health
The U.S. Food and Drug Administration (FDA) and the U.S. Federal
Communications Commission (FCC) published statements and
questions and answers concerning cellular telephones and health.
Microsoft Mobile encourages you to visit these websites for updated
information. You can access the FDA website at www.fda.gov/
Radiation-EmittingProducts/
RadiationEmittingProductsandProcedures/
HomeBusinessandEntertainment/CellPhones/default.htm and the
FCC website at transition.fcc.gov/oet/rfsafety/rf-faqs.html.
Additional health-related information is available from the World
Health Organization (WHO) at www.who.int/mediacentre/
factsheets/fs193/en/ and The National Cancer Institute ("NCI")
www.cancer.gov/ncicancerbulletin/NCI_Cancer_Bulletin_092308/
page7. In the event that you are concerned about possible health
effects, the FDA suggests that you limit your own or your children’s
radio frequency (RF) exposure by limiting the length of calls or by
using handsfree devices.
Safety and texting while driving
Safety should be every driver’s first priority. Drivers must obey all
local laws that may include restrictions on the use of cellular
telephones or accessories while driving. If use is legal, always keep
your hands free to operate the vehicle while driving and use a
handsfree device whenever possible. Suspend calls in heavy traffic or
hazardous weather. Get to know your cellular phone and its features
and make any necessary information inputs prior to driving. Do not
input data or engage in text messaging while driving. Cellular
telephones should not be used when use may be a distraction to the
driver.
The Cellular Telecommunications & Internet Association (CTIA) has
published further info and tips on safe use of cellular telephones at
www.ctia.org/consumer_info/safety, which we encourage you to
review.
Certification information (SAR)
This mobile device meets international guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves (radio frequency
electromagnetic fields), recommended by international guidelines
from the independent scientific organization ICNIRP. These
guidelines incorporate substantial safety margins that are intended
to assure the protection of all persons regardless of age and health.
The exposure guidelines are based on the Specific Absorption Rate
(SAR), which is an expression of the amount of radio frequency (RF)
power deposited in the head or body when the device is transmitting.
The ICNIRP SAR limit for mobile devices is 2.0 W/kg averaged over 10
grams of tissue.
SAR tests are carried out with the device in standard operating
positions, transmitting at its highest certified power level, in all its
frequency bands. The maximum recorded SAR values for this device
are:
Maximum SAR value Frequency bands
used when
Maximum SAR value
was recorded
When held against
the head
1.09 W/kg over 10g 4–slot GPRS 900 and
WLAN 2450
When operated at a
separation distance
of 5/8 inch (1.5
centimetres) from
the body
1.19 W/kg over 10g 4–slot GPRS 900 and
WLAN 2450
Your mobile device is also designed to meet the United States Federal
Communications Commission (FCC) and Industry Canada SAR (IC)
guidelines. FCC ratings for your device and more information on SAR
can be found at transition.fcc.gov/oet/rfsafety/sar.html.
Information on IC SAR can be found at www.ic.gc.ca.
This device meets RF exposure guidelines when used against the head
or when positioned at least 5/8 inch (1.5 centimetres) away from the
body. When a carry case, belt clip or other form of device holder is
used for body-worn operation, it should not contain metal and should
provide at least the above stated separation distance from the body.
To send data or messages, a good connection to the network is
needed. Sending may be delayed until such a connection is available.
Follow the separation distance instructions until the sending is
finished.
During general use, the SAR values are usually well below the values
stated above. This is because, for purposes of system efficiency and
to minimise interference on the network, the operating power of your
mobile is automatically decreased when full power is not needed for
the call. The lower the power output, the lower the SAR value.
Device models may have different versions and more than one value.
Component and design changes may occur over time and some
changes could affect SAR values. The latest available SAR information
for this and other Nokia device models can be found at
www.nokia.com/sar.
For more info, go to www.sar-tick.com. Note that mobile devices may
be transmitting even if you are not making a voice call.
The World Health Organization (WHO) has stated that current
scientific information does not indicate the need for any special
precautions when using mobile devices. If you are interested in
reducing your exposure, they recommend you limit your usage or use
a hands-free kit to keep the device away from your head and body.
For more information and explanations and discussions on RF
exposure, go to the WHO website at www.who.int/peh-emf/en.
Care
For questions regarding your plans, billing or network please contact
your operator. For questions regarding your Nokia product and
warranty, please visit the support pages for your country at
www.nokia.com/support.
Copyrights and other notices
DECLARATION OF CONFORMITY
Hereby, Microsoft Mobile Oy declares that this RM-1018 product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at www.nokia.com/global/declaration/
declaration-of-conformity.
The availability of products, features, apps and services may vary by
region. For more info, contact your dealer or your service provider.
This device may contain commodities, technology or software subject
to export laws and regulations from the US and other countries.
Diversion contrary to law is prohibited.
The contents of this document are provided "as is". Except as
required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document.
Microsoft Mobile reserves the right to revise this document or
withdraw it at any time without prior notice.
To the maximum extent permitted by applicable law, under no
circumstances shall Microsoft Mobile or any of its licensors be
responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
Reproduction, transfer or distribution of part or all of the contents in
this document in any form without the prior written permission of
Microsoft Mobile is prohibited. Microsoft Mobile operates a policy of
continuous development. Microsoft Mobile reserves the right to make
changes and improvements to any of the products described in this
document without prior notice.
Microsoft Mobile does not make any representations, provide a
warranty, or take any responsibility for the functionality, content, or
end-user support of third-party apps provided with your device. By
using an app, you acknowledge that the app is provided as is.
To access the Windows Phone software license terms, select
Settings > about. Please read the terms. Please note that by using
the software, you accept the terms. If you do not accept the terms,
do not use the device or software. Instead contact Microsoft Mobile
or the party from which you purchased the device to determine its
return policy.
FCC/INDUSTRY CANADA/MEXICO NOTICE
This device complies with part 15 of the FCC rules and Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. Any changes or
modifications not expressly approved by Microsoft Mobile could void
the user's authority to operate this equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
TM & © 2014 Microsoft Mobile. Microsoft, Windows and Windows logo
are trademarks of the Microsoft group of companies. All rights
reserved. Nokia is a TM of Nokia Corporation. Third party products/
names may be TMs of their respective owners.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Microsoft Mobile is under license.
This product is licensed under the MPEG-4 Visual Patent Portfolio
License (i) for personal and noncommercial use in connection with
information which has been encoded in compliance with the MPEG-4
Visual Standard by a consumer engaged in a personal and
noncommercial activity and (ii) for use in connection with MPEG-4
video provided by a licensed video provider. No license is granted or
shall be implied for any other use. Additional information, including
that related to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See www.mpegla.com.
Manufacturer and warranty info
Microsoft Mobile Oy (Ltd) has purchased the devices and services
business from Nokia. The manufacturer of this product is Microsoft
Mobile Oy (Ltd) or any of its affiliates, even if “Nokia Corporation” or
any of its affiliates may still be visible in the sales package,
documentation, or the product itself.
Microsoft Mobile Oy (Ltd) provides the Manufacturer's Limited
Warranty (“Warranty”) for this product in accordance with the terms
and conditions described in the "Manufacturer's Limited Warranty"
document included in the sales package. Microsoft Mobile Oy (Ltd)
shall assume and be responsible for all rights and obligations related
to your Warranty.
Microsoft Mobile Oy (Ltd), Keilalahdentie 2-4, FIN-02150 Espoo,
Finland
However, in the following countries, the specified local affiliates,
which have been purchased by Microsoft Mobile Oy (Ltd), continue to
provide the Warranty as defined in the Warranty text included in the
sales package:
• People’s Republic of China: Nokia Telecommunications Co., Ltd.
• USA: Nokia Inc
• Canada: Nokia Products Limited
• Mexico: Nokia México, S.A. de C.V
• Russia: Nokia LLC
• Brazil: Nokia do Brasil Tecnologia Ltda
• Turkey: Nokia Komünikasyon A.Ş.
MANUFACTURER’S LIMITED
WARRANTY
1. GENERAL
Nokia Inc. (“Nokia”) provides this Manufacturer's Limited Warranty
(“Warranty”) for genuine Nokia product (the “Product”), which Nokia
has released for sale in the United States of America, and Nokia
Products Limited provides this Warranty for genuine Nokia Products,
which Nokia has released for sale in in Canada (“Covered Countries”)
since 1 November 2013. As applicable, “Nokia” as used throughout,
means either Nokia Inc. or Nokia Products Limited.
This Warranty is distinct from any statutory rights under any
mandatory consumer protection laws of your country or state
applicable to you. It is intended to grant you specific, and as the case
may be, additional rights, within the limits of what is permissible under
such law, and does not limit the rights you may have under applicable
statutory product warrantee provisions. You may have other rights
based on local laws during or after the Warranty period. These rights
are not excluded by this Warranty.
2. WARRANTY
From the date the Product is sold to an end-user for the first time, as
evidenced by the original proof of purchase, MMO warrants the
Product is free from defects in materials and workmanship (“Defect”)
as follows:
(i) Twelve (12) months for the main device;
(ii) Twelve (12) months for accessories sold separately or included in
the sales pack of the main device excluding batteries, covers, cables
and chargers; and
(iii) Six (6) months for all batteries, covers, cables and chargers,
unless otherwise specified in the Product user guide.
During the warranty period, MMO will, in a reasonable time, remedy
the Defect free of charge by either repairing or replacing the
defective Product or the defective part of it at its option provided that
you have informed MMO of the Defect before the warranty period
expires. When repairing or replacing your Product, MMO may use new
or re-conditioned parts or products.
To the fullest extent permitted by applicable law, no repair or
replacement will renew or extend the warranty period. Original or
replacement parts or replacement Products provided under this
Warranty will be covered by this Warranty for the remainder of the
original warranty period or for sixty (60) days from the date of repair
or replacement, whichever is longer.
The Product or all parts of your Product that MMO has replaced shall
become MMO’s property.
MMO does not warrant that software preinstalled by or on behalf of
MMO in the Product (or subsequent updates and upgrades) (together
“MMO software”) will meet your requirements, work in combination
with any hardware or software not provided by MMO, is uninterrupted
or error free or that errors are correctable or will be corrected. For
MMO software related errors, MMO will make available the latest
version of the MMO software for reinstallation on your Product or, if
that would not be possible, another remedy, which in MMO’s
reasonable discretion, satisfactorily addresses the error. Some MMO
software may be subject to separate license terms that are available
with the software or your local section of www.nokia.com.
Please always back up all data and content stored on your Product
before taking your Product in for service since service activities will
erase all data from your Product.
3. WHAT THIS WARRANTY DOES NOT COVER
MMO does not provide any warranty for the following:
1 User guides;
2 Any (i) third party software, settings, content, data, or links installed
or downloaded onto your Product at any time, or (ii) MMO and third
party services or enabling clients even if preinstalled by MMO (please
read the terms and conditions that may accompany the services as
those will define your rights and obligations);
3 Any (i) normal wear and tear, (ii) reduced charging capacity of the
battery resulting from its natural end of product life, or (iii) pixel
defects in your Product’s display that are within the scope of industry
standards;
4 SIM card and/or any cellular or other networks or system on which
your Product operates; or
5 Errors or damage caused by: (a) misuse or not using your Product in
accordance with the user guide, such as if the Product has been
exposed to moisture, to dampness or to extreme thermal or
environmental conditions or to rapid changes in such conditions, to
corrosion, to oxidation, to spillage of food or liquid or to influence
from chemical products, (b) using your Product with, or connecting it
to, any product, accessory, software, or service not manufactured or
supplied by MMO, (c) any products combined with your Product by a
third party, (d) damage or errors caused by hacking, cracking, viruses,
or other malware, or by unauthorised access to services, accounts,
computer systems or networks; or (e) other acts beyond MMO’s
reasonable control.
This Warranty is not valid:
1 Outside of the Covered Countries;
2 If your Product, or the software it runs on, has been (a) opened,
modified, or repaired without MMO’s authorisation, or (b) repaired
with unauthorised spare parts;
3 If your Product's serial number, the mobile accessory date code, or
the IMEI number has been removed, erased, defaced, altered or if
these are illegible in any way;
4 If you have not installed the latest software updates that are publicly
available for your Product within a reasonable time of their release;
or
5 If you refuse to give possession of the Product to MMO for repair
and investigation.
If this Warranty does not cover your Product or the issue based on
which it requires service, MMO reserves the right to charge for the
repair or replacement of your Product, as well as a handling fee.
4. LIMITATION OF MMO'S LIABILITY
To the extent permitted by applicable law(s), MMO shall not under any
circumstances be liable, either expressly or implicitly, for any
1 Damages or losses of any kind whatsoever resulting from or relating
to loss of, damage to, or corruption of, content or data or the
recreation or transfer thereof even if such loss, damage, or
corruption was a result of a Defect in your Product; and/or
2 Loss of profit, products or functionality, business, contracts,
revenues or anticipated savings, increased costs or expenses, or for
any indirect, consequential or special loss or damage.
To the extent permitted by applicable law, MMO’s liability shall be
limited to the purchase value of your Product.
The limitations in this clause 4 shall not apply in case of MMO’s
negligence or intentional misconduct or in case of death or personal
injury resulting from MMO’s proven negligence.
5. OTHER IMPORTANT NOTICES
For further information on your Warranty, as well as information
needed to process your warranty queries, please visit
www.nokia.com.
Please ensure your operator has removed any SIM-locks (or other
equivalent mechanisms that may lock your Product to a specific
network or operator) prior to delivering your Product for repair.
Your Product may contain country specific elements, including
software. The warranty services available in a particular country may
be limited to the Products and country specific elements available in
that country. Also, if your Product has been re-exported from its
original destination to another country, your Product may contain
country specific elements that are not considered a defect under this
Warranty even if it would not be operational.
United States: Nokia Inc., 200 South Mathilda, Sunnyvale, California
94086
