Test report
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
1 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
FCC Part 22/24 Compliance Test Report
Test Report no.: Tre_FCC_0609_01.doc Date of Report: 2.05.2006
Number of pages: 14 Customer’s
Contact person:
Jorma Hanni
Testing laboratory: TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
FCC listing no.:
IC recognition no.:
94436
3608
Client: Nokia Corporation
P.O. Box 50
Elektroniikkatie 10
FIN-90571 OULU, FINLAND
Tel. +358 (0) 7180 08000
Fax. +358 (0) 7180 47222
Tested devices/
accessories: GSM phone RM-199 / Battery BL-4C, AC charger AC-4, Headset HS-23,
Dummy battery BTD-8
FCC ID: LJPRM-199 IC: 661E-RM199
Supplement reports: -
Testing has been
carried out in
accordance with:
CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132
and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned
documents are written in each section under "Test method and limit".
Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to
written approval of the testing laboratory. The documentation of the testing performed on the
tested devices is archived for 15 years at TCC Nokia.
Test Results:
The EUT complies with the requirements in respect of all parameters subject to the test.
The test results relate only to devices specified in this document.
Date and signature
for the contents:
Jari Jantunen, System Manager
Digitally signed by Jari Jantunen
DN: CN = Jari Jantunen, C = FI, O =
TCC Nokia Tampere, OU = TCC Nokia
Date: 2006.05.02 14:19:12 +03'00'
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
2 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
1. Summary for FCC Part 22/24 Compliance Test Report
Date of receipt 2.3.2006
Testing completed 9.3.2006
The customer's contact person Jorma Hanni
Test Plan referred to \EMC\TESTPLAN\
Notes -
Document name T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
1.1. EUT and Accessory Information
The EUT is a quadri band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and
WLAN. The EUT is tested with maximum rated TX power, modulated with pseudo random bit
sequence (PRBS9).
Product Type SN HW MV SW DUT
GSM phone RM-199 004400631642987 500432 - 3.09 40549
GSM phone RM-199 004400631642987 500432 - 3.09 40550
GSM phone RM-199 004400631643010 500432 - 3.09 40551
Battery BL-4C - - - - 40552
AC-Charger AC-4 - - - - 40554
AC-Charger AC-4 - - - - 40555
Headset HS-23 - - - - 40556
Headset HS-23 - - - - 40523
Dummy Battery BTD-8 - - - - 40559
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
3 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
1.2. Summary of Test Results
GSM 850:
Section in CFR 47 Section in RSS-GEN
or RSS-132 Name of the test Result
§2.1046(a), 22.913(a) 4.6, 4.4 Conducted RF output power NP
§22.913(a) 4.6, 4.4 Radiated RF output power NP
§2.1049(h) 4.4.1 99 % occupied bandwidth PASSED
§22.917(a) 4.7, 4.5 Band edge compliance NP
§22.917(a), §2.1051 4.7, 4.5 Spurious emissions at antenna terminals NP
§22.917(a), §2.1053 4.7, 4.5 Spurious radiated emissions PASSED
§2.1055(a) 4.5, 4.3 Frequency stability, temperature variation PASSED
§2.1055(d) 4.5, 4.3 Frequency stability, voltage variation PASSED
GSM 1900:
Section in CFR 47 Section in RSS-133 Name of the test Result
§2.1046(a) 6.2
Conducted RF output power NP
§24.232(b) 6.2
Radiated RF output power NP
§2.1049(h) 5.6
99 % occupied bandwidth PASSED
§24.238(a) 6.3
Band edge compliance NP
§24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP
§24.238(a), §2.1053 6.3 Spurious radiated emissions PASSED
§2.1055(a) 7
Frequency stability, temperature variation PASSED
§2.1055(d) 7
Frequency stability, voltage variation PASSED
PASSED The EUT complies with the essential requirements in the standard.
FAILED The EUT does not comply with the essential requirements in the standard.
NP The test was not performed by the TCC Nokia Tampere Laboratory.
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
4 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
CONTENTS
1. Summary for FCC Part 22/24 Compliance Test Report ...........................................2
1.1. EUT and Accessory Information ............................................................................................2
1.2. Summary of Test Results.......................................................................................................3
2. 99 % occupied bandwidth (FCC §2.1049(h), RSS-GEN 4.4.1, RSS-133 5.6)...........5
2.1. Test setup ..............................................................................................................................5
2.2. Test method and limit.............................................................................................................5
2.3. GSM 850 Test results ............................................................................................................6
2.4. GSM 1900 Test results ..........................................................................................................7
3. Spurious radiated emissions
(FCC §22.917(a), §24.238(a), §2.1053, RSS-GEN 4.7, RSS-132 4.5, RSS-133 6.3) .........8
3.1. Test setup ..............................................................................................................................8
3.2. Test method and limit.............................................................................................................8
3.3. GSM 850 Test results ..........................................................................................................10
3.4. GSM 1900 Test results ........................................................................................................10
4. Frequency stability, temperature variation
(FCC §2.1055(a), §2.1055(a), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7) .........................11
4.1. Test setup ............................................................................................................................11
4.2. Test method and limit...........................................................................................................11
4.3. GSM 850 Test results ..........................................................................................................12
4.4. GSM 1900 Test results ........................................................................................................12
5. Frequency stability, voltage variation
(FCC §2.1055(d), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7) ............................................13
5.1. Test setup ............................................................................................................................13
5.2. Test method and limit...........................................................................................................13
5.3. GSM 850 Test results ..........................................................................................................13
5.4. GSM 1900 Test results ........................................................................................................13
6. Test Equipment.........................................................................................................14
6.1. Conducted measurements...................................................................................................14
6.2. Radiated measurements......................................................................................................14
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
5 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
2. 99 % occupied bandwidth
(FCC §2.1049(h), RSS-GEN 4.4.1, RSS-133 5.6)
EUT with DUT number Phone: DUT 40550
Accessories with DUT numbers Dummy battery: DUT 40559, Headset: DUT 40523
Operation Voltage [V] / [Hz] 3.9V dc
Result Passed
Remarks -
Temp [°C] / Humidity [%RH] /
Air Pressure [kPa] 23/48/100.9-101.1
Date of measurements 8-9.3.2006
Measured by Jan-Erik Lilja

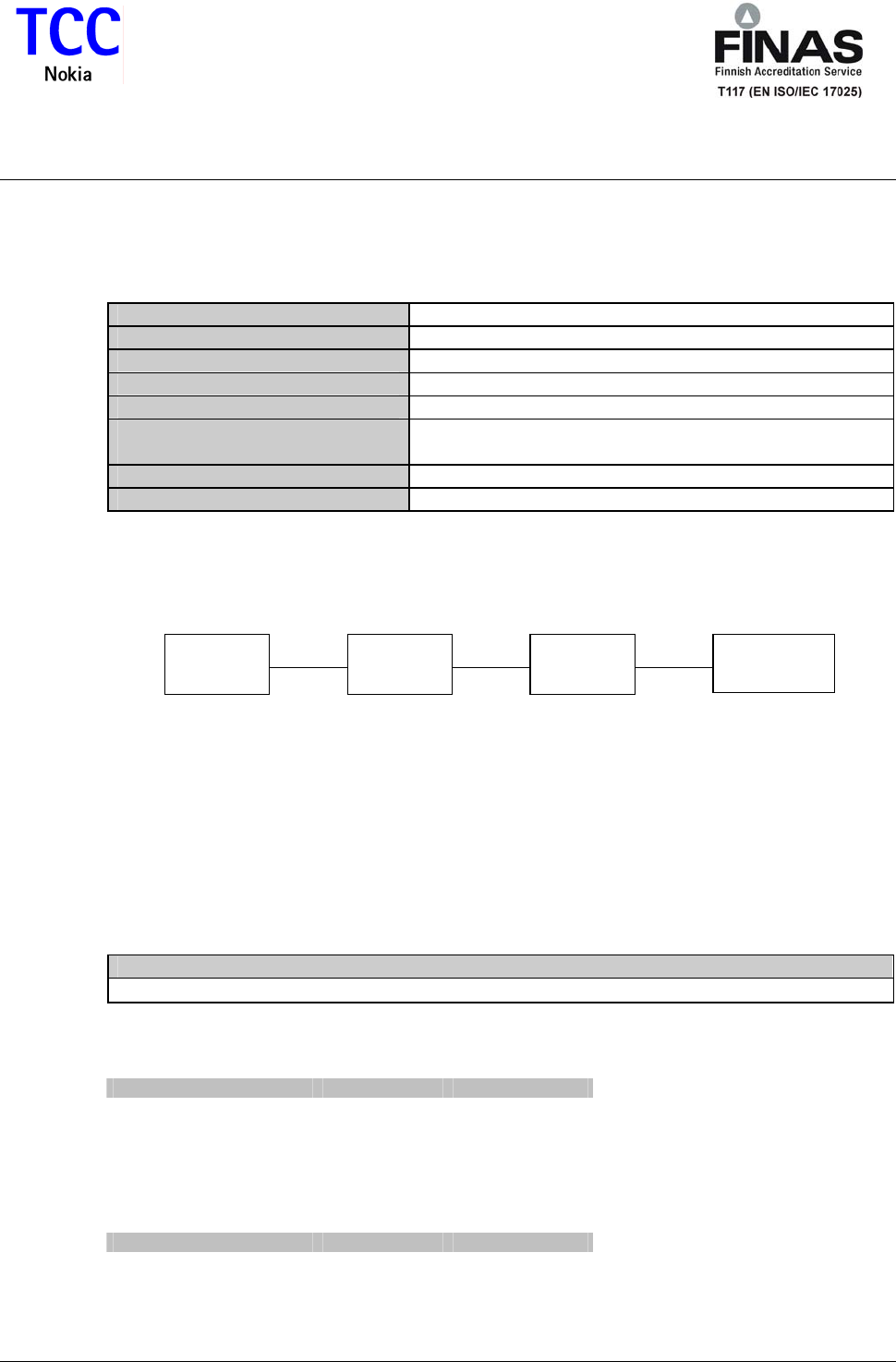

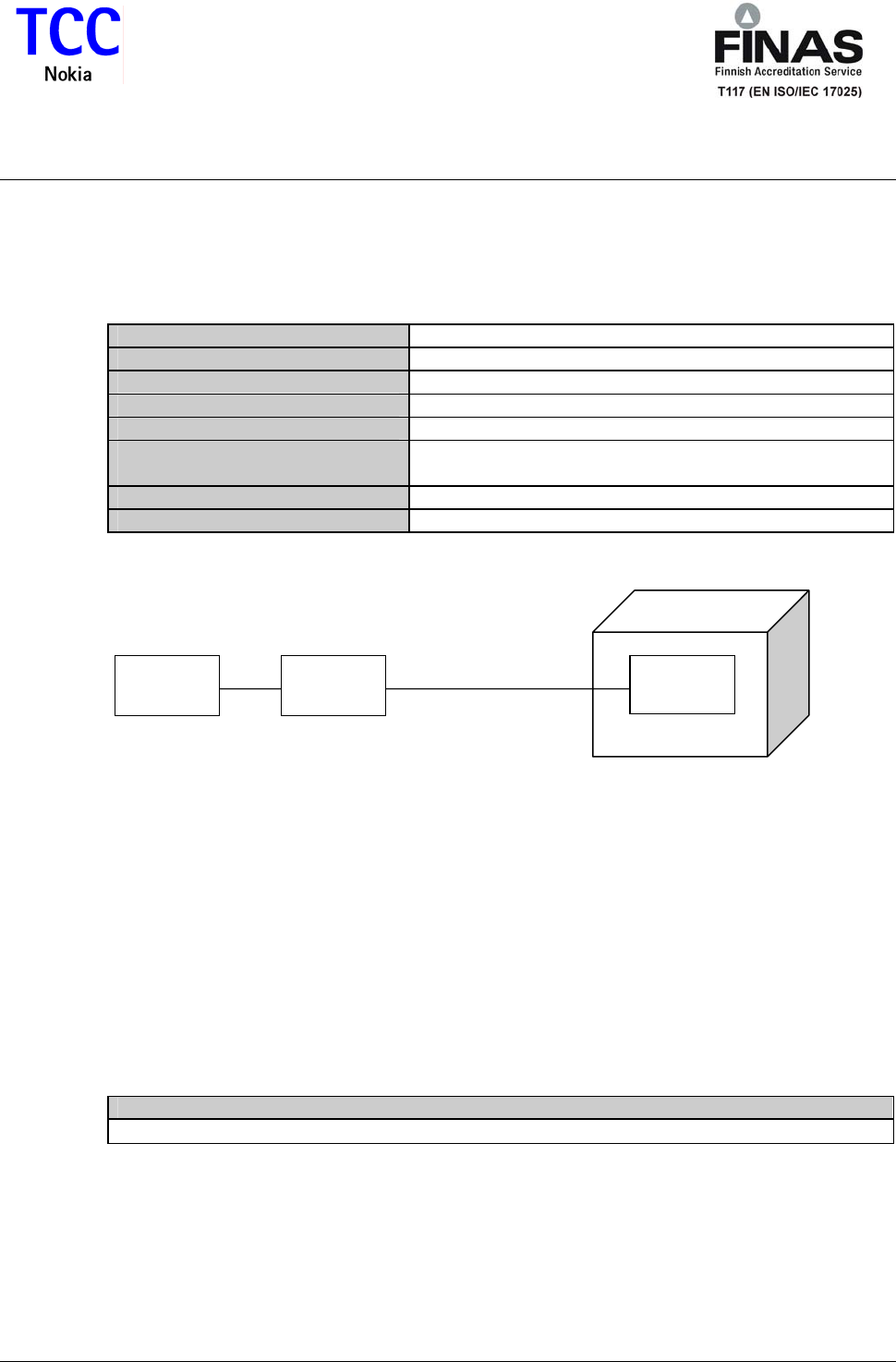

2.1. Test setup
Spectrum
analyser
Power
divider
Attenuator EUT
Radio
simulator 20dB
attenuator
2.2. Test method and limit
The measurement is made according to FCC rules part 22 and 24 and IC standards RSS-GEN
and RSS-133.
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
6 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880

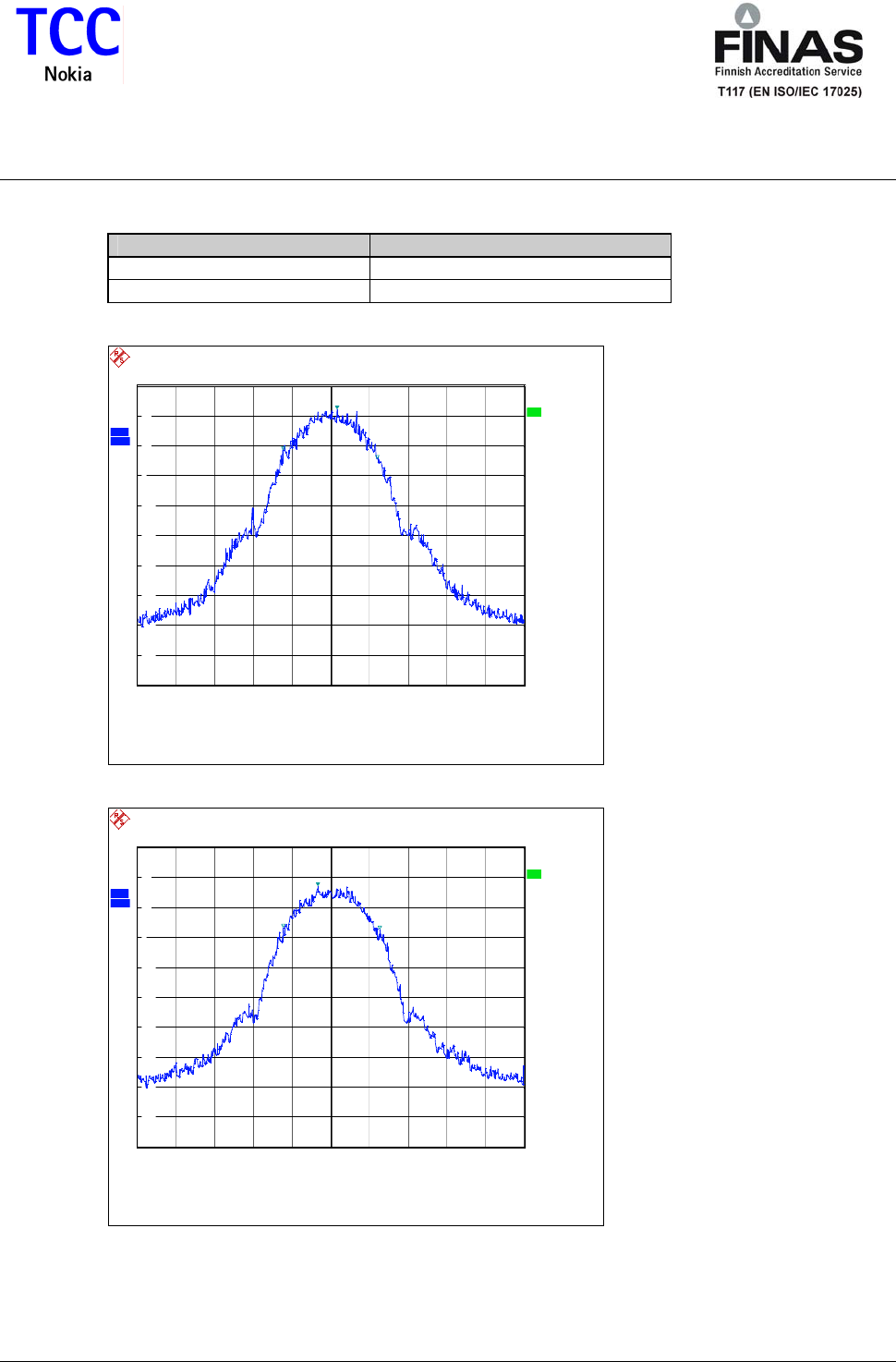

2.3. GSM 850 Test results
Operation mode (TX on) 99% occupied bandwidth [kHz]
GSM 243.590
EGPRS 241.987
GSM mode, channel 190 / 836.6 MHz
Att 50 dB
A
*
SGL
Ref 30 dBm
TDF
Center 836.6 MHz Span 1 MHz100 kHz/
SWT 200 ms
*
1 P
K
VIEW
*
*
RBW 3 kHz
VBW 3 kHz
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
SWP 100 of 100
1
Marker 1 [T1 ]
24.39 dBm
836.587179487 MHz
OBW243.589743590 kHz
T1
Temp 1 [T1 OBW]
13.32 dBm
836.479807692 MHz
T2 Temp 2 [T1 OBW]
8.49 dBm
836.723397436 MHz
Date: 8.MAR.2006 13:14:39
EGPRS mode, channel 190 / 836.6 MHz
Att 50 dB
A
*
SGL
Ref 30 dBm
TDF
Center 836.6 MHz Span 1 MHz100 kHz/
SWT 200 ms
*
1 P
K
VIEW
*
*
RBW 3 kHz
VBW 3 kHz
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
SWP 100 of 100
1
Marker 1 [T1 ]
19.55 dBm
836.596794872 MHz
OBW241.987179487 kHz
T1
Temp 1 [T1 OBW]
7.31 dBm
836.479807692 MHz
T2
Temp 2 [T1 OBW]
2.94 dBm
836.721794872 MHz
Date: 9.MAR.2006 08:32:43
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
7 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880

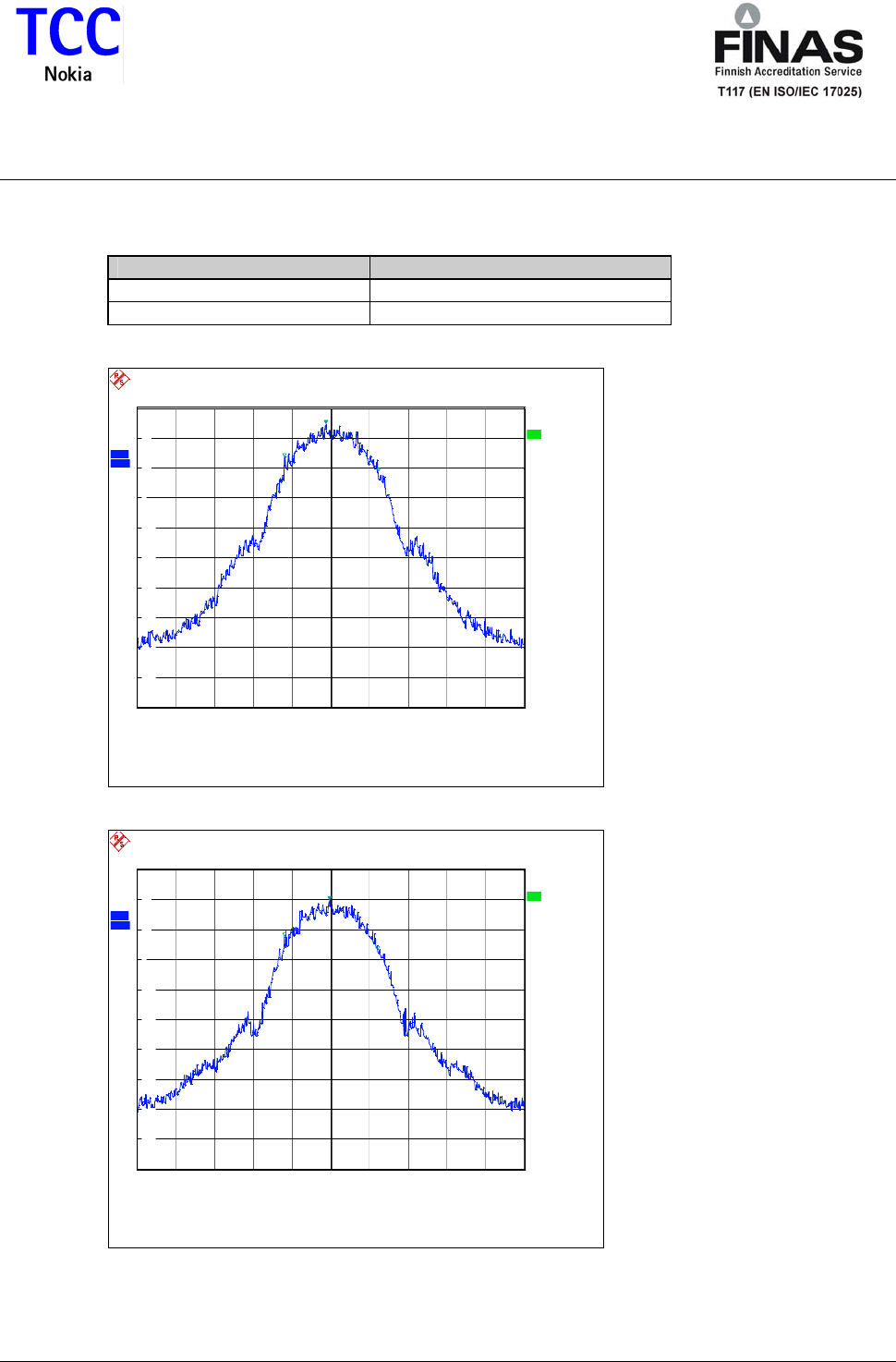

2.4. GSM 1900 Test results
Operation mode (TX on) 99% occupied bandwidth [kHz]
GSM 243.590
EGPRS 250.000
GSM mode, channel 661 / 1880.0 MHz
Att 50 dB
A
*
SGL
Ref 30 dBm
TDF
Center 1.88 GHz Span 1 MHz100 kHz/
SWT 200 ms
*
1 P
K
VIEW
*
*
RBW 3 kHz
VBW 3 kHz
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
SWP 100 of 100
1
Marker 1 [T1 ]
21.90 dBm
1.880016026 GHz
OBW243.589743590 kHz
T1
Temp 1 [T1 OBW]
8.32 dBm
1.879876603 GHz
T2
Temp 2 [T1 OBW]
5.34 dBm
1.880120192 GHz
Date: 8.MAR.2006 16:23:23
EGPRS mode, channel 661 / 1880.0 MHz
Att 50 dB
A
*
SGL
Ref 30 dBm
TDF
Center 1.88 GHz Span 1 MHz100 kHz/
SWT 200 ms
*
1 P
K
VIEW
*
*
RBW 3 kHz
VBW 3 kHz
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
SWP 100 of 100
1
Marker 1 [T1 ]
16.87 dBm
1.879966346 GHz
OBW250.000000000 kHz
T1
Temp 1 [T1 OBW]
2.91 dBm
1.879876603 GHz
T2
Temp 2 [T1 OBW]
2.42 dBm
1.880126603 GHz
Date: 9.MAR.2006 08:35:42
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
8 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880

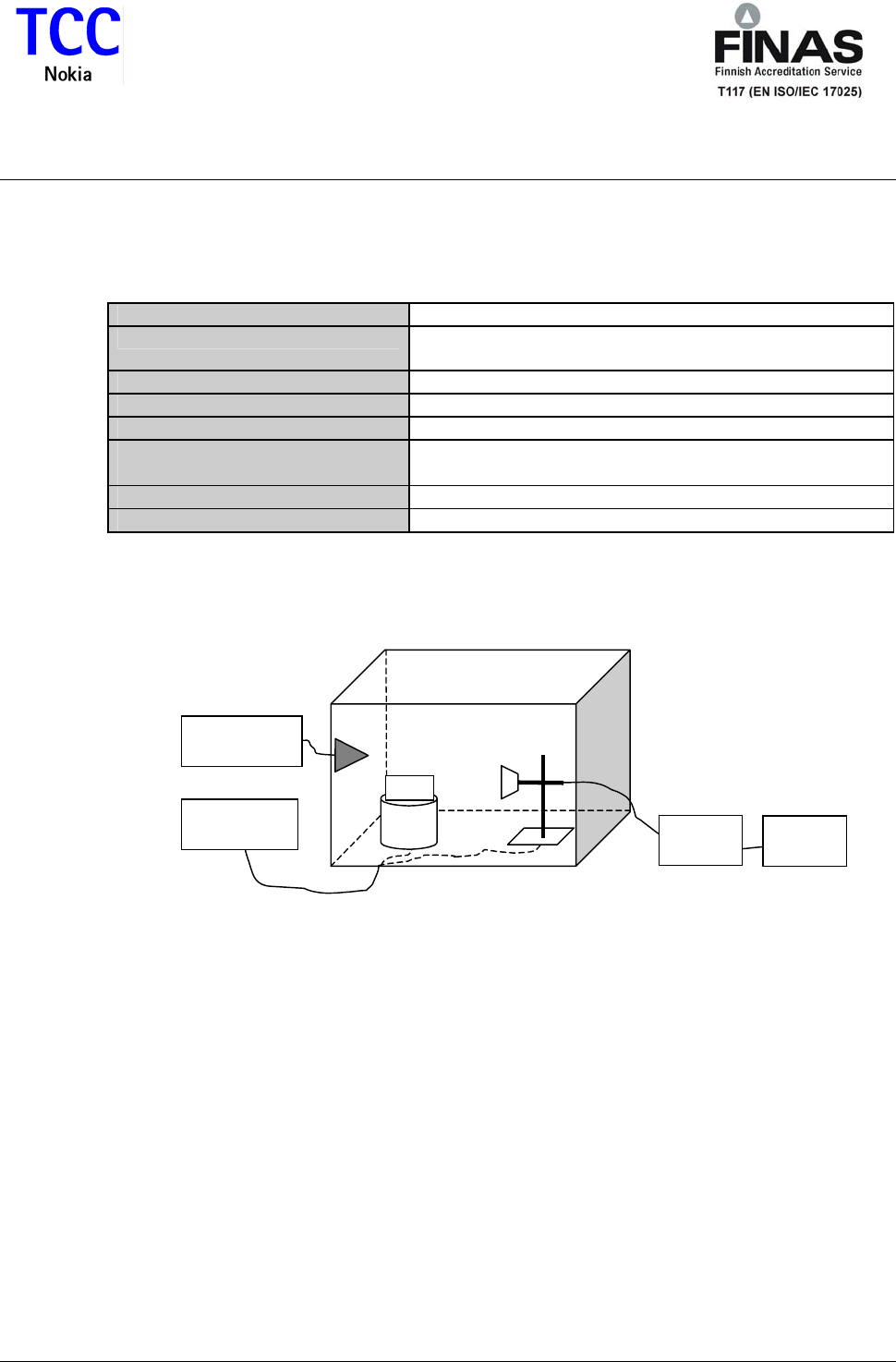

3. Spurious radiated emissions
(FCC §22.917(a), §24.238(a), §2.1053, RSS-GEN 4.7, RSS-132 4.5, RSS-133 6.3)
EUT with DUT number RM-199 DUT 40547
Accessories with DUT numbers BL-4C DUT 40552, AC-4 DUT 40554, HS-23 DUT
40556
Operation Voltage [V] / [Hz] 115 / 60
Result PASSED
Remarks Flip open
Temp [°C] / Humidity [%RH] /
Air Pressure [kPa] 23 / 46 / 100.6
Date of measurements 28.2.2006
Measured by Jari Jantunen
3.1. Test setup
Tower / table
controller
Communication
Tester
Receiver
EUT
Filter
bank
3.2. Test method and limit
The measurement is made according to TIA-603-B-2002 as follows:
The measurement is divided into the Preliminary Measurement and the Final Measurement.
The suspected frequencies are searched for in Preliminary Measurement with absorbers on the
floor and measuring antenna at fixed height using 2-axis EUT position system.
The Final Measurement is performed in the Semi-Anechoic Chamber with conducting metal
floor, if the Preliminary Measurement results are closer than 20 dB to the permissible value.
The EUT is placed at nonconductive plate at the turntable center.
For each suspected frequency, the turntable is rotated 360 degrees and antenna is scanned
from 1 to 4 m. This is repeated for both horizontal and vertical receive antenna polarizations.
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
9 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
The emissions less than 20 dB below the permissible value are reported.
The substitution method is used. Substitution values at each frequencies are measured
beforehand and saved to the test software.
The substitution corrections are obtained as described below:
ASUBST = PSUBST_TX - PSUBST_RX - LSUBST_CABLES + GSUBST_TX_ANT
Where ASUBST is the final substitution correction including receive antenna gain. PSUBST_TX is
signal generator level, PSUBST_RX is receiver level, LSUBST_CABLES is cable losses including both TX
and RX cables and GSUBST_TX_ANT is substitution antenna gain.
The measurement results are obtained as described below:
P [dBm] = PMEAS + ATOT
Where PMEAS is receiver reading in dBm and ATOT is total correction factor including cable loss,
preamplifier gain and substitution correction (ATOT = LCABLES - GPREAMP + ASUBST).
Limits for spurious radiated emissions measurements
Operation band Frequency range [MHz] Limit [dBm]
GSM 850 / WCDMA 850 30 - 8500 -13
GSM 1900 / WCDMA 1900 30 - 18000 -13
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
10 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
3.3. GSM 850 Test results
GSM mode, channel 190 / 836.6 MHz
Frequency
[MHz] P [dBm] P [µW] PMEAS [dBm] ATOT [dB] Polarisation Result
1673.143287 -46.10 0.02455 - 39.90 - 6.20 HORIZONTAL PASSED
2509.820641 -45.40 0.02884 - 46.50 1.10 VERTICAL PASSED
EGPRS mode, channel 190 / 836.6 MHz
Frequency
[MHz] P [dBm] P [µW] PMEAS [dBm] ATOT [dB] Polarisation Result
1673.143287 -54.80 0.00331 - 48.60 - 6.20 HORIZONTAL PASSED
2509.820641 -48.10 0.01549 - 49.20 1.10 VERTICAL PASSED
3.4. GSM 1900 Test results
GSM mode, channel 661 / 1880.0 MHz
Frequency
[MHz] P [dBm] P [µW] PMEAS [dBm] ATOT [dB] Polarisation Result
3760.023046 -35.00 0.31623 - 44.20 9.20 HORIZONTAL PASSED
5640.282565 -38.80 0.13183 - 49.70 10.90 HORIZONTAL PASSED
7524.542084 -47.90 0.01622 - 63.40 15.50 HORIZONTAL PASSED
EGPRS mode, channel 661 / 1880.0 MHz
Frequency
[MHz] P [dBm] P [µW] PMEAS [dBm] ATOT [dB] Polarisation Result
3760.023046 -36.80 0.20893 - 46.00 9.20 HORIZONTAL PASSED
5639.782565 -38.30 0.14791 - 49.20 10.90 HORIZONTAL PASSED
7520.042084 -45.20 0.03020 - 60.70 15.50 HORIZONTAL PASSED
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
11 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
4. Frequency stability, temperature variation
(FCC §2.1055(a), §2.1055(a), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7)
EUT with DUT number Phone: DUT 40550
Accessories with DUT numbers Dummy battery: DUT 40559, Headset: DUT 40523
Operation Voltage [V] / [Hz] 3.9V dc
Result Passed
Remarks -
Temp [°C] / Humidity [%RH] /
Air Pressure [kPa] 23/48/100.9-101.1
Date of measurements 8.3.2006
Measured by Jan-Erik Lilja
4.1. Test setup
Attenuator EUT
Radio
simulator
Climate chamber
4.2. Test method and limit
The measurement is made according to FCC rules part 22 and 24 and IC standards RSS-GEN,
RSS-132 and RSS-133 as follows:
a) The climate chamber temperature is set to the maximum value and the temperature is
allowed to stabilize.
b) The EUT is placed in the chamber.
c) The EUT is set in idle mode for 15 minutes.
d) The EUT is set to transmit.
e) The transmit frequency error was measured immediately.
f) The steps c - e were repeated for each temperature.
Limits for frequency stability, temperature variation measurements
Frequency deviation [ppm]
± 2.5
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
12 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
4.3. GSM 850 Test results
GSM mode, channel 190 / 836.6 MHz
Temperature [°C] Deviation [Hz] Deviation [ppm]
50 -18 - 0.0215
40 -14 - 0.0167
30 -17 - 0.0203
20 14 0.0167
10 -15 - 0.0179
0 -17 - 0.0203
-10 -18 - 0.0215
-20 -17 - 0.0203
-30 16 0.0191
4.4. GSM 1900 Test results
GSM mode, channel 661 / 1880.0 MHz
Temperature [°C] Deviation [Hz] Deviation [ppm]
50 -39 - 0.0207
40 -40 - 0.0213
30 -40 - 0.0213
20 -29 - 0.0154
10 -26 - 0.0138
0 -29 - 0.0154
-10 -32 - 0.0170
-20 -25 - 0.0133
-30 -31 - 0.0165
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
13 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
5. Frequency stability, voltage variation
(FCC §2.1055(d), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7)
EUT with DUT number Phone: DUT 40550
Accessories with DUT numbers Dummy battery: DUT 40559, Headset: DUT 40523
Operation Voltage [V] / [Hz] 3.9V dc
Result Passed
Remarks -
Temp [°C] / Humidity [%RH] /
Air Pressure [kPa] 23/48/100.9-101.1
Date of measurements 8.3.2006
Measured by Jan-Erik Lilja
5.1. Test setup
Attenuator
EUT Variable
power supply
Radio
simulator
5.2. Test method and limit
The measurement is made according to FCC rules part 22 and 24 and IC standards RSS-GEN,
RSS-132 and RSS-133 as follows:
The EUT battery was replaced with an adjustable power supply. The frequency stability was
measured at nominal voltage and at the battery cut-off point.
Limits for frequency stability, voltage variation measurements
Frequency deviation [ppm]
± 2.5
5.3. GSM 850 Test results
GSM mode, channel 190 / 836.6 MHz
Voltage level [V] Deviation [Hz] Deviation [ppm]
Battery cut-off point / 3.40 -21 - 0.0251
Nominal / 3.90 -20 - 0.0239
5.4. GSM 1900 Test results
GSM mode, channel 661 / 1880.0 MHz
Voltage level [V] Deviation [Hz] Deviation [ppm]
Battery cut-off point / 3.40 -23 - 0.0122
Nominal / 3.90 -36 - 0.0191
FCC Part 22/24 Compliance Test Report
/ Template Version 6.0
T:\Projects\RM-199\EMC\Results\FCC\Tre_FCC_0609_01.doc
Copyright © TCC Nokia
14 (14)
TCC Nokia Tampere Laboratory
P.O. Box 68
Sinitaival 5
FIN-33720 TAMPERE, FINLAND
Tel. +358 (0) 7180 46800
Fax. +358 (0) 7180 46880
6. Test Equipment
6.1. Conducted measurements
Eq. No Equipment Type Manufacturer Used in
TM37610 Spectrum analyzer FSU R&S 15C,22/24
TM37678 Radio communication tester CMU-200 R&S 15C,22/24
Attenuator 10 dB 6251.17.A Huber+Suhner AG 15C,22/24
TM22901 Step attenuator 110dB 8496A Agilent 15C,22/24
TM37499 Power splitter 11667A Agilent 15C,22/24
Temperature chamber VT4002 Vötsch 15C,22/24
TM38112 DC power supply 6632A Agilent 15C,22/24
TM38111 Multimeter 34401A Agilent 15C,22/24
TM38845 EMI receiver ESI 40 R&S 15B,15C
TM37773 Radio communication tester CMU-200 R&S 15B,15C
TM38631 Signal generator 83640L Agilent 15B,15C
TM38114 DC power supply 6632A Agilent 15B,15C
TM22835 Multimeter 87 Fluke 15B,15C
TM30600 Pulse Limiter ESH3-Z2 R&S 15B,15C
TM26490 LISN 50 µH ESH3-Z5/ R&S 15B,15C
TM30636 LISN 50 µH L2-16/ PMM 15B,15C
6.2. Radiated measurements
Eq. No Equipment Type Manufacturer Used in
TM30599 3m semi-anechoic chamber TDK 15B,15C, 22/24
TM38845 EMI receiver ESI 40 R&S 15B,15C, 22/24
TM37498 Preamplifier AMF-5D-020180-26-10P MITEQ 15B,15C, 22/24
TM37523 Preamplifier AMF-4D-10M-3G-25-20P MITEQ 15B,15C, 22/24
TM37516 Biconilog antenna HL562 R&S 15B,15C, 22/24
TM26496 Double ridged waveguide
antenna 3115 EMCO 15B,15C, 22/24
TM39158 Horn antenna 3116 EMCO 15B,15C, 22/24
TM26492 Reference dipole set UHAP/VHAP Schwarzbeck 15B,15C, 22/24
TM37501 Dipole antenna 3125-870 EMCO 22/24
TM37502 Dipole antenna 3125-1880 EMCO 22/24
TM37773 Radio communication tester CMU-200 R&S 15B,15C, 22/24
TM38631 Signal generator 83640L Agilent 15B,15C, 22/24
TM38066 High pass filter 4HC3000/18000-3-KK Trilithic 15B,15C, 22/24
High pass filter WHK2010-10SS Trilithic 15B,15C, 22/24
Low pass filter WLK1750-10SS Trilithic 15B,15C, 22/24
TM26511 Tunable notch filter WRCA870 Wainwright 22/24
TM38215 Tunable notch filter WRCD1850/1910-0.2/40 Wainwright 22/24
TM38214 Band reject filter WRCT 2402/2480-
2400/2483.5-30 Wainwright 15C
TM30642 Turntable controller HD-100 Deisel 15B,15C, 22/24
TM26500 Turntable DS412 Deisel 15B,15C, 22/24
TM38842 Antenna mast controller 2090 EMCO 15B,15C, 22/24
TM38843 Antenna mast 2075 EMCO 15B,15C, 22/24
TM38114 DC power supply 6632A Agilent 15B,15C, 22/24
TM22835 Multimeter 87 Fluke 15B,15C, 22/24
