Microsoft RM-123B GSM900/1800/1900/FDD I Cell W/BT User Manual Nokia 6234 issue 2 updated SAR 3july07 FCC SH

Microsoft Mobile Oy GSM900/1800/1900/FDD I Cell W/BT Nokia 6234 issue 2 updated SAR 3july07 FCC SH

Contents

Manual

FCC Draft
Nokia 6234 User Guide
9246861
Issue 2
FCC Draft
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RM-123 is
in conformity with the provisions of the following Council Directive: 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product
must be taken to separate collection at the product end-of-life. This applies to your
device but also to any enhancements marked with this symbol. Do not dispose of
these products as unsorted municipal waste.
Copyright © 2006 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C)
1997-2006. Tegic Communications, Inc. All rights reserved.
Nokia, Visual Radio, Nokia Connecting People, and Pop-Port are trademarks or registered
trademarks of Nokia Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance
with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial
activity and (ii) for use in connection with MPEG-4 video provided by a licensed video
provider. No license is granted or shall be implied for any other use. Additional information
including that relating to promotional, internal and commercial uses may be obtained from
MPEG LA, LLC. See <http://www.mpegla.com>.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
0434
FCC Draft
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revize this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your telephone if such interference cannot be eliminated. If you require assistance, contact
your local service facility. This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation. Any changes or modifications not expressly approved by Nokia
could void the user's authority to operate this equipment.
9246861/Issue 2
Contents
4
FCC Draft
Contents
For your safety.......................... 6
General information................. 9
Access codes............................................ 9
Configuration settings service ........ 10
Download content and applications 10
Nokia support and contact
information........................................... 11
1. Get started ......................... 12

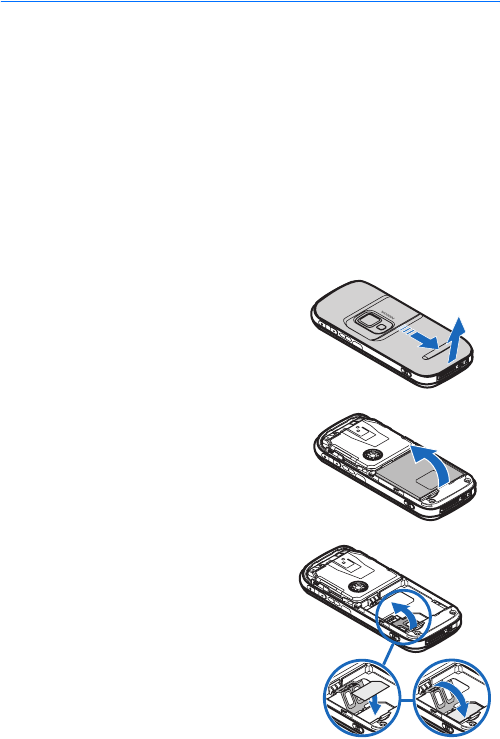

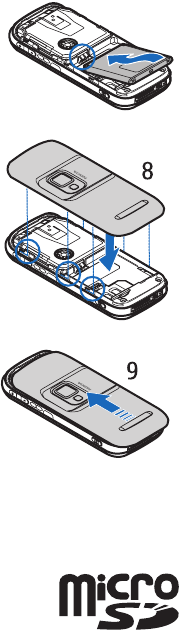

Install the SIM card and battery .... 12

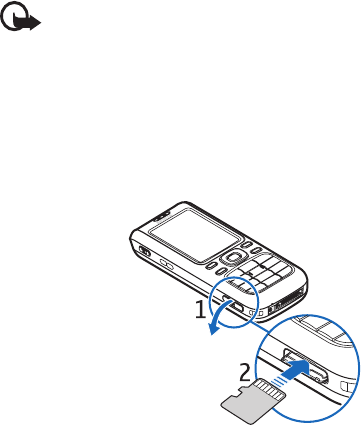

Install a memory card........................ 13
Charge the battery.............................. 14
Switch the phone on and off........... 15
Normal operating position ............... 16
2. Your phone......................... 17

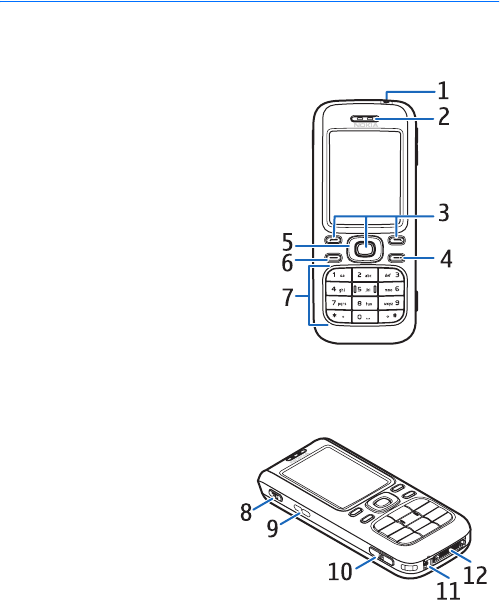

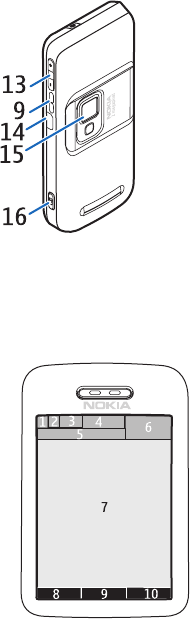

Keys and parts...................................... 17
Standby mode ...................................... 18
Keypad lock (keyguard) ..................... 21
3. Call functions..................... 23
Make a voice call ................................ 23
Answer or reject a voice call ........... 24
Options during a voice call .............. 25
Make a video call................................ 25
Answer or reject a video call ........... 26
Options during a video call .............. 26
4. Write text........................... 27
Settings.................................................. 27
Predictive text input .......................... 27
Traditional text input......................... 28
5. Navigate the menus .......... 29
6. Media.................................. 30
Camera................................................... 30
Media player......................................... 31
Music player ......................................... 32
Radio....................................................... 34
Voice recorder ...................................... 35
Equalizer................................................ 36
7. Web..................................... 37
Basic steps to access and use
services .................................................. 37
Set up browsing .................................. 37
Connect to a service .......................... 37
Browse pages ....................................... 38
Bookmarks............................................. 39
Appearance settings........................... 40
Security settings.................................. 41
Download settings.............................. 41
Service inbox........................................ 41
Cache memory..................................... 42
Browser security.................................. 42
8. Applications (Apps.) .......... 45
Games..................................................... 45
Collection .............................................. 45
Presenter ............................................... 47
9. Push To Talk (PTT).............. 49
Connect to the PTT service............... 49
Make and receive a PTT call............. 50
Callback requests ................................ 51
Add a one-to-one contact ............... 52
PTT channels......................................... 53
PTT settings........................................... 54
10.Messaging ......................... 56
Text messages (SMS) ......................... 56
SIM messages....................................... 57
Multimedia messages........................ 58
Memory full.......................................... 61
Folders.................................................... 61
Flash messages .................................... 61
Audio messages................................... 62
E-mail application .............................. 63
Voice messages.................................... 66
Info messages ...................................... 66
Contents
5
FCC Draft
Service commands .............................. 66
Delete messages .................................. 67
Message settings ................................. 67
11.My Items ........................... 71
Format memory card .......................... 71
12.Organizer........................... 72
Alarm clock............................................ 72
Calendar................................................. 73
To-do list................................................ 74
Notes....................................................... 74
Calculator .............................................. 74
Countdown timer ................................ 75
Stopwatch ............................................. 75
13.Contacts ............................ 77
Search for a contact........................... 77
Save names and phone numbers .... 77
Save numbers and text items .......... 77
Copy contacts....................................... 78
Edit contact details............................. 78
Delete contacts .................................... 78
Business cards ...................................... 79
Settings .................................................. 79
Groups..................................................... 79
Speed dials ............................................ 80
Service and my numbers ................... 80
14.Log..................................... 81
15.Instant messages (IM)...... 82
16.Settings ............................. 88
Profiles.................................................... 88
Themes.................................................... 89
Tones....................................................... 89
Display .................................................... 89
Time and date....................................... 91
My shortcuts......................................... 91
Connectivity.......................................... 93
Call........................................................... 99
Phone................................................... 100
Enhancements................................... 101
Configuration .................................... 101
Security ............................................... 102
Digital rights management............ 103
Restore factory settings ................. 104
17.SIM Toolkit (STK)........... 105
18.PC connectivity .............. 106
Nokia PC Suite................................... 106
EGPRS, HSCSD, CSD, and WCDMA 106
Data communication applications 106
19.Battery information....... 108
Charging and discharging.............. 108

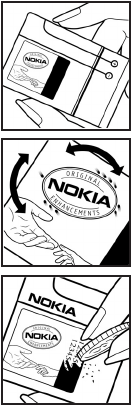

Nokia battery authentication
guidelines............................................ 109
20.Technical Information ... 111
Care and maintenance ........ 112
Additional safety
information 113
Index 117
APPENDIX 120
For your safety
6
FCC Draft
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
All wireless phones may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELING
Do not use the phone at a refueling point. Do not use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the phone where blasting is in
progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Do not touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
For your safety
7
FCC Draft
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press the end key as
many times as needed to clear the display and return to the start
screen. Enter the emergency number, then press the call key. Give your
location. Do not end the call until given permission to do so.
■About your device
The wireless device described in this guide is approved for use on the EGSM 900;
GSM 1800 and1900; and WCDMA2100 networks. Contact your service provider
for more information about networks.
When you use the features in this device, obey all laws and respect privacy and
legitimate rights of others.
When you take and use images or video clips, obey all laws and respect local
customs as well as privacy and legitimate rights of others.
Warning: To use any features in this device, other than the alarm clock,
the device must be switched on. Do not switch the device on when
wireless device use may cause interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features in this device depend on features in the wireless network to
function. These network services may not be available on all networks or you may
have to make specific arrangements with your service provider before you can
utilize network services. Your service provider may need to give you additional
instructions for their use and explain what charges will apply. Some networks
may have limitations that affect how you can use network services. For instance,
some networks may not support all language-dependent characters and services.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, they will not appear on your device menu. Your
For your safety
8
FCC Draft
device may also have been specially configured. This configuration may include
changes in menu names, menu order, and icons. Contact your service provider for
more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as multimedia messaging (MMS),
browsing, instant messaging, presence-enhanced contacts, remote
synchronization, and content downloading using the browser or MMS, require
network support for these technologies.
■Shared memory
The following features in this device may share memory: my items, contacts, text
messages, multimedia messages, instant messages, e-mail, calendar, to-do notes,
JavaTM games and applications, and note application. Use of one or more of these
features may reduce the memory available for the remaining features sharing
memory. For example, saving many Java applications may use all of the available
memory. Your device may display a message that the memory is full when you try
to use a shared memory feature. In this case, delete some of the information or
entries stored in the shared memory features before continuing. Some of the
features, such as text messages, may have a certain amount of memory specially
allotted to them in addition to the memory shared with other features.
■Enhancements
A few practical rules about accessories and enhancements.
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp
and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and
are operating properly.
• Installation of any complex car enhancements must be made by qualified
personnel only.
General information
9
FCC Draft
General information
■Access codes
Security code
The security code (5 to 10 digits) helps to protect your phone against
unauthorized use. The preset code is 12345. To change the code, and to
set the phone to request the code, see “Security,” p. 102.
If you enter an incorrect security code five times in succession, the
phone ignores further entries of the code. Wait for 5 minutes, and enter
the code again.
PIN codes
The personal identification number (PIN) code and the universal
personal identification number (UPIN) code (4 to 8 digits) help to
protect your SIM card against unauthorized use. See “Security,” p. 102.
The PIN code is usually supplied with the SIM card. Set the phone to
request the PIN code each time the phone is switched on.
The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is
required for some functions.
The module PIN is required to access the information in the security
module. See “Security module,” p. 43. The module PIN is supplied with
the SIM card if the SIM card has a security module in it.
The signing PIN is required for the digital signature. See “Digital
signature,” p. 44. The signing PIN is supplied with the SIM card if the
SIM card has a security module in it.
PUK codes
The personal unblocking key (PUK) code and the universal personal
unblocking key (UPUK) code (8 digits) is required to change a blocked
PIN code and UPIN code, respectively. If the codes are not supplied with
the SIM card, contact your service provider for the codes.
General information
10
FCC Draft
Barring password
The barring password (4 digits) is required when you use the Call barring
service. See “Security,” p. 102. You can obtain the password from your
service provider. If you enter an incorrect barring password three times
in succession, the password is blocked. Contact your service provider or
network operator.
■Configuration settings service
Before you use multimedia messaging, instant messaging and presence,
push to talk, e-mail, synchronization, streaming, and the browser, you
must have the proper configuration settings on your phone. You may
receive the settings directly as a configuration message, which you save
to your phone. For more information on availability, contact your
network operator, service provider, or nearest authorized Nokia dealer.
When you have received the settings as a configuration message, and
the settings are not automatically saved and activated, Configuration
settings received is displayed.
To save the received settings, select Show > Save. If the phone requests
Enter settings’ PIN:, enter the PIN code for the settings, and select OK. To
receive the PIN code, contact the service provider that supplies the
settings.
If no settings are saved, these settings are saved and set as default
configuration settings. Otherwise, the phone asks, Activate saved
configuration settings?
To discard the received settings, select Show > Discard.
■Download content and applications
You may be able to download content, such as themes, tones, and video
clips, to the phone (network service). Select the download function (for
example, in My Items). To access the download function, see the
respective menu descriptions. For availability of different services,
pricing, and tariffs, contact your service provider.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
General information
11
FCC Draft
■Nokia support and contact information
Check www.nokia.com/support or your local Nokia Web site for the
latest version of this guide, additional information, downloads, and
services related to your Nokia product.
On the Web site, you can get information on the use of Nokia products
and services. If you need to contact customer service, check the list of
local Nokia contact centers at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia service center at
www.nokia.com/repair.
Get started
12
FCC Draft
1. Get started
■Install the SIM card and the battery
Always switch the device off and disconnect the charger before removing the
battery.
Keep all SIM cards out of the reach of small children.
For availability and information on using SIM card services, contact your SIM
card vendor. This may be the service provider, network operator, or other vendor.
This device is intended for use with the BP-6M-S battery.
The SIM card and its contacts can easily be damaged by scratches or
bending, so be careful when handling, inserting, or removing the card.
1. With the back of the phone facing
you, slide the back cover (1) to
remove it from the phone (2).
2. To remove the battery, lift it as
shown (3).
3. To release the SIM card holder,
gently pull the locking clip of the
card holder, and open it (4)
Insert the SIM card into the SIM card
holder (5). Make sure that the SIM
card is properly inserted and that the
gold-colored contact area on the
card is facing downwards.
Close the SIM card holder (6), and
press it until it snaps into position.
1
2
3
4
56
Get started
13
FCC Draft
4. Replace the battery (7)
5. Place the back cover in the correct
position (8).
6. Slide the back cover into place (9).
■Install a memory card
The phone’s microSD card included with your
phone contains preloaded ringing tones, themes,
tones, and graphics. If you delete, reload, or
replace this card, these functions and features
may not function properly.
Use only compatible microSD cards with this device. Other memory cards, such as
reduced size MMCs, do not fit in the memory card slot and are not compatible
with this device. Using an incompatible memory card may damage the memory
card as well as the device, and data stored on the incompatible card may be
corrupted.
7
Get started
14
FCC Draft
Use only microSD cards approved by Nokia for use with this device. Nokia utilizes
the approved industry standards for memory cards but not all other brands may
function correctly or be fully compatible with this device.
You can use a memory card to extend the memory of My Items. See “My
Items,” p. 71.
You can insert or change the memory card without switching the phone
off.
Important: Do not remove the memory card in the middle of an
operation when the card is being accessed. Removing the card in the
middle of an operation may damage the memory card as well as the
device, and data stored on the card may be corrupted.
To insert the memory card, open the memory card holder as shown (1).
Place the memory card in the card holder (2). Make sure that the
memory card is properly inserted—that it clicks into the holder—and
that the gold-colored contact area on the card is facing upwards. Close
the memory card holder.
You can use the memory card to save your multimedia files, such as
video clips, sound files, and images, in My Items.
To format the memory card, see “Format memory card,” p. 71.
■Charge the battery
Check the model number of any charger before use with this device. This device is
intended for use when supplied with power from the AC-4, AC-1, AC-3, or DC-4
charger.
Get started
15
FCC Draft
Warning: Use only batteries, chargers, and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When
you disconnect the power cord of any enhancement, grasp and pull the plug, not
the cord.
1. Connect the charger to a wall outlet.
2. Connect the plug from the charger
into the CA-44 charging adapter (not
provided with the phone), and the
adapter plug into the jack on the
bottom of your phone.
If the battery is completely discharged, it may take a few minutes
before the charging indicator appears on the display or before any
calls can be made.
The charging time depends on the charger and the battery used. For
example, charging a BP-6M Li-Ion battery with the AC-4 charger takes
about 1 hour and 55 minutes while the phone is in the standby mode.
■Switch the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the power key as shown.
If the phone asks for a PIN or UPIN code, enter the code,
and select OK.
You can switch on the phone in demo mode without a
SIM card inserted. In this mode, all bearer-independent
features are available, and you can make emergency
calls.
Set the time, time zone, and date
Enter the local time, select the time zone of your location in terms of the
time difference with respect to Greenwich Mean Time (GMT), and enter
the date. See “Time and date,” p. 91.
Get started
16
FCC Draft
Plug and play service
When you switch on your phone for the first time, and the phone is in
the standby mode, you may be asked to get the configuration settings
from your service provider (network service). Confirm or decline the
query. See Connect to serv. support in “Configuration,” p. 101 and
“Configuration settings service,” p. 10.
■Normal operating position
Use the phone only in its normal operating position.
Your device has an internal antenna.
Note: As with any other radio transmitting
device, do not touch the antenna unnecessarily
when the device is switched on. Contact with
the antenna affects call quality and may cause
the device to operate at a higher power level
than otherwise needed. Avoiding contact with
the antenna area when operating the device
optimizes the antenna performance and the
battery life.
Your phone
17
FCC Draft
2. Your phone
■Keys and parts
• Power key (1)
• Earpiece (2)
• Left, middle, and right
selection keys (3)
• End key (4)
• 4-way navigation
key (5)
• Call key (6)
• Number keys (7)
• Push to talk key (8)
• Loudspeaker (9)
• Memory card slot (10)
• Charger connector (11)
• Enhancements
connector (12)
Your phone
18
FCC Draft
• Volume keys (13)
• Infrared (IR) port (14)
• Camera lens (15)
• Camera key (16)
■Standby mode
When the phone is ready for use, and you have not entered any
characters, the phone is in the standby mode.
• 3G indicator (1)
• Signal strength of the cellular
network (2)
• Battery charge level (3)
• Indicators (4)
• The name of the network or the
operator logo (5)
• Clock (6)
• Display (7)
• The left selection key (8) is Go to or a
shortcut to another function. See “Left
selection key,” p. 91.
• The middle selection key (9) mode is Menu.
• The right selection key (10) may be Names to access the list of
contacts in the Contacts menu, an operator-specific name to access
an operator-specific Web site, or a shortcut to a function that you
selected. See “Right selection key,” p. 92.
Your phone
19
FCC Draft
Active standby
In the active standby mode, the
phone can display separate
content item windows, such as
shortcuts (1), audio functions (2),
the calendar (3), and a user note
(4). To select whether active
standby is shown, see Active
standby in “Standby settings,”
p. 89.
When active standby is idle, to
access the menu structure, select
Menu (5). To access the features
in active standby, press the
navigation key up or down.
To change the key to access the navigation mode, see Enabling active
standby in “Standby settings,” p. 89. When the arrow indicators (6) are
shown, you can scroll the item left and right.
Content items in the navigation mode
Shortcut bar — To select a shortcut, scroll to the desired function, using
left/right navigation key, and select it.
To change or organize the shortcuts when in the navigation mode,
select Options > Active standby > My active standby > Options >
Personalise > Options > Select links or Organise links.
Audio applications — To switch on the radio or the music player, scroll to
and select it. To change a track in the music player or a channel in the
radio, scroll left or right. To start the radio channel search, scroll and
hold left or right.
Calendar — To view today’s notes, select the desired one. To view the
notes for the previous or next days, scroll left or right.
My note — To enter a note, select the content window, write your note,
and save it.
Your phone
20
FCC Draft
Countdown timer — To start the countdown timer, select the content
item. The remaining time with a note is shown.
General indicators — To show standby indicators, such as date, cell info
display, info messages, PTT default group name and closed user group
index. The date is shown if the calendar is not selected as active standby
content.
Standby mode shortcuts
• To access the list of dialed numbers, press the call key once. See
“Make a voice call,” p. 23.
• To call your voice mailbox (network service) when you have saved
your voice mailbox number in the phone, press and hold 1.
• To access video mail numbers, press and hold 2.
• To connect to a browser service, press and hold 0.
• To set shortcut functions for the navigation key, see Navigation key
in “My shortcuts,” p. 91.
• To change the profile, briefly press the power key to open the list of
profiles. Scroll to the desired profile, and select it.
Power saver
To set the power saving function On, see Power saver in “Display,” p. 89.
Indicators
You have unread messages in the Inbox folder.
You have unsent, canceled, or failed messages in the Outbox
folder.
The phone registered a missed call.
/ Your phone is connected to the instant messaging service, and
the availability status is online or offline.
You received one or several instant messages, and you are
connected to the Instant messaging service.
Your phone
21
FCC Draft
The keypad is locked.
The phone does not ring for an incoming call or text message.
See also “Tones,” p. 89.
The alarm clock is set to On.
The countdown timer is running.
The stopwatch is running in the background.
/ The phone is registered to a GPRS, EGPRS, or WCDMA network.
/ A packet data connection is established.
/ The packet data connection is suspended (on hold), for example,
if there is an incoming or outgoing call during a packet data
dial-up connection.
When the infrared connection is activated, the indicator is
shown continuously.
A Bluetooth connection is active.
If you have two phone lines, the second phone line is selected.
All incoming calls are diverted to another number.
The loudspeaker is activated, or the music stand is connected to
the phone.
Calls are limited to a closed user group.
The timed profile is selected.
, , , or
A headset, hands-free, loopset, or music stand enhancement is
connected to the phone.
or A push to talk connection is active or suspended.
■Keypad lock (keyguard)
To prevent the keys from being accidentally pressed, select Menu, and
press * within 3.5 seconds to lock the keypad; or select Lock.
Your phone
22
FCC Draft
To unlock the keypad select Unlock, and press * within 1.5 seconds. If
the Security keyguard is set On, select Unlock, press *, and enter the
security code.
To answer a call when the keyguard is on, press the call key. When you
end or reject the call, the keypad automatically locks.
For Automatic keyguard and Security keyguard, see “Phone,” p. 100.
When the keyguard is on, calls still may be possible to the official emergency
number programmed into your device.
Call functions
23
FCC Draft
3. Call functions
■Make a voice call
1. Enter the phone number, including the area code.
For international calls, press * twice for the international prefix (the
+ character replaces the international access code), enter the
country code, the area code without the leading 0, if necessary, and
the phone number.
2. To call the number, press the call key.
3. To end the call, or to cancel the call attempt, press the end key.
To search for a name or phone number that you have saved in Contacts,
see “Search for a contact,” p. 77. Press the call key to call the number.
To access the list of phone numbers you have most recently called or
attempted to call, in the standby mode, press the call key once. To call
the number, scroll to the number or name you want, and press the call
key.
Speed dialing
Assign a phone number to one of the speed-dialing keys, 3 to 9. See
“Speed dials,” p. 80. Call the number in either of the following ways:
• Press the speed-dialing key, then the call key.
•If Speed dialling is set to On, press and hold a speed-dialing key until
the call begins. See “Call,” p. 99.
Enhanced voice dialing
To make a phone call, select and hold Names, and say the name of the
contact you wish to call. The phone will automatically associate a
virtual voice tag with each contact in the phone memory.
Call functions
24
FCC Draft
Make a voice dialing call
If an application is sending or receiving data using a packet data
connection, end the application before you use voice dialing in GSM. In
WCDMA it is possible to send voice and data simultaneously.
Voice commands are language-dependent. To set the language, see
Voice playback language in “Phone,” p. 100.
Note: Using voice tags may be difficult in a noisy environment or
during an emergency, so you should not rely solely upon voice dialing in
all circumstances.
1. In the standby mode, press and hold the right selection key. A short
tone is played, and Speak now is displayed.
If you are using a compatible headset with the headset key, press and
hold the headset key to start the voice dialing.
2. Say the voice command clearly. If the voice recognition is successful,
a list with matches is shown. The phone plays the voice command of
the match on the top of the list. After about 1.5 seconds, the phone
dials the number; or if the result is not the correct one, scroll to
another entry, and select to dial the entry.
Using voice commands to carry out a selected phone function is
similar to voice dialing. See Voice commands in “My shortcuts,” p. 91.
■Answer or reject a voice call
To answer a call, press the call key.
To mute the ringing tone before you answer the call, select Silence.
To end the call or reject a call, press the end key.
Call waiting
During a call, to answer the waiting call, press the call key. The first call
is put on hold. To end the active call, press the end key.
To activate the Call waiting function, see “Call,” p. 99.
Call functions
25
FCC Draft
■Options during a voice call
Many of the options that you use during a call are network services. For
availability, contact your network operator or service provider.
Call options are Mute or Unmute, Contacts, Menu, Lock keypad, Record,
Loudspeaker, or Handset.
Network services options are Answer, Reject, Hold or Unhold, New call,
Add to conference, End call, End all calls, and the following:
Send DTMF — to send tone strings
Swap — to switch between the active call and the call on hold
Transfer — to connect a call on hold to an active call and disconnect
yourself
Conference — to make a conference call that allows up to five persons to
take part in a conference call
Private call — to discuss privately in a conference call
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
■Make a video call
When you make a video call, you send a real-time video to the recipient
of the call. The video image captured by the camera on the back of your
phone is shown to the video call recipient. This phone does not have a
front camera.
To be able to make a video call, you must have a USIM card and be
connected in a WCDMA network. For availability of and subscription to
video call services, contact your network operator or service provider. A
video call can only be made between two parties. The video call can be
made to a compatible phone or an ISDN client. Video calls cannot be
made while another voice, video, or data call is active.
1. To start a video call, enter the phone number in the standby mode, or
select Contacts and a contact.
2. Press and hold the call key, or select Options > Video call.
Starting a video call may take a while. Video call and an outgoing
Call functions
26
FCC Draft
animation is shown. If the call is not successful (for example, video
calls are not supported by the network, or the receiving device is not
compatible) you are asked if you want to try a normal call or send a
message instead.
Tip: To increase or decrease the volume during a call, press
the volume keys.
The video call is active when you can see two video images and hear
the sound through the loudspeaker. The call recipient may deny the
video sending, in which case you may see a still image or a grey
background graphic. You will hear the sound.
3. To end the call, press the end key.
■Answer or reject a video call
When a video call arrives, Video Call is displayed.
1. Press the call key to answer the video call. Allow video image to be
sent to caller? is displayed.
If you select Yes, the image being captured by the camera in your
phone is shown to the caller. If you select No, or do nothing, video
sending is not activated, and you hear a sound. A graphic is displayed
on top of the video, indicating that it is not sent. You can enable or
disable video sending at any time during the video call.
2. To end the video call, press the end key.
Even when you deny video sending during a video call, the call is still
charged as a video call. Check the pricing with your network operator or
service provider.
■Options during a video call
Select Options during a video call for the following options: Set
contrast, Video motion, Switch to voice, End call, Send DTMF, and
Loudspeaker.
Write text
27
FCC Draft
4. Write text
To enter text (for example, when writing messages), use traditional or
predictive text input. To use traditional text input, press a number key, 1
to 9, repeatedly until the desired character appears. In predictive text
input you can enter a letter with a single keypress.
When you write text, or appears at the top left of the display,
indicating predictive text input, and appears, indicating traditional
text input. , , or appears next to the text input indicator,
indicating the character case. To change the character case, press #.
indicates number mode. To change from the letter to number
mode, press and hold #, and select Number mode.
■Settings
To set the writing language while writing text, select Options > Writing
language.
When writing text, select Options > Prediction .
To set predictive text input on or revert to traditional text input, select
Prediction > On or Off.
To select the prediction type, select Prediction type > Normal or Word
suggestions. If you select Normal, indicated with , the phone
predicts the word on the basis of the characters you enter. If you select
Word suggestions, indicated with , the phone predicts and
completes the word before you enter all the characters.
Tip: To quickly set predictive text input on or off when writing
text, press # twice, or select and hold Options.
■Predictive text input
Predictive text input allows you to write text quickly using the phone
keypad and a built-in dictionary.
Write text
28
FCC Draft
1. To start writing a word, use the 2 to 9 keys. Press each key only once
for one letter. The phone displays * or the letter if it separately has a
meaning as a word. The entered letters are displayed underlined.
If you select Word suggestions as prediction type, the phone starts to
predict the word you are writing. After you enter a few letters, and if
these entered letters are not a word, the phone tries to predict longer
words. Only the entered letters are displayed underlined.
To insert a special character, press and hold *, or select Options >
Insert symbol. Scroll to a character, and select Use.
2. When you finish writing the word and it is correct, to confirm it,
press 0 to add space.
If the word is not correct, press * repeatedly, or select Options >
Matches. When the word that you want appears, select Use.
If the ? character is displayed after the word, the word you intended
to write is not in the dictionary. To add the word to the dictionary,
select Spell. Complete the word (traditional text input is used), and
select Save.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character
appears. Not all characters available under a number key are printed on
the key. The characters that are available depend on the selected writing
language. See “Settings,” p. 27.
If the next letter you want is located on the same key as the present one,
wait until the cursor appears; or briefly press any of the navigation keys,
and enter the letter.
The most common punctuation marks and special characters are
available under the 1 key. For more characters, press *.
Navigate the menus
29
FCC Draft
5. Navigate the menus
The phone offers you an extensive range of functions, that are grouped
into menus.
1. To access the menu, select Menu.
To change the menu view, select Options > Main menu view > List,
Grid, Grid with labels or Tab.
To rearrange the menu, scroll to the menu you want to move, and
select Options > Organise > Move. Scroll to where you want to
move the menu, and select OK. To save the change, select Done >
Yes.
2. Scroll through the menu, and select an option (for example,
Settings).
3. If the selected menu contains further submenus, select the one that
you want (for example, Call).
4. If the selected menu contains further submenus, repeat step 3.
5. Select the setting of your choice.
6. To return to the previous menu level, select Back. To exit the menu,
select Exit.
The menus, submenus, and setting options are numbered. To access
some of them, use their shortcut number.
To access the menu, select Menu. Enter quickly, within 2 seconds, the
shortcut number of the menu function you want to access. To access the
menu functions in menu level 1, enter 0 and 1.
Media
30
FCC Draft
6. Media
■Camera
You can take photos or record video clips with the built-in 2 megapixel
camera. The camera produces pictures in .jpg format and video clips in
.3gp format, and you can digitally zoom up to eight times.
Take a photo
1. To open the camera viewfinder, select Menu > Media > Camera.
If Video is selected as the default mode, select Options > Still image.
To zoom in or out, press the volume key up or down, or the left/right
navigation key.
To take up to four photos in quick succession, select Options > Img.
sequence on. The higher the resolution, the fewer photos you can
take sequentially.
2. To take a photo, press the camera
key, or select Capture.
The phone saves the photo in My
Items > Images unless you set the
phone to use the memory card
for saving the photos.
3. To take another photo, press the
camera key after the photo saving indicator stops moving. To send
the photo as a multimedia message, select Options > Send.
Tip: To activate the camera, press the camera key. To activate
video, press and hold the camera key.
This device supports an image capture resolution of 1600 x 1200 pixels. The
image resolution in these materials may appear different.
Record a video clip
Select Menu > Media > Camera > Options > Video > Record. To pause
the recording, select Pause; to resume the recording, select Continue. To
Media
31
FCC Draft
stop the recording, select Stop. The phone saves the recording in My
Items > Video clips. To change the folder for saving the recordings, see
“Camera settings,” p. 31.
Camera settings
Select Menu > Media > Camera > Options > Settings. You can define
Image quality, Image size, Video clip quality, Video clip length, Camera
sounds, Default title, Image and video storage, and Default mode. In
Image and video storage you can select the folder or memory card to
save your photos and video clips.
This device supports the following video sizes: SubQCIF, QCIF, CIF, and
VGA.
■Media player
With the media player you can view, play, and download files, such as
images, audio, video, and animated images. You can also view
compatible streaming videos from a network server (network service).
Select Menu > Media > Media player > Open My Items, Bookmarks, Go
to address, or Media downloads.
Progressive download
Progressive download allows you to watch a video while it is being
downloaded and saved in the background. Playback starts immediately
when enough data has been buffered.
Select Menu > Media > Media player > Open My Items, Bookmarks, Go
to address, or Media downloads.
To learn more about accessing videos see “Download content and
applications,” p. 10.
Set up the phone for a streaming service
You may receive the configuration settings required for streaming as a
configuration message from the network operator or service provider.
Media
32
FCC Draft
See “Configuration settings service,” p. 10. You can also enter the
settings manually. See “Configuration,” p. 101.
To activate the settings, do the following:
1. Select Menu > Media > Media player > Streaming settings >
Configuration
2. Only the configurations that support streaming are shown. Select a
service provider, Default, or Personal configuration for streaming.
3. Select Account and a streaming service account contained in the
active configuration settings.
■Music player
Your phone includes a music player for listening to music tracks,
recordings, or other .mp3, .mp4, or .aac format sound files that you have
transferred to the phone with the Nokia Audio Manager application.
.mp3 and .aac format files are stored in the memory card or in the My
Items folders. Music files saved in the Music files folder and in another
location, such as a folder of the memory card, are automatically
detected and added to the default track list.
Play the music tracks transferred to the phone
1. Select Menu > Media > Music player. The details of the first track on
the default track list are shown.
To use the graphical keys , , , or on the display, scroll
left or right to the desired key, and select it.
2. To play a track, scroll to the track that you want, and select .
To adjust the volume level, use the volume keys on the side of the
phone.
To skip to the beginning of the next track, select . To skip to the
beginning of the previous track, select twice.
To rewind the current track, select and hold . To fast forward the
current track, select and hold . Release the key at the position you
want.
3. To stop the playing, select .
Media
33
FCC Draft
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing. Do not hold the device near
your ear when the loudspeaker is in use, because the volume may be
extremely loud.
Music player settings
In the Music player menu, the following options may be available:
Play via bluetooth — to make a connection to an audio enhancement
using a Bluetooth connection
Track list — to view all the tracks available on the track list. To play a
track, scroll to the desired track, and select Play.
Select Options > Refresh all tracks or Change track list to refresh the
track list (for example, after adding new tracks to the list) or to change
the track list that is shown when you open the Music player menu, if
several track lists are available in the phone.
Play options > Random > On — to play the tracks in the track list in
random order. Select Repeat > Current track or All tracks to play the
current track or the entire track list repeatedly.
Media equaliser — to open the list of media equalizer sets. See
“Equalizer,” p. 36.
Loudspeaker or Headset — to listen to the music player through the
loudspeaker or a compatible headset connected to the phone
Tip: When using a headset, to skip to the next track, press the
headset key.
Send — to send the selected file using MMS, Bluetooth wireless
technology, or an infrared connection
Music downloads — to connect to a browser service related to the
current track. This function is only available when the address of the
service is included in the track.
Memory status — to view the free and used memory capacity
Media
34
FCC Draft
■Radio
The FM radio depends on an antenna other than the wireless device’s antenna. A
compatible headset or enhancement needs to be attached to the device for the
FM radio to function properly.
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing. Do not hold the device near
your ear when the loudspeaker is in use, because the volume may be
extremely loud.
Select Menu > Media > Radio.
To use the graphical keys , , , or on the display, scroll left or
right to the desired key, and select it.
Save radio channels
1. To start the channel search, select and hold or . To change the
radio frequency in 0.05 MHz steps, briefly press or .
2. To save the channel to a memory location, 1 to 9, press and hold the
corresponding number key. To save the channel to a memory location
from 10 to 20, press briefly 1 or 2, and press and hold the desired
number key, 0 to 9.
3. Enter the name of the channel, and select OK.
Listen to the radio
Select Menu > Media > Radio. To scroll to the desired channel, select
or , or press the headset key. To select a radio channel location,
briefly press the corresponding number keys. To adjust the volume, press
the volume keys.
Select from the following options:
Switch off — to turn off the radio
Save station — to enter a channel name and save the new channel
Visual Radio — to set whether the Visual Radio application is used. Some
radio channels may send text or graphical information that you can
view using the Visual Radio application.
Media
35
FCC Draft
Note: This feature may not be available in your product due
to your subscription (network service).
Visual Radio settings — to select the options for Visual Radio. To set
whether the Visual Radio application starts automatically when you
turn on the radio, select Enable visual service > Automatically.
Stations — to select the list of saved channels. To delete or rename a
channel, scroll to the desired channel, and select Options > Delete
station or Rename.
Mono output or Stereo output — to listen to the radio in monophonic
sound or in stereo
Loudspeaker or Headset — to listen to the radio using the loudspeaker or
headset. Keep the headset connected to the phone. The lead of the
headset functions as the radio antenna.
Set frequency — to enter the frequency of the desired radio channel
You can normally make a call or answer an incoming call while listening
to the radio. During the call, the volume of the radio is muted.
When an application using a packet data or HSCSD connection is
sending or receiving data, it may interfere with the radio.
■Voice recorder
You can record pieces of speech, sound, or an active call, and save them
in My Items or a memory card. This is useful when recording a name and
phone number to write down later.
The recorder cannot be used when a data call or GPRS connection is active.
Record sound
1. Select Menu > Media > Voice recorder.
To use the graphical keys , , or on the display, scroll left or
right to the desired key, and select it.
2. To start the recording, select . To start the recording during a call,
select Options > Record. While recording a call, all parties to the call
Media
36
FCC Draft
hear a faint beeping sound about every 5 seconds. When recording a
call, hold the phone in the normal position near to your ear.
3. To end the recording, select . The recording is saved in My Items >
Recordings.
4. To listen to the latest recording, select Options > Play last recorded.
5. To send the last recording using infrared, Bluetooth wireless
technology, or a multimedia message, select Options > Send last
recorded.
List of recordings
Select Menu > Media > Voice recorder > Options > Recordings list. The
list of folders in the My Items is shown. Open Recordings to see the list
with recordings. Select Options to select options for files in the My
Items. See “My Items,” p. 71.
Define a storage folder
To use another folder than Recordings as the default folder in My Items,
select Menu > Media > Voice recorder > Options > Select memory.
Scroll to a folder, and select Set.
■Equalizer
You can control the sound quality when using the music player by
amplifying or diminishing frequency bands.
Select Menu > Media > Equaliser.
To activate a set, scroll to one of the equalizer sets, and select Activate.
To view, edit, or rename a selected set, select Options > View, Edit, or
Rename. Not all sets can be edited or renamed.
Web
37
FCC Draft
7. Web
You can access various mobile Internet services with your
phone browser.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
Check the availability of these services, pricing, tariffs, and instructions
with your service provider.
With the phone browser you can view the services that use wireless
markup language (WML) or extensible hypertext markup language
(XHTML) on their pages. Appearance may vary due to screen size. You
may not be able to view all details of the Internet pages.
■Basic steps to access and use services
1. Save the service settings that are required to access the service that
you want to use. See “Set up browsing,” p. 37.
2. Make a connection to the service. See “Connect to a service,” p. 37.
3. Start browsing the pages of the service. See “Browse pages,” p. 38.
4. When you finish browsing, end the connection to the service. To
disconnect, see “Options while browsing,” p. 39.
■Set up browsing
You may receive the configuration settings required for browsing as a
configuration message from the network operator or service provider
that offers the service that you want to use. See “Configuration settings
service,” p. 10. You can also enter all the configuration settings
manually. See “Configuration,” p. 101.
■Connect to a service
First, ensure that the correct configuration settings of the service that
you want to use are activated.
Web
38
FCC Draft
1. To select the settings for connecting to the service, select Menu >
Web > Settings > Configuration settings.
2. Select Configuration. Only the configurations that support browsing
service are shown. Select a service provider, Default, or Personal
configuration for browsing. See “Set up browsing,” p. 37.
3. Select Account and a browsing service account contained in the
active configuration settings.
4. Select Display terminal window > Yes to perform manual user
authentication for intranet connections.
Secondly, make a connection to the service in one of the following ways:
• Select Menu > Web > Home; or in the standby mode, press and hold
0.
• To select a bookmark of the service, select Menu > Web >
Bookmarks.
• To select the last URL, select Menu > Web > Last web address.
• To enter the address of the service, select Menu > Web > Go to
address. Enter the address of the service, and select OK.
■Browse pages
After you make a connection to the service, you can start browsing its
pages. The function of the phone keys may vary in different services.
Follow the text guides on the phone display. For more information,
contact your service provider.
If packet data is selected as the data bearer, is shown on the top left
of the display during browsing. If you receive a call or a text message, or
make a call during a packet data connection, is shown on the top
right of the display to indicate that the packet data connection is
suspended (on hold). After a call the phone tries to reconnect the packet
data connection.
Browse with phone keys
To browse through the page, scroll in any direction.
To select a highlighted item, press the call key, or select Select.
Web
39
FCC Draft
To enter letters and numbers, press the 0 to 9 keys. To enter special
characters, press *.
Options while browsing
Select from the following options:
Home — to return to your start page
Shortcuts — to open a new list of options that are specific to the page.
This option is only available if the page contains shortcuts.
Add bookmark — to save the page as a bookmark
Bookmarks — to access the list of bookmarks. See “Bookmarks,” p. 39.
Page options — to show the list of options for the active page
History — to get a list showing the last visited URLs
Other options — to show a list of other options
Reload — to reload and update the current page
Quit — to disconnect from a service
The service provider may also offer other options.
Direct calling
The browser supports functions that you can access while browsing. You
can make a phone call, send DTMF tones while a voice call is in progress,
and save a name and a phone number from a page.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
1. While browsing, select Options > Bookmarks; or in the standby
mode, select Menu > Web > Bookmarks.
2. Scroll to a bookmark, and select it, or press the call key to make a
connection to the page associated with the bookmark.
3. Select Options to view, edit, delete, or send the bookmark; to create
a new bookmark; or to save the bookmark to a folder.
Web
40
FCC Draft
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
Receive a bookmark
When you have received a bookmark that is sent as a bookmark,
1 bookmark received is displayed. To save the bookmark, select Show >
Save. To view or delete the bookmark, select Options > View or Delete.
To discard the bookmark directly after you have received the bookmark,
select Exit > OK.
■Appearance settings
While browsing, select Options > Other options > Appearance settings,
or in the standby mode, select Menu > Web > Settings > Appearance
settings and from the following options:
Text wrapping > On — to set the text to continue on the next line on the
display. If you select Off, the text is abbreviated.
Font size > Extra small, Small, or Medium — to set the font size
Show images > No — to hide pictures on the page. This can speed up the
browsing of pages that contain a lot of pictures.
Alerts > Alert for unsecure conn. > Yes — to set the phone to alert when
a secure connection changes to an unsecure one during browsing
Alerts > Alert for unsecure items > Yes — to set the phone to alert when
a secure page contains an unsecure item. These alerts do not guarantee
a secure connection. For more information, see “Browser security,”
p. 42.
Character encoding > Content encoding — to select the encoding for the
browser page content
Character encoding > Unicode (UTF-8) web add. > On — to set the
phone to send a URL as a UTF-8 encoding. You may need this setting
when you access a Web page created in foreign language.
Screen size > Full or Small — to set the screen layout
Web
41
FCC Draft
JavaScript > Enable — to enable the Java scripts
■Security settings
Cookies
A cookie is data that a site saves in the cache memory of your phone.
Cookies are saved until you clear the cache memory. See “Cache
memory,” p. 42.
While browsing, select Options > Other options > Security > Cookie
settings; or in the standby mode, select Menu > Web > Settings >
Security settings > Cookies. To allow or prevent the phone from
receiving cookies, select Allow or Reject.
Scripts over secure connection
You can select whether to allow the running of scripts from a secure
page. The phone supports WML scripts.
While browsing, to allow the scripts, select Options > Other options >
Security > WMLScript settings; or in the standby mode, select Menu >
Web > Settings > Security settings > WMLScripts in sec. conn. > Allow.
■Download settings
To automatically save all downloaded files in My Items, select Menu >
Web > Settings > Downloading settings > Automatic saving > On.
■Service inbox
The phone is able to receive service messages (pushed messages) sent by
your service provider (network service). Service messages are
notifications (for example, news headlines), and they may contain a text
message or an address of a service.
To access the Service inbox in the standby mode, when you have
received a service message, select Show. If you select Exit, the message
is moved to the Service inbox. To access the Service inbox later, select
Menu > Web > Service inbox.
Web
42
FCC Draft
To access the Service inbox while browsing, select Options > Other
options > Service inbox. Scroll to the message you want, and to activate
the browser and download the marked content, select Retrieve. To
display detailed information on the service notification or to delete the
message, select Options > Details or Delete.
Service inbox settings
Select Menu > Web > Settings > Service inbox settings.
To set whether you want to receive service messages, select Service
messages > On or Off.
To set the phone to receive service messages only from content authors
approved by the service provider, select Message filter > On. To view the
list of the approved content authors, select Trusted channels.
To set the phone to automatically activate the browser from the standby
mode when the phone has received a service message, select Automatic
connection > On. If you select Off, the phone activates the browser only
after you select Retrieve when the phone has received a service
message.
■Cache memory
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
empty the cache after each use. The information or services you have accessed is
stored in the cache.
To empty the cache while browsing, select Options > Other options >
Clear the cache; in the standby mode, select Menu > Web > Clear the
cache.
■Browser security
Security features may be required for some services, such as online
banking or shopping. For such connections you need security
certificates and possibly a security module, which may be available on
your SIM card. For more information, contact your service provider.
Web
43
FCC Draft
Security module
The security module improves security services for applications
requiring a browser connection, and allows you to use a digital
signature. The security module may contain certificates as well as
private and public keys. The certificates are saved in the security module
by the service provider.
To view or change the security module settings, select Menu >
Settings > Security > Security module settings.
Certificates
Important: Even if the use of certificates makes the risks involved in
remote connections and software installation considerably smaller,
they must be used correctly in order to benefit from increased security.
The existence of a certificate does not offer any protection by itself;
the certificate manager must contain correct, authentic, or trusted
certificates for increased security to be available. Certificates have a
restricted lifetime. If Expired certificate or Certificate not valid yet is
shown even if the certificate should be valid, check that the current
date and time in your device are correct.
Before changing any certificate settings, you must make sure that you
really trust the owner of the certificate and that the certificate really
belongs to the listed owner.
There are three kinds of certificates: server certificates, authority
certificates, and user certificates. You may receive these certificates
from your service provider. Authority certificates and user certificates
may also be saved in the security module by the service provider.
To view the list of the authority or user certificates downloaded into
your phone, select Menu > Settings > Security > Authority certificates
or User certificates.
is displayed during a connection, if the data transmission between
the phone and the content server is encrypted.
The security icon does not indicate that the data transmission between the
gateway and the content server (or place where the requested resource is stored)
is secure. The service provider secures the data transmission between the
gateway and the content server.
Web
44
FCC Draft
Digital signature
You can make digital signatures with your phone if your SIM card has a
security module. Using the digital signature can be the same as signing
your name to a paper bill, contract, or other document.
To make a digital signature, select a link on a page, for example, the title
of the book you want to buy and its price. The text to sign is shown,
which may include the amount and date.
Check that the header text is Read and that the digital signature icon
is shown.
If the digital signature icon does not appear, there is a security breach,
and you should not enter any personal data such as your signing PIN.
To sign the text, read all of the text first, and select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll
through and read all of the text before signing.
Select the user certificate you want to use. Enter the signing PIN (see
“Access codes,” p. 9), and select OK. The digital signature icon
disappears, and the service may display a confirmation of your purchase.
Applications (Apps.)
45
FCC Draft
8. Applications (Apps.)
■Games
The microSD card of your phone may contain games.
Launch a game
Select Menu > Applications > Games. Scroll to the desired game, and
select Open, or press the call key.
For options related to a game, see “Application options,” p. 45.
Game downloads
Select Menu > Applications > Options > Downloads > Game
downloads. The list of available bookmarks is shown; see “Bookmarks,”
p. 39.
Important: Only install and use applications and other software from
sources that offer adequate security and protection against harmful
software.
Game settings
To set sounds, lights, and shakes for the game, select Menu >
Applications > Options > Application settings.
■Collection
Your phone software includes some Java applications.
Launch an application
Select Menu > Applications > Collection. Scroll to an application, and
select Open, or press the call key.
Application options
Delete — to delete the application from the phone
Applications (Apps.)
46
FCC Draft
Details — to give additional information about the application
Update version — to check if a new version of the application is available
for download from Web (network service)
Web page — to provide further information or additional data for the
application from an Internet page (network service). It is only shown if
an Internet address has been provided with the application.
Application access — to restrict the application from accessing the
network. Different categories are shown. Select in each category one of
the available permissions.
Download an application
Your phone supports J2ME Java applications. Make sure that the
application is compatible with your phone before downloading it.
Important: Only install and use applications and other software from
sources that offer adequate security and protection against harmful
software.
You can download new Java applications in different ways:
• Select Menu > Applications > Options > Downloads > Application
downloads, and the list of available bookmarks is shown. See
“Bookmarks,” p. 39.
For the availability of different services, pricing, and tariffs, contact
your service provider.
• Use the game download function. See “Game downloads,” p. 45.
• Use the Nokia Application Installer from Nokia PC Suite to download
the applications to your phone.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
Applications (Apps.)
47
FCC Draft
■Presenter
The Presenter application is compatible with Microsoft Office
PowerPoint and enables you to control slide presentations, a software
DVD, an MP3 player, or other PC applications remotely from your device.
To use applications other than slide presentations and desktop mode,
you must create a corresponding custom profile on the PC application.
Before you can use the application you must do the following:
1. Install the Nokia Presenter PC application on your PC. (This
component is included in the software package, but is also available
for download on the Noka Web site.)
2. Launch and configure the PC component. Make sure that the
selected incoming Bluetooth serial port (COM port) corresponds to
the one defined in the Bluetooth software settings on the Bluetooth
device of your PC. For details, refer to the PC component
documentation and “Set up a Bluetooth connection,” p. 93.
3. Open the slide presentation, or start the application you want to
control remotely from your phone.
Select Applications > Collection > Presenter > Connect and the device
you want to connect to.
When the Bluetooth Connection Successful dialog appears on your PC
screen, you must click on it to confirm the Bluetooth connection.
The list of available application types is displayed. Select Open to access
the desired application. Select Options > Settings to set the Font size
for the speaker notes, and Timer (in minutes) to optimize the slide
presentation time available. To save the settings, select Options > Back.
After you have select the slide presentation you browse or skip slides, or
jump ahead, by using the 4-way navigation key. To view your speaker
notes, select Notes. To point things out on the slides, select Pointer to
activate a small black round marker, that you control with the 4-way
navigation key. Select Options > Slide list to return to the slide list.
Select Options > Application list to return to the list of applications.
To control the mouse pointer (the cursor) remotely from the phone,
select the desktop mode. After you open the desktop, the phone
Applications (Apps.)
48
FCC Draft
automatically controls your mouse pointer. To return to the list of
applications, select Options > Application list.
To quit the Presenter, select Options > Exit.
Push To Talk (PTT)
49
FCC Draft
9. Push To Talk (PTT)
Note: This feature may not be available in your product due to
your subscription (network service).
Push To Talk (PTT) over cellular is a two-way radio service available over
a GSM/GPRS cellular network (network service). PTT provides direct
voice communication. To connect, press the PTT key.
You can use PTT to have a conversation with one person or with a group
of people having compatible devices. When your call is connected, the
people you are calling do not have to answer the phone. The participants
should confirm the reception of any communication where appropriate,
as there is no other confirmation whether the recipients have heard the
call.
To check availability and costs, and to subscribe to the service, contact
your network operator or service provider. Roaming services may be
more limited than for normal calls.
Before you can use the PTT service, you must define the required PTT
service settings. See “PTT settings,” p. 54.
While you are connected to the PTT service, you can use the other
functions of the phone. The PTT service is not connected to traditional
voice communication; therefore many of the services available for
traditional voice calls (for example, voice mailbox) are not available for
PTT communication.
■Connect to the PTT service
To connect to the PTT service, select Menu > Push To Talk > Switch PTT
on. indicates the PTT connection. indicates that the service is
temporarily unavailable. The phone automatically tries to reconnect to
the service until you disconnect from the PTT service. If you have added
channels to the phone, you are automatically joined to the active
channels, and if you have selected a contact, phonebook group or
channel as the default action for the PTT-key, then the name of the
selected item is displayed in the standby mode.
Push To Talk (PTT)
50
FCC Draft
To disconnect from the PTT service, select Switch PTT off.
■Make and receive a PTT call
Set the phone to use the loudspeaker or earpiece for PTT
communication. When the earpiece is selected, you can use the phone
normally, by holding it to your ear.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
When connected to the PTT service, you can make or receive channel
calls, group calls, or one-to-one calls. One-to-one calls are calls you
make to only one person.
Press and hold the PTT key the entire time you are talking, and hold the
phone in front of you so that you can see the display. When you are
finished, release the PTT key. Talking is allowed on a first-come,
first-served basis. When someone stops talking, the first person to press
the PTT key can talk next.
To check the login status of your contacts, select Menu > Push To Talk >
Contacts list. This service depends on your network operator or service
provider and is only available for subscribed contacts. , , or
indicate that the contact is available, not logged into the PTT service, or
unknown. indicates that the contact does not want to be disturbed.
You cannot call the contact, but you can send a callback request.
To subscribe a contact, select Options > Subscribe contact, or if one or
more contacts are marked, select Subscribe marked.
Make a channel or a group call
To make a call to a channel, select Channel list in the PTT menu, scroll to
the desired channel, and press the PTT key.
To make a group call from Contacts, the recipients must be connected to
the PTT service. Select Menu > Contacts > Groups, scroll to the desired
group, and press the PTT key.
Push To Talk (PTT)
51
FCC Draft
Make a one-to-one call
To start a one-to-one call from the list of contacts to which you added
the PTT address, select Contacts list. Scroll to a contact, and press the
PTT key.
You can also select the contact from Contacts.
To start a one-to-one call from the list of PTT channels, select Channel
list, and scroll to the desired channel. Select Members, scroll to the
desired contact, and press the PTT key.
To start a one-to-one call from the list of callback requests you have
received, select Callback inbox. Scroll to the desired contact, and press
the PTT key.
Make a PTT call to multiple recipients
You can select multiple PTT contacts from the contact list. The recipients
receive an incoming call and must accept the call to participate.
Select Menu > Push To Talk > Contacts list, and mark the desired
contacts. To make the call, press the PTT key. The contacts who accept
the call are shown.
Receive a PTT call
A short tone notifies you of an incoming PTT call. Information such as
the channel name or the nickname (network service) of the caller is
displayed.
If you have set the phone to first notify you of one-to-one calls, accept
or reject the call.
If you press the PTT key to try to respond to a call while another member
is talking, you hear a tone, and Queuing is displayed as long as you press
the PTT key. Press and hold the PTT key, and wait for the other person to
finish; then you can talk.
■Callback requests
If you make a one-to-one call and do not get a response, you can send a
request for the person to call you back.
Push To Talk (PTT)
52
FCC Draft
Send a callback request
You can send a callback request in the following ways:
• To send a callback request from the contacts list in the PTT menu,
select Contacts list. Scroll to a contact, and select Options > Send
callback.
• To send a callback request from Contacts, search for the desired
contact, select Details, scroll to the PTT address, and select
Options > Send callback.
• To send a callback request from the channel list in the Push To Talk
menu, select Channel list, and scroll to the desired channel. Select
Members, scroll to the desired contact, and select Options > Send
callback.
• To send a callback request from the callback request list in the Push
To Talk menu, select Callback inbox. Scroll to a contact, and select
Options > Send callback.
Respond to a callback request
When you receive a callback request, Callback request received is shown
in the standby mode. Select View. The list of contacts who have sent you
callback requests is shown.
To make a one-to-one call, press the PTT key.
To send a call request back to the sender, select Options > Send
callback.
To delete the request, select Delete.
To view the sender's PTT address, select View.
To save a new contact or to add the PTT address to a contact, select
Options > Save as or Add to contact.
■Add a one-to-one contact
You can save the names of persons to whom you often make one-to-one
calls in the following ways:
Push To Talk (PTT)
53
FCC Draft
• To add a PTT address to a name in Contacts, search for the desired
contact, and select Details > Options > Add detail > Push To Talk
address.
• To add a contact to the PTT contacts list, select Menu > Push To
Talk > Contacts list > Options > Add contact.
• To add a contact from the channel list, connect to the PTT service,
select Channel list, and scroll to the desired channel. Select
Members, scroll to the member whose contact information you want
to save, and select Options. To add a new contact, select Save as. To
add a PTT address to a name in Contacts, select Add to contact.
■PTT channels
When you call a channel, all members joined to the channel hear the call
simultaneously.
There are three types of PTT channels:
• Provisioned channel — A permanent channel is created by the service
provider.
•Public — Every channel member can invite other persons.
•Private — Only persons who receive an invitation from the channel
creator can join in.
Add a channel
To add a public or private channel, select Menu > Push To Talk > Add
channel, and edit the settings in the form fields:
Channel status: — Select Active or Inactive.
Nickname in channel: — Enter your nickname for the channel.
Channel security: — Select Public group or Private group.
To send an invitation to the group, select Yes when the phone requests
it. You can send the invitation using a text message or infrared.
To add a channel by entering the channel address manually, select
Menu > Push To Talk > Add channel > Options > Edit address manually.
Enter the channel address provided by your service provider.
Push To Talk (PTT)
54
FCC Draft
Receive an invitation
When you receive an invitation to a group, Channel invitation received:
is displayed.
1. To view the contact who sent the invitation and the channel address
if the group is not a private channel, select View.
2. To add the channel to your phone, select Save.
3. To set the status for the channel, select Active or Inactive.
To reject the invitation, select View > Discard > Yes.
■PTT settings
There are two kinds of PTT settings: settings for connecting to the
service and settings for use.
You may receive the settings for connecting to the service from your
network operator or service provider. See “Configuration settings
service,” p. 10. You can enter the settings manually. See
“Configuration,” p. 101.
To select the settings for connecting to the service, select Menu > Push
To Talk > Configuration sett. and from the following options:
Configuration — to select a service provider, Default, or Personal
configuration for PTT service. Only the configurations that support the
PTT service are shown.
Account — to select a PTT service account in the active configuration
settings
You can also select from the following options: Push To Talk user name,
Default nickname, Push To Talk password, Domain, and Server address.
To edit the PTT settings for use, select Menu > Push To Talk > PTT
settings, and from the following options:
1 to 1 calls > On — to set the phone to allow the reception of
one-to-one calls. To make but not receive one-to-one calls, select Off.
The service provider may offer some services that override these
settings. To set the phone to first notify you of incoming one-to-one
calls with a ringing tone, select Notify.
Push To Talk (PTT)
55
FCC Draft
PTT key default function is used to select the default action of the PTT-
key. It can be set to opening the Contacts list or Channel list. It can also
be set to directly create a PTT call from any state (unless any other
contact, group or channel is highlighted) to a contact, channel or group.
Show my login status > Yes — to enable the sending of the login status
PTT status in startup >Yes > or Ask first — to set the phone to
automatically connect to the PTT service when you switch on the phone
PTT when abroad — to switch the PTT service on or off when the phone is
used outside of the home network
Send my PTT address > No — to hide your PTT address from calls
Messaging
56
FCC Draft
10. Messaging
You can read, write, send, and save text, multimedia, e-mail, audio, and
flash messages. All messages are organized into folders.
■Text messages (SMS)
With the short message service (SMS) you can send and receive text
messages (network service).
Before you can send any text or SMS e-mail message, you must save
your message center number. See “Message settings,” p. 67.
To check SMS e-mail service availability and to subscribe to the service,
contact your service provider. To save an e-mail address in Contacts, see
“Save numbers and text items,” p. 77.
Your device supports the sending of text messages beyond the character limit for
a single message. Longer messages is sent as a series of two or more messages.
Your service provider may charge accordingly. Characters that use accents or
other marks, and characters from some language options like Chinese, take up
more space limiting the number of characters that can be sent in a single
message.
At the top of the display, you can see the message length indicator
counting backwards from the maximum number of characters
supported by the phone.
Write and send SMS messages
1. Select Menu > Messaging > Create message > Text message.
2. Enter the recipient’s phone number in the To: field. To retrieve a
phone number from Contacts, select Add > Contact. To send the
message to multiple recipients, add the desired contacts one by one.
Scroll right to add new contacts manually in the To: field. To send the
message to persons in a group, select Contact group and the desired
group. To retrieve the contacts to which you recently sent messages,
select Add > Recently used.
Messaging
57
FCC Draft
3. Scroll down, and write your message in the Message: field. See
“Write text,” p. 27.
To insert a template into the message, select Options > Use
template.
4. To send the message, select Send; or press the call key. See “Send a
message,” p. 59.
Read and reply to an SMS message
1 message received or the number of new messages with messages
received are shown when you have received a message.
1. To view a new message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messaging > Inbox. If more
than one message is received, select the message you want to read.
is shown if you have unread messages in Inbox.
2. To view the list of available options while reading a message, select
Options. You can, for example, select to copy text from the
beginning of a message to your phone calendar as a reminder note.
3. To reply to a message, select Reply > Text message, Multimedia,
Flash message, or Audio message.
To send a text message to an e-mail address, enter the e-mail
address in the To: field.
Scroll down, and write your message in the Message: field. See
“Write text,” p. 27.
If you want to change the message type for your reply message,
select Options > Change message type.
4. To send the message, select Send; or press the call key.
■SIM messages
SIM messages are text messages that are saved to your SIM card. You
can copy or move those messages to the phone memory, but not vice
versa. Received messages are saved to the phone memory.
Messaging
58
FCC Draft
To read SIM messages, select Menu > Messaging > Options > SIM
messages.
■Multimedia messages
Note: Only devices that have compatible features can receive and
display multimedia messages. The appearance of a message may vary
depending on the receiving device.
To check availability and to subscribe to the multimedia messaging
network service, contact your network operator or service provider. See
“Multimedia message,” p. 68.
A multimedia message can contain text, sound, pictures, video clips, a
business card, and a calendar note. If the message is too large, the
phone may not be able to receive it. Some networks allow text messages
that include an Internet address where you can view the multimedia
message.
Multimedia messaging supports the following formats:
• Picture: JPEG, GIF, animated GIF and WBMP
• Sound: AMR audio
• Video clip: .3gp format with H.263 or MPEG video (QCIF resolution),
WB or AMR audio
• Other: vCard (Business card) and vCalendar (Calendar note)
The phone may not support all variations of the file formats.
You can receive multimedia messages during a call, another Java
application, or an active browsing session over WCDMA data.
Write and send a multimedia message
The wireless network may limit the size of MMS messages. If the inserted picture
exceeds this limit, the device may make it smaller so that it can be sent by MMS.
1. Select Menu > Messaging > Create message > Multimedia.
2. Enter your message.
Your phone supports multimedia messages that contain several
pages (slides). A message can contain a calendar note and a business
Messaging
59
FCC Draft
card as attachments. A slide can contain text, one image, and one
sound clip; or text and a video clip. To insert a slide in the message,
select New; or select Options > Insert > Slide.
To insert a file in the message, select Insert or Options > Insert.
You can fetch images and video clips from the My Items, or to take
them directly from the viewfinder, select Options > Insert > New
Image or New video clip.
3. To view the message before sending it, select Options > Preview.
4. To send the message, select Send; or press the call key. See “Send a
message,” p. 59.
5. Enter the recipient’s phone number in the To: field. To retrieve a
phone number from Contacts, select Add > Contact. To send the
message to multiple recipients, add the desired contacts one by one.
To send the message to persons in a group, select Contact group and
the desired group. To retrieve the contacts to which you recently sent
messages, select Add > Recently used.
Send a message
Copyright protections may prevent some images, music (including ringing tones),
and other content from being copied, modified, transferred, or forwarded.
When you finish writing your message, to send the message, select
Send, or press the call key. The phone saves the message in the Outbox
folder, and sending starts. If you select Save sent messages > Yes, the
sent message is saved in the Sent items folder. See “General,” p. 67.
Note: When the phone sends the message, the animated is shown.
This is an indication that the message has been sent by your device to
the message center number programmed into your device. This is not
an indication that the message has been received at the intended
destination. For more details about messaging services, check with your
service provider.
It takes more time to send a multimedia message than to send a text
message. While the message is being sent, you can use other functions
on the phone. If an interruption occurs while the message is being sent,
Messaging
60
FCC Draft
the phone tries to resend the message a few times. If these attempts fail,
the message remains in the Outbox folder. You can try to resend it later.
Cancel message sending
When the phone is saving a message in the Outbox folder, Sending
message or Sending messages is displayed. To cancel the text message
sending, select Cancel.
To cancel the sending of the multimedia messages in the Outbox folder,
scroll to the desired message, and select Options > Cancel sending.
Read and reply to a multimedia message
Important: Exercise caution when opening messages. Multimedia
message objects may contain malicious software or otherwise be
harmful to your device or PC.
Multimedia message received or the number of new messages with
messages received is shown when you receive a new multimedia
message.
1. To read the message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messaging > Inbox. Scroll
to the message that you want to view, and select it. is shown if
you have unread messages in Inbox.
2. To view the whole message if the received message contains a
presentation, select Play.
To view the files in the presentation or the attachments, select
Options > Objects or Attachments.
3. To reply to the message, select Options > Reply > Text message,
Multimedia, Flash message, or Audio message. Write the reply
message.
If you want to change the message type for your reply message,
select Options > Change message type. The new message type may
not support all the content that you have added.
4. To send the message, select Send; or press the call key. See “Send a
message,” p. 59.
Messaging
61
FCC Draft
■Memory full
When you are receiving a message, and the memory for the messages is
full, Memory full, not possible to receive message(s) is shown. To first
delete old messages, select OK > Yes and the folder. Scroll to the desired
message, and select Delete. If one or more messages are marked, select
Mark. Mark all the messages you want to delete, and select Options >
Delete marked.
To free phone memory, delete photos, ringing tones, or other data in the
phone memory.
■Folders
The phone saves received messages in the Inbox folder.
Messages that have not yet been sent are saved in the Outbox folder.
To set the phone to save the sent messages in the Sent items folder, see
Save sent messages in “General,” p. 67.
To save the message that you are writing and want to send later in the
Drafts folder, select Menu > Messaging > Drafts.
You can move your messages to the Saved items folder. To organize your
Saved items subfolders, select Menu > Messaging > Saved items >
Saved messages or a folder that you add. To add a new folder for your
messages, select Options > Add folder. To delete or rename a folder,
scroll to the desired folder, and select Options > Delete folder or
Rename folder.
Your phone has templates. To create a new template, save or copy a
message as a template. To access the template list, select Menu >
Messaging > Saved items > Templates.
■Flash messages
Flash messages are text messages that are instantly displayed upon
reception. Flash messages are not automatically saved.
Messaging
62
FCC Draft
Write a flash message
Select Menu > Messaging > Create message > Flash message. Enter the
recipient’s phone number in the To: field. Write your message in the
Message: field. The maximum length of a flash message is 70 characters.
To send the message, select Send.
Receive a flash message
A received flash message is indicated with Message: and a few words
from the beginning of the message. To read the message, select Read. To
extract phone numbers, e-mail addresses, and Web site addresses from
the current message, select Options > Use detail.
■Audio messages
Note: This feature may not be available in your product due to
your subscription (network service).
With this menu, use the multimedia message service to create and send
a voice message in a convenient way. Multimedia messaging service
must be activated before you can use audio messages.
Create an audio message
1. Select Menu > Messaging > Create message > Audio message. The
recorder opens. To use the recorder, see “Voice recorder,” p. 35.
2. To view the available options, select Options.
3. Enter the recipient’s phone number in the To: field. To retrieve a
phone number from Contacts, select Add > Contact. To send the
message to multiple recipients, add the desired contacts one by one.
To send the message to persons in a group, select Contact group and
the desired group. To retrieve the contacts to which you recently sent
messages, select Add > Recently used.
4. To send the message, select Send.
Messaging
63
FCC Draft
Receive an audio message
When your phone receives audio messages, the number of messages and
the text messages received is shown. To open the message, select Play;
or if more than one message is received, select Show > Play. To listen to
the message later, select Exit. Select Options to see the available
options.
■E-mail application
The e-mail application uses a packet data connection (network service)
to allow you to access your e-mail account from your phone when you
are not in the office or at home. This e-mail application is different from
the SMS e-mail function. To use the e-mail function on your phone, you
need a compatible e-mail system.
You can write, send, and read e-mail with your phone. You can also save
and delete the e-mail on a compatible PC. Your phone supports POP3
and IMAP4 e-mail servers.
Before you can send and retrieve any e-mail messages, you must do the
following:
• Obtain a new e-mail account or use your current account. To check
the availability of your e-mail account, contact your e-mail service
provider.
• Check your e-mail settings with your network operator or e-mail
service provider. You may receive the e-mail configuration settings
as a configuration message. See “Configuration settings service,”
p. 10. You can also enter the settings manually. See “Configuration,”
p. 101.
To activate the e-mail settings, select Menu > Messaging > Message
settings > E-mail messages. See “E-mail,” p. 69.
This application does not support keypad tones.
Messaging
64
FCC Draft
Settings Wizard
The settings wizard will start automatically if no e-mail settings are
defined in the phone. To enter the settings manually, select Menu >
Messaging > E-mail > Options > Manage accounts > Options > New.
The Manage accounts options allow you to add, delete, and change the
e-mail settings. Make sure that you have defined the correct preferred
access point for your operator. See “Configuration,” p. 101.
The e-mail application requires an Internet access point without a
proxy. WAP access points normally include a proxy and do not work with
the e-mail application.
Write and send an e-mail
You can write your e-mail message before connecting to the e-mail
service; or connect to the service first, then write and send your e-mail.
1. Select Menu > Messaging > E-mail > Create e-mail.
2. If more than one e-mail account is defined, select the account from
which you want to send the e-mail.
3. Enter the recipient’s e-mail address.
4. Write a subject for the e-mail.
5. Write the e-mail message. See “Write text,” p. 27.
To attach a file to the e-mail, select Options > Attach and a file from
My Items.
6. To send the e-mail message immediately, select Send > Send now.
To save the e-mail in the Outbox folder to be sent later, select
Send > Send later.
To edit or continue writing your e-mail later, select Options > Save
draft. The e-mail is saved in Outboxes > Drafts.
To send the e-mail later, select Menu > Messaging > E-mail >
Options > Send now or Send and check e-mail.
Messaging
65
FCC Draft
Download e-mail
1. To download e-mail messages that have been sent to your e-mail
account, select Menu > Messaging > E-mail > Check for new e-mail.
If more than one e-mail account is defined, select the account from
which you want to download the e-mail.
The e-mail application only downloads e-mail headers at first.
2. Select Back.
3. Select Inboxes, the account name, and the new message, and select
Retrieve to download the complete e-mail message.
To download new e-mail messages and to send e-mail that has been
saved in the Outbox folder, select Options > Send and check e-mail
Read and reply to e-mail
Important: Exercise caution when opening messages. E-mail messages
may contain malicious software or otherwise be harmful to your device
or PC.
1. Select Menu > Messaging > E-mail > Inboxes, the account name,
and the desired message.
2. While reading the message, select Options to view the available
options.
3. To reply to an e-mail, select Reply > Original text or Empty screen. To
reply to many, select Options > Reply to all. Confirm or edit the
e-mail address and subject, then write your reply.
4. To send the message, select Send > Send now.
E-mail folders
Your phone saves e-mail that you have downloaded from your e-mail
account in the Inboxes folder. The Inboxes folder contains the following
folders: “Account name” for incoming e-mail, Archive for archiving
e-mail, Custom 1—Custom 3 for sorting e-mail, Junk where all spam e-
mail is stored, Drafts for saving unfinished e-mail, Outbox for saving
e-mail that has not been sent, and Sent items for saving e-mail that has
been sent.
Messaging
66
FCC Draft
To manage the folders and their e-mail content, select Options to view
the available options of each folder.
Spam filter
The e-mail application allows you to activate a built-in spam filter. To
activate and define this filter, select Options > Spam filter > Settings in
the main e-mail idle screen. The spam filter allows the user to put
specific senders on a black or white list. Black list sender messages are
filtered to the Junk folder. Unknown and White list sender messages are
downloaded into the account inbox. To blacklist a sender, select the e-
mail message in the Inboxes folder and Options > Blacklist sender.
■Voice messages
The voice mailbox is a network service, and you may need to subscribe to
it. For more information and for your voice mailbox number, contact
your service provider.
To call your voice mailbox, select Menu > Messaging > Voice
messages > Listen to voice messages. To enter, find, or edit your voice
mailbox number, select Voice mailbox number.
If supported by the network, indicates new voice messages. To call
your voice mailbox number, select Listen.
■Info messages
With the Info messages network service, you can receive messages on
various topics from your service provider. To check availability, topics,
and the relevant topic numbers, contact your service provider.
■Service commands
Select Menu > Messaging > Service commands. Write and send service
requests (also known as USSD commands), such as activation
commands for network services, to your service provider.
Messaging
67
FCC Draft
■Delete messages
To delete messages one by one, select Menu > Messaging > Delete
messages > By message and the folder from which you want to delete
messages. Scroll to the desired message, and select Delete. To mark
more than one message, select Options > Mark. Mark all the messages
you want to delete, and select Options > Delete marked.
To delete all messages from a folder, select Menu > Messaging > Delete
messages > By folder and the folder to delete. Depending on the folder,
the phone asks if you want to delete the messages.
To delete all messages from all folders, select Menu > Messaging >
Delete messages > All messages > Yes.
■Message settings
General
General settings are common for text and multimedia messages.
Select Menu > Messaging > Message settings > General settings and
from the following options:
Save sent messages > Yes — to set the phone to save the sent messages
in the Sent items folder
Overwriting in sent items — to select whether overwriting is allowed
when messages are sent and the memory is full
Font size — to select the font size used in messages
Graphical smileys > Yes — to set the phone to replace character-based
smileys with graphical ones
Text message and SMS e-mail
The text message settings affect the sending, receiving, and viewing of
messages.
Select Menu > Messaging > Message settings > Text messages and
from the following options:
Messaging
68
FCC Draft
Delivery reports > Yes — to ask the network to send delivery reports
about your messages (network service)
Message centres > Add centre — to set the phone number and name of
the message center that is required for sending text messages. You
receive this number from your service provider. If you select SIM
message centre, you can view the SIM message center information.
Message centre in use — to select the message center in use
E-mail message centres > Add centre — to set the phone numbers and
name of the e-mail center for sending SMS e-mail. If you select SIM
e-mail centre, you can view the SIM e-mail center information.
E-mail centre in use — to select the SMS e-mail message center in use
Message validity — to select the length of time for which the network
attempts to deliver your message
Messages sent via — to select the format of the messages to be sent:
Text, Paging, or Fax (network service)
Use packet data > Yes — to set GPRS or WCDMA as the preferred SMS
bearer
Character support > Full — to select all characters in the messages to be
sent as viewed
Reply via same centre > Yes — to allow the recipient of your message to
send you a reply using your message center (network service)
Multimedia message
The message settings affect the sending, receiving, and viewing of
multimedia messages.
You may receive the configuration settings for multimedia messaging as
a configuration message. See “Configuration settings service,” p. 10.
You can also enter the settings manually. See “Configuration,” p. 101.
Select Menu > Messaging > Message settings > Multimedia messages
and from the following options:
Delivery reports > Yes — to ask the network to send delivery reports
about your messages (network service)
Messaging
69
FCC Draft
Image size (multimedia) — to define the default image size used in
multimedia messages
Default slide timing — to define the default time between slides in
multimedia messages
Allow multimedia recept. — to receive or block the multimedia message,
select Yes or No. If you select In home network, you cannot receive
multimedia messages when you are outside your home network. The
default setting of the multimedia message service is generally In home
network.
Incoming multim. msgs. — to allow the reception of multimedia
messages automatically, manually after being prompted, or to reject the
reception. This setting is not shown if Allow multimedia recept. is set to
No.
Allow adverts — to receive or reject advertisements. This setting is not
shown if Allow multimedia recept. is set to No, or Incoming multim.
msgs. is set to Reject.
Configuration settings > Configuration — only the configurations that
support multimedia messaging are shown. Select a service provider,
Default, or Personal configuration for multimedia messaging. Select
Account and a multimedia messaging service account contained in the
active configuration settings.
E-mail
The settings affect the sending, receiving, and viewing of e-mail.
You may receive the configuration settings for the e-mail application as
a configuration message. See “Configuration settings service,” p. 10.
You can also enter the settings manually. See “Configuration,” p. 101.
To activate the settings for the e-mail application, select Menu >
Messaging > Message settings > E-mail messages and from the
following options:
Configuration — Select the set that you want to activate.
Account — Select an account provided by the service provider.
My name — Enter your name or nickname.
Messaging
70
FCC Draft
E-mail address — Enter your e-mail address.
Include signature — You can define a signature that is automatically
added to the end of your e-mail when you write your message.
Reply-to address — Enter the e-mail address to which you want the
replies to be sent.
SMTP user name — Enter the name that you want to use for outgoing
mail.
SMTP password — Enter the password that you want to use for outgoing
mail.
Display terminal window — Select Yes to perform manual user
authentication for intranet connections.
Incoming server type — Select POP3 or IMAP4, depending on the type of
e-mail system that you are using. If both types are supported, select
IMAP4.
Incoming mail settings — Select available options for POP3 or IMAP4.
My Items
71
FCC Draft
11. My Items
In this menu you can manage graphics, images,
recordings, and tones. These files are arranged in folders.
Your phone supports an activation key system to protect acquired
content. Always check the delivery terms of any content and activation
key before acquiring them, as they may be subject to a fee.
The files stored in My Items use a memory that mainly consists of the
microSD card of your phone. You can store images, themes, graphics,
ringing tones, video clips, and sound clips in My Items.
To manage the files and folders, do the following:
1. Select Menu > My Items. A list of folders is shown. If a memory card
is inserted in the phone, the folder Memory card, (unformatted), or
the name of the memory card is shown.
2. Scroll to the desired folder. To view a list of files in the folder, select
Open. For the available options, select Options.
3. Scroll to the file you want to view, and select Open. For the available
options, select Options.
Copyright protections may prevent some images, music (including ringing tones),
and other content from being copied, modified, transferred or forwarded.
■Format memory card
To format a new memory card, select Menu > My Items. Scroll to the
memory card folder, and select Options > Format memory card.
Organizer
72
FCC Draft
12. Organizer
■Alarm clock
You can set the phone to alarm at a desired time. Select Menu >
Organizer > Alarm clock.
To set the alarm, select Alarm time, enter the alarm time, and select OK.
To change the alarm time when the alarm time is set, select On.
To set the phone to alert you on selected days of the week, select Repeat
alarm.
To select the alarm tone or set a radio channel as the alarm tone, select
Alarm tone. If you select the radio as an alarm tone, connect the headset
to the phone. The phone uses the last channel you listened to as the
alarm, and the alarm plays through the loudspeaker. If you remove the
headset or switch off the phone, the default alarm tone replaces the
radio.
To set a snooze time-out, select Snooze time-out and the time.
Stop the alarm
The phone sounds an alert tone, and flashes Alarm! and the current time
on the display, even if the phone was switched off. To stop the alarm,
select Stop. If you let the phone continue to sound the alarm for a
minute or select Snooze, the alarm stops for the time you set in Snooze
time-out, and then resumes.
If the alarm time is reached while the device is switched off, the device switches
itself on and starts sounding the alarm tone. If you select Stop, the device asks
whether you want to activate the device for calls. Select No to switch off the
device or Yes to make and receive calls. Do not select Yes when wireless phone
use may cause interference or danger.
Organizer
73
FCC Draft
■Calendar
Select Menu > Organizer > Calendar.
The current day is indicated by a frame in the month view. If there are
any notes set for the day, the day is in bold type, and the beginning of
the note is shown below the calendar. To view the day notes, select
View. To view a week, select Options > Week view. To delete all notes in
the calendar, select the month or week view, and select Options >
Delete all notes.
Other options for the calendar day view can make a note; delete, edit,
move, or repeat a note; copy a note to another day; send a note with
Bluetooth technology; or send a note to the calendar of another
compatible phone as a text message or multimedia message. In Settings
you can set the date, time, time zone, date or time format, date
separator, default view, or the first day of the week. In Auto-delete
notes you can set the phone to delete old notes automatically after a
specified time.
Make a calendar note
Select Menu > Organizer > Calendar. Scroll to the date you want, select
Options > Make a note and one of the following note types:
Meeting, Call, Birthday, Memo, or Reminder. Fill in
the fields for the note.
Note alarm
The phone beeps and displays the note. With a call note on the
display, to call the displayed number, press the call key. To stop the
alarm and to view the note, select View. To stop the alarm for 10
minutes, select Snooze.
To stop the alarm without viewing the note, select Exit.
Organizer
74
FCC Draft
■To-do list
To save a note for a task that you must do, select Menu > Organizer >
To-do list.
To make a note if no note is added, select Add; otherwise, select
Options > Add. Write the note, select Save and the priority, and set the
deadline and alarm for the note.
To view a note, scroll to it, and select View.
You can also select an option to delete the selected note and delete all
the notes that you have marked as done. You can sort the notes by
priority or by deadline, send a note to another phone as a text message
or a multimedia message, save a note as a calendar note, or access the
calendar.
While viewing a note, you can also select an option to edit the deadline
or priority for the note, or mark the note as done.
■Notes
To write and send notes, select Menu > Organizer > Notes.
To make a note if no note is added, select Add; otherwise, select
Options > Make a note. Write the note, and select Save.
Other options include deleting and editing a note. While editing a note,
you can also exit the text editor without saving the changes. You can
send the note to compatible devices through infrared, Bluetooth
wireless technology, text message, or a multimedia message. If the note
is too long to be sent as a text message, the phone asks you to delete the
appropriate number of characters from your note.
■Calculator
The calculator in your phone adds, subtracts, multiplies, divides,
calculates the square and the square root, and converts currency values.
Note: This calculator has limited accuracy and is designed for simple
calculations.
Select Menu > Organizer > Calculator. When 0 is displayed, enter the
first number in the calculation. Press # for a decimal point. Select
Organizer
75
FCC Draft
Options > Add, Subtract, Multiply, Divide, Square, Square root, or
Change sign. Enter the second number. For a total, select Equals. To
start a new calculation, first select and hold Clear.
Convert currency
Select Menu > Organizer > Calculator. To save the exchange rate, select
Options > Exchange rate. Select either of the displayed options. Enter
the exchange rate, press # for a decimal point, and select OK. The
exchange rate remains in the memory until you replace it with another
one. To perform the currency conversion, enter the amount to be
converted, and select Options > In domestic or In foreign.
Note: When you change base currency, you must enter the new rates
because all previously set exchange rates are cleared.
■Countdown timer
Select Menu > Organizer > Countdown timer. Enter the alarm time in
hours, minutes, and seconds, and select OK. If you wish, write your own
note text that is displayed when the time expires. To start the
countdown timer, select Start. To change the countdown time, select
Change time. To stop the timer, select Stop timer.
If the alarm time is reached when the phone is in the standby mode, the
phone sounds a tone and flashes the note text if it is set or Countdown
time up. To stop the alarm, press any key. If no key is pressed, the alarm
automatically stops within 30 seconds. To stop the alarm and delete the
note text, select Exit. To restart the countdown timer, select Restart.
■Stopwatch
You can measure time, take intermediate times, or take lap times using
the stopwatch. During timing, the other functions of the phone can be
used. To set the stopwatch timing in the background, press the end key.
Using the stopwatch or allowing it to run in the background when using other
features increases the demand on battery power and reduces the battery life.
Select Menu > Organizer > Stopwatch and from the following options:
Organizer
76
FCC Draft
Split timing — to take intermediate times. To start the time observation,
select Start. Select Split every time that you want to take an
intermediate time. To stop the time observation, select Stop.
To save the measured time, select Save.
To start the time observation again, select Options > Start. The new
time is added to the previous time. To reset the time without saving it,
select Reset.
To set the stopwatch timing in the background, press the end key.
Lap timing — to take lap times. To set the stopwatch timing in the
background, press the end key.
Continue — to view the timing that you have set in the background
Show last — to view the most recently measured time if the stopwatch is
not reset
View times or Delete times — to view or delete the saved times
Contacts
77
FCC Draft
13. Contacts
You can save names and phone numbers (contacts) in the
phone memory and in the SIM card memory.
The phone memory may save contacts with additional details, such as
various phone numbers and text items. You can also save an image or a
video clip for a limited number of contacts. You can also use the video
clip saved with a contact as a ringing tone for the contact.
The SIM card memory can save names with one phone number attached
to them. The contacts saved in the SIM card memory are indicated by
.
■Search for a contact
Select Menu > Contacts > Names. Scroll through the list of contacts, or
enter the first characters of the name.
■Save names and phone numbers
Names and numbers are saved in the used memory. To save a name and
phone number, select Menu > Contacts > Names > Options > Add new
contact. Enter the last name, first name, and the phone number.
■Save numbers and text items
In the phone memory for contacts you can save different types of phone
numbers and short text items per name.
The first number you save is automatically set as the default number,
and it is indicated with a frame around the number type indicator (for
example, ). When you select a name from contacts (for example, to
make a call), the default number is used unless you select another
number.
1. Make sure that the memory in use is Phone or Phone and SIM.
2. Search for the contact to which you want to add a new number or
text item, and select Details > Options > Add detail.
Contacts
78
FCC Draft
3. To add a number, select Number and a number type.
To add another detail, select a text type, an image or a video clip
from My Items, or a new image.
To search for an ID from the server of your service provider if you
have connected to the presence service, select User ID > Search. If
only one ID is found, it is automatically saved. Otherwise, to save the
ID, select Options > Save. To enter the ID, select Enter ID manually.
Enter the ID, and select OK to save it.
To change the number type, scroll to the desired number, and select
Options > Change type. To set the selected number as the default
number, select Set as default.
4. Enter the number or text item; to save it, select Save.
■Copy contacts
Search for the contact you want to copy, and select Options > Copy.
You can copy names and phone numbers from the phone contact
memory to the SIM card memory, or vice versa. The SIM card memory
can save names with one phone number attached to them.
■Edit contact details
Search for the contact you want to edit, and select Details. To edit a
name, number, text item, or to change the image, select Options > Edit.
You cannot edit an ID when it is on the IM contacts list.
■Delete contacts
To delete all the contacts and the details attached to them from the
phone or SIM card memory, select Menu > Contacts > Delete all
contacts > From phone memory or From SIM card. Confirm with the
security code.
To delete a contact, search for the desired contact, and select Options >
Delete contact.
To delete a number, text item, or an image attached to the contact,
search for the contact, and select Details. Scroll to the desired detail,
Contacts
79
FCC Draft
and select Options > Delete > Delete number, Delete detail, or Delete
image. Deleting an image from contacts does not delete it from My
Items.
■Business cards
You can send and receive a person’s contact information from a
compatible device that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you
want to send, and select Details > Options > Send business card > Via
multimedia, Via text message, Via infrared, or Via Bluetooth.
When you receive a business card, select Show > Save to save the
business card in the phone memory. To discard the business card, select
Exit > Yes.
■Settings
Select Menu > Contacts > Settings and from the following options:
Memory in use — to select the SIM card or phone memory for your
contacts. Select Phone and SIM to recall names and numbers from both
memories. In that case, when you save names and numbers, they are
saved in the phone memory.
Contacts view — to select how the names and numbers in Contacts are
displayed
Name display — to select whether the contact’s first or last name is
displayed first
Font size — to set the font size for the list of contacts
Memory status — to view the free and used memory capacity
■Groups
Select Menu > Contacts > Groups to arrange the names and phone
numbers saved in the memory into caller groups with different ringing
tones and group images.
Contacts
80
FCC Draft
■Speed dials
To assign a number to a speed-dialing key, select Menu > Contacts >
Speed dials, and scroll to the speed-dialing number that you want.
Select Assign, or if a number has already been assigned to the key,
select Options > Change. Select Search and the contact you want to
assign. If the Speed dialling function is off, the phone asks whether you
want to activate it. See also Speed dialling in “Call,” p. 99.
To make a call using the speed-dialing keys, see “Speed dialing,” p. 23.
■Service and my numbers
Select Menu > Contacts and from the following options:
Service numbers — to call the service numbers of your service provider if
the numbers are included on your SIM card (network service)
My numbers — to view the phone numbers assigned to your SIM card.
This is only shown if the numbers are included on your SIM card.
Log
81
FCC Draft
14. Log
Note: This feature may not be available in your product due to
your subscription (network service).
To view the information on your calls, select Menu > Log > Missed calls,
Received calls, or Dialled numbers. To view your recent missed and
received calls and the dialed numbers chronologically, select Call log. To
view the contacts to whom you most recently sent messages, select
Message recipients.
To view the approximate information on your recent communications,
select Menu > Log > Call duration, Packet data counter, or Packet data
timer.
To view how many text and multimedia messages you have sent and
received, select Menu > Log > Message log.
Note: The actual invoice for calls and services from your service
provider may vary, depending on network features, rounding off for
billing, taxes, and so forth.
Note: Some timers, including the life timer, may be reset during service
or software upgrades.
Instant messages (IM)
82
FCC Draft
15. Instant messages (IM)
Note: This feature may not be available in your product due
to your subscription (network service).
Instant messaging (IM) (network service) is a way to send short, simple
text messages to online users, delivered over TCP/IP protocols.
Before you can use instant messaging, you must subscribe to the
service. To check the availability and costs, and to subscribe to the
service, contact your network operator or service provider, from whom
you also receive your unique ID, password, and settings.
To set the required settings for the instant messaging service, see
Connection settings in “Access the instant messaging menu,” p. 82. The
icons and texts on the display may vary, depending on the instant
messaging service.
While you are connected to the instant messaging service, you can use
the other functions of the phone, and the instant messaging
conversation remains active in the background. Depending on the
network, the active instant messaging conversation may consume the
phone battery faster, and you may need to connect the phone to a
charger.
Access the instant messaging menu
To access the Instant messages menu while still offline, select Menu >
Instant messages. If more than one set of connection settings for instant
messaging service is available, select the desired one. If there is only one
set defined, it is selected automatically.
The following options are shown:
Login — to connect to the instant messaging service. To set the phone to
automatically connect to the instant messaging service when you
switch on the phone, select Menu > Instant messages, connect to the
instant messaging service, and select My settings > Automatic login >
On phone start-up.
Instant messages (IM)
83
FCC Draft
Saved conversations — to view, erase, or rename the conversations that
you saved during an instant messaging session
Connection settings — to edit the settings needed for messaging and
presence connection
Connect to instant messaging
To connect to the instant messaging service, access the Instant
messages menu, select the desired instant messaging service if needed,
and select Login. When the phone has successfully connected, Logged in
is displayed.
To disconnect from the instant messaging service, select Logout.
Start an instant messaging conversation
Open the Instant messages menu, and connect to the instant messaging
service. You can start a conversation in different ways:
Select Conversations. The list of new and read messaging sessions or
invitations to instant messaging during the active conversation is
displayed. Scroll to a message or an invitation, and select Open.
indicates new and read instant messages.
indicates new and read group messages.
indicates invitations.
The icons and texts on the display may vary, depending on the instant
messaging service.
Select IM contacts. The contacts that you added to the list are displayed.
Scroll to the contact with whom you would like to start instant
messaging, and select Chat, or if is shown next to a contact, select
Open.
indicates an online contact and an offline contact in the contact
memory of the phone.
indicates a blocked contact. See “Block and unblock messages,”
p. 86.
indicates that you have received a new message from a contact.
Instant messages (IM)
84
FCC Draft
You can add contacts to the list. See “Contacts for instant messaging,”
p. 86.
Select Groups > Public groups (dimmed if groups are not supported by
the network). The list of bookmarks to public groups provided by the
network operator or service provider is displayed. To start a
conversation, scroll to a group, and select Join. Enter the screen name
that you want to use as a nickname in the conversation. When you have
successfully joined the group conversation, you can start a group
conversation. You can also create a private group. See “Groups,” p. 86.
Select Search > Users or Groups to search for other instant messaging
users or public groups on the network by phone number, screen name,
e-mail address, or name. If you select Groups, you can search for a group
by a member in the group or by group name, topic, or ID.
To start the conversation when you have found the user or the group
that you want, select Options > Chat or Join group.
Start a conversation from Contacts.
Instant messaging invitation
In the standby mode, when you are connected to the instant messaging
service and you receive a new invitation, New invitation received is
displayed. To read it, select Read. If more than one invitation is received,
scroll to an invitation, and select Open.
To join the private group conversation, select Accept. Enter the screen
name that you want to use as a nickname in the conversation.
To reject or delete the invitation, select Options > Reject or Delete. You
can write an explanation for the rejection.
Read a received instant message
In the standby mode, when you are connected to the instant messaging
service and you receive a new message that is not a message associated
with an active conversation, New instant message is displayed. To read
it, select Read.
Instant messages (IM)
85
FCC Draft
If more than one message is received, the number of messages, followed
by new instant messages, is displayed. Select Read, scroll to a message,
and select Open.
New messages received during an active conversation are held in
Instant messages > Conversations. If you receive a message from
someone who is not in IM contacts, the sender ID is displayed. If the
sender is in the phone memory and the phone recognizes it, the name of
the person is displayed. To save a new contact that is not in the phone
memory, select Options > Save contact.
Join an instant messaging conversation
To join or start a conversation, select Write or start writing.
Tip: If you receive a new message during a conversation from a
person who is not taking part in the current conversation, is
displayed, and the phone sounds an alert tone.
Write your message. To send it, select Send, or press the call key. The
message stays on the display, and the reply message appears below your
message.
Edit your availability status
1. Open the Instant messages menu, and connect to the instant
messaging service.
2. To view and edit your own availability information or screen name,
select My settings.
3. To allow all the other instant messaging users to see when you are
online, select Availability > Available for all.
To allow only the contacts on your instant messaging contact list to
see when you are online, select Availability > Available for contacts.
To appear as being offline, select Availability > Appear offline.
When you are connected to the instant messaging service, indicates
that you are online and that you are not visible to others.
Instant messages (IM)
86
FCC Draft
Contacts for instant messaging
To add contacts to the instant messaging contacts list, do the following:
1. Connect to the instant messaging service, and select IM contacts.
2. Select Options > Add contact, or if you have no contacts added,
select Add. Select Enter ID manually, Search from server, Copy from
server, or By mobile number. When the contact is successfully added,
the phone confirms it.
3. Scroll to a contact, and to start a conversation, select Chat.
Block and unblock messages
To block messages, connect to the instant messaging service, and select
Conversations > IM contacts, or join or start a conversation. Scroll to
the contact from whom you want to block incoming messages, and
select Options > Block contact > OK.
To unblock messages, connect to the instant messaging service, and
select Blocked list. Scroll to the contact from whom you want to unblock
the messages, and select Unblock.
You can also unblock messages from the contact list.
Groups
You can create your own private groups for an instant messaging
conversation, or use the public groups provided by the service provider.
The private groups exist only during an instant messaging conversation.
The groups are saved on the server of the service provider. If the server
you are logged into does not support group services, all group-related
menus are dimmed.
Public groups
You can bookmark public groups that your service provider may
maintain. Connect to the instant messaging service, and select Groups >
Public groups. Scroll to a group to which you want to chat, and select
Join. If you are not in the group, write your screen name as your
nickname for the group. To delete a group from your group list, select
Options > Delete group.
Instant messages (IM)
87
FCC Draft
To search for a group, select Groups > Search groups. You can search for
a group by a member in the group or by group name, topic, or ID.
Create a private group
Connect to the instant messaging service, and select Groups > Create
group. Enter the name for the group and the screen name that you want
to use. Mark the private group members in the contacts list, and write
an invitation.
Settings
88
FCC Draft
16. Settings
■Profiles
Your phone has various setting groups, called profiles, which you can
customize for different events and environments.
Select Menu > Settings > Profiles and the desired profile. Select from
the following options:
Activate — to activate the selected profile
Personalise — to personalize the profile. Select the setting you want to
change, and make the changes.
Timed — to set the profile to be active until a certain time up to 24
hours, and set the end time. When the time set for the profile expires,
the previous profile that was not timed becomes active.
Flight mode
You can deactivate all radio frequence functionality and still have
access to games, calendar and phonebook. Use flight mode in radio
sensitive environments—on board airplanes or in hospitals. When the
flight mode is active, the flight icon is visible next to the battery charge
level.
Select Settings > Profiles > Flight and from the following options:
Activate- Personalise .
To deactivate the flight mode, you scroll to and select any other profile.
Every time you try to make a call, you are asked if you want to Exit flight
profile? click Yes to deactivate Flight mode.
In the flight mode you can make an emergency call. Enter the
emergency number, press the call key, and select Yes when asked Exit
flight profile? The phone attempts to make an emergency call.
When the emergency call ends, the phone automatically enters the
general profile mode.
Settings
89
FCC Draft
■Themes
A theme contains many elements for personalizing your phone, such as
wallpaper, screen saver, color scheme, and a ringing tone.
Select Menu > Settings > Themes and from the following options:
Select theme — to set a theme in your phone. A list of folders in My
Items opens. Open the Themes folder, and select a theme.
Theme downloads — to open a list of links to download more themes
■Tones
You can change the settings of the selected active profile.
Select Menu > Settings > Tones > Incoming call alert, Ringing tone,
Ringing volume, Vibrating alert, PTT settings, Message alert tone, Instant
msg. alert tone, Keypad tones, or Warning tones. You can find the same
settings in the Profiles menu.
To set the phone to ring only upon calls from phone numbers that
belong to a selected caller group, select Alert for. Scroll to the caller
group you want or All calls, and select Mark.
■Display
With display settings you can personalize your phone display view.
Standby mode
Enable or disable active standby from idle
To enable the active standby mode, select Menu > Settings > Display >
Standby mode settings > Active standby > My active standby.
To disable the active standby mode, select Menu > Settings > Display >
Standby mode settings > Active standby > Off.
Standby settings
Select Menu > Settings > Display > Standby mode settings and from
the following options:
Settings
90
FCC Draft
Active standby > My active standby — to display the active standby.
Select Options and from the following options:
•Personalise — to change the content on the display
•Organise — to reorganize the content on the display
•Enabling active standby — to change the key for accessing the
navigation mode. The same setting is also in the My shortcuts menu.
See “Enable active standby,” p. 92.
Wallpaper — to set your phone to display an image or a slide as
wallpaper when the phone is in the standby mode. Select Wallpapers >
Image or Slide set. Select an image or a slide from My Items, and
Options > Set as wallpaper. To download more graphics, select Graphic
downloads.
Standby font colour — to select the color for the texts on the display in
the standby mode
Navigation key icons — to set the scroll key icons that are shown in the
standby mode
Operator logo — to set your phone to display or hide the operator logo
Cell info display > On — to receive information from the network
operator depending on the network cell used (network service)
Screen saver
To select a screen saver from My Items, select Menu > Settings >
Display > Screen saver > Screen savers > Image, Slide set, Video clip, or
Open camera. To download more screen savers, select Graphic
downloads. To select the time after which the screen saver is activated,
select Time-out. To activate the screen saver, select On.
Power saver
To save some battery power, select Menu > Settings > Display > Power
saver. A digital clock is displayed when no function of the phone is used
for a certain time.
Settings
91
FCC Draft
Sleep mode
To save most battery power, select Menu > Settings > Display > Sleep
mode. The display turns completely black when no function of the phone
is used for a certain time.
Font size
To set the font size for reading and writing messages and viewing
contacts and Web pages, select Menu > Settings > Display > Font size.
■Time and date
To change the time, time zone, and date settings, select Menu >
Settings > Time and date > Clock, Date, or Auto-update of date/time
(network service).
When traveling to a different time zone, select Menu > Settings > Time
and date > Clock > Time zone and the time zone of your location in
terms of the time difference with respect to Greenwich Mean Time
(GMT) or Universal Time Coordinated (UTC). The time and date are set
according to the time zone and enable your phone to display the correct
sending time of received text or multimedia messages. For example,
GMT -5 denotes the time zone for New York (USA), 5 hours west of
Greenwich/London (UK).
■My shortcuts
With personal shortcuts you get quick access to often used functions of
the phone.
Left selection key
To select a function from the list for the left selection key, select
Menu > Settings > My shortcuts > Left selection key. See also “Standby
mode,” p. 18.
To activate a function in the standby mode if the left selection key is Go
to, select Go to and the desired function on your personal shortcut list.
Select Options and from the following options:
Settings
92
FCC Draft
Select options — to add a function to the shortcut list, or to remove one.
Scroll to the function, and select Mark or Unmark.
Organise — to rearrange the functions on your personal shortcut list.
Scroll to the function you want to move, and select Move. Scroll to
where you want to move the function, and select OK.
Right selection key
To select a function from the list for the right selection key, select
Menu > Settings > My shortcuts > Right selection key. See also
“Standby mode,” p. 18.
Navigation key
To select shortcut functions for the scroll keys, select Menu >
Settings > My shortcuts > Navigation key. Scroll to the desired key and
select Change and a function from the list. To remove a shortcut
function from the key, select (empty). To reassign a function for the key,
select Assign. See “Standby mode shortcuts,” p. 20.
Enable active standby
To select the key to access the active standby navigation mode, select
Menu > Settings > My shortcuts > Enabling active standby >
Navigation key up, Navigation key down, or Navigation key up/down.
Voice commands
You can call contacts and carry out phone functions by saying voice
commands. Voice commands are language-dependent. To set the
language, see Voice playback language in “Phone,” p. 100.
The phone voice commands are active by default. Select Menu >
Settings > My shortcuts > Voice commands and a folder. Scroll to a
function. indicates that the voice tag is activated. . To play the
activated voice command, select Play. To use voice commands, see
“Enhanced voice dialing,” p. 23.
To manage the voice commands, scroll to a phone function, and select
from the following options:
Settings
93
FCC Draft
Edit or Remove — to change or deactivate the voice command of the
selected function. When you edit the voice tag text, the phone
associates it to a new virtual voice tag.
Add all or Remove all — to activate or deactivate voice commands to all
functions in the voice commands list. Add all or Remove all is not shown
if all voice commands are active or inactive.
■Connectivity
You can connect the phone to a compatible device using an infrared,
Bluetooth wireless technology, or USB data cable (CA-53 or DKU-2)
connection. You can also define the settings for packet data dial-up
connections.
Bluetooth wireless technology
This device is compliant with Bluetooth Specification 2.0 supporting the
following profiles: hands-free, headset, object push profile, file transfer profile,
dial-up networking profile, SIM access profile, and serial port profile. To ensure
interoperability between other devices supporting Bluetooth technology, use
Nokia approved enhancements for this model. Check with the manufacturers of
other devices to determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some locations.
Check with your local authorities or service provider.
Features using Bluetooth technology, or allowing such features to run in the
background while using other features, increase the demand on battery power
and reduce the battery life.
Bluetooth technology allows you to connect the phone to a compatible
Bluetooth device within 10 meters (32 feet). Since devices using
Bluetooth technology communicate using radio waves, your phone and
the other devices do not need to be in direct line-of-sight, although the
connection can be subject to interference from obstructions such as
walls or from other electronic devices.
Set up a Bluetooth connection
Select Menu > Settings > Connectivity > Bluetooth and from the
following options:
Settings
94
FCC Draft
Bluetooth > On or Off — to activate or deactivate the Bluetooth
function. indicates an active Bluetooth connection. When activating
Bluetooth technology for the first time, you are asked to give a name for
the phone. Please note that this name will be viewed by other people -
use a unique name that is easy for others to identify.
Search for audio enhanc. — to search for compatible Bluetooth audio
devices. Select the device that you want to connect to the phone.
Paired devices — to search for any Bluetooth device in range. Select New
to list any Bluetooth device in range. Scroll to a device, and select Pair.
Enter the Bluetooth passcode of the device to associate (pair) the device
to your phone. You must only give this passcode when you connect to
the device for the first time. Your phone connects to the device, and you
can start data transfer.
Bluetooth wireless connection
Select Menu > Settings > Connectivity > Bluetooth. To check which
Bluetooth connection is currently active, select Active devices. To view a
list of Bluetooth devices that are currently paired with the phone, select
Paired devices.
Select Options to access available options depending on the status of
the device and the Bluetooth connection. Select Connect > Assign short
name or Auto-conn. without conf..
Bluetooth settings
To define how your phone is shown to other Bluetooth devices, select
Menu > Settings > Connectivity > Bluetooth > Bluetooth settings > My
phone's visibility or My phone's name.
Operating the phone in hidden mode is a safer way to avoid malicious software.
Do not accept Bluetooth connectivity from sources you do not trust.
As another alternative, - switch off the Bluetooth functionality. This will not
affect other functionalities of the phone.
Settings
95
FCC Draft
Infrared
You can send or receive data to or from a compatible phone or data
device (for example, a computer) through the infrared (IR) port of your
phone. To use an IR connection, the device with which you want to
establish a connection must be IrDA compliant.
Do not point the IR (infrared) beam at anyone's eye or allow it to interfere with
other IR devices. This device is a Class 1 laser product.
When sending or receiving data, ensure that the IR ports of the sending
and receiving devices are pointing at each other and that there are no
obstructions between the devices.
To activate the IR port of your phone, select Menu > Settings >
Connectivity > Infrared.
To deactivate the IR connection, select Menu > Settings >
Connectivity > Infrared. When the phone displays Deactivate infrared?,
select Yes.
If data transfer is not started within 2 minutes after the activation of
the IR port, the connection is canceled and must be started again.
IR connection indicator
When is shown continuously, the IR connection is activated, and
your phone is ready to send or receive data through its IR port.
When blinks, your phone is trying to connect to the other device, or
a connection has been lost.
Packet data
WCDMA and general packet radio service (GPRS) are network services
that allow mobile phones to send and receive data over an Internet
protocol protocol (IP)-based network. WCDMA and GPRS are data
bearers that enable wireless access to data networks such as the
Internet.
Enhanced GPRS (EGPRS) is similar to GPRS but enables faster
connections. For more information on availability of EGPRS and data
transfer speed, contact your network operator or service provider.
Settings
96
FCC Draft
The applications that may use WCDMA or (E)GPRS are MMS, video
streaming, browsing sessions, e-mail, remote SyncML, Java application
downloading, and the PC dial-up.
When you have selected GPRS as a data bearer, the phone uses EGPRS
instead of GPRS if this is available in the network. You cannot select
between EGPRS and GPRS, but for some applications you may be able to
select GPRS or GSM data (circuit switched data, CSD).
Packet data connection
Select Menu > Settings > Connectivity > Packet data > Packet data
connection, and from the following options:
Always online to set the phone to automatically register to a packet
data network when you switch on the phone. or indicates that
the packet data service is available.
If you receive a call or a text message, or make a call during a packet
data connection, or indicates that the packet data connection is
suspended (on hold).
When needed to register and establish a packet data connection when
an application using packet data needs it, and to close the connection
when you end the application.
Packet data settings
You can connect the phone using Bluetooth wireless technology,
infrared, or USB data cable connection to a compatible PC and use the
phone as a modem to enable packet data connectivity from the PC.
To define the settings for the packet data connections from your PC,
select Menu > Settings > Connectivity > Packet data > Packet data
settings > Active access point, and activate the access point you want to
use. Select Edit active access point > Alias for access point, enter a name
to change the access point settings, and select OK. Select Packet data
access point, enter the access point name (APN) to establish a
connection to a network, and select OK.
You can also set the packet data service settings (access point name) on
your PC using the Nokia Modem Options software. See “Nokia PC Suite,”
Settings
97
FCC Draft
p. 106. If you have set the settings both on your PC and on your phone,
the PC settings are used.
Data transfer
Synchronize your calendar, contacts data, and notes with another
compatible device (for example, a mobile phone), a compatible PC, or a
remote Internet server (network service).
Partner list
To copy or synchronize data from your phone, the name of the device
and the settings must be in the list of partners in transfer contacts. If
you receive data from another device (for example, a compatible mobile
phone), the partner is automatically added to the list, using the contact
data from the other device. Server synchronisation and PC
synchronisation are the original items in the list.
To add a new partner to the list (for example, a new device), select
Menu > Settings > Connectivity > Data transfer > Options > Add
transfer contact > Phone synchronisation or Phone copy, and enter the
settings according to the transfer type.
To edit the copy and synchronize settings, select a contact from the
partner list and Options > Edit.
To delete a partner, select a contact from the partner list and Options >
Delete, and confirm Delete transfer contact?. You cannot delete Server
synchronisation or PC synchronisation.
Data transfer with a compatible device
For synchronization, Bluetooth wireless technology or infrared is used.
The other device is in the standby mode.
To start data transfer, select Menu > Settings > Connectivity > Data
transfer and the transfer partner from the list, other than Server
synchronisation or PC synchronisation. According to the settings, the
selected data is copied or synchronized. The other device also must be
activated for receiving data.
Settings
98
FCC Draft
Data transfer without SIM card
Your phone allows data transfer when the SIM card is not inserted.
Switch on your phone with no SIM card inserted, and select Transfer
and from the following options:
Send data — to select a contact, other than Server synchronisation and
PC synchronisation, from the partner list to transfer data from your
phone. The phone starts a synchronization or copy session.
Receive data > Via Bluetooth or Via infrared — to receive data from the
other phone
Synchronize from a compatible PC
Before you synchronize data from calendar, notes, and contacts from a
compatible PC, you must install the Nokia PC Suite software of your
phone on the PC. Use Bluetooth wireless technology, infrared, or a USB
data cable for the synchronization, and start the synchronization from
the PC.
Synchronize from a server
To use a remote Internet server, you must subscribe to a synchronization
service. For more information and the settings required for this service,
contact your service provider. You may receive the settings as a
configuration message. See “Configuration settings service,” p. 10 and
“Configuration,” p. 101.
If you have saved data on the remote Internet server, to synchronize
your phone, start the synchronization from your phone.
Select Menu > Settings > Connectivity > Data transfer > Server
synchronisation. Depending on the settings, select Initialising
synchronisation or Initialising copy.
If the contacts or calendar are full, synchronizing for the first time or
after an interrupted synchronization may take up to 30 minutes to
complete.
Settings
99
FCC Draft
USB data cable
You can use the USB data cable to transfer data between the memory
card inserted in the phone and a compatible PC or a printer supporting
PictBridge. You can also use the USB data cable with Nokia PC Suite.
To activate the memory card for data transfer or picture printing,
connect the USB data cable; when the phone displays USB data cable
connected. Select mode., select OK. Select from the following modes:
Default mode — to use the cable for PC Suite
To change the USB mode, select Menu > Settings > Connectivity > USB
data cable > Default mode, Printing, or Data storage.
■Call
Select Menu > Settings > Call and from the following options:
Call divert — to divert your incoming calls (network service). You may
not be able to divert your calls if some call barring functions are active.
See Call barring service in “Security,” p. 102.
Anykey answer > On — to set the phone to answer an incoming call by
pressing any key except the power and end keys.
Automatic redial > On — to make a maximum of 10 attempts to connect
the call after an unsuccessful call attempt
Video to voice automatic redial — to select whether the phone
automatically makes a voice call to the number to which a video call
failed.
Speed dialling > On — to dial the names and phone numbers assigned to
the speed-dialing keys 3 to 9, press and hold the corresponding number
key
Call waiting > Activate — to have the network notify you of an incoming
call while you have a call in progress (network service). See “Call
waiting,” p. 24.
Summary after call > On — to briefly display the approximate duration
and cost (network service) of the call after each call
Settings
100
FCC Draft
Send my caller ID > Yes — to show your phone number to the person you
are calling (network service). To use the setting agreed upon with your
service provider, select Set by network.
■Phone
Select Menu > Settings > Phone and from the following options:
Language settings — to set the display language of your phone, select
Phone language. If you select Automatic, the phone selects the
language according to the information on the SIM card.
To select the USIM card language, select SIM language.
To set a language for the voice playback, select Voice playback language.
See “Make a voice dialing call,” p. 24 and Voice commands in “My
shortcuts,” p. 91.
Memory Status — to see how much of the phone’s memory is reserved
and how much is free.
Automatic keyguard — to set the keypad of your phone to lock
automatically after a preset time delay when the phone is in the standby
mode and no function of the phone has been used. Select On, and set
the time.
Security keyguard — to set the phone to ask for the security code when
you unlock the keyguard. Enter the security code, and select On.
When the keyguard is on, calls still may be possible to the official emergency
number programmed into your device.
Welcome note — to write the note you would like to be shown briefly
when the phone is switched on.
Network mode — to select dual mode (UMTS and GSM), UMTS, or GSM.
You cannot access this option during an active call.
Operator selection > Automatic — to set the phone to automatically
select one of the cellular networks available in your area. With Manual
you can select a network that has a roaming agreement with your home
network operator.
Confirm SIM serv. actions — See “SIM Toolkit (STK),” p. 105.
Help text activation — to select whether the phone shows help texts
Settings
101
FCC Draft
Start-up tone — to select whether the phone plays a tone when the
phone is switched on.
Flight query —to select whether Activate flight profile? appears every
time the phone is switched on if the flight mode was set before
switching off the device. See “Flight mode,” p. 88.
■Enhancements
This menu is shown only if the phone is or has been connected to a
compatible mobile enhancement.
Select Menu > Settings > Enhancements. Depending on the
enhancement, you can select some of the following options:
Default profile — to select the profile that you want to be automatically
activated when you connect to the selected enhancement
Automatic answer — to set the phone to answer an incoming call
automatically after 5 seconds. If Incoming call alert is set to Beep once
or Off, automatic answer is off.
■Configuration
You can configure your phone with settings that are required for certain
services to function correctly. The services are multimedia messaging,
instant messaging, synchronization, e-mail application, streaming, push
to talk, IM and Web. Your service provider may also send you these
settings. See “Configuration settings service,” p. 10.
For information on availability and the appropriate configuration
settings, contact your network operator or service provider.
Select Menu > Settings > Configuration and from the following
options:
Default config. settings — to view the service providers saved in the
phone. Scroll to a service provider, and select Details to view the
applications that the configuration settings of this service provider
support. To set the configuration settings of the service provider as
default settings, select Options > Set as default. To delete configuration
settings, select Delete.
Settings
102
FCC Draft
Activ. default in all apps. — to activate the default configuration settings
for supported applications
Preferred access point — to view the saved access points. Scroll to an
access point, and select Options > Details to view the name of the
service provider, data bearer, and packet data access point or GSM
dial-up number.
Connect to serv. support — to download the configuration settings from
your service provider if this is supported by the service provider
Personal config. settings — to add new personal accounts for various
services, and to activate or delete them. To add a new personal account
if you have not added any, select Add; otherwise, select Options > Add
new. Select the service type, and select and enter each of the required
parameters. The parameters differ according to the selected service
type. To delete or activate a personal account, scroll to it, and select
Options > Delete or Activate.
■Security
When security features that restrict calls are in use (such as call barring, closed
user group, and fixed dialing) calls still may be possible to the official emergency
number programmed into your device.
Select Menu > Settings > Security and from the following options:
PIN code request and UPIN code request — to set the phone to ask for
your PIN or UPIN code every time the phone is switched on. Some SIM
cards do not allow the code request to be turned off.
PIN2 code request — to select whether the PIN2 code is required when
using a phone feature that is protected by the PIN2 code. Some SIM
cards do not allow the code request to be turned off.
Call barring service — to restrict incoming calls to and outgoing calls
from your phone (network service). A barring password is required.
Fixed dialling — to create, edit, and activate a list of phone numbers or
prefixes. When the list is activated, you can only call or send messages
to the numbers on the list. If the SIM card does not support this option,
Fixed dialling is hidden.
Settings
103
FCC Draft
Closed user group — to specify a group of people whom you can call and
who can call you (network service)
Security level > Phone — to set the phone to ask for the security code
whenever a new SIM card is inserted into the phone. If you select
Security level > Memory, the phone asks for the security code when the
SIM card memory is selected, and you want to change the memory in
use.
Access codes — to change the security code, PIN code, PIN2 code, or
barring password
Code in use — to select whether the PIN code or UPIN code should be
active
Authority certificates or User certificates — to view the list of the
authority or user certificates downloaded into your phone. See
“Certificates,” p. 43.
Security module settings — to view Security module details, activate
Module PIN request, or change the module PIN and signing PIN. See also
“Access codes,” p. 9.
■Digital rights management
Digital rights management (DRM) is copyright protection, designed to
prevent modification and to limit distribution of protected files. When
you download protected files, such as sound, video, themes, or ringing
tones to your phone, the files are free, but locked. You pay for the key to
activate the file and the activation key is automatically sent to your
phone when you download the file.
To view the permissions for a protected file, scroll to the file, and select
Options > Activation keys. For example, you can see how many times
you can view a video or how many days you have left for listening to a
song.
To extend the permissions for a file, select Options and the
corresponding option for the file type, such as Activate theme. You can
send certain types of protected files to your friends, and they can buy
their own activation keys.
This phone supports OMA DRM 1.0.
Settings
104
FCC Draft
■Restore factory settings
To reset some of the menu settings to their original values, select
Menu > Settings > Restore factory sett.. Enter the security code.
SIM Toolkit (STK)
105
FCC Draft
17. SIM Toolkit (STK)
Your SIM card may provide additional services. You can
access this menu only if it is supported by your SIM card. The name and
contents of the menu depend on the available services.
For availability, rates, and information on using SIM ToolKit services, contact
your SIM card vendor, for example, network operator, service provider, or other
vendor.
To set the phone to show you the confirmation messages sent between
your phone and the network when you are using the SIM Toolkit
services, select Menu > Settings > Phone > Confirm SIM serv. actions >
Yes.
Accessing these services may involve sending messages or making a
phone call for which you may be charged.
PC connectivity
106
FCC Draft
18. PC connectivity
You can send and receive e-mail, and access the Internet when your
phone is connected to a compatible PC through an IR, Bluetooth
wireless technology, or USB data cable connection. You can use your
phone with a variety of PC connectivity and data communications
applications.
■Nokia PC Suite
With Nokia PC Suite you can synchronize contacts, calendar, notes, and
to-do notes between your phone and the compatible PC or a remote
Internet server (network service). You may find more information and PC
Suite on the Nokia Web site at www.nokia.com/support.
■EGPRS, HSCSD, CSD, and WCDMA
With your phone you can use the enhanced GPRS (EGPRS), general
packet radio service (GPRS), circuit switched data (GSM data) services,
high speed circuit switched data (HSCSD), and WCDMA packet and
circuit switched data services.
For availability and subscription to data services, contact your network
operator or service provider.
The use of HSCSD services consumes the phone battery faster than
normal voice or data calls. You may need to connect the phone to a
charger for the duration of data transfer.
See “Packet data settings,” p. 96.
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Making or answering phone calls during a computer connection is not
recommended, as it might disrupt the operation.
PC connectivity
107
FCC Draft
For better performance during data calls, place the phone on a
stationary surface with the keypad facing downward. Do not move the
phone by holding it in your hand during a data call.
Battery information
108
FCC Draft
19. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, replace the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers designated for this
device.
If a replacement battery is being used for the first time or if the battery has not
been used for a prolonged period, it may be necessary to connect the charger and
then disconnect and reconnect it to start the charging.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
If the battery is completely discharged, it may take a few minutes before the
charging indicator appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
Battery information
109
FCC Draft
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting
an original Nokia battery, purchase it from an authorized Nokia dealer, look for
the Nokia Original Enhancements logo on the packaging, and inspect the
hologram label using the following steps:
Successful completion of the four steps is not a total assurance of the
authenticity of the battery. If you have any reason to believe that your battery is
not an authentic original Nokia battery, you should refrain from using it and take
it to the nearest authorized Nokia service point or dealer for assistance. Your
authorized Nokia service point or dealer will inspect the battery for authenticity.
If authenticity cannot be verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram on the label, you
should see the Nokia connecting hands symbol from
one angle and the Nokia Original Enhancements
logo when looking from another angle.
2. When you angle the hologram left, right, down, and
up, you should see 1, 2, 3, and 4 dots on each side
respectively.
3. Scratch the side of the label to reveal a 20-digit
code, for example, 12345678919876543210. Turn
the battery so that the numbers are facing upwards.
The 20-digit code reads starting from the number at
the top row followed by the bottom row.
Battery information
110
FCC Draft
4. Confirm that the 20-digit code is valid by following
the instructions at www.nokia.com/batterycheck.
To create a text message, enter the 20-digit code, for example,
12345678919876543210, and send to +44 7786 200276.
National and international operator charges will apply.
You should receive a message indicating whether the code can be authenticated.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is
an authentic Nokia battery, please do not use the battery. Take it to the nearest
authorized Nokia service point or dealer for assistance. The use of a battery that
is not approved by the manufacturer may be dangerous and may result in poor
performance and damage to your device and its enhancements. It may also
invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
Technical Information
111
FCC Draft
20. Technical Information
Weight 100 grams (3.5 ounces) incl. BP-6M
battery
Battery 1100 mAh Li-Ion Battery
Networks Wireless networks GSM 900,
1800, 1900 and WCDMA: UTRA FDD
Operating Band II
Size Volume: 4.6 cubic inches (76 ccm)
Length: 4.3 in (109 mm)
Width: 1.8 in (46,5 mm)
Thickness: 0.7 in (17,5 mm)
Frequency range (Rx) GSM 900: 925 - 960 MHz
GSM1800: 1805 - 1880 MHz
GSM1900: 1930 - 1990 MHz
WCDMA: 1930 - 1990 MHz
Frequency range (Tx) GSM 900: 880 - 915 MHz
GSM 1800: 1710 - 1785 MHz
GSM1900: 1850 - 1910 MHz
WCDMA: 1850 - 1910 MHz
Tx output power GSM: 2W (max)
WCDMA: 250 mW (max)
Battery voltage 3.7 V (nominal)
Number of channels GSM 900: 174
GSM 1800: 374
GSM1900: 299
WCDMA: 288
Memory size NOR memory: 32 Mbyte
SDRAM memory: 128 Mbit
Operating temperature 59 °F to 77 °F
(15 °C to 25 °C)
Care and maintenance
112
FCC Draft
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity
sensor, and light sensor lenses).
• Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the device and may
violate regulations governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep (such as contacts and
calendar notes) before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Additional safety information
113
FCC Draft
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the
reach of small children.
■Operating environment
Remember to follow any special regulations in force in any area, and always
switch off your device when its use is prohibited or when it may cause
interference or danger. Use the device only in its normal operating positions. This
device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 2.2 centimeters (7/8 inches) from the
body. When a carry case, belt clip or holder is used for body-worn operation, it
should not contain metal and should position the device the above-stated
distance from your body.
To transmit data files or messages, this device requires a quality connection to
the network. In some cases, transmission of data files or messages may be
delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the
device. Do not place credit cards or other magnetic storage media near the
device, because information stored on them may be erased.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15.3 centimeters (6 inches) be maintained between a wireless phone and a
pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers
should do the following:
Additional safety information
114
FCC Draft
• Always keep the device more than 15.3 centimeters (6 inches) from the
pacemaker
• Not carry the device in a breast pocket
• Hold the device to the ear opposite the pacemaker to minimize the potential
for interference.
If you suspect interference, switch off your device, and move the device away.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Only qualified personnel should service the device, or install the device in a
vehicle. Faulty installation or service may be dangerous and may invalidate any
warranty that may apply to the device. Check regularly that all wireless device
equipment in your vehicle is mounted and operating properly. Do not store or
carry flammable liquids, gases, or explosive materials in the same compartment
as the device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refueling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
Additional safety information
115
FCC Draft
depots, storage, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust, or metal powders.
■Emergency calls
Important: Wireless phones, including this device, operate using radio
signals, wireless networks, landline networks, and user-programmed
functions. Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless device for
essential communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Some networks may require that a valid SIM card is properly inserted in the
device.
2. Press the end key as many times as needed to clear the display and ready the
device for calls.
3. Enter the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. Consult this guide or your service provider for
more information.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless device may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to
exceed the limits for exposure to radio waves recommended by international
guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
Additional safety information
116
FCC Draft
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests
for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
actual SAR level of an operating device can be below the maximum value
because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how
close you are to a network base station. The highest SAR value under the ICNIRP
guidelines for use of the device at the ear is 1.31 W/kg.
Use of device accessories and enhancements may result in different SAR values.
SAR values may vary depending on national reporting and testing requirements
and the network band. Additional SAR information may be provided under
product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission (USA) and
Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over 1
gram of tissue. The highest SAR value reported under this standard during
product certification for use at the ear is 1.29 W/kg and when properly worn on
the body is 0.36 W/kg. Information about this device model can be found at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system
using FCC ID: QTKRM-123B.
Index
117
FCC Draft
Index
A
access codes 9
activation keys 103
active standby 90, 92
alarm clock 72
applications 45
audio messages 62
B
barring password 10
battery 108
authentication 109
installation 12
Bluetooth 93
Bluetooth settings 94
bookmarks 39
browser 37
browser security 41
business cards 79
C
cache memory 42
calculator 74
calendar 73
call key 17
call settings 99
call waiting 24
calls 81
camera 30
camera key 17
camera settings 31
certificates 43
charge level 18
charger connector 18
charging 108
clock settings 91
configuration 101
contacts 77
cookies 41
copyright protection 103
countdown timer 75
D
data communication 106
data transfer 97
date settings 91
dialed numbers 81
digital rights management 103
digital signature 44
download
applications 46
games 45
protected files 103
E
e-mail application 63
emergency calls 115
end key 17
ending a call 24
enhancements settings 101
equalizer 36
F
flash messages 61
flight mode 88
flight query 101
FM radio 34
folders 61
G
games 45
groups 79
I
image size (multimedia) 69
indicators 20
info messages 66
infrared 95
Instant 82
Instant messages 82
IR port 18
Index
118
FCC Draft
K
keyguard 21
keypad lock 21
L
lock the keypad 21
log 81
M
maintenance 112
media player 31
memory card 13, 71
memory card slot 18
message center number 56
message counter 81
message templates 61
missed calls 81
multimedia messages 58
music player 32
mute 24
My Items 71
my numbers 80
N
navigation key 17
network 7
notes 74
O
operator logo 90
organizer 72
P
packet data 95, 106
PC Suite 106
permissions for a protected file 103
personalize 88, 90
phone settings 100
PIN code 9
plug and play service 16
power key 17
power saver 90, 91
predictive text input 27
profiles 88
progressive download 31
PTT key 18
PUK code 9
R
radio 34
received calls 81
restore factory settings 104
ringing tones 24, 89
S
safety 6, 113
emergency calls 115
explosive environments 114
hearing aids 114
medical devices 113
pacemakers 113
vehicles 114
screen saver 90
security code 9
security settings 102
selection keys 17
service commands 66
settings
clock 91
date 91
time 91
shortcuts 20
signal strength 18
SIM card 12
SIM messages 57
SMS e-mail 57
special characters 28
speed dialing 23, 80
STK 105
stopwatch 75
streaming service 31
switch on and off 15
synchronize 98
from PC 98
from server 98
T
templates 57
themes 89
time settings 91
to-do list 74
traditional text input 28
Index
119
FCC Draft
U
unlock keypad 22
USB data cable 99
V
vibrating alert 89
voice commands 92
voice dialing 23
voice messages 66
voice recorder 35
volume keys 17
W
wallpaper 89, 90
Web 37
writing language 27
APPENDIX
120
FCC Draft
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association. All Rights
Reserved. 1250 Connecticut Avenue, NW Suite 800, Washington, DC
20036. Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful
ability to communicate by voice--almost anywhere, anytime--with the
boss, with a client, with the kids, with emergency personnel or even with
the police. Each year, Americans make billions of calls from their
wireless phones, and the numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that
every wireless phone user must uphold. When driving a car, driving is
your first responsibility. A wireless phone can be an invaluable tool, but
good judgment must be exercised at all times while driving a motor
vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires
alertness, caution and courtesy. It requires a heavy dose of basic
common sense---keep your head up, keep your eyes on the road, check
your mirrors frequently and watch out for other drivers. It requires
obeying all traffic signs and signals and staying within the speed limit. It
means using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This
brochure is a call to wireless phone users everywhere to make safety
their first priority when behind the wheel of a car. Wireless
telecommunications is keeping us in touch, simplifying our lives,
protecting us in emergencies and providing opportunities to help others
in need.
APPENDIX
121
FCC Draft
When it comes to the use of wireless phones, safety is your most
important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial
and redial. Carefully read your instruction manual and learn to take
advantage of valuable features most phones offer, including
automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your
attention off the road.
2. When available, use a hands free device. A number of hands free
wireless phone accessories are readily available today. Whether you
choose an installed mounted device for your wireless phone or a
speaker phone accessory, take advantage of these devices if available
to you.
3. Position your wireless phone within easy reach. Make sure you place
your wireless phone within easy reach and where you can grab it
without removing your eyes from the road. If you get an incoming
call at an inconvenient time, if possible, let your voice mail answer it
for you.
4. .Suspend conversations during hazardous driving conditions or
situations. Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy traffic or hazardous
weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are
reading an address book or business card, or writing a “to do” list
while driving a car, you are not watching where you are going. It’s
common sense. Don’t get caught in a dangerous situation because
you are reading or writing and not paying attention to the road or
nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you
are not moving or before pulling into traffic. Try to plan your calls
before you begin your trip or attempt to coincide your calls with
APPENDIX
122
FCC Draft
times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple
tip--dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not
mix--they are distracting and even dangerous when you are behind
the wheel of a car. Make people you are talking with aware you are
driving and if necessary, suspend conversations which have the
potential to divert your attention from the road.
8. Use your wireless phone to help others in emergencies. Your wireless
phone provides you a perfect opportunity to be a “Good Samaritan”
in your community. If you see an auto accident, crime in progress or
other serious emergency where lives are in danger, call 9-1-1 or
other local emergency number, as you would want others to do for
you.
9. Use your wireless phone to call for help. Your wireless phone is one of
the greatest tools you can own to protect yourself and your family in
dangerous situations--with your phone at your side, help is only
three numbers away. Dial 9-1-1 or other local emergency number in
the case of fire, traffic accident, road hazard or medical emergency.
Remember, it is a free call on your wireless phone!
10.Use your wireless phone to help others in emergencies. Your wireless
phone provides you a perfect opportunity to be a “Good Samaritan”
in your community. If you see an auto accident, crime in progress or
other serious emergency where lives are in danger, call 9-1-1 or
other local emergency number, as you would want others to do for
you.
11.Call roadside assistance or a special wireless non-emergency
assistance number when necessary. Certain situations you encounter
while driving may require attention, but are not urgent enough to
merit a call for emergency services. But you still can use your
wireless phone to lend a hand. If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured or a vehicle you know to be
APPENDIX
123
FCC Draft
stolen, call roadside assistance or other special non-emergency
wireless number.
Careless, distracted individuals and people driving irresponsibly
represent a hazard to everyone on the road. Since 1984, the Cellular
Telecommunications Industry Association and the wireless industry
have conducted educational outreach to inform wireless phone users of
their responsibilities as safe drivers and good citizens. As we approach a
new century, more and more of us will take advantage of the benefits of
wireless telephones. And, as we take to the roads, we all have a
responsibility to drive safely.
The wireless industry reminds you to use your phone safely when
driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
■Message from the FDA
The U.S. Food and Drug Administration (FDA) provides the following
consumer information about wireless phones.
See http://www.fda.gov/cellphones/ for updated information.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no proof,
however, that wireless phones are absolutely safe. Wireless phones emit
low levels of radiofrequency energy (RF) in the microwave range while
being used. They also emit very low levels of RF when in the stand-by
mode. Whereas high levels of RF can produce health effects (by heating
tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF
exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings
have not been confirmed by additional research. In some cases, other
researchers have had difficulty in reproducing those studies, or in
determining the reasons for inconsistent results.
APPENDIX
124
FCC Draft
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as it
does with new drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to emit
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of wireless phones to
notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, FDA has urged the wireless phone industry to take a number of
steps, including the following:
• Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to
the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best
possible information on possible effects of wireless phone use on
human health.
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in
the United States must comply with FCC safety guidelines that limit RF
APPENDIX
125
FCC Draft
exposure. FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than do
the wireless phones themselves, the RF exposures that people get from
these base stations are typically thousands of times lower than those
they can get from wireless phones. Base stations are thus not the
primary subject of the safety questions discussed in this document.
What is FDA doing to find out more about the possible health effects
of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radiofrequency energy (RF). FDA has been a
leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed
agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped
develop a series of public information documents on EMF issues. FDA
and the Cellular Telecommunications & Internet Association (CTIA) have
a formal Cooperative Research and Development Agreement (CRADA) to
do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and
academic organizations. CTIA-funded research is conducted through
contracts to independent investigators. The initial research will include
both laboratory studies and studies of wireless phone users. The CRADA
will also include a broad assessment of additional research needs in the
context of the latest research developments around the world.
What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products--and at this point we do not know
that there is--it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy (RF). Since time is a
APPENDIX
126
FCC Draft
key factor in how much exposure a person receives, reducing the
amount of time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source of
the RF, since the exposure level drops off dramatically with distance. For
example, you could use a headset and carry the wireless phone away
from your body or use a wireless phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless phones are
harmful. But if you are concerned about the RF exposure from these
products, you can use measures like those described above to reduce
your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radiofrequency energy (RF), the measures described
above would apply to children and teenagers using wireless phones.
Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure. Some
groups sponsored by other national governments have advised that
children be discouraged from using wireless phones at all. For example,
the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence
exists that using a wireless phone causes brain tumors or other ill
effects. Their recommendation to limit wireless phone use by children
was strictly precautionary; it was not based on scientific evidence that
any health hazard exists.
Do hands-free kits for wireless phones reduce risks from exposure to
RF emissions?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that hands-free kits
reduce risks. Hands-free kits can be used with wireless phones for
convenience and comfort. These systems reduce the absorption of RF
energy in the head because the phone, which is the source of the RF
emissions, will not be placed against the head. On the other hand, if the
phone is mounted against the waist or other part of the body during use,
APPENDIX
127
FCC Draft
then that part of the body will absorb more RF energy. Wireless phones
marketed in the U.S. are required to meet safety requirements regardless
of whether they are used against the head or against the body. Either
configuration should result in compliance with the safety limit.
Do wireless phone accessories that claim to shield the head from RF
radiation work?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that accessories that claim
to shield the head from those emissions reduce risks. Some products
that claim to shield the user from RF absorption use special phone cases,
while others involve nothing more than a metallic accessory attached to
the phone. Studies have shown that these products generally do not
work as advertised. Unlike "hand-free" kits, these so-called "shields"
may interfere with proper operation of the phone. The phone may be
forced to boost its power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission (FTC)
charged two companies that sold devices that claimed to protect
wireless phone users from radiation with making false and
unsubstantiated claims. According to FTC, these defendants lacked a
reasonable basis to substantiate their claim.
How does FCC Audit Cell Phone RF?
After FCC grants permission for a particular cellular telephone to be
marketed, FCC will occasionally conduct “post-grant” testing to
determine whether production versions of the phone are being produced
to conform with FCC regulatory requirements. The manufacturer of a
cell phone that does not meet FCC’s regulatory requirements may be
required to remove the cell phone from use and to refund the purchase
price or provide a replacement phone, and may be subject to civil or
criminal penalties. In addition, if the cell phone presents a risk of injury
to the user, FDA may also take regulatory action. The most important
post-grant test, from a consumer’s perspective, is testing of the RF
emissions of the phone. FCC measures the Specific Absorption Rate
(SAR) of the phone, following a very rigorous testing protocol. As is true
for nearly any scientific measurement, there is a possibility that the test
measurement may be less than or greater than the actual RF emitted by
APPENDIX
128
FCC Draft
the phone. This difference between the RF test measurement and actual
RF emission is because test measurements are limited by instrument
accuracy, because test measurement and actual use environments are
different, and other variable factors. This inherent variability is known as
“measurement uncertainty.” When FCC conducts post-grant testing of a
cell phone, FCC takes into account any measurement uncertainty to
determine whether regulatory action is appropriate. This approach
ensures that when FCC takes regulatory action, it will have a sound,
defensible scientific basis.
FDA scientific staff reviewed the methodology used by FCC to measure
cell phone RF, and agreed it is an acceptable approach, given our current
understanding of the risks presented by cellular phone RF emissions. RF
emissions from cellular phones have not been shown to present a risk of
injury to the user when the measured SAR is less than the safety limits
set by FCC (an SAR of 1.6 w/kg). Even in a case where the maximum
measurement uncertainty permitted by current measurement standards
was added to the maximum permissible SAR, the resulting SAR value
would be well below any level known to produce an acute effect.
Consequently, FCC’s approach with measurement uncertainty will not
result in consumers being exposed to any known risk from the RF
emitted by cellular telephones.
FDA will continue to monitor studies and literature reports concerning
acute effects of cell phone RF, and concerning chronic effects of long-
term exposure to cellular telephone RF (that is, the risks from using a
cell phone for many years). If new information leads FDA to believe that
a change to FCC’s measurement policy may be appropriate, FDA will
contact FCC and both agencies will work together to develop a
mutually-acceptable approach.
Updated July 29, 2003

Navigation menu
