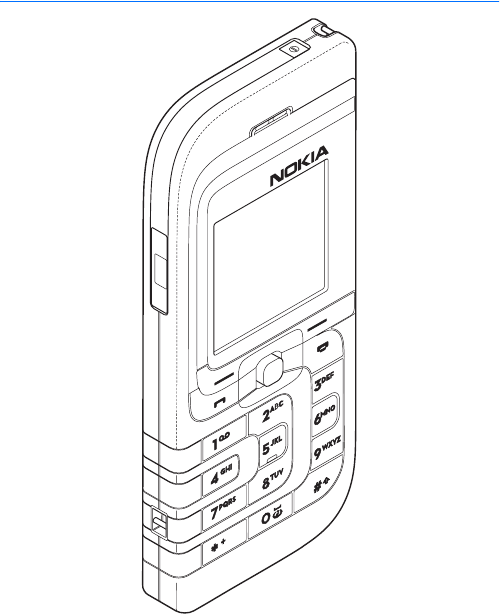

User’s Guide
9231702
Issue 1
Troubadix_FCCdraft_UG_print.fm Page 1 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg2.png)
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RH-37 is in
conformity with the provisions of the following Council Directive: 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered
trademarks of Nokia Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C)
1997-2004. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
Export Controls
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9231702 / Issue 1
Troubadix_FCCdraft_UG_print.fm Page 2 Monday, July 12, 2004 5:07 PM
Troubadix_FCCdraft_UG_print.fm Page 3 Monday, July 12, 2004 5:07 PM
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF
DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT
ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WAR-
RANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND
RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO
REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR
NOTICE.
EXPORT CONTROLS
This device may contain commodities, technology, or software that may only be
exported in accordance with the U. S. Export Administration regulations. Diver-
sion contrary to U.S. or Canadian law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a tele-
phone in close proximity to receiving equipment). The FCC or Industry Canada
can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This
device complies with part 15 of the FCC rules. Operation is subject to the condi-
tion that this device does not cause harmful interference.
![](/img.php?id=451216&img=bg4.png)
Troubadix_FCCdraft_UG_print.fm Page 4 Monday, July 12, 2004 5:07 PM
Manufactured or sold under one or more following US Patents. Asterisk (*) indicates design
patents pending.
RE32,580 4558302 4868846 4945633 4969192 5001372
5101175 5151946 5173927 5212834 5230091 5241583
5311151 5317283 5331638 5335362 5353328 5371481
5378935 5384782 5396657 5400949 5416435 5442521
5446364 5479476 5526366 5553125 5557639 5565821
5570369 5581244 5600708 5625274 5677620 5692032
5729541 5760568 5794142 5802465 5809413 5818437
5827082 5839101 5844884 5845219 5870683 5884103
5889770 5907823 5912570 5914690 5914796 5917868
5920826 5953541 5956332 5956625 5956633 5966378
5977887 5987137 5991857 6006114 6011554 6011853
6014551 6014573 6026161 6035189 6038238 6043760
6047196 6049796 6050415 6055439 6060193 6069923
6072787 6081732 6084920 6084962 6094587 6097964
6105784 6112099 6115617 6119180 6121846 6128509
6138091 6140966 6144243 6144676 6148209 6151485
6151507 6163609 6164547 6167248 6185295 6188909
6249584 6259312 6266330 6272361 6282436 6292668
6295286 6311054 6314166 6324389 6324412 6347218
6363259 6370362 6370389 6377820 6381468 6392660
6400958 6453179 6463278 6470470 6487397 6522670
6198928 4969192 5266782 5390223 5444816 5487084
5640395 5664053 5699482 5701392 5722074 5754976
5805301 5835889 5857151 5859843 5862178 5898925
5930233 5946651 5960354 5960389 5963901 6005857
6011971 6031827 6118775 6128322 6137789 6167248
6170073 6178535 6195338 6199035 6240076 6266321
6285888 6356759 6377803 6430163 6438370 6456237
![](/img.php?id=451216&img=bg5.png)
Contents
5
Contents
Contents ................................... 5
FOR YOUR SAFETY................... 7
General information ................ 9
About your device ................................. 9
Overview of the functions of
the phone................................................. 9
Shared memory................................. 10
Nokia PC Suite software.................... 10
Access codes......................................... 10
Security code (5 to 10 digits) ....... 10
PIN and PIN2 codes (4 to 8 digits),
Module PIN and Signing PIN ........ 10
PUK and PUK2 codes (8 digits) .... 11
Barring password (4 digits)........... 11
Wallet code (4 to 10 digits) .......... 11
Network services.................................. 11
Configuration settings service ..... 12
Nokia support on the Web................ 12
1. Getting started................... 13
Installing the SIM card and
the battery............................................. 13
Charging the battery .......................... 14
Switching the phone on and off ..... 15
Normal operating position................ 15
Putting on a wrist strap..................... 15
2. Your phone ......................... 16
Keys and connectors........................... 16
Standby mode....................................... 17
Wallpaper........................................... 17
Screen saver....................................... 18
Power saving ..................................... 18
Essential indicators.......................... 18
Keypad lock (Keyguard) ..................... 19
3. Call functions ..................... 20
Making a call ........................................ 20
Speed dialling a phone number ... 20
Answering or rejecting an incoming
call ........................................................... 20
Call waiting ....................................... 21
Options during a call.......................... 21
Writing text........................................... 21
Setting predictive text input
on or off.............................................. 21
Using predictive text input ........... 22
Using traditional text input .......... 22
Tips for writing text ........................ 23
4. Using the menu .................. 25
Accessing a menu function .............. 25
List of menu functions ....................... 26
5. Menu functions .................. 28
Messages................................................ 28
Text messages (SMS) ...................... 28
Flash messages ................................. 31
Multimedia messages (MMS)....... 31
Instant messages (Chat)................. 34
E-mail application ........................... 39
Voice messages................................. 41
Info messages ................................... 42
Service commands........................... 42
Deleting all messages from
a folder................................................ 42
Message settings.............................. 42
Message counter.............................. 45
Call register........................................... 45
Counters and timers for calls, data
and messages .................................... 45
Contacts................................................. 46
Selecting settings for contacts .... 46
Saving names and phone
numbers (Add contact)................... 46
Saving multiple numbers or text
items or an image per name......... 46
Searching for a contact ................. 47
Editing or deleting details ............. 48
Troubadix_FCCdraft_UG_print.fm Page 5 Monday, July 12, 2004 5:07 PM
Contents
6
My presence...................................... 48
Subscribed names............................ 50
Sending and receiving a
business card .................................... 52
Speed dials ........................................ 52
Voice dialling .................................... 52
Settings................................................. 53
Profiles................................................ 53
Themes................................................ 54
Tone settings..................................... 54
Personal shortcuts........................... 55
Display settings................................ 55
Time and date settings................... 57
Call settings ...................................... 57
Phone settings.................................. 58
Connectivity...................................... 58
Enhancement settings.................... 61
Configuration settings ................... 61
Security settings.............................. 62
Restore factory settings................. 62
Operator menu..................................... 63
Gallery .................................................... 63
Media...................................................... 64
Camera ............................................... 64
Radio ................................................... 65
Voice recorder................................... 67
Organiser ............................................... 67
Alarm clock........................................ 67
Calendar............................................. 68
To-do list............................................ 69
Notes................................................... 69
Synchronisation ............................... 70
Applications.......................................... 71
Games and applications ................ 71
Calculator .......................................... 72
Countdown timer ............................ 73
Stopwatch ......................................... 73
Wallet ................................................. 74
Services .................................................. 77
Basic steps for accessing and using
services ............................................... 77
Setting up the phone for
a service ............................................. 77
Making a connection to a service 78
Browsing the pages of a service . 78
Disconnect from a service............. 79
Appearance settings of the
browser............................................... 79
Cookies ............................................... 80
Bookmarks ......................................... 80
Downloading..................................... 81
Service inbox .................................... 81
The cache memory .......................... 82
Browser security .............................. 82
SIM services.......................................... 85
6. PC Connectivity.................. 86
PC Suite ................................................. 86
(E)GPRS, HSCSD and CSD.............. 87
Using data communication
applications .......................................... 87
7. Battery information ........... 89
Charging and Discharging ................ 89
8. Technical Information........ 90
CARE AND MAINTENANCE ... 91
IMPORTANT SAFETY
INFORMATION........................ 92
APPENDIX............................... 96
A message from the CTIA ...................96
A message from the U.S. Food
and Drug Administration to all
users of mobile phones ......................98
Troubadix_FCCdraft_UG_print.fm Page 6 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg7.png)
FOR YOUR SAFETY
7
FOR YOUR SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
All wireless phones may be susceptible to interference, which could
affect performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELLING
Don't use the phone at a refuelling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Don't use the phone where blasting is in
progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Don't touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
Troubadix_FCCdraft_UG_print.fm Page 7 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg8.png)
FOR YOUR SAFETY
8
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press as many
times as needed to clear the display and return to the start screen. Key
in the emergency number, then press . Give your location. Do not
end the call until given permission to do so.
Troubadix_FCCdraft_UG_print.fm Page 8 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg9.png)
General information
9
General information
■About your device
The wireless device described in this guide is approved for use on the
EGSM 900, GSM 1800 and GSM 1900 network. Contact your service
provider for more information about networks.
When using the features in this device, obey all laws and respect privacy
and legitimate rights of others.
Warning: To use any features in this device, other than the
alarm clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference or
danger.
Your device and its enhancements may contain small parts.
Keep them out of the reach of small children.
For availability of approved enhancements, please check with
your dealer. When you disconnect the power cord of any
enhancement, grasp and pull the plug, not the cord.
■Overview of the functions of the phone
The Nokia 7260 phone provides many functions that are practical for
daily use, such as a calendar, a clock, an alarm clock, a built-in camera
and a FM-radio. Some functions are
• Multimedia messaging, see Multimedia messages (MMS) on page 31.
• Instant messages, see Instant messages (Chat) on page 34.
• Presence-enhanced contacts, see My presence on page 48.
• E-mail application, see E-mail application on page 39.
• EDGE (Enhanced Data rates for GSM Evolution), see (E)GPRS on page
59.
• Java 2 Micro Edition, J2METM, see Applications on page 71.
• xHTML browser, see Services on page 77.
Troubadix_FCCdraft_UG_print.fm Page 9 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bga.png)
General information
10
Shared memory
The phone has three different memories. The following features in this
device may share the first memory: contacts, text messages, instant
messages and SMS e-mails, voice tags, calendar and notes. The second
shared memory is used by multimedia messages, files stored in Gallery
and configuration settings. The third shared memory is used by e-mail
application, Java games and applications. Use of one or more of these
features may reduce the memory available for the remaining features
sharing the same memory. For example, saving many Gallery items may
use all of the available memory in the second memory. Your device may
display a message that the memory is full when you try to use a shared
memory feature. In this case, delete some of the information or entries
stored in the corresponding shared memory before continuing.
■Nokia PC Suite software
With the Nokia PC Suite software you can, for example, manage the
photos captured with the phone’s camera and handle ringing tones and
wallpapers. Nokia PC Suite is available on Nokia’s Web site at
www.nokia.com.
■Access codes
Security code (5 to 10 digits)
The security code helps to protect your phone against unauthorised use.
The pre-set code is 12345. To change the code, and to set the phone to
request the code, see Security settings on page 62.
PIN and PIN2 codes (4 to 8 digits), Module PIN and
Signing PIN
• The PIN (Personal Identification Number) code helps to protect your
SIM card against unauthorised use. See Security settings on page 62.
• The PIN2 code may be supplied with the SIM card and is required to
access some functions, such as call counters.
• The module PIN is required to access the information in the security
module. See Security module on page 82.
Troubadix_FCCdraft_UG_print.fm Page 10 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bgb.png)
General information
11
• The signing PIN is required for the digital signature. See Digital
signature on page 84.
PUK and PUK2 codes (8 digits)
The PUK (Personal Unblocking Key) code is required to change a blocked
PIN code. The PUK2 code is required to change a blocked PIN2 code.
Barring password (4 digits)
The barring password is required when using the Call barring service, see
Security settings on page 62.
Wallet code (4 to 10 digits)
The wallet code is required to access the wallet services. For further
information, see Wallet on page 74.
■Network services
To use the phone you must have service from a wireless service provider.
Many of the features in this device depend on features in the wireless
network to function. These Network Services may not be available on all
networks or you may have to make specific arrangements with your
service provider before you can utilize Network Services. Your service
provider may need to give you additional instructions for their use and
explain what charges will apply. Some networks may have limitations
that affect how you can use Network Services. For instance, some
networks may not support all language-dependent characters and
services.
Your service provider may have requested that certain features be
disabled or not activated in your device. If so, they will not appear on
your device menu. Contact your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/
IP protocols. Some features of this device, such as multimedia messages,
e-mail application, instant messages, presence service, Java games and
applications and Internet services require network support for these
technologies.
Troubadix_FCCdraft_UG_print.fm Page 11 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bgc.png)
General information
12
Configuration settings service
To use some of the network services, such as mobile Internet services,
MMS, Instant messages, E-Mail application, or Synchronisation, your
phone needs the correct configuration settings. You may receive the
settings directly as a configuration message and you need to save the
settings on your phone. The service provider may provide a PIN that is
needed to save the settings. For more information on the availability of
the settings, contact your network operator, service provider, nearest
authorised Nokia dealer or visit the support area on the Nokia website,
www.nokia.com.
When you have received a configuration message Configuration sett.
received is displayed. To view the received settings, press Show.
• To save the received settings, press Save. If the phone asks Enter
settings' PIN:, key in the PIN code for the settings and press OK. Set
these settings as the default or not. For availability of the PIN code,
contact the service provider that supplies the settings.
• To discard the received settings, press Discard.
To view and edit the settings see Configuration settings on page 61.
■Nokia support on the Web
Check <www.nokia.com/support> or your local Nokia Web site for the
latest version of this guide, additional information, downloads, and
services related to your Nokia product.
Troubadix_FCCdraft_UG_print.fm Page 12 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bgd.png)
Getting started
13
1. Getting started
■Installing the SIM card and the battery
Keep all SIM cards out of the reach of small children. For availability and
information on using SIM card services, contact your SIM card vendor. This may
be the service provider, network operator, or other vendor.
Always switch the device off and disconnect the charger before removing the
battery.
1. To remove the back cover of the
phone:
Push the back cover release button
(1) and gently prise the back cover
away from the phone beginning at
the bottom of the phone (2).
2. Remove the
battery by lifting it
as shown. Insert
the SIM card into
the SIM card
holder until it
snaps into
position. Make
sure that the SIM
card is properly inserted and that the golden contact area on the
card is facing downwards.
To remove the SIM card press the card
release (1) and slide the SIM card
towards the top of the phone (2).
Troubadix_FCCdraft_UG_print.fm Page 13 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bge.png)
Getting started
14
3. Replace the battery. Observe the
contacts of the battery
4. Align the top of the back cover with
the top of the phone (1), press the
bottom of the back cover to lock it (2).
■Charging the battery
Warning: Use only batteries, chargers, and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
Check the model number of any charger before use with this device.
This device is intended for use when supplied with power from AC-1, ACP-7,
ACP-8, ACP-12, LCH-9 or LCH-12 chargers.
1. Connect the lead from the charger to
the socket on the bottom of your phone.
2. Connect the charger to an AC wall
socket. If the battery is completely
empty, it may take a few minutes before
the charging indicator appears on the
display or before any calls can be made.
The charging time depends on the charger and the battery used. For
example, charging a battery with the AC-1 or ACP-12 charger takes
approximately 1 hour and 20 minutes while the phone is in standby
mode.
Troubadix_FCCdraft_UG_print.fm Page 14 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bgf.png)
Getting started
15
■Switching the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the power key as shown.
If the phone asks for a PIN code, key in the PIN code
(for example, displayed as ****), and press OK.
See also Access codes on page 10.
■Normal operating position
Your phone has an internal antenna. Use
the phone only in its normal operating
position as shown.
Note: As with any other radio transmitting
device, do not touch the antenna
unnecessarily when the device is switched
on. Contact with the antenna affects call
quality and may cause the device to operate
at a higher power level than otherwise
needed. Avoiding contact with the antenna
area when operating the device optimises the antenna performance and the
battery life.
■Putting on a wrist strap
There are eyelets to attach the wrist strap at the lower left side near the
key and at the upper right edge.
Thread the strap as shown in the picture and tighten it.
Troubadix_FCCdraft_UG_print.fm Page 15 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg10.png)
Your phone
16
2. Your phone
■Keys and connectors
1. Power key
2. Earpiece
3. Loudspeaker
4. Volume keys
5. Selection keys and
,
middle selection key
The function of these keys
depends on the guiding text
shown on the display above
the keys. See Standby mode
on page 17.
6. 5-way joystick
Enables scrolling through
names, phone numbers,
menus or settings.
The 5-way joystick is also used to move the cursor up and down, and
left and right when writing text, using the calendar, and in some
game applications. Pressing the joystick also functions as the middle
selection key, and pressing it briefly selects the function shown on
the display above the joystick.
In standby mode, the joystick functions as a shortcut. Move the
joystick right to access the calendar, left to start writing an SMS
message, up to activate the camera and down to access the list of
contacts.
7. dials a phone number, and answers a call.
8. ends an active call. Exits from any function.
9. - enter numbers and characters.
and are used for various purposes in different functions.
Troubadix_FCCdraft_UG_print.fm Page 16 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg11.png)
Your phone
17
10.Charger connector
11.Pop-PortTM connector used, for example,
for headsets and the data cable.
12.Infrared (IR) port
13.Camera lens
■Standby mode
When the phone is ready for use, and you
have not keyed in any characters, the phone
is in standby mode.
1. Shows the name of the network or the
operator logo.
2. Shows the signal strength of the cellular
network at your current location.
3. Shows the battery charge level.
4. The left selection key in standby mode is Go to.
Press Go to to view the functions in your personal shortcut list.
Select a function to activate it. See also Go to options on page 55.
5. The middle selection key in standby mode is Menu.
6. The right selection key in standby mode is Names to access the
Contacts menu or another shortcut to a function you can select. See
Personal shortcuts on page 55. Or the key has an operator-specific
name to access an operator-specific web site.
Wallpaper
You can set your phone to display a background picture, wallpaper,
when the phone is in standby mode. See Display settings on page 55.
Troubadix_FCCdraft_UG_print.fm Page 17 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg12.png)
Your phone
18
Screen saver
You can set your phone to display a screen saver, when the phone is in
standby mode. See Display settings on page 55.
Power saving
For power saving, a digital clock view overwrites the
display when no phone function has been used for a
certain period of time. Press any key to deactivate the
screen saver.
Essential indicators
You have received one or several text, picture messages or
multimedia messages. See Reading and replying to an SMS
message or an SMS e-mail on page 29 or Reading and replying
to a multimedia message on page 33.
The phone has registered a missed call. See Call register on
page 45.
or
Your phone is connected to the instant messages service and
the availability status is online or offline, respectively. See
Connecting to and disconnect from the instant messaging
service on page 36.
You have received one or several instant messages and you are
connected to the instant messages service. See Connecting to
and disconnect from the instant messaging service on page 36.
The phone’s keypad is locked. See Keypad lock (Keyguard) on
page 19.
The phone does not ring for an incoming call or text message
when Incoming call alert is set to Off and Message alert tone is
set to Off. See Tone settings on page 54.
The alarm clock is set to On. See Alarm clock on page 67.
When the (E)GPRS connection mode Always online is selected
and the (E)GPRS service is available, the indicator is shown on
Troubadix_FCCdraft_UG_print.fm Page 18 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg13.png)
Your phone
19
the top left of the display. Refer to (E)GPRS connection on page
60.
When the (E)GPRS connection is established, the indicator is
shown on the top left of the display. Refer to (E)GPRS
connection on page 60 and Browsing the pages of a service on
page 78.
The (E)GPRS connection is suspended (on hold), for example if
there is an incoming or outgoing call during the (E)GPRS dial-up
connection. The indicator is shown on the top right of the
display.
The loudspeaker has been activated, see Options during a call on
page 21.
Calls are limited to a closed user group. See Security settings on
page 62.
, , or
A headset, handsfree, loopset or music stand is connected to the
phone.
■Keypad lock (Keyguard)
You can lock the keypad to prevent the keys being accidentally pressed.
Press Menu or Unlock and then within 1.5 seconds to lock or unlock
the keypad. During a call, the phone can be operated normally. When
you end or reject the call, the keypad will automatically be locked.
For Automatic keyguard, see Phone settings on page 58.
When the keypad lock is on, calls still may be possible to the official emergency
number programmed into your device. Key in the emergency number and press
.
Troubadix_FCCdraft_UG_print.fm Page 19 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg14.png)
Call functions
20
3. Call functions
■Making a call
1. Key in the phone number, including the area code. If you key in an
incorrect character, press Clear to delete it.
For international calls, press twice for the international prefix
(the + character replaces the international access code) and then key
in the country code, the area code without the leading 0, if
necessary, and the phone number.
2. Press to call the number.
3. Press to end the call or to cancel the call attempt.
Making a call using the contacts
To search for a name/phone number that you have saved in Contacts,
see Searching for a contact on page 47. Press to call the number.
Last number redialling
In standby mode, press once to access the list of up to 20 numbers
you last called or attempted to call. Scroll to the number or name that
you want, and press to call the number.
Speed dialling a phone number
Assign a phone number to one of the speed-dialling keys, from to
, see Speed dials on page 52. Call the number in either of the
following ways:
• Press the speed-dialling key that you want and then press .
•If Speed dialling is set to on, press and hold a speed-dialling key until
the call is started. See Call settings on page 57.
■Answering or rejecting an incoming call
Press to answer an incoming call and press to end the call.
Press to reject an incoming call. If you press Silence, only the ringing
tone is muted. Then either answer or reject the call.
Troubadix_FCCdraft_UG_print.fm Page 20 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg15.png)
Call functions
21
Call waiting
During a call, press to answer the waiting call. The first call is put on
hold. Press to end the active call. To activate the Call waiting
function, see Call settings on page 57.
■Options during a call
Many of the options that you can use during a call are network services.
For availability, contact your network operator or service provider.
Press Options during a call for some of the following options:
Mute or Unmute, Contacts, Menu, Record, Lock keypad, Auto volume on
or Auto volume off, Loudspeaker or Handset, and the network services
Answer and Reject, Hold or Unhold, New call, Send DTMF (to send tone
strings), Swap (to switch between the active call and the call on hold),
Transfer (to connect a call on hold to an active call and disconnect
yourself), Conference (to set up a conference call), Private call (to
discuss privately in a conference call), End call, End all calls.
For more information, see the extended user’s guide for your phone
model in the support area on the Nokia’s web site, www.nokia.com.
Note: Do not hold the device near your ear when the loudspeaker is in
use, because the volume may be extremely loud.
■Writing text
You can key in text, for example, when writing messages, using
traditional or predictive text input.
When you are writing text, predictive text input is indicated by
and traditional text input by at the top left of the display. The
character case is indicated by , , or next to the text
input indicator. You can change the character case by pressing . The
number mode is indicated by , and you can change between the
letter and number mode by pressing and holding .
Setting predictive text input on or off
When writing text, press Options and select Dictionary.
Troubadix_FCCdraft_UG_print.fm Page 21 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg16.png)
Call functions
22
• To set predictive text input on, select a language in the dictionary
options list. Predictive text input is only available for the languages
on the list.
• To revert to traditional text input, select Dictionary off.
Using predictive text input
You can key in any letter with a single keypress. Predictive text input is
based on a built-in dictionary to which you can also add new words.
1. Start writing a word using the keys to . Press each key only
once for a single letter. The word changes after each keystroke.
Example: To write Nokia when the English dictionary is
selected, press , , , and .
For more instructions on writing text, see Tips for writing text on
page 23.
2. When you have finished writing the word and it is correct, confirm it
by adding a space with or by moving the joy stick up, down, left
or right. Moving the joystick also moves the cursor.
If the word is not correct, press repeatedly or press Options and
select Matches. When the word that you want appears, confirm it.
If the? character is displayed after the word, the word you intended
to write is not in the dictionary. To add the word to the dictionary,
press Spell, key in the word (traditional text input is used) and press
Save. When the dictionary becomes full, the new word replaces the
oldest one that was added.
3. Start writing the next word.
Writing compound words
Key in the first part of the word and move the joystick to the right, then
write the last part of the word.
Using traditional text input
Press a number key, to , repeatedly until the desired character
appears. Not all characters available under a number key are printed on
the key. The characters available depend on the language selected in the
Phone language menu, see Phone settings on page 58.
Troubadix_FCCdraft_UG_print.fm Page 22 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg17.png)
Call functions
23
• If the next letter you want is located on the same key as the present
one, wait until the cursor appears, or move the joystick up, down, left
or right and then key in the letter.
• The most common punctuation marks and special characters are
available under the number key .
For more instructions on writing text, see Tips for writing text on page
23.
Tips for writing text
The following functions may also be available for writing text:
• To insert a space, press .
• Move the cursor to the left, right, down or up with the joystick.
• To insert a number while in letter mode, press and hold the desired
number key.
• To delete a character to the left of the cursor, press Clear. Press and
hold Clear to delete the characters more quickly. To delete all the
characters at once when writing a message, press Options and select
Clear text.
• To insert a word when using predictive text input, press Options and
select Insert word. Write the word using traditional text input and
press Save. The word is also added to the dictionary.
• To insert a special character when using traditional text input, press
, or when using predictive text input, press and hold , or press
Options and select Insert symbol. Select the character and press Use.
• To insert a smiley when using traditional text input, press twice,
or when using predictive text input, press and hold and press
again, or press Options and select Insert smiley. Select a smiley and
press Use.
The following options are available when writing text messages:
• To insert a number while in letter mode, press Options and select
Insert number. Key in the phone number or search for it in Contacts
and press OK.
Troubadix_FCCdraft_UG_print.fm Page 23 Monday, July 12, 2004 5:07 PM
Call functions
24
• To insert a name from Contacts, press Options and select Insert
contact. To insert a phone number or a text item attached to the
name, press Options and select View details.
Troubadix_FCCdraft_UG_print.fm Page 24 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg19.png)
Using the menu
25
4. Using the menu
The phone offers you an extensive range of functions, which are
grouped into menus.
■Accessing a menu function
1. To access the menu, press Menu.
2. Use the joystick to scroll through the menu and select, for example,
Settings by pressing Select. To change the menu view, see Menu view
in Display settings on page 55.
3. If the menu contains submenus, select the one that you want, for
example Call settings.
4. If the selected submenu contains further submenus, repeat step 3.
Select the next submenu, for example Anykey answer.
5. Select the setting of your choice.
6. Press Back to return to the previous menu level, and Exit to exit the
menu.
Troubadix_FCCdraft_UG_print.fm Page 25 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1a.png)
Using the menu
26
■List of menu functions
• Messages
1. Create message
2. Inbox
3. Outbox
4. Sent items
5. Saved items
6. Instant messages
7. E-mail1
8. Voice messages
9. Info messages
10.Service commands
11.Delete messages
12.Message settings
13.Message counter
• Call register
1. Missed calls
2. Received calls
3. Dialled numbers
4. Delete recent call lists
5. Call duration
6. GPRS data counter
7. GPRS connection timer
• Contacts
1. Search
2. Add new contact
3. Delete
4. My presence
5. Subscribed names
6. Copy
7. Settings
8. Speed dials
9. Voice tags
10.Info numbers2
11.Service numbers1
12.My numbers3
13.Caller groups2
• Settings
1. Profiles
2. Themes
3. Tone settings
4. Personal shortcuts
5. Display settings
6. Time and date settings
7. Call settings
8. Phone settings
9. Connectivity
10.Enhancement settings4
11.Configuration settings
12.Security settings
13.Restore factory settings
• Operator menu5
1. In some countries this function may not be available.
2. Shown if supported by your SIM card. For availability, contact your network op-
erator or service provider.
3. If Info numbers, Service numbers or both are not supported, the number of this
menu item changes accordingly.
4. This menu is shown only if the phone is or has been connected to a compatible
enhancement available for the phone.
Troubadix_FCCdraft_UG_print.fm Page 26 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1b.png)
Using the menu
27
• Gallery
1. Images
2. Video clips
3. Themes
4. Graphics
5. Tones
6. Recordings
•Media
1. Camera
2. Radio
3. Voice recorder
•Organiser
1. Alarm clock
2. Calendar
3. To-do list
4. Notes
5. Synchronisation
• Applications
1. Games
2. Collection
3. Extras
• Services
1. Home
2. Bookmarks
3. Download links
4. Last web addr.
5. Service inbox
6. Settings
7. Go to address
8. Clear the cache
• SIM services1
5. If this menu is not shown the subsequent menu numbers changes accordingly.
The name depends on the network operator.
1. Only shown if supported by your SIM card. The name and contents vary depend-
ing on the SIM card.
Troubadix_FCCdraft_UG_print.fm Page 27 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1c.png)
Menu functions
28
5. Menu functions
■Messages
The message services can only be used if they are
supported by your network or your service provider.
To select the font size for reading and writing messages, press Menu,
and select Messages, Message settings, Other settings and Font size.
Note: When sending messages, your phone may display the words
Message sent. This is an indication that the message has been sent by
your device to the message centre number programmed into your
device. This is not an indication that the message has been received at
the intended destination. For more details about messaging services,
check with your service provider.
Text messages (SMS)
Using the SMS (Short Message Service) your phone can send and receive
multi-part messages, which consist of several ordinary text messages
(network service). Invoicing may be based on the number of ordinary
messages that are required for a multi-part message. This may affect
the invoicing for the message.
Before you can send a message, you need to save some message
settings. See Settings for text and SMS e-mail messages on page 42.
You can also send and receive text messages that contain pictures. A
picture message can be a multi-part message.
Note: Only devices that offer picture message features can receive and
display picture messages.
The text messages function uses shared memory, see Shared memory on
page 10.
Writing and sending messages
Your device supports the sending of text messages beyond the normal 160-
character limit. If your message exceeds 160 characters, it will be sent as a series
of two or more messages. The number of available characters / the current part
number of a multi-part message are shown on the top right of the display, for
Troubadix_FCCdraft_UG_print.fm Page 28 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1d.png)
Menu functions
29
example 120/2. Note that using special (Unicode) characters such as ë, â, á, ì take
up more space.
1. Press Menu, and select Messages, Create message and Text message.
2. Key in a message. See Writing text on page 21. To insert text
templates or a picture into the message, see Templates on page 30.
3. To send the message, press Send or .
The messages that you have sent will be saved in the Sent items
folder if the setting Save sent messages is set to Yes. See Settings for
text and SMS e-mail messages on page 42. Text messages are
indicated with .
4. Enter the recipient’s phone number or search for the phone number
in Contacts. Press OK to send the message.
Options for sending a message
After you have written a message, press Options and select Sending
options. With Send to many you can send the message to several
recipients and to send a message as an SMS e-mail (network service),
select Send as e-mail. With Sending profile you can use a predefined
message profile to send the message. To define a message profile, see
Settings for text and SMS e-mail messages on page 42.
Reading and replying to an SMS message or an SMS e-mail
When you have received a message or an SMS e-mail, the indicator
and the number of new messages followed by messages received are
shown.
The blinking indicates that the message memory is full. Before you
can receive new messages, delete some of your old messages in the
Inbox folder.
1. Press Show to view the new message, or press Exit to view it later.
If more than one message has been received, select the one that you
want to read. An unread text message or SMS e-mail is indicated by
.
2. While reading a message, press Options and select an option, for
example, to delete, forward or edit the message as a text message or
an SMS e-mail, rename the message you are reading or to move it to
another folder. Select Copy to calendar to copy text at the beginning
Troubadix_FCCdraft_UG_print.fm Page 29 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1e.png)
Menu functions
30
of the message to your phone’s calendar as a reminder note for the
current day. Select Message details to view, if available, the sender’s
name and phone number, the message centre used, and the date and
time of receipt. Select Use detail to extract numbers, e-mail
addresses and website addresses from the current message.
When reading a picture message, select Save picture to save the
picture in the Templates folder.
3. Select Reply and the message type to reply to a message.
When replying to an SMS e-mail, confirm or edit the e-mail address
and subject first. Then write your reply message.
4. To send the message, press Send, and press OK to send the message
to the displayed number.
Inbox and sent items folders
The phone saves incoming text and multimedia messages in the Inbox
folder. Sent text messages are saved in the Sent items folder.
Templates
Your phone includes text templates, indicated by , and picture
templates, indicated by .
To access the template list, press Menu, and select Messages, Saved
items, Text messages and Templates.
Saved items folder and My folders
To organise your messages, you can move some of them to the Saved
items folder, or add new folders for your messages. While reading a
message, press Options. Select Move, scroll to the folder that you want
to move the message to and press Select.
To add or delete a folder, press Menu, and select Messages, Saved items,
Text messages and My folders. To add a folder if you have not saved any
folder, press Add. Otherwise, press Options and select Add folder. To
delete a folder, scroll to the folder that you want to delete, press
Options and select Delete folder.
Troubadix_FCCdraft_UG_print.fm Page 30 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg1f.png)
Menu functions
31
Flash messages
Flash messages are text messages that are instantly displayed.
Writing a flash message
Press Menu, and select Messages, Create message and Flash message.
Write your message. The maximum length of a flash message is 70
characters. To insert a blinking text into the message, select Insert blink
char. from the options list to set a marker. The text behind the marker
blinks until a second marker is inserted.
Note: Only devices that offer compatible flash message features can
receive and display blinking flash messages.
Receiving a flash message
A received flash message is not automatically saved. To read the
message, press Read. Press Options and select Use detail to extract
phone numbers, e-mail addresses and website addresses from the
current message. To save the message, press Save and select the folder
in which you want to save the message.
Multimedia messages (MMS)
Note: Only devices that offer compatible multimedia message features
can receive and display multimedia messages.
A multimedia message can contain text, sound and a picture or a video
clip. The phone supports multimedia messages that are up to 100 kB in
size. If the message contains a picture, the phone scales it down to fit
the display area.
The multimedia message function uses shared memory, see Shared
memory on page 10.
If Allow multimedia reception is set to Yes or In home network, your
operator or service provider may charge you for every message you
receive. The default setting to receive multimedia messages is generally
on. See Settings for multimedia messages on page 43.
Multimedia messaging supports the following formats:
• Picture: JPEG, GIF, WBMP, BMP and PNG.
• Sound: Scalable Polyphonic MIDI (SP-MIDI), AMR audio and
monophonic ringing tones.
Troubadix_FCCdraft_UG_print.fm Page 31 Monday, July 12, 2004 5:07 PM
Menu functions
32
• Video clips in 3gp format with SubQCIF and QCIF resolution and AMR
audio.
The phone does not necessarily support all variations of the
aforementioned file formats. If a received message contains any
unsupported elements, they may be replaced with the file name and the
text Object format not supported.
Note that you are not able to receive any multimedia messages if you
have a call in progress, or a game or another Java application running.
Because delivery of multimedia messages can fail for a variety of
reasons, do not rely solely upon them for essential communications.
Writing and sending a multimedia message
To set the settings for multimedia messaging, see Settings for
multimedia messages on page 43. To check availability and to subscribe
to the multimedia messaging service, contact your network operator or
service provider.
Copyright protections may prevent some images, ringing tones and
other content from being copied, modified, transferred or forwarded.
1. Press Menu, and select Messages, Create message and Multimedia
msg..
2. Key in a message. See Writing text on page 21.
• To insert a file in the message, press Options, select Insert and
select the desired option from the Gallery or select Calendar note
or Business card.
To move the text component to the top or bottom of the message,
press Options and select Place text first or Place text last.
• Your phone supports the sending and receiving of multimedia
messages that contain several pages (slides). To insert a slide in
the message, press Options, and select Insert and Slide. Each slide
can contain text, one image and one sound clip.
If the message contains several slides, you can open the desired
one by pressing Options and selecting Previous slide, Next slide or
Slide list. To set the interval between the slides, select Slide
timing.
Troubadix_FCCdraft_UG_print.fm Page 32 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg21.png)
Menu functions
33
• The following options may also be available: Delete to delete an
image, slide or sound clip from the message, Preview or Save
message. In More options the following options may be available:
Insert contact, Insert number, Message details and Edit subject.
3. To send the message, press Send, or press Options and select Send to
e-mail or Send to many.
4. Enter the recipient’s phone number (or e-mail address) or search for
it in Contacts.
While the multimedia message is being sent, the animated indicator
is displayed and you can use other functions on the phone. If
there is an interruption while the message is being sent, the phone
tries to resend it a few times. If this fails, the message will remain in
the Outbox folder and you can try to resend it later.
The messages that you have sent will be saved in the Sent items
folder if the setting Save sent messages is set to Yes. See Settings for
multimedia messages on page 43. Multimedia messages are
indicated with .
Reading and replying to a multimedia message
Important: Multimedia message objects may contain viruses or
otherwise be harmful to your device or PC. Do not open any attachment
if you are not sure of the trustworthiness of the sender.
When your phone is receiving a multimedia message, the animated
indicator is displayed. When the message has been received, the
indicator and the text Multimedia message received are shown.
The appearance of a multimedia message may vary depending on the receiving
device.
1. Press Show to view the message, or press Exit to view it later.
If more than one message has been received, select the one that you
want to read. An unread multimedia message is indicated by .
2. Scroll to view the message. Press Options and, for example, some of
the following options may be available: Play presentation, View text,
Open image, Open sound clip, Open video clip, Save image, Save
sound clip, Save video clip, Details, Delete message, Reply, Reply to
all, Forward to no., Forward to e-mail, Forward to many, Edit,
Message details.
Troubadix_FCCdraft_UG_print.fm Page 33 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg22.png)
Menu functions
34
Refer also to the options in Gallery, see Gallery on page 63.
Inbox, Outbox, Saved and Sent items folders
The phone saves the received multimedia messages in the Inbox folder.
Multimedia messages that have not yet been sent are moved to the
Outbox folder. The multimedia messages that you wish to send later can
be saved in the Saved items folder. The multimedia messages that have
been sent are saved in the Sent items folder of the Multimedia msgs.
submenu if the setting Save sent messages is set to Yes. See Settings for
multimedia messages on page 43.
Multimedia messages memory full
When you have a new multimedia message waiting and the memory for
the messages is full, the indicator blinks and Multimedia memory
full, view waiting msg. is shown. To view the waiting message, press
Show. To save the message, press Options, select Save message and
delete old messages by first selecting the folder and then the oId
message to be deleted. To discard the waiting message, press Exit and
Yes. If you press No, you can view the message.
Instant messages (Chat)
Instant messaging (Chat) is a way of sending short, simple text
messages that are delivered over TCP/IP protocols to online users
(network service). Your contact list shows you when the contacts on the
list are online and available to participate in an instant messages
conversation.
Before you can use instant messaging, you need to subscribe to the
service. For availability, charging and subscription to the service,
contact your service provider, from whom you also receive your unique
ID and password and the settings for instant messaging. For setting the
required settings for the instant messaging service, see Instant
messaging settings on page 39. The icons and texts on the display may
vary depending on the instant messaging service.
You can use the other functions of the phone while you have an active
instant messaging session in the background.
Instant messaging uses shared memory, see Shared memory on page 10.
Troubadix_FCCdraft_UG_print.fm Page 34 Monday, July 12, 2004 5:07 PM
Menu functions
35
Basic steps for the instant messaging
• To enter the instant messaging menu (offline), see Entering the
instant messaging menu on page 35.
• To connect to the service (online), see Connecting to and disconnect
from the instant messaging service on page 36.
• To start a conversation with a contact, see IM contacts in Starting an
instant messaging conversation on page 36.
To create your own contact lists, see Contacts for instant messaging
on page 38.
• To join a public group, see Groups in Starting an instant messaging
conversation on page 36.
To join an instant messaging group via an invitation message, see
Accepting or rejecting an invitation on page 37.
To create your own group, or to join or delete a public group, see
Groups on page 38.
• To edit your own information, see Editing your own settings on page
38.
• To search users and groups, see Search in Starting an instant
messaging conversation on page 36.
• To read a message, see Reading an instant message on page 37.
• To write and send messages during an active session, see
Participating in a conversation on page 37.
• To view, rename or delete saved conversations, select Saved convers.
when you have entered the Instant messages menu.
• To block/unblock contacts, see Blocking and unblocking messages on
page 38.
• To disconnect from the service, see Connecting to and disconnect
from the instant messaging service on page 36.
Entering the instant messaging menu
To enter the Instant messages menu while still offline, press Menu, and
select Messages and Instant messages. Activate a service and then
select Login to connect to the service, Saved convers. to view, erase or
Troubadix_FCCdraft_UG_print.fm Page 35 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg24.png)
Menu functions
36
rename the conversations that you have saved during a session, or
Connect. settings to access the settings needed for a connection.
Connecting to and disconnect from the instant messaging
service
To connect to the service, enter the Instant messages menu, activate a
service and select Login. Select one of the available sets. If necessary key
in the User ID: and the Password:. When the phone has successfully
connected, Logged in is displayed.
Tip: To set the phone to automatically connect to the instant
messaging service when you enter the Instant messages menu,
connect to the service, select My settings, Automatic login and
On IM start-up.
To disconnect from the service, select Logout.
Starting an instant messaging conversation
Enter the Instant messages menu and connect to a service. You can
select
•Conversations to view the list of new and read messages or
invitations to instant messaging during the active session. Scroll to
the message or invitation that you want and press Open to read the
message.
indicates the new and the read instant messages.
indicates the new and the read group messages.
indicates the invitations.
•IM contacts includes the contacts that you have added. Scroll to the
contact to whom you would like to send instant messages and press
Chat or press Open if a new message is shown in the list.
If you have received a new message from a contact, it is indicated
with .
indicates the online and the offline contacts in the phone’s
contacts memory. indicates a blocked contact, refer to Blocking
and unblocking messages on page 38.
•Groups and Public groups. The list of bookmarks to public groups
provided by the service provider is displayed. To start a conversation,
Troubadix_FCCdraft_UG_print.fm Page 36 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg25.png)
Menu functions
37
scroll to a group and press Join. Enter the screen name that you want
to use in the conversation. When you have successfully joined in the
group conversation, the phone shows Joined group: and the group
name. To create a private group, see Groups on page 38.
•Search and select Users or Groups to search for other users or public
groups on the network. To start the session when you have found the
user or the group that you want, press Options and select Chat or
Join group.
• To start a session from Contacts, see Viewing the subscribed names
on page 51.
Accepting or rejecting an invitation
When you have connected to the service and you receive a new
invitation, New invitation received is displayed. Press Read to read it. If
more than one invitation is received, the number of messages followed
by new invitations received is displayed. Press Read, scroll to an
invitation that you want and press Open. Press Accept, to join the
private group conversation, or press Options and select Reject or Delete
to reject or delete the invitation.
Reading an instant message
When you have connected to the service and you receive a message
from a person who is not taking part in the conversation, New instant
message is displayed. Press Read to read it. If more than one message is
received, the number of messages followed by new instant messages is
displayed. Press Read, scroll to a message and press Open.
New messages received during an active session are held in the
Conversations of the Instant messages menu. If the message is from a
person whose contact information is missing from the contact list in IM
contacts, the sender’s ID is shown. If the contact information can be
found in the phone’s memory for contacts and the phone recognises it,
the sender’s name is shown. To save a new contact in the phone’s
memory, press Options and select Save contact or and enter the name
of the person, or Add to contact.
Participating in a conversation
Join or start a session by pressing Write. Write your message and press
Send or to send it. If you press Options, some of the following
Troubadix_FCCdraft_UG_print.fm Page 37 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg26.png)
Menu functions
38
options are available: View conversation, Save contact, Add to contact,
Group members, End conversation, Dictionary.
Editing your own settings
Enter the Instant messages menu and connect to the service. Select My
settings to view and edit your own availability information or screen
name. Select Availability and Available for all or Avail. for contacts (or
Appear offline) to allow all the other users or only the contacts on your
contact list to see that you are online when you have connected to the
service. When you are connected to the service, indicates that you
are online and that you are not visible to others.
Contacts for instant messaging
To add contacts to the instant messaging contacts list, connect to the
service and select IM contacts. If the contacts list is empty the phone
displays Contact list empty. Copy contacts from server? to retrieve
available contacts from the server. Otherwise press Options and select
Add contact, or if you have no contacts added, press Add. Select Enter ID
manually, Search from serv., From contacts, or Copy from server to add a
new contact. When the contact is added, the phone displays Added to
IM contacts: and the contact name.
Scroll to a contact, and press Chat to start a session or press Options
and select Contact info, Edit name, Block contact (or Unblock contact),
Add contact, Remove contact, Copy to server, or Availability alerts.
Blocking and unblocking messages
Connect to the service and select Conversations or IM contacts.
Highlight the contact in the contacts list from whom you want to block
incoming messages. Press Options, select Block contact and press OK.
To unblock the messages, connect to the service and select Blocked list.
Scroll to the contact from whom you want to unblock the messages and
press Unblock.
Groups
You can create your own private groups for a session, or use the public
groups provided by the service provider. The private groups exist only
during an active session. You can add to a private group only the
contacts that are in your contact list and thus in the phone’s contacts
Troubadix_FCCdraft_UG_print.fm Page 38 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg27.png)
Menu functions
39
memory. If the server you are logged onto does not support group
services all groups related menus are dimmed.
Public groups
You can bookmark public groups that your service provider may
maintain. Connect to the service, select Groups and Public groups. Scroll
to a group that you want to chat with and press Join. If you are not in
the group, key in your screen name as your nickname for the group. If
you press Options, you can select Delete group to delete a group from
your group list.
Creating a private group
Connect to the service, select Groups and Create group. Key in the name
for the group and the screen name that you want to use for the group.
You can use another screen name in another group. Mark your private
group members from the contacts list and key in an invitation to newly
added members.
Instant messaging settings
You may receive the settings as a configuration message from the
service provider. To receive the settings as a configuration message, see
Configuration settings service on page 12. To key in the settings
manually, see Configuration settings on page 61. For the instant
messaging and presence settings, contact your service provider.
To enter the Instant messages menu while still offline, press Menu, and
select Messages and Instant messages. Activate a service and select
Connect. settings. Select Configuration and select the set you would like
to activate. Select Account and choose the account you want to use.
Select User ID to view or to edit the user ID. Select Password to enter the
password.
E-mail application
The e-mail application allows you to access the compatible e-mail
account that you use in the office or at home, via the phone (network
service). You can write, send, and read e-mails with your phone. Your
phone supports POP3 and IMAP4 e-mail servers.
The e-mail application uses shared memory, see Shared memory on page
10.
Troubadix_FCCdraft_UG_print.fm Page 39 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg28.png)
Menu functions
40
Before you can send and retrieve any e-mails, you may need to do the
following:
• Obtain a new e-mail account or use the current one. For availability
of your e-mail account contact your e-mail service provider.
• For the settings required for the e-mail application, contact your e-
mail service provider. To receive the e-mail settings as a
configuration message, see Configuration settings service on page
12.
• To set the e-mail settings on your phone, press Menu and select
Messages, Message settings and E-mail messages. See Settings for
e-mail application on page 44.
Writing and sending an e-mail
1. Press Menu and select Messages, E-mail, and Create e-mail.
2. Key in the recipient’s e-mail address, a subject and the e-mail
message.
3. Press Send and select Send now.
Note: When sending e-mails, your phone may display the words
Message sent. This is an indication that the e-mail has been sent by
your phone to the e-mail server. This is not an indication that the e-
mail has been received at the intended destination. For more details
about e-mail services, check with your service provider.
Downloading e-mails from your e-mail account
1. Press Menu and select Messages, E-mail and Retrieve to download
e-mails that have been sent to your e-mail account. Or:
Press Menu and select Messages and E-mail, press Options and
select Retrieve and send to download new e-mails and to send e-
mails that have been saved in the Outbox folder.
2. Your phone makes a connection to the e-mail service. A status bar is
shown while your phone is downloading e-mails to your phone.
3. Press Select to view the new message in the Inbox, or press Back to
view it later. An unread text message is indicated by .
Troubadix_FCCdraft_UG_print.fm Page 40 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg29.png)
Menu functions
41
Reading and replying to an e-mail
Important: E-mails may contain viruses or otherwise be harmful to
your device or PC. Do not open any attachment if you are not sure of
the trustworthiness of the sender.
Press Menu, select Messages, E-mail and Inbox. While reading the
message, press Options to see the options available for this message.
To reply to an e-mail, press Reply and select Original text or Empty
screen. Confirm or edit the e-mail address and subject, then write your
reply. To send the message, press Send and select Send now.
Inbox and Other folders (Drafts, Archive, Outbox and Sent
items)
Your phone saves e-mails that you have downloaded from your e-mail
account in the Inbox folder. Other folders contains the folders: Drafts for
saving unfinished e-mails, Archive for organising and saving your e-
mails, Outbox for saving e-mails that have not been sent, and Sent items
for saving e-mails that have been sent.
Deleting e-mails
To delete e-mails, press Menu and select Messages and E-mail, press
Options and select Delete messages. To delete all messages from a
folder, select the folder from which you want to delete the messages
and press Yes. To delete all messages from all folders, select All
messages and press Yes. Note that deleting an e-mail from your phone
does not delete it from the e-mail server.
Voice messages
The voice mailbox is a network service and you may need to subscribe to
it. For more information and for the voice mailbox number, contact your
service provider.
Press Menu, and select Messages and Voice messages. To call your voice
mailbox, select Listen to voice messages. To key in, search for or edit
your voice mailbox number, select Voice mailbox number.
If supported by the network, the indicator will show new voice
messages. Press Listen to call your voice mailbox number.
Troubadix_FCCdraft_UG_print.fm Page 41 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg2a.png)
Menu functions
42
Tip: Pressing and holding calls your voice mailbox if you
have the number set.
Info messages
With the info message network service you may be able to receive
messages on various topics. For details, contact your service provider.
Service commands
Press Menu, and select Messages and Service commands. Key in and
send service requests (also known as USSD commands), such as
activation commands for network services, to your service provider.
Deleting all messages from a folder
To delete all messages from a folder, press Menu, and select Messages
and Delete messages. Select the folder from which you want to delete
the messages and press OK to confirm the query.
If the folder contains unread messages, the phone will ask whether you
want to delete them also.
Message settings
The message settings affect the sending, receiving and viewing of
messages.
Settings for text and SMS e-mail messages
Press Menu, and select Messages, Message settings, Text messages.
Select Sending profile. If more than one message profile set is supported
by your SIM card, select the set that you want to change. Each setting
has the following settings: Message centre number (delivered by your
service provider), Messages sent via, Message validity, Default recipient
number (text messages) or E-mail server (e-mail), Delivery reports, Use
GPRS, Reply via same centre (network service) and Rename sending
profile.
Select Save sent messages. Select Yes to set the phone to save sent
multimedia messages in the Sent items folder. If you select No, the sent
messages are not saved.
Troubadix_FCCdraft_UG_print.fm Page 42 Monday, July 12, 2004 5:07 PM
Menu functions
43
Settings for multimedia messages
Press Menu, and select Messages, Message settings and Multimedia
msgs.. Select
•Save sent messages. Select Yes to set the phone to save sent
multimedia messages in the Sent items folder. If you select No, the
sent messages are not saved.
•Delivery reports to ask the network to send delivery reports about
your messages (network service).
•Scale image down to define the image size when you insert the
image into the multimedia message.
•Default slide timing to define the default time for slides in
multimedia messages.
•Allow multimedia reception. Choose No, Yes or In home network to
use the multimedia service. If Allow multimedia reception is set to
Yes or In home network, your operator or service provider may charge
you for every message you receive. The default setting to receive
multimedia messages is generally on.
•Incoming multimedia messages. Select Retrieve to set the phone to
automatically fetch newly received multimedia messages, or select
Reject if you do not wish to receive multimedia messages. This
setting is not shown if Allow multimedia reception is set to No.
•Configuration settings. Select Configuration and select the default
service provider for retrieving multimedia messages. Select Account
to see the accounts provided by the service provider. If more than
one account is displayed choose the one that you want to use. You
may receive the settings as a configuration message from the service
provider. To receive the settings as configuration message, see
Configuration settings service on page 12. To key in the settings
manually see Configuration settings on page 61.
•Allow adverts to choose if you allow the reception of messages
defined as advertisements. This setting is not shown if Allow
multimedia reception is set to No.
Troubadix_FCCdraft_UG_print.fm Page 43 Monday, July 12, 2004 5:07 PM
Menu functions
44
Settings for e-mail application
You may receive the e-mail application settings as a configuration
message from the service provider. For receiving the settings as a
configuration message, see Configuration settings service on page 12.
To key in the settings manually see Configuration settings on page 61.
Select each of the settings individually and key in all the required
settings. Contact your e-mail service provider for the settings.
Press Menu and select Messages, Message settings, and E-mail
messages. Select
•Configuration and select the set that you would like to activate.
•Account to see the accounts provided by the service provider. If more
than one account is displayed choose the one that you want to use.
•My name. Key in your name or nickname.
•E-mail address. Key in e-mail address.
•Include signature. You can define a signature that is automatically
added to the end of your e-mail, when you write your message.
•Reply-to address. Key in the e-mail address to which you want the
replies to be sent.
•SMTP user name. Key in the name that you want to use for outgoing
mails.
•SMTP password. Key in the password that you want to use for
outgoing mails.
•Display terminal window. Select Yes to perform manual user
authentication for Intranet connections.
•Incoming server type. Select either POP3 or IMAP4 depending on the
type of e-mail system that you are using. If both types are supported,
select IMAP4.
•Incoming mail settings
If you have selected POP3 as the incoming server type, the following
options are shown: Retrieve e-mails, POP3 user name, POP3
password and Display terminal window.
Troubadix_FCCdraft_UG_print.fm Page 44 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg2d.png)
Menu functions
45
If you have selected IMAP4 as the incoming server type, the
following options are shown: Retrieve e-mails, Retrieval method,
IMAP4 user name, IMAP4 password and Display terminal window.
Common settings
Press Menu and select Messages, Message settings, Other settings and
Font size to select the font size for reading and writing messages.
Message counter
To view how many messages you have sent and received, press Menu
and select Messages, Message counter. Select Sent messages or
Received messages or select Clear counters to clear the counters.
■Call register
The phone registers the phone numbers of missed,
received and dialled calls, and the approximate
length of your calls.
The phone registers if it is switched on and within the network’s service
area, and the network supports these functions.
When you press Options in the Missed calls, Received calls and Dialled
numbers menus, you can, for example, view the date and the time of the
call, edit or delete the phone number from the list, save the number in
Contacts, or send a message to the number. Select Delete recent call
lists to delete the recent calls lists.
Counters and timers for calls, data and messages
Note: The actual invoice for calls and services from your service
provider may vary, depending upon network features, rounding off for
billing, taxes and so forth.
Press Menu, and select Call register and then select Call duration, GPRS
data counter or GPRS connection timer for approximate information on
your recent communications.
Troubadix_FCCdraft_UG_print.fm Page 45 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg2e.png)
Menu functions
46
■Contacts
You can save names and phone numbers (Contacts)
in the phone’s memory and in the SIM card’s
memory.
• The phone’s memory may save names with numbers and text notes
about each name. You can also save an image for a certain number
of names. Contacts use shared memory, see Shared memory on
page 10.
• Names and numbers saved in the SIM card’s memory, are indicated
by .
In dynamic contacts you can publish your current availability status to
communicate to anyone who has access to this service and who is
requesting this information. See My presence on page 48.
Selecting settings for contacts
Press Menu and select Contacts and Settings. Select Memory in use,
Contacts view, or Memory status.
Saving names and phone numbers (Add contact)
Press Menu and select Contacts and Add new contact. Key in the name
and the phone number. When the name and number are saved, press
Done.
Saving multiple numbers or text items or an image per
name
You can save different types of phone numbers and short text items per
name in the phone’s internal memory for contacts.
The first number saved is automatically set as the default number and it
is indicated with a frame around the number type indicator, for example
. When you select a name from contacts, for example to make a call,
the default number is used unless you select another number.
1. Make sure that the memory in use is either Phone or Phone and SIM.
Troubadix_FCCdraft_UG_print.fm Page 46 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg2f.png)
Menu functions
47
2. Scroll to the name saved in the phone’s internal memory for the
contact to which you want to add a new number or text item, and
press Details.
3. Press Options and select Add number, Add detail or Add image.
4. To add a number or detail, select one of the number types or text
types, respectively, or select an image from Gallery.
If you select the text type User ID: select Search to search for an ID by
a mobile phone number or an e-mail address in the server of the
operator or service provider if you have connected to the presence
service. See My presence on page 48. If only one ID is found, it is
automatically saved. Otherwise, to save the ID, press Options, and
select Save. To key in the ID, select Enter ID manually. Key in the ID
and press OK to save it.
To change the number or text type, select Change type in the options
list. Note that you cannot change the type of an ID when it is on the
IM contacts or in the Subscribed names list.
To set the selected number as the default number, select Set as
default.
5. Key in the number or text item and press OK to save it.
6. Press Back and then Exit to return to standby mode.
Searching for a contact
Press Menu and select Contacts and Search, or to quickly find a contact
name, move the joystick down in standby mode. You can key in the first
characters of the name you are searching for in the pop-up window.
In addition the following options in the Contacts menu may also be
available:
•Add new contact and Delete.
•Copy to copy names and phone numbers from the phone´s contact
directory to the SIM card´s memory, or vice versa.
•Settings to select how the names and numbers in contacts are
displayed. Select Memory status to view the free and used memory
capacity.
Troubadix_FCCdraft_UG_print.fm Page 47 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg30.png)
Menu functions
48
•Speed dials to assign a number to a speed dialling key. To activate
speed dialling see Call settings on page 57.
•Info numbers to call the information numbers of your service
provider if the numbers are included on your SIM card (network
service).
•Service numbers to call the service numbers of your service provider
if the numbers are included on your SIM card (network service).
•My numbers to view the phone numbers assigned to your SIM card.
Only shown, if the numbers are included on your SIM card.
•Caller groups to arrange the names and phone numbers saved in the
memory into caller groups with different ringing tone.
Editing or deleting details
Search for the contact that you want to edit or delete and press Details.
Scroll to the name, number, text item or image that you want to edit or
delete and press Options.
• To edit a name, number or text item or to change image, select Edit
name, Edit number, Edit detail or Change image, respectively.
Note that you cannot edit or delete an ID when it is in IM contacts or
in the Subscribed names list.
• To delete a number or text item, select Delete number or Delete
detail, respectively.
• To delete an image attached to the contact, select Delete image.
Deleting an image from contacts does not delete it from Gallery.
My presence
With the presence service (network service) you can share your presence
status with other users, for example your family, friends and colleagues
with compatible devices and access to the service. Presence status
includes your availability, status message and personal logo. Other users
who have access to the service and who are requesting your information
are able to see your status. The requested information is shown in
Subscribed names in the viewers Contacts menu. You can personalise
Troubadix_FCCdraft_UG_print.fm Page 48 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg31.png)
Menu functions
49
the information that you want to share with others and control who can
see your status.
Before you can use presence, you need to subscribe to the service. To
check the availability, for charging details and to subscribe to the
service, contact your service provider, from whom you also receive your
unique ID and password and the settings for the service. To set the
required settings for the presence service, see Instant messaging
settings on page 39. While you have connected to the presence service,
you can use the other functions of the phone, and the presence service
is active in the background.
Press Menu and select Contacts and My presence. Select
•Connect to 'My presence' service (or Disconnect).
•My current presence to change your presence status. Select
•View current presence and select Private pres. or Public pres..
•My availability to set your availability status to Available
indicated by , or to Busy indicated by , or to Not available
indicated by .
•My presence message and key in the text to be shown to other
persons or press Options and select Previous msgs. and select an
old message as the status message.
•My presence logo to select your personal logo from the Graphics
folder in the gallery. If you select the Default, the logo is not
published.
•Show to to select the groups to whom you want to show your
presence status or if not to show it at all.
Select Private and public and contacts in your private list are able
to see all your presence information: availability, status message
and logo. Other contacts can see only your availability.
Select Private viewers and the contacts in your private list can see
all your presence information (availability, status message and
logo). Other users will not see any information.
If you select No one, no one can see your presence information.
•Viewers and select
Troubadix_FCCdraft_UG_print.fm Page 49 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg32.png)
Menu functions
50
•Current viewers to view all the persons who have subscribed to
your presence information.
•Private list is a list of the persons who are allowed to view all your
presence information, including availability, status message and
logo. You can manage your own private list. Other persons who
are not in the private list, can see only your availability.
• Blocked list to view all the persons you have blocked from
viewing your presence information.
•Settings and select
•Show current presence in idle to show the current status indicator
in standby mode.
•Synchronise with profiles to select whether you want to update
your My presence message and My availability manually or
automatically by linking them to the currently active profile.
Refer also to Profiles on page 53. Note that you cannot link a
personalised status logo to a Profile.
•Connection type to select if the phone connects automatically to
the service when the phone is switched on.
•IM and my presence settings, see Instant messaging settings on
page 39.
Subscribed names
You can create a list of contacts whose presence status information you
want to be aware of. You can view the information if the contacts allow
you to view it and if it is not prevented by the contact or network. You
can view these subscribed names either by scrolling through the
contacts or via the Subscribed names menu.
Ensure that the memory in use is either Phone or Phone and SIM.
To connect to the Presence service, press Menu and select Contacts, My
presence and Connect to 'My presence' service.
Adding contacts to the subscribed names
1. Press Menu and select Contacts and Subscribed names. If you have
not connected to the Presence service, the phone asks if you want to
connect now.
Troubadix_FCCdraft_UG_print.fm Page 50 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg33.png)
Menu functions
51
2. If you have no contacts on your list, press Add. Otherwise, press
Options and select Subscribe new. The list of your contacts is shown.
3. Select a contact from the list and if the contact has an user ID saved,
the contact is added to the subscribed names list. If there is more
than one ID, select one of them. After subscription of the contact,
Subscription activated is shown.
Viewing the subscribed names
Refer also to Searching for a contact on page 47 to view the presence
information.
1. Press Menu and select Contacts and Subscribed names.
The status information of the first contact on the subscribed names
list is displayed. The information that the person wants to give to
others may include text and some of the following icons:
, or indicate that the person is either available, discreet or
not available.
indicates that the person’s presence information is not available.
2. Press Details to view the details of the selected contact, or press
Options and select
•Subscribe new to add a new contact to the list of subscribed
names.
•Chat to start a conversation.
•Send message to send a text message to the selected contact.
•Send SMS e-mail to send an e-mail to the selected contact.
•Send bus. card to send a business card to the selected contact.
•Unsubscribe to remove the selected contact from the list of
subscribed names.
Unsubscribing a contact
• To unsubscribe a contact from the Contacts list, move the joystick
down in standby mode and scroll to the contact that you want to
unsubscribe. Press Details and Details again, select the ID and press
Options. To unsubscribe, select Unsubscribe and press Yes to
confirm.
Troubadix_FCCdraft_UG_print.fm Page 51 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg34.png)
Menu functions
52
• To unsubscribe via the Subscribed names menu, see Viewing the
subscribed names on page 51.
Sending and receiving a business card
You can send and receive a person’s contact information from a
compatible device as a business card. When you have received a
business card, press Show and Save to save the business card in the
phone’s memory. To discard the business card, press Exit and then Yes.
To send a business card, search for the name and phone number you
want to send from contacts, press Details and Options and select Send
bus. card. Select Via infrared, Via text message (network service) or Via
multimedia (network service).
Speed dials
To assign a number to a speed-dialling key, press Menu and select
Contacts and Speed dials and scroll to the speed-dialling key number
that you want.
Press Assign, or if a number has already been assigned to the key, press
Options and select Change. Press Search, and select first the name and
then the number that you want to assign. If the Speed dialling function
is off, the phone asks whether you want to activate it. See also Speed
dialling in Call settings on page 57.
To make a call using the speed-dialling keys, see Speed dialling a phone
number on page 20.
Voice dialling
You can make a phone call by saying a voice tag that has been added to
a phone number. Any spoken word(s), such as a person’s name(s), can be
a voice tag. You can add up to ten voice tags.
Before using voice tags, note that:
• Voice tags are not language-dependent. They are dependent on the speaker's
voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them
in a quiet environment.
Troubadix_FCCdraft_UG_print.fm Page 52 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg35.png)
Menu functions
53
• Very short names are not accepted. Use long names and avoid similar names
for different numbers.
Note: Using voice tags may be difficult in a noisy environment or
during an emergency, so you should not rely solely upon voice dialling
in all circumstances.
Adding and managing voice tags
Save or copy in the phone’s memory the contacts to which you want to
add a voice tag. You can also add voice tags to the names in the SIM
card, but if you replace your SIM card with a new one, you first need to
delete the old voice tags before you can add new ones.
Voice tags use shared memory, see Shared memory on page 10.
1. In standby mode, move the joystick down.
2. Scroll to the contact to which you want to add a voice tag and press
Details. Scroll to the phone number you want and press Options.
3. Select Add voice tag.
4. Press Start, and say clearly the word(s) you want to record as a voice
tag. After recording, the phone plays the recorded tag. A symbol
appears after the phone number with a voice tag.
To check the voice tags, press Menu and select Contacts and Voice tags.
Scroll to the contact with the voice tag that you want, and press Select
to see the options to listen to, delete or change the recorded voice tag.
Making a call by using a voice tag
In standby mode, press and hold the right selection key. A short tone is
heard and Speak now is displayed. Say the voice tag clearly. The phone
plays the recognised voice tag and then dials the phone number of the
voice tag after 1.5 seconds.
■ Settings
Profiles
Your phone has various setting groups, profiles, for
which you can customise the phone tones for different events and
environments. Initially, personalise the profiles to your own liking and
Troubadix_FCCdraft_UG_print.fm Page 53 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg36.png)
Menu functions
54
then you only need to activate a profile to use it. Available profiles are
General, Silent, Meeting, Outdoor, My style 1, and My style 2.
Press Menu, and select Settings and Profiles. Scroll to a profile and press
Select.
• To activate the selected profile, select Activate.
• To personalise the profile, select Personalise. Select the setting you
want to change and make the changes.
• To set the profile to be active until a certain time up to 24 hours,
select Timed and set the time for the profile setting to end. When the
time set for the profile expires, the previous profile that was not
timed, becomes active.
Themes
A theme is a package that may include a screen saver, a wallpaper
image, a ringing tone and a colour scheme to customise your phone for
different events and environments. Themes are stored in Gallery.
Press Menu, and select Settings and Themes. To activate a theme, select
Select theme to view the Themes folder in Gallery. Open the folder and
scroll to a theme. Press Options and select Apply theme. Refer also to
Gallery on page 63. To download new themes, select Theme downloads.
Refer to Downloading on page 81.
Tone settings
You can change the settings of the selected active profile.
Press Menu, and select Settings and Tone settings. Select and change
Incoming call alert, Ringing tone, Ringing volume, Vibrating alert,
Message alert tone, Instant message alert tone, Keypad tones and
Warning tones . You can find the same settings in the Profiles menu, see
Profiles on page 53.
Select Alert for to set the phone to ring only upon calls from phone
numbers that belong to a selected caller group. Scroll to the caller group
you want to select or choose All calls and press Mark.
Troubadix_FCCdraft_UG_print.fm Page 54 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg37.png)
Menu functions
55
Personal shortcuts
With personal shortcuts you get quick access to frequently used phone
functions.
Right selection key
Press Menu, and select Settings, Personal shortcuts and Right selection
key to allocate one phone function from a predefined list to the right
selection key. Refer also to Standby mode on page 17. This menu is not
shown in some operator variants.
Go to options
You can allocate phone functions from a predefined list to the left
selection key.
Press Menu, and select Settings and Personal shortcuts. Select Select
'Go to' options to choose the functions that you want to appear in the
shortcut list. Select Organise 'Go to' options to rearrange the functions
on your personal shortcut list. Refer also to Standby mode on page 17.
Voice commands
You can have phone functions which can be activated by saying a voice
tag. Up to five functions can be selected for voice tag.
Press Menu, and select Settings, Personal shortcuts and Voice
commands. Select the function folder that you want, scroll to the
function to which you want to add a voice tag and press Add. A voice
tag is indicated with .
To add a voice command, refer to the instructions in section Adding and
managing voice tags on page 53. To activate a voice command, refer to
the instructions in section Making a call by using a voice tag on page 53.
Display settings
Press Menu, and select Settings and Display settings.
•Select Wallpaper to set your phone to display a background image,
known as wallpaper, when the phone is in standby mode.
•Select Screen saver and Select s. saver to choose an animation or a
still image as screen saver from Gallery. Select in Time-out the time
Troubadix_FCCdraft_UG_print.fm Page 55 Monday, July 12, 2004 5:07 PM
Menu functions
56
after which the screen saver will be activated. Select On to activate
the screen saver.
Independent of the screen saver settings, for power saving purposes,
a digital clock view will be activated when no function of the phone
has been used for a certain time. See Power saving on page 18.
• Select Colour schemes to change the colour in some display
components, for example indicators and signal and battery bars, and
the background image that appears when using a menu function.
• Select Menu view to set the way the phone displays the main menu.
• Select Operator logo to set your phone to display or hide the operator
logo.
Troubadix_FCCdraft_UG_print.fm Page 56 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg39.png)
Menu functions
57
Time and date settings
Press Menu, and select Settings and Time and date settings.
Select Clock to set the phone to show the clock in standby mode, adjust
the clock and select time zone and the time format.
Select Date to set the phone to show the date in standby mode, set the
date, and select the date format and date separator.
Select Auto-update of date & time (network service) to set the phone to
automatically update the time and date according to the current time
zone.
Call settings
Press Menu, and select Settings and Call settings. Select
•Automatic volume control and the phone will automatically adjust
the speaker volume according to the background noise.
•Call divert (network service) to divert your incoming calls. For details,
contact your service provider.
•Anykey answer and On and you can answer an incoming call by
briefly pressing any key, except , selection keys and , and
.
•Automatic redial and On and your phone will make a maximum of
ten attempts to connect the call after an unsuccessful call attempt.
•Speed dialling and On and the names and phone numbers assigned to
the speed-dialling keys, from to , can be dialled by
pressing and holding the corresponding number key.
•Call waiting and Activate and the network will notify you of an
incoming call while you have a call in progress (network service). See
Call waiting on page 21.
•Summary after call and On and the phone will briefly display the
approximate duration and cost (network service) of the call after
each call.
•Send my caller ID (network service) and select Yes or Set by network.
•Line for outgoing calls (network service) to select phone line 1 or 2
for making calls. Only shown if supported by your SIM card.
Troubadix_FCCdraft_UG_print.fm Page 57 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg3a.png)
Menu functions
58
Phone settings
Press Menu, and select Settings, Phone settings. Select
•Phone language to set the display language of your phone. If you
select Automatic the phone selects the language according to the
information on the SIM card.
•Automatic keyguard to set the keypad of your phone to lock
automatically after a pre-set time delay when the phone is in
standby mode and no function of the phone has been used. Select On
and you can set the time from 5 seconds to 60 minutes.
When the keyguard is on, calls still may be possible to the official
emergency number. Key in the emergency number and press .
•Cell info display and On to receive information from the network
depending on the network cell used (network service).
•Welcome note and key in the note you would like to be shown briefly
when the phone is switched on. To save the note, press Save.
•Operator selection and Automatic and the phone automatically
selects one of the cellular networks available in your area. With
Manual, you can select a network that has a roaming agreement
with your home network operator.
•Confirm SIM service actions. See SIM services on page 85.
•Help text activation to set the phone to show or not to show the help
texts.
•Start-up tone to set the phone to play or not to play a start-up tone
when the phone is switched on.
Connectivity
You can connect the phone to a compatible device via infrared and You
can also define the settings for (E)GPRS dial-up connections.
Infrared
You can set up the phone to receive data through its infrared (IR) port.
To use an IR connection, the device with which you want to establish a
connection must be IrDA compliant. You can send or receive data such
as business cards, graphics, images, sound clips, videos and calendar
Troubadix_FCCdraft_UG_print.fm Page 58 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg3b.png)
Menu functions
59
notes to or from a compatible phone or data device (for example, a
computer) via the IR port of your phone.
Do not point the IR (infrared) beam at anyone's eye or allow it to interfere with
other IR devices. This device is a Class 1 Laser product.
Sending and receiving data via IR
• Ensure that the IR ports of the sending and receiving devices are
pointing at each other and that there are no obstructions between
the devices.
• To activate the IR port of your phone to receive data via IR, press
Menu, and select Settings, Connectivity and Infrared.
• The user of the sending phone selects the desired IR function to start
data transfer.
If data transfer is not started within two minutes after the activation of
the IR port, the connection is cancelled and has to be started again.
IR connection indicator
• When is shown continuously, the IR connection is activated and
your phone is ready to send or receive data via its IR port.
• When blinks, your phone is trying to connect to the other device
or a connection has been lost.
(E)GPRS
GPRS (General Packet Radio Service) is a network service that allows
mobile phones to be used for sending and receiving data over an
Internet Protocol (IP)-based network. GPRS is a data bearer that enables
wireless access to data networks such as the Internet.
EGPRS (Enhanced GPRS), also known as EDGE (Enhanced Data Rates for
Global Evolution), is similar to GPRS. EDGE is a radio interface
modulation technique which increases GRPS data rates. For more
information on the availability of EGPRS and data transfer speed,
contact your network operator or service provider.
The applications that may use (E)GPRS are MMS, Instant messaging,
browsing sessions, e-mail, remote SyncML, Java application
downloading and the PC dial-up (for example, Internet and e-mail).
Before you can use (E)GPRS technology, contact your network operator
or service provider for availability of and subscription to the (E)GPRS
Troubadix_FCCdraft_UG_print.fm Page 59 Monday, July 12, 2004 5:07 PM
Menu functions
60
service and save the (E)GPRS settings for each of the applications used
over (E)GPRS. For information on pricing, contact your network operator
or service provider.
Note that when you have selected GPRS as a data bearer, the phone uses
EGPRS instead of GPRS if this is available in the network. You cannot
select between EGPRS and GPRS but for some applications you may be
able to select either GPRS or GSM data (CSD, Circuit Switched Data).
(E)GPRS connection
Press Menu, and select Settings, Connectivity, GPRS and GPRS
connection.
• Select Always online to set the phone to automatically register to a
(E)GPRS network when you switch the phone on.
• Select When needed and the (E)GPRS registration and connection
are established when an application using (E)GPRS needs it and
closed when you end the application.
(E)GPRS modem settings
You can connect the phone via infrared or a data cable connection to a
compatible PC and use the phone as a modem to enable (E)GPRS
connectivity from the PC.
To define the settings for (E)GPRS connections from your PC, press
Menu, and select Settings, Connectivity, GPRS and GPRS modem
settings.
• Select Active access point and activate the access point that you
want to use.
• Select Edit active access point to change the access point settings.
• Select Alias for access point. Key in the name that you would like
for the activated access point and press OK.
• Select GPRS access point. Key in the Access Point Name (APN) to
establish a connection to an (E)GPRS network and press OK.
Contact your network operator or service provider for the APN.
You can also set the (E)GPRS dial-up service settings (Access Point
Name) on your PC using the Nokia Modem Options software, see PC
Suite on page 86. If you have set the settings both on your PC and on
your phone, note that the PC’s settings will be used.
Troubadix_FCCdraft_UG_print.fm Page 60 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg3d.png)
Menu functions
61
Enhancement settings
The enhancement settings menu is shown only if the phone is or has
been connected to a compatible mobile enhancement, chargers and
handsfree units, for example.
Press Menu, and select Settings and Enhancement settings. You can
select an enhancement menu if the corresponding enhancement is or
has been connected to the phone. Depending on the enhancement, you
can select some of the following options: Default profile, Automatic
answer, Lights and Ignition detector.
Configuration settings
Some of the network services need to have the correct configuration
settings on your phone. Get the settings from a service provider as a
configuration message or key in your personal settings manually.
Configuration settings from up to ten different service providers can be
stored in the phone and can be managed within this menu.
To save the configuration settings received by a configuration message
sent by a service provider, see Configuration settings service on page 12.
Press Menu, and select Settings, Configuration settings. Select
•Default configuration settings to view the list of service providers
stored on the phone (the default service provider is highlighted) and
to select another service provider as default. Scroll to a provider and
press Details to view the list with supported applications. To delete a
service provider from the list, press Options and select Delete.
•Activate default in all applications to set the applications to use the
settings from the default service provider.
•Preferred access point to select another access point. Normally the
access point from your preferred network operator is to be used.
Keying in the settings manually
To enter, view and edit the settings manually, press Menu, and select
Settings, Configuration settings and Personal configuration settings.
To add a new configuration, press Add new or press Options and select
Add new. Choose one of the application types from the list and key in all
Troubadix_FCCdraft_UG_print.fm Page 61 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg3e.png)
Menu functions
62
the necessary settings. To activate the settings, press Back and Options
and select Activate.
To view or to edit the user-defined settings select the application that
you want to view and select the setting to edit.
Security settings
When security features that restrict calls are in use (such as call barring, closed
user group and fixed dialling) calls still may be possible to the official emergency
number programmed into your device.
Press Menu, and select Settings and Security settings. Select
•PIN code request to set the phone to request your PIN code every
time the phone is switched on. Some SIM cards do not allow the PIN
code request to be turned off.
•Call barring service (network service) to restrict incoming calls to and
outgoing calls from your phone. A barring password is required.
•Fixed dialling to restrict your outgoing calls to selected phone
numbers if this function is supported by your SIM card.
•Closed user group (network service) to specify the group of people
whom you can call and who can call you.
•Security level. Select Phone and the phone will request the security
code whenever a new SIM card is inserted into the phone.
Select Memory and the phone will request the security code when
the SIM card’s memory is selected and you want to change the
memory in use.
•Access codes to change the security code, PIN code, PIN2 code or
barring password.
Restore factory settings
To reset some of the menu settings to their original values, press Menu,
and select Settings and Restore factory settings.
Troubadix_FCCdraft_UG_print.fm Page 62 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg3f.png)
Menu functions
63
■Operator menu
This menu lets you access a portal to services provided by your network
operator. This menu is operator specific. The name and the icon depend
on the operator. For more information, contact your network operator.
The operator can update this menu with a service message. For more
information, refer to Service inbox on page 81.
■Gallery
In this menu, you can manage graphics, images,
video clips, recordings and tones. These files are
arranged in folders.
Your phone supports a Digital Rights Management (DRM) system to
protect acquired content. A piece of content, for example a ringing tone,
can be protected and associated with certain usage rules, for example
number of usage times and a certain usage period. The rules are defined
in the content’s activation key which can be delivered either together
with the content or independently depending on the service provider.
You may be able to update these activation keys. Always check the
delivery terms of any content and activation key before acquiring them,
as they may be subject to a fee.
Copyright protections may prevent some images, ringing tones, and other
content from being copied, modified, transferred or forwarded.
1. Press Menu and select Gallery. A list of folders is shown. Images,
Video clips, Themes, Graphics, Tones and Recordings are the original
folders on the phone.
2. Scroll to the desired folder and press Open to view a list of files in the
folder or press Options and one of the options may be available:
Downloads, Delete folder, Move, Rename folder, Details, Type of view,
Sort, Add folder, Memory status and Activation key list.
3. If you have opened a folder, select the file that you want to view and
press Open. If Themes was selected before, scroll to a theme and
press View to open the theme package.
Select and open a file, or press Options and use one of the following
functions that may be available for the selected file:
Troubadix_FCCdraft_UG_print.fm Page 63 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg40.png)
Menu functions
64
Delete, Send, Edit image, Move, Rename, Set as wallpaper, Set as ring
tone, Apply theme, Details, Type of view, Sort, Delete all, Open in
sequence, Mute audio (Unmute audio), Set contrast, Add folder,
Memory status, Activate content and Activation key list.
■Media
Camera
You can take photos or record video clips with the phone’s built-in
camera. The camera produces pictures in JPEG format and the video
clips in 3GP format.
The Nokia 7260 device supports an image capture resolution of 640 x 480 pixels.
The image resolution in these materials may appear different.
Taking a photo or a video clip
Press Menu, and select Media, Camera. The live image appears on the
display, and you can use the display as a viewfinder. Move the joystick to
the left or to the right to change the camera mode: Standard photo,
Portrait photo or Video, or if the lighting is dim for taking photos to
Night mode. If you want to add the photo to a name or a phone number
saved in contacts, select Portrait photo.
• To take a photo, press Capture. A shutter sound is heard. The phone
saves the photo in the Images folder of the Gallery menu.
If you want to send the photo as a multimedia message, press Send.
Or select Back to take another photo, or press Options and select, for
example, an option to rename or zoom the saved photo or to set the
contrast, to see the details, or to set the photo as wallpaper, or to
open the gallery, or to delete it.
Tip: You can activate the self-timer of the camera for one
picture at a time. Put the camera in photo mode, press
Options and select Self-timer. Press Start, and after the
timeout, the camera takes the photo. While the self-timer is
running, a beeping sound is heard.
• To start recording a video clip, press Record. When you are recording
a video clip, the remaining recording time is shown on the top of the
display.
Troubadix_FCCdraft_UG_print.fm Page 64 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg41.png)
Menu functions
65
To pause the recording, press Pause and to resume the recording,
press Continue. To stop the recording, press Stop. The phone saves
the recording in the Video clips folder of the Gallery menu. To view
the recorded video clip, press Play.
Select Back to start recording a new video clip, or press Options and
select, for example, an option to delete or rename the saved video
clip, to set the contrast, or to see the details, to send it as a
multimedia message, or to open the gallery, or to mute/unmute the
microphone.
Camera settings
Press Menu, and select Media, Camera. Press Options and depending on
the active camera mode the following options may appear: Change
mode, Self-timer, Mute/Unmute, Open gallery, or Settings to adjust the
camera settings Default mode, Image quality, Video clip length, Camera
sounds, Default title.
Radio
The FM radio uses the wire of the headset as an antenna. A compatible headset
needs to be attached to the device for the FM radio to function properly.
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
To listen to the radio on your phone connect the compatible headset to
the headset connector on the bottom of the phone. The lead of the
headset functions as the radio antenna, so let it hang freely.
1. To turn on the radio, press Menu and select Media and Radio. The
channel location number and the name of the radio channel (if you
have saved the channel) and the frequency of the radio channel are
displayed.
2. If you have already saved radio channels, you can scroll to the
channel you would like to listen to, or select a radio channel location
1 to 9 by pressing the corresponding number key.
Troubadix_FCCdraft_UG_print.fm Page 65 Monday, July 12, 2004 5:07 PM
Menu functions
66
Tuning a radio channel
When the radio is on, move and hold the joystick up or down to start the
channel search. Searching stops when a channel is found. To save the
channel, press Options, and select Save channel. Enter the name of the
channel and select the location where you want to save the channel.
Using the radio
When the radio is on, press Options and select
•Switch off to turn off the radio.
•Save channel to save the radio channel you have found, refer to
Tuning a radio channel above. Up to 20 radio channels can be saved.
•Automatic tuning. Briefly move the joystick up or down to start the
channel search upwards or downwards. The search stops when a
channel has been found, press OK. To save the channel, see Save
channel above.
•Manual tuning. Briefly move the joystick up or down to move the
channel search 0.05 MHz upwards or downwards or move and hold
the joystick up or down to quickly search upwards or downwards for
a channel. To save the channel, press OK and see Save channel above.
•Set frequency. Enter the frequency of the radio channel you would
like to listen to (between 87.5 MHz and 108.0 MHz). To save the
channel, see Save channel above.
•Delete channel. To delete a saved channel.
•Rename. Enter a new name for the saved channel.
•Loudspeaker (or Headset) to listen to the radio using the loudspeaker
(or headset). Keep the headset connected to the phone. The lead of
the headset functions as the radio antenna.
•Mono output (or Stereo output) to listen to the radio in mono (or in
stereo).
You can normally make a call or answer an incoming call while listening
to the radio. During the call the volume of the radio is muted.
When you use the camera while listening to the radio, the radio is
switched off. After you have finished the camera application, the radio
will be switched on again, automatically.
Troubadix_FCCdraft_UG_print.fm Page 66 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg43.png)
Menu functions
67
When an application using a (E)GPRS or HSCSD connection is sending or
receiving data, it may interfere with the radio.
Voice recorder
You can record pieces of speech, sound or an active call for up to 5
minutes. For example, this is useful when recording a name and phone
number for writing down later.
The recorder cannot be used when a data call or GPRS connection is active.
Recording
1. Press Menu, select Media and Voice recorder.
2. To start the recording, select Record. To start the recording during a
call, press Options, and select Record. While recording a call, all
parties to the call will hear a faint beeping sound every 5 seconds
approximately.
3. To end the recording, press Stop. The recording will be saved in the
Recordings folder of the Gallery menu.
4. To listen to the latest recording, select Play last recorded.
5. To send to the latest recording, select Send last recorded. The
recording can be sent via IR or MMS.
List of recordings
Press Menu, and select Media, Voice recorder and Recordings list. The
list of folders in the Gallery is shown. Open Recordings to see the list
with recordings.
■Organiser
Alarm clock
You can set the phone to alarm at a desired time. Press Menu, and select
Organiser and Alarm clock.
To set the alarm, select Alarm time, and enter the alarm time. To change
the alarm time when the alarm time is set, select On. Select Repeat
alarm to set the phone to alert you on selected days of the week.
Troubadix_FCCdraft_UG_print.fm Page 67 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg44.png)
Menu functions
68
Select Alarm tone and select the default alarm tone, personalise the
alarm tone by selecting one from the ringing tone list or from Gallery, or
set a radio channel as the alarm tone. If you select the radio as an alarm
tone, connect the headset to the phone. The phone uses the most
recently listened-to channel as an alarm tone via the loudspeaker. If the
headset is removed, the default alarm tone will be used instead of the
radio.
When the alarm time expires
The phone will sound an alert tone, and flash Alarm! and the current
time on the display, even if the phone was switched off. Press Stop to
stop the alarm. If you let the phone continue to sound the alarm for a
minute or press Snooze, the alarm stops for about 10 minutes and then
resumes.
If the alarm time is reached while the device is switched off, the device switches
itself on and starts sounding the alarm tone. If you press Stop, the device asks
whether you want to activate the device for calls. Press No to switch off the
device or Yes to make and receive calls. Do not press Yes when wireless phone use
may cause interference or danger.
Calendar
The calendar uses shared memory, see Shared memory on page 10.
Press Menu, and select Organiser and Calendar.
The current day is indicated by a frame. If there are any notes set for the
day, the day is in bold type. To view the day notes, press View. To view a
week, press Options and select Week view. To view a single note, press
View.
Other options for the calendar view may be options for creating a note,
for deleting, editing, moving and repeating a note and for copying a
note to another day, or for sending a note as a note directly to another
compatible phone’s calendar or as a text message or a multimedia
message. In Settings you can set the date, time, time zone, date or time
format, or the first day of the week. In the Auto-delete option you can
set the phone to delete old notes automatically after a specified time.
To delete all notes in the calendar, select the month or week view, press
Options and select Delete all notes.
Troubadix_FCCdraft_UG_print.fm Page 68 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg45.png)
Menu functions
69
Making a calendar note
Press Menu, and select Organiser and Calendar. Scroll to the date you
want, press Options and select Make a note. Select one of the following
note types: Meeting, Call, Birthday, Memo or
Reminder.
When the phone sounds an alarm for a note
The phone beeps, and displays the note. With a call note on the
display, you can call the displayed number by pressing . To stop the
alarm and to view the note, press View. Press Snooze and the phone
sounds an alarm again after 10 minutes. To stop the alarm without
viewing the note, press Exit.
To-do list
You can save a note for a task that you have to do, select a priority level
for the note and mark it as done when you have completed it. You can
sort the notes by priority or by date. The to-do list uses shared memory,
see Shared memory on page 10.
Press Menu, and select Organiser and To-do list.
Press Add note to make a note. Key in the note and press Save. Select
the priority for the note. The phone automatically sets the deadline
without an alarm for the note. To change the deadline, view the note
and select the deadline option.
Or scroll to a note and press View or press Options. To add a new note,
select Add. For example, you can also view and delete the selected note
and delete all the notes that you have marked as done. You can sort the
notes by priority or by deadline, send a note to another phone, save a
note as a calendar note, or access the calendar. While viewing a note,
you can also, for example, select an option to edit the selected note, edit
the deadline or priority for the note, or mark the note as done.
Notes
You can use this application for writing and sending notes to
compatible devices via MMS. The Notes application uses shared
memory, see Shared memory on page 10.
Troubadix_FCCdraft_UG_print.fm Page 69 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg46.png)
Menu functions
70
Press Menu and select Organiser and Notes. The phone will ask you to
set the date and time, if they have not already been set when you start
to write a note. To add a note, press Add note or press Options and
select Make a note. Key in the note and select Save. Or scroll to a note
press View or press Options to see the options for notes.
Synchronisation
Synchronisation allows you to save your calendar and contacts data on
a remote Internet server (network service) or on a compatible PC. If you
have saved data on the remote Internet server, you can synchronise your
phone by starting the synchronisation from your phone. You can also
synchronise the data in your phone’s contacts, calendar and notes to
correspond to the data of your compatible PC by starting the
synchronisation from your PC.
Note: The contact data in your SIM card will not be
synchronised.
Synchronising from your phone
Before synchronising from your phone, you need to subscribe to a
synchronisation service and get the configuration settings from your
provider. For more information on availability and the synchronisation
service settings, contact your service provider.
To start the synchronisation from your phone:
1. Activate the connection settings you need for the synchronisation.
See Settings for the synchronisation from your phone on page 70.
2. Press Menu, select Organiser, Synchronisation, Server sync. Select
Data to be synchronised and mark the data to be synchronised and
press Done. Then select Synchronise. The marked data of the active
set will be synchronised after confirmation.
Settings for the synchronisation from your phone
You may receive the synchronisation settings as a configuration
message from the service provider. For more information on availability
and the synchronisation service settings, contact your service provider.
For receiving the settings as a configuration message, see Configuration
Troubadix_FCCdraft_UG_print.fm Page 70 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg47.png)
Menu functions
71
settings service on page 12. To key in the settings manually, see
Configuration settings on page 61.
Press Menu, select Organiser, Synchronisation and Server sync and Sync
settings. Select Configuration and scroll to the service provider whose
settings you would like to activate and press Select. Select Account to
see the accounts provided by the service provider. If more than one
account is displayed choose the one you want to use.
Synchronising from your compatible PC
To synchronise contacts, the calendar and the notes from your PC, use a
data cable. You also need the PC Suite software of your phone installed
on the PC. Start the synchronisation from the PC using PC suite.
Ensure that the phone is in standby mode and that the time and date are
set.
■Applications
Games and applications
Your phone software may include some games and Java applications
specially designed for this Nokia phone.
Launching a game or an application
Press Menu, and select Applications, then Games and Select game, or
Collection and Select application. Scroll to a game or an application and
press Open or press .
The following options may be available for games and applications:
Delete, Details, Update version, Web page, App. access.
Game and application downloads
Your phone supports J2METM Java applications. Make sure that the
application is compatible with your phone before downloading it.
Press Menu, and select Applications, Games and Game downloads or
Collection and App. downloads. The list of available bookmarks is shown.
Select More bookmarks to access the list of bookmarks in the Services
menu, see Bookmarks on page 80.
Troubadix_FCCdraft_UG_print.fm Page 71 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg48.png)
Menu functions
72
Select a bookmark to connect to the desired service. For the availability
of different services, pricing and tariffs, contact your service provider.
Important: Only install applications from sources that offer adequate
protection against harmful software.
Note that when downloading an application, it may be saved in the
Games menu instead of the Applications menu.
Game settings
Press Menu, and select Applications, Games and App. settings to set
sounds, lights and shakes for games.
Memory status for games and applications
To view the amount of memory available for game and application
installations (third shared memory), press Menu, and select
Applications, Games or Collection and then Memory.
The and games applications use shared memory, see Shared memory on
page 10.
Calculator
The calculator in your phone adds, subtracts, multiplies, divides,
calculates the square and the square root and converts currency values.
This calculator has a limited accuracy and rounding errors may occur, especially
in long divisions.
Press Menu, and select Applications, Extras and Calculator. When ’0’ is
displayed on the screen, key in the first number in the calculation, press
for a decimal point. Press Options and select Add, Subtract,
Multiply, Divide, Square, Square root or Change sign. Key in the second
number. To get the answer, press Equals. To start a new calculation, first
press and hold Clear.
Performing a currency conversion
Press Menu, and select Applications, Extras and Calculator. To save the
exchange rate, press Options and select Exchange rate. Select either of
the displayed options. Key in the exchange rate, press for a decimal
point, and press OK. The exchange rate remains in the memory until you
replace it with another one. To perform the currency conversion, key in
Troubadix_FCCdraft_UG_print.fm Page 72 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg49.png)
Menu functions
73
the amount to be converted, press Options and select In domestic or In
foreign.
Countdown timer
Press Menu, and select Applications, Extras and Countdown timer. Key
in the alarm time in hours, minutes and seconds and press OK. If you
wish, write your own note text which is displayed when the time expires,
and press Start to start the countdown timer.
To change the countdown time, select Change time, or to stop the timer,
select Stop timer.
If the alarm time is reached when the phone is in standby mode, the
phone sounds a tone and flashes the note text if it is set or else
Countdown time up. Stop the alarm by pressing any key. If no key is
pressed, the alarm automatically stops within 30 seconds. To stop the
alarm and to delete the note text, press Exit.
Stopwatch
You can measure time, take intermediate times or lap times using the
stopwatch. During timing, the other functions of the phone can be used.
To set the stopwatch timing in the background, press .
Using the stopwatch or allowing it to run in the background when using other
features increases the demand on battery power and reduces the battery life.
Time observation and time splitting
1. Press Menu, and select Applications, Extras, Stopwatch and Split
timing. You can select Continue if you have set the timing in the
background.
2. Press Start to start the time observation. Press Split every time you
want to take an intermediate time. The intermediate times are listed
below the running time on the display. Scroll to view the times.
3. Press Stop to stop the time observation.
4. To save the times, press Save. Or press Options and you can start the
time observation again or reset the times without saving it.
Lap times
Troubadix_FCCdraft_UG_print.fm Page 73 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg4a.png)
Menu functions
74
Press Menu, and select Applications, Extras, Stopwatch and Lap timing.
Press Start to start the time observation and Lap to take a lap time.
Press Stop to stop the lap timing. To save the times, press Save and enter
a name. Or press Options and you can save or reset the lap times.
Viewing and deleting times
Press Menu, and select Applications, Extras and Stopwatch.
If the stopwatch is not reset, you can select Show last to view the most
recent measured time. Select View times and a list of names or final
times of the time sets is shown, select the time set that you want to
view.
To delete the saved times, select Delete times. Select Delete all and press
OK, or select One by one, scroll to the times you want to delete, press
Delete and press OK.
Wallet
In Wallet you can save personal information, for example, credit card
numbers and addresses. The data that are saved in the wallet can easily
be retrieved while browsing to automatically fill in data fields, for
example, when making purchases and the service supports wallet
functionality. You can also save access codes to mobile services that
request a user name and password.
The data in the wallet are protected with a wallet code that you can
define when you access wallet for the first time. At Create wallet code:
key in the code and press OK to confirm it and at Verify wallet code: key
in the code again and press OK. See also Wallet code (4 to 10 digits) on
page 11.
If you want to delete all the content of the wallet and the wallet code,
key in *#7370925538# (*#res wallet# in letters) in standby mode. You
also need the phone’s security code, see Access codes on page 10.
To add the content into the wallet menu, and to edit it, access the wallet
menu. To use the content of the wallet in a mobile service, access the
wallet via the browser, see Services on page 77.
Troubadix_FCCdraft_UG_print.fm Page 74 Monday, July 12, 2004 5:07 PM
Menu functions
75
Accessing the wallet menu
To access the wallet menu, press Menu, select Applications, Extras and
Wallet. Key in your wallet code and press OK, see Wallet settings on
page 76.
Select Wallet profiles to create card combinations, Cards to save
personal card information, Tickets to save the notifications of e-tickets
that you have bought via a mobile service, Receipts to save receipts of
mobile purchases, Personal notes to save all kinds of personal
information that you want to keep protected by the wallet PIN code, or
Settings, see Wallet settings on page 76.
Saving card details
Access the wallet and select Cards. Select the card type to save details:
Payment cards, Loyalty cards, Access cards, User info cards, or Address
cards. If no card is added, press Add new, otherwise, press Options and
select Add new. Fill in the fields for the details and press Done.
If supported by your service provider, you can also receive card
information to your phone as a configuration message. You will be
notified as to which category the card belongs to. For availability of
receiving card information as configuration settings, contact the card
issuer or service provider.
Personal notes
You can save personal notes, for example, account numbers, passwords,
codes or notations.
Access the wallet and select Personal notes. Press Options and you can
view, add, edit a selected note and sort notes either by name or date or
delete notes. When viewing a note, you can edit or delete the selected
note. The option Send via text msg. is for copying the note as a text
message and Copy to calendar is for copying the note to the calendar as
a memo. Use detail is for extracting numbers, e-mail addresses and web
addresses from a note.
Creating a wallet profile
When you have saved your personal card details, you can combine them
together into a wallet profile. You can use the profile to retrieve wallet
data from different cards while browsing.
Troubadix_FCCdraft_UG_print.fm Page 75 Monday, July 12, 2004 5:07 PM
Menu functions
76
1. Access the wallet and select Wallet profiles.
2. To create a new wallet profile if no profile is added, press Add new.
Otherwise, press Options and select Add new.
3. Fill in the following fields and press Done. Select Select payment
card next, Select loyalty card next, Select access card next, Select
user info card next, Select billing address next, Select shipping
address next, Select receipt delivery address next, Select receipt
delivery method next andWallet profile name:.
Wallet settings
Access the wallet and select Settings. Select Change code to change the
wallet code. Select RFID to set the RFID ID with the RFID code and RFID
type. (RFID = Radio Frequency Identification, technology to securely
conduct commercial transactions using your phone).
Guidelines for paying for your purchases with the wallet
• To do your shopping, access the desired service site that supports the
wallet. The service needs to support the Electronic Commerce
Modeling Language specification. See Making a connection to a
service on page 78.
Choose the product that you want to buy and carefully read all
information provided before your purchase.
The text may not fit within a single screen. Therefore, make sure to
scroll through and read all of the text before your purchase.
• To pay for the items that you wish to buy, the phone asks whether
you want to use wallet or not. The phone also asks for your wallet
PIN code.
• Select the card that you want to pay with from the Payment cards
list. Provided that the data form you receive from the service
provider supports the Electronic Commerce Modelling Language
specification, the phone automatically fills in the credit card
information or the wallet profile from the wallet.
• Approve the purchase, and the information is forwarded.
• You may receive an acknowledgement or a digital receipt of the
purchase.
Troubadix_FCCdraft_UG_print.fm Page 76 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg4d.png)
Menu functions
77
• To close the wallet, select Close wallet. If you do not use the wallet
for 5 minutes, it will be automatically closed.
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
empty the cache after each use. The information or services you have accessed is
stored in the cache.
To empty the cache, see The cache memory on page 82.
■Services
You can access various mobile Internet services with
your phone’s browser.
Check the availability of these services, pricing and
tariffs with your network operator and/or the service provider.
With your phone’s browser you can view the services that use Wireless
Mark-Up Language (WML) or extensible HyperText Mark-up Language
(xHTML) on their pages. Appearance may vary due to screen size. Note
that you may not be able to view all the details of the Internet pages.
Basic steps for accessing and using services
1. Save the service settings that are required to access the service that
you want to use. See page 77.
2. Make a connection to the given service. See page 78.
3. Start browsing the pages of the service. See page 78.
4. Once you are finished browsing, end the connection to the service.
See page 79.
Setting up the phone for a service
Your phone may have stored some service settings. Additional settings
may be received as a configuration message from the service provider
that offers the service that you want to use. To receive the service
settings as a configuration message, see Configuration settings service
on page 12 and Configuration settings on page 61.
For more information and for the appropriate settings, contact your
service provider.
Troubadix_FCCdraft_UG_print.fm Page 77 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg4e.png)
Menu functions
78
Making a connection to a service
Make sure that the service settings of the service you want to use are
activated. To activate the settings, press Menu, and select Services,
Settings and Configuration settings. Select Configuration and select the
configuration set you want to activate.
Make a connection to the service. There are three ways to connect:
• Open the start page, for example, the homepage of the service
provider: press Menu, and select Services and Home, or in standby
mode press and hold .
• Select a bookmark of the service: press Menu, and select Services,
Bookmarks, and select a bookmark. If the bookmark does not work
with the current active service settings, activate another set of
service settings and try again.
• Select the last URL: press Menu, and select Services, Last web addr..
• Key in the address of the service: press Menu, and select Services and
then Go to address. Key in the address of the service and press OK.
Browsing the pages of a service
After you have made a connection to the service, you can start browsing
its pages. The function of the phone keys may vary in different services.
Follow the text guides on the phone display. For more information,
contact your service provider.
Note that if GPRS is selected as the data bearer, the indicator is
shown on the top left of the display during browsing. If you receive a call
or a text message, or make a call during an (E)GPRS connection, the
indicator will be shown on the top left of the display to indicate that
the (E)GPRS connection is suspended (on hold). After a call, for example,
the phone tries to reconnect the (E)GPRS connection.
Using the phone keys while browsing
• Use the joystick to browse through the page.
• To select a highlighted item, press , or press Options to select the
option for opening the link.
• To enter letters and numbers, press the keys - and to
enter special characters, press the key .
Troubadix_FCCdraft_UG_print.fm Page 78 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg4f.png)
Menu functions
79
Options while browsing
Press Options and the following options may be available. The service
provider may also offer other options. Select Shortcuts, Home, Add
bookmark, Bookmarks, History, Download links, Save to folder, Other
options, Reload, Quit.
A cache is a memory location that is used to store data temporarily. If
you have tried to access or have accessed confidential information
requiring passwords, empty the cache after each use. The information or
services you have accessed is stored in the cache. To empty the cache,
see The cache memory on page 82.
Direct calling
The browser supports functions that you can access while browsing. You
can make a voice call, send DTMF tones while a voice call is in progress,
and save a name and a phone number from a page.
Disconnect from a service
To quit browsing and to end the connection, press Options and select
Quit. When Quit browsing? is shown, press Yes.
Alternatively, press twice, or press and hold
Appearance settings of the browser
While browsing, press Options and select Other options and Appear.
settings, or in standby mode, press Menu, and select Services, Settings
and Appearance settings. Select
•Text wrapping. Select On and the text continues on the next line. If
you select Off, the text will be abbreviated.
•Select Font size and choose a size.
•Show images. Select No and any pictures appearing on the page are
not shown.
•Alerts and select Alert for unsecure connection and Yes to set the
phone to alert when a secure connection changes to an insecure one
during browsing. Select Alert for unsecure items and Yes to set the
phone to alert when a secure page contains an insecure item. Note
Troubadix_FCCdraft_UG_print.fm Page 79 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg50.png)
Menu functions
80
that these alerts do not guarantee a secure connection. For more
information, see Browser security on page 82.
•Character encoding to select the character set that the phone uses
for showing browser pages that do not include that information or to
select whether to always use UTF-8 encoding when sending a Web
address to a compatible phone.
Cookies
A cookie is data that a site saves in your phone’s browser cache memory.
The data can be, for example, your user information or your browsing
preferences. Cookies will be saved until you clear the cache memory, see
The cache memory on page 82.
While browsing, press Options and select Other options, Security and
Cookie settings, or in standby mode, press Menu, and select Services,
Settings, Security settings and Cookies. Select Allow or Reject to allow
the phone to or prevent the phone from receiving cookies.
Bookmarks
You can save page addresses as bookmarks in the phone’s memory.
1. While browsing, press Options and select Bookmarks,
or in standby mode, press Menu, and select Services and Bookmarks.
2. Scroll to the bookmark that you want to use and press Select to
make a connection to the page associated with the bookmark.
Or select Options to view the title and the address of the selected
bookmark, edit or delete the selected bookmark, or send it directly to
another phone as a bookmark, or as a text message, or create a new
bookmark.
Your device may have some bookmarks loaded for sites not affiliated to Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
Receiving a bookmark
When you have received a bookmark (sent as a bookmark) 1 bookmark
received is displayed. Press Show to view the bookmark. To save the
Troubadix_FCCdraft_UG_print.fm Page 80 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg51.png)
Menu functions
81
bookmark, press Save, or press Options and select View to see the
details or Delete to discard it.
Downloading
To download more tones, graphics, games, videos, themes or
applications to your phone (network service), press Menu, and select
Services and Download links. Select Tone downloads, Graphic
downloads, Game downloads, Video downloads, Theme downloads or
App. downloads.
Important: Only install applications from sources that offer adequate
protection against harmful software.
For the availability of different services, pricing and tariffs, contact your
network operator and/or service provider.
Service inbox
The phone is able to receive service messages (pushed messages) sent by
your service provider (network service). Service messages are
notifications of, for example, news headlines, and they may contain a
text message or an address of a service.
To access the Service inbox in standby mode, when you have received a
service message, press Show. If you press Exit the message is moved to
the Service inbox. To access the Service inbox later, press Menu, and
select Services and Service inbox.
To access the Service inbox while browsing, press Options and select
Other options and Service inbox. Scroll to the message that you want,
press Retrieve to activate the browser and download the marked
content or press Options and select Details to display detailed
information on the service notification, or select Delete to delete it.
Service inbox settings
Press Menu, and select Services, Settings and Service inbox settings.
Select Service messages and On (or Off) to set the phone to receive (or
not to receive) service messages.
Select Message filter and On to set the phone to receive service
messages only from content authors approved by the service provider.
Troubadix_FCCdraft_UG_print.fm Page 81 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg52.png)
Menu functions
82
To view the list of the approved content authors, select Trusted
channels.
Select Automatic connection. If you have set the phone to receive
service messages and select On, the phone will automatically activate
the browser from standby mode when the phone has received a service
message. If you select Off, the phone will activate the browser only after
you have selected Retrieve when the phone has received a service
message.
The cache memory
The information or services that you have accessed are stored in the
cache of your phone. A cache is a buffer memory, which is used to store
data temporarily. To empty the cache while browsing, press Options and
select Other options and Clear the cache, or in standby mode, press
Menu, and select Services, and Clear the cache.
Browser security
Security features may be required for some services, such as banking
services or online shopping. For such connections you need security
certificates and possibly a security module which may be available on
your SIM card. For more information, contact your service provider.
Security module
The security module can contain certificates as well as private and
public keys. The purpose of the security module is to improve security
services for applications requiring browser connection, and it allows you
to use a digital signature. The certificates are saved in the security
module by the service provider.
Press Menu and select Services, Settings, Security settings and Security
module settings. Select
•Security module details to show the security module title, its status,
manufacturer and serial number.
•Module PIN request to set the phone to request the module PIN when
using services provided by security module. Key in the code and
select On. To disable the module PIN request, select Off.
Troubadix_FCCdraft_UG_print.fm Page 82 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg53.png)
Menu functions
83
•Change module PIN to change the module PIN, if allowed by the
security module. Enter the current module PIN code, then enter the
new code twice.
•Change signing PIN. Select the signing PIN that you want to change.
Enter the current PIN code, then enter the new code twice.
See also Access codes on page 10.
Certificates
There are three kinds of certificates: server certificates, authority
certificates and user certificates.
• The phone uses a server certificate to create a connection with
improved security to the content server. The phone receives the
server certificate from the service provider before the connection is
established and its validity is checked using the authority certificates
saved in the phone. Server certificates are not saved.
The security indicator is displayed during a connection if the
data transmission between the phone and the content server is
encrypted.
The security icon does not indicate that the data transmission
between the gateway and the content server (or place where the
requested resource is stored) is secure. The service provider secures
the data transmission between the gateway and the content server.
• Authority certificates are used by some services, such as banking
services, for checking the validity of other certificates. Authority
certificates can either be saved in the security module by the service
provider, or they can be downloaded from the network, if the service
supports the use of authority certificates.
• User certificates are issued to users by a Certifying Authority. User
certificates are required, for example, to create a digital signature
and they associate the user with a specific private key in a security
module.
Troubadix_FCCdraft_UG_print.fm Page 83 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg54.png)
Menu functions
84
Important: Note that even if the use of certificates makes the risks
involved in remote connections and software installation considerably
smaller, they must be used correctly in order to benefit from increased
security. The existence of a certificate does not offer any protection by
itself; the certificate manager must contain correct, authentic, or
trusted certificates for increased security to be available. Certificates
have a restricted lifetime. If Expired certificate or Certificate not valid
yet is shown even if the certificate should be valid, check that the
current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you
really trust the owner of the certificate and that the certificate really
belongs to the listed owner.
Digital signature
You can make digital signatures with your phone if your SIM card has a
security module. The signature can be traced back to you via the private
key on the security module and the user certificate that was used to
perform the signature. Using the digital signature can be the same as
signing your name to a paper bill, contract or other document.
To make a digital signature, select a link on a page, for example, the title
of the book that you want to buy and its price. The text to sign (possibly
including amount, date, etc.) will be shown.
Check that the header text is Read and that the digital signature icon
is shown.
Note: If the digital signature icon does not appear, there is a
security breach, and you should not enter any personal data
such as your signing PIN.
To sign the text, read all of the text first and then you can select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll
through and read all of the text before signing.
Select the user certificate you want to use. Key in the signing PIN (see
General information on page 9) and press OK. The digital signature icon
will disappear, and the service may display a confirmation of your
purchase.
Troubadix_FCCdraft_UG_print.fm Page 84 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg55.png)
Menu functions
85
■SIM services
In addition to the functions available on the phone,
your SIM card may provide additional services that
you can access in this menu which is shown only if it
is supported by your SIM card. The name and contents of the menu
depend on the SIM card.
For availability, rates and information on using SIM services, contact
your SIM card vendor, e.g. network operator, service provider or other
vendor.
Depending on the operator you can set the phone to show you the
confirmation messages sent between your phone and the network when
you are using the SIM services by selecting the option Yes within the
menu Confirm SIM service actions, in Phone settings.
Note that accessing these services may involve sending messages or
making a phone call for which you may be charged.
Troubadix_FCCdraft_UG_print.fm Page 85 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg56.png)
PC Connectivity
86
6. PC Connectivity
You can send and receive e-mails, and access the Internet when your
phone is connected to a compatible PC via an IR connection or a data
cable connection. You can use your phone with a variety of PC
connectivity and data communications applications. With PC Suite you
can, for example, synchronise contacts, calendar and notes between
your phone and the compatible PC or a remote Internet server (network
service).
You may find more information and downloadable files, for example PC
suite, in the support area on the Nokia website, www.nokia.com.
■PC Suite
PC Suite contains the following applications (in alphabetical order):
•HTML Help to support the application usage.
•Nokia 7260 data modem drivers enable you to use your phone as a
modem.
•Nokia Application Installer to install J2ME Java applications from a
compatible PC to the phone, for example games and dictionaries.
•Nokia Connection Manager to select the connection type between
the PC and phone.
•Nokia Contacts Editor to edit contacts in your phone.
•Nokia Content Copier to back-up and restore personal data between
your phone and a compatible PC. Supports also content transfer to
another compatible Nokia phone.
•Nokia Image Converter to make images in supported formats usable
for multimedia messages or wallpaper and to transfer them to your
phone.
•Nokia Modem Options contains settings for HSCSD and GPRS
connections.
•Nokia Multimedia Player to for playing sounds, images, videos and
multimedia messages on the PC. Multimedia Player allows you to
view multimedia received on your phone or via e-mail.
Troubadix_FCCdraft_UG_print.fm Page 86 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg57.png)
PC Connectivity
87
•Nokia PC Sync to synchronise contacts, calendar and to-do notes
between your phone and a compatible PC.
•Nokia Phone Browser to view the contents of the Gallery folder of
your phone on a compatible PC. You can browse picture and audio
files and also modify files in the phone’s memory and transfer files
between your phone and PC.
•Nokia Phone Editor to send text messages and edit the contacts in
your phone.
•Nokia Settings Manager to edit and send your browser bookmarks
or update the connection sets to your phone. You can also search for
radio channels, and delete, edit or modify the current radio channels
on your phone.
•Nokia Sound Converter to optimise polyphonic ringing tones in
supported formats to be compatible with your phone and to transfer
them to your phone.
Copyright protections may prevent some images, ringing tones, and other
content from being copied, modified, transferred or forwarded.
(E)GPRS, HSCSD and CSD
With your phone you can use the (E)GPRS (Enhanced GPRS), GPRS
(General Packet Radio Service), HSCSD (High Speed Circuit Switched
Data) and CSD (Circuit Switched Data, GSM data) data services.
For availability and subscription to data services, contact your network
operator or service provider.
Note that the use of HSCSD services consumes the phone’s battery
faster than normal voice or data calls. You may need to connect the
phone to a charger for the duration of the data transfer.
See (E)GPRS modem settings on page 60.
■Using data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Note that making or answering phone calls during a computer
connection is not recommended as it might disrupt the operation.
Troubadix_FCCdraft_UG_print.fm Page 87 Monday, July 12, 2004 5:07 PM
PC Connectivity
88
For better performance during data calls, place the phone on a
stationary surface with the keypad facing downward. Do not move the
phone by holding it in your hand during a data call.
Troubadix_FCCdraft_UG_print.fm Page 88 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg59.png)
Battery information
89
7. Battery information
■Charging and Discharging
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, buy a new battery. Use only Nokia approved batteries, and recharge
your battery only with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave the battery connected to a charger. Overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its charge over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Do not dispose of batteries in a fire! Dispose of batteries according to local
regulations. Please recycle when possible. Do not dispose as household waste.
Troubadix_FCCdraft_UG_print.fm Page 89 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg5a.png)
Technical Information
90
8. Technical Information
Weight 92 grams (3,25 ounces) incl. BLD-5 battery
Battery 760 mAh Li-Ion Battery
Networks Wireless networks GSM 900, 1800
and1900
Size (volume) 4.39 cubic inches (72 cc)
Frequency range (Rx)
EGSM 900: 925 - 960 MHz
GSM 900: 935 - 960 MHz
GSM1800: 1805 - 1880 MHz
GSM1900: 1930 - 1990 MHz
Frequency range (Tx)
EGSM 900: 880 - 915 MHz
GSM 900: 890 - 915 MHz
GSM 1800: 1710 - 1785 MHz
GSM1900: 1850 - 1910 MHz
Tx output power 2 W (max)
Battery voltage 3.7 V DC
Number of channels 299
Troubadix_FCCdraft_UG_print.fm Page 90 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg5b.png)
CARE AND MAINTENANCE
91
CARE AND MAINTENANCE
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity
sensor, and light sensor lenses).
• Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications, or attachments could damage the device and may
violate regulations governing radio devices.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Troubadix_FCCdraft_UG_print.fm Page 91 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg5c.png)
IMPORTANT SAFETY INFORMATION
92
IMPORTANT SAFETY INFORMATION
■Traffic Safety
Do not use a hand-held telephone while driving a vehicle. Always secure the
phone in its holder; do not place the phone on the passenger seat or where it can
break loose in a collision or sudden stop.
Remember road safety always comes first!
■Operating environment
Remember to follow any special regulations in force in any area and always
switch off your device when its use is prohibited or when it may cause
interference or danger. Use the device only in its normal operating positions. This
device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 7/8 inch (2.2 cm) away from the body.
When a carry case, belt clip, or holder is used for body-worn operation, it should
not contain metal and should position the device at least 7/8 inch (2.2 cm) away
from your body.
In order to transmit data files or messages, this device requires a quality
connection to the network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 6 in. (15.3
cm) be maintained between a wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with
the independent research by and recommendations of Wireless Technology
Research. Persons with pacemakers should:
Troubadix_FCCdraft_UG_print.fm Page 92 Monday, July 12, 2004 5:07 PM
IMPORTANT SAFETY INFORMATION
93
• always keep the device more than 6 in. (15.3 cm) from their pacemaker when
the device is switched on;
• not carry the device in a breast pocket; and
• hold the device to the ear opposite the pacemaker to minimise the potential
for interference.
If you have any reason to suspect that interference is taking place, switch off
your device immediately.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Only qualified personnel should service the device, or install the device in a
vehicle. Faulty installation or service may be dangerous and may invalidate any
warranty that may apply to the device. Check regularly that all wireless device
equipment in your vehicle is mounted and operating properly. Do not store or
carry flammable liquids, gases, or explosive materials in the same compartment
as the device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refuelling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
Troubadix_FCCdraft_UG_print.fm Page 93 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg5e.png)
IMPORTANT SAFETY INFORMATION
94
depots, storage, and distribution areas, chemical plants or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust or metal powders.
■Emergency calls
Important:
Wireless phones, including this device, operate using radio signals,
wireless networks, landline networks, and user-programmed functions.
Because of this, connections in all conditions cannot be guaranteed.
You should never rely solely on any wireless device for essential
communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Some networks may require that a valid SIM card is properly inserted in the
device.
2. Press as many times as needed to clear the display and ready the device
for calls.
3. Key in the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the key.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. If the device is in offline or flight mode you
must change the profile to activate the phone function before you can make an
emergency call. Consult this guide or your service provider for more information.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless device may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO
RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed and
manufactured not to exceed the limits for exposure to radio frequency (RF)
energy adopted by the governments of the USA through the Federal
Communications Commission (FCC) and Canada through Industry Canada (IC).
Troubadix_FCCdraft_UG_print.fm Page 94 Monday, July 12, 2004 5:07 PM
IMPORTANT SAFETY INFORMATION
95
These limits establish permitted levels of RF energy for the general population.
The guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit adopted by the USA and
Canada is 1.6 watts/ kilogram (W/kg) averaged over one gram of tissue. The limit
incorporates a substantial margin of safety to give additional protection for the
public and to account for any variations in measurements. Tests for SAR are
conducted using standard operating positions with the device transmitting at its
highest certified power level in all tested frequency bands. The actual SAR level
of an operating device can be well below the maximum value because the device
is designed to use only the power required to reach the network. That amount
changes depending on a number of factors such as how close you are to a
network base station.
The highest SAR value reported to the FCC and IC for this device type when tested
for use at the ear is 0.80 W/kg, and when properly worn on the body is 0.77 W/kg.
SAR information on file with the FCC can be found under the Display Grant
section of http://www.fcc.gov/oet/fccid after searching on FCC ID PPIRM-17.
SAR values reported in other countries may vary depending on differences in
reporting and testing requirements and the network band. Additional SAR
information may be provided under product information at http://
www.nokia.com.
Troubadix_FCCdraft_UG_print.fm Page 95 Monday, July 12, 2004 5:07 PM
![](/img.php?id=451216&img=bg60.png)
APPENDIX
96
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association. All Rights Reserved.
1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone: (202)
785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful ability to
communicate by voice--almost anywhere, anytime--with the boss, with a client,
with the kids, with emergency personnel or even with the police. Each year,
Americans make billions of calls from their wireless phones, and the numbers are
rapidly growing.
But an important responsibility accompanies those benefits, one that every
wireless phone user must uphold. When driving a car, driving is your first
responsibility. A wireless phone can be an invaluable tool, but good judgment
must be exercised at all times while driving a motor vehicle--whether on the
phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires alertness,
caution and courtesy. It requires a heavy dose of basic common sense---keep
your head up, keep your eyes on the road, check your mirrors frequently and
watch out for other drivers. It requires obeying all traffic signs and signals and
staying within the speed limit. It means using seatbelts and requiring other
passengers to do the same.
But with wireless phone use, driving safely means a little more. This brochure is a
call to wireless phone users everywhere to make safety their first priority when
behind the wheel of a car. Wireless telecommunications is keeping us in touch,
simplifying our lives, protecting us in emergencies and providing opportunities to
help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial and
redial. Carefully read your instruction manual and learn to take advantage of
valuable features most phones offer, including automatic redial and memory.
Also, work to memorize the phone keypad so you can use the speed dial
function without taking your attention off the road.
Troubadix_FCCdraft_UG_print.fm Page 96 Monday, July 12, 2004 5:07 PM
APPENDIX
97
2. When available, use a hands free device. A number of hands free wireless
phone accessories are readily available today. Whether you choose an
installed mounted device for your wireless phone or a speaker phone
accessory, take advantage of these devices if available to you.
3. Position your wireless phone within easy reach. Make sure you place your
wireless phone within easy reach and where you can grab it without
removing your eyes from the road. If you get an incoming call at an
inconvenient time, if possible, let your voice mail answer it for you.
4. .Suspend conversations during hazardous driving conditions or situations. Let
the person you are speaking with know you are driving; if necessary, suspend
the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow
and ice can be hazardous, but so is heavy traffic. As a driver, your first
responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading
an address book or business card, or writing a “to do” list while driving a car,
you are not watching where you are going. It’s common sense. Don’t get
caught in a dangerous situation because you are reading or writing and not
paying attention to the road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not
moving or before pulling into traffic. Try to plan your calls before you begin
your trip or attempt to coincide your calls with times you may be stopped at a
stop sign, red light or otherwise stationary. But if you need to dial while
driving, follow this simple tip--dial only a few numbers, check the road and
your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not mix--
they are distracting and even dangerous when you are behind the wheel of a
car. Make people you are talking with aware you are driving and if necessary,
suspend conversations which have the potential to divert your attention from
the road.
8. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a “Good Samaritan” in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
9. Use your wireless phone to call for help. Your wireless phone is one of the
greatest tools you can own to protect yourself and your family in dangerous
situations--with your phone at your side, help is only three numbers away.
Dial 9-1-1 or other local emergency number in the case of fire, traffic
Troubadix_FCCdraft_UG_print.fm Page 97 Monday, July 12, 2004 5:07 PM
APPENDIX
98
accident, road hazard or medical emergency. Remember, it is a free call on
your wireless phone!
10. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a “Good Samaritan” in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
11. Call roadside assistance or a special wireless non-emergency assistance
number when necessary. Certain situations you encounter while driving may
require attention, but are not urgent enough to merit a call for emergency
services. But you still can use your wireless phone to lend a hand. If you see a
broken-down vehicle posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured or a vehicle you know to
be stolen, call roadside assistance or other special non-emergency wireless
number.
Careless, distracted individuals and people driving irresponsibly represent a
hazard to everyone on the road. Since 1984, the Cellular Telecommunications
Industry Association and the wireless industry have conducted educational
outreach to inform wireless phone users of their responsibilities as safe drivers
and good citizens. As we approach a new century, more and more of us will take
advantage of the benefits of wireless telephones. And, as we take to the roads,
we all have a responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
■A message from the U.S. Food and Drug Administration to
all users of mobile phones
© July 18, 2001 For updates: http://www.fda.gov/cdrh/phones.
Consumer Update on Wireless Phones
U.S. Food and Drug Administration
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency
energy (RF) in the microwave range while being used. They also emit very low
levels of RF when in the stand-by mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not produce
Troubadix_FCCdraft_UG_print.fm Page 98 Monday, July 12, 2004 5:07 PM
APPENDIX
99
heating effects causes no known adverse health effects. Many studies of low
level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings have not
been confirmed by additional research. In some cases, other researchers have had
difficulty in reproducing those studies, or in determining the reasons for
inconsistent results.
2. What is FDA's role concerning the safety of wireless phones?
• Support needed research into possible biological effects of RF of the type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has authority to take action if
wireless phones are shown to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this working group:
• • National Institute for Occupational Safety and Health
• • Environmental Protection Agency
• • Federal Communications Commission
• • Occupational Safety and Health Administration
• • National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are
typically thousands of times lower than those they can get from wireless phones.
Base stations are thus not the subject of the safety questions discussed in this
document.
Troubadix_FCCdraft_UG_print.fm Page 99 Monday, July 12, 2004 5:07 PM
APPENDIX
100
3. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with built-in
antennas, often called cell mobile or PCS phones. These types of wireless phones
can expose the user to measurable radiofrequency energy (RF) because of the
short distance between the phone and the user’s head. These RF exposures are
limited by Federal Communications Commission safety guidelines that were
developed with the advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the exposure to RF
is drastically lower because a person's RF exposure decreases rapidly with
increasing distance from the source. The so-called cordless phones; which have a
base unit connected to the telephone wiring in a house, typically operate at far
lower power levels, and thus produce RF exposures far below the FCC safety
limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies
have suffered from flaws in their research methods. Animal experiments
investigating the effects of radiofrequency energy (RF) exposures characteristic
of wireless phones have yielded conflicting results that often cannot be repeated
in other laboratories. A few animal studies, however, have suggested that low
levels of RF could accelerate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor development used
animals that had been genetically engineered or treated with cancer-causing
chemicals so as to be pre-disposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions under which people use
wireless phones, so we don’t know with certainty what the results of such studies
mean for human health.
5. What research is needed to decide whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people
actually using wireless phones would provide some of the data that are needed.
Lifetime animal exposure studies could be completed in a few years. However,
very large numbers of animals would be needed to provide reliable proof of a
cancer promoting effect if one exists. Epidemiological studies can provide data
that is directly applicable to human populations, but 10 or more years follow-up
may be needed to provide answers about some health effects, such as cancer.
This is because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do - may be many, many years. The
interpretation of epidemiological studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless phones. Many factors
Troubadix_FCCdraft_UG_print.fm Page 100 Monday, July 12, 2004 5:07 PM
APPENDIX
101
affect this measurement, such as the angle at which the phone is held, or which
model of phone is used.
6. What is FDA doing to find out more about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF).
FDA has been a leading participant in the World Health Organization
International Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed agenda of
research needs that has driven the establishment of new research programs
around the world. The Project has also helped develop a series of public
information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a
formal Cooperative Research and Development Agreement (CRADA) to do
research on wireless phone safety. FDA provides the scientific oversight,
obtaining input from experts in government, industry, and academic
organizations. CTIAfunded research is conducted through contracts to
independent investigators. The initial research will include both laboratory
studies and studies of wireless phone users. The CRADA will also include a broad
assessment of additional research needs in the context of the latest research
developments around the world.
7. How can I find out how much radiofrequency energy exposure I can get by
using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures.
FCC established these guidelines in consultation with FDA and the other federal
health and safety agencies. The FCC limit for RF exposure from wireless
telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram
(1.6 W/kg). The FCC limit is consistent with the safety standards developed by the
Institute of Electrical and Electronic Engineering (IEEE) and the National Council
on
Radiation Protection and Measurement. The exposure limit takes into
consideration the body’s ability to remove heat from the tissues that absorb
energy from the wireless phone and is set well below levels known to have
effects. Manufacturers of wireless phones must report the RF exposure level for
each model of phone to the FCC. The FCC website (http://www.fcc.gov/oet/
rfsafety) gives directions for locating the FCC identification number on your
phone so you can find your phone’s RF exposure level in the online listing.
Troubadix_FCCdraft_UG_print.fm Page 101 Monday, July 12, 2004 5:07 PM
APPENDIX
102
8. What has FDA done to measure the radiofrequency energy coming from
wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a
technical standard for measuring the radiofrequency energy (RF) exposure from
wireless phones and other wireless handsets with the participation and
leadership of FDA scientists and engineers. The standard, Recommended Practice
for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human
Body Due to Wireless Communications Devices: Experimental Techniques, sets
forth the first consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses a tissue-
simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the
consistency of measurements made at different laboratories on the same phone.
SAR is the measurement of the amount of energy absorbed in tissue, either by the
whole body or a small part of the body. It is measured in watts/kg (or milliwatts/
g) of matter. This measurement is used to determine whether a wireless phone
complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency energy from
my wireless phone?
If there is a risk from these products--and at this point we do not know that there
is--it is probably very small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to minimize your exposure to
radiofrequency energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or use a wireless
phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are harmful.
But if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless
phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the time of wireless
Troubadix_FCCdraft_UG_print.fm Page 102 Monday, July 12, 2004 5:07 PM
APPENDIX
103
phone use and increasing the distance between the user and the RF source will
reduce RF exposure.Some groups sponsored by other national governments have
advised that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health hazard
exists.
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some
electronic devices. For this reason, FDA helped develop a detailed test method to
measure electromagnetic interference (EMI) of implanted cardiac pacemakers
and defibrillators from wireless telephones. This test method is now part of a
standard sponsored by the Association for the Advancement of Medical
instrumentation (AAMI). The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was completed in late 2000. This
standard will allows manufacturers to ensure that cardiac pacemakers and
defibrillators are safe from wireless phone EMI. FDA has tested hearing aids for
interference from handheld wireless phones and helped develop a voluntary
standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE).
This standard specifies test methods and performance requirements for hearing
aids and wireless phones so that no interference occurs when a person uses a
compatible phone and a accompanied hearing aid at the same time. This
standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible interactions
with other medical devices. Should harmful interference be found to occur, FDA
will conduct testing to assess the interference and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
• FDA web page on wireless phones
http://www.fda.gov/cdrh/phones/index.html
• Federal Communications Commission (FCC) RF Safety Program
http://www.fcc.gov/oet/rfsafety
• International Commission on Non-Ionizing Radiation Protection
http://www.icnirp.de
• World Health Organization (WHO) International EMF Project
http://www.who.int/emf
Troubadix_FCCdraft_UG_print.fm Page 103 Monday, July 12, 2004 5:07 PM
APPENDIX
104
• National Radiological Protection Board (UK)
http://www.nrpb.org.uk/
July 18, 2001
For updates: http://www.fda.gov/cdrh/phones
Troubadix_FCCdraft_UG_print.fm Page 104 Monday, July 12, 2004 5:07 PM
