Microsoft RM-210 GSM850/900/1800/1900/FDD I/FDD V Cell Phone w/BT User Manual RM 210 FCC Draft 30 Apr 07 HD
Microsoft Mobile Oy GSM850/900/1800/1900/FDD I/FDD V Cell Phone w/BT RM 210 FCC Draft 30 Apr 07 HD
Manual
FCC Draft
RM-210 User Guide
9200882
Issue 1
FCC Draft
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-210 product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product must be taken
to separate collection at the product end-of-life. This applies to your device but also to any
enhancements marked with this symbol. Do not dispose of these products as unsorted municipal
waste. For more information, see product Eco-Declaration or country specific information at
www.nokia.com.
Copyright © 2007 Nokia. All rights reserved.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
Nokia, Visual Radio, Nokia Connecting People, Xpress-on, XpressPrint, Nokia Care and Navi are
trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names mentioned herein may be trademarks or tradenames of
their respective owners.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2006. Tegic
Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance with the
MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use
in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be
implied for any other use. Additional information, including that relating to promotional, internal, and
commercial uses, may be obtained from MPEG LA, LLC. See <http://www.mpegla.com>.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA
OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW,
NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
0434
FCC Draft
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for these products may vary by region.
Please check with your Nokia dealer for details, and availability of language options.
This device complies with Directive 2002/95/EC on the restriction of the use of certain hazardous
substances in electrical and electronic equipment.
Export controls
This device may contain commodities, technology or software subject to export laws and regulations from
the US and other countries. Diversion contrary to law is prohibited.
NO WARRANTY
The third-party applications provided with your device may have been created and may be owned by
persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or
intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility
for end-user support, functionality of the applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the third-party applications.BY USING THE
APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY
OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU
FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT
INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
9200882/Issue 1
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to
receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such
interference cannot be eliminated. If you require assistance, contact your local service facility. This device
complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or modifications not expressly
approved by Nokia could void the user's authority to operate this equipment.
4
FCC Draft
Contents
For your safety ................................. 8
General information ...................... 11
Access codes ................................................... 11
Configuration settings service ................... 11
Software updates........................................... 12
Download content......................................... 12
Nokia support ................................................. 13
1. Get started.................................. 13

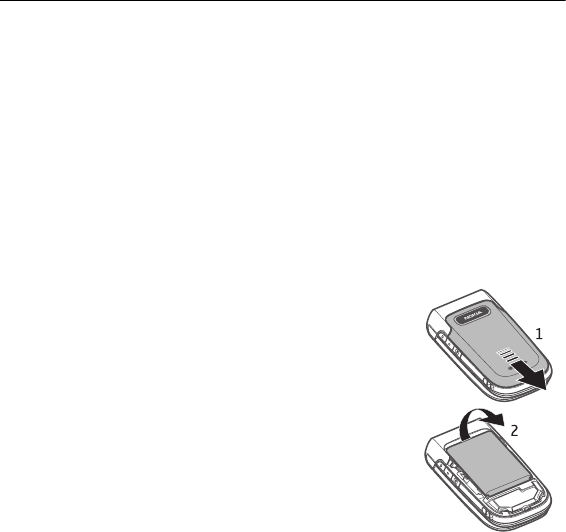

Install the SIM card and battery ............... 13
Insert a microSD card................................... 14
Remove the microSD card........................... 15
Charge the battery ........................................ 15
Open and close the phone .......................... 16
Switch the phone on and off ..................... 16
Phone strap ..................................................... 16
Antenna............................................................ 17
2. Your phone ................................. 17

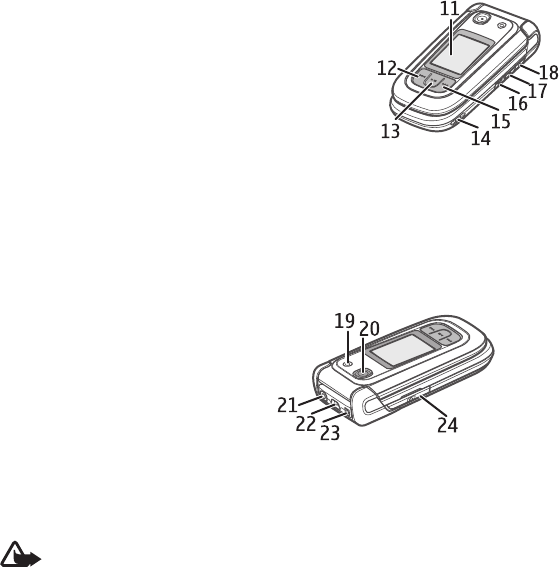

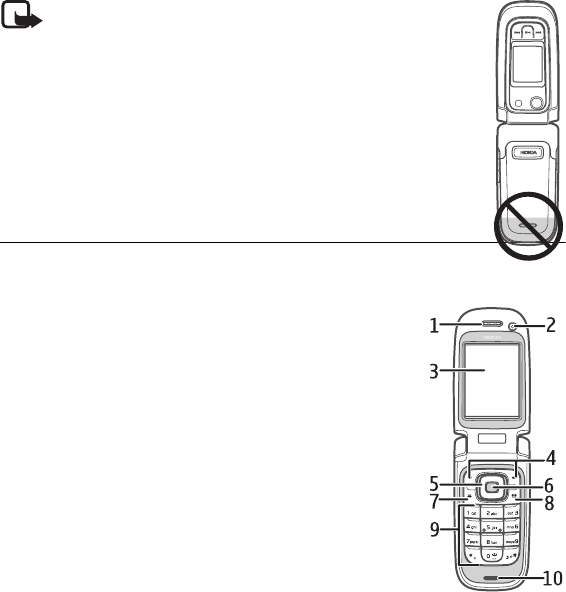

Keys and parts ................................................ 17
Standby mode................................................. 19
Flight mode ..................................................... 21
Keypad lock (keyguard)................................ 21
Functions without a SIM card ................... 22
3. Call functions ............................. 22
Make a voice call........................................... 22
Answer or reject a call ................................. 23
Options during a voice call ......................... 24
Make a video call........................................... 24
Answer or reject a video call...................... 25
Options during a video call......................... 25
Video sharing .................................................. 25
4. Write text ................................... 26
Traditional text input ................................... 26
Predictive text input ..................................... 27
5. Navigate the menus................... 27
6. Messaging................................... 28
Message............................................................ 28
Flash messages ............................................... 30
Nokia Xpress audio messaging................... 30
Memory full ..................................................... 31
Folders ............................................................... 31
E-mail application ......................................... 32
Instant messaging.......................................... 34
Voice messages............................................... 34
Info messages.................................................. 34
Service commands ......................................... 34
Delete messages ............................................. 35
SIM messages.................................................. 35
Message settings............................................ 35
7. Contacts ..................................... 37
Search for a contact...................................... 38
Save names and phone numbers............... 38
Save details...................................................... 38
Copy or move contacts................................. 38
Edit contact details........................................ 39
Synchronize all................................................ 39
Delete contacts............................................... 39
Business cards................................................. 39
Settings ............................................................. 39
Groups ............................................................... 40
Speed dialing................................................... 40
8. Log .............................................. 40
9. Settings ..................................... 41
Profiles .............................................................. 41
Themes .............................................................. 41
Tones.................................................................. 41
Main display .................................................... 42
Mini display ..................................................... 42
Date and time ................................................. 42
My shortcuts.................................................... 43
Connectivity..................................................... 44
Call ..................................................................... 48
Phone................................................................. 48
Configuration .................................................. 49
Security ............................................................. 50
Digital rights management ......................... 51
5
FCC Draft
Phone software updates .............................. 52
Restore factory settings............................... 52
10.Operator menu.......................... 52
11.Gallery ....................................... 53
Print images .................................................... 53
Memory card................................................... 53
12.Media......................................... 54
Camera.............................................................. 54
Video.................................................................. 55
Music player.................................................... 56
Radio ................................................................. 57
Voice recorder................................................. 59
Equalizer........................................................... 59
13.Organizer................................... 59
Alarm clock...................................................... 59
Calendar ........................................................... 60
To-do list.......................................................... 61
Notes................................................................. 61
Calculator......................................................... 61
Countdown timer........................................... 62
Stopwatch........................................................ 62
14.Push to talk............................... 63
PTTchannels..................................................... 63
Switch PTT on and off .................................. 64
Make and receive a PTT call ....................... 64
Callback requests........................................... 66
Add a one-to-one contact .......................... 67
PTT settings ..................................................... 67
Configuration settings ................................. 68
Web.................................................................... 68
15.Applications .............................. 68
Launch a game ............................................... 68
Launch an application .................................. 69
Application options ....................................... 69
Download an application............................. 69
16.SIM services.............................. 69
17.Web ........................................... 70
Set up browsing.............................................. 70
Connect to a service...................................... 70
Browse pages .................................................. 71
Bookmarks........................................................ 71
Appearance settings...................................... 72
Security settings............................................. 73
Download settings ......................................... 73
Service inbox ................................................... 73
Cache memory ................................................ 74
Browser security............................................. 74
18.PC connectivity......................... 76
Nokia PC Suite ................................................ 76
Packet data, HSCSD, and CSD .................... 76
Bluetooth.......................................................... 76
Data communication applications ............ 76
19.Battery information ................. 77
Charging and discharging............................ 77
Nokia battery authentication ..................... 78
20.Technical Information.............. 80
Care and maintenance................... 81
Additional safety information ...... 82
APPENDIX....................................... 86
A message from the CTIA ........................... 86
Message from the FDA ................................. 88
Index............................................... 92
6
FCC Draft
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or when it
may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the device at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do
not touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
7
FCC Draft
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all important
information stored in your device.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone function of the device is switched on and in service. Press the
end key as many times as needed to clear the display and return to the standby
mode. Enter the emergency number, then press the call key. Give your location.
Do not end the call until given permission to do so.
■About your device
The wireless device described in this guide is approved for use on the WCDMA 850 and 2100,
EGSM 850 and 900, and GSM 1800 and 1900 network. Contact your service provider for
more information about networks.
When using the features in this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights.
Copyright protections may prevent some images, music (including ringing tones), and other
content from being copied, modified, transferred, or forwarded.
Warning: To use any features in this device, other than the alarm clock, the device
must be switched on. Do not switch the device on when wireless device use may
cause interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of the
features require special network features. These features are not available on all networks;
other networks may require that you make specific arrangements with your service provider
before you can use the network services. Your service provider can give you instructions and
explain what charges will apply. Some networks may have limitations that affect how you
can use network services. For instance, some networks may not support all language-
dependent characters and services.
Your service provider may have requested that certain features be disabled or not activated
in your device. If so, these features will not appear on your device menu. Your device may
also have a special configuration such as changes in menu names, menu order, and icons.
Contact your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols. Some
features of this device, such as multimedia messaging (MMS), browsing, e-mail application,
8
FCC Draft
instant messaging, presence enhanced contacts, remote synchronization, and content
downloading using the browser or MMS, require network support for these technologies.
■Shared memory
The following features in this device may share memory: gallery, contacts, text messages,
multimedia messages, and instant messaging, e-mail, calendar, to-do notes, Java™ games
and application, and note application. Use of one or more of these features may reduce the
memory available for the remaining features sharing memory. Your device may display a
message that the memory is full when you try to use a shared memory feature. In this case,
delete some of the information or entries stored in the shared memory features before
continuing.
■Enhancements
A few practical rules about accessories and enhancements:
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp and pull
the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and are operating
properly.
• Installation of any complex car enhancements must be made by qualified personnel only.
9
FCC Draft
General information
■Access codes
Security code
The security code (5 to 10 digits) helps to protect your phone against
unauthorized use. The preset code is 12345. To change the code, and to set the
phone to request the code, see Security p. 48.
PIN codes
The personal identification number (PIN) code and the universal personal
identification number (UPIN) code (4 to 8 digits) help to protect your SIM card
against unauthorized use. See Security p. 48.
The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is required for
some functions.
The module PIN is required to access the information in the security module. See
Security module p. 72.
The signing PIN is required for the digital signature. See Digital signature p. 73.
PUK codes
The personal unblocking key (PUK) code and the universal personal unblocking key
(UPUK) code (8 digits) are required to change a blocked PIN code and UPIN code,
respectively. The PUK2 code (8 digits) is required to change a blocked PIN2 code. If
the codes are not supplied with the SIM card, contact your local service provider
for the codes.
Barring password
The barring password (4 digits) is required when using the call barring service. See
Security p. 48.
■Configuration settings service
To use some of the network services, such as mobile internet services, MMS, Nokia
Xpress audio messaging, or remote internet server synchronization, your phone
needs the correct configuration settings. For more information on availability,
10
FCC Draft
contact your network operator, service provider, nearest authorized Nokia dealer,
or visit the support area on the Nokia website, www.nokia.com/support.
When you have received the settings as a configuration message, and the settings
are not automatically saved and activated, Configuration settings received is
displayed.
To save the settings, select Show > Save. If required, enter the PIN code supplied
by the service provider.
To discard the received settings, select Exit or Show > Discard.
■Software updates
Nokia may produce software updates that may offer new features, enhanced
functions, or improved performance. You may be able to request these updates
through the Nokia Software Updater PC application. To update the device
software, you need the Nokia Software Updater application and a compatible PC
with Microsoft Windows 2000 or XP operating system, broadband internet access,
and a compatible data cable to connect your device to the PC.
To get more information and to download the Nokia Software Updater
application, visit www.nokia.com/softwareupdate or your local Nokia website.
If software updates over the air are supported by your network, you may also be
able to request updates through the device. See Phone p. 46, Phone updates.
Downloading software updates may involve the transmission of large amounts of
data through your service provider’s network. Contact your service provider for
information about data transmission charges.
Make sure that the device battery has enough power, or connect the charger
before starting the update.
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
■Download content
You may be able to download new content (for example, themes) to the phone
(network service).
For the availability of different services, pricing, and tariffs, contact your service
provider.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
11
FCC Draft
■Nokia support
Check www.nokia.com/support or your local Nokia website for the latest version of the user
guide, additional information, downloads, and services related to your Nokia product.
On the website, you can get information on the use of Nokia products and
services. If you need to contact customer service, check the list of local Nokia
contact centers at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia service center at
www.nokia.com/repair.
1. Get started
■Install the SIM card and battery
Always switch the device off and disconnect the charger before removing the
battery.
For availability and information on using SIM card services, contact your SIM card vendor.
This may be the service provider or other vendor.
This device is intended for use with a BL-5C battery. Always use original Nokia
batteries. See Nokia battery authentication p. 76.
The SIM card and its contacts can easily be damaged by scratches or bending, so
be careful when handling, inserting, or removing the card.
1. With the back of the phone facing you, slide the back
cover to remove it from the phone.
2. To remove the battery, lift it as shown.
12
FCC Draft
3. To release the SIM card holder, gently pull the
locking clip of the card holder, and open it.
4. Insert the SIM card into the SIM card holder.
Make sure that the SIM card is properly inserted
and that the golden contact area on the card is
facing downwards.
5. Close the SIM card holder, and press it until it
snaps into position.
6. Replace the battery.
7. Slide the back cover into place.
■Insert a microSD card
1. Open the memory card holder as shown.
2. Insert the card into the microSD card
slot with the gold-colored contact area
on the card facing upwards, and press it
until it clicks into place.
3. Close the memory card holder.
Memory card is not included in sales pack.
13
FCC Draft
Important: Do not remove the memory card in the middle of an operation when
the card is being accessed. Removing the card in the middle of an operation may
damage the memory card as well as the device, and data stored on the card may
be corrupted.
■Remove the microSD card
You can remove or replace the microSD card during phone operation without
switching the phone off.
1. Make sure that no application is currently accessing the micro SD memory
card.
2. Open the memory card holder.
3. Press the microSD card slightly in to release the locking.
4. Remove the microSD card from the slot.
■Charge the battery
Check the model number of any charger before use with this device. This device is intended
for use when supplied with power from an AC-3, AC-4, AC-5 or CA-70 charger.
Warning: Use only batteries, chargers, and enhancements approved by Nokia for
use with this particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When
you disconnect the power cord of any enhancement, grasp and pull the plug, not
the cord.
1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the charger
connector as shown.
A CA-44 charger adapter can be used with older
charger models.
If the battery is completely discharged, it may take a
few minutes before the charging indicator appears
on the display or before any calls can be made.
14
FCC Draft
The charging time depends on the charger used. Charging a BL-5C battery with
the AC-4 charger takes approximately
1 hour and 30 minutes while the phone is in the standby mode.
■Open and close the phone
You open and close the phone manually. When you open the fold of the phone, it
opens up to approximately 165 degrees. Do not try to force the fold open more.
Depending on the theme, a tone sounds when you open and close the phone.
■Switch the phone on and off
Press and hold the end key until the phone turns on or
off.
If the phone asks for a PIN or a UPIN code, enter the
code (displayed as ****), and select OK.
Set the time, time zone, and date
Enter the local time, select the time zone of your location in terms of the time
difference with respect to Greenwich Mean Time (GMT), and enter the date. See
Date and time p. 40.
Plug and play service
When you switch on your phone for the first time, and the phone is in the standby
mode, you are asked to get the configuration settings from your service provider
(network service). Confirm or decline the query. See Configuration settings service
p. 9.
■Phone strap
Remove the back cover of the phone. Insert a strap as
shown in the picture. Replace the back cover.
15
FCC Draft
■Antenna
Your device has an internal antenna.
Note: As with any radio transmitting device, avoid touching an
antenna unnecessarily when the antenna is in use. For example,
avoid touching the cellular antenna during a phone call. Contact
with a transmitting or receiving antenna affects the quality of the
radio communication, may cause the device to operate at a higher
power level than otherwise needed, and may reduce the battery life.
2. Your phone
■Keys and parts
1Earpiece
2CIF camera
3 Main display
4 Left and right selection keys
5Navi
TM scroll key;
herein referred to as scroll key
6 Middle selection key
7 Call key
8 End key;
ends calls (short key press) and
turns phone on and off (long key press)
9Keypad
10 Close bumper
16
FCC Draft
11 Mini display
12 Music key;
rewinds current track (press and hold) or skips to
previous track (short key press)
13 Music key play/pause
14 Loudspeaker
15 Music key;
fast forwards current track (press and hold) or skip to
next track (short key press)
16 Camera key
17 Volume down key
18 Volume up key/PTT key
19 Camera flash
20 2-megapixel camera
21 Headset connector
22 USB port
23 Charger connector
24 Memory card slot
Warning: The scroll key and the middle selection key (6) in this device may
contain nickel. The scroll key and the middle selection key are not designed for
prolonged contact with the skin. Continuous exposure to nickel on the skin may
lead to a nickel allergy.
17
FCC Draft
■Standby mode
When the phone is ready for use, and you have not entered any characters, the
phone is in the standby mode.
Mini display
1 Network mode indicator
2 Signal strength of the cellular network
3 Battery charge status
4 Indicators
5 Network name or the operator logo
6 Clock and date
Main display
1 Network mode indicator
2 Signal strength of the cellular network
3 Battery charge status
4 Indicators
5 Network name or the operator logo
6 Clock
7 Main display
8 Left selection key;
Go to or a shortcut to another function. See Left selection key p. 41.
9 Middle selection key; Menu.
10 Right selection key;
Names or a shortcut to a function that you selected. See Right selection key p. 41.
Active standby mode
To enable or disable the active standby mode, select Menu > Settings > Main
display > Active standby > Active standby mode > On or Off.
18
FCC Draft
To access active standby applications, first scroll up, and then scroll to the
application, and select Select or View. To select an application or event, scroll to it
and press the scroll key.
To end the active standby navigation mode select Exit.
To switch the active standby mode off, select Options > Active standby sett. >
Active standby mode > Off.
To organize and change the active standby mode,
activate the navigation mode, and select Options > Personalise view or Active
standby sett..
Indicators
You have unread messages.
You have unsent, canceled, or failed messages.
The phone registered a missed call.
, Your phone is connected to the instant messaging service, and the
availability status is online or offline.
You received one or several instant messages.
The keypad is locked.
The phone does not ring for an incoming call or text message.
The alarm clock is activated.
The countdown timer is running.
The stopwatch is running.
, The phone is registered to the GPRS or EGPRS network.
, A GPRS or EGPRS connection is established.
, The GPRS or EGPRS connection is suspended (on hold).
A Bluetooth connection is active.
,A push to talk connection is active or suspended.
19
FCC Draft
If you have two phone lines, the second phone line is selected.
All incoming calls are diverted to another number.
The loudspeaker is activated, or the music stand is connected to the
phone.
Calls are limited to a closed user group.
The timed profile is selected.
, , , or
A headset, handsfree, loopset, or music stand enhancement is connected
to the phone.
■Flight mode
You can deactivate all radio frequency functions and still have access to offline
games, the calendar, and phone numbers. Use the flight mode in radio sensitive
environments—on board aircraft or in hospitals. When the flight mode is active,
is shown.
Select Menu > Settings > Profiles > Flight > Activate or Personalise.
To deactivate the flight mode, select any other profile.
In the flight mode you can make an emergency call. Enter the emergency number,
press the call key, and select Yes when asked Exit flight profile? The phone
attempts to make an emergency call.
When the emergency call ends, the phone automatically changes to the general
profile mode.
Warning: With the flight profile you cannot make or receive any calls, including
emergency calls, or use other features that require network coverage. To make
calls, you must first activate the phone function by changing profiles. If the device
has been locked, enter the lock code. If you need to make an emergency call while
the device is locked and in the flight profile, you may be also able to enter an
official emergency number programmed in your device in the lock code field and
select 'Call'. The device will confirm that you are about to exit flight profile to start
an emergency call.
■Keypad lock (keyguard)
Select Menu or Unlock and press * within 1.5 seconds to lock or unlock the keypad.
20
FCC Draft
If the security keyguard is activated, enter the security code if requested.
To answer a call when the keyguard is on, press the call key or open the phone.
When you end or reject the call, the keypad automatically locks.
For Security keyguard, see Phone p. 46.
When the keyguard is on, calls may be possible to the official emergency number
programmed into your device.
■Functions without a SIM card
Several functions of your phone may be used without installing a SIM card (for
example, data transfer with a compatible PC or other compatible device). Some
functions appear dimmed in the menus and cannot be used.
3. Call functions
■Make a voice call
1. Enter the phone number, including the area code.
For international calls, press * twice for the international prefix (the +
character replaces the international access code), enter the country code, the
area code without the leading 0, if necessary, and the phone number.
2. To call the number, press the call key.
To increase or decrease the volume during a call, press the volume keys.
3. To end the call or to cancel the call attempt, press the end key, or close the
phone.
To search for a name or phone number that you saved in Contacts, see Search for a
contact p. 36. Press the call key to call the number.
To access the list of dialed numbers, press the call key once in the standby mode.
To call a number, select a number or name, and press the call key.
Speed dialing
Assign a phone number to one of the speed-dialing keys, 3 to 9. See Speed dialing
p. 38. Call the number in either of the following ways:
• Press a speed-dialing key, then the call key.
21
FCC Draft
•If Speed dialling is set to On, press and hold a speed-dialing key until the call
begins. See Speed dialling in Call p. 46.
Enhanced voice dialing
You can make a phone call by saying the name that is saved in the contact list of
the phone. Voice commands are language-dependent. To set the language, see
Recognition lang. in Phone p. 46.
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialing in all circumstances.
1. In the standby mode, press and hold the right selection key or press and hold
the volume down key. A short tone is played, and Speak now is displayed.
2. Say the voice command clearly. If the voice recognition was successful, a list
with matches is shown. The phone plays the voice command of the match on
the top of the list. If the result is not the correct one, scroll to another entry.
Using voice commands to carry out a selected phone function is similar to
voice dialing. See Voice commands in My shortcuts p. 41.
■Answer or reject a call
To answer an incoming call, press the call key, or open the phone.
To end the call, press the end key or close the phone.
To reject an incoming call, press the end key or close the phone.
To reject an incoming call when the phone is closed, press and hold a volume key.
To mute the ringing tone, press a volume key when the phone is closed, or select
Silence when the phone is open.
When receiving a call with the phone open, select Options >
Loudspeaker, Answer, or Reject
Call waiting
To answer the waiting call during an active call, press the call key. The first call is
put on hold. To end the active call, press the end key.
To activate the Call waiting function, see Call p. 46.
22
FCC Draft
■Options during a voice call
Many of the options that you can use during a call are network services. For
availability, contact your service provider.
During a call, select Options and from the following:
Call options are Mute or Unmute, Contacts, Menu, Lock keypad, Record or
Loudspeaker.
Network services options are Answer or Reject, Hold or Unhold, New call, Add to
conference, End call, End all calls, and the following:
Send DTMF — to send tone strings
Swap — to switch between the active call and the call on hold
Transfer — to connect a call on hold to an active call and disconnect yourself
Conference — to make a conference call
Private call —to discuss privately in a conference call
Warning: Do not hold the device near your ear when the loudspeaker is in use,
because the volume may be extremely loud.
■Make a video call
During operation, for example, during an active video call or highspeed data
connection, this device may at times feel warm. In most cases, this is normal, not a
fault. If you suspect the device is not working properly, take it to the nearest
authorized service facility for service.
When you make a video call, you send a real-time video to the recipient of the call.
The video image captured by the VGA camera above the main display, is shown to
the video call recipient.
To be able to make a video call, you must have a USIM card and be connected in a
WCDMA network. For availability of and subscription to video call services,
contact your network operator or service provider. A video call can only be made
between two parties. The video call can be made to a compatible phone or an
ISDN client. Video calls cannot be made while another voice, video, or data call is
active.
1. To start a video call, enter the phone number in the standby mode, or select
Contacts and a contact.
2. Press and hold the call key, or select Options > Video call.
Starting a video call may take a while. Video call and an animation are shown.
23
FCC Draft
If the call is not successful (for example, video calls are not supported by the
network or the receiving device is not compatible) you are asked if you want to
try a normal call or send a message instead.
Tip: To increase or decrease the volume during a call, press the volume
keys.
The video call is active when you can see two video images and hear the sound
through the loudspeaker. If the call recipient denies the video sending, you
may see a still image or a grey background graphic. You will hear the sound.
3. To end the call, press the end key.
■Answer or reject a video call
When a video call arrives, Video Call is displayed.
1. Press the call key to answer the video call.
If you select Yes, the image being captured by the camera in your phone is
shown to the caller. If you select No, or do nothing, video sending is not
activated, and you hear a sound. A graphic is displayed, indicating that the
video is not sent. You can enable or disable video sending at any time during
the video call.
2. To end the video call, press the end key.
Even when you deny video sending during a video call, the call is still charged as a
video call. Check the pricing with your network operator or service provider.
■Options during a video call
During a video call, select Options and from the available options.
■Video sharing
During voice call, you can share your live camera view with the call recipient. To
share a video, the recipient must have a compatible mobile device and a SIP
address in your contacts list. If the recipient’s SIP address is missing, enter it.
Select Options > Video sharing. The phone sends an invitation, and Sending
invitat. to is displayed. If the recipient accepts, Start sharing video? is displayed.
Select Yes, and the phone starts sending the video. Audio is routed to the
loudspeaker.
24
FCC Draft
To pause video sharing, select Pause. The middle selection key changes to
Continue.
To resume the video sharing select Continue. The middle selection key changes to
Pause.
To end a video sharing session, select Stop. Video sharing ended is shown to both
participants.
To check availability and costs, and to subscribe to the service, contact your
network operator or service provider.
4. Write text
You can enter text (for example, when writing messages) using traditional or
predictive text input. When you write text, select and hold Options to switch
between traditional text input, indicated by , and predictive text input,
indicated by . Not all languages are supported by predictive text input.
The character cases are indicated by , , and . To change the character
case, press #. To change from the letter to number mode, indicated by , press
and hold #, and select Number mode. To change from the number to the letter
mode, press and hold #.
To set the writing language, select Options > Writing language.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character appears. The
characters available depend on the selected writing language. If the next letter
you want is located on the same key as the present one, wait until the cursor
appears, and enter the letter. The most common punctuation marks and special
characters are available under the 1 key.
25
FCC Draft
■Predictive text input
Predictive text input is based on a built-in dictionary to which you can add new
words.
1. Start writing a word using the keys, 2 to 9. Press each key only once for one
letter. The phone displays * or the letter if it separately has a meaning as a
word. The entered letters are displayed underlined.
2. When you finish writing the word and it is correct, to confirm it, press 0 to add
a space.
If the word is not correct, press * repeatedly, and select the word from the list.
If the ? character is displayed after the word, the word you intended to write is
not in the dictionary. To add the word to the dictionary, select Spell. Enter the
word using traditional text input, and select Save.
To write compound words, enter the first part of the word, and scroll right to
confirm it. Write the last part of the word, and confirm the word.
3. Start writing the next word.
5. Navigate the menus
The phone offers you an extensive range of functions, which are grouped into
menus.
1. To access the menu, select Menu.
To change the menu view, select Options > Main menu view > List, Grid, Grid
with labels, or Tab.
To rearrange the menu, select Options > Organise. Scroll to the menu you want
to move, and select Move. Scroll to where you want to move the menu, and
select OK. To save the change, select Done > Yes.
2. Scroll through the menu, and select an option (for example, Settings).
3. If the selected menu contains further submenus, select the one that you want
(for example, Call).
4. If the selected menu contains further submenus, repeat step 3.
5. Select the setting of your choice.
6. To return to the previous menu level, select Back. To exit the menu, select Exit.
26
FCC Draft
6. Messaging
You can read, write, send, and save text messages, multimedia
messages, e-mail messages, audio messages and flash messages. All messages are
organized into folders.
■Message
Creating a message
Creating a new message is by default a text message but changes automatically
into multimedia message when files are added.
Text messages (SMS)
With the short message service (SMS) you can send and receive text messages,
and receive messages that can contain pictures (network service).
Before you can send any text or SMS e-mail messages, you must save your
message center number. See Message settings p. 33.
To check SMS e-mail service availability and to subscribe to the service, contact
your service provider. To save an e-mail address in Contacts, see Save details p. 36.
Your device supports the sending of text messages beyond the character limit for a single
message. Longer messages are sent as a series of two or more messages. Your service
provider may charge accordingly. Characters that use accents or other marks, and characters
from some language options, take up more space, limiting the number of characters that can
be sent in a single message.
An indicator at the top of the display shows the total number of characters left
and the number of messages needed for sending. For example, 673/2 means that
there are 673 characters left and that the message will be sent as a series of two
messages.
Write and send a text message
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers in the To: field. To retrieve a phone number
from a memory, select Add.
3. Write your message in the Text: field.
27
FCC Draft
To use a text template, scroll down and select Insert.
4. To send the message, select Send, or press the call key.
Read and reply to a text message
1. To view a received message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messaging > Inbox.
2. To reply to a message, select Reply. Write the reply message.
To add a file scroll down, and select Insert.
3. To send the message, select Send, or press the call key.
Multimedia messages (MMS)
Only devices that have compatible features can receive and display multimedia messages.
The appearance of a message may vary depending on the receiving device.
A multimedia message can contain some attachments.
To check availability and to subscribe to the multimedia messaging service (MMS,
network service), contact your service provider.
Write and send a multimedia message
The wireless network may limit the size of MMS messages. If the inserted picture exceeds
this limit, the device may make it smaller so that it can be sent by MMS.
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers or e-mail addresses in the To: field. To
retrieve a phone number or e-mail address from a memory, select Add.
3. Write your message. To add a file, scroll down and select Insert.
4. To view the message before sending it, select Options > Preview.
5. To send the message, select Send, or press the call key.
Message sending
Copyright protections may prevent some images, music (including ringing tones), and other
content from being copied, modified, transferred, or forwarded.
To send the message, select Send. The phone saves the message in the Outbox
folder, and the sending starts.
Note: Your device may indicate that your message was sent to the message center
number programmed into your device. Your device may not indicate whether the
message is received at the intended destination. For more details about messaging
services, contact your service provider.
28
FCC Draft
If an interruption occurs while the message is being sent, the phone tries to resend
the message a few times. If these attempts fail, the message remains in the
Outbox folder. To cancel the sending of the messagesOutbox, scroll to the desired
message, and select Options > Cancel sending.
Read and reply to a multimedia message
Important: Exercise caution when opening messages. Multimedia message objects
may contain malicious software or otherwise be harmful to your device or PC.
1.To view a received message, select Show. To view it later, select Exit.
To view the message later, select Menu > Messaging > Inbox.
2. To view the whole message if the received message contains a presentation,
select Play.
To view the files in the presentation or the attachments, select Options >
Objects or Attachments.
3. To reply to a message, select Reply. Write the reply message.
To add a file in the reply, scroll down and select Insert.
4. To send the message, select Send, or press the call key.
■Flash messages
Flash messages are text messages that are instantly displayed upon receipt. Flash
messages are not automatically saved.
Write a message
Select Menu > Messaging > Create message > Flash message. Enter the
recipient’s phone number, and write your message.
Receive a message
A received flash message is indicated with Message: and a few words from the
beginning of the message. To read the message, select Read. To extract numbers
and addresses from the current message, select Options > Use detail. To save the
message, select Save and the folder in which you want to save it.
■Nokia Xpress audio messaging
You can use the multimedia message service to create and send an audio message
in a convenient way. MMS must be activated before you can use audio messages.
29
FCC Draft
Create a message
1. Select Menu > Messaging > Create message > Audio message. The recorder
opens. To use the recorder, see Voice recorder p. 57.
2. Speak your message.
3. Enter one or more phone numbers in the To: field, or select Add to retrieve a
number.
4. To send the message, select Send, or press the call key.
Listen to a message
To open a received audio message, select Play. If more than one message is
received, select Show > Play. To listen to the message later, select Exit.
■Memory full
When you receive a message, and the memory for the messages is full, Memory
full. Unable to receive messages. is shown. To first delete old messages, select
OK > Yes and the folder. Scroll to the desired message, and select Delete. To delete
multiple messages, select Mark. Mark all the messages you want to delete, and
select Options > Delete marked.
■Folders
The phone saves received messages in the Inbox folder.
Messages that have not yet been sent are saved in the Outbox folder.
To set the phone to save the sent messages in the Sent items folder, see Save sent
messages in General settings p. 33.
To edit and send messages that you have written and saved in the Drafts folder,
select Menu > Messaging > Drafts.
You can move your messages to the Saved items folder. To organize your Saved
items subfolders, select Menu > Messaging > Saved items. To add a folder, select
Options > Add folder. To delete or rename a folder, scroll to the desired folder, and
select Options > Delete folder or Rename folder.
Your phone has templates. To access the template list, select Menu >
Messaging > Create message > Templates. To create a new template, write a
message, and select Options > Save message > Save as template.
30
FCC Draft
■E-mail application
The e-mail application uses a packet data connection (network service) to allow
you to access your e-mail account. This e-mail application is different from the
SMS e-mail function. To use the e-mail function on your phone, you need a
compatible e-mail system.
You can write, send, and read e-mail with your phone. Your phone supports POP3
and IMAP4 e-mail servers. This application does not support keypad tones.
Before you can send and retrieve any e-mail messages, you must obtain a new e-
mail account or use your current account. To check the availability of your e-mail
account, contact your e-mail service provider.
Check your e-mail settings with your e-mail service provider. You may receive the
e-mail configuration settings as a configuration message. See Configuration
settings service p. 9.
To activate the e-mail settings, select Menu > Messaging > Message settings > E-
mail messages. See E-mail messages p. 35.
Setting wizard
The setting wizard will start automatically if no e-mail settings are defined in the
phone. To enter the settings manually, select Menu > Messaging > E-mail >
Options > Manage accounts > Options > New.
Manage accounts options allow you to add, delete, and change the e-mail
settings. Make sure that you have defined the correct preferred access point for
your operator. See Configuration p. 47.
The e-mail application requires an internet access point without a proxy. WAP
access points normally include a proxy and do not work with the e-mail
application.
Write and send an e-mail
You can write your e-mail message before connecting to the e-mail service; or
connect to the service first, then write and send your e-mail.
1. Select Menu > Messaging > Create message > E-mail.
2. Enter the recipient’s e-mail address, write the subject, and enter the message.
To attach a file from Gallery, select Insert.
3. To send the e-mail message, select Send.
31
FCC Draft
If more than one e-mail account is defined, select the account from which you
want to send the e-mail.
To edit or continue writing your e-mail later, select Exit > Yes. The e-mail is
saved in Drafts.
Download e-mail
1. To download e-mail messages that have been sent to your e-mail account,
select Menu > Messaging > E-mail > Check new e-mail.
If more than one e-mail account is defined, select the account from which you
want to download the e-mail.
The e-mail application only downloads e-mail headers at first.
2. Select Back > Inboxes, the account name, and the new message, and select
Retrieve to download the complete e-mail message.
To download new e-mail messages and to send e-mail that has been saved in the
Outbox folder, select Options > Send and check for e-mail.
Read and reply to e-mail
Important: Exercise caution when opening messages. E-mail messages may
contain malicious software or otherwise be harmful to your device or PC.
1.Select Menu > Messaging > E-mail > Inboxes, the account name, and
the desired message.
2. To reply to an e-mail, select Reply > Original text or Empty message. To reply to
many, select Options > Reply to all. Confirm or edit the e-mail address and
subject, then write your reply.
3. To send the message, select Send > Send now.
E-mail folders
Your phone saves e-mail that you have downloaded from your e-mail account in
the Inboxes folder. The Outboxes folder contains the following folders: “Account
name” for incoming e-mail, Archive for archiving e-mail, Custom 1—Custom 3 for
sorting e-mail, Junk where all spam e-mail is stored, Drafts for saving unfinished
e-mail, Outbox for saving e-mail that has not been sent, and Sent items for saving
e-mail that has been sent.
To manage the folders and their e-mail content, select Options to view the
available options of each folder.
32
FCC Draft
Spam filter
To activate and define a spam filter, select Options > Spam filter > Settings in the
main e-mail idle screen. The spam filter allows you to put specific senders on a
black or white list. Messages from black list senders are filtered to the Junk folder.
Messages from unknown and white list senders are downloaded into the account
inbox. To blacklist a sender, select the e-mail message in the Inboxes folder and
Options > Blacklist sender.
■Instant messaging
With instant messaging (IM, network service) you can send short, simple text
messages to online users. You have to subscribe to a service and register with the
IM service you want to use. For more information about signing up for IM services,
contact your service provider.
Note: Depending on your IM service, you may not have access to all of the
features described in this guide.
■Voice messages
The voice mailbox is a network service and you may need to subscribe to it. For
more information contact your service provider.
To call your voice mailbox, select Menu > Messaging > Voice messages > Listen to
voice msgs.. To enter, search for, or edit your voice mailbox number, select Voice
mailbox no..
If supported by the network, indicates new voice messages. To call your voice
mailbox number, select Listen.
■Info messages
You can receive messages on various topics from your service provider (network
service). For more information, contact your service provider. Select Menu >
Messaging > Info messages and from the available options.
■Service commands
Write and send service requests (USSD commands) to your service provider, such
as activation commands for network services. Select Menu > Messaging > Serv.
commands.
33
FCC Draft
■Delete messages
To delete messages, select Menu > Messaging > Delete messages > By message to
delete single messages, By folder to delete all messages from a folder, or All
messages.
■SIM messages
SIM messages are specific text messages that are saved to your SIM card. You can
copy or move those messages to the phone memory, but not vice versa. To read
SIM messages, select Menu > Messaging > Options > SIM messages.
■Message settings
General settings
General settings are common for text and multimedia messages.
Select Menu > Messaging > Message settings > General settings and from the
following options:
Save sent messages > Yes — to set the phone to save the sent messages in the
Sent items folder
Overwriting in Sent > Allowed — to set the phone to overwrite the old sent
messages with the new ones when the message memory is full. This setting is
shown only if you select Save sent messages > Yes.
Font size — to select the font size used in messages
Favourite recipient — to define easily available message recipients or groups when
sending messages
Graphical smileys > Yes — to set the phone to replace character-based smileys
with graphical ones
Text messages
The text message settings affect the sending, receiving, and viewing of text and
SMS e-mail messages.
Select Menu > Messaging > Message settings > Text messages and from the
following options:
Delivery reports > Yes — to ask the network to send delivery reports about your
messages (network service)
34
FCC Draft
Message centres > Add centre — to set the phone number and name of the
message center that is required for sending text messages. You receive this
number from your service provider.
Msg. centre in use — to select the message center in use
Message validity — to select the length of time for which the network attempts to
deliver your message
Messages sent via — to select the format of the messages to be sent: Text, Paging,
or Fax (network service)
Use packet data > Yes — to set GPRS as the preferred SMS bearer
Character support > Full — to select all characters in the messages to be sent as
viewed. If you select Reduced, characters with accents and other marks may be
converted to other characters.
Rep. via same centre > Yes — to allow the recipient of your message to send you a
reply using your message center (network service)
E-mail msg. centres > Add centre — to set the phone numbers and name of the e-
mail message center for sending SMS e-mail.
E-mail centre in use — to select the SMS e-mail message center in use
Multimedia messages
The message settings affect the sending, receiving, and viewing of multimedia
messages. You may receive the configuration settings for multimedia messaging
as a configuration message. See Configuration settings service p. 9. You can also
enter the settings manually. See Configuration p. 47.
Select Menu > Messaging > Message settings > Multimedia messages and from
the following options:
Delivery reports > Yes — to ask the network to send delivery reports about your
messages (network service)
MMS creation mode — to restrict or allow various types of multimedia to be added
to messages
Image size in MMS — to set the image size in multimedia messages
Default slide timing — to define the default time between slides in multimedia
messages
Allow MMS receptn. — to receive or block the multimedia message, select Yes or
No. If you select In home network, you cannot receive multimedia messages when
35
FCC Draft
outside your home network. The default setting of the multimedia message
service is generally In home network. The availability of this menu depends on your
phone.
Incoming MMS msgs. — to decide how multimedia messages are retreived. This
setting is not shown if Allow MMS receptn. is set to No.
Allow adverts — to receive or reject advertisements. This setting is not shown if
Allow MMS receptn. is set to No, or Incoming MMS msgs. is set to Reject.
Configuration sett. > Configuration — only the configurations that support
multimedia messaging are shown. Select a service provider or Default for
multimedia messaging. Select Account and a MMS account contained in the
active configuration settings.
E-mail messages
The settings affect the sending, receiving, and viewing of e-mail. You may receive
the settings as a configuration message. See Configuration settings service p. 9.
You can also enter the settings manually. See Configuration p. 47.
Select Menu > Messaging > Message settings > E-mail messages and from the
following options:
New e-mail notif. — to select weather a notification is shown when new e-mails
are received
Allow mail reception — to select weather e-mails can be received in a foreign
network or only in home network
Reply with orig. msg. — to select if original message is included in reply
Image size in e-mail — to select the size of images in e-mails
Edit mailboxes — to add new mailboxes or edit one in use
7. Contacts
You can save names and phone numbers (contacts) in the phone
memory and in the SIM card memory.
The phone memory may save contacts with additional details, such as various
phone numbers and text items. You can also save an image for a limited number of
contacts.
36
FCC Draft
The SIM card memory can save names with one phone number attached to them.
The contacts saved in the SIM card memory are indicated by .
■Search for a contact
Select Menu > Contacts > Names. Scroll through the list of contacts, or enter the
first characters of the name you are searching for.
■Save names and phone numbers
Names and numbers are saved in the used memory. To save a name and phone
number, select Menu > Contacts > Names > Options > Add new contact.
■Save details
In the phone memory you can save different types of phone numbers, a tone or a
video clip, and short text items for a contact.
The first number you save is automatically set as the default number, and it is
indicated with a frame around the number type indicator (for example, ).
When you select a name from contacts (for example, to make a call), the default
number is used unless you select another number.
Make sure that the memory in use is Phone or Phone and SIM. See Settings p. 37.
Search for the contact to which you want to add a detail, and select Details >
Options > Add detail. Select from the available options.
■Copy or move contacts
You can move and copy contacts from the phone memory to the SIM card
memory, or vice versa. The SIM card can save names with one phone number
attached to them.
To move or copy contacts one by one, select Menu > Contacts > Names. Scroll to
the contact, and select Options > Move contact or Copy contact.
To move or copy multiple contacts, select Menu > Contacts > Names. Scroll to a
contact, and select Options > Mark. Mark the other contacts, and select Options >
Move marked or Copy marked.
To move or copy all contacts, select Menu > Contacts > Move contacts or Copy
contacts.
37
FCC Draft
■Edit contact details
Search for the contact, and select Details. To edit a name, number, or text item, or
to change the image, select Options > Edit. To change the number type, scroll to
the desired number, and select Options > Change type. To set the selected number
as the default number, select Set as default.
■Synchronize all
Synchronize your calendar, contacts data, and notes with a remote internet server
(network service). For details see Synchronize from a server p. 45.
■Delete contacts
To delete all the contacts and the details attached to them from the phone or SIM
card memory, select Menu > Contacts > Del. all contacts > From phone memory
or From SIM card.
To delete a contact, search for the desired contact, and select Options > Delete
contact.
To delete a number, text item, or an image attached to the contact, search for the
contact, and select Details. Scroll to the desired detail, and select Options >
Delete and from the available options.
■Business cards
You can send and receive a person’s contact information from a compatible device
that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you want to
send, and select Details > Options > Send business card.
When you have received a business card, select Show > Save to save the business
card in the phone memory. To discard the business card, select Exit > Yes.
■Settings
Select Menu > Contacts > Settings and from the following options:
Memory in use — to select the SIM card or phone memory for your contacts. Select
Phone and SIM to recall names and numbers from both memories. In that case,
when you save names and numbers, they are saved in the phone memory.
Contacts view — to select how the names and numbers in Contacts are displayed
38
FCC Draft
Name display — to select whether the contact’s first or last name is displayed first
Font size — to set the font size for the list of contacts
Memory status — to view the free and used memory capacity
■Groups
Select Menu > Contacts > Groups to arrange the names and phone numbers
saved in the memory into caller groups with different ringing tones and group
images.
■Speed dialing
To assign a number to a speed-dialing key, select Menu > Contacts > Speed dials,
and scroll to the speed-dialing number that you want.
Select Assign, or if a number has already been assigned to the key, select
Options > Change. Select Search and the contact you want to assign. If the Speed
dialling function is off, the phone asks whether you want to activate it. See also
Speed dialling in Call p. 46.
To make a call using the speed-dialing keys, see Speed dialing p. 20.
8. Log
The phone registers your missed, received, and dialed calls if the
network supports it and the phone is switched on and within the network service
area.
To view the information on your calls, select Menu > Log > Missed calls, Received
calls, or Dialled numbers. To view your recent missed and received calls and the
dialed numbers chronologically, select Call log. To view the contacts to whom you
most recently sent messages, select Msg. recipients.
To view the information on your recent communications, select Menu > Log >
Call duration, Data counter, or Pack. data timer.
To view how many text and multimedia messages you have sent and received,
select Menu > Log > Message log.
Note: The actual invoice for calls and services from your service provider may vary,
depending on network features, rounding off for billing, taxes, and so forth.
39
FCC Draft
9. Settings
■Profiles
Your phone has various settings groups called profiles, for which you can
customize the phone tones for different events and environments.
Select Menu > Settings > Profiles, the desired profile, and from the following
options:
Activate — to activate the selected profile
Personalise — to personalize the profile. Select the setting you want to change,
and make the changes.
Timed — to set the profile to be active until a certain time up to 24 hours, and set
the end time. When the time set for the profile expires, the previous profile that
was not timed becomes active.
■Themes
A theme contains elements for personalizing your phone.
Select Menu > Settings > Themes and from the following options:
Select theme — to set a theme. A list of folders in Gallery opens. Open the Themes
folder, and select a theme.
Theme downloads — to open a list of links to download more themes
■Tones
You can change the tone settings of the selected active profile.
Select Menu > Settings > Tones. You can find the same settings in the Profiles
menu. See Personalise in Profiles p. 39.
To set the phone to ring only for calls from phone numbers that belong to a
selected caller group, select Alert for. Scroll to the caller group you want or All
calls, and select Mark.
Select Options > Save to save the settings or Cancel to leave the settings
unchanged.
If you select the highest ringing tone level, the ringing tone reaches its highest level after a
few seconds.
40
FCC Draft
■Main display
Select Menu > Settings > Main display and from the available options:
Wallpaper — to add the background image in the standby mode
Active standby — to switch the active standby mode on or off and to organize and
personalize the active standby mode
Standby font colour — to select the color for the texts in the standby mode
Navigation key icons — to display the icons of the current scroll key shortcuts in
the standby mode when active standby is off
Notification details — to show or hide details such as contact information, in both
missed call and message received notifications
Fold animation — to set your phone to display an animation when you open and
close the phone
Font size — to set the font size for messaging, contacts, and web pages
Operator logo — to set your phone to display or hide the operator logo
Cell info display > On — to display the cell identity, if available from the network
■Mini display
Select Menu > Settings > Mini display and from the available options:
Wallpaper — to add the background image in the standby mode
Screen saver — to enable a screen saver that will be activated after a selected
time, if there is no action in the phone
Power saver — enabling the power saver allows you to save some battery power
Sleep mode — enabling the sleep mode allows you to save some battery power
Fold animation — to set your phone to display an animation when you open and
close the phone
■Date and time
To change the time, time zone, and date settings, select Menu > Settings > Date
and time > Date and time settings, Date and time format, or Auto-update of time
(network service).
When traveling to a different time zone, select Menu > Settings > Date and
time > Date and time settings > Time zone and the time zone of your location in
terms of the time difference with respect to Greenwich Mean Time (GMT) or
41
FCC Draft
Universal Time Coordinated (UTC). The time and date are set according to the time
zone and enable your phone to display the correct sending time of received text or
multimedia messages. For example, GMT -5 denotes the time zone for New York
(USA), 5 hours west of Greenwich/London (UK).
■My shortcuts
With personal shortcuts you get quick access to often used functions of the
phone.
Left selection key
To select a function from the list, select Menu > Settings > My shortcuts > Left
selection key.
If the left selection key is Go to to activate a function, in the standby mode, select
Go to > Options and from the following options:
Select options — to add a function to the shortcut list or to remove one
Organise — to rearrange the functions on your personal shortcut list
Right selection key
To select a function from the list, select Menu > Settings > My shortcuts > Right
selection key.
Navigation key
To assign other phone functions from a predefined list to the scroll key, select
Menu > Settings > My shortcuts > Navigation key.
Active standby key
To select a function from the list, select Menu > Settings > My shortcuts > Active
standby key.
Voice commands
To call contacts and carry out phone functions, say the voice commands. Voice
commands are language-dependent. To set the language, see Recognition lang. in
Phone p. 46.
42
FCC Draft
To select the phone functions to activate with voice commands, select Menu >
Settings > My shortcuts > Voice commands and a folder. Scroll to a function.
indicates that the voice tag is activated. To activate the voice tag, select Add. To
play the activated voice command, select Play. To use voice commands, see
Enhanced voice dialing p. 21.
To manage the voice commands, scroll to a phone function, and select from the
following options:
Edit or Remove — to change or deactivate the voice command of the selected
function
Add all or Remove all — to activate or deactivate voice commands to all functions
in the voice commands list
■Connectivity
You can connect the phone to a compatible device using a Bluetooth wireless
technology or a USB data cable connection.
Bluetooth wireless technology
This device is compliant with Bluetooth Specification 2.0 supporting the following profiles:
SIM access, object push, file transfer, dial -up networking, headset, hands-free, service
discovery application, generic access, serial port and generic object exchange. To ensure
interoperability between other devices supporting Bluetooth technology, use Nokia
approved enhancements for this model. Check with the manufacturers of other devices to
determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some locations. Check with your
local authorities or service provider.
Features using Bluetooth technology, or allowing such features to run in the background
while using other features, increase the demand on battery power and reduce the battery
life.
Bluetooth technology allows you to connect the phone to a compatible Bluetooth
device within 10 meters (32 feet). Since devices using Bluetooth technology
communicate using radio waves, your phone and the other devices do not need to
be in direct line of sight, although the connection can be subject to interference
from obstructions such as walls or from other electronic devices.
43
FCC Draft
Set up a Bluetooth connection
Select Menu > Settings > Connectivity > Bluetooth and from the following
options:
Bluetooth > On or Off — to activate or deactivate the Bluetooth function.
indicates that Bluetooth is activated. When activating Bluetooth technology for
the first time, you are asked to give a name for the phone. Use a unique name that
is easy for others to identify.
My phone's visibility or My phone's name — to define how your phone is shown to
other Bluetooth devices.
If you are concerned about security, turn off the Bluetooth function, or set My phone's
visibility to Hidden. Always accept only Bluetooth communication from others with whom
you agree.
Search audio enhanc. — to search for compatible Bluetooth audio devices. Select
the device that you want to connect to the phone.
Active devices — to check which Bluetooth connection is currently active
Paired devices — to search for any Bluetooth device in range. Select New to list
any Bluetooth device in range. Select a device and Pair. Enter an agreed Bluetooth
passcode of the device (up to 16 characters) to associate (pair) the device to your
phone. You must only give this passcode when you connect to the device for the
first time. Your phone connects to the device, and you can start data transfer.
Packet data connection (GPRS)
General packet radio service (GPRS) is a network service that allows mobile
phones to send and receive data over an internet protocol (IP)-based network.
To define how to use the service, select Menu > Settings > Connectivity > Packet
data > Packet data conn. and from the following options:
When needed — to set the packet data connection to established when an
application needs it. The connection will be closed when the application is ended.
Always online — to set the phone to automatically connect to a packet data
network when you switch the phone on
Modem settings
You can connect the phone using Bluetooth wireless technology or USB data
cable connection to a compatible PC and use the phone as a modem to enable
GPRS connectivity from the PC.
44
FCC Draft
To define the settings for connections from your PC, select Menu > Settings >
Connectivity > Packet data > Packet data settings > Active access point, and
activate the access point you want to use. Select Edit active access pt. > Packet
data acc. pt., enter a name to change the access point settings, and select OK.
Select Packet data acc. pt., enter the access point name (APN) to establish a
connection to a network, and select OK.
Establish an internet connection by using your phone as a modem. See Nokia PC
Suite p. 74. If you have set the settings both on your PC and on your phone, the PC
settings are used.
Data transfer
Synchronize your calendar, contacts data, and notes with another compatible
device (for example, a mobile phone), a compatible PC, or a remote internet server
(network service).
Your phone allows data transfer with a compatible PC or another compatible
device when using the phone without a SIM card.
Transfer contact list
To copy or synchronize data from your phone, the name of the device and the
settings must be in the list of transfer contacts. If you receive data from another
device (for example, a compatible mobile phone), the corresponding transfer
contact is automatically added to the list, using the contact data from the other
device. Server sync and PC synchronisation are the original items in the list.
To add a new transfer contact to the list (for example, a mobile phone), select
Menu > Settings > Connectivity > Data transfer > Options > Add transfer
contact > Phone synchronisation or Phone copy, and enter the settings according
to the transfer type.
To edit the copy and synchronize settings, select a contact from the transfer
contact list and Options > Edit.
To delete a transfer contact, select it from the transfer contact list, and select
Options > Delete.
Data transfer with a compatible device
For synchronization use Bluetooth wireless technology or a cable connection. The
other device must be activated for receiving data.
45
FCC Draft
To start data transfer, select Menu > Settings > Connectivity > Data transfer and
the transfer contact from the list, other than Server sync or PC synchronisation.
According to the settings, the selected data is copied or synchronized.
Synchronize from a compatible PC
To synchronize data from calendar, notes, and contacts, install the Nokia PC Suite
software for your phone on the PC. Use Bluetooth wireless technology or a USB
data cable for the synchronization, and start the synchronization from the PC.
Synchronize from a server
To use a remote internet server, subscribe to a synchronization service. For more
information and the settings required for this service, contact your service
provider. You may receive the settings as a configuration message. See
Configuration settings service p. 9 and Configuration p. 47.
To start the synchronization from your phone, select Menu > Settings >
Connectivity > Data transfer > Server sync. Depending on the settings, select
Initialising syn-chronisation or Initialising copy.
Synchronizing for the first time or after an interrupted synchronization may take
up to 30 minutes to complete.
USB data cable
You can use the USB data cable to transfer data between the phone and a
compatible PC or a printer supporting PictBridge. You can also use the USB data
cable with Nokia PC Suite.
To activate the phone for data transfer or image printing, connect the data cable.
Confirm USB data cable connected. Select mode. and select from the following
options:
Nokia mode — to use the phone to interact with applications on a PC that has
Nokia PC Suite
Printing & Media — to use the phone with a PictBridge compatible printer, or to
connect the phone to a PC to synchronize it with Windows Media Player (music,
video)
Data storage — to connect to a PC that does not have Nokia software and use the
phone as a data storage
46
FCC Draft
To change the USB mode, select Menu > Settings > Connectivity > USB data
cable > Nokia mode, Printing & Media, or Data storage.
■Call
Select Menu > Settings > Call and from the following options:
Call divert — to divert your incoming calls (network service). You may not be able
to divert your calls if some call barring functions are active. See Call barring
service in Security p. 48.
Anykey answer > On — to answer an incoming call by briefly pressing any key,
except the power key, the camera key, the left and right selection keys, or the end
key
Automatic redial > On — to make a maximum of 10 attempts to connect the call
after an unsuccessful call attempt
Video-voice redial — to select whether the phone automatically makes a voice call
to the number to which a video call failed.
Voice clarity > Active — to enhance speech intelligibility especially in noisy
environments
Speed dialling > On — to dial the names and phone numbers assigned to the
speed-dialing keys, 3 to 9, by pressing and holding the corresponding number key
Call waiting > Activate — to have the network notify you of an incoming call
while you have a call in progress (network service). See Call waiting p. 21.
Summary after call > On — to briefly display the approximate duration and cost
(network service) of the call after each call
Send my caller ID > Yes — to show your phone number to the person you are
calling (network service). To use the setting agreed upon with your service
provider, select Set by network.
Answ. if fold opened > On — to answer an incoming call by opening the fold
Video sharing > On — to share your live camera view with the call recipient during
an ongoing voice call. To check availability and costs, and to subscribe to the
service, contact your network operator or service provider.
■Phone
Select Menu > Settings > Phone and from the following options:
47
FCC Draft
Language settings — to set the display language of your phone, select Phone
language. Automatic selects the language according to the information on the
SIM card. To select the USIM card language, select SIM language. To set a
language for the voice playback, select Recognition lang.. See Enhanced voice
dialing p. 21 and Voice commands in My shortcuts p. 41.
Memory status — to view the amount of used and available phone memory
Automatic keyguard — to set the keypad of your phone to lock automatically after
a preset time delay when the phone is in the standby mode and no function of the
phone has been used. Select On, and set the time.
Security keyguard — to set the phone to ask for the security code when you unlock
the keyguard. Enter the security code, and select On.
Welcome note — to write the note that is shown when the phone is switched on
Phone updates — to update your phone’s software if there is an update available
Network mode — to select dual mode (UMTS or GSM). You cannot access this
option during an active call
Operator selection > Automatic — to set the phone to automatically select one of
the cellular networks available in your area. With Manual you can select a
network that has a roaming agreement with your service provider.
Help text activation — to select whether the phone shows help texts
Start-up tone > On — the phone plays a tone when it is switched on
Flight query > On — the phone asks every time when it is switched on whether the
flight profile shall be used. With the flight profile all radio connections are
switched off. The flight profile should be used in areas sensitive to radio emissions.
Fold close handling — to select if your phone should return to standby mode or,
keep all applications open when the fold is closed
Confirm SIM actions — See SIM services p. 67.
■Configuration
You can configure your phone with settings that are required for certain services
to function correctly. Your service provider may also send you these settings. See
Configuration settings service p. 9.
Select Menu > Settings > Configuration and from the following options:
48
FCC Draft
Default config. sett. — to view the service providers saved in the phone. To set the
configuration settings of the service provider as default settings, select Options >
Set as default.
Activ. def. in all apps. — to activate the default configuration settings for
supported applications
Preferred access pt. — to view the saved access points. Scroll to an access point,
and select Options > Details to view the name of the service provider, data bearer,
and packet data access point or GSM dial-up number.
Connect to support — to download the configuration settings from your service
provider
Device manager sett. — to allow or prevent the phone from receiving phone
software updates. This option may not be available, depending on your phone.
Personal config. sett. — to add new personal accounts for various services
manually, and to activate or delete them. To add a new personal account if you
have not added any, select Add; otherwise, select Options > Add new. Select the
service type, and select and enter each of the required parameters. The parameters
differ according to the selected service type. To delete or activate a personal
account, scroll to it, and select Options > Delete or Activate.
■Security
When security features that restrict calls are in use (such as call barring, closed user group,
and fixed dialing), calls may be possible to the official emergency number programmed into
your device.
Select Menu > Settings > Security and from the following options:
PIN code request and UPIN code request — to set the phone to ask for your PIN or
UPIN code every time the phone is switched on. Some SIM cards do not allow the
code request to be turned off.
PIN2 code request — to select whether the PIN2 code is required when using a
specific phone feature which is protected by the PIN2 code. Some SIM cards do
not allow the code request to be turned off.
Call barring service — to restrict incoming calls to and outgoing calls from your
phone (network service). A barring password is required.
Fixed dialling — to restrict your outgoing calls to selected phone numbers if this
function is supported by your SIM card. When the fixed dialing is on, GPRS
connections are not possible except while sending text messages over a GPRS
49
FCC Draft
connection. In this case, the recipient’s phone number and the message center
number must be included in the fixed dialing list.
Closed user group — to specify a group of people whom you can call and who can
call you (network service)
Security level > Phone — to set the phone to ask for the security code whenever a
new SIM card is inserted into the phone. If you select Memory, the phone asks for
the security code when the SIM card memory is selected, and you want to change
the memory in use.
Access codes — to change the security code, PIN code, UPIN code, PIN2 code, or
barring password
Code in use — to select whether the PIN code or UPIN code should be active
Authority certificates or User certificates — to view the list of the authority or user
certificates downloaded into your phone. See Certificates p. 72.
Security module sett. — to view Secur. module details, activate Module PIN
request, or change the module PIN and signing PIN. See also Access codes p. 9.
■Digital rights management
Digital rights management (DRM) is copyright protection, designed to prevent
modification and to limit distribution of protected files. When you download
protected files, such as sound, video, themes, or ringing tones to your phone, the
files are free, but locked. You pay for the key to activate the file, and the activation
key is automatically sent to your phone when you download the file.
To view the permissions for a protected file, scroll to the file, and select Options >
Activation keys. For example, you can see how many times you can view a video or
how many days you have left for listening to a song.
To extend the permissions for a file, select Options and the corresponding option
for the file type, such as Activate theme. You can send certain types of protected
files to your friends, and they can buy their own activation keys.
If your device has OMA DRM protected content, the only way to back up both the activation
keys and the content is to use the backup feature of Nokia PC Suite. Other transfer methods
may not transfer the activation keys which need to be restored with the content for you to
be able to continue the use of OMA DRM protected content after the device memory is
formatted. You may also need to restore the activation keys in case the files on your device
get corrupted.
Copyright protections may prevent some images, music (including ringing tones),
and other content from being copied, modified, transferred, or forwarded.
50
FCC Draft
This phone supports OMA DRM 1.0 and 2.0.
■Phone software updates
Your service provider may send phone software updates over the air directly to
your device. This option may not be available, depending on your phone.
Warning: If you install a software update, you cannot use the device,
even to make emergency calls, until the update is completed and the
device is restarted. Be sure to back up data before accepting a software
update.
Settings
To allow or disallow phone software updates, select Menu > Settings >
Configuration > Device manager sett. > Serv. softw. updates and from the
following options:
Always allow — to perform all software downloads and updates automatically
Always reject — to reject all software updates
Confirm first — to perform software downloads and updates only after your
confirmation (default setting)
Depending on your settings, you are notified that a software update is available
for download or has been downloaded and installed automatically.
■Restore factory settings
To reset some of the menu settings to their original values, select Menu >
Settings > Rest. factory sett.. Enter the security code. The names and phone
numbers saved in Contacts are not deleted.
10. Operator menu
This menu lets you access a portal to services provided by your network operator.
The name and the icon depend on the operator. For more information contact your
network operator. The operator can update this menu with a service message. For
more information, see Service inbox p. 71.
51
FCC Draft
11. Gallery
In this menu you can manage images, video clips, music files,
themes, graphics, tones, recordings, and received files. These files are stored in the
phone memory or a microSD memory card (not included in sales pack) and may be
arranged in folders.
Your phone supports an activation key system to protect acquired content. Always
check the delivery terms of any content and activation key before acquiring them,
as they may be subject to a fee.
Copyright protections may prevent some images, music (including ringing tones), and other
content from being copied, modified, transferred, or forwarded.
To see the list of folders, select Menu > Gallery.
To see the available options of a folder, select a folder and Options.
To view the list of files in a folder, select a folder and Open.
To see the available options of a file, select a file and Options.
To view the folders of the memory card when moving a file, scroll to the memory
card, and scroll right.
■Print images
Your device supports Nokia XPressPrint. To connect it to a compatible printer, use
a USB data cable or send the image using Bluetooth to a printer supporting
Bluetooth technology. See Connectivity p. 42.
You can print images that are in the .jpg format. The images taken with the
camera are automatically saved in the .jpg format.
Select the image you want to print and Options > Print.
■Memory card
You can use a microSD memory card to store your multimedia files such as video
clips, music tracks, and sound files, images, and messaging data, and to back up
information from phone memory.
Some of the folders in Gallery with content that the phone uses (for example,
Themes), may be stored on a memory card.
To insert and remove a microSD memory card, see Insert a microSD card p. 12.
52
FCC Draft
Format the memory card
When a memory card is formatted, all data on the card is permanently lost. Some
memory cards are supplied preformatted and others require formatting. Consult
your retailer to find out if you must format the memory card before you can use it.
To format a memory card, select Menu >Gallery or Applications, the memory card
folder , and Options > Format memory card > Yes.
When formatting is complete, enter a name for the memory card.
Lock the memory card
To set a password to lock your memory card to help prevent unauthorized use,
select Options > Set password. The password can be up to eight characters long.
The password is stored in your phone, and you do not have to enter it again while
you are using the memory card on the same phone. If you want to use the memory
card on another phone, you are asked for the password. To delete the password,
select Options > Delete password.
Check memory consumption
To check the memory consumption of different data groups and the available
memory for installing new applications or software on your memory card, select
Options > Details.
12. Media
You can take photos or record live video clips with the built-in
2-megapixel camera.
■Camera
The camera produces pictures in .jpg format, and you can digitally zoom up to
eight times.
Take an image
Press the camera key or select Menu > Media > Camera > Capture. To take
another photo, select Back; to send the photo as a multimedia message, select
Send. The phone saves the photo in Gallery > Images.
53
FCC Draft
Take a self-portrait
Close the fold and press and hold the camera key. Use the mini display as a view
finder. Press the camera key to take the photo. Open the phone to view the
captured picture.
Zoom
In camera or video mode use the volume keys to zoom in and out.
Your device supports an image capture resolution up to 1200x1600 pixels.
Camera options
Select Options > Night mode on if the lighting is dim, Self-timer on to activate the
self-timer, or Image sequence on to take images in a fast sequence. With the
highest image size setting three images are taken in a sequence; with other size
settings, eight images are taken.
Select Options > Settings >Image preview time and a preview time to display the
taken images on the display. During the preview time, select Back to take another
image or Send to send the image as a multimedia message.
Camera and video options
To use a filter, select Options > Effects > Normal, Greyscale, Sepia, Negative.
To change the camera and video settings, select Options > Settings.
■Video
You can record video clips in .3gp format. Available recording time depends on the
video clip length and quality settings.
The length and file size of the clips may vary depending on the selected quality
and available memory.
To set the quality of your video clips, select Menu > Media > Video > Options >
Settings > Video clip quality > High, Normal, or Basic.
To select the file size limit, select Menu > Media > Video > Options > Settings >
Video clip length. Default means that the file size is limited so that it fits into a
multimedia message (multimedia message size can vary among devices).
Maximum means that all available memory is used. Available memory depends on
where the video clip is stored.
54
FCC Draft
Record a video clip
Select Menu > Media > Video > Record or press and hold the camera key. To
pause the recording, select Pause; to resume the recording, select Continue. To
stop the recording, select Stop. The phone saves the recording in Gallery > Video
clips.
To zoom in or out, press the volume key up or down, or scroll left and right.
■Music player
Your phone includes a music player for listening to music tracks, recordings or
other MPG, MP4, AAC, eAAC+, or Windows Media Player music files that you have
transferred to the phone with the Nokia Audio Manager application, which is part
of Nokia PC Suite. See Nokia PC Suite p. 74.
Music files stored in a folder in the phone memory or in a folder of a memory card
will automatically be detected and added to the default track list.
Operate the music player with the music player keys on the front of the phone or
with the scroll keys.
To open the music player, select Menu > Media > Music player.
To open the music player when the phone is folded, press .
To open a list of all songs stored in your phone, select All songs > Open, or scroll
right.
To create or manage playlists, select Playlists > Open, or scroll right.
To open folders with Artists, Albums or Genres, scroll to the one you want, and
select Expand, or scroll right.
To open a video list stored in your phone, select Videos > Open, or scroll right.
Playing the music tracks
Warning: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing.
Operate the music player with the music player keys on the front of the phone or
with the scroll keys.
When you open the Music player menu, the details of the first track on the default
track list are shown. To play, select .
To adjust the volume level, use the volume keys on the side of the phone.
To pause the playing, select .
55
FCC Draft
To stop the playing, press and hold the end key.
To skip to the next track, select . To skip to the beginning of the previous
track, select .
To rewind the current track, select and hold . To fast forward the current
track, select and hold . Release the key at the position you want.
Music player options
Select Menu > Media > Music player > Go to Music player. Select Options and
from the following:
Add to playlist — to add the current track to the playlist
Settings > Shuffle — to play the tracks in random order or Repeat to play the
current track or the entire track list repeatedly.
Downloads — to connect to a browser service related to the current track. This
function is only available when the address of the service is included in the track.
Web page — to access a web page associated with the currently played track. This
option is dimmed if no web page is available.
Play via Bluetooth — to connect to an audio enhancement that uses Bluetooth
wireless technology.
■Radio
The FM radio depends on an antenna other than the wireless device antenna. A compatible
headset or enhancement needs to be attached to the device for the FM radio to function
properly.
Warning: Listen to music at a moderate level. Continuous exposure to high volume
may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
Select Menu > Media > Radio.
To open the music player when the phone is folded, press the left or right selection
key, and select Radio.
To use the graphical keys , , , or on the display, scroll left or right to
the desired key, and select it.
56
FCC Draft
Save radio frequencies
1. To start the search, select and hold or . To change the radio frequency in
0.05 MHz steps, briefly press or .
2. To save a frequency to a memory location, 1 to 9, press and hold the
corresponding number key. To save a frequency to a memory location from 10
to 20, press briefly 1 or 2, and press and hold the desired number key, 0 to 9.
3. Enter the name of the radio station.
Listen to the radio
Select Menu > Media > Radio. To scroll to the desired frequency, select or ,
or press the headset key. To select a radio station, briefly press the corresponding
number keys. To adjust the volume, press the volume keys.
Select from the following options:
Switch off — to turn off the radio
Save station — to save a new station (shown if a new station is detected)
Loudspeaker or Headset — to listen to the radio using the loudspeaker or headset
Mono output or Stereo output — to listen to the radio in monophonic sound or in
stereo
Stations — to select the list of saved stations. To delete or rename a station, scroll
to the desired station, and select Options > Delete station or Rename. Select
Visual service ID to enter a service ID given by the visual radio service provider
(network service)
Search all stations — to search for new radio stations
Set frequency — to enter the frequency of the desired radio station
Station directory — to activate the station directory to seek available radio
stations from the network and save them for later use
Enable visual service — to allow or deny the viewing of visual content of the
current radio station (network service). To check the availability and costs, and to
get the necessary settings to your phone, contact your service provider.
When an application using a packet data or HSCSD connection is sending or
receiving data, it may interfere with the radio.
57
FCC Draft
■Voice recorder
You can record pieces of speech, sound, or an active call, and save them in Gallery.
This is useful when recording a name and phone number to write down later.
The recorder cannot be used when a data call or GPRS connection is active.
Voice recorder
1. Select Menu > Media > Voice recorder.
To use the graphical keys , , or on the display, scroll left or right to
the desired key, and select it.
2. To start the recording, select . To start the recording during a call, select
Options > Record. While recording a call, all parties to the call hear a faint
beeping sound. When recording a call, hold the phone in the normal position
near to your ear. To pause the recording, select .
3. To end the recording, select . The recording is saved in Gallery > Recordings.
To listen to the latest recording, select Options > Play last recorded.
To send the last recording, select Options > Send last recorded.
To see the list of recordings in Gallery, select Options > Recordings list >
Recordings.
■Equalizer
You can control the sound quality when using the music player by amplifying or
diminishing frequency bands.
Select Menu > Media > Equaliser.
To activate a set, scroll to one of the equalizer sets, and select Activate.
To view, edit, or rename a selected set, select Options > View, Edit, or Rename. Not
all sets can be edited or renamed.
13. Organizer
■Alarm clock
You can set the phone to alarm at a desired time. Select Menu > Organiser >
Alarm clock.
58
FCC Draft
To set the alarm, select Alarm time, and enter the alarm time. To change the alarm
time when the alarm time is set, select On.
To set the phone to alert you on selected days of the week, select Repeat alarm.
To select the alarm tone or set the radio as the alarm tone, select Alarm tone:. If
you select the radio as an alarm tone, connect the headset to the phone.
To set a snooze time-out, select Snooze time-out and the time.
Stop the alarm
The phone sounds an alert tone even if the phone was switched off. To stop the
alarm, select Stop. If you let the phone continue to sound the alarm for a minute
or select Snooze, the alarm stops for the time you set in Snooze time-out, then
resumes.
If the alarm time is reached while the device is switched off, the device switches itself on
and starts sounding the alarm tone. If you select Stop, the device asks whether you want to
activate the device for calls. Select No to switch off the device or Yes to make and receive
calls. Do not select Yeswhen wireless phone use may cause interference or danger.
■Calendar
Select Menu > Organiser > Calendar.
The current day is indicated by a frame. If there are any notes set for the day, the
day is in bold type, and the beginning of the note is shown below the calendar. To
view the day notes, select View. To view a week, select Options > Week view. To
delete all notes in the calendar, select the month or week view, and select
Options > Delete all notes.
To set the date, time, time zone, date or time format, date separator, default view,
or the first day of the week, select Settings.
To set the phone to delete old notes automatically after a specified time, select
Auto-delete notes.
Make a calendar note
Select Menu > Organiser > Calendar. Scroll to the date, and select Options >
Make a note and one of the following note types: Meeting, Call,
Birthday, Memo, or Reminder. Fill in the fields.
59
FCC Draft
Note alarm
The phone displays the note and if set, sounds a tone. With a call note on the
display, to call the displayed number, press the call key. To stop the alarm and to
view the note, select View. To stop the alarm for 10 minutes, select Snooze.
To stop the alarm without viewing the note, select Exit.
■To-do list
To save a note for a task that you must do, select Menu > Organiser > To-do list.
To make a note if no note is added, select Add; otherwise, select Options > Add.
Fill in the fields, and select Save.
To view a note, scroll to it, and select View. While viewing a note, you can also
select an option to edit the attributes. You can also select an option to delete the
selected note and delete all the notes that you have marked as done.
■Notes
To write and send notes, select Menu > Organiser > Notes.
To make a note if no note is added, select Add; otherwise, select Options > Make a
note. Write the note, and select Save.
■Calculator
The calculator in your phone provides basic arithmetic and trigonometric
functions, calculates the square and the square root, the inverse of a number, and
converts currency values.
Note: This calculator has limited accuracy and is designed for simple calculations.
Select Menu > Organiser > Calculator. When 0 is displayed on the screen,
enter the first number in the calculation. Press # for a decimal point. Scroll to the
desired operation or function, or select it from Options. Enter the second number.
Repeat this sequence as many times as it is necessary. To start a new calculation,
first select and hold Clear.
To perform a currency conversion, select Menu > Organiser > Calculator. To save
the exchange rate, select Exchange rate. Select either of the displayed options.
Enter the exchange rate, press # for a decimal point, and select OK. The exchange
rate remains in the memory until you replace it with another one. To perform the
currency conversion, enter the amount to be converted, and select Options > In
domestic or In foreign.
60
FCC Draft
Note: When you change base currency, you must enter new exchange rates
because all previously set exchange rates are cleared.
■Countdown timer
To start the countdown timer, select Menu > Organiser > Countd. timer > Normal
timer, enter the alarm time, and write a note text that is displayed when the time
expires. To start the countdown timer, select Start. To change the countdown
time, select Change time. To stop the timer, select Stop timer.
To have an interval timer with up to 10 intervals started, first enter the intervals.
Select Menu > Organiser > Countd. timer > Interval timer. To start the timer,
select Start timer > Start.
To continue to next interval period automatically, select Contin. to next period >
Automatic or, if you want to confirm each interval, select Confirm first.
■Stopwatch
You can measure time, take intermediate times, or take lap times using the
stopwatch. During timing, the other functions of the phone can be used. To set the
stopwatch timing in the background, press the end key.
Using the stopwatch or allowing it to run in the background when using other features
increases the demand on battery power and reduces the battery life.
Select Menu > Organiser > Stopwatch and from the following options:
Split timing — to take intermediate times. To start the time observation, select
Start. Select Split every time that you want to take an intermediate time. To stop
the time observation, select Stop.
To save the measured time, select Save.
To start the time observation again, select Options > Start. The new time is added
to the previous time. To reset the time without saving it, select Reset.
Lap timing — to take lap times
Continue — to view the timing that you have set in the background
Show last — to view the most recently measured time if the stopwatch is not reset
View times or Delete times — to view or delete the saved times
61
FCC Draft
14. Push to talk
Select Menu > Push to talk.
Push to talk (PTT) over cellular is a two-way radio service available over a GPRS
cellular network (network service).
You can use PTT to have a conversation with one person or with a group of people
(channel) having compatible devices. While you are connected to the PTT service,
you can use the other functions of the phone.
To check availability and costs, and to subscribe to the service, contact your
network operator. Roaming services may be more limited than for normal calls.
Before you can use the PTT service, you must define the required PTT service
settings. See PTT settings p. 65 and Configuration settings p. 66.
■PTTchannels
A PTT channel comprises a group of people (for example, friends or a workteam)
who joined the channel after they where invited. When you call a channel, all
members joined to the channel hear the call simultaneously.
There are different types of PTT channels:
Public channel — Every channel member can invite other persons.
Private channel — Only persons who receive an invitation by the channel creator
can join in.
Provisioned channel — A permanent channel is created by the service provider.
To set the status of each channel, select Active or Inactive.
The number of active channels and the number of members per channel is limited.
Contact your service provider for details.
Create a channel
To add a channel, select Menu > Push to talk > Add channel, and enter the
settings in the form fields:
Channel name: — Enter a name for the new channel.
Channel status: — Select Active to set the channel active, or Inactive to disable the
channel.
Nickname in channel: — Enter your nick name to be shown the new channel.
62
FCC Draft
Channel security: — Select Public channel or Private channel.
Image: — Select Change and an image from the Gallery or the Default graphic to
set a graphic for the new channel.
To send an invitation to the channel, select Yes when the phone requests it. The
recipient of the invitation is added to the member list of the channel when the
invitation is accepted. To send further invitations, select Menu > Push to talk >
Channel list, a channel, and Options > Send invitation. To send the invitation, use
a text message or an infrared connection.
To add a provisioned channel, select Menu > Push to talk > Add channel >
Options > Edit add. manually. Enter the Channel address: provided by your service
provider.
Receive an invitation
1. When you receive a text message invitation to a channel, Channel invitation
received: is displayed.
2. To view the nickname of the person who sent the invitation and the channel
address if the channel is not a private channel, select View.
3. To add the channel to your phone, select Save.
4. To set the status for the channel, select Active or Inactive.
To reject the invitation, select Exit > Yes, or select View > Discard > Yes.
■Switch PTT on and off
To connect to the PTT service, select Menu > Push to talk > Switch PTT on, or press
and hold the PTT (volume up) key. indicates the PTT connection. indicates
that the service is temporarily unavailable. If you have added channels to the
phone, you are automatically joined to the active channels.
You may assign a default function to the PTT key to open the channel list, the
contacts list, or a single channel or contact. See PTT settings p. 65.
To disconnect from the PTT service, select Switch PTT off.
■Make and receive a PTT call
Warning: Listen to music at a moderate level. Continuous exposure to high volume
may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
63
FCC Draft
To make a channel call, a one-to-one call, or a call to multiple recipients, press
and hold the PTT key as long as you talk. To listen to the response, release the PTT
key.
You may be able to check the login status of your contacts in Menu > Push to
talk > Contacts list. This service depends on your network operator and is only
available for subscribed contacts. To subscribe a contact, select
Options >Subscribe contact, or if one or more contacts are already marked,
Subscribe marked.
or indicate that the person is either available or unknown.
indicates that the person does not want to be disturbed, but can receive
callback requests. indicates that the person does not have PTT switched on.
Make a channel call
To make a call to a channel, select Channel list in the PTT menu, scroll to the
desired channel, and press and hold the PTT (volume up) key.
Make a one-to-one call
To start a one-to-one call from the list of contacts to which you have added the
PTT address, select Contacts > Names or Menu > Push to talk > Contacts list.
Scroll to a contact, and press and hold the PTT key.
To start a one-to-one call from the list of PTT channels, select Channel list, scroll
to the desired channel, and select Members. Scroll to the desired contact, and
press and hold the PTT key.
To start a one-to-one call from the list of callback requests you have received,
select Callback inbox. Scroll to the desired nickname, and press and hold the PTT
key.
Make a PTT call to multiple recipients
You can select multiple PTT contacts from the contact list. The recipients receive
an incoming call and need to accept the call to participate. If supported by your
network operator, you may also select contacts with a phone number but without
a PTT number. For details, contact your network operator.
1. Select Menu > Push to talk > Contacts list, and mark the desired contacts.
2. Press and hold the PTT key to start the call. The participating contacts are
shown on the display, as soon as they join the call.
64
FCC Draft
3. Press and hold the PTT key to talk. Release the PTT key to hear the response.
4. Press the end key to terminate the call.
Receive a PTT call
A short tone notifies you of an incoming PTT call. Informations such as the
channel, the phone number, or the nickname (network service) of the caller are
displayed.
You can either accept or reject an incoming one-to-one call if you have set the
phone to first notify you of the one-to-one calls.
When you press and hold the PTT key while the caller is talking, you hear a tone,
and Queuing is displayed. Press and hold the PTT key, and wait for the other person
to finish; then you can talk immediately.
■Callback requests
If you make a one-to-one call and do not get a response, you can send a request
for the person to call you back.
Send a callback request
You can send a callback request in the following ways:
To send a callback request from the contacts list in the Push to talk menu, select
Contacts list. Scroll to a contact, and select Options > Send PTT callback.
To send a callback request from Contacts, search for the desired contact, and
select Details. Scroll to the PTT address, and select Options > Send PTT callback.
To send a callback request from the channel list in the PTT menu, select Channel
list, and scroll to the desired channel. Select Members, scroll to the desired
contact, and select Options > Send PTT callback.
To send a callback request from the callback request list in the Push to talk menu,
select Callback inbox. Scroll to a contact, and select Options > Send PTT callback.
Respond to a callback request
When someone sends you a callback request, Callback request received is
displayed in the standby mode.
To open Callback inbox, select View. The list of nicknames of the persons who have
sent you callback requests is shown.
65
FCC Draft
To make a one-to-one call, select the desired request, and press and hold the PTT
key.
To send a call request back to the sender, select Options > Send PTT callback.
To delete the request, select Delete.
To save a new contact or to add the PTT address to a contact from a received
callback request, select Options > Save as or Add to contact.
■Add a one-to-one contact
You can save the names of persons to whom you often make one-to-one calls in
the following ways:
To add a PTT address to a name in Contacts, search for the desired contact, and
select Details > Options > Add detail > PTT address. A contact will only appear in
the PTT contact list if the PTT address is entered.
To add a contact to the PTT contacts list, select Menu > Push to talk > Contacts
list > Options > Add contact.
To add a contact from the channel list, connect to the PTT service, select Channel
list, and scroll to the desired channel. Select Members, scroll to the member
whose contact information you want to save, and select Options. To add a new
contact, select Save as. To add a PTT address to a name in Contacts, select Add to
contact.
■PTT settings
Select Menu >Push to talk > PTT settings.
1 to 1 calls > On — to select the phone to allow the reception of incoming one-to-
one calls. To make but not receive one-to-one calls, select Off. The service provider
may offer some services that override these settings. To set the phone to first
notify you of incoming
one-to-one calls with a ringing tone, select Notify.
PTT key def. function — to set the PTT key to one of the following functions: Open
contact list, orOpen channel list, Call contact or group. Select a contact, a group,
or Call PTT channel, and select a channel. When you press and hold the PTT key, the
selected function is performed.
Show my login status — to enable or disable the sending of the login status
PTT status in startup > Yes or Ask first — to set the phone to automatically connect
to the PTT service when you switch the phone on
66
FCC Draft
PTT when abroad — to switch the PTT service on or off when the phone is used
outside of the home network
Send my PTT address > No — to hide your PTT address from channel and one-to-
one calls
■Configuration settings
You may receive the settings for connecting to the service from your service
provider. See Configuration settings service p. 9. You can enter the settings
manually. See Configuration p. 47.
To select the settings for connecting to the service, select Menu > Push to talk >
Configuration sett.. Select from the following options:
Configuration — to select a service provider, Default, or Personal config. for PTT
service. Only the configurations that support the PTT service are shown.
Account — to select a PTT service account contained in the active configuration
settings
Other options are PTT user name, Default nickname, PTT password, Domain, and
Server address.
■Web
Select Menu > Push to talk > Web to access the internet site of your PTT provider.
15. Applications
In the applications menu, you can manage applications and games.
These files are stored in the phone memory or an attached microSD memory card
and may be arranged in folders.
For options to format or lock and unlock the memory card, see Memory card p. 51.
■Launch a game
Your phone software includes some games.
Select Menu > Applications > Games. Scroll to the desired game, and select Open.
To set sounds, lights, and shakes for the game, select Menu > Applications >
Options > Application settings. For more options, see Application options p. 67.
67
FCC Draft
■Launch an application
Your phone software includes some Java applications.
Select Menu > Applications > Collection. Scroll to an application, and select
Open.
■ Application options
Update version — to check if a new version of the application is available for
download from Web (network service)
Web page — to provide further information or additional data for the application
from an internet page (network service), if available
Application access — to restrict the application from accessing the network
■Download an application
Your phone supports J2ME™ Java applications. Make sure that the application is
compatible with your phone before downloading it.
Important: Only install and use applications and other software from trusted
sources, such as applications that are Symbian Signed or have passed the Java
VerifiedTM testing.
You can download new Java applications and games in different ways.
Use the Nokia Application Installer from PC Suite to download the applications to
your phone, or select Menu > Applications > Options > Downloads > App.
downloads; the list of available bookmarks is shown. See Bookmarks p. 69.
For the availability of different services, pricing, and tariffs, contact your service
provider.
Your device may have preinstalled bookmarks and links for third-party internet sites. You
may also access other third-party sites through your device. Third party sites are not
affiliated with Nokia and Nokia does not endorse or assume liability for them. If you choose
to access such sites, you should take the precautions for security or content.
16. SIM services
Your SIM card may provide additional services. You can access this
menu only if it is supported by your SIM card. The name and contents of the menu
depend on the available services.
68
FCC Draft
For availability and information on using SIM card services, contact your SIM card vendor.
This may be the service provider or other vendor.
To set the phone to show you the confirmation messages sent between your
phone and the network when you are using the SIM services, select Menu >
Settings > Phone > Confirm SIM actions > Yes.
Accessing these services may involve sending messages or making a phone call for
which you may be charged.
17. Web
You can access various mobile internet services with your phone
browser.
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
Check the availability of these services, pricing, tariffs, and instructions
with your service provider.
With the phone browser you can view the services that use wireless markup
language (WML) or extensible hypertext markup language (XHTML) on their
pages. Appearance may vary due to screen size. You may not be able to view all
details of the internet pages.
■Set up browsing
You may receive the configuration settings required for browsing as a
configuration message from the service provider that offers the service that you
want to use. See Configuration settings service p. 9. You can also enter all the
configuration settings manually. See Configuration p. 47.
■Connect to a service
Ensure that the correct configuration settings of the service are activated.
1. To select the settings for connecting to the service, select Menu > Web >
Settings > Configuration sett..
2. Select Configuration. Only the configurations that support browsing service
are shown. Select a service provider, Default, or Personal config. for browsing.
See Set up browsing p. 68.
69
FCC Draft
3. Select Account and a browsing service account contained in the active
configuration settings.
4. Select Displ. term. window > Yes to perform manual user authentication for
intranet connections.
Make a connection to the service in one of the following ways:
•Select Menu> Web > Home; or in the standby mode, press and hold 0.
• To select a bookmark of the service, select Menu > Web > Bookmarks.
• To select the last URL, select Menu > Web > Last web addr..
• To enter the address of the service, select Menu > Web > Go to address. Enter
the address of the service, and select OK.
■Browse pages
After you make a connection to the service, you can start browsing its pages. The
function of the phone keys may vary in different services. Follow the text guides
on the phone display. For more information, contact your service provider.
Browse with phone keys
To browse through the page, scroll in any direction.
To select an item, press the call key, or select Select.
To enter letters and numbers, press the 0 to 9 keys. To enter special characters,
press *.
Direct calling
While browsing, you can make a phone call, and save a name and a phone number
from a page.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
1. While browsing, select Options > Bookmarks; or in the standby mode, select
Menu > Web > Bookmarks.
2. Scroll to a bookmark, and select it, or press the call key to make a connection
to the page associated with the bookmark.
70
FCC Draft
3. Select Options to view, edit, delete, or send the bookmark; to create a new
bookmark; or to save the bookmark to a folder.
Your device may have preinstalled bookmarks and links for third-party internet sites. You
may also access other third-party sites through your device. Third party sites are not
affiliated with Nokia and Nokia does not endorse or assume liability for them. If you choose
to access such sites, you should take the precautions for security or content.
Receive a bookmark
When you have received a bookmark that is sent as a bookmark, 1 bookmark
received is displayed. To view the bookmark, select Show.
■Appearance settings
While browsing, select Options > Other options > Appearance settings; or in the
standby mode, select Menu > Web > Settings > Appearance settings and from the
following options:
Text wrapping — to select how the text shall appear on the display
Font size — to set the font size
Show images > No — to hide images on the page
Alerts > Alert for unsec. conn. > Yes — to set the phone to alert when a secure
connection changes to an unsecure one during browsing
Alerts > Alert for unsec. items > Yes — to set the phone to alert when a secure
page contains an unsecure item. These alerts do not guarantee a secure
connection. For more information, see Browser security p. 72.
Character encoding > Content encoding — to select the encoding for the browser
page content
Character encoding > Unicode (UTF-8) addr. > On — to set the phone to send a
URL as a UTF-8 encoding
Screen size > Full or Small— to set the screen layout
JavaScript > Enable — to enable the Java scripts
71
FCC Draft
■Security settings
Cookies
A cookie is data that a site saves in the cache memory of your phone. Cookies are
saved until you clear the cache memory. See Cache memory p. 72.
While browsing, select Options > Other options > Security > Cookie settings; or in
the standby mode, select Menu > Web > Settings > Security settings > Cookies.
To allow or prevent the phone from receiving cookies, select Allow or Reject.
Scripts over secure connection
You can select whether to allow the running of scripts from a secure page. The
phone supports WML scripts.
While browsing, to allow the scripts, select Options > Other options > Security >
WMLScript settings; or in the standby mode, select Menu > Web > Settings >
Security settings > WMLScripts in conn. > Allow.
■Download settings
To automatically save all downloaded files in Gallery, select Menu > Web >
Settings > Downloading sett. > Automatic saving > On.
■Service inbox
The phone is able to receive service messages sent by your service provider
(network service). Service messages are notifications (for example, news
headlines), and they may contain a text message or an address of a service.
To access the Service inbox in the standby mode, when you have received a service
message, select Show. If you select Exit, the message is moved to the Service
inbox. To access the Service inbox later, select Menu > Web > Service inbox.
To access the Service inbox while browsing, select Options > Other options >
Service inbox. Scroll to the message you want, and to activate the browser and
download the marked content, select Retrieve. To display detailed information on
the service notification or to delete the message, select Options > Details or
Delete.
Service inbox settings
Select Menu > Web > Settings > Service inbox sett..
72
FCC Draft
To set whether you want to receive service messages, select Service messages >
On or Off.
To set the phone to receive service messages only from content authors approved
by the service provider, select Message filter > On. To view the list of the approved
content authors, select Trusted channels.
To set the phone to automatically activate the browser from the standby mode
when the phone has received a service message, select Autom. connection > On. If
you select Off, the phone activates the browser only after you select Retrieve
when the phone has received a service message.
■Cache memory
A cache is a memory location that is used to store data temporarily. If you have tried to
access or have accessed confidential information requiring passwords, empty the cache
after each use. The information or services you have accessed are stored in the cache. To
empty the cache, while browsing, select Options > Other options > Clear the cache; in the
standby mode, select Menu > Web > Clear the cache.
■Browser security
Security features may be required for some services, such as online banking or
shopping. For such connections you need security certificates and possibly a
security module, which may be available on your SIM card. For more information,
contact your service provider.
Security module
The security module improves security services for applications requiring a
browser connection, and allows you to use a digital signature. The security module
may contain certificates as well as private and public keys. The certificates are
saved in the security module by the service provider.
To view or change the security module settings, select Menu > Settings >
Security > Security module sett..
Certificates
Important: Even if the use of certificates makes the risks involved in remote
connections and software installation considerably smaller, they must be used
correctly in order to benefit from increased security. The existence of a certificate
does not offer any protection by itself; the certificate manager must contain correct,
73
FCC Draft
authentic, or trusted certificates for increased security to be available. Certificates have a
restricted lifetime. If "Expired certificate" or "Certificate not valid yet" is shown even if the
certificate should be valid, check that the current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you really trust the owner
of the certificate and that the certificate really belongs to the listed owner.
There are three kinds of certificates: server certificates, authority certificates, and
user certificates. You may receive these certificates from your service provider.
Authority certificates and user certificates may also be saved in the security
module by the service provider.
To view the list of the authority or user certificates downloaded into your phone,
select Menu > Settings > Security > Authority certificates or User certificates.
is displayed during a connection, if the data transmission between the
phone and the content server is encrypted.
The security icon does not indicate that the data transmission between the gateway and the
content server (or place where the requested resource is stored) is secure. The service
provider secures the data transmission between the gateway and the content server.
Digital signature
You can make digital signatures with your phone if your SIM card has a security
module. Using the digital signature can be the same as signing your name to a
paper bill, contract, or other document.
To make a digital signature, select a link on a page, for example, the title of the
book you want to buy and its price. The text to sign, which may include the
amount and date, is shown.
Check that the header text is Read and that the digital signature icon is
shown.
If the digital signature icon does not appear, there is a security breach, and you
should not enter any personal data such as your signing PIN.
To sign the text, read all of the text first, and select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll through
and read all of the text before signing.
Select the user certificate you want to use. Enter the signing PIN. The digital
signature icon disappears, and the service may display a confirmation of your
purchase.
74
FCC Draft
18. PC connectivity
You can send and receive e-mail, and access the internet when your phone is
connected to a compatible PC through a Bluetooth or a data cable connection.
You can use your phone with a variety of PC connectivity and data
communications applications.
■Nokia PC Suite
With Nokia PC Suite you can synchronize contacts, calendar, notes, and to-do
notes between your phone and the compatible PC or a remote internet server
(network service). You may find more information and PC Suite on the Nokia
website at www.nokia.com/support or your local Nokia website.
■Packet data, HSCSD, and CSD
With your phone you can use the packet data, high-speed circuit switched data
(HSCSD), and circuit switched data (CSD, GSM data) data services. For availability
and subscription to data services, contact your network operator or service
provider. See Modem settings p. 43.
The use of HSCSD services consumes the phone battery faster than normal voice
or data calls.
■Bluetooth
Use the Bluetooth technology to connect your compatible laptop to the internet.
Your phone must have activated a service provider that supports Internet access
and your PC must support Bluetooth wireless technology. After connecting to the
network access point (NAP) service of the phone and pairing with your PC your
phone automatically opens a packet data connection to the internet. PC Suite
software installation is not necessary when using the NAP service of the phone.
See Bluetooth wireless technology p. 42.
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Making or answering phone calls during a computer connection is not
recommended, as it might disrupt the operation.
75
FCC Draft
For better performance during data calls, place the phone on a stationary surface
with the keypad facing downward. Do not move the phone by holding it in your
hand during a data call.
19. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, replace the battery. Use only Nokia approved
batteries, and recharge your battery only with Nokia approved chargers designated for this
device.
If a replacement battery is being used for the first time or if the battery has not been used
for a prolonged period, it may be necessary to connect the charger, then disconnect and
reconnect it to begin charging the battery.
Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger, since overcharging may shorten its lifetime. If
left unused, a fully charged battery will lose its charge over time.
If the battery is completely discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object such as a coin, clip, or pen causes direct connection of the positive (+) and negative (-
) terminals of the battery. (These look like metal strips on the battery.) This might happen, for
example, when you carry a spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not
work temporarily, even when the battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when possible.
Do not dispose as household waste.
76
FCC Draft
Do not dismantle or shred cells or batteries. In the event of a battery leak, do not allow the
liquid to come in contact with the skin or eyes. In the event of such a leak, flush your skin or
eyes immediately with water, or seek medical help.
■Nokia battery authentication
Always use original Nokia batteries for your safety. To check that you are getting an original
Nokia battery, purchase it from an authorized Nokia dealer, look for the Nokia Original
Enhancements logo on the packaging, and inspect the hologram label using the following
steps:
Successful completion of the four steps is not a total assurance of the authenticity of the
battery. If you have any reason to believe that your battery is not an authentic, original
Nokia battery, you should refrain from using it, and take it to the nearest authorized Nokia
service point or dealer for assistance. Your authorized Nokia service point or dealer will
inspect the battery for authenticity. If authenticity cannot be verified, return the battery to
the place of purchase.
Authenticate hologram
1. When looking at the hologram on the label, you should see the
Nokia connecting hands symbol from one angle and the Nokia
Original Enhancements logo when looking from another angle.
2. When you angle the hologram left, right, down, and up, you
should see 1, 2, 3, and 4 dots on each side respectively.
3. Scratch the side of the label to reveal a 20-digit code, for
example, 12345678919876543210. Turn the battery so that
the numbers are facing upwards. The 20-digit code reads
starting from the number at the top row followed by the
bottom row.
77
FCC Draft
4. Confirm that the 20-digit code is valid by following the
instructions at www.nokia.com/batterycheck.
To create a text message enter the 20-digit code, for example,
12345678919876543210, and send to +44 7786 200276.
To create a text message,
• For countries in Asia Pacific, excluding India: Enter the 20-digit
code, for example, 12345678919876543210, and send to +61 427151515.
• For India only: Enter Battery followed by the 20-digit battery code, for example, Battery
12345678919876543210, and send to 5555.
National and international operator charges will apply.
You should receive a message indicating whether the code can be authenticated.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is an authentic
Nokia battery, please do not use the battery. Take it to the nearest authorized Nokia service
point or dealer for assistance. The use of a battery that is not approved by the manufacturer
may be dangerous and may result in poor performance and damage to your device and its
enhancements. It may also invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
78
FCC Draft
20. Technical Information
Weight 105 grams (3.7 ounces) incl. BL-5C bat-
tery
Battery 1020 mAh Li-Ion Battery
Networks Wireless networks GSM 850, 900,
1800 and 1900, WCDMA band I + V 850
and 2100
Size Volume: 4.6 cubic inches (76 ccm)
Length: 3.7 in (93.9 mm)
Width: 1.8 in (46.9 mm)
Thickness: 0.8 in (21.5 mm)
Frequency range (Rx) GSM 850: 869 - 894 MHz
GSM 900: 925 - 960 MHz
GSM1800: 1805 - 1880 MHz
GSM1900: 1930 - 1990 MHz
GSM2100: 2110 - 2170 MHz
Frequency range (Tx) GSM 850: 824 - 849 MHz
GSM 900: 880 - 915 MHz
GSM 1800: 1710 - 1785 MHz
GSM1900: 1850 - 1910 MHz
GSM2100: 1920 - 1980 MHz
Tx output power 2 W (max)
Battery voltage 3.7 V DC
Number of channels GSM 850: 124
GSM 900: 174
GSM 1800: 374
GSM1900: 299
Memory size 30 MB user memory
3 MB RAM
Operating temperature 5 °F to 95 °F
(-15 °C to +35 °C)
79
FCC Draft
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with
care. The following suggestions will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet, remove
the battery, and allow the device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards
and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity sensor, and
light sensor lenses.
• Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the device and may violate regulations
governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and calendar notes.
• To reset the device from time to time for optimum performance, power off the device
and remove the battery.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorized service facility for service.
80
FCC Draft
Additional safety information
■Small children
Your device and its enhancements may contain small parts. Keep them out of the reach of
small children.
■Operating environment
This device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 2.2 centimeters (7/8 inch) away from the body.
When a carry case, belt clip, or holder is used for body-worn operation, it should not contain
metal and should position the device the above-stated distance from your body.To transmit
data files or messages, this device requires a quality connection to the network. In some
cases, transmission of data files or messages may be delayed until such a connection is
available. Ensure the above separation distance instructions are followed until the
transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic storage media near the device, because information
stored on them may be erased.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may interfere
with the functionality of inadequately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are adequately shielded from
external RF energy or if you have any questions. Switch off your device in health care
facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a minimum separation of 15.3
centimeters (6 inches) should be maintained between a wireless device and an implanted
medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid
potential interference with the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimeters (6 inches) from the medical
device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimize the potential
for interference.
• Turn the wireless device off immediately if there is any reason to suspect that
interference is taking place.
81
FCC Draft
• Read and follow the directions from the manufacturer of their implanted medical device.
If you have any questions about using your wireless device with an implanted medical
device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If interference occurs,
consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)
braking systems, electronic speed control systems, and air bag systems. For more
information, check with the manufacturer, or its representative, of your vehicle or any
equipment that has been added.
Only qualified personnel should service the device or install the device in a vehicle. Faulty
installation or service may be dangerous and may invalidate any warranty that may apply to
the device. Check regularly that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable liquids, gases, or explosive materials
in the same compartment as the device, its parts, or enhancements. For vehicles equipped
with an air bag, remember that air bags inflate with great force. Do not place objects,
including installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere, and obey
all signs and instructions. Potentially explosive atmospheres include areas where you would
normally be advised to turn off your vehicle engine. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Switch off the device at refueling
points such as near gas pumps at service stations. Observe restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas
where the air contains chemicals or particles such as grain, dust, or metal powders.
82
FCC Draft
■Emergency calls
Important: Wireless phones, including this device, operate using radio signals,
wireless networks, landline networks, and user-programmed functions. Because of
this, connections in all conditions cannot be guaranteed. You should never rely
solely on any wireless device for essential communications like medical
emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Some networks may require that a valid SIM card is properly inserted in the device.
2. Press the end key as many times as needed to clear the display and ready the device for
calls.
3. Enter the official emergency number for your present location. Emergency numbers vary
by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before you can
make an emergency call. If the device is in the offline or flight profile mode, you may need to
change the profile to activate the phone function before you can make an emergency call.
Consult this guide or your service provider for more information.
If certain features are in use, you may first need to turn those features off before you can
make an emergency call. Consult this guide or your service provider for more information.
When making an emergency call, give all the necessary information as accurately as
possible. Your wireless device may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves recommended by international guidelines. These guidelines
were developed by the independent scientific organization ICNIRP and include safety
margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device transmitting at its highest certified power level
in all tested frequency bands. The actual SAR level of an operating device can be below the
maximum value because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how close you are
to a network base station. The highest SAR value under the ICNIRP guidelines for use of the
device at the ear is 0.31 W/kg.
83
FCC Draft
Use of device accessories and enhancements may result in different SAR values. SAR values
may vary depending on national reporting and testing requirements and the network band.
Additional SAR information may be provided under product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA) and Industry Canada. These
requirements set a SAR limit of 1.6 W/kg averaged over 1 gram of tissue. The highest SAR
value reported under this standard during product certification for use at the ear is 0.45 W/
kg and when properly worn on the body is 0.57 W/kg. Information about this device model
can be found at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system using FCC
ID: QTKRM-210.
84
FCC Draft
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association. All Rights Reserved. 1250
Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique combination of
convenience, safety and value delivered by the wireless telephone. Quite simply, the wireless
phone gives people the powerful ability to communicate by voice--almost anywhere,
anytime--with the boss, with a client, with the kids, with emergency personnel or even with
the police. Each year, Americans make billions of calls from their wireless phones, and the
numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that every wireless phone
user must uphold. When driving a car, driving is your first responsibility. A wireless phone
can be an invaluable tool, but good judgment must be exercised at all times while driving a
motor vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution
and courtesy. It requires a heavy dose of basic common sense---keep your head up, keep
your eyes on the road, check your mirrors frequently and watch out for other drivers. It
requires obeying all traffic signs and signals and staying within the speed limit. It means
using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This brochure is a call to
wireless phone users everywhere to make safety their first priority when behind the wheel of
a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting
us in emergencies and providing opportunities to help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial and redial. Carefully
read your instruction manual and learn to take advantage of valuable features most
phones offer, including automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your attention off the road.
2. When available, use a hands free device. A number of hands free wireless phone
accessories are readily available today. Whether you choose an installed mounted device
for your wireless phone or a speaker phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make sure you place your wireless phone
within easy reach and where you can grab it without removing your eyes from the road.
85
FCC Draft
If you get an incoming call at an inconvenient time, if possible, let your voice mail
answer it for you.
4. Suspend conversations during hazardous driving conditions or situations. Let the person
you are speaking with know you are driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading an address
book or business card, or writing a “to do” list while driving a car, you are not watching
where you are going. It’s common sense. Don’t get caught in a dangerous situation
because you are reading or writing and not paying attention to the road or nearby
vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or
before pulling into traffic. Try to plan your calls before you begin your trip or attempt to
coincide your calls with times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple tip--dial only a few
numbers, check the road and your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be distracting. Stressful
or emotional conversations and driving do not mix--they are distracting and even
dangerous when you are behind the wheel of a car. Make people you are talking with
aware you are driving and if necessary, suspend conversations which have the potential
to divert your attention from the road.
8. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
9. Use your wireless phone to call for help. Your wireless phone is one of the greatest tools
you can own to protect yourself and your family in dangerous situations--with your
phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident, road hazard or medical emergency.
Remember, it is a free call on your wireless phone!
10. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
11. Call roadside assistance or a special wireless non-emergency assistance number when
necessary. Certain situations you encounter while driving may require attention, but are
not urgent enough to merit a call for emergency services. But you still can use your
wireless phone to lend a hand. If you see a broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside assistance or other special non-emergency
wireless number.
86
FCC Draft
Careless, distracted individuals and people driving irresponsibly represent a hazard to
everyone on the road. Since 1984, the Cellular Telecommunications Industry Association and
the wireless industry have conducted educational outreach to inform wireless phone users
of their responsibilities as safe drivers and good citizens. As we approach a new century,
more and more of us will take advantage of the benefits of wireless telephones. And, as we
take to the roads, we all have a responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID=85
■Message from the FDA
The U.S. Food and Drug Administration (FDA) provides the following consumer information
about wireless phones.
See http://www.fda.gov/cellphones/ for updated information.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated
with using wireless phones. There is no proof, however, that wireless phones are absolutely
safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range
while being used. They also emit very low levels of RF when in the stand-by mode. Whereas
high levels of RF can produce health effects (by heating tissue), exposure to low level RF that
does not produce heating effects causes no known adverse health effects. Many studies of
low level RF exposures have not found any biological effects. Some studies have suggested
that some biological effects may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have had difficulty in reproducing
those studies, or in determining the reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products
such as wireless phones before they can be sold, as it does with new drugs or medical
devices. However, the agency has authority to take action if wireless phones are shown to
emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA
could require the manufacturers of wireless phones to notify users of the health hazard and
to repair, replace or recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged
the wireless phone industry to take a number of steps, including the following:
• Support needed research into possible biological effects of RF of the type emitted by
wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user that is not
necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible information on
possible effects of wireless phone use on human health.
87
FCC Draft
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the federal
level. The following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group activities,
as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications
Commission (FCC). All phones that are sold in the United States must comply with FCC
safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for
safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon. While these
base stations operate at higher power than do the wireless phones themselves, the RF
exposures that people get from these base stations are typically thousands of times lower
than those they can get from wireless phones. Base stations are thus not the primary subject
of the safety questions discussed in this document.
What is FDA doing to find out more about the possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of investigators
around the world to ensure that high priority animal studies are conducted to address
important questions about the effects of exposure to radiofrequency energy (RF). FDA has
been a leading participant in the World Health Organization International Electromagnetic
Fields (EMF) Project since its inception in 1996. An influential result of this work has been
the development of a detailed agenda of research needs that has driven the establishment of
new research programs around the world. The Project has also helped develop a series of
public information documents on EMF issues. FDA and the Cellular Telecommunications &
Internet Association (CTIA) have a formal Cooperative Research and Development
Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment of additional research needs in
the context of the latest research developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from my wireless
phone?
If there is a risk from these products--and at this point we do not know that there is--it is
probably very small. But if you are concerned about avoiding even potential risks, you can
take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time
88
FCC Draft
is a key factor in how much exposure a person receives, reducing the amount of time spent
using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could place
more distance between your body and the source of the RF, since the exposure level drops
off dramatically with distance. For example, you could use a headset and carry the wireless
phone away from your body or use a wireless phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless phones are harmful. But if you
are concerned about the RF exposure from these products, you can use measures like those
described above to reduce your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including
children and teenagers. If you want to take steps to lower exposure to radiofrequency
energy (RF), the measures described above would apply to children and teenagers using
wireless phones. Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure. Some groups sponsored by
other national governments have advised that children be discouraged from using wireless
phones at all. For example, the government in the United Kingdom distributed leaflets
containing such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their recommendation
to limit wireless phone use by children was strictly precautionary; it was not based on
scientific evidence that any health hazard exists.
Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from wireless phones, there is
no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with
wireless phones for convenience and comfort. These systems reduce the absorption of RF
energy in the head because the phone, which is the source of the RF emissions, will not be
placed against the head. On the other hand, if the phone is mounted against the waist or
other part of the body during use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet safety requirements regardless of
whether they are used against the head or against the body. Either configuration should
result in compliance with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation work?
Since there are no known risks from exposure to RF emissions from wireless phones, there is
no reason to believe that accessories that claim to shield the head from those emissions
reduce risks. Some products that claim to shield the user from RF absorption use special
phone cases, while others involve nothing more than a metallic accessory attached to the
phone. Studies have shown that these products generally do not work as advertised. Unlike
"hand-free" kits, these so-called "shields" may interfere with proper operation of the phone.
The phone may be forced to boost its power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission (FTC) charged two companies
that sold devices that claimed to protect wireless phone users from radiation with making
89
FCC Draft
false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable
basis to substantiate their claim.
How does FCC Audit Cell Phone RF?
After FCC grants permission for a particular cellular telephone to be marketed, FCC will
occasionally conduct “post-grant” testing to determine whether production versions of the
phone are being produced to conform with FCC regulatory requirements. The manufacturer
of a cell phone that does not meet FCC’s regulatory requirements may be required to remove
the cell phone from use and to refund the purchase price or provide a replacement phone,
and may be subject to civil or criminal penalties. In addition, if the cell phone presents a risk
of injury to the user, FDA may also take regulatory action. The most important post-grant
test, from a consumer’s perspective, is testing of the RF emissions of the phone. FCC
measures the Specific Absorption Rate (SAR) of the phone, following a very rigorous testing
protocol. As is true for nearly any scientific measurement, there is a possibility that the test
measurement may be less than or greater than the actual RF emitted by the phone. This
difference between the RF test measurement and actual RF emission is because test
measurements are limited by instrument accuracy, because test measurement and actual
use environments are different, and other variable factors. This inherent variability is known
as “measurement uncertainty.” When FCC conducts post-grant testing of a cell phone, FCC
takes into account any measurement uncertainty to determine whether regulatory action is
appropriate. This approach ensures that when FCC takes regulatory action, it will have a
sound, defensible scientific basis.
FDA scientific staff reviewed the methodology used by FCC to measure cell phone RF, and
agreed it is an acceptable approach, given our current understanding of the risks presented
by cellular phone RF emissions. RF emissions from cellular phones have not been shown to
present a risk of injury to the user when the measured SAR is less than the safety limits set
by FCC (an SAR of 1.6 w/kg). Even in a case where the maximum measurement uncertainty
permitted by current measurement standards was added to the maximum permissible SAR,
the resulting SAR value would be well below any level known to produce an acute effect.
Consequently, FCC’s approach with measurement uncertainty will not result in consumers
being exposed to any known risk from the RF emitted by cellular telephones.
FDA will continue to monitor studies and literature reports concerning acute effects of cell
phone RF, and concerning chronic effects of long-term exposure to cellular telephone RF
(that is, the risks from using a cell phone for many years). If new information leads FDA to
believe that a change to FCC’s measurement policy may be appropriate, FDA will contact
FCC and both agencies will work together to develop a mutually-acceptable approach.
Updated July 29, 2003
90
FCC Draft
Index
A
access codes 9
accessories. See enhancements.
activation keys 49
active standby mode 17, 40
alarm clock 57
antenna 15
applications 66
audio messages 28
B
barring password 9
battery
authentication 76
charging 13
charging, discharging 75
installation 11
blacklist 32
Bluetooth 42, 74
bookmarks 69
browser
appearance settings 70
bookmarks 69
security 71
setting up 68
business cards 37
C
cache memory 72
calculator 59
calendar 58
call functions 20
call key 15
call log 38
call register. See call log.
call waiting 21
calls
answering 21
international 20
making 20
options 22
rejecting 21
settings 46
speed dialing 20
voice dialing 21
camera
effects 53
filter 53
flash 16
settings 53
taking images 52
camera key 16
certificates 72
character case 24
Charger connector 16
charging the battery 13
CIF camera lens 15
clock settings 40
close bumper 15
codes 9
configurations
general 47
setting service 9
settings 14
contact information 11
contacts
copying 36
deleting 37
editing 37
groups 38
saving 36
searching 36
settings 37
speed dialing 38
cookies 71
copyright protection 49
countdown timer 60
customer service 11
D
data cable 45
data communication 74
data transfer 44
date settings 40
deleting messages 33
digital rights management 49
digital signature 73
display 15, 17
downloading protected files 49
downloads 10, 71
E
earpiece 15
EGPRS 43
91
FCC Draft
e-mail application 30
end key 15
ending calls 20
enhancements 8
equalizer 57
F
factory settings 50
flash messages 28
FM radio 55
font size 40
G
gallery 51
games 66
GPRS 43
H
handsfree. See loudspeaker.
Headset connector 16
I
images 52
IMAP4 30
indicators 18
info messages 32
installation
battery 11
SIM card 11
instant messaging 32
internet 68
J
junk folder 32
K
keyguard 19
keypad 15
keypad lock 19
keys 15, 19
L
language settings 47
log 38
loudspeaker 16, 22
M
main display 15, 17, 40
memory card 51
Memory card slot 16
memory full 29
menu 25
message center number 26
message folders 29
message settings
e-mail 35
general 33
multimedia messages 34
text messages 33
messages
audio messages 28
deleting 33
flash messages 28
info messages 32
length indicator 26
service commands 32
settings 33
voice messages 32
mini display 16, 17
MMS. See multimedia messages.
multimedia messages 27
music key 16
N
Navi key. See scroll key.
navigation 25
network
name on display 17
network mode 17
Nokia contact information 11
notes 58, 59
O
offline mode 20
operator menu 50
organizer 57
P
packet data 43, 74
parts 15
PC connectivity 74
PC Suite 74
phone
configuration 47
keys 15
open 14
92
FCC Draft
parts 15
settings 46
phone lock. See keypad lock.
PictBridge 45
PIN codes 9, 14
play 16
plug and play service 14
POP3 30
predictive text input 24, 25
profiles 39
protected files 49
PTT. See push to talk.
PUK codes 9
push to talk 61
pushed messages 71
R
radio 55
recorder 57
ringing tones 39
S
safety information 6
scroll key 15
scrolling 25
security
codes 9
module 72
settings 48
selection keys 15
service commands 32
service inbox 71
service messages 71
services 68
settings
active standby 40
call 46
camera 53
clock 40
configuration 47
connectivity 42
data transfer 44
date 40
downloads 71
fold animation 40
GPRS, EGPRS 43
main display 40
messages 33
my shortcuts 41
phone 46
profiles 39
PTT 65
PTT configuration 66
restore factory settings 50
security 48
service inbox 71
themes 39
time 40
tones 39
USB data cable 45
wallpaper 40
shortcuts 41
signal strength 17
SIM card
functions without 20
installation 11
messages 33
services 67
SMS. See text messages.
software updates 10
spam filter 32
speakerphone. See loudspeaker.
speed dialing 20, 38
standby mode 17, 41
status indicators 17
stopwatch 60
strap 14
switching on and off 14
swivel 40
synchronization 44
T
taking images 52
text 24
text messages 26
themes 39
time settings 40
to-do list 59
tones 39
traditional text input 24
U
unlocking keypad 19
UPIN code 14
USB port 16
V
voice
commands 41
dialing 21
messages 32
93
FCC Draft
recorder 57
volume key 16
W
wallpaper 40
web 68
wireless markup language (WML) 68
wrist strap 14
writïng text 24
X
XHTML 68
Z
zoom key 16
